非常感谢来自 PETER PICHLER ARCHITECTURE 对gooood的分享。更多关于他们：PETER PICHLER ARCHITECTURE on gooood。
Appreciation towards PETER PICHLER ARCHITECTURE for providing the following description:

Peter Pichler Architecture最近落成的Bonfiglioli总部大楼现已揭幕，该项目位于意大利博洛尼亚的Calderara di Reno。新总部设计旨在打造一座高效且功能齐全的办公建筑，同时展现出这家意大利公司的专业性、创新性以及引以为傲的历史。

Peter Pichler Architecture unveils the recently completed Bonfiglioli Headquarters located in Calderara di Reno, Bologna, Italy. The new Headquarters arose from the need to create an efficient and functional office building that expresses the professionalism, innovation, and proud history of the Italian company.

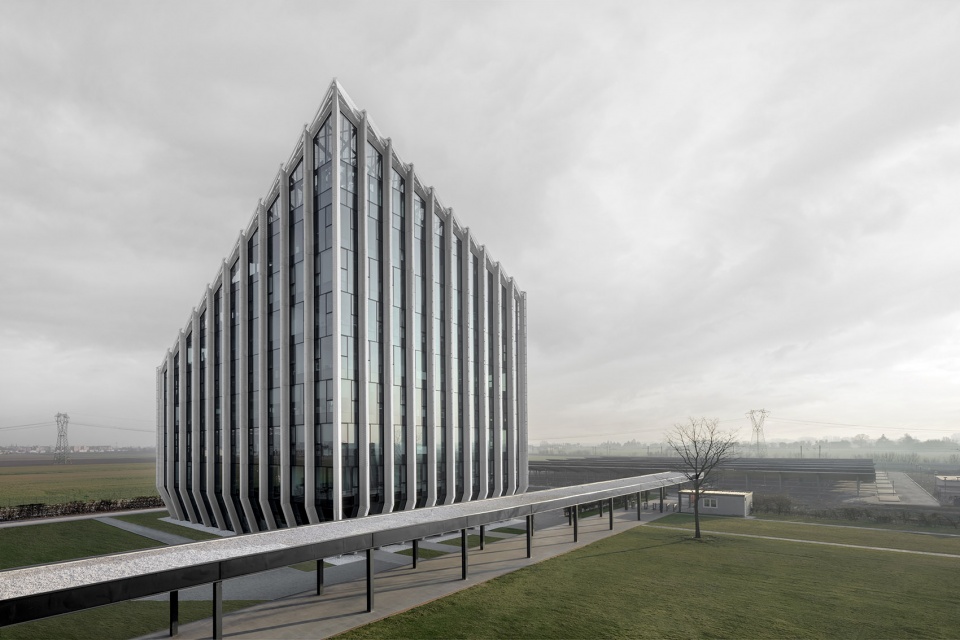

▼建筑概览，Overview of the building ©Gustav Willeit

Bonfiglioli公司创立于1956年，是一家拥有领先地位的制造商以及供应商，产品涵盖齿轮减速机、驱动系统、减速机齿轮箱和变频器等。Bonfiglioli的产品方案在全球范围内的自动化、移动机械和可再生能源领域都具有强有力的推动作用。

Founded in 1956, Bonfiglioli is a leading manufacturer and supplier of a complete range of gear motors, drive systems, planetary gearboxes, and inverters. Bonfiglioli’s solutions are a driving force in industrial automation, mobile machinery, and renewable energy sectors worldwide.

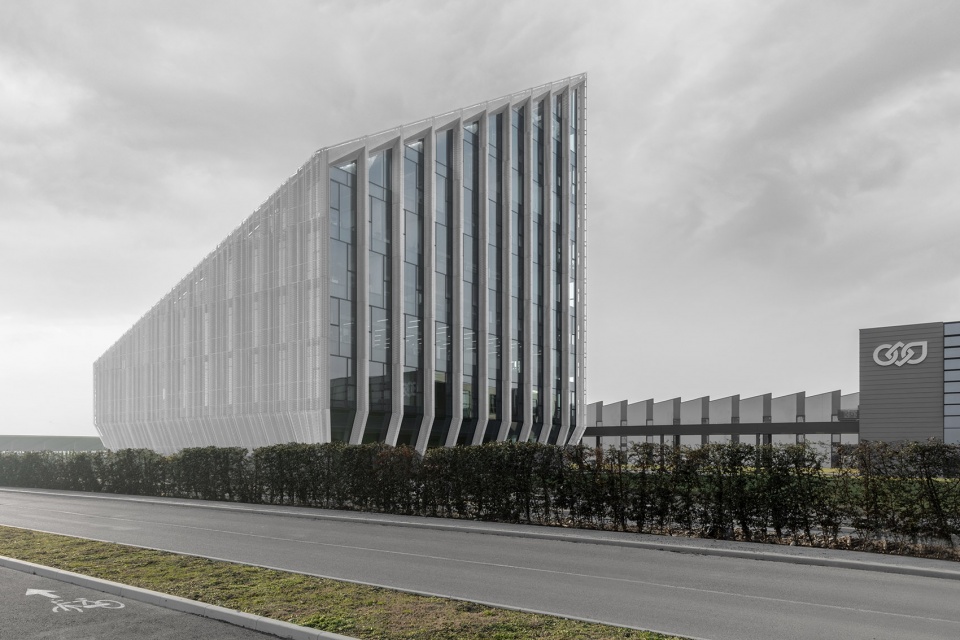

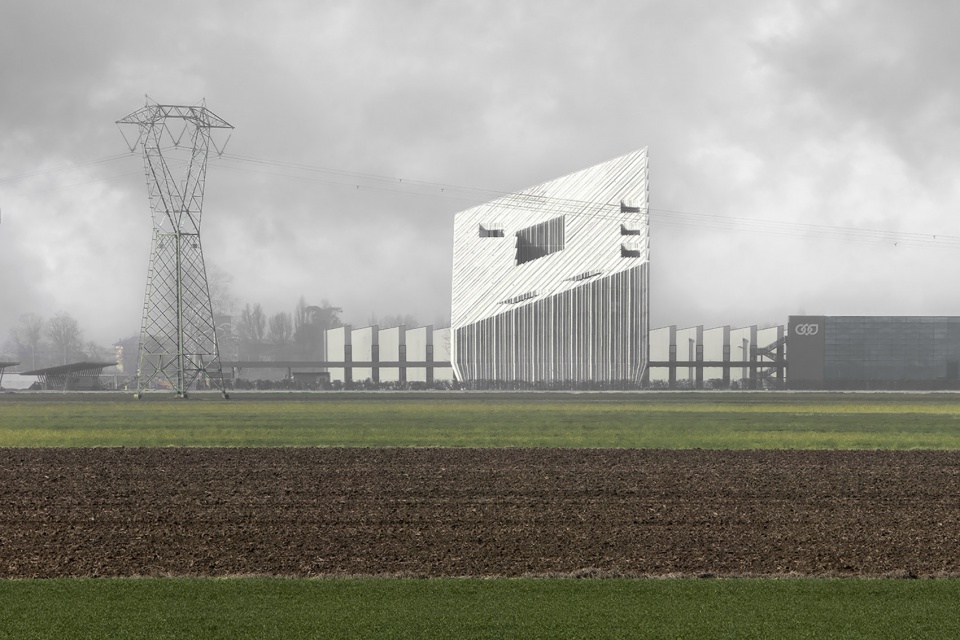

▼环境中的建筑，Building in the environment ©Gustav Willeit

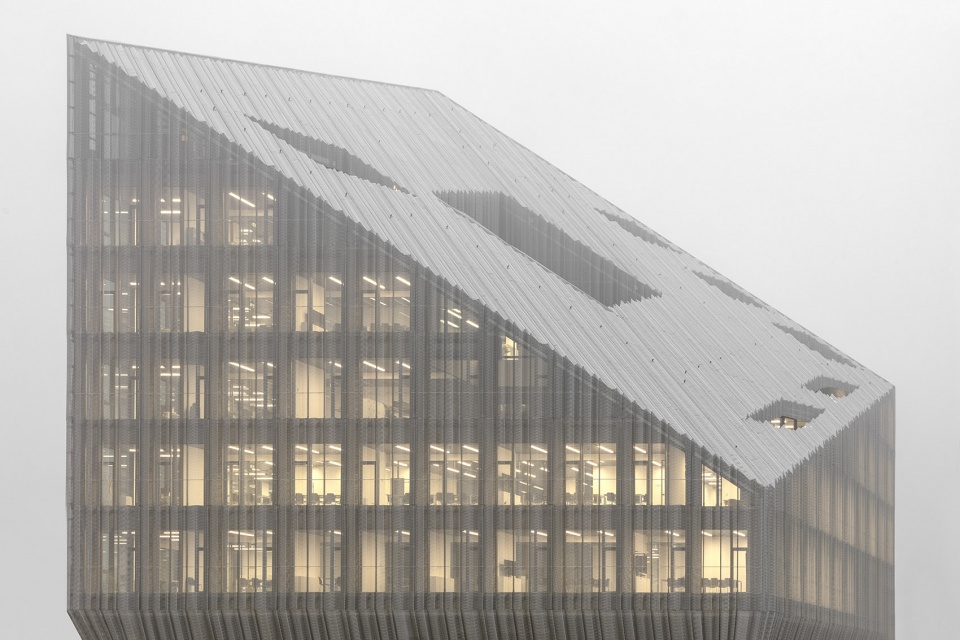

▼建筑特写，Close-up of the building ©Gustav Willeit

总部大楼设计是该公司在意大利最大的工业基地EVO大型发展战略的最后一块版图。EVO的设计符合最新的能效标准，在环境影响方面表现十分出色，它由3MW弱电光伏板驱动，覆盖在新工厂的屋顶以及员工停车场的顶棚上。新总部大楼的设想是一座NZEB建筑（几乎零能耗建筑），带有地源热泵和屋顶太阳能板，进一步节约能源的同时保证室内舒适。该建筑成为了一座引人注目的地标，既高耸入云又不显得突兀—以精妙的几何形态打造的先进可持续方案。

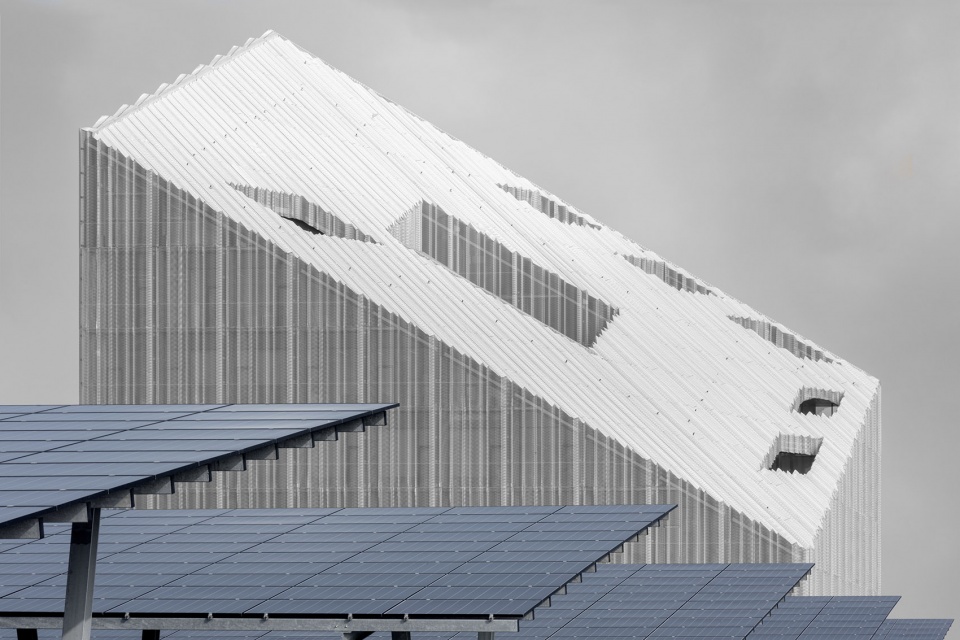

▼表皮光影，Shadow and light of the second skin ©Gustav Willeit

The headquarters is the last missing piece in a larger development called EVO, the Group’s largest industrial site in Italy. EVO is designed to satisfy the most recent energy efficiency standards, offering outstanding performance in terms of environmental impact, powered by a 3 MW peak power photovoltaic plant, mounted not only on the existing new plant roofs but also on the awnings of the staff car park. The new HQ is conceived as NZEB(nearly Zero Energy Building) and features geothermal heat pumps and radiant ceilings to further save energy and obtain additional internal comfort. It stands out as a recognizable landmark that both rises above and integrates itself with the surroundings—a radical approach towards sustainability with intelligent geometry.

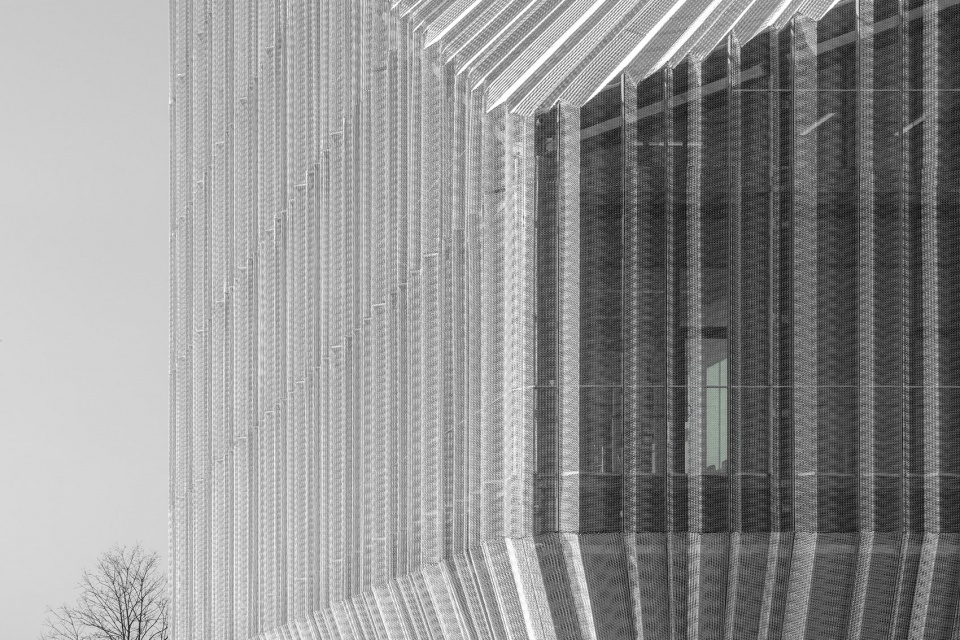

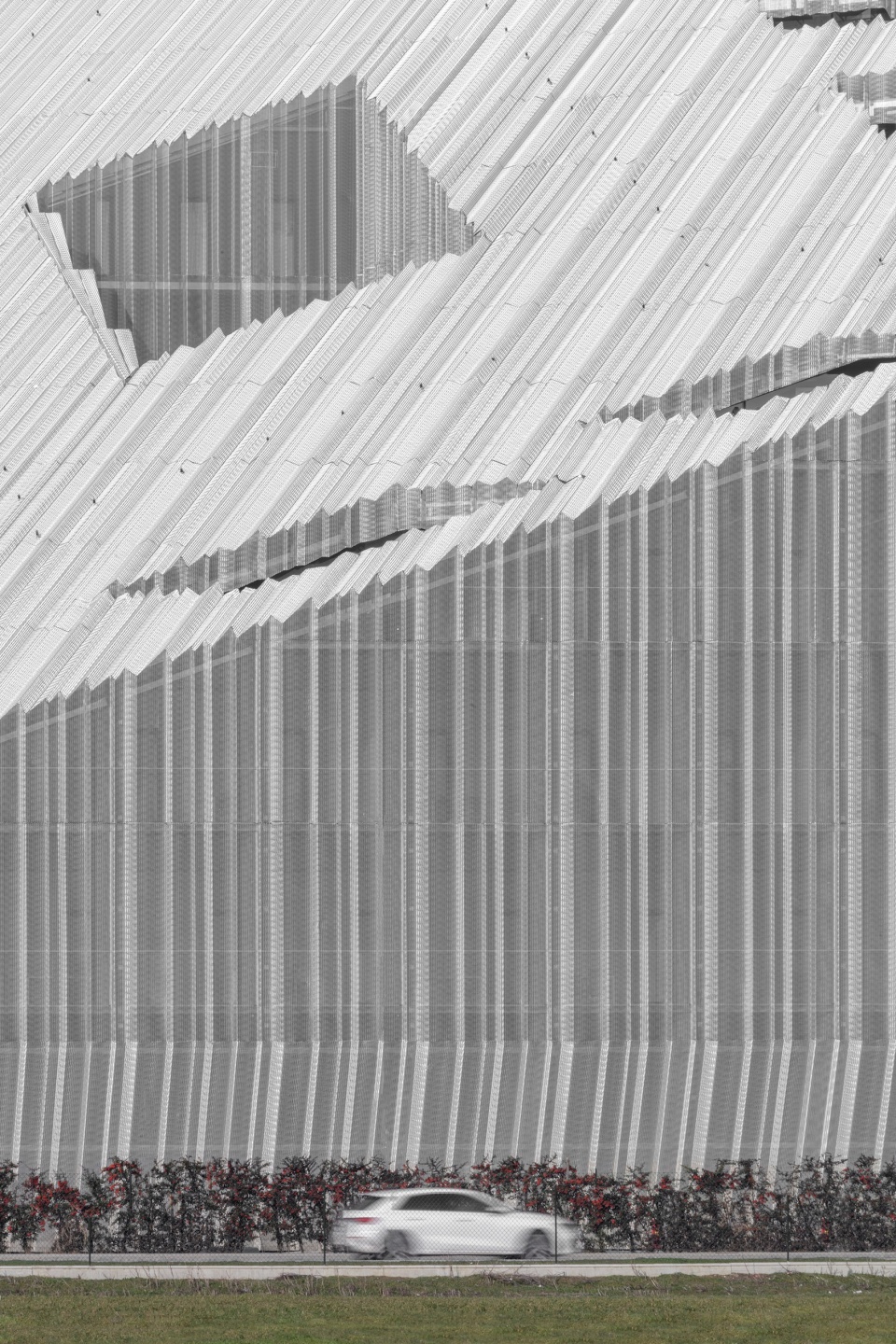

▼表皮特写，Close-up of the second skin ©Gustav Willeit

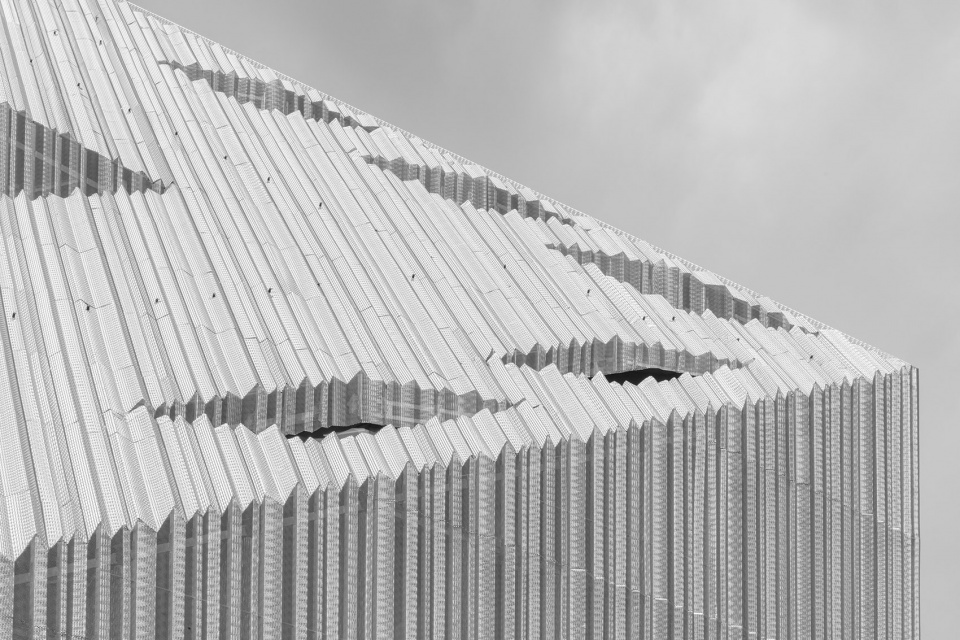

▼波纹铝板肌理，Textures of the pleated aluminum mesh ©Gustav Willeit

设计的出发点旨在将现有的庭院化建筑类型转化为综合体量建筑。该庭院拥有一个位于首层的绿色花园，通过烟囱效应强化了自然通风。根据当地采光朝向，该建筑屋顶呈倾斜状，建筑师将北立面扩大以获得最佳的的直射太阳光。总部的南立面和屋顶采用了定制的波纹铝制穿孔板作为外层表皮，既过滤了强光保证室内舒适度，也节约了能源。波纹状的几何形态灵感来源于公司生产的齿轮装置，铝制穿孔板令人联想起公司供应链中每天生产的刨花片。

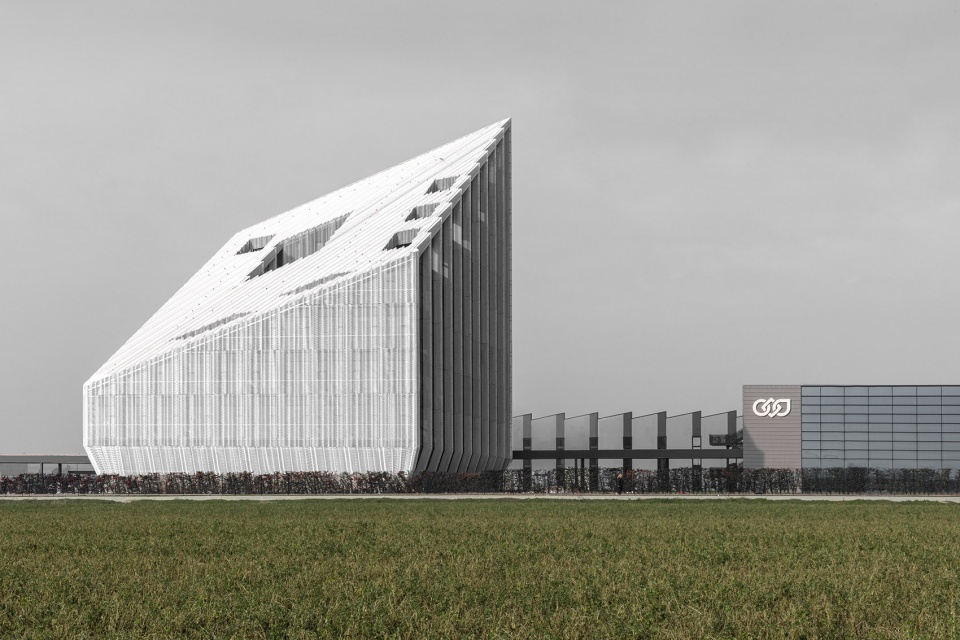

▼倾斜的屋顶，Titled roof ©Gustav Willeit

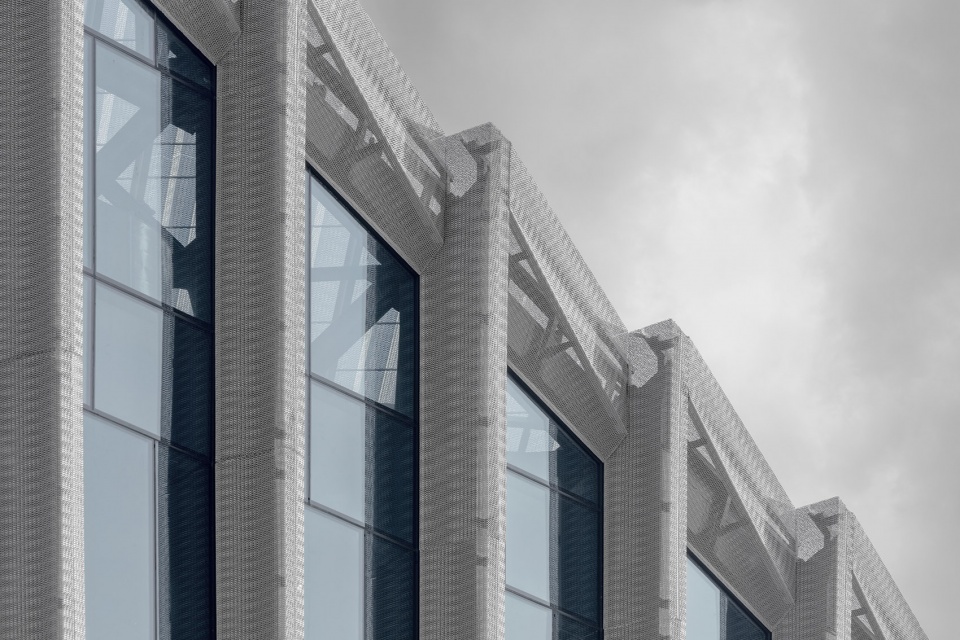

▼立面特写，Close-up of the facade ©Gustav Willeit

The starting point of the design was to incorporate the courtyard typology of the existing masterplan buildings into the massing. This courtyard houses a green garden on the ground floor and enhances natural ventilation through a chimney effect. In response to local sunlight conditions, the building’s roof has been tilted, enlarging the north facade to maximize workspace with indirect natural light. The south-facing facades and roof of the headquarters are clad in a second skin made from a custom continuous pleated aluminum mesh, which filters intense light and ensures a comfortable indoor environment while saving energy. The pleated geometry is inspired by the company’s gears while the aluminum mesh recalls the shavings that are produced daily as a by product of the company’s supply chain.

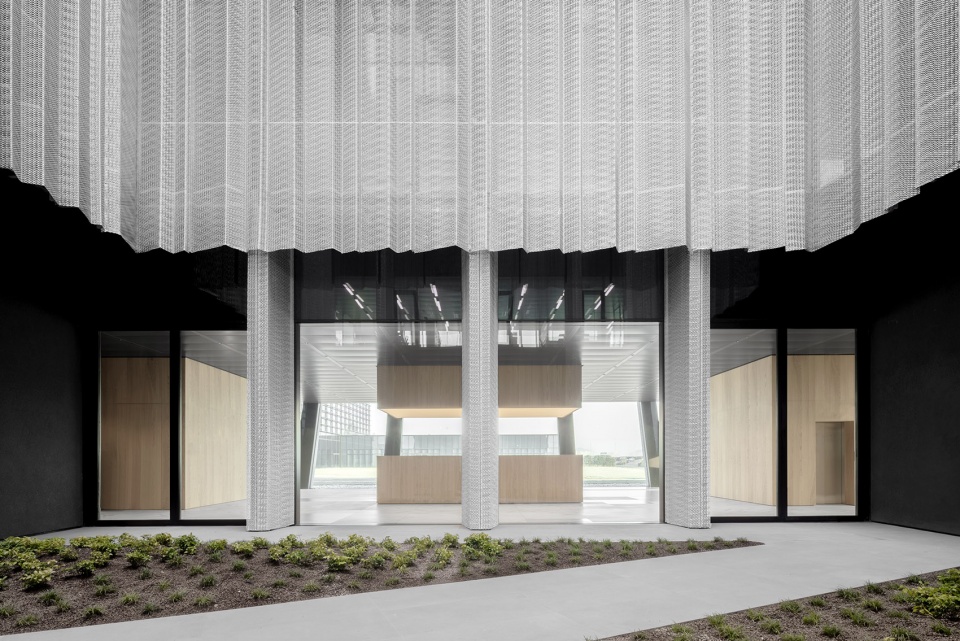

▼庭院，Courtyard ©Gustav Willeit

该建筑在设计时考虑了未来使用的灵活性，采用Exo架构外墙，实现了无柱的开放空间。建筑的室内是现代办公空间设计的典范，旨在促进联络与合作。布局设计十分综合有序，各个部门被横向分布在多个楼层，尽可能为社交互动，以及与周围建筑协作创造条件。两座雕塑般的旋转楼梯，由钢结构打造，不仅实现了各楼层间的联系，也具有引发创意交流，灵感互换的象征意义。在建筑的3层，一座通过内部庭院的连桥将各部门连通，促进工作与交流。

▼秩序井然的室内，Thoughtfully orchestrated interior ©Gustav Willeit

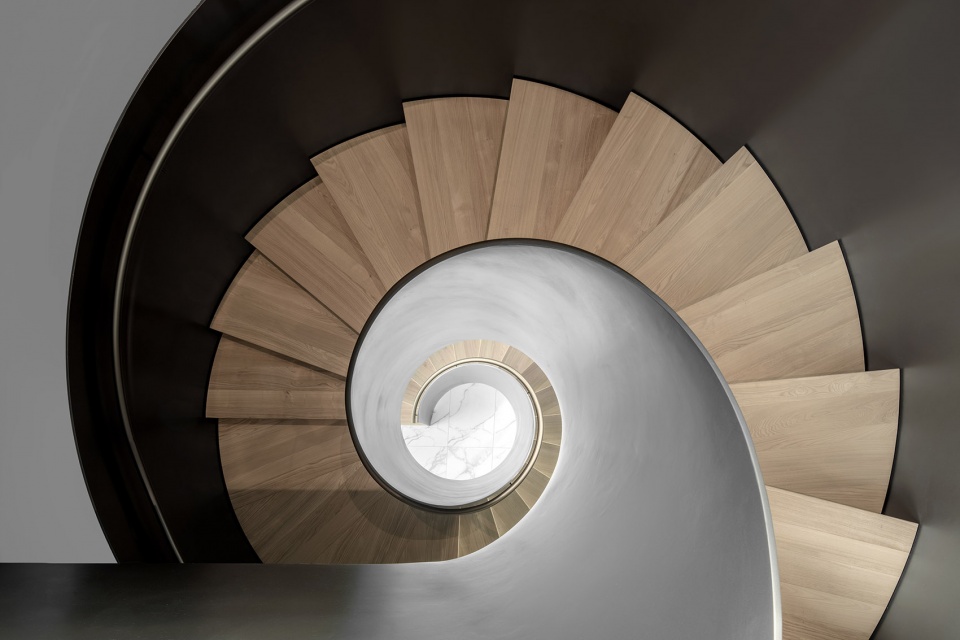

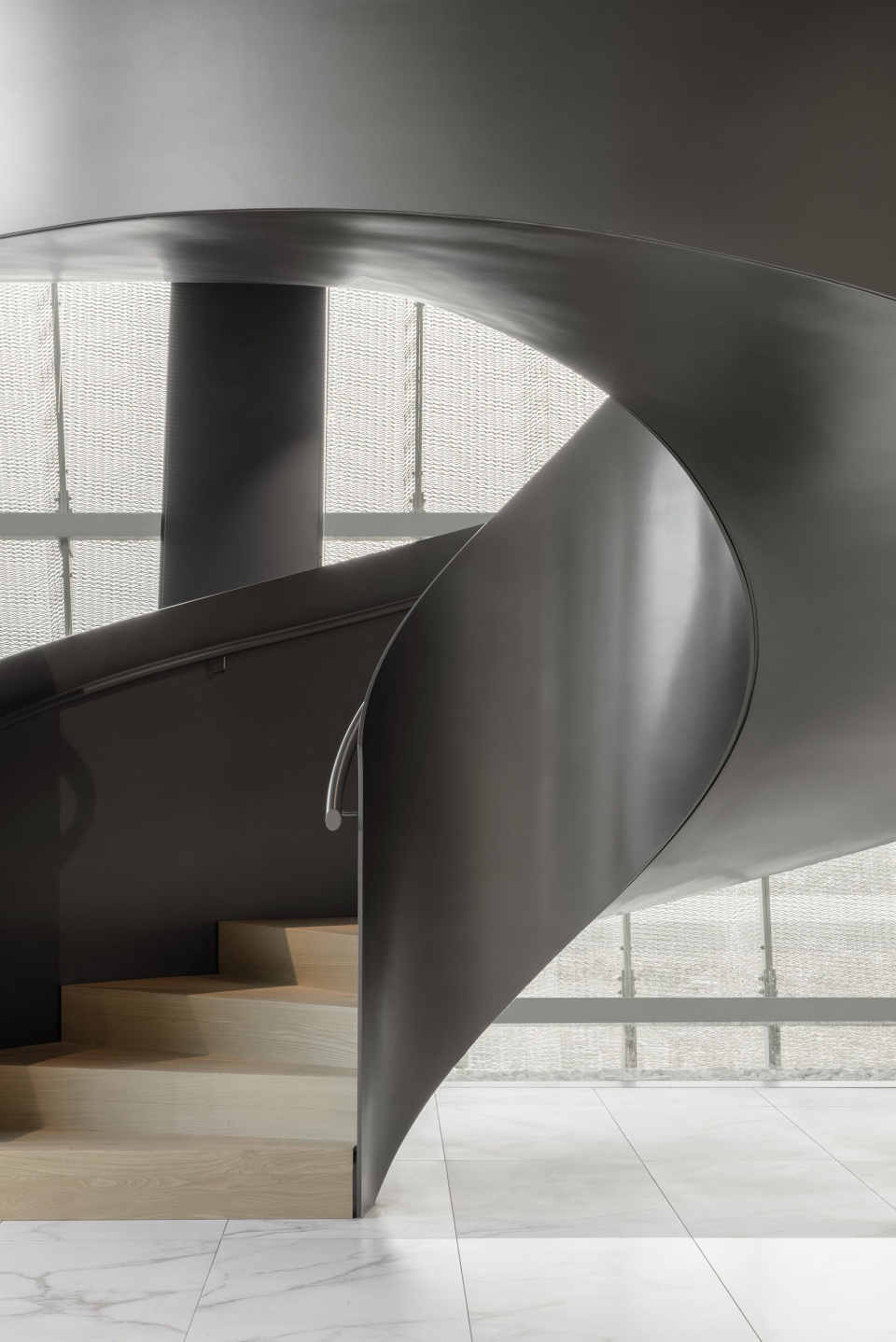

▼楼梯特写，Close-up of the staircase ©Gustav Willeit

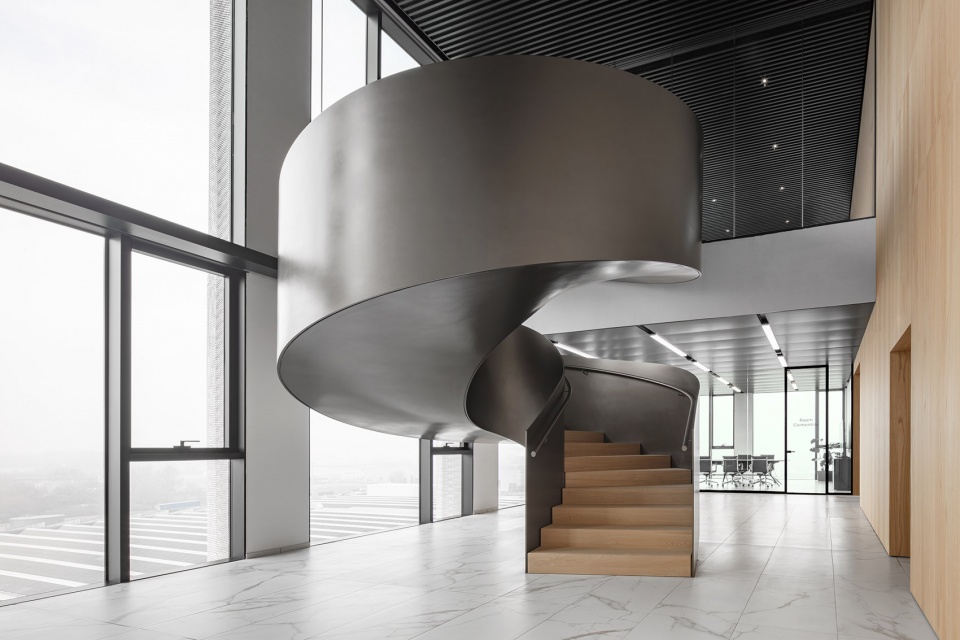

▼优雅的形态，Elegant shape ©Gustav Willeit

Designed with future flexibility in mind, the building features column-free open spaces through an Exo skeleton façade. Inside, the building is a testament to modern workplace design, fostering connectivity and collaboration. The layout is thoughtfully orchestrated, with departments distributed across various levels, for optimal public interaction and synergy with surrounding buildings. Two sculptural spiral staircases, crafted from steel, are more than a physical connectors between floors, but a symbolic vortex of creativity exchange, inviting a continuous flow of ideas. On the 3rd floor, a bridge through the internal courtyard connects the department to facilitate the workflow and communication.

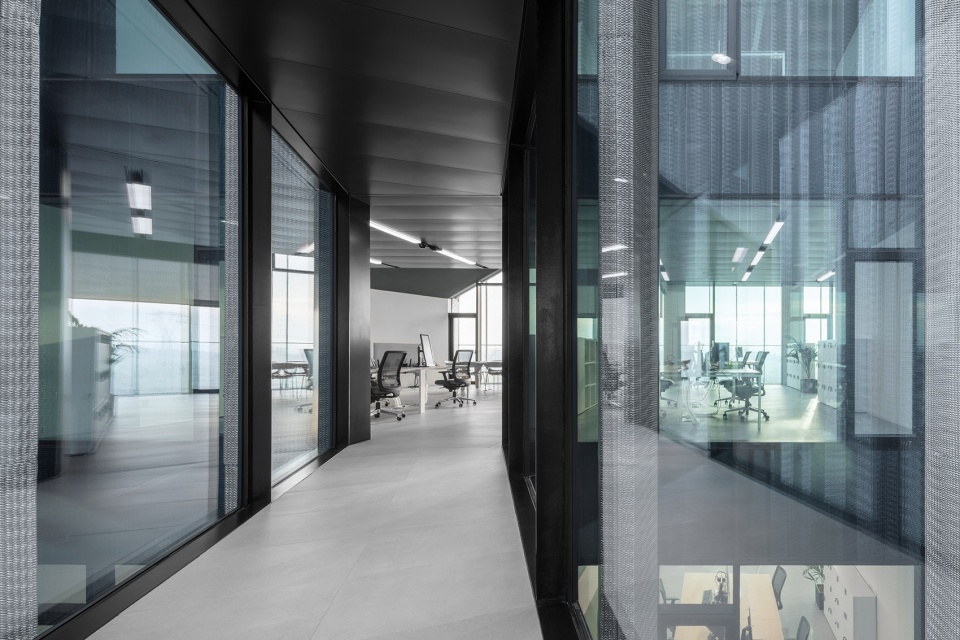

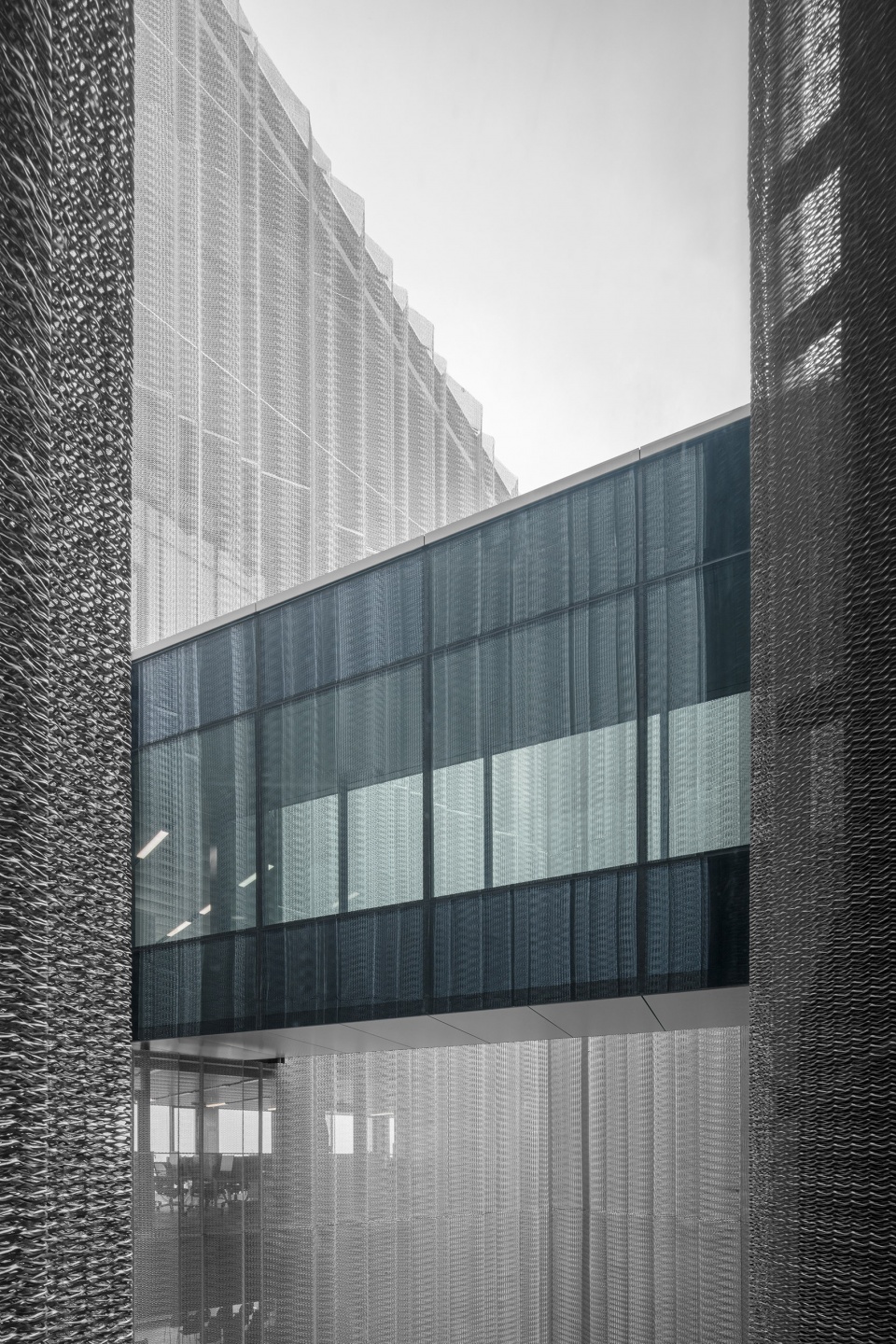

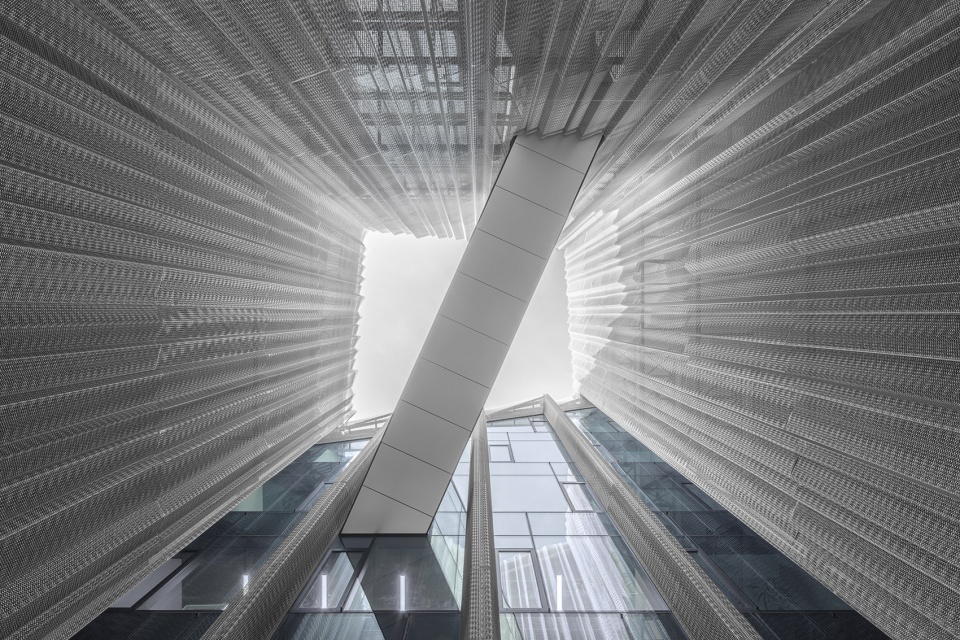

▼连桥，The bridge ©Gustav Willeit

▼连桥立面，Facade of the bridge ©Gustav Willeit

该建筑特别强调了健康与舒适，利用绿化空间和最大化直射自然光，改善工作环境。独特的倾斜屋顶最终形成了六个露台，均朝南布置。这些露台拥有宁静的室外空间供员工思考或休憩，还能欣赏到标志性的圣卢卡圣母院（Santuario Madonna di San Luca）。这些室外空间以及美丽景色，丰富了员工的日常体验。

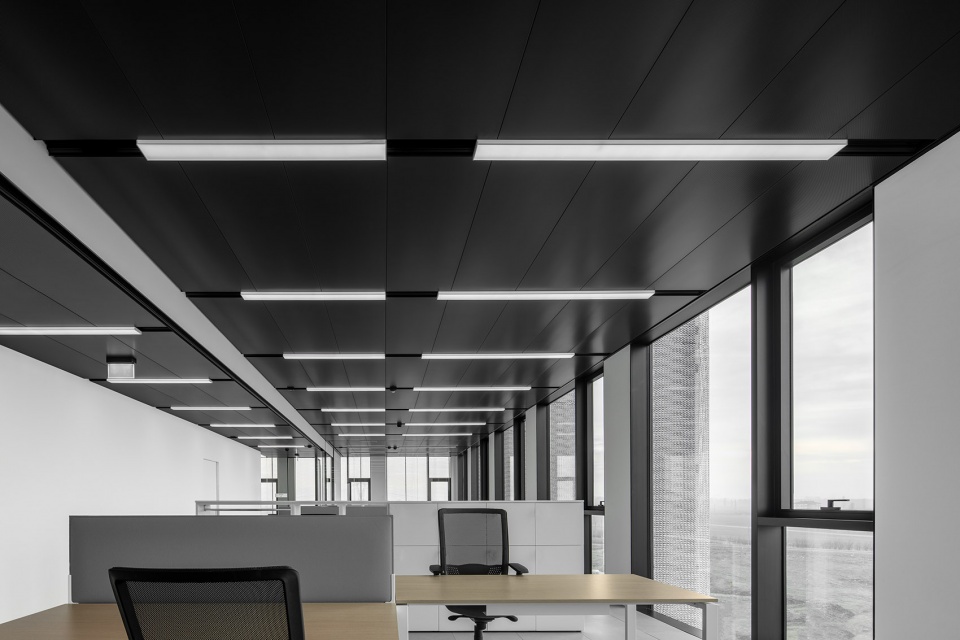

▼办公空间概览，Overview of the workplace ©Gustav Willeit

The building places a special emphasis on health and well-being, incorporating green spaces and maximizing indirect natural light to enhance the work environment. Its unique sloped roof design culminates in six terraces, all oriented towards the south. These terraces provide serene outdoor spaces for reflection and pause, offering views of the iconic Santuario Madonna di San Luca. This connection to the outdoors, together with the views, enriches the daily experience of those who work there.

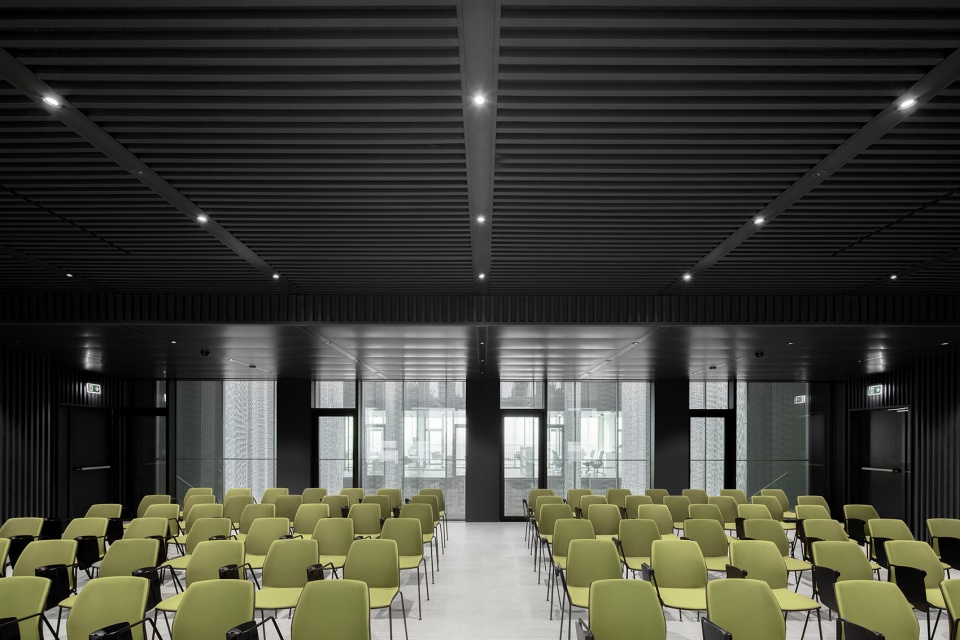

▼会议室，Meeting space ©Gustav Willeit

Bonfiglioli的新大楼不仅是办公场所，还是工业领域中可持续设计潜力的见证。它为低碳、能源自主型建筑设立了典范，同时符合循环经济理念，可随时根据公司和人员不断变化的需求做出改变。

Bonfiglioli’s new headquarters is not just a place of work but a testament to the potential of sustainable design in the industrial sector. It stands as a model for low-carbon, energy-autonomous buildings and embodies the principles of the circular economy, ready to adapt to the evolving needs of the company and its people.

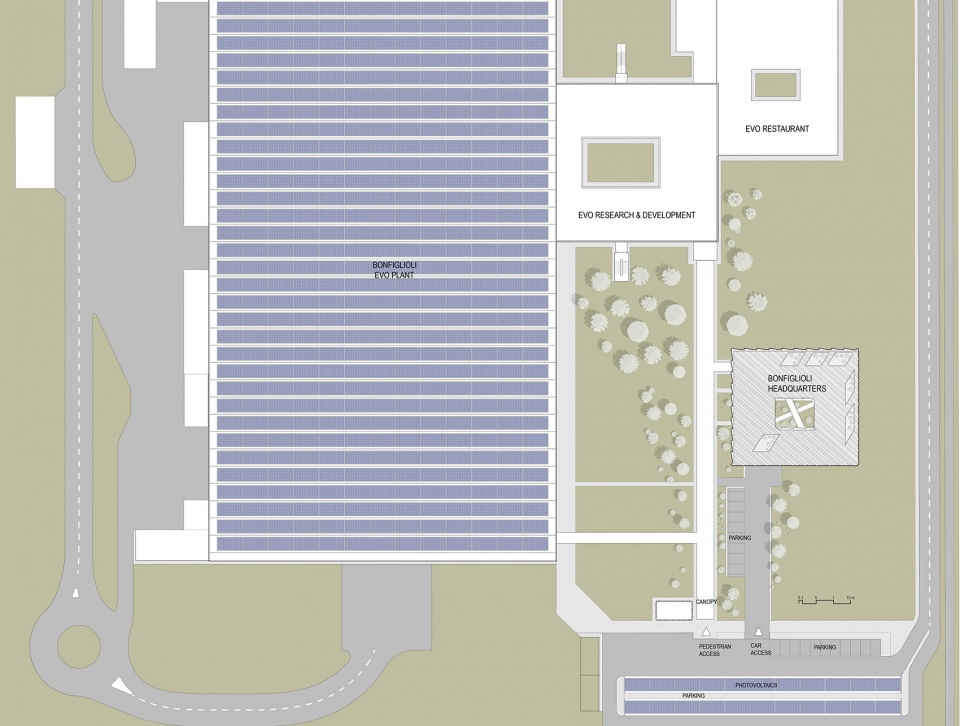

▼场地平面，Site plan ©Peter Pichler Architecture

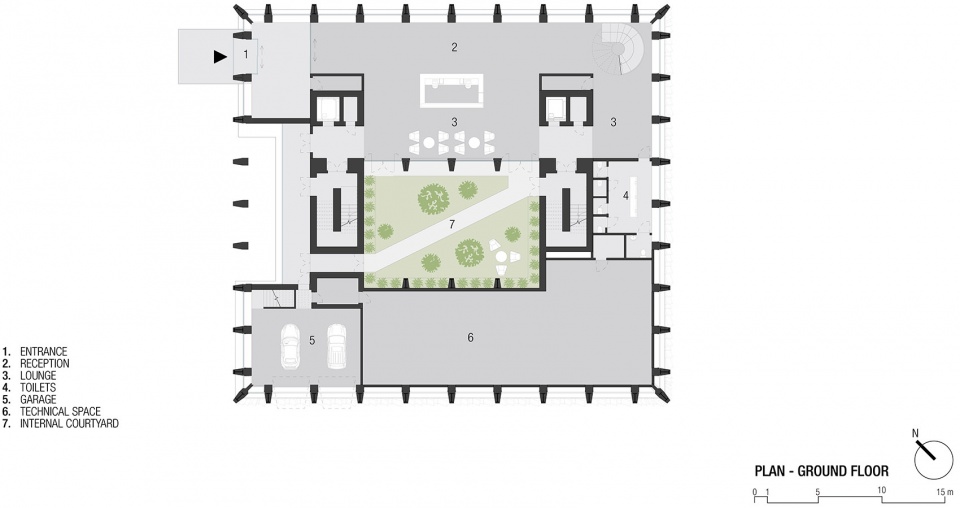

▼首层平面，Ground floor plan ©Peter Pichler Architecture

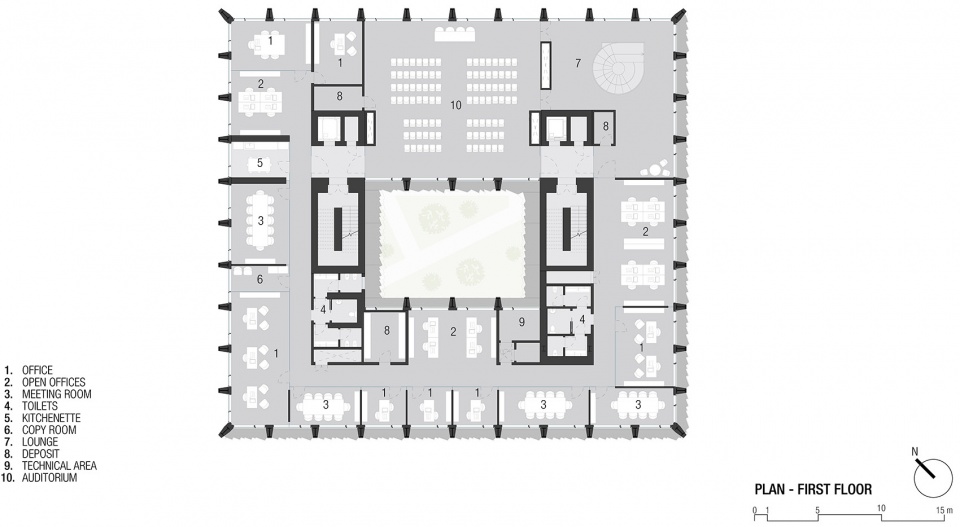

▼一层平面，First floor plan ©Peter Pichler Architecture

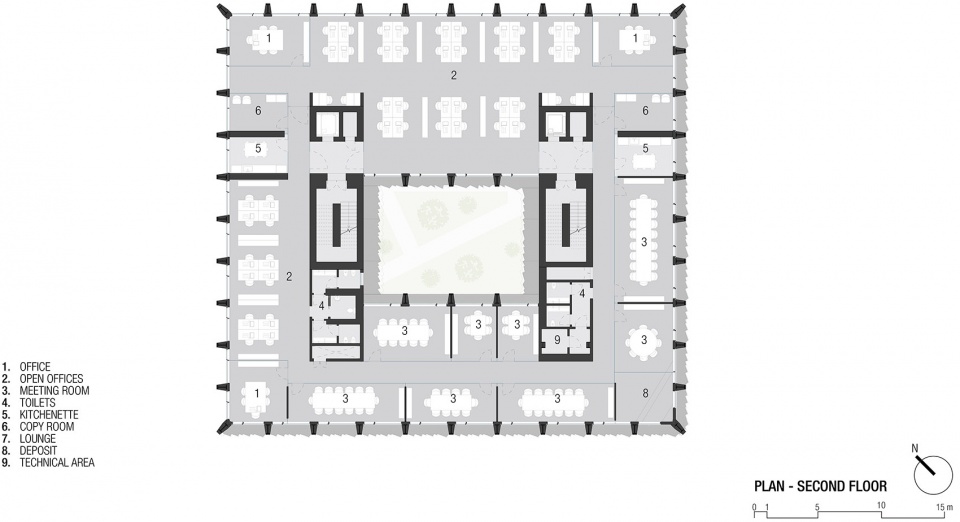

▼二层平面，Second floor plan ©Peter Pichler Architecture

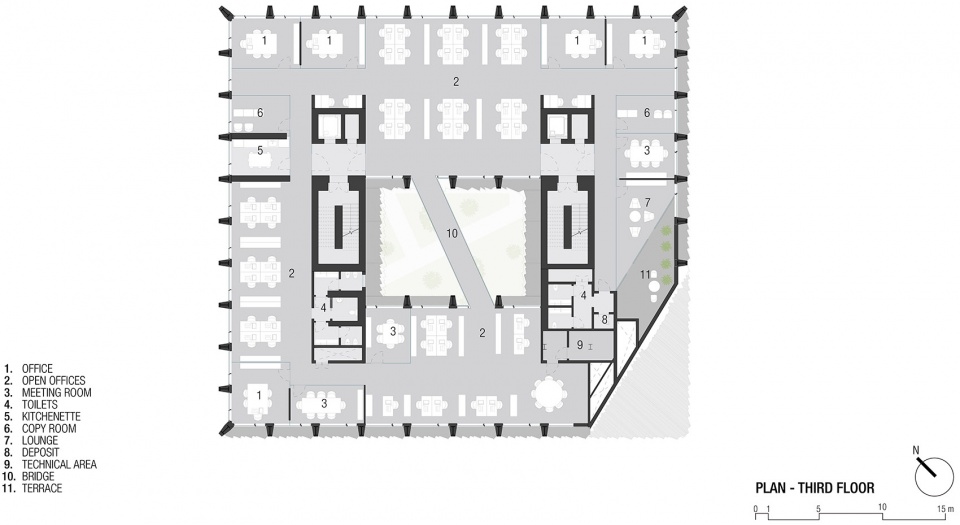

▼三层平面，Third floor plan ©Peter Pichler Architecture

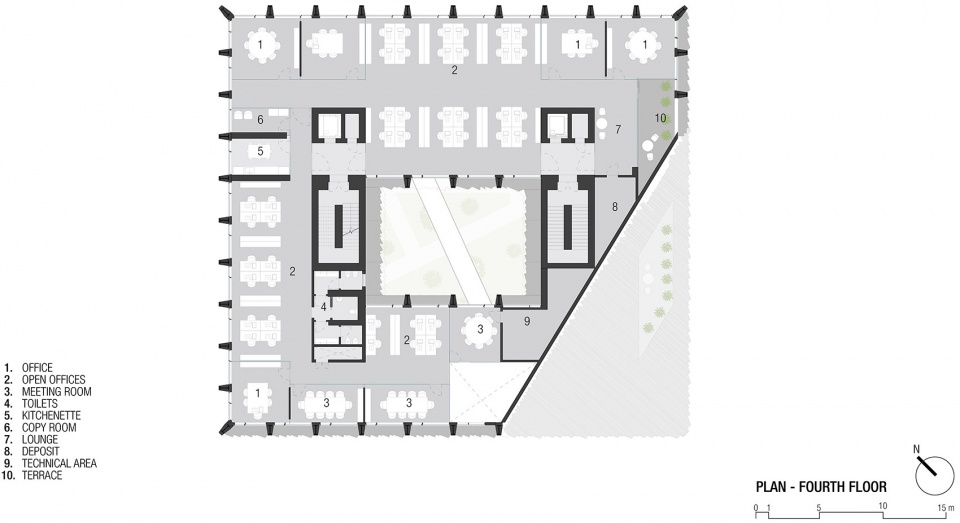

▼四层平面，Fourth floor plan ©Peter Pichler Architecture

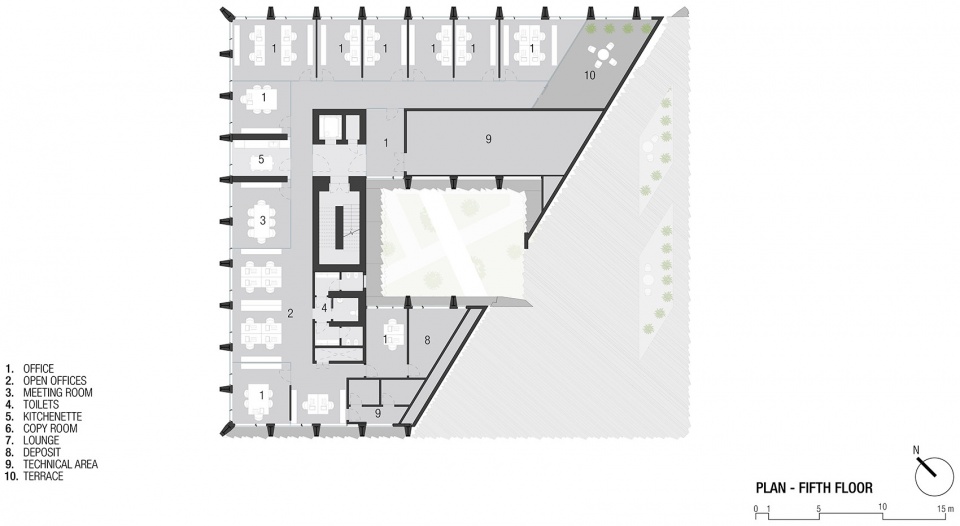

▼五层平面，Fifth floor plan ©Peter Pichler Architecture

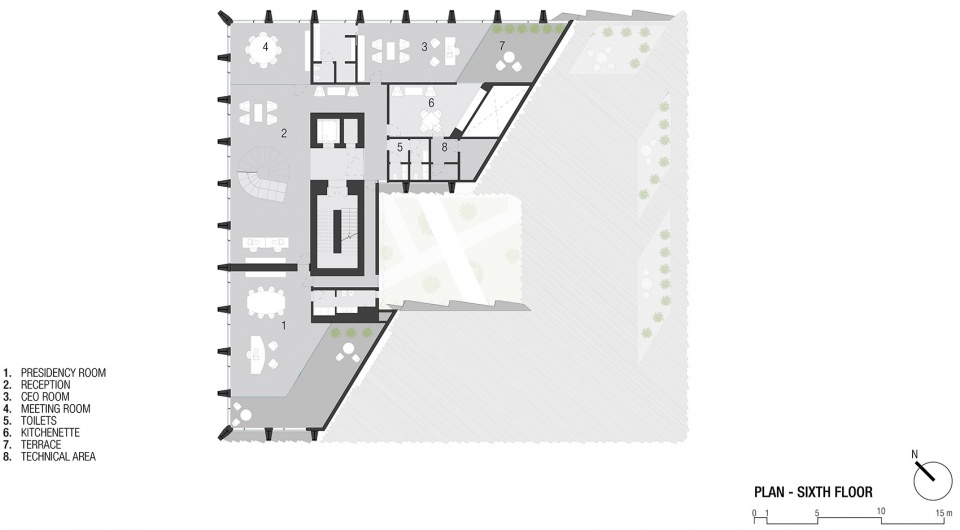

▼六层平面，Sixth floor plan ©Peter Pichler Architecture

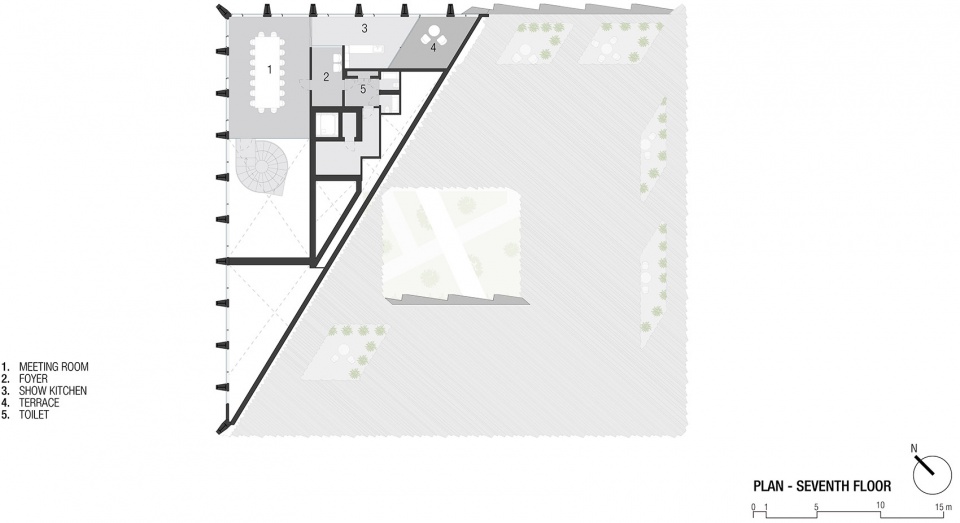

▼七层平面，Seventh floor plan ©Peter Pichler Architecture

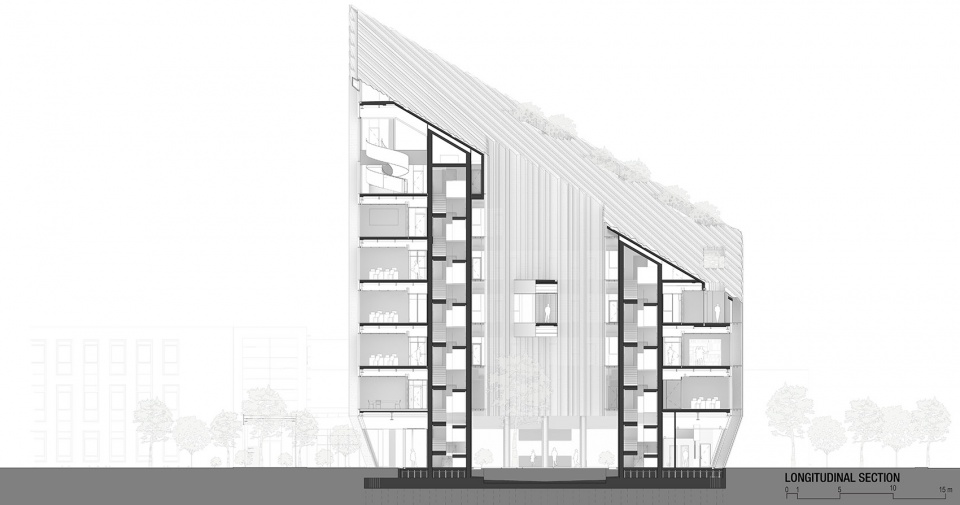

▼纵剖面，Longitudinal section ©Peter Pichler Architecture

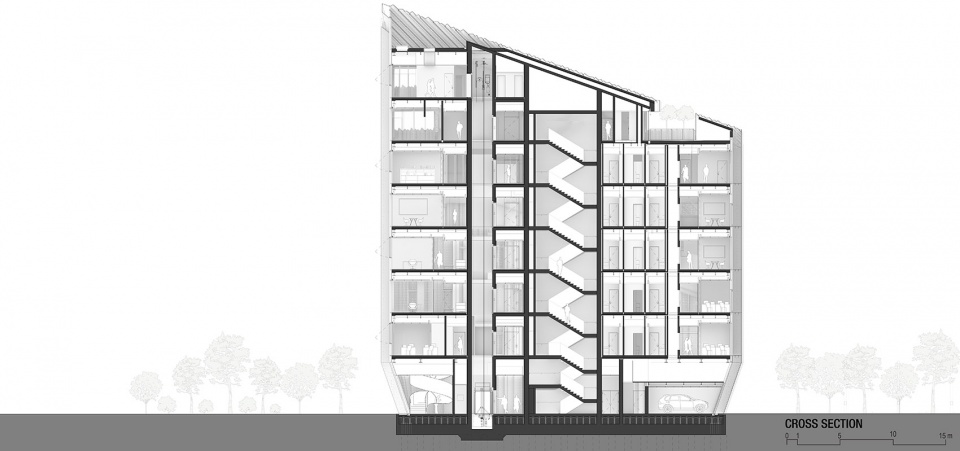

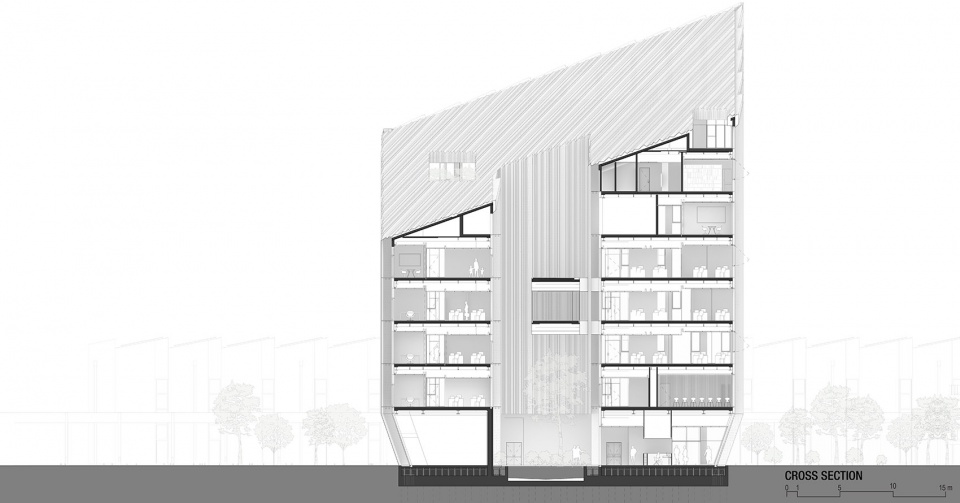

▼横剖面，Cross sections ©Peter Pichler Architecture

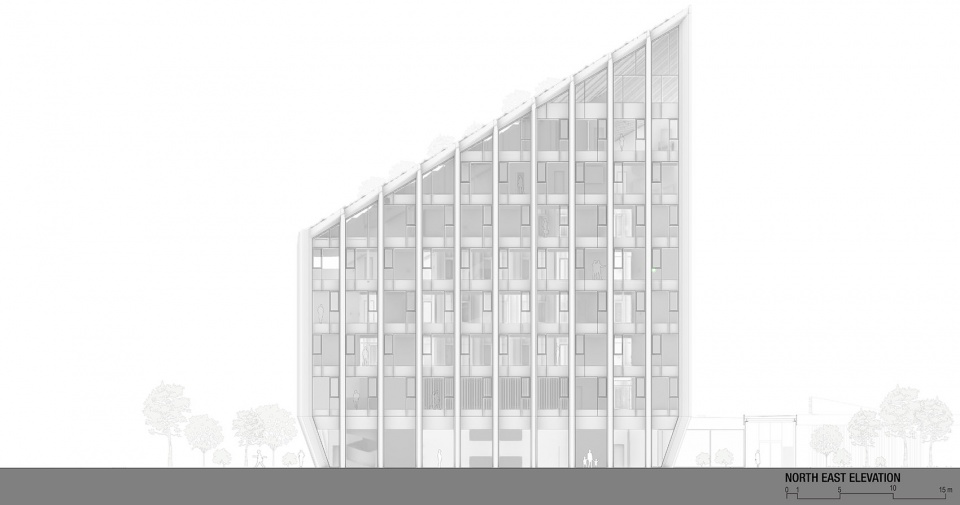

▼东北立面，North east elevation ©Peter Pichler Architecture

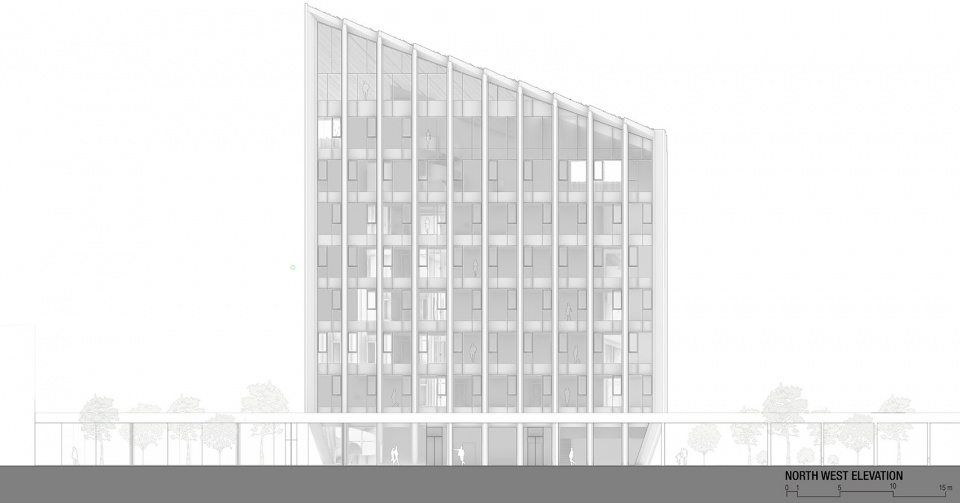

▼西北立面，North west elevation ©Peter Pichler Architecture

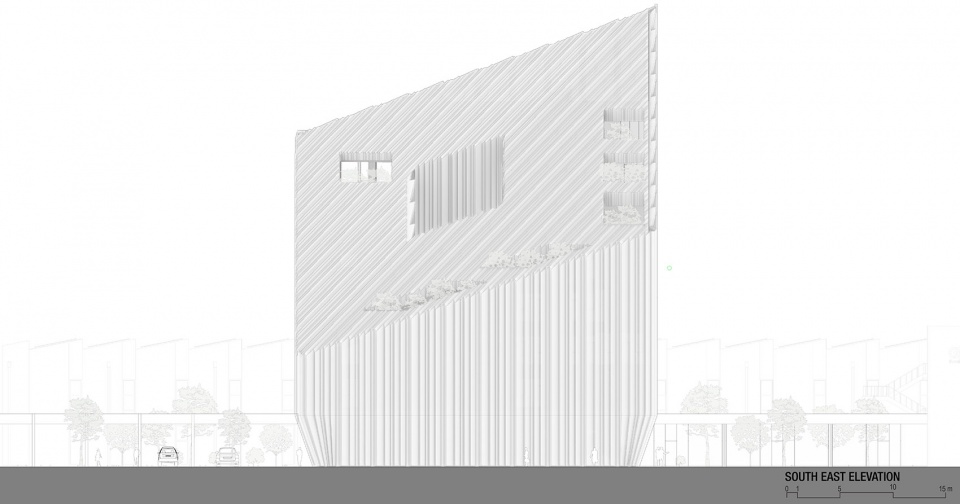

▼东南立面，South east elevation ©Peter Pichler Architecture

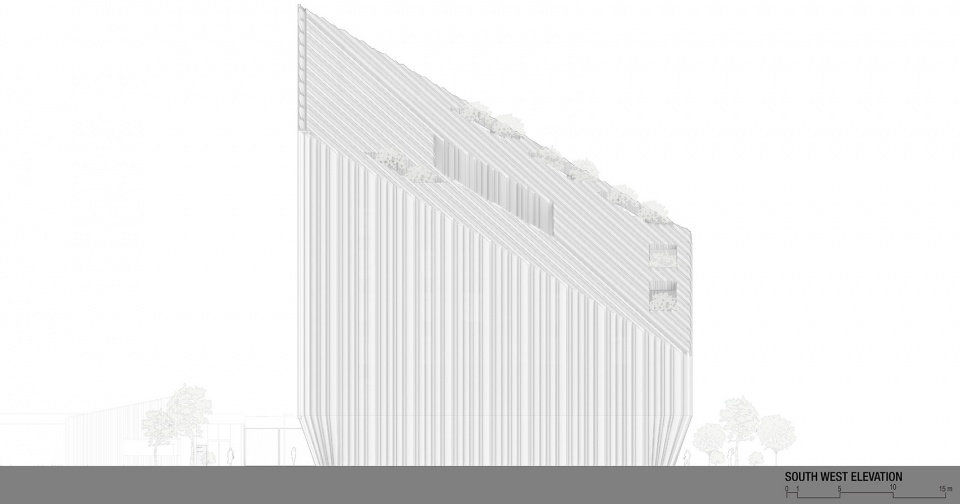

▼西南立面，South west elevation ©Peter Pichler Architecture

PROJECT: Bonfiglioli Headquarters
LOCATION: Calderaradi Reno,Bologna/ Italy ARCHITECTURE: Peter Pichler Architecture
STATUS: Competitionfirst prize – Completion2024
CLIENT: Bonfiglioli
AREA: 6200 m²
PETER PICHLER ARCHITECTURE TEAM:
PPA Principals: Peter Pichler, SilvanaOrdinas
PPA Team: Peter Pichler, Niklas Knap, Simona Alù, Ugo Licciardi, Cem Ozbasaran,Filippo Ogliani, Giovanni Paterlini, Domenico Calabrese, Nathalia Rotelli, Angela Ferrari, AlessandroCardellini,SimoneValbusa.
Structure & MEP: ARUP
Electrical engineering: ARUP
Façade planning: Pichler Projects
Fire consultant: ICS Ingegneria
Acoustics: Solarraum
Site supervision: Studio Taddia
General Contractor: Ing Ferrari, Pichler Projects Project management Bonfiglioli: FedericoMazzanti, ChiaraPersi, VincenzoLamanna
Photography: GustavWilleit
