AND Office Tower, Istanbul / HPP Architects Turkey

The landmark of the new Kozyatağı financial district.

Project Specs

Location:

来自 HPP Architects 对gooood的分享。更多请至: HPP Architects on gooood
Appreciation towards HPP Architects for providing the following description:

AND大楼坐落于伊斯坦布尔亚洲区的南部,高110米,成为了Kozyatağı金融中心区的新地标。第三金融中心的建成及未来12个月内后续项目的完工,将共同见证伊斯坦布尔大都市的发展。后续项目将包括:第三座横跨博斯普鲁斯海峡的大桥将于2016年夏天建成,第三机场将于2017年竣工。Kozyatağı金融区的积极发展可追溯到前一阶段的基础设施建设,选址位于南部大桥和第二机场之间的理想位置,新的地铁线路将直接从Kozyatağı区通往市中心。

With its 110 metres, the AND tower rises out of the new Kozyatağı financial district located in the south of the Asian part of Istanbul. The completion of this third financial centre and further completions planned for the next twelve months demonstrate the growth of the Megacity of Istanbul: The third Bosphorus Bridge will be inaugurated in the summer of 2016, the third airport in the spring of 2017. The positive development of Kozyatağı goes back to the previous phase of expansion of the infrastructure. The district’s location, between the southern bridge and the second airport is ideal; the new underground line connects Kozyatağı directly to the city centre.

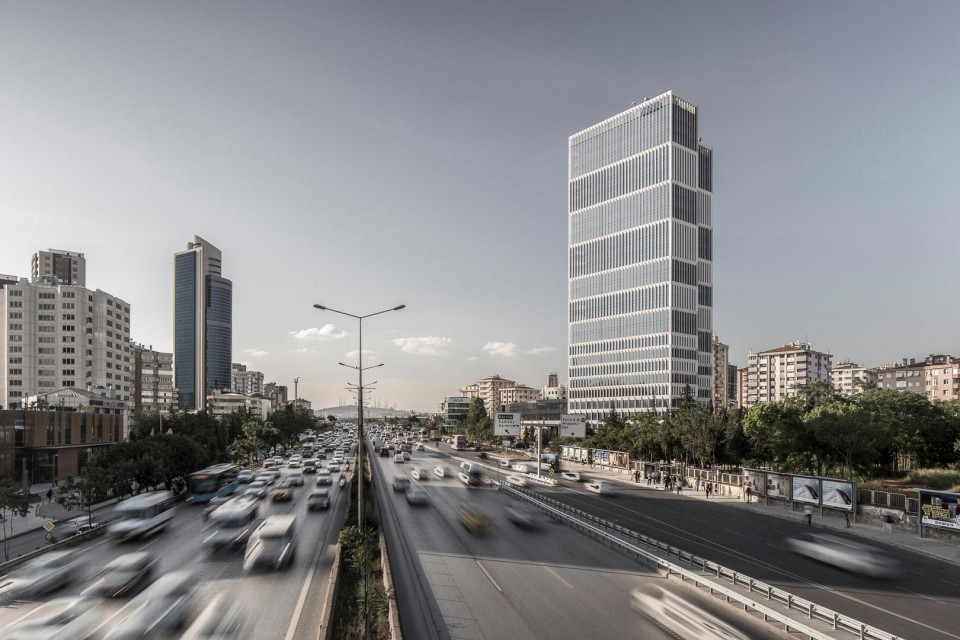

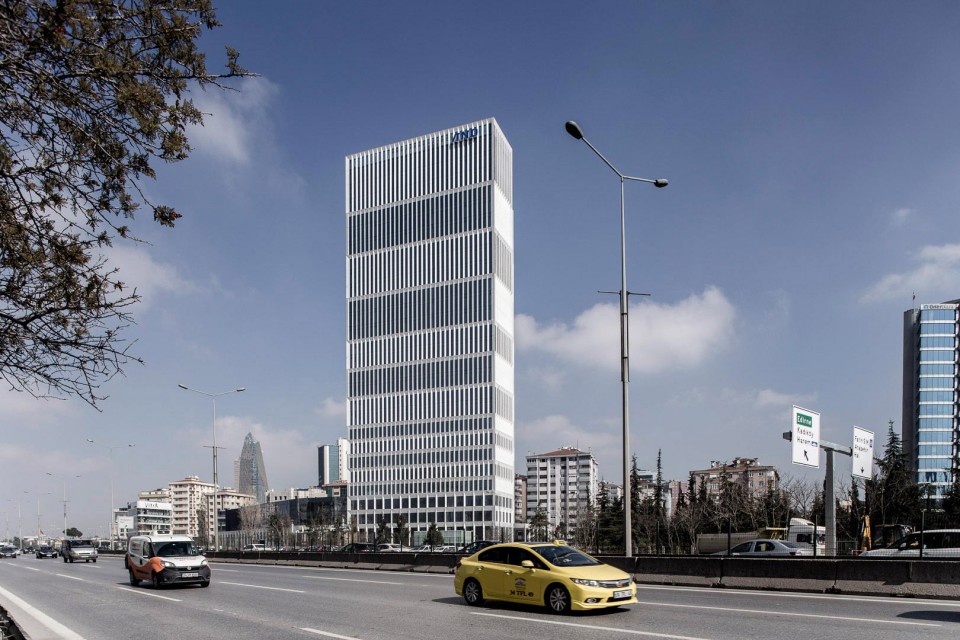

▽ 金融中心区的新地标, the landmark of the new Kozyatağı financial district

001-AND Office Tower, Istanbul by HPP International Turkey

002-AND Office Tower, Istanbul by HPP International Turkey

003-AND Office Tower, Istanbul by HPP International Turkey

土耳其公司及项目负责人Buğrahan Şirin先生对设计解释道:“新建筑的城市文脉,基于拥有3层的零售空间, 有助于创建新兴金融区和附近居民区的纽带”。“引人注目的广场建在大楼旁边,面向E5高速路, 居民和员工都可以充分享受。”

Buğrahan Şirin, head of the office and project leader explained the design thus, “The urban context of the new building, sitting upon a plinth containing 3 storeys of retail space, helps to create the link between the emerging financial district and the adjacent residential areas”. “An attractive square has also been created on the side of the building that faces away from the E5 expressway, which can be enjoyed by residents and employees alike.”

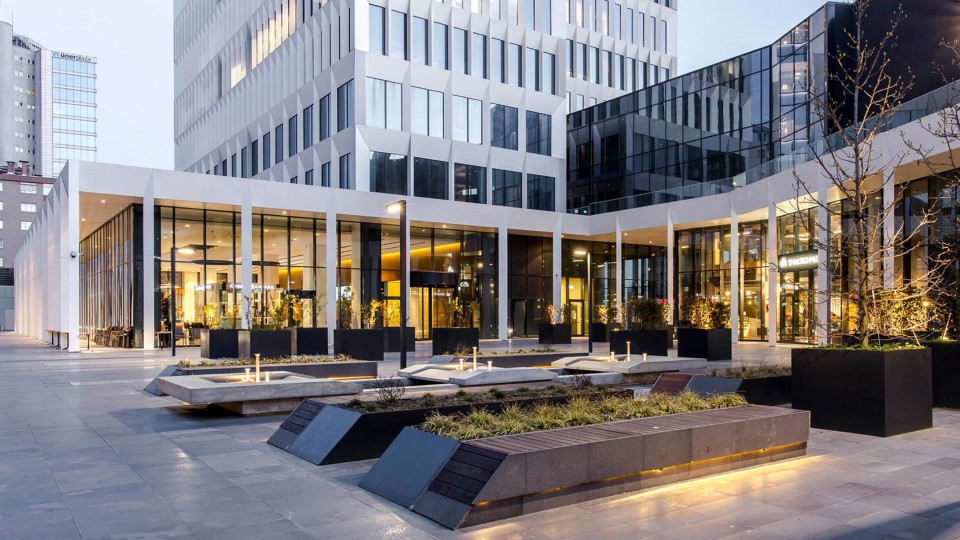

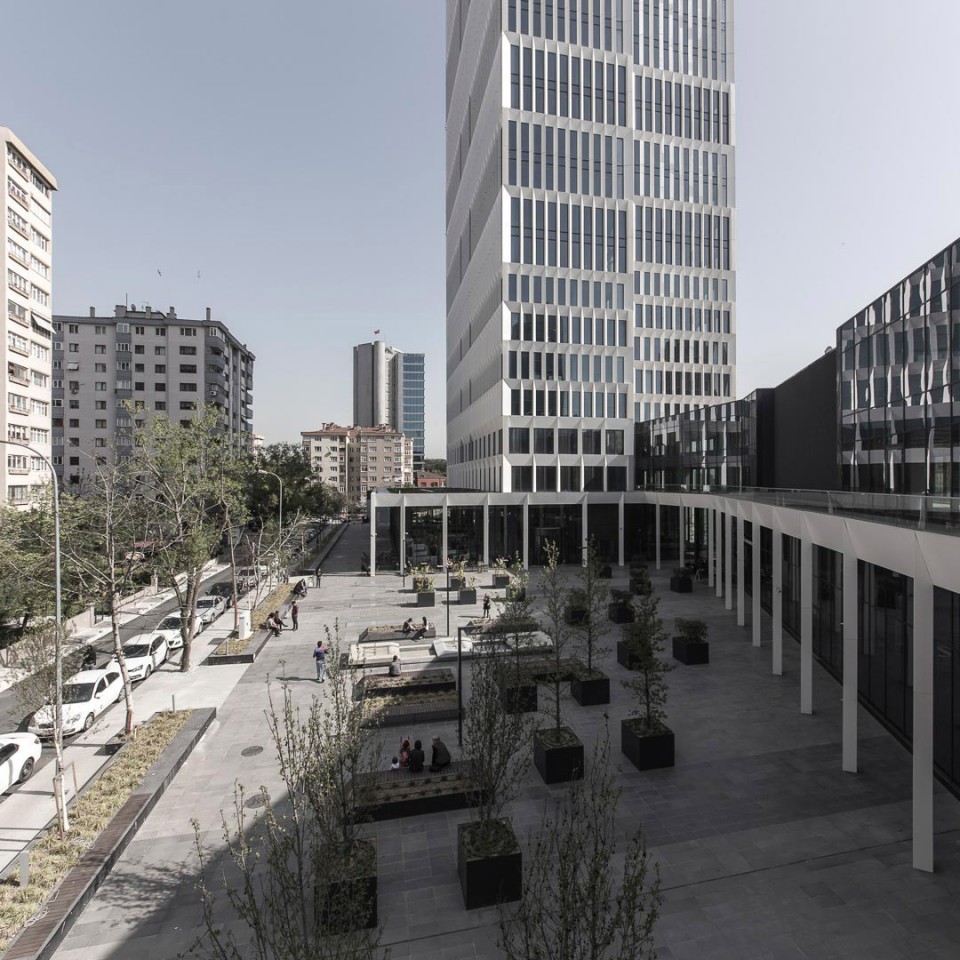

▽ 向社区开放的零售空间和广场,retail space and square open to the public

013-AND Office Tower, Istanbul by HPP International Turkey

014-AND Office Tower, Istanbul by HPP International Turkey

基于业主对高度和建筑面积的要求,设计师以强调垂直观感的方式划分塔楼。外立面的分割方式很大程度上有助于高层的可见性:整体性强的斜角金属铝板立柱,在每两到三层之间进行转换,在太阳照射位置的变化下,产生了光影斑驳的效果。

Due to the height limitations on the site and the amount of floor area required by the client, HPP divided the tower in order to emphasise its vertical character. The arrangement of the façade contributes significantly to the visibility of the high-rise: The block-like arrangement of the triangular aluminium façade pillars, the positions of which are shifted every two to three storeys, produces changing light-and-shade effects according to the position of the sun.

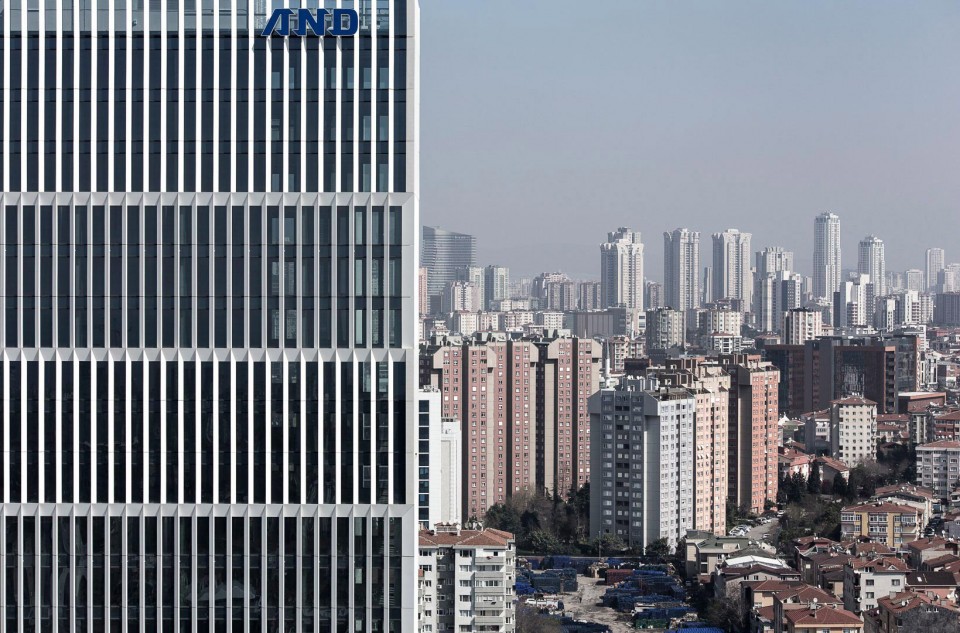

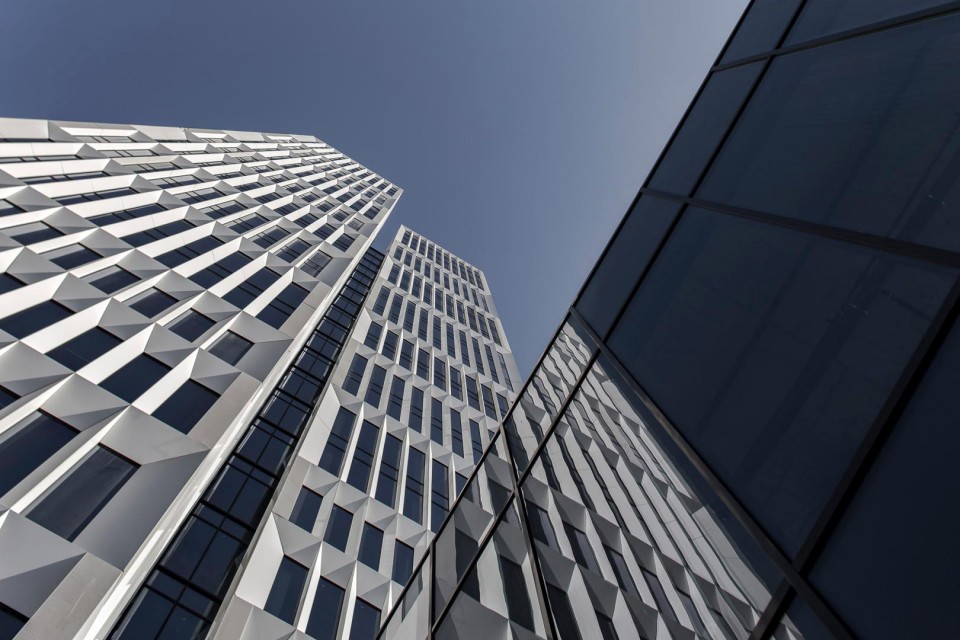

▽ 强调垂直观感的立面划分,division of the façade emphasise its vertical character

007-AND Office Tower, Istanbul by HPP International Turkey

008-AND Office Tower, Istanbul by HPP International Turkey

009-AND Office Tower, Istanbul by HPP International Turkey

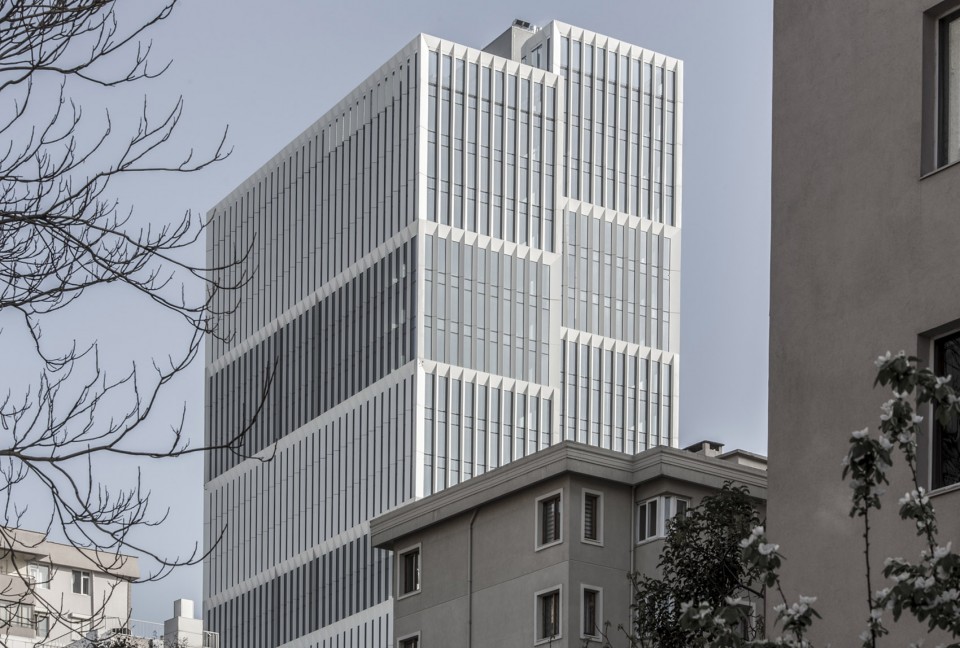

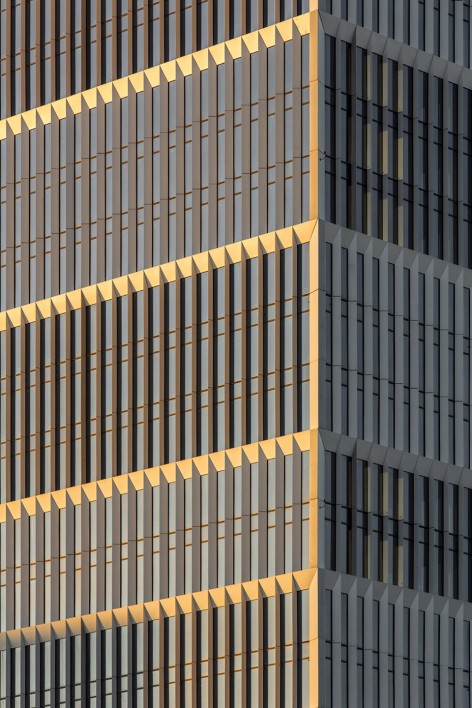

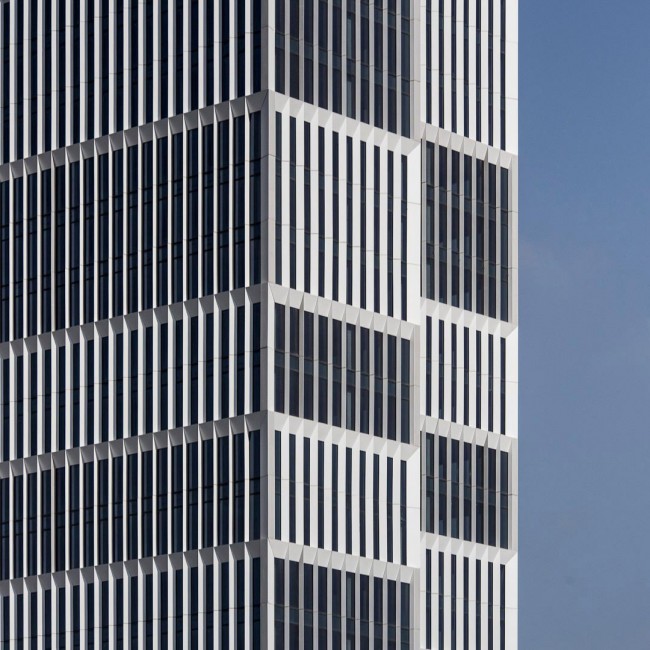

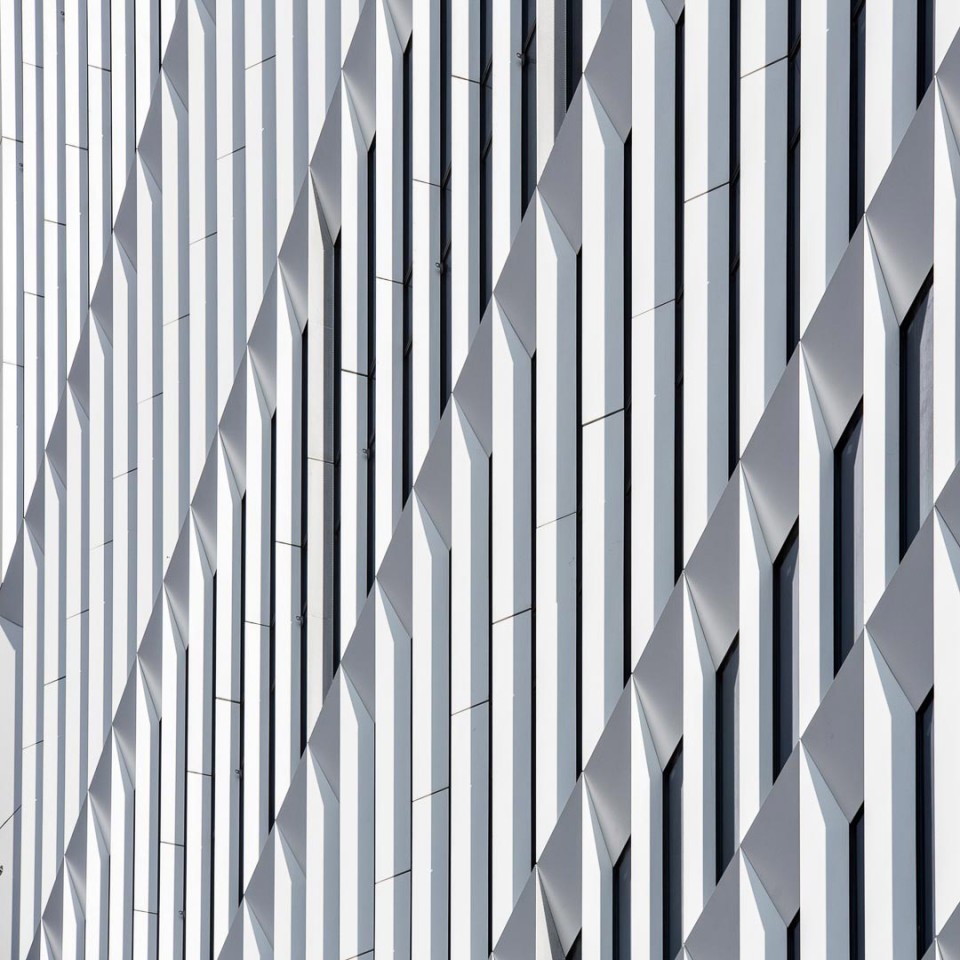

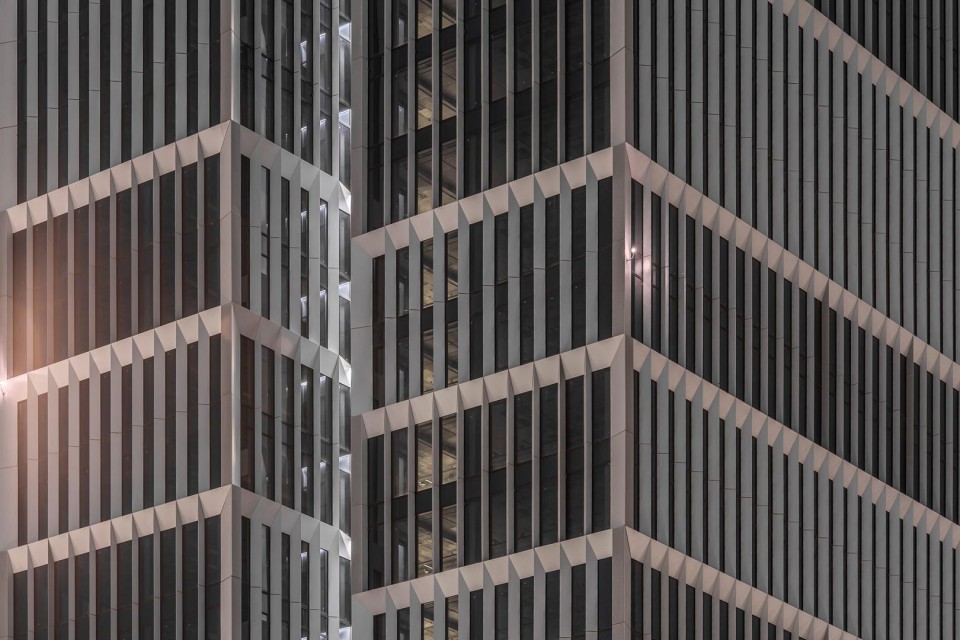

▽ 斜角金属铝板立柱在每两到三层之间进行转换,产生了光影斑驳的效果,the positions of the triangular aluminium façade pillars shifte every two to three storeys, produceing changing light-and-shade effects

006-AND Office Tower, Istanbul by HPP International Turkey

010-AND Office Tower, Istanbul by HPP International Turkey     012-AND Office Tower, Istanbul by HPP International Turkey

011-AND Office Tower, Istanbul by HPP International Turkey

1.35×8.10米的立面网格,能创造各种所需的工作环境。置中的核心筒可划分为每层四个租户。总建筑面积73,300平方米, 其中一半以上作为出租办公和零售,并提供1800个工位。另外一半地下区域,包含会议中心、可容纳350人的食堂、四层地下车库,将容纳740个停车位。

With a façade grid of 1.35 metres and a construction height of 8.10 metres, a variety of accessible and potential work environments can be created. The central arrangement of the service core allows division into up to four tenant nits per floor. Of the total 73,300 square metres of gross floor area, slightly more than half will be given over to offices and retail areas above-ground, providing 1,800 work spaces. The other half contains the underground areas, which include a conference centre, a canteen for 350 people and a four-storey underground garage with 740 parking spaces.

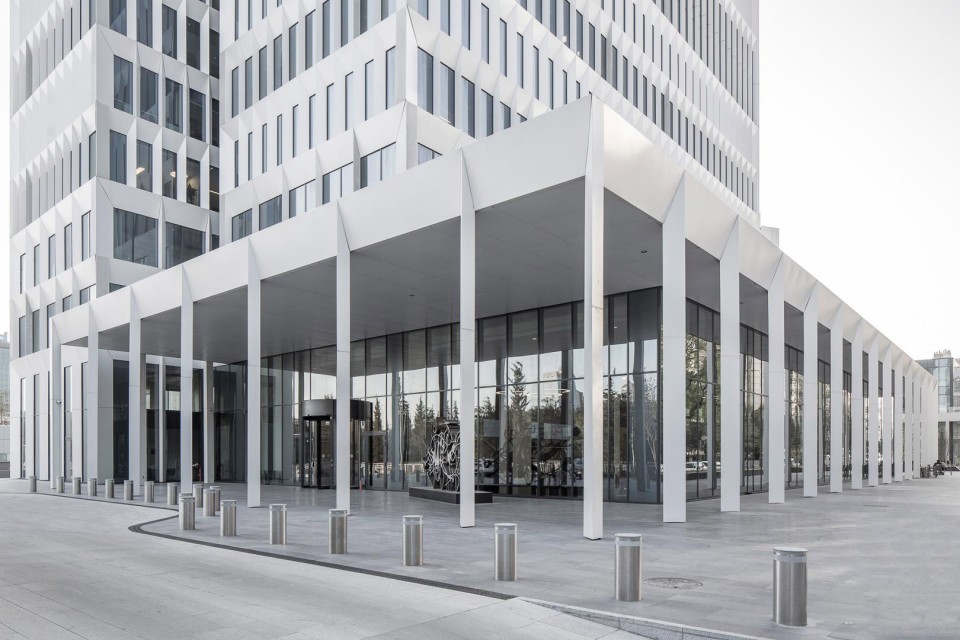

▽ 办公区域入口,1.35×8.10米的立面网格, entrance of the office tower with With a façade grid of 1.35 metres and a construction height of 8.10 metres

015-AND Office Tower, Istanbul by HPP International Turkey

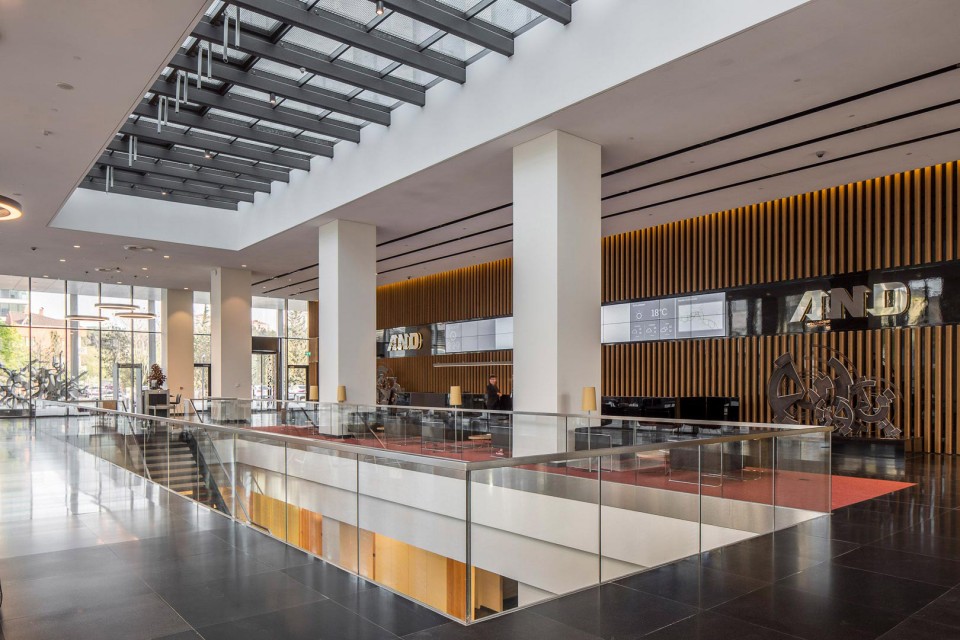

▽ 入口大堂,entrance hall

018-AND Office Tower, Istanbul by HPP International Turkey

017-AND Office Tower, Istanbul by HPP International Turkey

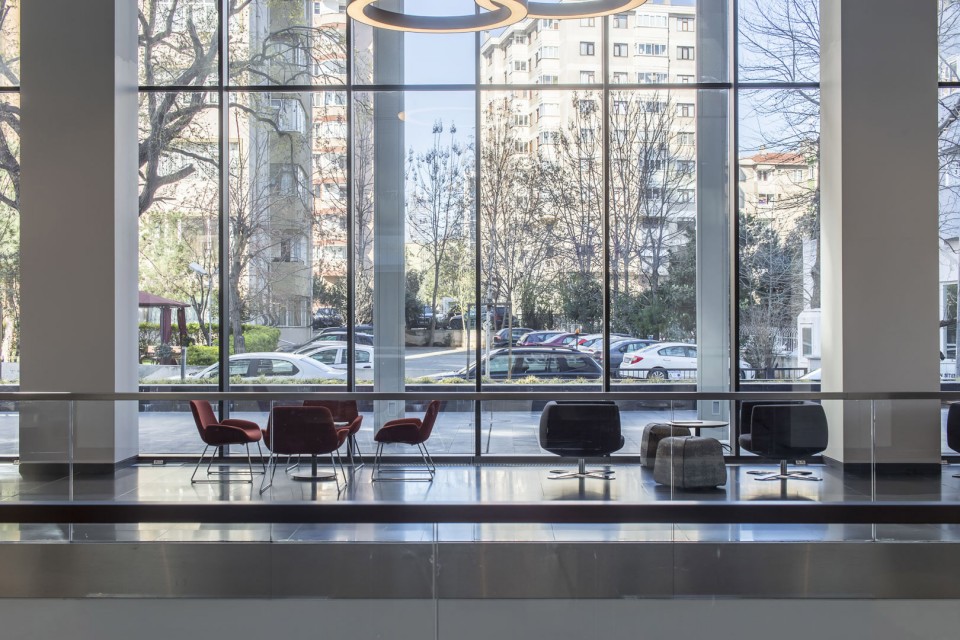

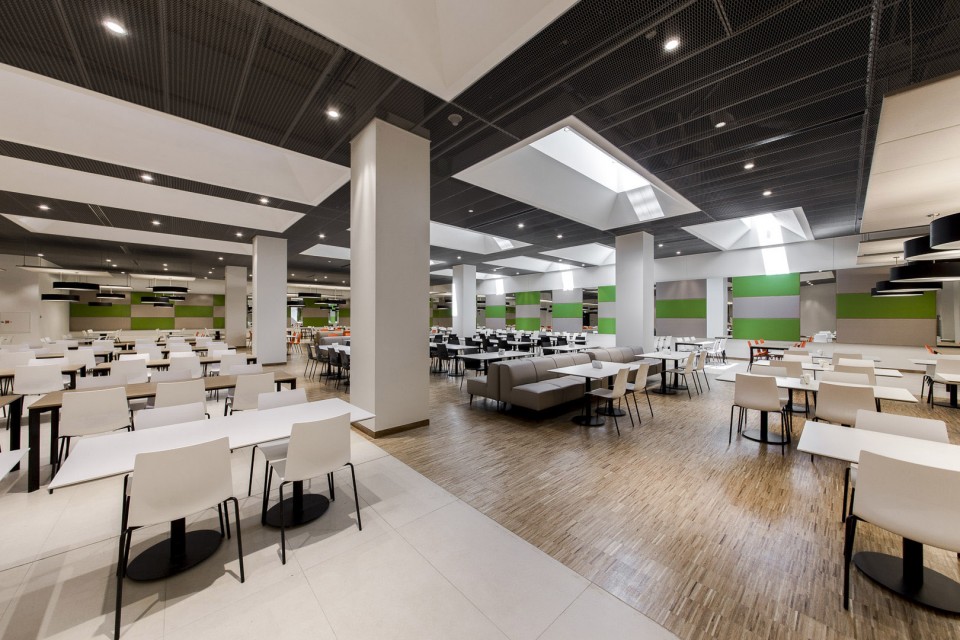

▽ 员工休息区,staff lounge

020-AND Office Tower, Istanbul by HPP International Turkey

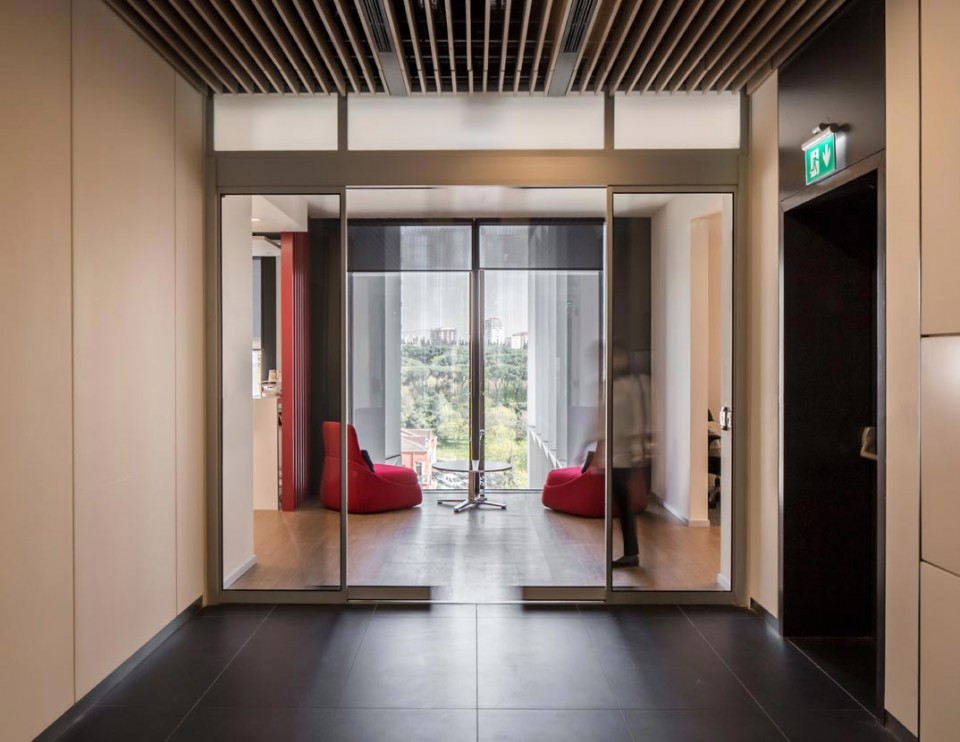

▽ 交通核心筒,vertical core

019-AND Office Tower, Istanbul by HPP International Turkey

建筑的可持续性首先从建筑的方向上体现:与南北轴形成45°夹角的布局对能量平衡起到积极作用。最近,此建筑获得了LEED铂金认证。

The sustainability of the building begins with the deliberately chosen orientation: shifting the layout by 45 degrees to the north-south axis has a positive effect on the energy balance. Just recently the building was awarded a LEED Platinum certificate.

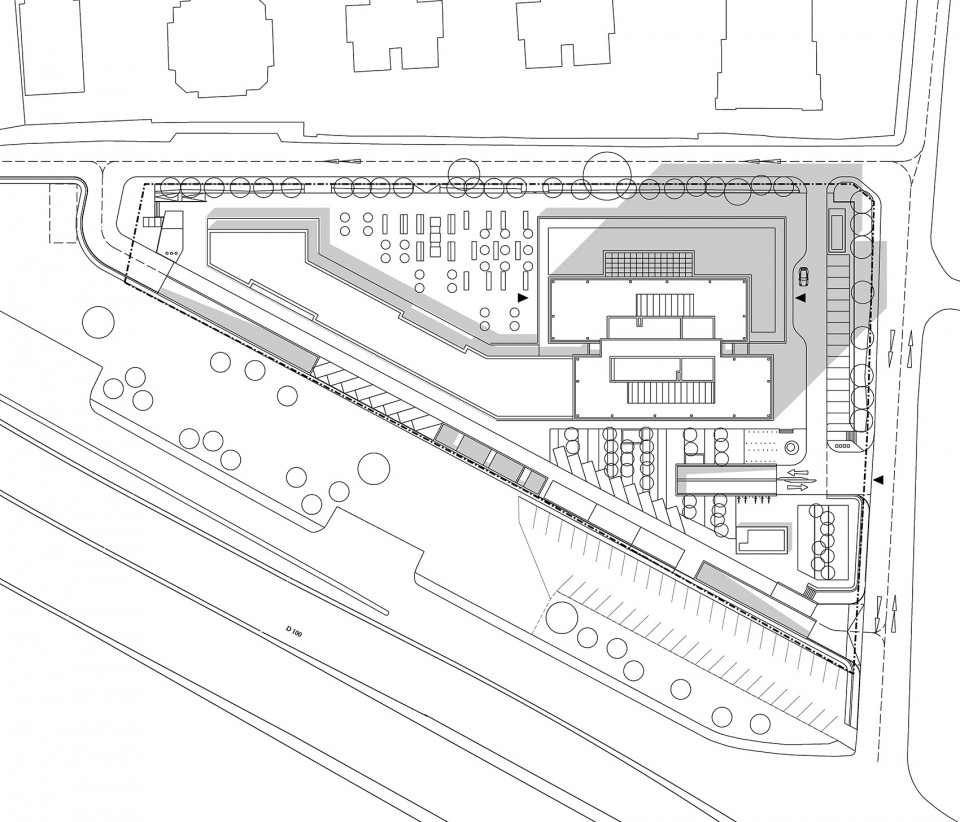

▽ 总平面图,与南北轴形成45°夹角的布局,site plan,the layout is shifted by 45 degrees to the north-south axis

021-AND Office Tower, Istanbul by HPP International Turkey

HPP合伙人Gerhard Feldmeyer 先生评论道:“无论是设计、规划、执行的质量,AND大楼都体现了我们的建筑永久价值理念。这也成功印证了在伊斯坦布尔设立分公司是一个正确的决定。“AND大楼所占有的一席之地,正如HPP的经典建筑:三片楼(Dreischeibenhaus)。该项目完成之前就获得了很多类似的奖项。”AND大楼在2014年城市景观颁奖礼(Cityscape Awards 2014)和2015年欧洲及国际地产颁奖礼(European and International Property Awards 2015)中共囊获了6个奖项。

Partner-in-charge, Gerhard Feldmeyer commented, “As for the quality of the design, planning and execution, the AND tower exemplifies our understanding of architecture of lasting value. This success also confirms that it was the right decision to open an office on site in Istanbul.” “The AND tower can take its rightful place alongside buildings such as the HPP classic, the Dreischeibenhaus. Even before completion the project received many similar prizes.” The AND tower received a total of six prizes in the Cityscape Awards 2014, and the European and International Property Awards 2015.

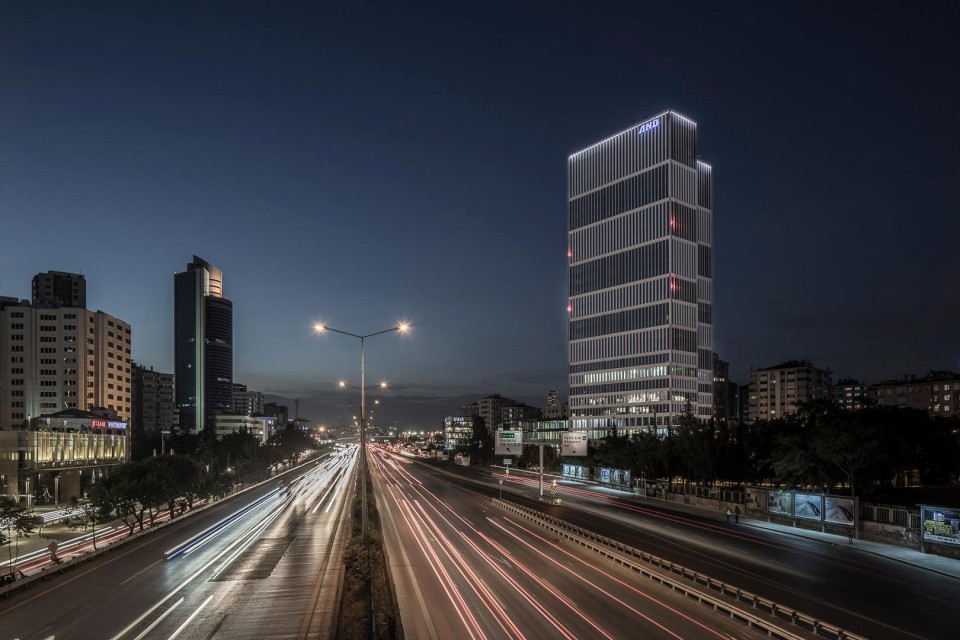

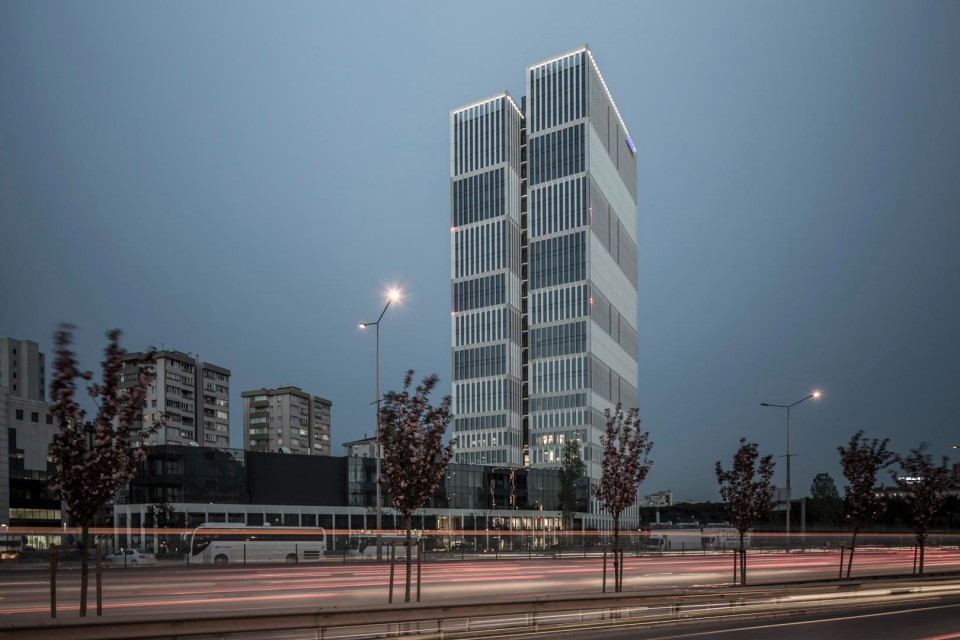

▽ 建筑夜景,evening view

004-AND Office Tower, Istanbul by HPP International Turkey

005-AND Office Tower, Istanbul by HPP International Turkey

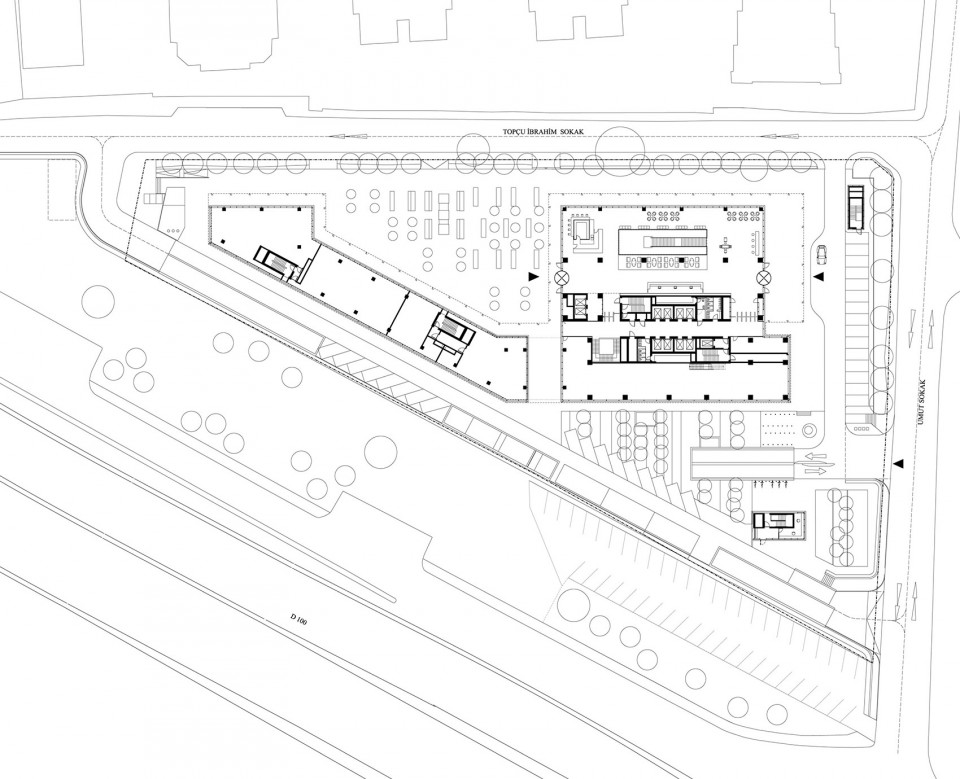

▽ 一层平面,ground floor

022-AND Office Tower, Istanbul by HPP International Turkey

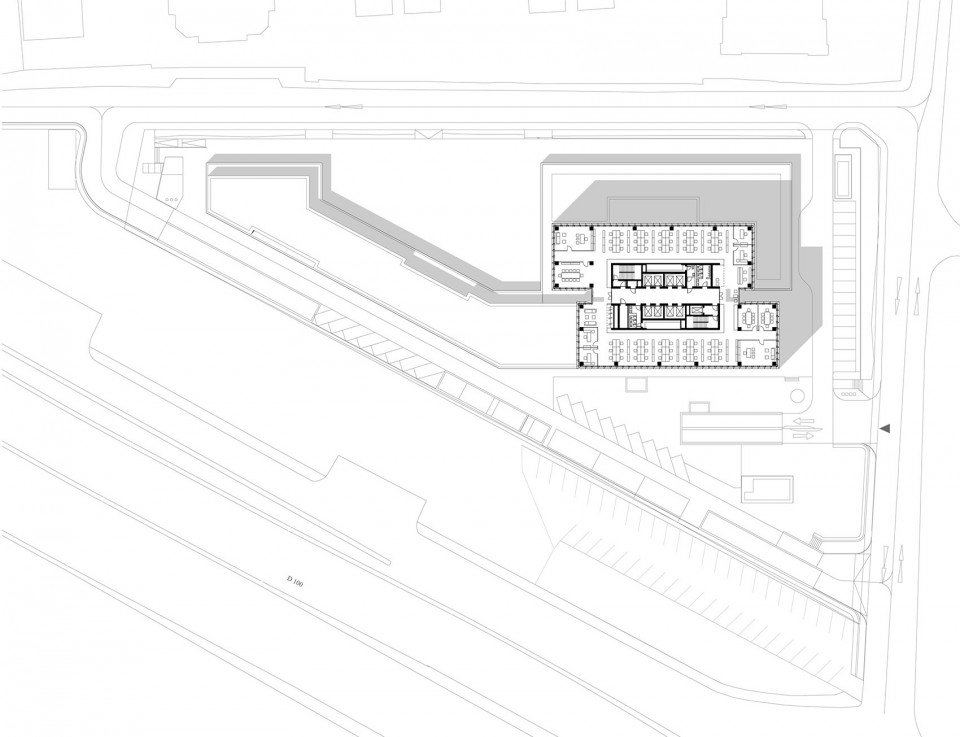

▽ 典型平面,typical floor plan

023-AND Office Tower, Istanbul by HPP International Turkey

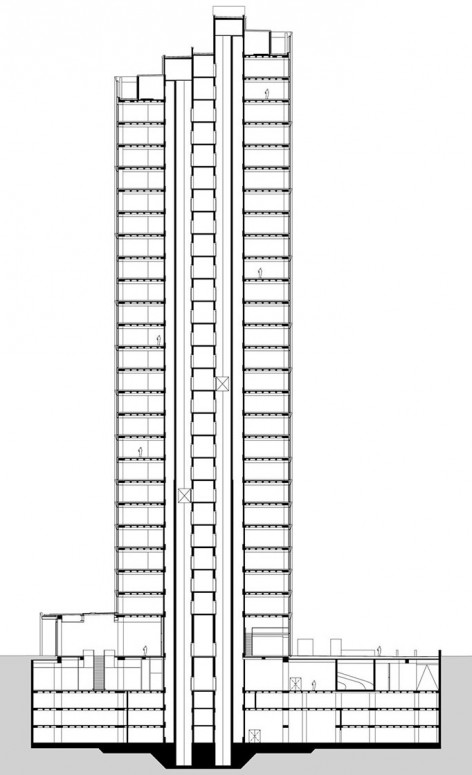

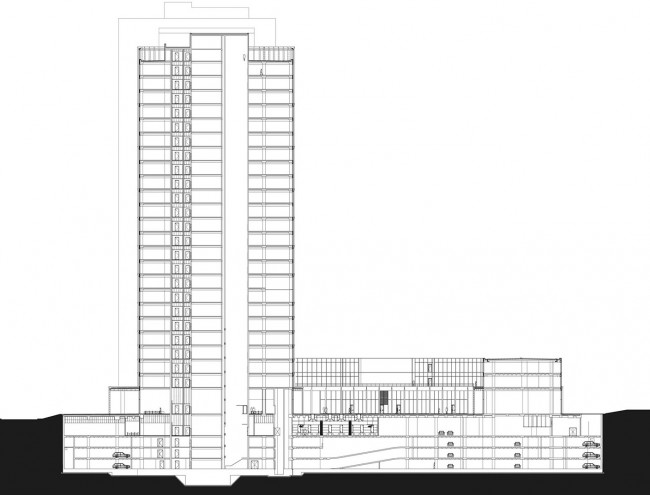

▽ 剖面,section

025-AND Office Tower, Istanbul by HPP International Turkey1     024-AND Office Tower, Istanbul by HPP International Turkey2

项目名称:AND大楼
业主: AEH Anadolu地产投资公司
地点:土耳其,伊斯坦布尔,Kozyatağı
竞赛:2012年1等奖
占地面积:10,500平方米
总建筑面积:73,320 平方米
地上建筑面积:37,680 平方米
地下建筑面积:37,640平方米
建筑事务所:HPP International -土耳其分公司
合伙人:Gerhard G. Feldmeyer
项目经理:Buğrahan Şirin ,Nurgül Ece
团队: Özlem Ünkap ilis, Sibel Özgenç, Hüseyin Şahin,Müge Sarıoğlu, Henrik Schulte, Hande Tombaz,Elcin Kara Vatansever, Batu Ayhan
服务内容:总体规划, HOAI 2-6阶段
奠基仪式:2014年4月29日
竣工:2015年10月
结构:钢筋混凝土
楼层:地上26层,地下4层
层高:4米
净高:3米
空间概念:灵活的办公室布局
电梯:11台(2台在地下车库)

Project name:AND
Client:AEH Anadolu Real Estate Investments
Location:Kozyatağı, Istanbul, Turkey
Competition:1st Prize 2012
Site area:10,500 m²
Total GFA:73,320 m²
GFA above ground:37,680 m²
GFA below ground:37,640 m²
Architecture / realisation:HPP International Turkey
Partner:Gerhard G. Feldmeyer
Office and project manager: Buğrahan Şirin(and Nurgül Ece until 2015)
Team:Özlem Ünkap ilis, Sibel Özgenç, Hüseyin Şahin, Müge Sarıoğlu, Henrik Schulte, Hande Tombaz, Elcin Kara Vatansever, Batu Ayhan
Services:General planning, HOAI phases 2-6
Groundbreaking Ceremony:29 April 2014
Construction Completion:October 2015
Structure:Steel reinforced concrete
Storeys:26 above ground, 4 below ground
Normal storey height:4 m
Clear storey height:3 m
Spatial concept:flexible office layouts
Lifts:11 (of which 2 for the car park)
