非常感谢 ESTUYO Studio 将以下内容授权gooood发行。更多关于：ESTUYO Studio on gooood.
Appreciation towards ESTUYO Studio for providing the following description:

Boa Mistura的新总部坐落在Puente de Vallecas社区，毗邻马德里的M-30环城公路，位于一栋1960年代建筑的底层。

Located in Puente de Vallecas’ neighbourhood, next to Madrid’s M-30 beltway, the new Boa Mistura’s headquarters occupy the ground floor of a 1960’s building.

▼工作室概览，overview © Javier de Paz Garcia

工作室改造自一个汽车维修车间，设计师将空间从纵向进行分隔，划分出办公和仓储两个不同区域，并在空间尽头开辟了一间工作室。两个区域都有特定的空间序列，办公区更开放，而仓储区则更私密，两条流线在工作室相汇合，这里便是Boa Mistura进行创作的核心空间。

A former car repair workshop, the volume is cut lengthwise and divided into two different environments (an office area and a warehouse) that converge in a new workshop at the back of the plot. Each of both areas present specific spatial sequences, from more public to more private, concluding in the workshop, that becomes the real core of Boa Mistura’s activity.

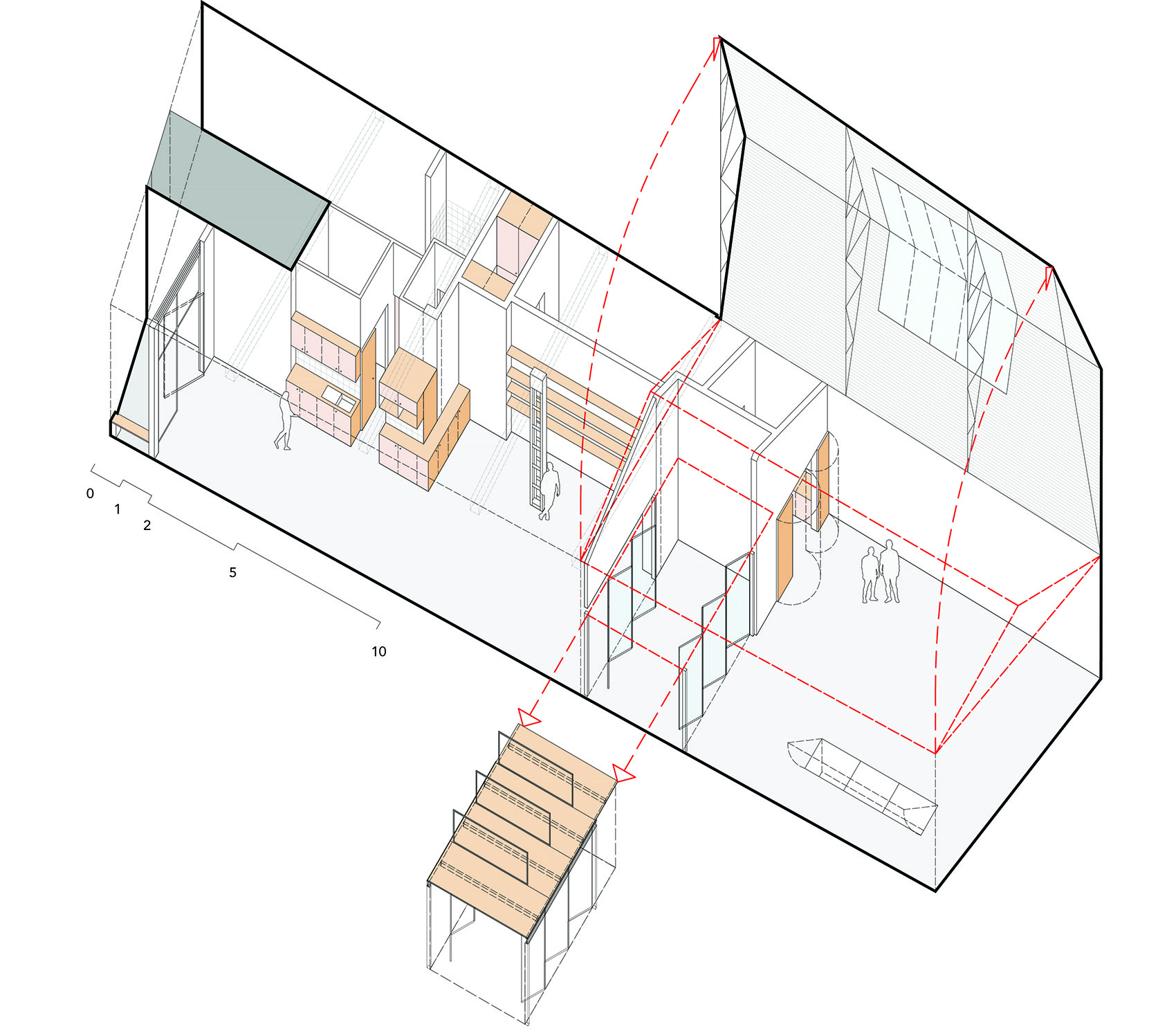

▼轴测图
axonometric drawing © ESTUYO Studio

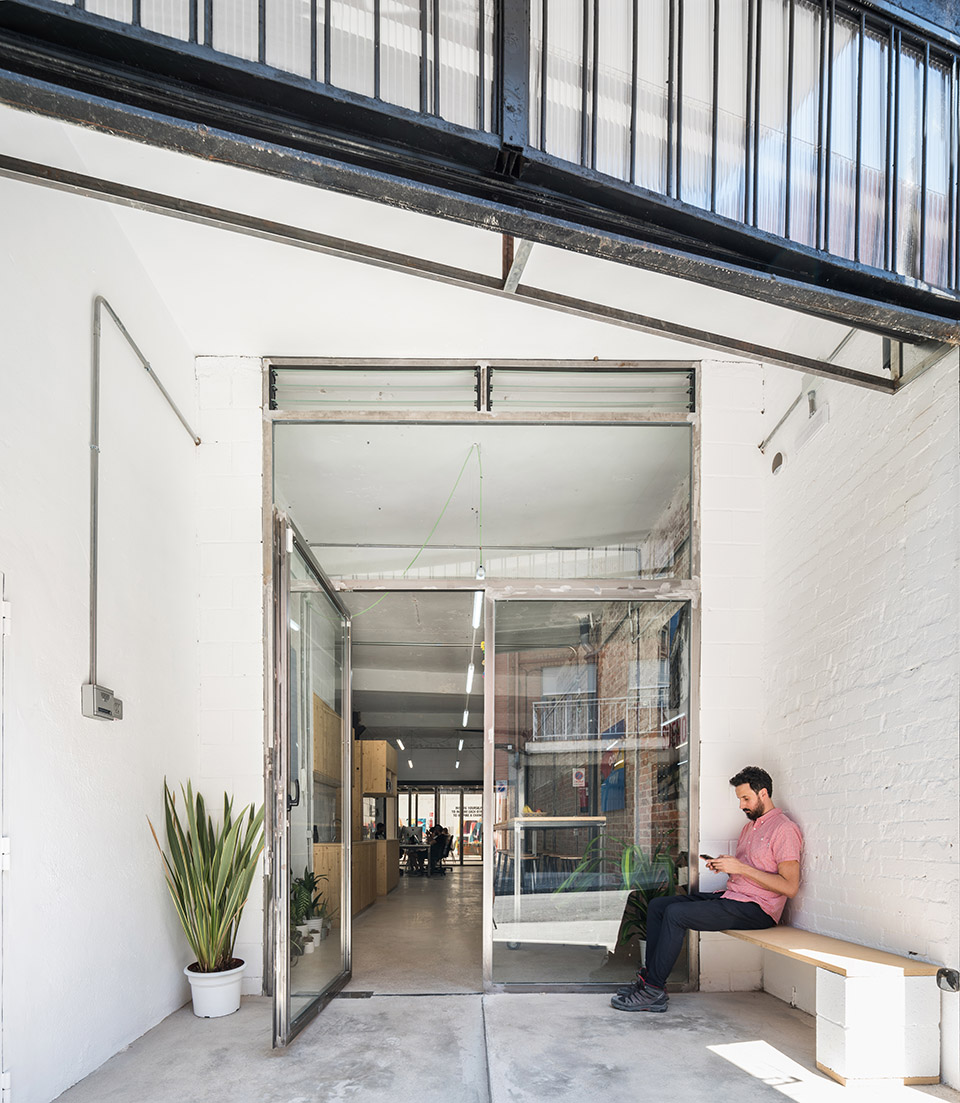

▼入口
entrance © Javier de Paz Garcia

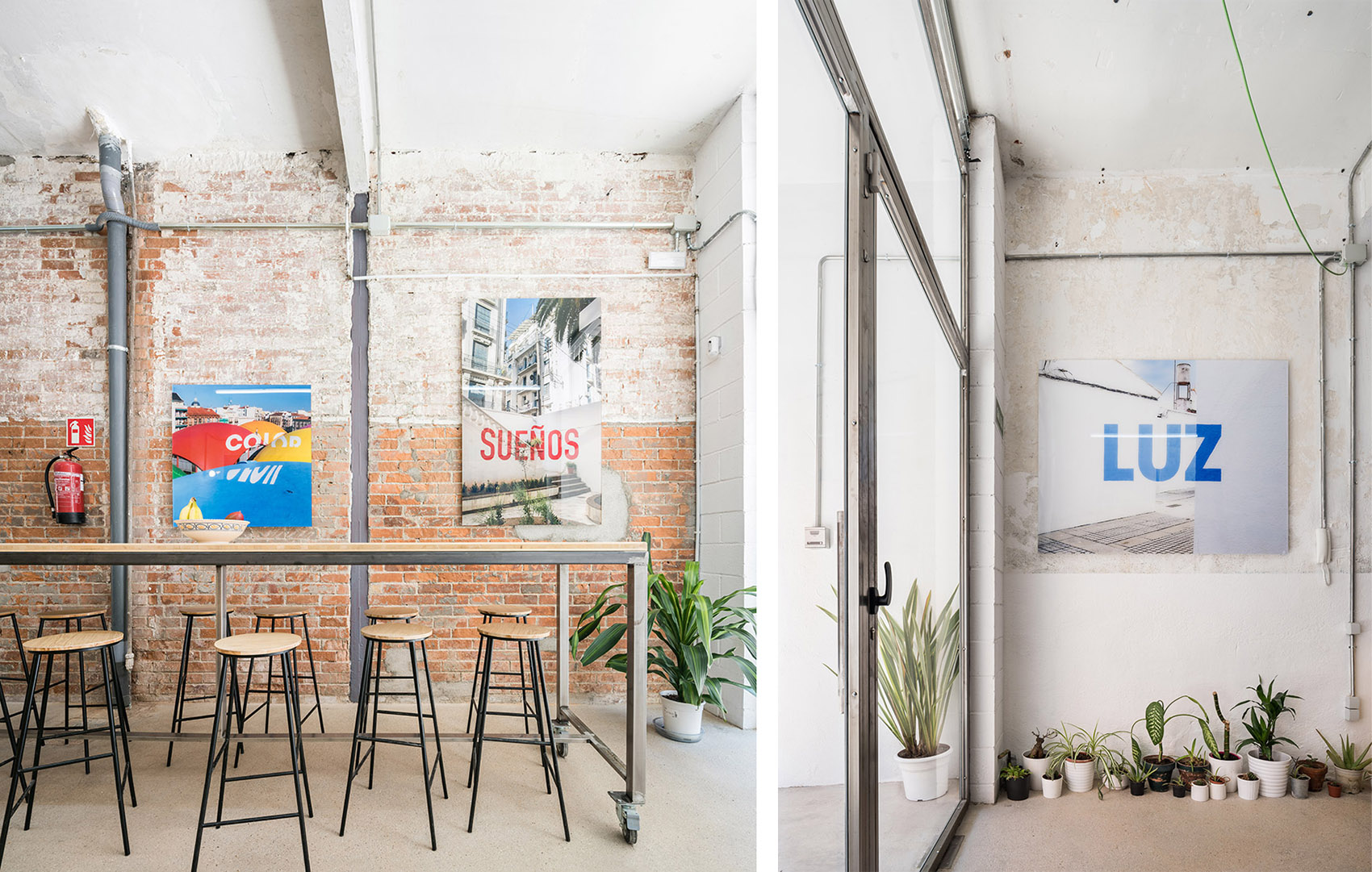

▼入口两侧，both sides of the entrance © Javier de Paz Garcia

▼纵向分割的空间，the volume cut lengthwise © Javier de Paz Garcia

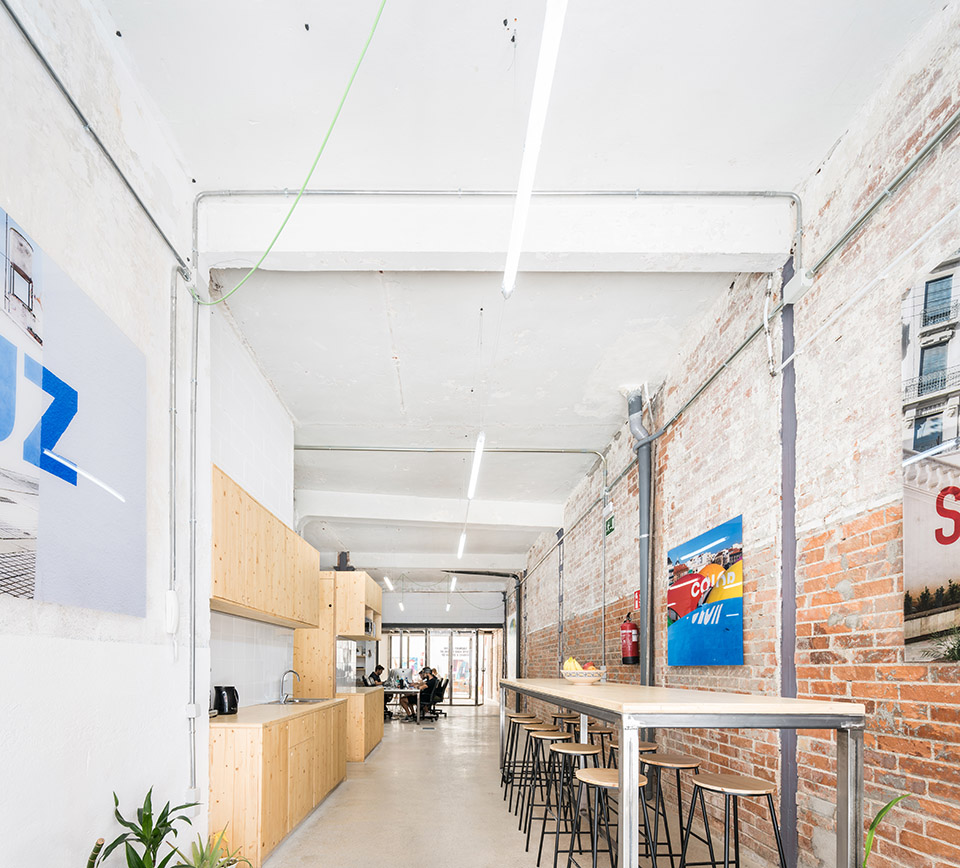

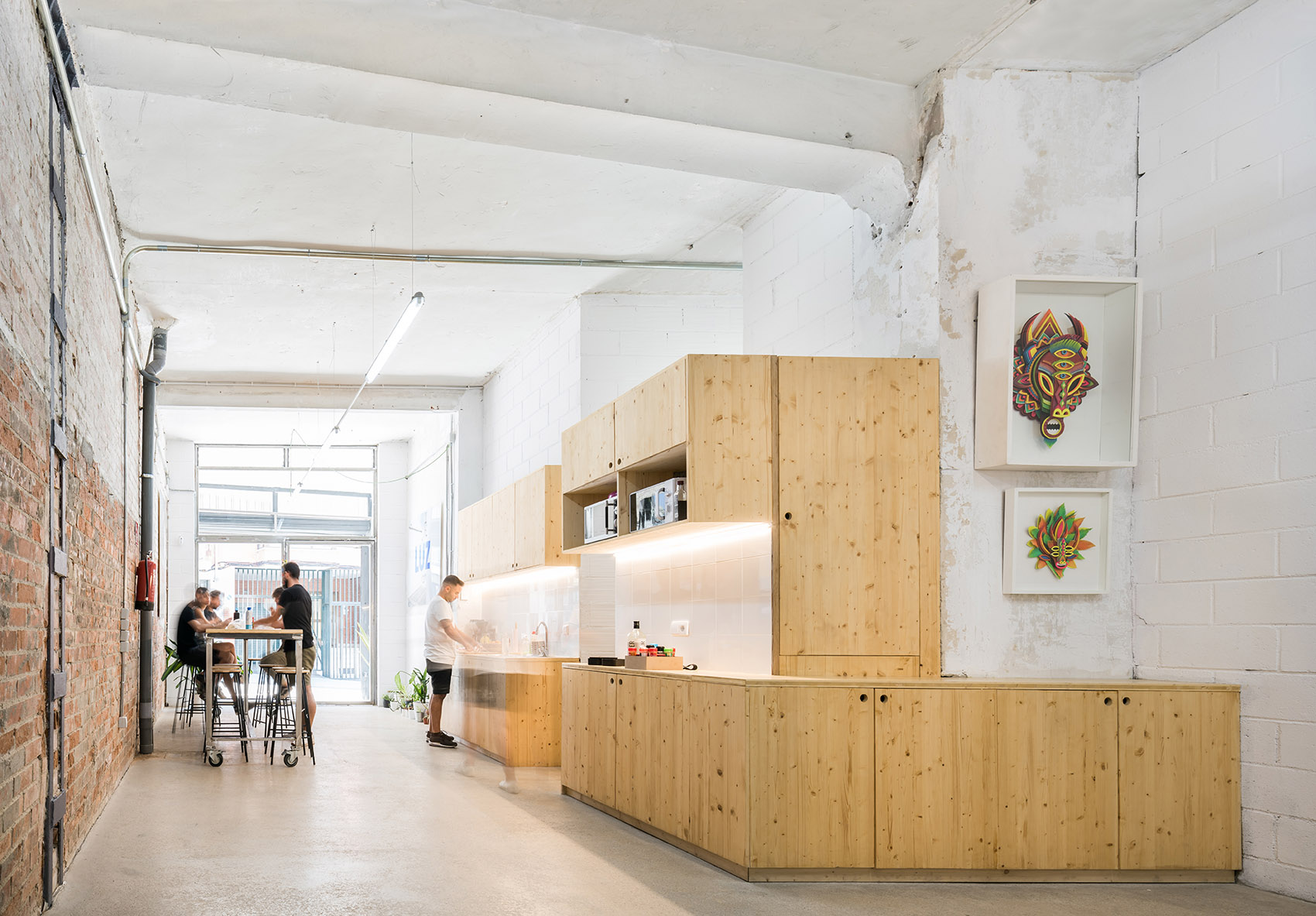

▼办公区的开放休息区，open lounge of the office area © Javier de Paz Garcia

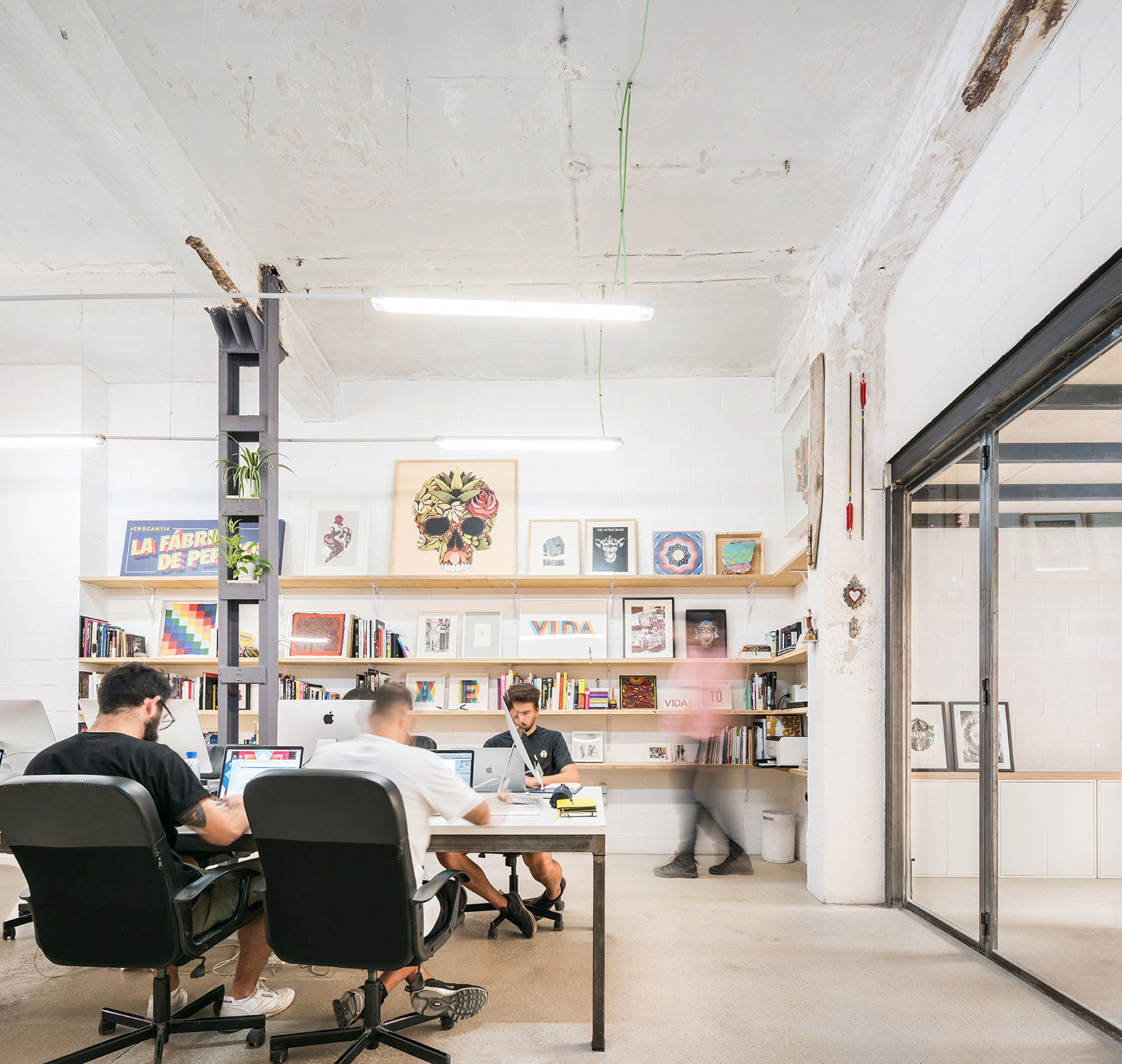

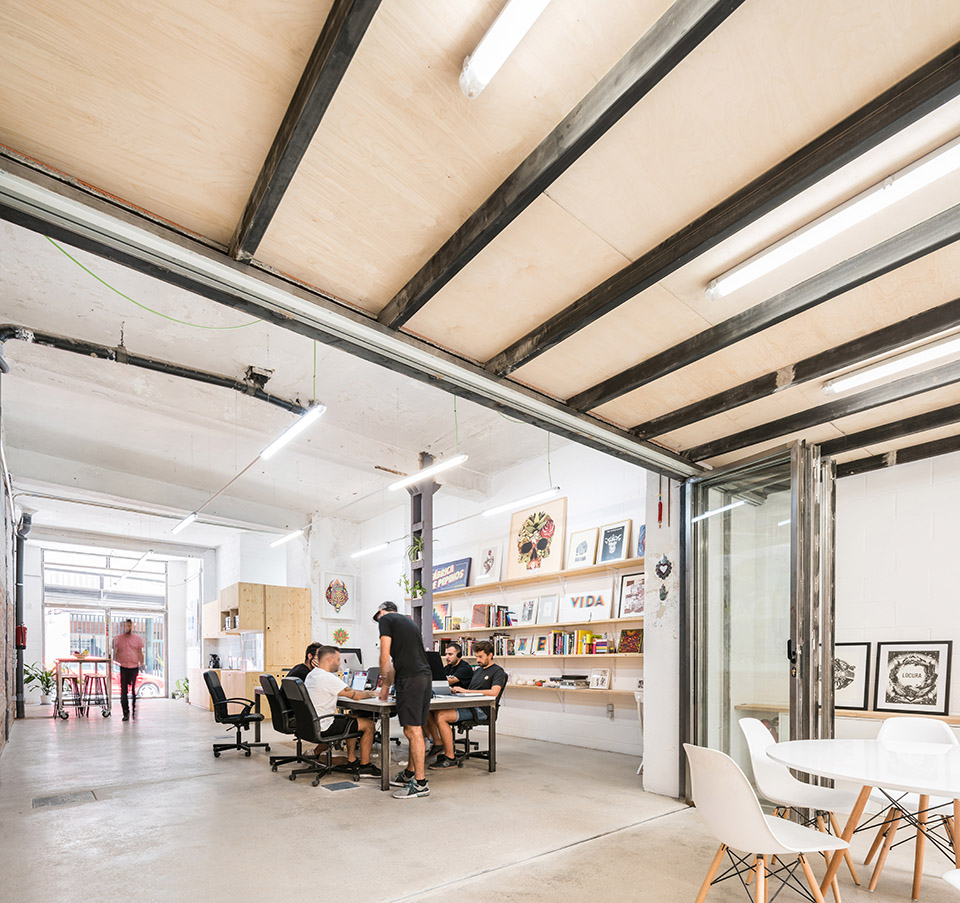

▼办公区，office area © Javier de Paz Garcia

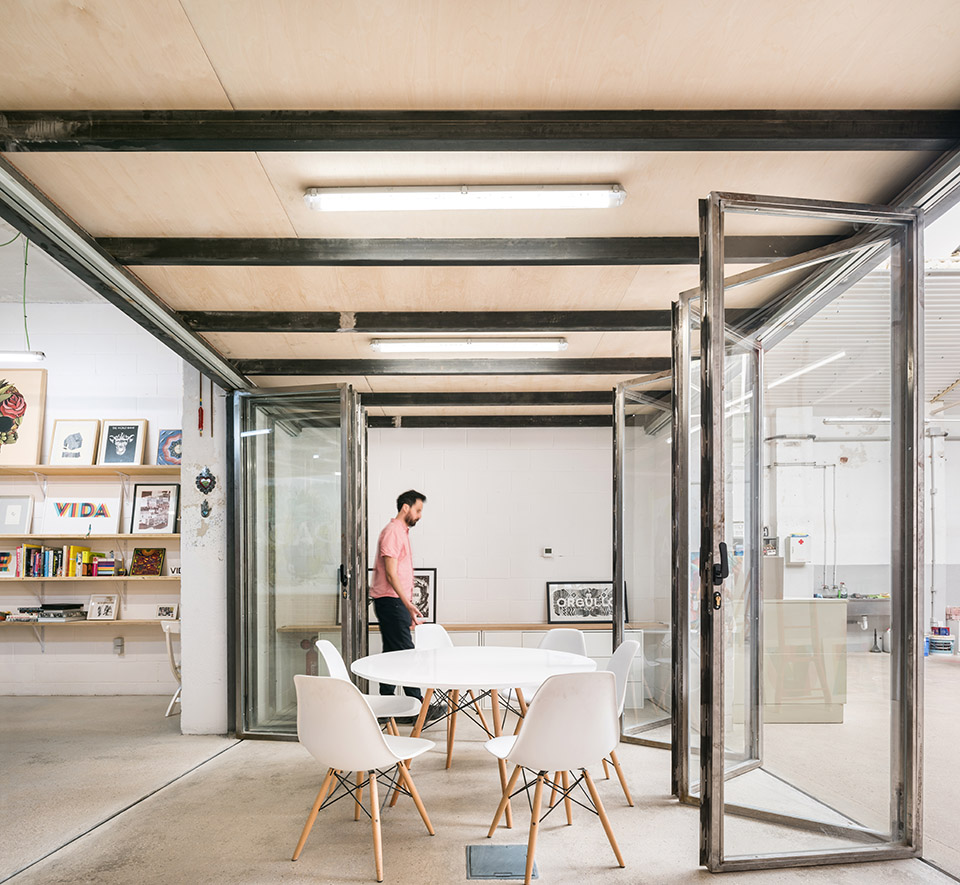

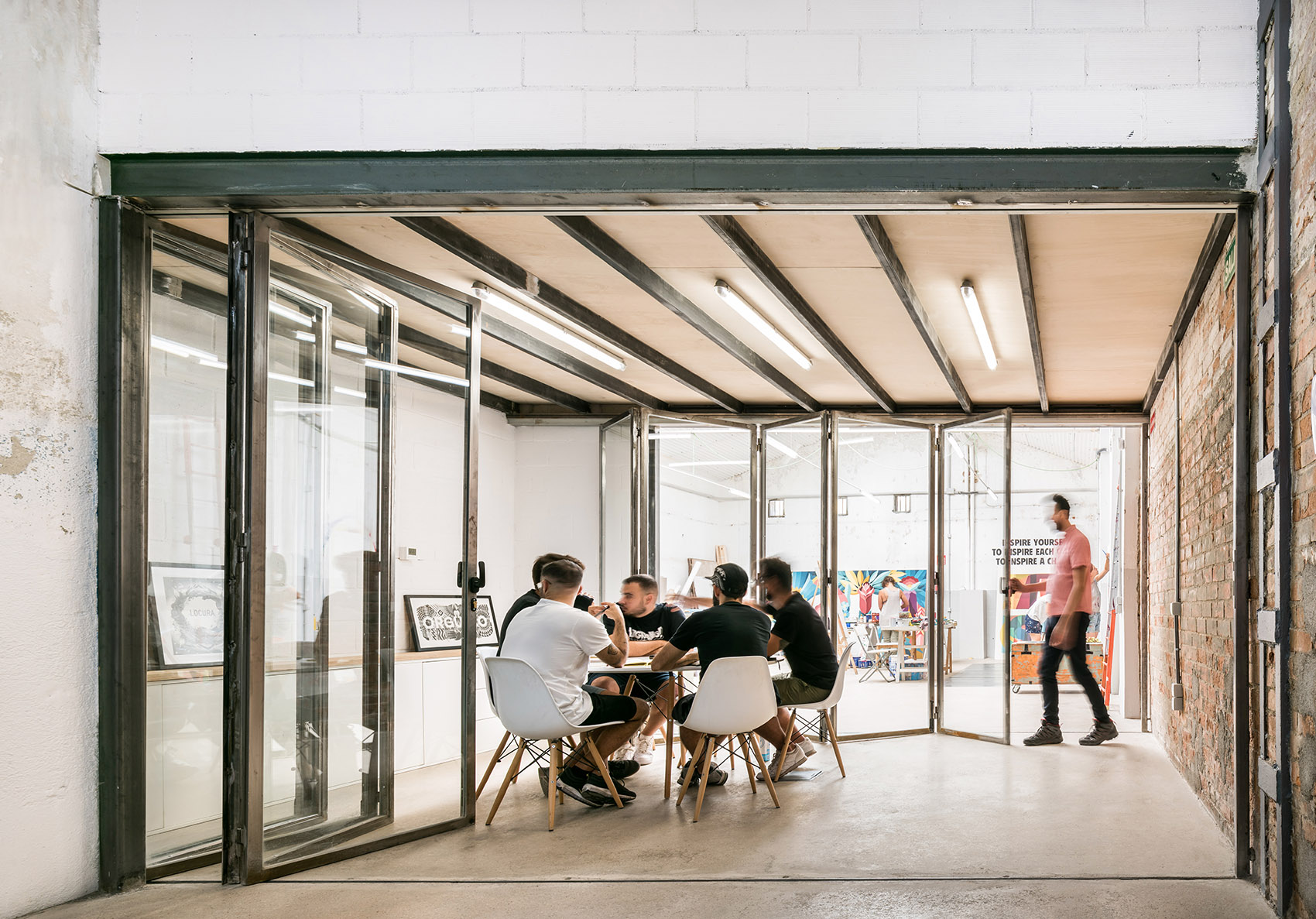

▼隔断划分空间，glass doors dividing the office area © Javier de Paz Garcia

▼从办公区看向核心工作室，view of the center workshop from the office area © Javier de Paz Garcia

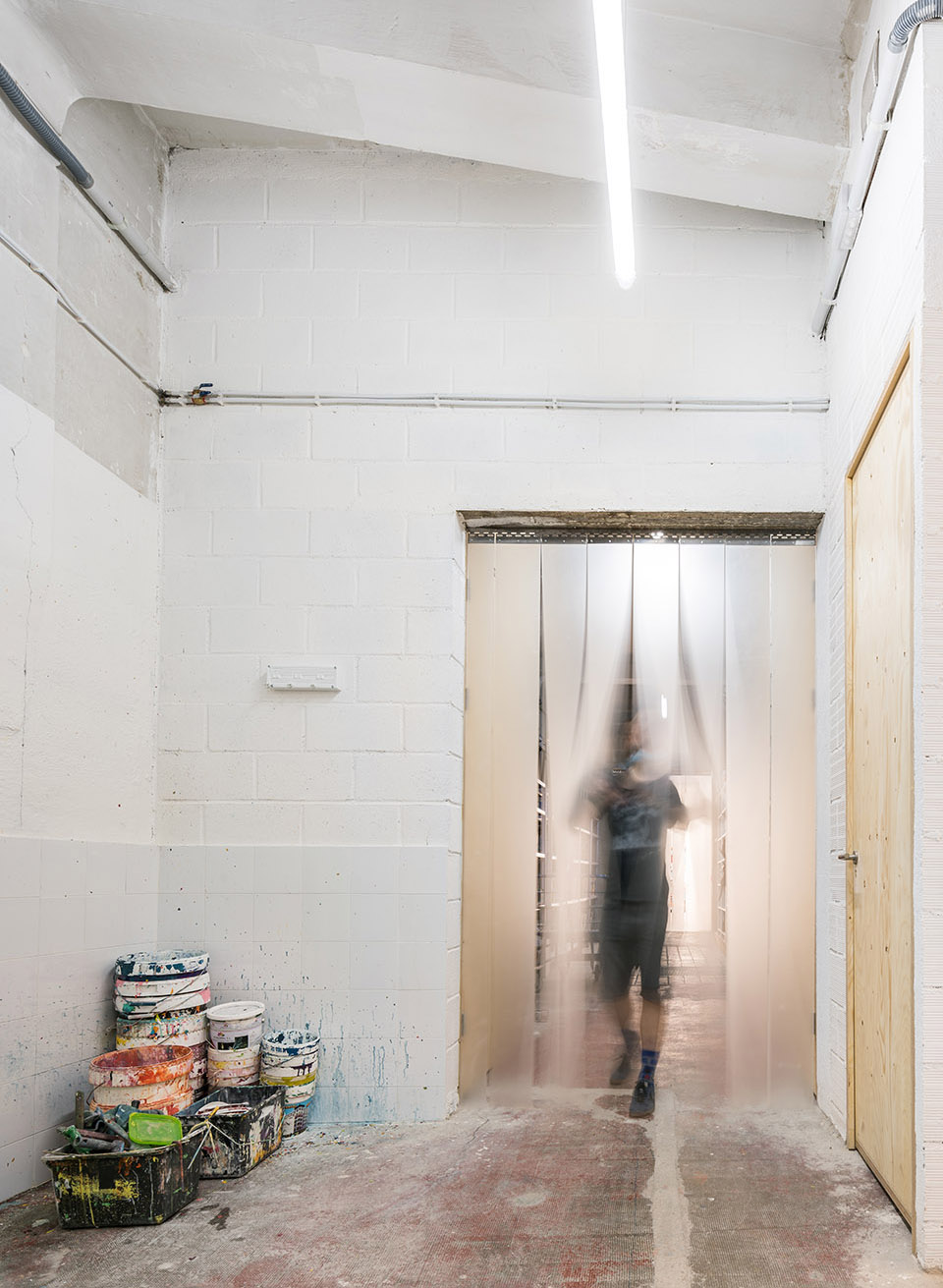

▼更加私密的仓储区，the more private warehouse area © Javier de Paz Garcia

工作室的地下安装了空气热能驱动的保暖和制冷系统，为艺术家提供舒适的环境，在4-6m高的空间内自由创作。其他建筑材料都直接暴露在外。原建筑内遗留的构件、混凝土和砖块砌筑的新隔墙、以及新增木制和金属元素都呈现出未经加工的自然状态。

The installation of the underfloor heating and cooling system powered by aerothermal energy provides artists the necessary comfort to work in spaces from 4 up to 6m high. The rest of the construction materials are exposed. Vestiges from previous lives of the building, new partition walls (made with concrete blocks and brick) as well as all the new woodwork and locksmith elements are displayed with their natural finishings.

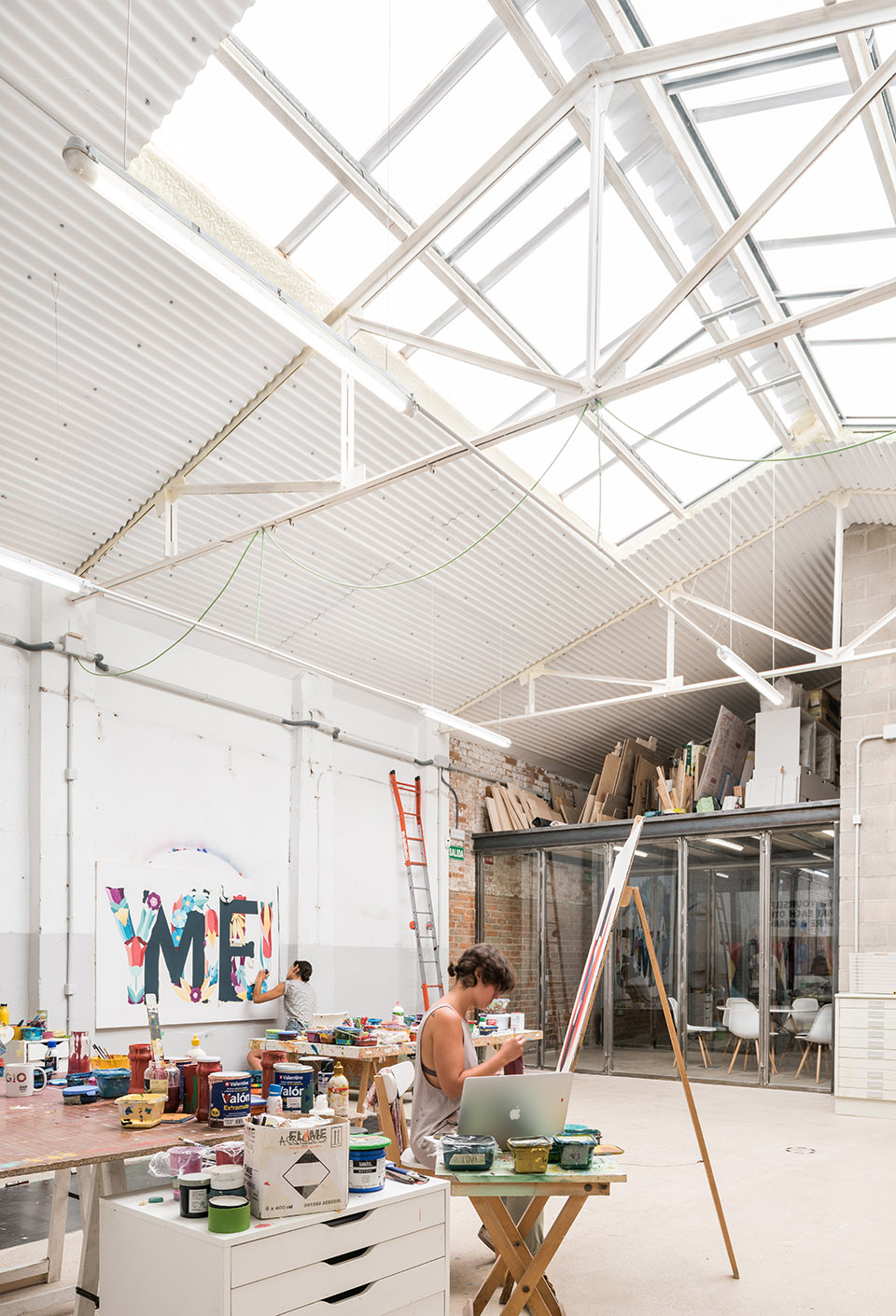

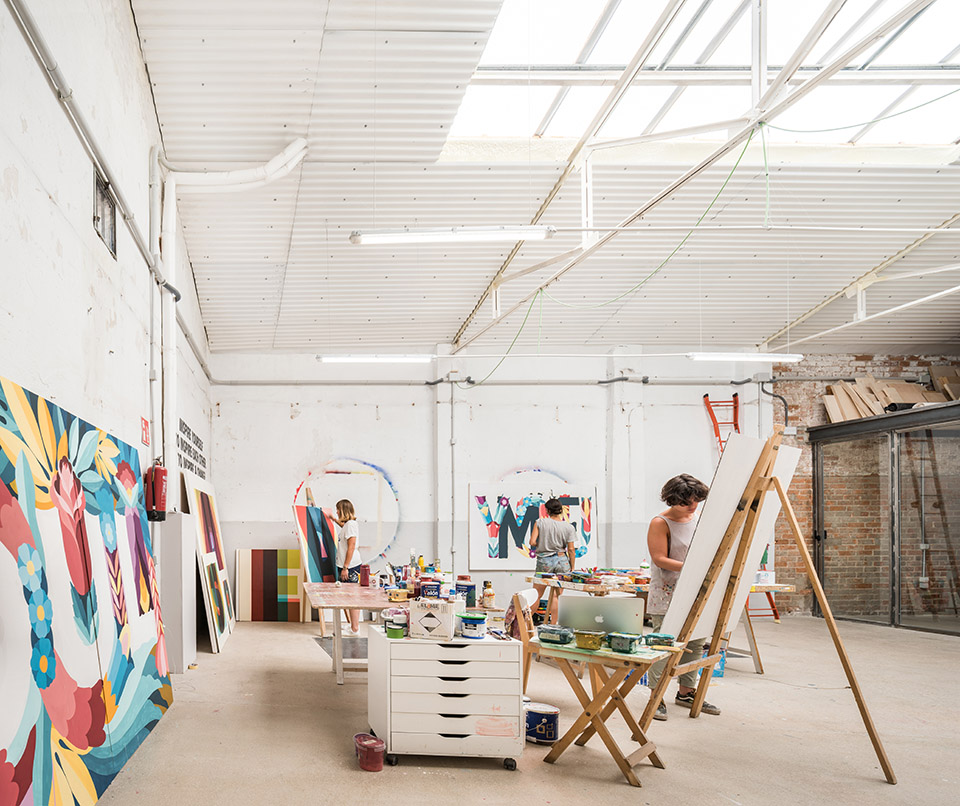

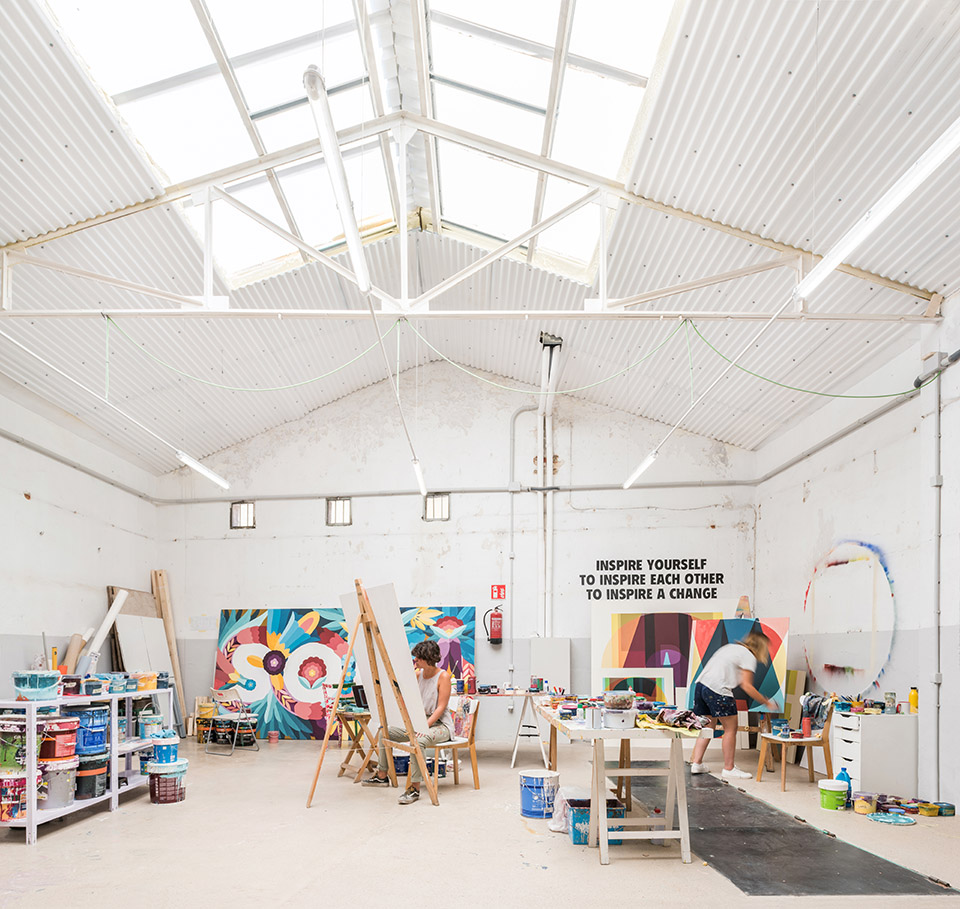

▼工作室，明亮的大空间，workshop, a bright and large space © Javier de Paz Garcia

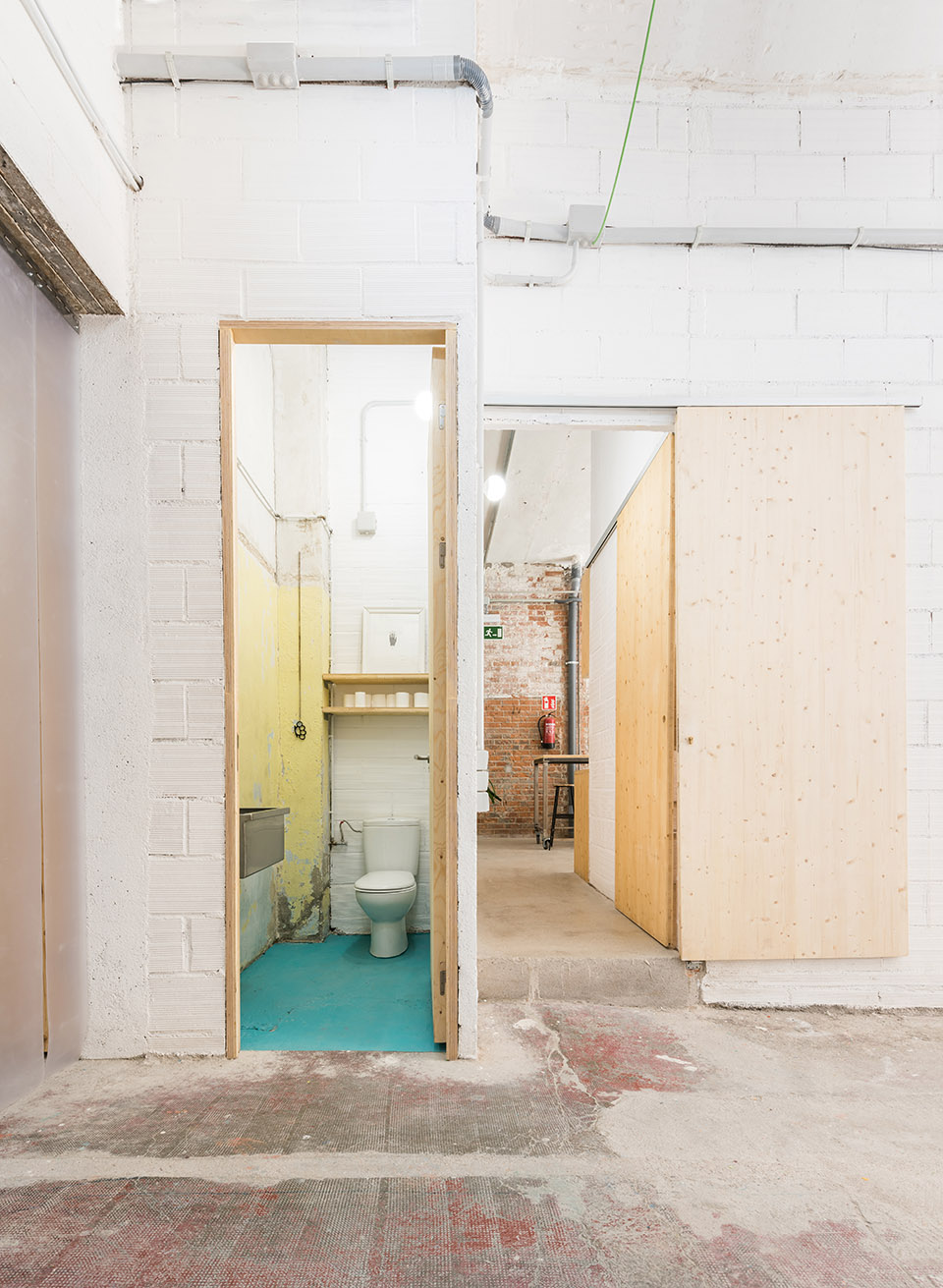

▼展示出未加工的建筑材料
display of raw building materials © Javier de Paz Garcia

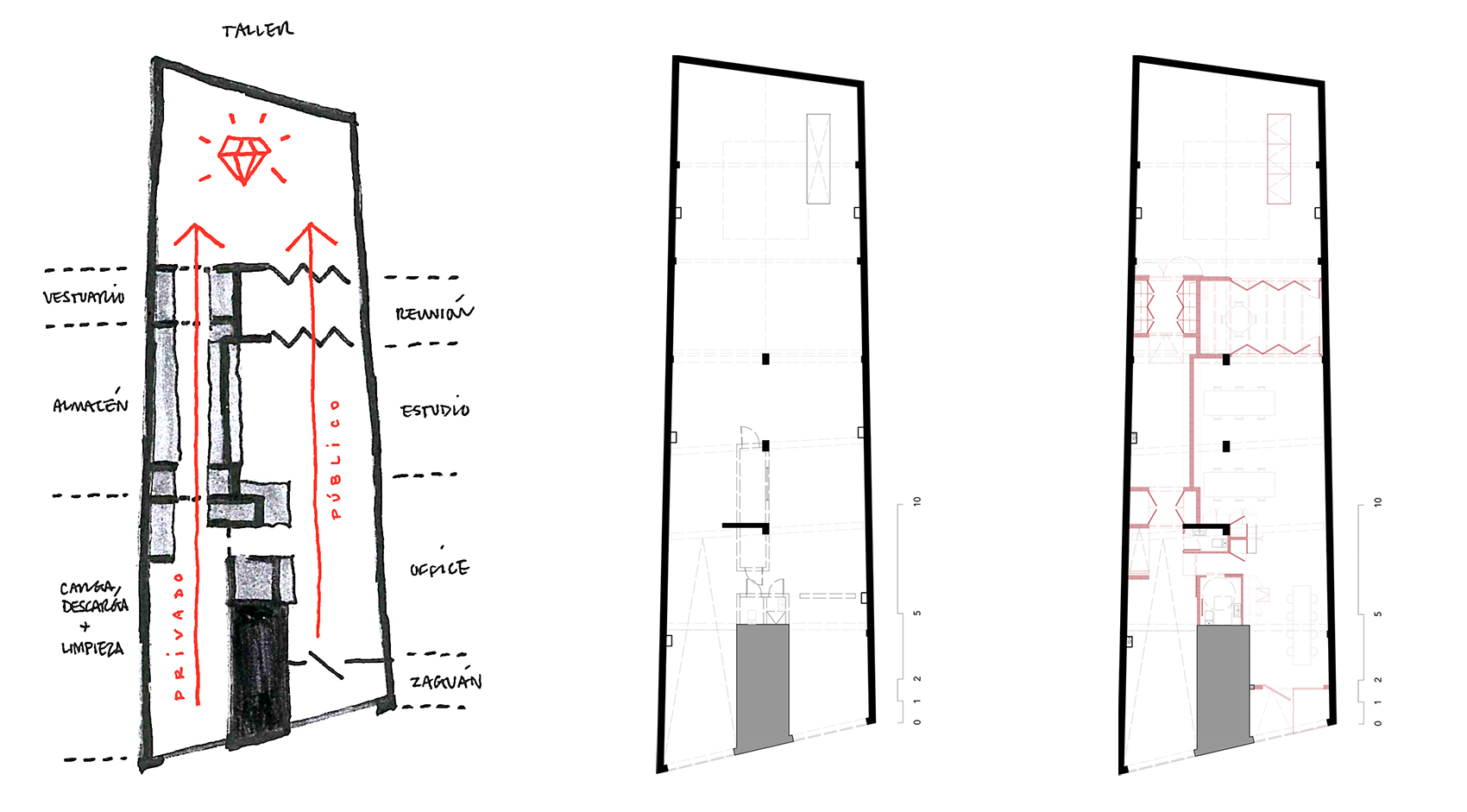

▼平面图，plan © ESTUYO Studio

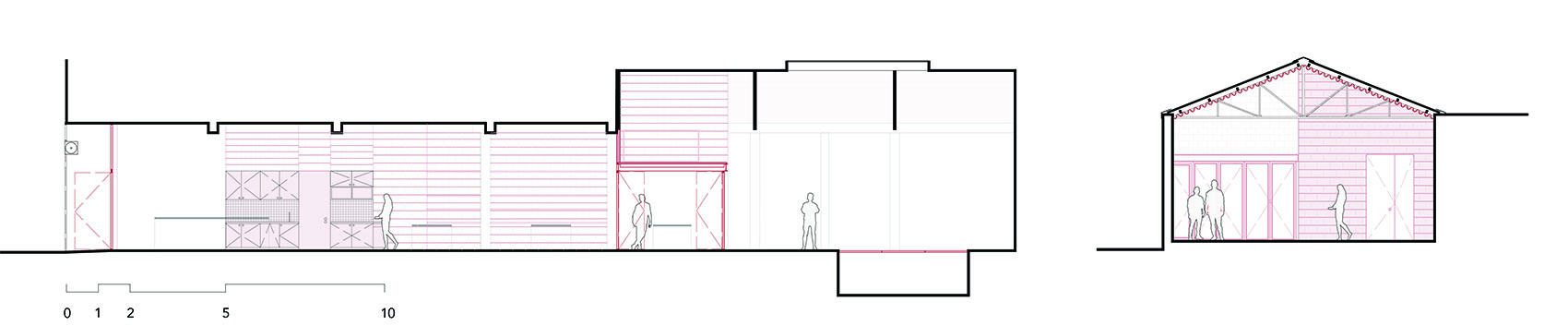

▼剖面图，section © ESTUYO Studio

CREDITS
GENERAL INFORMATION
Project Title: A Rough Diamond, Boa Mistura’s New Headquarters
Architecture Office: ESTUYO Studio
Architect’s Website: www.estuyo.cargo.site (website under construction)
Architect’s Email: info@estuyo.studio
Office: Spain
Construction: 2020
Surface: 247m2
Location: Madrid

MEDIA PROVIDERS
Photograph: Javier de Paz García (www.estudioballoon.es)
Video: Santi Donaire – Espacios Vivos (www.espaciosvivos.net)
Plans: ESTUYO Studio

OTHER CREDITS
Design Team: Jaime Yndurain and Elena Santín
Client: Boa Mistura (www.boamistura.com)
General contractor: Atelier Imaginean (www.imaginean.com)
Locksmith: Metálicas B&M
Painter: Boa Mistura
