非常感谢The Cocoon Tree Team将项目介绍和项目图片授权gooood发行。更多请至：The Cocoon Tree Team on gooood
Appreciation towards The Cocoon Tree Team for providing the following description:

这个浪漫豪华的球形结构床可以用绳子挂在树上。结构是铝材，外覆法拉利高品质防水篷布，直径三米，内部的定制床直径2.4米。除此之外还提供一个挂网，人们可以踩着挂网到达这个挂在树上的茧。浪漫体验，值得拥有。

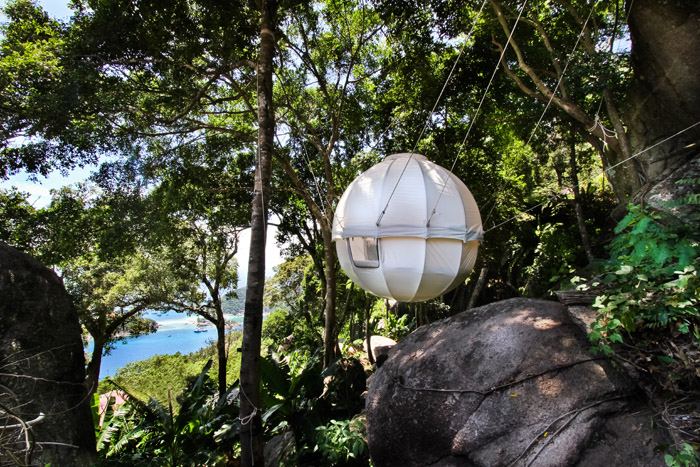

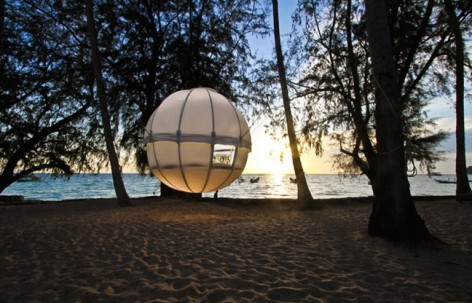

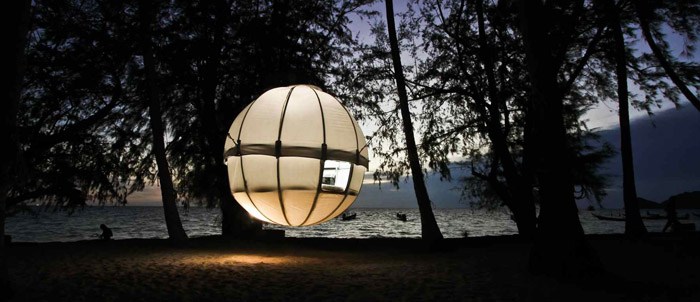

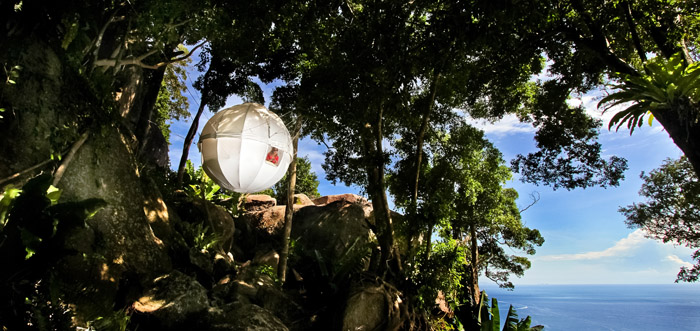

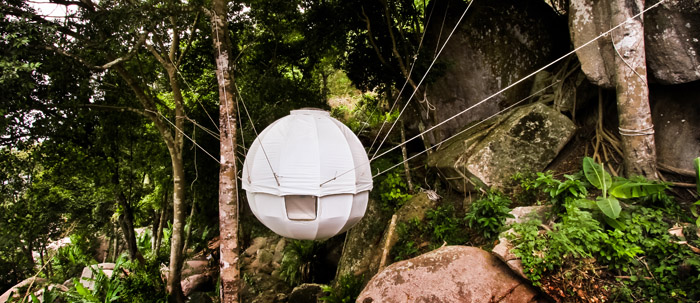

The Cocoon Tree (Deluxe) is a 120 kgs aluminium sphere structure covered with a Ferrari High Quality tarpaulin. It is intended to be hung in the trees by ropes. It is accessed by nets that also provide security.

The Aluminum structure and wood floor

T6 aluminum, diameter 3 meters.
12 elongated rods for the top , 12 shorts rods for the low part.
1 articulated circle for the top , 1 articulated circle at the bottom.
12 large monobloc units for the junctions with hanging hole for the passage of the
ropes .12 small monobloc units for joining the base elements.
2 circles pole for fixing the rods with bolts and screws.
A 2,50m plain wood floor treated against moisture.

The Ferrari High Quality tarpaulin

A top tarpaulin with openings for inserting the monobloc units and low tarpaulin with 3 openings-doors with mosquito nets and Zips

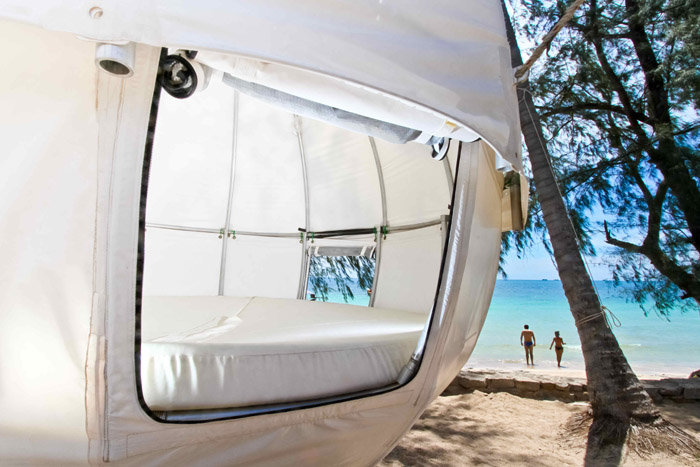

The bed

A 2.40 meters diameter high density foam mattress with its protection cover. Bedsheets, duvet in white cotton, all tailored to the 2,40 m mattress.

The Hanging Pack

25 m2 of black polyester safety net without nodes. 45mm x 45mm stitches
20 m2 of the same type of net to set up the access from the ground.
1000m of 2,5 mm polyester rope to fix the nets to the ropes.
100m of 12mm polyester rope, beaking point 2T3 to hang the Cocoon in the trees

MORE: Cocoon Tree，更多请至：The Cocoon Tree Team on gooood
