来自 fran silvestre arquitectos 对gooood的分享。更多关于他们：fran silvestre arquitectos on gooood
Appreciation towards fran silvestre arquitectos for providing the following description:

在Cabo de Plata海滩上有一个眺望大西洋的开阔视野，这里以塔里法安达卢西亚海岸的德国海滩而被人熟知。一系列狭长的空间倾斜并相互缠绕着与地形相适应来完善景观视野。向下延伸的每一体块都较前一体块下沉半层。因此在交替的模式中给所有空间一个直接的海滩瞭望视角。

Located on the beach of Cabo de Plata, known as the Beach of the Germans on the Andalusian coast of Tarifa, there is an uneven place with a horizontal view over the Atlantic Ocean.To optimize the vision of the landscape, a series of slender spaces are intertwined as they adapt to the descending topography. Each of these pieces is deposited half a floor below the previous one. This way, its alternating arrangement allows all the spaces to have a direct view over the beach.

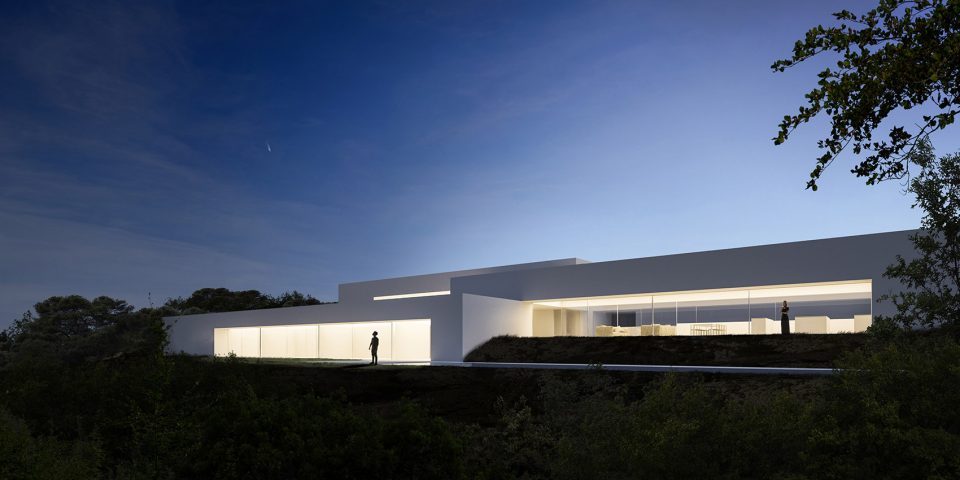

▼建筑全貌，full view

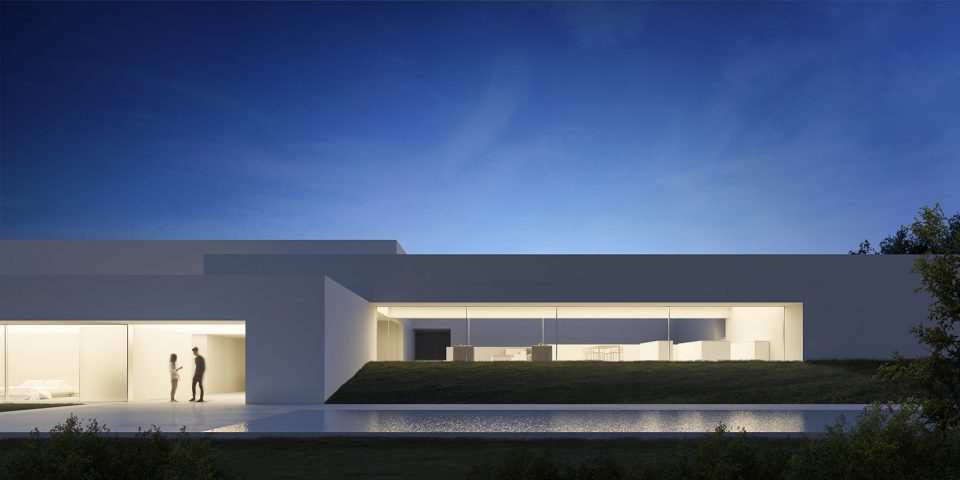

▼建筑正立面，front view

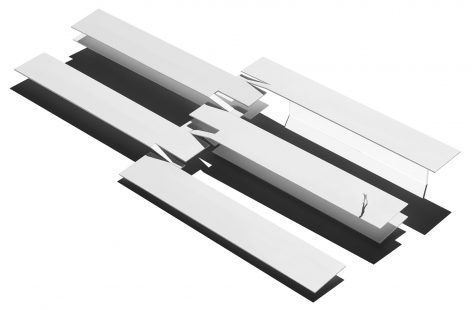

▼一系列狭长的空间相互缠绕， a series of slender spaces are intertwined as they adapt to the descending topography

这种聚合形式让建筑消隐于景观之中，并以梯状的形式适应倾斜的地形。一系列露台创造了连续的内部空间。建筑向西南方向，可以感受到绝佳的观景视角，东北方向有与世隔绝的庭院和花园，同时自然的通风缓和了塔里法炎热的天气和强烈的风。建筑内部以半层分级，每层安排不同的功能。主卧位于顶层，露天区域的下层作为连通空间，卧室的其他部分被安排在底层。各部分之间的交叉点为中央交流空间，有流畅的上下梯度。中央区域引导人穿越不均匀的空间，在各层各面之间循环往复，带来一种无穷无尽的体验。

This form of aggregation minimizes its presence in the landscape, and adapts to the slope as a sort of ladder. A system of terraces that produces continuous interiors. To the southwest we find the views over the landscape, to the northeast there are enclosed courtyards and gardens that thanks to the natural ventilation mitigate the hot days and give shelter from the winds that characterize Tarifa.The program is organized in half-levels, each piece corresponds to a different use. The main bedroom is located at the top. Half floor below the day zone is arranged at an intermediate level, while the rest of the bedrooms are placed at the bottom.In the intersection between the pieces is located the communications core, with smooth ladders, almost ramps. This central space proposes a route through different spaces with a great spatial heterogeneity, a walk that allows us to continue through the roof generating the fiction of a loop, a walk that we could imagine as limitless.

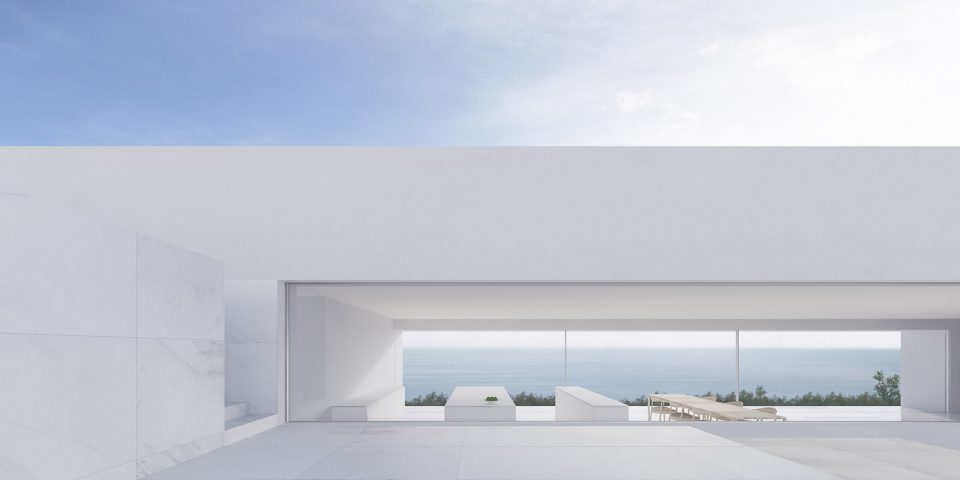

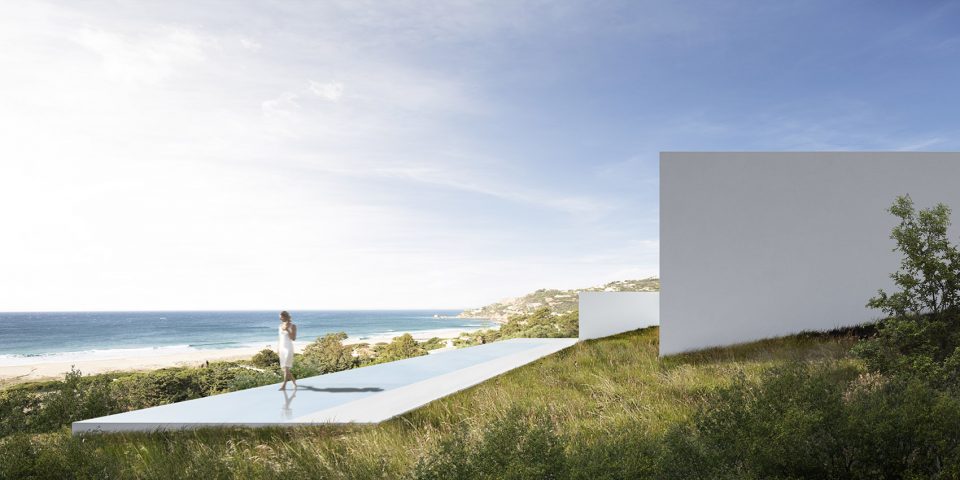

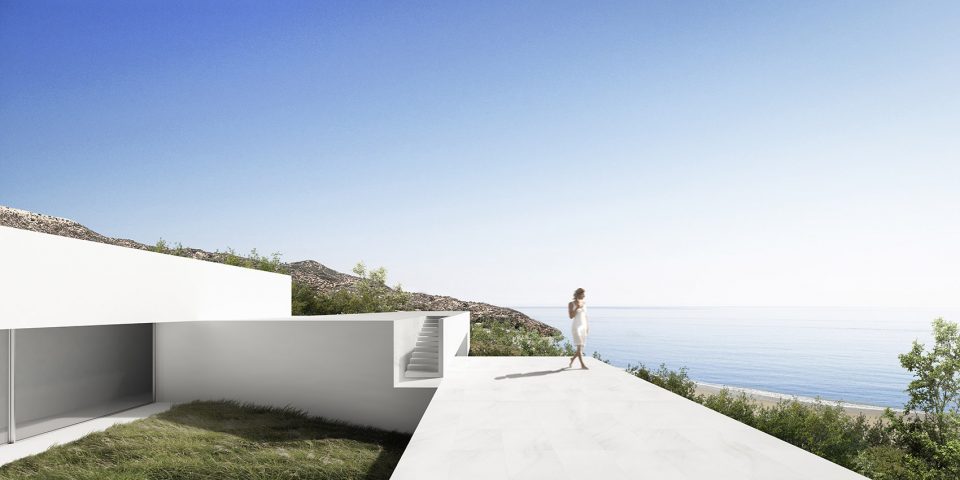

▼户外观景台，the views point over the landscape

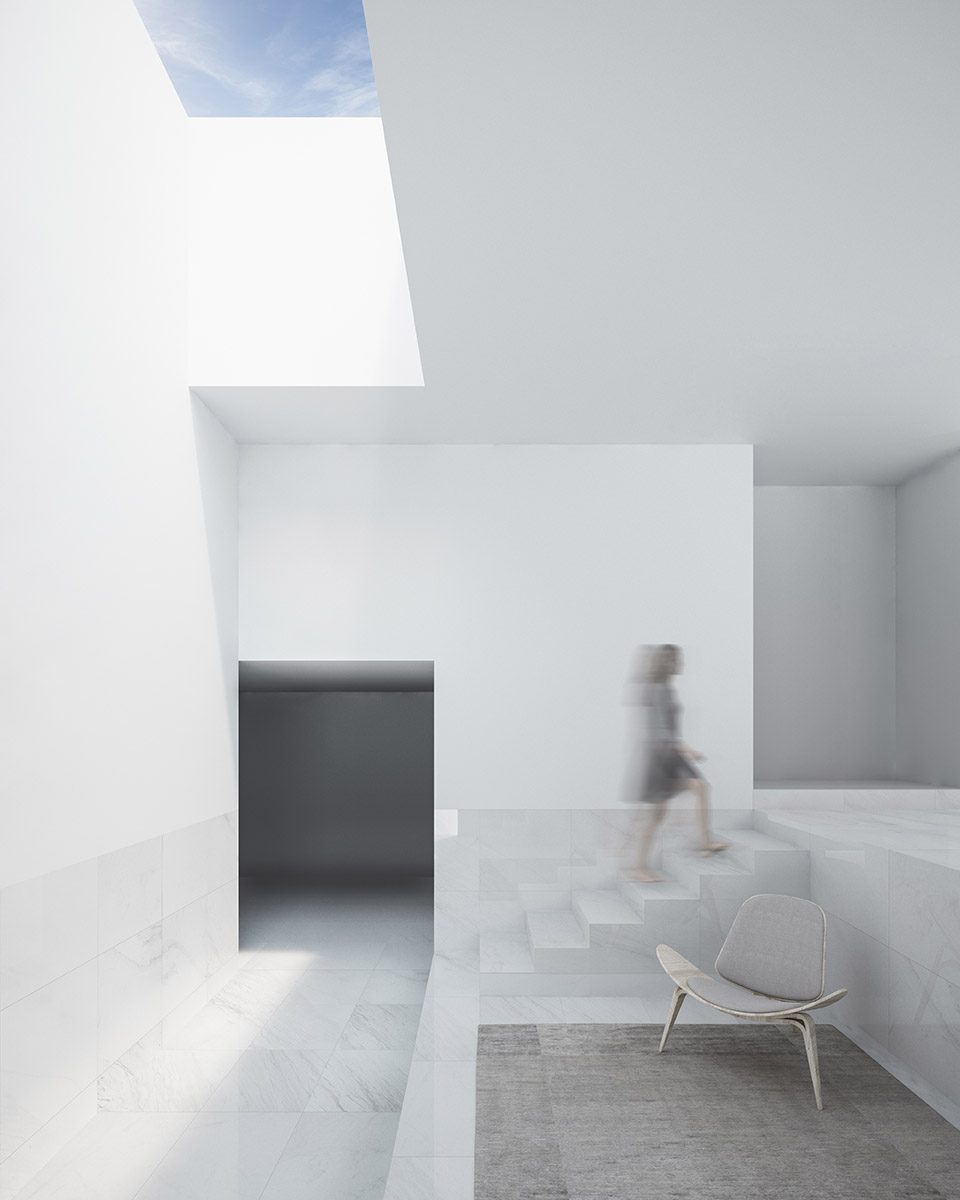

▼中央交流空间，the central communication space

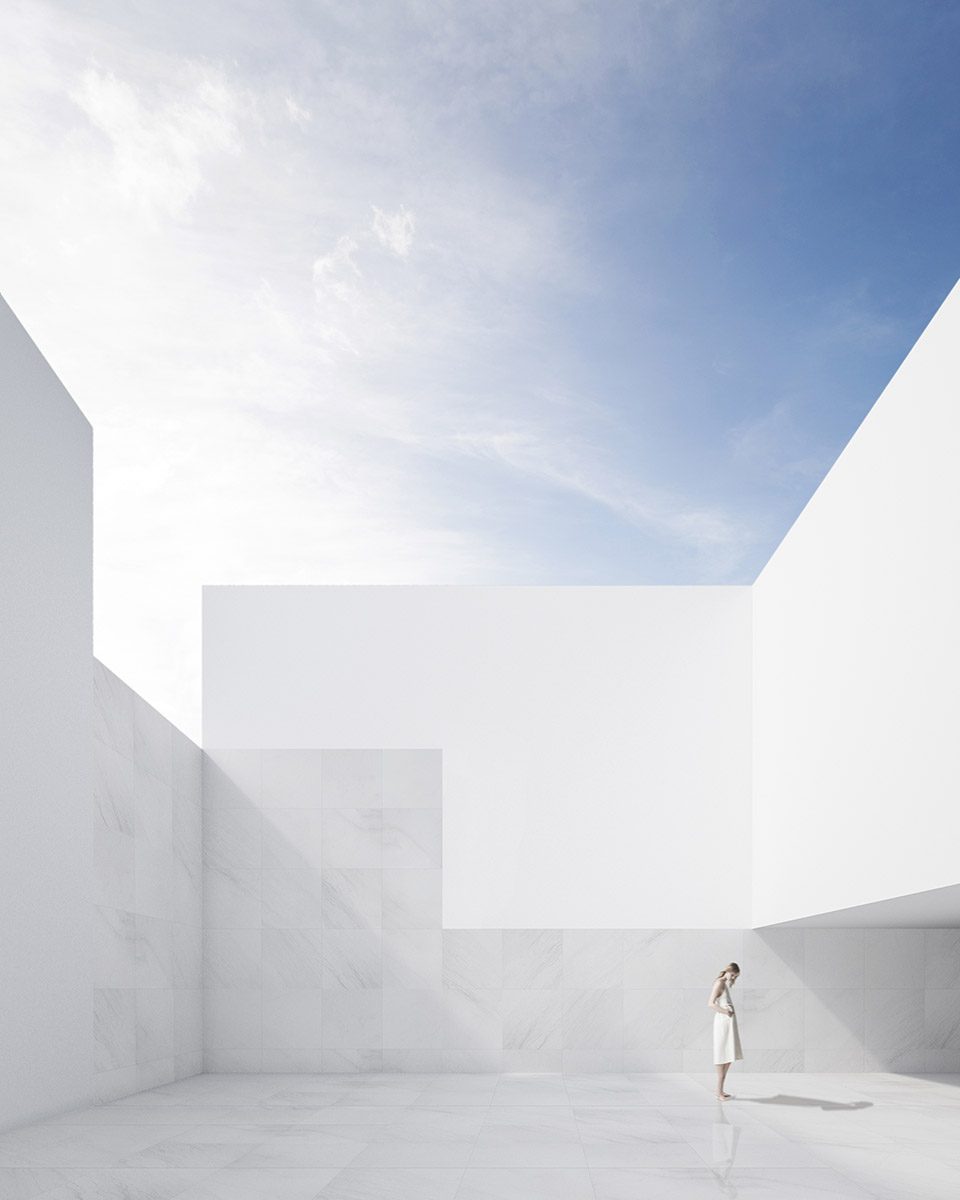

▼自然通风的内部空间，natural ventilation space

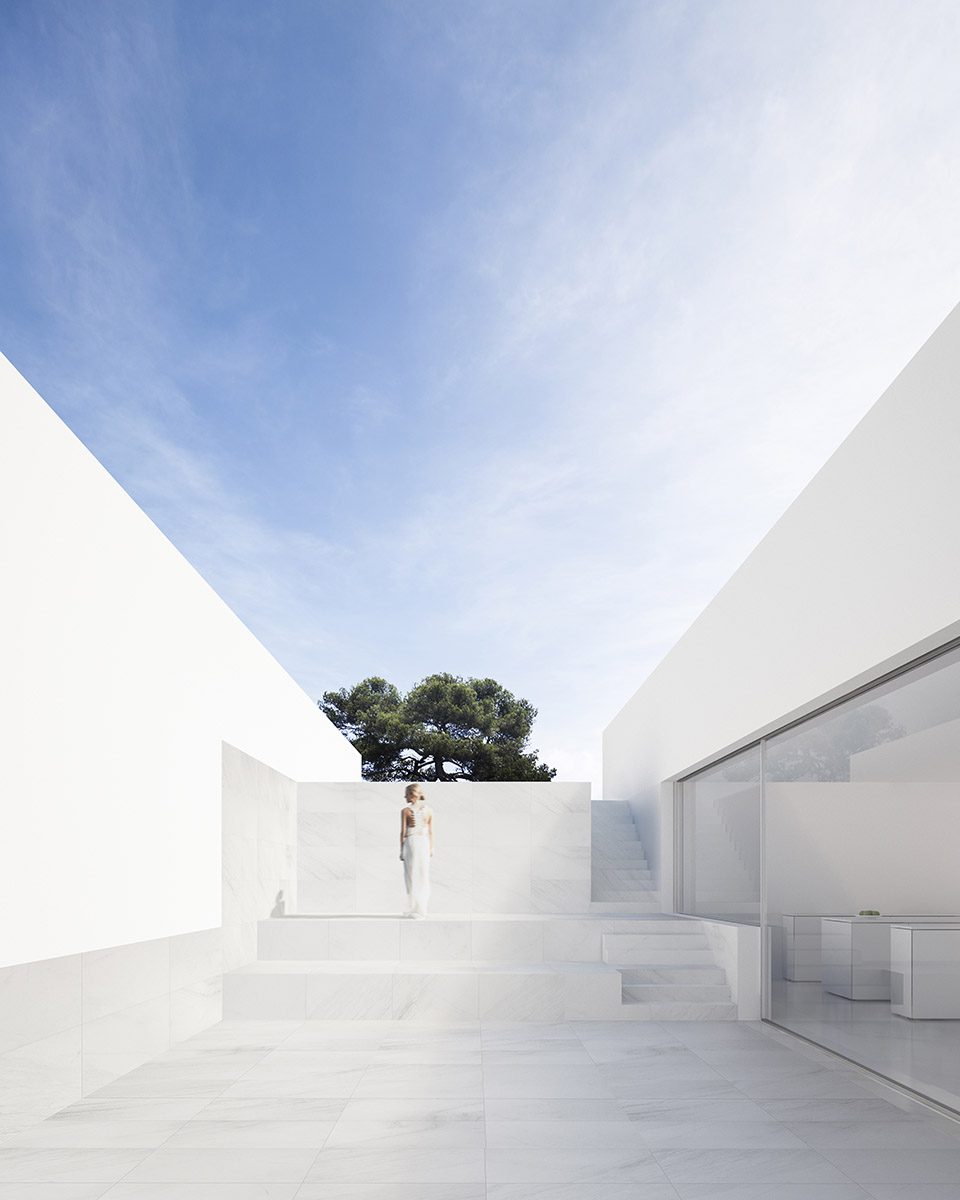

▼建筑内的露天空间，the terrance

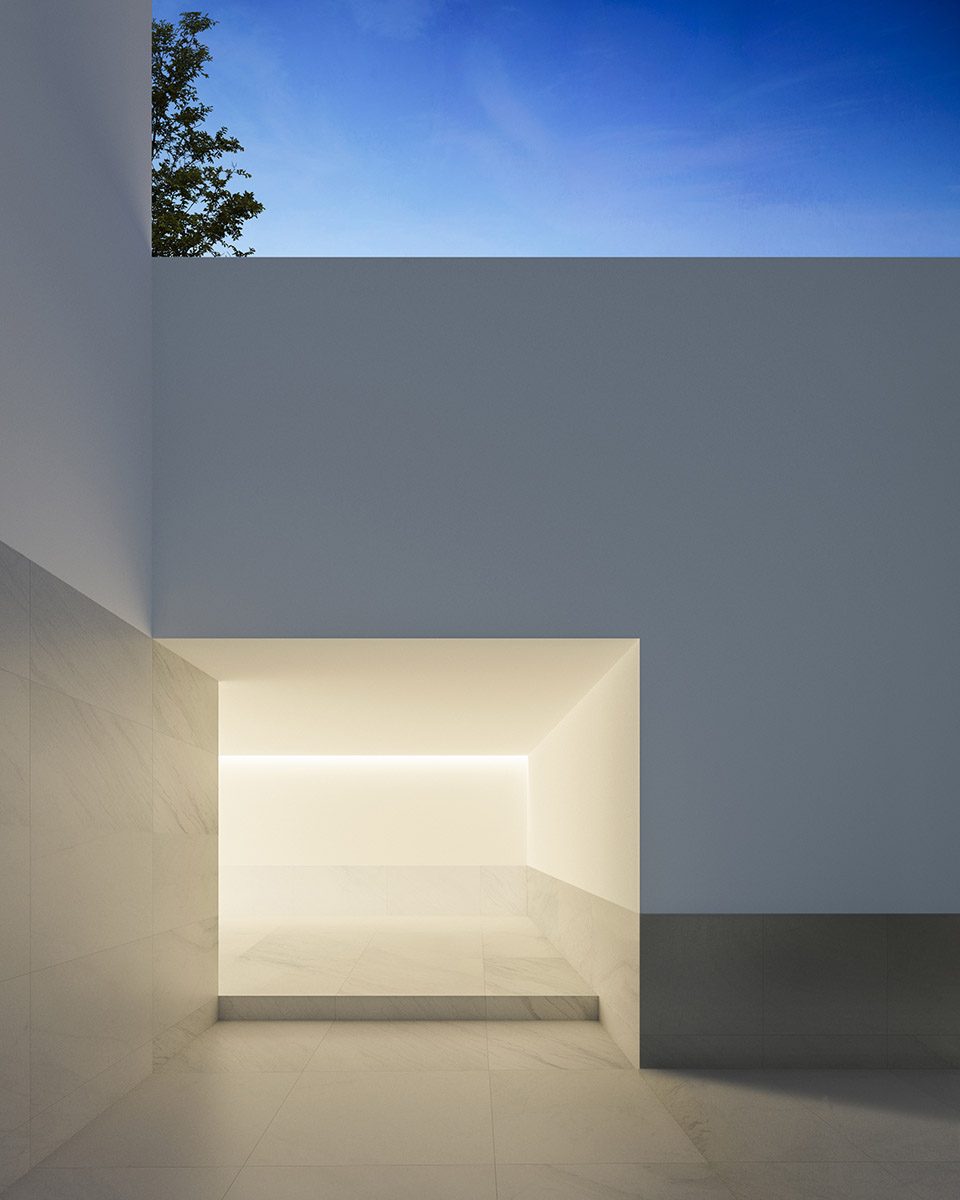

▼出入口，entrance

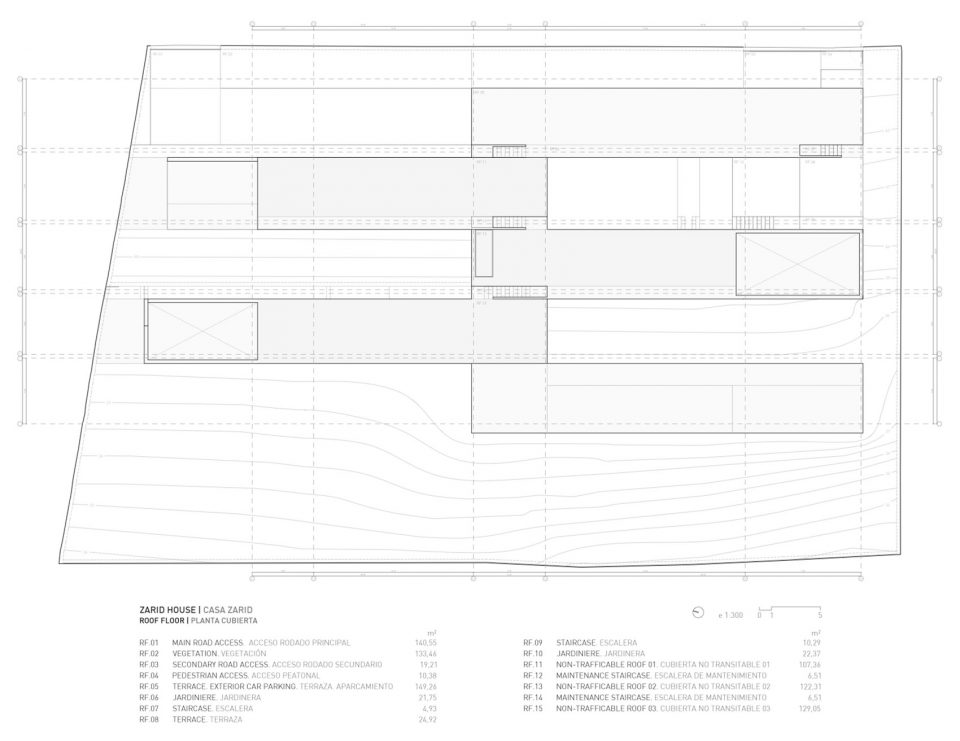

▼屋顶平面，the roof floor

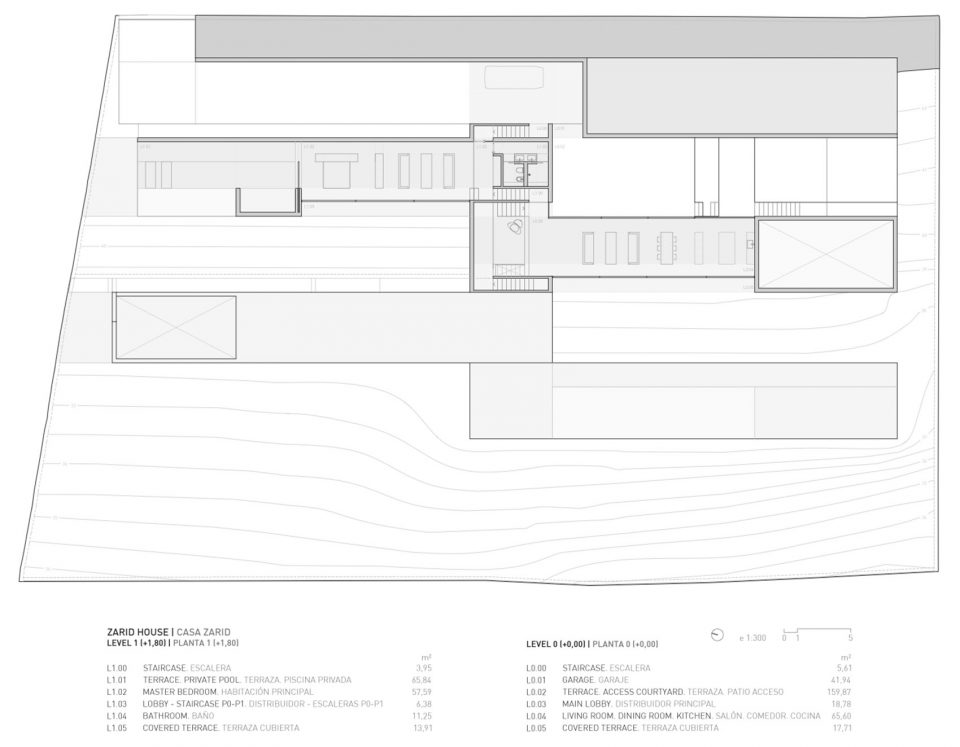

▼一层平面，level 1 plan

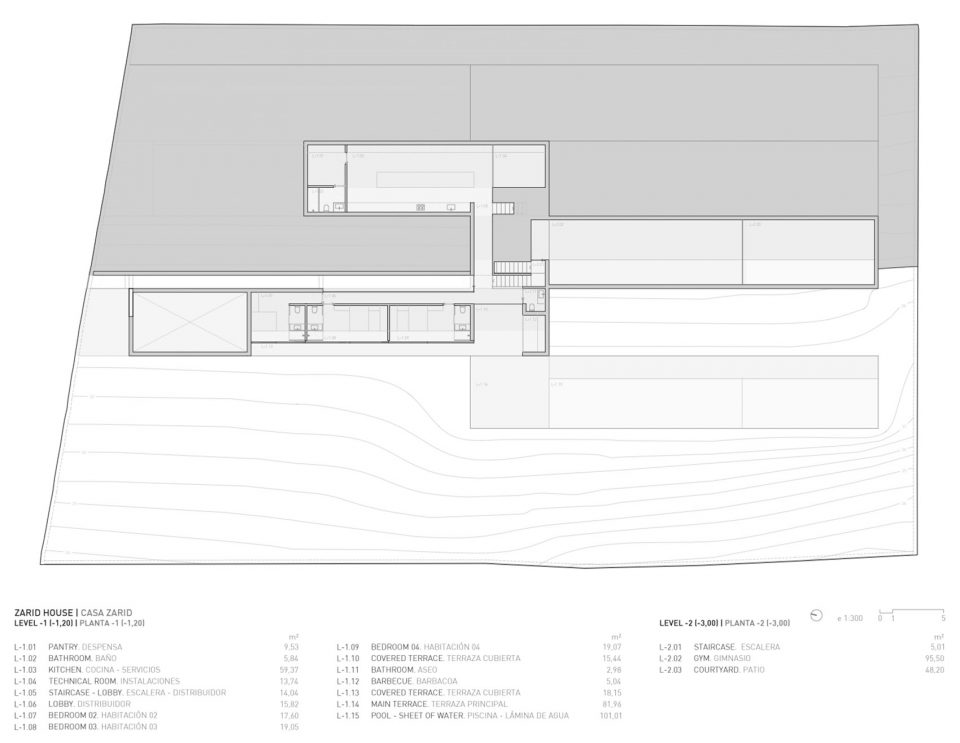

▼地下一层，level -1 plan

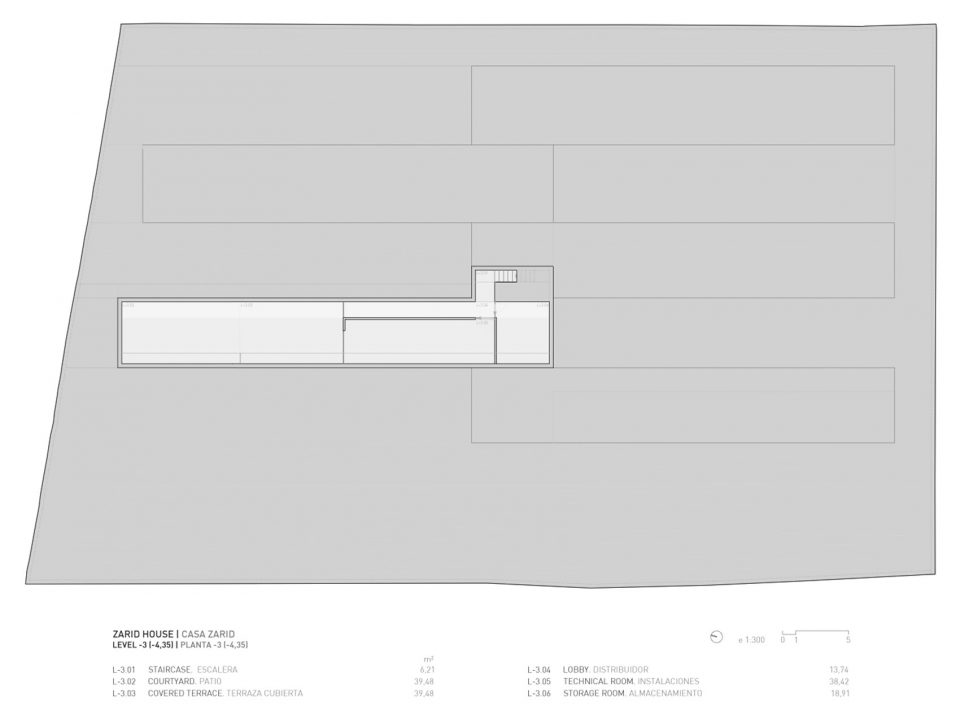

▼地下三层平面图，level -3 plan

▼东北立面/西南立面，northeast elevation/southwest elevation

▼东南立面/西北立面，southeast elevation/northwest elevation

▼剖面，section

More: fran silvestre arquitectos，更多关于他们：fran silvestre arquitectos on gooood

Project Specs

Fran Silvestre Arquitectos
