来自 DUST 对gooood的分享。更多关于他们：DUST on gooood .
Appreciation towards DUST for providing the following description:

Tucson山地住在位于加州的Sonoran沙漠之内，茂盛的沙漠植物暴露在阳光之下，干旱的气候没有一丝凉风，眼前的一切寂静而永恒，带着无穷的神秘感。建筑设计呼应着周边的环境，干涸的沟壑，干裂的岩石，古老的仙人掌，动物的迁移路径，空气的流动轨迹，炙热的阳光和美丽的风景。建筑师的精心设计在将建筑对脆弱环境的物理影响降至最低的同时，联系其人类和这令人敬畏的神秘景观。

The Tucson Mountain Retreat is located within the Sonoran Desert; an extremely lush, exposed, arid expanse of land that emits a sense of stillness and permanency, and holds mysteries of magical proportions. The home is carefully sited in response to the adjacent arroyos, rock out-croppings, ancient cacti, animal migration paths, air movement, sun exposure and views. Great effort was invested to minimize the physical impact of the home in such a fragile environment, while at the same time attempting to create a place that would serve as a backdrop to life and strengthen the sacred connections to the awe-inspiring mystical landscape.

附属的停车场被置于400英尺之外，人们沿着狭窄的步道在沙漠中前行。而随着人们的移动，建筑一点一点从繁茂仙人掌丛中显露出来。错落的混凝土石块仿佛渐渐消融在沙漠中一般，创造了极富趣味性的入口空间序列，每一步都如同一段旅程的开始。人们在无数的选择中慢慢前行，渐渐将繁忙的城市生活抛诸脑后。

Intentionally isolating the parking over 400 feet from the house, one must traverse and engage the desert by walking along a narrow footpath toward the house, passing through a dense clustered area of cacti and Palo Verde that obscure direct views of the home. Upon each progressive footstep, the house slowly reveals itself, rising out of the ground. The entry sequence, a series of playfully engaging concrete steps, dissolves into the desert. As one ascends, each step offers an alternative decision and a new adventure. Through this process, movement slows and senses are stimulated, leaving the rush of city life behind.

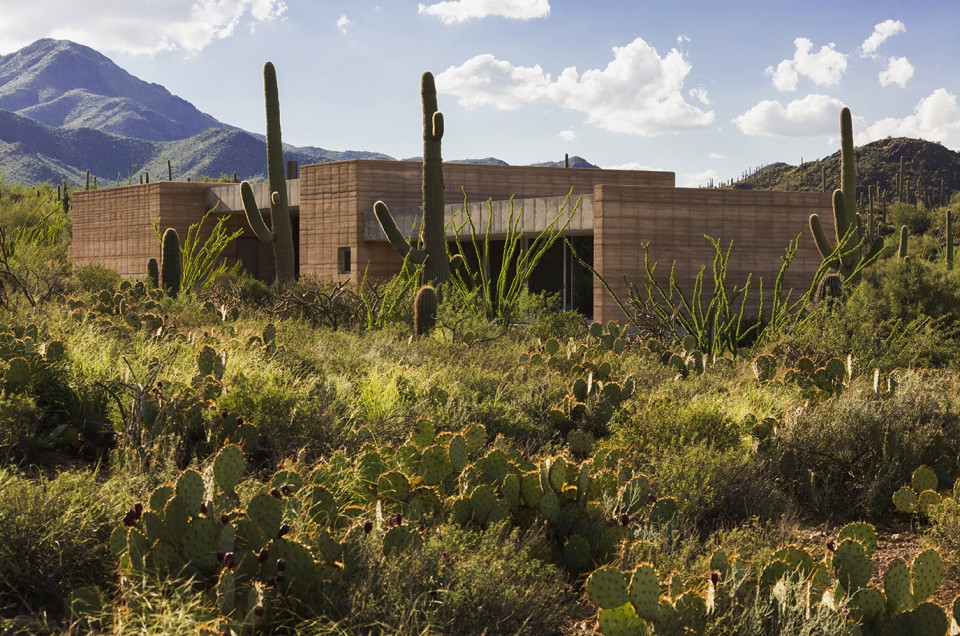

▼ 繁茂仙人掌丛后的建筑， a dense clustered area of cacti obscure direct views of the home.

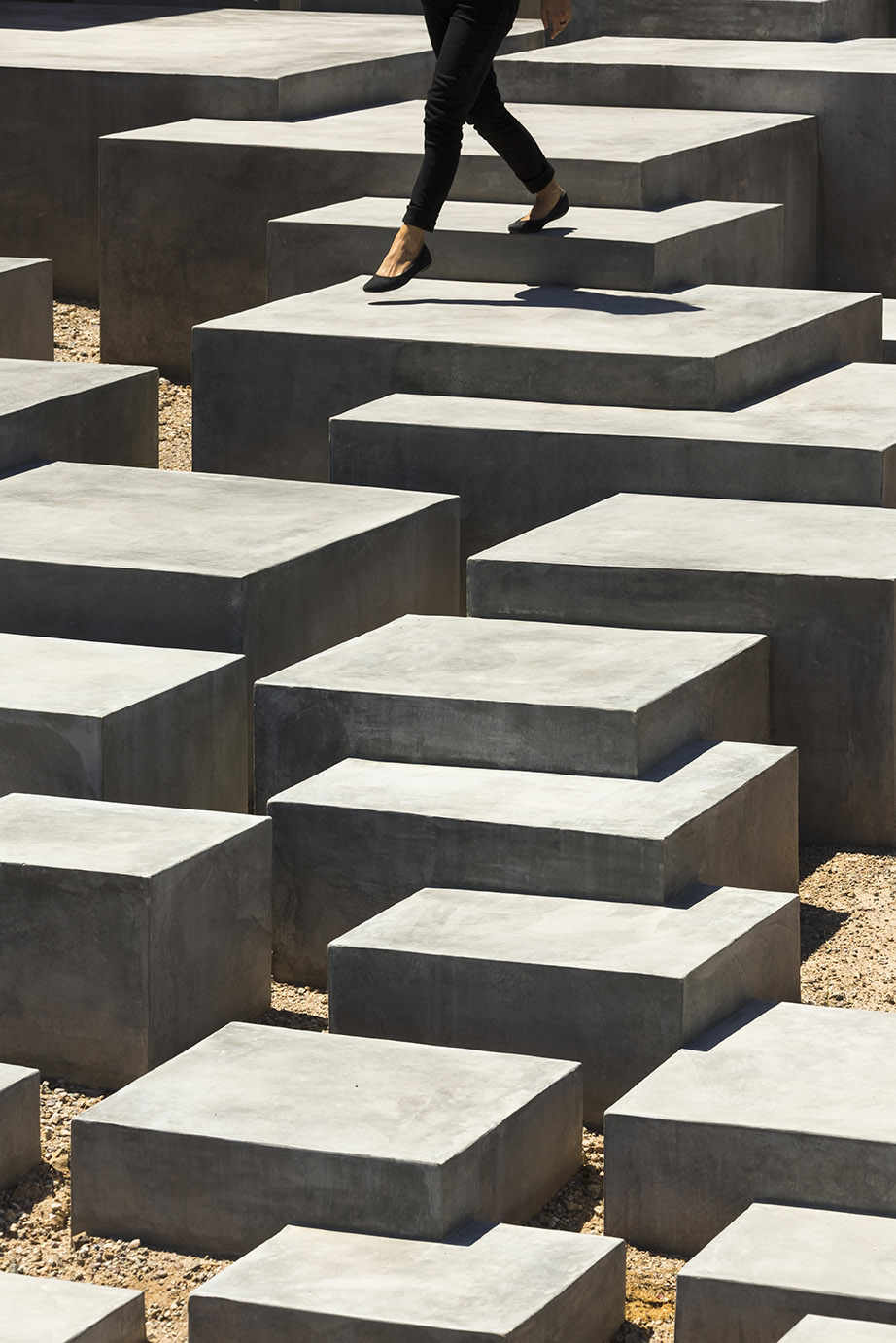

▼ 错落的混凝土石创造了极富趣味性的入口空间序列， a series of playfully engaging concrete steps

建筑由夯实的泥土制成，这唾手可得的材料在提供建筑所需热质量的同时，并不会对环境造成负面的影响。这种干旱地区常用的建筑材料十分适应Sonoran的沙漠气候，也让所有身处其中的人们能够从视觉，听觉和触觉上同时感受到其内在的诗意。

The home is primarily made of Rammed Earth, a material that uses widely available soil, provides desirable thermal mass and has virtually no adverse environmental side effects. Historically vernacular to arid regions, it fits well within the Sonoran Desert, while at the same time it embodies inherent poetic qualities that engage the visual, tactile and auditory senses of all who experience it.

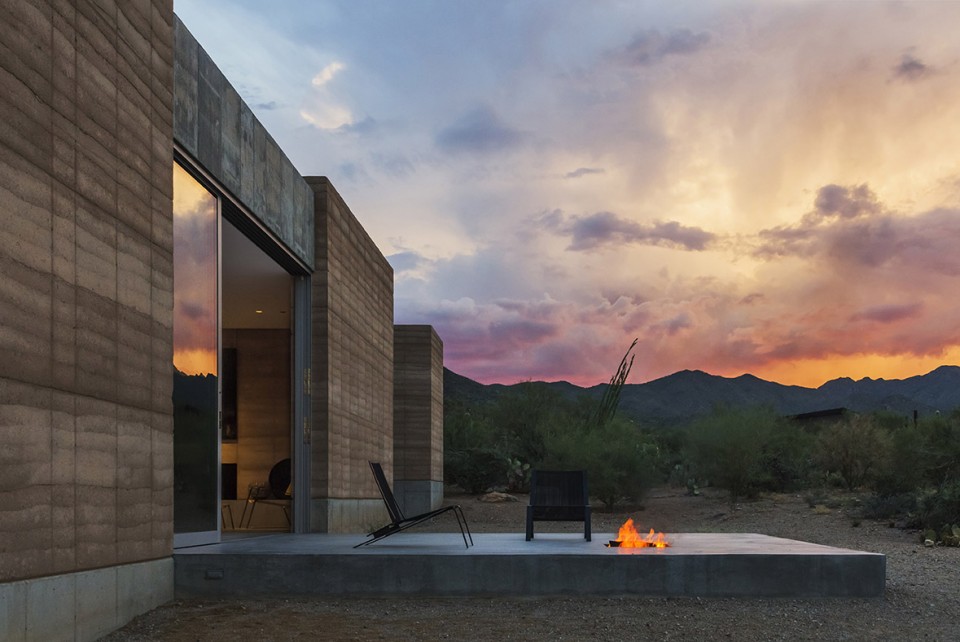

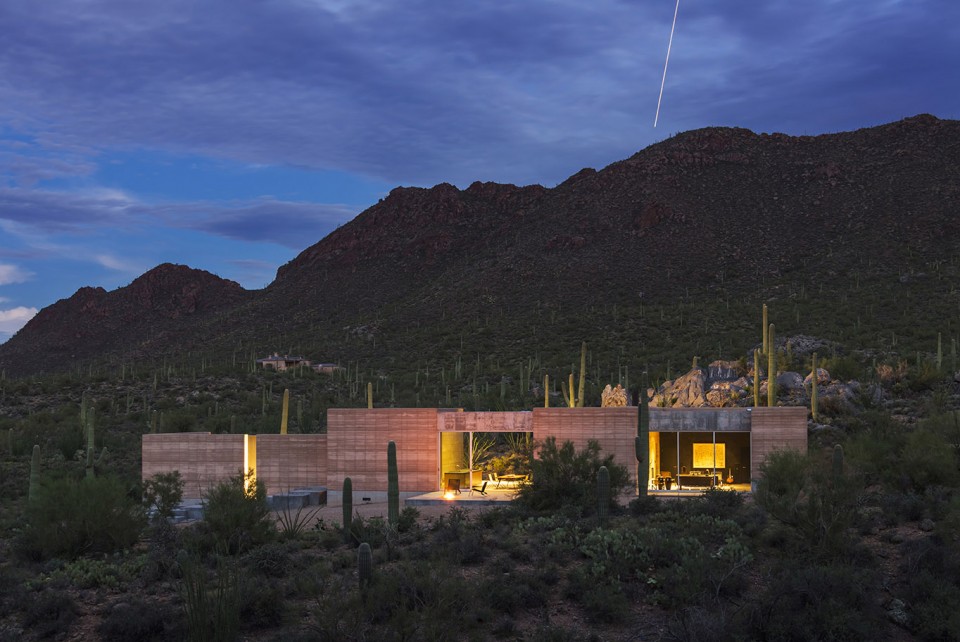

▼ 夜景，evening view

建筑空间被划分为起居、休息和录音娱乐三个相互分离的空间。不同空间之间并无直接的联系，而需要通过外界的通道到达。这种设计不仅满足了业主对噪音干扰的极致要求，同时也让使用者与粗旷沙漠景观间的联系更为密切。

The program of the home is divided into three distinct and isolated zones; living, sleeping, and music recording/home entertainment. Each zone must be accessed by leaving the occupied zone, stepping outside, and entering a different space. This separation resolves the clients’ desired acoustic separation while at the same time, offers a unique opportunity to continuously experience the raw desert landscape.

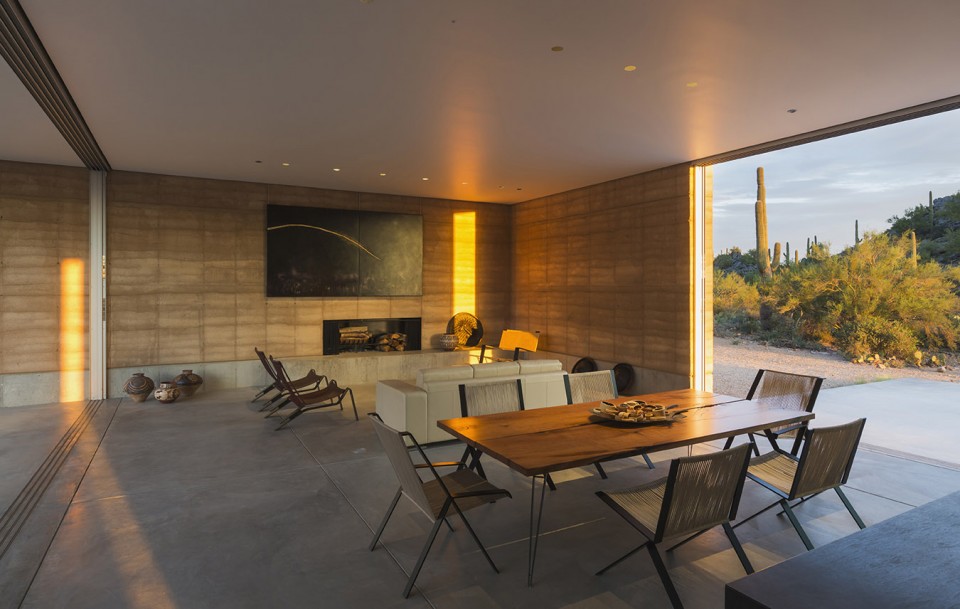

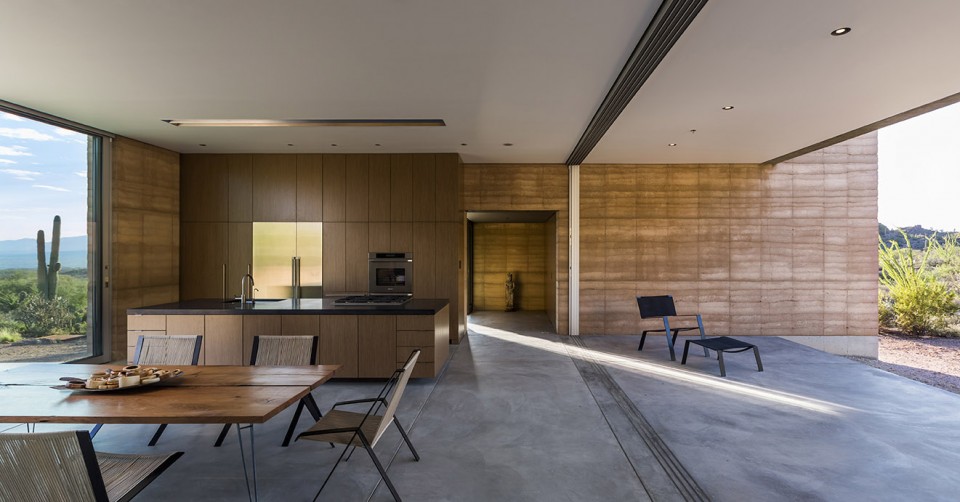

▼ 起居空间，living room

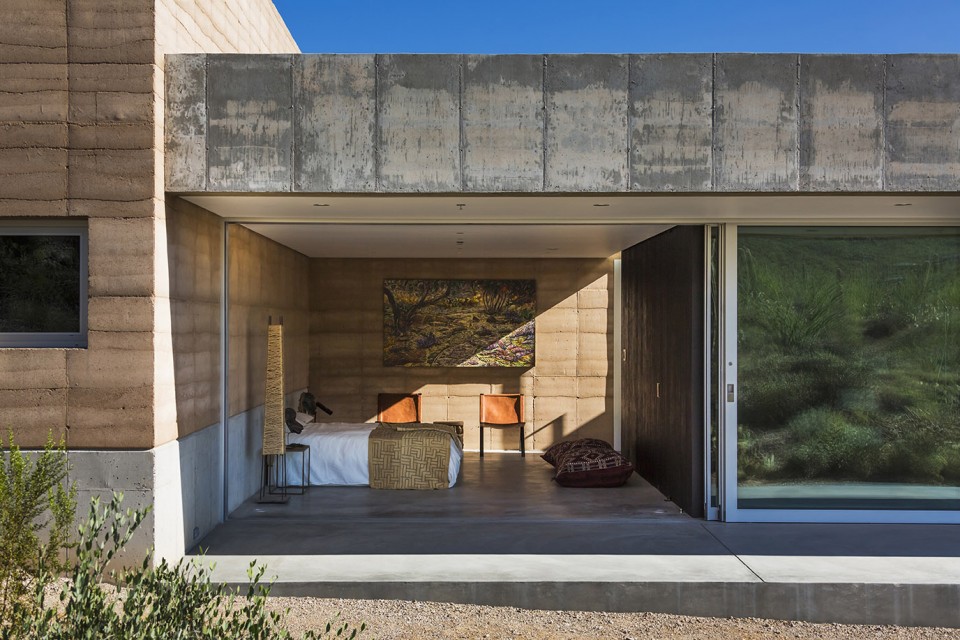

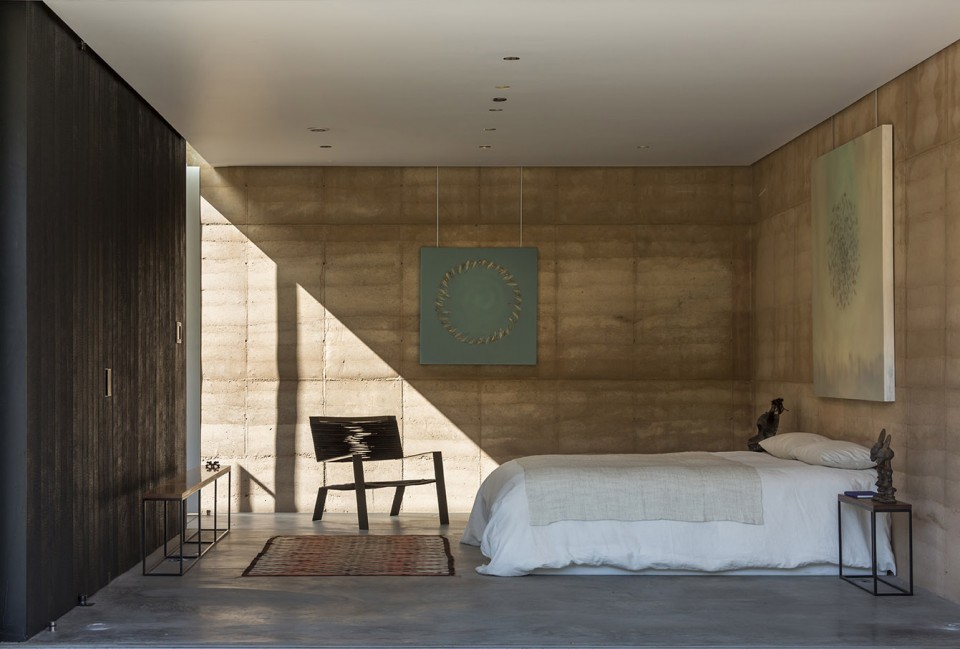

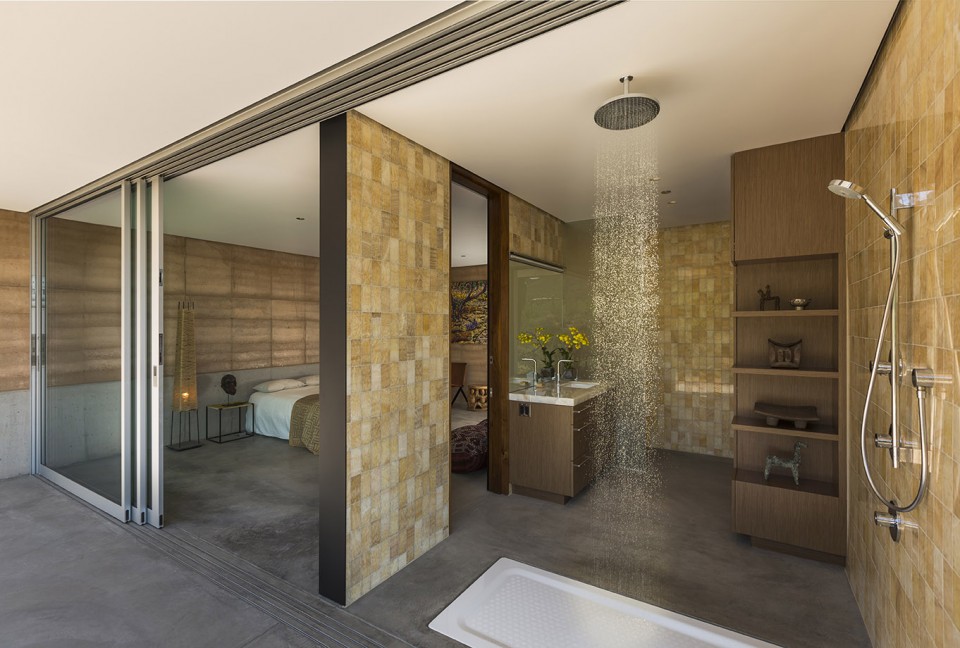

▼ 居住空间，bedroom

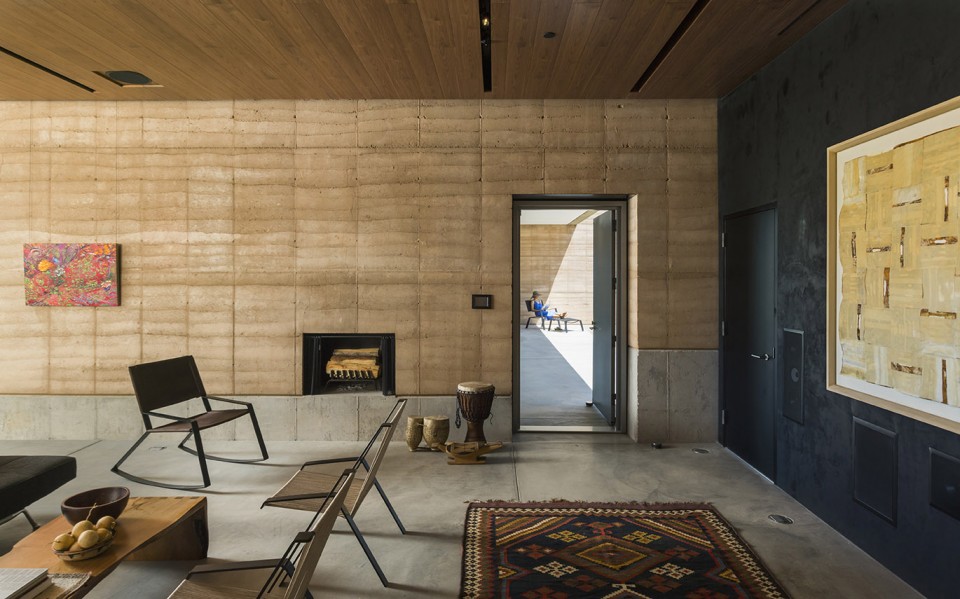

▼ 娱乐空间，music recording/home entertainment room

作为在水源紧缺的沙漠地区的住宅，建筑师引入了一个能收集、净化30000加仑雨水的储水系统，满足日常起居生活的一切需要。

Rooted in the desert, where water is always scarce, the design incorporates a generous 30,000 gallon rainwater harvesting system with an advanced filtration system that makes our most precious resource available for all household uses.

▼ 储水系统，rainwater harvesting system

建筑的南北朝向以及最少化的东西向开窗减少了阳光的直射时间。在起居与休息空间外侧，长长屋檐遮挡之下的南侧露台提供了毫无遮挡的沙漠全景，让人与自然近距离接触。屋檐挡住了夏日的炙热阳光，而在冬天，低矮的太阳高度让阳光能够照射入室内，带来光和热。开口的方向迎着盛行风向，可移动的落地玻璃门将微风引入室内，习习的南风得以穿过建筑。当玻璃门被完全打开时，室内空间完整的暴露出来，无缝相连，恍如自然的一部分。

Solar heat gain is reduced by orienting the house in a linear fashion along an east–west axis, and by minimizing door and window openings in the narrow east and west facades. The main living and the sleeping spaces extend into patios and open toward the south under deep overhangs that allow unadulterated views and access to the Sonoran Desert. The overhangs provide shelter from the summer sun while allowing winter sunlight to enter and passively heat the floors and walls. They also scoop prevailing southerly breezes and enhance cross ventilation, which can be flexibly controlled by adjusting the floor-to-ceiling sliding glass doors. When the large glass doors are fully opened, the house is transformed, evoking a boundless ramada-like spirit where the desert and home become one.

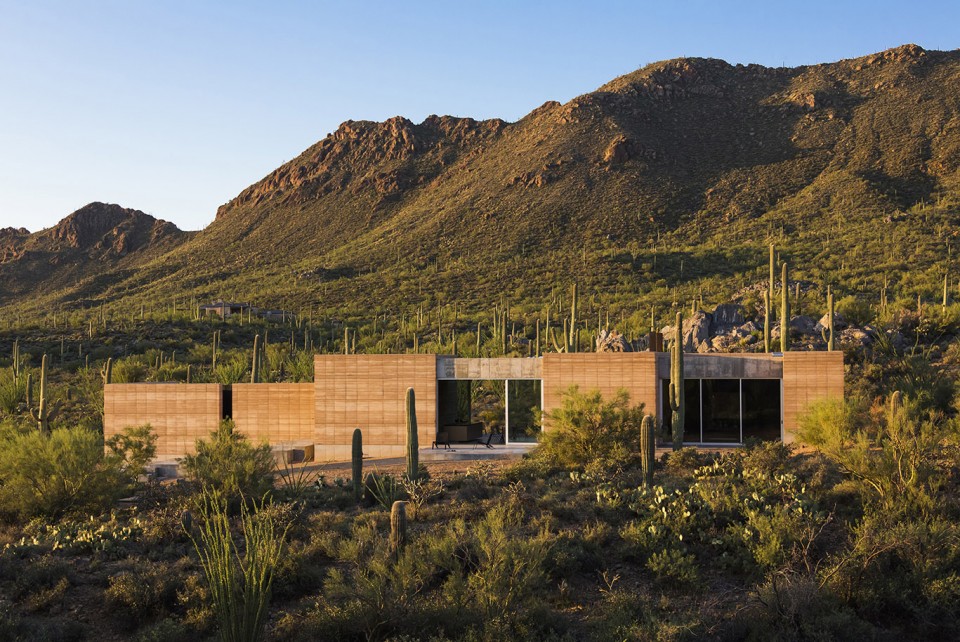

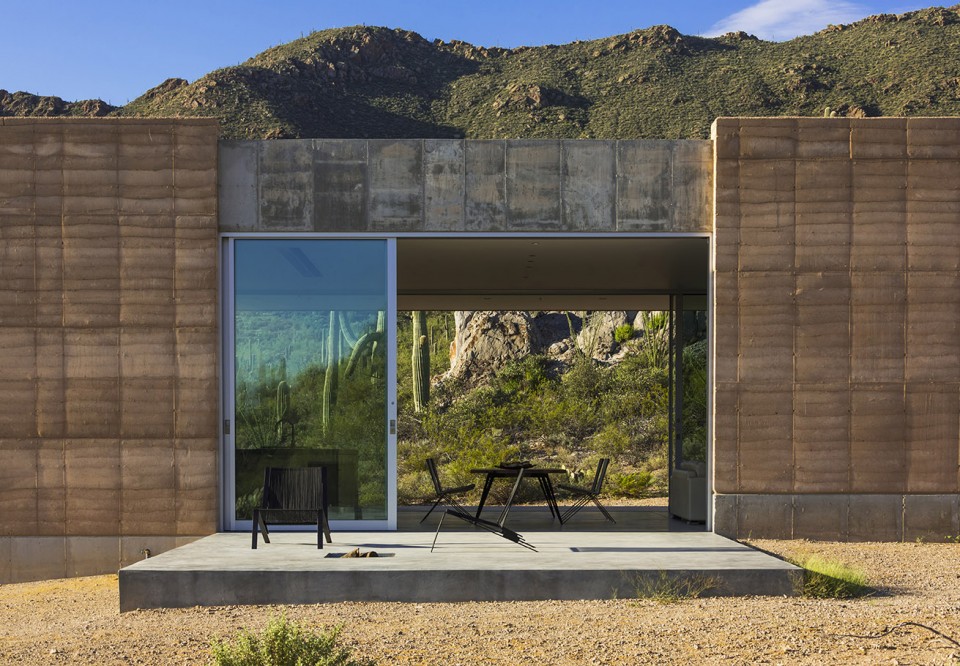

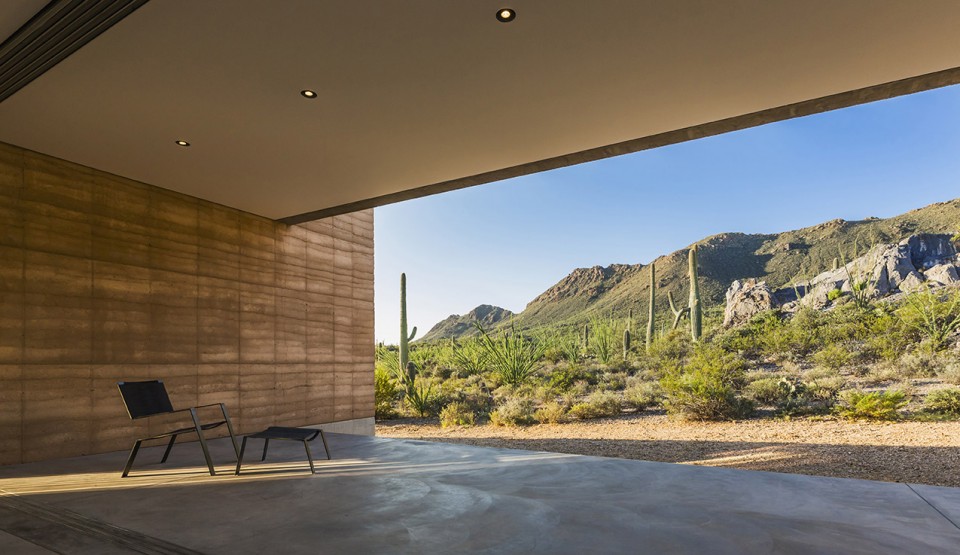

▼ 建筑与自然无缝相连，the desert and home become one

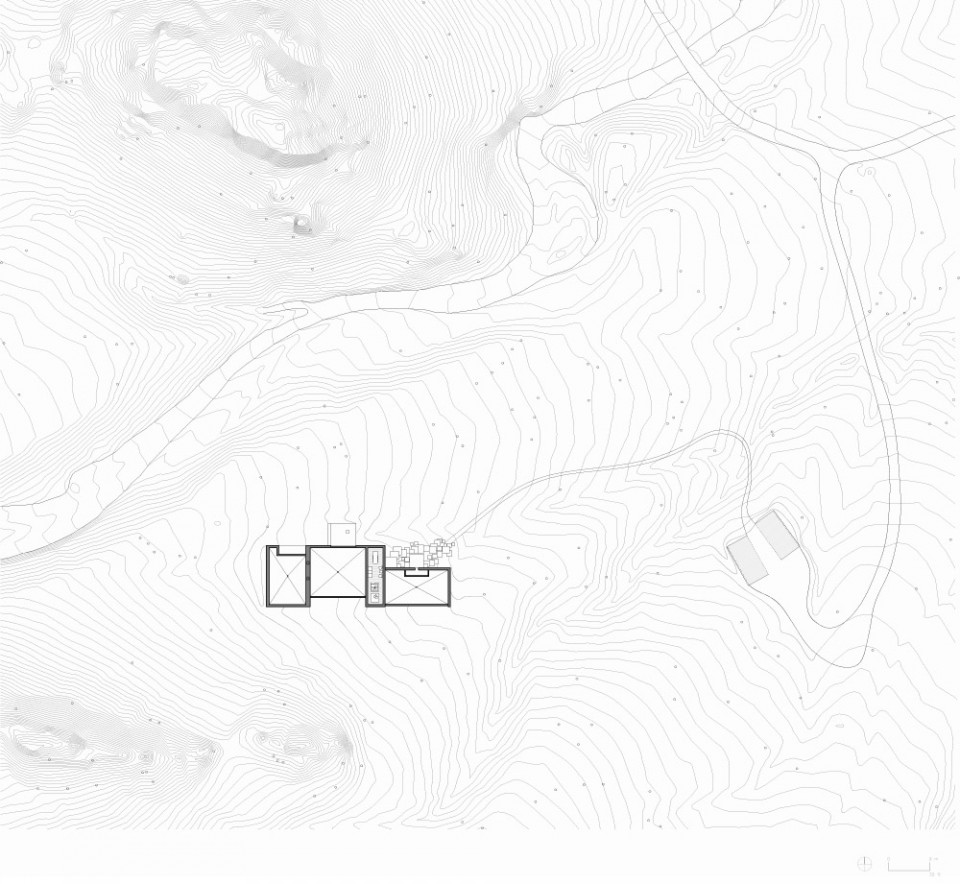

▼ 总平面图，site plan

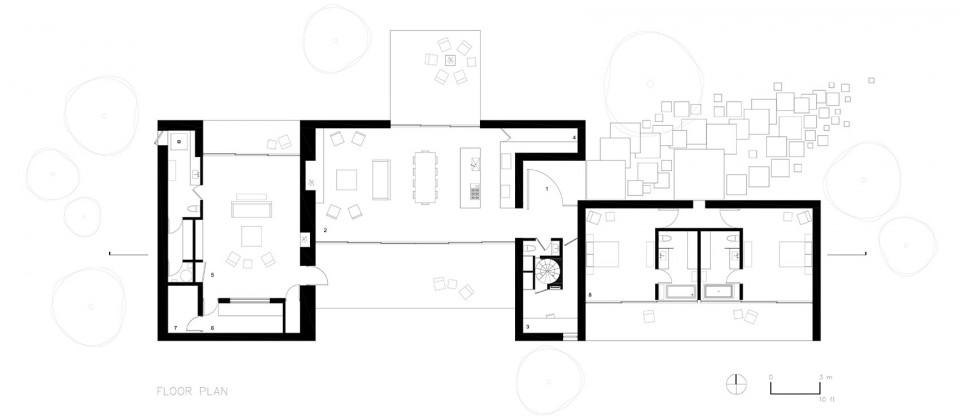

▼ 平面图，paln

Drawings: DUST
English Text: DUST
Chinese Text: gooood

MORE: DUST ，更多关于他们：DUST on gooood.
