感谢 ASWA 对gooood的分享。更多关于：ASWA on gooood。
Appreciation towards ASWA for providing the following description:

ASWA建筑事务所在泰国曼谷为TA-THA-TA（实用而俏皮的箱包品牌）设计了工作室，其立面带有金属网拼贴元素。项目占地120平方米，共3.5层，其中，一层用作仓库，二层用于产品制作，三层是工作室，并且带有夹层休息空间。

ASWA (Architectural Studio of Work – Aholic) realized a studio with a collaged metal mesh façade for TA-THA-TA, a functional but playful Thai brand bag, in Bangkok, Thailand. The project holds a 120 m2 with 3.5 floors where first floor occupied by stocks. On second floor was used for assembling and a studio located on third floor with mezzanine level for rest space.

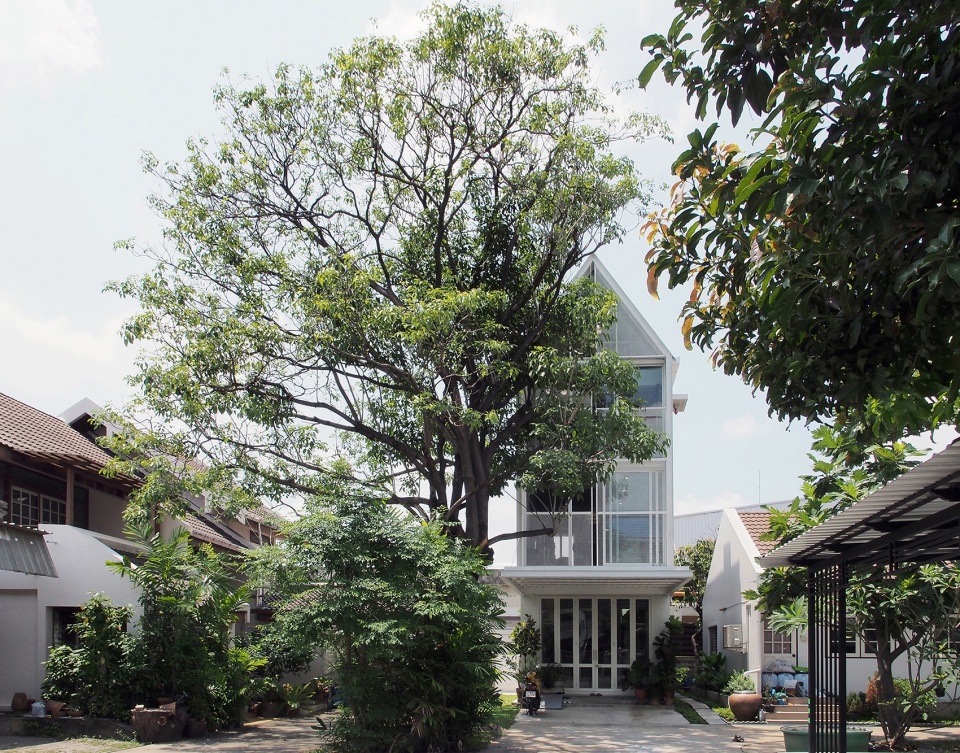

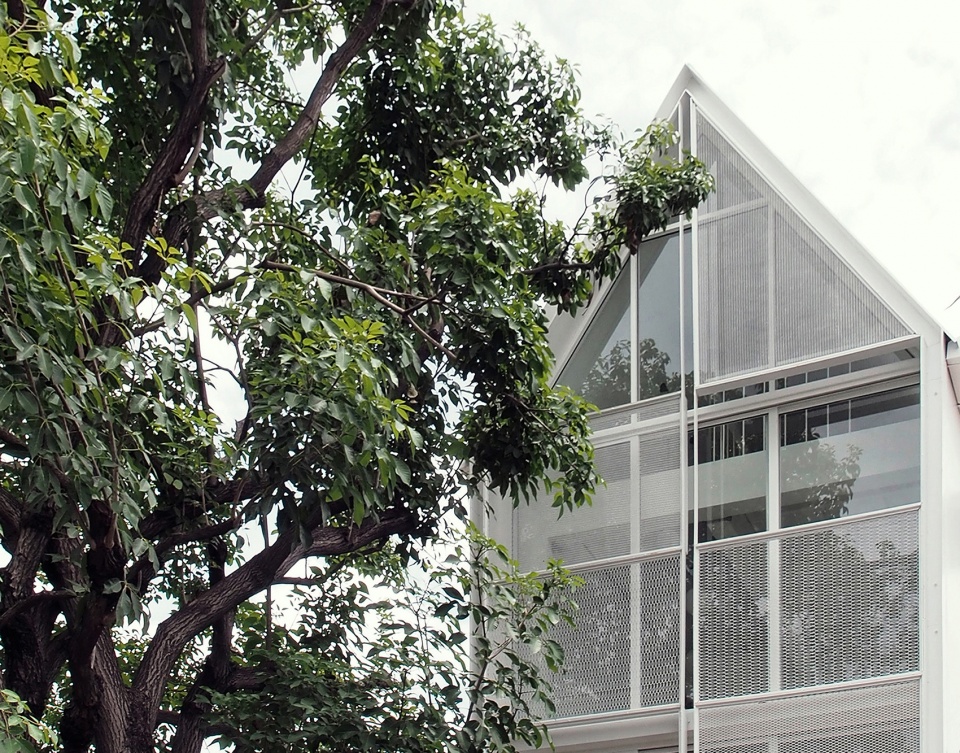

▼建筑外观，external view ©Phuttipan Aswakool

在狭小的基地前方，有一颗原来就位于这里的大树，它为工作室带来阴影和景观。四米宽的工作室设有高耸的坡屋顶，它可以分散太阳热量并形成额外的休闲空间。由于空间有限，卫生间位于楼梯中间，这样使每层楼都可以自然通风。

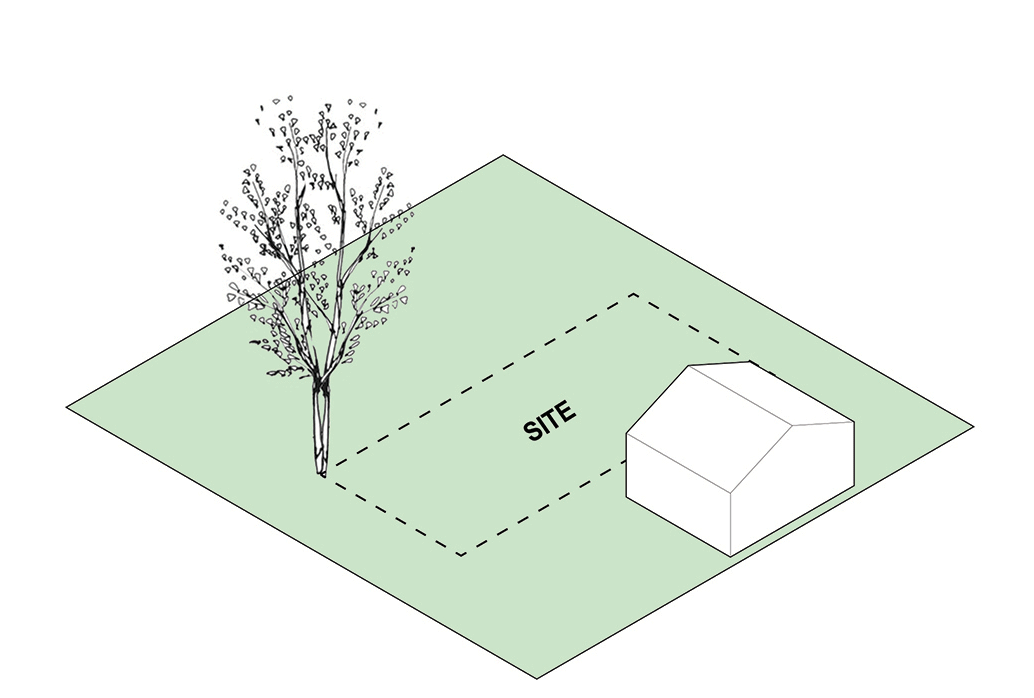

▼生成过程，generation diagram ©Phuttipan Aswakool

The small and narrow site has an existing big tree in the front of the property that contributes shading and great view for studio. With 4 meter width, the studio with a high gable roof tends to deflect the sun heat and provided extra and relaxed space for studio. Due to the limitation, a toilet is located in the middle of stairway to allow natural ventilation for every floor.

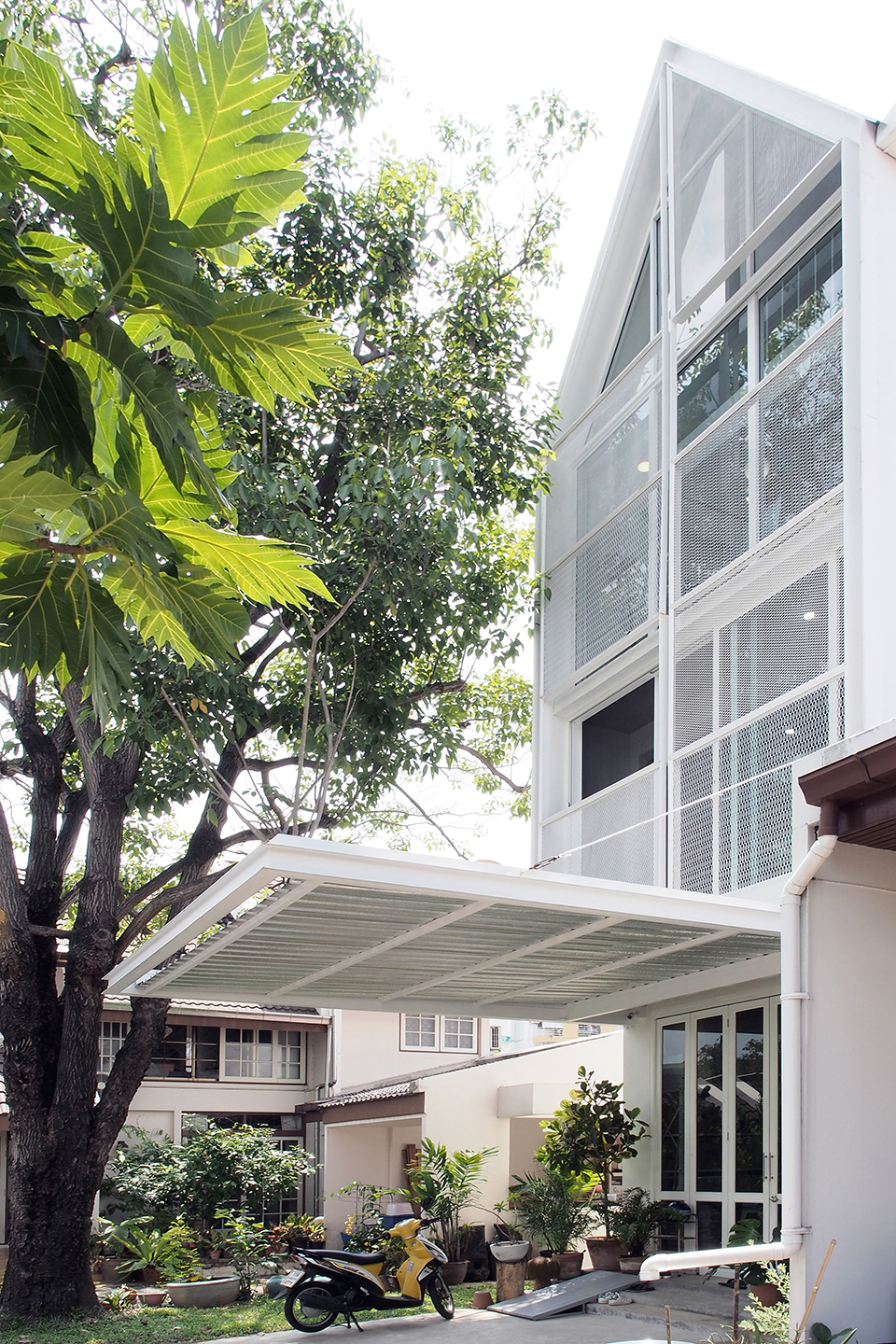

▼建筑立面，facade ©Phuttipan Aswakool

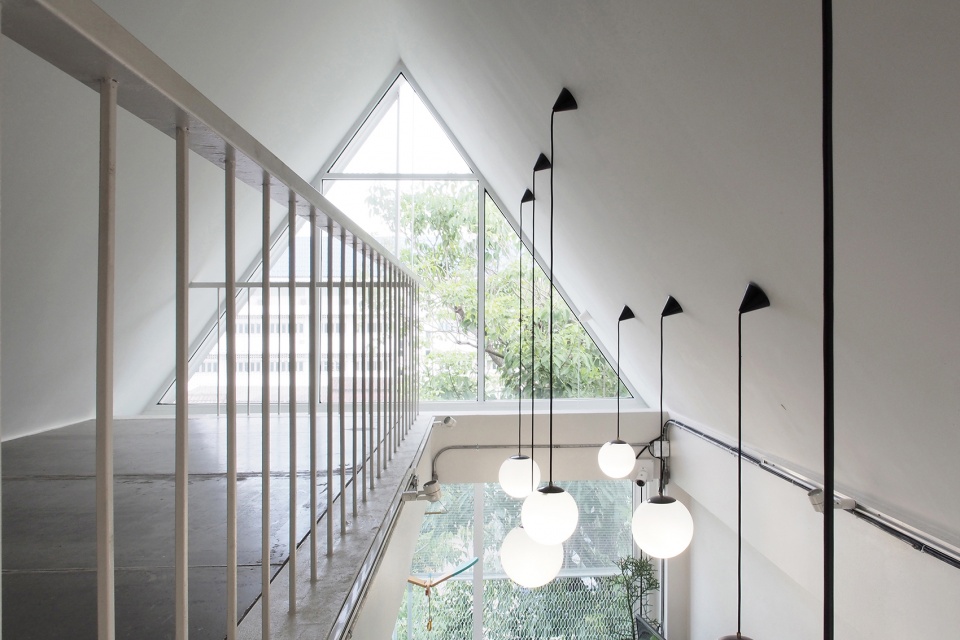

▼高耸的坡屋顶，high gable roof ©Phuttipan Aswakool

▼工作室，studio ©Phuttipan Aswakool

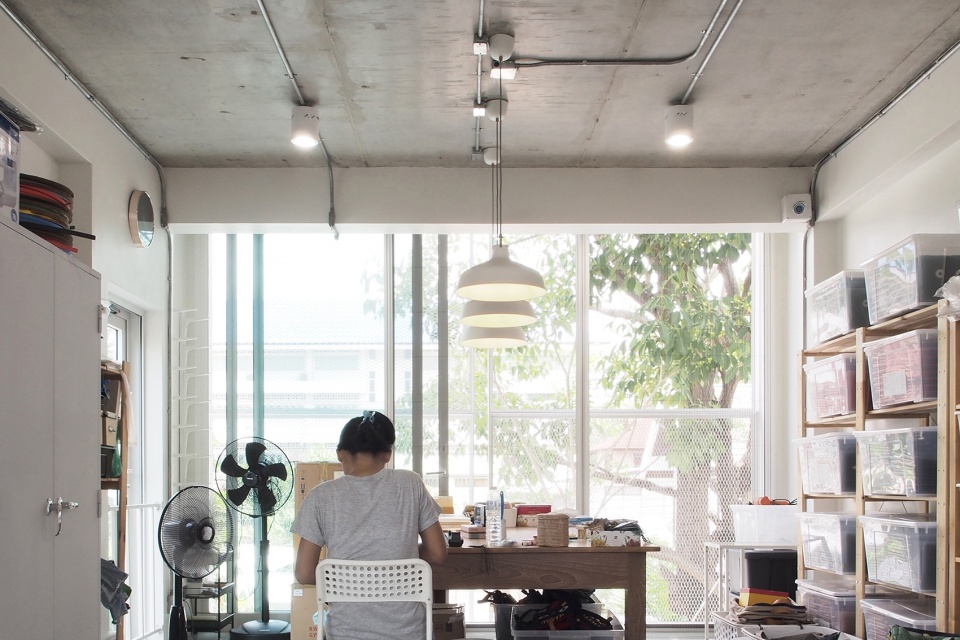

▼制作区，assembly area ©Phuttipan Aswakool

建筑师与业主合作，选用变化的金属网作为象征TA-THA-TA品牌形象的拼贴立面的主要材料。工作室和制作区通过立面的通高窗户，俯瞰着大树摇曳的身影与平和景色。关于室内设计，空间和材料由ASWA负责，家具由TA-THA-TA完成，最终展现出该品牌的真正形象。

Variation of metal meshes was selected as a main material for a collaged façade which refers to TA-THA-TA’s identity which is collaborated design between architect and client. A full height window behind façade of studio and assembly area overlooks a variation pattern and serenity of a big tree. For interior decoration, ASWA providing space and materials finished, and furniture completed by TA-THA-TA to showcase their genuine identity.

▼卫生间位于楼梯中间，the toilet is located in the middle of stairway ©Phuttipan Aswakool

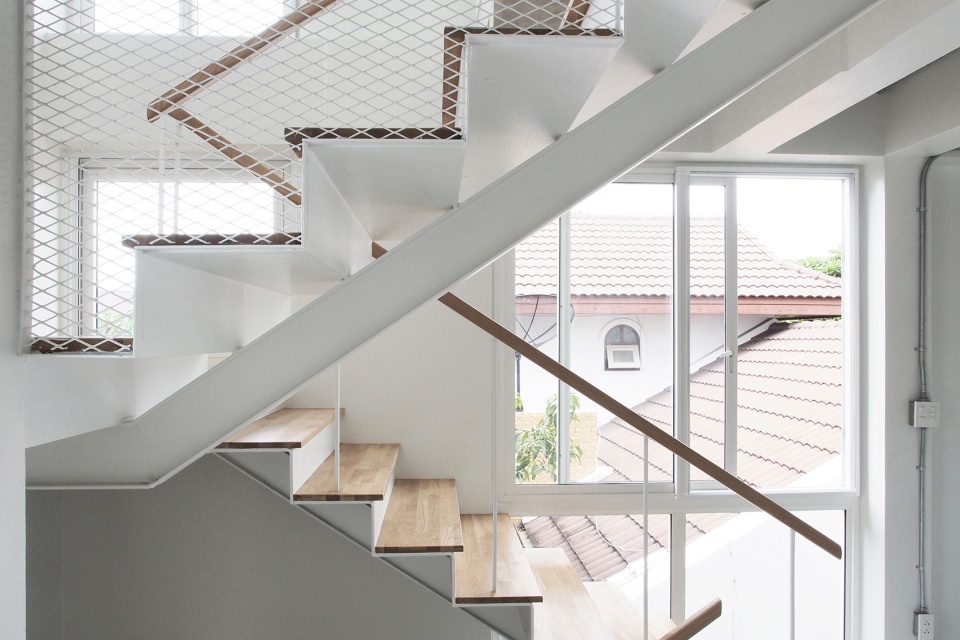

▼楼梯，stairway ©Phuttipan Aswakool

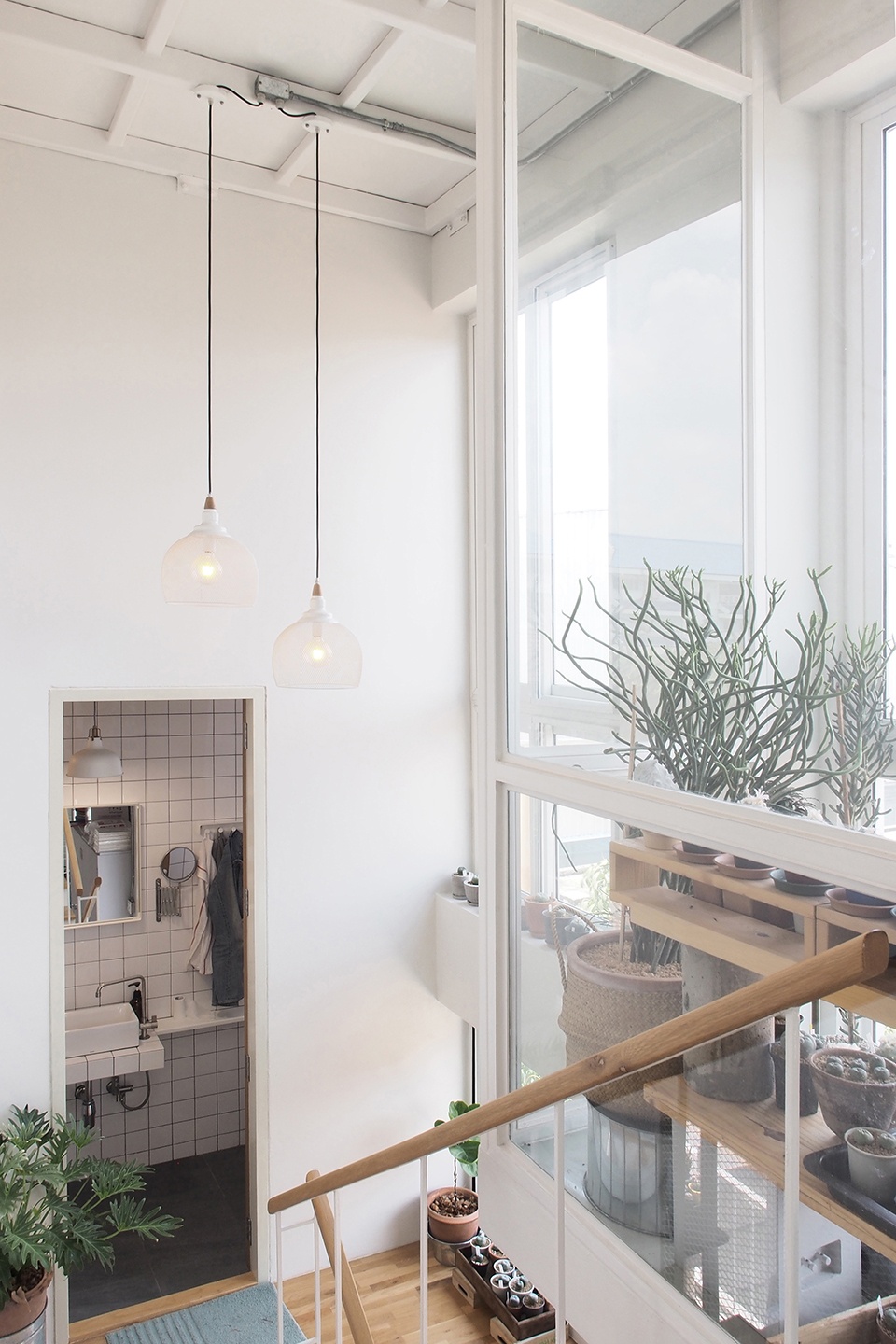

▼由楼梯俯瞰卫生间
overlooking the toilet from the stairway ©Phuttipan Aswakool

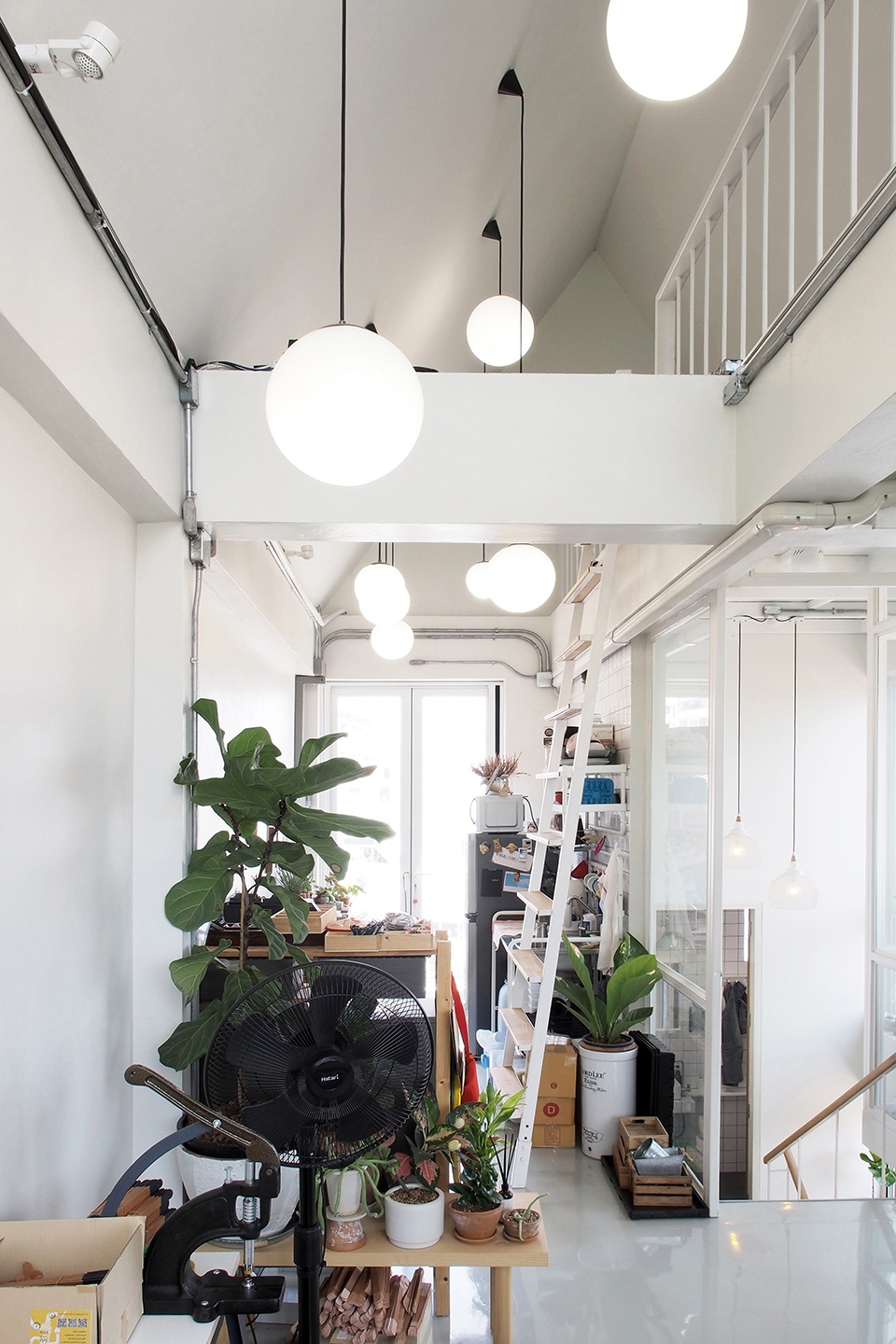

▼工作室一角，a corner of the studio ©Phuttipan Aswakool

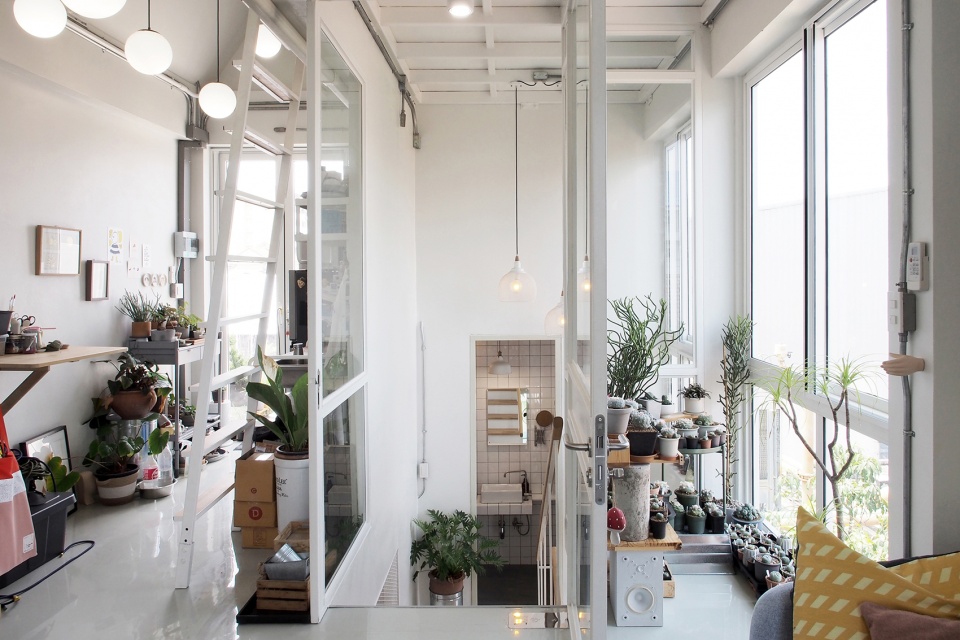

▼夹层，mezzanine ©Phuttipan Aswakool

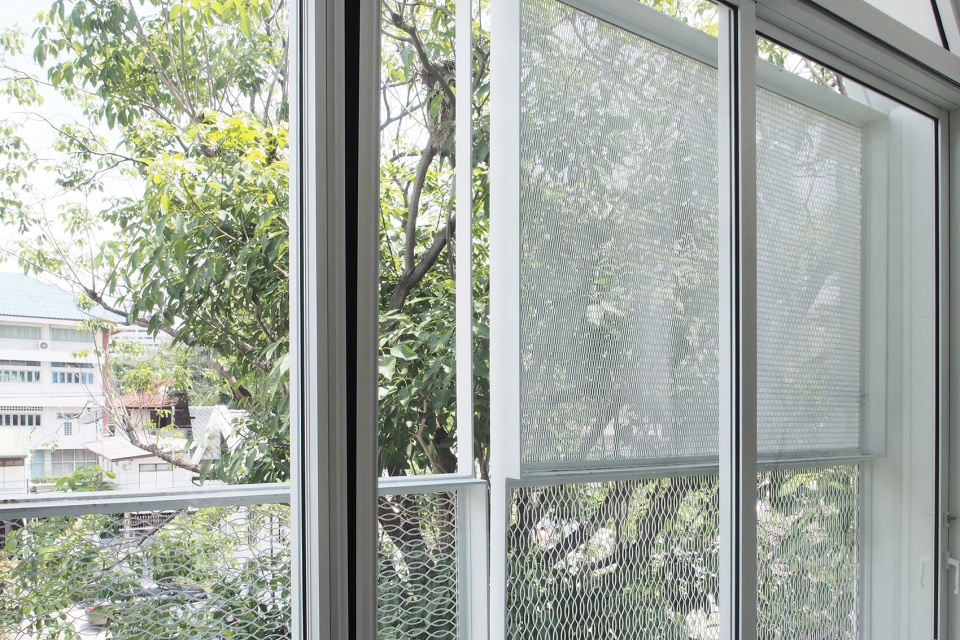

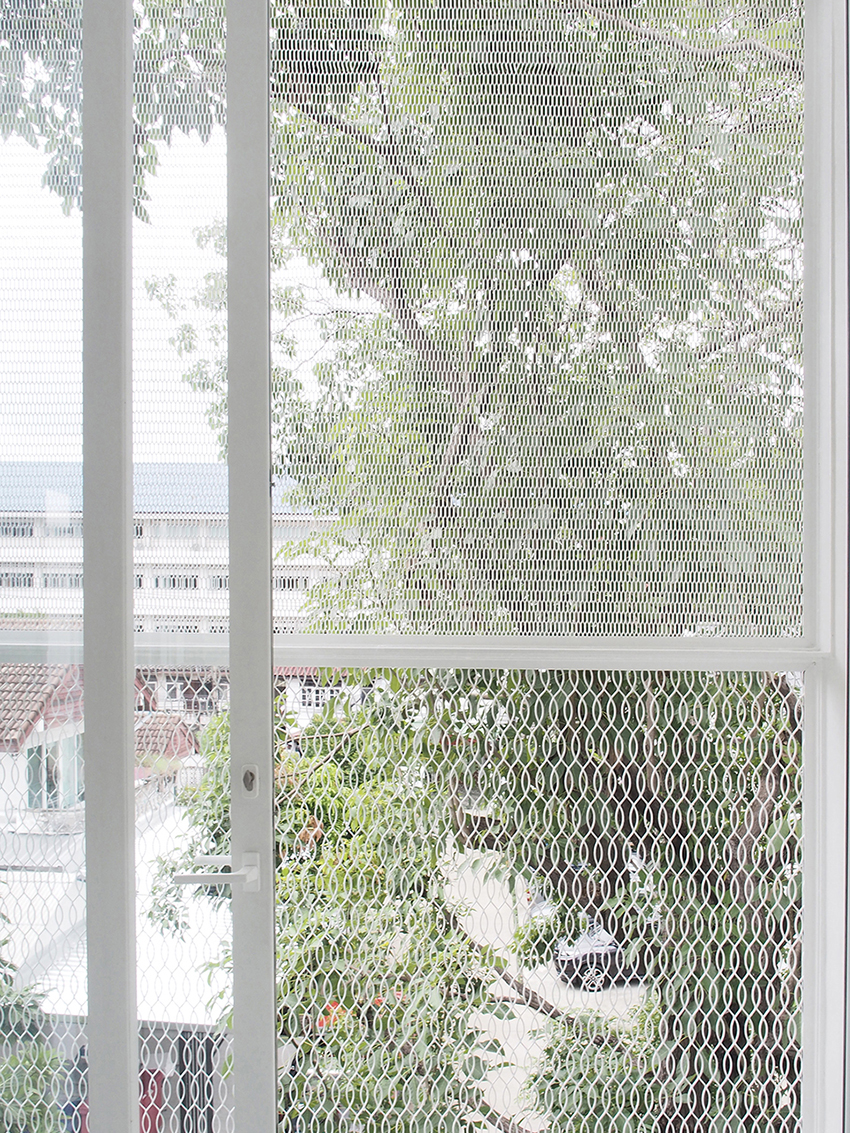

▼金属网立面，metal mesh facade ©Phuttipan Aswakool

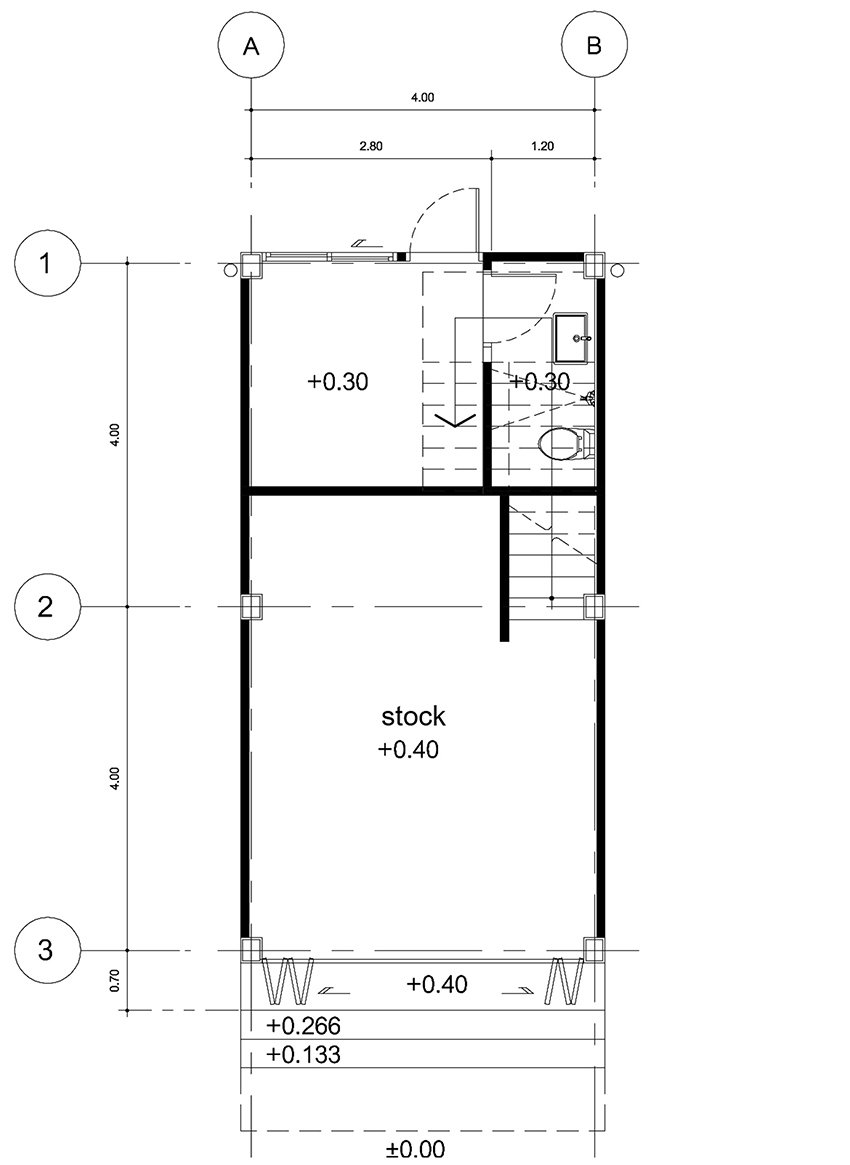

▼一层平面图，1st floor plan ©ASWA

▼二层平面图，2nd floor plan ©ASWA

▼三层平面图，3rd floor plan ©ASWA

▼夹层平面图，mezzanine plan ©ASWA

▼屋顶平面图，roof plan ©ASWA

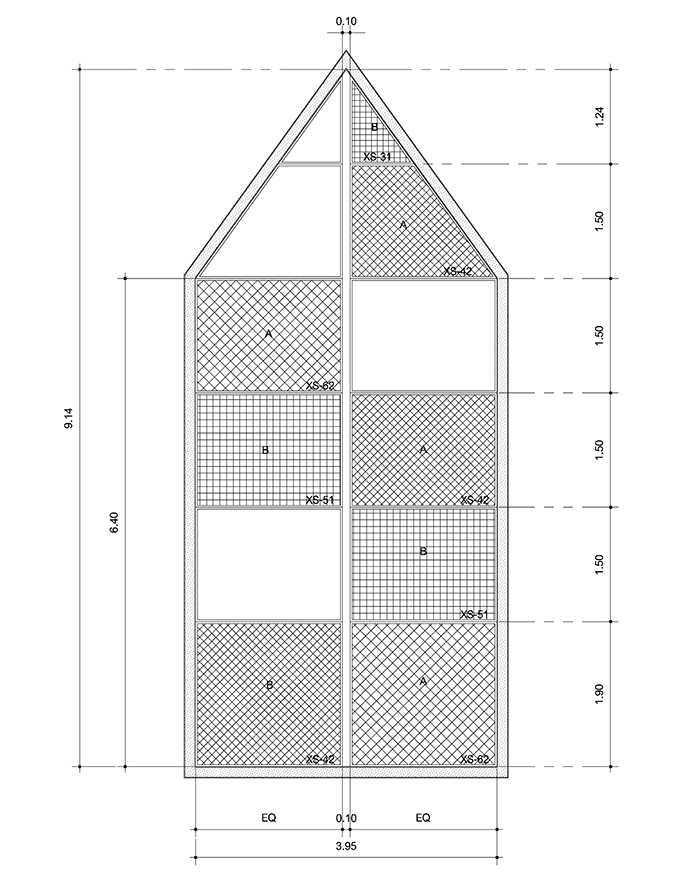

▼立面图，facade pattern ©ASWA

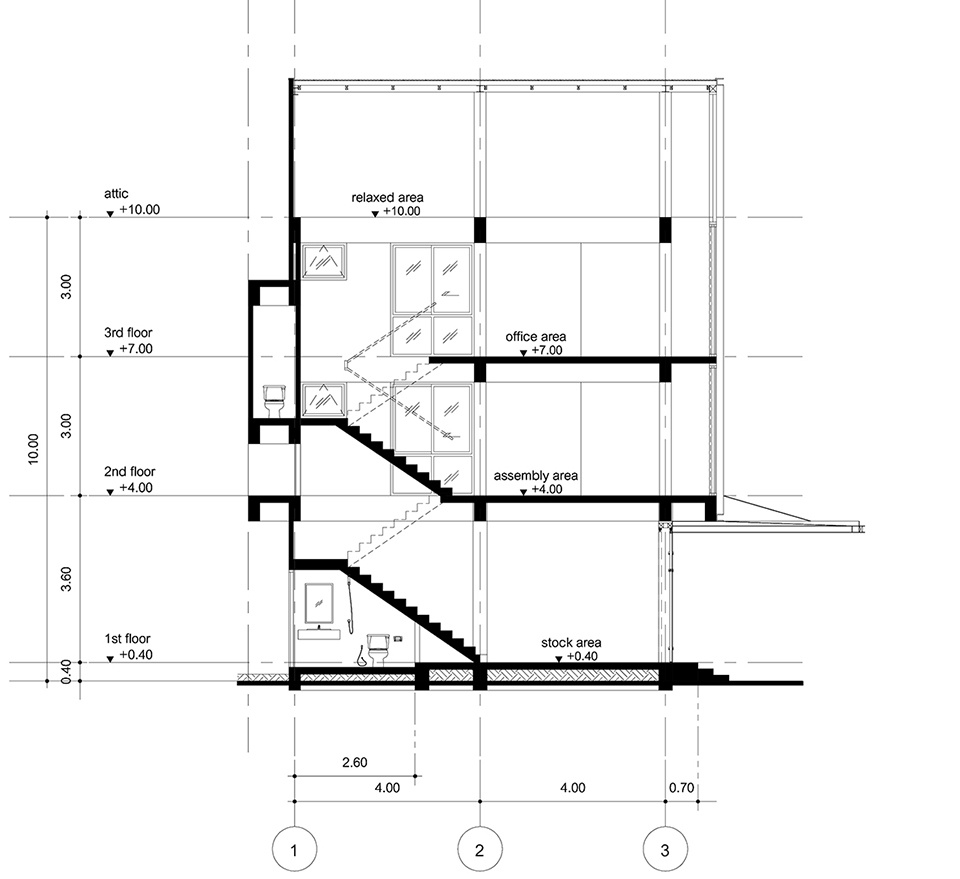

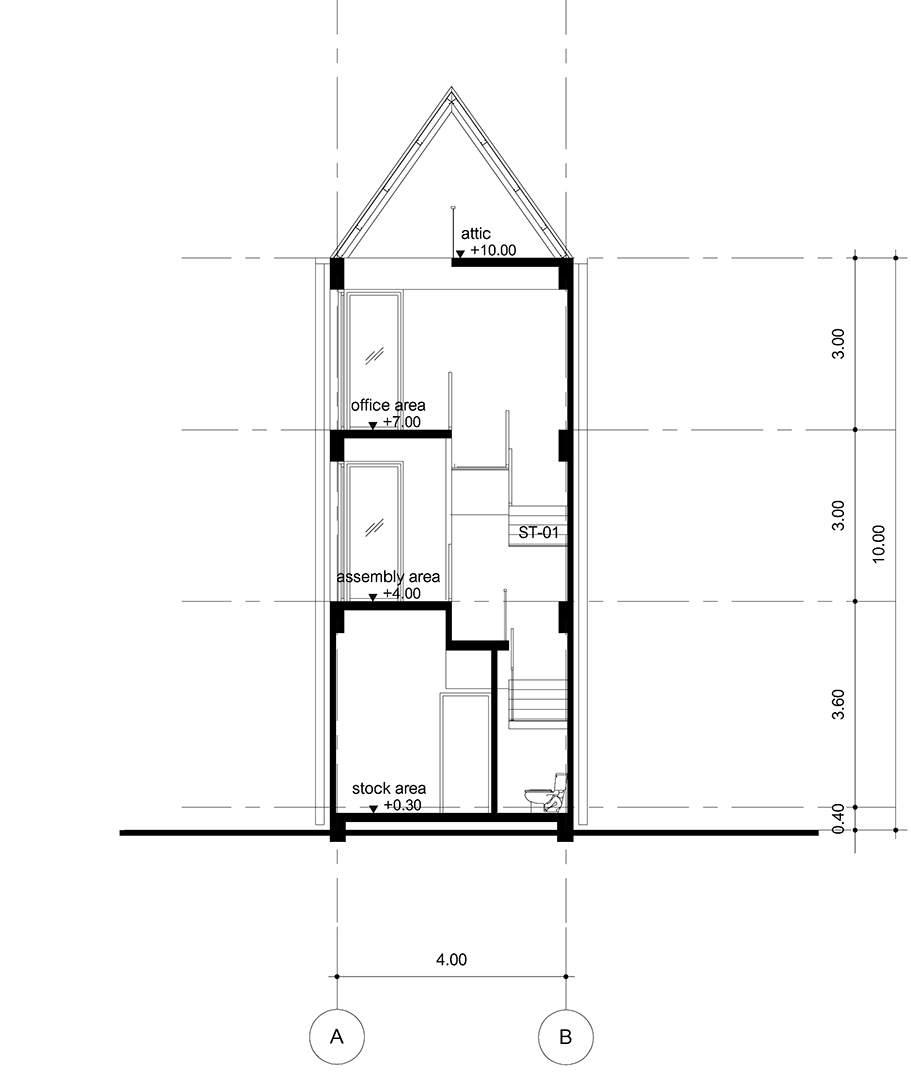

▼剖面图A，section A ©ASWA

▼剖面图B，section B ©ASWA

Project name: TA-THA-TA Studio
Architect’s Firm: ASWA (Architectural Studio of Work – Aholic)
Website: http://www.aswarchitect.com
Contact e-mail: aswa@aswarchitect.com
Project location: Bangkok, Thailand
Completion Year: 2017
Gross Built Area (square meters or square foot): 120 square meters
Lead Architects: Phuttipan Aswakool, Chotiros Techamongklapiwat
Other participants
Clients: TA-THA-TA
Construction: JS Planning
(eg. collaborators, clients, consultants, etc):
Photo credits: Phuttipan Aswakool
