来自 Office AT 对gooood的分享。更多请至: Office AT on gooood
Appreciation towards Office AT for providing the following description:

泰国国家石油勘探和生产公司PTT在成立30周年之际为自己修建了一栋新办公楼，建筑事务所Office AT在2011年通过竞赛夺得了这一项目设计权。

Concept
PTT Public Company Limited (PTTEP) is a Thailand national petroleum exploration and production company dedicating to provide a sustainable petroleum supply to Thailand .There biggest petroleum supply on land ,called Sirikit oil field is located on Lankrabue , the northeastern district of Kamphaeng Phet Province, northern of Thailand. The site is operated for 30 years. In year 2011 Pttep started a competition to design a 2 stories office building to commemorate 30 year of petroleum exploration and Office AT was a winner for the design competition.

建筑位于油田的入口处，占地2000平米，主要用作办公。建筑师在地面上堆土造出绿草坡地，并把二层建筑架在骑上，形成一个拥有内院的虚实建筑，人们在建筑中可以欣赏到内部与外部的多层次绿景。

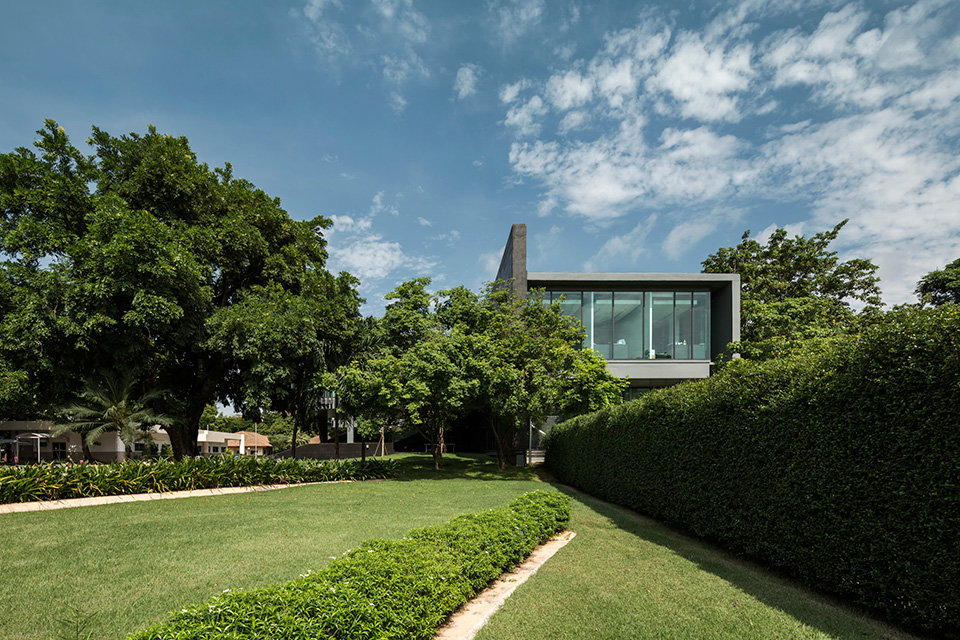

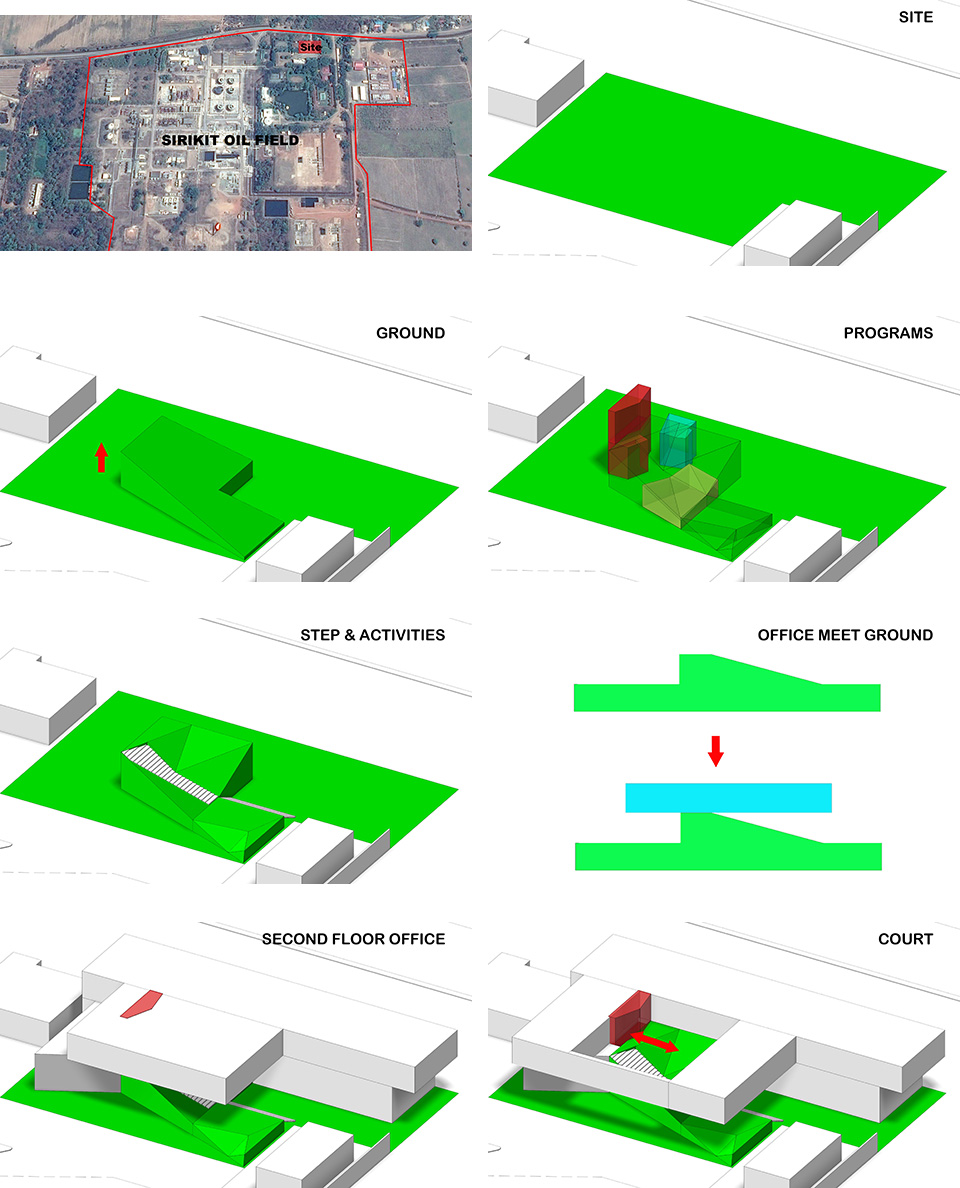

Site: The site is located at the entrance of Sirikit oil field surround with small building. The PTTEP want to build 2000 s.q.m. 2 stories office building as a main office for the site.

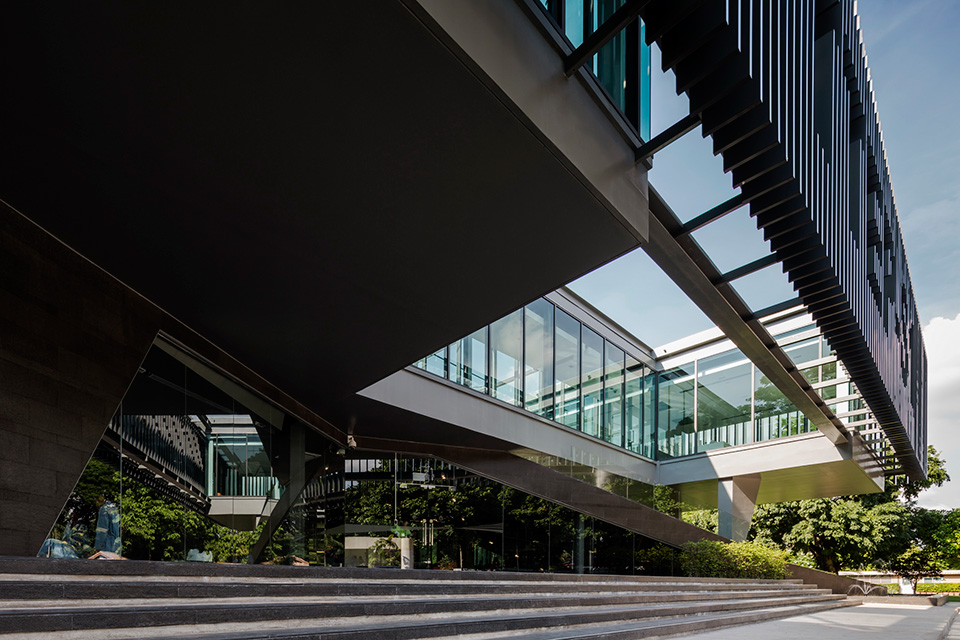

Ground: Ground is an important element of the design. It is a representation of” Oil” underground. By shifting ground up, the space under the ground plane which made of fold concrete slab and covered with grass can be used as an entrance to the building.

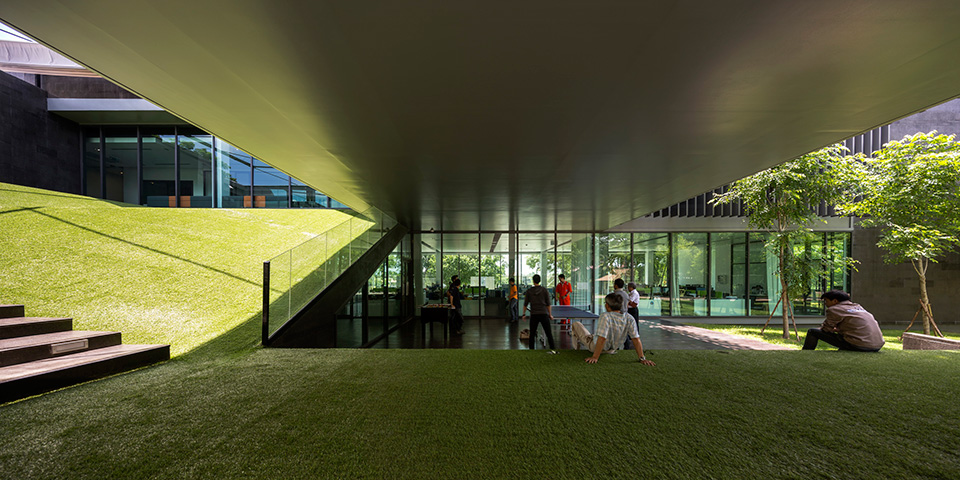

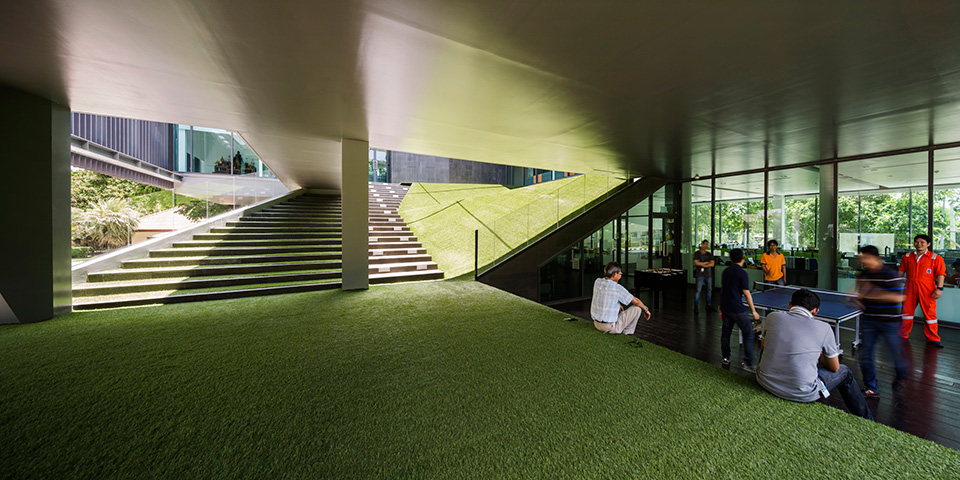

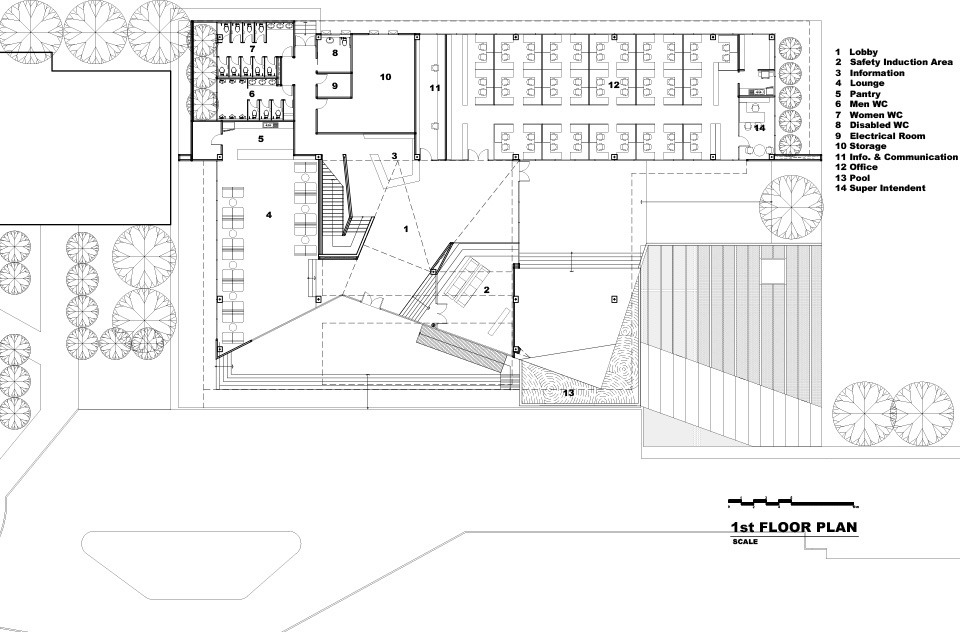

Programs: not only the entrance for the building, on the ground floor under fold concrete roof slab ,it contain with other program such as lecture room, reception area etc.

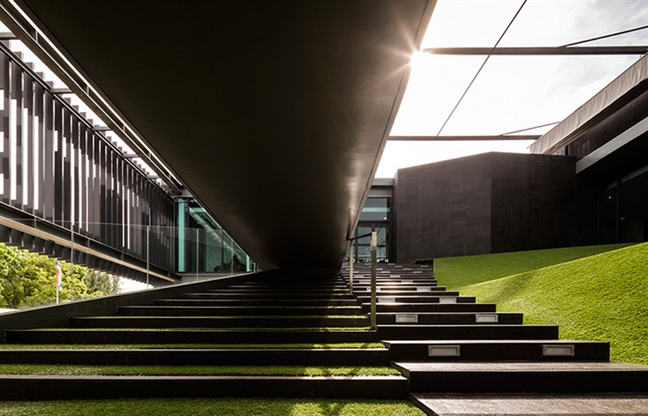

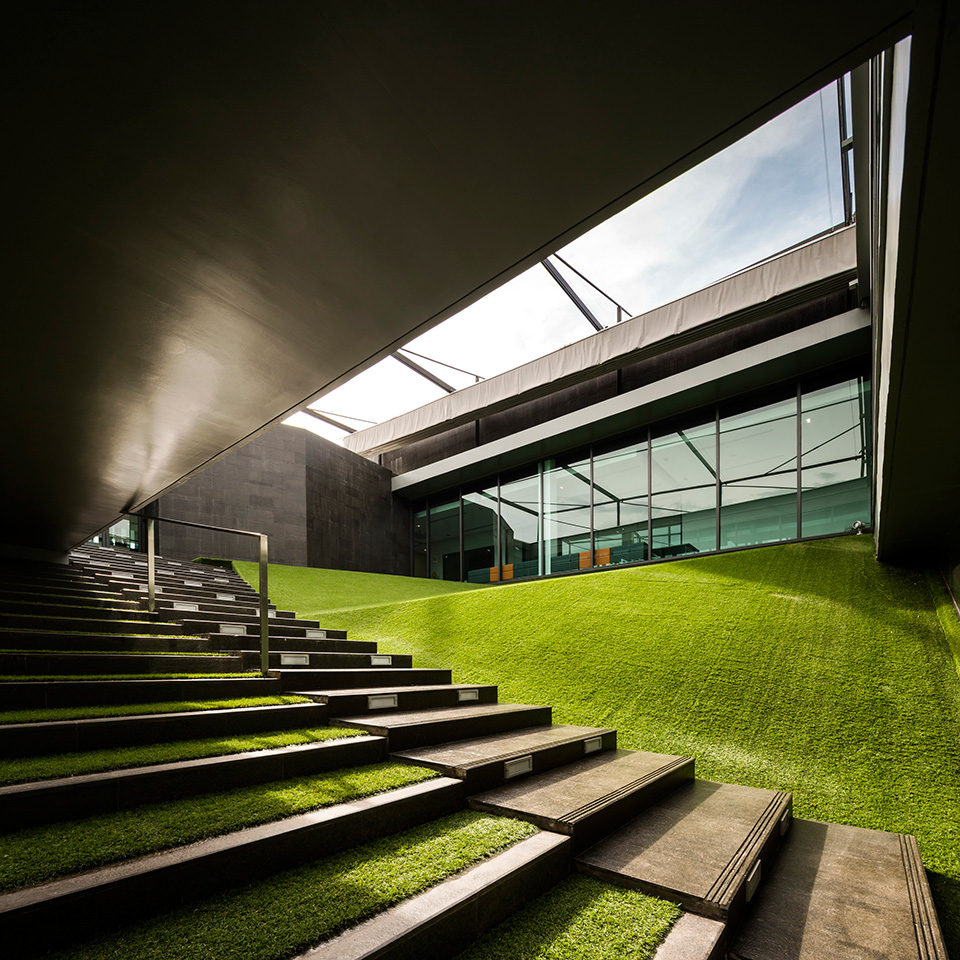

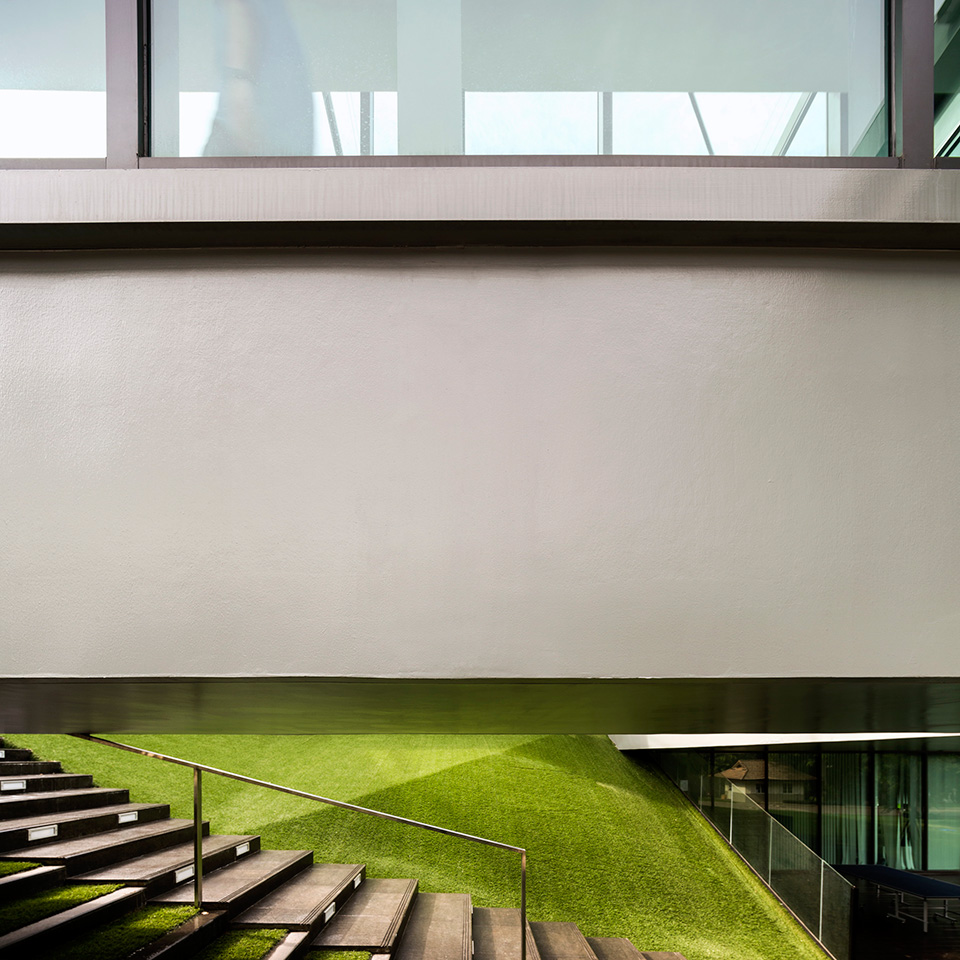

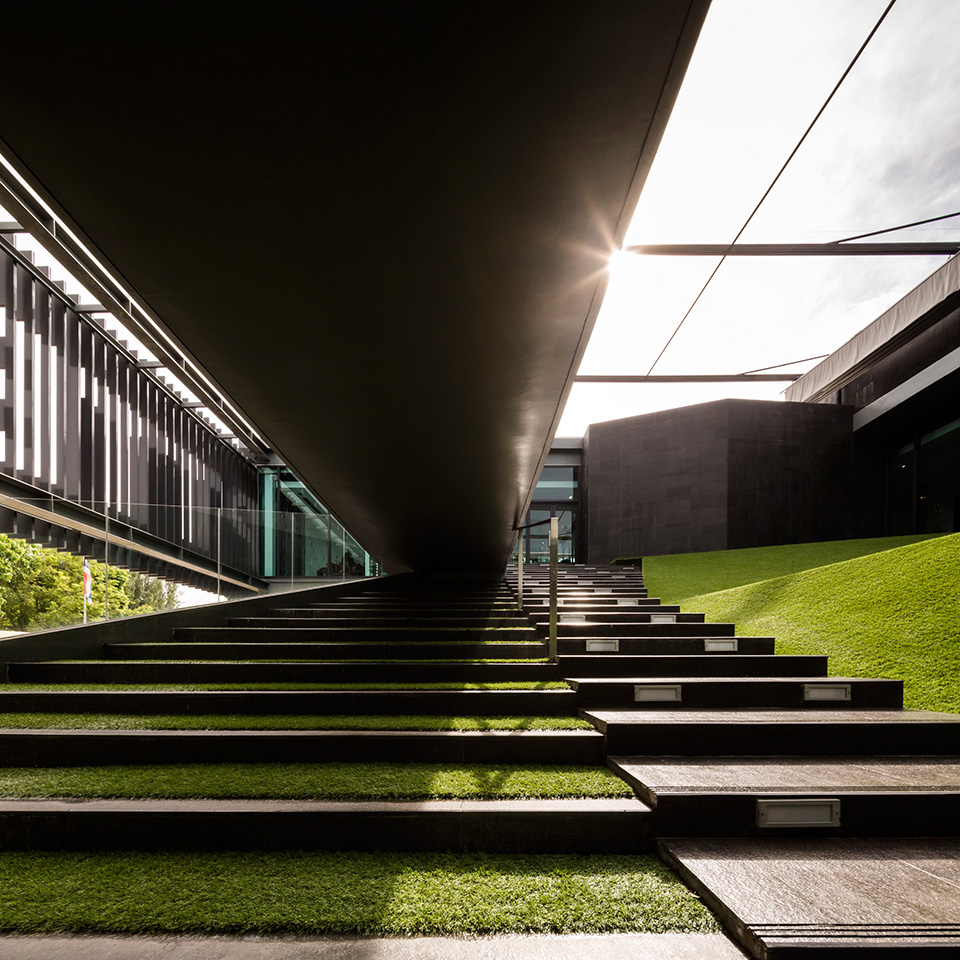

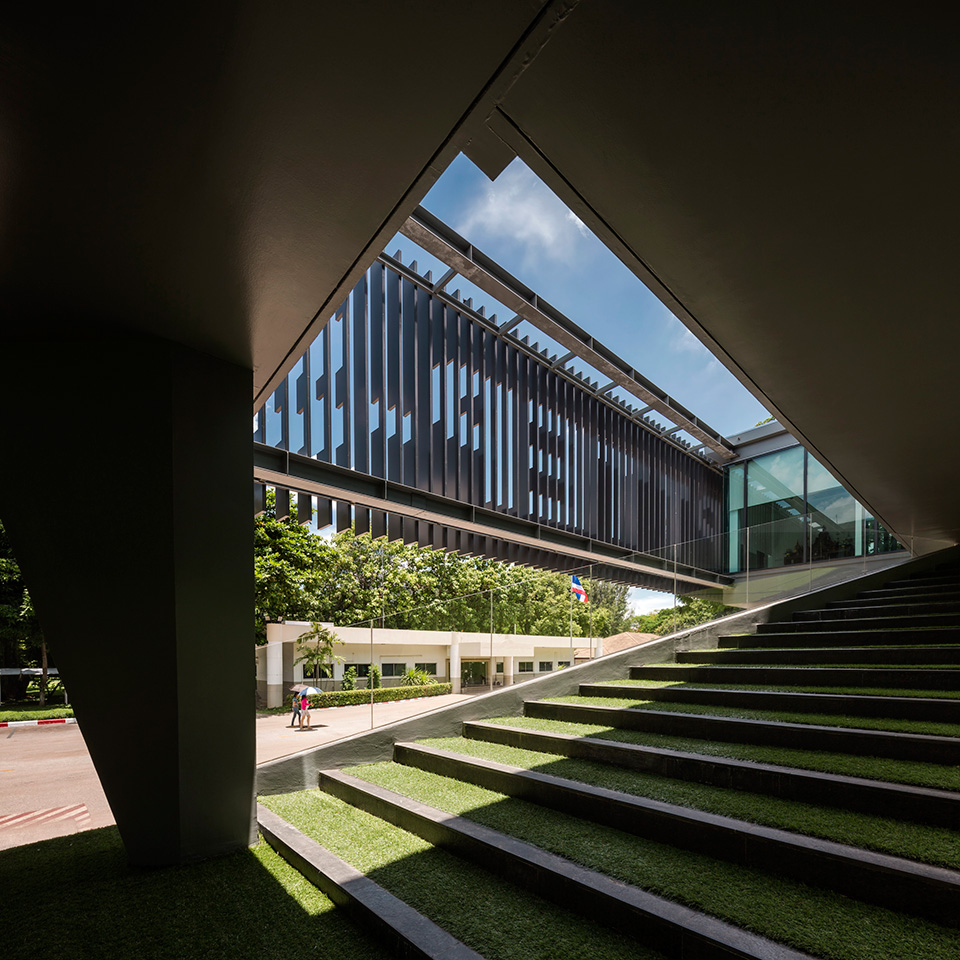

Step & Activities: The top of the new fold ground plane also can be use as flexible space. It can be used as stair on normal day and can be turned in to performance space during event.

Office meet ground: The first floor, as mention before is a represent for the ground. For The 2nd floor, it is represent Pttep Company as innovative company. When the 2nd floor is put on top of the1st floor, finally there are meet each other “office and ground”.

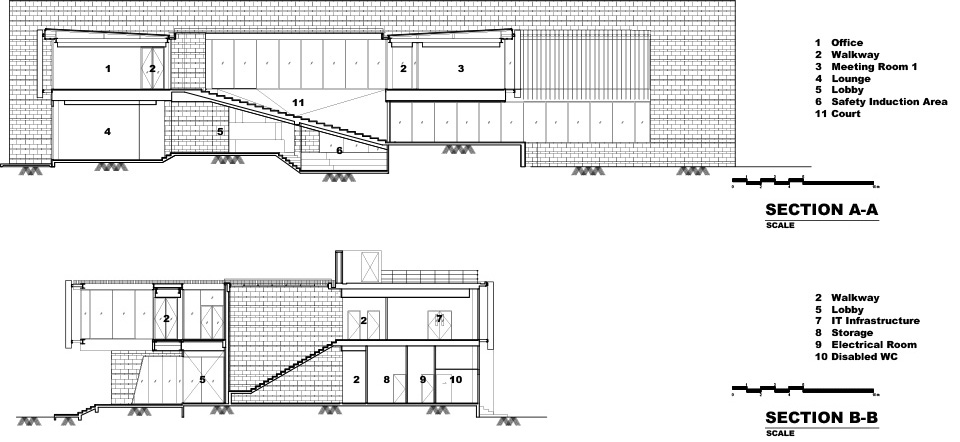

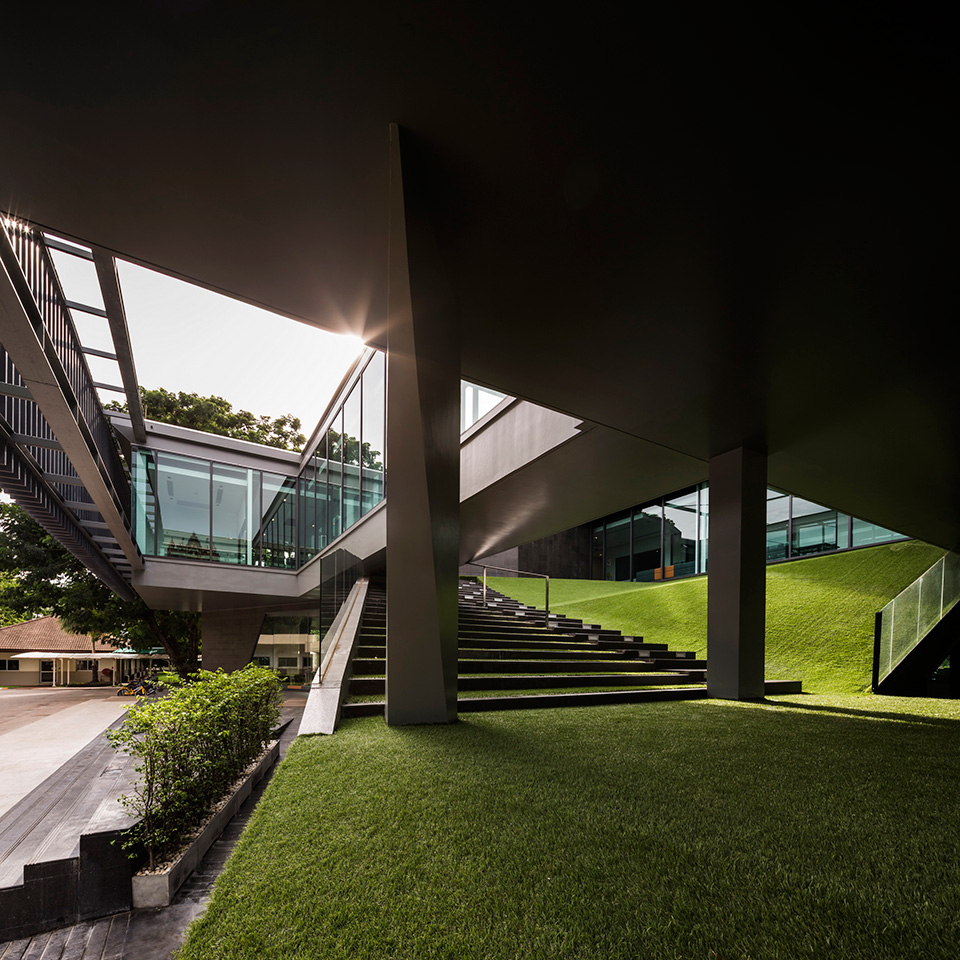

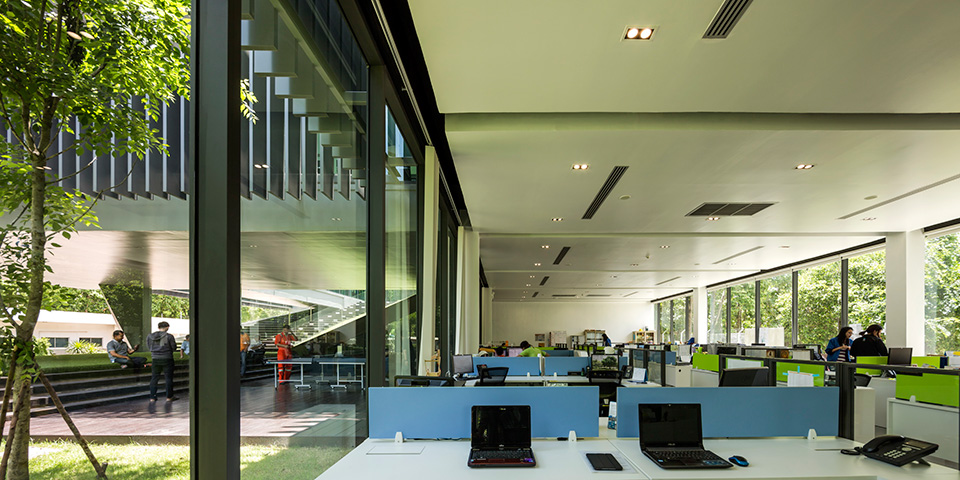

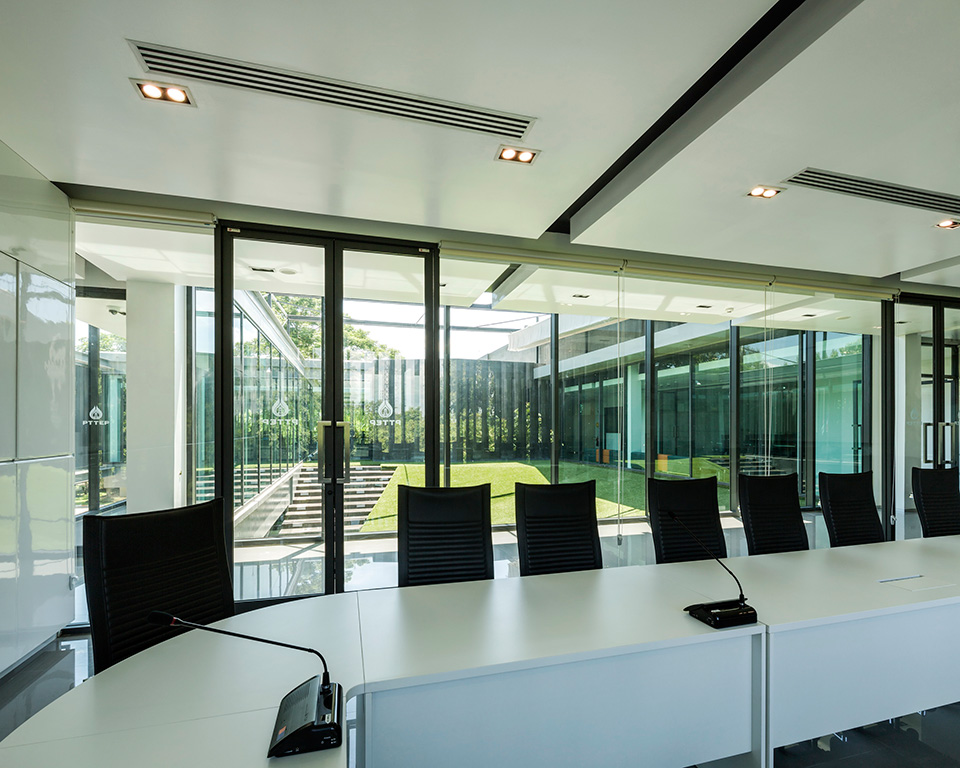

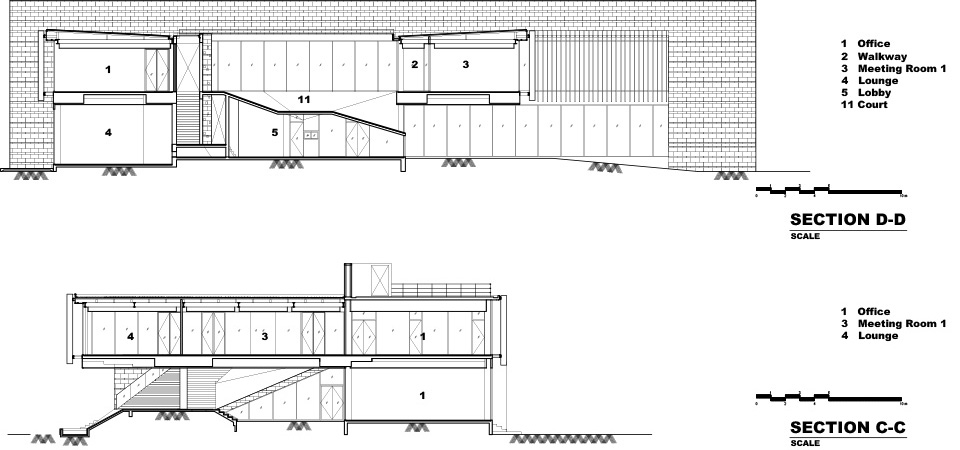

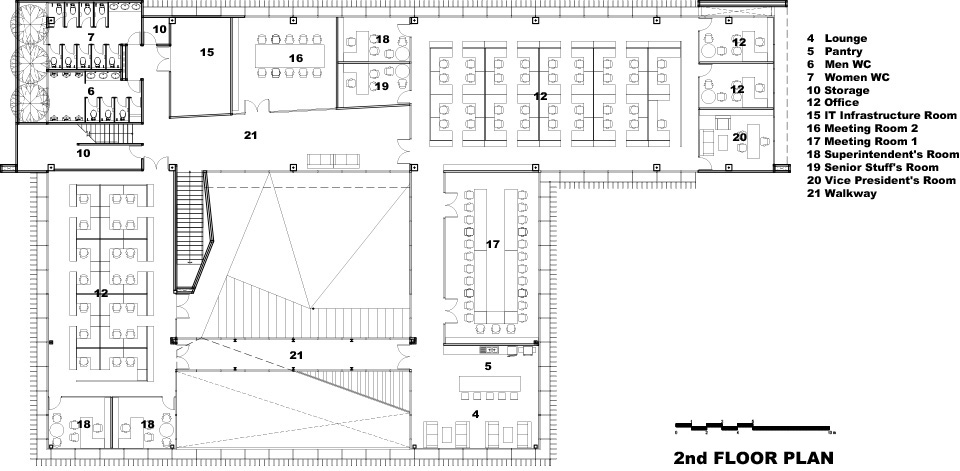

Court: After office on the 2nd floor was placed on top of the fold concrete slab, In order to connect the ground plane with office space on the 2nd floor, the office is divided at the center to have a courtyard. The ground plane that shifted up can directly touch with the 2nd floor office. Office users can go outside to enjoy the outdoor space and can have view of the court yard.

For typical building, office space on the second floor never has direct relationship to ground floor. The new building for Pttep will change this perception.

在二层有一座廊墙联系建筑的双翼。大楼的办公区域覆盖着铝格栅以防止过多太阳进入室内，从而实现节能。

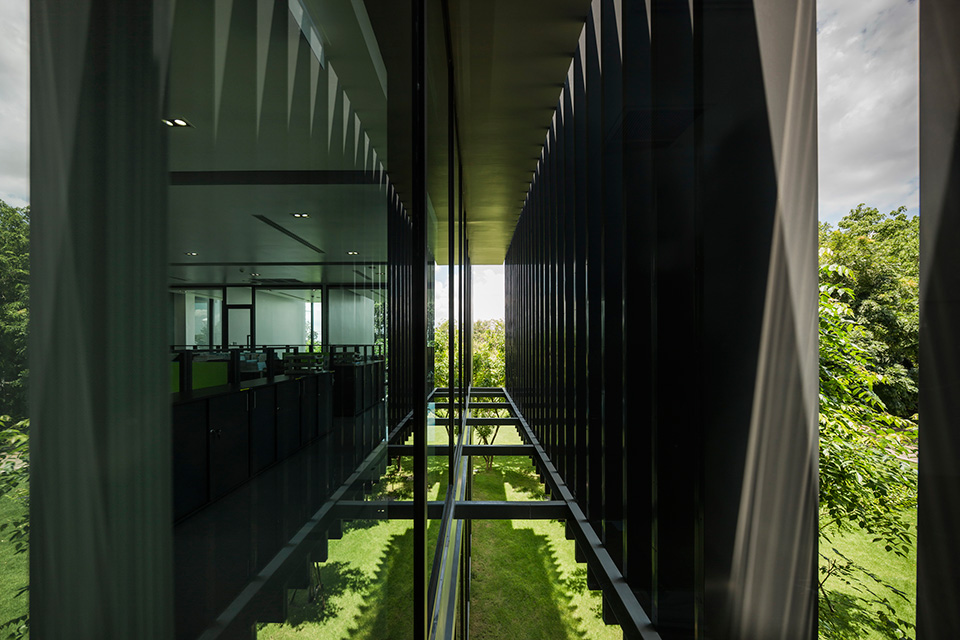

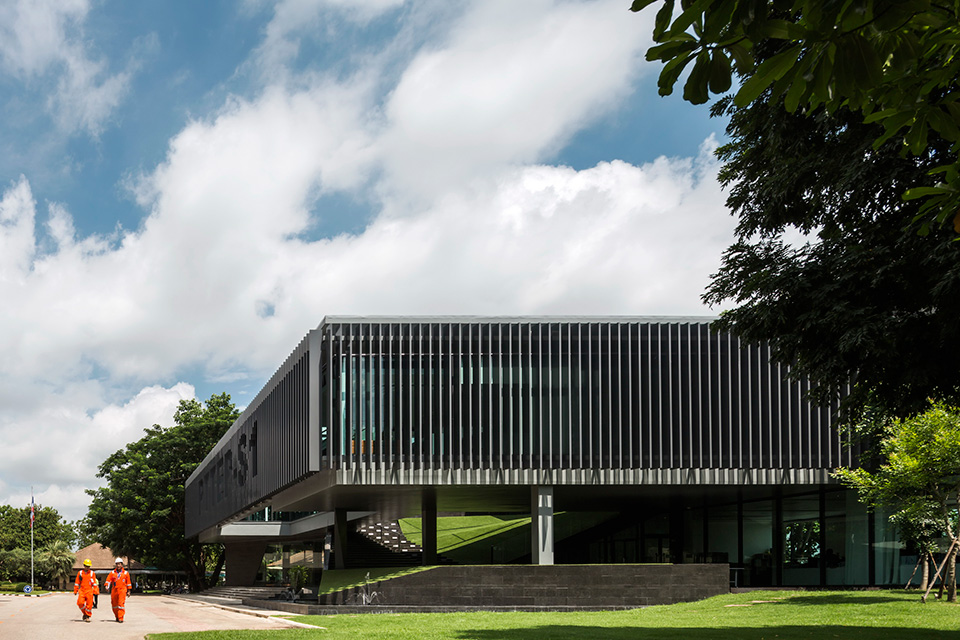

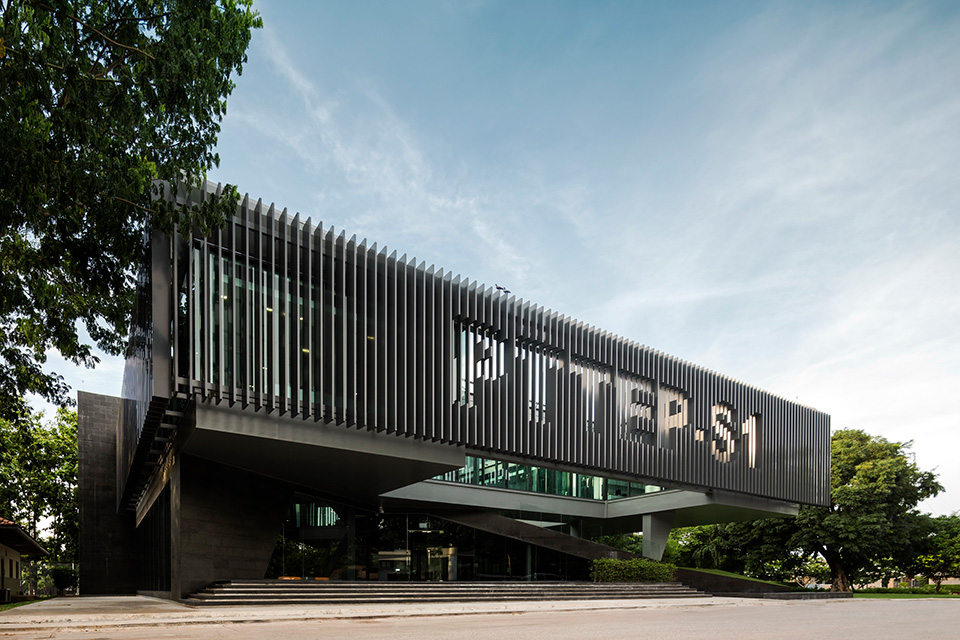

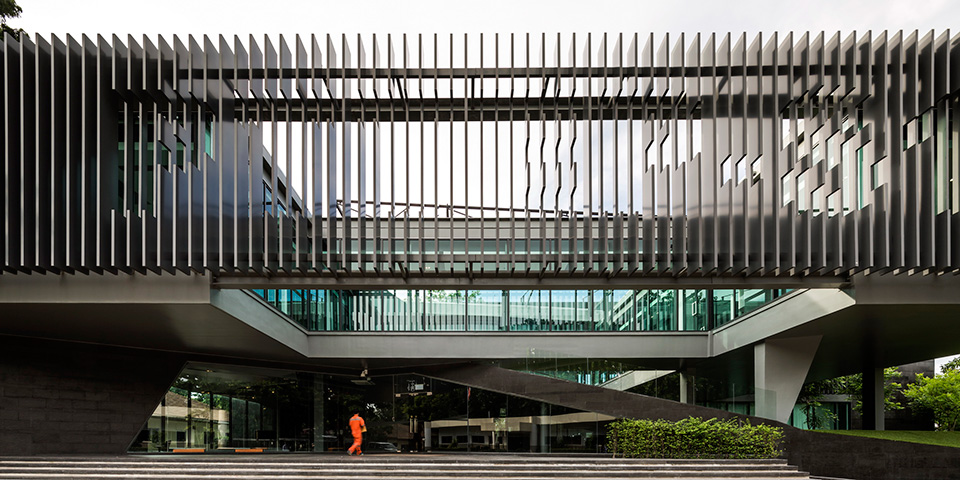

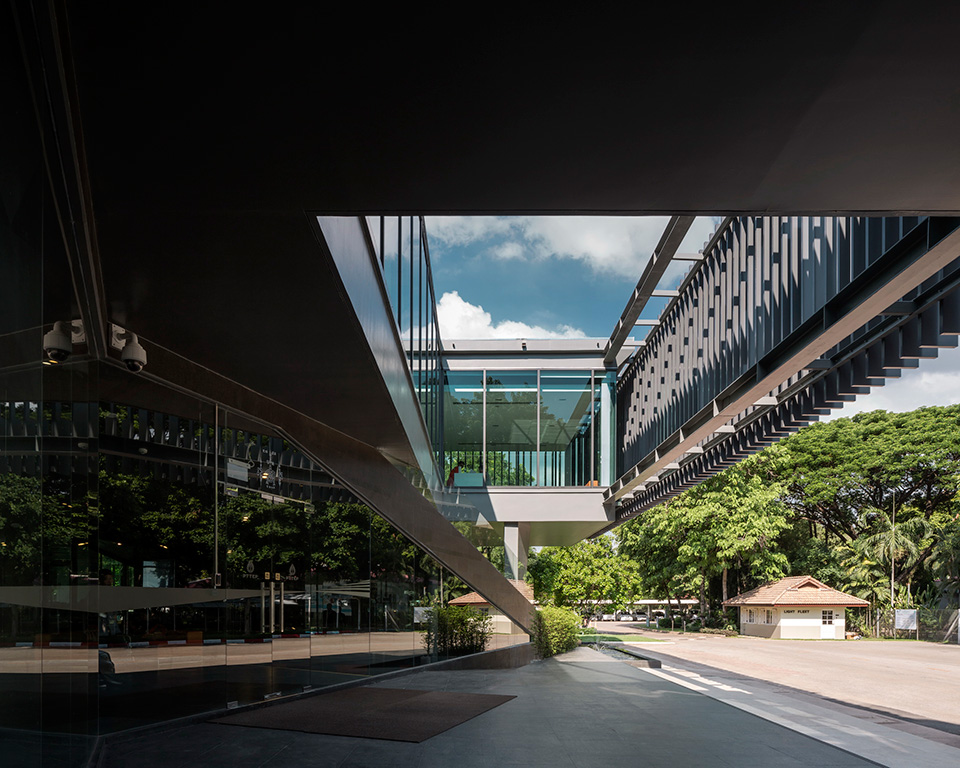

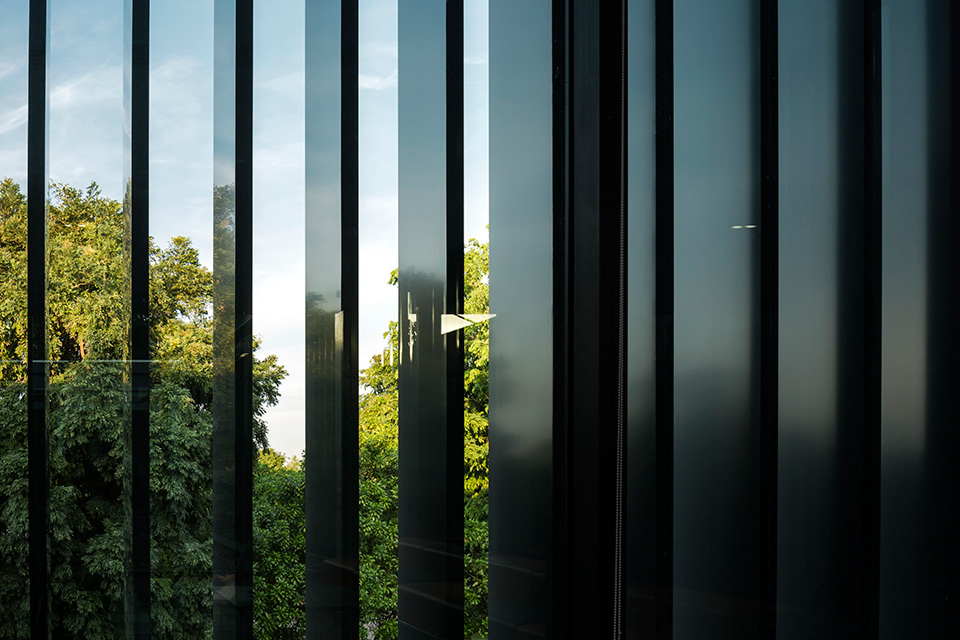

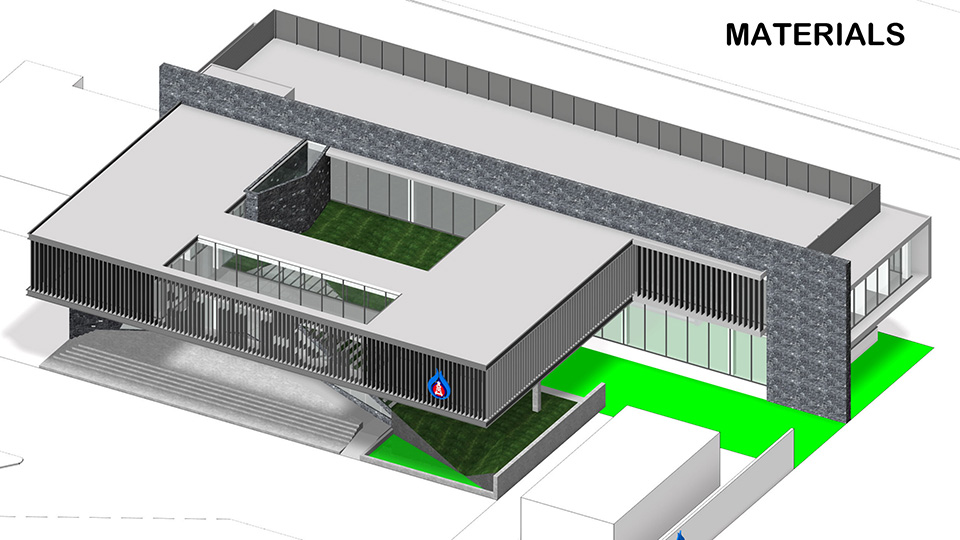

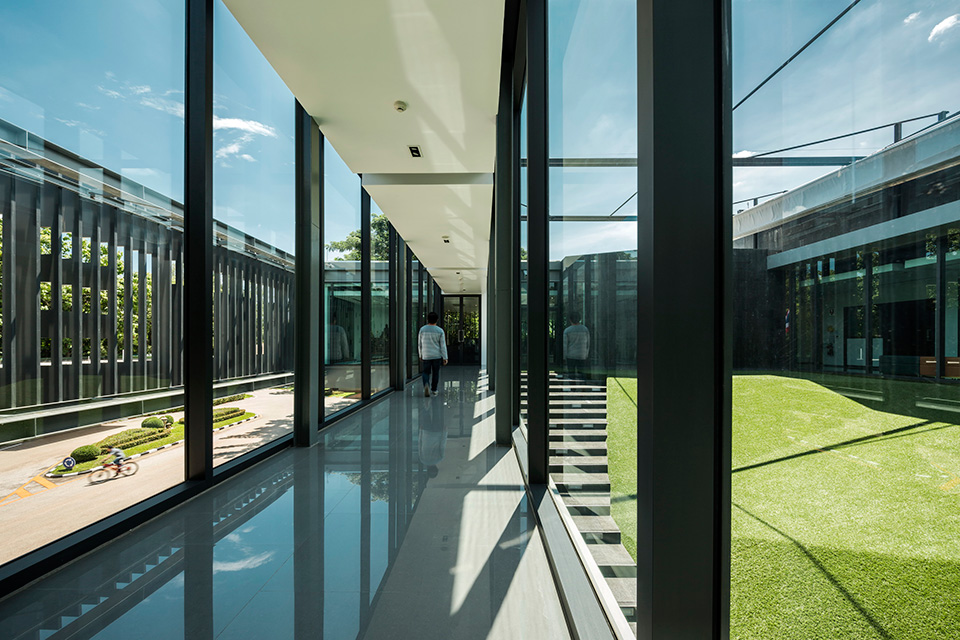

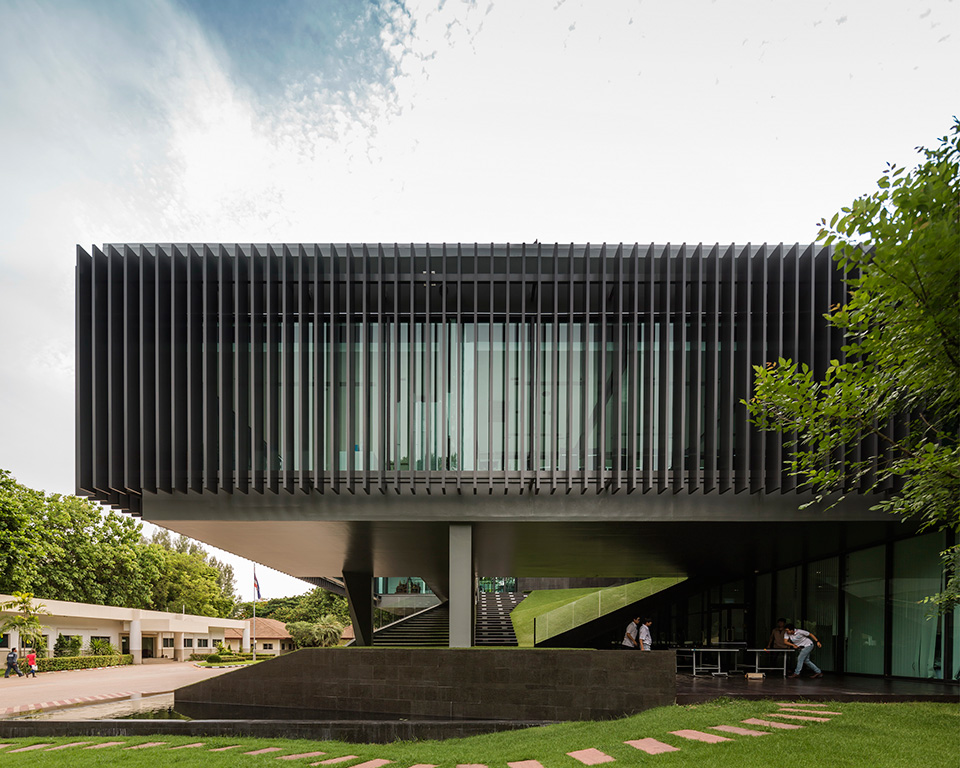

Materials: On 2nd floor, there also have a bridge connect 2 parts of the office. Office areas in the building are covered with aluminum fin to protect the building from sun light and increase energy saving performance.

Location: Lankrabue, Kampaengphet, Thailand
Start: 2011
Completion: 2014
Owner: PTTEP Siam Limited
Architect: OFFICE AT Co., Ltd.
Project Architects: 1   Surachai Akekapobyotin
                                2   Juthathip Techachumreon
Architect Team:      Pinyo Tanadirek
Interior Designer: OFFICE AT Co., Ltd.
Landscape Designer: –
Structural Engineer: Mr. Sarawut Yuanteng
System Engineer: COU.Co., Ltd.
Construction Management: –
Contractor: Italian Thai Engineer
Construction Cost: 60 Million Baht
Storey: 2 floors
Area: 2,000 sq. m.
Materials: Transparent Glass, Aluminum fin, Stone
Photographer: W-Workspace

More: Office AT, 更多请至: Office AT on gooood
