Appreciation towards Han Tang for providing the following description:

Team member: Xuedong Wang

pennrose combines the zest of a joyful event space with rigorous research into new material and digital fabrication.

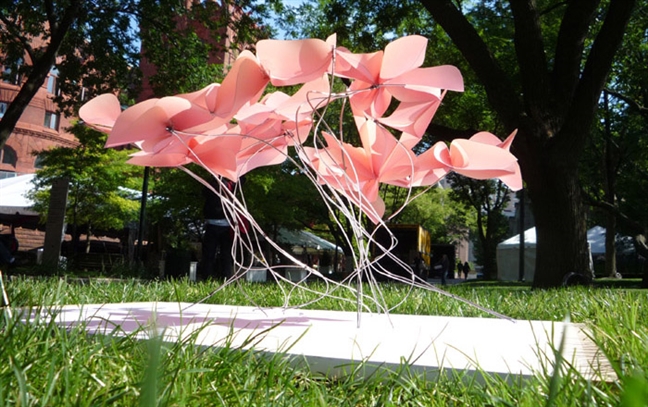

pennrose will immerse the viewer in kaleidoscopic pattern of color created by sunlight filtering through an array of translucent, tinted mylar petals that resemble blossoming flowers of stained glass. the piece functioned as a shade structure. the interior of this experimental installation created a beckoning outdoor room for social interaction and contemplation by changing the space, color and light. during the day as the sun passed overhead, the canopy cast colored fractal light patterns onto the ground while during the night, when standing underneath and gazing upward, the visitor could see the infinite sky.

The result was an installation that functioned as not only architecture and sculpture but as a “made-to-order” product through a unified manufacturing strategy. the aesthetic effect of the top canopy was achieved by manipulating mylar reinforced material and (cnc) cutting machine. this unique folded matrix comprised of 137 different instances of a parametric component or “petal”, each cut and labeled using the cnc system. the tenderness as well as the fragility of the bottom structure was achieved by steel rod and 3d roller bender. every 3d rod can be separated to a series of segments which then could be calculated and then bent by the machine.

宾大玫瑰是将对新技术,新材料的探索和数字化生产模式一并融入到创造娱乐的室外活动空间热情中的项目。宾大玫瑰通过采用一系列半透明有色聚酯薄膜的花瓣，使游客沉浸于千变万化的图案和色彩当中。这个实验装置的内部,通过空间、色彩和光线的变化,营造了一个可提供人们社会交往和沉思的空间。白天,阳光透过架空的色彩斑斓的天篷投射在地上，而夜间，游客站在其下向上仰望，可以看到无限的星空。

这个实验装置不仅仅是一个建筑雕塑，同时包含了一个统一的,“制作到建造”的运作过程。顶部花冠的优美效果是通过操纵有色聚酯薄膜增强材料和（数控）切割机来实现的。这种独特的折叠图案是由明确标明的使用数控系统的137个不同的组件或“花瓣”组成的一个参数化模型。而底部的看似单薄的支撑结构是由经过三维弯曲机来弯曲过的钢管来承担。每个3D杆件都可以被分解成一系列可以计算并由弯曲机折弯的二维弧线组成。
