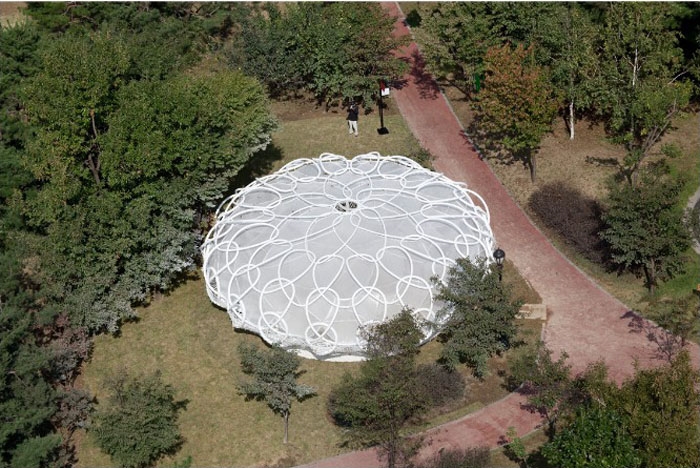

这是属于2010韩国安阳市的公共艺术项目之一，位于公园里，可以休息，可以聚会，可以展览，是一个促进和支持各种社区活动的亭子。

传统亭子是做观其中望远景的，但在这片被公寓包围起来的小树林里，亭子是内向而非外向。这里挺像小型体育场有70个“座”，从中间向四周辐射。虽然亭子作为公共客厅，但是也鼓励社会亲密活动。

Photography © Kyungsub Shin / www.shinkyungsub.com

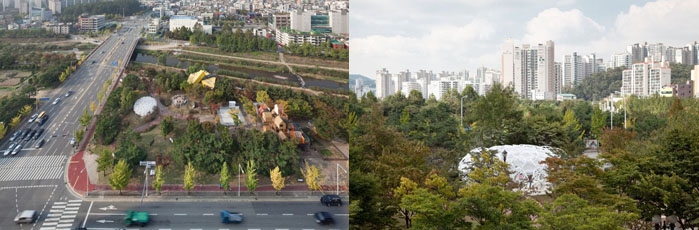

The Open Pavilion was constructed in Hakwoon Park along with LOT/EK’s Open School and Raumlabor’s Open House as part of the 2010 Anyang Public Art Project, run by Artistic Director Kyong Park. The three significantly different structures form a small campus within the city’s park, promoting and supporting various community activities. Nestled within the park, the Open Pavilion is a resting place as well as a gathering place—a new kind of pavilion, or “jung-ja” (정자: 亭子) for the community.

座椅通过网状结构联系，基本构件是钢圆弧管，结构的上半部分敷以半透明膜以遮挡雨水和烈日。设计师用了18套钢管链条编织成同心体系。这个扁平球体由五层同心体系组成。现场焊接，用了421个弧段，半径区间35厘米至3米，总长度592米。完成后结构高4.5米，最大直径11.5米。入口处地面直径约为7米，通过一个优美的链接形成一个入口轮廓。

外侧钢管覆盖了网纹织物，可以理解成吊床，吊床与钢管有20厘米间隙，使用传统工艺制成，具有10种不同的变化，绳子总长达到8公里，由12个学生花费两周时间制成。亭子上半部分为经过立体剪裁的PVC遮阳布。通过固定导线安装在钢架上。

Photography © Kyungsub Shin / www.shinkyungsub.com

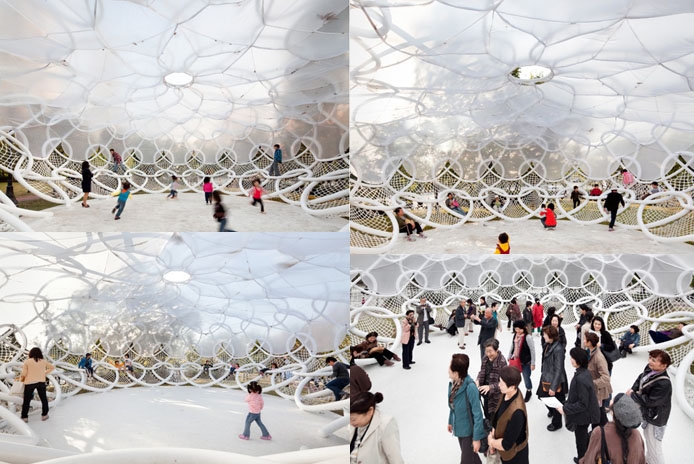

Traditionally, a jung-ja overlooks a beautiful natural landscape, but the Hakwoon Park site, where the Open Pavilion is located, is surrounded by forests adjacent to several apartment complexes. Whereas traditional pavilions are extroverted, this pavilion is introverted. It brings people together in a miniature stadium-like setting, where 70 seatings, stacked in four levels, radiate from a central focal point. Though it is open to the public, the structure performs as a ‘Public Living Room,’ encouraging intimate social interactions.

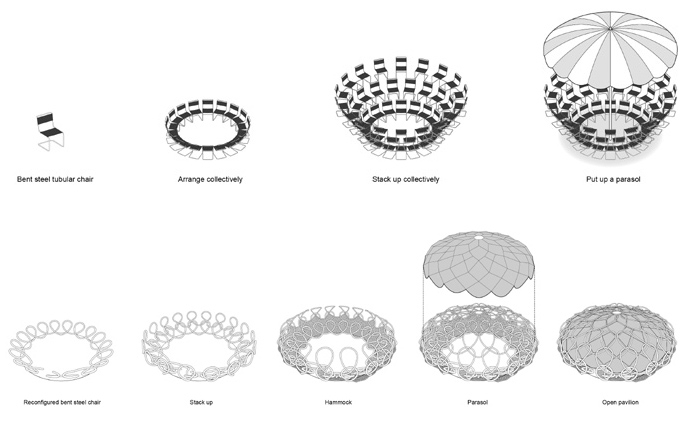

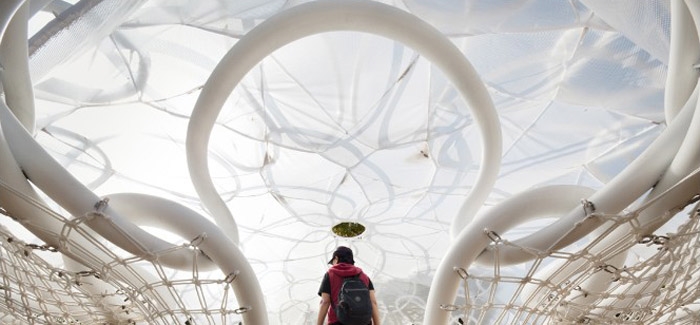

The lower seating portion and the upper roof portion of the pavilion are integrated into a single structural system, which takes the form of an oversized chain net. Created through the repetition of steel tube arcs of various shapes and sizes, the flattened sphere-like structure is firm and stable. The seating area in the lower half may be conceived of as a reconfiguration of bent steel tube chairs in collective form, whose interlocking acts as links in a chain. Between these links, hammocks are installed to accommodate seating. The upper half of the structure is designed to support a suspended translucent membrane roof to keep out the sun and rain.

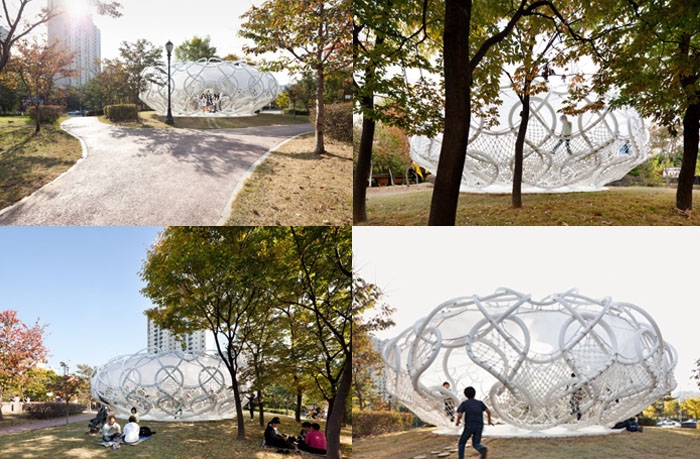

In plan, 18 sets of steel pipes are braided in concentric formation to form a chain link, while the cross section shows five levels stacked on top of each other to create a flattened sphere. Every part of the structure is in the form of an arc produced by bending steel pipes (60—140 mm in diameter) using high frequency induction heating and welding them together on-site. There are 421 arcs, ranging from 35 cm to 3 m in radius. Their total length reaches 592 m. The height of the structure is 4.5 m; the maximum diameter is 11.5 m; and the diameter of the floor surface is 7 m. Visitors enter through a distorted portion of link, which has been stretched and held up to form an entranceway.

On the outsides of the steel pipes, steel rings are welded 20 cm apart where the hammocks can be attached and detached easily when replacement becomes necessary. All 70 hammocks were created using a traditional knotting method. They come in 10 different shapes with some variations. A total of 8 km of rope was used to make the braided knots, which, with the help of 12 students, took two weeks to complete.

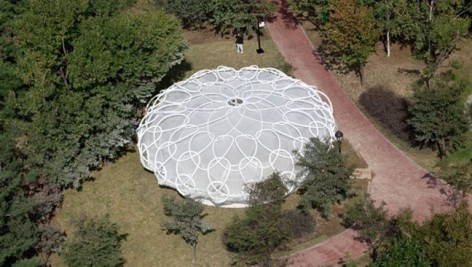

The large parasol on the upper half of the structure is made of PVC tarpaulin and is fixed to the steel frame by a wire. The parasol was created by draping tarpaulin panels in the form of a geodesic dome.

Photography © Kyungsub Shin / www.shinkyungsub.com

Project:
APAP2010 Open Pavilion
Design Period:
2009.9 – 2010.6
Construction Period:
20010.7 – 2010.9
– – – – – – – – – –
Type:
Public
Location:
Anyang, Korea
Building Scope:
11.5m (DIA) x 4.5m (H)
– – – – – – – – – –
Architects:
Mass Studies
Minsuk Cho, Kisu Park, Joungwon Lee, Yoonhwan Kim, Jisu Han, Suzan Babaa, Irene Matteini
Hammock Production:
Youngjoo Lee (Ssamzie Sarang Craft Lab)
Students of Architecture Club ‘JA!’, Daelim University College
Structural Engineer:
TEO Structure
Lighting Engineer:
Newlite
Construction:
UB Construction
Client:
Anyang Public Project Foundation
