Noon是孩子们课后活动的场所，那里有讲习班和学校咨询辅导，孩子们也可以在放学后留下来学习或者游戏。该项目由一个集团开发，将一个现存的建筑改造成这个活动中心。由于这是首次执行开发的项目，预算有限, 因此，这个项目分为两个阶段，第一个阶段为总体策划，包括项目与外部街道关系的设计和内部功能划分的设计，以及一些特定空间的家具设计。最后呈现出一个专业的、安全的、有秩序和创造力的空间，孩子们在空间里得到乐趣和归属感，就像和父母在一起或是在团队当中一样。设计的总目标是打造一个真正意义上给孩子们带来的社交和认知经验的空间。

NOON is an afterschool for children, where workshops, school counseling and a general stay are given. The project was developed based on a corporate identity, which was adapted to a pre-existing building with a limited budget because of being the first center to be executed; so the project is divided into 2 constructive stages, where the first one is summarized to strategic interventions that improve the functionality and the presence from the street, to the design of exterior and interior areas, and also to the design of furniture of selected spaces; so that together produce professionalism, security, order, creativity, fun and belonging sensations both in children, as in parents and the work team. The general objective was to achieve a space that generates real social and cognitive experiences (not virtual) in children.

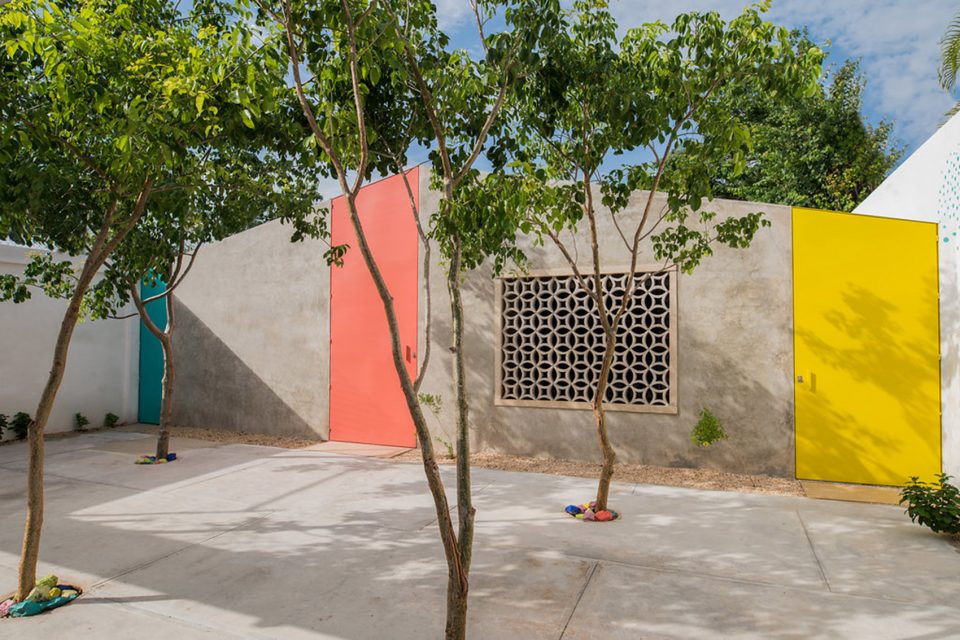

▼入口前被改造成儿童活动区域的停车场，the parking lot before the entry door is transformed into a play and reception area for kids

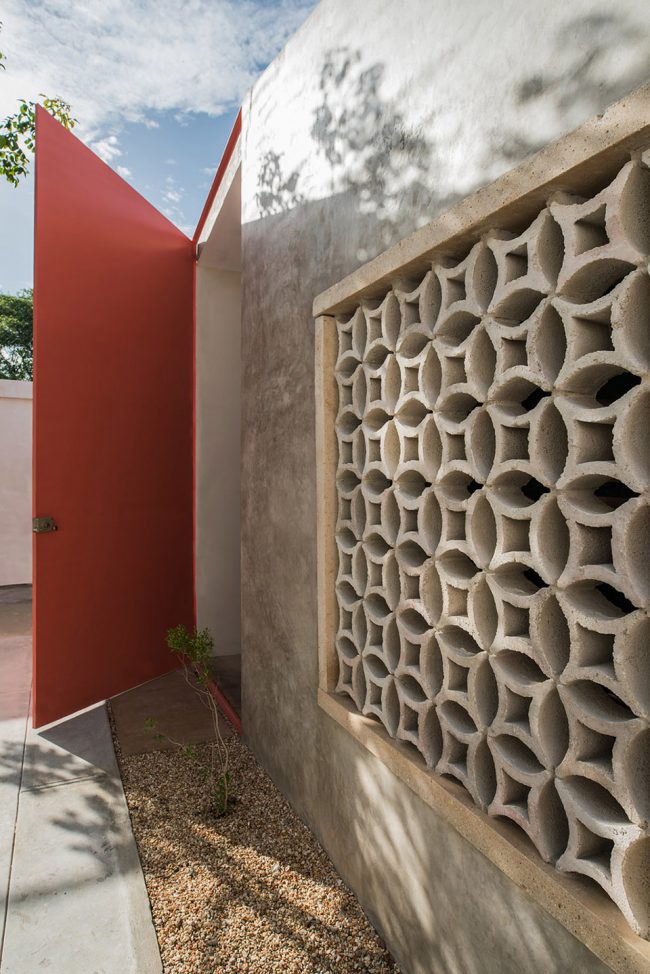

▼入口，the entry door

最初的建筑是一栋单户住宅，它四周逐渐变成了梅里达市内的办公和服务区域。改造后整栋住宅完整地保留了下来，只有它的主要通道被改变，以便为复杂的内部和外部空间创造一个清晰的通道和疏散用的前庭走廊。室外新建了两个入口，一个用于服务，另一个通向后花园，从而加强对各个区域的访问控制。前面的露天停车场被改造成一个绿树成荫的儿童游戏区域。为了安全起见，保留了通往街道的大门。在房屋后面打造了一个操场和一个果园。屋内的卧室变成了行政办公室、咨询室和制作间；社交区域被改造成了游戏室；厨房、洗衣房、地下室和浴室都保存在原来的位置，而后者被划分为区分性别使用的两个卫生间。第二阶段将进行地板和人行道的改造，服务区域和行政区域的室内设计，以及后面屋顶平台的扩建。

The original construction was a single-family house that eventually ended up inside an area of offices and services within the city of Merida. The building was practically preserved in its entirety. Only the building’s main access was changed so as to create a clear access and evacuation vestibular corridor from and to each of the interior and exterior spaces of the complex. Outside, two new entrances were created, one for services and the other for the rear garden, in order to reinforce access control to various areas; the open parking lot in the front was transformed into a tree-lined plaza for children’s reception, and the existing gate to the street was preserved for security reasons; while a playground and an orchard were created at the back. Inside, the bedrooms of the house became an administrative office, a counseling room and a workshop room; and the social area was transformed into the playroom. The kitchen, laundry room, cellar and bathroom were kept in their original locations; the latter was divided into 2 restrooms, one for each gender. For the second stage the change of floors and pavements, the interior design of the service areas and the administrative area, and a small extension for a roofed terrace in the rear are pending.

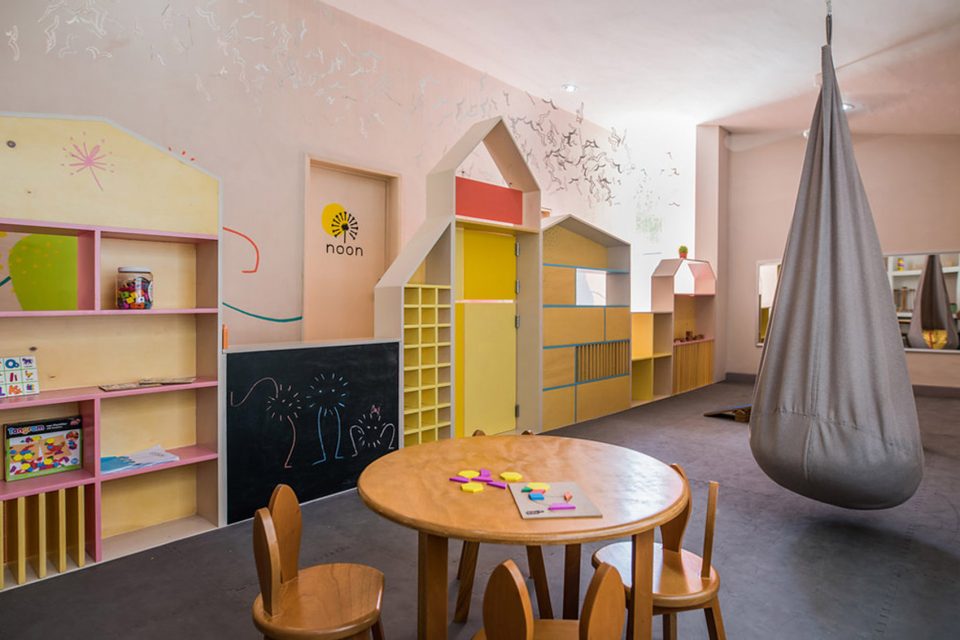

▼游戏间，the playroom

材料方面，以灰色水泥和震动压缩制成的混凝土格子板为基础，使用了清晰可辨的抹灰为外墙材料。公司形象的代表颜色也被使用在室外的门上。室内的墙壁和门使用了一种较浅的中性颜色，和用原木制造的家具以及公司的代表色相搭配。在室内的墙上和室外的围栏上都用手工制作了公司品牌的图样。

With regard to materiality, an apparent stucco was used on the outside based on gray cement, vibro-compressed concrete latticework, and the corporate colors were captured on the exterior doors. In interiors, a light neutral color was used for walls and doors, for functional furniture designed in natural woods combined with corporate colors dominate. The graphics of the brand were reflected on the interior walls and on the exterior fences manually.

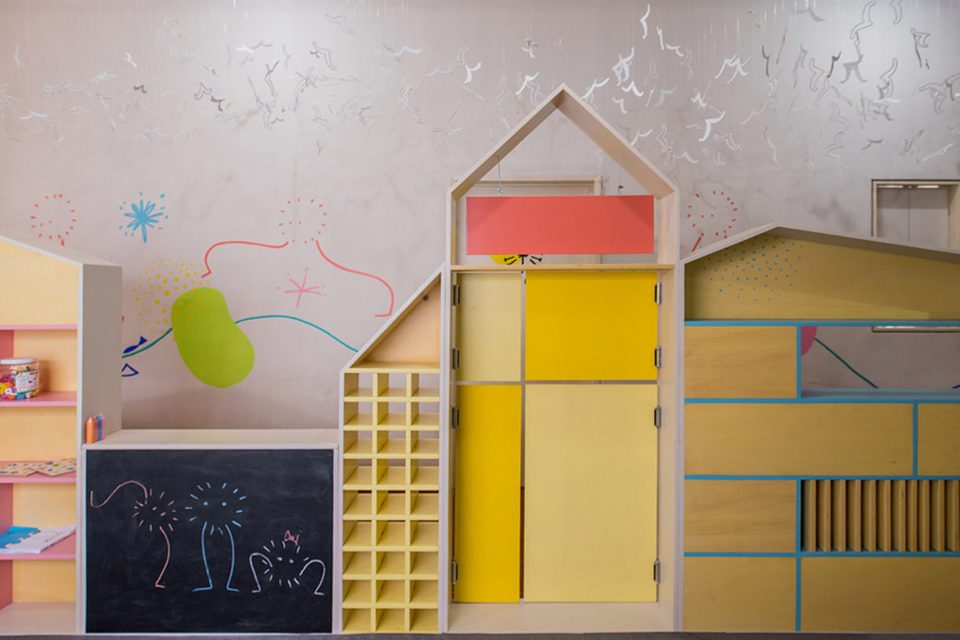

▼定制的家具，适合儿童使用；the customized furnitures are designed for kids

游戏室周围由一系列低矮的家具组成，家具两侧都有用于放置教学的材料和孩子们物品的储物空间。制作间设计有模块化的三角形桌子，根据制作间安排的不同类型的活动进行相应的拼接。在咨询室放置了两个给一对一辅导用的模块桌，以及一个给团队使用的圆桌。后花园被设计成一个尤卡坦式的游乐场，地面铺砖上画有各种传统的游戏，还有一个果园，可以配合进行各式各样的活动。该项目有一个综合的工作规划，包括建筑设计、室内设计、家具设计和景观美化，以及建造。

The playroom is bordered by a series of low furniture with storage areas on both sides for didactic material and children’s belongings. Modular triangular tables were designed for the workshop hall, which allow different configurations according to the type of workshop that is carried out. For the counseling room, two modules of tutoring 1 to 1 (tutor + child), and a round table for teamwork were designed. The back garden was designed as a yucatecan playground, in which various traditional games were painted on the pavements, combined with dexterity activities and an orchard, among other uses. The project was carried out under a comprehensive work scheme, which included architectural design, interior design, furniture design and landscaping; as well as the construction and execution of them.

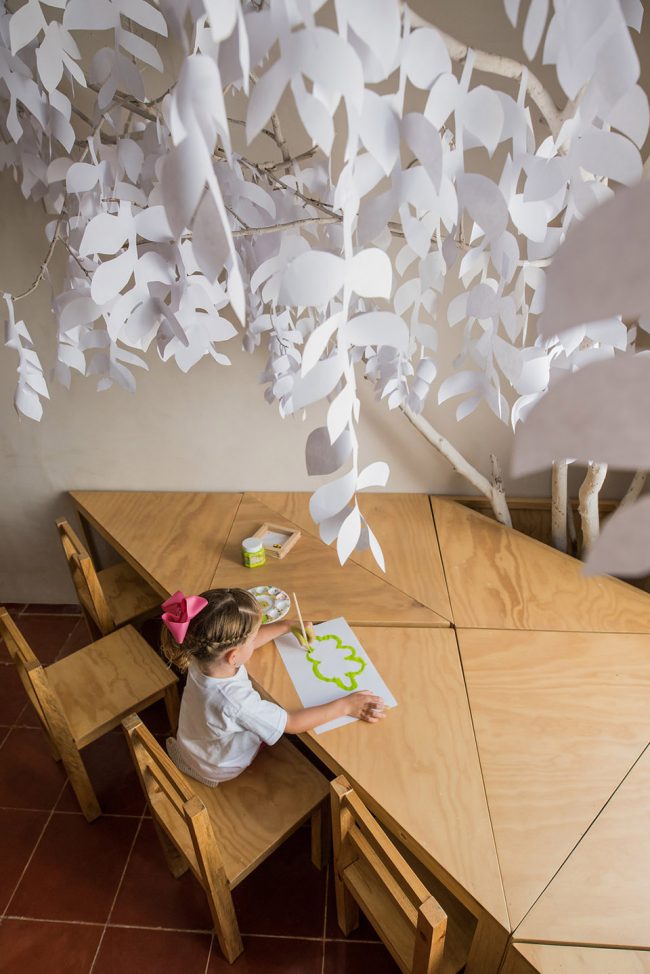

▼制作间的模块化的三角桌，可根据需要进行拼接；modular triangular tables were designed for the workshop hall, which allow different configurations according to the type of workshop that is carried out

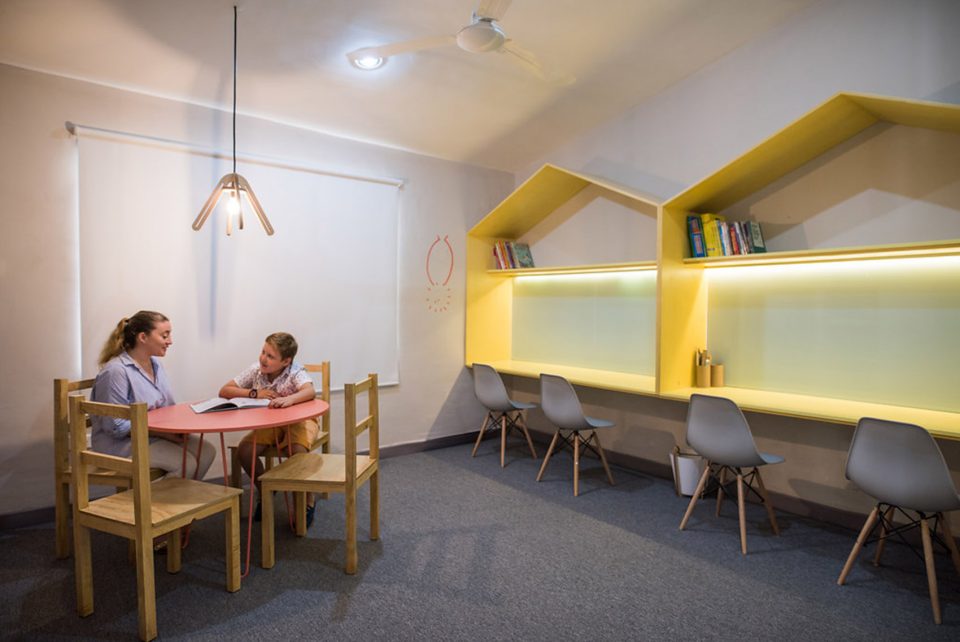

▼咨询室一览，overview of the counseling room

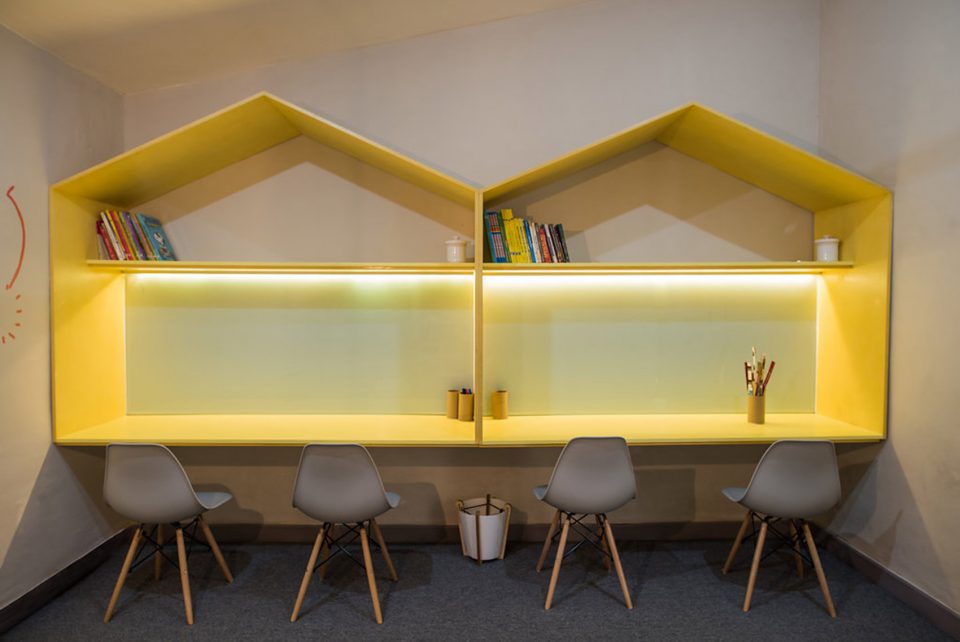

▼给一对一辅导设计的桌子，table designed for one-to-one tutoring

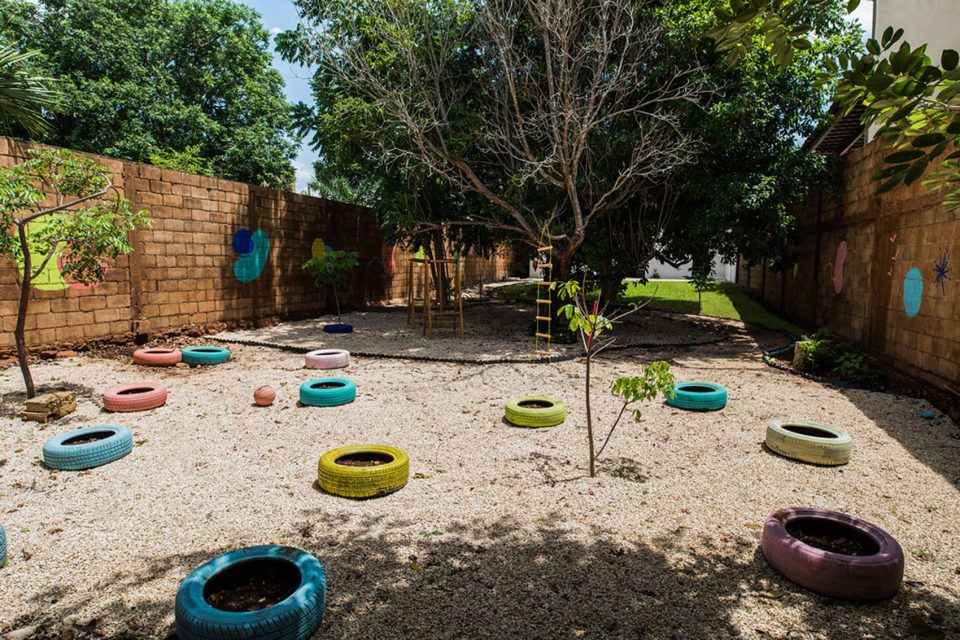

▼屋后的花园，the garden behind the house

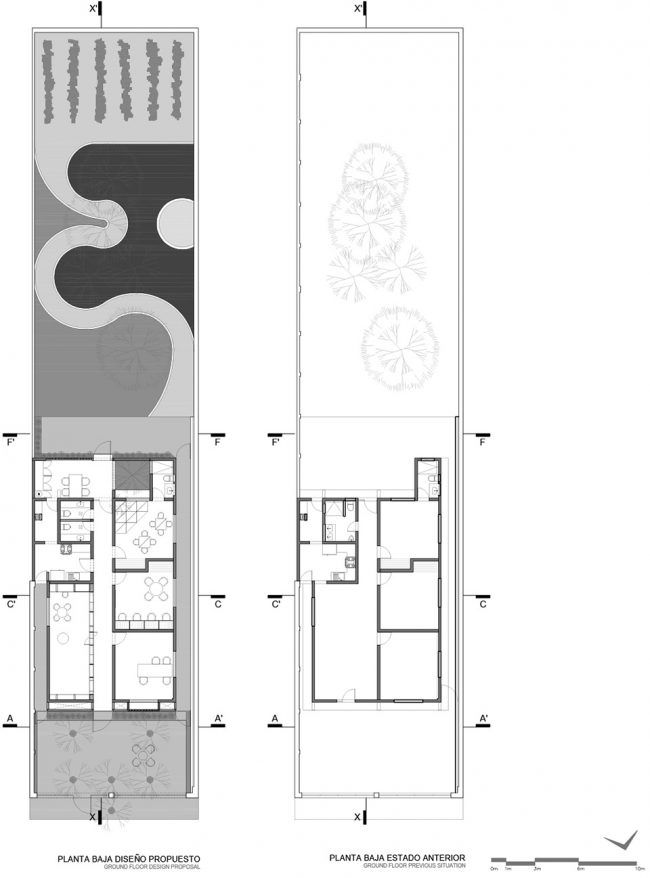

▼首层平面改造后与改造前的对比，ground plan proposal versus the old design

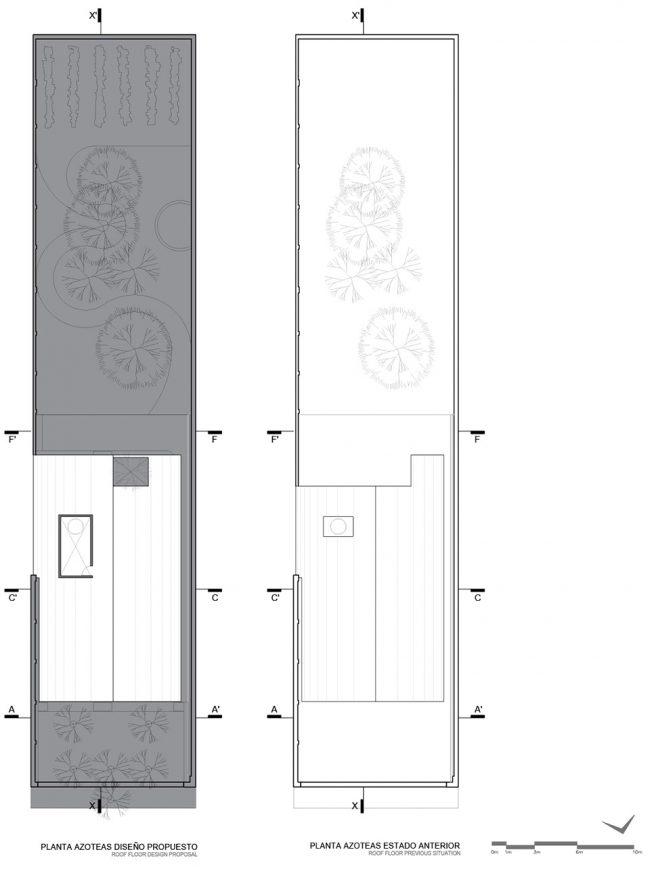

▼顶层平面改造前后对比，rooftop proposal versus the old design

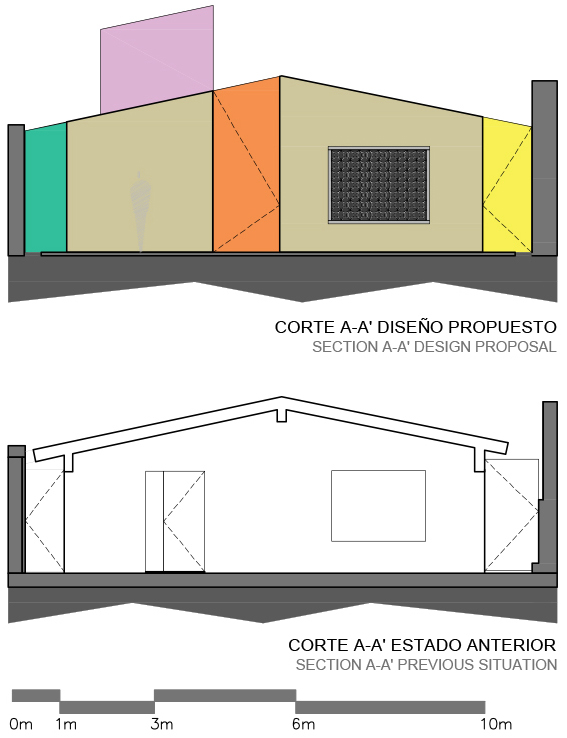

▼剖面A-A’改造后与改造前对比，section A-A’ proposal versus old design

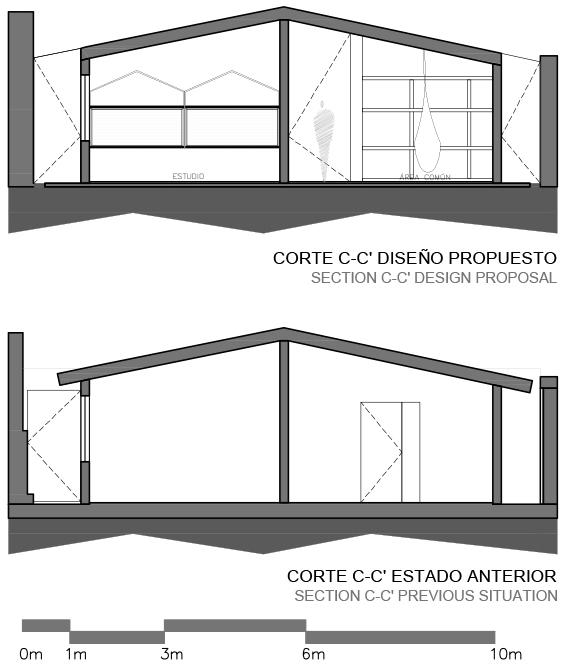

▼剖面C-C’改造后与改造前对比，section C-C’ proposal versus old design

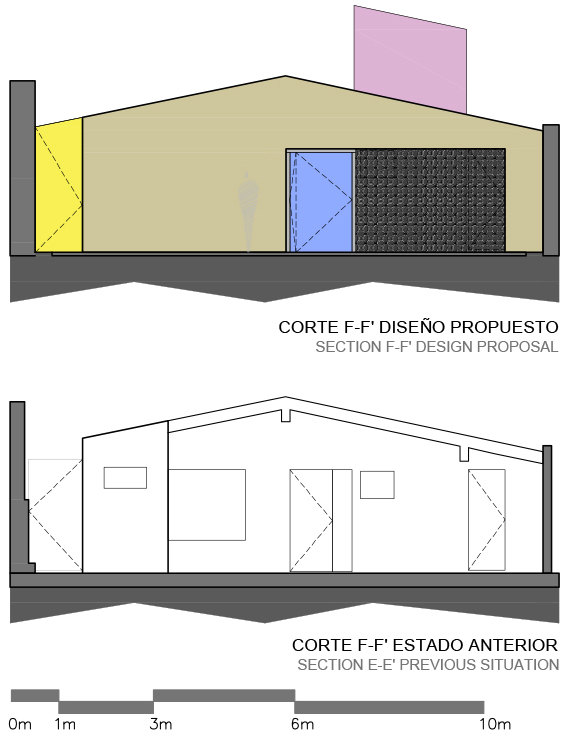

▼剖面F-F’改造后与改造前对比，section F-F’ proposal versus old design

建筑设计公司：TACO taller de arquitectura contextual
团队：ARQ CarlosPatrónIbarra，ING AlejandroPatrónSansor，LDI Ana Patron Ibarra，LDIEstefaníaRivero Janssen
建造：TACO taller de arquitectura contextual
室内设计：TACO taller de arquitectura contextual
品牌：传播双年展
地点：墨西哥梅里达
类型：服务/教育/改造
完成年份：2017
设计面积：180.00平方米
摄影师：Leo Espinosa
相关品牌：CEMEX，COMEX

Architecture: TACO taller de arquitectura contextual.
Team: ARQ Carlos Patrón Ibarra, ING Alejandro Patrón Sansor, LDI Ana Patrón Ibarra, LDI Estefanía Rivero Janssen.
Constructor: TACO taller de arquitectura contextual.
Interiorism: TACO taller de arquitectura contextual.
Branding: Bienal Comunicación.
Location: Merida, Mexico.
Typology: Services / Education / Remodel.
Completion Year: 2017
Intake Surface: 180.00 sqm
Photographer: Leo Espinosa
Related Brands: CEMEX, COMEX.
