非常感谢Alcolea+Tárrago Arquitectos 予gooood分享以下内容。更多请至: Alcolea+Tárrago Arquitectos on gooood
Appreciation towards Alcolea+Tárrago Arquitectos for providing the following description:

该管理大楼位于西班牙马拉加市西部的马拉加大学，特亚蒂诺斯校园，内设大学校长办公室及多个行政和代表性服务部门，这些部门此前分散在全市各处。该项目还包括一座额外的800座礼堂——马拉加市最大的一座礼堂；一个植物园；以及一个露天剧场，旨在打造一个全新的大学校园中心。项目力求以简洁的造型为基础，采用原始的建筑元素，呈现出永恒且抽象的设计风格。两个建筑体量具有鲜明的代表性特征，并在一个绿意盎然的公园中展开对话。建筑主要采用单一材料——当地的白色大理石，经过最低的工业加工与能源消耗，并严格遵循模块化设计，最大程度减少切割和浪费，剩余材料则充分回收利用于建筑的其他部分。

The Government Building is located at the Teatinos campus, west of the city of Málaga in Spain. It hosts the presidency of the University among several other administrative and representative services, which were scattered through the city until now. The project also includes an additional 800-seat Auditorium –the largest in the city of Málaga–; a botanical garden; and an outside theatre. All aiming to create a new center in a brand-new University campus. The project seeks to be essential in its figuration, pointing to elemental architecture types, and with a timeless and abstract expression. The two volumes define a very representative character while stablishing a conversation in a densely vegetated park. Both volumes are mostly built with a single material –local white marble–, with minimum industrial processing and energy usage and following a strict modulation, to minimize cutouts and waste, which are then fully reutilized in different parts of the building.

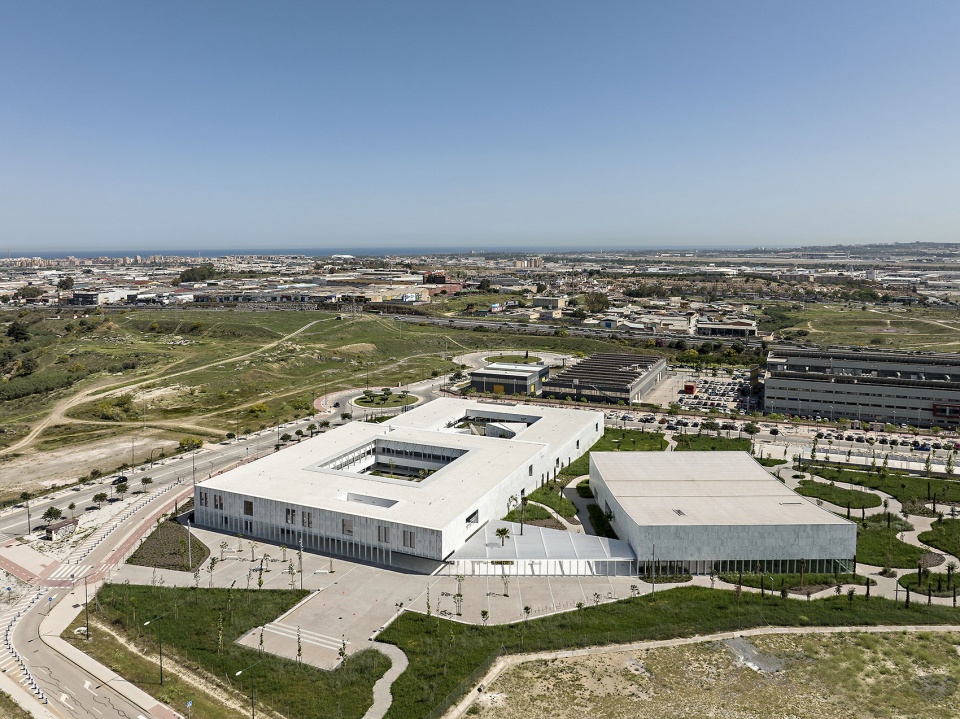

▼项目鸟瞰，Ariel view of the project ©Javier Callejas

▼项目鸟瞰，Ariel view of the project ©Javier Callejas

▼项目鸟瞰，Ariel view of the project ©Javier Callejas

▼项目外观，exterior of the project ©Javier Callejas

主楼围绕两个绿植丰富的庭院展开，庭院内种植了本地植物，既为建筑提供了一个半私密的清新绿洲，也能有效调节温度和湿度。这两个庭院成为大学的新地标。建筑外围厚重，包含所有次要空间——楼梯、电梯、卫生间、储物间和会议室——使得其他空间完全开放灵活，同时没有任何遮挡，直接面向庭院。深远的视野增强了建筑的横向延展感，创造出一个开放自由、灵活多变的工作空间布局。

▼总平面，site plan ©Alcolea+Tárrago Arquitectos

The main building is defined by inhabiting the space created around two extensively vegetated patios courtyards, which include local species that will provide a semi-private and fresh oasis, as well as controlling the temperature and humidity. The courtyards become a new icon for the University. The thick perimeter of the building includes all secondary spaces –stairs, elevators, restrooms, storage, and meeting rooms–, allowing the rest of the plan to be fully open and flexible while looking directly at the courtyards without further interruptions. Deep perspectives accentuate the horizontality, creating an open and free plan for workspaces with great flexibility and capacity of transformation.

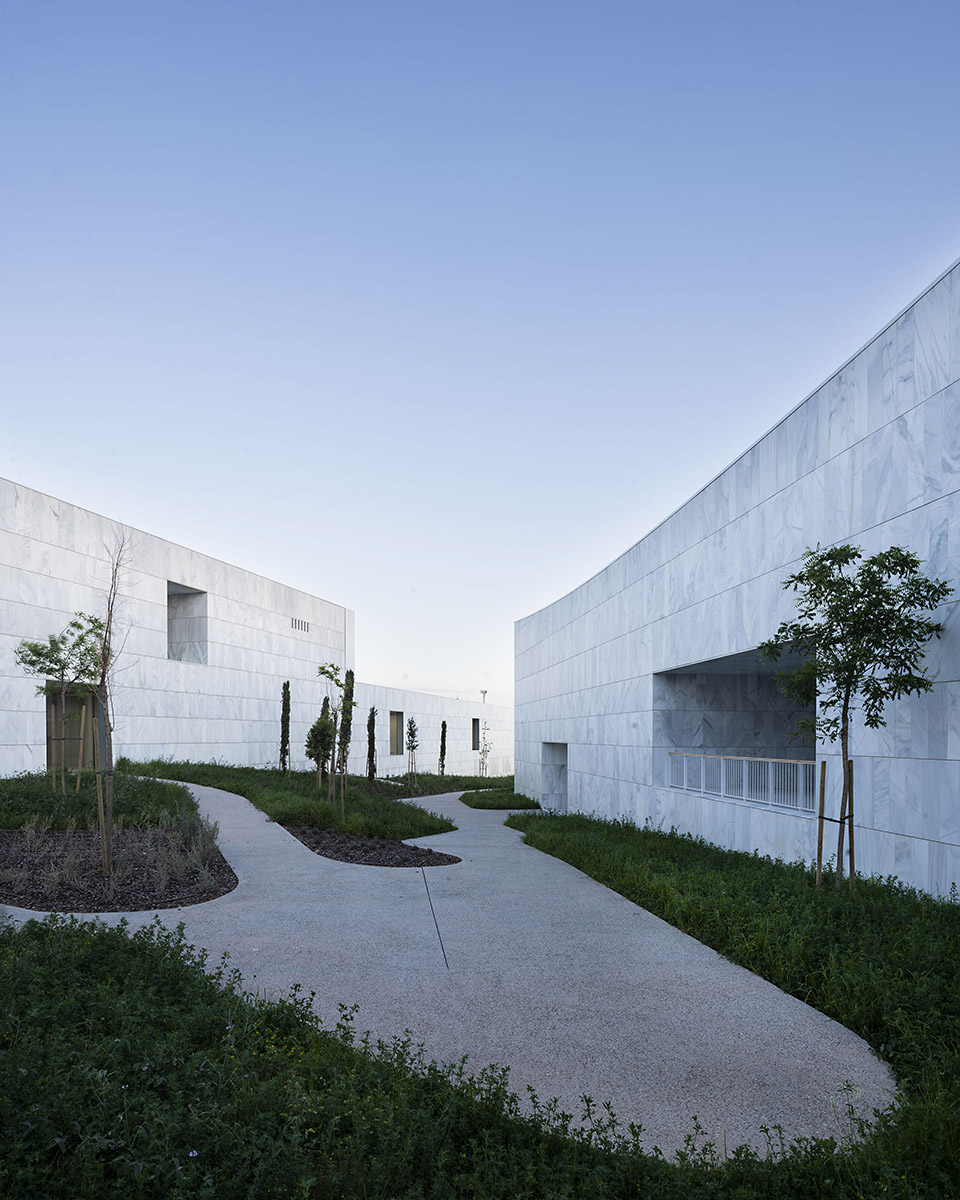

▼绿植丰富的庭院，extensively vegetated patios courtyards ©Javier Callejas

礼堂被设计成一个木质结构盒子，通过精心设计的开口，与远处景观和周围公园相连。礼堂微妙地嵌入地形，最大限度地减少对环境的影响并降低能耗。主厅自然延伸至外部空间，形成一种流畅的过渡。一个葡萄架将礼堂与管理大楼连接，形成了遮阴的开放空间，成为暖季的主要公共活动场所。

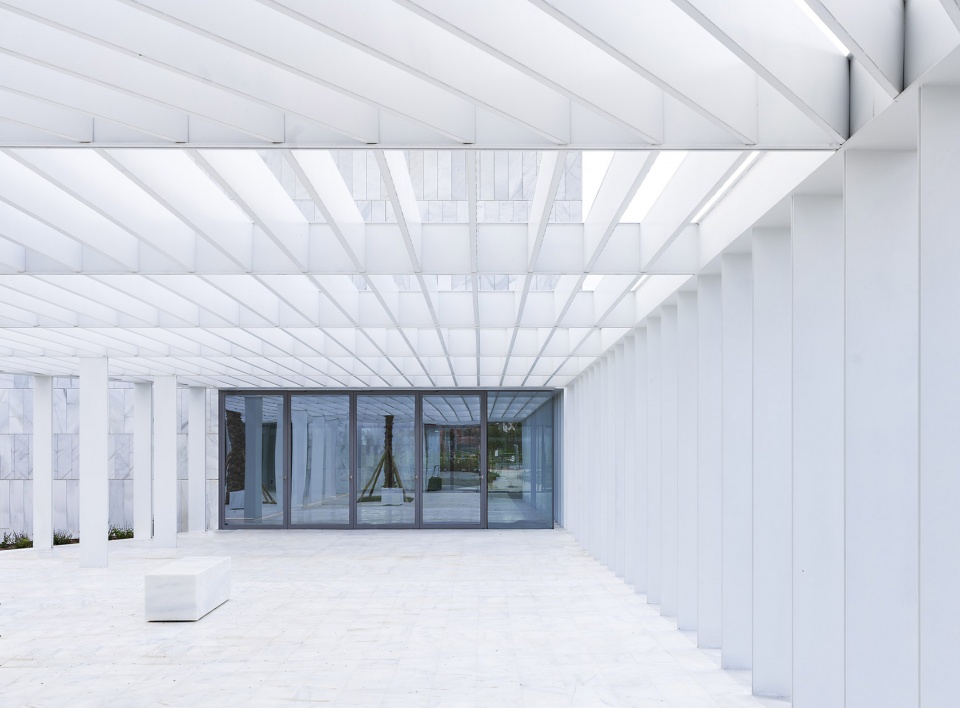

The Auditorium incapsulates a wooden box with strategic openings to the distant views as well as to the surrounding park. It is embedded gently into the topography to minimize its impact and save energy. The main vestibule reads as a natural extension of the exterior spaces. A pergola connects the auditorium hall with the Government building, defining an ambiguous and fully shaded exterior to become the main public space during warm seasons.

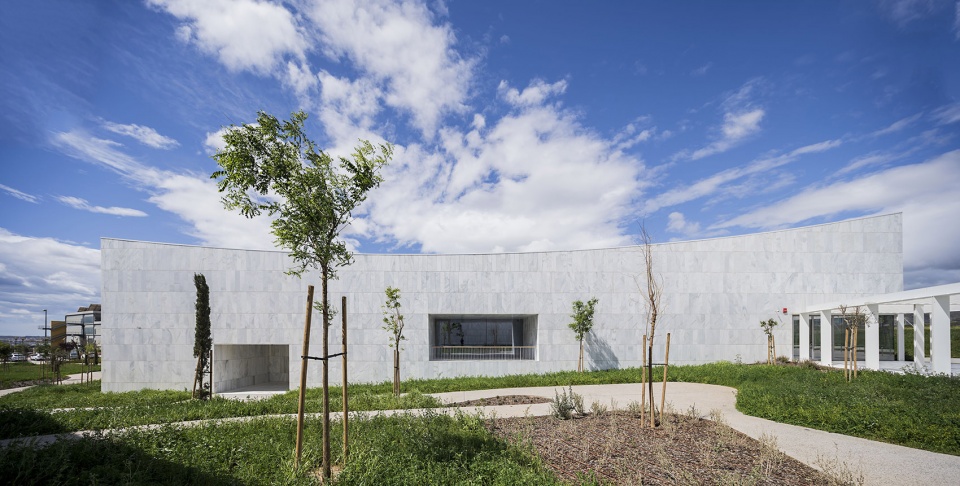

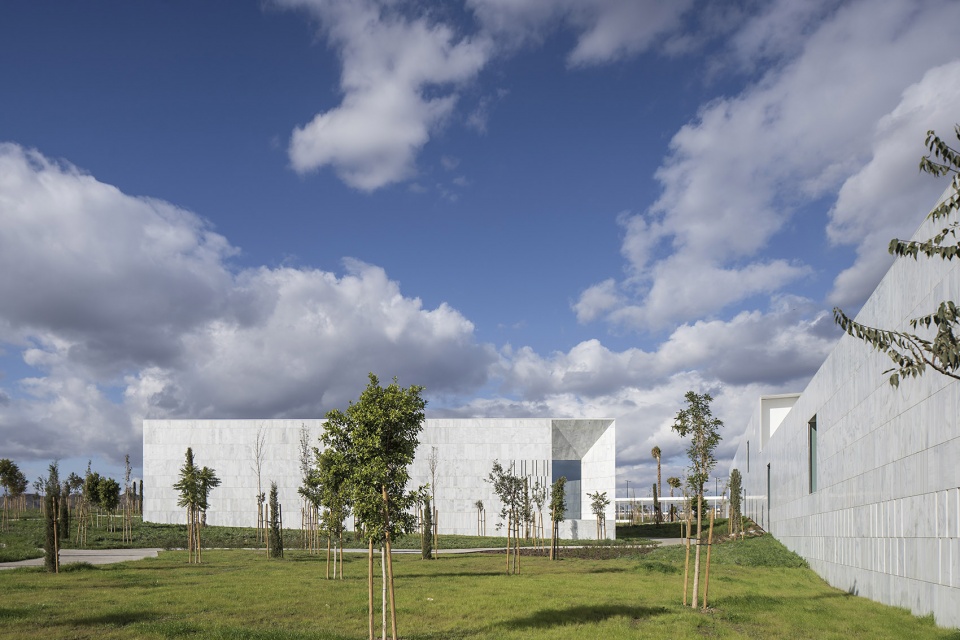

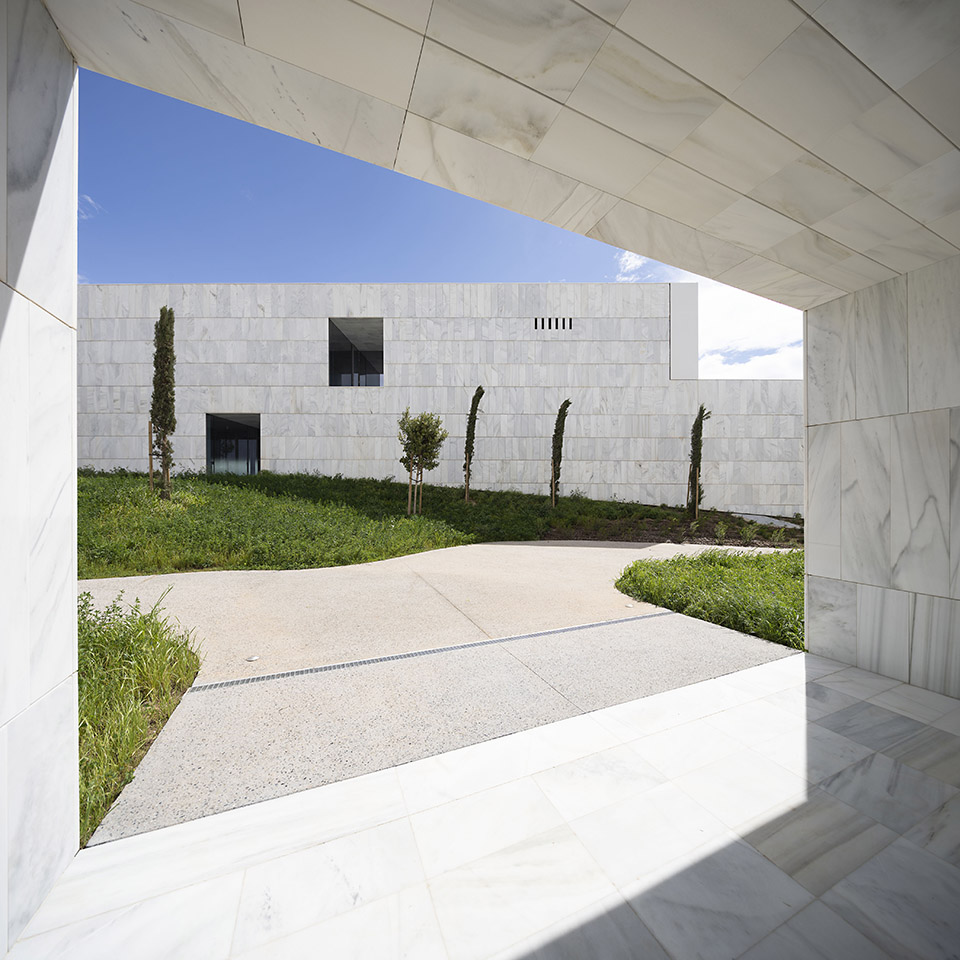

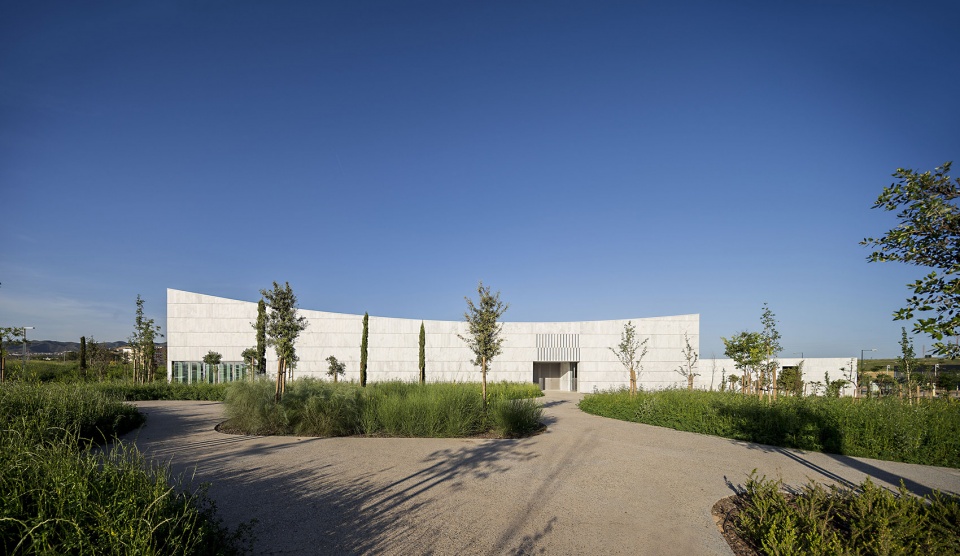

▼礼堂外观，exterior of the Auditorium ©Javier Callejas

▼礼堂入口，entrance of the Auditorium ©Javier Callejas

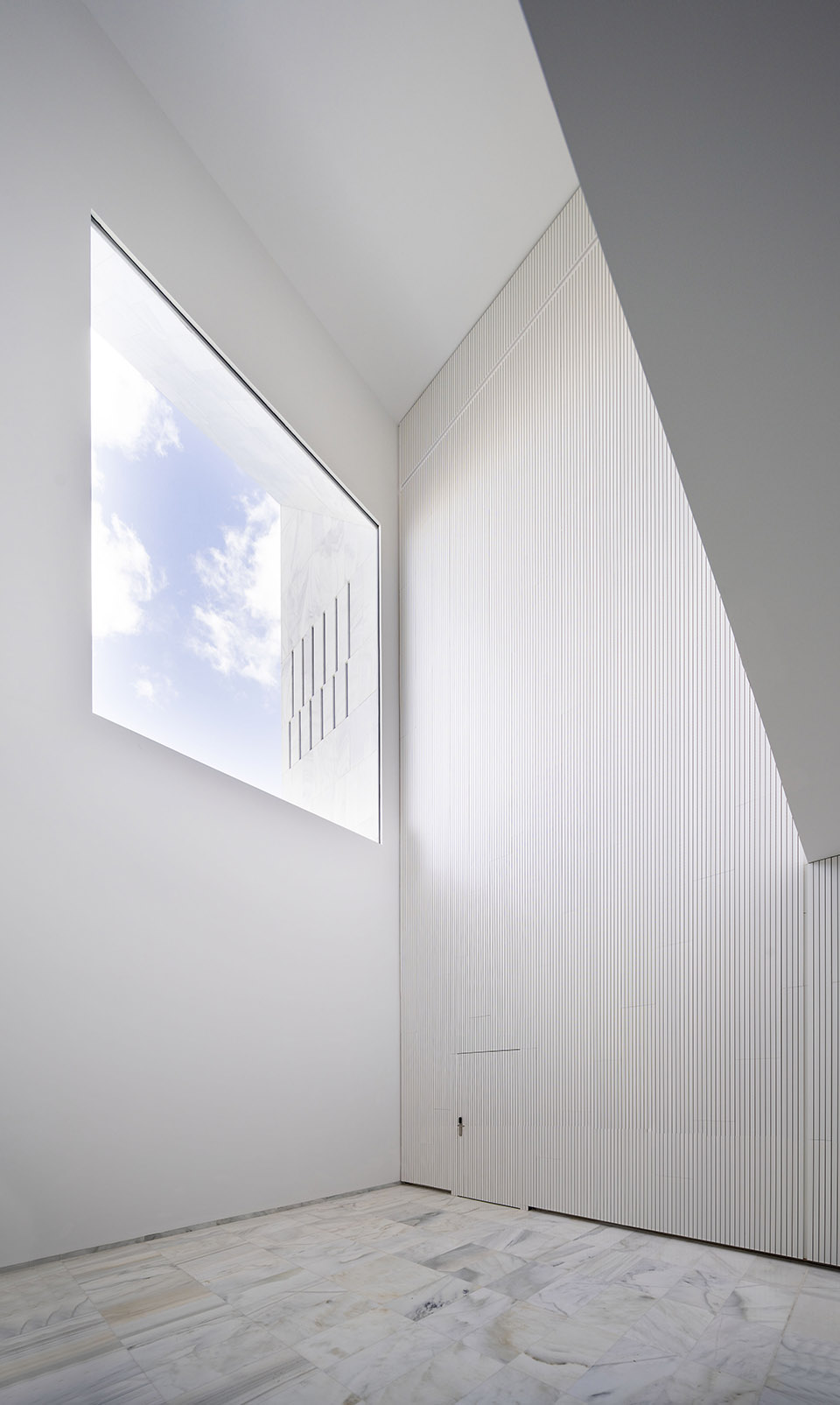

▼礼堂内部，indoor space of the Auditorium ©Javier Callejas

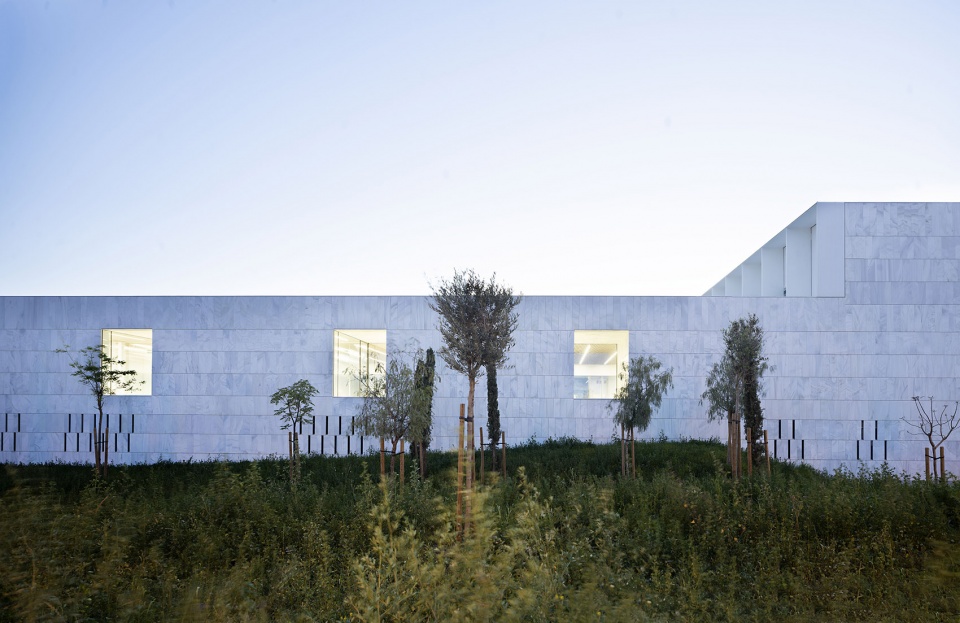

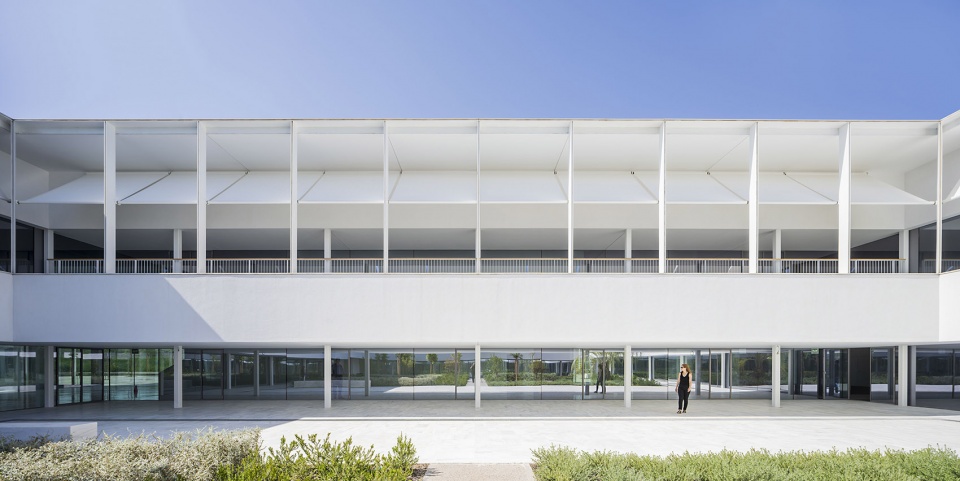

▼管理大楼外观，exterior of the Government Building ©Javier Callejas

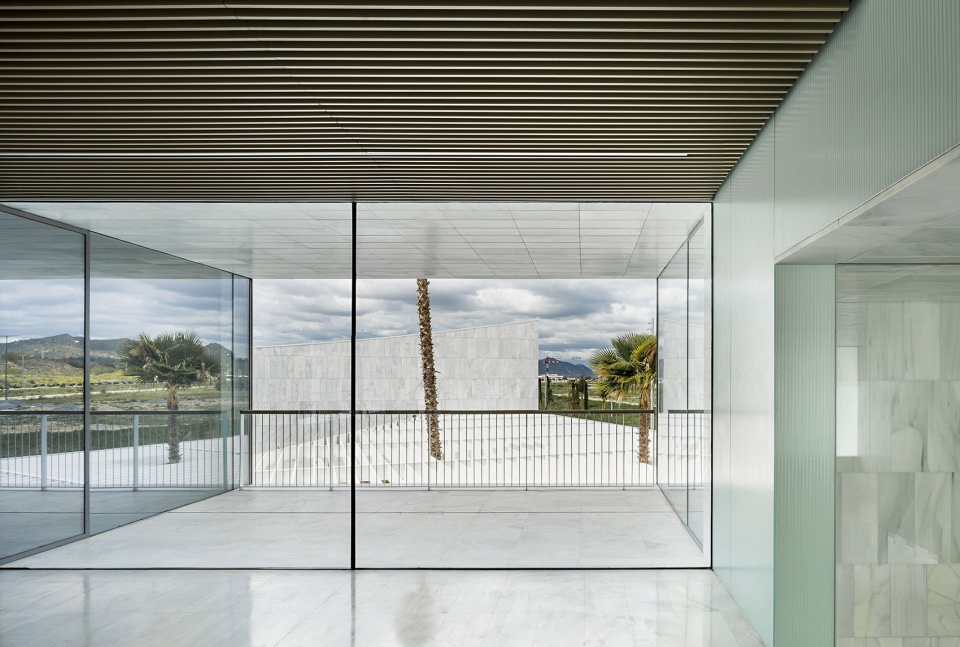

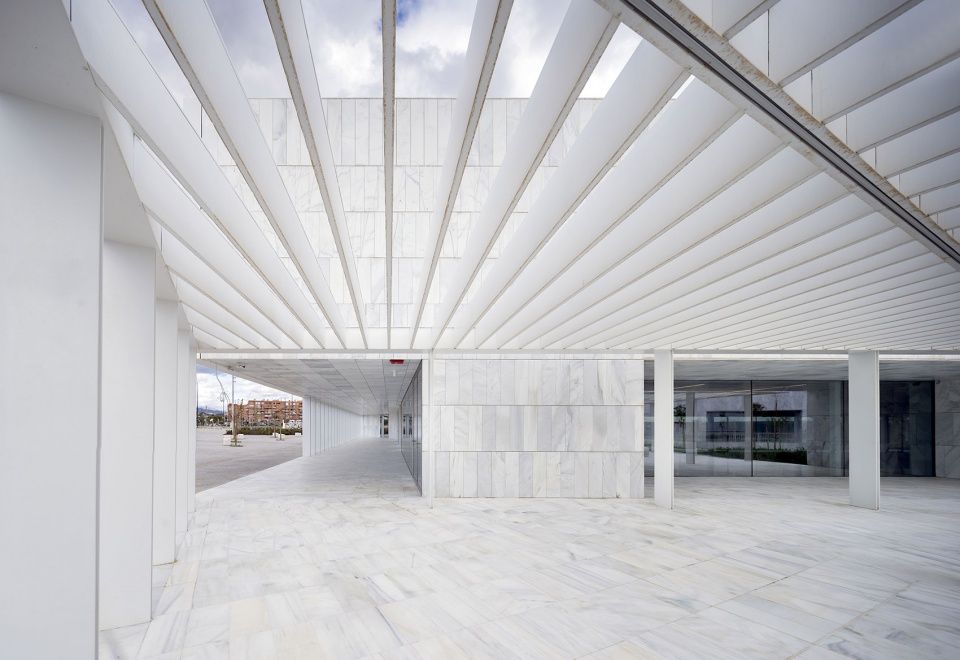

▼管理大楼外廊，corridor of the Government Building ©Javier Callejas

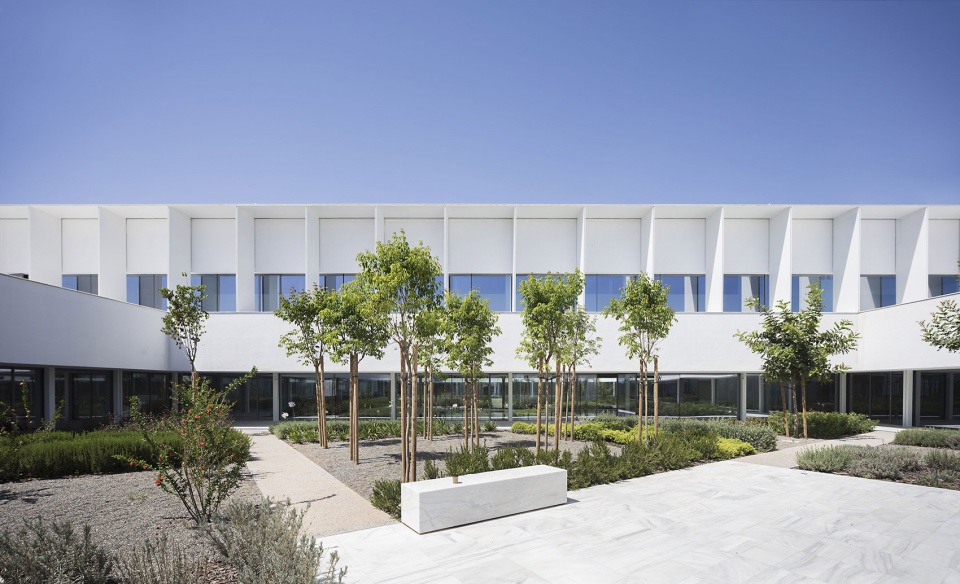

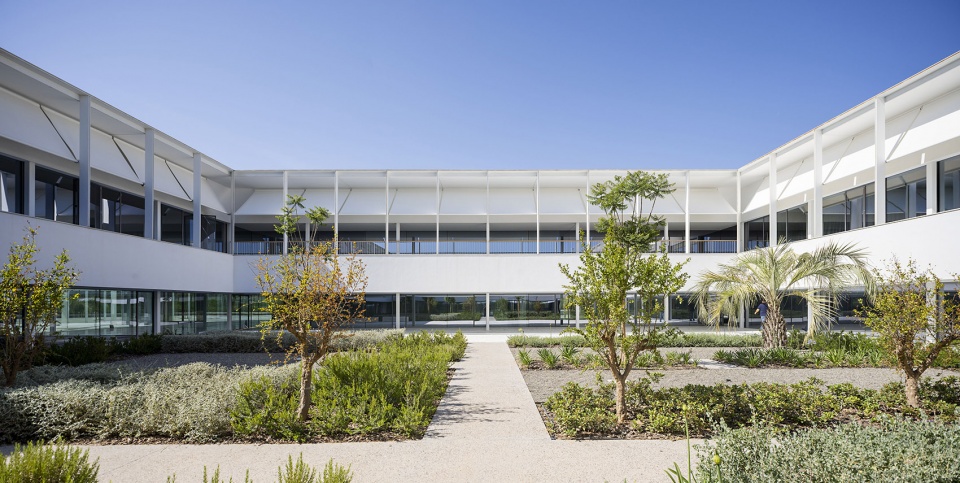

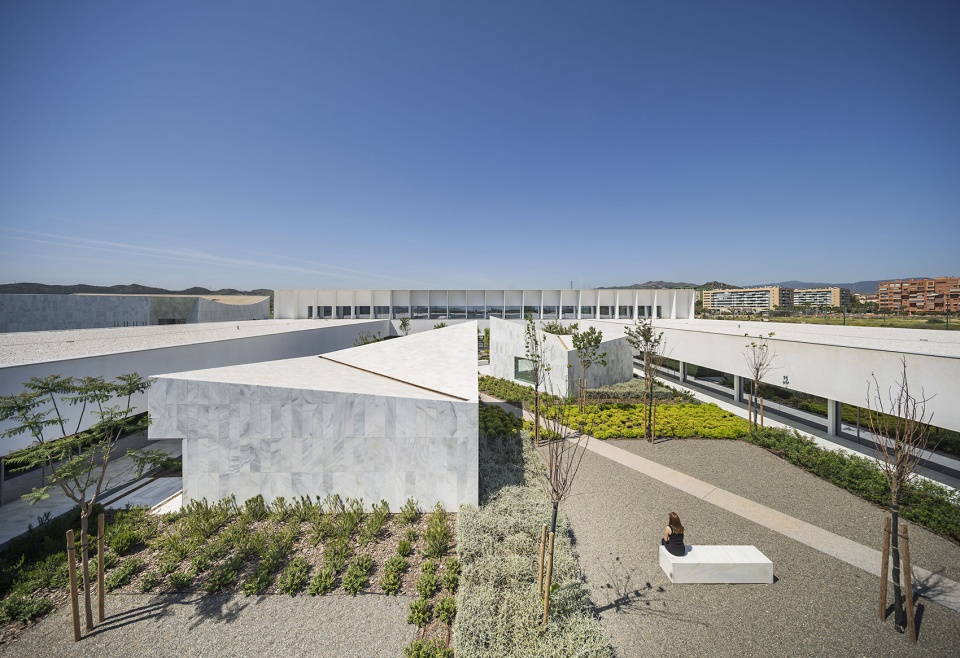

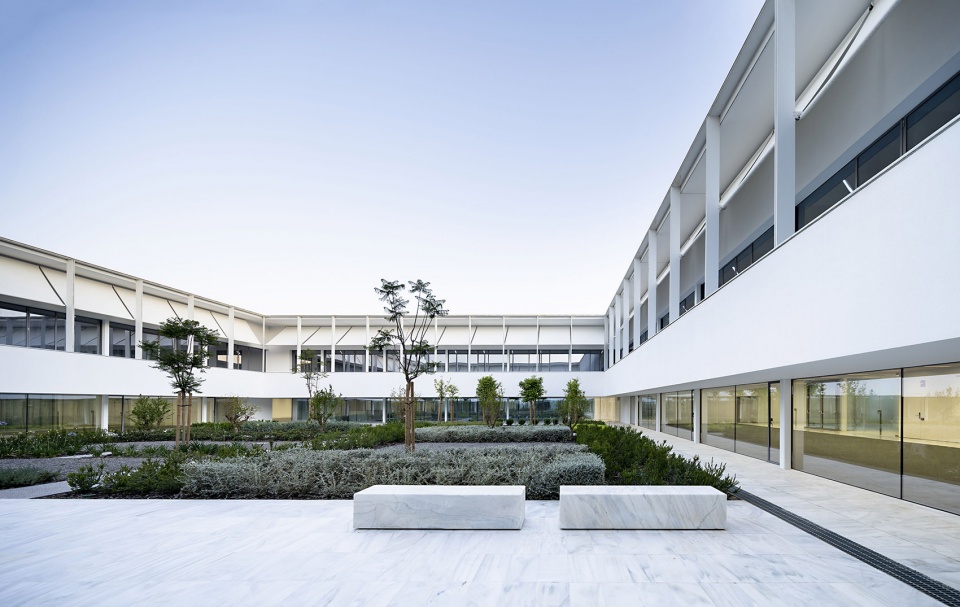

▼管理大楼庭院，courtyard of the Government Building ©Javier Callejas

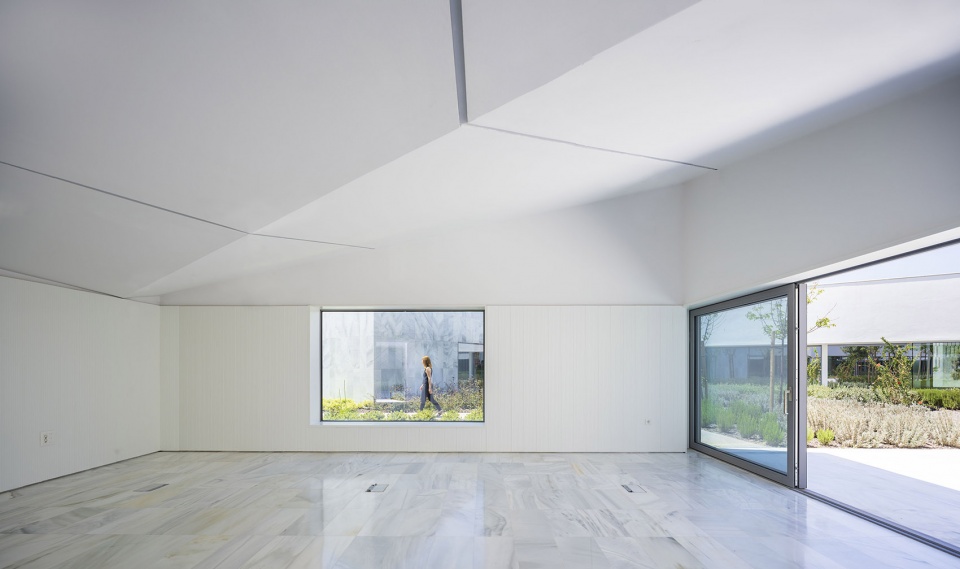

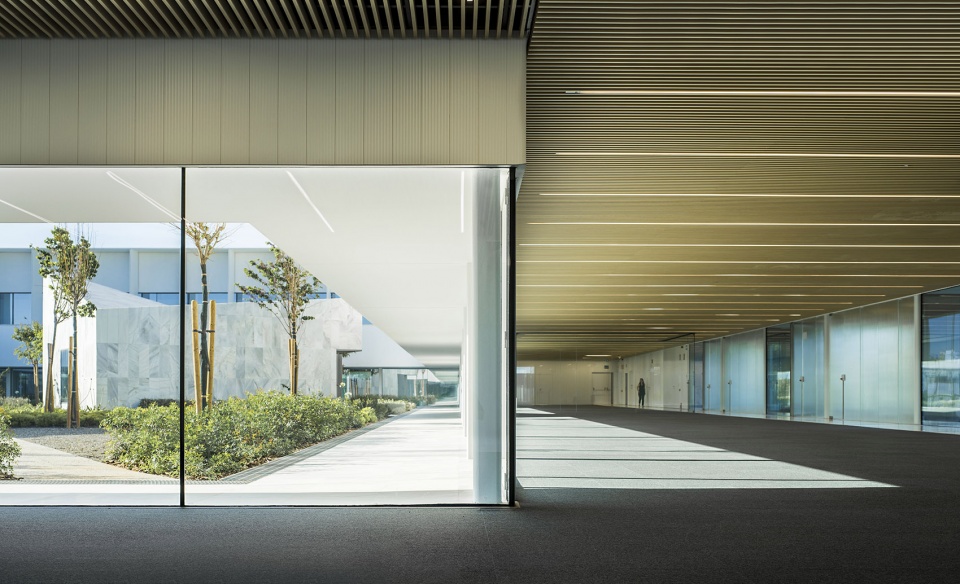

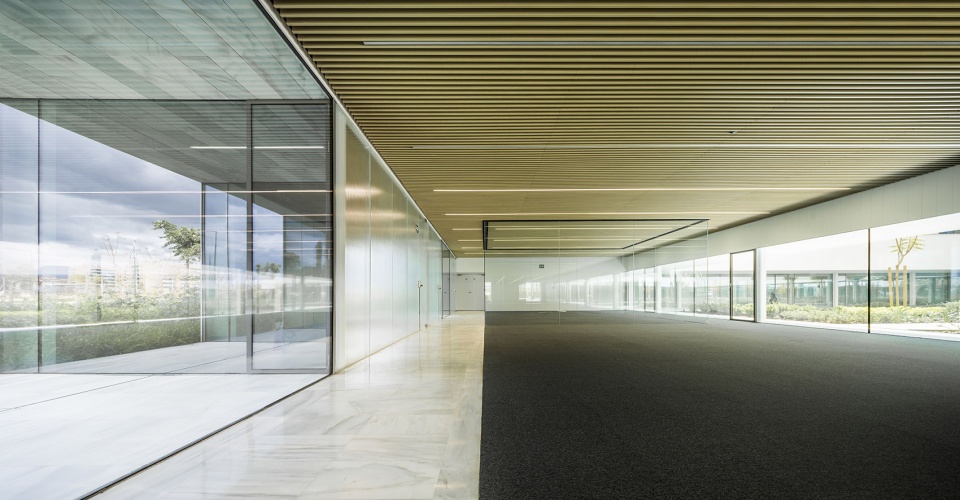

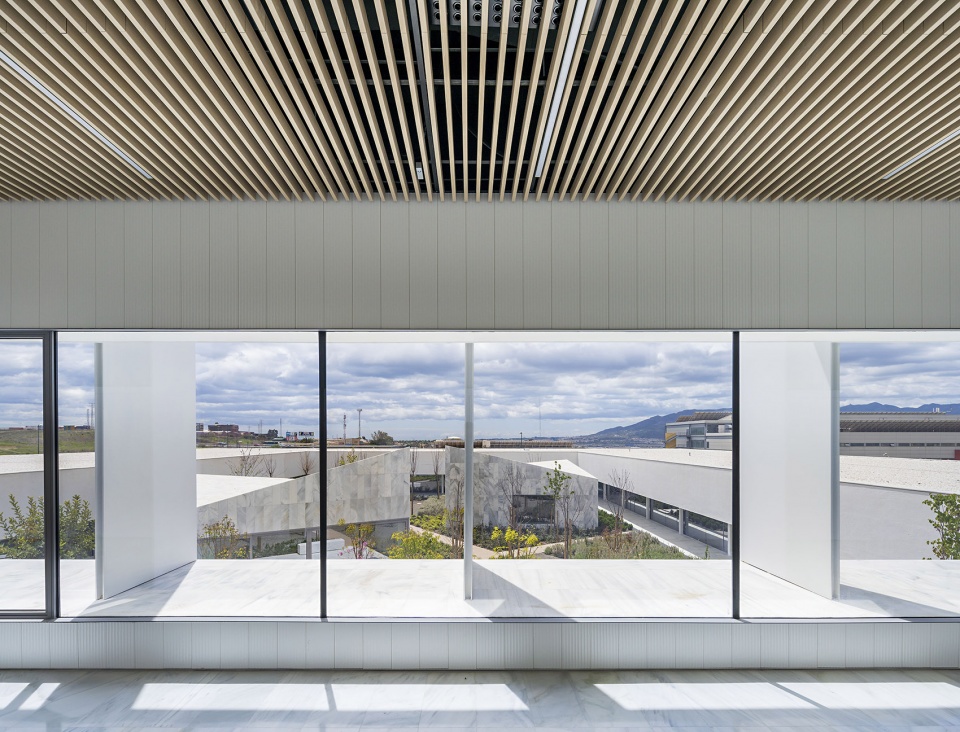

▼管理大楼内部空间，indoor space of the Government Building ©Javier Callejas

▼管理大楼内部空间，indoor space of the Government Building ©Javier Callejas

公园的小径网络与原有地形相适应，连接不同建筑，并穿过丰富的本土生与地中海植物园。树木按水资源管理需求进行分组，以减少维护工作，同时为校园内提供阴凉和宁静的休憩空间。额外种植的植物有助于土壤的自然再生，确保公园的长期可持续性。

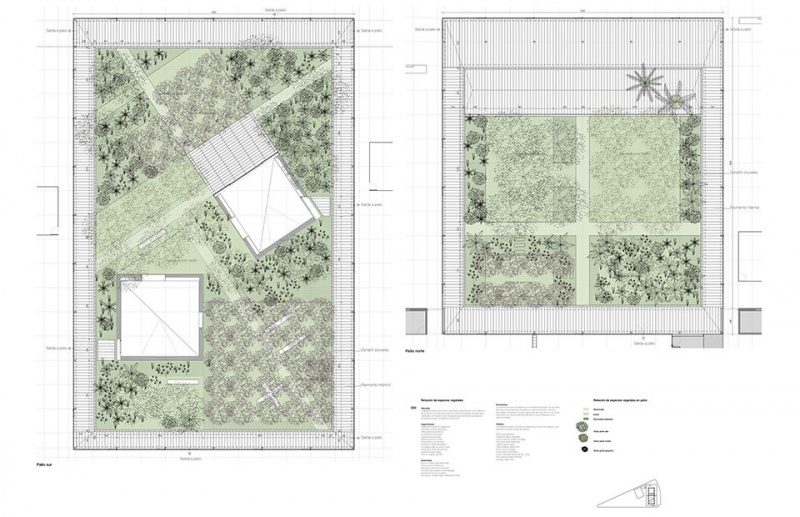

▼公园的小径网络，The network of paths ©Alcolea+Tárrago Arquitectos

The network of paths in the park adapts naturally to the original topography and connects the different buildings while navigating through a rich garden of native and Mediterranean species. Trees are grouped accordingly to water management to minimize maintenance, while creating spots of shade and calm through the campus. Additional species are planted to improve the natural regeneration of the current soil and to make the park sustainable in a long term basis.

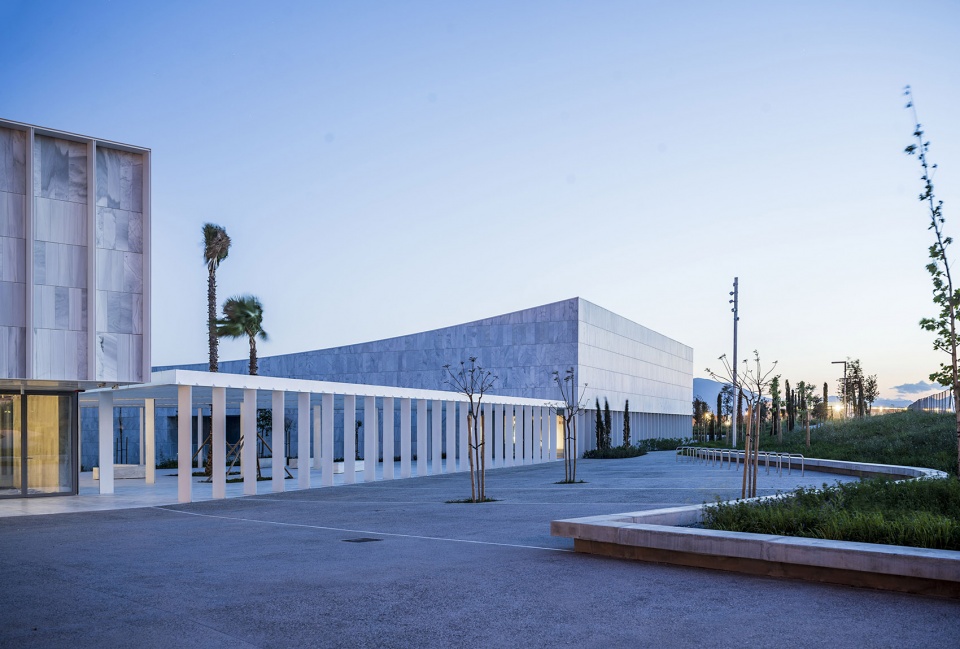

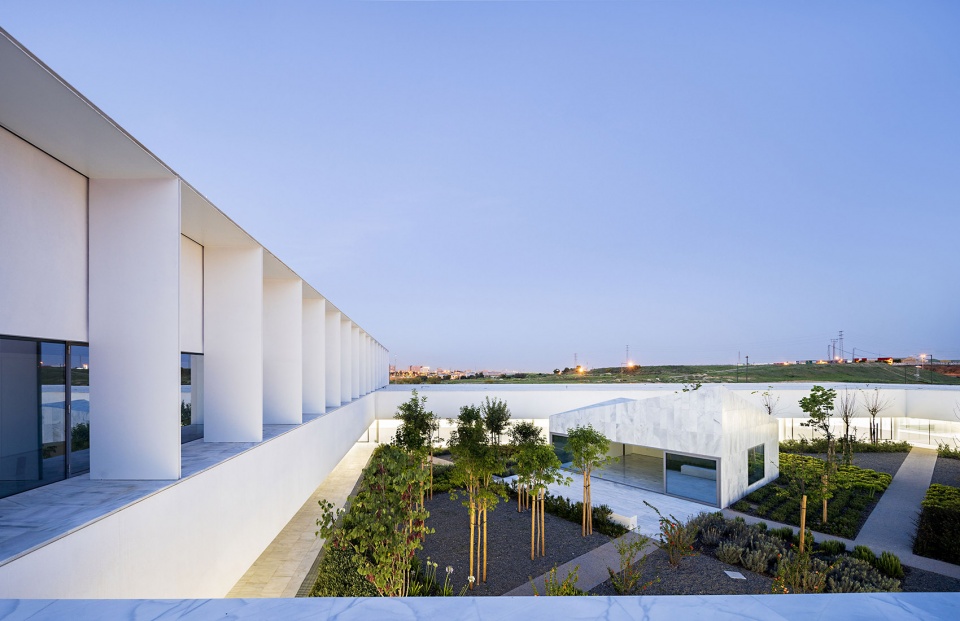

▼夜景，night view ©Javier Callejas

▼夜景，night view ©Javier Callejas

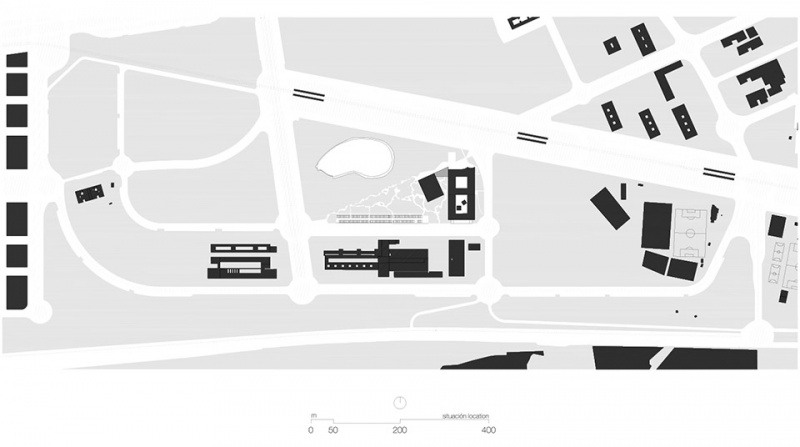

▼场地区位，site location ©Alcolea+Tárrago Arquitectos

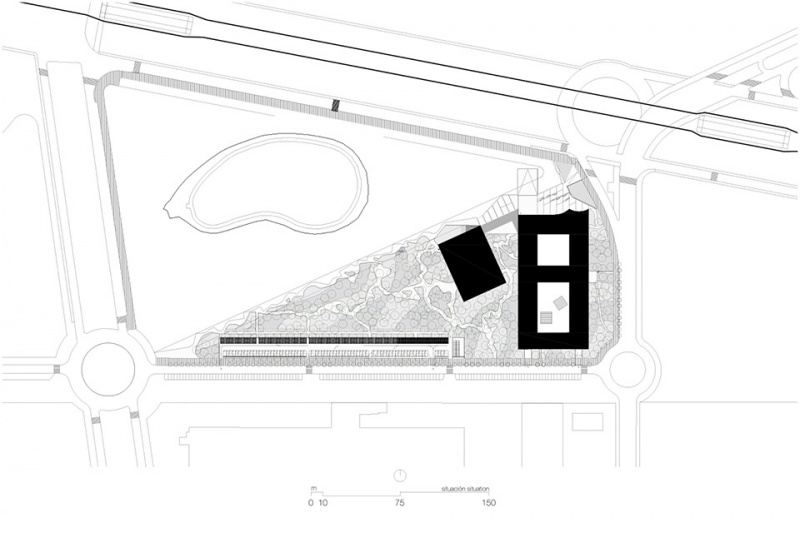

▼场地平面，site plan ©Alcolea+Tárrago Arquitectos

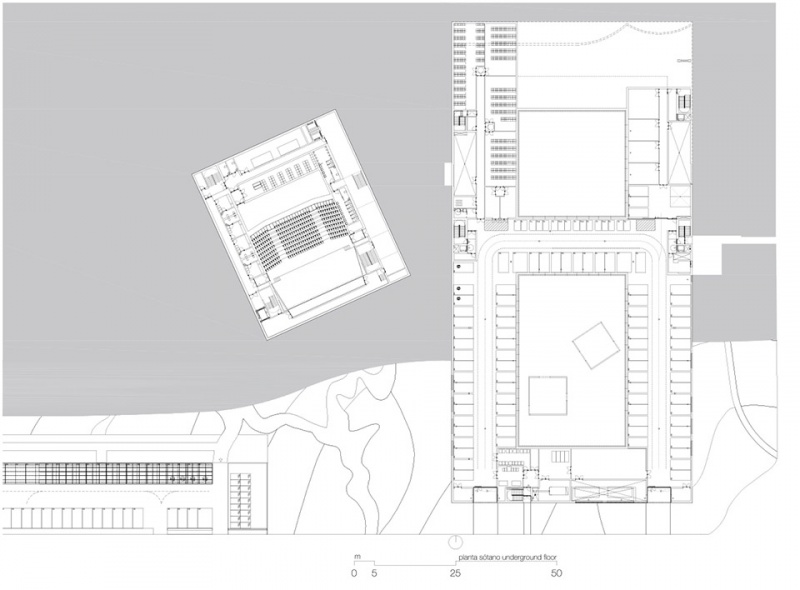

▼地下室平面，basement plan ©Alcolea+Tárrago Arquitectos

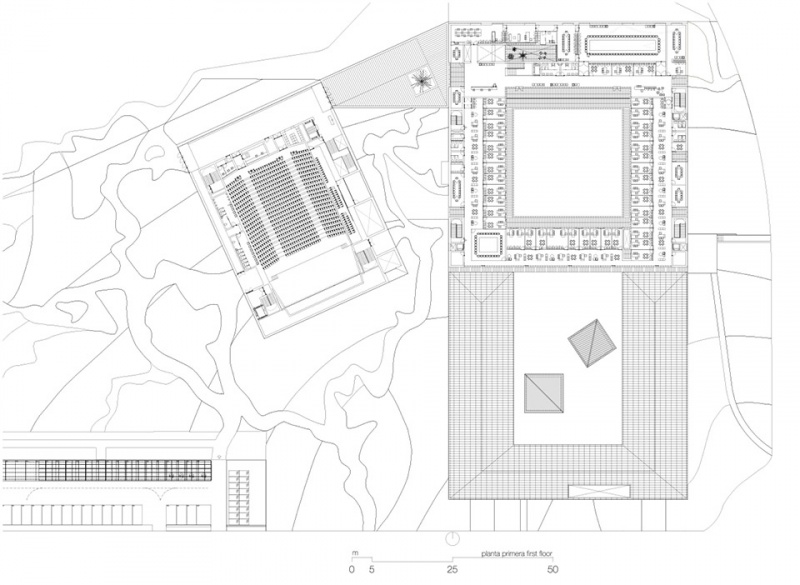

▼二层平面，first floor plan ©Alcolea+Tárrago Arquitectos

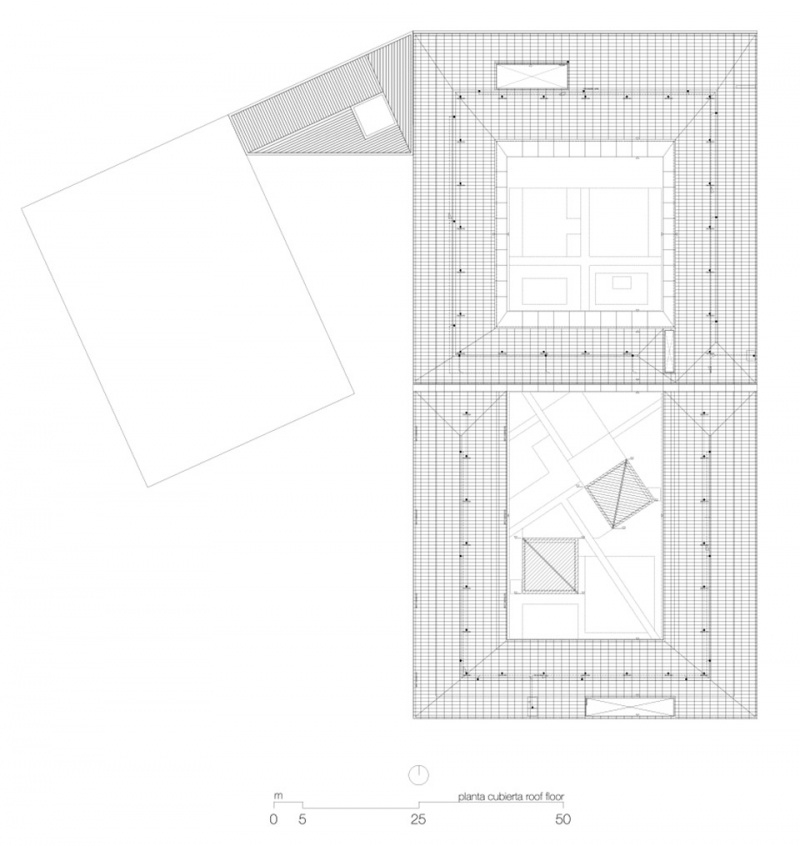

▼屋顶平面，roof floor plan ©Alcolea+Tárrago Arquitectos

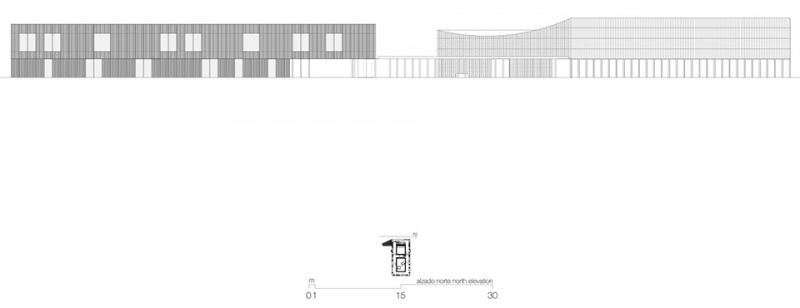

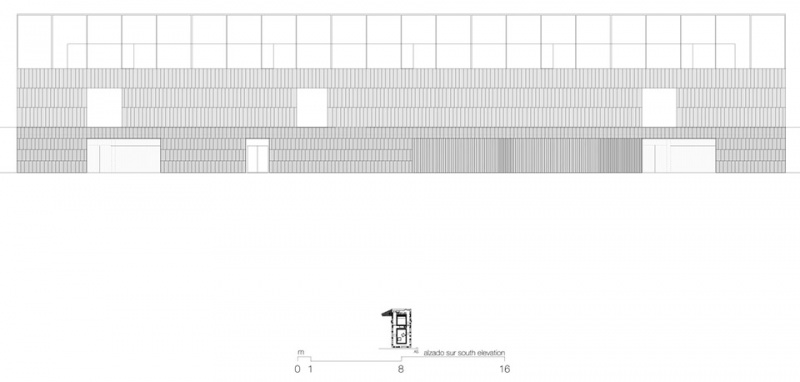

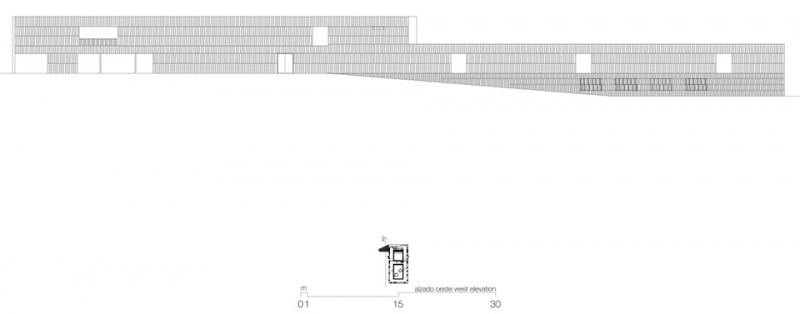

▼立面图，elevation ©Alcolea+Tárrago Arquitectos

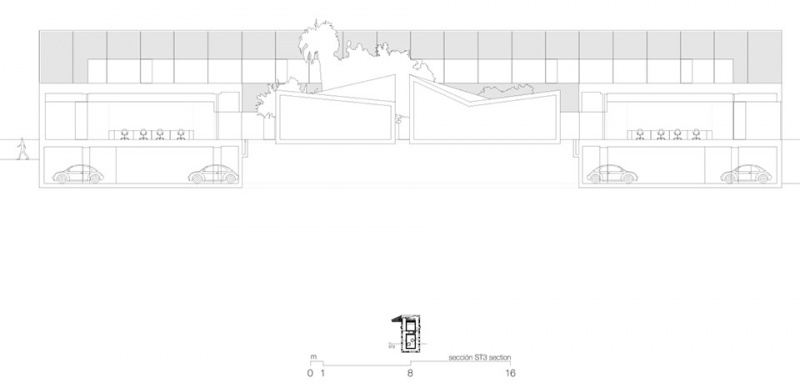

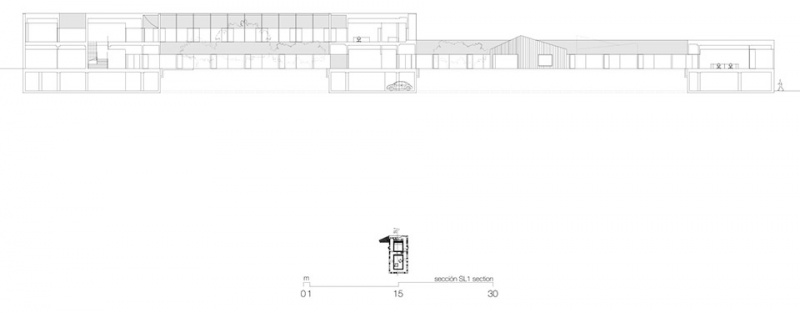

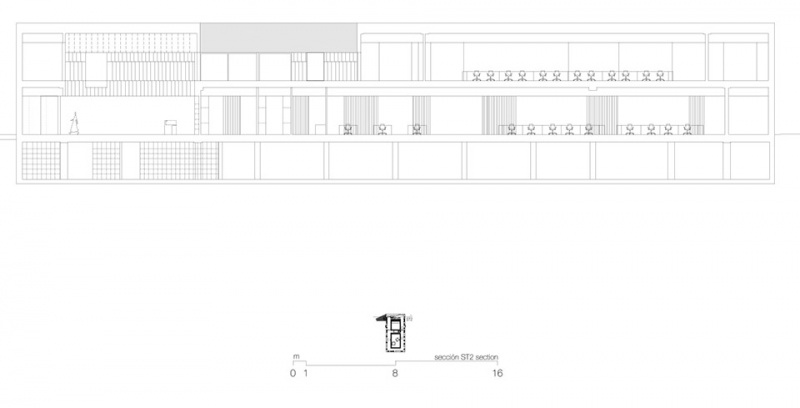

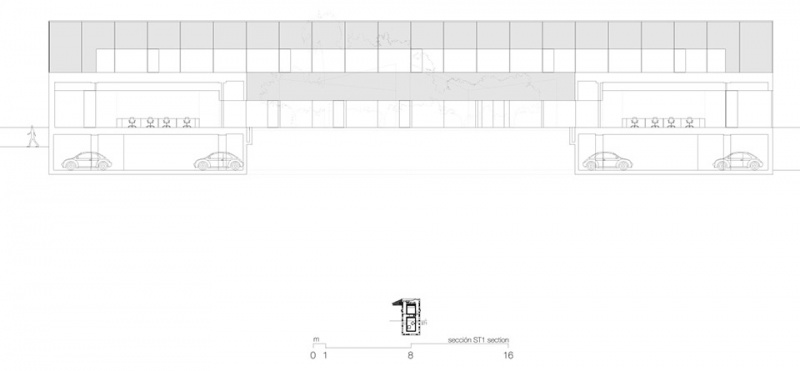

▼剖面图，section ©Alcolea+Tárrago Arquitectos

Start of construction: January 2020
End of construction: December 2021
Awards
– International Architecture Awards. Honorable Mention. The Chicago Athenaeum, 2022
– XVII Malaga Award. First Prize. Institute of Architects and City of Málaga, 2022.
– Award COAVN2022 Institute of Architects of the Basque Country and Navarre, 2022
– XXXIV Macael Award / White Macael, 2021
– First Prize in Open Competition, 2016
Exhibitions
– Collective Exhibition ‘The City and the World’, Chicago Athenaeum,
European Center for Architecture, Athens, Greece, 9 to 25 September 2022
– Collective Exhibition ‘Premios COAVN 2022”,Palacio del Condestable, Pamplona, June 2022
Photos: Javier Callejas
Architects: alcolea+tárrago / Roberto Ercilla(Rubén Alcolea / Jorge Tárrago / Roberto Ercilla)www.alcoleatarrago.com
Site Supervision:Rubén Alcolea / Jorge Tárrago / Roberto Ercilla / Luis Gil-Delgado (local team)
Surveyor: Ricardo Gubía Fernandez / Tomás Luzón
Construction Company: UTE Sando-Conacon
Client: University of Málaga, Vicerrectorado Smart Campus y Sostenibilidad
Floor Area: 15.504,20 m2 (buildings) + 22.967,36m2 (landscape)
Location: Calle Doctor Ortiz Ramos, Málaga, Spain
UTM 36.71737517949596, -4.490304051842063
Collaborators:
Architecture
Javier Oyanarte, Rubén Santos, Vanesa Otaduy, Javier Lafita, Fernando Iraburu
Structures
Calesa Estructuras y Proyectos S.L.P.
HVAC and Services
INARQ Estudio de aplicaciones de ingeniería S.L.
Landscape
Local 4 Arquitectura del Paisatge, SL
