“Future Living” – The Plugin Tower, Shenzhen, China by PAO

An infinitely expandable multistory prefab system that could be easily installed by unskilled people.

Project Specs

Design:
Location:
Materials:

来自众建筑对gooood的分享。更多关于众建筑:PAO on gooood.
Appreciation towards PAO for providing the following description:

万科发起了一年一度的实验建筑展,每年主题不同,众建筑受邀参加并在万科总部完成了“插件塔”,旨在探索“未来居住”的可能性。

For Vanke’s inaugural design event that explores a pressing architectural theme each year, People’s Architecture Office was invited by the real estate developer to tackle the ‘future of housing’ through an experimental built work. Installed at Vanke’s headquarters in Shenzhen the Plugin Tower addresses the insecurity of private home ownership in a country where land is held exclusively by the government and the construction of private homes is reserved for the very wealthy.

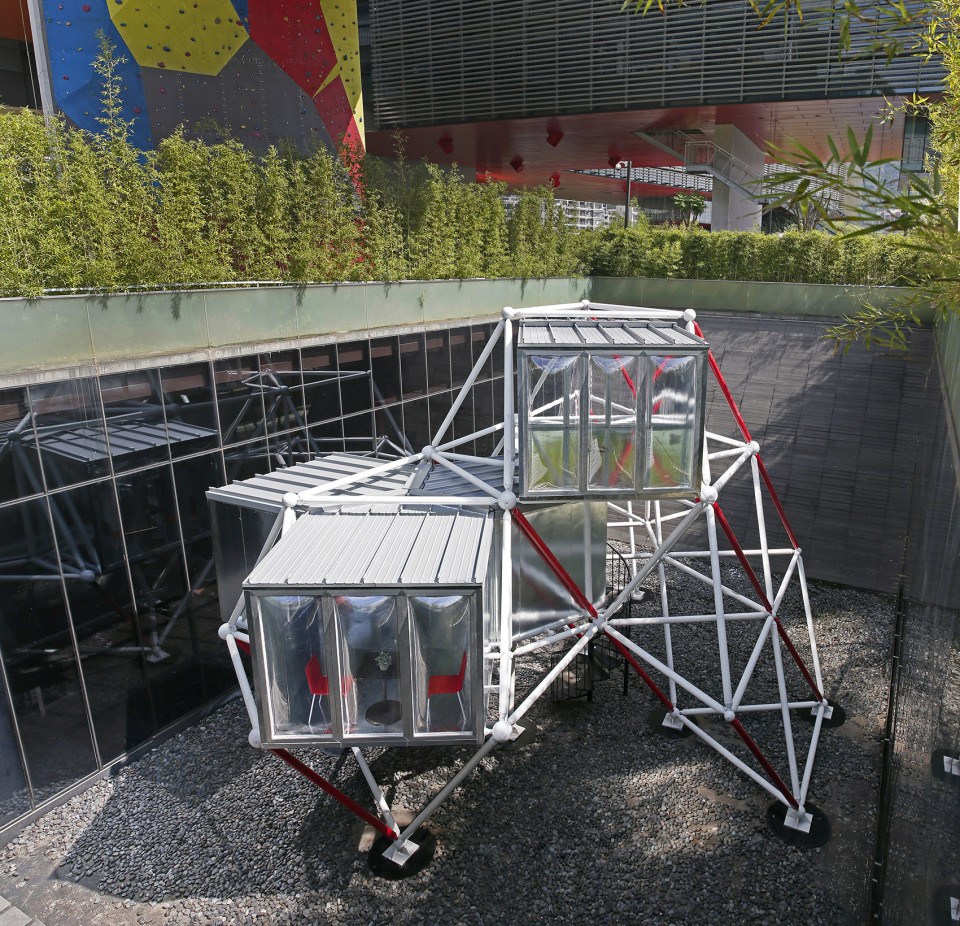

▼鸟瞰,birdview

001-The Plugin Tower, Shenzhen, China by PAO

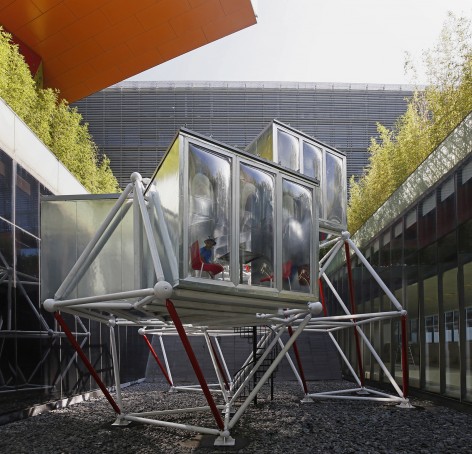

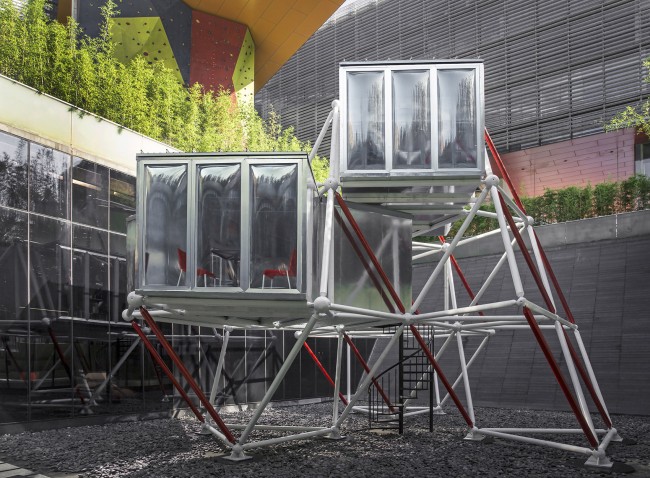

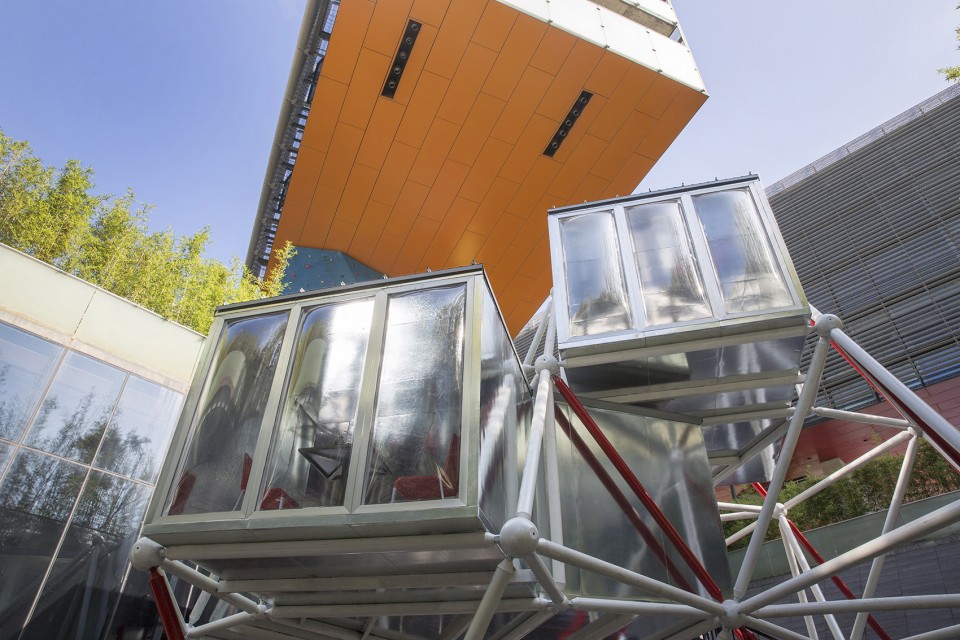

▼建筑外观,external view

003-The Plugin Tower, Shenzhen, China by PAO     004-The Plugin Tower, Shenzhen, China by PAO

005-The Plugin Tower, Shenzhen, China by PAO

“插件塔”有效解决了在一个土地非私有化的国家建设私有房屋的问题。在中国因为不确定土地的可使用时长,使得只有少数人才敢冒险建设私有房屋。“插件塔”可移动、可再建的特性,避免了因产权变故导致的建房投资损失。它可以被界定为临时建筑,无需结实的地基、严格的规划审批,相比传统永久建筑,更为容易建造。而当需要迁移时,也可轻松打包搬运重建。

The Plugin Tower curtails the investment necessary for building a home since it excludes the risk of losing one’s property: residents can pack up their homes and bring it with them if they are ever forced to relocate. Classified as a temporary structure, the Plugin Tower does not require an underground foundation, thereby circumventing the strict planning approval for permanent structures and easing the requirements for building a private house.

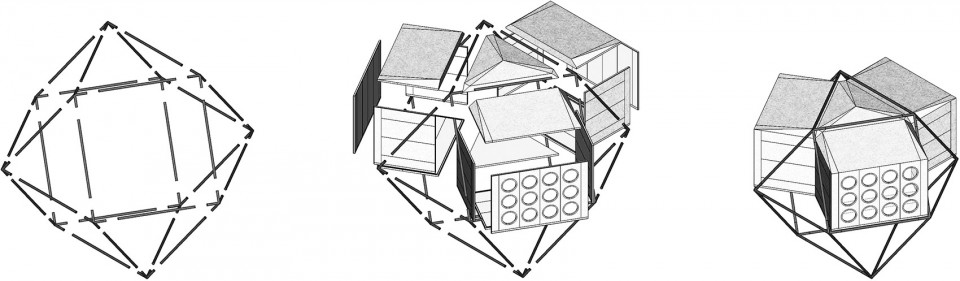

▼简易的组装模式,a simple construction system

014-The Plugin Tower, Shenzhen, China by PAO

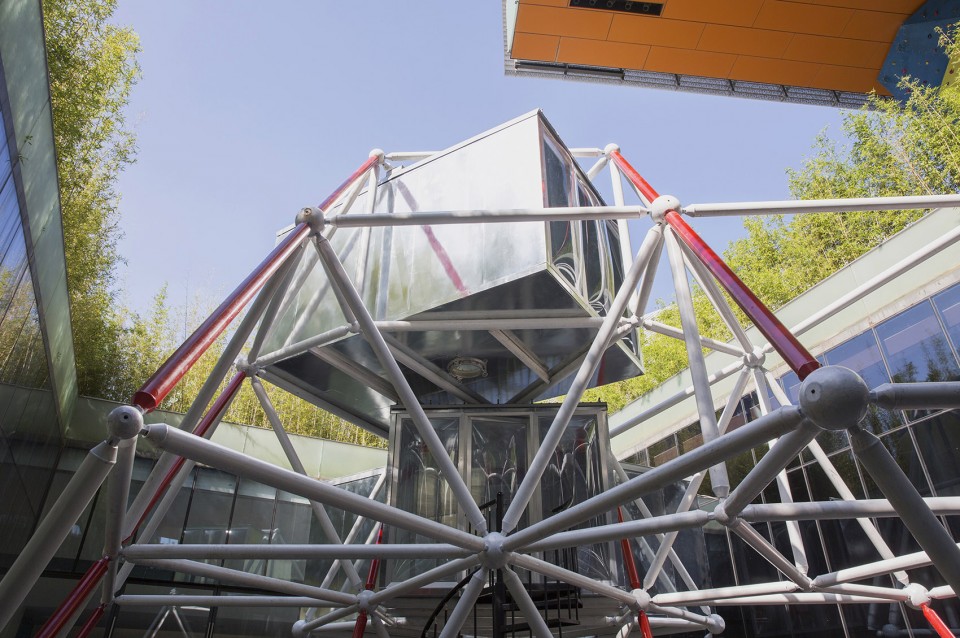

▼支撑结构,the steel space frame

007-The Plugin Tower, Shenzhen, China by PAO

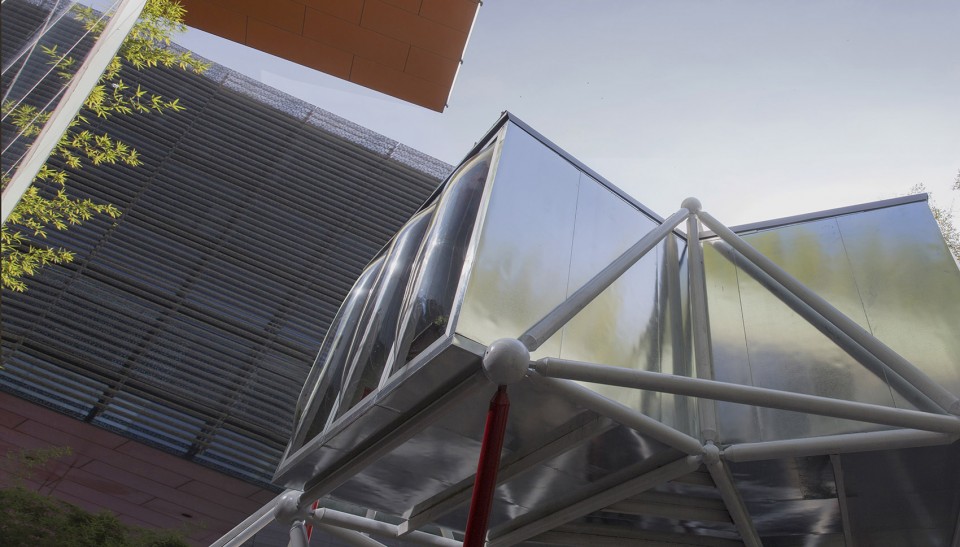

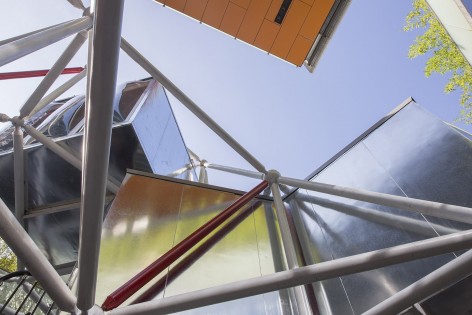

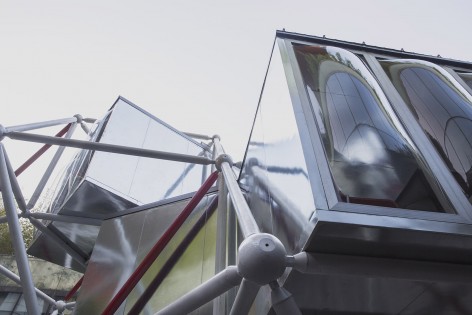

▼细节,detials

010-The Plugin Tower, Shenzhen, China by PAO

009-The Plugin Tower, Shenzhen, China by PAO     008-The Plugin Tower, Shenzhen, China by PAO

“插件塔”受启发于“新陈代谢主义”,它是个可无限扩展的多层预制房屋系统,由空间结构和插入的房屋单元组成,房屋单元可依据使用需求更换位置或增加和减少。空间结构由统一的组件和相同的节点构成,有无数种组装的可能性。房屋单元采用了众建筑研发的“插件板”系统。插件板是集保温、设备、内外饰面及门窗于一体的预制模块板搭建系统,板材之间用锁勾连接。几个非专业人士、一把工具即可完成施工搭建。不同于集装箱等其他预制房屋系统,插件板系统的安装调整无需大型设备,完成形式也不局限于盒子,有多种变化形态。

A multistory prefab system that is infinitely expandable, the Metabolist-inspired Plugin Tower is comprised of a steel space frame, a kit of parts that can be assembled in endless variations. Empty bays within the frame are plugged with living units, altered and unplugged when necessary. Units are made with PAO’s proprietary Plugin Panel system, modules that incorporate insulation, wiring, plumbing, interior and exterior finishes into one molded part. Panels are attached with integrated locks, easily installed by a couple of unskilled people with just a hex wrench. Unlike with shipping containers, Plugin Panels allow living spaces to be added without heavy machinery, and does not restrict their layouts to the shape of a box.

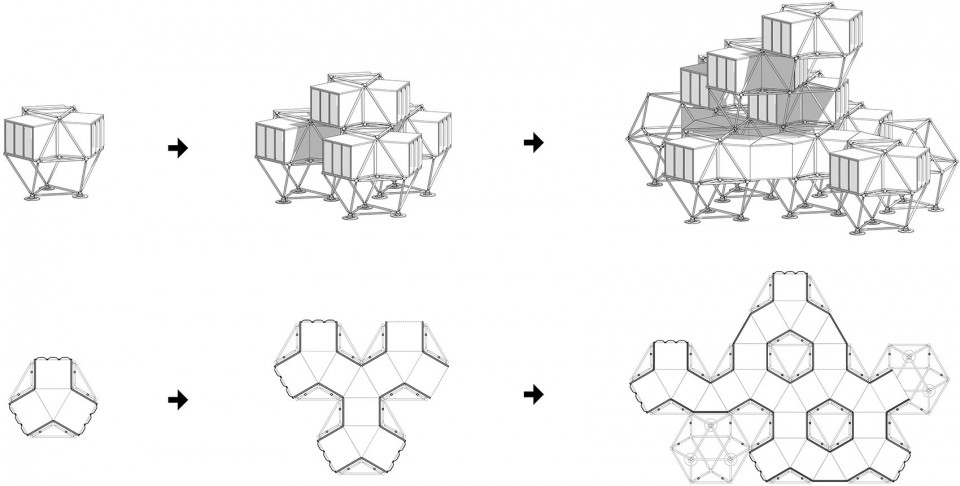

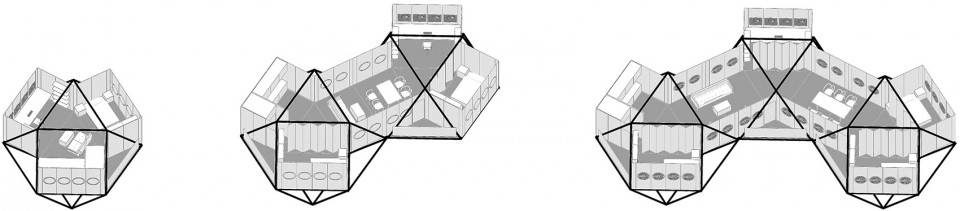

▼可无限扩展的多层预制房屋系统,an infinitely expandable multistory prefab system

015-The Plugin Tower, Shenzhen, China by PAO



016-The Plugin Tower, Shenzhen, China by PAO1

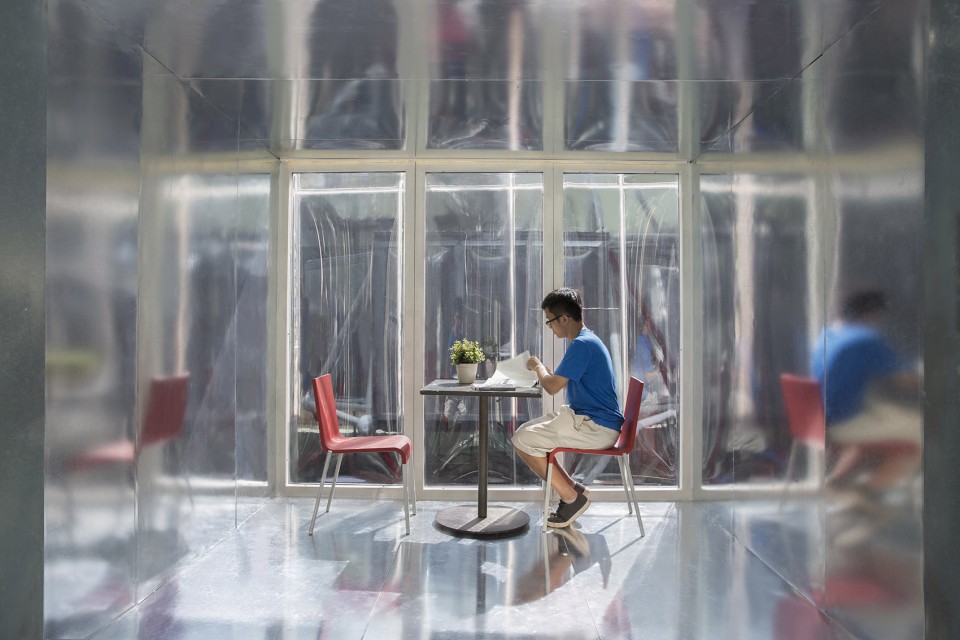

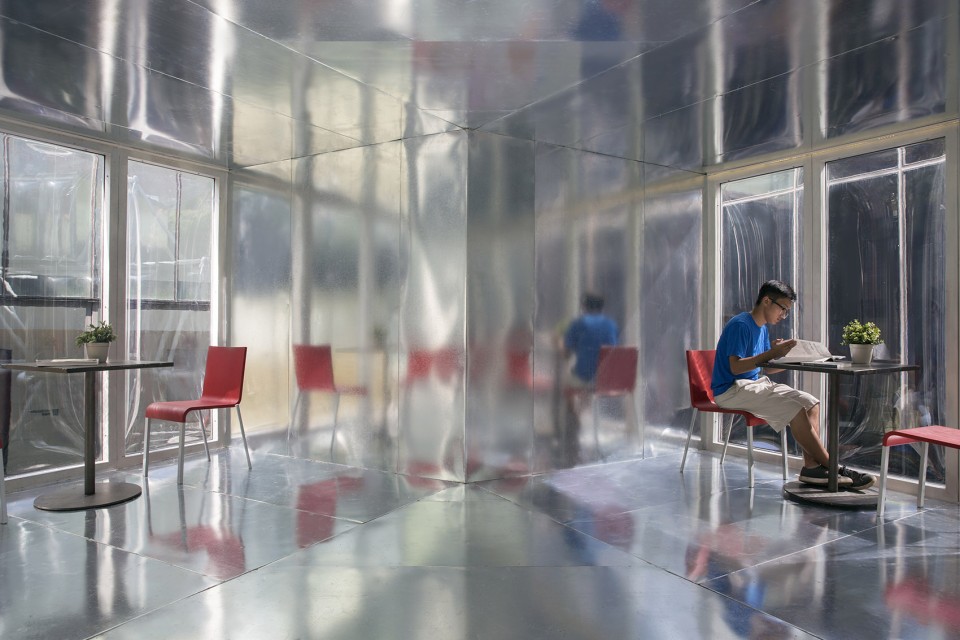

▼室内空间,interior

012-The Plugin Tower, Shenzhen, China by PAO

011-The Plugin Tower, Shenzhen, China by PAO

“插件塔”是一个生长的系统,可以持续的适应发展变化。

Suggesting the instability of the state of housing in China, the ‘future of housing’ proposed by People’s Architecture Office is a flexible design that adapts to changing needs and fluctuating conditions.

▼愿景,future scape

013-The Plugin Tower, Shenzhen, China by PAO

OLYMPUS DIGITAL CAMERA

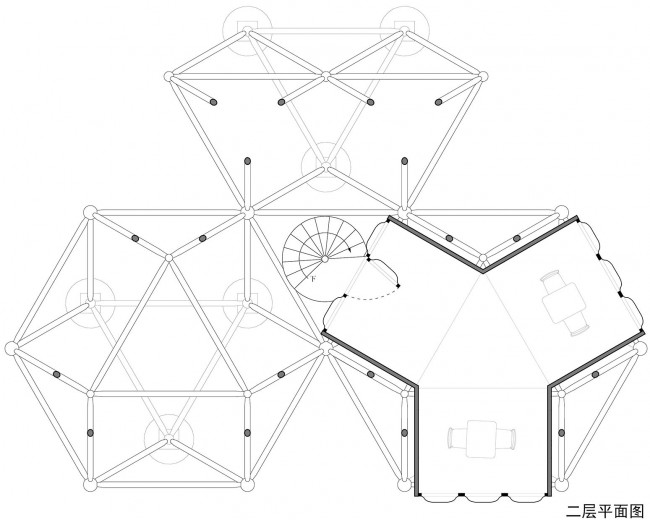

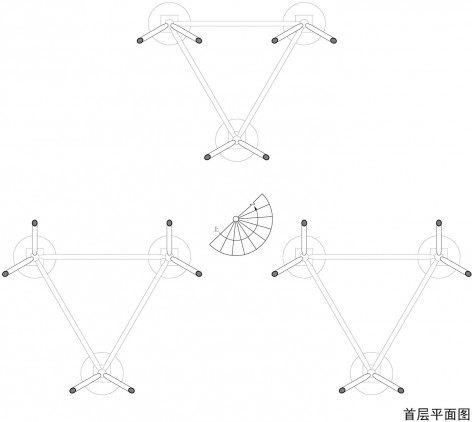

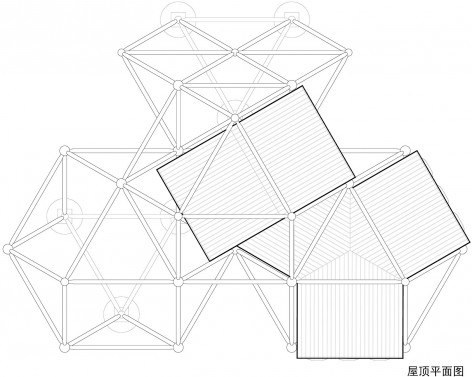

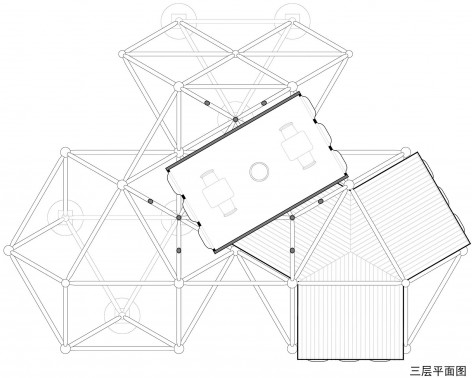

▼平面图,plan

017-The Plugin Tower, Shenzhen, China by PAO1

018-The Plugin Tower, Shenzhen, China by PAO1

019-The Plugin Tower, Shenzhen, China by PAO1

020-The Plugin Tower, Shenzhen, China by PAO1

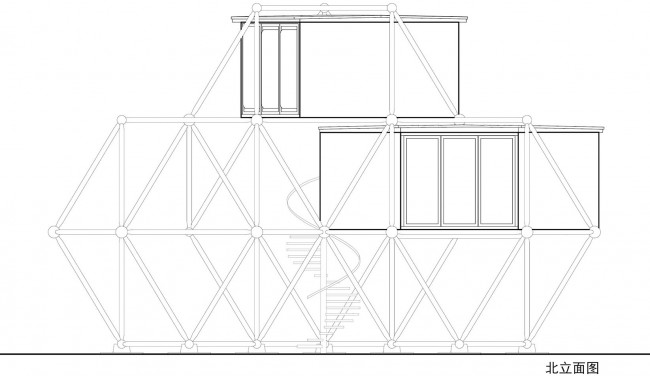

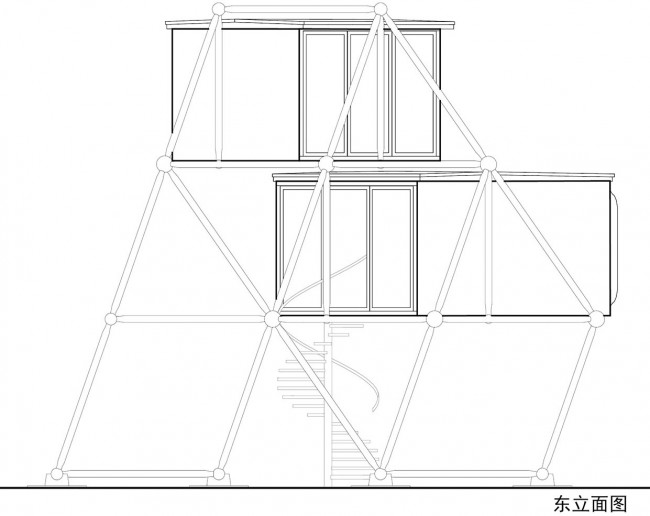

▼立面图,elevations

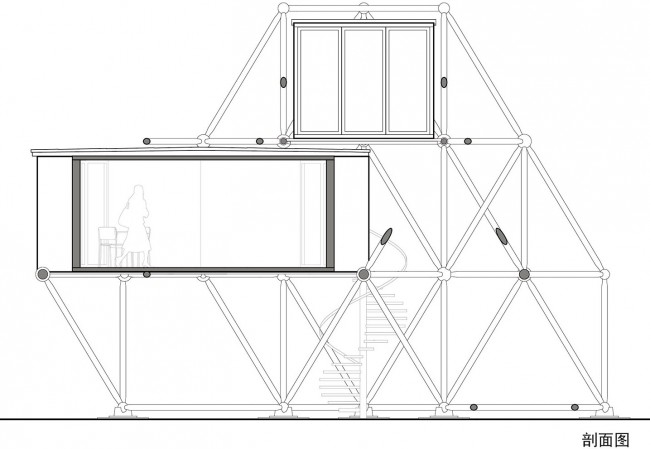

▼剖面图,section

点击观看视频/ Video

视频链接:https://v.qq.com/x/page/r03504op7n5.html
Video Link:https://vimeo.com/193330597

客户 : 万科企业股份有限公司 & 李德庚工作室
地点 : 深圳万科中心
完成时间:2016年9月
设计主持:何哲,James Shen(沈海恩),臧峰
项目团队:张明慧、林铭凯、宋瑞铭、崔钢健,张朕
结构咨询:于风波
摄影:众建筑、吴船

Client: CHINA VANKE CO., LTD. & LDG Narrative Design
Location: Shenzhen
Date of Completion: Sept 2016
Principals: He Zhe, James Shen, Zang Feng
Project Team: Zhang Minghui, Lin Mingkai, Amy Song, Cui Gangjian, Zhang Zhen
Structural Consultant: Yu fengbo
Photographer: People’s Architecture Office, Hannah Wu
