来自 GPY Arquitectos 对gooood的分享。更多关于他们：GPY Arquitectos on gooood
Appreciation towards GPY Arquitectos for providing the following description:

相片版权分属于摄影师 ©Jose Ramon Oller ／©Filippo Poli / ©Roland Halbe

西班牙拉古纳大学艺术学院的新院馆位于校园边缘地带，毗邻的高速路、城市干道和校园道路带来熙熙攘攘的车流和人流。建筑师通过创造大量的开放性活动空间，使建筑完全融入至复杂的环境之中，实现了学校建筑与城市肌理的呼应和融合。建筑如同校园公共空间的延伸部分，蜿蜒的混凝土板在空中划出一道道圆滑的曲线，连接起两个园区，同时也界定了建筑的边界，围合出层次丰富、不受外界干扰的的内部庭院。

The new Faculty of Fine Arts is located in a heterogeneous area, adjacent to the island highway and on the periphery of the University Campus.

Our main challenge was to create a link between the new faculty building and its surroundings by working with the open public spaces and to increase the synergies between the academic complex and its urban context. The new building presents itself as an extension of the Campus’s public space, while creating an autonomous interior landscape of its own. A skin of suspended concrete slats adopts a curved shape which develops on the different levels protecting and wrapping the open space of the building.

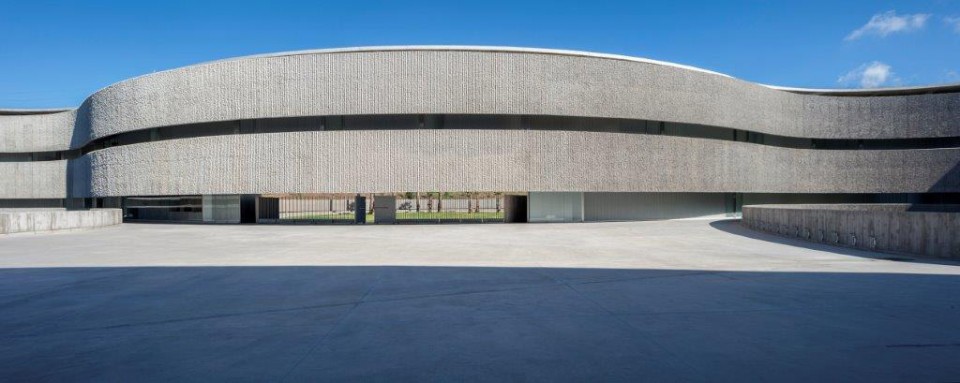

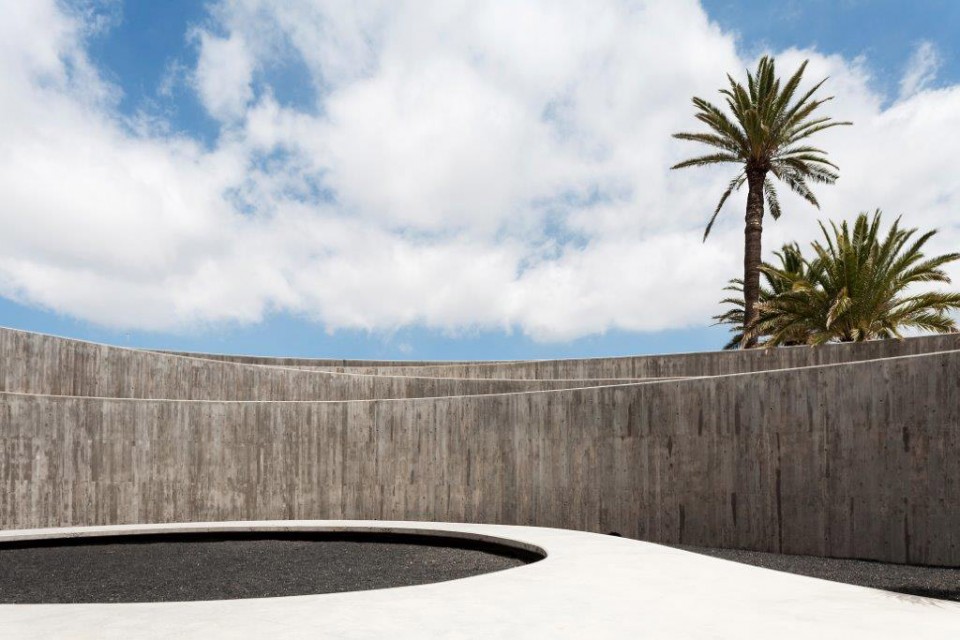

▽ 蜿蜒的混凝土板划出一道道弧线，curved shape concrete slats ©Roland Halbe

架空的入口广场宽阔开敞，俯瞰着两侧的繁茂内庭。或穿越广场到达对侧建筑，或沿两侧的走廊行走，或顺着蜿蜒的坡道下行，大量的人流在此聚集，再循着环绕中庭的半开敞廊道，分散至建筑的各个角落。

Campus circulation is collected and guided by a public plaza that extends through the building’s main entrance and is transformed into a spacious terrace overlooking the inner courtyard. From the main entrance, circulation is continuous, following half-open, undulating corridors.

▽ 入口广场平台，main entrance transformed into a spacious terrace ©Jose Ramon Oller

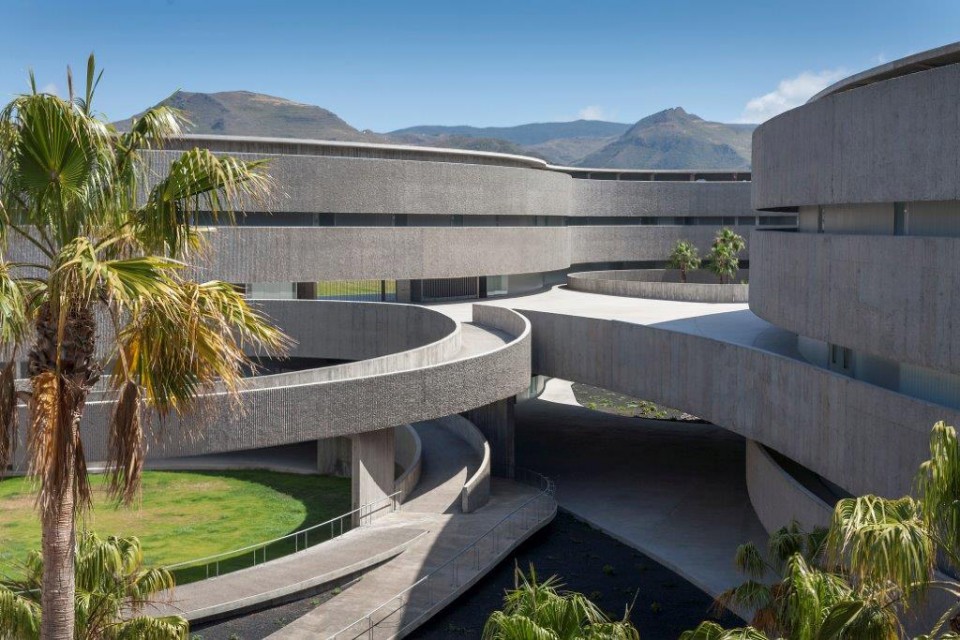

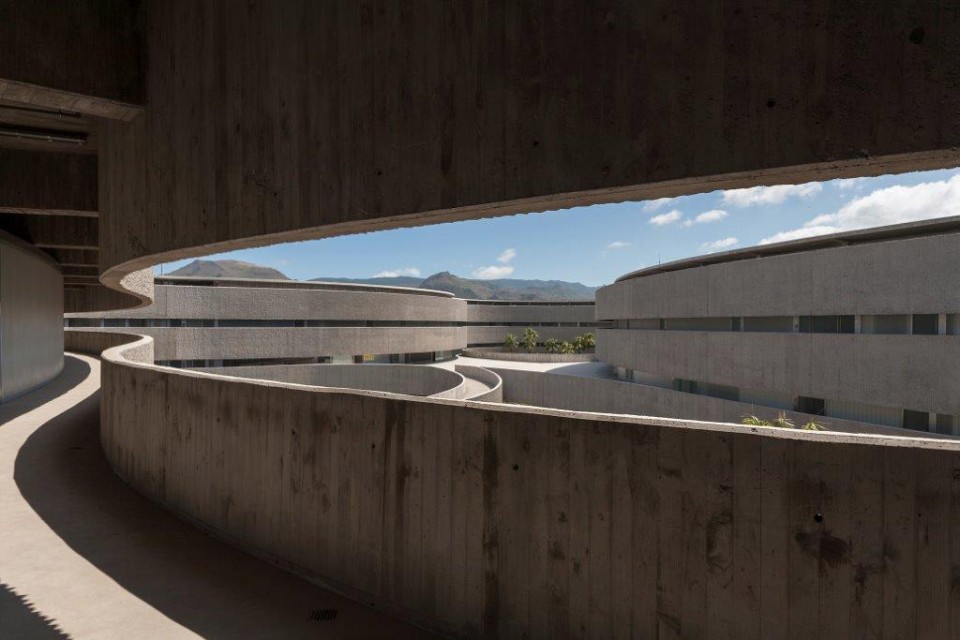

▽ 环绕中庭的半开敞走廊，half-open, undulating corridors ©Jose Ramon Oller

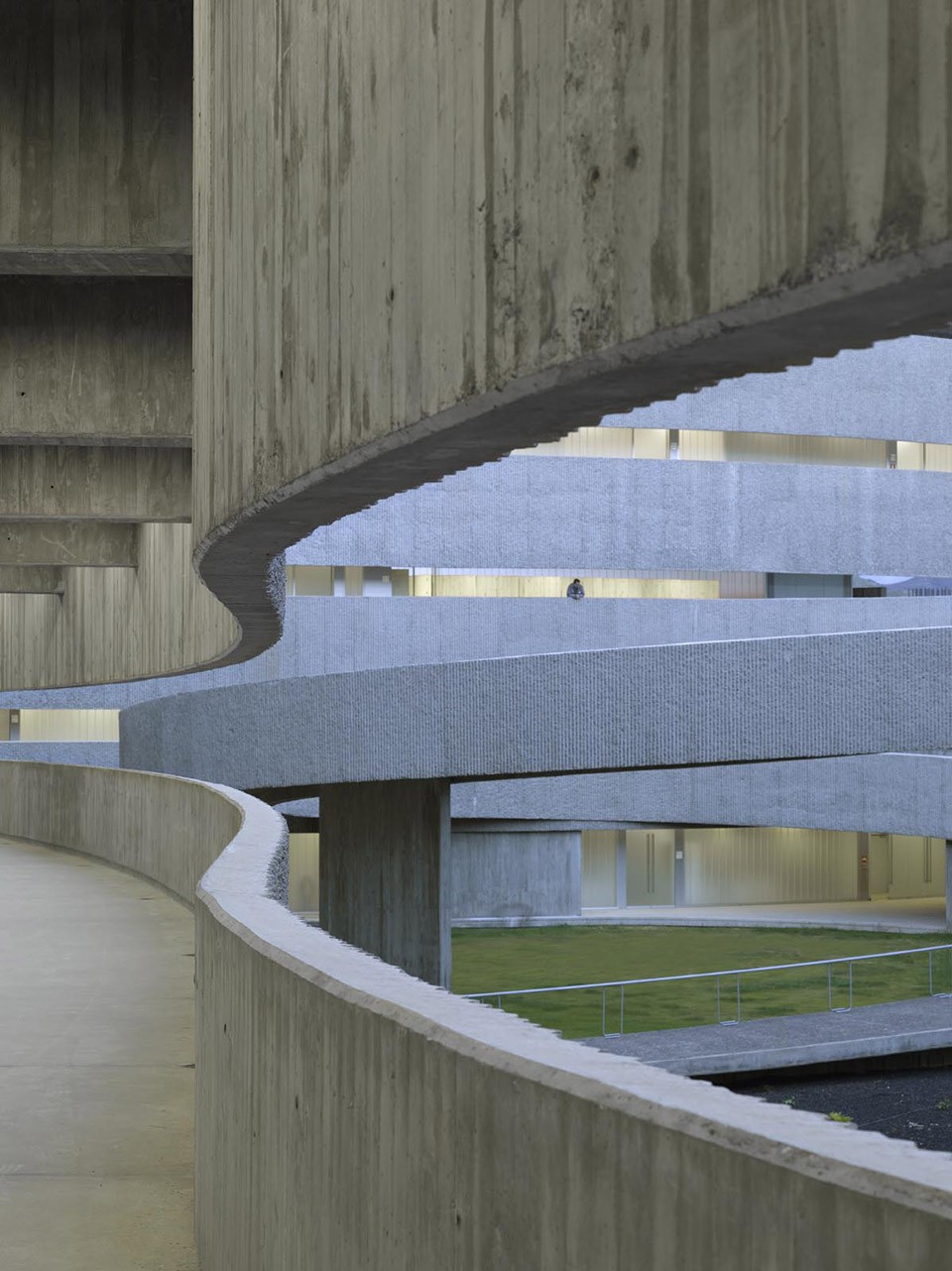

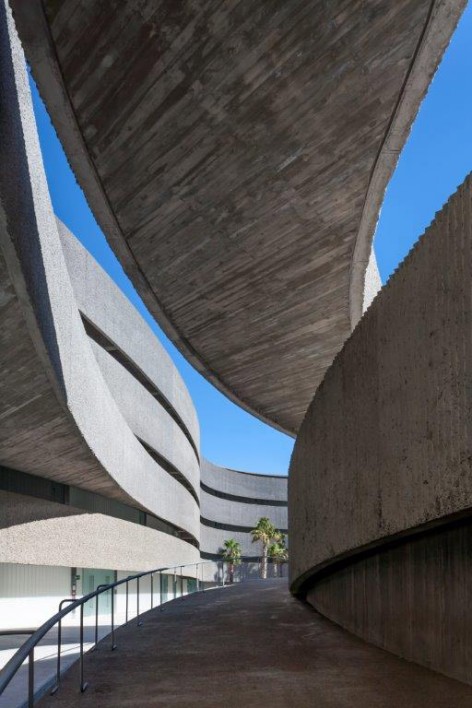

▽ 蜿蜒的下行坡道，open ramps ©Roland Halbe

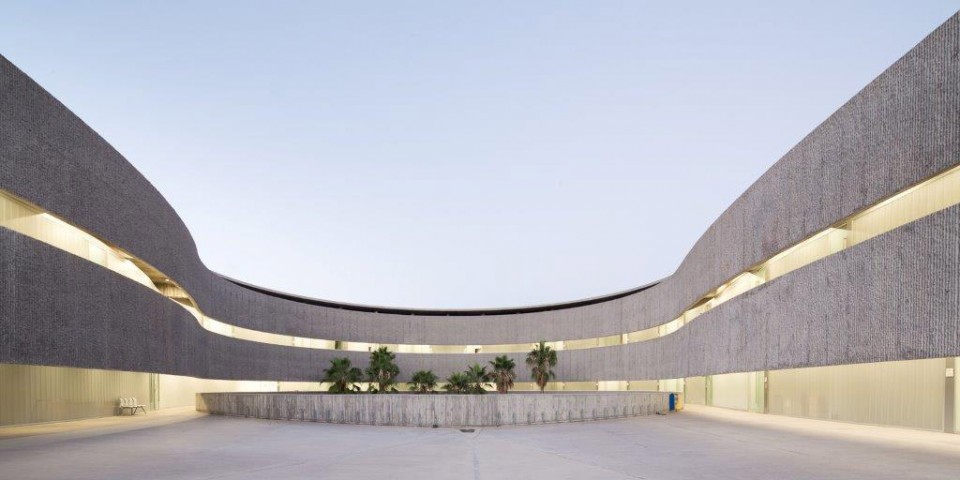

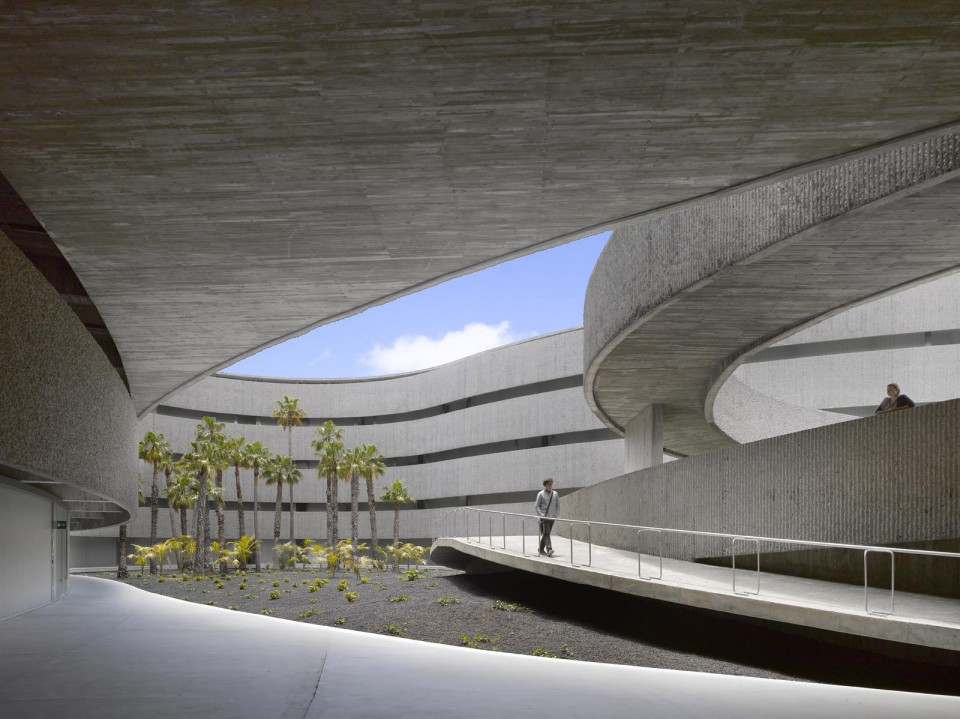

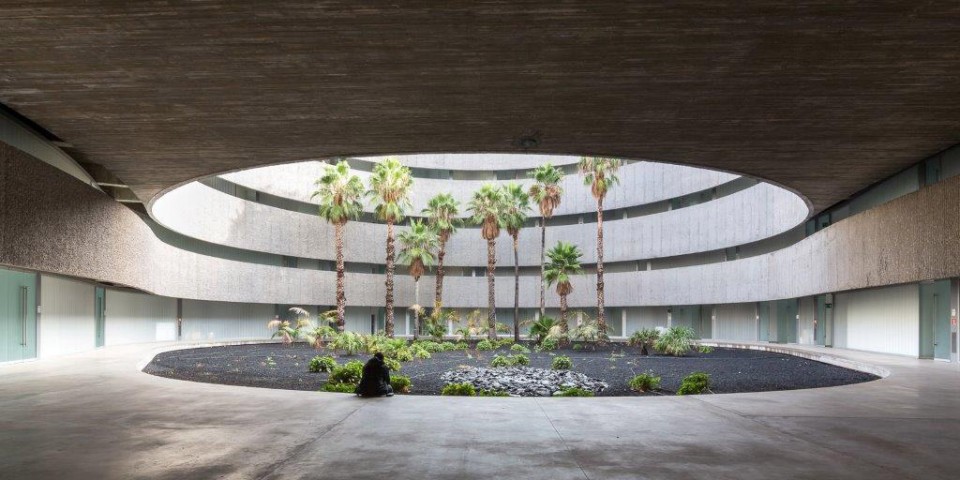

▽ 内部庭院空间，autonomous interior landscape ©Filippo Poli ©Jose Ramon Oller

走廊的另一侧则是连续的教学空间。轻盈的分隔墙可以收拢至一侧，教室空间也将随之合并扩大，根据需要改变尺寸，甚至贯通整个楼层。此外，大小不一的天井庭院、露天坡道、半开放的廊道以及入口广场平台都可兼作临时展览、教学和社交空间，灵活的建筑设计为空间的使用带来了更多可能性。

The teaching areas are distributed along a continuous band accompanying the open corridors and dispose of mobile dividing walls that allow for creating classrooms of different sizes or even opening up the whole floor, depending on the needs. Adding to this flexibility in use are multiple spaces like the patio-gardens and open ramps, the covered galleries and the entrance terrace, conceived as open exhibition and teaching areas and places for social exchange.

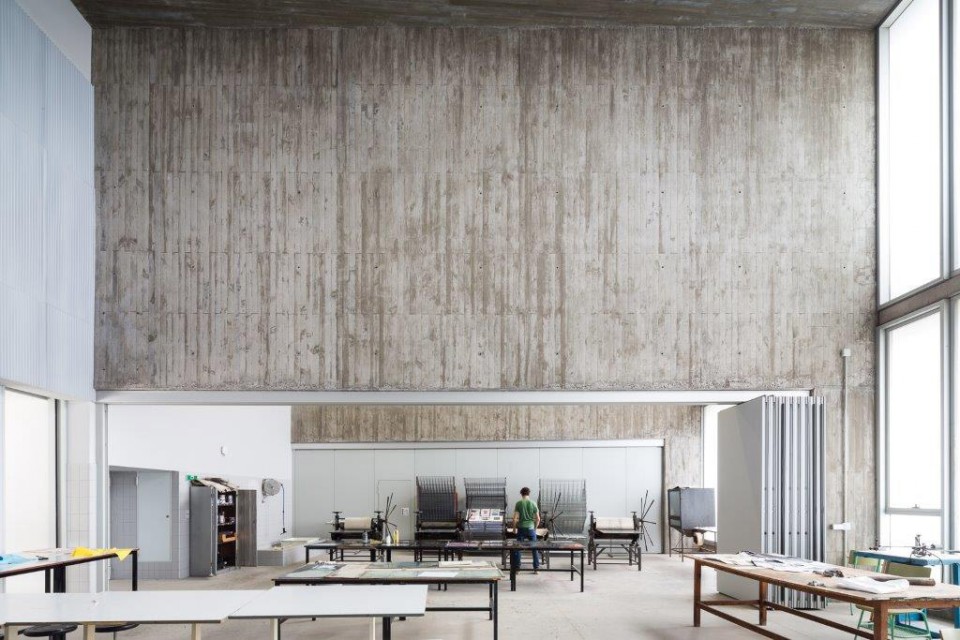

▽ 以轻盈隔墙划分的内部教学空间，classrooms divided by mobile walls ©Filippo Poli

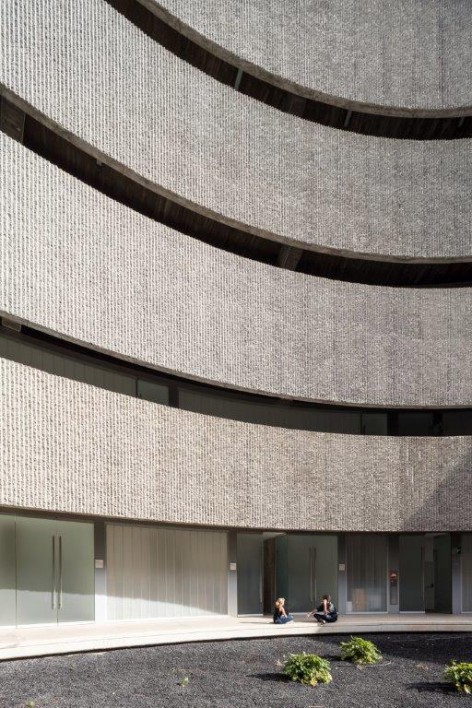

▽ 建筑细节，details ©Jose Ramon Oller ／ ©Filippo Poli

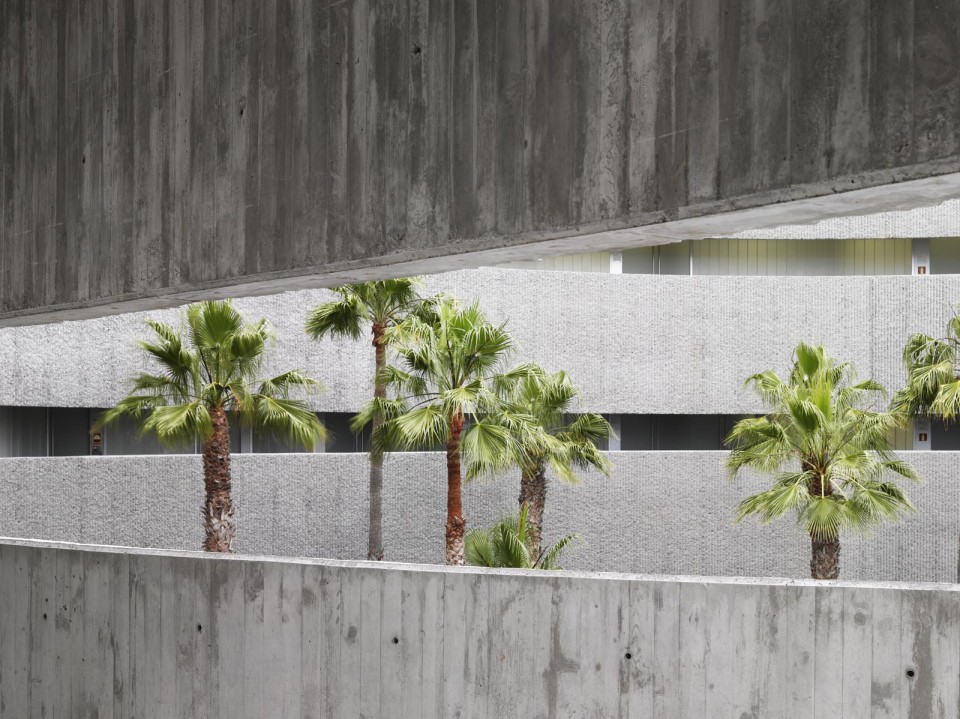

▽ 丰富的空间层次，dynamic and constantly changing space ©Roland Halbe


©Roland Halbe

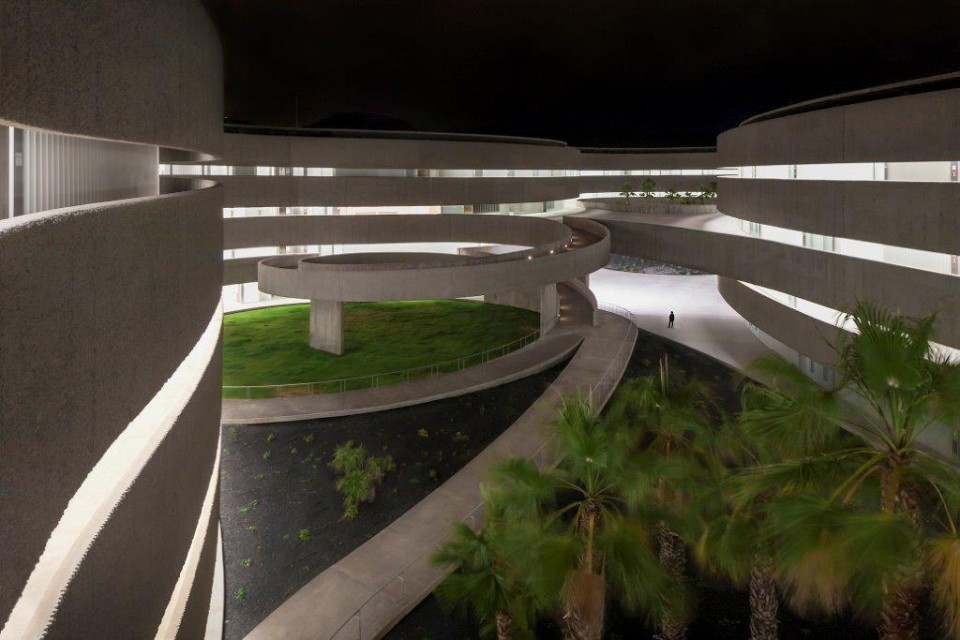

▽ 夜景，evening view ©Jose Ramon Oller

这栋全新艺术学院院馆的颠覆性教学空间与校方创新实验型的教学方法相辅相成，成为了视觉艺术系学生最好的学习场所。

We like to see the new Faculty of Fine Arts as a building that offers ground-breaking, innovative spaces for experimental and creative education of future students of visual arts.

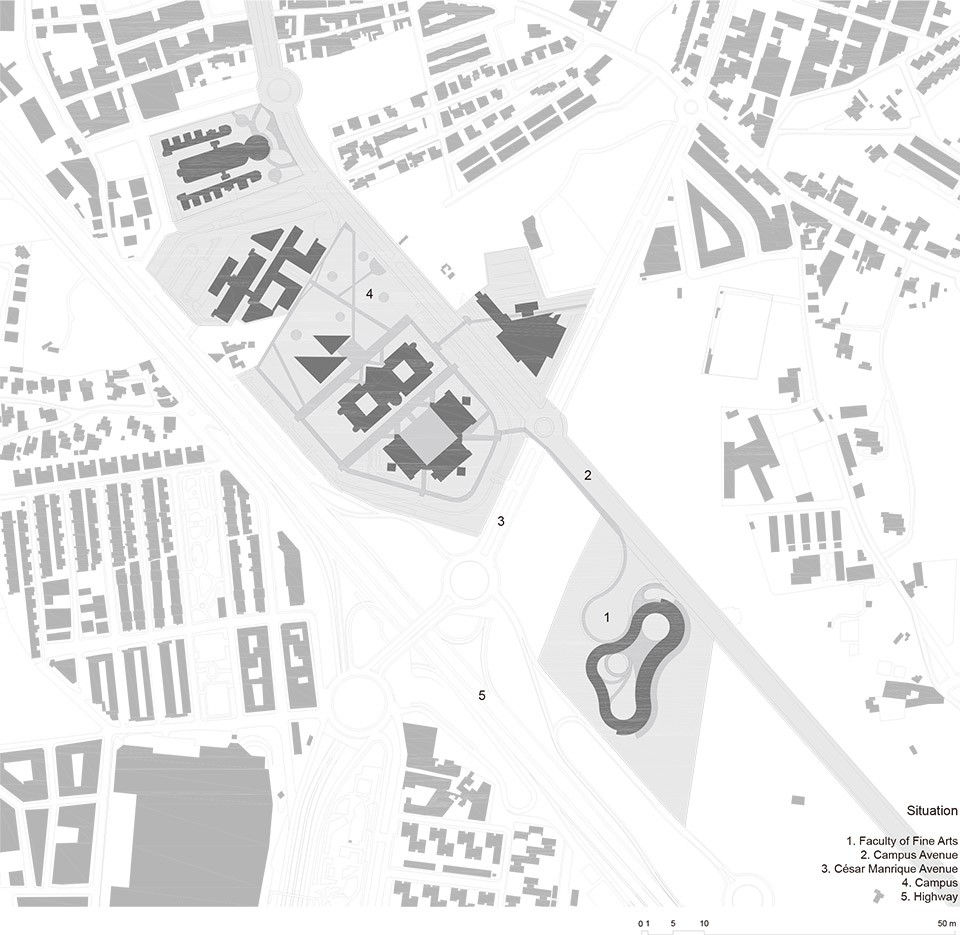

▽ 总平面图，site plan

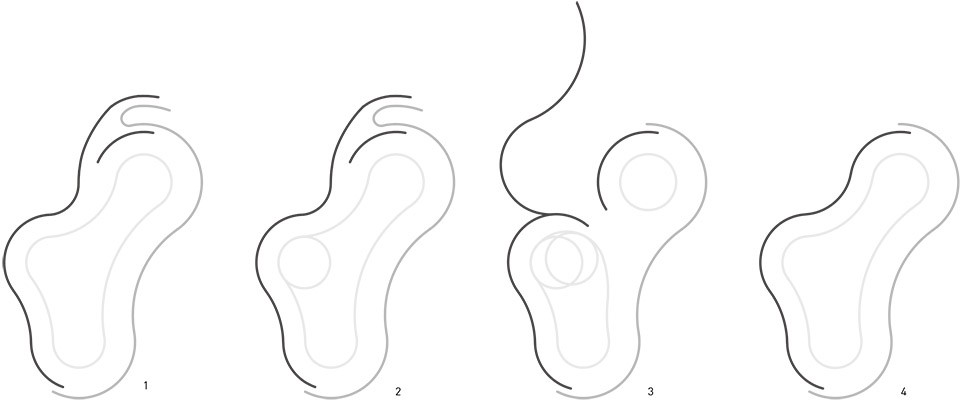

▽ 建筑形态示意图，diagram

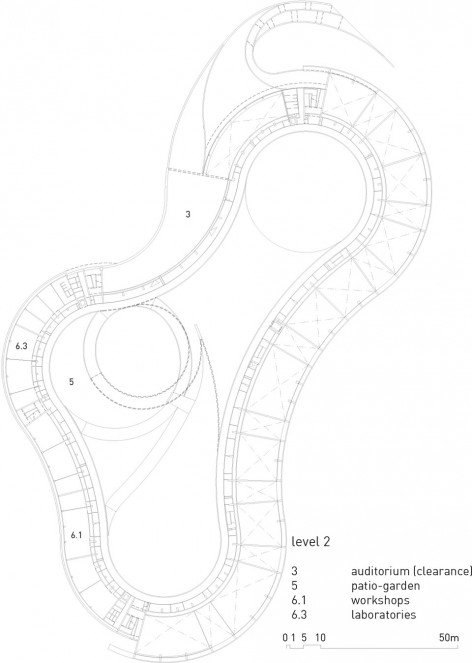

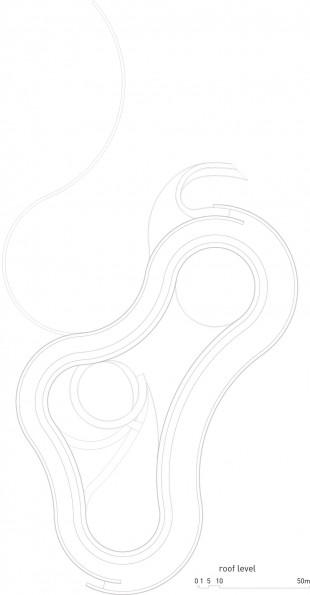

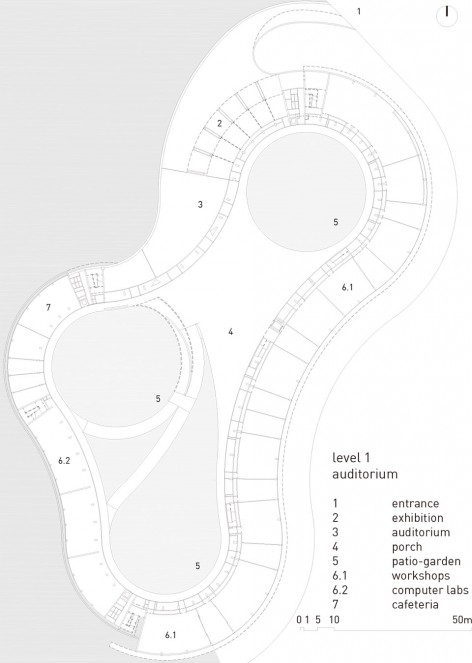

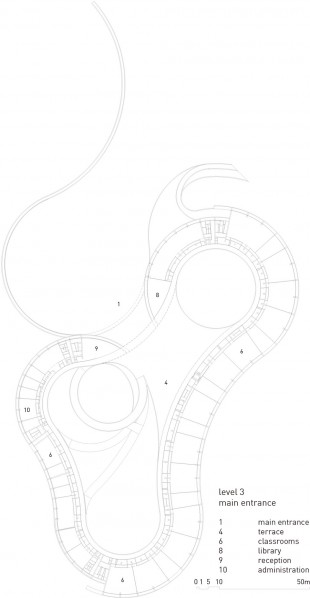

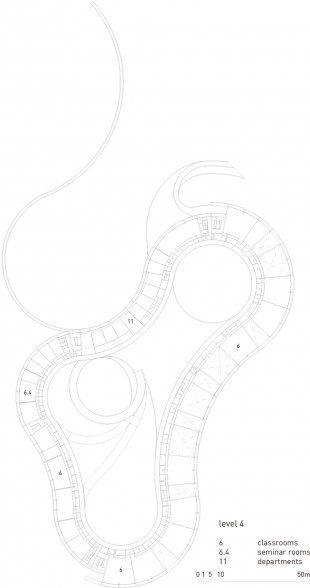

▽ 平面图，plan

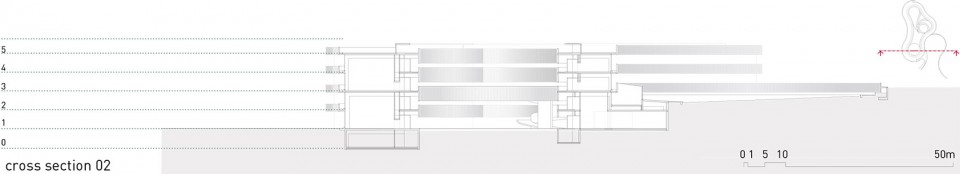

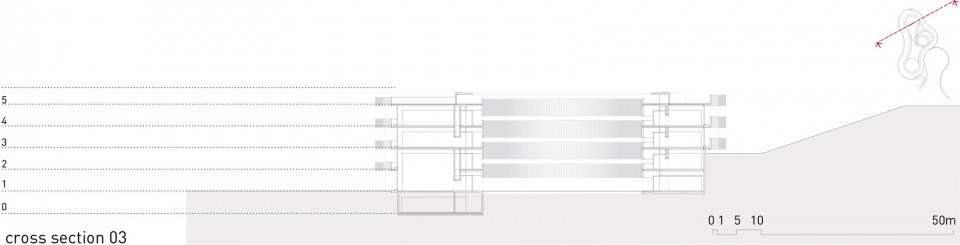

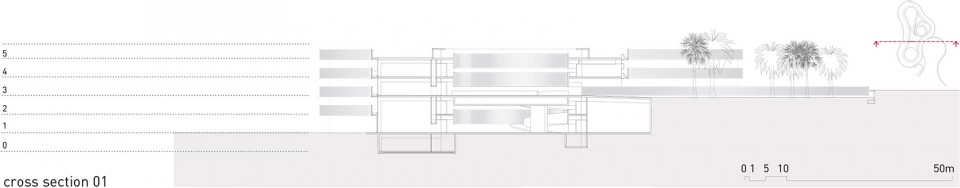

▽ 剖面图，section

Project：Faculty of Fine Arts (Facultad de Bellas Artes), Universidad de La Laguna
Situation：Campus de Guajara, La Laguna, Tenerife. Canary Islands, Spain
Architects：gpy arquitectos
Project Team：Juan Antonio González Pérez, Urbano Yanes Tuña, Constanze Sixt
Collaborators：José Juan Aguilar Ramos, Attenya Campos de Armas, Carhel Chaves, Michel Correa Dos Ramos, Raquel Guanche García, María Elena Lacruz Alvira, Juan Luis Marichal Hernández, Vanessa Mayato Antón, José Luis Novo Gómez, Laura Pérez Rodríguez, Michela Pestoni, Alessandro Preda, Rubén Servando Carrillo, Gabriel Walti
Technical Team：Luis Darias Martín (Asat), Héctor González Niebla (Asat), Juan Luis Marichal Hernández, José Ángel Yanes Tuña, Miriam Hernández Pérez
Consultants：Fhecor Ingenieros Consultores, Gpi Ingenieros, Servicio de Ingeniería del Terreno (ULPGC), Poa Jardinería
Client：Universidad de La Laguna
Contract：UTE Edificio Bellas Artes
Constructed Surface：32.260 m2
Plot Surface：54.503 m2
Model：Katarzyna Billik, José Luis González Doña, Andrzej Gwizdala
Awards：German Design Council Iconic Awards, 2015: Best of Best／Chicago Athenaeum International Architecture Awards, 2015: Winner／WAF World Architecture Festival, 2010. Finalist (Future Projects, Education)
Photograhper: Jose Ramon Oller , Filippo Poli , Roland Halbe (www.rolandhalbe.de)

Drawings: gpy arquitectos
English Text: gpy arquitectos
Chinese Text: gooood
