来自hkl studio对gooood的分享。更多请至：hkl studio on gooood

这间外表别致的白色建筑是日本东京某老龄化住宅区内的诊所。业主希望建立与传统医院不同的开放诊所，让居民可以在此会面自己的专属家庭医生。

The clinic is located in a residential area near Tokyo, where currently there is an increased elderly population. This project is intended to establish an “open” clinic for the local area. Which is different from the conventional hospital. The Idea is, that in the future the residents can visit their family doctor in this building, as opposed to the specialized medical service in the university hospital.

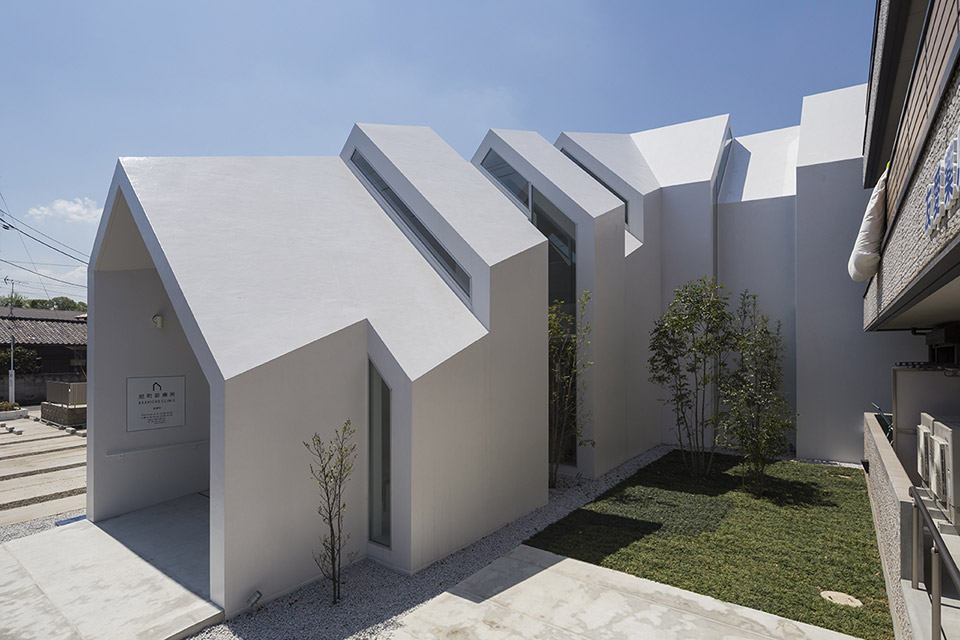

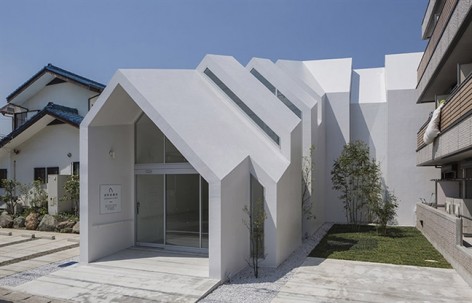

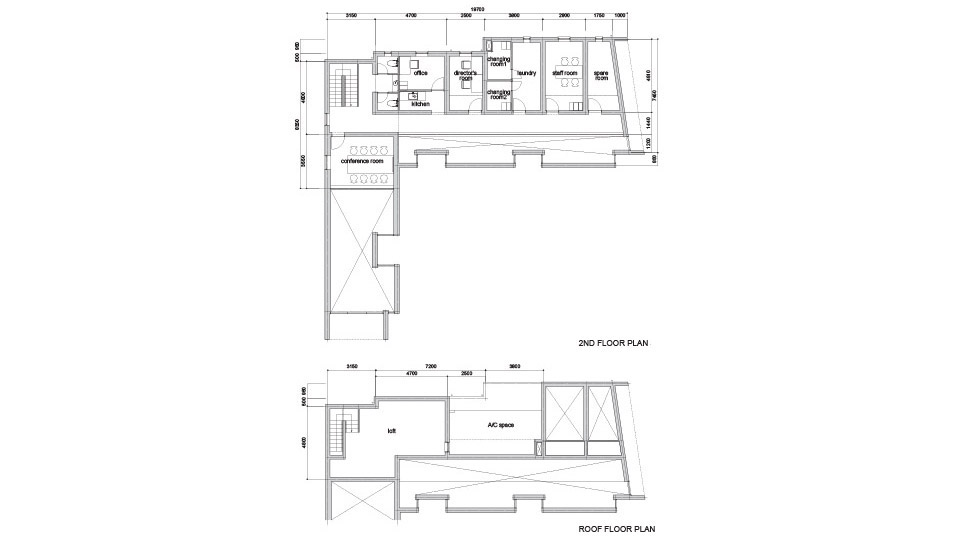

为了获得最大的面积，建筑几乎占满整个L型场地，其两个入口面采用了人们熟悉的坡屋顶小屋造型，此外建筑可以看做这些大小不一的坡屋顶建筑侧墙面在一起的组合。这些组合件的错缝，也就是建筑师在建筑体量上开出的动感凹槽，为建筑带来了自然光，也保证了用户的隐私，最为重要的是，这个设计能紧密联系外部空间和内部空间，让病人感到放松。建筑共有两层，为了方便老年人和残疾人，所有的临床检查室位于一层，医务办公室则位于二层。

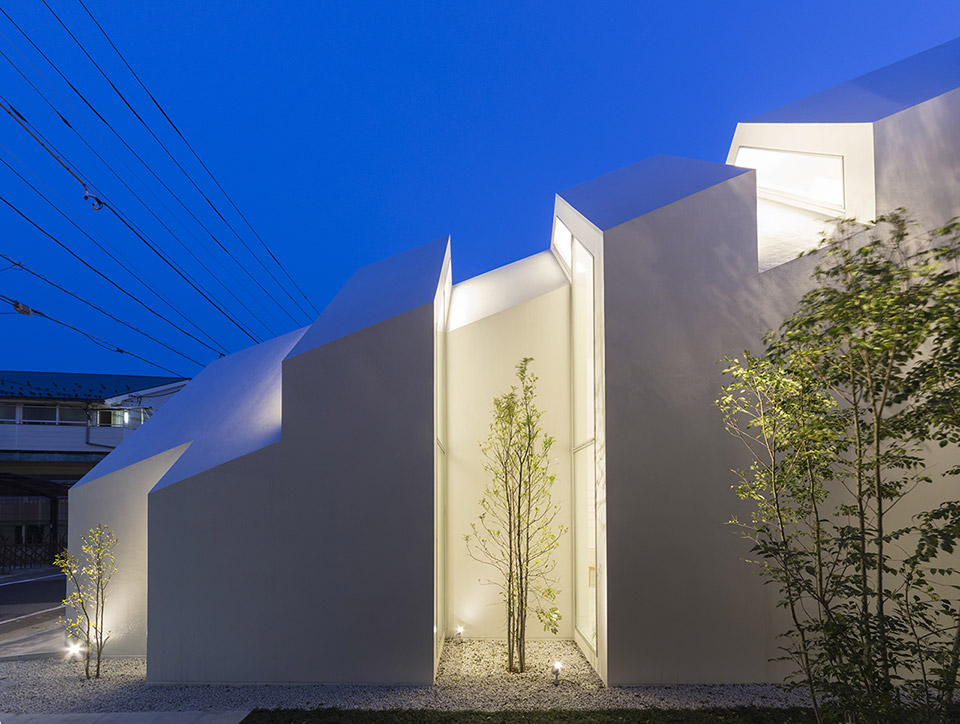

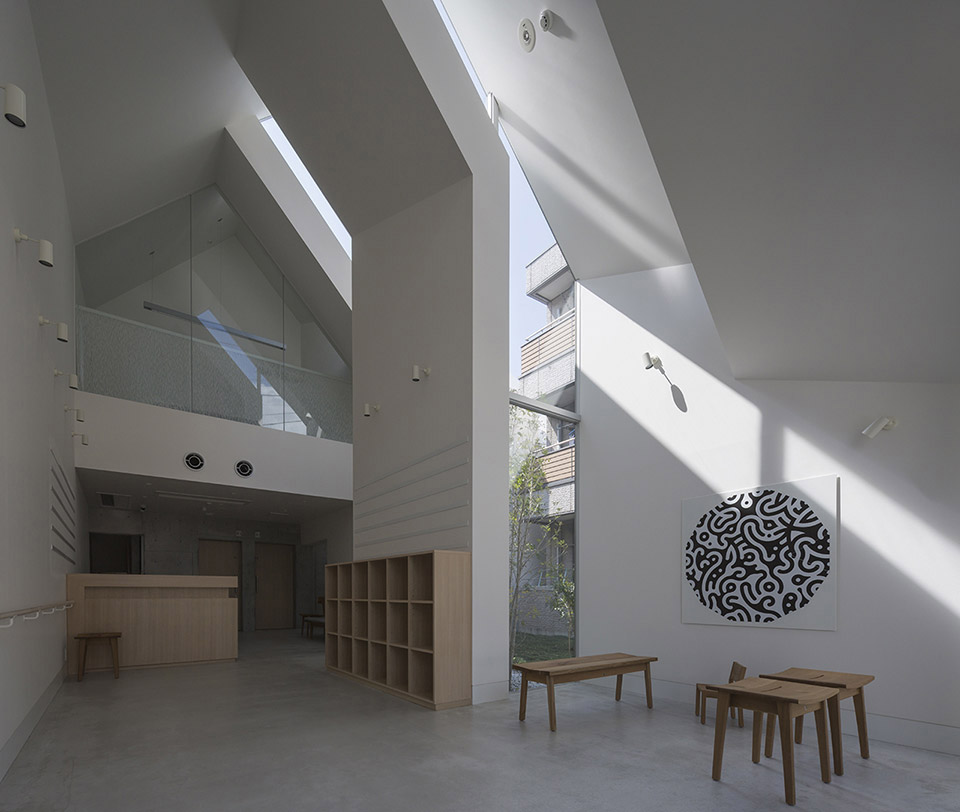

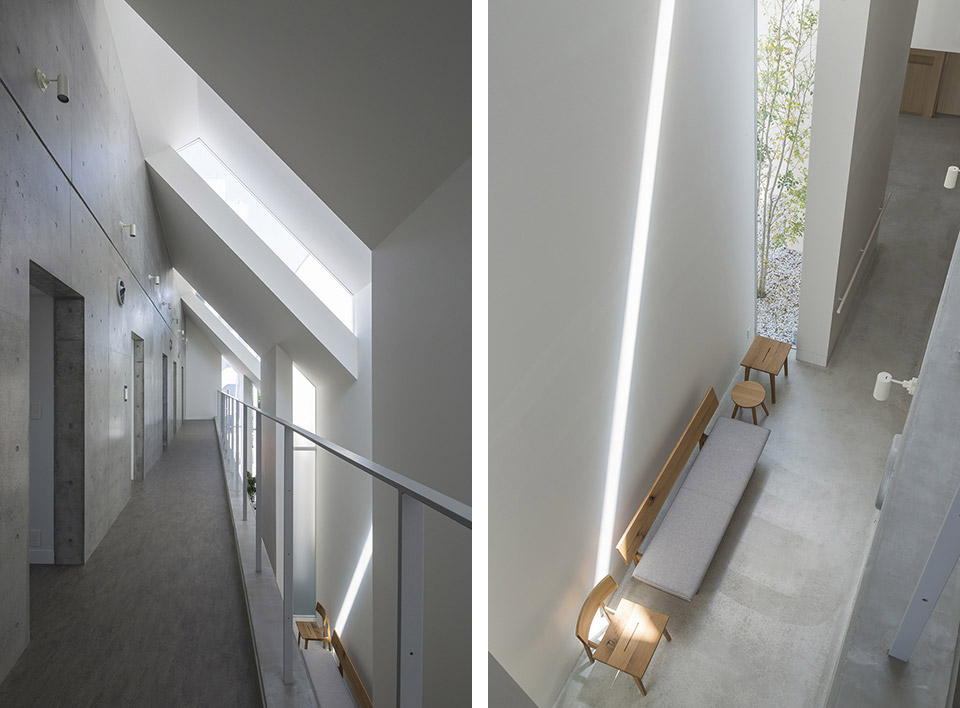

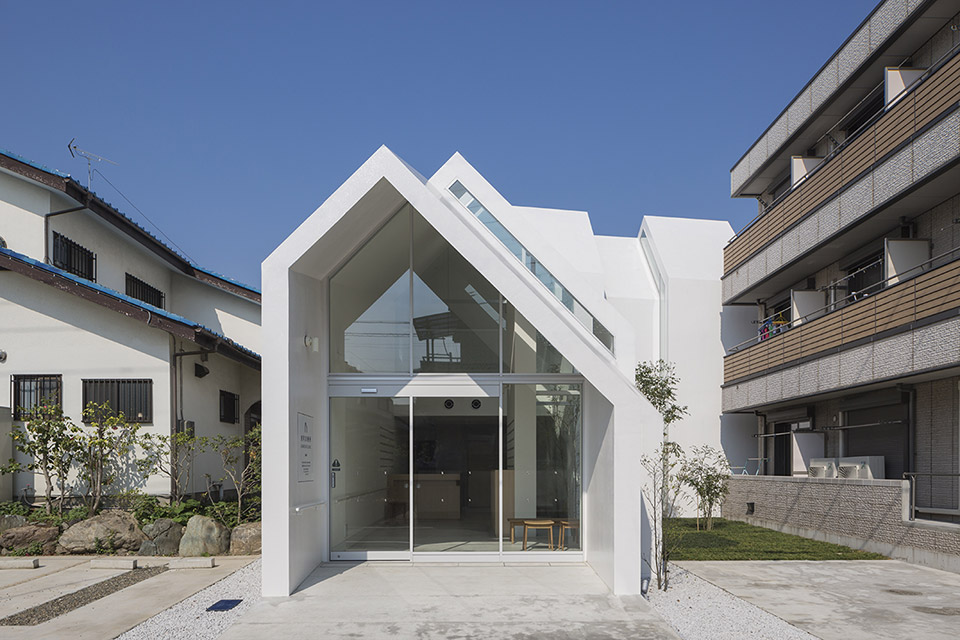

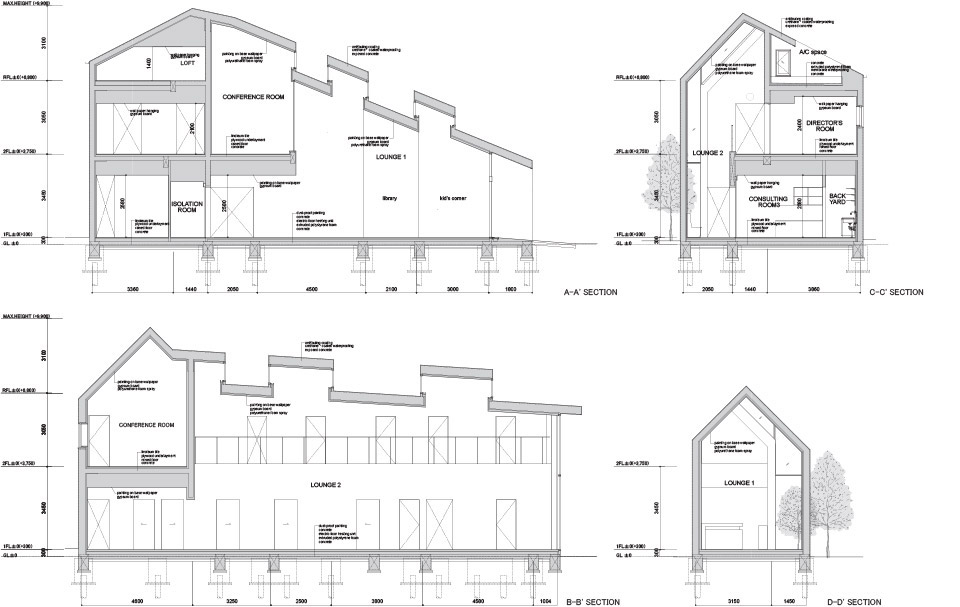

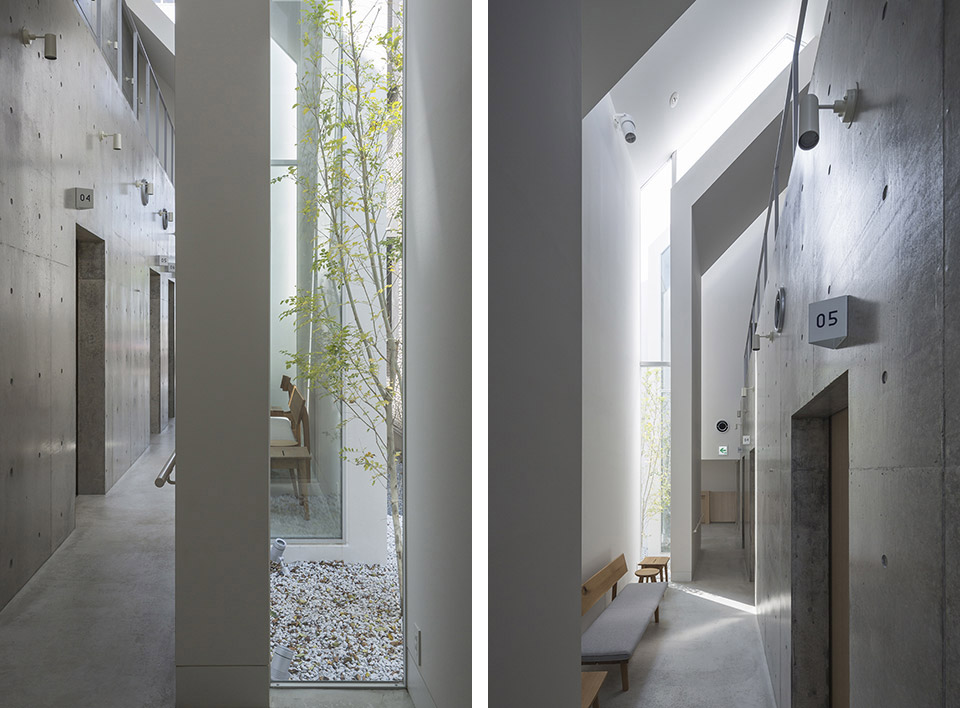

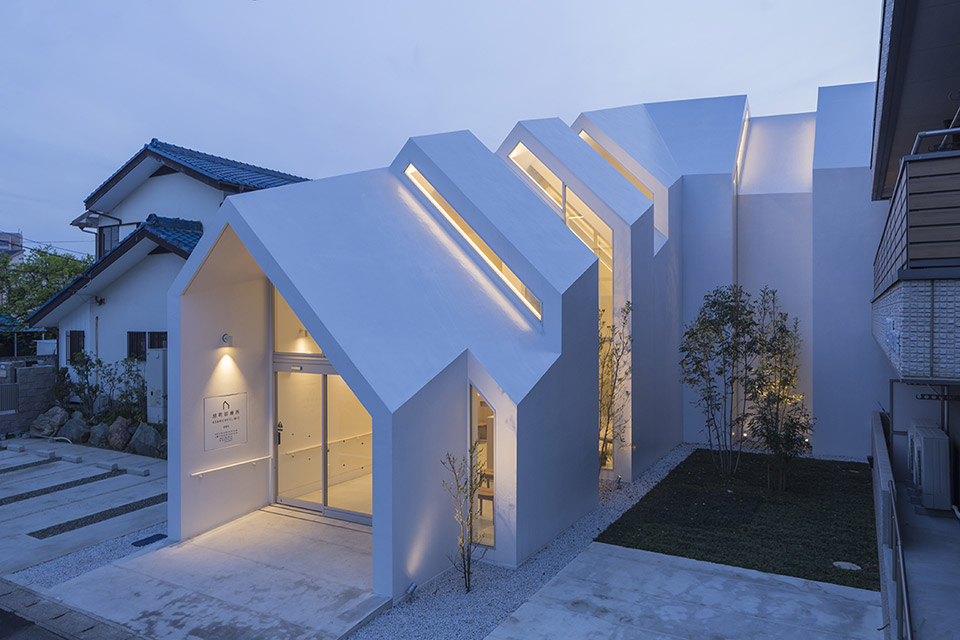

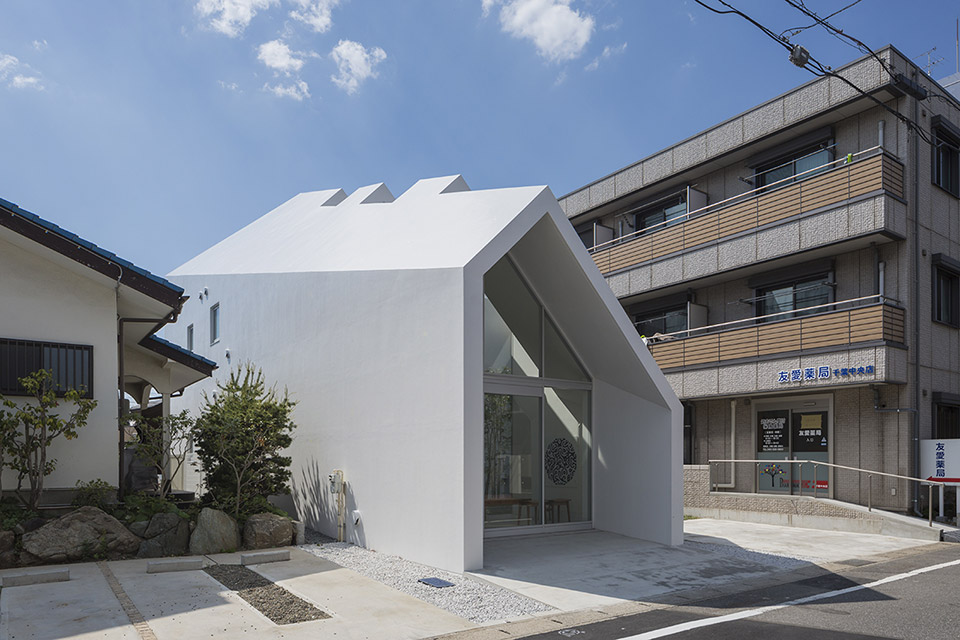

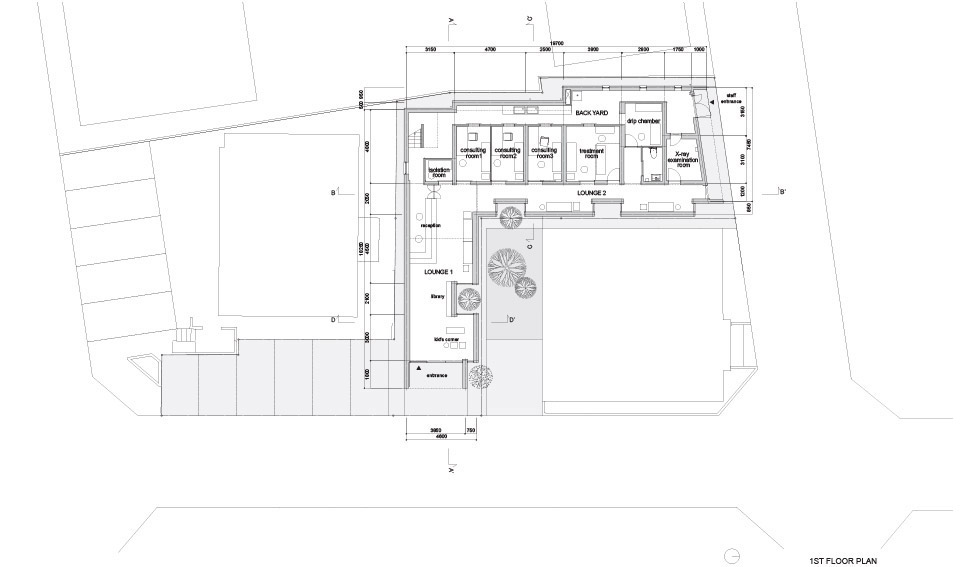

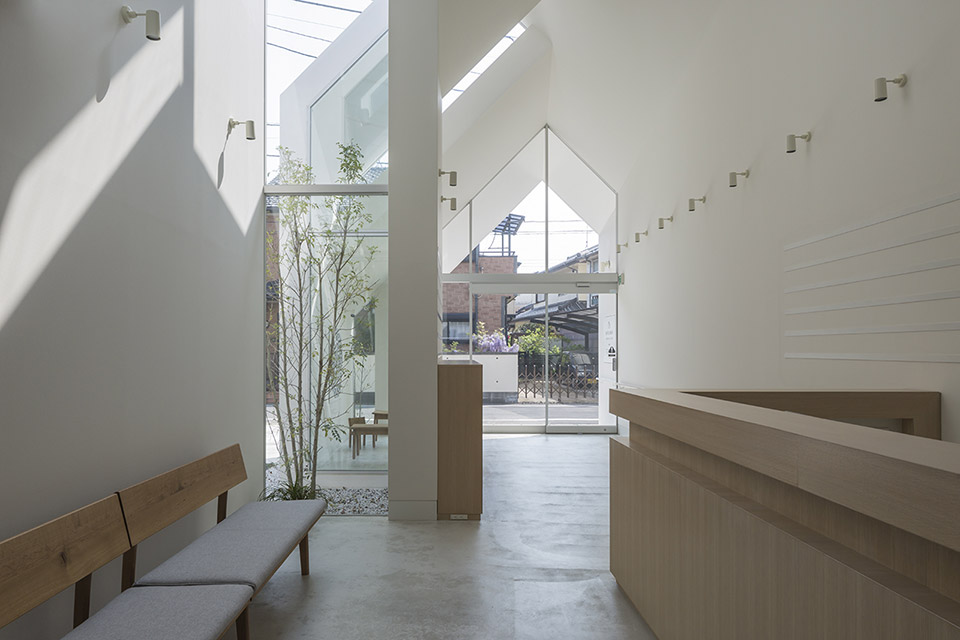

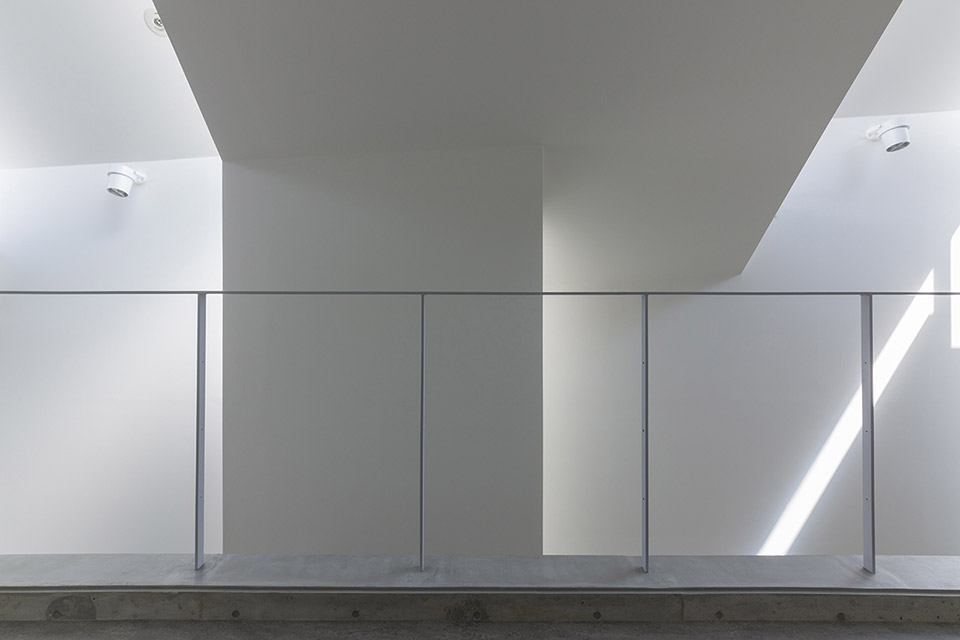

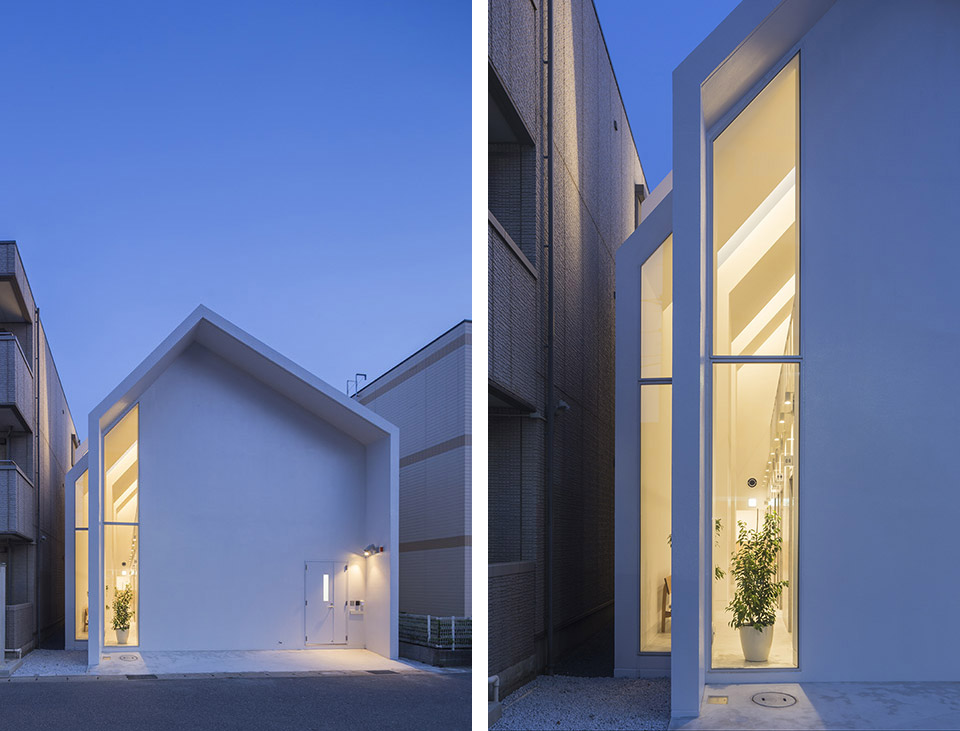

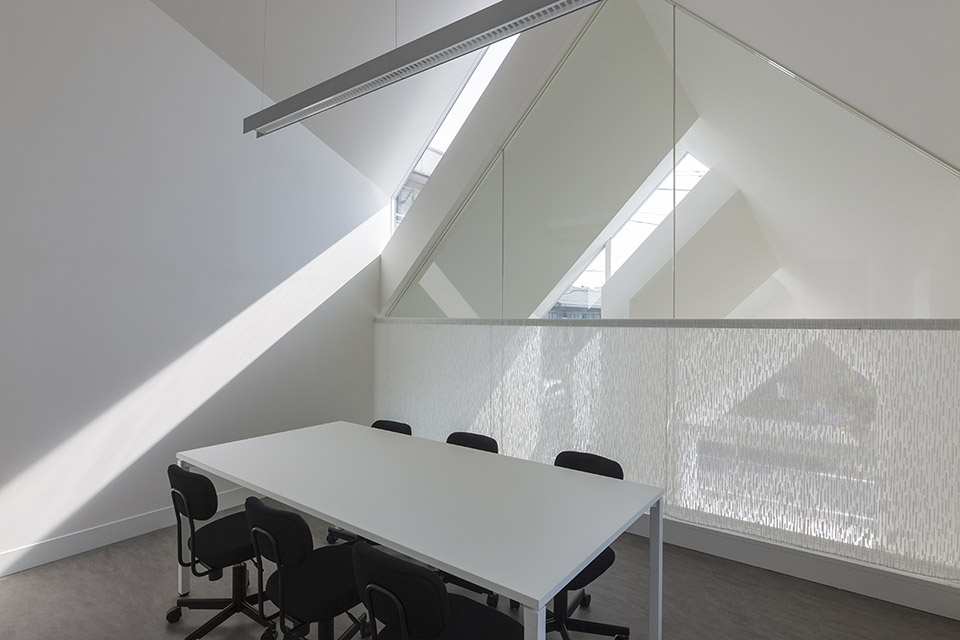

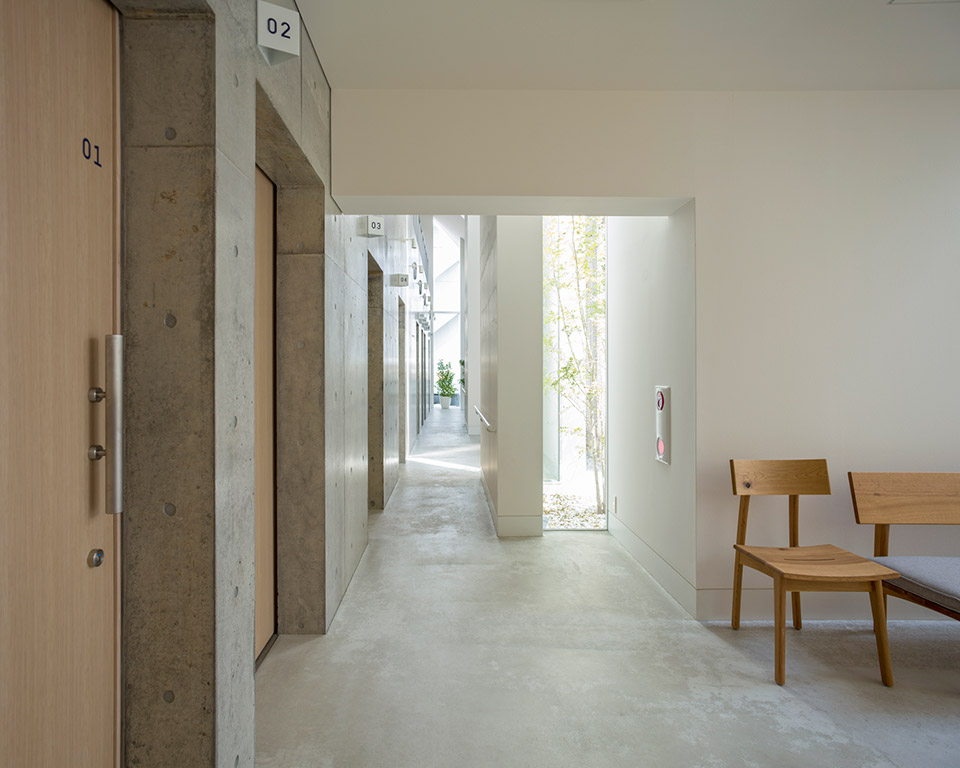

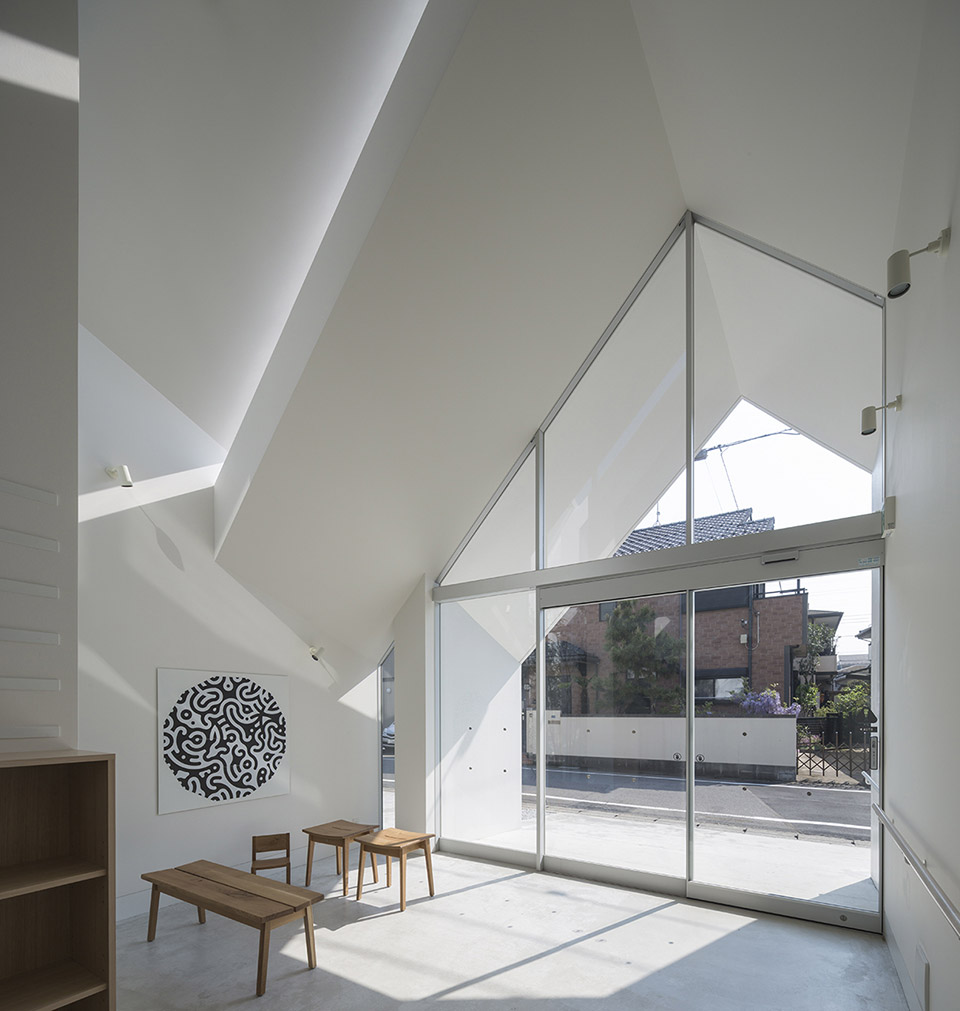

To have the benefit of the maximum area on the following site boundary, the floor plan results as L-shaped. The building is northeast oriented, opening through a dynamic facade with several recesses that allow to let the natural light come inside, while at the same time keeping the privacy of visitors. This concept of recesses creates a strong relation between the external natural environment and the interior space. That, at the same time, creates a variety of niches that give the patient the possibility to choose their favourite one. The building is therefore composed of two floors. On the 1st floor we placed all clinical examination rooms to facilitate the elderly and disabled people, and the service spaces for the staff members are situated at the 2nd floor. To give a more familiar image of the building to the visitors we chose a typical house-shape as facade. The roof gets gradually higher until the center of the building. This transition produces spaces with right proportions, from a cozy entrance to a double height space for waiting, which reduce the feeling of pressure for the surrounding environment. For keeping the space more open at Lounge2, we decided to set back the wall at the 2nd floor.

建筑采用了RC构造和钢筋混凝土框架结构。设计过程中，建筑师做了大量的模型进行研究。他们真诚的希望在未来，建筑与附近的居民建立起密切关系，成为社区中的一个“家”。

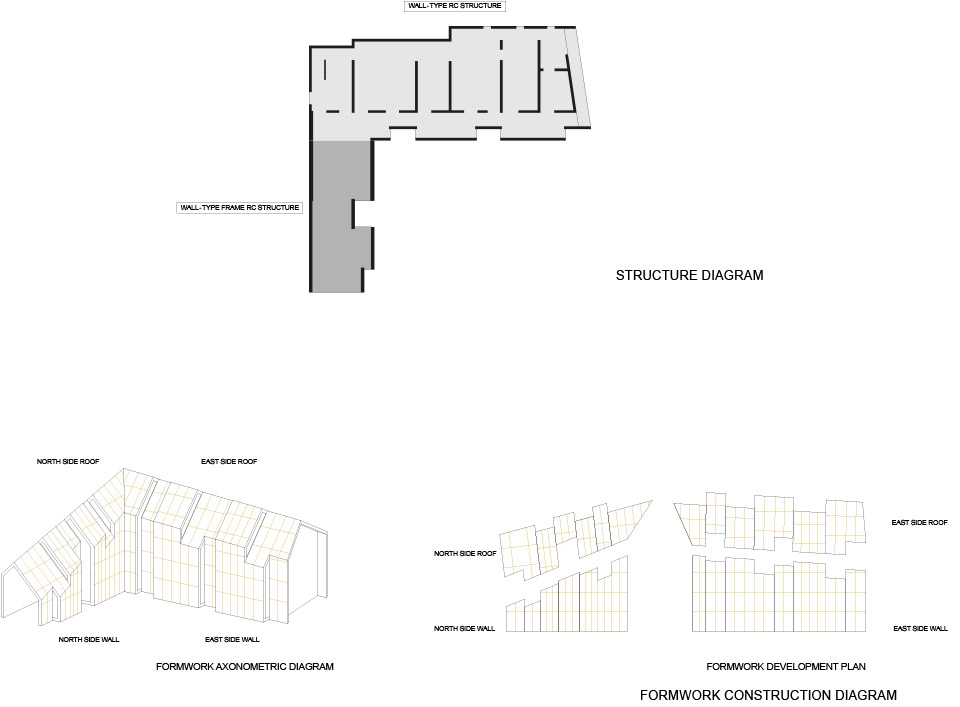

To realize this geometric shape we decide to use a RC structure. The West part is made of a composition of many wall-type RC structures, instead the East part is composed of series of single complex elements (walls and roof are one element) with a wall-type frame RC structure.

At the construction process, we decided to use “cut” plywood framework as the shape of the “unrolled” 3D model, such as paper model. This precise work during the design phase allowed us to achieve an exact geometric shape with high-accuracy technic.

We hope this clinic will surpass the general function of the normal clinic and develop a close relationship with the local residents, as the “house” of the quarter.

ASAHICHO CLINIC Credit and Data

Project Title：Asahicho clinic
Location：Chiba, Japan
Program：Clinic

Design and Supervision
Architect： hkl studio　
Collaborating Architect: Michio Kinoshita / Workshop
Collaborating façade Design: Kenichi Shikata
Structural Engineer: Structural Design Office PLUS ONE Co.,Ltd.　
M&E Engineer: SAKAMAKI Environmental Engineering office　
Signage Designer: TOKOLO.COM ／Asao Tokolo 　
BANANA DESIGN　／Takafumi Miki
Artwork Artist: TOKOLO.COM ／Asao Tokolo
Curtain： NUNO　

Contractors　　
Contractor:　 SHIN CORPORATION

Tetsu Hiraga
Shinkenchiku-sha

Area
Site Area:   333.48 sqm
Building Area:  200.05 sqm
Gross Floor Area:   310.19 sqm
1st Floor 185.67 sqm
2nd Floor 124.52 sqm
Number of stories:　2 stories
Muximum height:　9.75m
1st Floor　　3.45m
2nd Floor　　3.05m

Period
Design Period:　 2013.12-2014.7
Construction Period:　2014.08 -2015.03

Structural system：
Main Structure System : RC
Foundation : Pile foundation

MORE： hkl studio，更多请至：hkl studio on gooood
