Academy Museum of Motion Pictures by Renzo Piano Building Workshop

The Academy Museum of Motion Pictures will be the world’s premier institution devoted to the art and science of movies and moviemaking.

Project Specs

感谢 伦佐·皮亚诺建筑工作室 予gooood分享以下内容。更多关于他们:Renzo Piano Building Workshop on gooood
Appreciation towards Renzo Piano Building Workshop for providing the following description:

奥斯卡电影博物馆作为美国最大的专注于电影制作艺术、科学和艺术家的机构,宣布将于2021年9月30日向公众开放。这座充满活力的电影中心位于洛杉矶,在馆长兼主席比尔·克雷默 (Bill Kramer)的领导下,将提供无与伦比的精彩体验和深入了解电影和电影制作的机会。

The Academy Museum of Motion Pictures in Los Angeles announced a slate of programs it will offer to the public beginning September 30, 2021, when it will celebrate its grand opening. The museum’s inaugural programs are made possible by the kind support of donors, including Richard Roth Cinema-Arts Fund, Participant, Pritzker Foundation, Eric and Melina Esrailian, Dr. Kathy Fields and Dr. Garry Rayant in honor of Sid and Nancy Ganis, Julia and Ken Gouw, Robert and Miryam Knutson, and Dr. Peter Lam Kin Ngok of Media Asia Group Holdings Limited. Generous support is also provided by Istituto Luce Cinecittá.

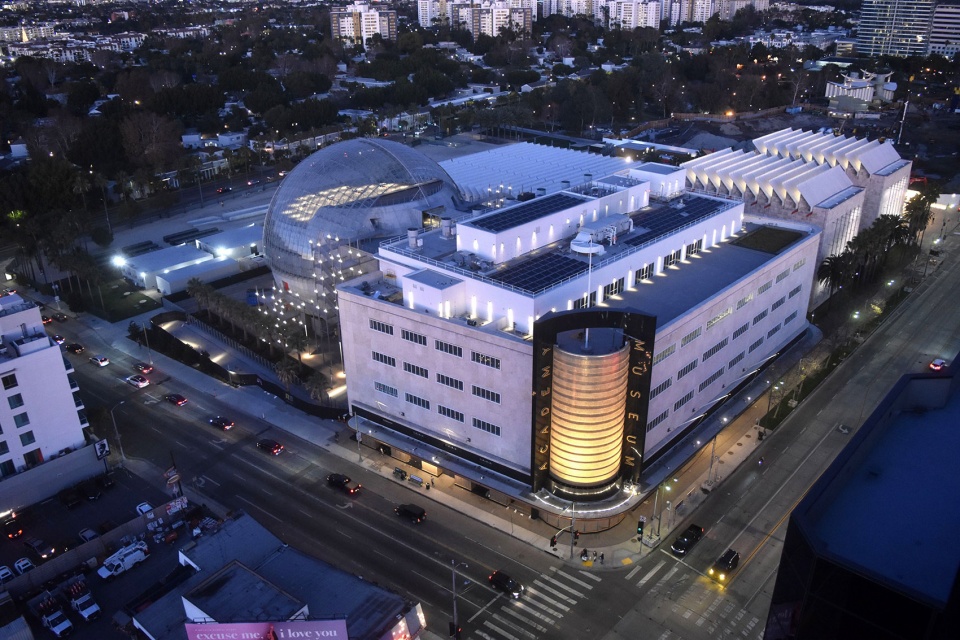

▼奥斯卡电影博物馆航拍
Aerial shot of the Academy Museum of Motion Pictures ©Academy Museum Foundation

奥斯卡电影博物馆馆长兼主席比尔·克雷默表示:“我们将以一系列的展览和活动来开启奥斯卡电影博物馆,通过多样与互动的方式,来呈现复杂而迷人的电影世界,以及电影的艺术和科技、电影艺术家、电影对历史和社会影响等。我们将完整地展现电影制作的各个方面:既有辉煌的、具有教育意义的方面,也有具批判性以及令人不适的方面。博物馆的展览内容包罗万象、放眼全球,以美国电影艺术与科学学院无与伦比的藏品和专业知识为基础,将使这座博物馆成为电影界首屈一指的机构。”

Bill Kramer, Director and President of the Academy Museum, said, “Developed in partnership with incredible Academy members, our slate of virtual programs is designed to complement our compelling and engaging core and temporary exhibitions. When we open, our programs will also come to life in our theaters and in our public spaces to deepen the visitor experience. Our screenings, panels, symposia, and educational programs are key components of how our visitors will interact with the museum and learn about filmmaking.”

▼视频:奥斯卡电影博物馆花絮,Academy Museum, B-Roll © Academy Museum Foundation



项目描述 | PROJECT DESCRIPTION

奥斯卡电影博物馆(Academy Museum of Motion Pictures)坐落于洛杉矶市中心,将是美国最大的专注于电影制作艺术、科学和艺术家的机构。由普利兹克奖(Pritzker Prize)得主建筑师伦佐·皮亚诺(Renzo Piano)设计的这座博物馆,位于威尔希尔和费尔法克斯(Wilshire and Fairfax),占地面积300,000平方英尺,由两座建筑构成:一座是翻新扩建的“五月公司大楼”(May Company Building),该楼始建于1939年,是流线型现代建筑的地标,现改名为“萨班大楼”(Saban Building),以致敬捐助人谢丽尔和哈伊姆·萨班(Cheryl and Haim Saban);另一座是北面新建的高耸玻璃和混凝土球状建筑,其中设有露台,可将好莱坞山尽收眼底。

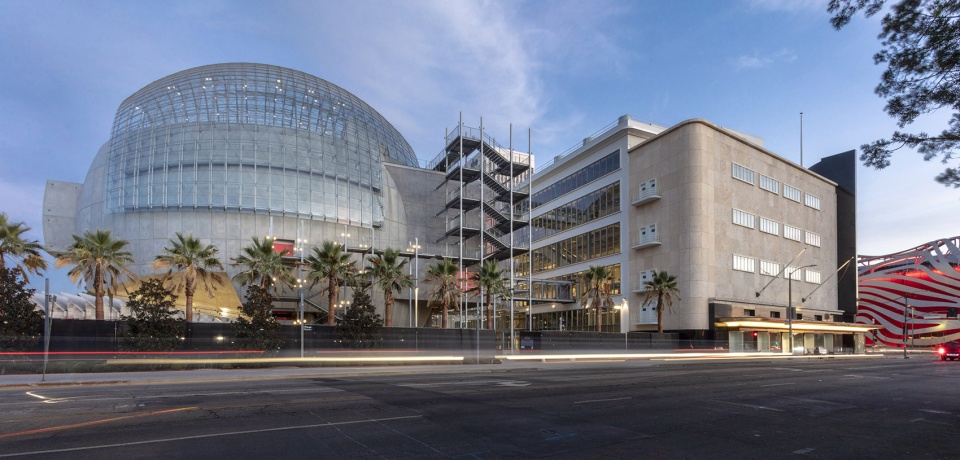

▼奥斯卡电影博物馆,外观
Photo by Josh White, JWPictures/©Academy Museum Foundation

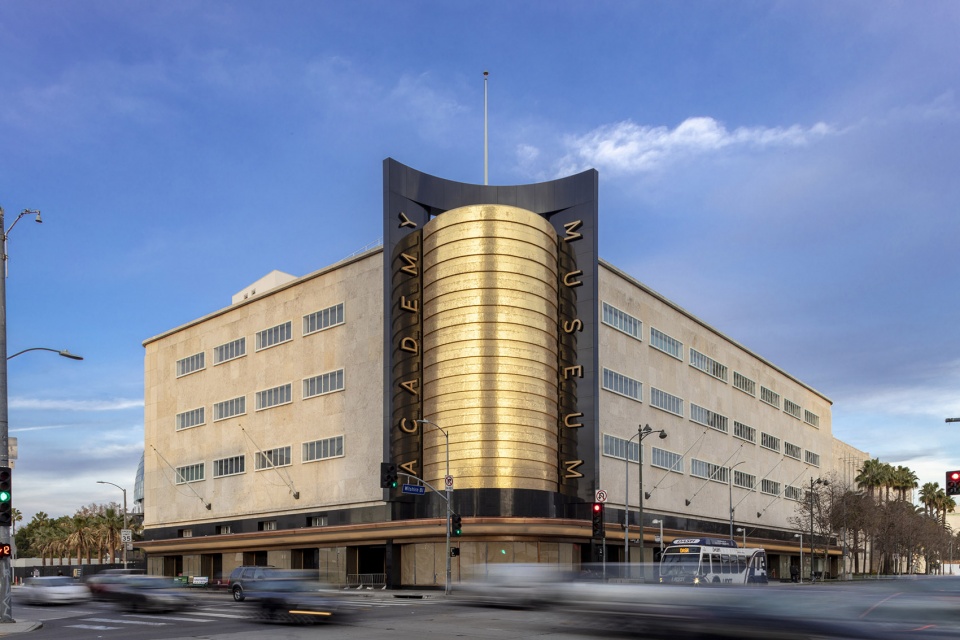

▼奥斯卡电影博物馆,萨班大楼
Academy Museum of Motion Pictures, Saban Building. Photo by Josh White, JWPictures/©Academy Museum Foundation

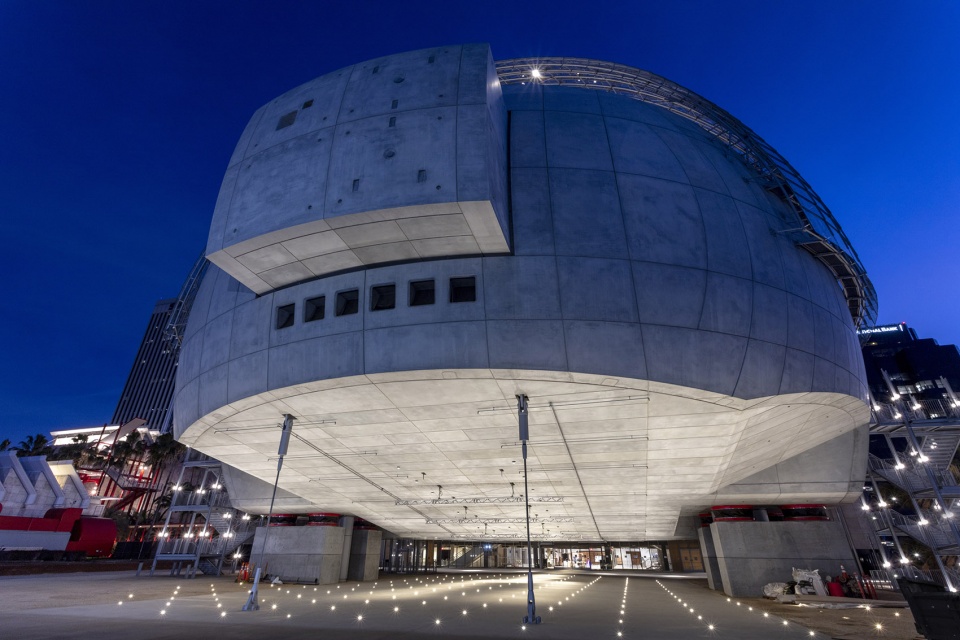

▼奥斯卡电影博物馆,大卫·格芬剧院外观
Academy Museum of Motion Pictures, David Geffen Theater Exterior. Photo by Josh White, JWPictures/©Academy Museum Foundation

The Academy Museum of Motion Pictures will be the world’s premier institution devoted to the art and science of movies and moviemaking. Designed by Pritzker Prize-winning architect Renzo Piano, the 300,000 square-foot museum campus at Wilshire and Fairfax features a major renovation and expansion to the 1939 May Company Building. Renamed the Saban Building in honor of the benefactors Cheryl and Haim Saban, this Streamline Moderne landmark in the heart of Los Angeles’s Miracle Mile neighborhood is adjoined by a soaring new glass-and-concrete spherical addition to the north, featuring a terrace with sweeping views of the Hollywood Hills.

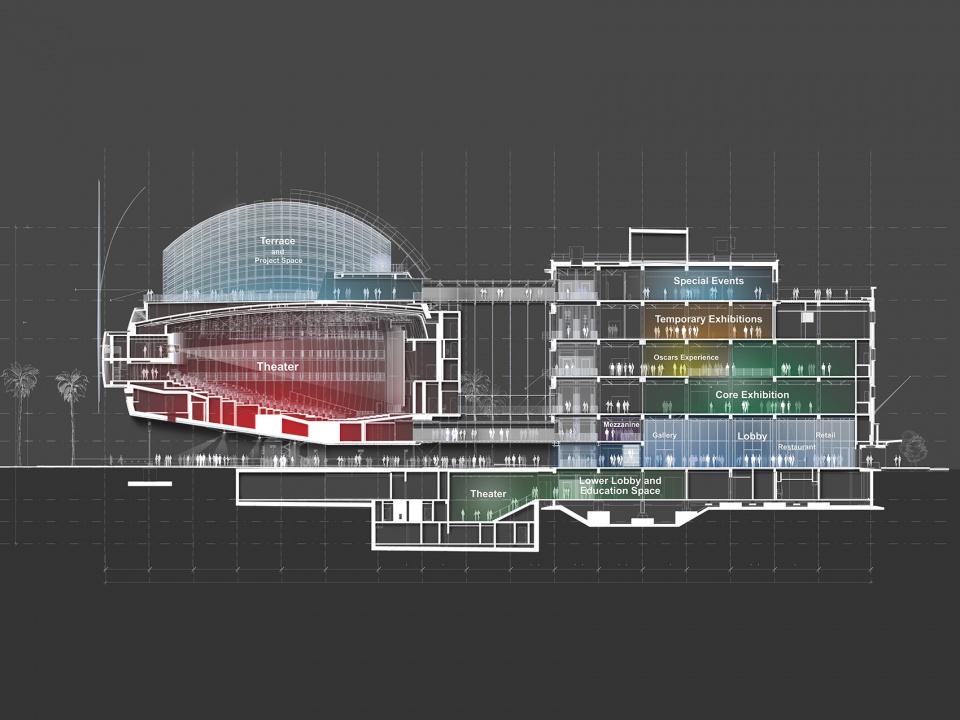

▼奥斯卡电影博物馆,截面图
Academy Museum of Motion Pictures, Cross-section ©Renzo Piano Building Workshop/©Academy Museum Foundation



主要设计 | PRINCIPAL DESIGN

占地300,000平方英尺的奥斯卡电影博物馆包含七层沉浸式永久性和临时性展馆、一间教育工作室、两座采用最先进技术的影院,以及灵活的公共活动和特别活动空间,其中包含一个可俯瞰好莱坞山全景的超大顶层露台。影院新的大卫·格芬影院(David GeffenTheater)位于球状建筑内,拥有一千个座位,这里将举办每日放映和大型电影活动,包括试映、首映和特别放映等。

The 300,000-square-foot Academy Museum will feature six stories of dynamic spaces, including more than 50,000 square feet of immersive permanent and temporary exhibition galleries, an education studio, two state-of-the-art theaters, as well as dynamic public and special event spaces that include a spectacular roof top terrace with sweeping views of the Hollywood Hills.

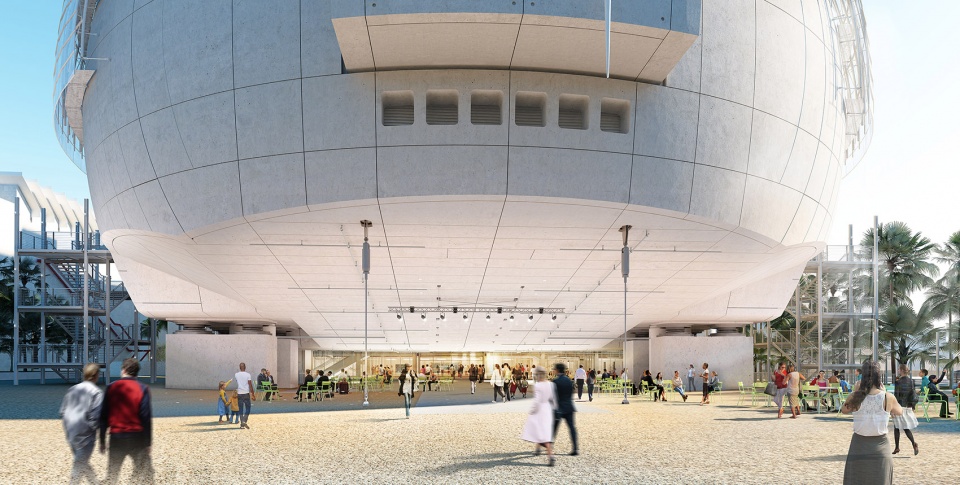

▼奥斯卡电影博物馆,外观效果图
Academy Museum of Motion Pictures, Exterior Rendering ©Renzo Piano Building Workshop/©Academy Museum Foundation/Image from L’Autre Image

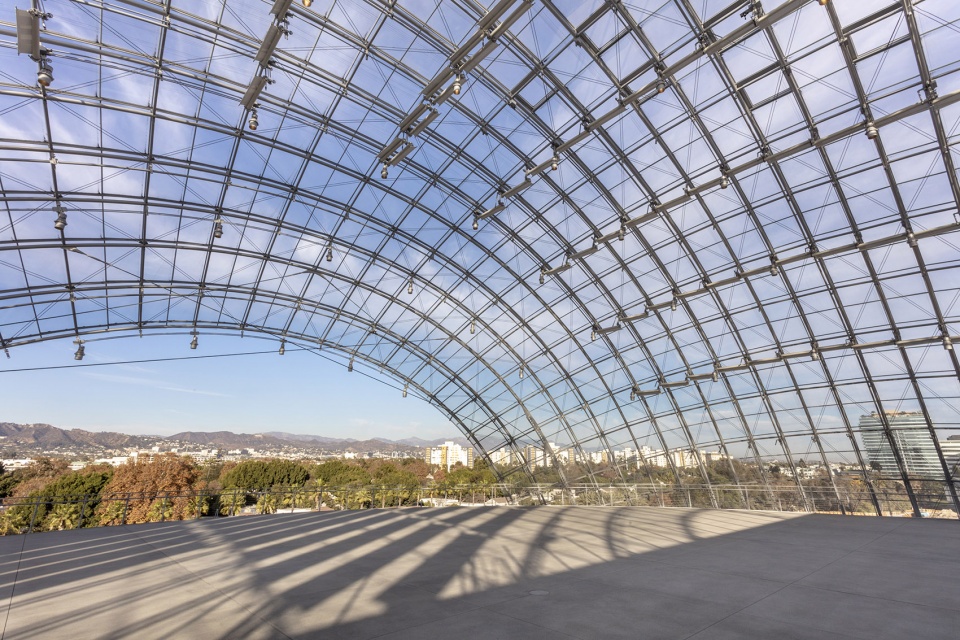

▼奥斯卡电影博物馆,杜比家庭露台
Academy Museum of Motion Pictures, Dolby Family Terrace. Photo by Josh White, JWPictures/©Academy Museum Foundation



影院 | THEATERS

除了可以放映35毫米、70毫米胶片和数字激光投影以外,大卫·格芬影院还拥有硝酸盐胶片放映功能。拥有288个座位的特德·曼恩影院(Ted Mann Theatre)将举办每日放映活动,包括面向家庭的周六电影、回顾展、全球电影系列等。特德·曼恩影院可以放映16毫米、35毫米、70毫米胶片电影,以及数字激光投射。两个影院将举办一系列现场表演、讲座、座谈会,以及其他吸引著名电影业行业先锋参与的活动。两个影院都将具有相应配备,以杜比全景声呈现多维声效和超凡银幕画质。

The new 1,000-seat Theater located in the feature daily screenings major film events including previews, openings special presentations. In addition to being able to screen 35mm, 70mm, and digital laser projection, the Geffen Theater also has nitrate capabilities. intimate 288-seat Ted Mann Theater will offer screenings ranging from Saturday morning matinees for children of all ages to a global cinema series in 16mm, 35mm, 70mm, as well as digital laser projection. Both theaters will be home to an array of live performances, lectures, panels, and other events that will attract renowned film industry leaders. Theaters will be equipped to present film with multidimensional sound experiences and superior screen quality.

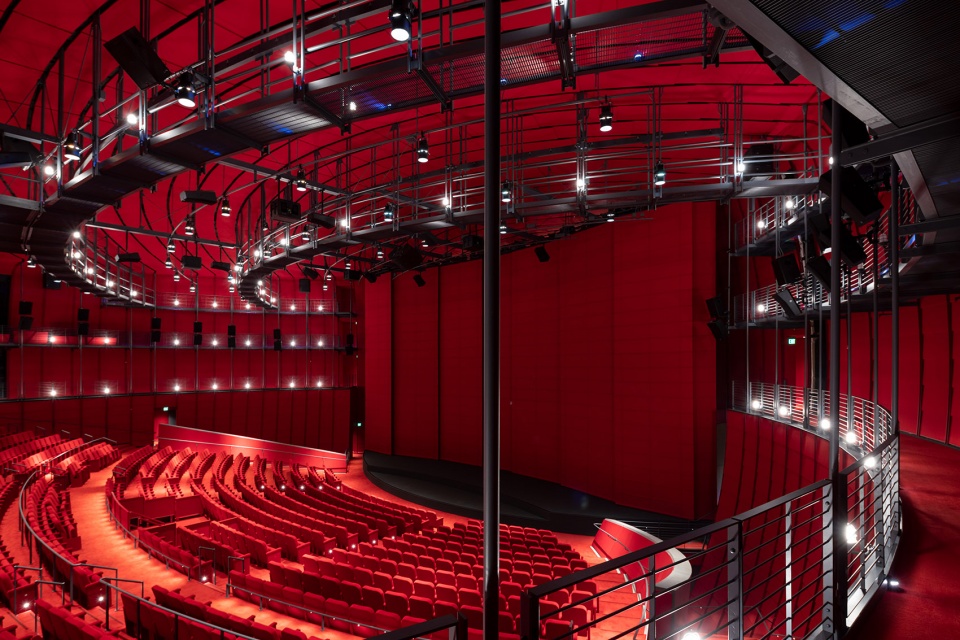

▼奥斯卡电影博物馆,大卫·格芬剧院
Academy Museum of Motion Pictures, David Geffen Theater. Photo by Iwan Baan/©Iwan Baan Studios, Courtesy Academy Museum Foundation

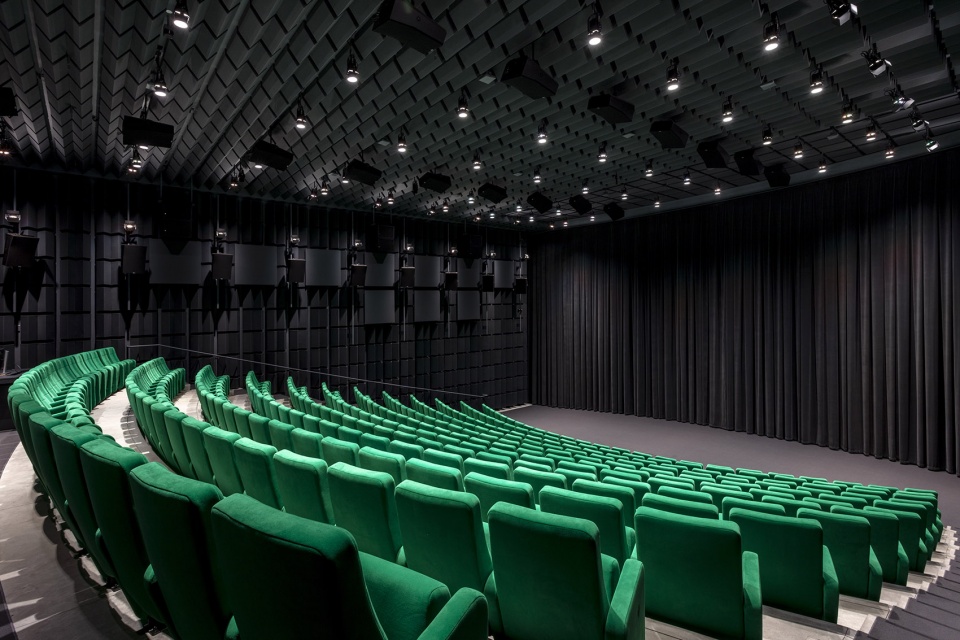

▼奥斯卡电影博物馆,特德·曼恩剧院
Academy Museum of Motion Pictures, Ted Mann Theater. Photo by Josh White, JWPictures/©Academy Museum Foundation



材料 | MATERIALS

萨班大楼:混凝土、钢、钢筋混凝土、玻璃该建筑物的标志性圆柱体由350,000块金箔马赛克瓷砖构成,其中35%采用的是意大利威尼斯的原制造商欧索尼(Orsoni)的瓷砖。采自德州奥 斯汀的石灰石,用于修复历史悠久的建筑立面。

球状建筑:混凝土、钢、钢筋混凝土。该建筑物的玻璃圆顶由1,500块定制的低铁夹层钢化玻璃面板组成。这些面板被切割成146种不同形状和尺寸, 由圣戈班(Saint-Gobain)在奥地利 的斯太尔制造。

Saban Building: concrete; steel; steel-reinforced concrete; glass; the iconic cylinder comprises 350,000 gold leaf mosaic tiles of which 35% were replaced by tiles from the original manufacturer, Orsini, of Venice, Italy; limestone from Austin, Texas will be used to restore the historic building façade.

Sphere Building: concrete, precast, steel; steel-reinforced concrete; and the glass dome consists of 1,500 flat, specially made low iron, laminated, tempered, shingled glass panels cut in 146 different shapes and sizes fabricated in Steyr, Austria by Saint-Gobain.

▼奥斯卡电影博物馆外观效果图
Academy Museum of Motion Pictures. Exterior Rendering ©Renzo Piano Building Workshop/©Academy Mueum Foundation

▼奥斯卡电影博物馆,人行天桥,芭芭拉·史翠珊天桥和卡西·瓦瑟尔曼天桥,连接球状建筑与萨班大楼
Academy Museum of Motion Pictures, Pedestrian bridges, Barbra Streisand Bridge and Casey Wasserman Bridge, connecting the Sphere building with the Saban Building. Photo by Josh White, JWPictures/©Academy Museum Foundation



开幕展览:《电影的故事》
OPENING EXHIBITION: STORIES OF CINEMA

奥斯卡电影博物馆展览体验将从萨班大楼大厅的斯皮尔伯格之家展厅(Spielberg Family Gallery)开始,该展厅免费向公众开放。这间高耸的玻璃墙展厅,将观众引入占地31,000平方英尺、横跨三层楼的核心展览《电影的故事》(Stories of Cinema),而这场核心展览将以多屏幕沉浸式体验令参观者们置身于从卢米埃尔兄弟至今的电影历史之中。《电影的故事》由WHY建筑设计事务所(WHY Architecture)设计,展览将选取奥斯卡电影博物馆不断增加的藏品以及美国电影艺术与科学学院无与伦比的收藏。

The exhibition experience of the Academy Museum will begin in the Grand Lobby of the Spielberg Family Gallery—which is open to the public without charge. This soaring, glass-walled gallery will serve as an introduction to the 31,000 square-foot, three-floor core exhibition Stories of Cinema, designed by wHY Architecture, which will surround visitors with multiple screens featuring a rapid immersion into the history of cinema, from the Lumiere brothers to present day.

▼《电影的故事》展览花絮(邂逅展厅),Encounters Gallery, Stories of Cinema, B-Roll ©Academy Museum Foundation

▼《电影的故事》展览花絮(奥斯卡展厅),Oscars Gallery, Stories of Cinema, B-Roll ©Academy Museum Foundation

奥斯卡电影博物馆首席艺术及节目官杰奎琳·斯图尔特(Jacqueline Stewart)说:“电影以深刻而持久的方式塑造了我们对于历史和文化,以及对于他人和自己的理解。在我们致力于创造舒适友好的空间,让人们探索电影制作的世界,同时我们也意识到,电影能以独特的方式促进沟通和培养同理心。在这对于博物馆和全世界都非常重要的时刻,奥斯卡电影博物馆欢迎参观者与合作伙伴开展多方对话,共同探讨电影制作历史以及电影对我们生活的影响。”

Jacqueline Stewart, Chief Artistic and Programming Officer of the Academy Museum, said, “We have been hard at work preparing the Academy Museum and are ready to welcome visitors first virtually and then in person in September. The programs we are rolling out for our opening are dynamic, diverse, and deeply grounded in the history and artistry of filmmaking. Whether they are recognizing Hollywood legends, delving into the working process of film professionals, or addressing issues of race, gender, sexuality and inequity that run through film history, these programs will use the power of movies and stories of filmmakers to open eyes and minds.”

▼《玩具总动员》3D幻境装置,奥斯卡电影博物馆,Toy Story 3D Zoetrope fully installed at the Academy Museum of Motion Pictures in Los Angeles. Academy Museum of Motion Pictures. Photo by Joshua White, JWPictures/©Academy Museum Foundation

▼《蝙蝠侠归来》绘景,奥斯卡电影博物馆,”Batcave” matte painting from Batman Returns (1992). Gift of Craig Barron. Academy Museum of Motion Pictures. Photo by Joshua White, JWPictures/©Academy Museum Foundation

LOCATION: 6067 Wilshire Boulevard, Los Angeles, CA 90036
SQUARE FOOTAGE
Total project: 300,000 square feet
Saban Building (formerly May Company): 250,000 square feet
Sphere Building: 45,000 square feet
EXECUTIVE ARCHITECT: Gensler, Los Angeles, CA
GENERAL CONTRACTOR: MATT Construction
PROJECT MANAGER: Paratus Group, New York, NY
LEED CONSULTANT TEAM: Atelier Ten
EXHIBITION DESIGN: wHY Architecture
Kulapat Yantrasast, Brian Butterfield and Jarrod Beck
BUILDING CONSERVATION EXPERTS: John Fidler Preservation Technology Inc.
ACOUSTICIAN, AUDIO VIDEO AND PROJECTION: Jaffe Holden Acoustics
CIVIL ENGINEER: KPFF Consulting Engineers
EXHIBITION AUDIO VISUAL: Electrosonic, Inc.
EXHIBITION AND WAYFINDING GRAPHIC DESIGN: IN-FO.CO
EXHIBITION CONSTRUCTION:
ALAIN HIRSCH Construction Corp.
EXHIBITION FABRICATION: Cinnabar California, Inc.
EXHIBITION LIGHTING: Available Light
FAÇADE CONSULTANT: Knippers Helbig
GEOTECHNICAL ENGINEER: Shannon & Wilson, Inc.
GLASS FABRICATOR: Saint-Gobain, Steyr, Austria
HISTORIC PRESERVATION: Historic Preservation Resources Group
LANDSCAPE ARCHITECT: LRM Landscape Architects
LIGHTING DESIGN: Buro Happold
MECHANICAL, ELECTRICAL, PLUMBING: Buro Happold
PALEONTOLOGICAL: La Brea Tar Pits and Museum
SECURITY: Layne Consultants International
STRUCTURAL ENGINEER: Buro Happold
THEATER DESIGN: ARUP
VERTICAL TRANSPORTATION: HKA Elevator Consulting
WATERPROOFING: Simpson Gumpertz & Heger
