Wutopia Lab 以“Church in church”概念在上海历史建筑圣尼古拉斯教堂旧址里用45吨钢铁打造了旧教堂里的新书店——思南书局诗歌店。这是上海最大最全面的专业诗歌书店，提供1000册不同语言的诗集。诗歌店设计延续了Wutopia Lab基于对偶形成的一贯的魔幻现实主义风格：穿孔钢板，半透明，不确定的光线，色彩以及戏剧性的诗意。
Wutopia Lab has completed Sinan books poetry store with the concept of ‘Church in church’ , using 45 tons of steel in the historic site of St. Nicholas Church in Shanghai. As the largest professional oetry bookstore in Shanghai, it offers 1000 poetry books in different languages. A continuation of Wutopia Lab’s design style, magical realism based on antithesis, perforated steel plates, translucent, uncertain light, color and dramatic poetry could be found in the poetry store.
▼Church in church：教堂里的新书店，Church in church: a new bookstore created inside the old church ©CreatAR Images

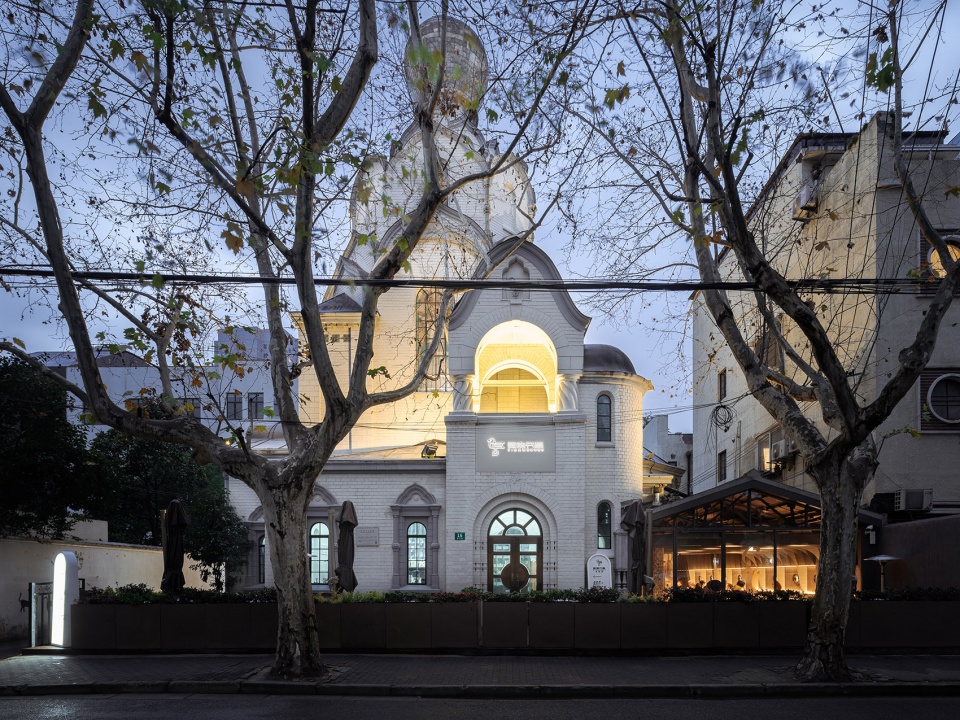

▼建筑外观，exterior view ©CreatAR Images
The former orthodox church at Langao Road #16 is the second batch of outstanding historical buildings in Shanghai. It was built in 1932 and was not used as church for a long time. In the past few decades, it was an office, factory, warehouse, canteen, residential place, and later became a club, restaurant, and finally was in a waste. The first time when I stood in the site, I felt it like a ruin of maze.But after accustomed to the darkness, with the knowledge of architecture and urban historical experience, I can identify the traces of construction that have been gaining from generation to generation since the beginning. Various traces of the addition and decoration of this old church at different times are squeezed together and integrated as ones.

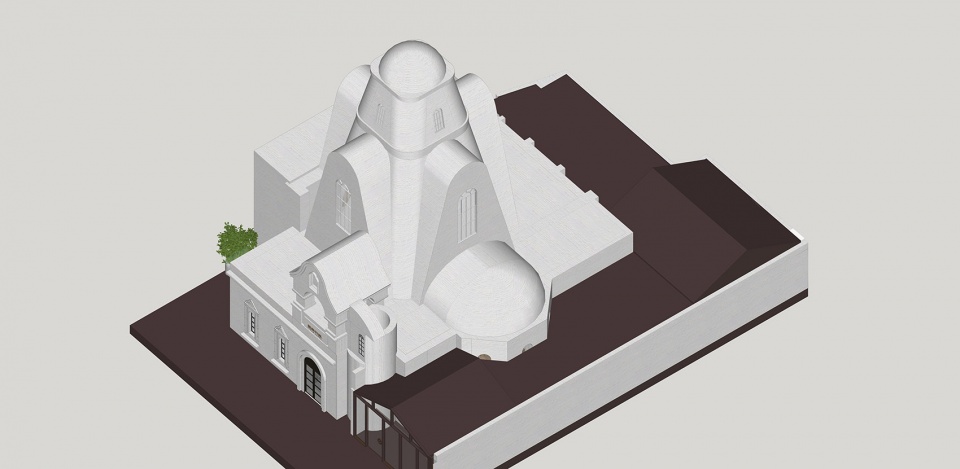

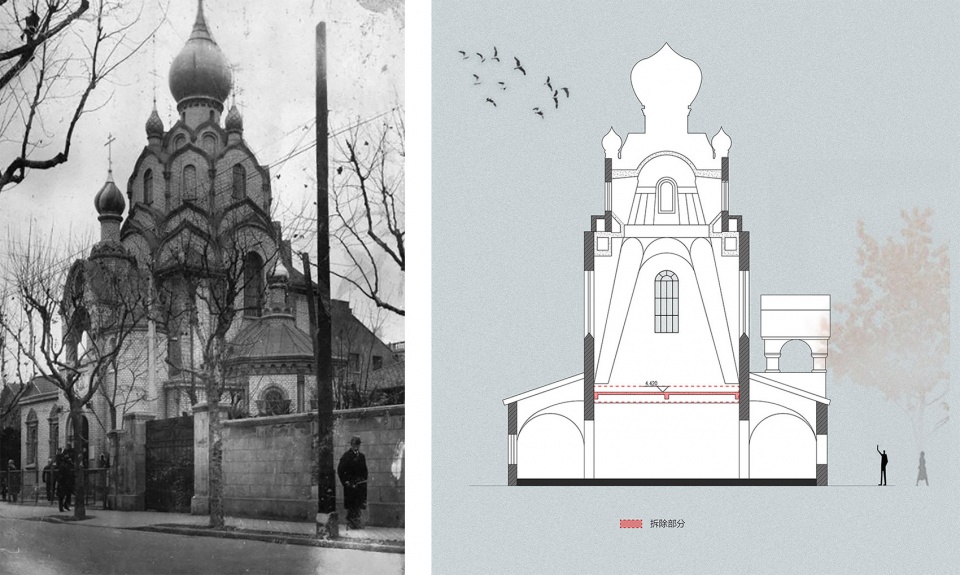

▼教堂原貌和拆除剖面示意，the former church and the sectional diagram of demolition ©Wutopia Lab

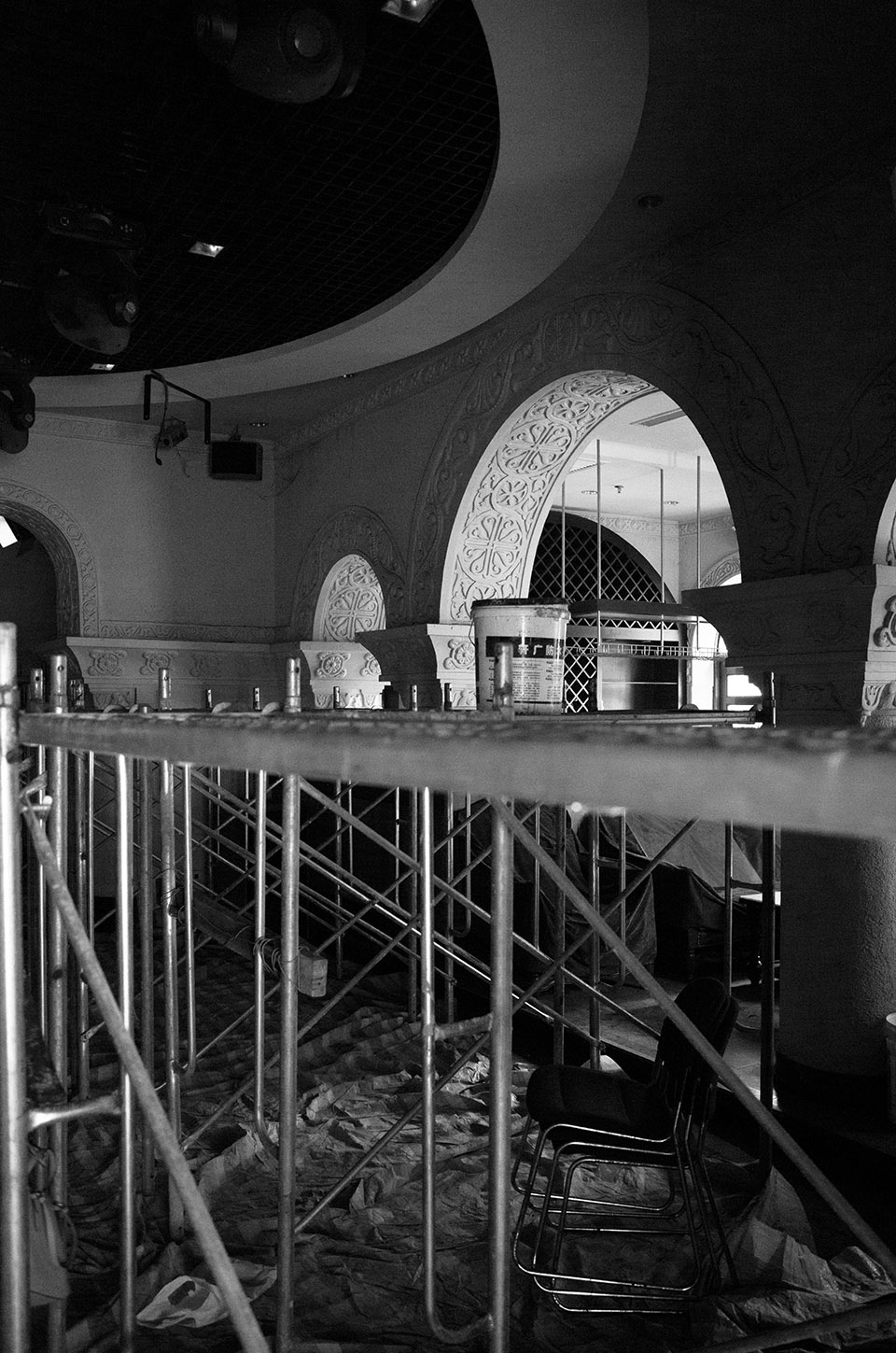

▼拆除前的内部空间，internal space before demolition ©Wutopia Lab

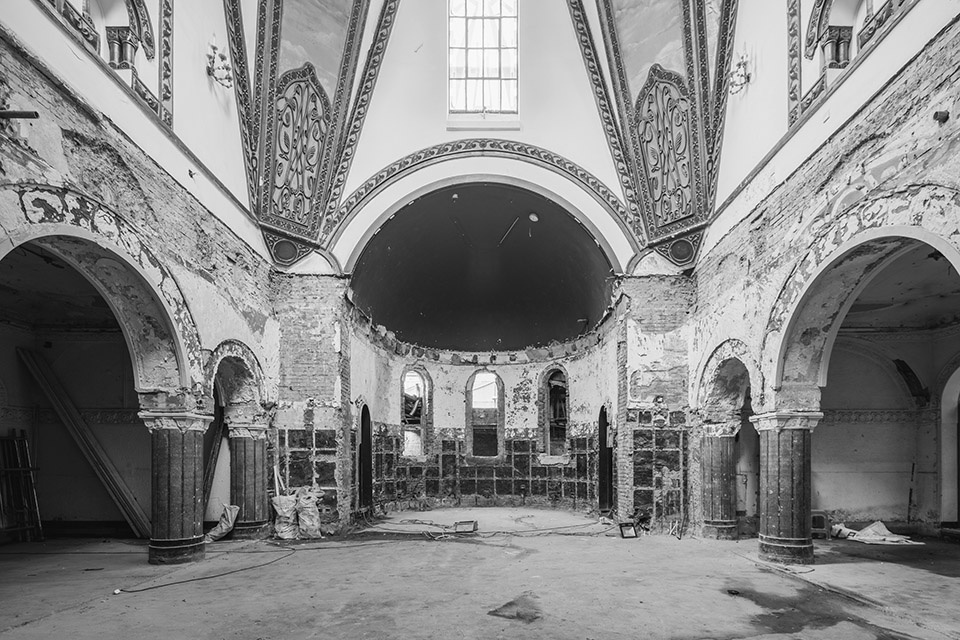

▼拆除后的主殿空间，the main hall after demolition ©Wutopia Lab
The entire project can only be implemented under the permission of the Shanghai Historic Building Protection Affairs Center. No existing façade, structural system, basic floor plan and distinctive interior decoration of the building could be changed. The façade and layout, new and characteristic decorations on wall and dome cannot be changed as well. It is required to remove the unnecessary walls and floors, such as the steel structure interlayer built in the 1990s. The building space should be cleaned up to reveal its original image and keep the height of the main hall. Shorten the build-on part at east side, aligning to the original part.Tracing the original materials, such as pillars, floral decorations, walls, and flooring. After decades of wearing down, only concrete layer were left in the main hall. A small part of aged stone floor was discovered in the side hall, while others were terrazzo added in the 1970s. After repeated grinding and cleaning of the floor tiles, the oil pollution was still faint and it was regarded as the memory of the factory and persisted.

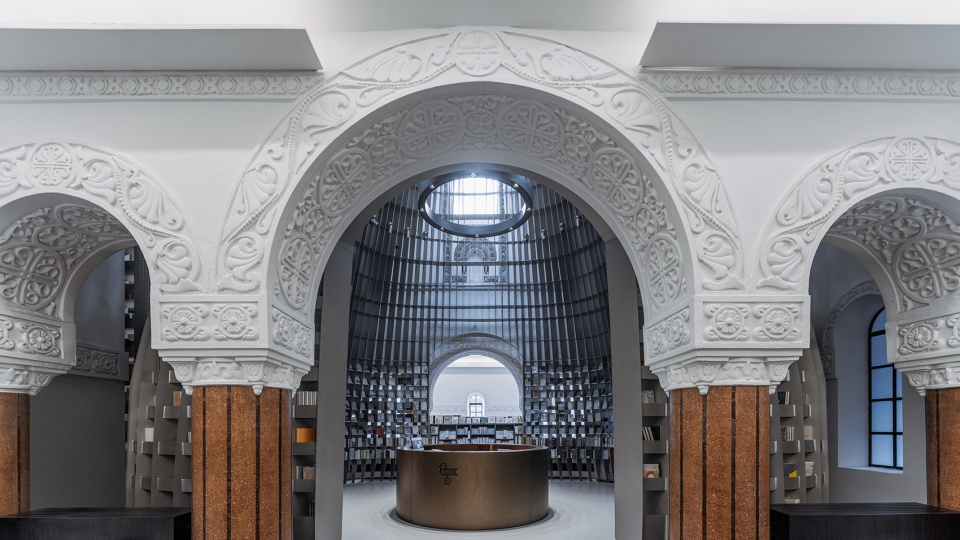

▼主殿的高大空间得以恢复，the height of the main hall has been kept in the building ©CreatAR Images
Church in church
我相信诗歌书店应该是上海这个城市的神圣空间，它要有独立的精神性而不应该假于旧址的宗教性。既然教堂旧址的墙壁天顶不可以触碰，那我就用书架在旧建筑Church中创造一个独立结构体系的新建筑Church作为书店。这就是Church in church。一个现代人的精神庇护所诞生在曾经是某些人的信仰庇护所之内。与砖石砌筑的教堂旧址不同，我用银光闪闪的钢板打造了这个新书店。书架的隔板和立档都是全焊接钢板网格结构体系的一部分。它们彼此作用形成一个钢铁书架构建的室内建筑——诗歌书店。书架没有背板，穹顶的光线依然可以洒入书店。书架还隐隐约约露出教堂旧址从1920到2019不同年代的痕迹包括那组21世纪初作为餐厅时，老板请美院学生绘制的天主教风格壁画。这样钢铁书店和砖石教堂就成为一个新的整体。

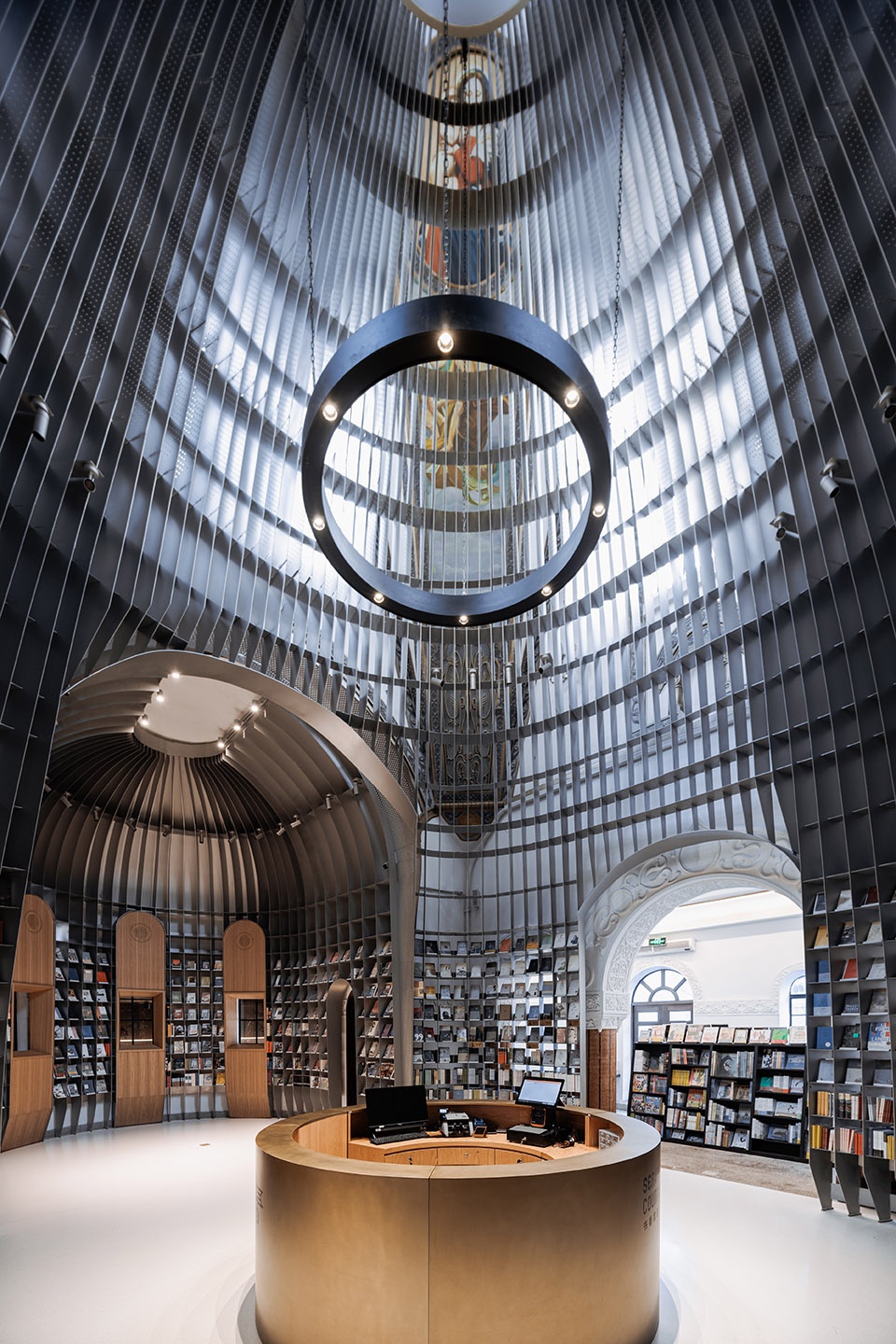

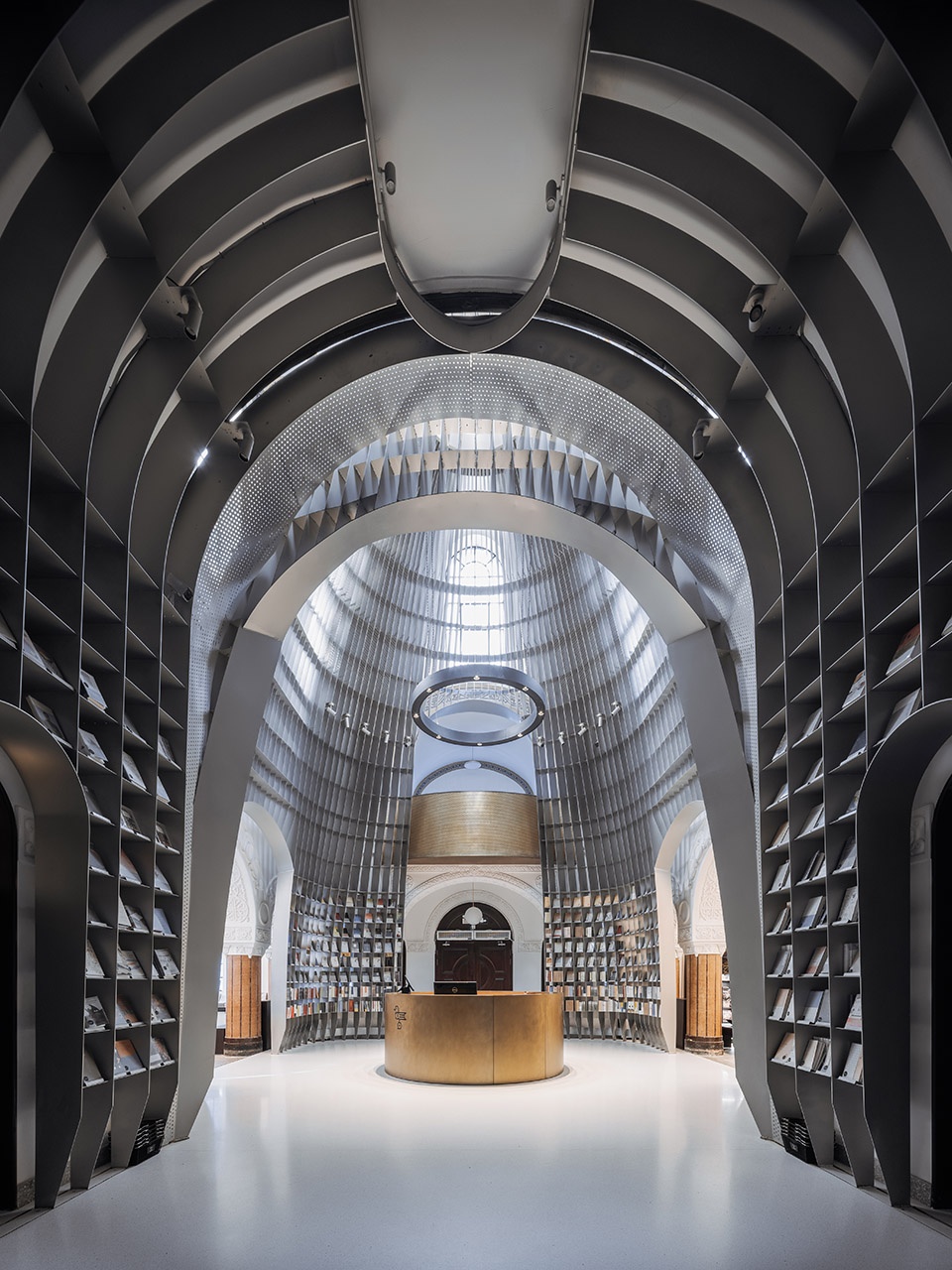

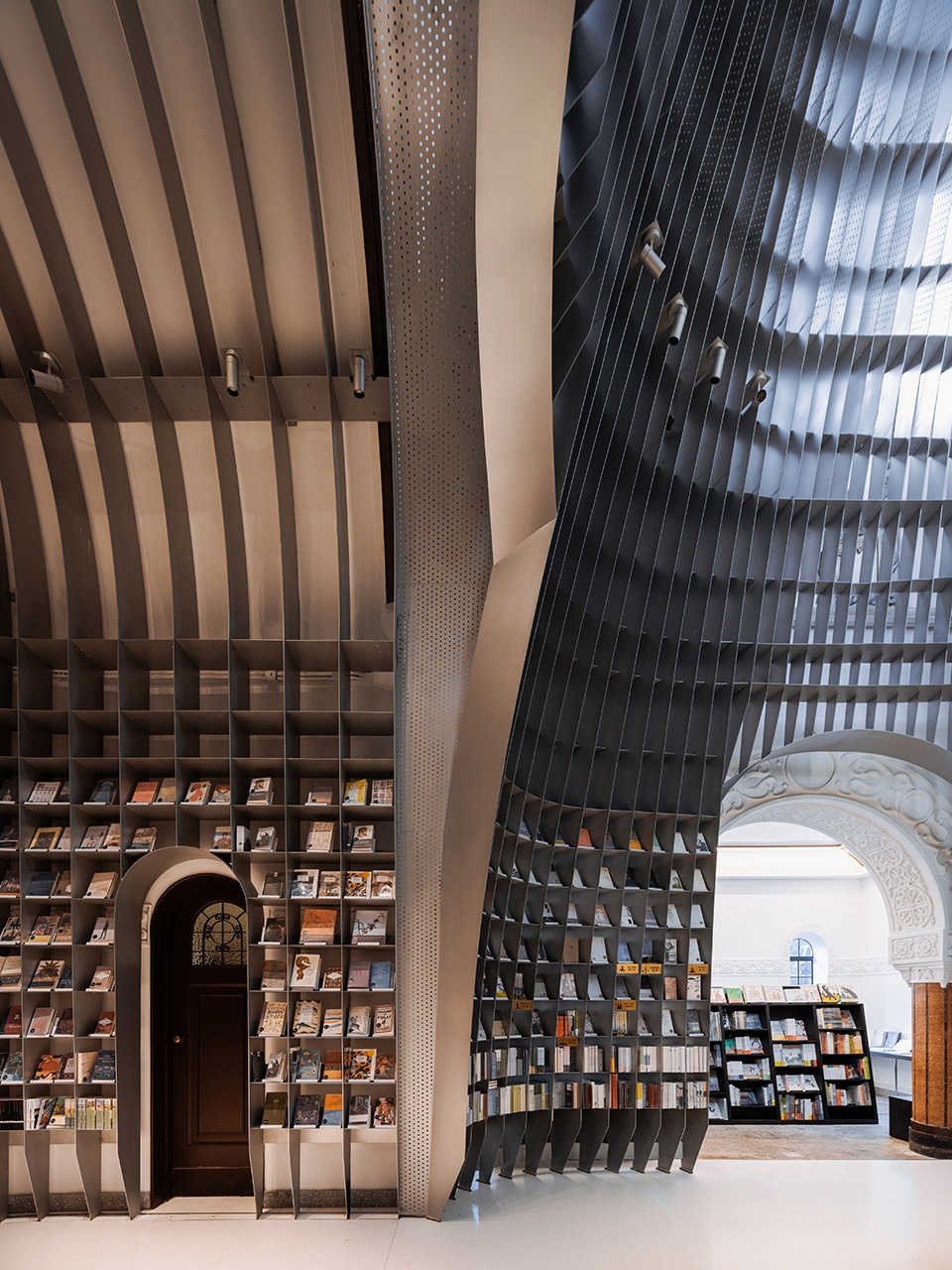

▼旧教堂建筑内的新独立结构体系，a new structure as a Church in the old building Church ©CreatAR Images
I believe that the poetry bookstore should be the sacred space of the city of Shanghai. It should have an independent spirituality and should not be based on the religion of the old site. Given the fact that the dome could not be transformed, I used bookshelf to create a new structure as a Church in the old building Church. This is Church in church, a sanctuary for modern people was born in where once a sanctuary of faith. I chose to use plated steel plates other than the stone in old site. The partition and stand of the bookshelf are welded as a steel plate grid system. They interact with each other to form an inner space—a poetry bookstore. The bookshelf has no back panel, and the light from the dome can still spill into the bookstore. Different traces from 1920 to 2019 on the wall are faintly revealed through the bookshelf, including the Catholic-style frescoes that the owner asked the students of the Academy to draw when the group was used as a restaurant in the early 2000s. The steel bookstore and masonry church became a new integrate.

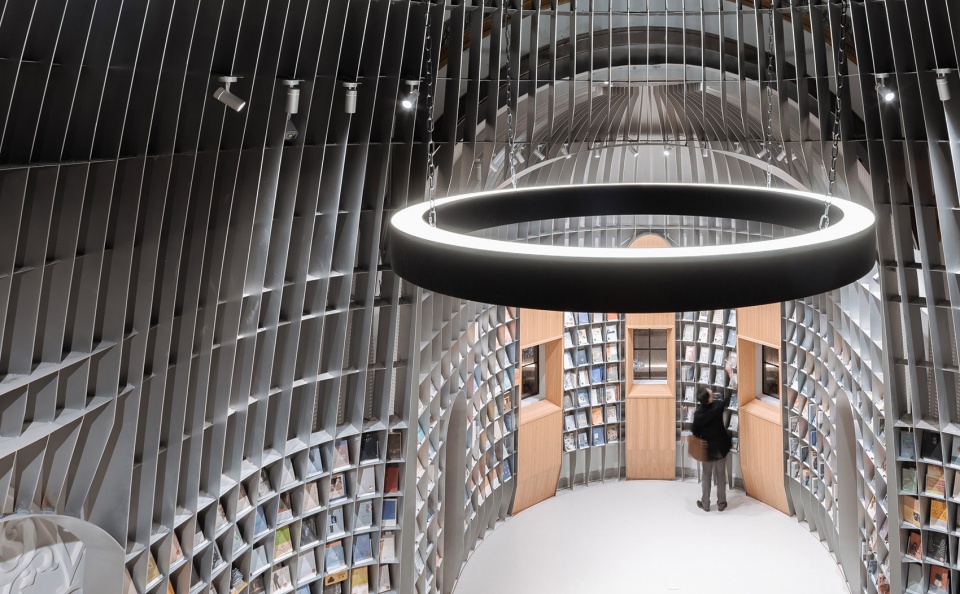

▼用银光闪闪的钢板打造的新书店，a bookstore built with glowing, plated steel plates ©CreatAR Images

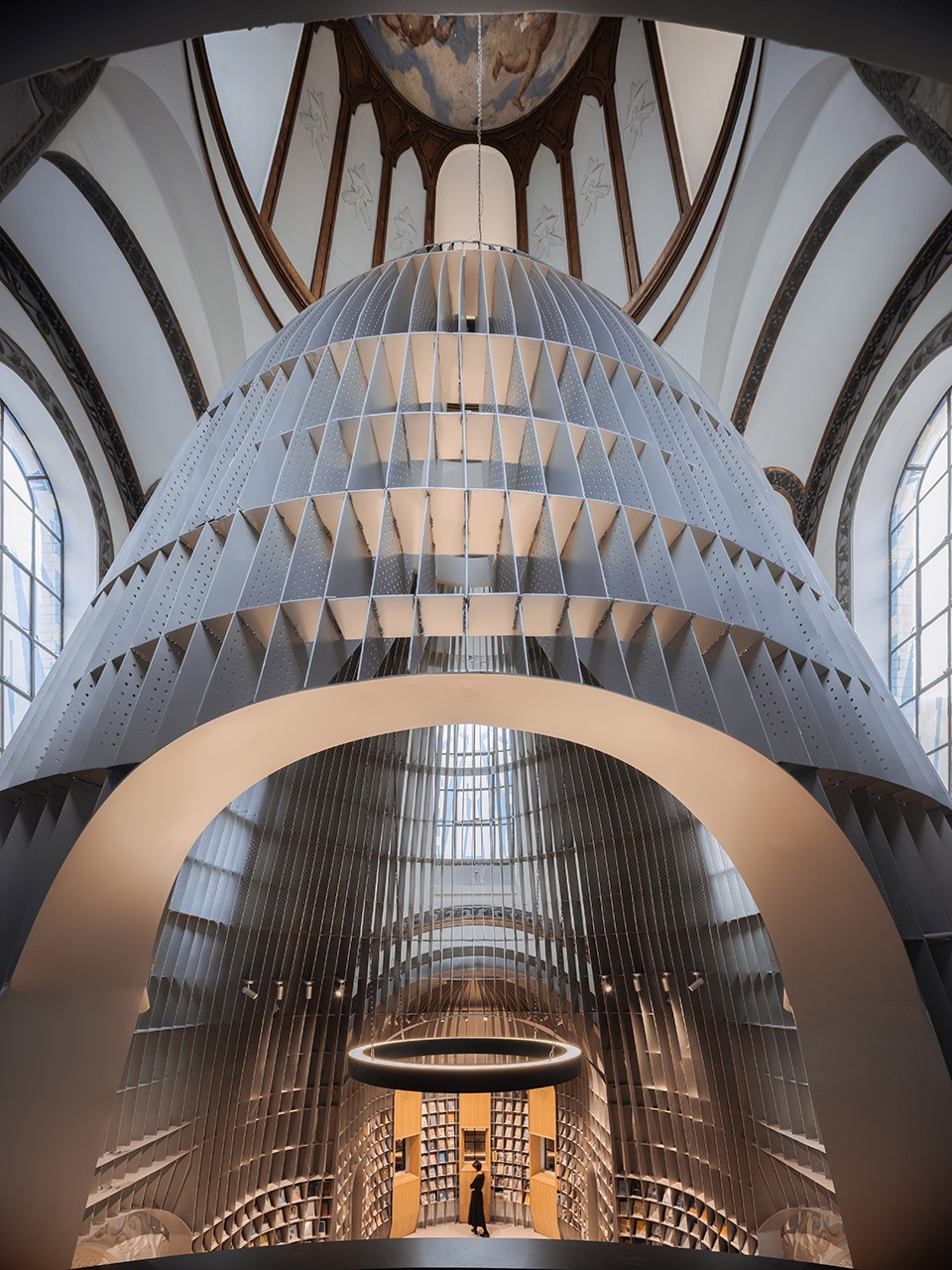

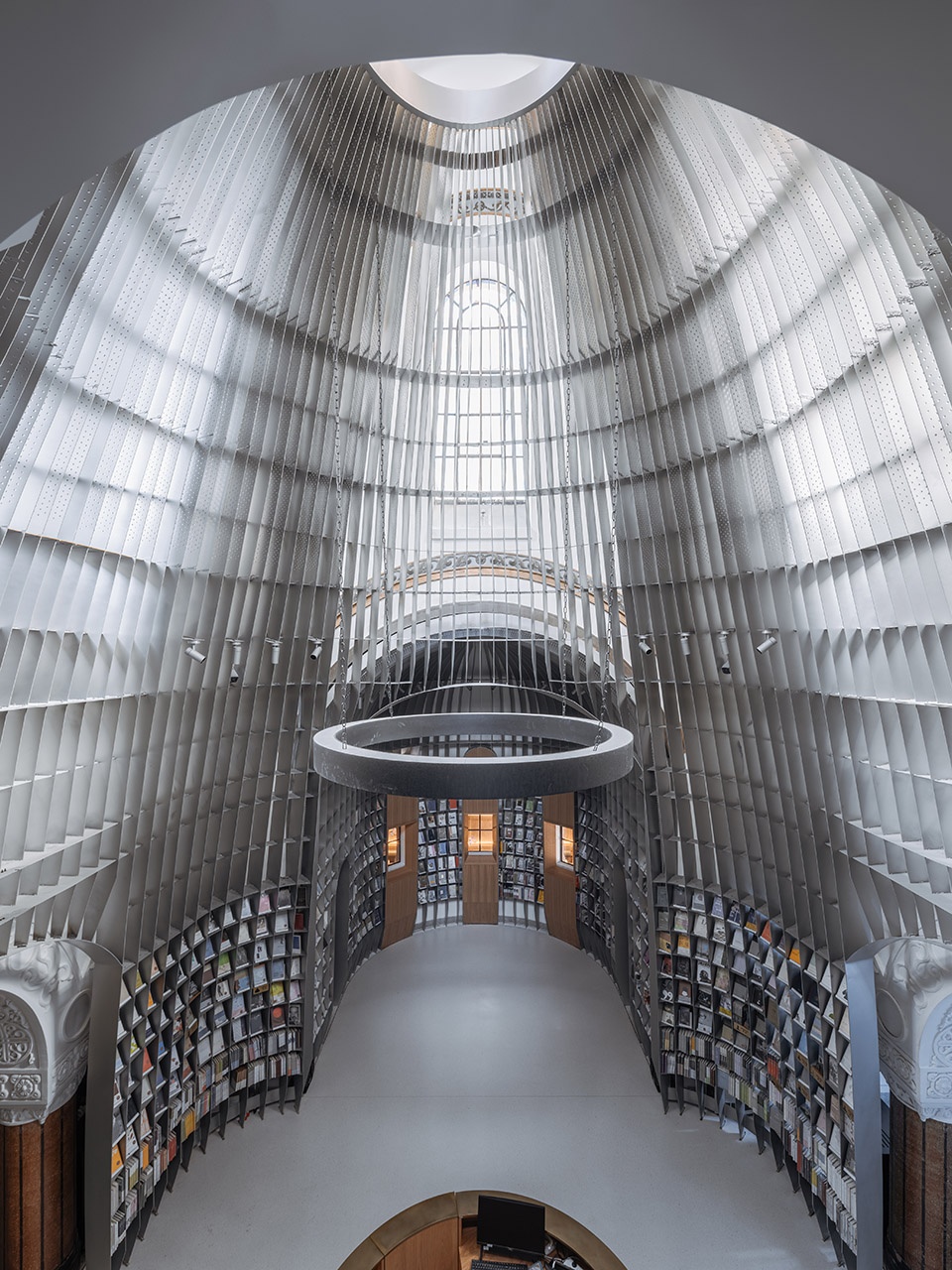

▼穹顶的光线依然可以洒入书店，the light from the dome can still spill into the bookstore ©CreatAR Images
▼穹顶细部，detailed view of the dome ©CreatAR Images

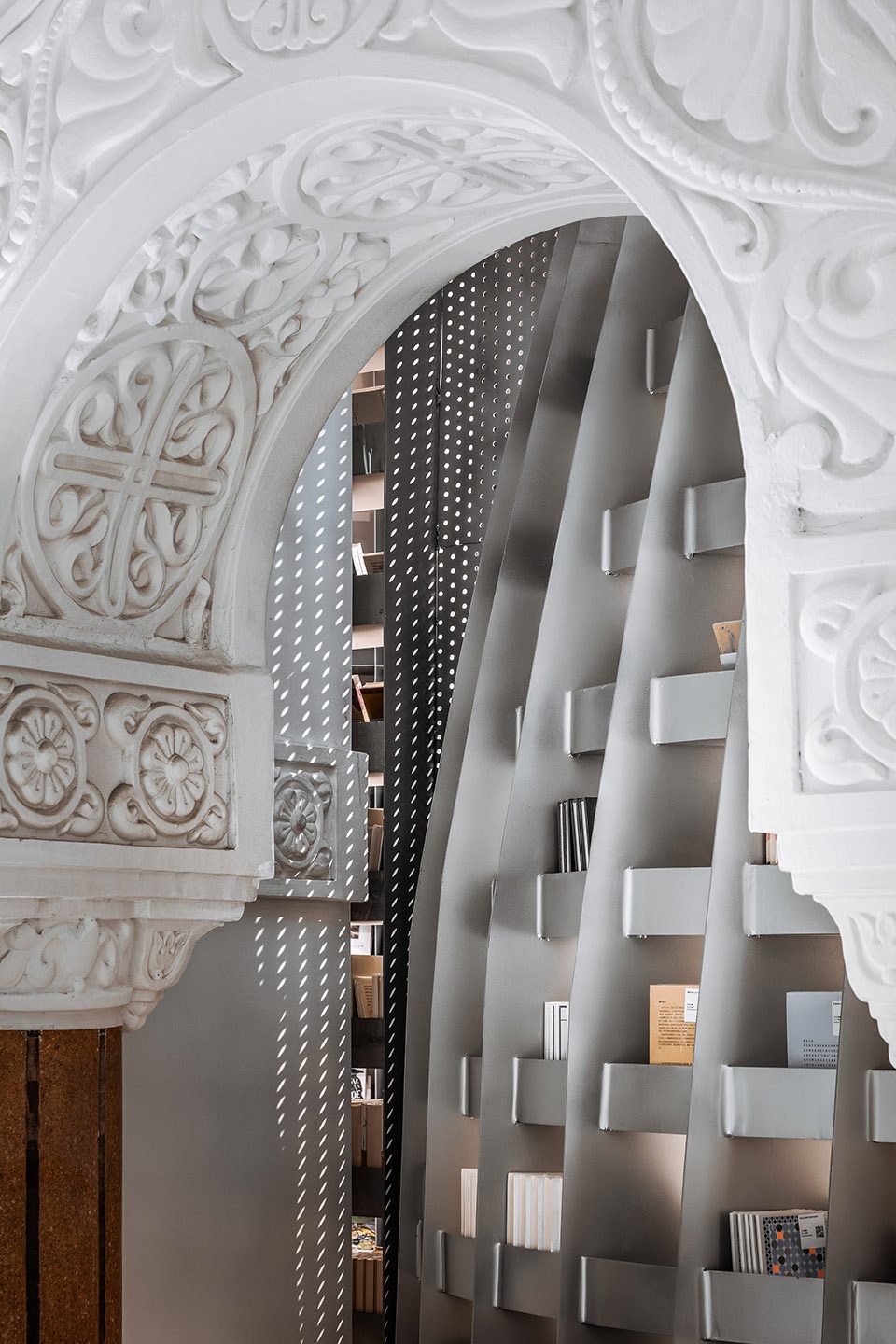

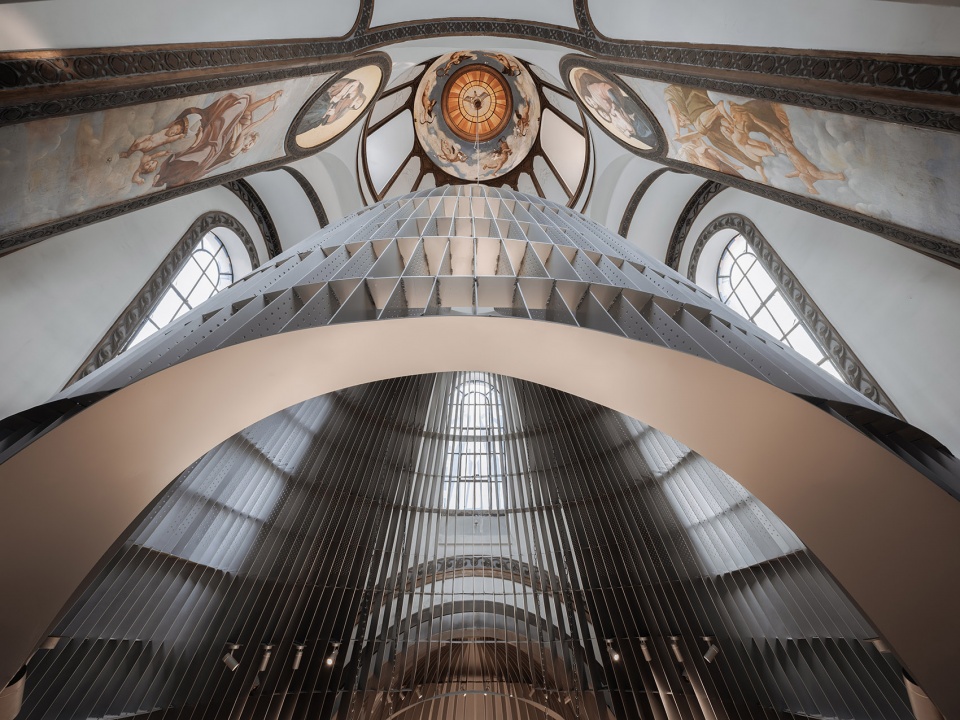

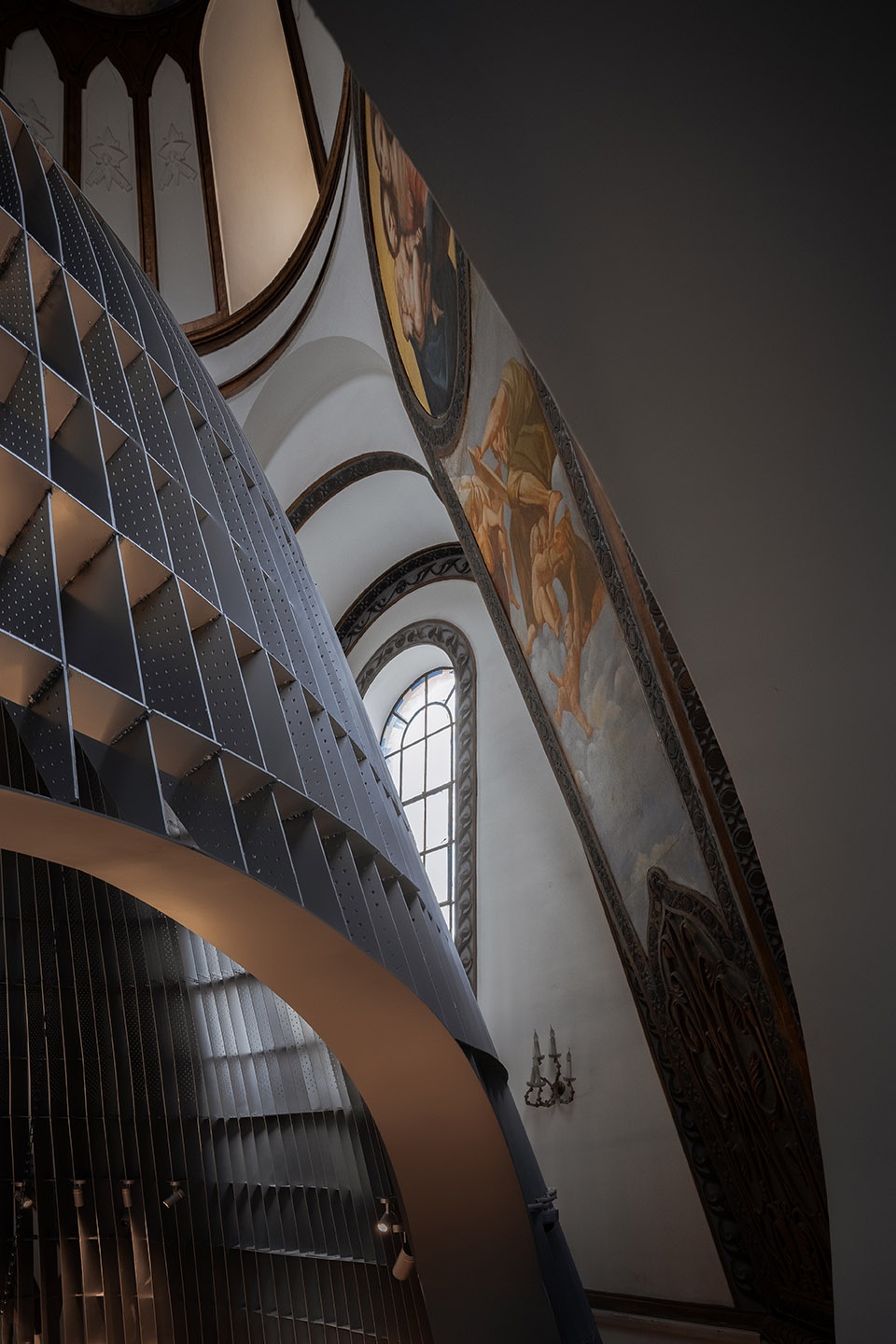

▼书架隐约露出教堂的天主教风格壁画，the Catholic-style frescoes are faintly revealed through the bookshelf ©CreatAR Images

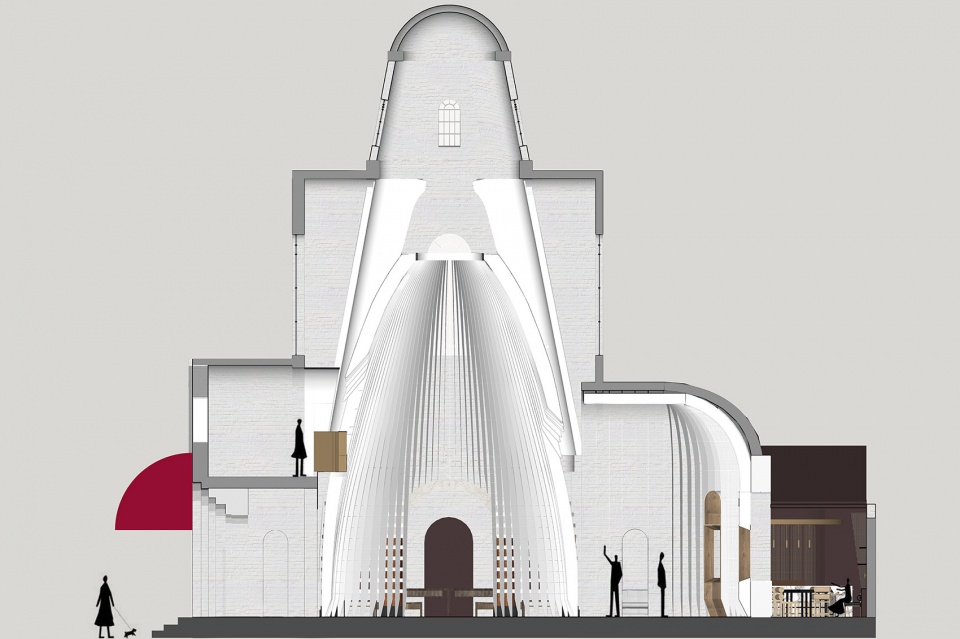

▼剖面图，section ©Wutopia Lab

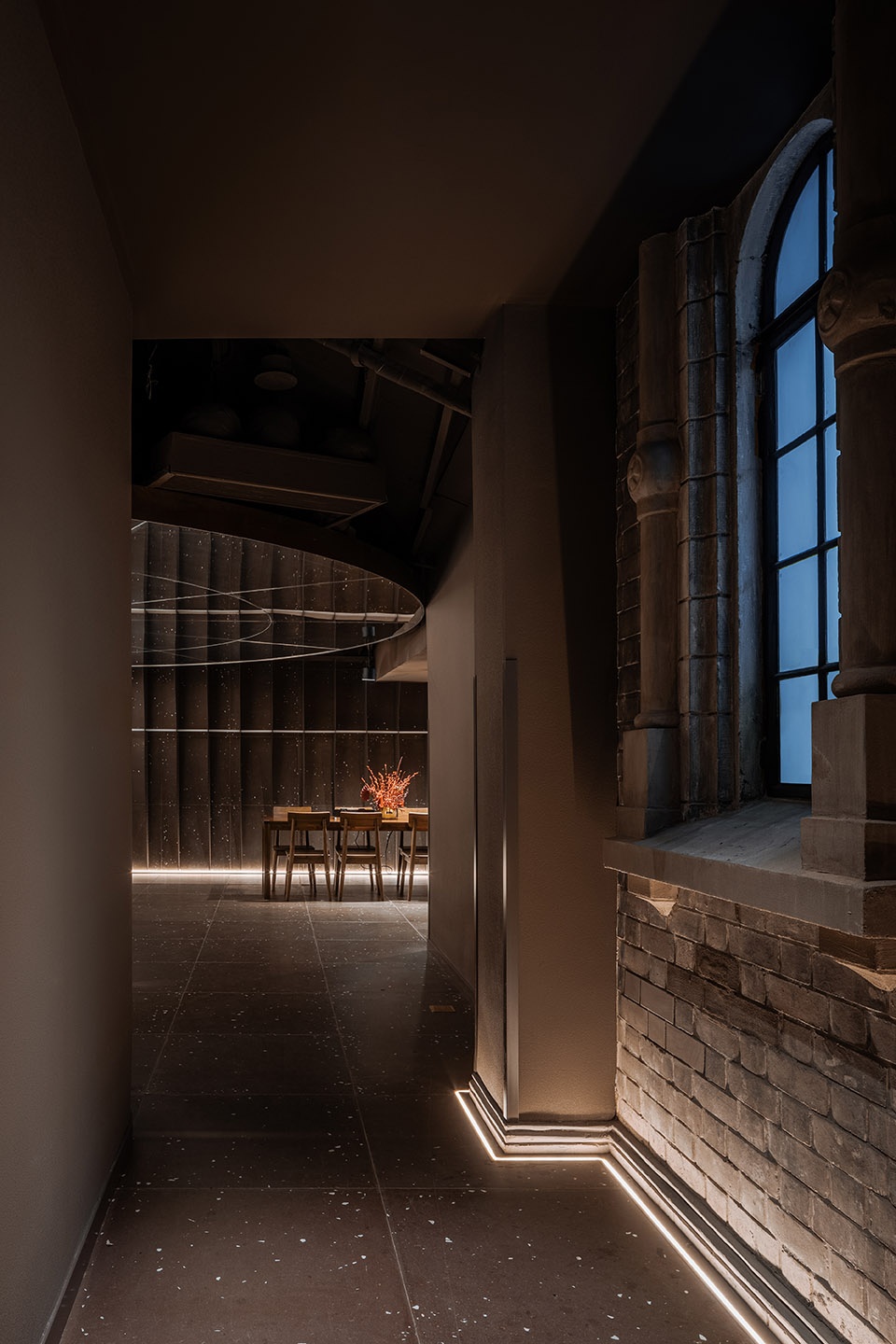

With light strips on wall, readers could figure out the original outline of the church and tell which part is newly add-on. East and west part of the church was transformed into a café. Contracting to the silver metal bookstore, I used chocolate color to make the café a mild and cozy atmosphere.

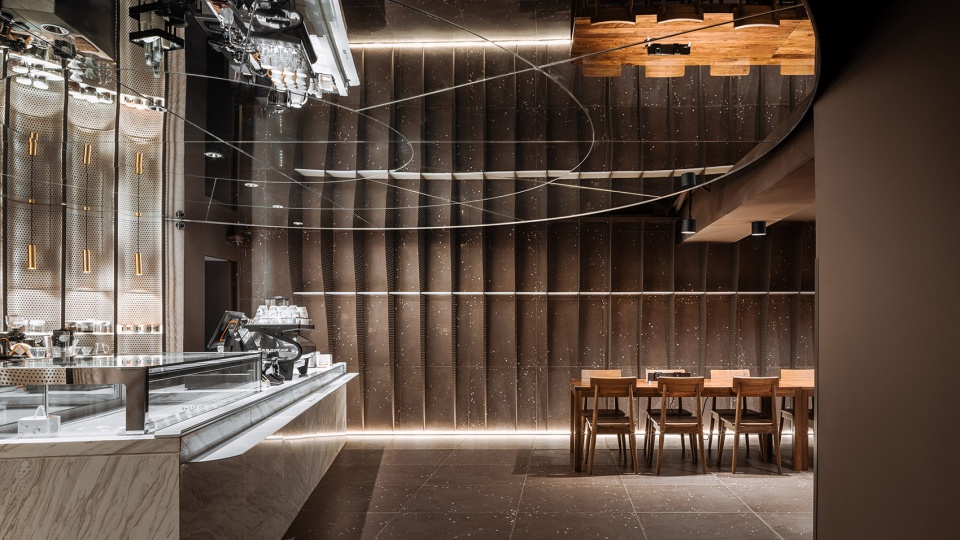

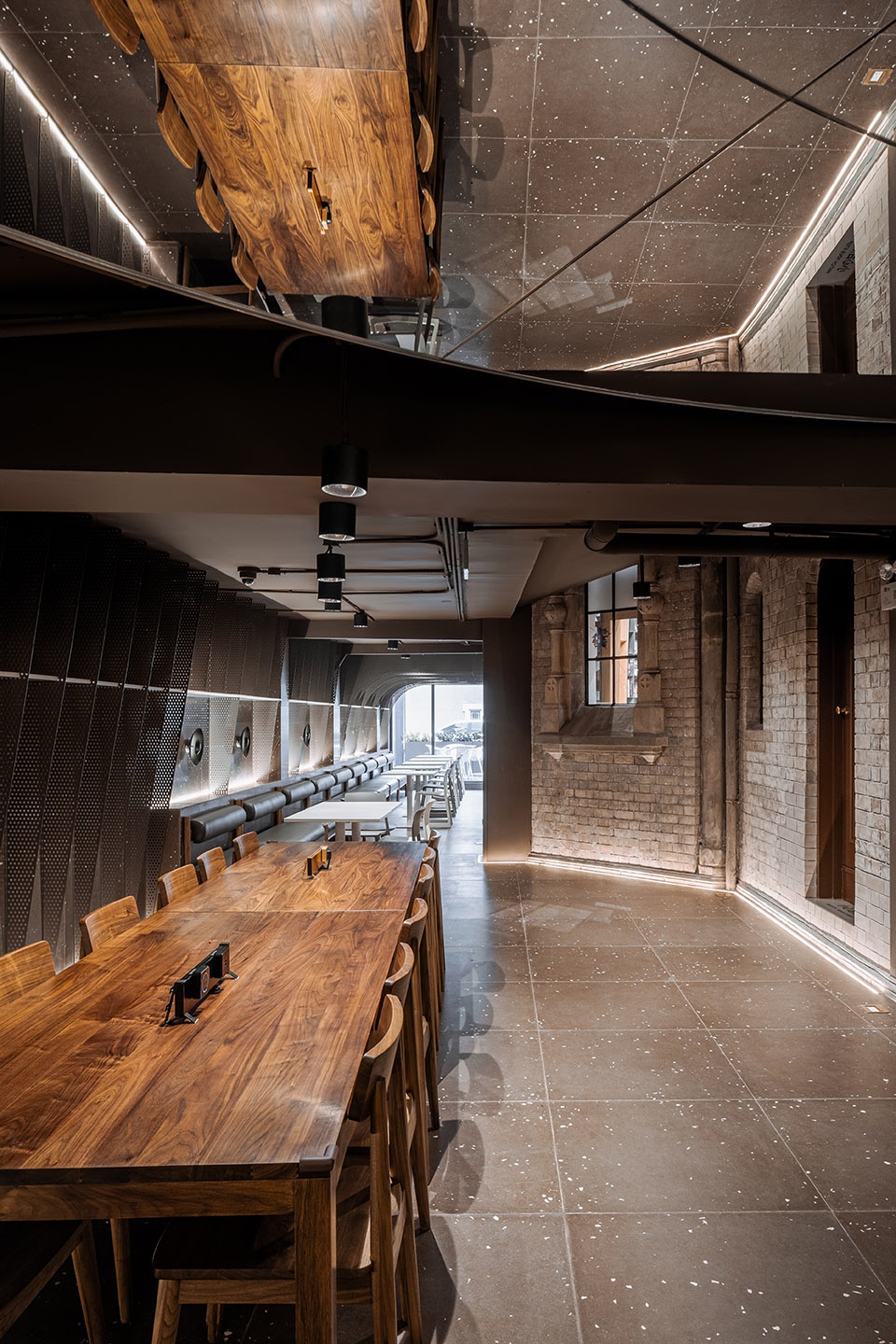

▼咖啡馆空间，the café area ©CreatAR Images

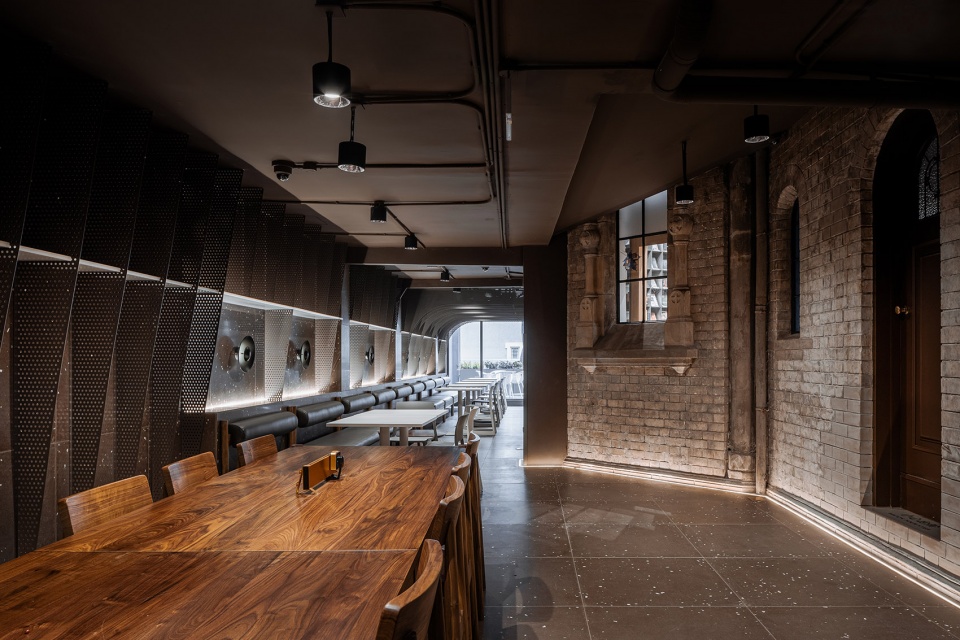

▼温和慵懒的背景色， a mild and cozy atmosphere ©CreatAR Images

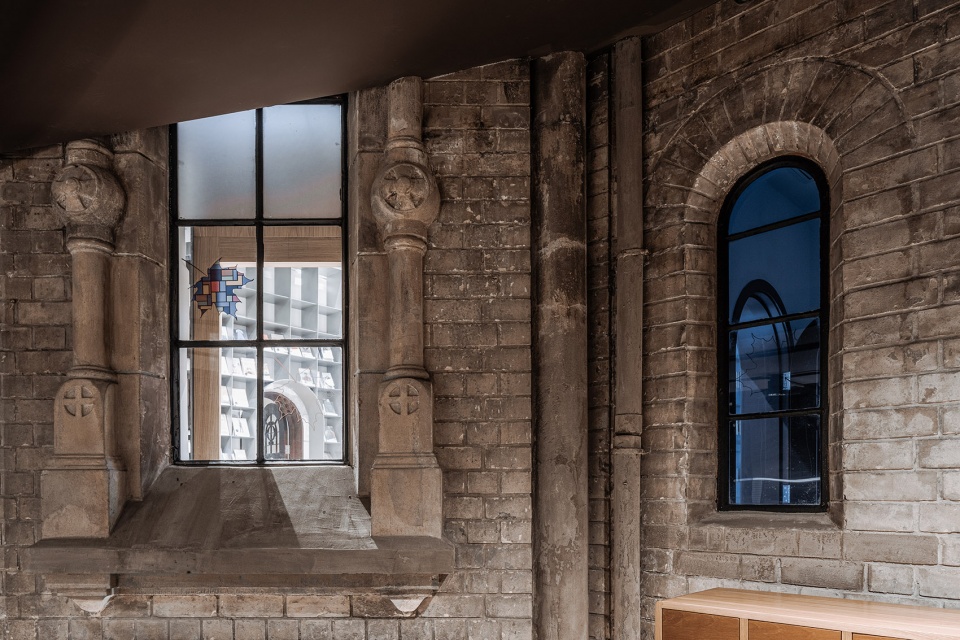

The bookstore is an interior project that does not involve the preservation and renovation of the facade. We tested on the wall by the side of café, which is an inner wall but basically an outer wall , to see if there are layers of paints covering on the wall. After peeling off layers of paints, the texture and vicissitudes of 1932 were finally revealed.

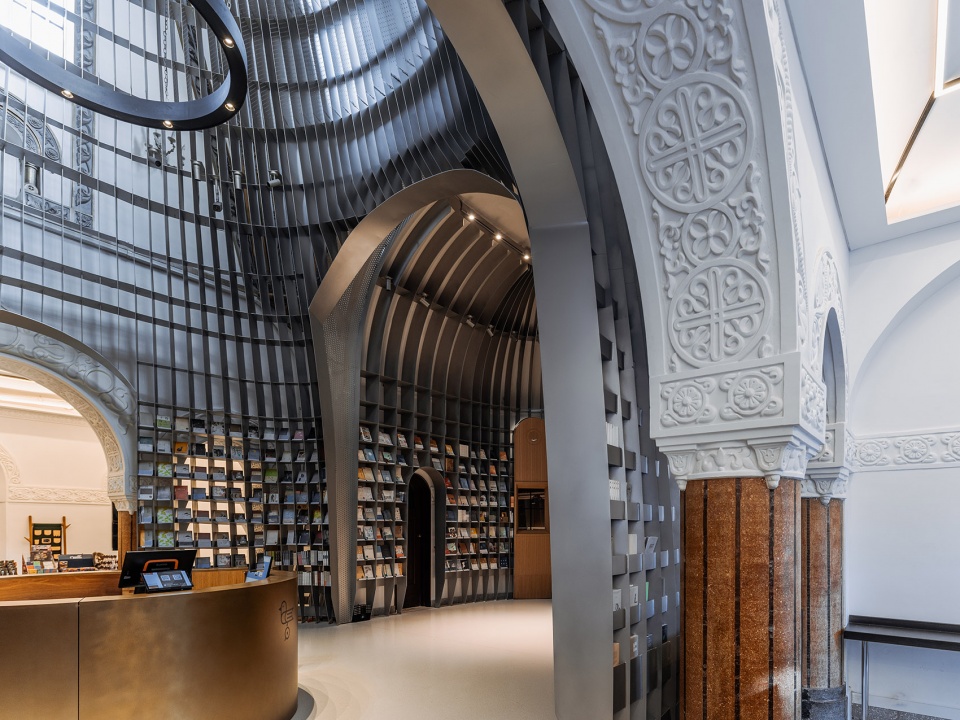

▼咖啡馆与书店的关系，the relation ship between the cafe and the bookstore ©CreatAR Images

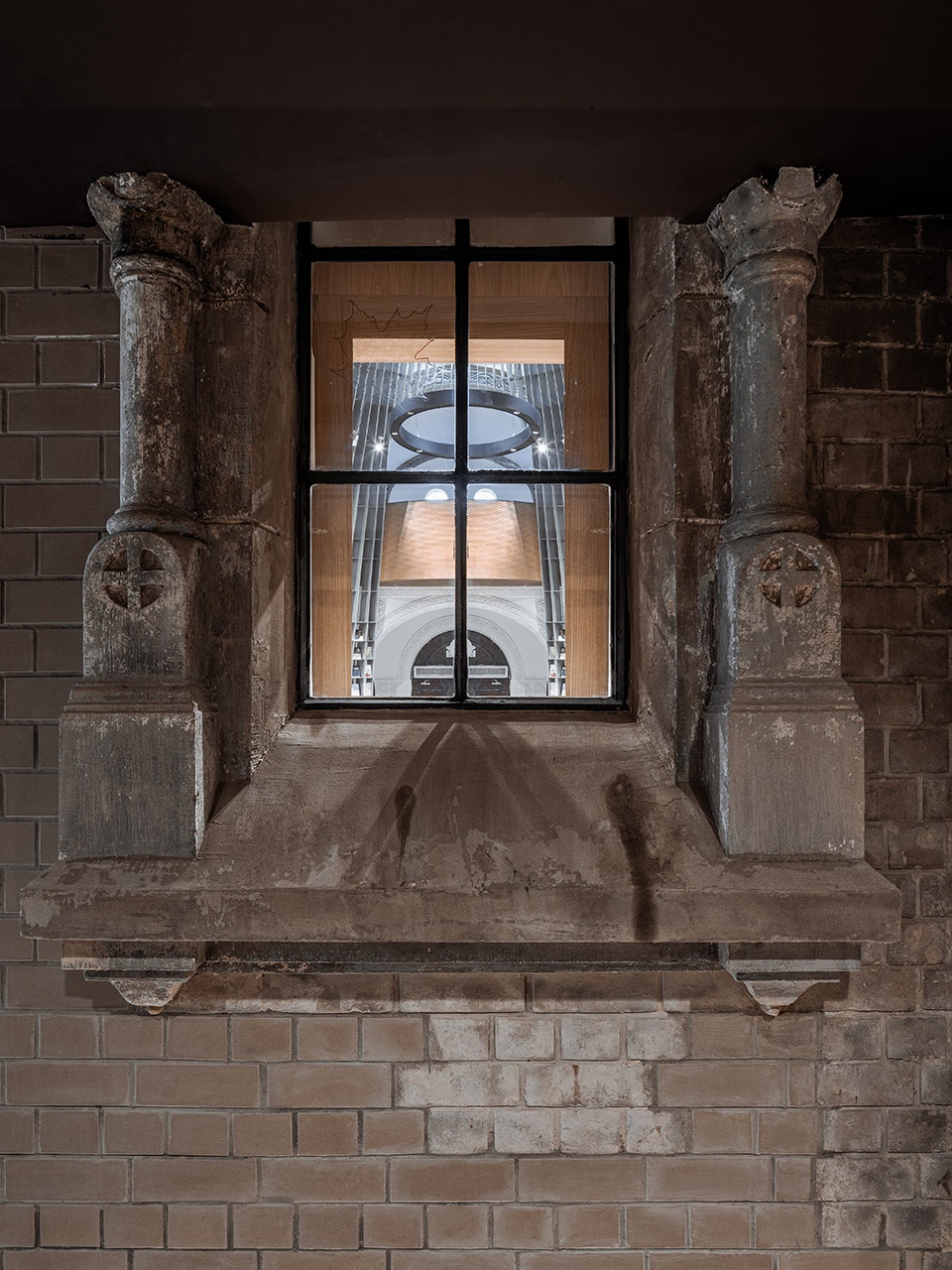

▼窗外一瞥，a glance to the bookstore ©CreatAR Images
I chose blue film to replace the faded color window. An infinitely transparent blue is rendered when sunlight spilling into the side hall, dissolving the physical sense of the side hall and highlighting the brightness of the main hall.
▼蓝色贴膜渲染出接近无限透明的蓝色，an infinitely transparent blue is rendered by the blue film stick on the window ©CreatAR Images

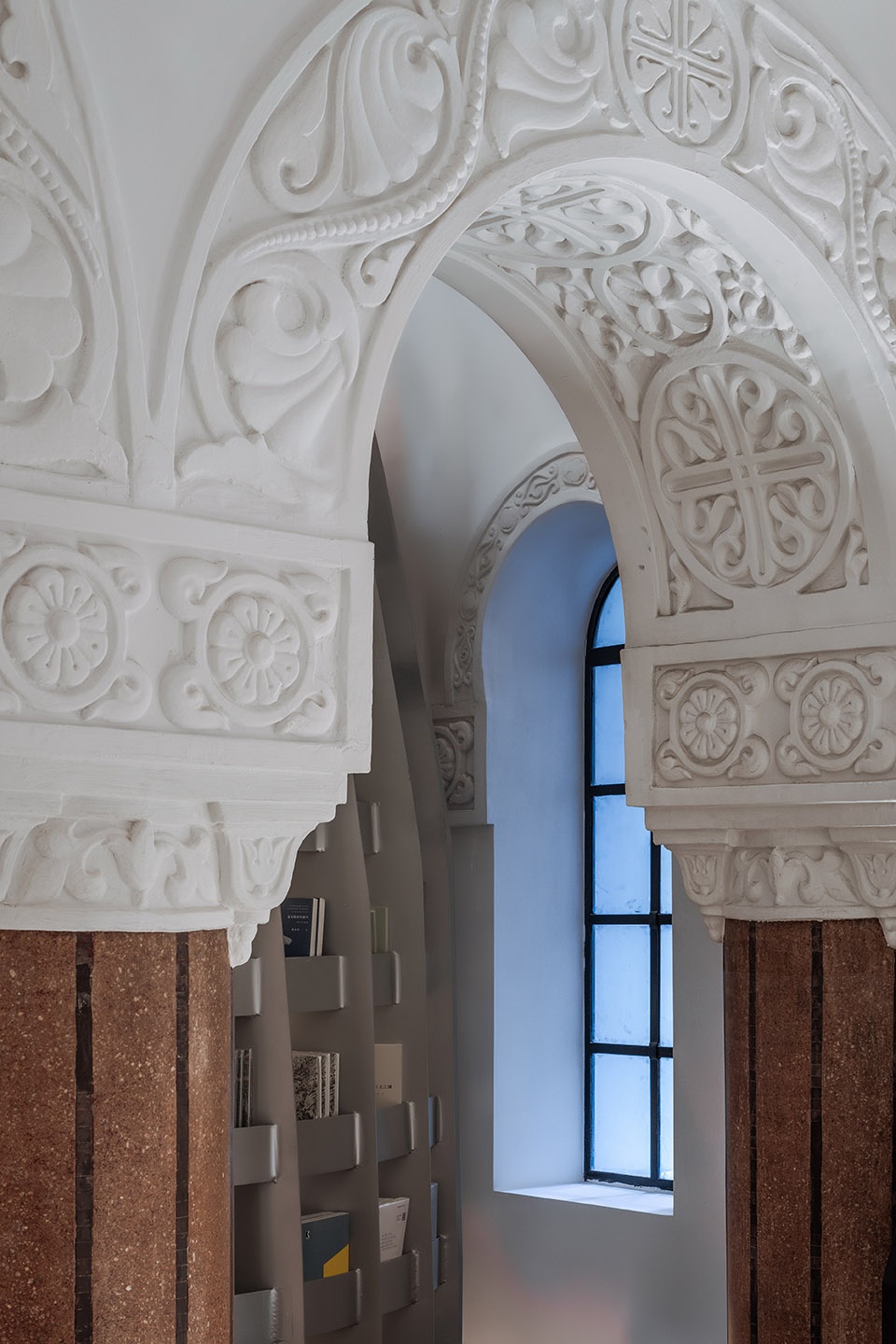

▼空间细部，detailed view ©CreatAR Images
▼窗户细部，window detailed view ©CreatAR Images
The steel bookstore was built by 30 workers in 80 days. Workers must first cut 5mm steel plates into 128 standpipes, 640 large steel plates and 2921 small steel plates for 23 layers of crossbars according to the drawings. After pre-assembled correctly outdoor, the pieces were moved inside and welded together. Finally, this bookstore of 388 square meters and a height of 9.9 meters was methodically formed left a 50 cm gap from the old wall.

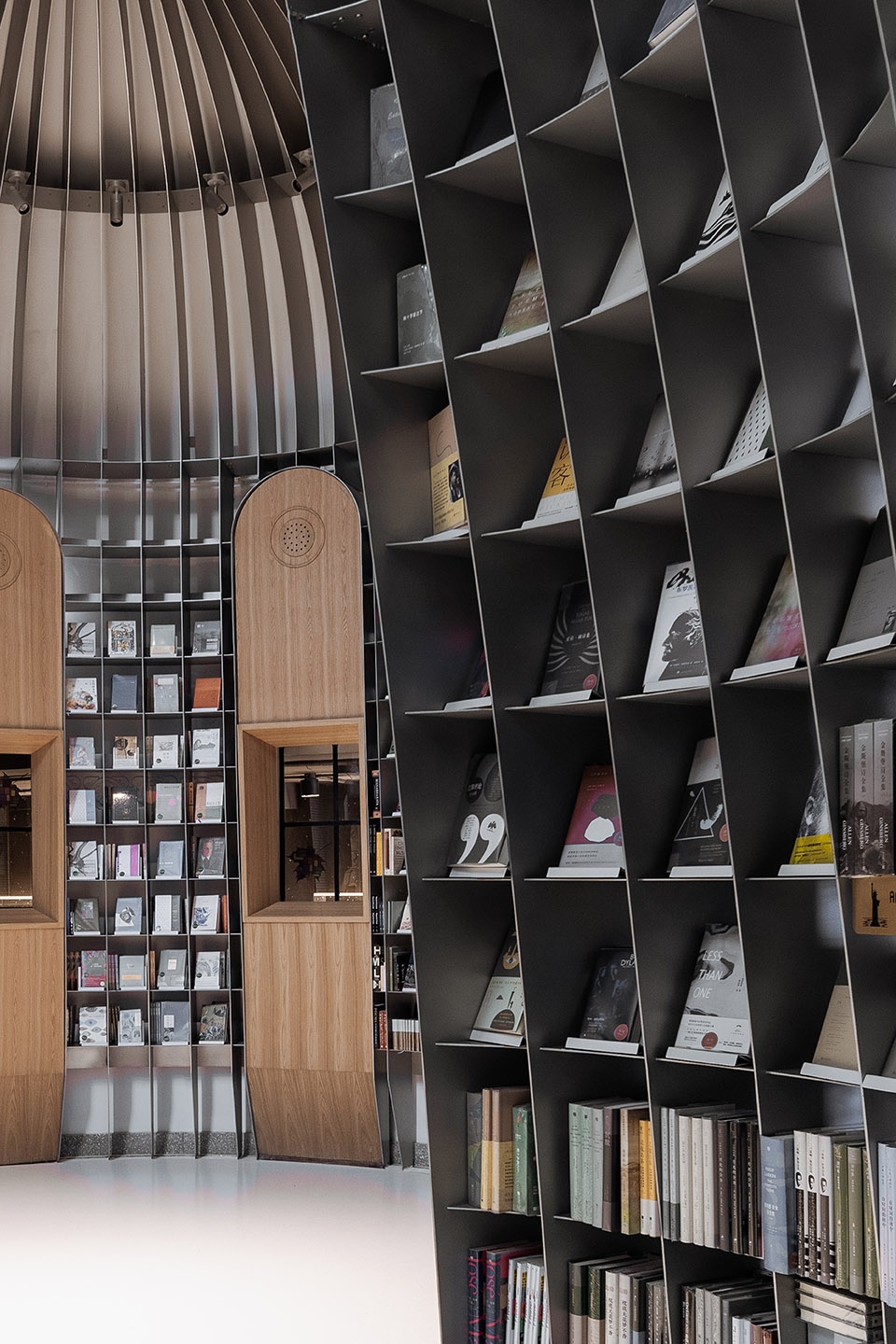

▼由一系列钢板构成的书架，the book shelves made of steel plates ©CreatAR Images

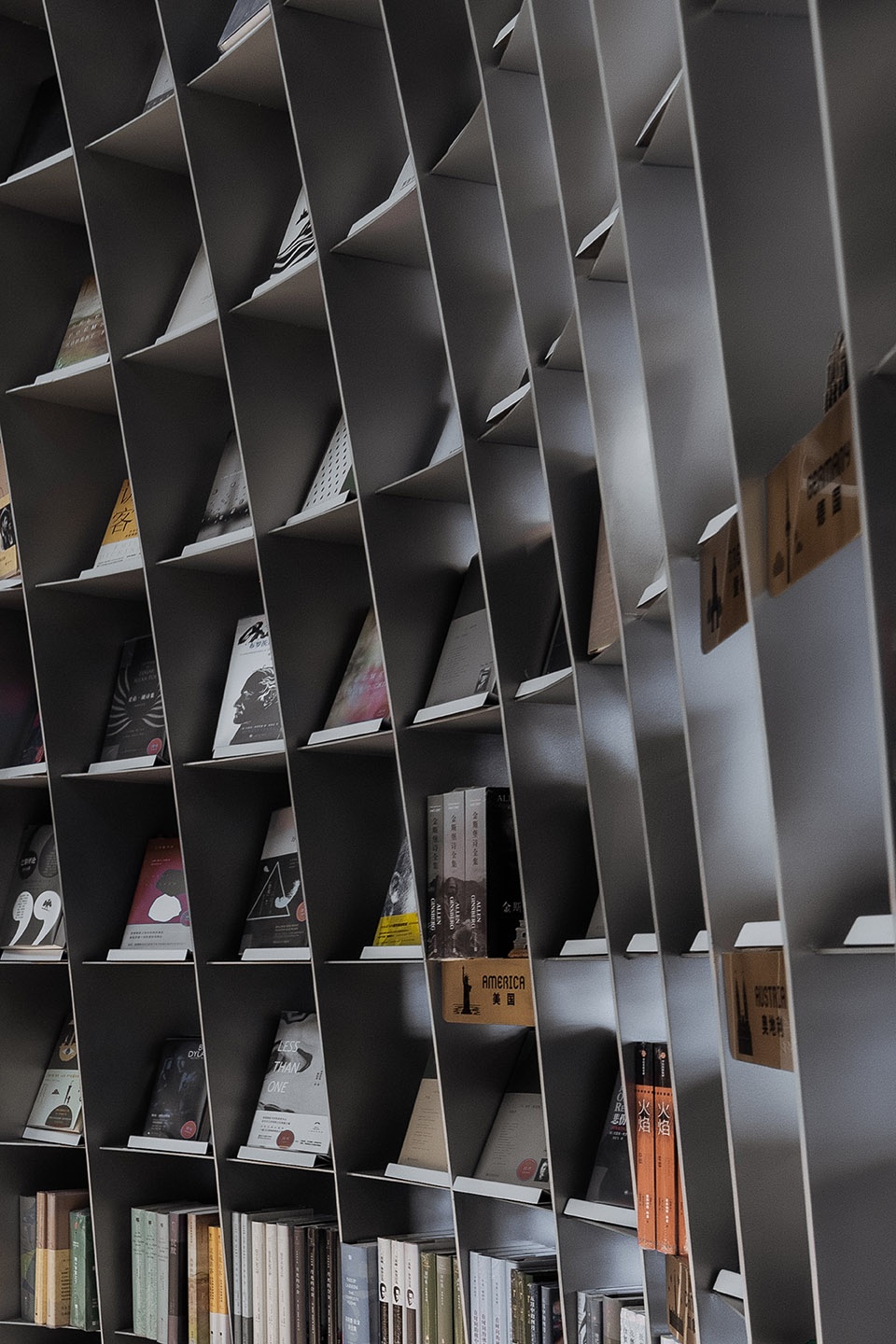

▼书架细部，detailed view ©CreatAR Images
▼书店空间俯瞰，an overlook to the bookstore ©CreatAR Images
In the silver bookstore, a balcony was transformed into a golden pulpit. Here you can see how the steel bookstore and the old masonry church are interwoven without touched. The poet should recite aloud in this noble place. “when people come to the world, if they can not make others better, they will make them worse.”-Eliot

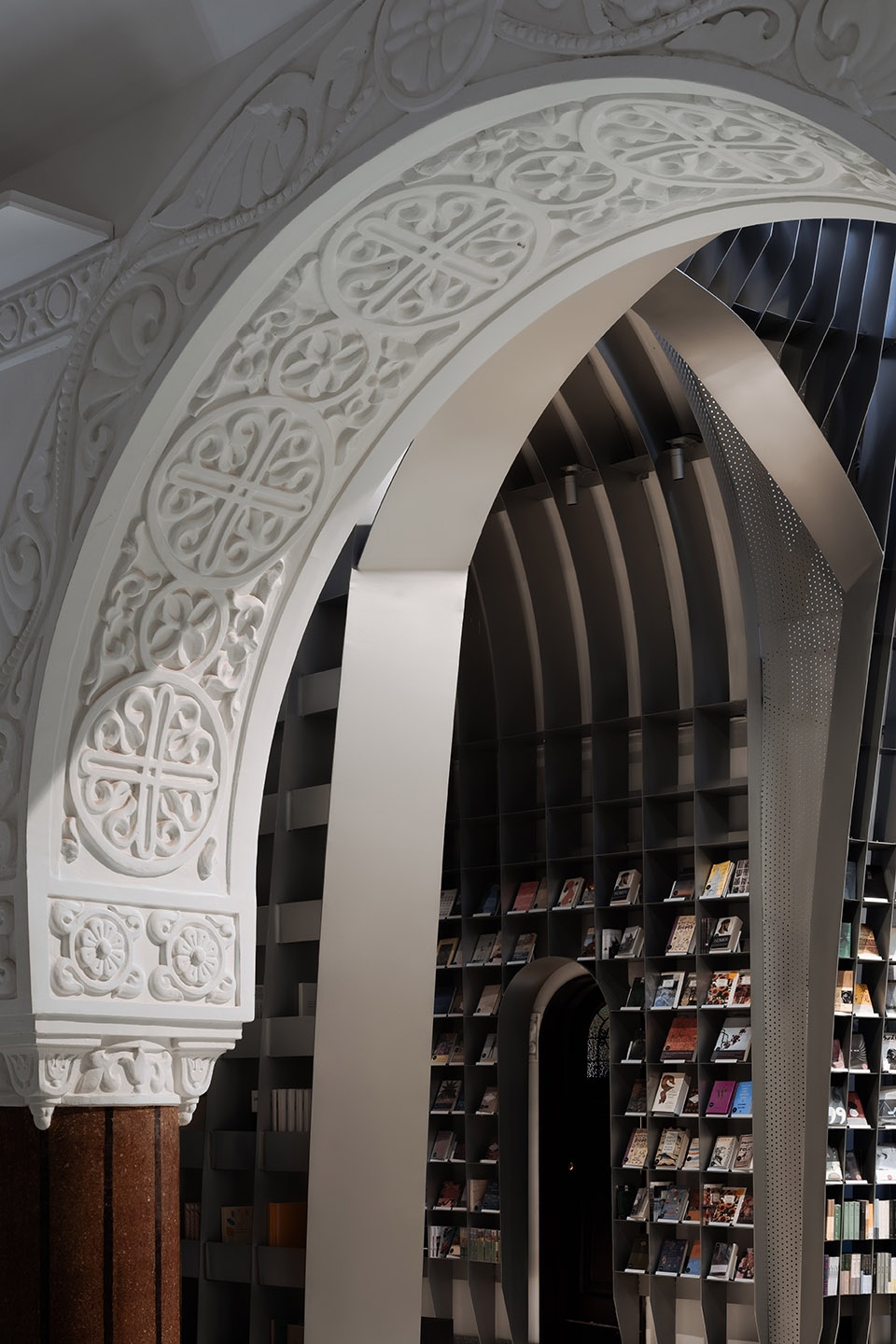

▼钢铁书店和砖石教堂形成互不触碰却你中有我的关系，the steel bookstore and the old masonry church are interwoven without touched ©CreatAR Images

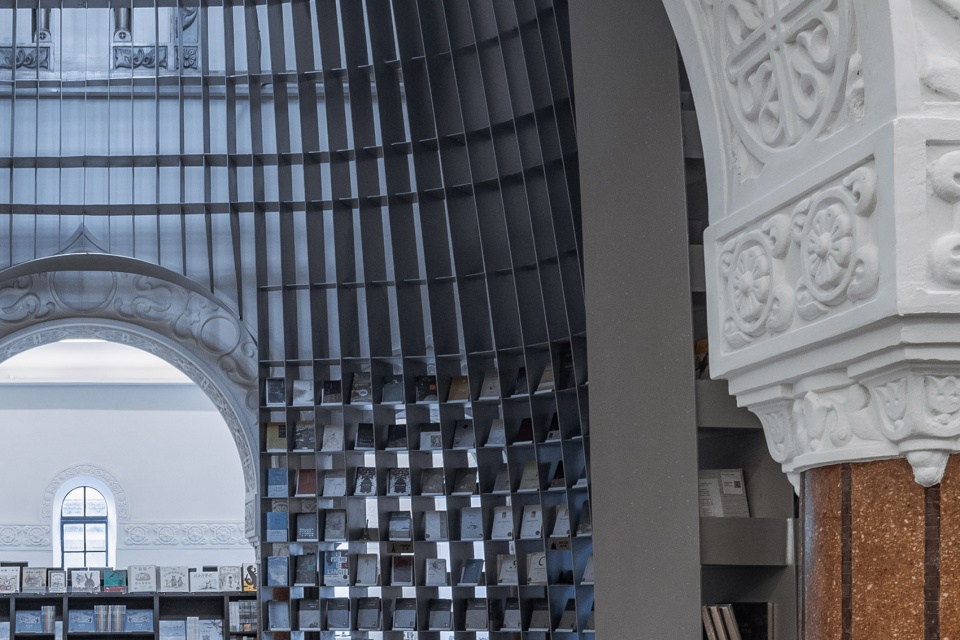

▼新旧结构细部，the details of the old and new structure ©CreatAR Images

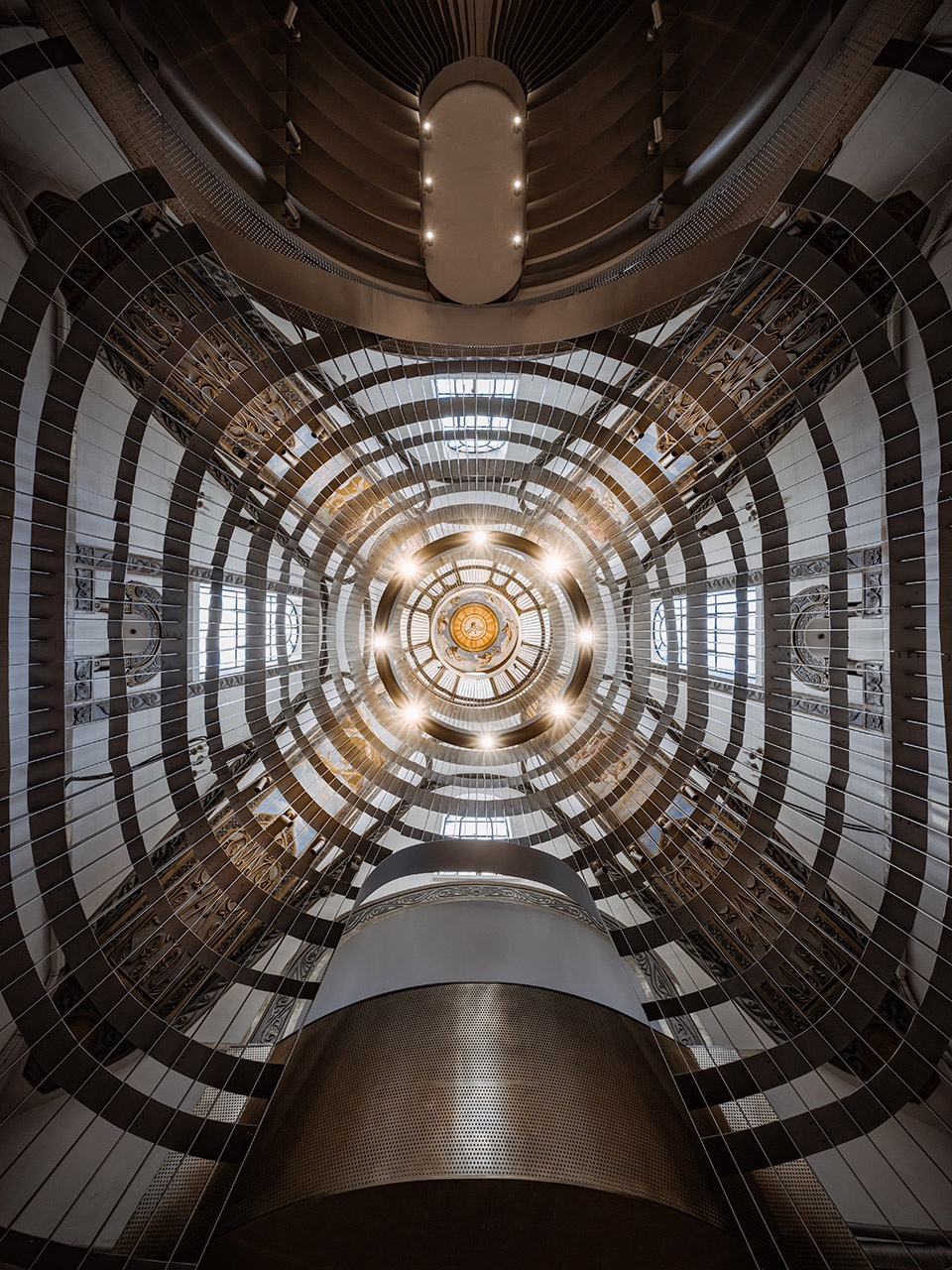

▼仰望穹顶，looking up to the dome ©CreatAR Images
On the day of completion, I walked up the spiral staircase shrouded in blue light. I stood in front of the pulpit and whispered my own sentence, “I love poetry, and I use it to create the world.” The Sinan Books poetry store I designed is a gift “For the infinite few” (Jiménez). It is the soul of Shanghai.

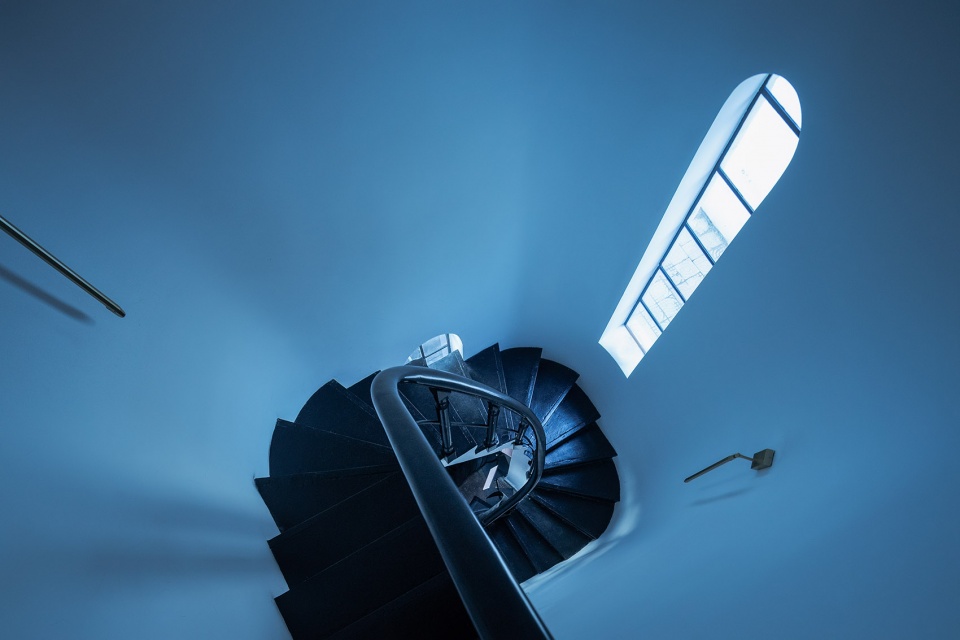

▼蓝光笼罩的螺旋楼梯， the spiral staircase shrouded in blue light ©CreatAR Images
“Poetry is connate with the origin of man.” – Shelley
▼思南书局诗歌店，Sinan books poetry store ©CreatAR Images

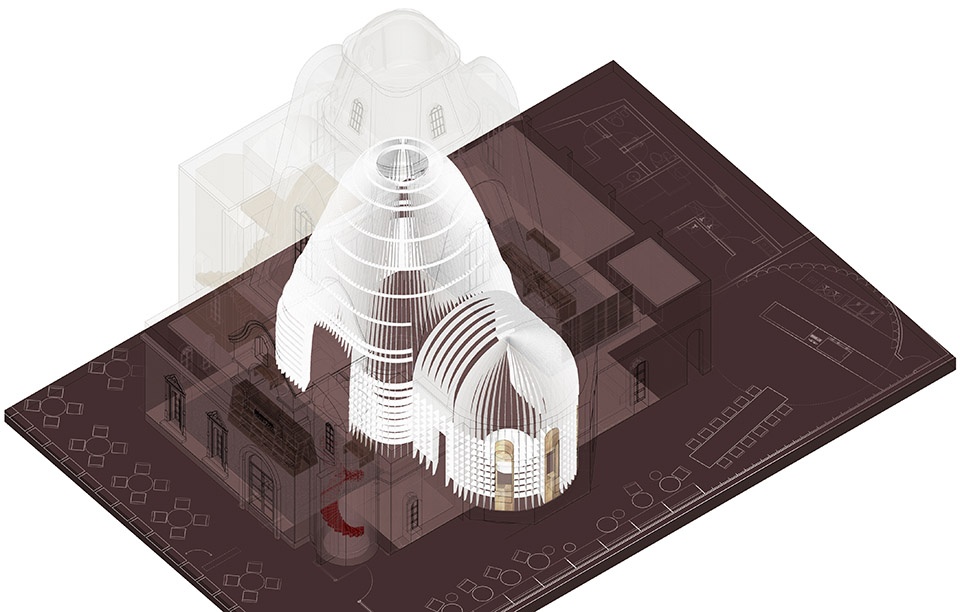

▼轴测图，axon ©Wutopia Lab

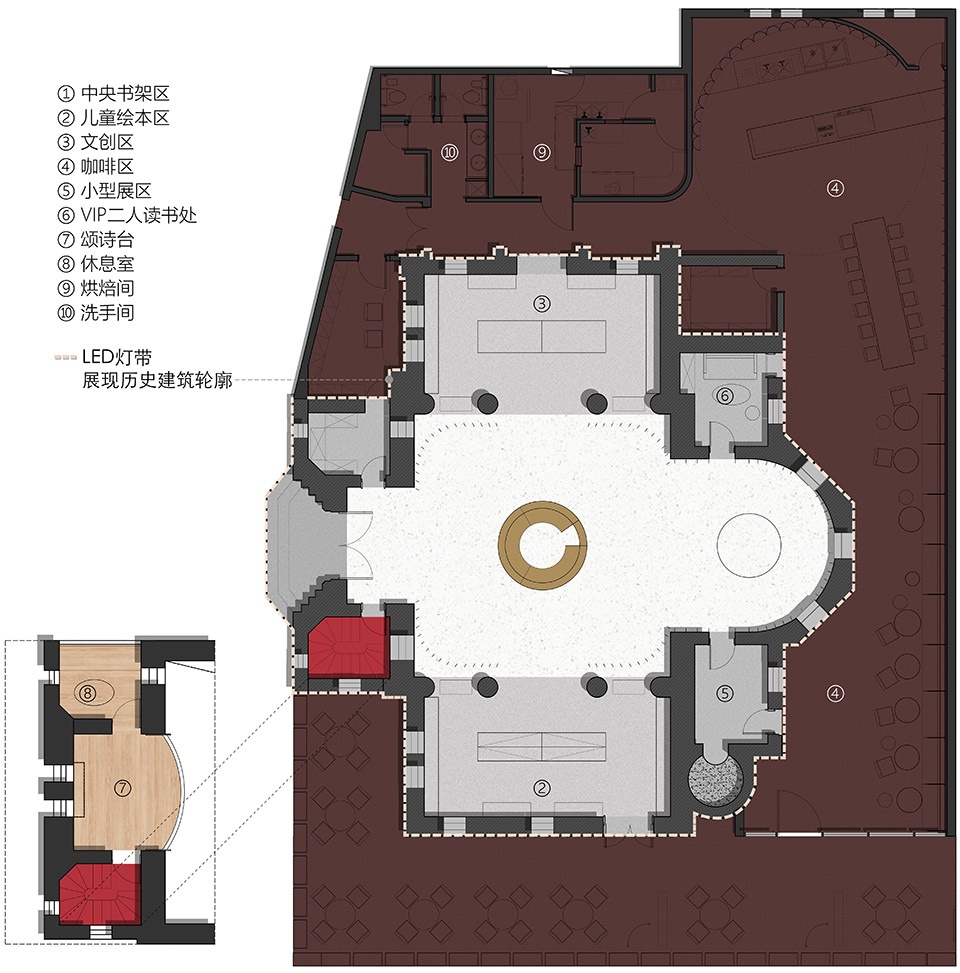

▼平面图，plan ©Wutopia Lab

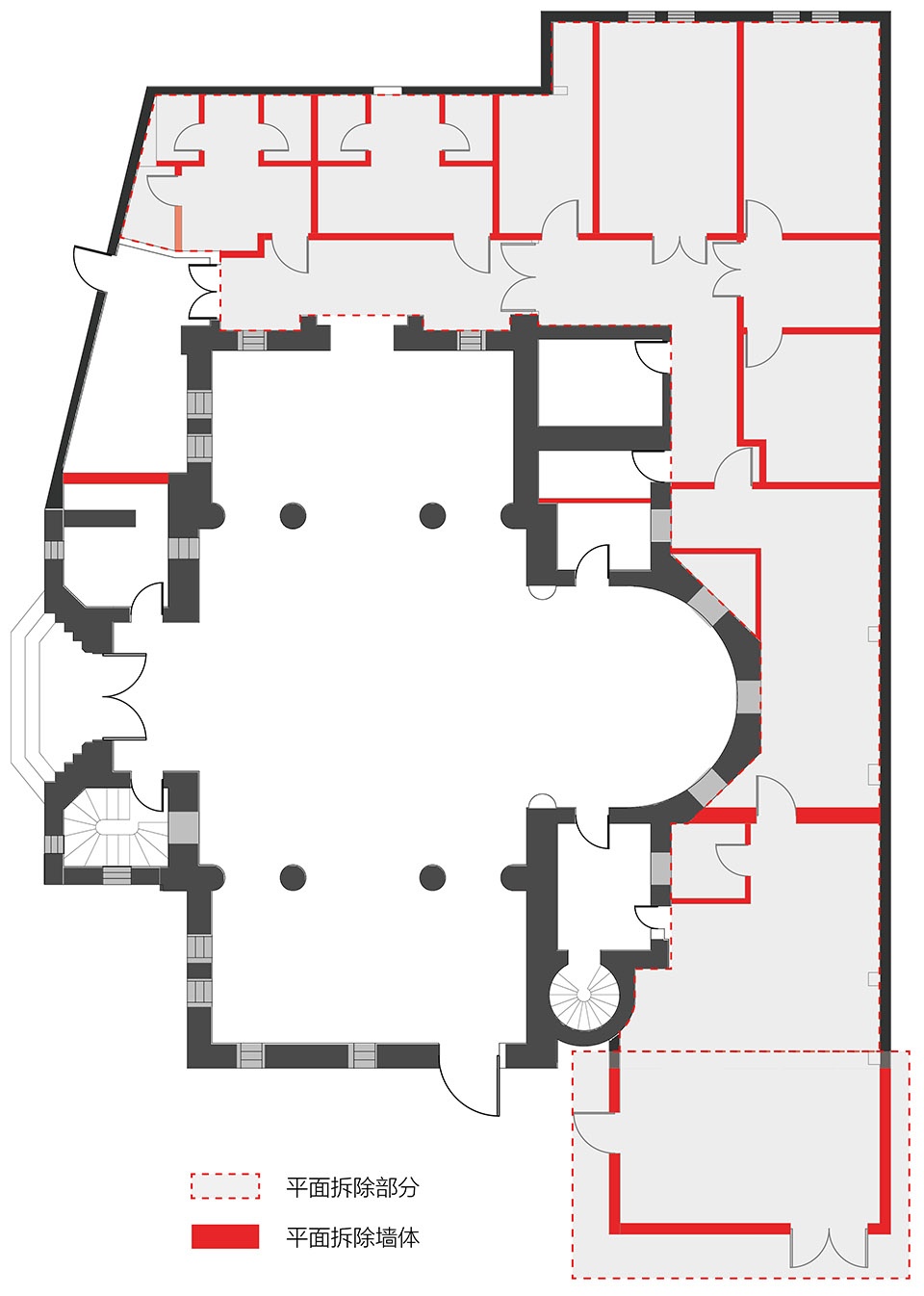

▼拆除平面图，plan of demolition ©Wutopia Lab
Project name: Sinan Books（Poetry Store）
Design: Wutopia Lab
Contact e-mail: email@example.com
Project year: Dec 2019
Chief architect: YU Ting
Project architect: Shengrui PU，Mingshuai LI
Design team: Qinghe KANG，Xueqin JIANG，Jun CHEN，Jiqing MA，Dali PAN
Project location: Shanghai, China
Gross Built Area: 388sqm
Photo credits: CreatAR Images
Design consultant: S5 Design Co., Ltd
Restoration design: Shanghai Construction Decoration（Group）Design Co . , Ltd.
Structural Consultant: Junfeng YU
Light consultant: Chloe ZHANG
Constructor: Shanghai Interior Decoration Engineering Co . , Ltd.，BXC Design Construction
Clients: Shanghai Century Cloud Culture Development Co . , Ltd
