Glasshouse at Sindhornn, Bangkok by OFFICE AT

crystal

Project Specs

Design:
Location:

来自OFFICE AT对gooood的分享。更多请至:Office AT on gooood
Appreciation towards OFFICE AT for providing the following description:

Sindhorn办公大楼建于1980年,面积超过80,000㎡,坐落于曼谷最美丽的道路之一Wireless路上,之前已经扩建过多次。直至最近,业主想要通过在大楼的前方建造一座新的建筑来赋予Sindhorn大楼以新的形象,同时提供一些辅助的功能。

Site: Sindhorn Building built in 1980, a more than 80,000 sq.m. Office building located on one of the most beautiful road in Bangkok called Wireless road, has been extended several times. Until now the owner has an intension to reimage the building by having a spectacular building in front of it to create new image and programs to support the building.

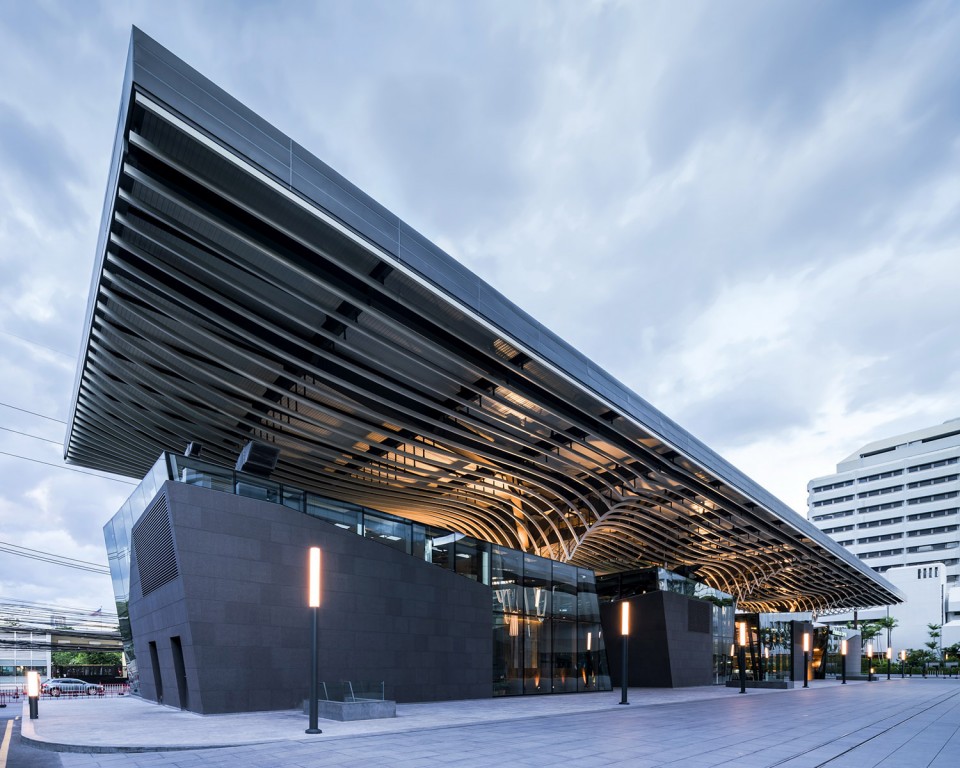

021-glasshouse by office at-thailand

项目概述:新的项目可以被称为“sindhorn大楼前的玻璃房”,由4座两层的装修精致的餐厅构成。同时场地内有一颗大树需要保留。4座餐厅独立设立但又通过室内外的空间相互联系,从而营造更好的就餐氛围。于此同时,室外的就餐广场将它们统一呈一个整体。

Program: The main programs of the new building which is called “Glass house at Sindhorn building” are 4 fine dining restaurants with mezzanine floor and one small cigar bar. As well as, the site has a big tree that needs to preserve.

Separated:  All fine dining restaurants are separated to connect indoor and outdoor space and create better dining atmosphere. Moreover, they are combined together with outdoor dining plaza.

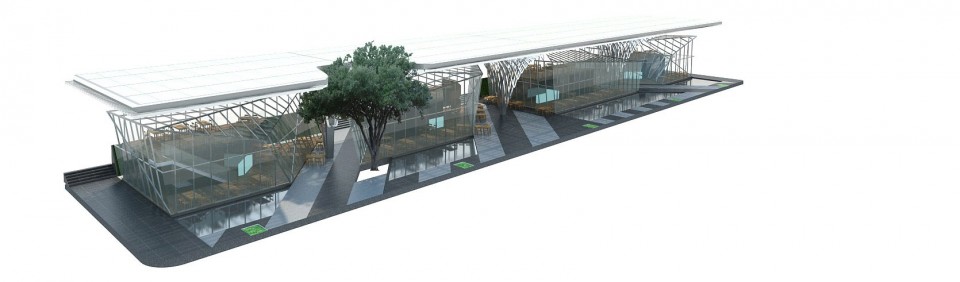

044-glasshouse by office at-thailand

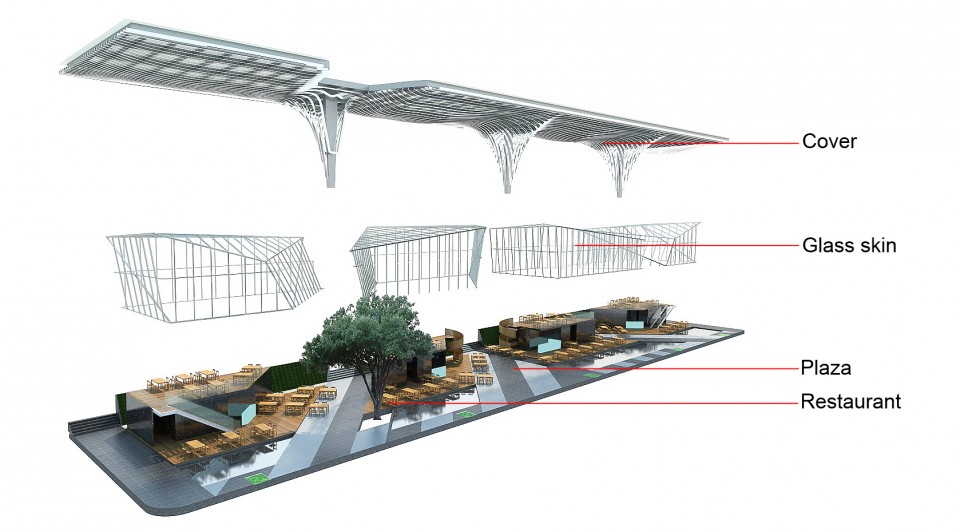

045-glasshouse by office at-thailand

001-glasshouse by office at-thailand

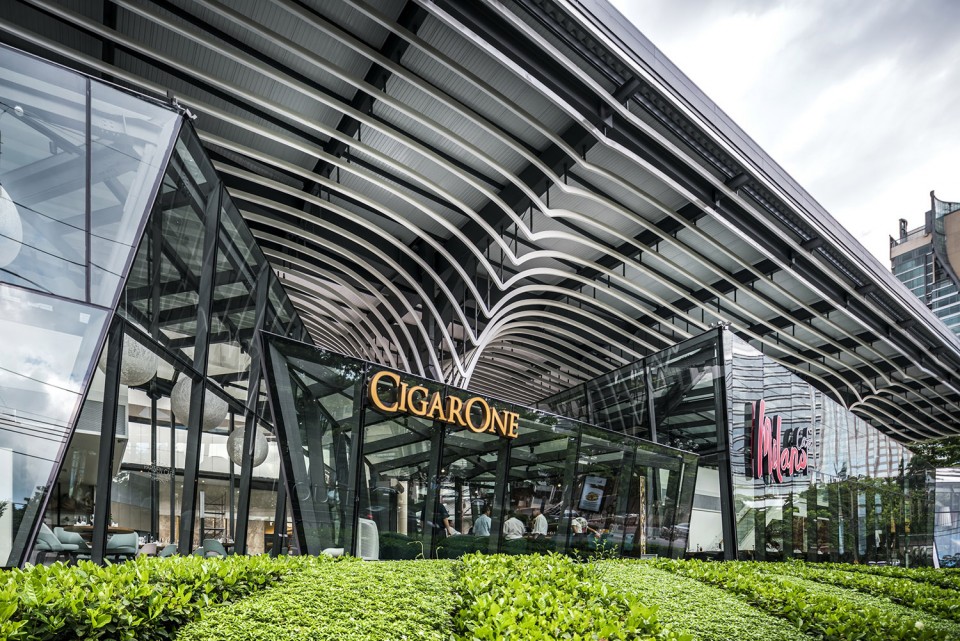

010-glasshouse by office at-thailand

012-glasshouse by office at-thailand

地标:新的玻璃房,作为Sinhorn大楼的新标志,代表着它崭新的形象。建筑师用玻璃将其打造成一枚枚晶体,用以符合它的形象需求。

景观与通风:通过将4座体量的相互分离,行人可以从公共道路上直接进入每家餐厅和Sinhorn大楼。同时,新老建筑都由此获得了更好的景观和通风效果。

结构:特殊的结构形式由两跨组成,每一跨的长度是25m,在两个端点向外悬挑20m。由此构成了一个长度90m的屋顶。同时,主体结构被设计成X形,用以保留基地内的树木。

Icon: The new glasshouse, a brand-new icon of Sindhorn building, represents new image of the project, so it is shaped as crystal and this crystalized form is clad with glass to match its own concept.

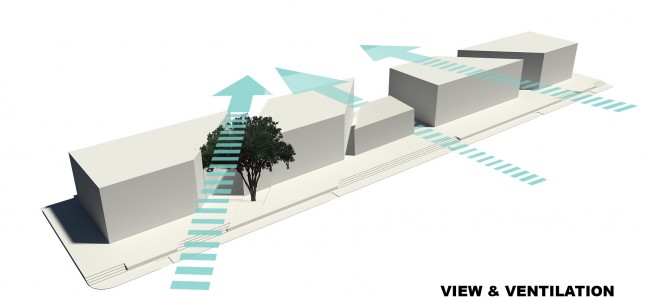

View & Ventilation: By splitting all restaurants apart, Each restaurant and Sindhorn building can easily access from public road. the new and existing buildings also get better view and ventilation too.

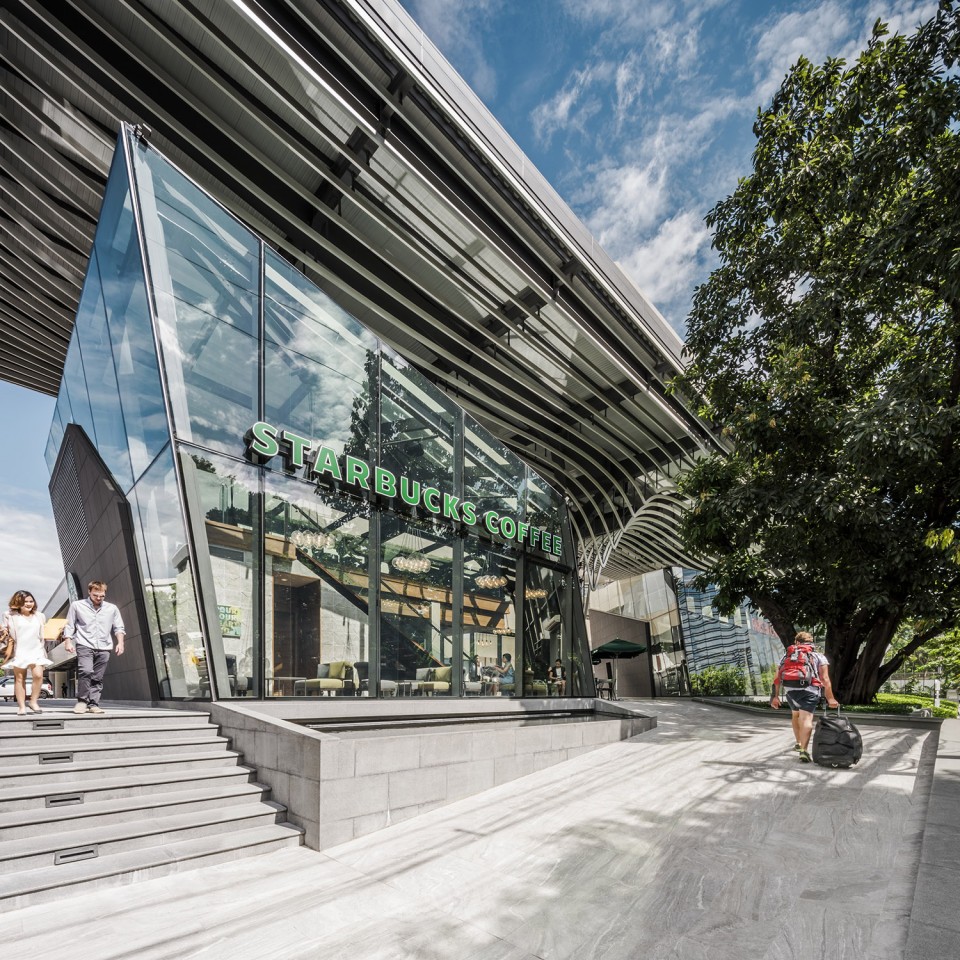

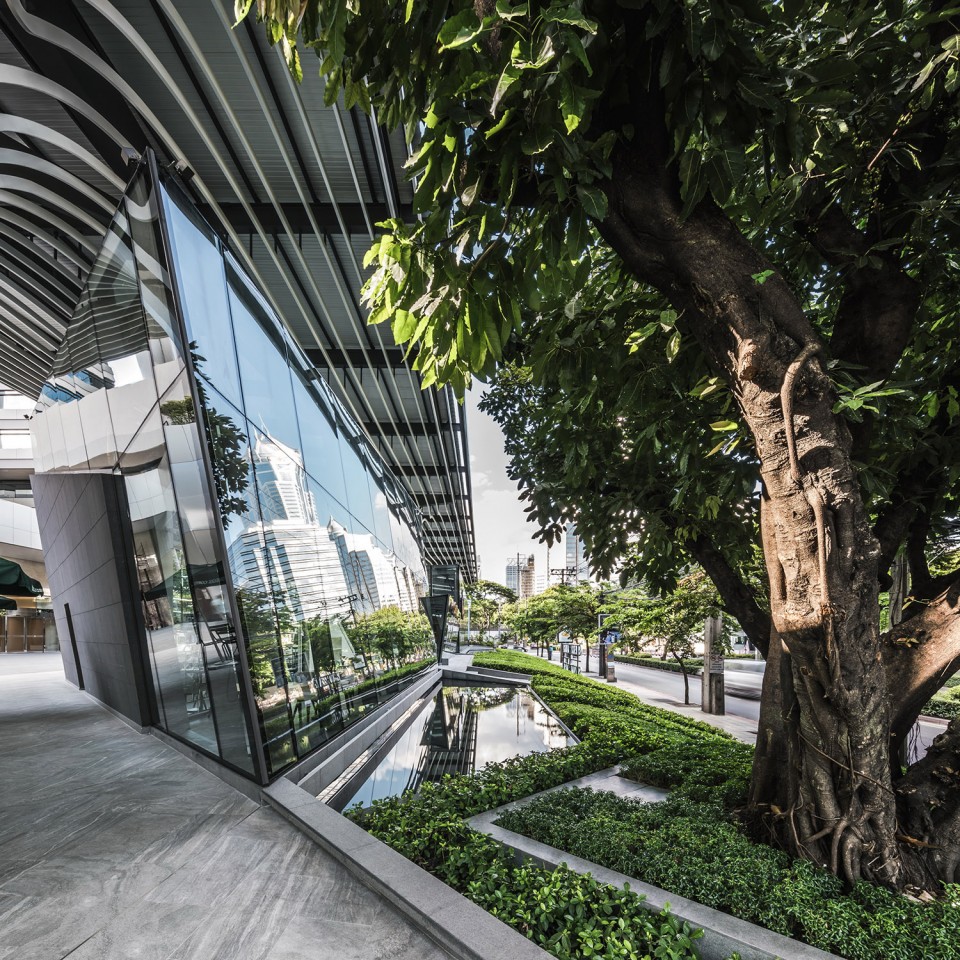

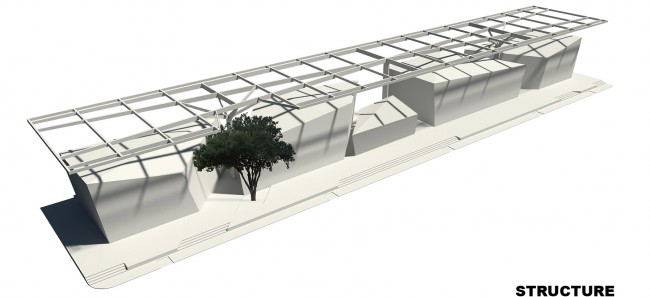

Structure: The special structure takes double spans, each span length is 25 meter and at both ends are cantilevered as long as 20 meter, so that makes a 90 meter long roof. Moreover, this main structure is designed as the X shape to preserve the big tree in the site.

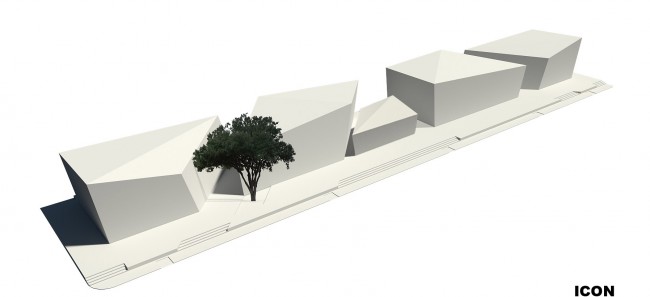

039-glasshouse by office at-thailand

038-glasshouse by office at-thailand

041-glasshouse by office at-thailand

018-glasshouse by office at-thailand

019-glasshouse by office at-thailand

004-glasshouse by office at-thailand

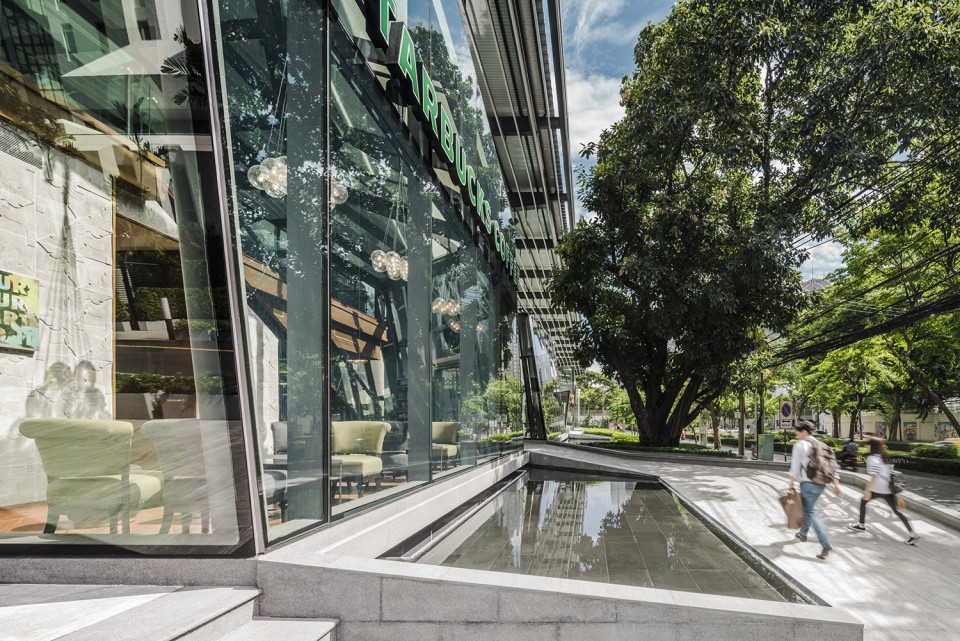

003-glasshouse by office at-thailand

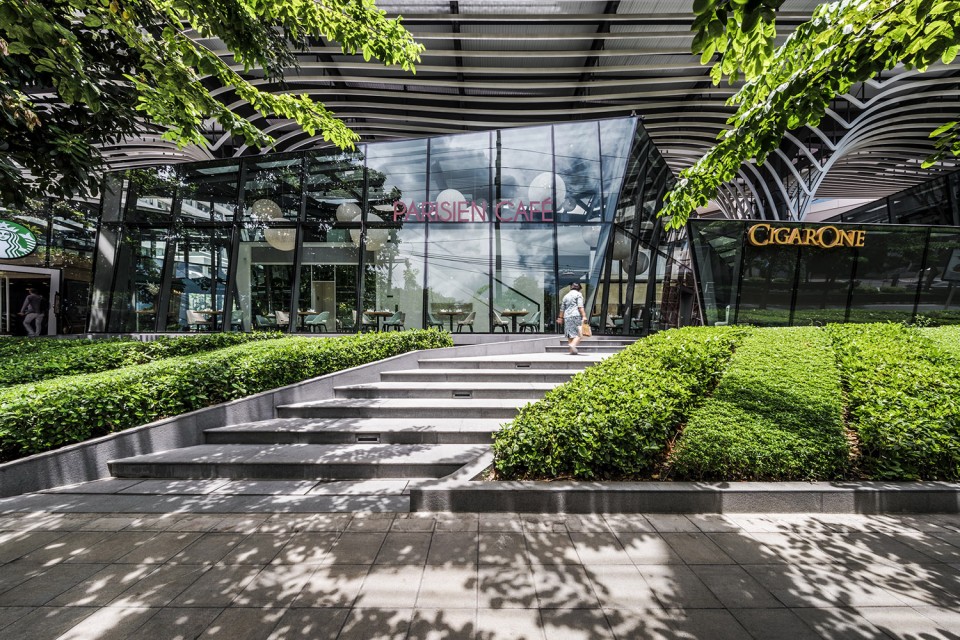

008-glasshouse by office at-thailand

光影与“枝干”:玻璃房所在Wireless大街因有很多大树而著名。屋顶的设计也呼应了这一点,营造出在树的阴影下用餐的感觉。为了是屋顶的造型更加吸引人,建筑师使用另一层由31根钢条以不规则的形态够成的屋面,使其看上去很像树枝,从而营造在树荫下的动感和氛围。

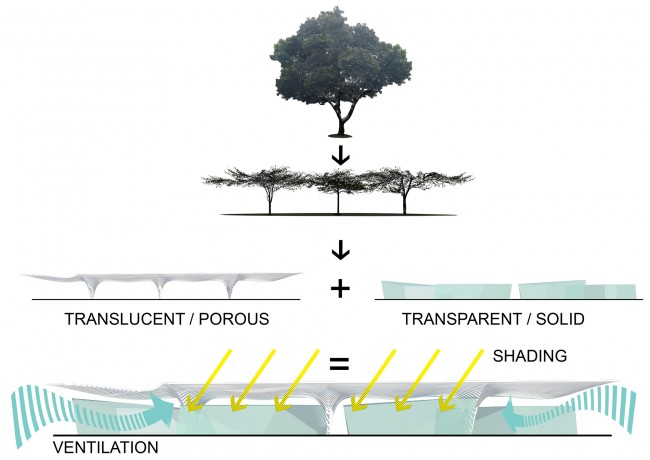

Shade:  Moreover, the glasshouse location is on Wireless road where there are a lot of big trees as the road symbolic. The roof is designed specially to reflect the feeling of dining under tree shading.

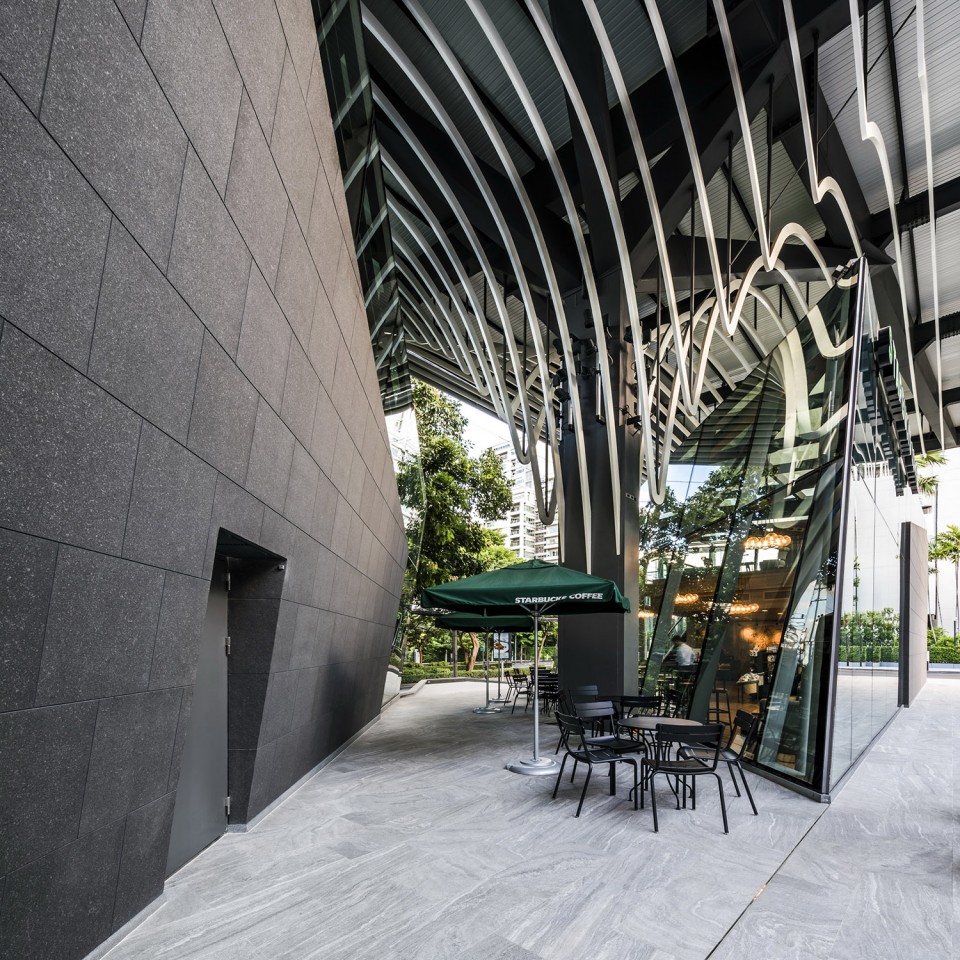

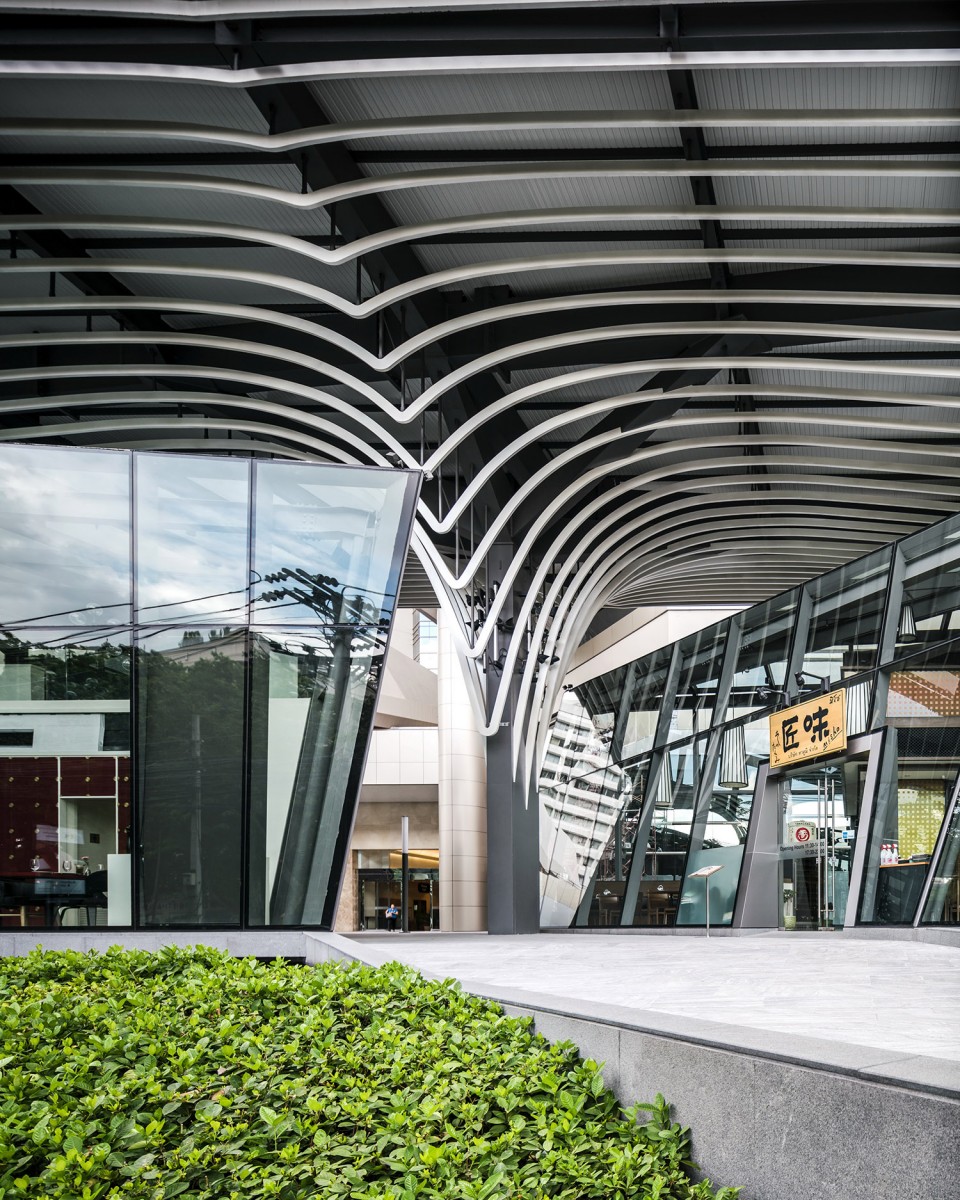

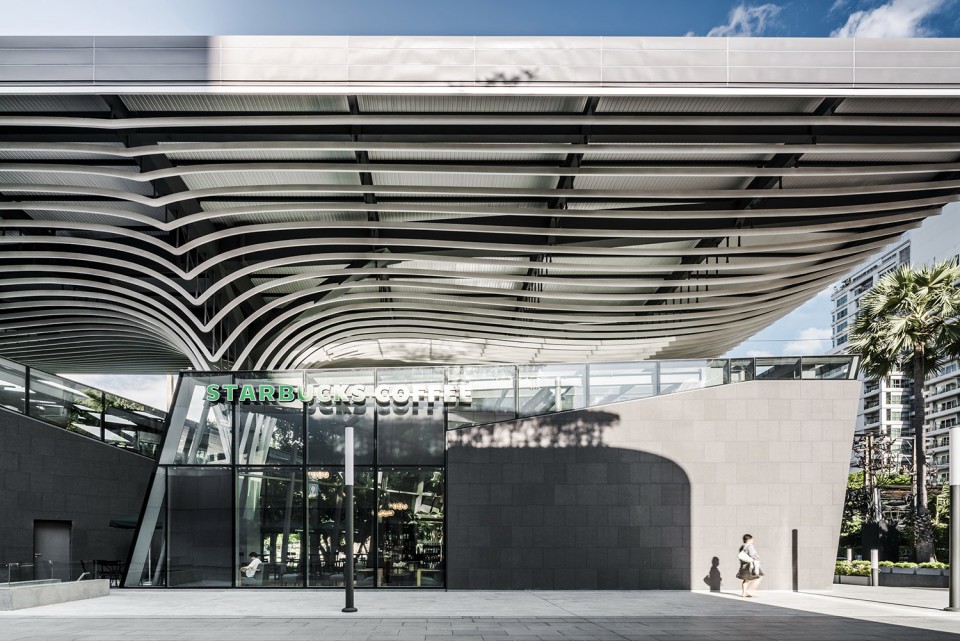

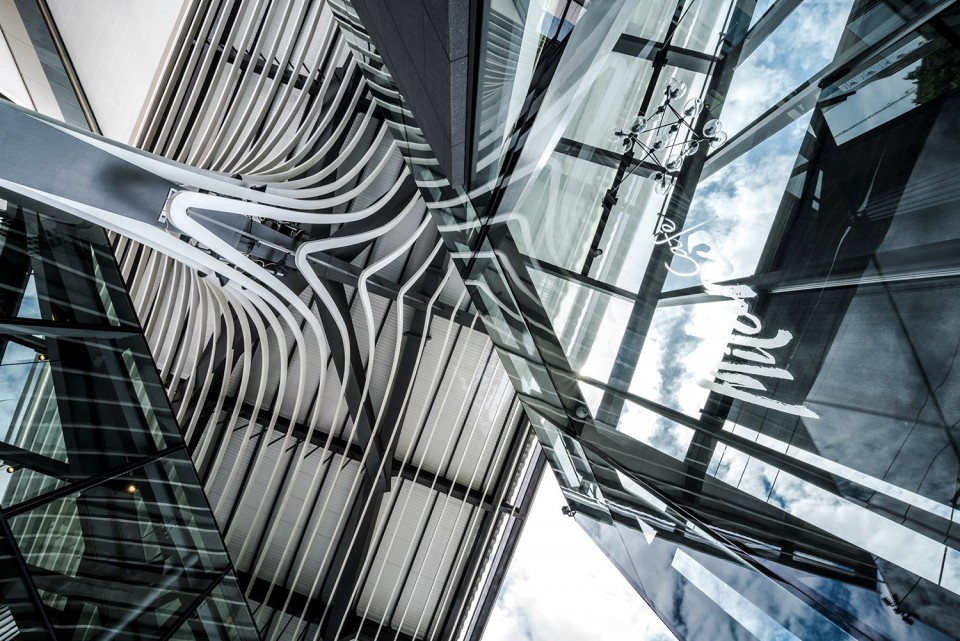

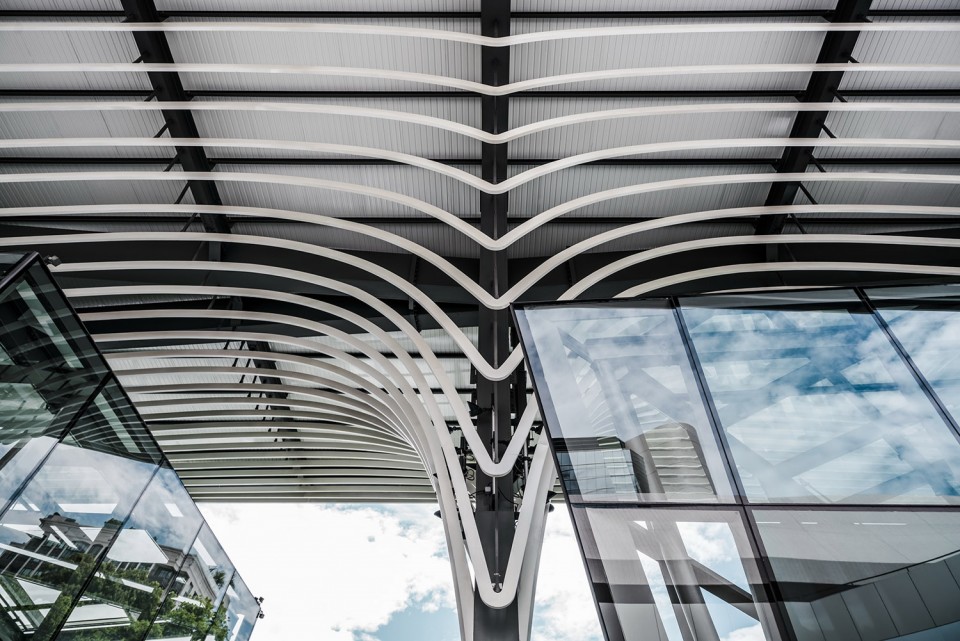

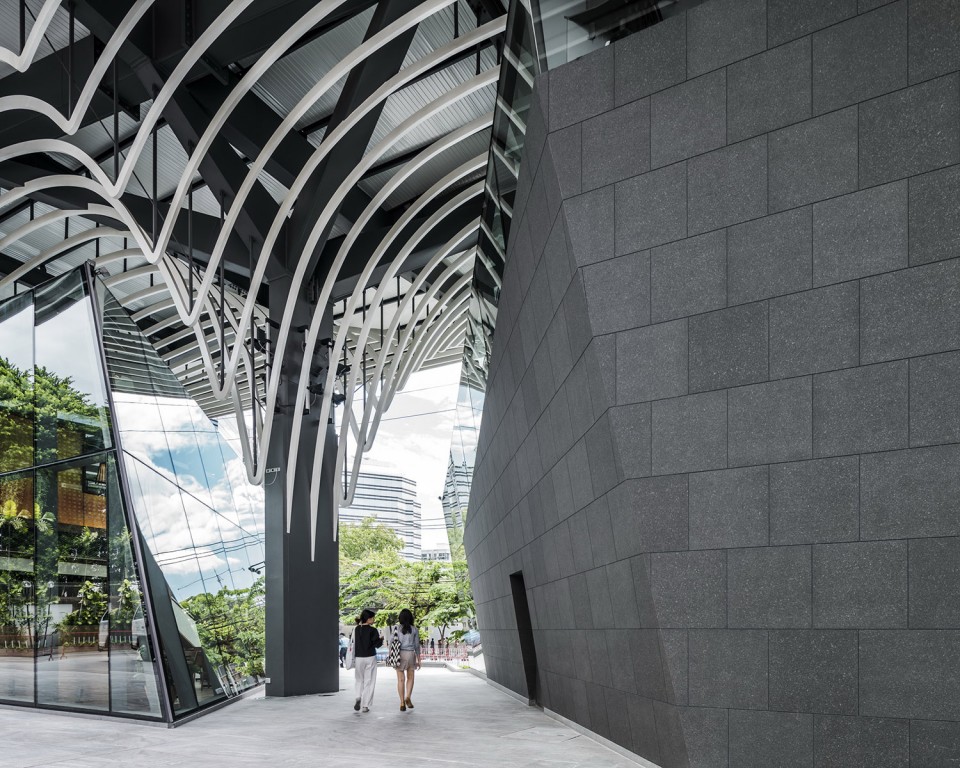

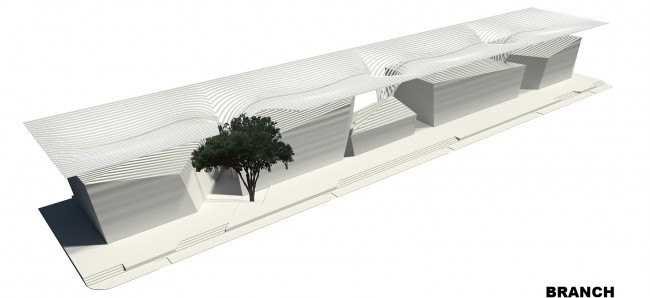

Branch: Additionally, to make the roof more appealing  the roof is designed to have another layer of 31 horizontal steel fins that have irregularly shape as tree branches to create under tree shading mood and movement feeling underneath.

042-glasshouse by office at-thailand

043-glasshouse by office at-thailand

002-glasshouse by office at-thailand

014-glasshouse by office at-thailand

015-glasshouse by office at-thailand

020-glasshouse by office at-thailand

013-glasshouse by office at-thailand

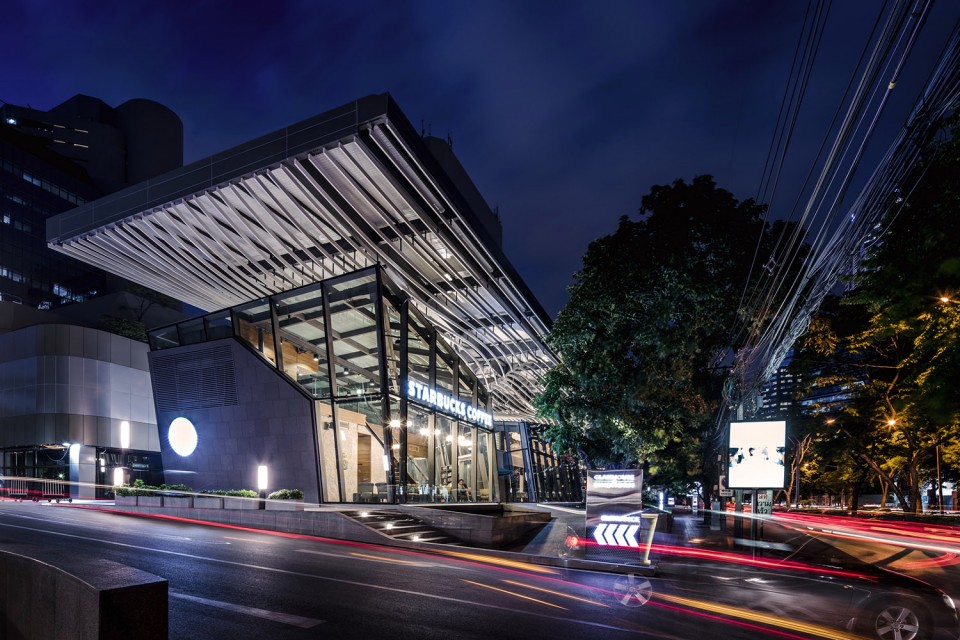

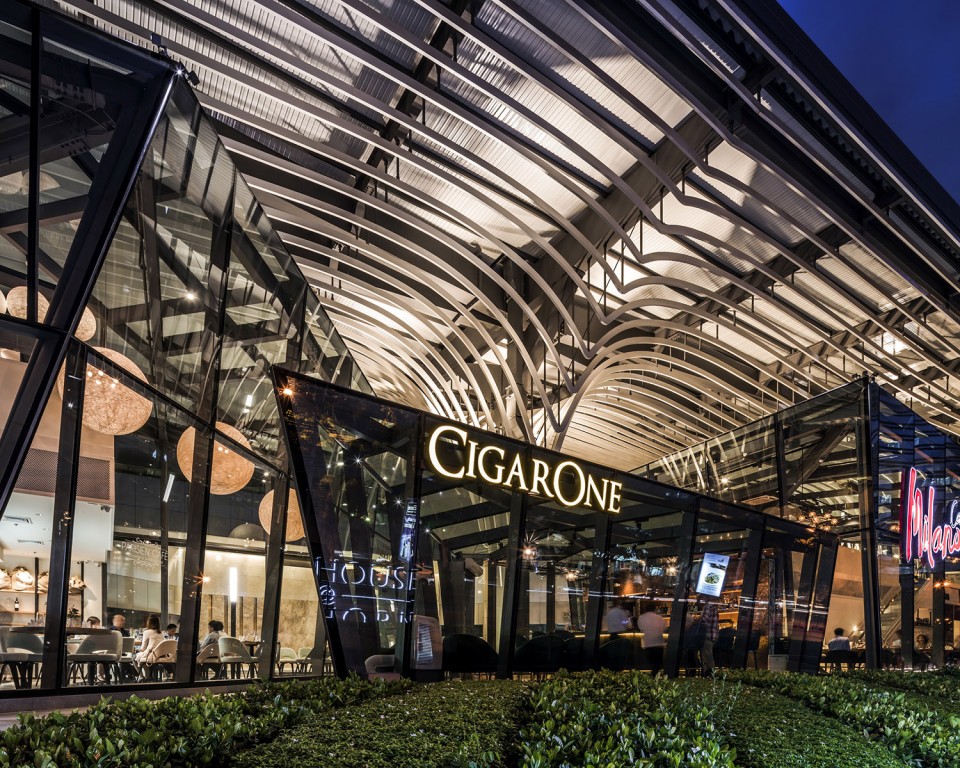

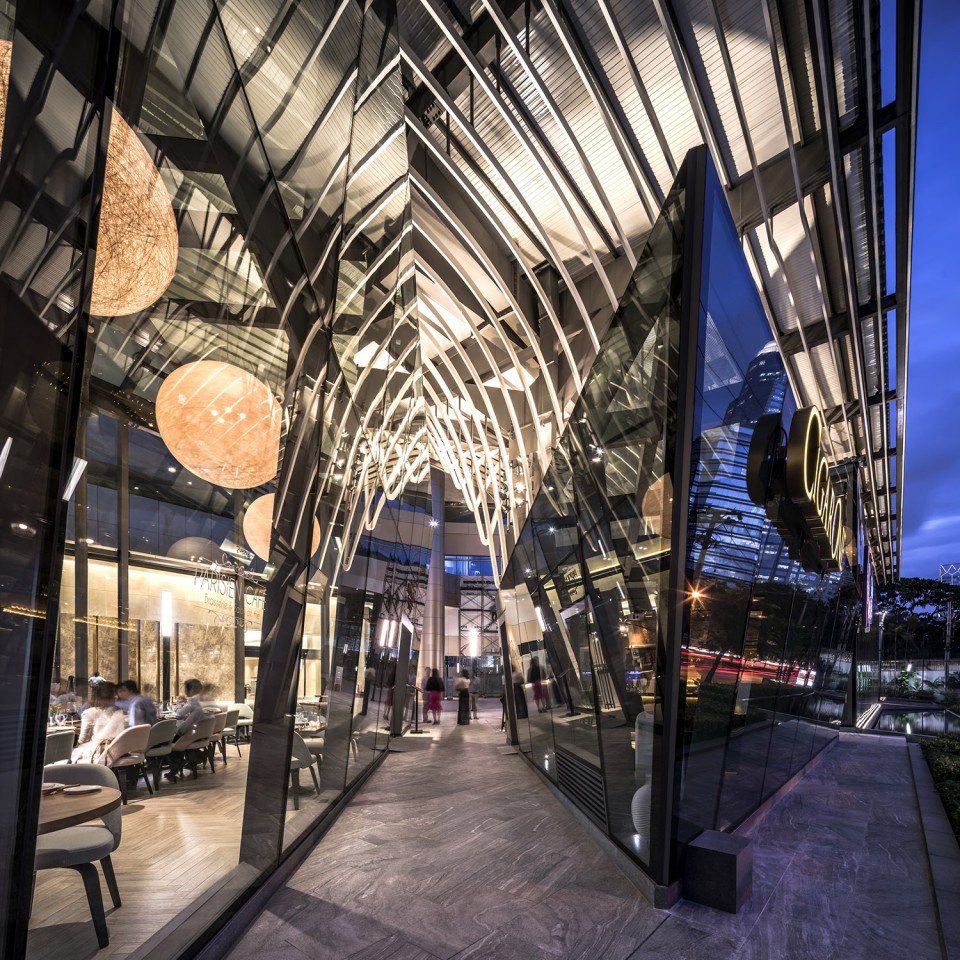

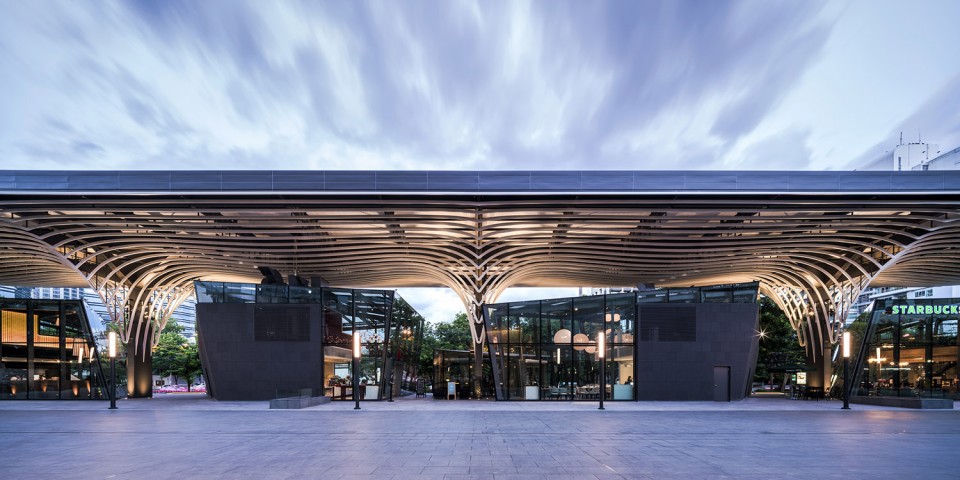

夜景 night views

029-glasshouse by office at-thailand

022-glasshouse by office at-thailand

027-glasshouse by office at-thailand

026-glasshouse by office at-thailand

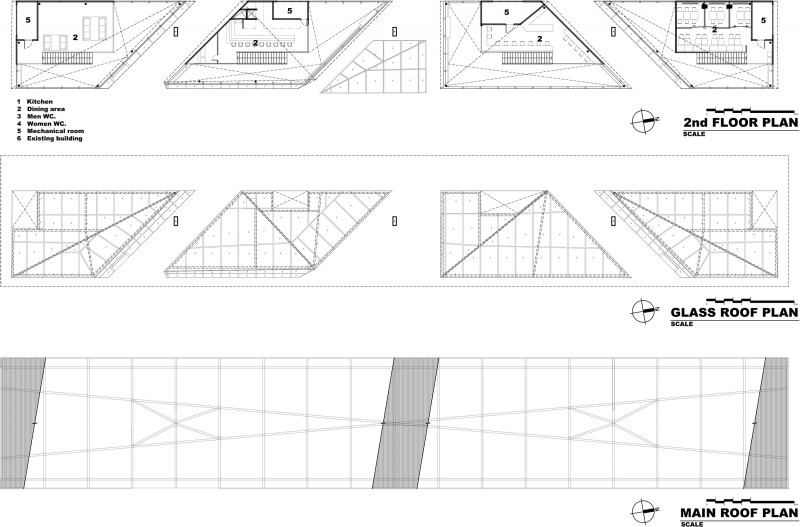

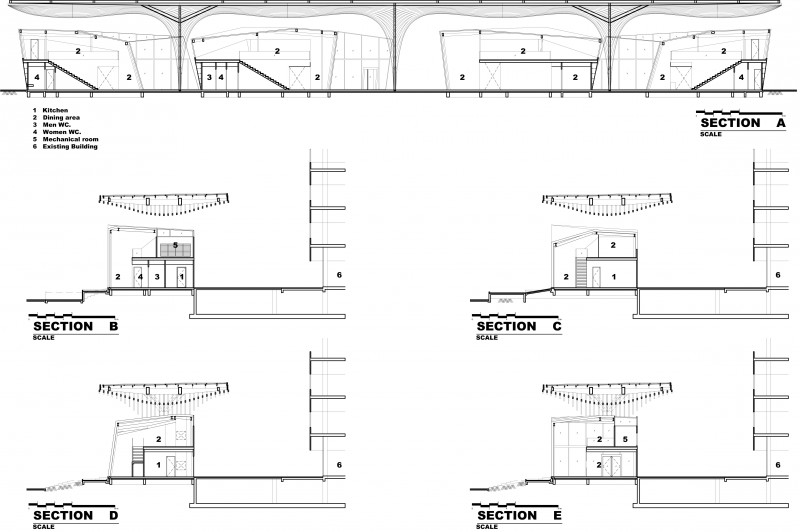

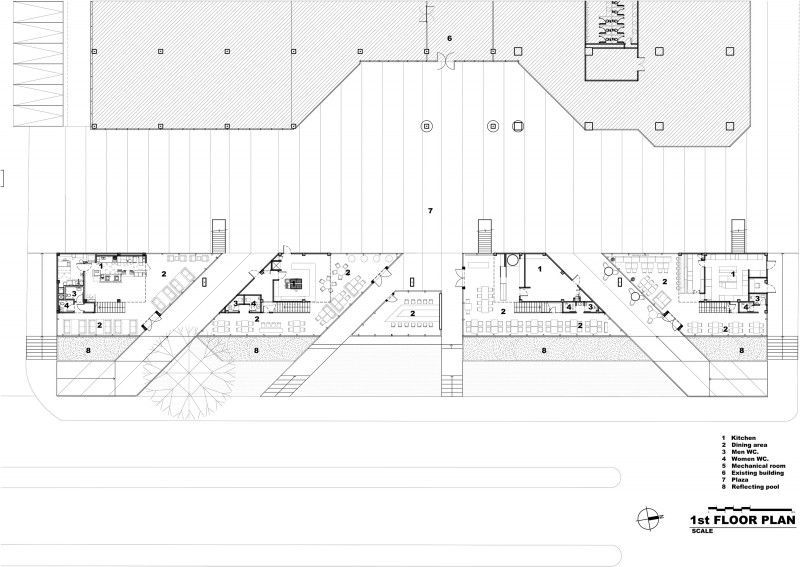

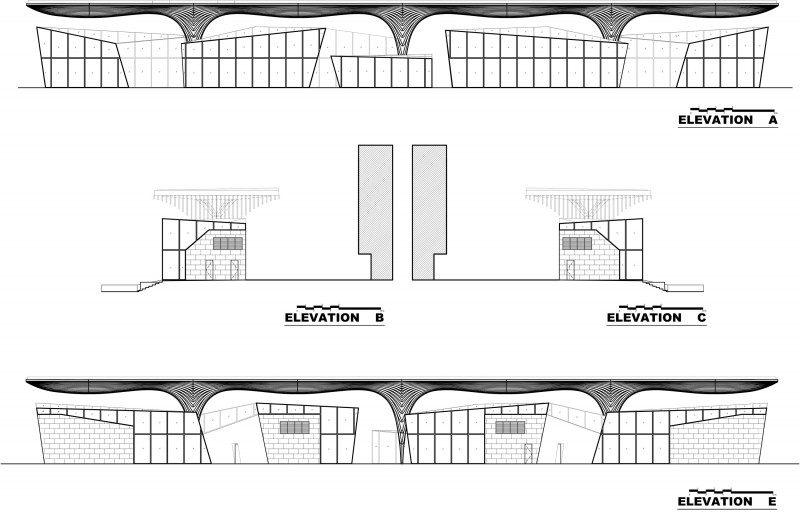

图纸 drawings

\MyBookWorldPublicAT present130819 --Fine Dining on Wireless

\MyBookWorldPublicAT present130819 --Fine Dining on Wireless

Model

\MyBookWorldPublicAT present130819 --Fine Dining on Wireless

项目地点:泰国,曼谷
竣工时间:2015
项目建筑师:Surachai Akekapobyotin, Juthathip Techachumreon
项目团队:Natthee Anuyotha,Chollatee Mayurarak
结构工程:Mitr Technical Consultant Co.,Ltd.
承建方:Thai Obayashi Corp., Ltd.
层数:2层
面积:1650㎡
摄影:W workspace

Project Name : Glasshouse at Sindhorn
Location : Sindhorn Building, Wireless Road, Bangkok, Thailand
Start: 2014
Completion : 2015
Owner : Siam Sindhorn Co.,Ltd.
Architect : OFFICE AT Co., Ltd.
Project Architects :Surachai Akekapobyotin, Juthathip Techachumreon
Architect Team :Natthee Anuyotha, Chollatee Mayurarak
Structural Engineer : Mr. Sarawut Yuanteng
System Engineer : Mitr Technical Consultant Co.,Ltd.
Contractor : Thai Obayashi Corp., Ltd.
Storey : 2 floors
Area : 1,650 sq.m.
Photo: W workspace

English Text: OFFICE AT
