Appreciation towards 10 Design for providing the following description:

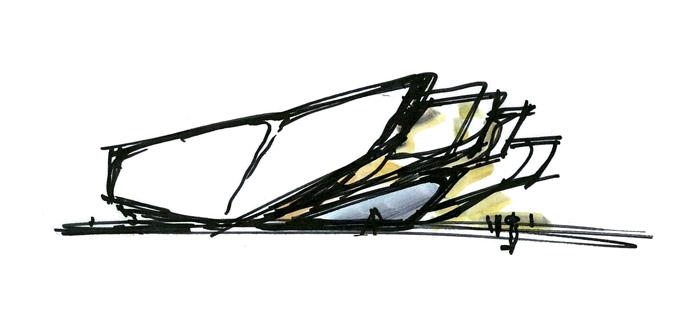

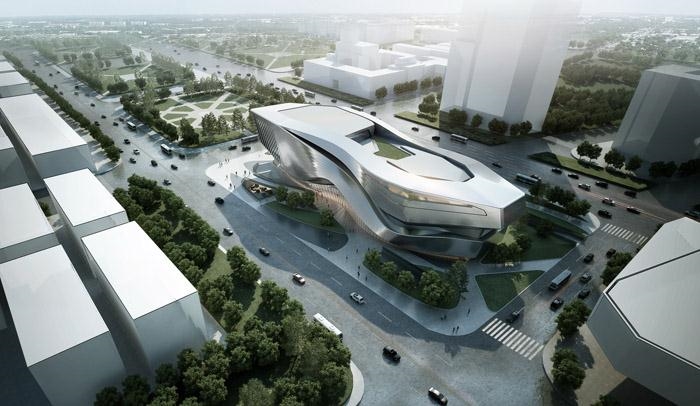

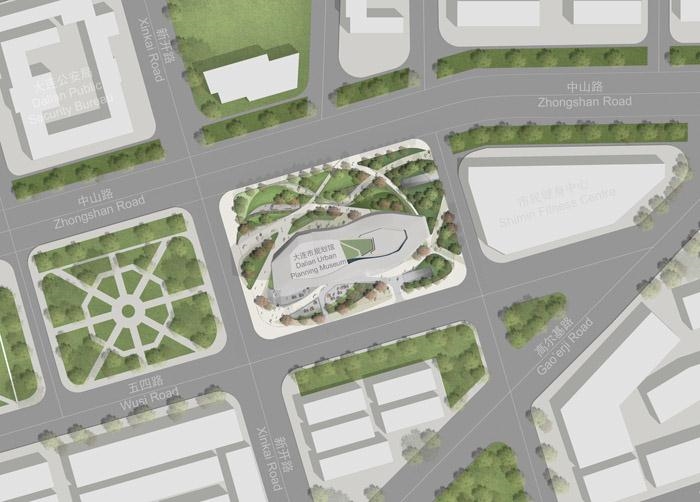

The planning museum is envisioned to be a new civic sculpture for the city located at the heart of the main the governmental district. The sculptural nature of the building ties to the existing network of sculptural elements and parks placed throughout the city. The building becomes a technological bloom as the massing opens towards the main parks to the west. The form of the building takes inspiration from the nautical influences and seeks to become a symbol of technological progress and green evolution.

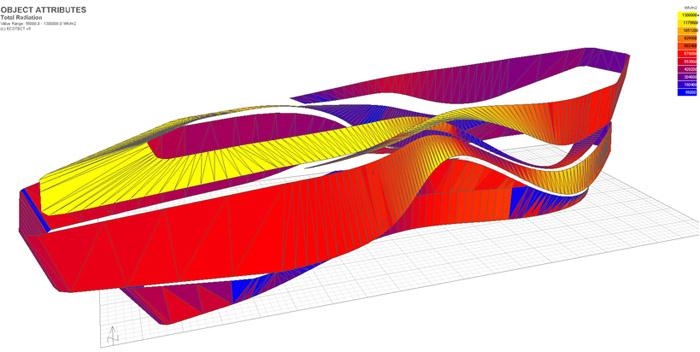

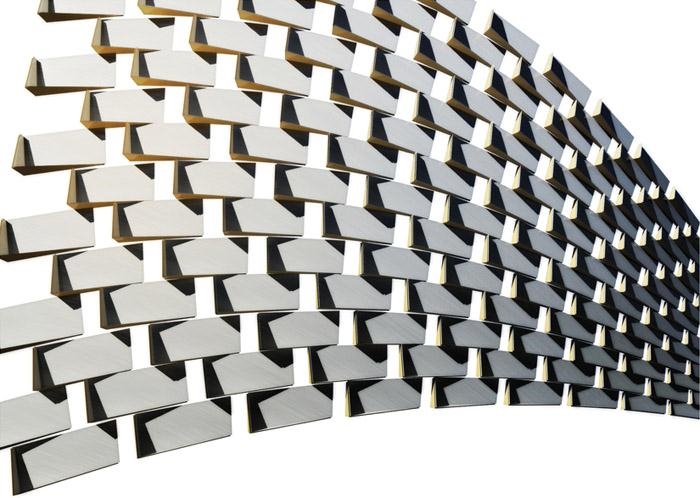

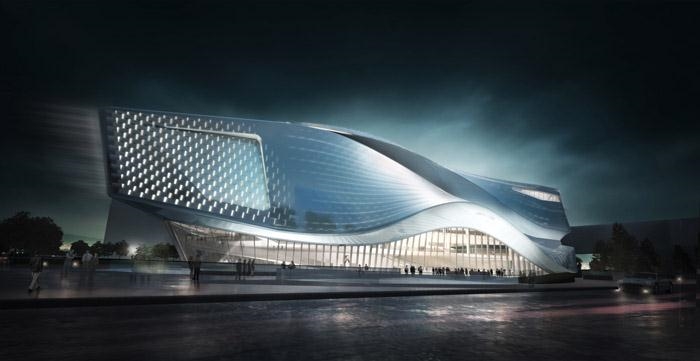

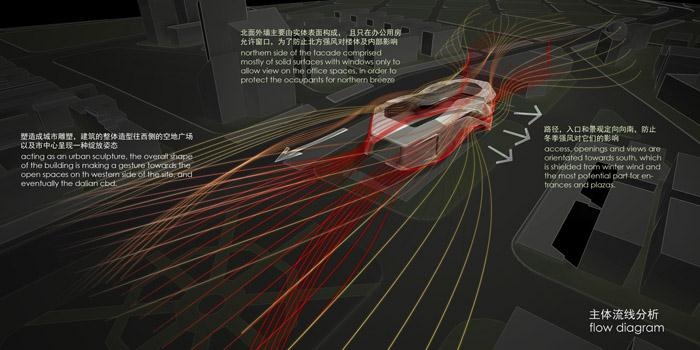

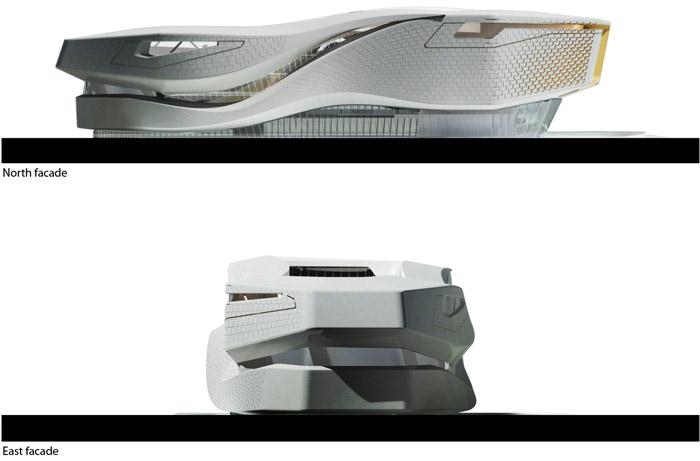

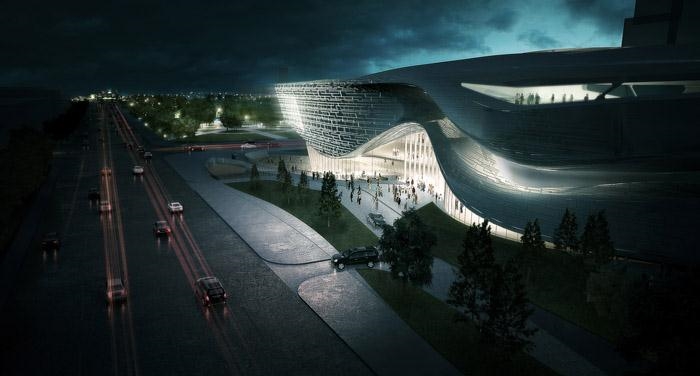

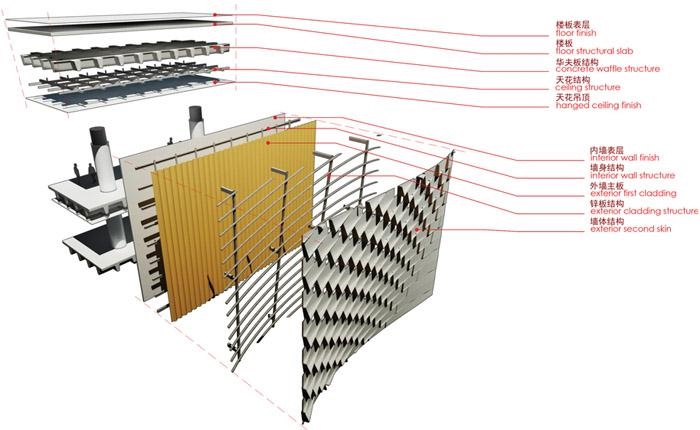

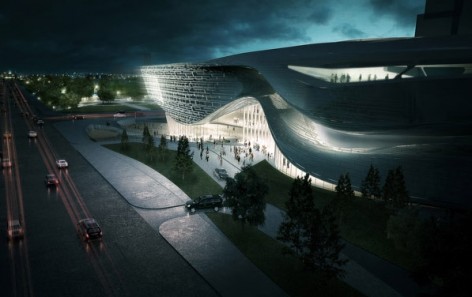

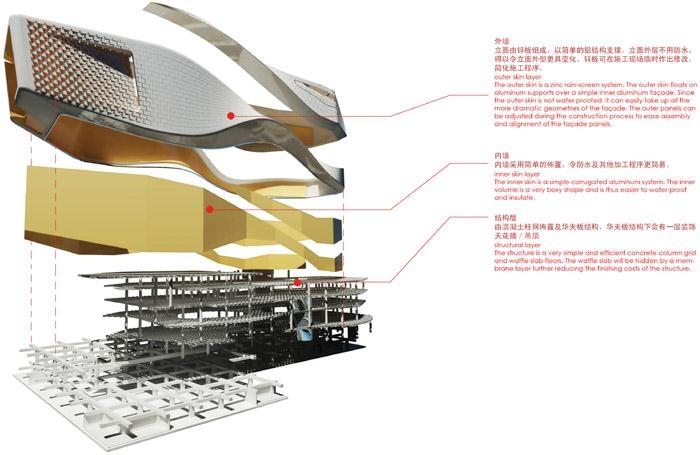

The building uses a photocatalytic nano-coating of Titanium Dioxide on the outer zinc rain screen to neutralize air pollution and remove dirt. The cleansing reaction is maintained 24 hours a day by using UV lights on the façade at night which are powered by PV cells. The lighting scheme will be symbolic of a blooming flower- the main golden glow facing west towards the government buildings and the CBD. The inner aluminum façade layer uses a polymer coating that increases insulation values by 10-20 percent, and provides marine and fungal resistance. These nano-coatings are really nothing more than simple paints and will provide dramatic performance with minimal cost. The use of the self-cleaning nano-coating on the façade will keep the skin clean of all dirt and organic stains for years without any maintenance. The building also minimizes east west facades and pulls all entries away from the northern winds to maximize passive solar ideas. The government hopes the project will inspire green ideas and further sustainable design in the city.

位于大连市核心区域的博物馆将被打造成为一个标志建筑。博物馆需要与城市和周边公园联系紧密。面向公园的西侧处理较为开放。建筑的灵感来自航海并寻求科技的进步与绿色的演进。建筑外表皮使用二氧化钛的纳米涂层，可以消除空气污染以及达到自洁。

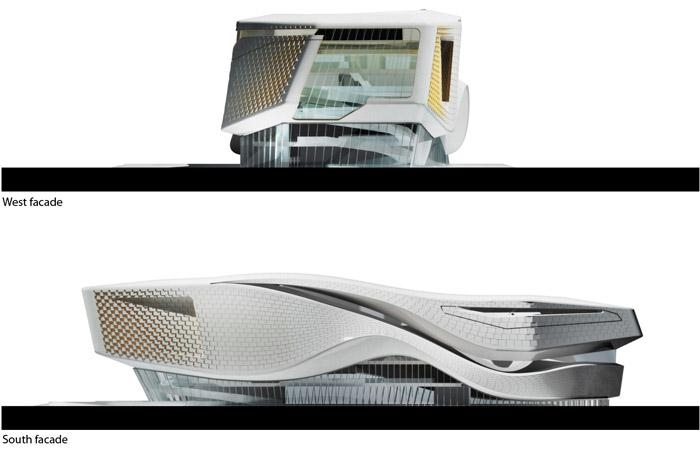

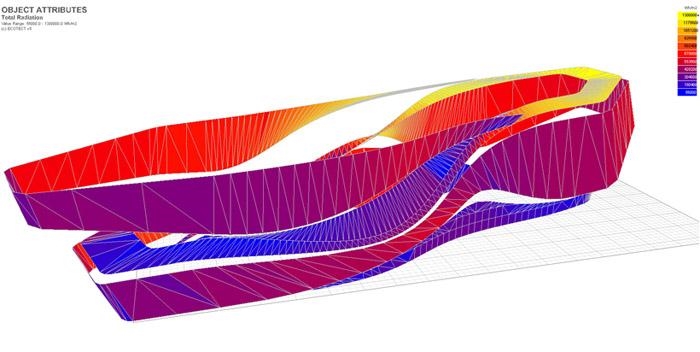

照明设计让建筑宛如一朵闪耀着金光的盛放之花。保温层采用的聚合物涂层能够增加10%—20%的隔热值。自洁性表皮可以保证外墙多年的清洁而不需要任何维护。建筑最大限度的减少东西立面，并避开北风，同时最大的利用被动式太阳能。政府希望该博物馆成为城市绿色理念及可持续发展的表率项目。

Architects: 10 Design
Location: Dalian, China
Year: 2011
Design Team: Ted givens, Peby Pratama, Adrian Yau, Audrey Ma, Laura Rusconi Clerici, Shane Dale
Landscape Design: Ewa Koter
Client: Dalian Planning Bureau
Website:www.10design.co

MORE: 10 Design，更多请至：10 Design on gooood

Project Specs
