Summer Pools in Godella by Álvarez Cubells Arquitectos

Various rounds in irregular venues.

项目标签

设计公司
Álvarez Cubells Arquitectos
位置
Spain
类型
Landscape
材料
StoneConcrete
标签
ValenciaPlace scale
分类
Sports ArchitecturePool

非常感谢Álvarez Cubells Arquitectos将项目介绍和项目图片授权gooood发行。更多请至:Álvarez Cubells Arquitectos on gooood
Appreciation towards Álvarez Cubells Arquitectos for providing the following description:

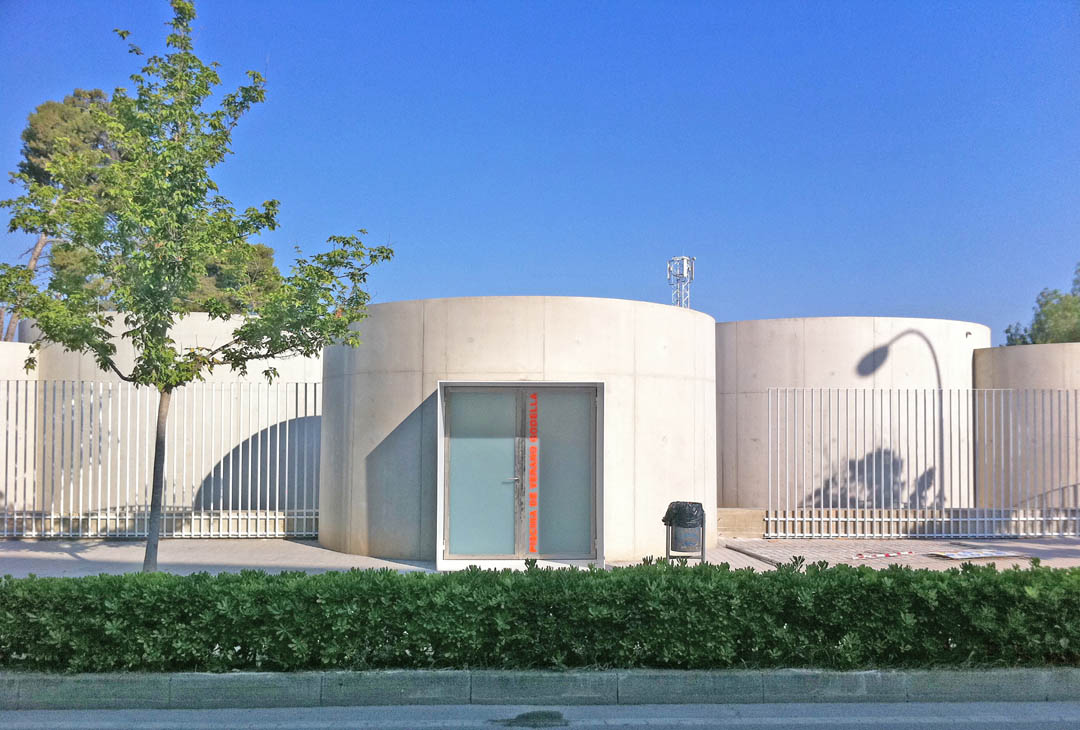

西班牙一个夏季泳池,占据着一个不规则的场地。

/wp-content/uploads/2013/01/_c_T7uf2Gi3fXDqAYNd8sUwBatgWRoBCph383nqcuGElfUxV1We9_q8rhHqdA6154EEYOpsBo2115mqOWwGvrFSm4c6DeLWJ7AX.jpg

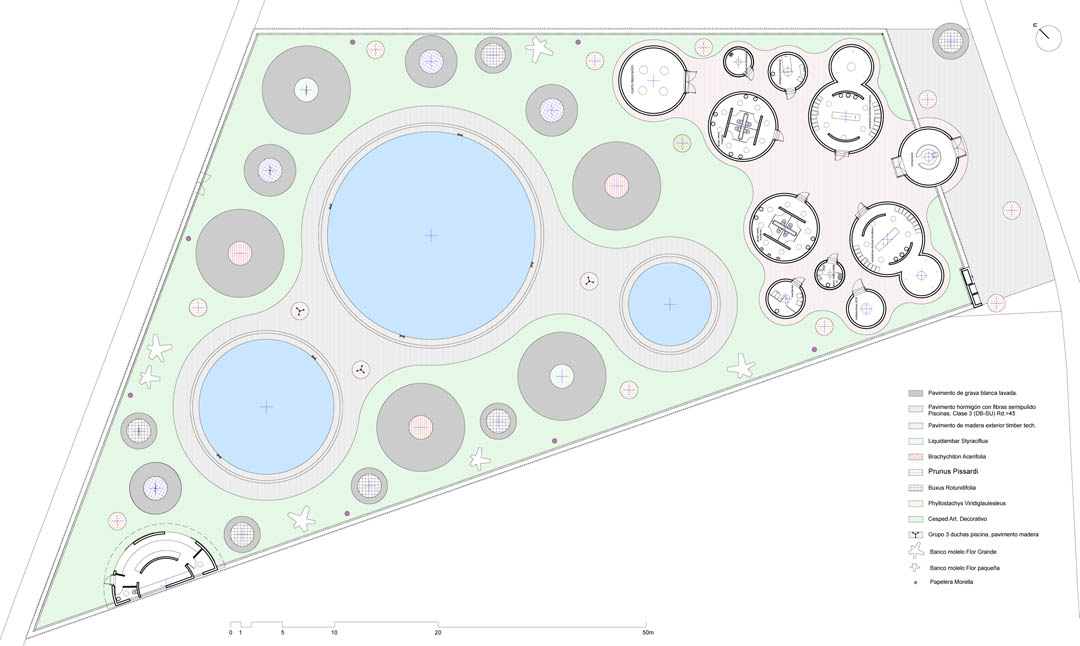

主要要素是圆形,泳池是圆形的,建筑也是圆形的,就连树池也是圆形的。12个小建筑自由的分布在场地一侧,顶上开着圆洞让自然光照下。三个深浅大小不一的泳池占据着剩下的大部分区域。

/wp-content/uploads/2013/01/_c_4-Bwd3iJQtSvFPSglQZ8l43HAAxwGChoU8tQSbVjBWjOvbutrj84VkQ7c2-ZNEcijTqyg0rih3J4fJxKxuko5EXDGs3YGMpO.jpg

Architects: Álvarez Cubells Arquitectos S.L.P.
Location: C/ Camino de Rocafort, 21, 46110, Godella, Valencia, Spain
Project area: Aprox. 3.500 m2
Project year: 2.010
Construction dates: October 2.010-July 2.011
Constructor: Elit-SL
Photographs: Álvarez Cubells Arquitectos S.L.P.

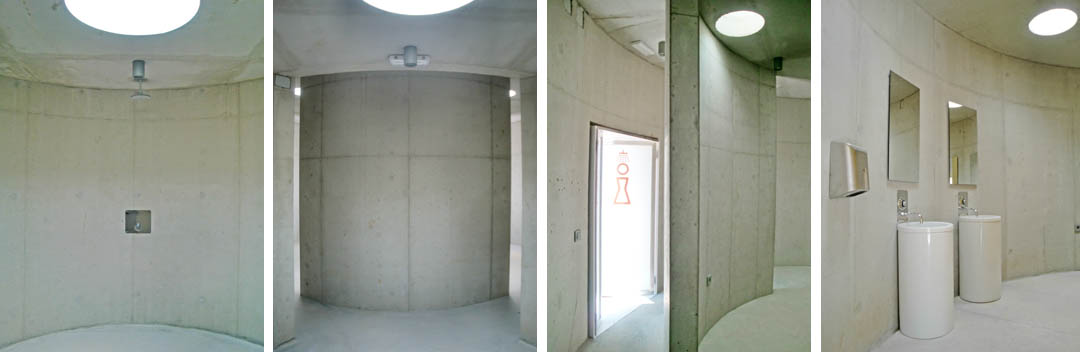

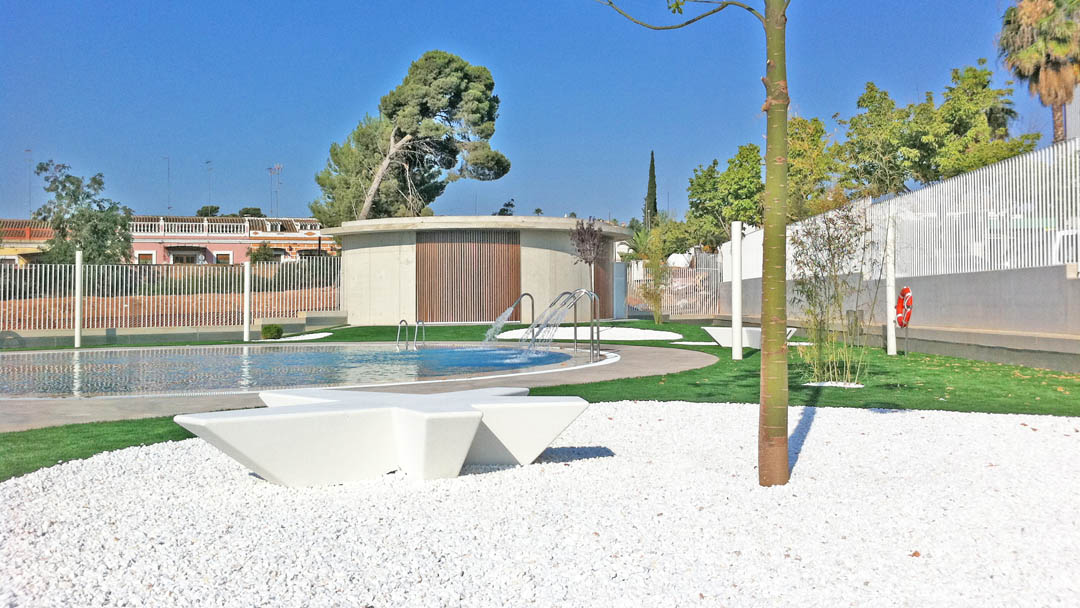

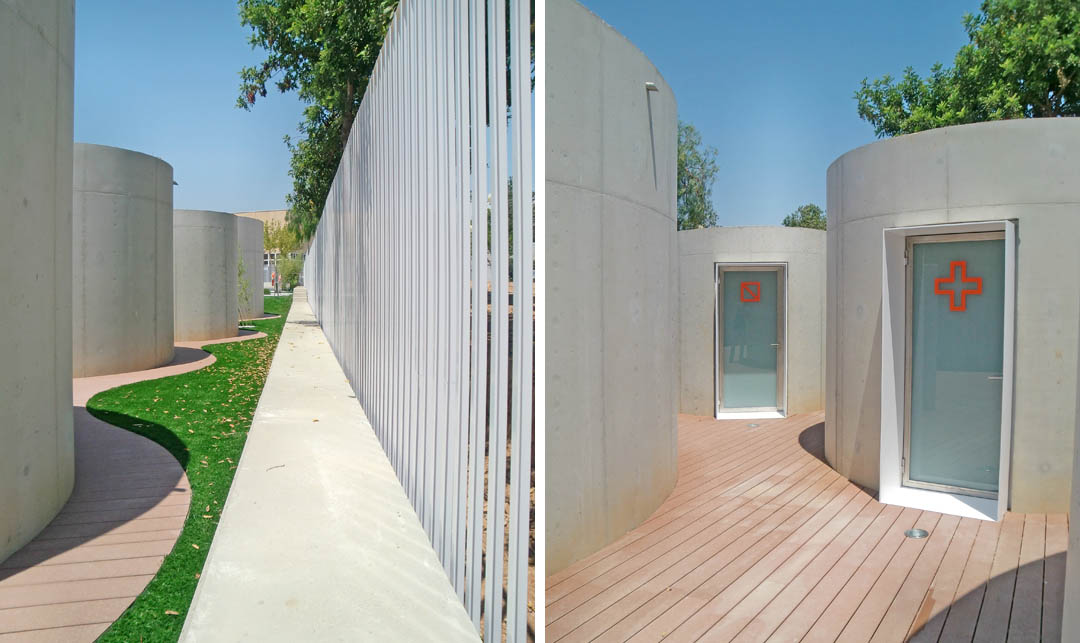

The project is located in the “Jardín D`Obradors Sur”, pretending to be a new attraction for the people during the summer months. From an irregular plot and restrictive planning regulations raises a number of buildings with circular plant with two main objectives; in one hand get the inside circulations as much fluid as possible; In the other, remove the corridor roof of the buildig to fit the entire program required. The access leads to a small square from which you can view all access to the different buildings thus facilitating orientation within the complex. Once through the square, the pools. The materials are minimum: concrete, steel and glass. Raises twelve independent buildings. One for each of the different uses needed for the pools: access, showers, toilets, nursing, bar, and storage facilities. Monolithic concrete buildings bathed in natural light inside are forming a small square providing access to the pools. Three pools of different sizes and depths are distributed in the remaining areas of the ground. Around of them, recreational beach areas.

/wp-content/uploads/2013/01/_c_OdOK1AG3pb_du8v7Q6DdG2EicafFBwS8I-Zv-MlOFKniNL96l0ZklzWRNYlbBHnLAazijhjpv2SidhRAFvAmINAwUp3OeVdr.jpg

ALVAREZ CUBELLS ARCHITECTS

The design team by Gorka Álvarez and Clara Cubells studies in the School of Building Engineering of the Politechnical University of Valencia finishing in 2004; after studies Architecture in the Cardenal Herrera University combining these studies with project management for different building companies finishing in 2008.

In 2008 was founded Alvarez Cubells Architects with placement in Quart de Poblet (Valencia, Spain), whose purpose is to provide a complete service in architecture to developers, builders and private clients. Since then as a complement to the work done in the study, they have presented to national and international competitions obtaining several awards and recognitions. Gorka is currently pursuing his PHD in monolithic architecture in the Architectural Design Department in the Architecture School Of Valencia (UPV).

/wp-content/uploads/2013/01/_c_-tYLT2o17vgwTjUsPLUhqmf0_fh21dIuRXepCm5ZZ4Y7v_H_UjQcSidNq5cilxV6RfyAoi1GnWTzexNk_r6sdCZNtYGYmVBX.jpg

/wp-content/uploads/2013/01/_c_pNQ4J4yOoY_b8WIZWVarCOIh1cItrgsTe8X-6e9MVqJz9TLStOg6T1Bn_U7XJm72y6X0xG-0dAvLsh8vGWShU2p4l1d4a2Ld.jpg

/wp-content/uploads/2013/01/_c_3b8HMwZbIakkXztUuLDxy-7pDyqsQyxP0YdHe_mjuDORJ7gW3OBmWAYT6Ez3Hhgvy-psOKKtzFWhmPN44tkCiPPYIUguyzH1.jpg

/wp-content/uploads/2013/01/_c_D4ld0jIoH6kyOEJyN44fpRlrVuOC6Yzmj_8qBp6r57Z63KTJ313G7JOpw8WtPrmv0ETloFbd2hTJhFZJzKrYIYO1-TLwrN3G.jpg

/wp-content/uploads/2013/01/_c_ZM_DwUPHptN0aqKenVtVzuB8w9drMlT2KLYsTNl0C7aoDoLMzX7MZk0mi1x03J9YbSbboI4VVZFGqY6zAAweSSvmf7IyjyNW.jpg

/wp-content/uploads/2013/01/_c_ZTnUVHwcYi1ZNDuDF2j4Mjd1ITiq7UYqY8pntlqsx0xINe6NqBA1fy_3h8YEXOBYpIQVMSbmgiEKV01zPaX85yT-WURyz0VD.jpg

/wp-content/uploads/2013/01/_c_e3qGVNdKCAyPiyuWLq6Wqm5Zpc2Aa1-gnH5C4JAyq5XPaUYournW7AV_U9ablynrRS4YYQfVuombHPOTS1ZQHlJEoqUl8PEJ.jpg
