Sant Antoni Sunday Market by Ravetllat Ribas Architects

非常感谢Ravetllat Ribas Architects将项目介绍和项目图片授权gooood发行。更多请至：Ravetllat Ribas Architects on gooood
Appreciation towards Ravetllat Ribas Architects for providing the following description:

巴塞罗那圣安东尼星期日市场需要搬到一个新的位置。建筑师接受了这个委托，并把它安置在乌赫尔大街上，这里的交通在星期天实行管制，不允许车辆通过，为市场留出空间，平常则是普通的交通干道。一个永久的轻型结构体覆盖着街道，结构体有着可伸缩的屋顶，让市场适应各种天气情况。轻型结构体屋顶部分离地面最低处大于4.5米，同时内部设有灯具，补充道路照明。

The relocation of Sant Antoni Sunday Market needed a site located near the old Market, which is nowadays being refurbished by our office. Only hosting a sales area one morning a week, it was needed to put in place reversible solutions that do not alter the space in its weekly configuration.

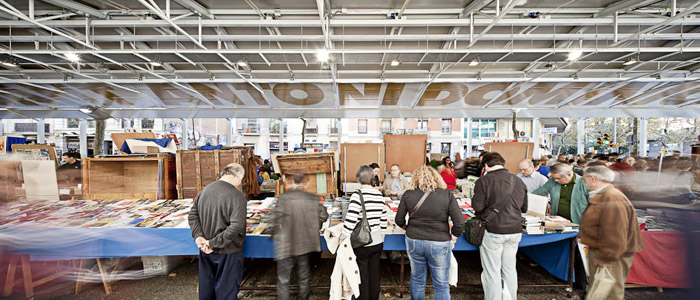

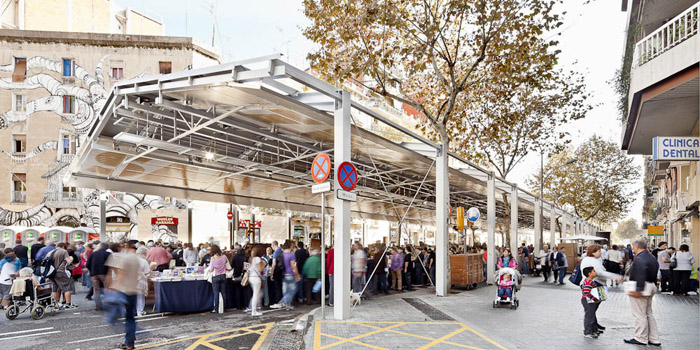

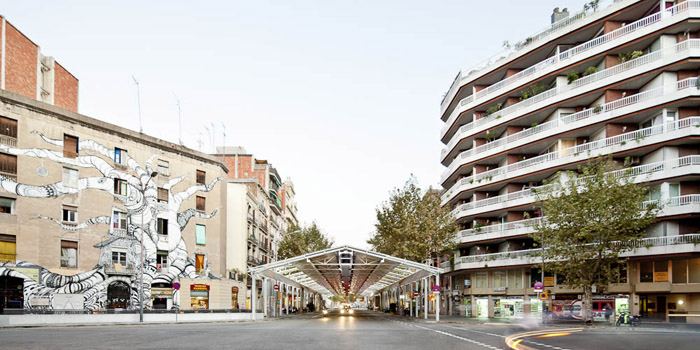

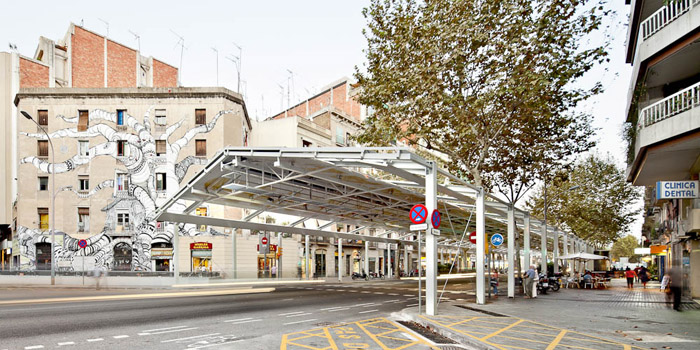

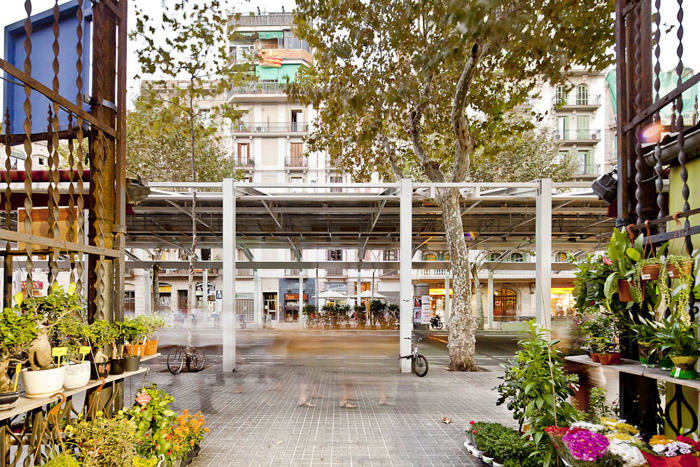

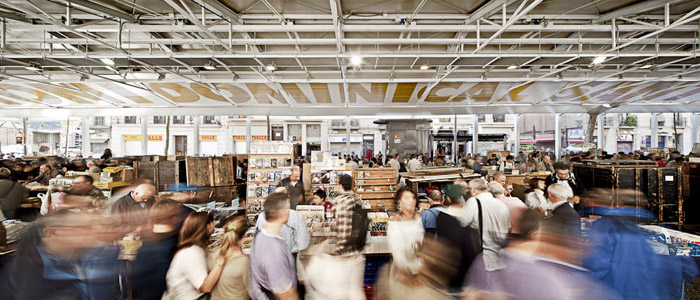

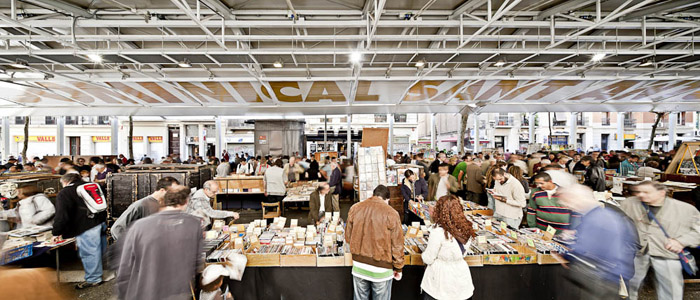

These assumptions lead to consider the covering of the central road of Urgell Street, which is closed to traffic every Sunday and keeps its intensive traffic role the rest of the days. In order to safeguard the Sunday activity we covered the central area of the street with a light roof, supported by arcades on the sidewalks. The structure is permanent, but there is a partially retractable roof that can reduce its surface during weekdays and increase the coverage to the market stalls on Sundays.

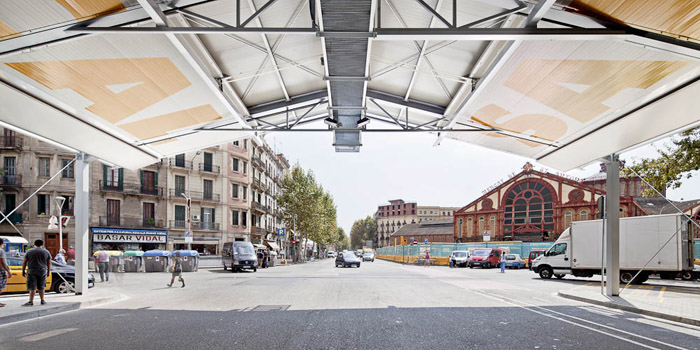

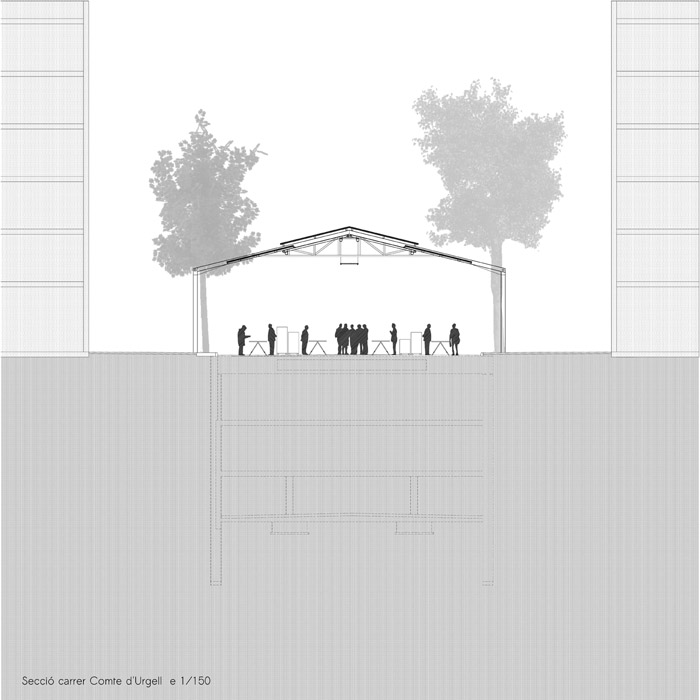

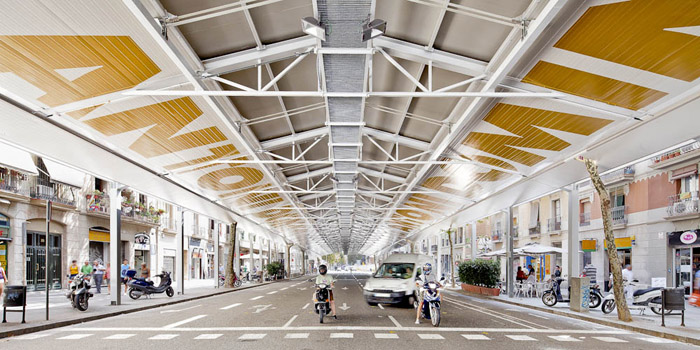

The structure is always situated above 4.50 meters in height, to respect the required gauge in this type of urban roads. Under the roof we provided a maintenance gateway containing the engines for retractable panels and projectors that enhance the lighting of the street, which can be replaced without interrupting the traffic.

SANT ANTONI SUNDAY MARKET. BARCELONA
Location:Carrer Comte d’Urgell. Barcelona, Catalunya, Spain
Developer:Institut Municipal de Mercats de Barcelona / Ajuntament de Barcelona
Authors:Ravetllat-Ribas. Pere Joan Ravetllat, Carme Ribas, Olga Schmid
Collaborators:Flexa, Xurigué Associats ArkTech, Structural and M&E Engineers
Moro Soucheiron, Project Managers
Enterprise executor:Calderería Delgado, S.A.
Project ending: 2011
Construction ending:September 2011
Surface:1.917,95 m²
Budget:568.956,09 € (PEM)
Photographer:Adrià Goula
