「走吧」是一个流动酒吧,可于任何地方随意拉伸至所需的形态。
Movabar is a lush and exclusive cocktail bar with mobility capable of transforming and unfolding at any desired locations.
「走吧」的设计灵感来源于遍布香港大街小巷的街市。
街市是香港市民生活的一个组成部分,也吸引了许多游客到访与游览。然而与亚洲其它城市不同的是,街市在这座高密度、高地价的城市之中演化出了更为复杂,与时间密切相关的多重面貌。
白天,一系列的摊位沿着街道蔓延,熙熙攘攘,而在档主休息的时,它们被整理成一个个规整的体量,消失在临近的建筑之内。夜晚的街道成为了流动餐饮摊贩的地盘,他们在一辆辆停放在路边过夜的小汽车之间支起摊位,开始营生。这种转变不仅影响着个体,在创造出一个不停变化的城市场景。而「走吧」的设计正是继承了这种个体的机动性。
Movabar is inspired by the urban typology of street market in Hong Kong.
Like the rest of Asia, street markets in Hong Kong are very popular among the locals and the tourists. However, unlike other cities, the high land value and the compactness of the city make the typology of the street market in Hong Kong more complex and inseparable with time and the overlapping of programs.
The market stalls are deployed along a street for operations during the day while being packed and stored off-site in a nearby building when unused. Such temporality gave way to outdoor eateries at night, and overnight parking spaces to the city. The transformation therefore takes place both in the object level and the urban level, creating an ever-changing social spectacle in the city. Such dynamics is inherited from the mobility of objects.

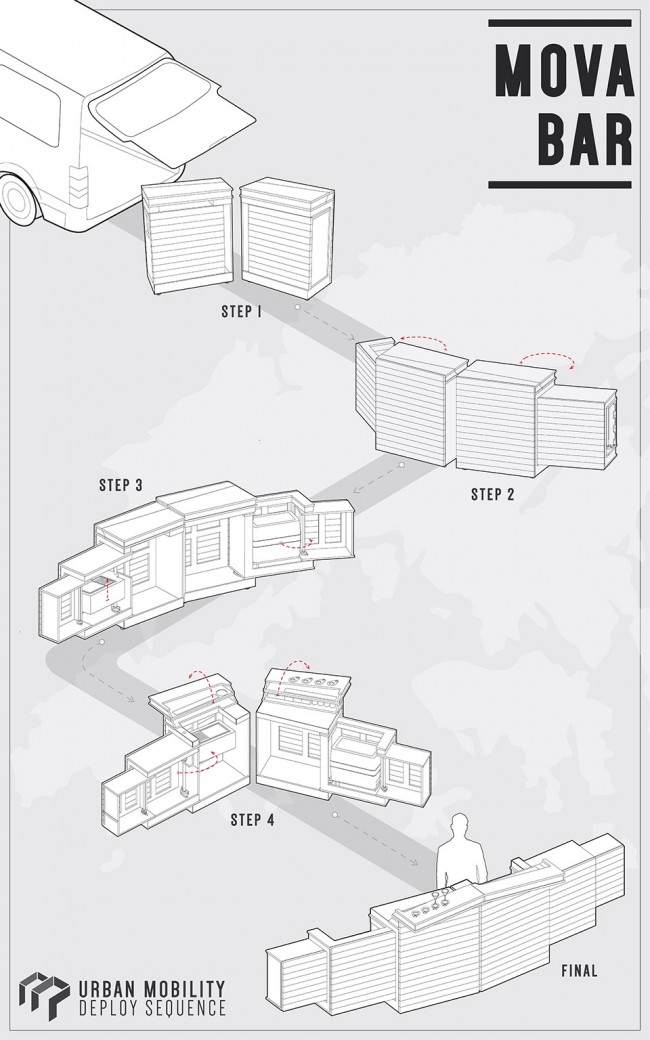

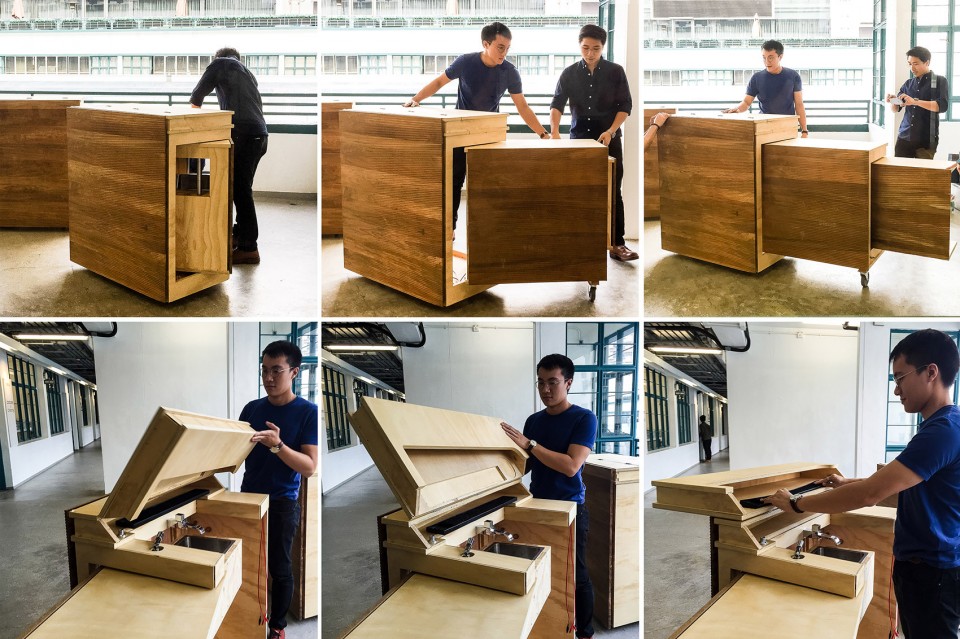

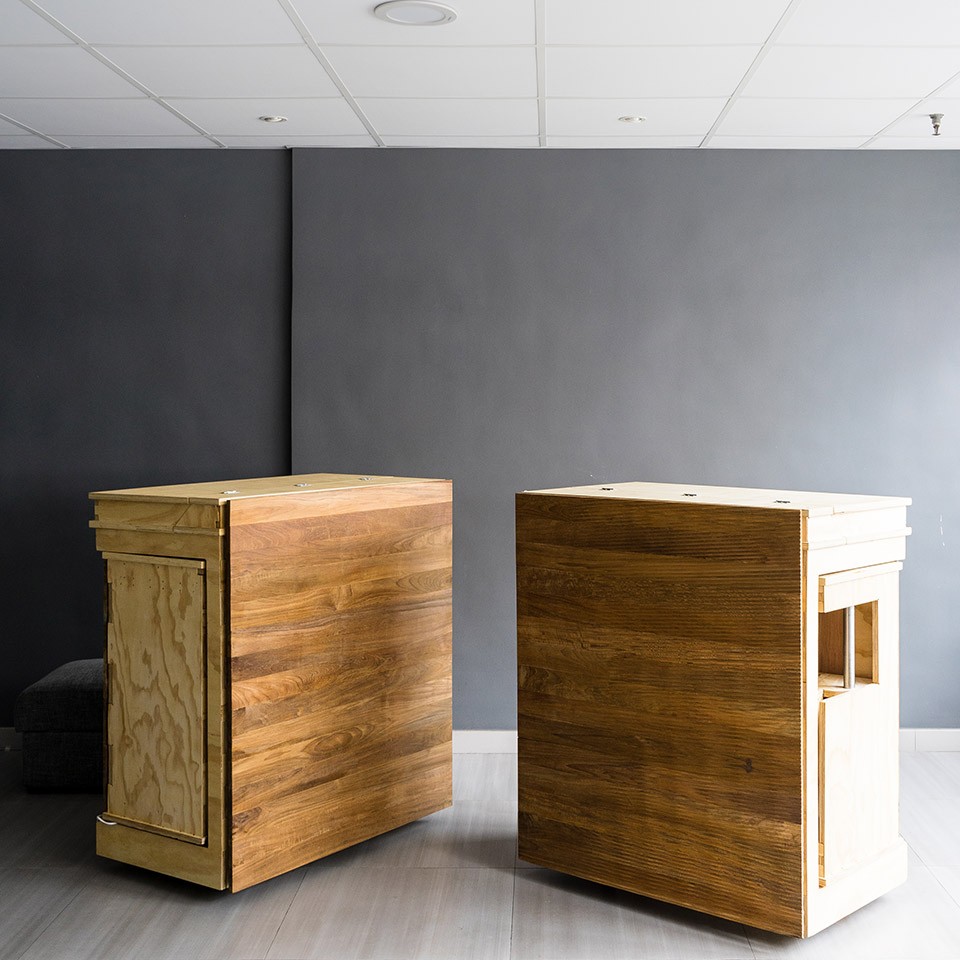

「走吧」是一个精心设计的产品,其转变过程如同一场演出般丰富。小小的木箱轻轻滑动,延长了2.5倍,围合出一个长达4米的空间。层层叠叠的构架依次向外延伸,精巧而严谨。设计师将酒吧的使用功能,结构的变化效果以及空间的利用方式一并考虑在内。箱体内嵌有一个冷冻柜、清洁的水源与下水系统。回收再利用的柚木在表皮上形成了立体的纹理。

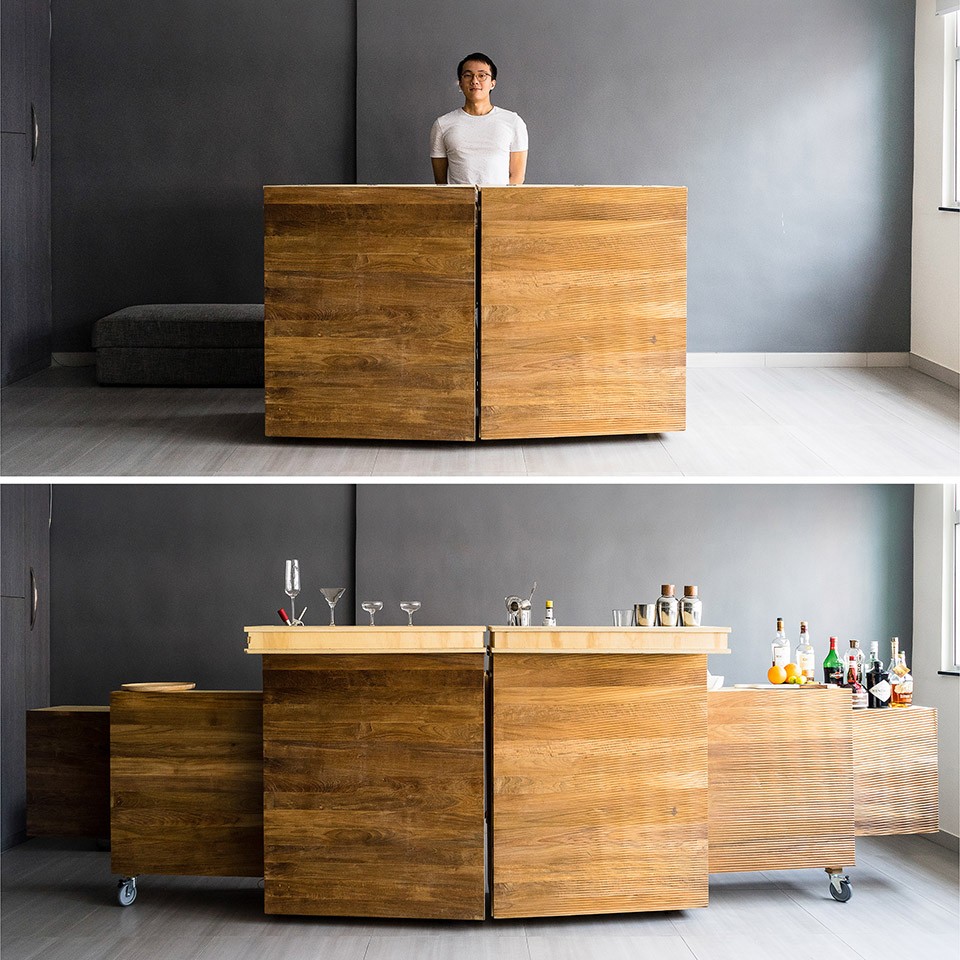

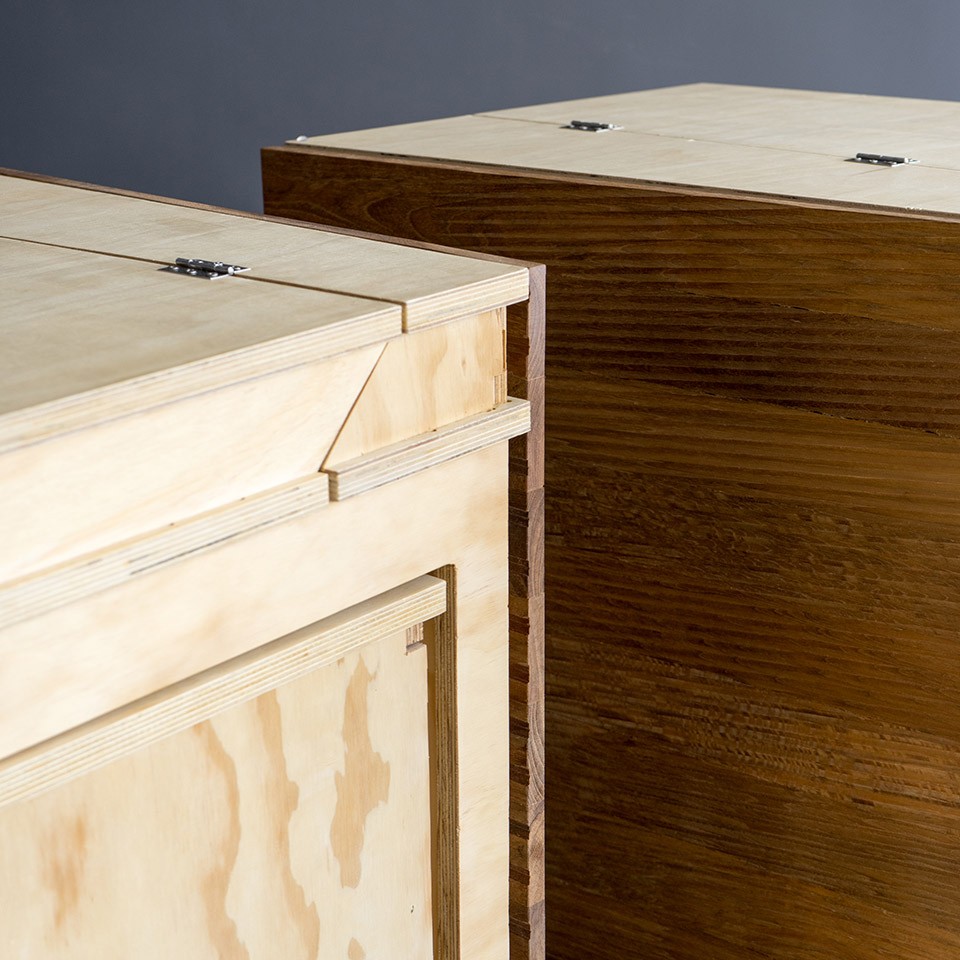

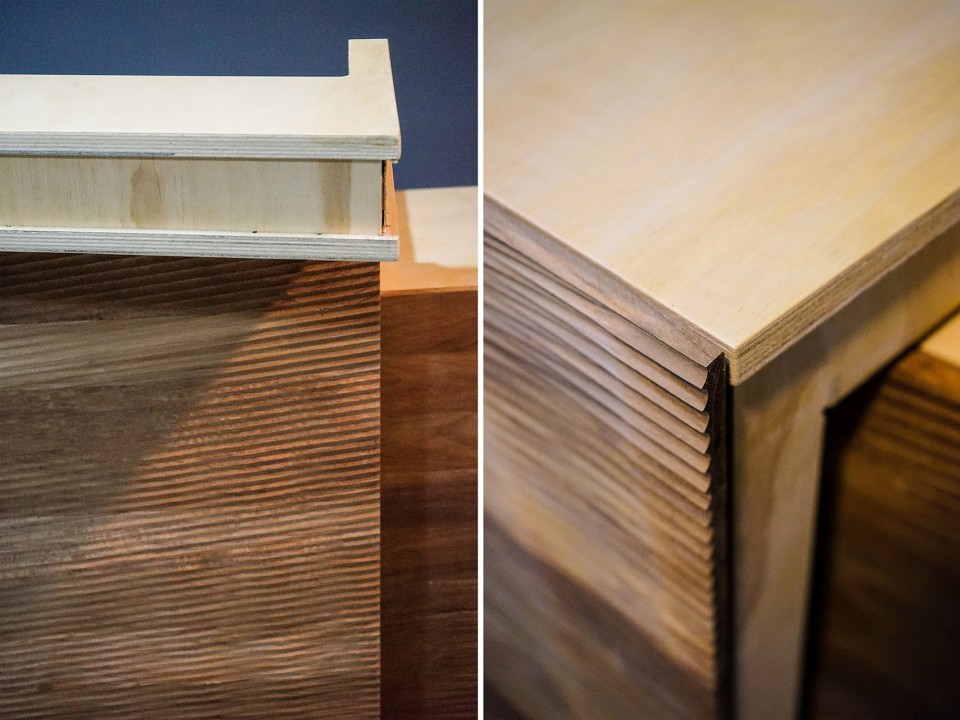

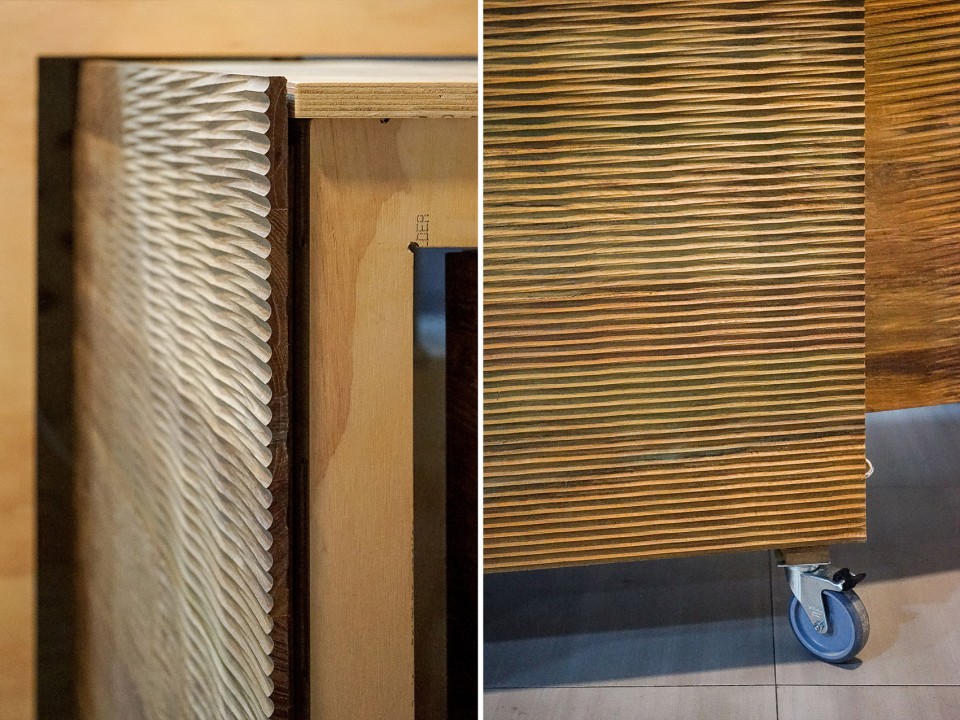

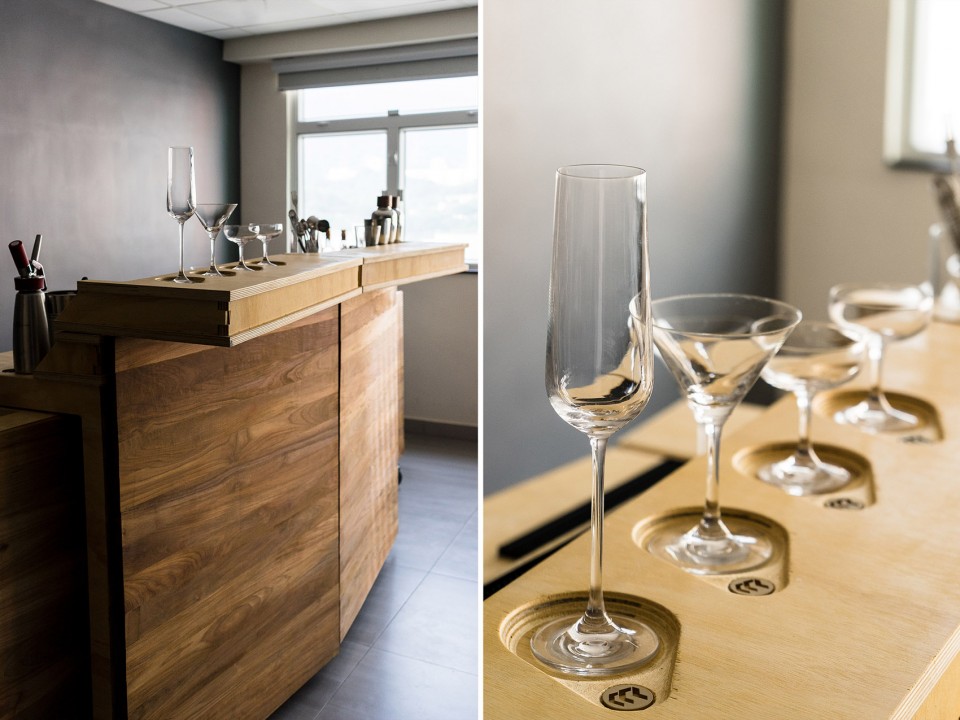

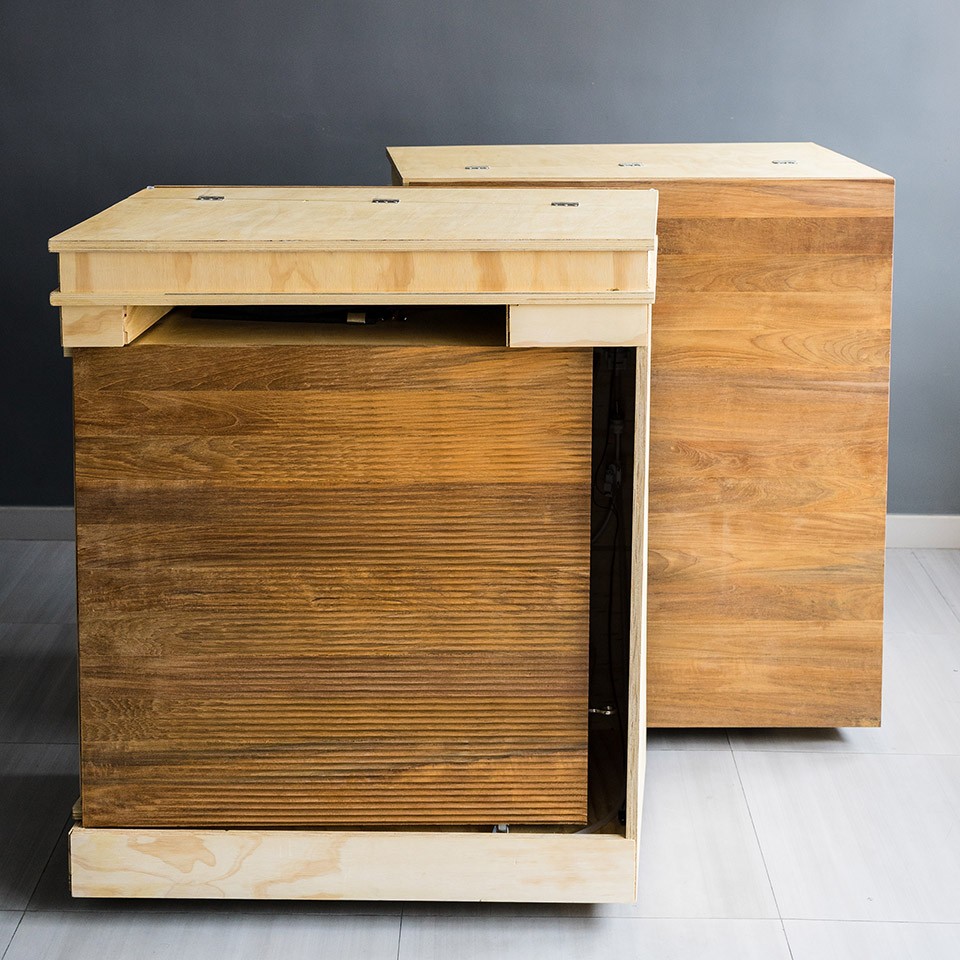

Movabar is an exquisite artefact. The transformation of Movabar is a performance by itself. With an increase of 2.5 times of space, the jewel box unfolds into a 4 meter long bar, dramatically altering the sense of space. Movabar was rigorously developed with numerous iterations in terms of the transformation process. It took into consideration the functional requirement of a bar, the maximization of transformational effect and the utilization of space. The cart is equipped with a built-in freezer, a water faucet and a drain. It is cladded with recycled solid teak wood with a three dimensional pattern on the surface.
过去十年兴起一股共享平台的风潮,我们的生活也随之进入以网络交织的时代。在繁盛的都市,共享资源成了最有效率且低成本的方式。无论是公司宴会或私人派对,只需轻触智能程式,一个已内置冷冻柜与水喉的酒吧,将附以精美酒品与各式调酒材料呈上眼前,及时与您至爱分享一刻。

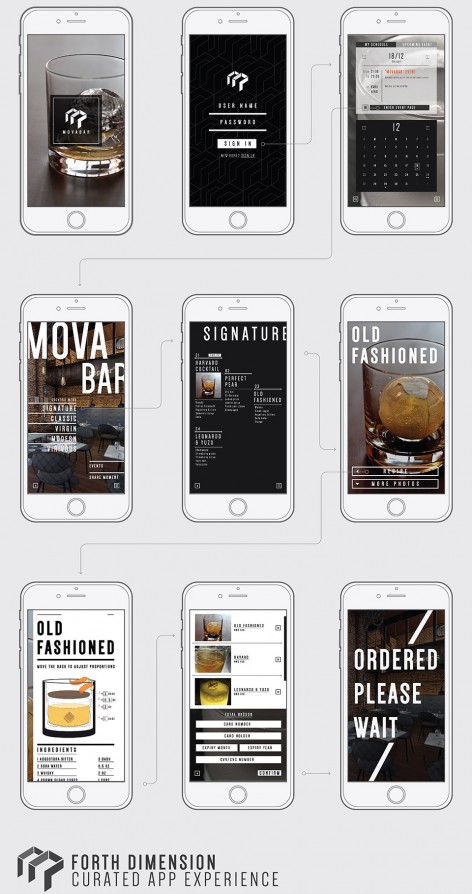

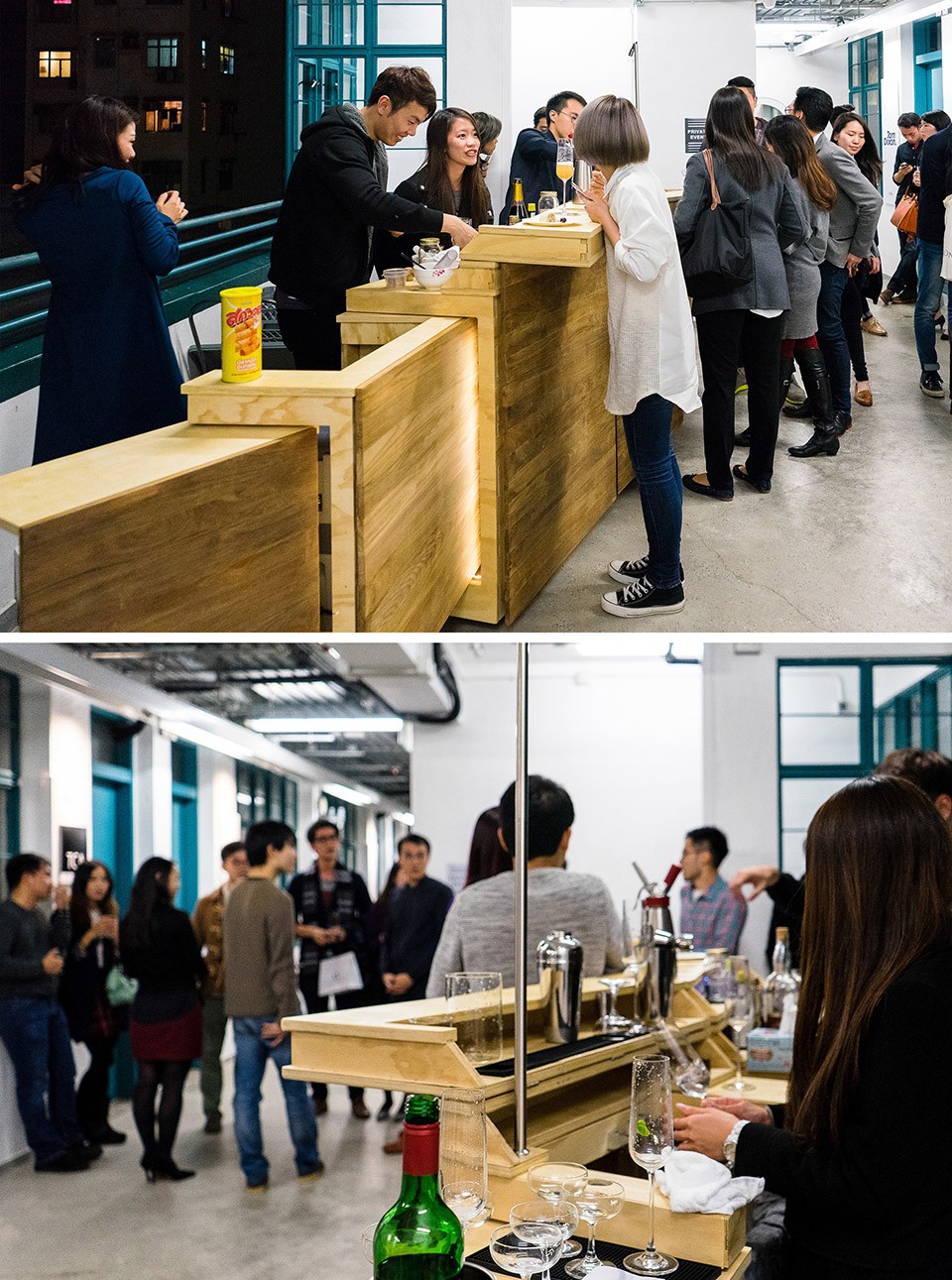

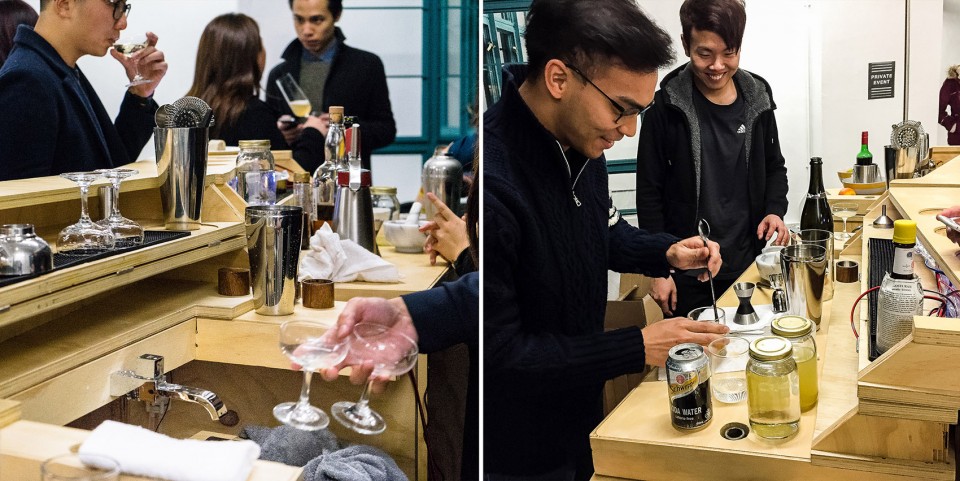

The idea was to create an on-demand physical serving companion with a simple click on the smartphone app. It may be rented for a company event, a party or a private gathering just for the beloved.
交互性的设计让「走吧」能针对特定的鸡尾酒品种做出回应,桌面的色彩传感器将能检测饮品的颜色,并触发相应色彩的灯光。

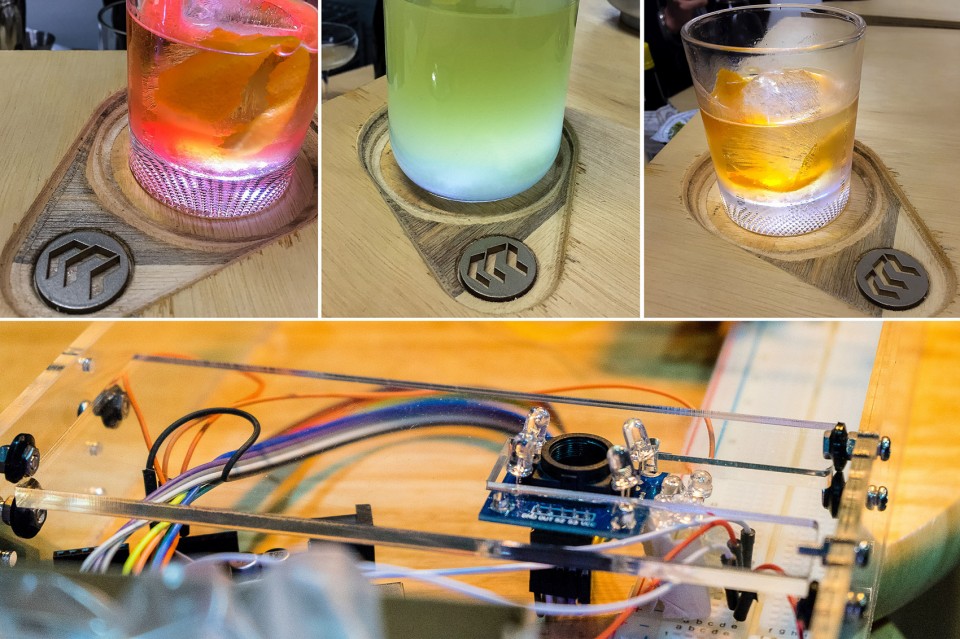

Movabar is designed to react to the specific cocktails being made. Color sensors at the surface of the bar were used to detect the colors of the drinks so as to trigger the alteration of ambient lighting.

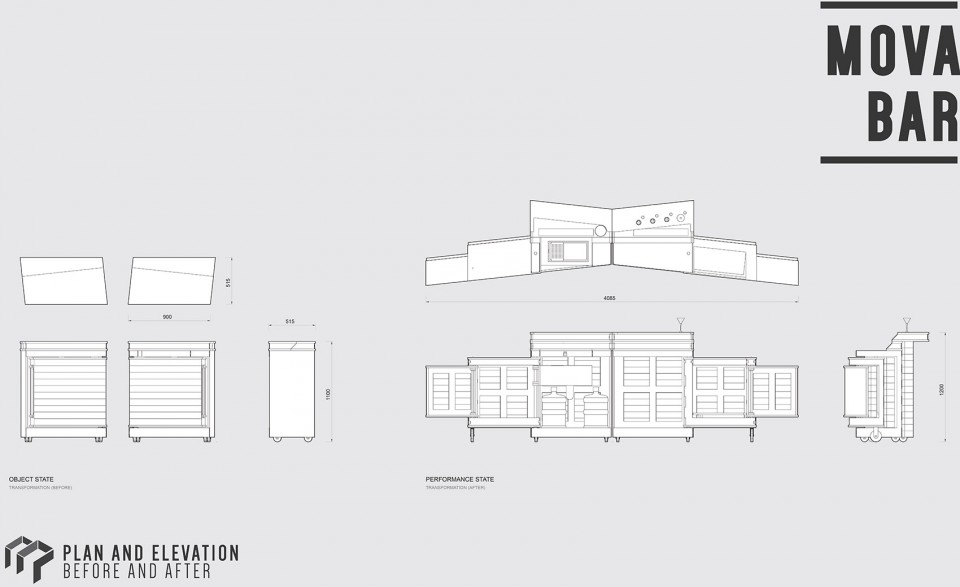

▽ 平面与立面,plan and elevation

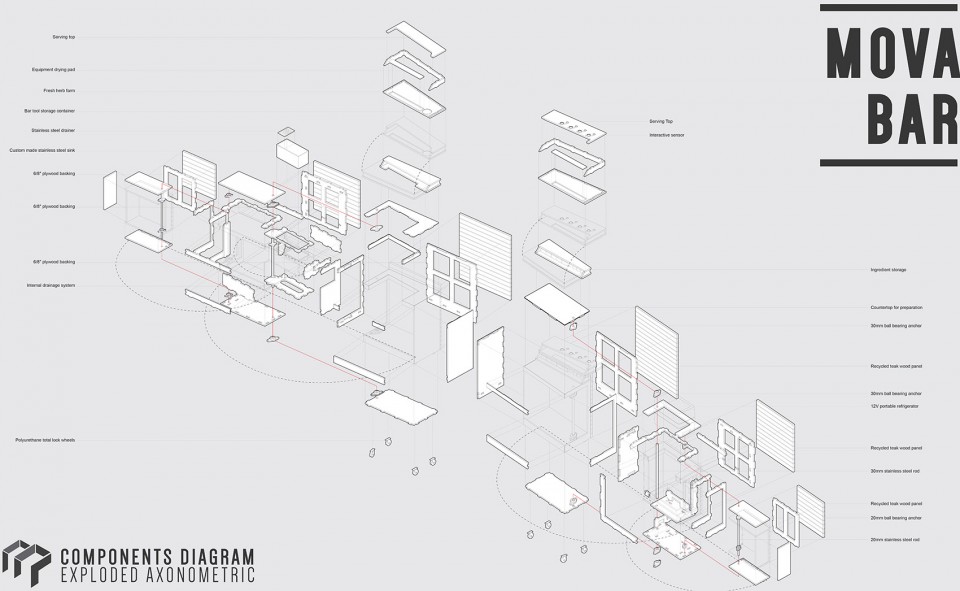

▽ 拆解式轴测图,components diagram
Team: Dennis Cheung, Nick Gu, Erica Yip, Jackey Ip
Firm: Upsop
Client: Movabar Limited
