House on the Cliff by Fran Silvestre Arquitectos

非常感谢Fran Silvestre Arquitectos将项目介绍和项目图片授权gooood发行。更多请至：Fran Silvestre Arquitectos on gooood
Appreciation towards Fran Silvestre Arquitectos for providing the following description:

飘在空中，浮在水面，静静瞰海，仅此而已。
尊重土地，回归平静。

阳光下的泳池像是和大海接壤的一个小海湾。
韵味悠然的楼梯联系花园和房屋。

因为陡峭的场地，这座钢筋混凝土房屋造型尽可能的适应场地，减少土方工程量。房屋本身像是不同层级的平台组成。泳池在较低的平台。房屋造型灵活，通体为一个颜色，具有强烈的整体感。

HOUSE ON THE CLIFF
CALPE, ALICANTE.

We like the virtue of architecture which makes possible constructing a house on air, walking on water…
An abrupt plot of land overlooking the sea, where what is best is to do nothing. It invites to stay.
A piece that respects the land’s natural contour is set in it.

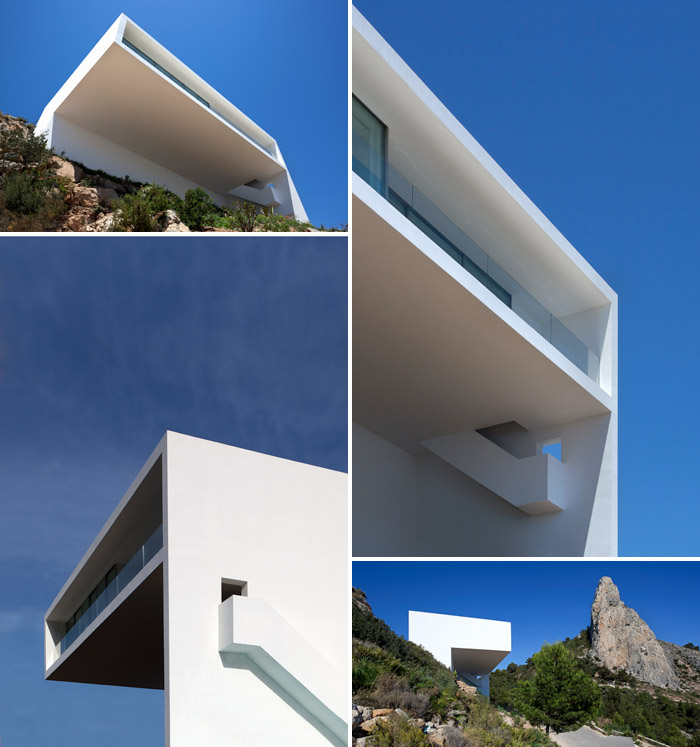

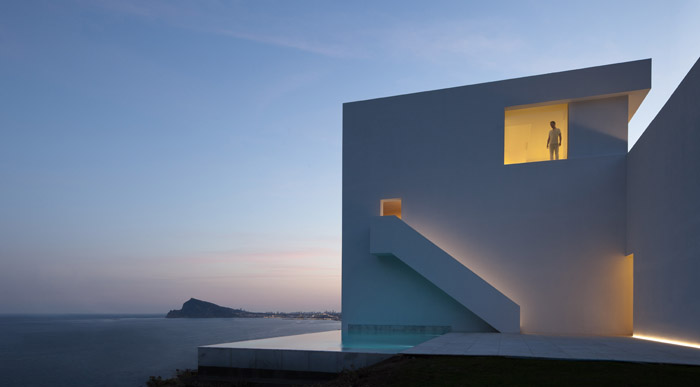

Above, a shadow, the house itself, looking calmly at the Mediterranean.

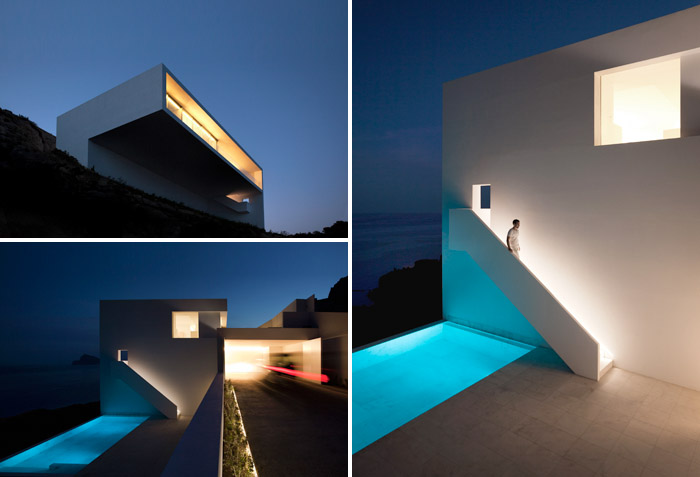

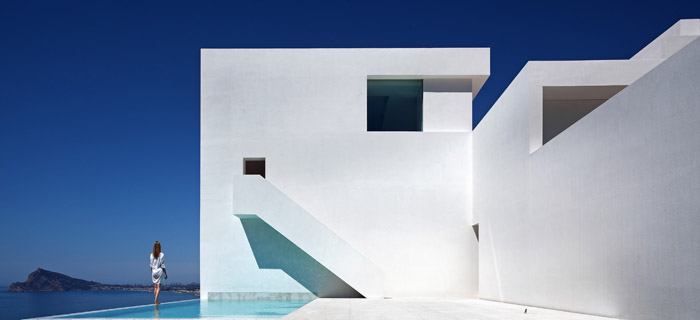

Under the sun, the swimming-pool brings us closer to the sea, it becomes a quiet cove.

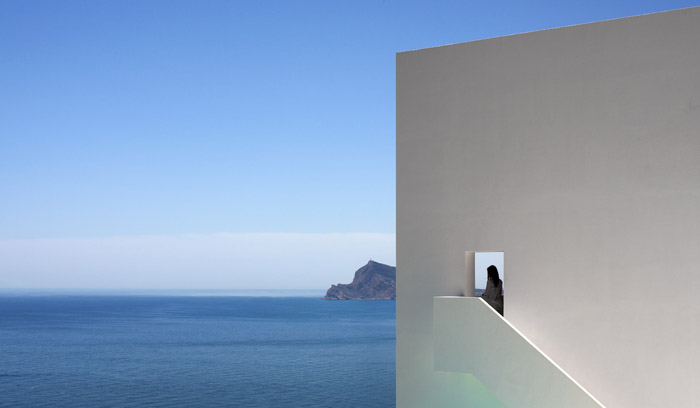

In the inflection point, the stairway proposes a evocative path, a garden in the basement…

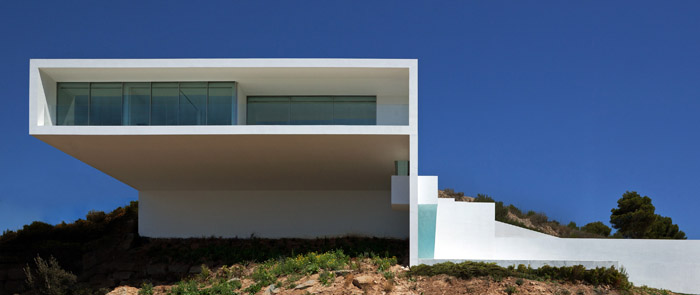

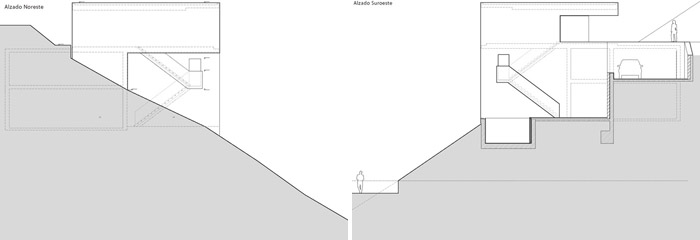

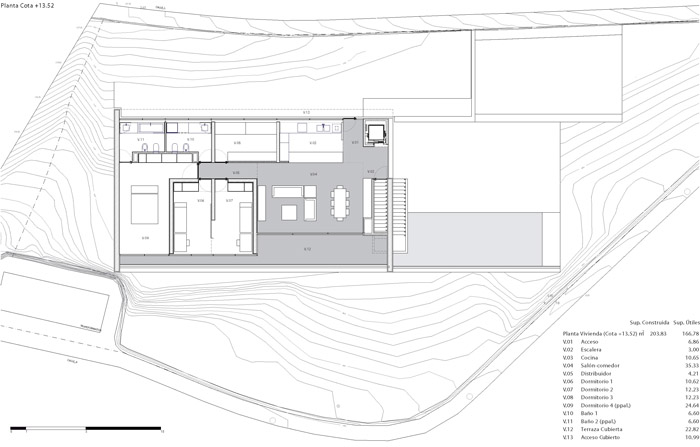

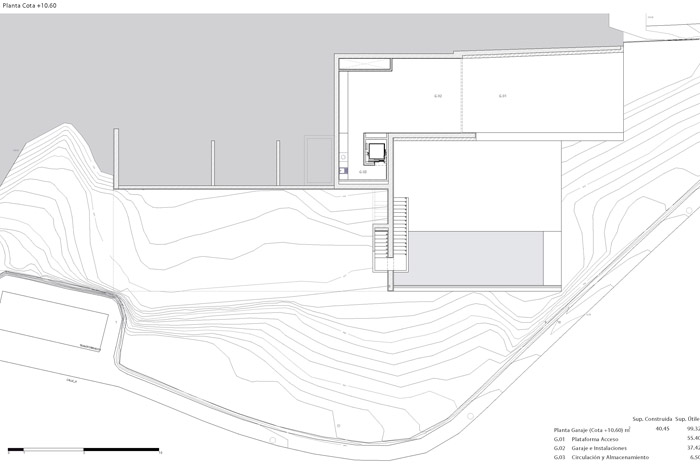

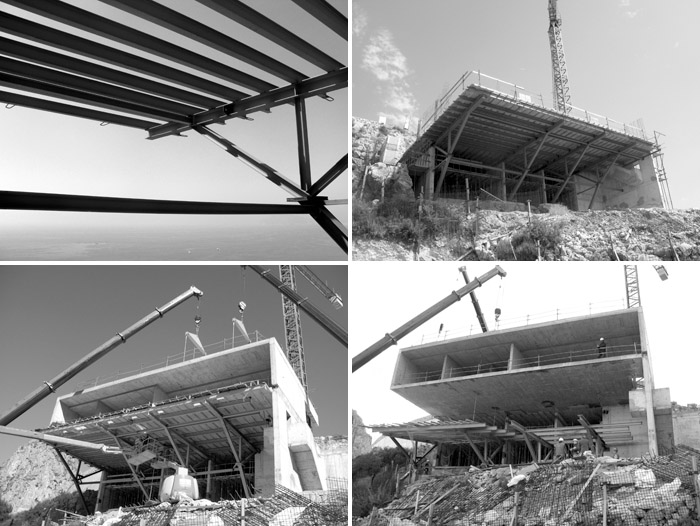

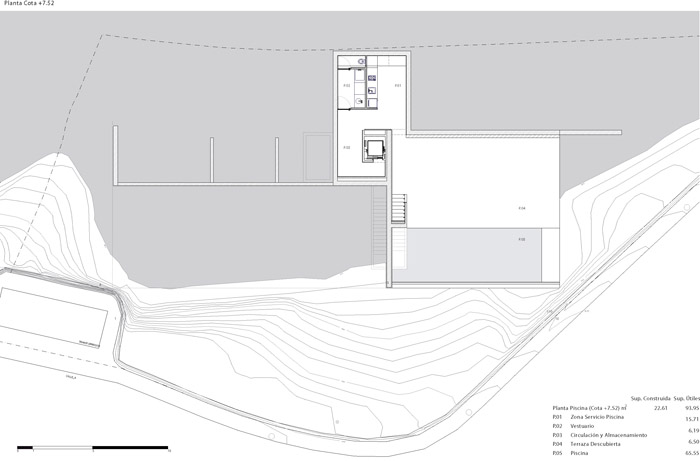

Due to the steepness of the plot and the desire to contain the house in just one level, a three-dimensional structure of reinforced concrete slabs and screens adapting to the plot’s topography was chosen, thus minimizing the earthwork. This monolithic, stone-anchored structure generates a horizontal platform from the accessing level, where the house itself is located. The swimming-pool is placed on a lower level, on an already flat area of the site. The concrete structure is insulated from the outside and then covered by a flexible and smooth white lime stucco. The rest of materials, walls, pavements, the gravel on the roof… all maintain the same colour, respecting the traditional architecture of the area, emphasizing it and simultaneously underlining the unity of the house.

HOUSE ON CLIFFSIDE.
CALPE, ALICANTE.
ARCHITECTURE FRAN SILVESTRE ARQUITECTOS
PROJECT TEAM Fran Silvestre | Principal in charge
María José Sáez | Principal in charge
Maria Masià | Collaborator Architect
Adrián Mora | Collaborator Architect
Jordi Martínez | Collaborator Architect
José V. Miguel | Collaborator Architect
STRUCTURAL ENGINEER David Gallardo | UPV

BUILDING ENGINEER Vicente Ramos
Esperanza Corrales
Javier Delgado
INTERIOR DESIGN ALFARO HOFMANN
FOTOGRAPHY Diego Opazo
VIDEO Alfonso Calza
MARKETING & COMMUNICATION Adrián Mora | Architect
COLLABORATORS Fran Ayala | Arquitecto
Ángel Fito | Arquitecto

CONTRACTOR Construcciones Alabort
LOCATION Toix Mascarat. Calpe. Alicante
SITE AREA 962,84 m2
BUILT AREA 242,00 m2
COST (P.E.M.) 650.000 euros
BUILDING SERVICES Sanitaryware Toilet and bidet | Arquitect Suspendido, Noken. (Grupo Porcelanosa)

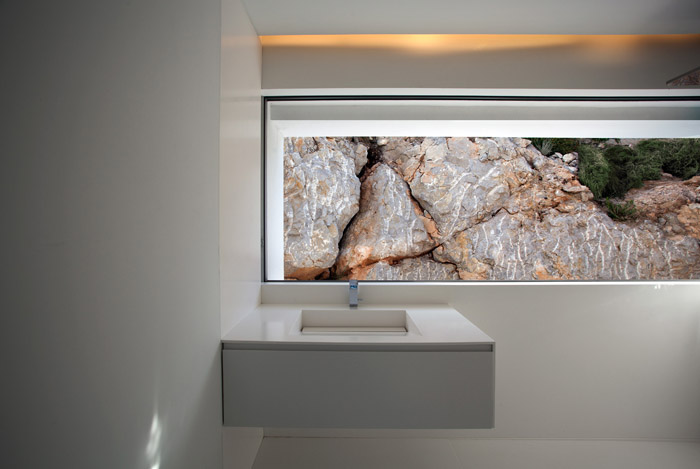

Wash-basins | Arquitect Suspendido, Noken(Grupo Porcelanosa)
Sanitary Fittings | Lounge, Noken. (Grupo Porcelanosa)
Lighting | Fluorescent linear lights.
Light Fittings | LS 990 Series, Jung
Conditioning | Heating and cooling ceiling system

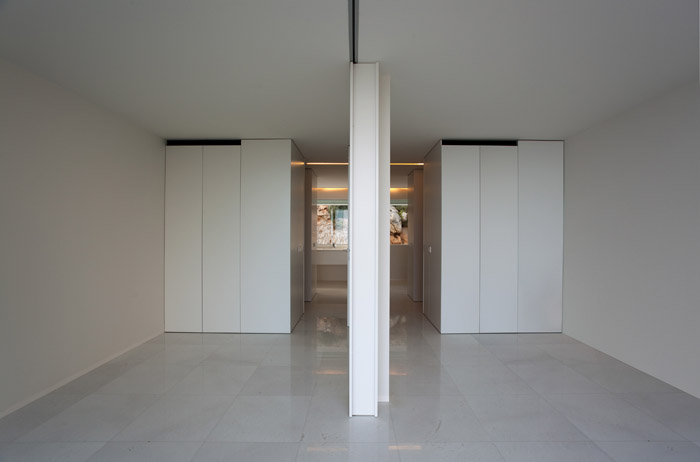

FINISHES Paving Interiors | Polished Thassos white L’Antic Colonial (Grupo Porcelanosa)
Exteriors | Sandblasted Blanco Almería marble slabs, L’Antic Colonial (Grupo Porcelanosa)
Surfaces Interiors | Plasterwork
White coated MDF panels RAL 9016
Bathrooms | KRION, SYSTEMPOOL (Grupo Porcelanosa)
Exteriors | Thermal insulation + white external render (Sate Vipal / Parex)
Suspended ceiling Smooth plasterboard panels
Paint Walls and ceiling | Matt plastic paint RAL 9016

METALWORK&LOCKSMITHING Interior Internal and cupboard doors | White lacquered MDF RAL 9016
Exterior Natural finish anodized aluminium (Vitrocsa)
Glazing Clear toughened double-glazed unit (8+10+8)
(Vitrocsa)
Locksmithing White lacquered steel RAL 9016
Laminated tempered glass, 10+10.4

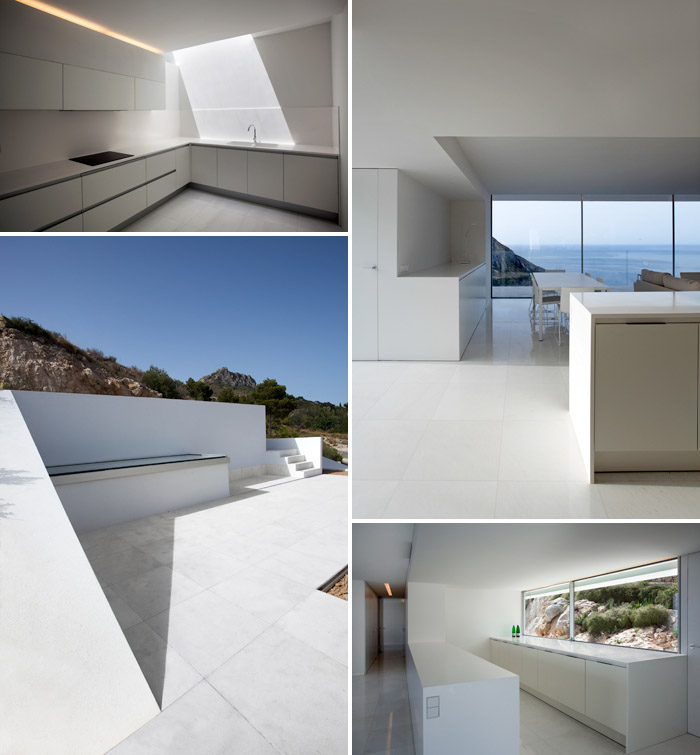

EQUIPMENTS Kitchen Model G-480, Gamadecor (Studio2) (Grupo Porcelanosa).
Kitchen counter | SYSTEMPOOL (Grupo Porcelanosa)
Interior furniture Dining room table | Neta Dynamobel
Dining room chairs | Trazo Dynamobel
Sofa | Definy Grassoler
Lamps | Flos
Exterior furniture Modular sofas | Flat, Gandía Blasco design. Mario Ruiz
Chairs | Clip, Gandía Blasco design. Mario Ruiz

MORE: Fran Silvestre Arquitectos，更多请至：Fran Silvestre Arquitectos on gooood
