Dongdaemun Design Plaza, Korea by Zaha Hadid Architects (part3)

Modeling and Construction Strageies

2014-03-31

项目标签

设计公司: :; Zaha Hadid Architects
位置: :; South Korea
类型: :; Architecture
材料: :; Concrete
标签: :; Zaha Hadid Seoul
分类: :; Parametric design

感谢 Zaha Hadid Architects 予gooood分享以下内容。更多关于他们：Zaha Hadid Architects on gooood.
Appreciation towards Zaha Hadid Architects for providing the following description:

备注，该项目资料丰富，共分成几篇文章发布，点击蓝色链接到达。本文是第三部分。
第一部分 part 1 ：文本Texts & Credits；建筑室内外照片Photography，主要平立剖图纸Drawings
第二部分 part 2 ：概念（整体，景观，场地，交通等）Design Concepts
第三部分 part 3 ：造型与建造 Modeling and Construction Strageies

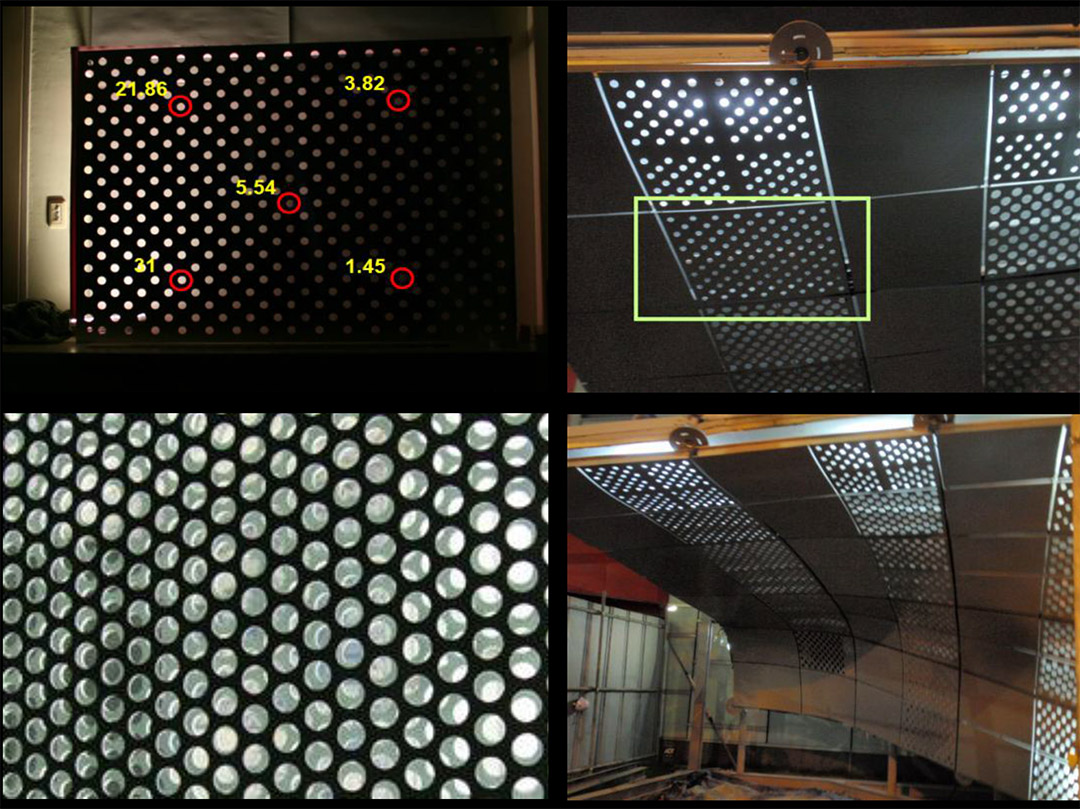

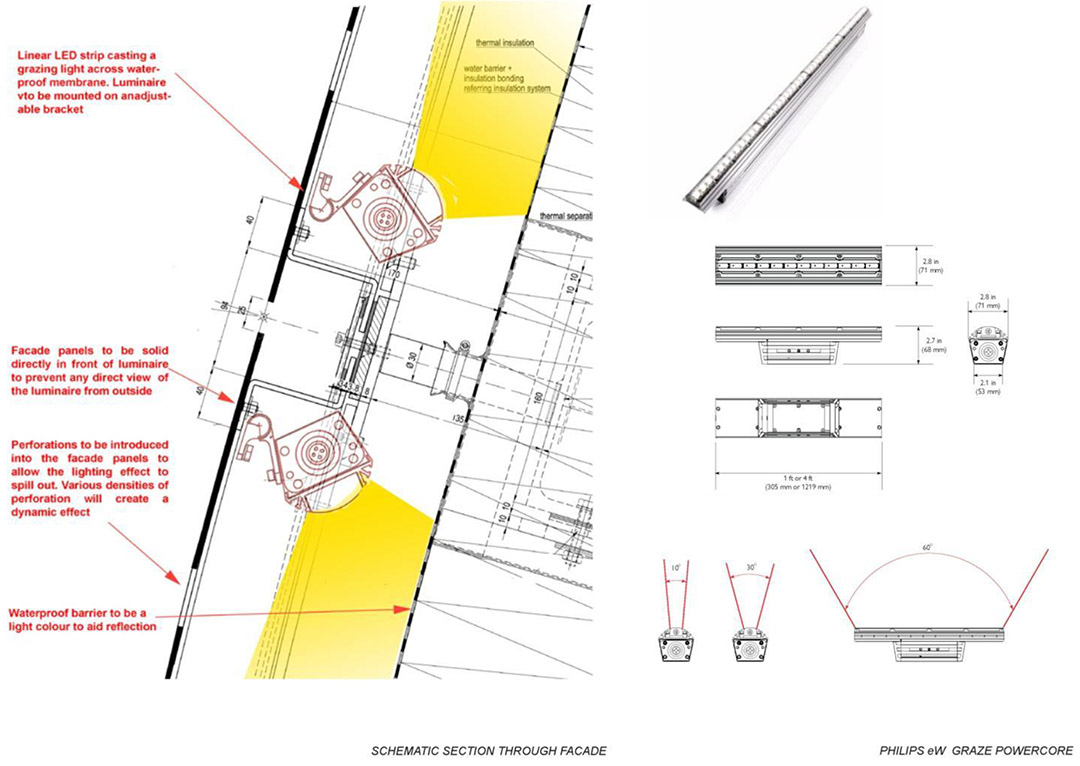

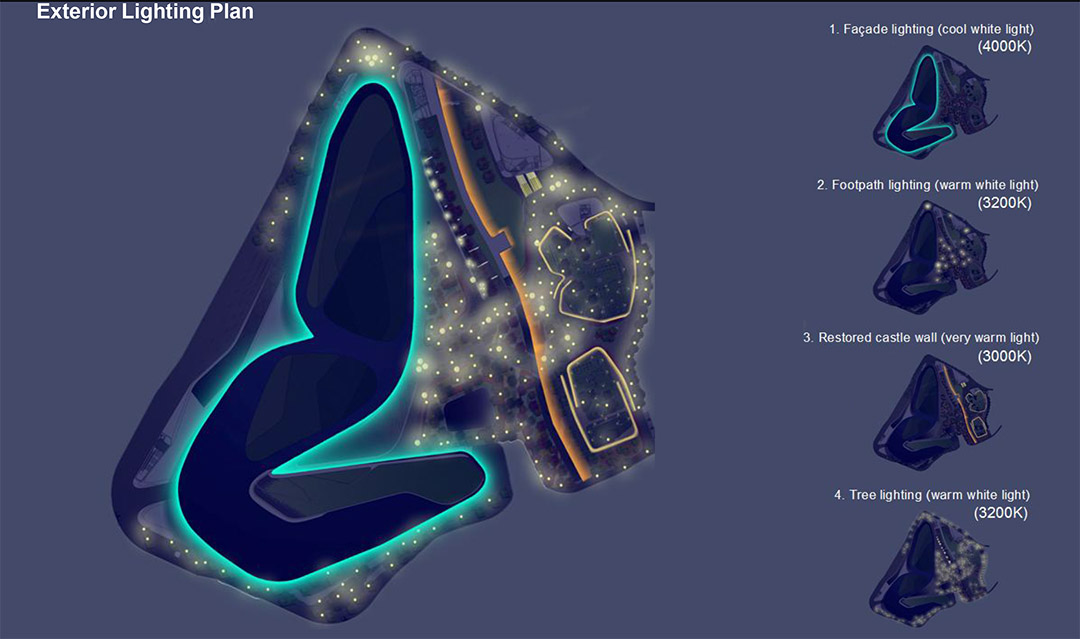

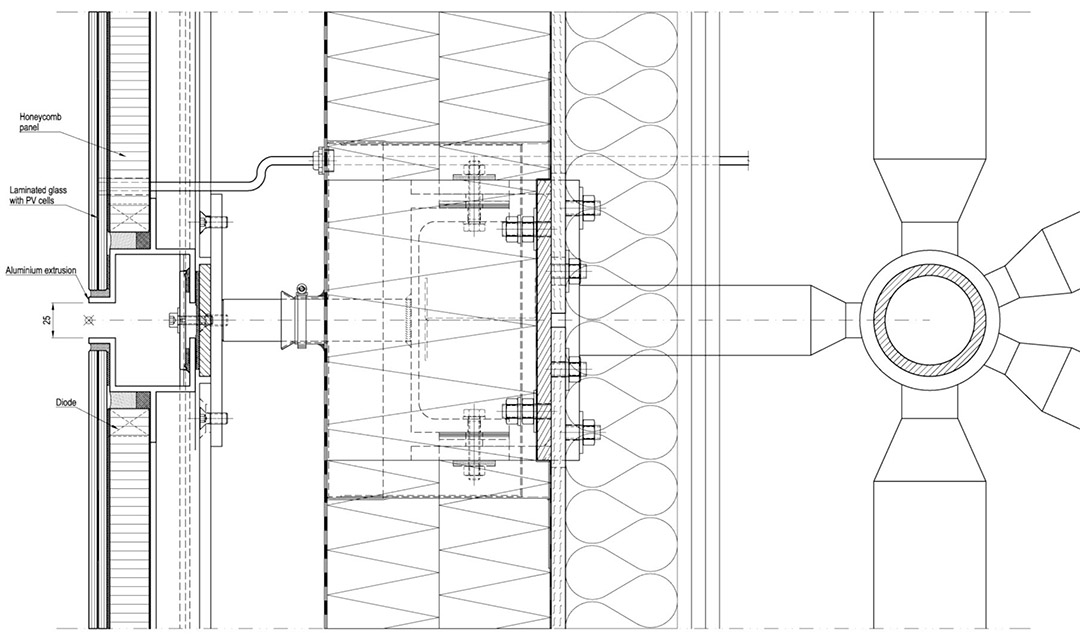

▼ BIM_Cladding Details_Facade Lighting

/wp-content/uploads/2014/03/_c_HdcU9CvolGsuD1r5XX9l1AQg1WZ3WpFeY92rMPgdkJdMYo2wl5wnOw67nB5pjh761twwQfyGruYuRE67y4ruAYtggNvPCMyc.jpg

/wp-content/uploads/2014/03/_c_GQnGbxG2784zadKE9ZVEG9UCK-iZHi2pBxicXjwhqii_N87TX9h2aLVzMWJfHLDCHuVzSadGN5Fmg7p0KyQJqRMgQz1pH7Bi.jpg

/wp-content/uploads/2014/03/_c_3XFAMPBmcT55gKyRWlI7bj9yNXHJRw8W0g80ysFqE4l_MyijvRU7_oiixuXlYBrepENc-x2iQVBqrhlTI5giZ6XZCumE2k2u.jpg

/wp-content/uploads/2014/03/_c_u-qVIIqejPAEnWgh4OnWMaumfqyYX4UuTKDnjGCDkv4tN4moEiuw-hT1J7bLbjbd4cx-ffqRKw-cSfoQPIklPWfsgW0RI17G.jpg

/wp-content/uploads/2014/03/_c_WvQ6zTNzkCJS3XcYH_gnKFQOlgM1SRu2sJo9-haA45koLKtS467JoD6zsHO0Wucjct_9N7u1xbSQvxtTKNPSvVvnbvdWUSue.jpg

/wp-content/uploads/2014/03/_c_K-XJ3q57obhT6FUwIw5uIgQaRa7-xXtOk8YFrR6HyRWM25Br-9ml2bONgkaq74NNyCDF0EHkZqK_GQUo4vVzyptHyNEH0c64.jpg

/wp-content/uploads/2014/03/_c_vIvfVoep0sH3jxJk2zjqAVFEbYG4kx4NdrwaS1HrMsRSfmsAiC93tM8N53gylZkx0UkrNX2oiFpLWW2j4g3ZV1Q63JF6uV5_.jpg

/wp-content/uploads/2014/03/_c_aF3JA3QQkvK96BeQxR9kJVff5J_2xUAaoo-69qv14Bb88DK19hZHKA7YUkWawd70QFPNaE6FXtQE_rWND6hbbC9gIdemsECl.jpg

/wp-content/uploads/2014/03/_c_nwyGxvtuxd5ldGh43phwI402AtcSiD4-7-HtL36-arsmOZoTweXh_Hwe4lwF2jjDbO9tJBEn5v5kjphyoY7uUVJsBvHuV6th.jpg

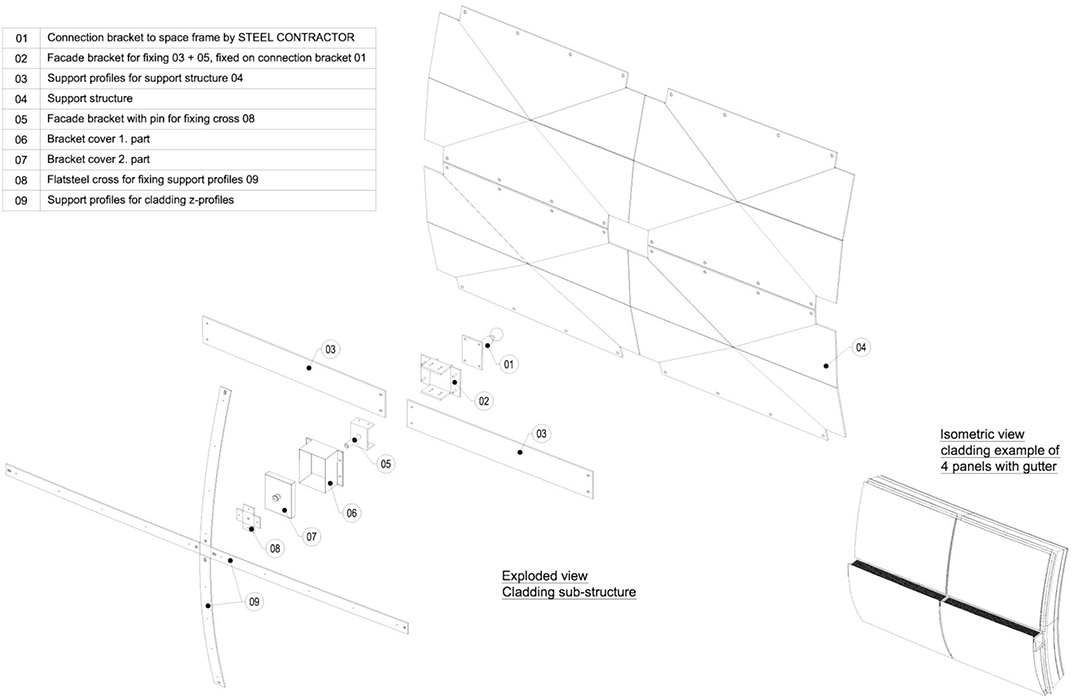

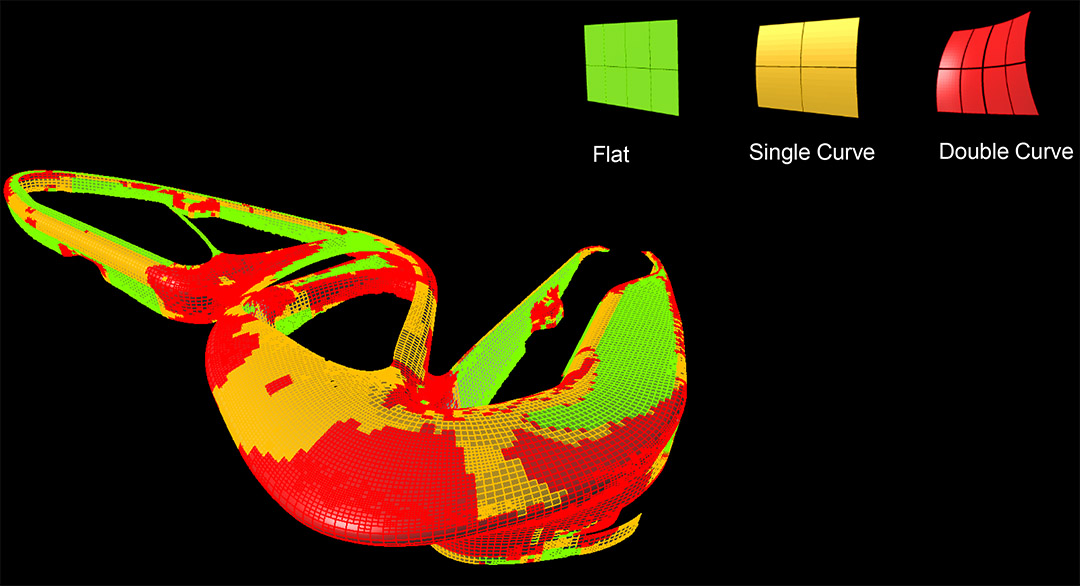

▼ BIM_Cladding Modeling

/wp-content/uploads/2014/03/_c_EJsKUyyHPx3hZ-o0adRaN0cPee2QY69S-oXjGh4KJ6KU_Mez9xaR7ornqR-FGlVdmmr5LaSM5wES1tSGFVYGGmBQC8fcDmoW.jpg

/wp-content/uploads/2014/03/_c_UjHJZjWIG4eFkQjkj_Qos1i12ZEX4NcTYDgw5LvcAfkBmllS5IFDXrYarm98oMFlXC2xUDCE3K8Y4ZvE57SaRZD0W4wMIQr1.jpg

/wp-content/uploads/2014/03/_c_zJQMtPc67eEqcKsOn4cVGEZlzgg4ClnC3l0wur0F9tWEnoySbJnbk-RdV9H9XgM-IHz3DH7fjHeWQLpj5TxnY_eaF67PHycc.jpg

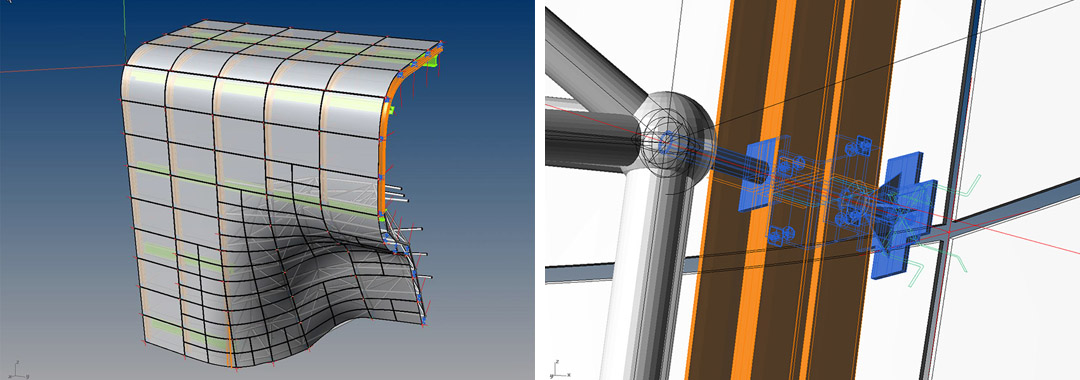

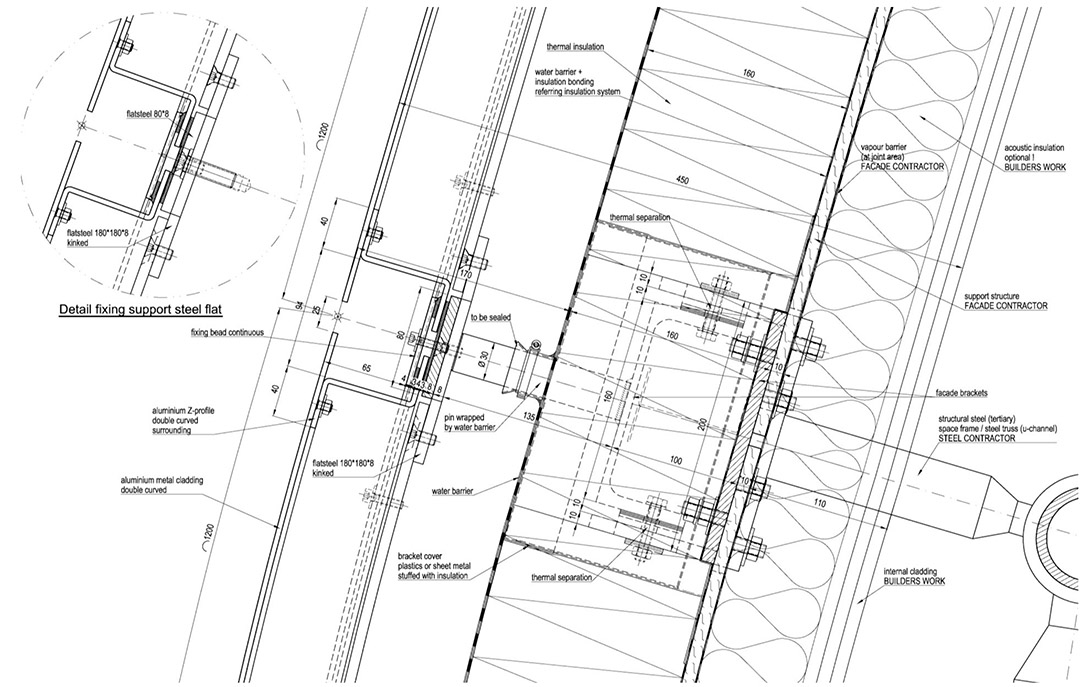

▼ BIM_Cladding_Entrance Detail

/wp-content/uploads/2014/03/_c_l_wyXLKftpGuU-zQW6RzgnNdG21V8L-9K2CwrOYQH0ff49xFmrshhfSlgYESvvG4fmiVHlQ9KEN69iY6--X4QoNqxw7JoW3n.jpg

/wp-content/uploads/2014/03/_c_EsyYi5ztkV4vSyaD1-0XY0nMzXOLcBeUnqFae-9_zOXtuB_EOYDNciC2rnX0LLZt6VNWbCgnwGDUMfMbjCialad1ED7zMbWd.jpg

/wp-content/uploads/2014/03/_c_H9LYeBxU-1WB3RrLZGC50gn-qYwFguU9rYWjMXXrXTz1ofbERL9A6Z-X2nBt6MGrVeSXAhvCF7wrvH7ZxrLibpVqs-D6FJtx.jpg

▼ BIM_MEP

/wp-content/uploads/2014/03/_c_dH0q1owb1u0Wsug4W_85e7HzAf3QTXnZOZ1bvtNoLi87aQw_i9_OswQvxuSmoWaOhwJTR6TIPQjs0Jgke_bybmUKP7ug2WXt.jpg

/wp-content/uploads/2014/03/_c_9Dp3xkWivoXEkAaHol-7Nmp0XBmOGqLm4zt-9pSPr8c7RxKvy2Kty5WsSugNsEBDuuPtmOmMYsenX2wKKb7xe9mv8ya7ctG7.jpg

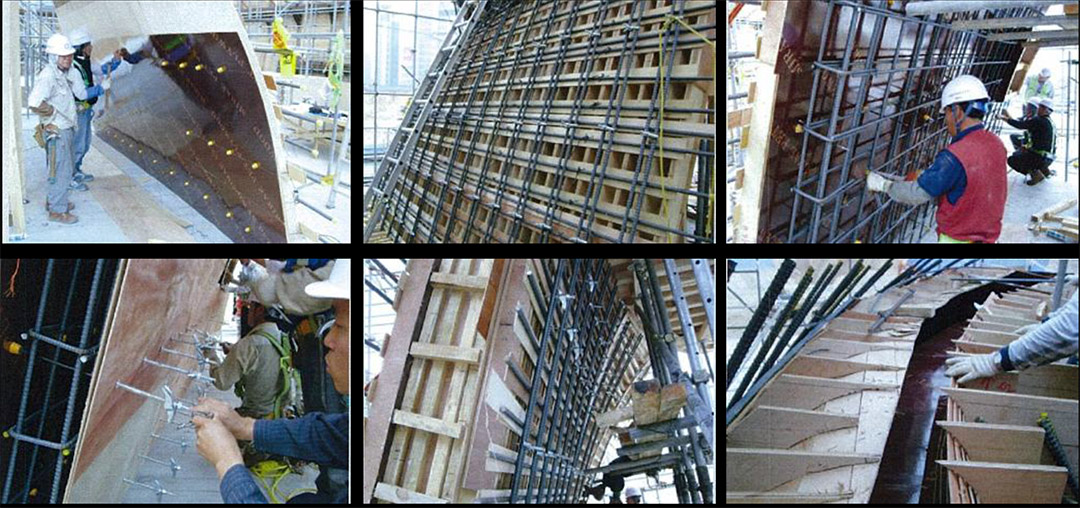

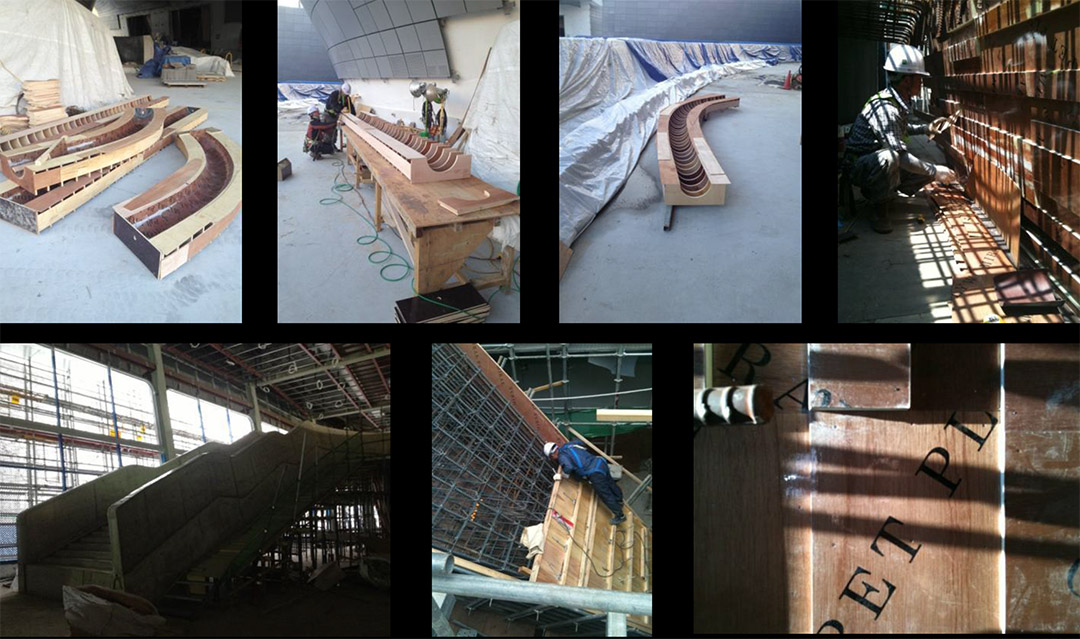

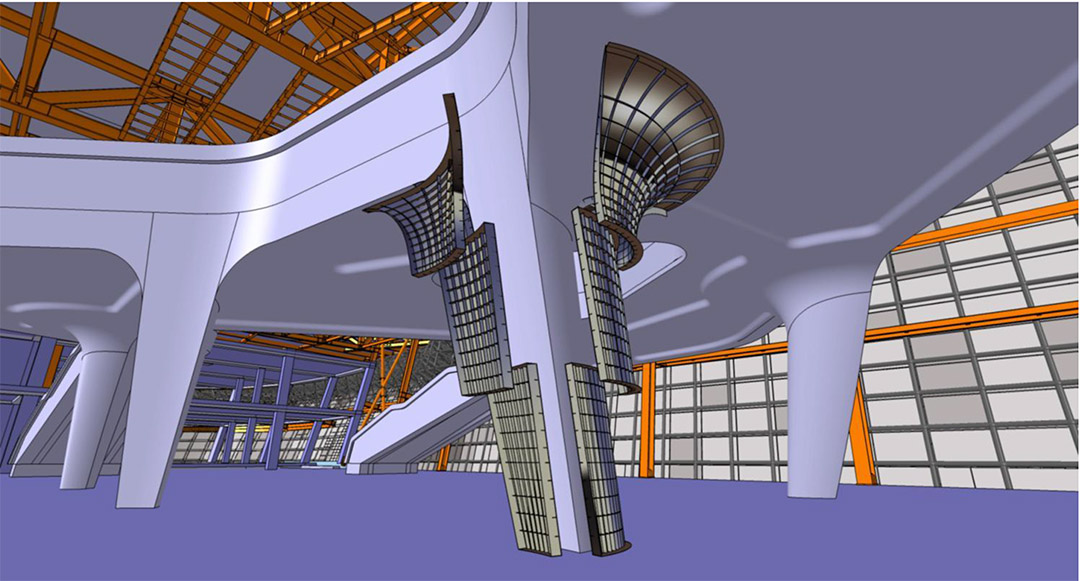

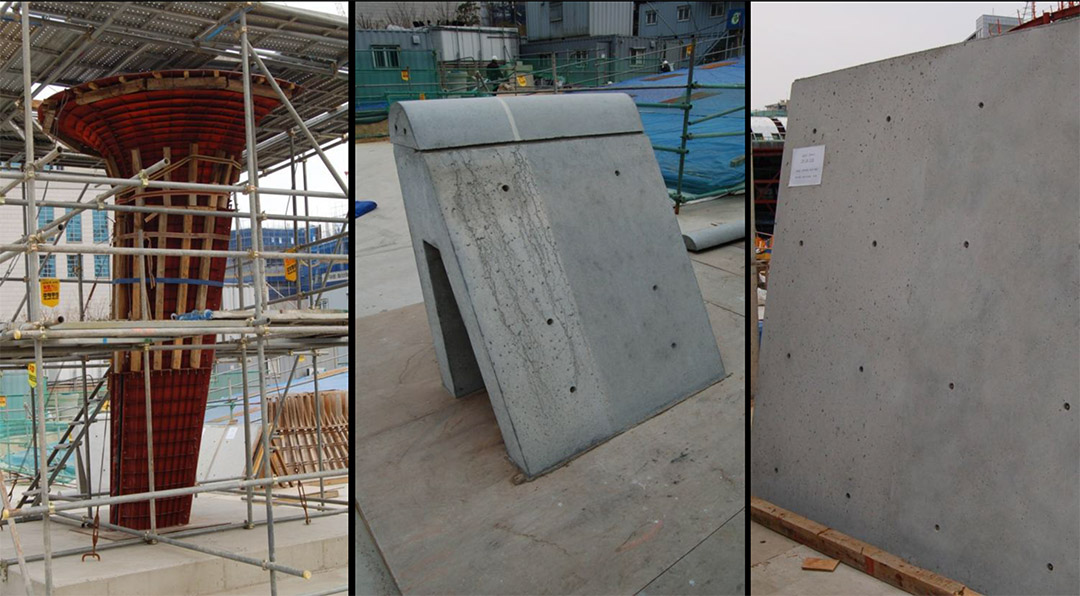

▼ BIM_Reinforce Concrete

/wp-content/uploads/2014/03/_c_TyJGZCgLhAVnCELfhNB2QyUDBNMIdr6_Qe7hvlTq2mGdGAW48KSwsuCSwtC8ViXArfVZyN3HMY2-NrGvqbgJfN74TmbaZiyR.jpg

/wp-content/uploads/2014/03/_c_4WDoevmGr5LIRMoeDBeHKxFzFOqVuHOzRSagk4SMOJmZ3eTj1Tp771Skh56AZpVN2-BJiYKSq3_hPqcfmLxewfWb37QJ0mE6.jpg

/wp-content/uploads/2014/03/_c_kJs5FQBnSmAJVHn0AwxrHEf5vp8_MjavwZ9qwC13ETGrP3zgCmXfTfL4a4rNSURrWt8R7KWRI63p_fk5i7qHBZAIjX19xwoC.jpg

/wp-content/uploads/2014/03/_c_XpLx8_P5SF4ZHxV-pVyIov2FJyTLf-eIR0jRqthGX6bHcVR1QrZrgzWtrc6tRzJNAvkWJdsoHyOdg8jPhyLKSN91KDEPEfQg.jpg

/wp-content/uploads/2014/03/_c_ccXyPgCdw63hS1hoM5xmxTAQTL93ODknSGMc6xMNej5Ql7yBT-XwfzAYwwUfIrkYjBFOzCYRad31keSAam-wJHJm4uRWm3RR.jpg

/wp-content/uploads/2014/03/_c_vf8Etaeupya9d2eINI2se0sGpUcgyzrXzkaDyxcxyvcYHVRoEeIZJS3mZdgeoEDFHanOB7TRrE1IMdOwWeLFvGhnkhEc4Ofc.jpg

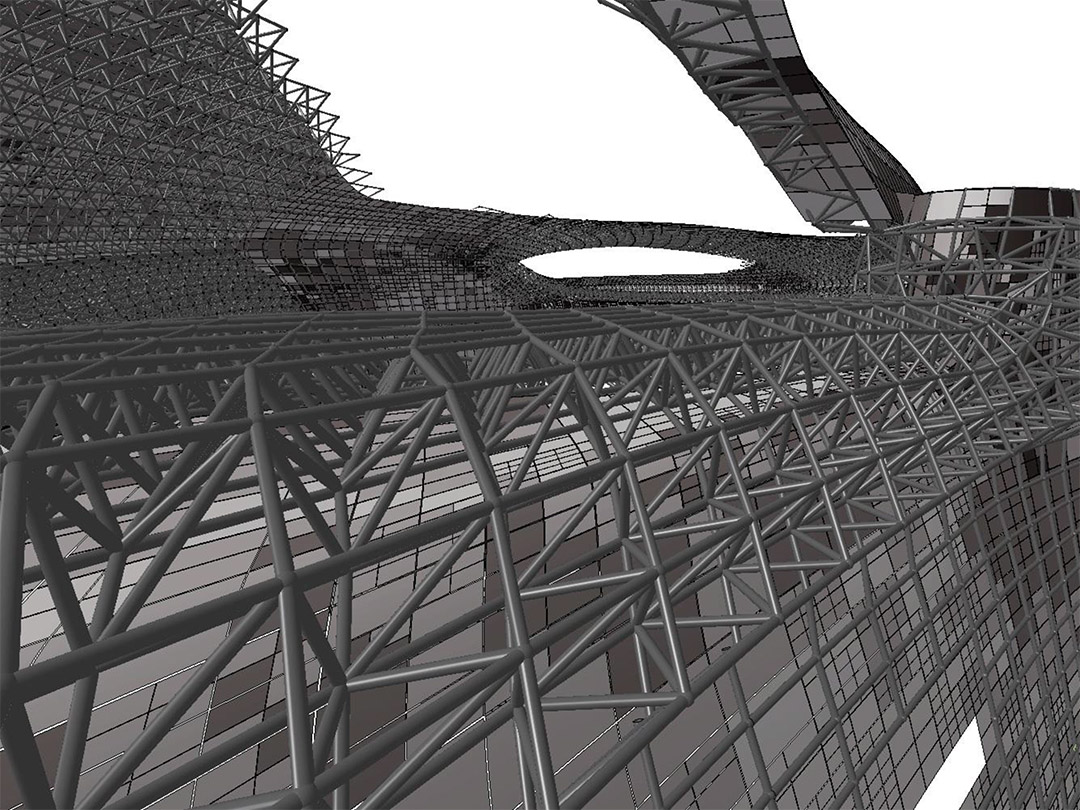

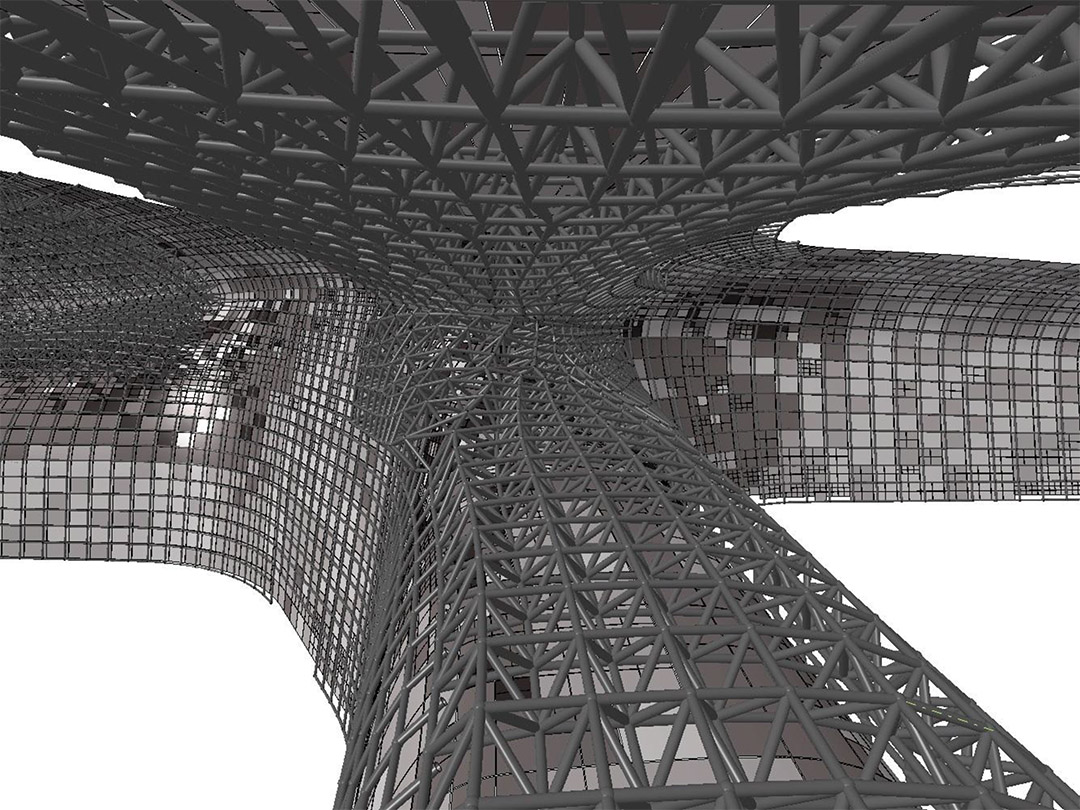

▼ BIM_Space Frame Modeling

/wp-content/uploads/2014/03/_c_YoFC57Mx_ELdkJHoGSfUiN8YpasAbo0Iwwe-4pSB4NU9yWEN3Ob3lP9s-6AxG0Fg64dKT1p__E-LqQvKYj6OhjBGjKOjy6Lj.jpg

/wp-content/uploads/2014/03/_c_23Omk85niLuh-t2Nw3J5UEkUiiZrcSw8GNPUlMEph1SUBsrnJNgzcNKjZLnB9LSSht28XdllLdzCblWnDid_-axwmhmzLaWx.jpg

/wp-content/uploads/2014/03/_c_1PiL3g8X8kG-5FZzqCF7FxDnZej50zulj6XAZTIoVylBcE_pbSGQeLyagsSsT-jjFgBpMF8dupgGKwZycDf2mxNgC6gJzNMa.jpg

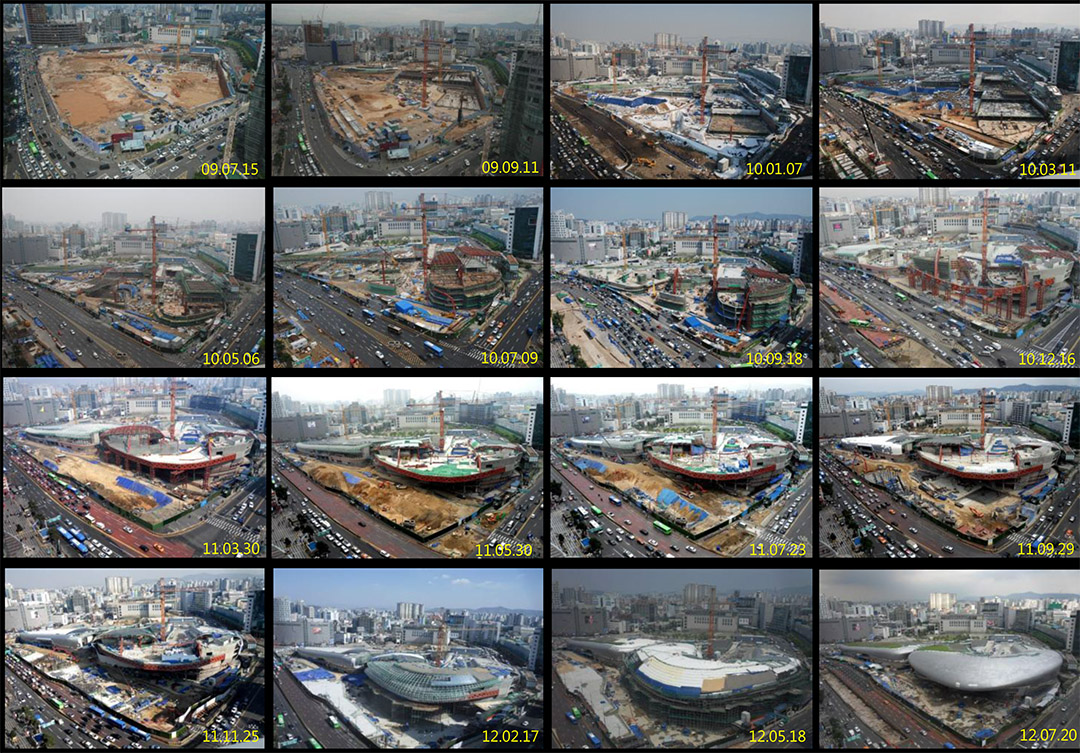

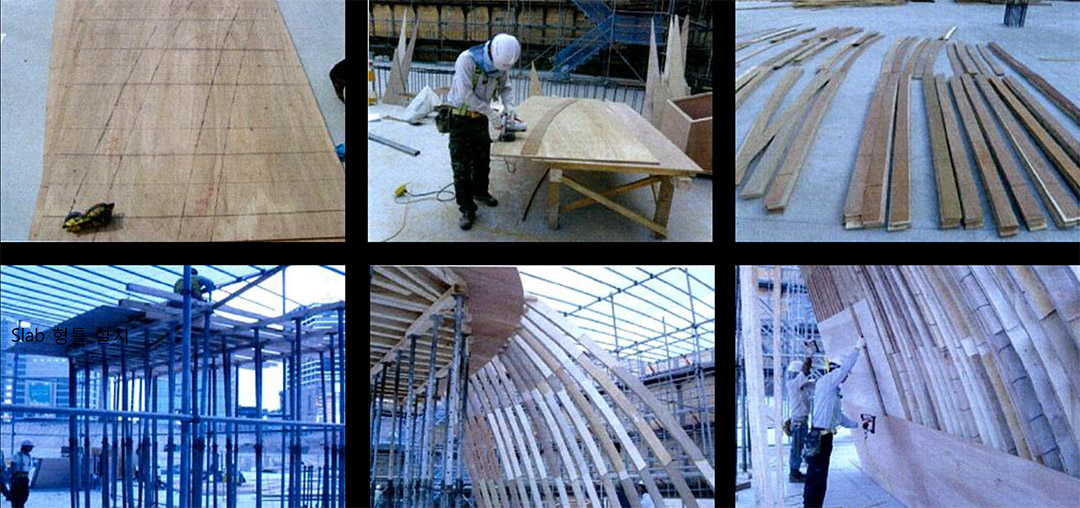

▼ Construction Sequence

/wp-content/uploads/2014/03/_c_UVLhWZ6NgX-24_MGNT5TQLNiA_lz1I9h-0aSrZDmEfQepLo7JGNLrNYtD2IX0iwYHpRroUXQn6m3SSpIRy_lEZ-hKOZmMfl9.jpg
