Wuxi Mashan Shi Li Mingzhu Levee by HECLE

非常感谢 禾晟设计 孙袁江城市更新工作室 将以下内容授权gooood发行。更多关于：HECLE on gooood
Appreciation towards HECLE for providing the following description:

太湖有两个，一个是所念，一个是所见。

Taihu Lake exists in two forms: one seen and one remembered.

▼视频，video©禾晟设计 孙袁江城市更新工作室

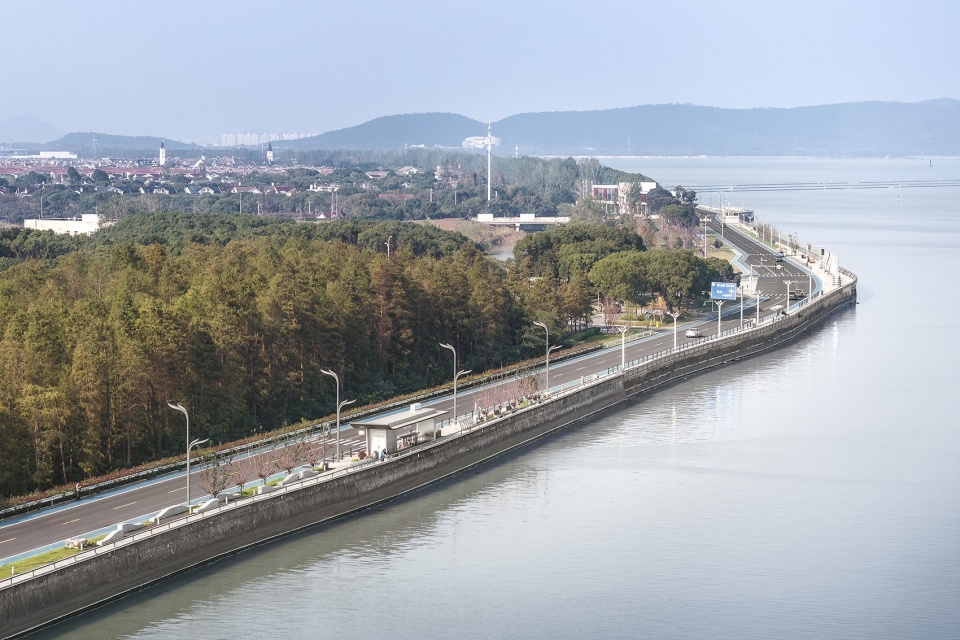

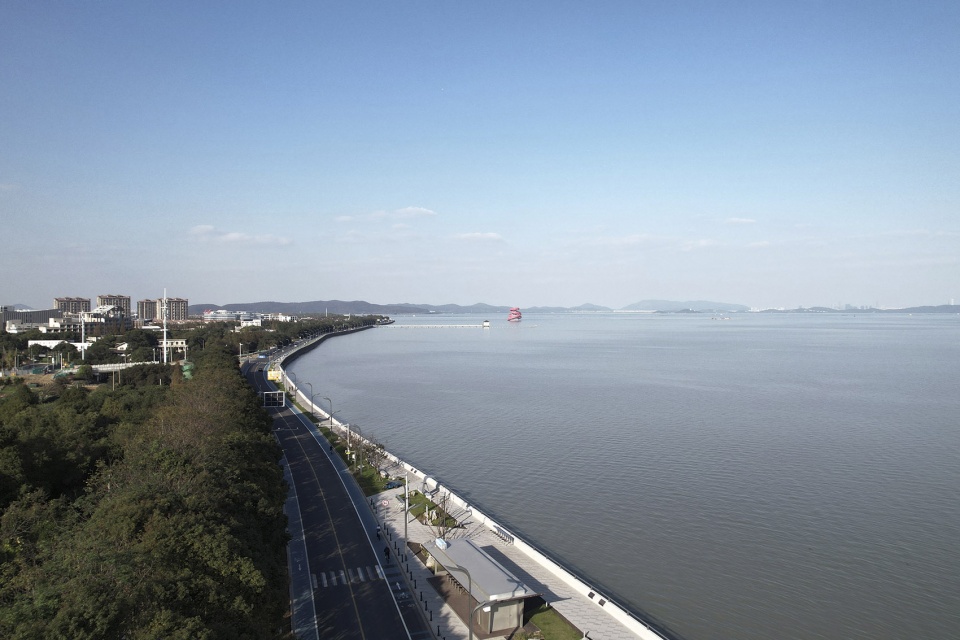

▼场地鸟瞰，Ariel view of the site ©应威

▼场地鸟瞰，Ariel view of the site ©孙袁江

▼场地鸟瞰，Ariel view of the site ©应威



01「序」
Preface

湖山相依的城市是幸运的，自然的馈赠与人工的智慧在这里完美契合，呈现出多样而妩媚的江南水岸。

A city blessed by the embrace of mountains and lakes is fortunate, where the gifts of nature and the wisdom of human ingenuity perfectly align, presenting a diverse and enchanting Jiangnan waterfront.

▼湖山相依的城市，A city blessed by the embrace of mountains and lakes ©应威



02「背景」
Background

本案是位于无锡马山的十里明珠堤景观改造项目。于半个世纪之前，因围湖造田而筑的太湖大堤， 总长约6.25公里。晴时碧波千里，阴时水墨黛青。拥有无锡景观视觉最丰富太湖岸线，山，水，城在这里融合，是无锡的最美峡湾，马山的最美门户，无锡人的最美后花园。在这些年经济高速发展之后，马山已有了自己的高速公路，快速通道……十里明珠堤不再需要承担主要干道的重任，转而可以做回她本来的自己……

This project is the landscape renovation of the Shi Li Mingzhu Levee located in Wuxi Mashan. Half a century ago, the Taihu Lake levee was constructed for land reclamation, stretching approximately 6.25 kilometers in length. On clear days, it offers a view of a thousand miles of azure waves; on cloudy days, it resembles an ink painting in shades of blue and green. Possessing the richest visual Taihu shoreline in Wuxi, mountains, water, and city merge here, making it the most beautiful fjord of Wuxi, the most beautiful gateway of Mashan, and the most beautiful backyard for the people of Wuxi. After years of rapid economic development, Mashan has its own highways and expressways… Shi Li Mingzhu Causeway no longer needs to bear the burden of a main artery, instead, it can return to its original self…

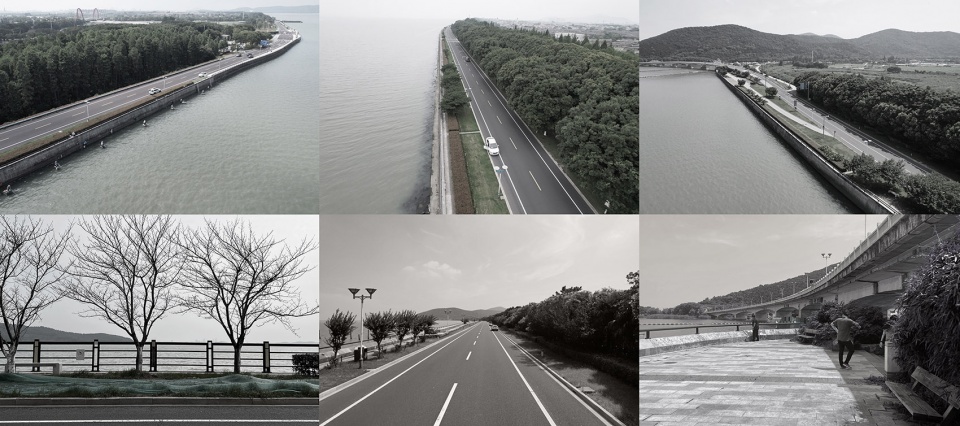

▼现状照片，current photo ©孙袁江



03「理念」
Concept

这次既有空间改造设计中，我们以“擦亮一颗明珠”为原则，去化解空间矛盾，去链接城市绿道体系。以“配角”为定位，融入在地文化特征，增设慢行友好设施，增加情绪消费空间，在较低的预算条件下，让人们同样能够，更安全更舒适地享受这部山水长卷。

In this renovation of existing spaces, we adhere to the principle of “polishing a pearl” to resolve spatial contradictions and connect with the city’s greenway system.  Positioned as a “supporting actor,” we integrate local cultural characteristics, add pedestrian-friendly facilities, and increase emotional consumption spaces.  Under a low-budget condition, we aim to allow people to enjoy this landscape scroll more safely and comfortably.

▼水天一色的滨水场景，waterfront scene ©应威



04「设计思路」
Design Approach

根据湖面由窄到宽的景观特征，由北到南划分为四大特色景观岸线：连山喷雪，碧波烟云，碧玉螺岸，千波观海。

Based on the landscape features of the lake narrowing to widening, the causeway is divided into four distinctive landscape shorelines from north to south: Lian Shan Pen Xue, Bi Bo Yan Yun, Bi Yu Luo An, and Qian Bo Guan Hai.

▼用千波石模拟涛涛湖水的浪头，
Simulate the waves of the lake with a thousand wave stones ©孙袁江

北端湖面收窄，风浪在这里聚集堆叠，拍岸飞溅，在调研中很多人提到这一难忘景观，正如李白在《横江词六首》中所述的“涛似连山喷雪来“，故命名为“连山喷雪”。

At the northern end, the lake narrows, and waves gather and stack here, splashing against the shore.  Many people mentioned this unforgettable landscape during research, as described by Li Bai in “Six Poems of Hengjiang” – “Waves like snow from the continuous mountains,” hence the name “Lian Shan Pen Xue.”

▼“连山喷雪”节点日常，”Lian Shan Pen Xue” scene ©孙袁江

沿岸前行。峡湾之中，城市的轮廓，掩映在江南那黛青色的烟雨山水之间，温柔而妩媚，如“飞尘难到碧波中，波上烟云尽不同”的意境，故命名“碧波烟云”。

Moving along the coast.  In the fjord, the city’s silhouette is hidden among the misty rain mountains and waters of Jiangnan, gentle and enchanting, like the artistic conception of “Dust hard to reach the clear waves, all different above the waves of smoke and clouds,” thus named “Bi Bo Yan Yun.”

▼驿站盒子——“碧波烟云”，”Bi Bo Yan Yun.” station ©沈恬

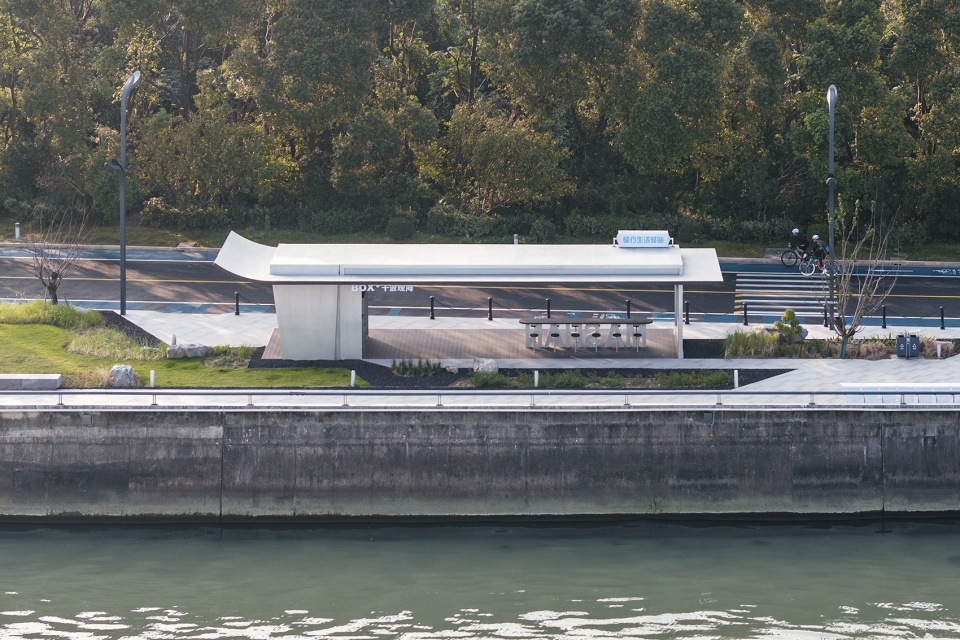

▼驿站盒子——“碧波烟云”，”Bi Bo Yan Yun.” station ©孙袁江

继续往南。湖面渐宽，青黛之间跃出一抹红色。碧玉螺雕塑出现在道路尽头的视觉焦点上，形成强烈的视觉“对景”。既展现了现代科技，又标识出地域文化，令人会心一笑，故命名“碧玉螺岸”。

Continuing southward.  The lake widens, and a touch of red emerges between the green and blue.  The Bi Yu Luo sculpture appears at the visual focus at the end of the road, forming a strong visual “contrast.”  It showcases modern technology and marks regional culture, bringing a knowing smile, hence the name “Bi Yu Luo An.”

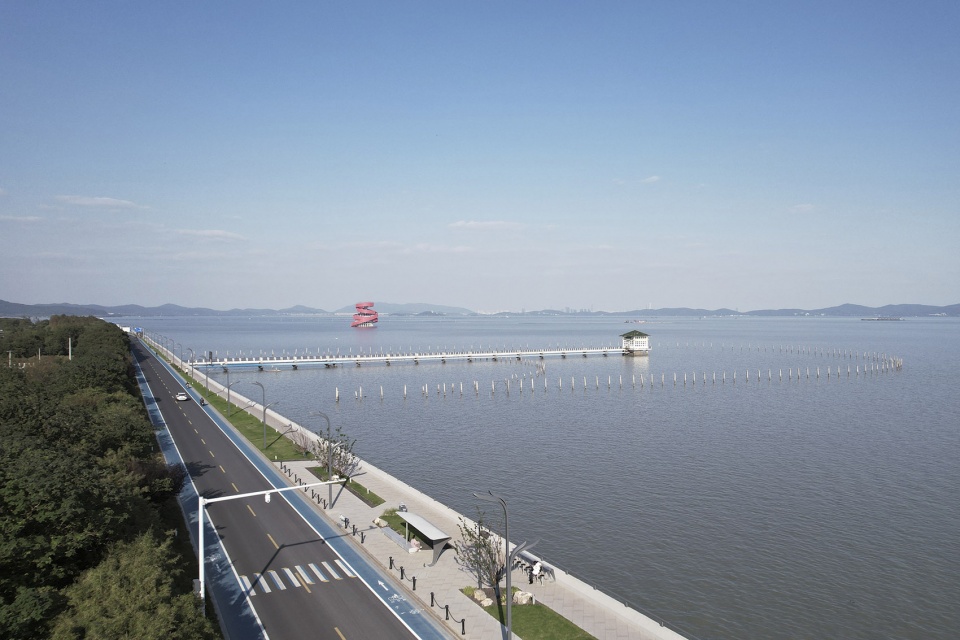

▼“碧玉螺岸”节点小鸟瞰，Ariel view of  “Bi Yu Luo An.” station ©应威

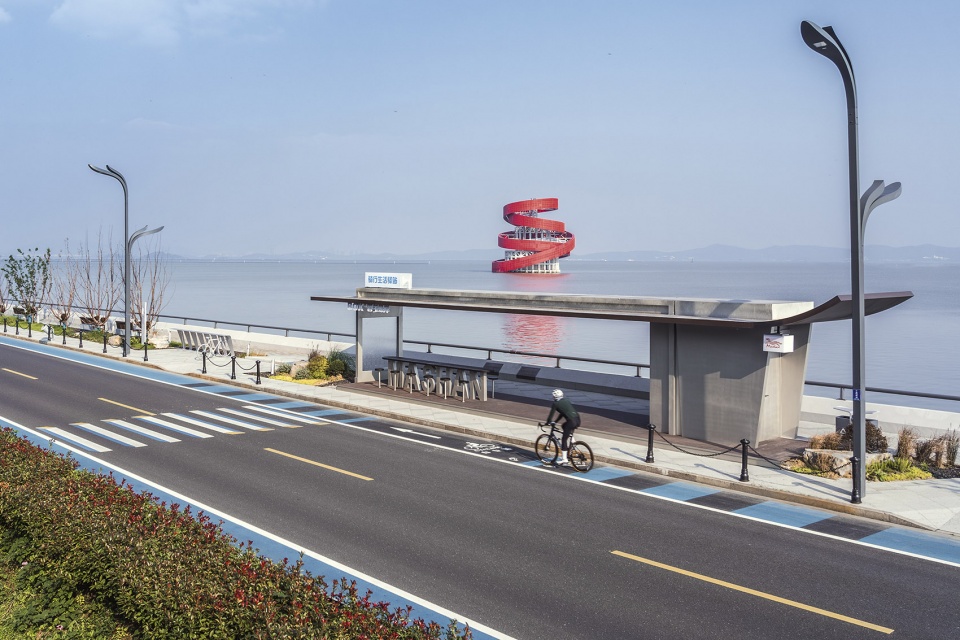

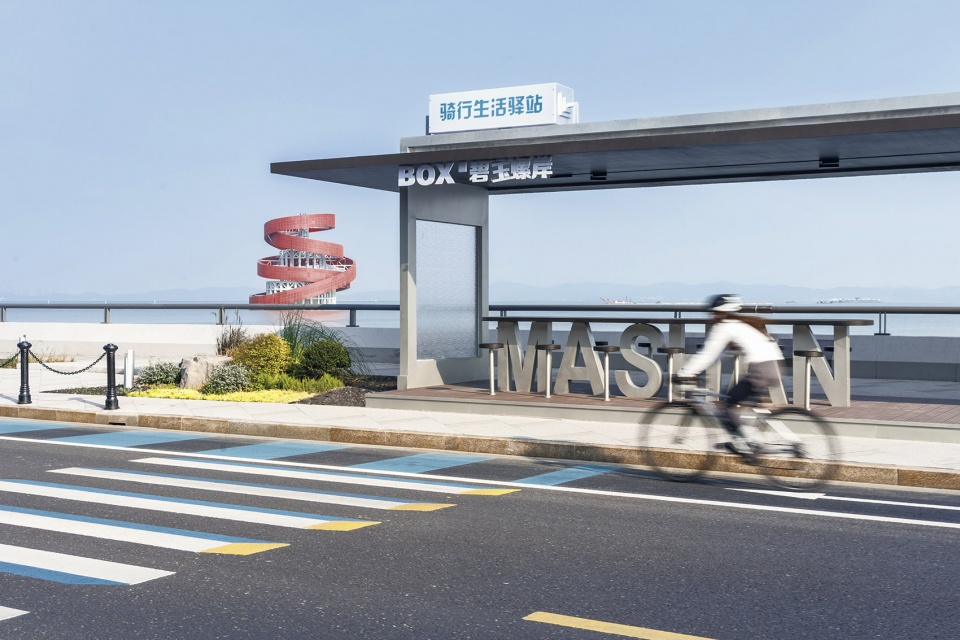

▼驿站盒子——“碧玉螺岸”，”Bi Yu Luo An.” station ©应威

▼千波石在行车视线上形成波浪韵律，
Qianbo Stone creates a wave rhythm in the line of sight ©应威

▼千波石在行车视线上形成波浪韵律，
Qianbo Stone creates a wave rhythm in the line of sight ©沈恬

南端湖面，上午浮光跃金，下午天水一色，广阔如海。一侧的千波桥，以婀娜的双曲线飞架而过，人工与自然在这里完美融合，“千波”一词多义，故命名“千波观海”。

At the southern end of the lake, the morning light dances on the water, and in the afternoon, the sky and water blend into one, vast as the sea.  The Qian Bo Bridge, with its graceful double curve, spans across, perfectly integrating artificial and natural elements.  The term “Qian Bo” has multiple meanings, thus the name “Qian Bo Guan Hai.”

▼“千波观海”节点小鸟瞰，Ariel view of “Qian Bo Guan Hai.” station ©应威

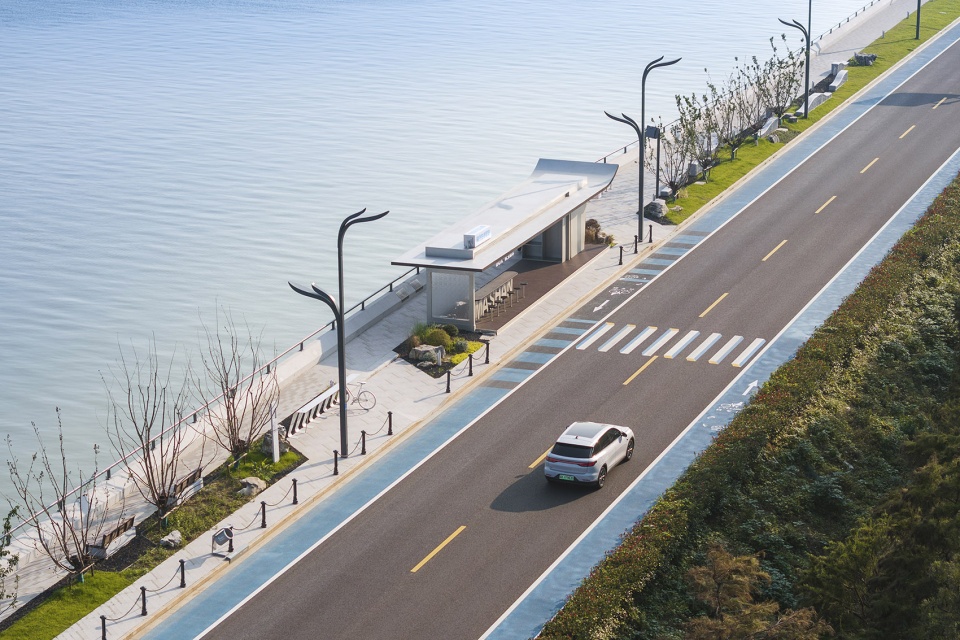

▼驿站盒子——“千波观海”，”Qian Bo Guan Hai.” station ©应威



桥洞空间（既有空间多功能化利用）
Bridge Space (Multifunctional Use of Existing Spaces)

千波桥的桥下空间是根据尺度和位置特征进行设计，以太湖水韵为主题展开。内侧桥洞注重滨水流线的沟通，辅以千波石景观雕塑组，是既能表现在地文化，又能提供人景交互的休憩型社交场所；外侧滨水的桥洞，结合其独特的景观位置，作为多功能空间使用，可以承载露营、市集、街头艺术、文化宣传等活动。桥洞空间形成一动一静，两种空间性格的组合，并用桥底水韵彩绘进行统一。

The space under the Qian Bo Bridge is designed based on scale and location characteristics, with the theme of Taihu Lake’s water rhythm. The inner bridge space focuses on the communication of waterfront streamlines, supplemented by the Qian Bo Stone landscape sculpture group, which not only expresses local culture but also provides a restful social place for people-scene interaction; the outer waterfront bridge space, combined with its unique landscape position, is used as a multifunctional space, capable of hosting camping, markets, street art, cultural promotion, and other activities. The bridge space forms a combination of dynamic and static spaces, unified by the water rhythm murals on the underside of the bridge.

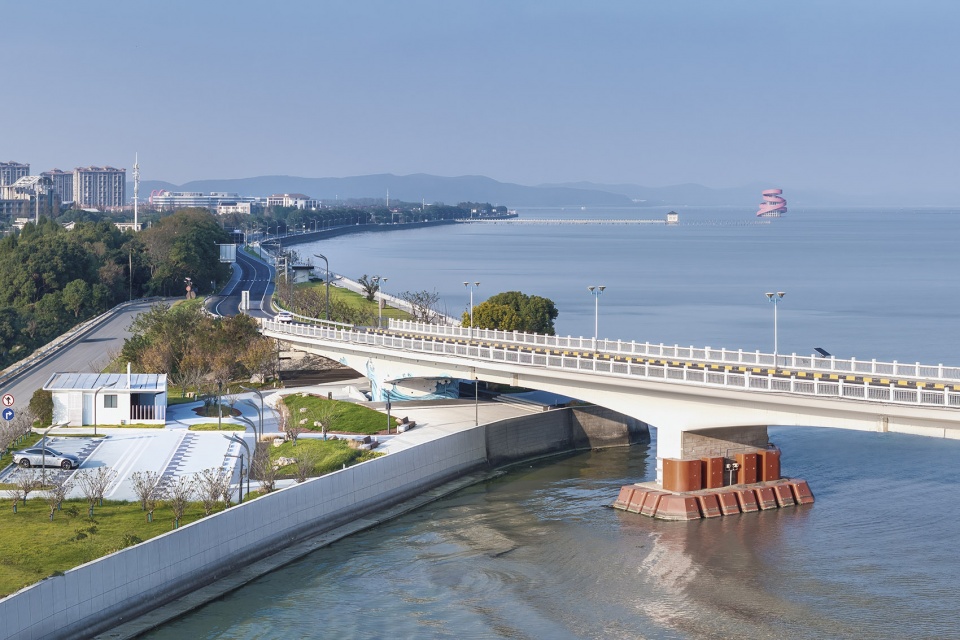

▼千波桥双曲率的优美弧线，
The graceful arc of the double curvature of the Qianbo Bridge ©应威

▼以碧玉螺为衬托的桥洞广场，Bridge plaza with “Biyuluo” as a backdrop ©应威

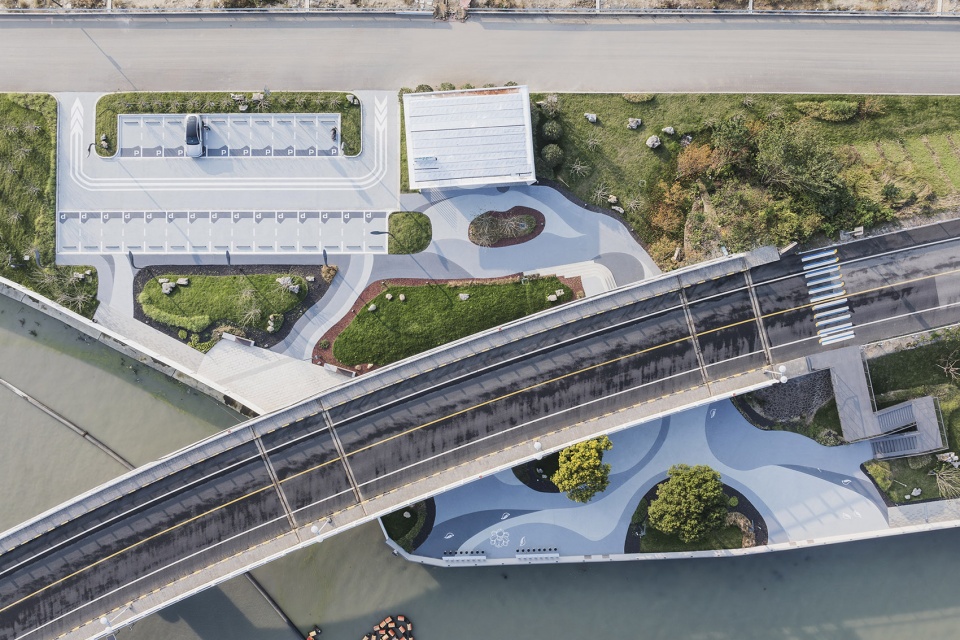

▼桥洞广场鸟瞰，Ariel view of the plaza under the bridge ©应威

▼千波桥上下慢行系统连接，Qianbo Bridge connects the pedestrian system ©应威

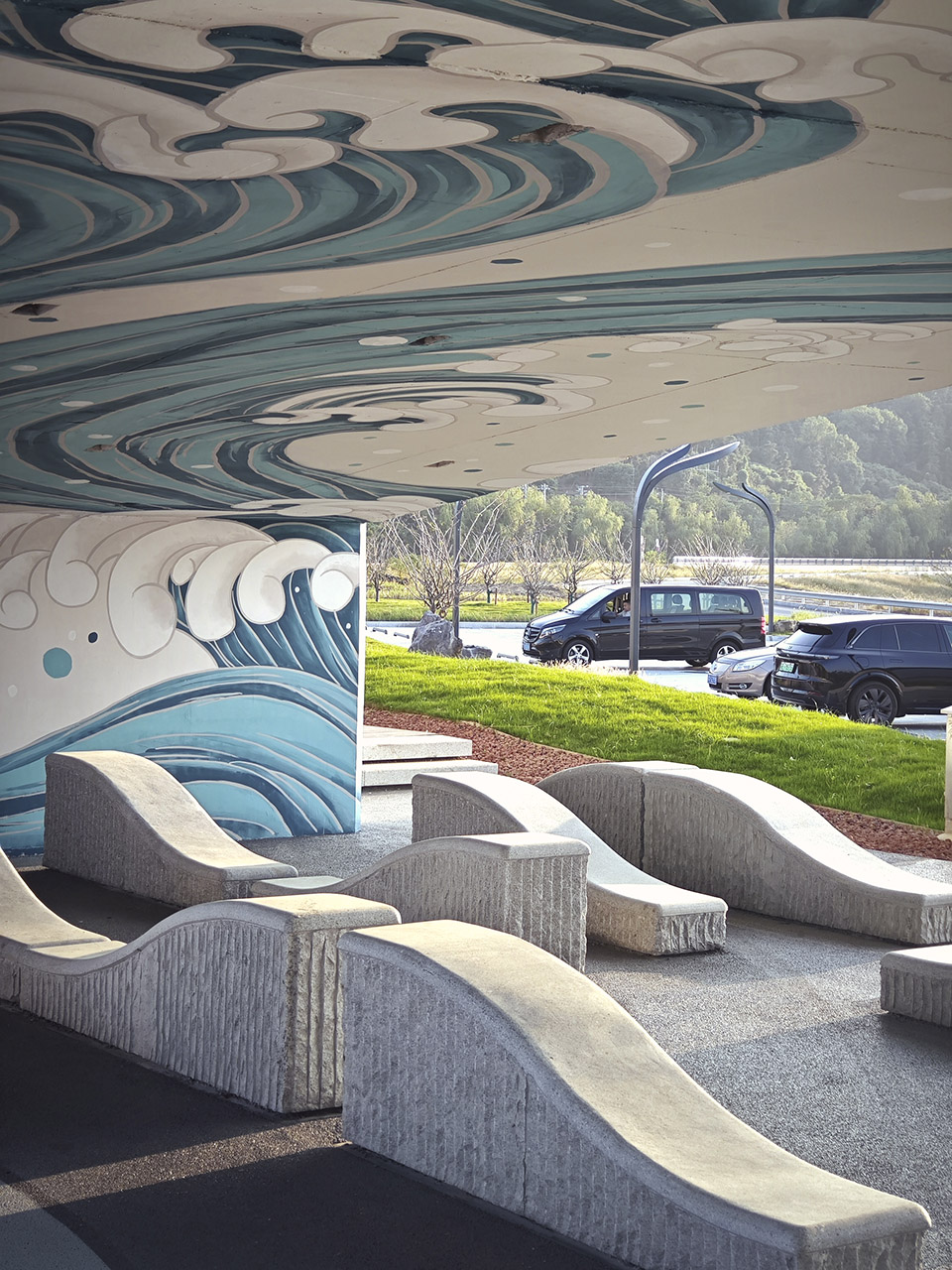

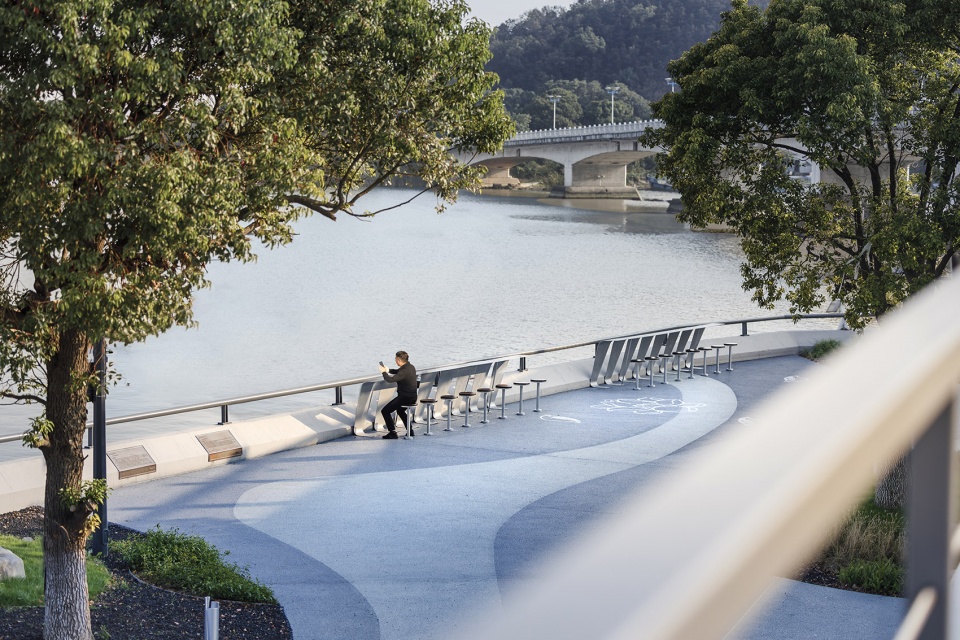

▼桥洞下的趣味交流空间，the playful communication space under the bridge ©沈恬



05「专项」
Special Features

灵动盒子——驿站（BOX），是景观构筑。四大景点对应四个驿站（BOX)，形成动态景窗，致敬传统文化的同时提供一线临湖的消费配套载体，重点设置了自行车友好设施，也为未来的公交系统预留了接口。

Smart Boxes – Stations (BOX), are landscape structures. The four major attractions correspond to four stations (BOX), forming dynamic view windows. While paying tribute to traditional culture, they provide a first-line lakefront consumption support carrier, with a focus on bicycle-friendly facilities and interfaces reserved for future public transportation systems.

▼驿站盒子造型简约轻薄，Station box is minimalist and lightweight ©应威

▼驿站成为往来游客停留最多的场所，Station becomes the most visited space ©应威

白鹭是这段江南湖岸最常见的“居民”，我们以此为创作起点，将雕塑与实用功能融合，设计了“白鹭亭”，“飞鸟坐凳”，“自行车吧台”等景观雕塑，希望通过设计的力量，最大程度弥合人工与自然之间的割裂感。

The egret is the most common “resident” along this Jiangnan lake shore. Taking this as the starting point of creation, we integrate sculpture with practical functions, designing “Egret Pavilion,” “Flying Bird Bench,” “Bicycle Bar,” and other landscape sculptures. We hope that through the power of design, we can minimize the sense of disconnection between artificial and natural elements.

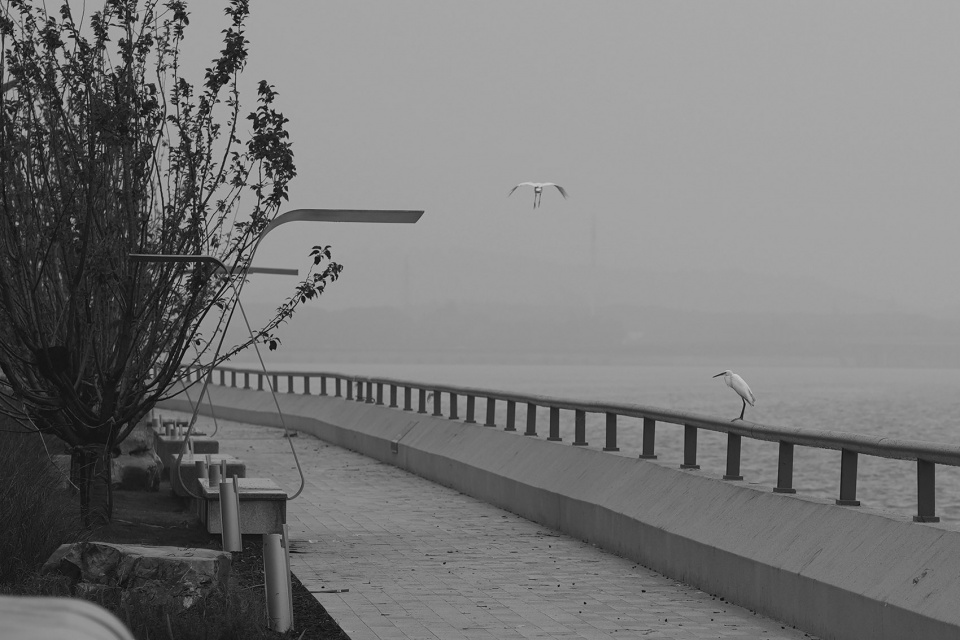

▼飞鸟凳和白鹭的同框成为了日常的画面，
Flying bird stools and egrets in the same frame became an everyday image ©孙袁江

在雕塑的设计与制作环节，周全考虑了安全和稳固性等关键因素。采用十毫米厚的 304 不锈钢板进行弯曲成型处理，通过严谨精细的结构计算，确保其能够在风中适度摇晃，从而有效缓解风力冲击，2024年9月经受住了13级台风贝碧嘉的洗礼，一切完好。

In the design and production of sculptures, safety and stability are key factors considered. Ten-millimeter-thick 304 stainless steel plates are used for bending and shaping, and through rigorous and precise structural calculations, we ensure that they can sway moderately in the wind, effectively alleviating wind impact. It withstood Typhoon Bebija, a category 13 typhoon, in September 2024, with everything intact.

▼施工中的雕塑家具，statue furniture in the construction progress ©孙袁江

白鹭亭取形于飞行中白鹭的翅膀，自然垂挂下来，给人以呵护的空间，不锈钢板的高强度使得体量轻盈的同时也易于造型，其韧性也适合抵御湖边的台风。

The Egret Pavilion takes the shape of an egret’s wings in flight, naturally hanging down, providing a nurturing space. The high strength of stainless steel plates allows for a lightweight yet easily shaped structure, and its toughness is suitable for the typhoons by the lake.

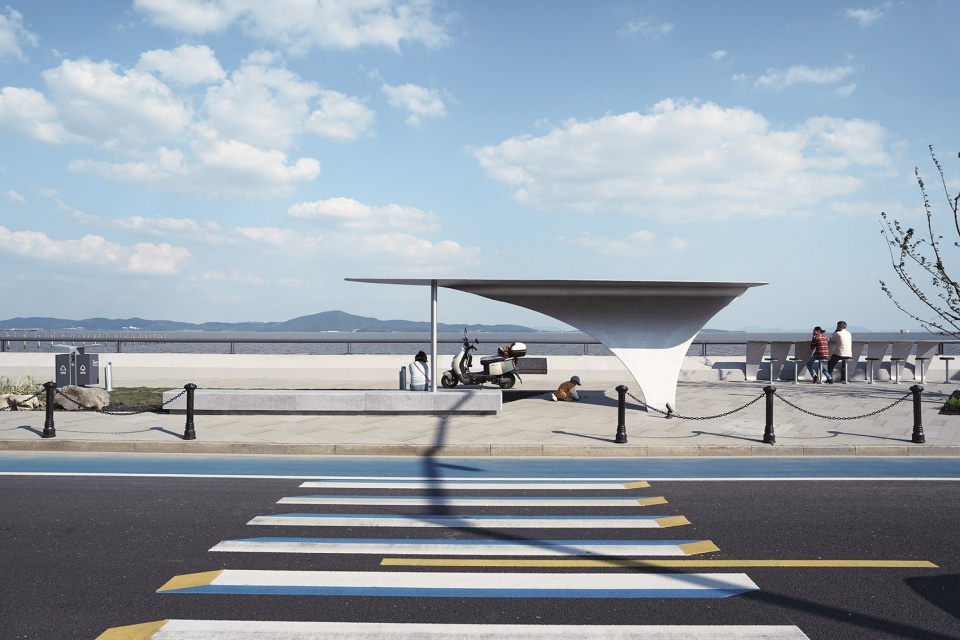

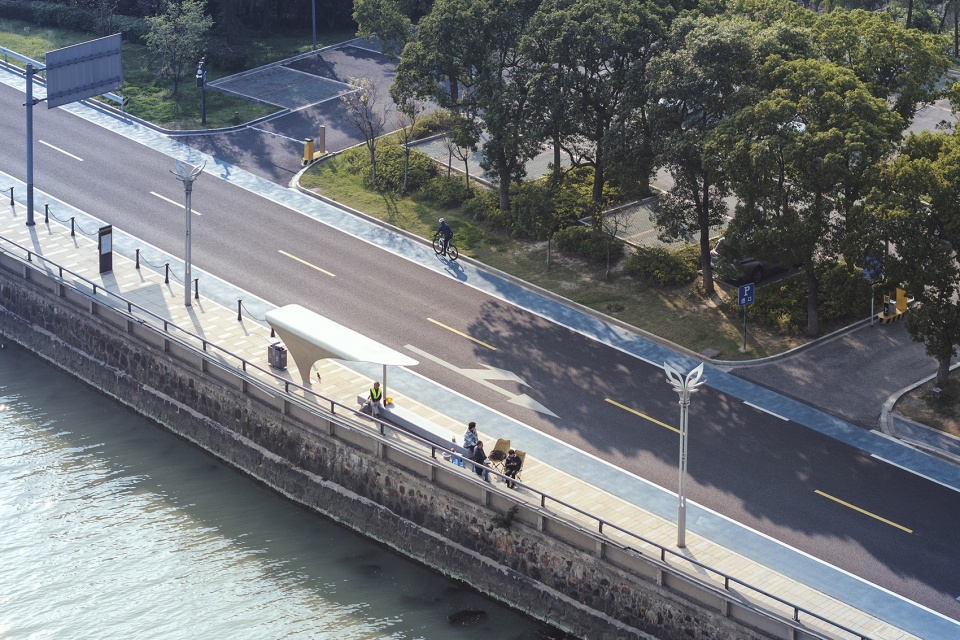

▼远看如白鹭展翅的羽翼，station looks like the shape of an egret’s wings in flight ©应威

▼白鹭亭下的日常，the daily life of Bailu Pavilion ©孙袁江

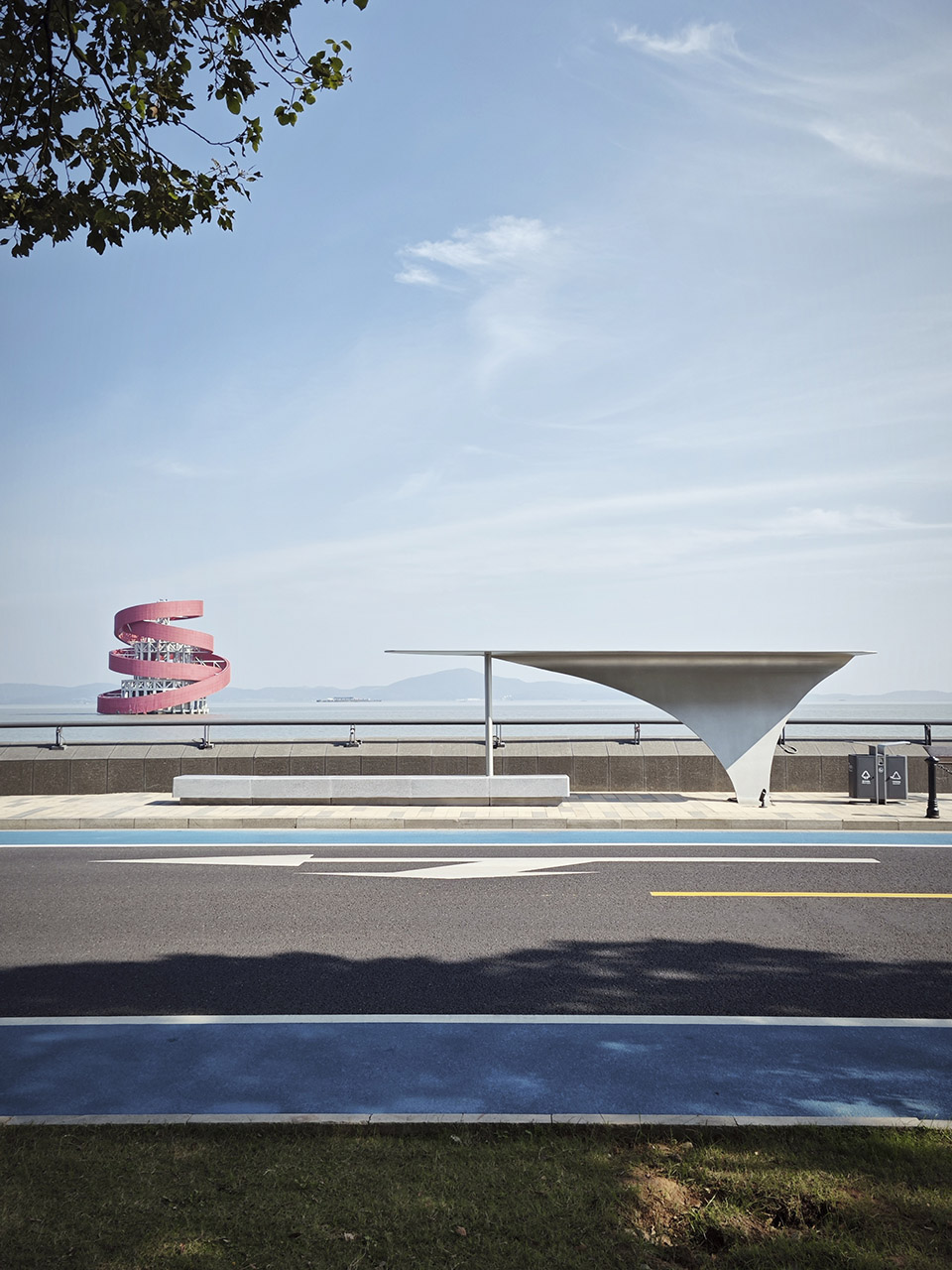

▼以碧玉螺为背景的白鹭亭，use “Biluluo” as the background ©沈恬

飞鸟坐凳将两片钢板交叠弯曲，形成坐凳上的遮蔽空间，如大鸟栖于岸边，钢板的韧性和强度既能在风有轻微摇曳带来趣味，也能抵御湖边台风的破坏。

The Flying Bird Bench bends two steel plates to form a sheltered space on the bench, like a large bird perched on the shore. The toughness and strength of the steel plates can bring fun with slight swaying in the wind and resist the destruction of typhoons by the lake.

▼从湖面上看展翅的飞鸟，Birds of prey on the wing from the lake  ©孙袁江

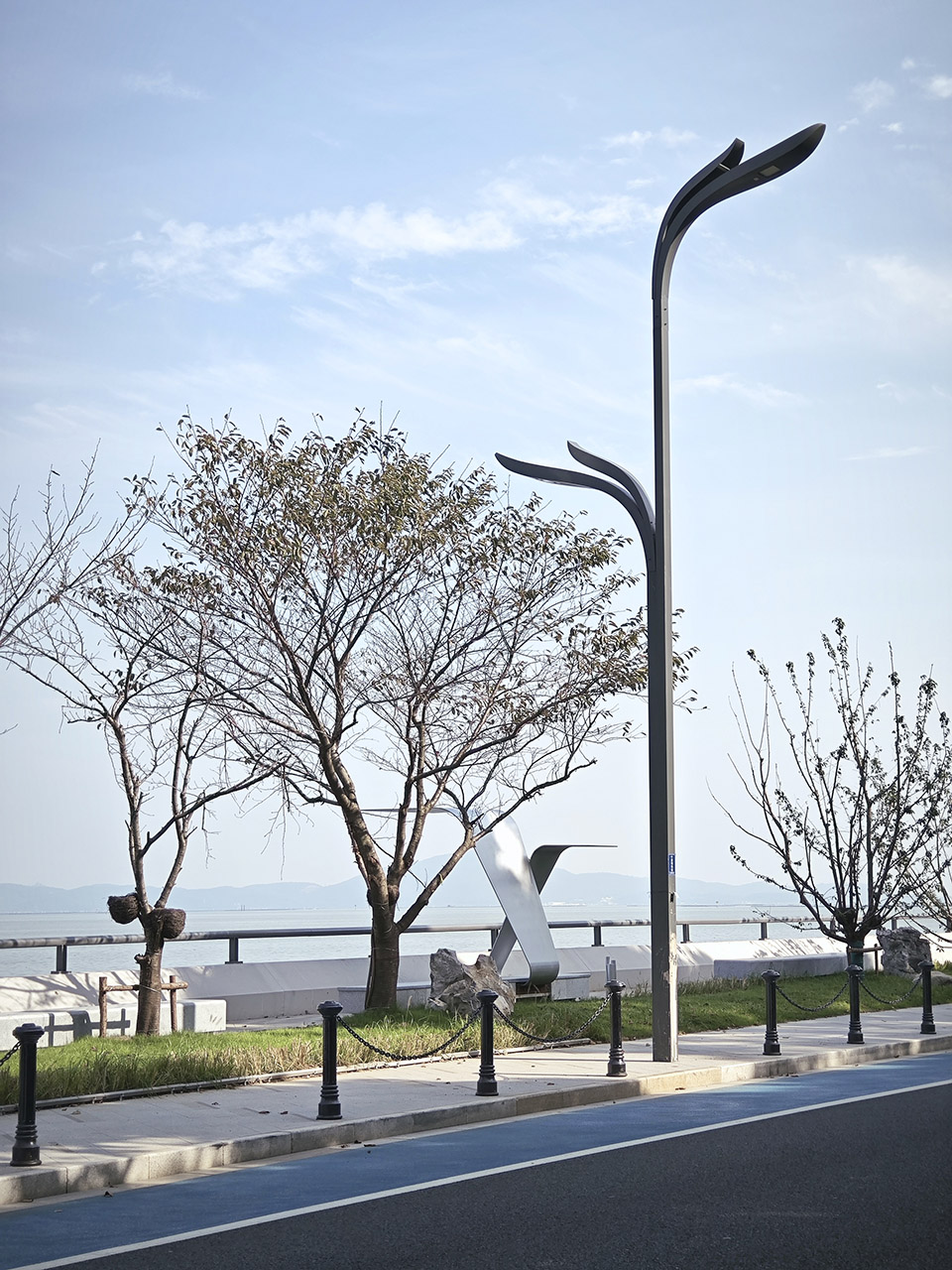

▼座椅与路灯的造型相得益彰，the combination of the bench and lights  ©沈恬

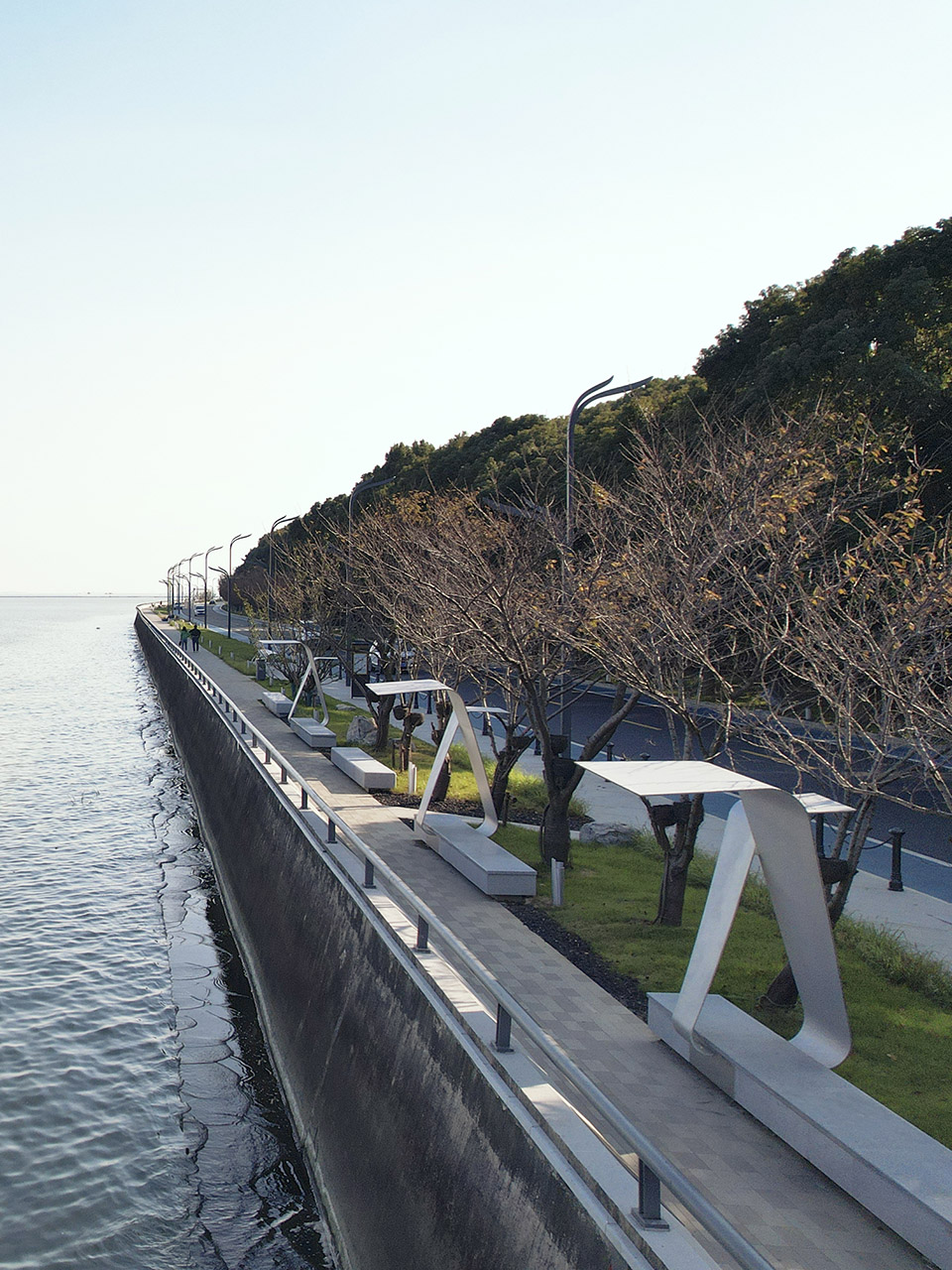

▼树影落在雕塑和驳岸上形成一幅水墨画，
The shadows of the trees fall on the sculpture and the barge to form an ink painting ©沈恬

观景座椅和自行车吧台延续了白鹭亭和飞鸟座椅的造型，为骑行的人群和游客都能相应提供适合各种功能的休闲空间。

The viewing seats and bicycle bars continue the shapes of the Egret Pavilion and Flying Bird Bench, providing leisure spaces suitable for various functions for cyclists and tourists.

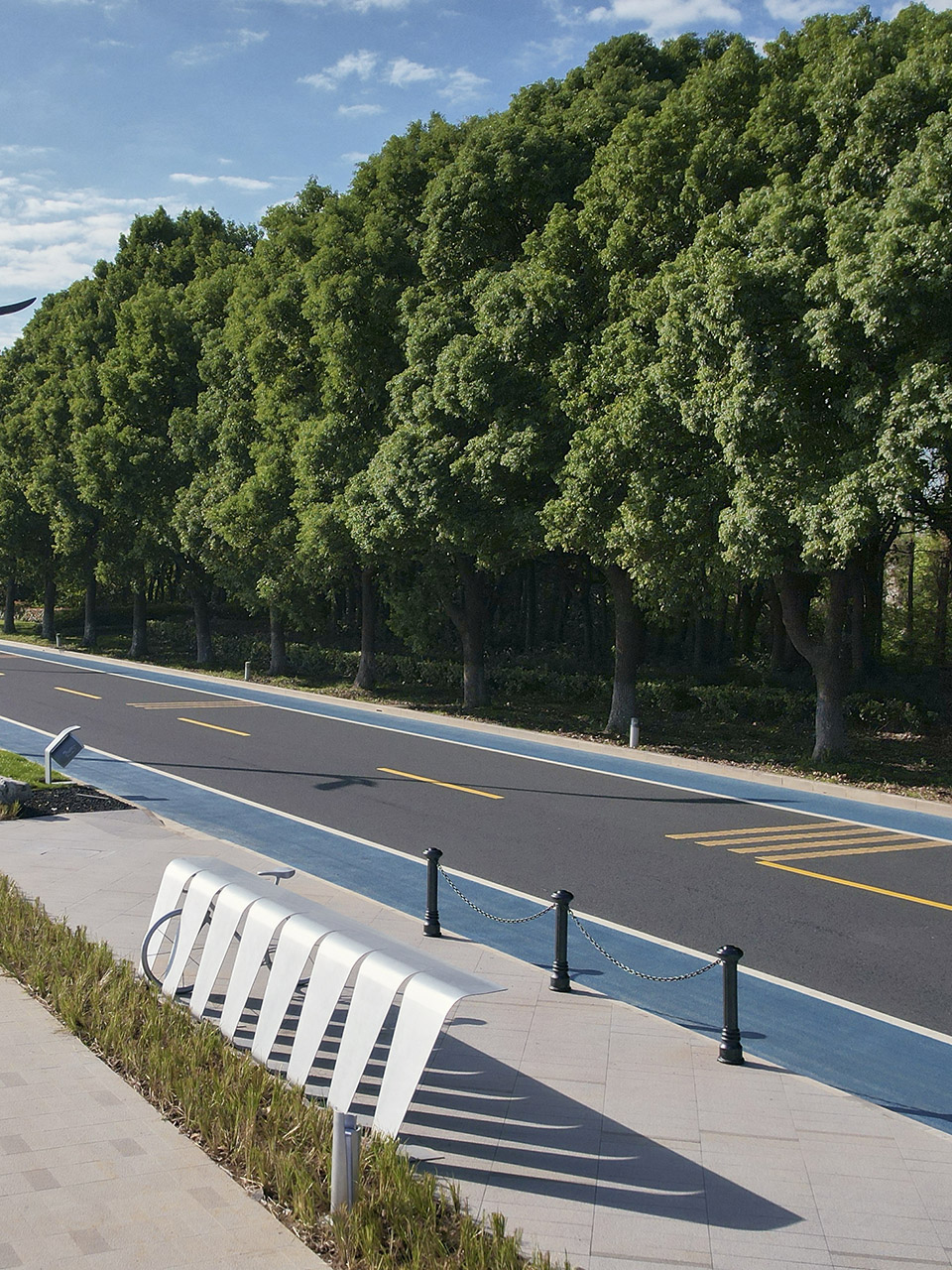

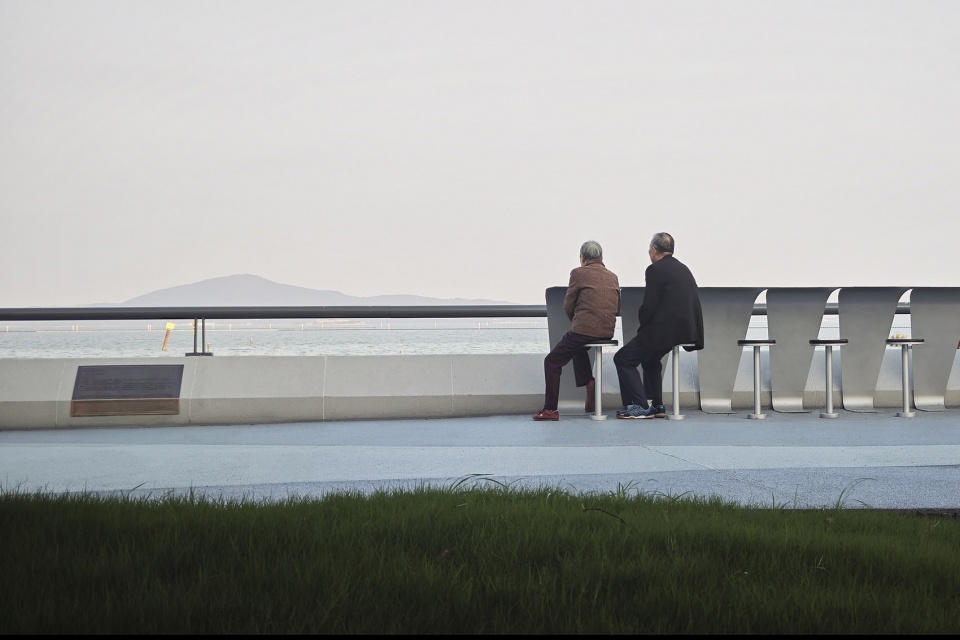

▼尺度友好的观景座椅，Scale-friendly viewing seats ©沈恬

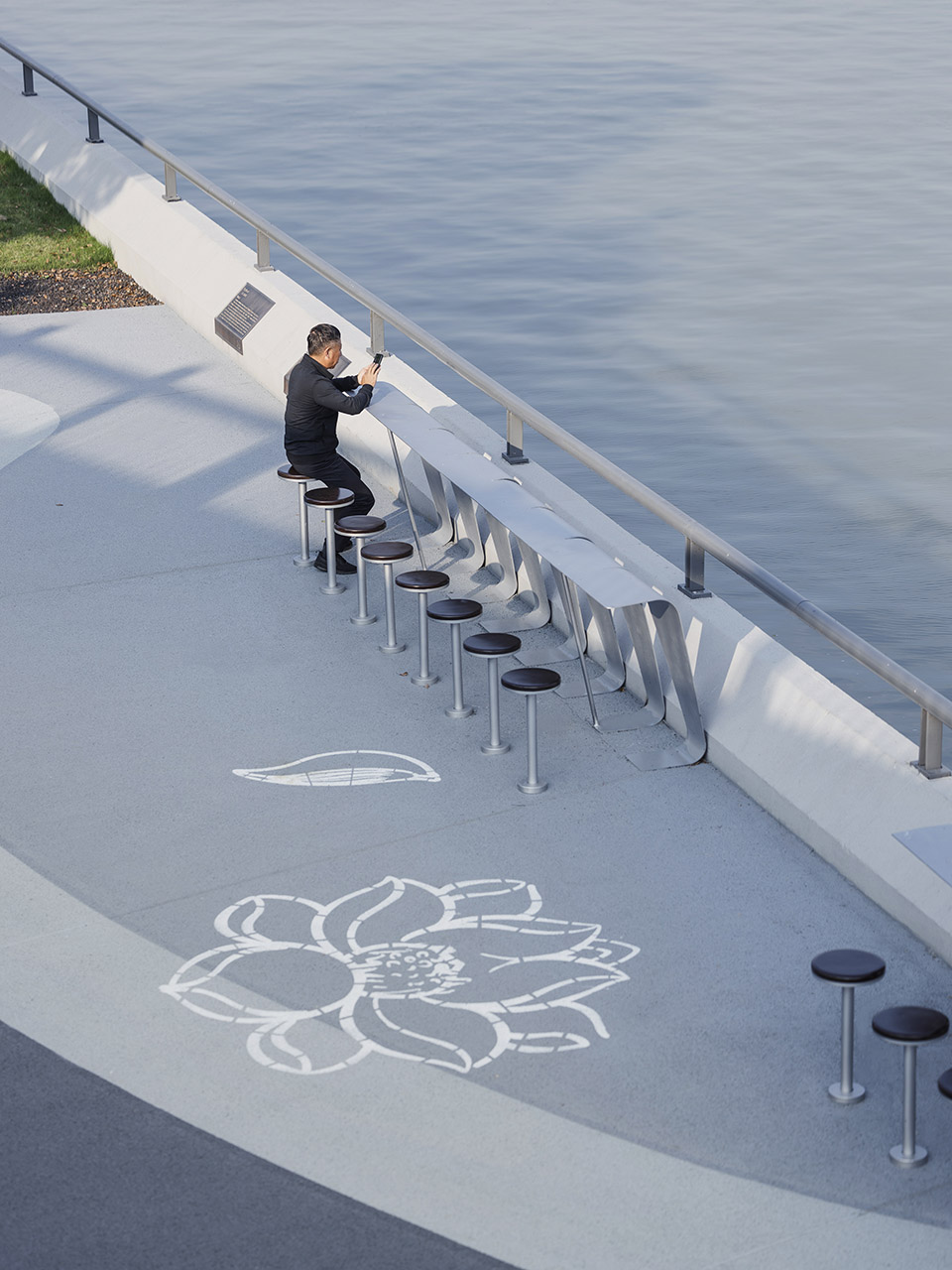

▼有自行车停放功能的吧台，Bar with bike parking ©孙袁江

▼自行车的雕塑一方面稳固吧台一方面引导功能使用，
on the one hand stabilises the bar and on the other hand guides the functional use appropriately ©孙袁江

▼夕阳下的雕塑家具趣味灵动，Sculptural furniture is fun and dynamic at sunset ©沈恬

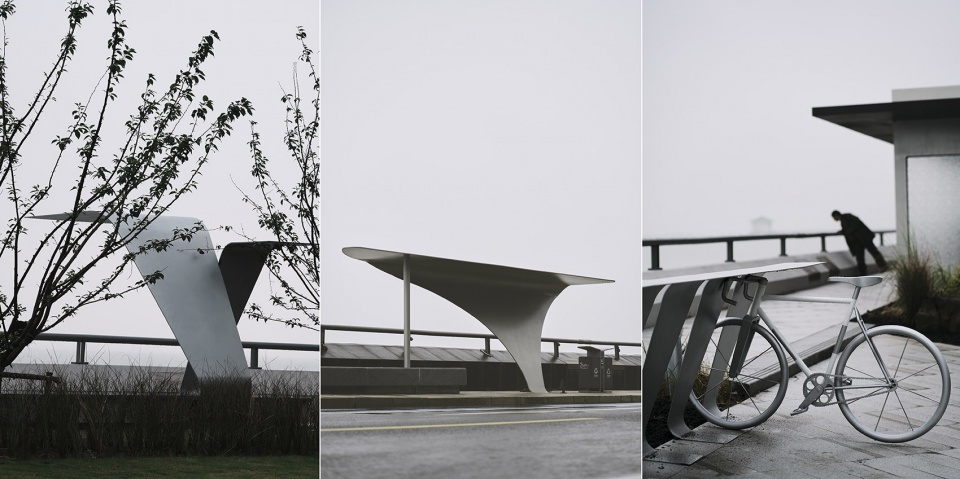

▼雨天的雕塑家具纯粹清透， Sculptural furniture pure and clear on a rainy day ©孙袁江



06「自行车友好」
Bicycle-Friendly

骑行是十里明珠堤最为日常也最为频繁的活动，在慢行友好不断发展的大环境下，让骑行爱好者们有连续、安全、便捷和优美的骑行环境，是项目重点考虑的。设计中的自专道垃圾桶、停车脚踏、自行车吧台、标识系统以及驿站盒子都作为自专道配套有序分散在全线，同时为未来更多更丰富的骑行需求预留空间和接口。

Cycling is the most everyday and frequent activity on Shi Li Mingzhu Levee. In the context of the continuous development of pedestrian-friendly cities, providing a continuous, safe, convenient, and beautiful cycling environment for cycling enthusiasts is a key consideration of the project. The dedicated cycle path trash cans, parking pedals, bicycle bars, signage systems, and station boxes are all orderly distributed along the line as cycle path supporting facilities, while also reserving space and interfaces for more diverse cycling needs in the future.

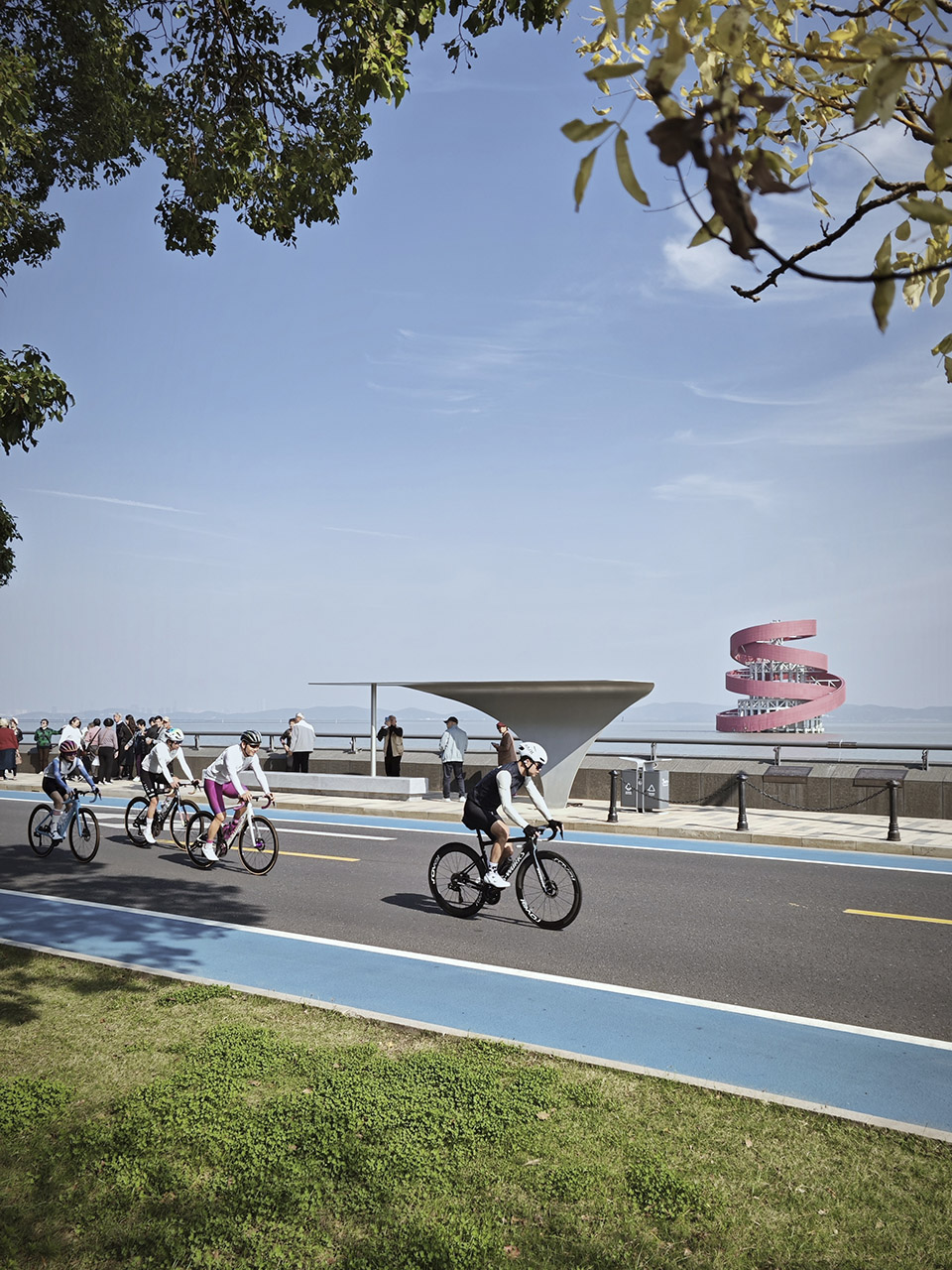

▼骑行爱好者的日常拉练，daily exercise for  cyclists ©应威

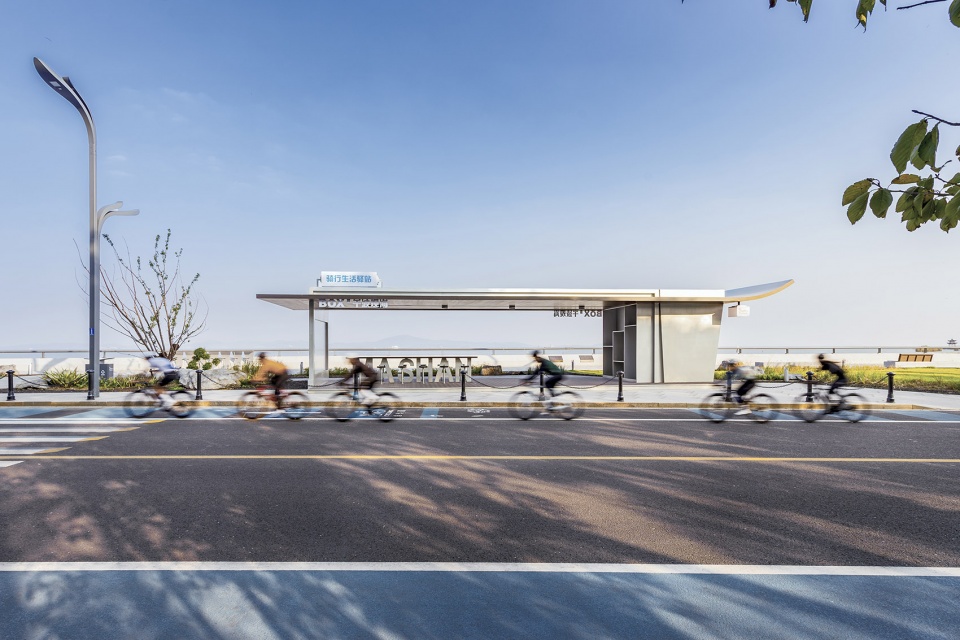

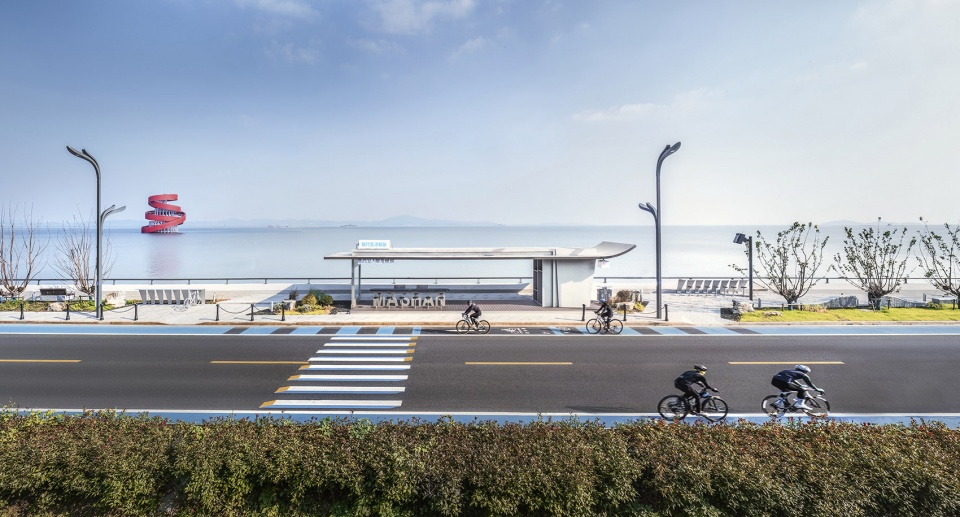

▼骑行爱好者与驿站的同框，cyclists and station ©应威

▼自专道配套垃圾桶和脚踏，bins for the bike lane ©孙袁江

▼改造后骑行者和游客都有了更开阔的景观环境，
Improvements provide a more open landscape for cyclists and visitors alike ©沈恬

▼十里明珠堤是骑行爱好者的集聚地，
Shi Li Mingzhu Levee is a gathering place for cyclists ©孙袁江

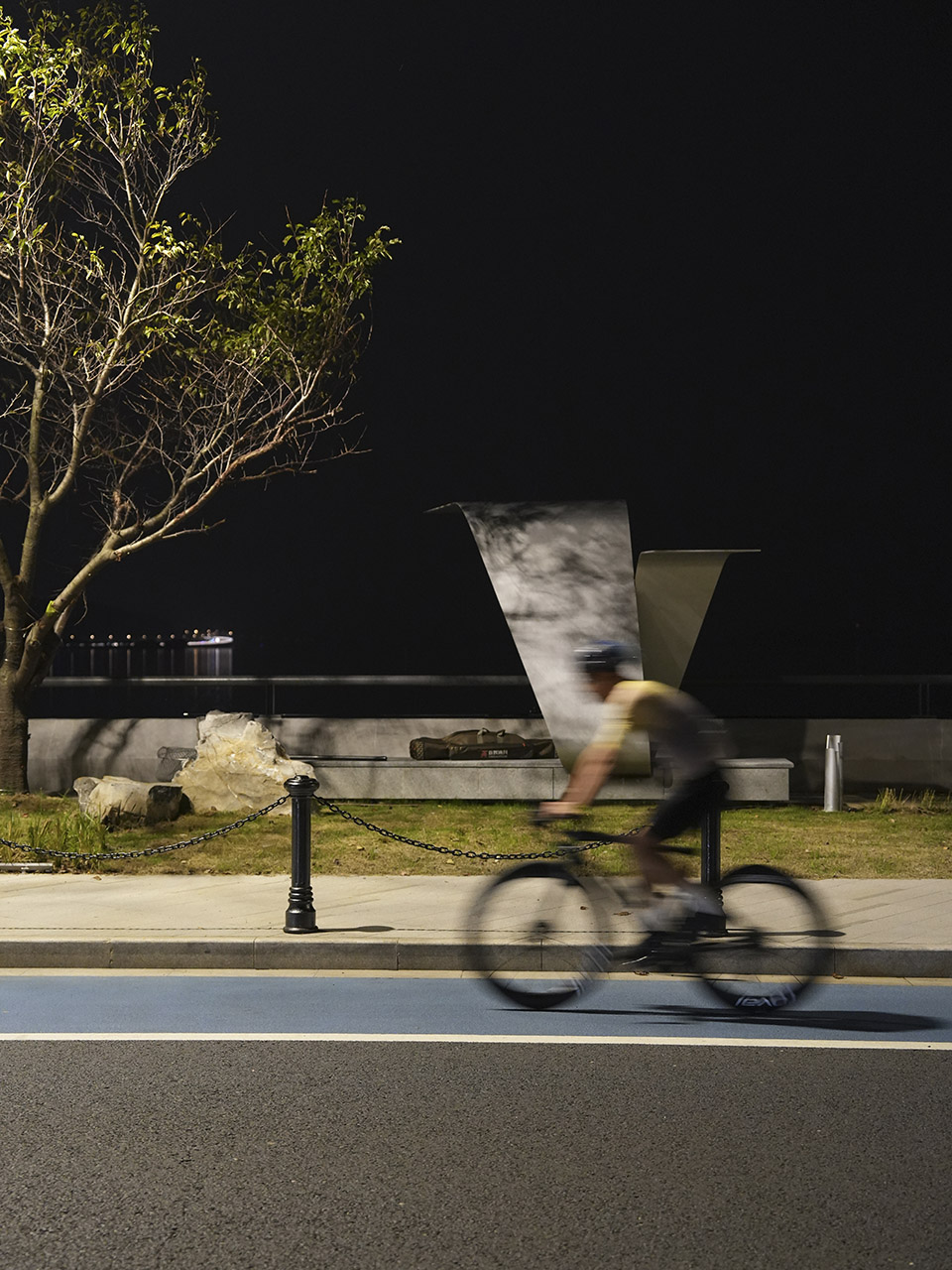

▼夜间的骑行爱好者，cyclists at night ©孙袁江



07「独处空间」
Solitude Spaces

在设计中精心规划的一些独处空间，例如飞鸟凳等城市家具，自然而然地被人们所选用，人们置身其中，与景观完美交融，共同构成了全新的美好场景，这有力地印证了设计的成功与合理性。

Some solitude spaces, such as the Flying Bird Bench and other urban furniture, are carefully planned in the design and are naturally chosen by people. People place themselves in them, blending perfectly with the landscape, together forming a brand-new beautiful scene, which strongly proves the success and rationality of the design.

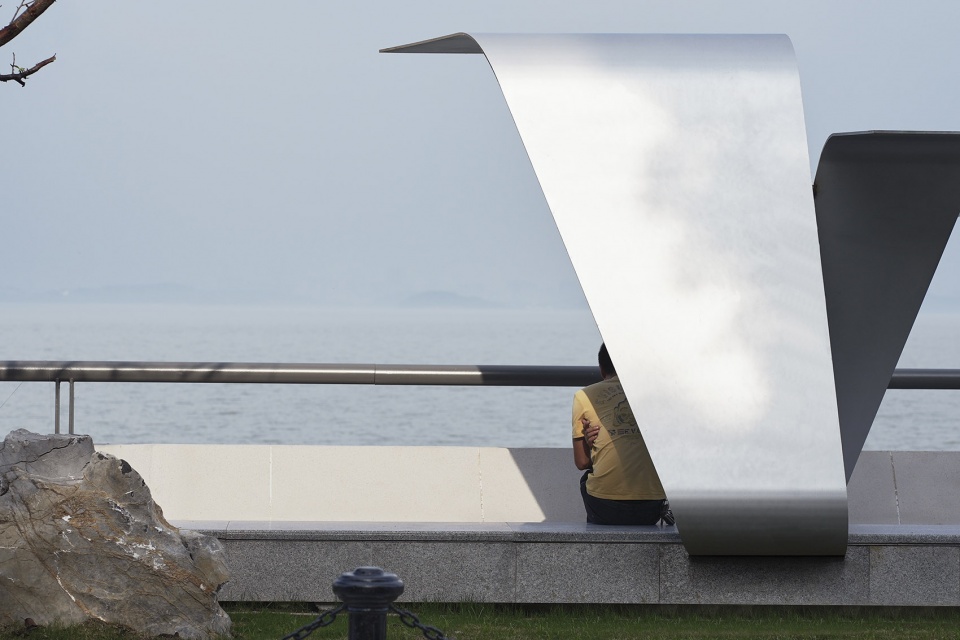

▼飞鸟翅膀庇护下的空间更让人有安全感，
A space sheltered by the wings of a flying bird is more secure ©孙袁江

▼湖岸边闲坐休憩的空间，rest area near the lake ©应威

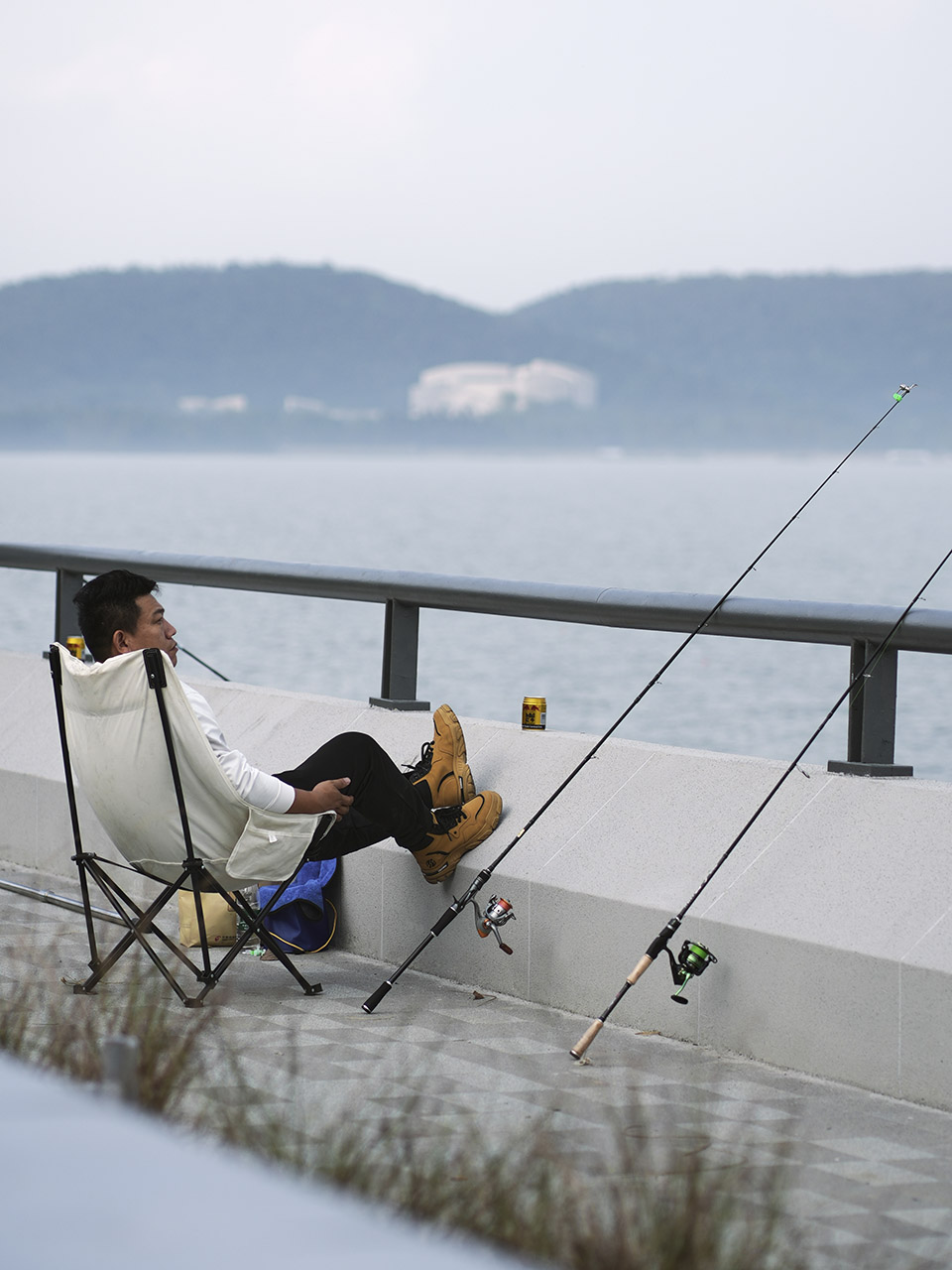

▼湖岸边惬意的垂钓，fishing near the lake ©孙袁江

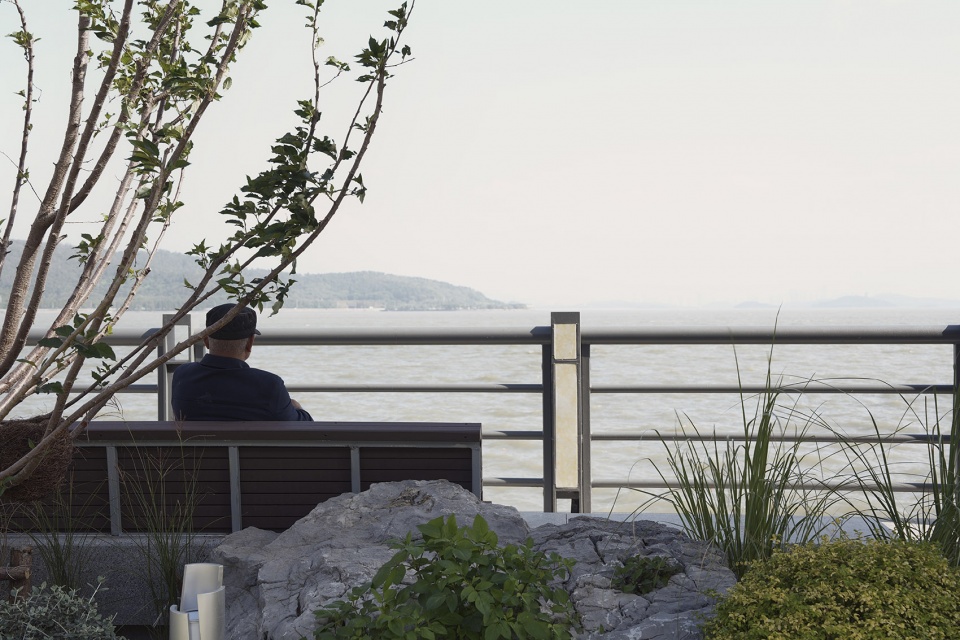

▼独自凝视远方的老者，The old man who stares into the distance alone ©孙袁江



08「总结」
Summary

十里明珠堤拥有得天独厚的自然风光和独特的IP资源，我们希望通过打造这些资源，为城市提供一张令人难忘的名片，助力城市发展和实现美好生活。

Shi Li Mingzhu Levee has unique natural scenery and unique IP resources. We hope to create these resources to provide the city with an unforgettable business card,promote urban development and achieve a better life.

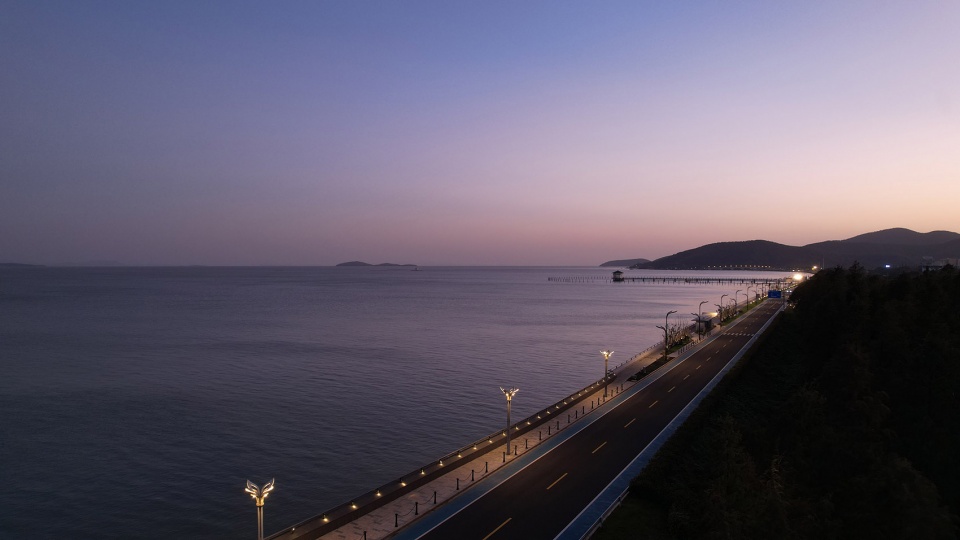

▼十里明珠堤夜景鸟瞰，Ariel view of the Shi Li Mingzhu Levee ©孙袁江

然而，鉴于这是一次低成本改造，在设计和实施过程中不可避免地受到资金、用地、政策等多方面的制约，不得不做出一些取舍，因而存在一定的遗憾。当崭新的活力得以激发后，或许当前存在的一些限制性因素能够得以化解，为未来的改造升级预留出充足的空间和无限的可能性，使十里明珠堤能够在未来更出色地满足人们的多元需求，承载更多温馨美好的生活故事和珍贵回忆。

However, given that this is a low-cost renovation, it is inevitably constrained by various factors such as funding, land use, and policies during the design and implementation process, and some trade-offs have to be made, resulting in some regrets. When new vitality is stimulated, some of the current restrictive factors may be resolved, leaving ample space and infinite possibilities for future renovations and upgrades. This will enable Shi Li Mingzhu Levee to better meet people’s diverse needs in the future, carrying more warm and beautiful life stories and precious memories.

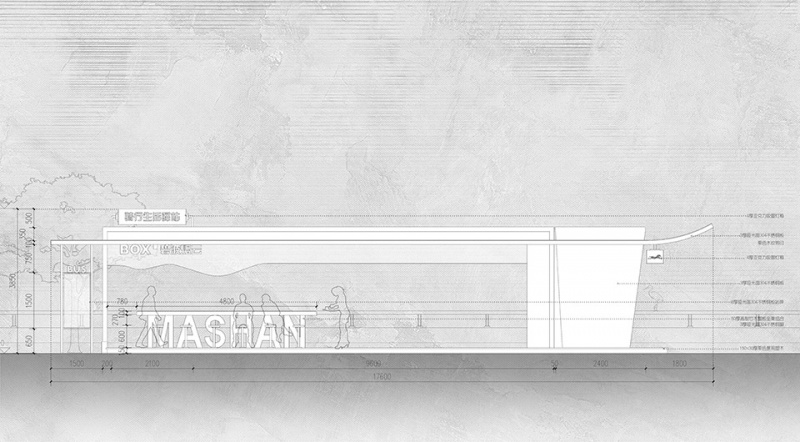

▼驿站盒子立面图，station box elevation ©禾晟设计 孙袁江城市更新工作室

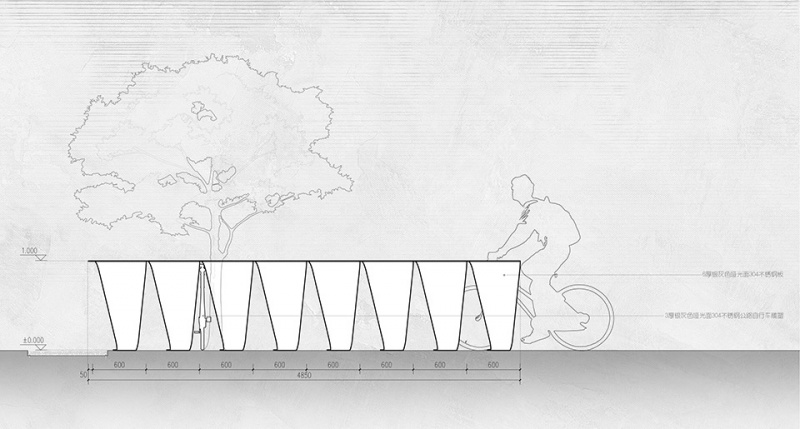

▼自行车吧立面图，bike bar elevation ©禾晟设计 孙袁江城市更新工作室

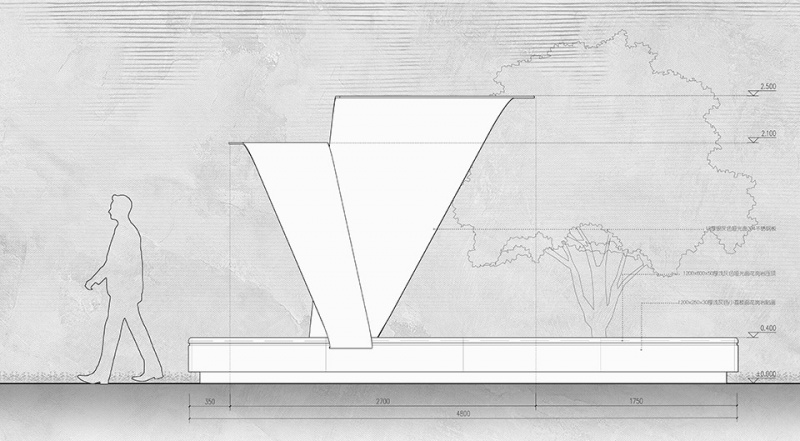

▼飞鸟座椅立面图，bird-like bench elevation ©禾晟设计 孙袁江城市更新工作室

项目名称：十里明珠堤
项目地点：江苏省无锡市滨湖区
项目类型：城市更新/滨水公共空间
项目规模：岸线长度6.25km
设计时间：2023年
建成时间：2024年
建设单位：无锡新马科创发展有限公司
设计单位：禾晟设计 孙袁江城市更新工作室
设计团队：孙袁江、沈恬、隆皓、李澳、冯怡晨、诸则甫等
公司网站：http://www.hecle.cn
联系邮箱：postmaster@hecle.cn
合作单位：江苏园景工程设计咨询有限公司
项目摄影：应威、孙袁江、沈恬
施工单位：无锡市瑞景城市服务有限公司
监理单位：江苏达瑞德工程管理咨询有限公司
