Volvo Circle Pavilion by Studio Heech

感谢 Studio Heech 将以下内容授权gooood发行。更多关于他们：Studio Heech on gooood。
Appreciation towards Studio Heech for providing the following description:

Volvo环形展亭坐落于韩国的首尔艺术中心的草坪上，是城市中的一片由环保材料构成的临时公共空间。这座展亭使用轻型且极少量的材料，由两个直径约6米的轻型顶篷和一系列由可再生材料制成的家具组成。该项目中所有的材料都可以被重新循环利用，以尽可能的减少对环境的影响。

Volvo Circle Pavilion is a temporary public space in the city made of eco-friendly materials and was built on the lawn of Seoul Arts Center, South Korea. The pavilion, made of only lightweight and minimal materials, consists of two lightweight canopies with a diameter of 6m and a series of furniture made from recycled materials. The all materials used in this project were fully reused and recycled for new purposes while minimizing the impact on the environment.

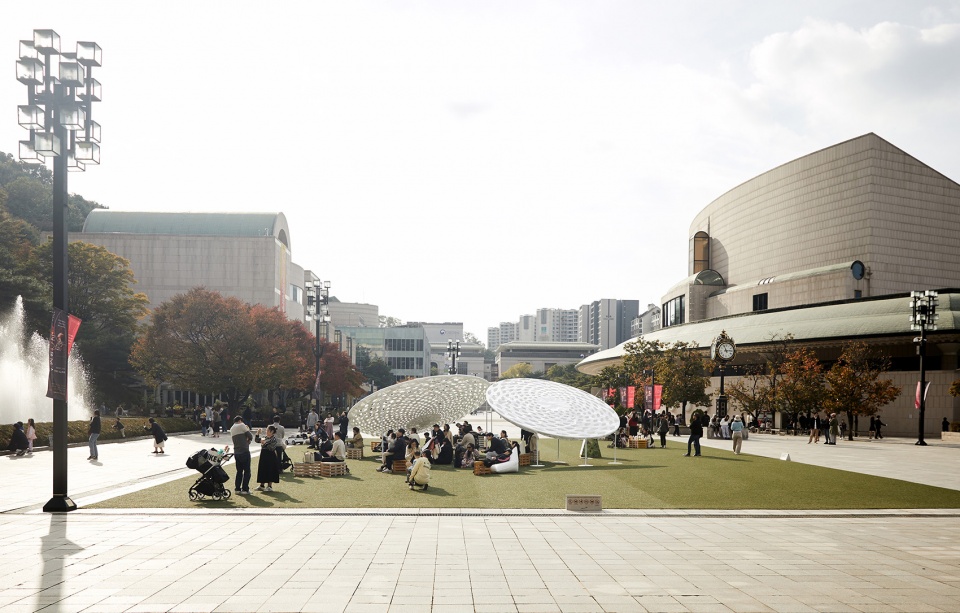

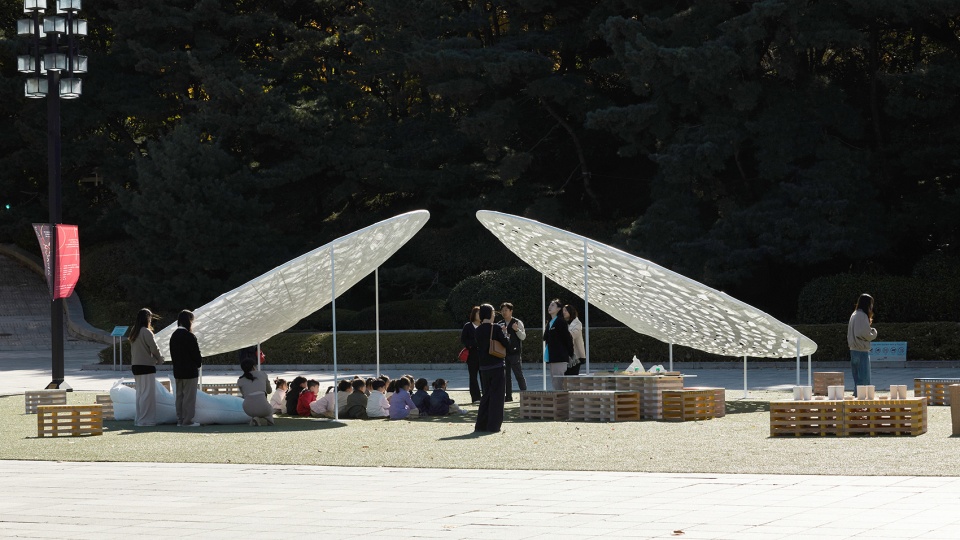

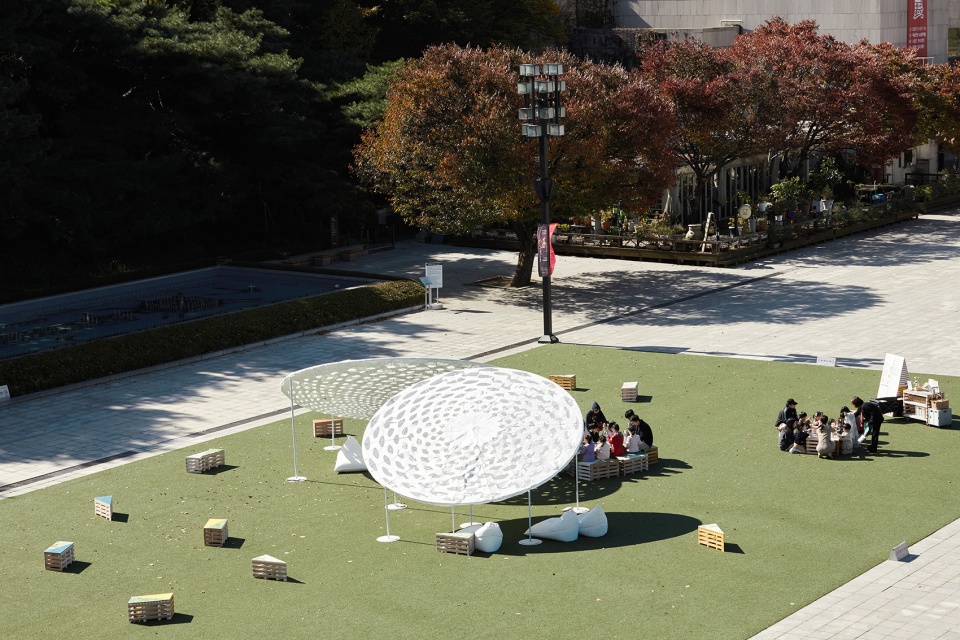

▼项目概览，project overview© jaeyi Kim

轻薄如纸的轻型Tyvek材料覆盖住直径6米的顶篷，该材料可以经过拆卸再回收加工成为塑料板，然后用作拼图长凳的饰面，而这些长凳则由废旧的结构木板制成，以这种方式制成的拼图长凳被捐献给小学，日托中心和首尔的儿童图书馆。为了减少对环境的影响和施工过程中的碳排放，用于安全支撑顶篷的轻质钢结构被重新组装利用，并且几乎所有的元素都在现场制造组装。

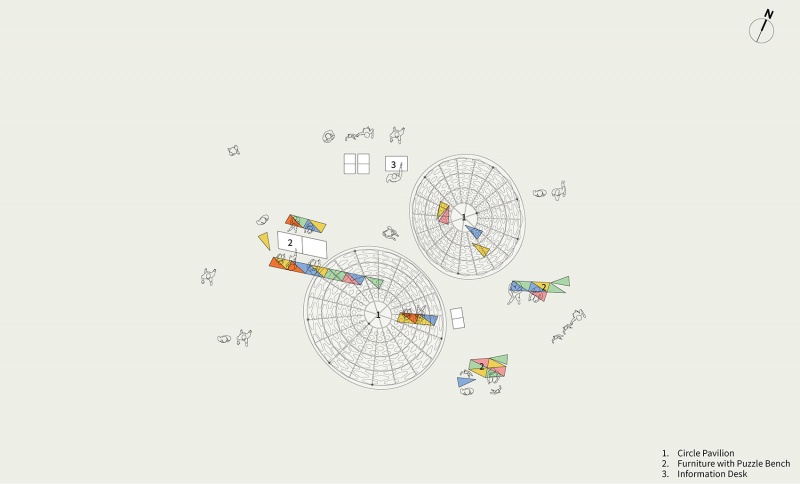

▼平面图，plan© Studio Heech

The paper-thin and light Tyvek covering the pavilion’s 6m diameter canopy was dismantled and recycled into plastic boards, then used as the top of the puzzle benchs which were made from old neglected structural wood. The puzzle benches created this way were donated to elementary schools, daycare centres, and children’s libraries in Seoul. The minimal lightweight steel frame that safely supports the canopy was disassembled and reused, and almost all elements were prefabricated and installed on site in order to reduce the environmental impact and carbon emissions generated at the construction site.

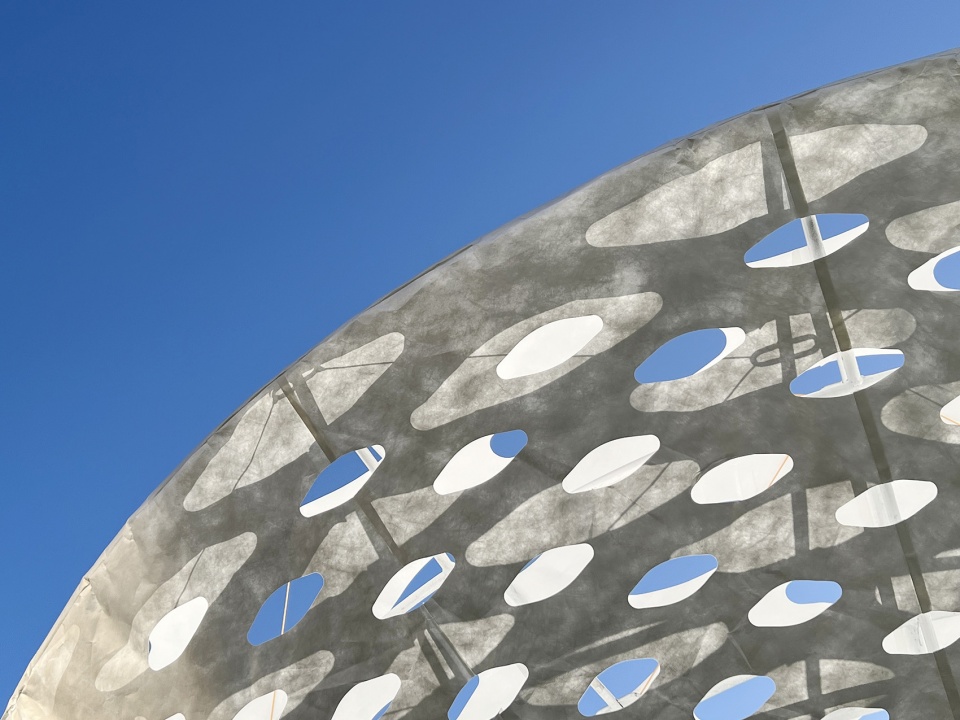

▼顶篷结构，canopy structure© jaeyi Kim

为了实现可持续的目标，展亭通过工匠、工程师和来自不同领域的制造者们之间的合作而共同完成。外立面咨询公司Front和使用Tyvek材料展现过多次环保作品的DSLSM一同合作，创造了一种极简主义的轻质结构，通过使用环保可回收塑料板来实现材料循环和有意义的再利用。

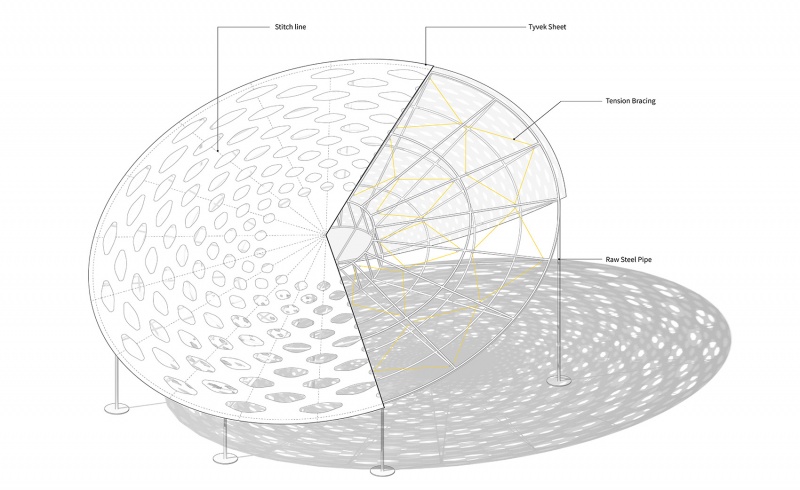

▼装置构成，composition© Studio Heech

The pavilion was completed through collaboration with craftsmen, engineers, and makers from various fields who gathered together with a clear goal for sustainability. Front, a façade consultant, worked together to create a minimal, lightweight structure, and DSLSM, which presented various eco-friendly works using Tyvek material, worked together to create eco-friendly recycled plastic boards to realize material circulation and meaningful reuse.

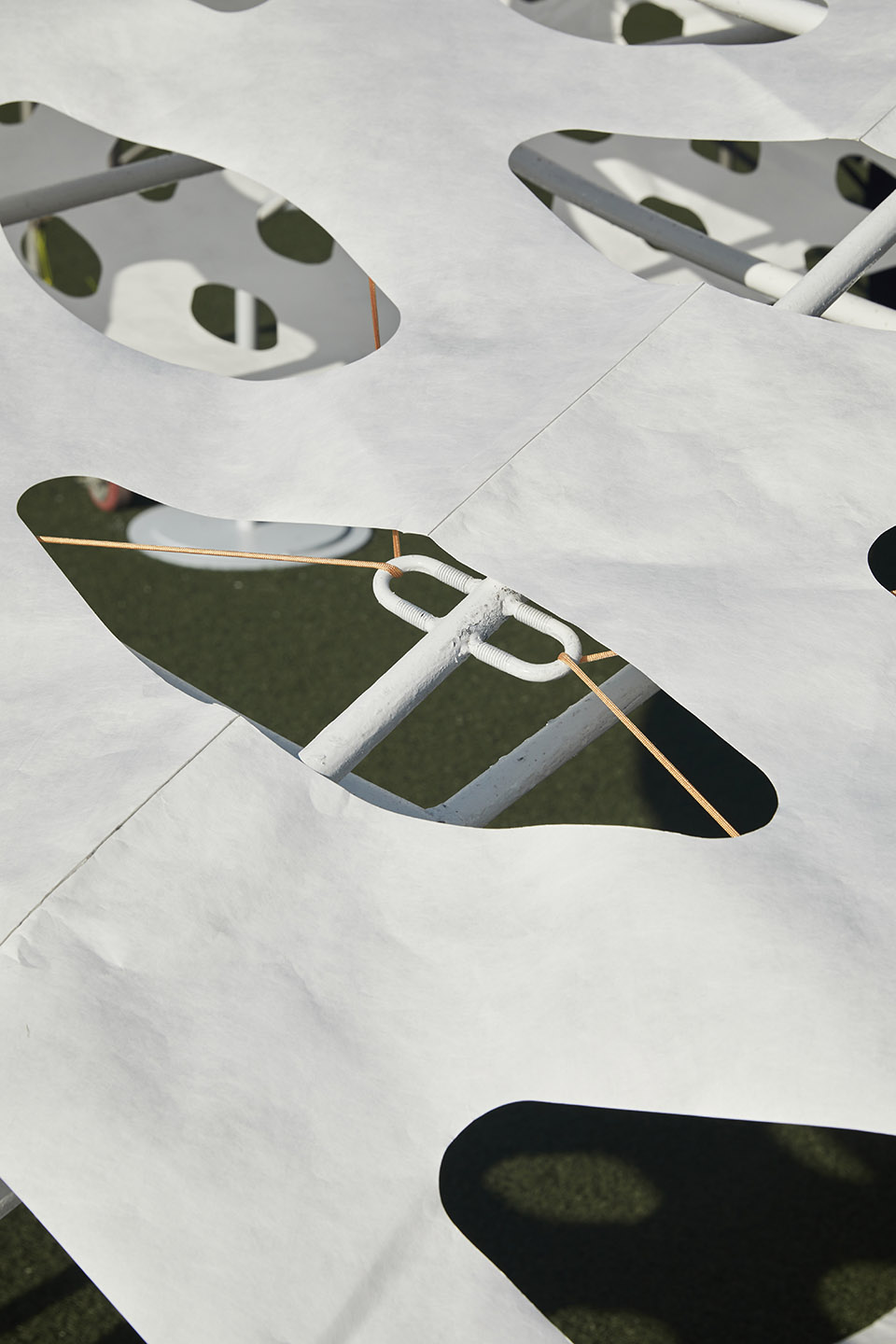

▼Tyvek材料细部，Tyvek material detail © jaeyi Kim

Tyvek经常被用作防水材料，并且有和纸类似的特质，可以通过剪刀剪出任何图案，再通过重叠形成三维的阴影。这种三维的阴影是对森林中阳光穿过树叶的一种隐喻，被称为Komorebi。参观者可以体验由光影营造出的随时间变化的空间。

Tyvek is used as a waterproof material and has physical properties similar to paper created various patterns by cutting them out with a knife, and the overlapping patterns create three-dimensional shadows. This three-dimensional shadow is a metaphor for the light, called Komorebi, that seeps through the leaves in the forest, and visitors experience a space created by light and shadow that changes over time.

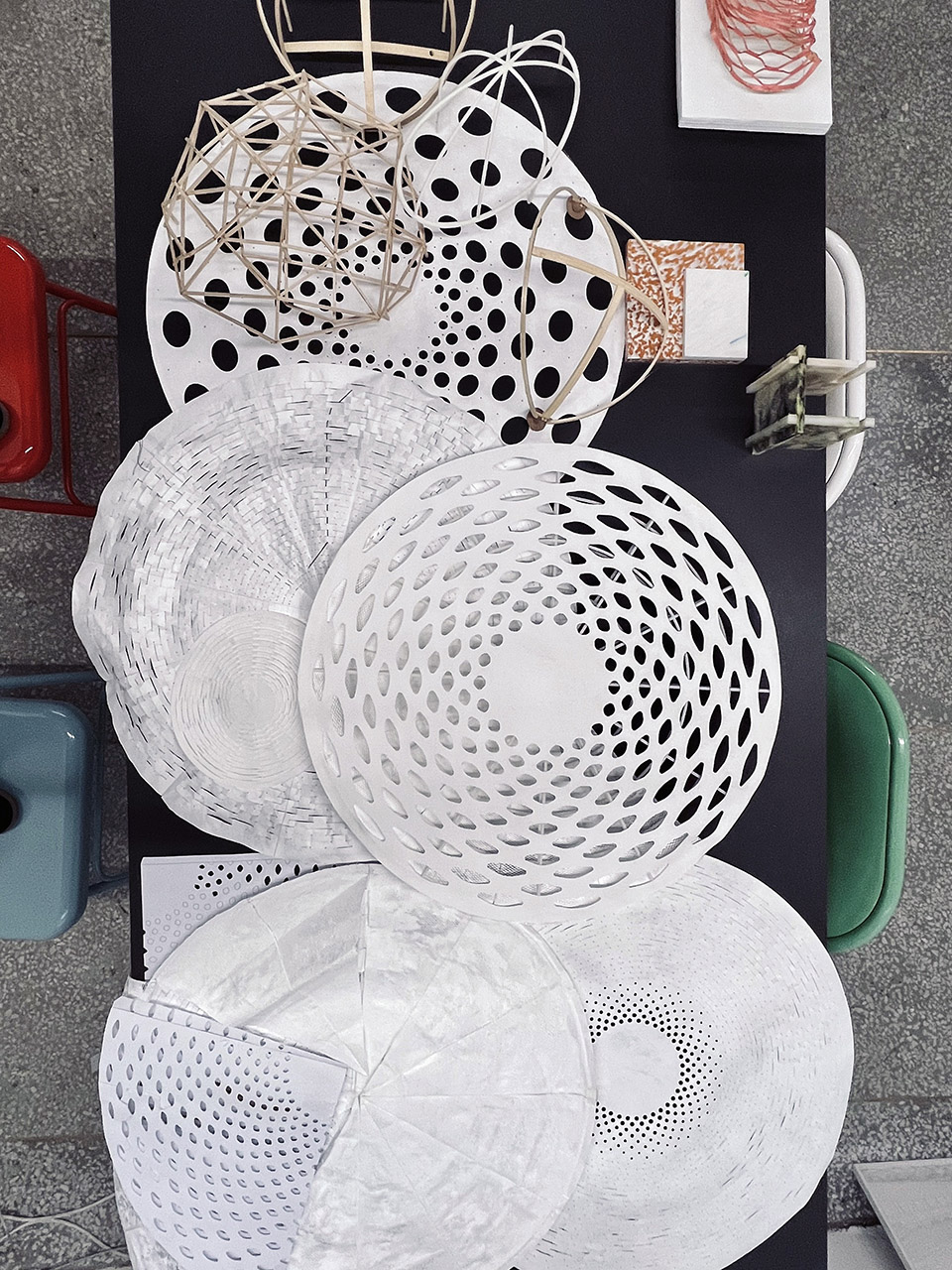

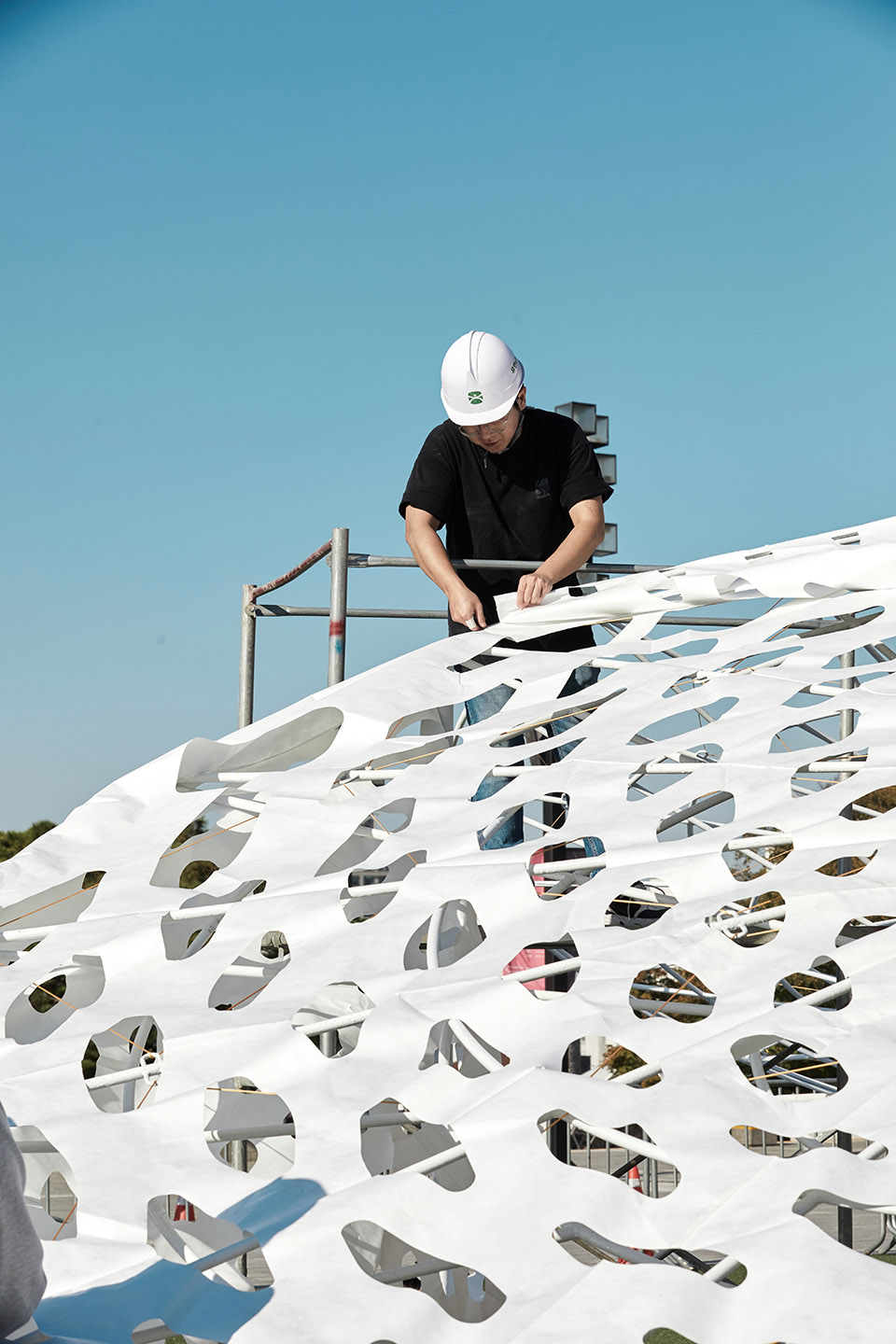

▼可以通过剪刀剪出任何图案，various patterns by cutting them out with a knife© jaeyi Kim

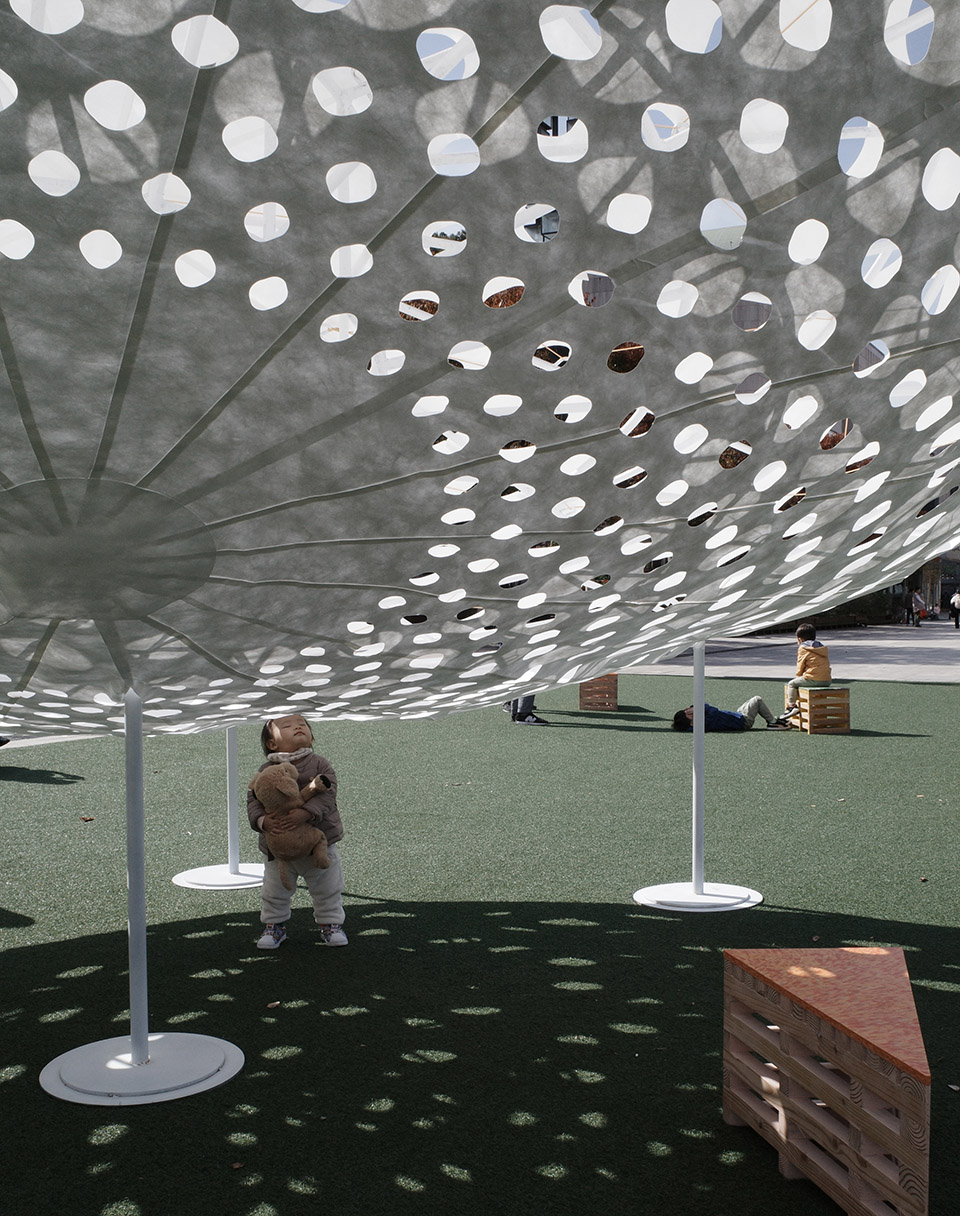

▼对森林中阳光穿过树叶的一种隐喻，
three-dimensional shadow is a metaphor for the light© jaeyi Kim

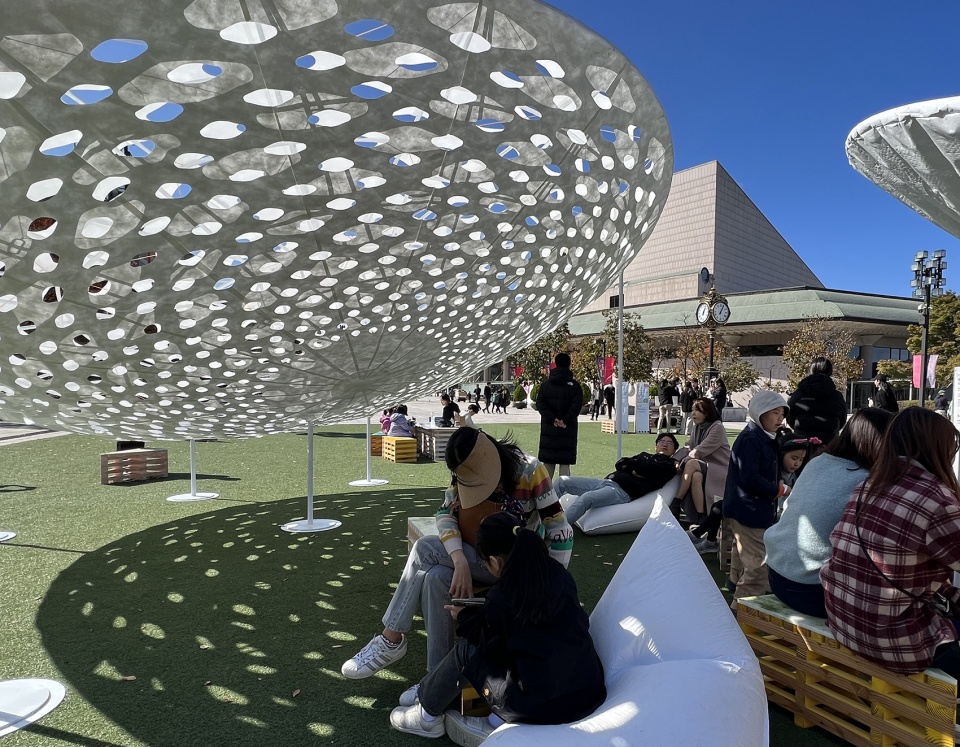

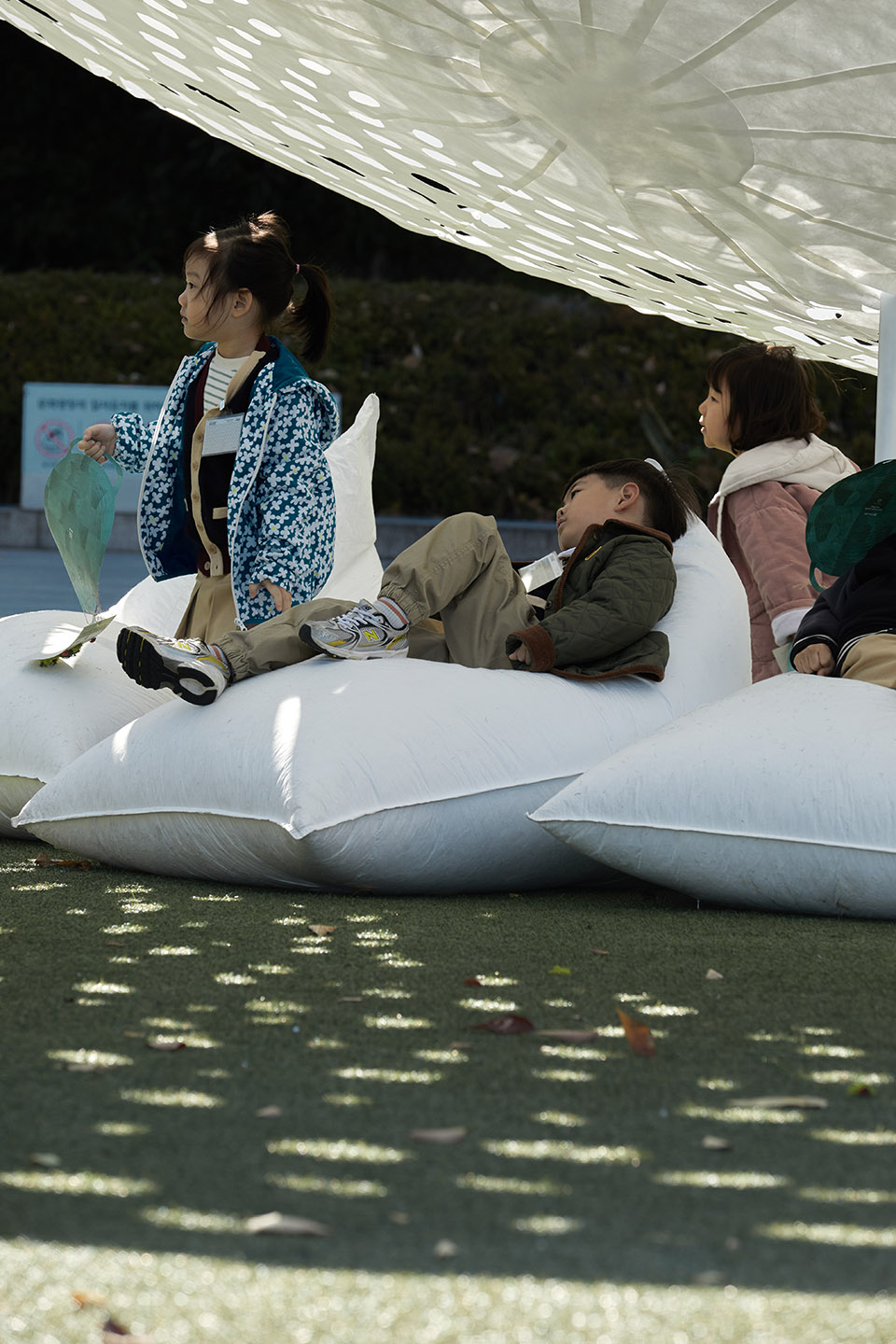

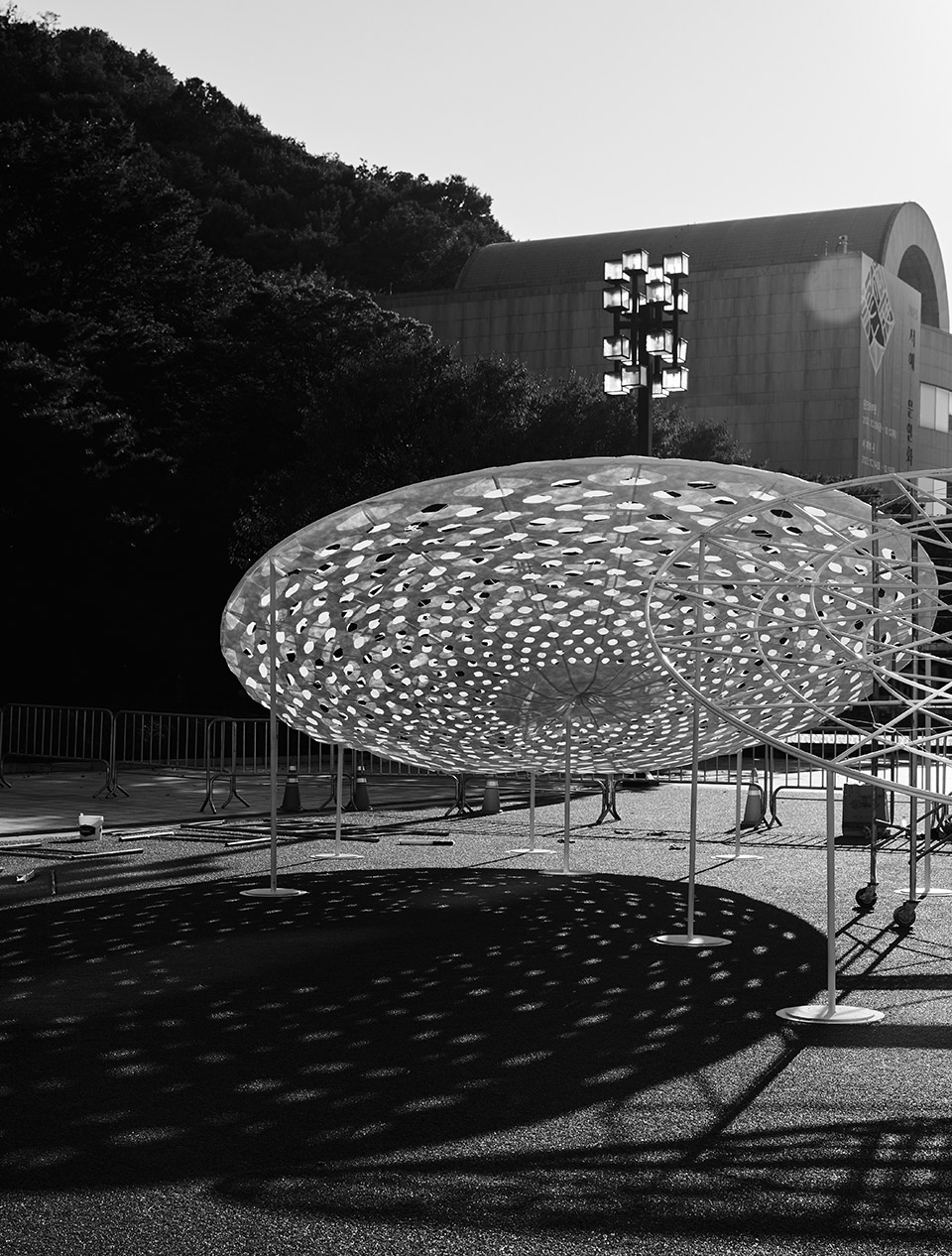

▼檐下空间，space under the canopy© jaeyi Kim

使用过的Tyvek材料被重新回收做成塑料层压板，制成家具。钢制成的框架也被重新回收，拼图长凳被捐给小学，日托中心和首尔的儿童图书馆。

Used Tyvek is recycled into plastic pressed boards and made into furniture again, steel frames were recycled and puzzle benches were donated to elementary schools, daycare centers, and children’s libraries in the Seoul.

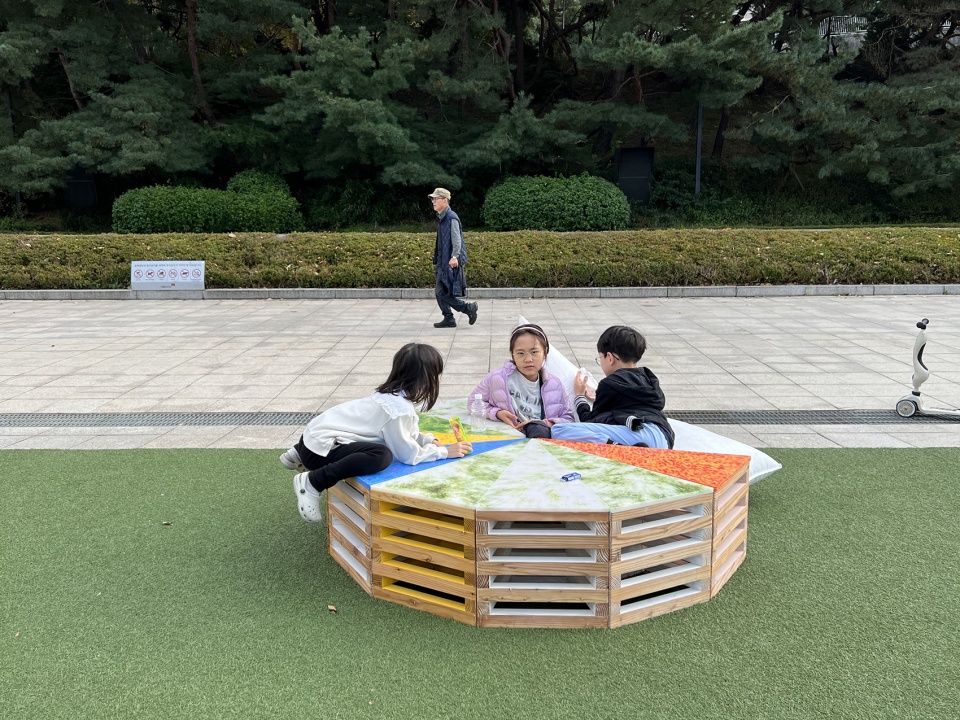

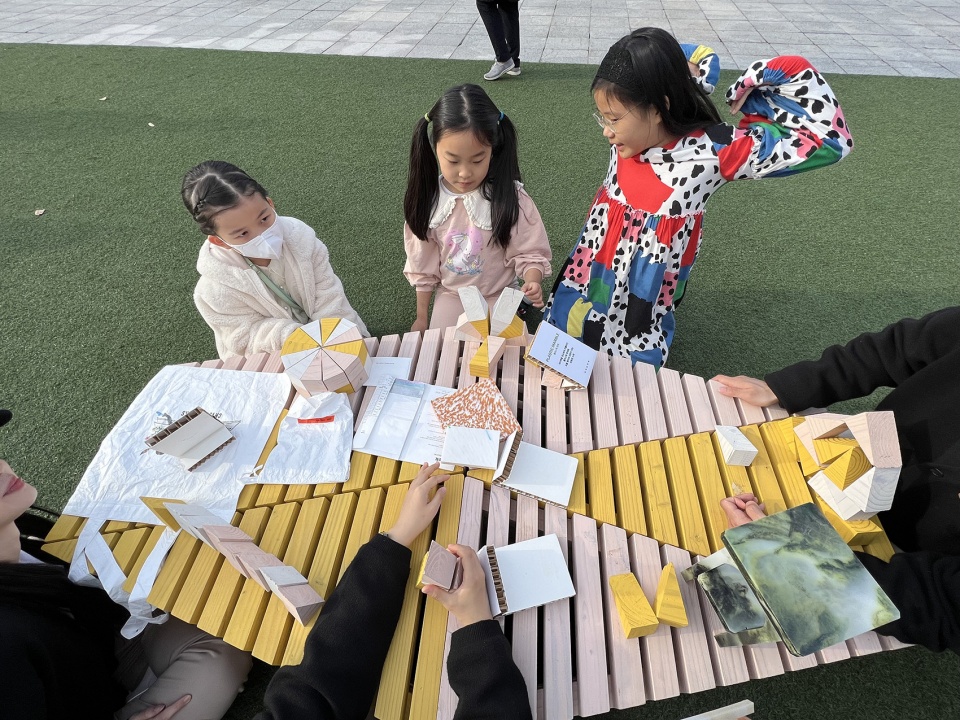

▼拼图长凳，puzzle benches© jaeyi Kim

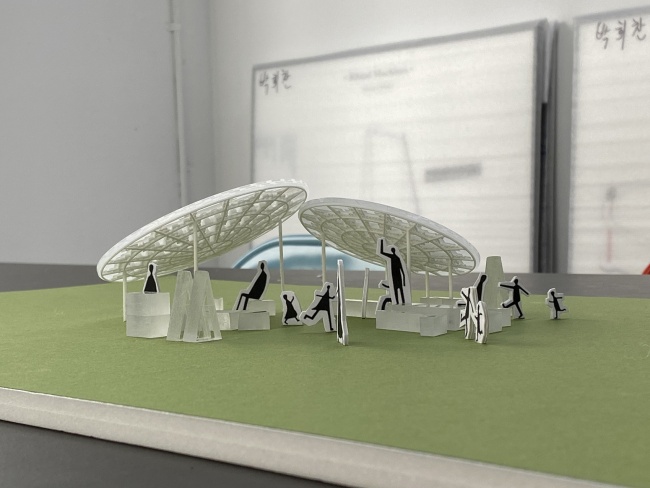

▼模型，model© Studio Heech

▼立面，elevation© Studio Heech

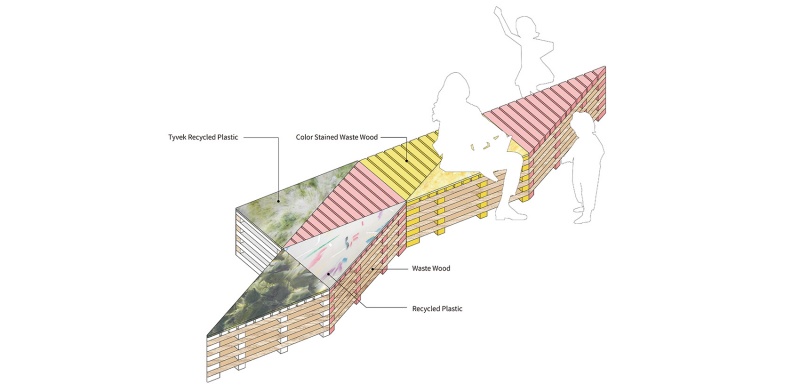

▼长凳轴测，bench axonometric© Studio Heech

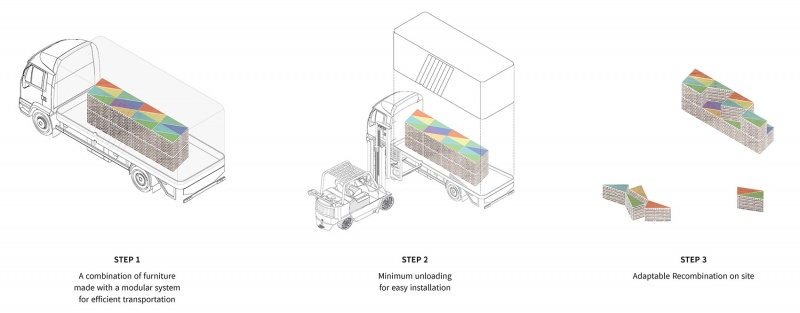

▼长凳的组装过程，install progress of the bench© Studio Heech

Design: Studio Heech
Structural Engineering: Front INC
Sustainable material consultant: DSLSM
Site Installation: Studio Heech, Human Scale
Project Coordinator : FIG
Client : Volvo Korea
