Shelter Brewery by Paul Burnham Architect

Warm in winter and cool in summer

2021-02-20

项目标签

设计公司: :; Paul Burnham Architect
位置: :; Australia
类型: :; Architecture
材料: :; Corten Steel Glass
标签: :; Busselton
分类: :; Tropical architecture Hospitality Commercial Architecture Industrial Architecture Bar Winery Restaurant

感谢 Paul Burnham Architect 对gooood的分享。更多关于他们：Paul Burnham Architect on gooood。
Appreciation towards Paul Burnham Architect for providing the following description:

该项目位于西澳大利亚的巴瑟尔顿，坐落在建于1865年的著名长栈桥（Long Jetty）的起始端。这是一家独立的商业啤酒厂，基地内包含存储、研磨、酿造和罐装设施。建筑设计有意地反映出这里既可以制作啤酒又可以举办庆典。所有服务设施和公共空间均围绕酿酒工序设置。

Shelter Brewery is located in Busselton, Western Australia and is sited at the foot of the famous mile long jetty originally dating from 1865. The place is a self contained commercial brewery with all storage, milling, brewing and canning facilities contained within the site. The aesthetics of the buildings purposefully reflect the functionality of the fabrication and the celebration of beer. All of the hospitality facilities and public spaces wrap around and embrace the brewing process.

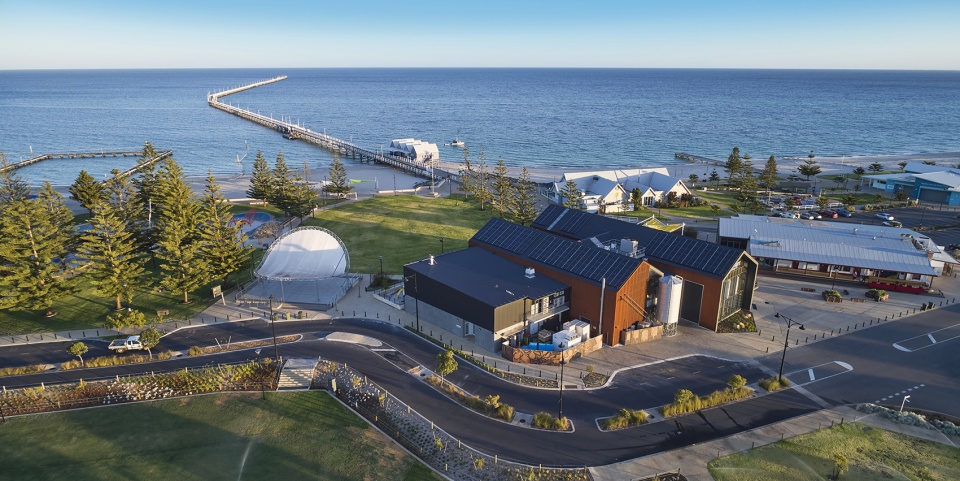

▼项目鸟瞰，aerial view © Rob Frith

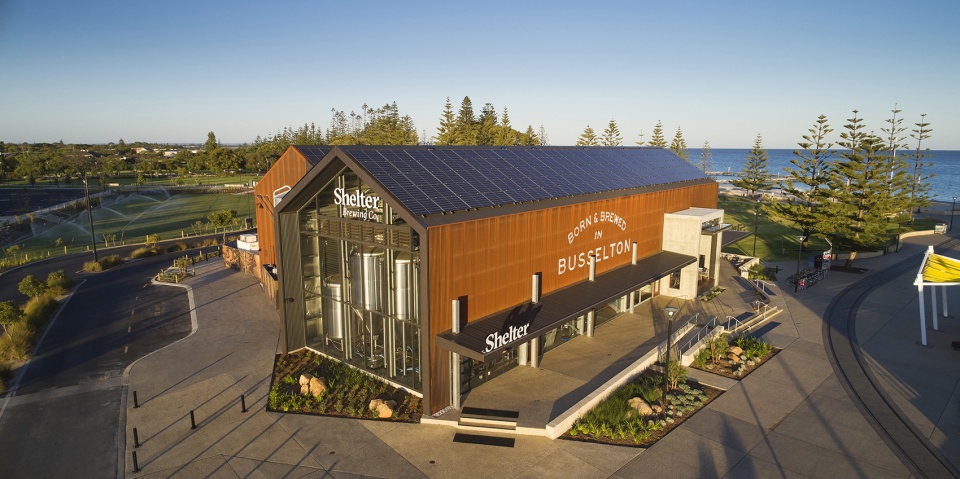

▼近景，closer view © Rob Frith

建筑采用钢构架和耐候钢表皮，经济适用且施工迅速，不仅借鉴了品牌风格，还参考了当地丰富的历史，这里在19世纪以捕鲸业为主，后来转向檀香木出口业。海风通过大型可开启门窗为室内带来了大量的自然通风，在必要时，可以使用直径6.3米的HVLS风机促进空气流通。中央加热的混凝土地面为冬季带来舒适感。啤酒厂80%的耗能来自于太阳能。

The steel frame and Coreten cladding were employed for economy, speed of construction and to reference the manufacturing idiom of not just the brand but also the rich history of the site, spanning from 19th century whaling to Sandalwood exportation. The large volume naturally vents courtesy of the reliable sea breezes and the large openable doors and windows. In addition the 6.3m diameter HVLS fans provide air movement whenever required. Winter comfort is delivered from the centrally heated concrete floor. Shelter Brewery operates at 80% solar power.

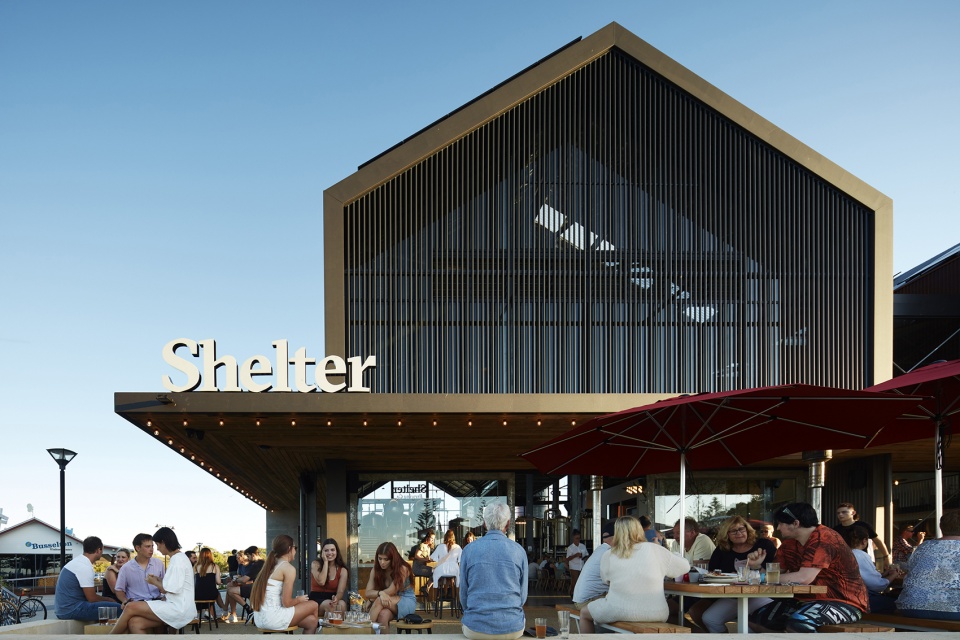

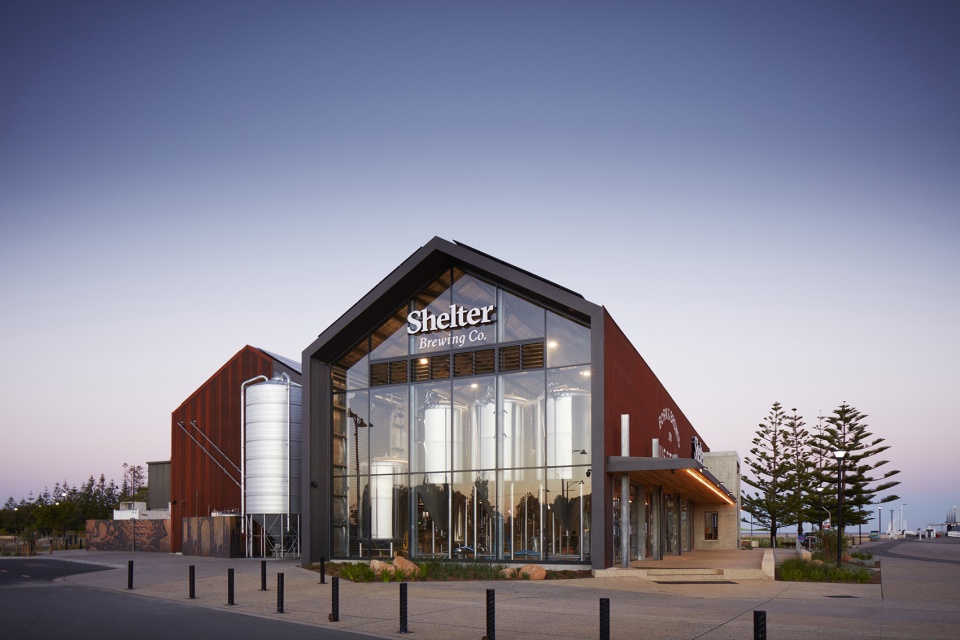

▼主立面，main facade © Rob Frith

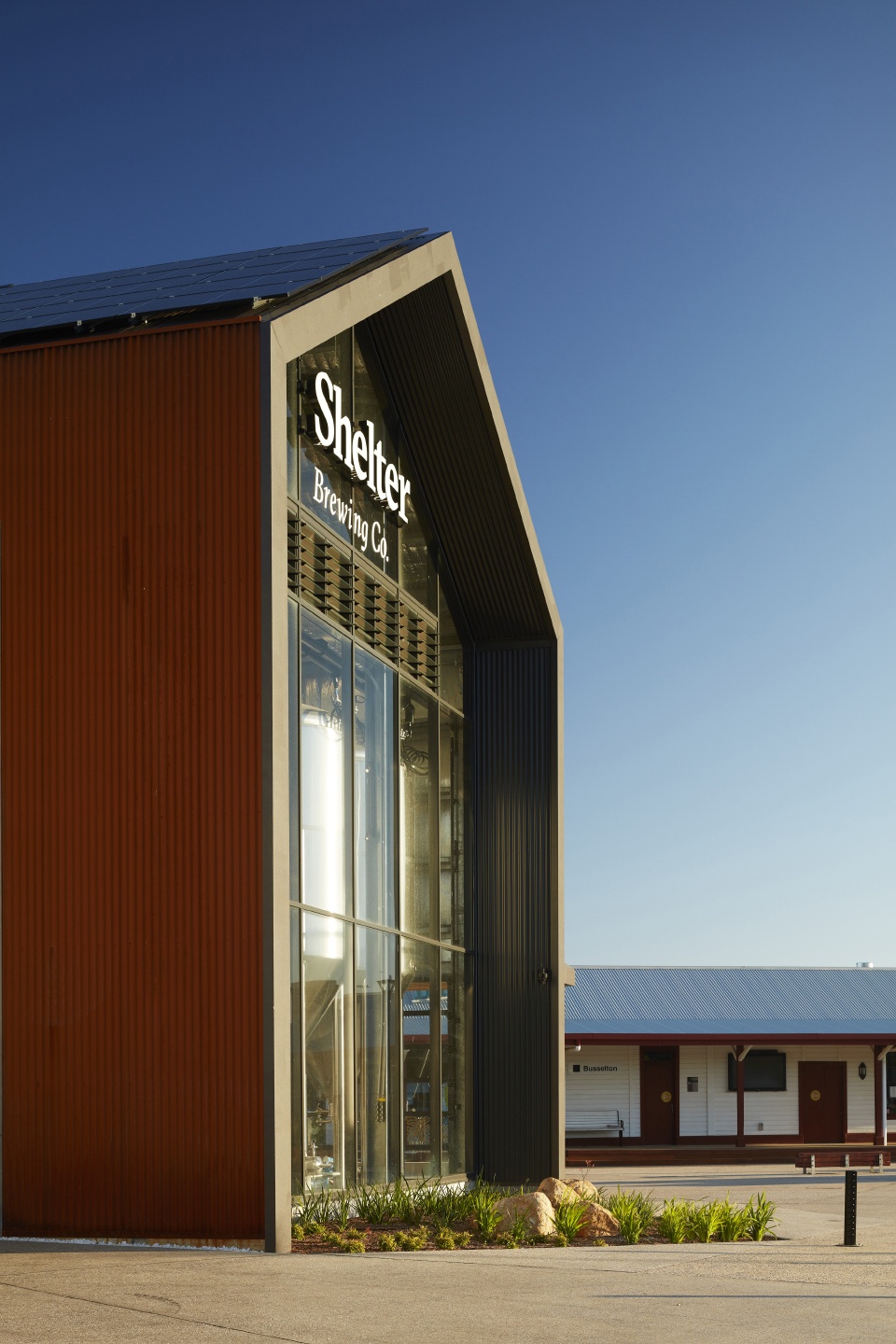

▼耐候钢表皮，corten steel cladding © Rob Frith

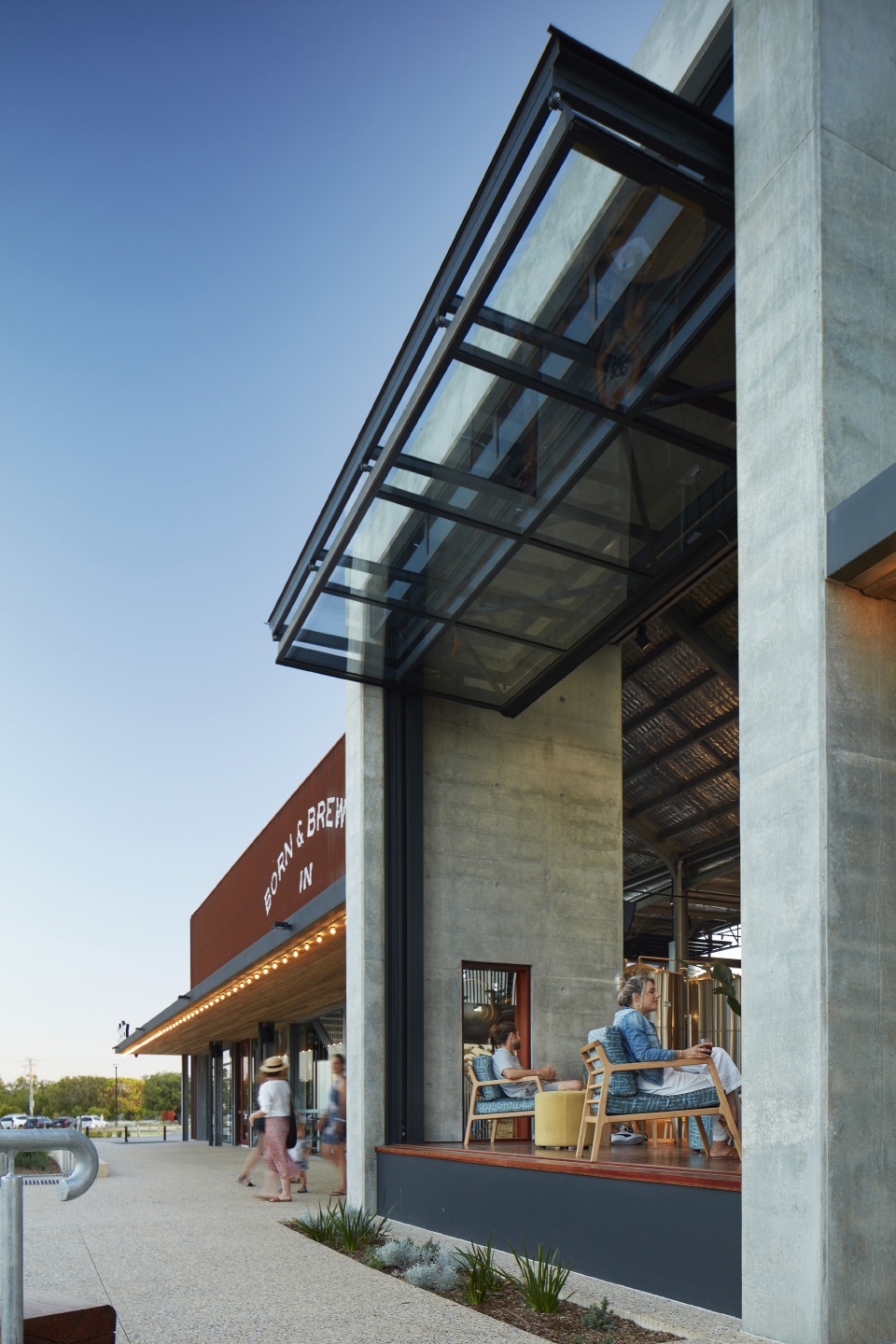

▼大型可开启门窗，large openable doors and windows © Rob Frith

建筑北侧面向海滩，完全遵循被动式太阳能原则设计。这里的太阳高度角在冬至日的35°和夏季的峰值80°之间移动，因此建筑北侧设有大面积玻璃窗和宽阳台，在夏季提供全面遮阳，在冬季使阳光照进室内。

The beach side north facing building is fully designed around passive solar principles. In this location, the unrelenting Australian sun journeys between a low 35˚ winter solstice to a near vertical 80˚ summer peak. The building has therefore been designed with large north facing glazed areas and wide verandahs to provide comprehensive summer sun shading and conversely deep winter sun penetration.

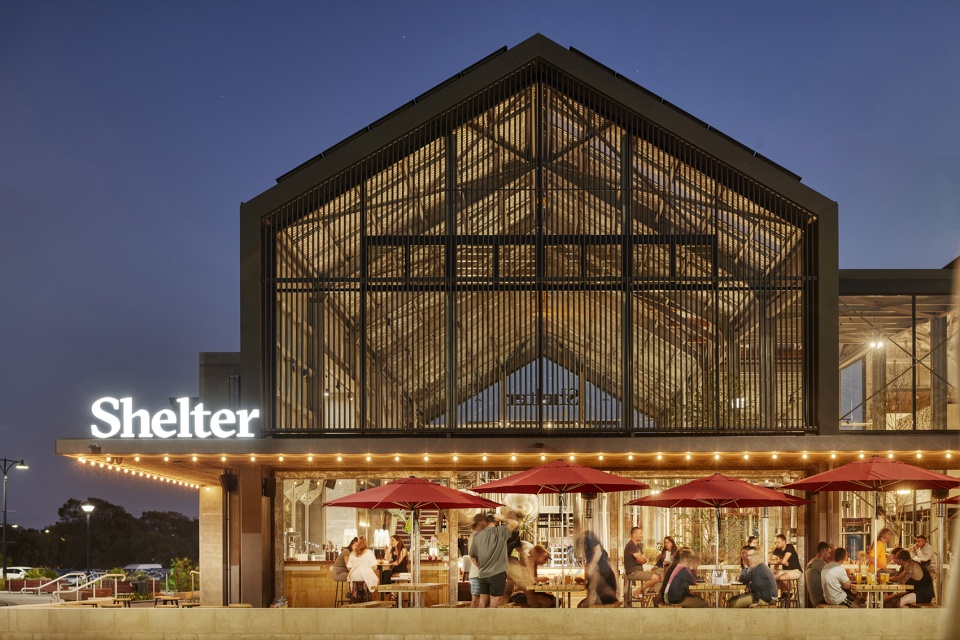

▼北立面，north facade © Rob Frith

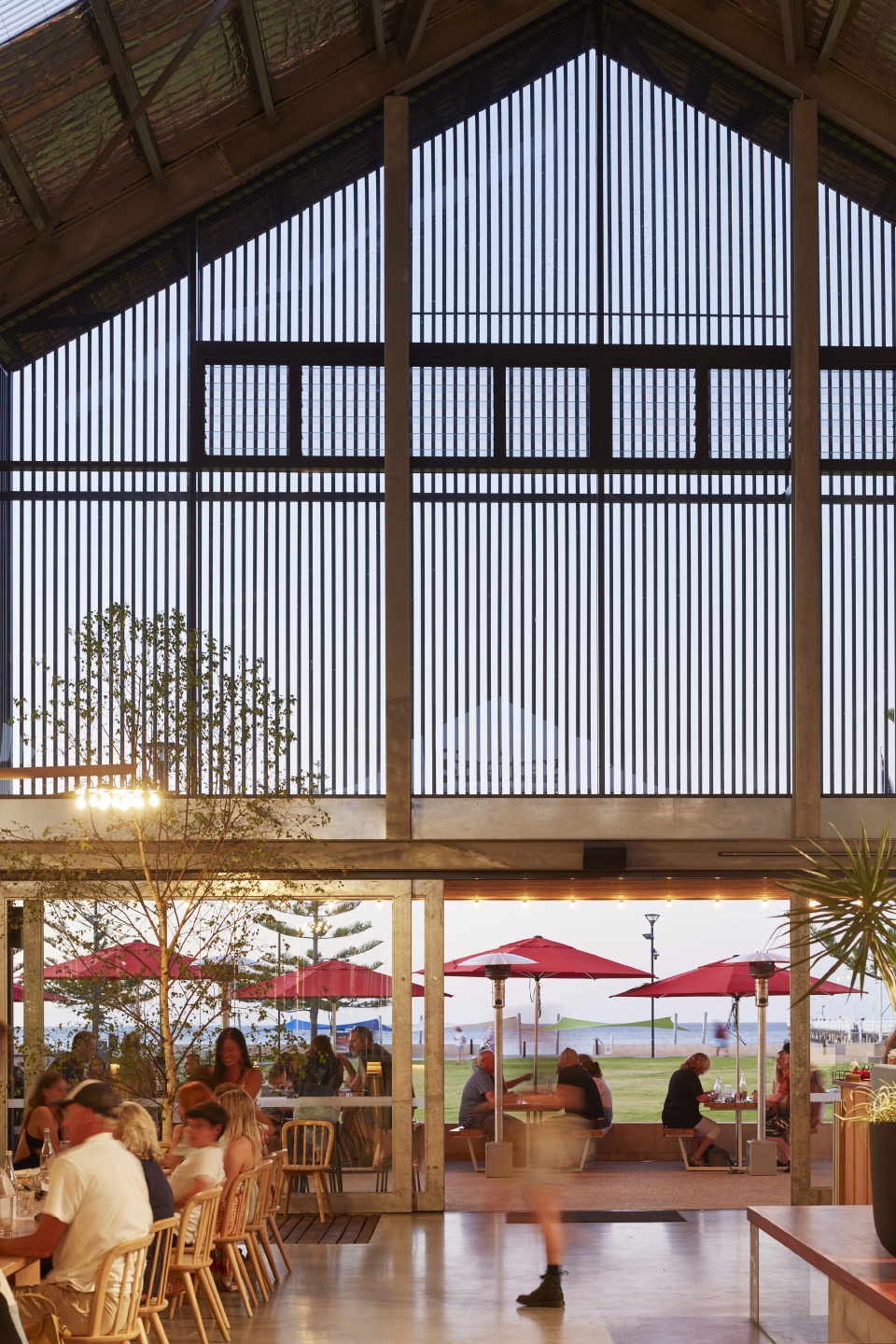

▼大面积玻璃窗和宽阳台，large glazed areas and wide verandahs © Rob Frith

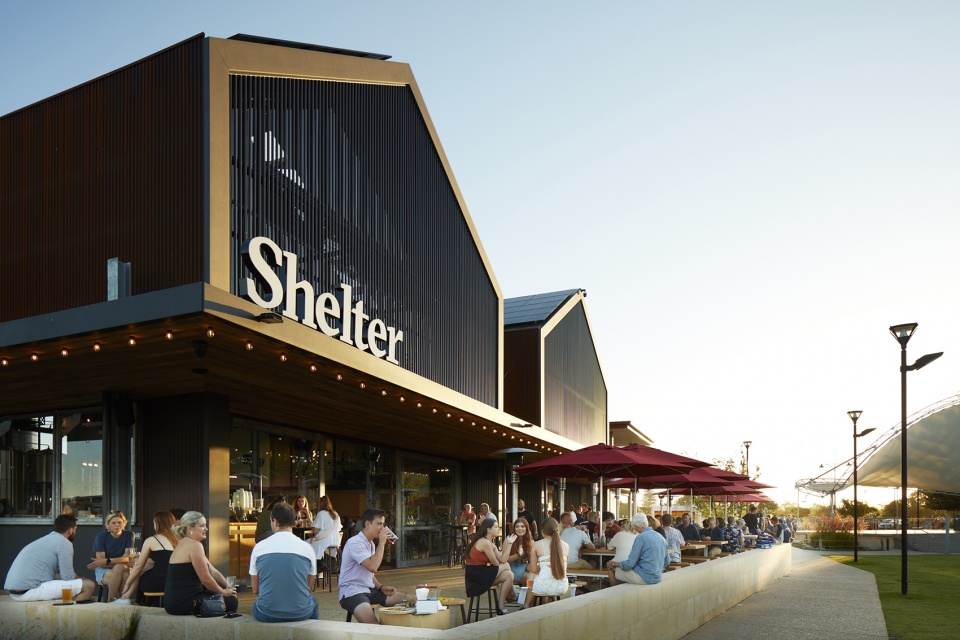

▼近景，closer view © Rob Frith

Shelter Brewery这座滨海建筑受益于其独特的地理位置，共可容纳650人，分层设计创造出多样的空间，既有适用于大型聚会的空间，也有更加小巧且私密的空间。

Shelter Brewery is a beach side building designed to benefit from it’s unique location. The 650 capacity venue is layered to offer various and variable spaces suitable for both larger gatherings as well as providing smaller more intimate spaces.

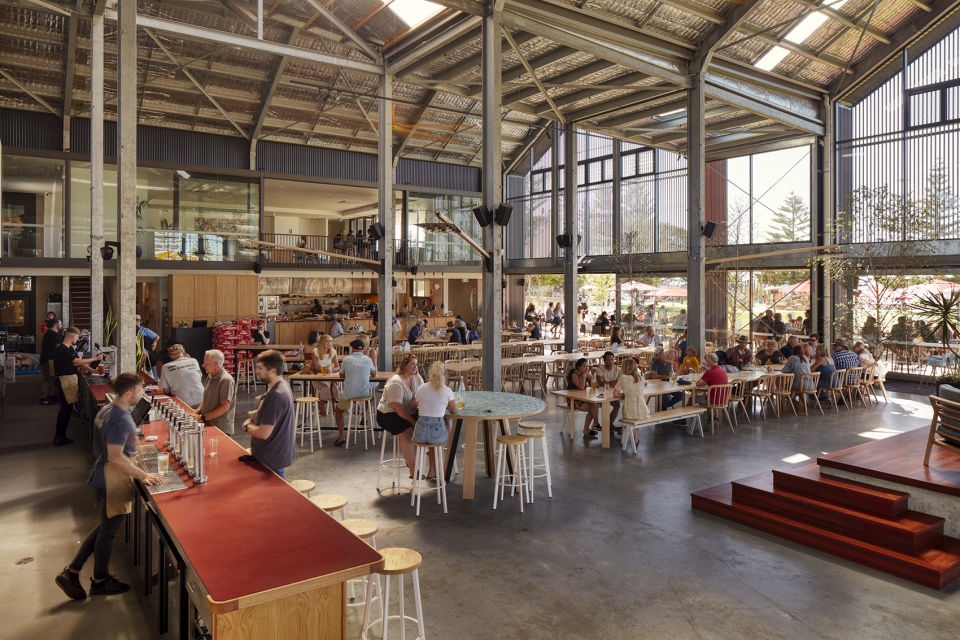

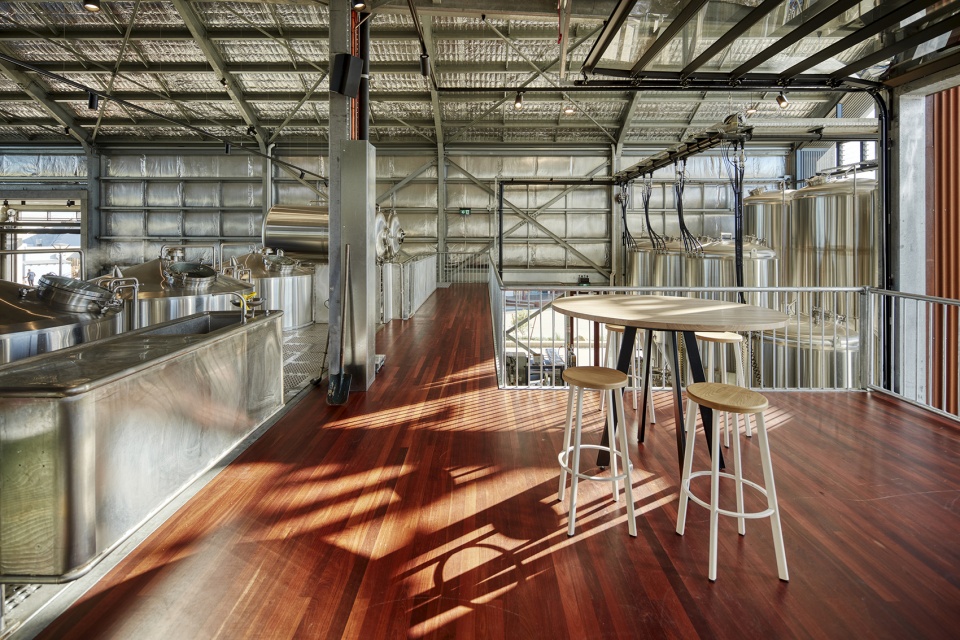

▼餐饮空间与酿酒设施共存，coexistence of dining space and brewing facilities © Rob Frith
