Baramundi Headquarters by HENN

非常感谢 HENN 予gooood分享以下内容。更多请至：HENN on gooood
Appreciations towards HENN for providing the following description:

海茵建筑为这家年轻的软件公司baramundi设计的方案结合了社会和技术表现。作为奥格斯堡创新园首批试点项目之一，这个总部的建立有助于巩固德国作为技术创新推动者的地位。

HENN’s design combines social and technical performance for the young software company baramundi. As one of the first pilot projects of Augsburg Innovation Park, the HQ helps strengthen Germany’s position as a driver of technical innovation.

▼项目外观概览，Overview of the project ©Laurian Ghinitoiu

这座全新的总部是一个建立联系和协同工作的平台，建筑面积13,250平方米，包含一个公共食堂、灵活的协作空间、专用工作区、健身房和可欣赏阿尔卑斯山风景的屋顶露台。这些空间围绕着一个充满活力的室内中庭展开，其旋转和重叠切口将单层、双层和通高空间融为一体。中庭还为建筑创造了一个充满活力的社交中心，其层叠楼梯的功能就是作为一个非正式的交流空间。

The new Headquarters is a platform for connection and collaborative work. The 13,250 square-meter building contains a public canteen, flexible collaboration spaces, dedicated work areas, a gym, and rooftop terrace with views of the Alps. The spaces are organized around a dynamic interior atrium whose rotating and overlapping cut-outs create a mix of single, double, and full-height spaces. The atrium creates an energetic social core for the building, and its cascading staircase functions as an informal communication space.

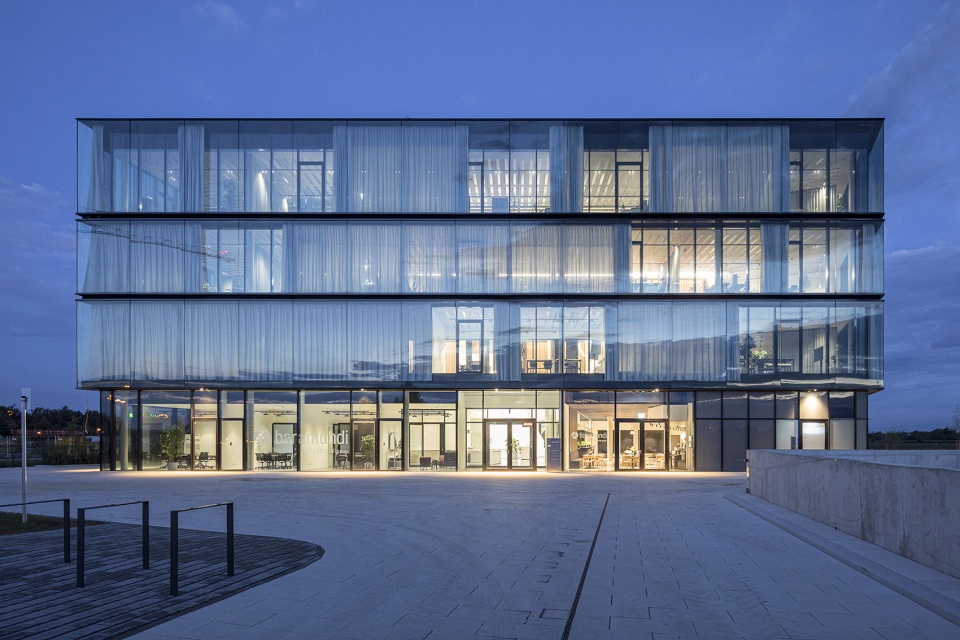

▼项目立面外观概览，Overview of the facade ©Laurian Ghinitoiu

▼从街道看向建筑，A view from the street to the building ©Laurian Ghinitoiu

baramundi总部拥有灵活的工作环境，其灵活性体现在其外立面的不断变化的特点上。建筑最小的玻璃体块采用了精密且优雅的钢条连接，而半自动窗帘系统提供了一个有趣但功能强大的遮阳系统。该系统将低技窗帘与高技自动轨道系统相结合，跟随太阳路径窗帘就可以为工作区和休息室提供不同程度的遮阳效果。

baramundi HQ is an agile work environment whose flexibility is expressed in the always-changing character of its facade. The minimal glass volume is articulated with precision strip steel and elegant reveals, while the semi-automated curtain system offers a playful, yet highly-functional sun-shading system. The system combines low-tech curtains with a high-tech, automated track system. The curtains follow the sun’s path and provide variable degrees of shading for workspaces and lounges.

▼建筑立面近景，Close shot of the building facade ©Laurian Ghinitoiu

同时，窗帘营造出一种透明的室内空间，而非将建筑封闭起来，它们的柔和律动和看似随机的图案与外部的自然节奏建立了直接联系。

The curtains create a diaphanous interiority, rather than sealing the building off, their gentle movements and seemingly-random patterns create a direct connection to the natural rhythms of the outside world.

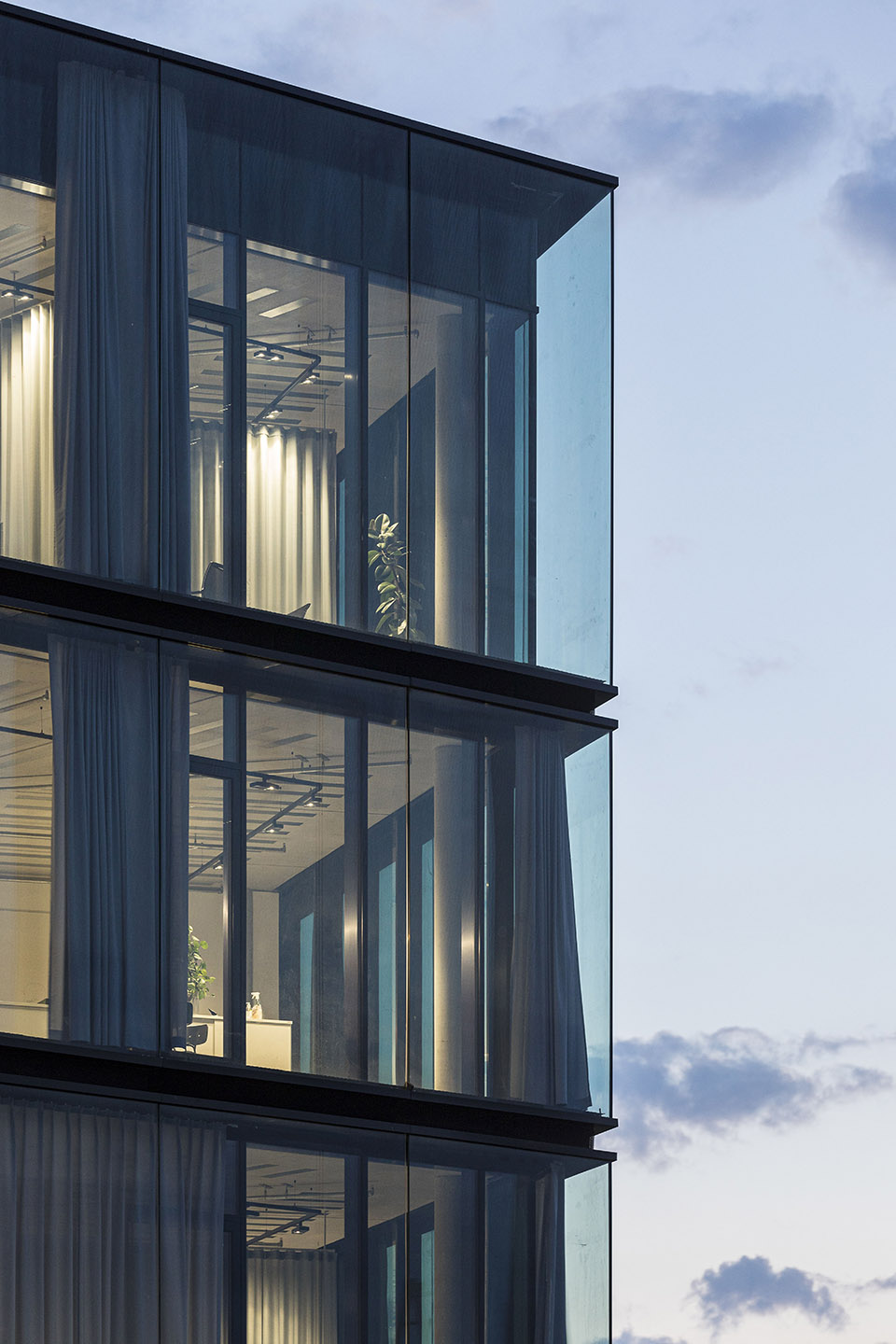

▼玻璃幕墙近景，Close shot of the glass curtain wall ©Laurian Ghinitoiu

相较于与时尚、简约的外观，室内采用了原始、裸露和天然的材料。譬如裸露的混凝土、未完成的阳极氧化表面和可见的金属板。工作空间使用了自然色彩和包括木材和织物在内的天然材质。面向中庭的所有表面都涂有白色的声学覆层，可以抑制声音并强化漫射的自然光线。青铜色窗帘可作为灵活的室内隔断，创造出适应性较高的空间环境。

In contrast to the sleek, minimal facade the interior is made of raw, exposed, and natural materials. Exposed concrete, unfinished anodized surface, and visible metal sheets. Workspaces utilize natural colors and materials such as wood and fabric. All the surfaces facing towards the atrium are clad in white acoustic coating that dampens sound and amplifies natural, diffused light. Bronze-colored curtains serve as flexible interior partitions to create easily adaptable spaces.

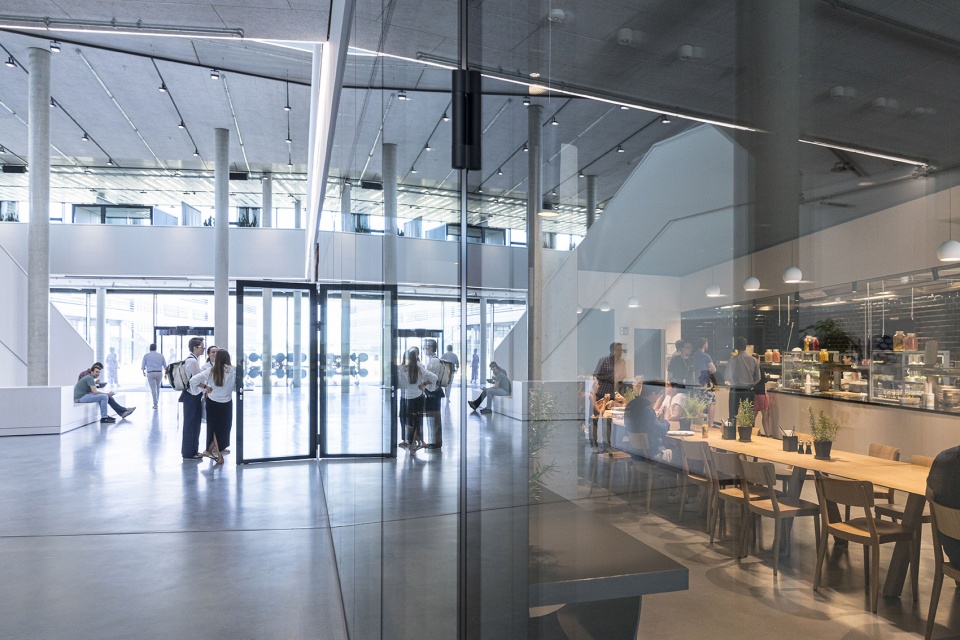

▼入口大堂空间，The lobby ©Laurian Ghinitoiu

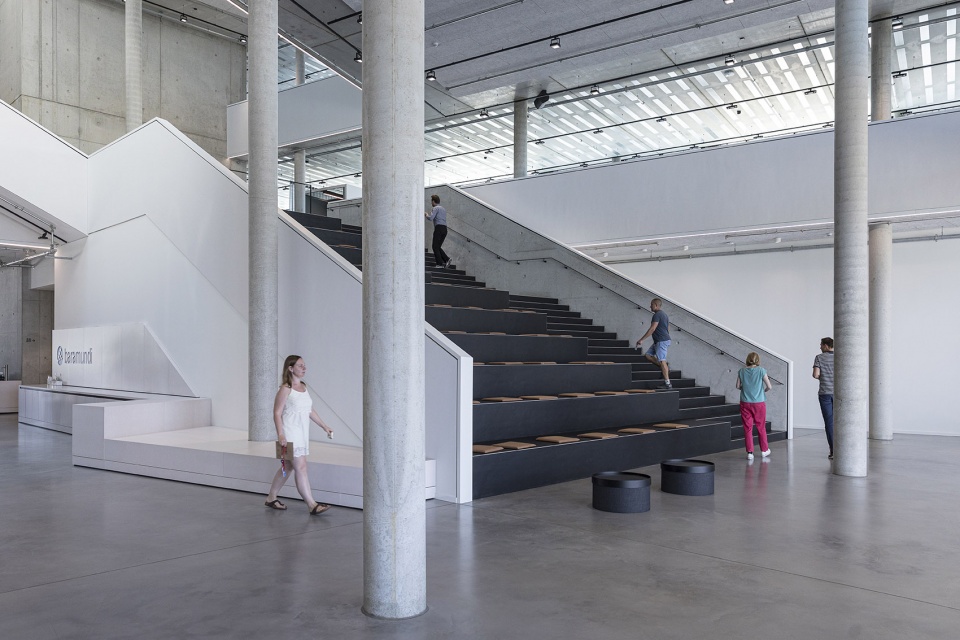

▼大堂内的楼梯，The steps at the lobby ©Laurian Ghinitoiu

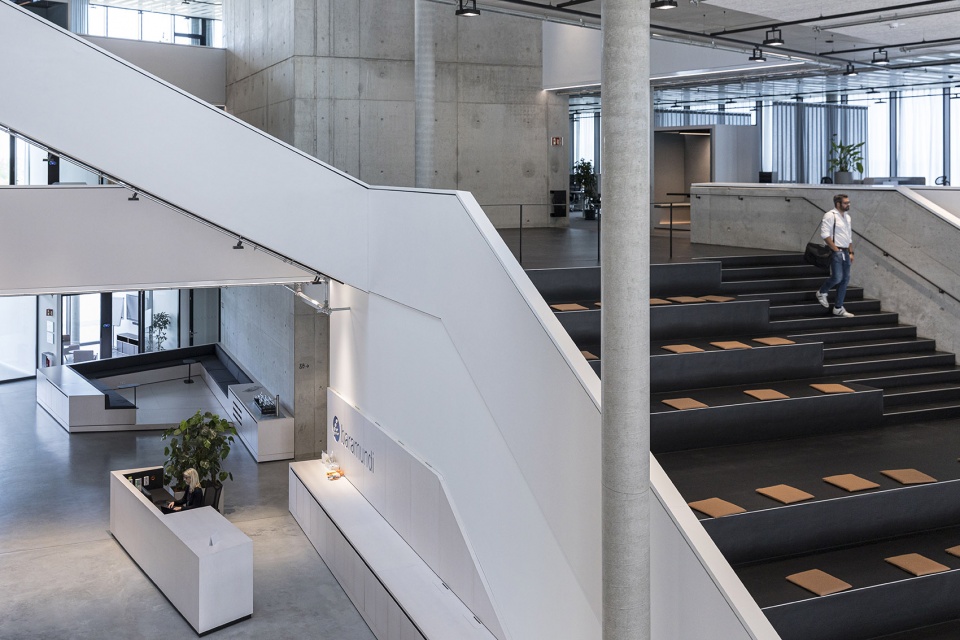

▼楼梯兼具休息和集会功能，The steps also suit for resting and gathering ©Laurian Ghinitoiu

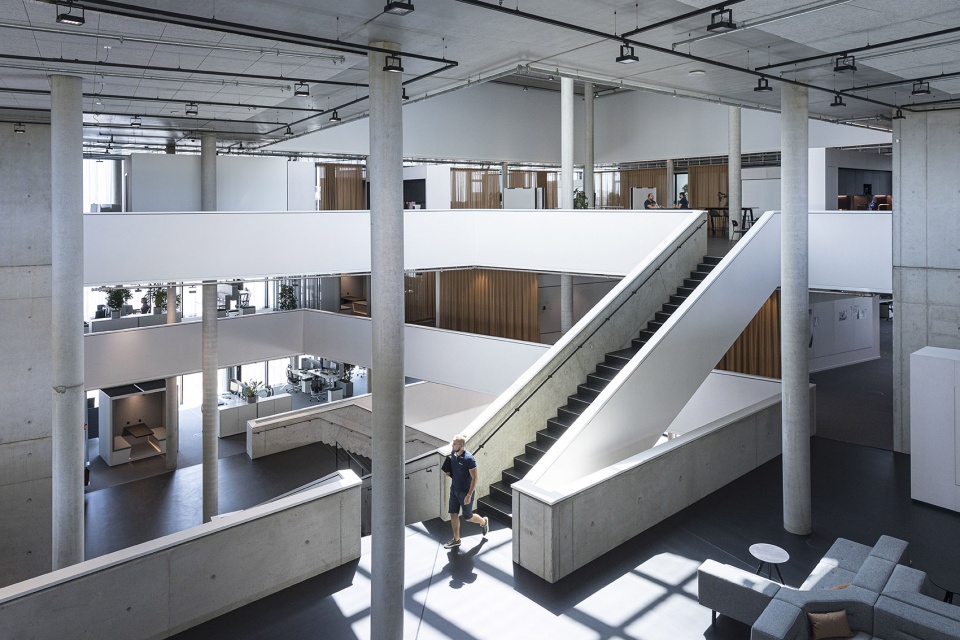

▼俯瞰楼梯，Look down to the steps ©Laurian Ghinitoiu

▼楼梯近景，Close shot of the steps ©Laurian Ghinitoiu

总部大楼的混凝土板采用热激活和辐射加热供暖，全年保持21度的温度，并在夏季和冬季充当热缓冲。裸露的混凝土嵌入了分层吸音板，穿孔金属层则将热传导变为现实，而泡沫层的设置意在吸音。

The headquarter’s concrete slabs are thermally activated, and use radiant heating to maintain a 21 degree temperature throughout the year, acting as a thermal buffer during the summer and winter. The exposed concrete is inlaid with layered acoustic panels, the perforated metal layer allows for thermal conduction, while the foam layer absorbs sound.

▼大楼内部公共休闲空间，The public recreational spaces in the building ©Laurian Ghinitoiu

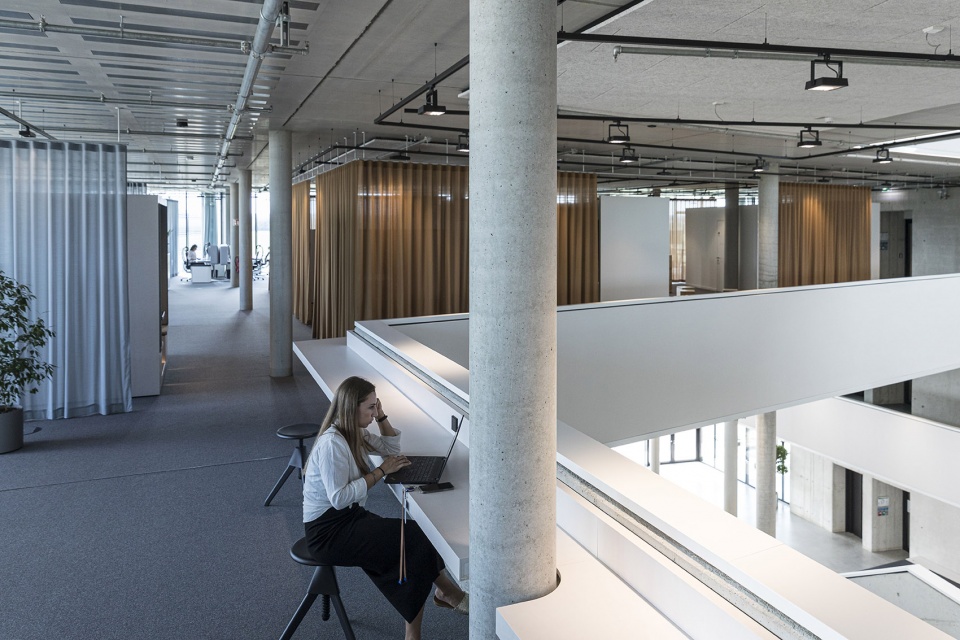

▼面向中庭的办公长桌，The working desk facing the atrium ©Laurian Ghinitoiu

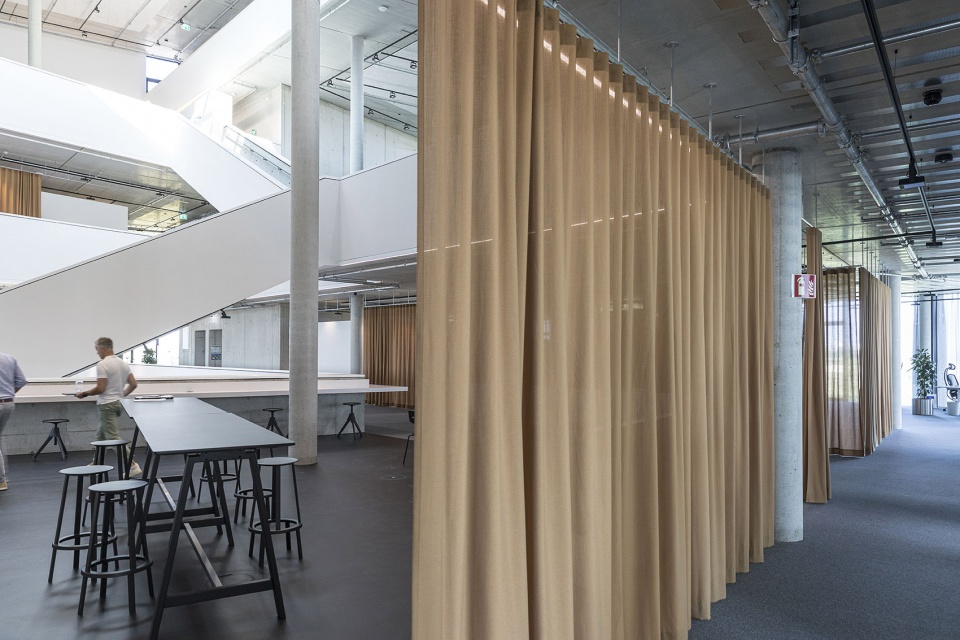

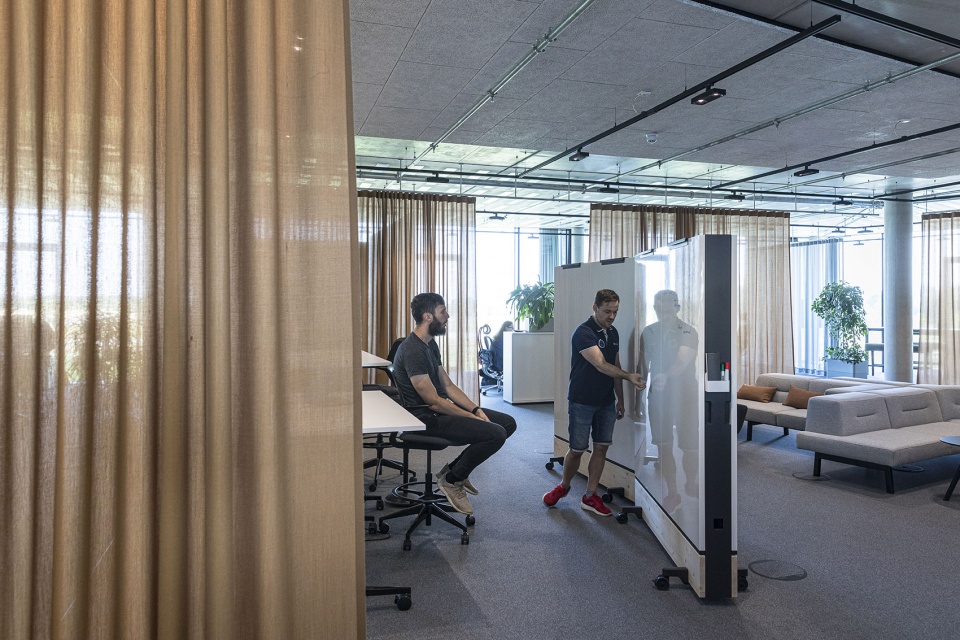

▼以窗帘为主要隔断的办公空间，The curtain as partition for different working spaces ©Laurian Ghinitoiu

▼内部咖啡厅，The cafe in the building ©Laurian Ghinitoiu

▼一层平面图，Ground floor plan ©HENN

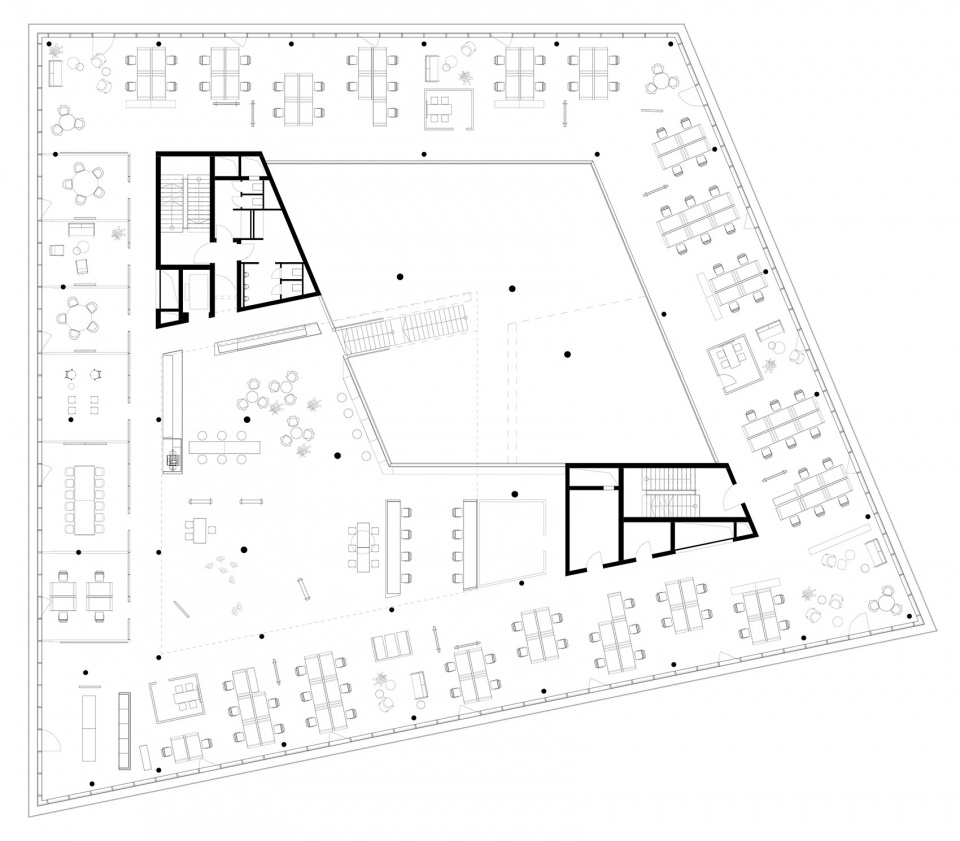

▼三层平面图，third floor plan ©HENN

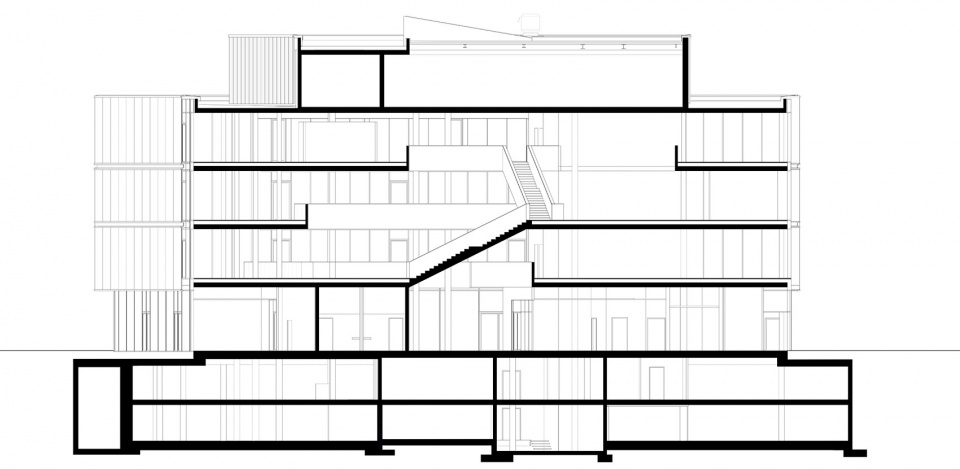

▼剖面图，section ©HENN

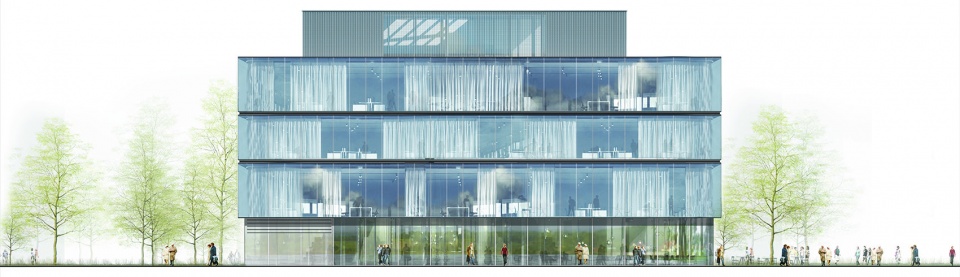

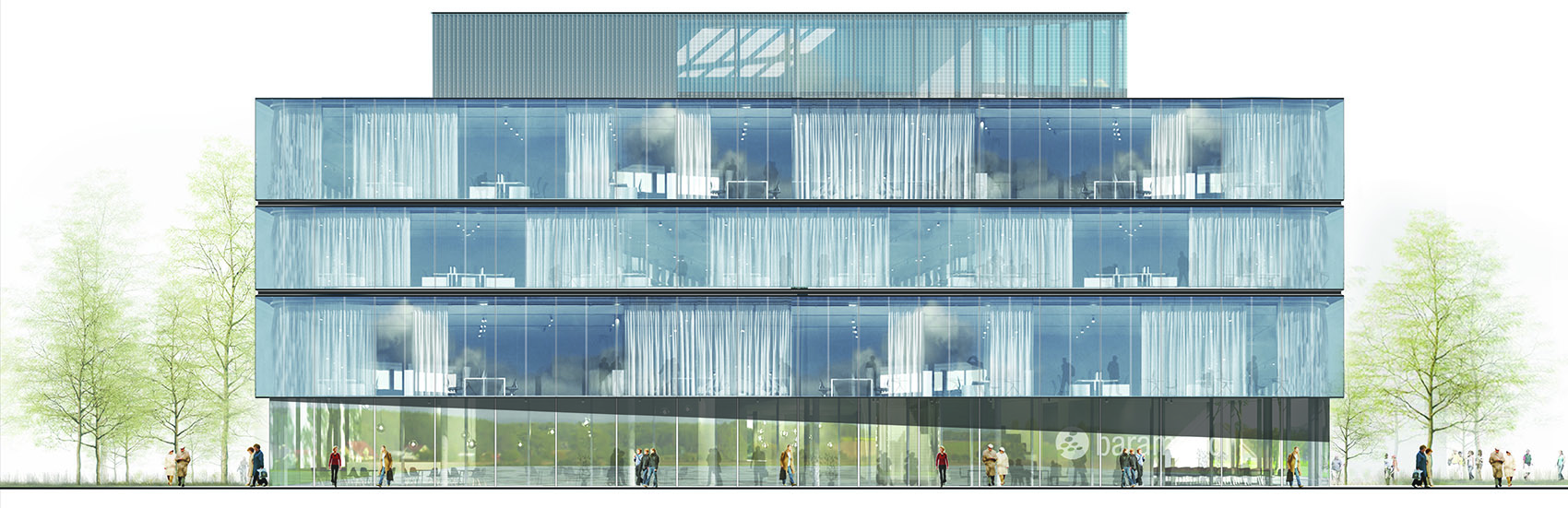

▼立面图01，section 01 ©HENN

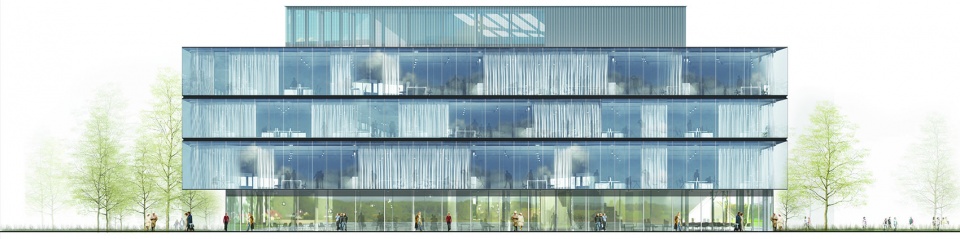

▼立面图02，section 02 ©HENN

▼立面图03，section 03 ©HENN

▼立面图04，section 04 ©HENN

年份：2022年
地点：德国，奥格斯堡
业主：Wittenstein Immobilien GmbH
建筑面积：13,250平方米
功能：餐厅，办公，健身
顾问公司：Sailer Stepan und Partner (结构技术), iPb – Ingenieurbüro Planung Blei(幕墙规划), PMI (声学技术), IB Hausladen (能源咨询和规划), Nowak.Müller Landschaftsarchitekten (景观), Geisel (厨房规划)
负责合伙人：Patrick Bröll, Joachim Grund
项目负责人: Peter Bäuml, Thomas Polster
团队: Alexandra Berger, Michael Reininger, Florian Kornberger, Kathrin Schmidt, Kathrin Stamm, Handan Yalki Toyhan, Quirin Mühlbauer, Deborah Klajmic, Katrin Jacobs, Tanja Dietsch, Fredrik Werner

Year: 2022
Location: Augsburg, DE
Client: Wittenstein Immobilien GmbH
Area GFA: 13,250 m²
Program: Canteen, Office, Gym
Consultants: Sailer Stepan und Partner (Structural engineering), iPb – Ingenieurbüro Planung Blei(Facade planning), PMI (Acoustical engineering), IB Hausladen (Energy consulting and planning), Nowak.Müller Landschaftsarchitekten (Landscape), Geisel (Kitchen planning)
Partner in Charge: Patrick Bröll, Joachim Grund
Project Director: Peter Bäuml, Thomas Polster
Team: Alexandra Berger, Michael Reininger, Florian Kornberger, Kathrin Schmidt, Kathrin Stamm, Handan Yalki Toyhan, Quirin Mühlbauer, Deborah Klajmic, Katrin Jacobs, Tanja Dietsch, Fredrik Werner
