STREET NOISE CLUB, Chian by JH Architecture

非常感谢 间禾建筑设计咨询(上海)有限公司 予gooood分享以下内容。更多关于：JH Architecture on gooood
Appreciations towards JH Architecture for providing the following description:

STREET NOISE是一家主打HIP HOP音乐的酒吧娱乐空间。刚接触这个项目的时候，业主描述了对这个空间氛围的个关键字：赛博朋克，银翼杀手。结合这两个关键字，我们描绘这样一个虚拟的场景线：一个带有荒废的军工仓库气质的入口，硬朗的矩形构成，质地坚硬的金属材质，粗犷的水泥，涂料喷涂的类似编号一样LOGO，最简单的照明方式。

STREET NOISE is a bar, an entertainment space with HIP HOP as main feature. When we know the project at primary stage, keywords for the atmosphere of the space described by the owner are: Cyber Punk and Blade Runner. Considering these two keywords together, we depict such a virtual scene: An entrance in a ruined military warehouse style, consisting of a tough rectangular shape of hard metal material and rough cement prints a logo similar with number and its illumination is the simplest.

▼带有荒废的军工仓库气质的入口，an entrance in a ruined military warehouse style

打开这个仓库大门，伫立在前厅中心的是一个类似地下城市地标一样的树状造型，因为它本身是在场地中间的一颗结构柱，如果不能拆除，我们就把它变成我们假象城市的精神地标。这个精神树下挂许多分枝，每个分枝的下端都又一个LED屏幕，独立的播放着稀奇古怪的画面，寓意着实时播报着地上世界的状态。吧台上挂着自动旋转的唱片，仔细听能听到唱片电机带动皮带发出的摩擦声，提醒着每一个酒客，这里的精神内核就是这些声音。环形的沙发区背后挂满百叶帘，寓意着阻挡意见不合的外界向这里窥探。百叶背后有4个绑定在轨道上的屏幕，来回的在百叶后自动奔走，像监视机器，也像活动的小窗，他们代表门外的世界。

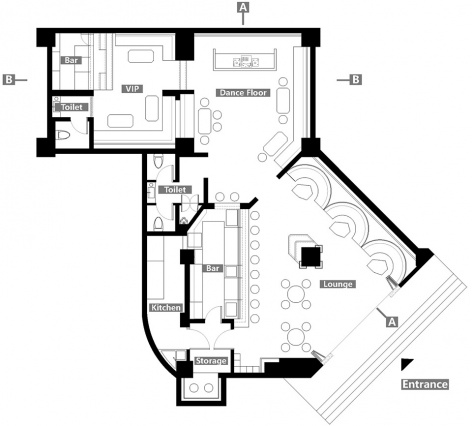

▼平面图，floor plan

Open the door of warehouse, what stands in the center of the front hall is a tree-like shape similar to the underground city landmark. Because it is a structural column in the middle of the area, if it cannot be removed, we will turn it to the spiritual landmark of our imaginary city. Under this spiritual tree there are many branches under which each has an LED screen that plays eccentric video independently, meaning to broadcast the situation of the world in real time. An automatic rotating record is hung on the bar. When the record motor driving the belt, you will hear the sound of friction if carefully, reminding every drinker that the spiritual core here is these sounds. Venetian blinds are hung behind the ring-shaped sofa, which means that the outside world with disagreement is blocked. Behind the venetian blinds are four screens bound to the track, running back and forth, like surveillance machines or movable small windows. They represent the world outside the door.

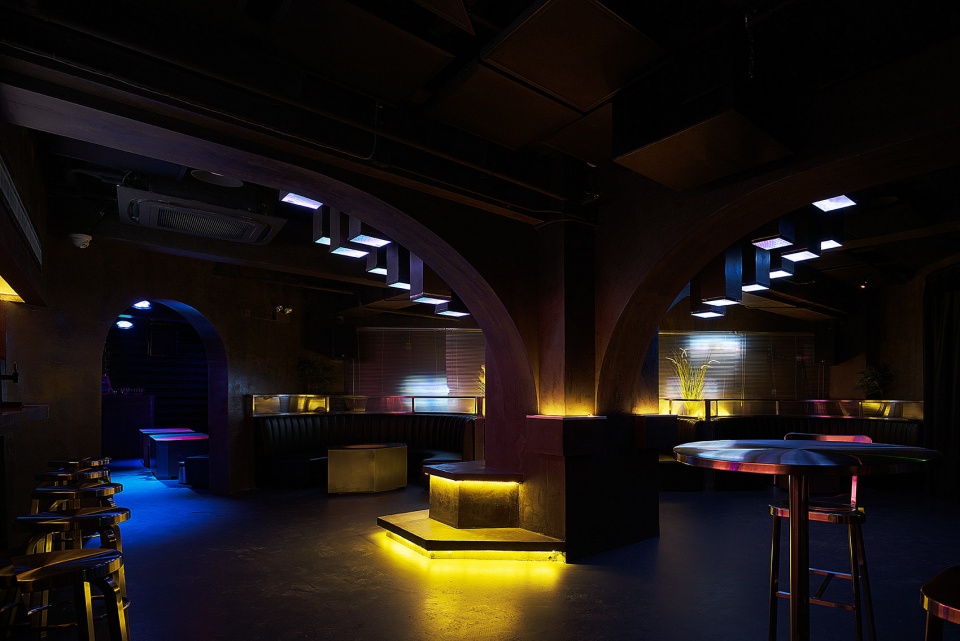

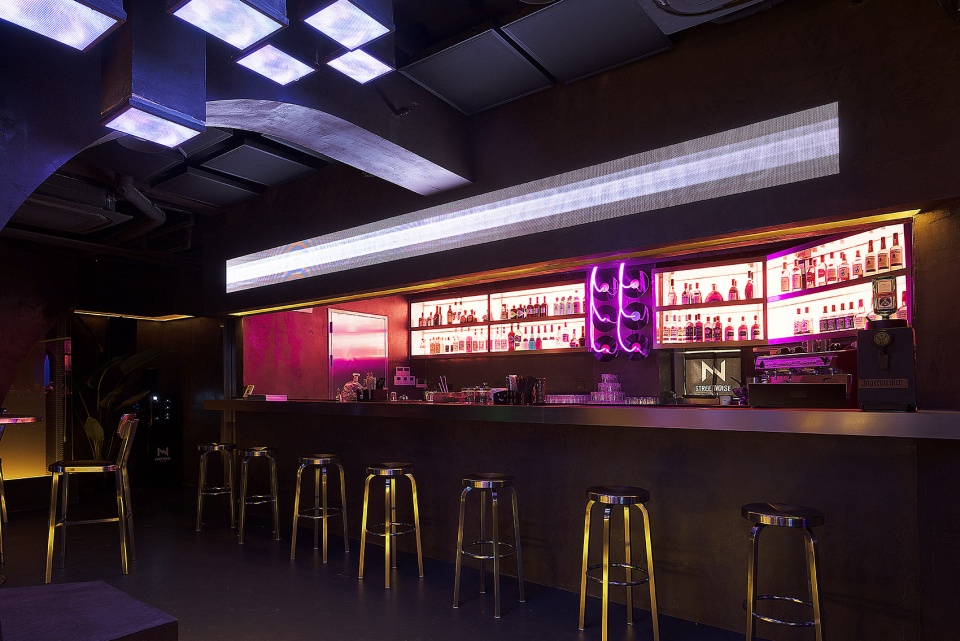

▼前厅，Lounge and bar area

▼树状造型的结构柱挂着许多分枝，分枝的下端是LED屏幕，this spiritual tree has many branches under which each has an LED screen

▼吧台上挂着自动旋转的唱片，automatic rotating records are hung on the wall

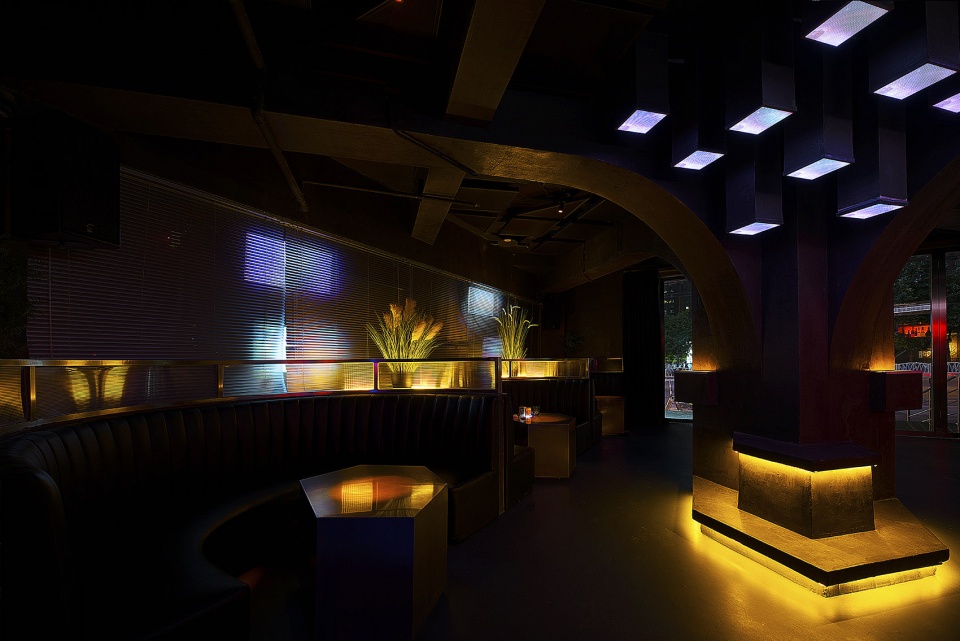

▼大厅卡座区，sofa area

穿过一个拱门，来到这里的中心—舞池。Dj台在这个空间中轴终点的位置，DJ是这个空间最有话语权的人。环看四周有很多门洞，通往外厅的，通往洗手间的，通往VIP小间的。每一个洞里都发着不一样颜色的光，每个门洞的形态也都不一样，寓意着这里包容着很多种类的文化。

After going through an arched door there is the dance floor which is the center of the virtual scene. The Dj platform is at the end of the axis and DJ is the person own absolute discourse power in this space. Looking around, there are many doorways: some lead to the outside hall, some lead to the bathroom and others lead to the VIP room. Each doorway with different shape diffuses different color of light, which means that contains many kinds of cultures.

▼中心舞池入口的拱门，going through an arched door there is the dance floor

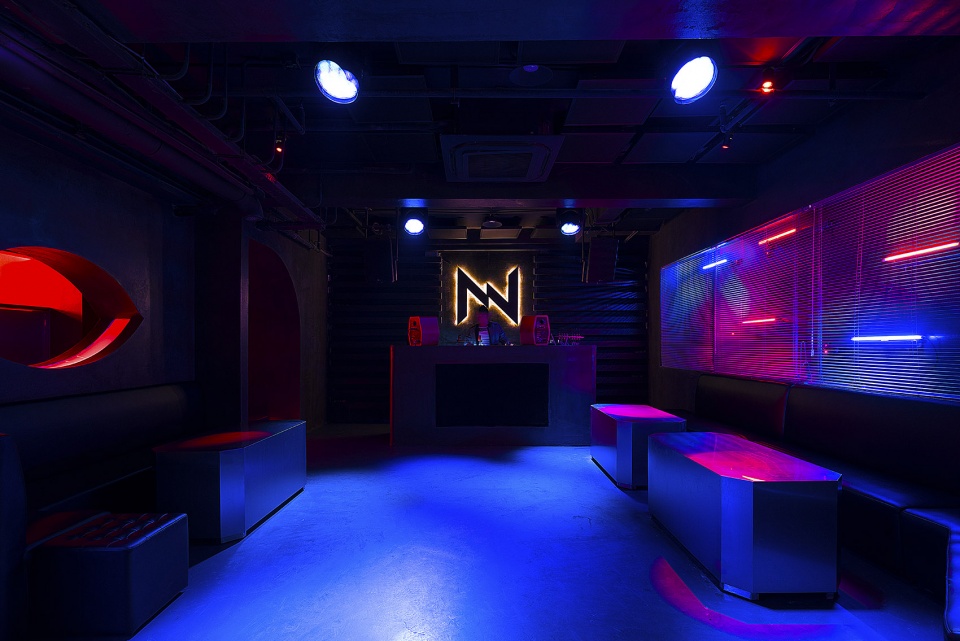

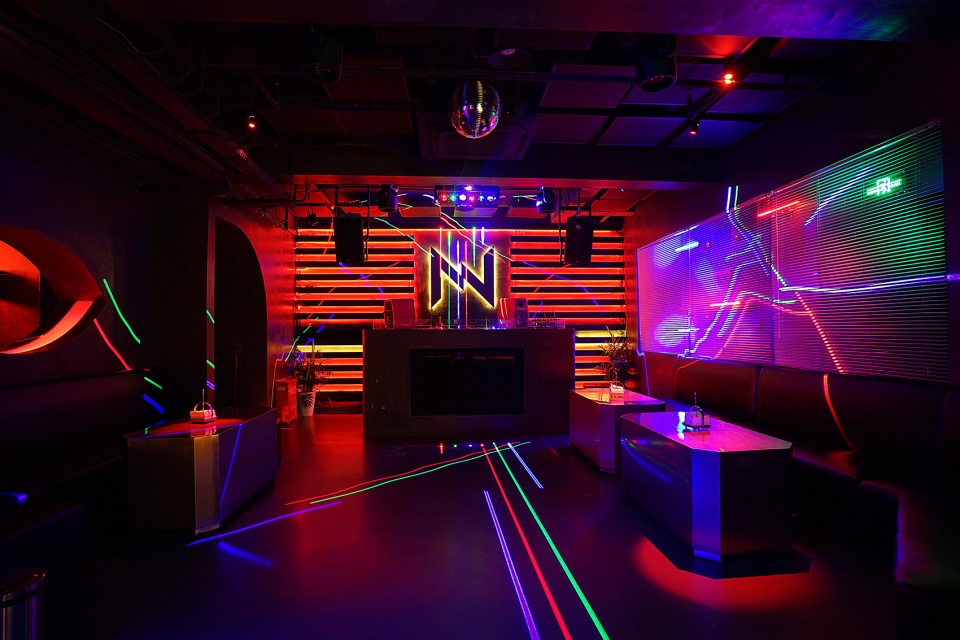

▼舞池，the dance floor

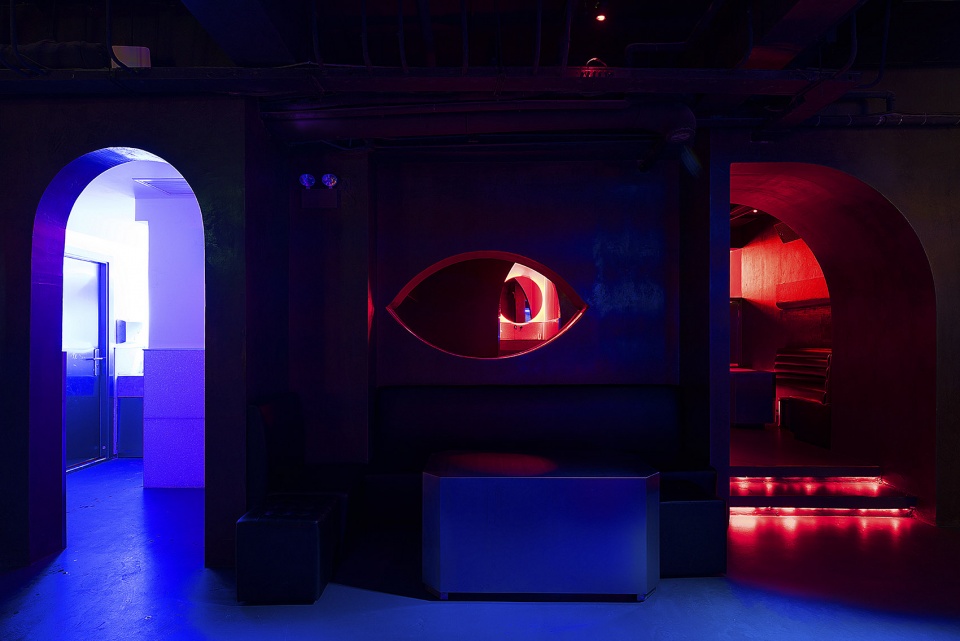

▼不同的门洞通往不同的空间，different doorway to different space

顺着眼睛里散发的红光，来到最深处的VIP区。这里藏着一个小吧台，它的海拔位于这个空间的第一阶梯，这里有着外厅没有的神秘酒单，需要多爬几个台阶，才能得到。

Following the red light that can be seen, you will come to the deepest VIP area which hides a small bar whose elevation is located at the first step of the space. There is a mysterious alcohol list that is not in the outer hall but you need to climb a few more steps to get it.

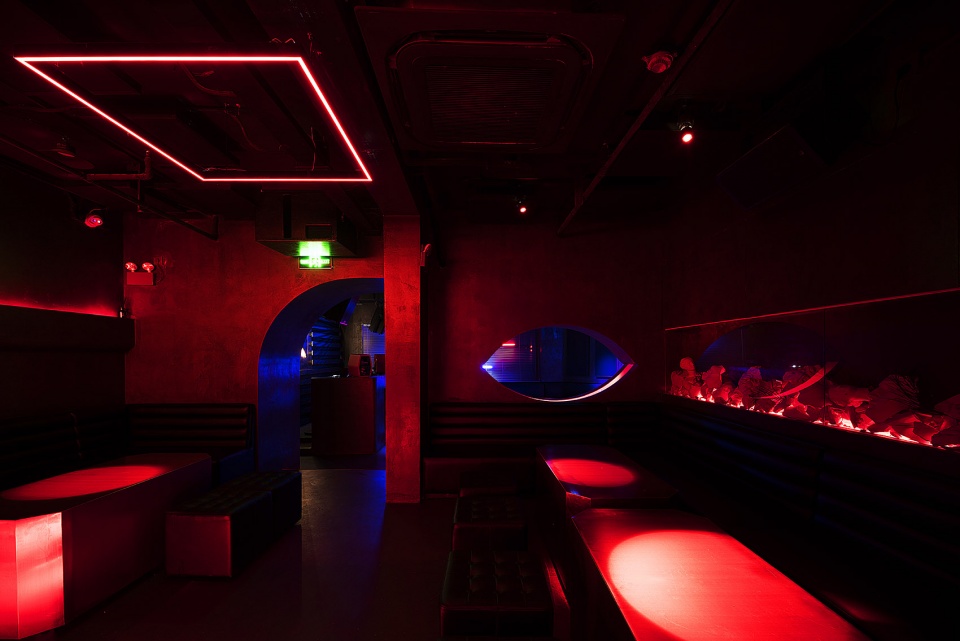

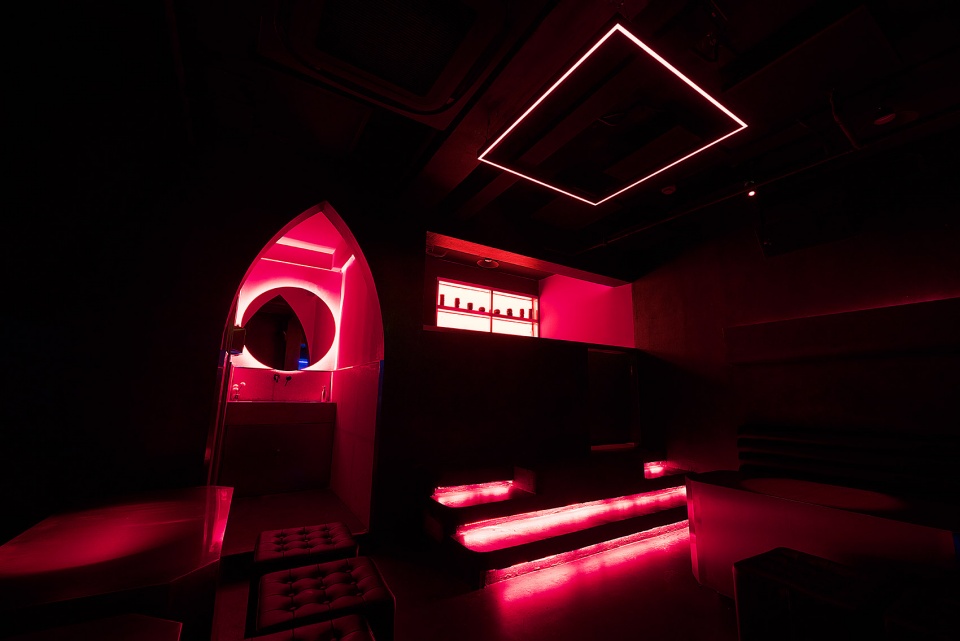

▼VIP区，VIP area

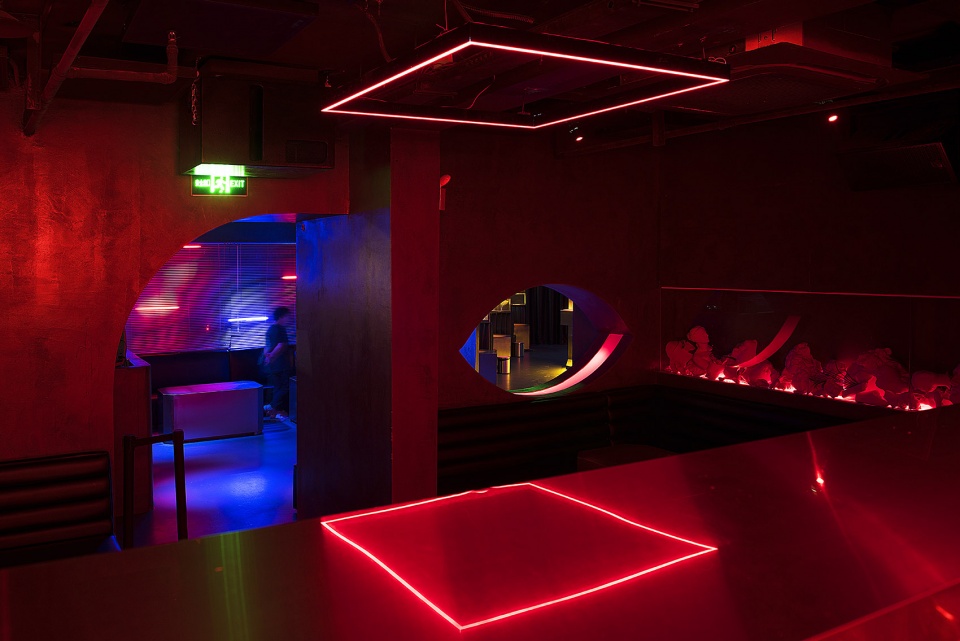

▼隐藏神秘酒单的小吧台，small bar with a mysterious alcohol list

▼卫生间入口及吧台，restroom and the bar counter

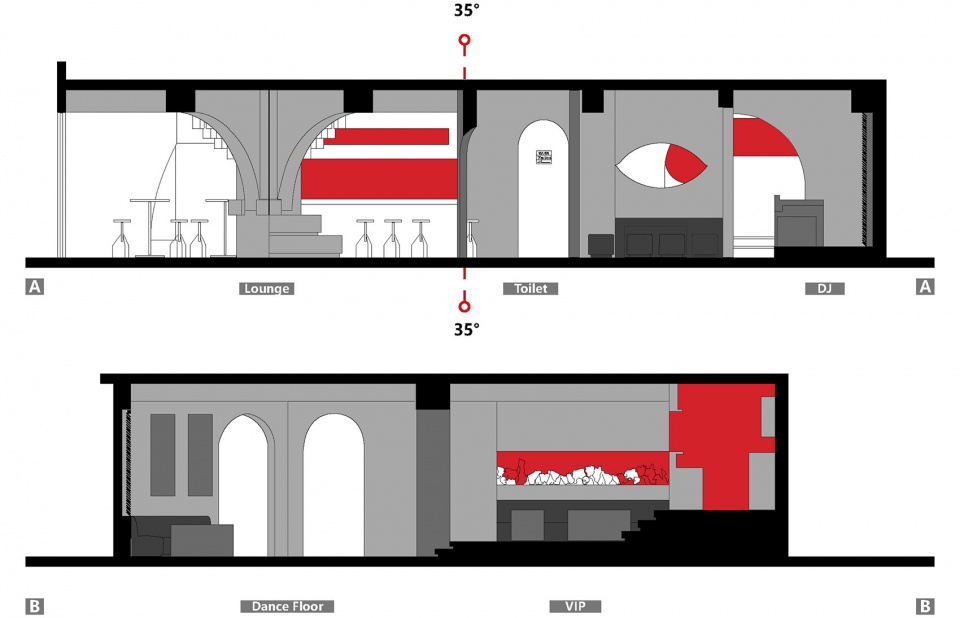

▼剖面图，section

项目名称：STREET NOISE CLUB
项目地点：上海市万航渡路19-1号
场地面积：200平方
设计类型：酒吧室内设计
施工团队：李工
设计单位：间禾建筑设计咨询（上海）有限公司
设计主创：杨睿
摄影师 ：刘旭
舞美设计：李湛
完工时间：2019年6月
公司网站：jh-architecture.net
材料：水泥，不锈钢，阳光板，百叶帘
联系邮箱：yang.design@foxmail.com

Project Name: STREET NOISE CLUB
Project Location: 19-1 Wanhangdu Road, Shanghai
Site area: 200 m2
Design Type: Bar Interior Design
Construction team: Lao Li
Design unit: Shanghai Jianhe Architectural Design Consulting Co., Ltd.
Design master: Yang Rui
Photographer: Liu Xu
Stage Design: Li Zhan
Completion time: June 2019
Company website: jh-architecture.net
Email: yang.design@foxmail.com
Materials: cement, stainless steel, sun panels, venetian blinds
