Renovation of SEED DOWN coffee(Taojin shop) by Atelier Waterside

非常感谢 氹边建筑工作室（联系方式：liuyang-atelier@qq.com）予gooood分享以下内容。更多关于他们：Atelier Waterside on gooood
Appreciations towards Atelier Waterside (contact: liuyang-atelier@qq.com) for providing the following description:

这是一家外带型的咖啡店，店铺室内面积仅有9平方米，临街，位于广州环市东附近一栋商业办公楼的首层。为了让店铺在临街界面与周边产生差异，避免店面像是贴在大楼石材幕墙上“一张皮”的印象，我们希望通过独立的构架，来建立自身的形象。同时，用相对“封闭”的姿态来处理内外的关系，让店铺保持神秘感，在面对车水马龙的街道时得以从容。

This is a takeaway coffee shop. Based on the first floor of a commercial office building near Huan Shi Dong Road, the ring road of Guangzhou City, it has only 9 square meters of indoor area.To differentiate and form an impression of the shop at the level of the street interface, we shaped our image through an independent structure, avoiding the common flatness when the façade is only a thin surface on the building’s finish. Meanwhile, we want to make the coffee shop’s facade a relatively closed way, keeping it somehow mysterious and facing the bustling street with ease.

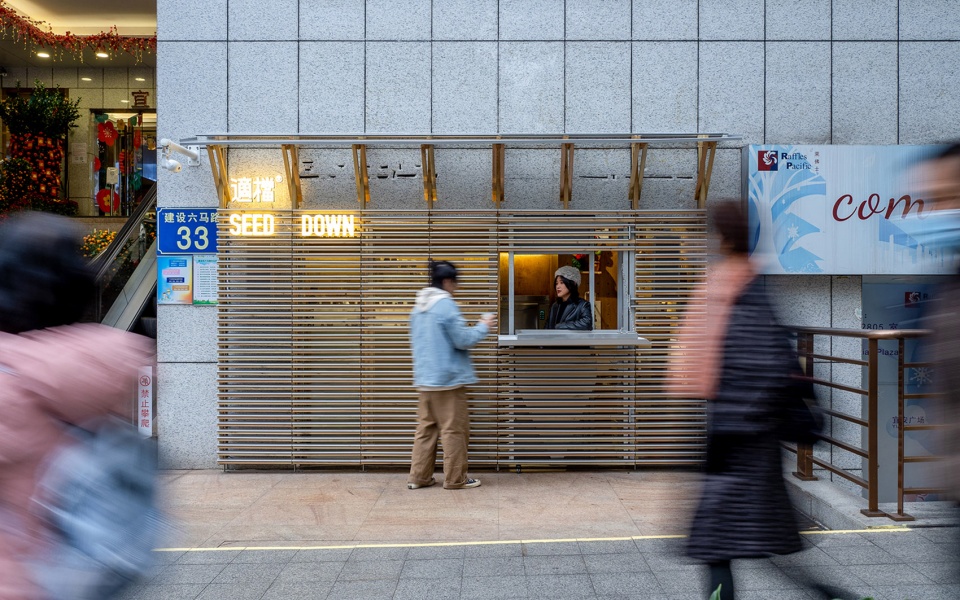

▼项目外观， Exterior of the project ©张超

我们使用30*30毫米的松木木方作为基本的构件。松木方用螺杆连接组成的一榀榀“屋架”，覆上铝板向外出挑，作为庇护的屋檐。木架构底部用不锈钢角码转换，将屋架的重量落在原来的地面上。木屋架与原幕墙脱开，从原幕墙石材分缝的间隙中伸出不锈钢片，拉住木屋架来抵抗的侧向的推力。

We used 30 x 30 mm pine timber as a basic structural component. The pine timbers are screwed together to form a ‘roof frame’, overhanging outwards to act as a sheltering roof covered with aluminum panels. At the bottom, the timbers are converted with stainless steel angle yards to drop the weight of the roof frame on the ground. Because the whole timber frame structure is disconnected from the stone curtain wall, we set stainless steel sheets protruding from the stone parting joints of the original curtain wall, pulling on the timber frame to resist the lateral thrusts.

▼铝板与木屋架组合而成的屋檐，A sheltering roof covered with aluminum panels ©张超

横向的松木格栅通过控制密度，保证外部的“封闭”的基础上，保持室内的自然采光，同时照顾到店员在室内的掌控感和安全感。松木格栅上覆盖折弯的铝板，可以减少雨水对木材的侵蚀，也增加了立面上光影变化的层次。

By controlling the density of horizontal pine grids, the exterior is still a closure while allowing natural light into the interior. At the same time, the shop staff’s sense of control and security could be taken care of indoors. The horizontal pine grids are also covered with the material of bent aluminum panels, which can reduce the rainwater’s erosion of the wood and variate light and shadow of the façade.

▼铝板与木格栅及室内内景，
The aluminum sheet and horizontal pine grids and arrangement of the project ©张超

木格栅立面墙身设置了几三种打开的模式。除了向外下翻的窗口形式外，其中一面墙身，通过隐藏式折叠门窗的整合设计，在面向大楼人员出入的方向，可以整面打开45度角，转换成一个凸起的点餐窗口立面。墙身向外开启90度时便成了店员日常的出入口。

The entrance of the façade can be opened in three different ways. In addition to the downward-folded window form, one of the walls can be opened at a 45-degree angle in the direction facing the building’s occupants through the integration design of concealed folding doors and windows, transforming into a take-way ordering window. When the wall opens outwards at 90 degrees, it becomes a daily entrance for the shop staff.

▼折叠门窗，The folding doors and windows ©张超

折叠墙身是应对城市管理的柔性策略，也让店铺的形象在神秘之余变的生动起来。

The folding wall is a flexible strategy to cope with urban management policy, and let the image of the store become lively in addition to mysterious.

▼屋架细节，Detailed view of the timber frame structure ©张超

▼剖透视，Perspective section ©氹边建筑工作室

▼改造前平面图， Plan before renovation ©氹边建筑工作室

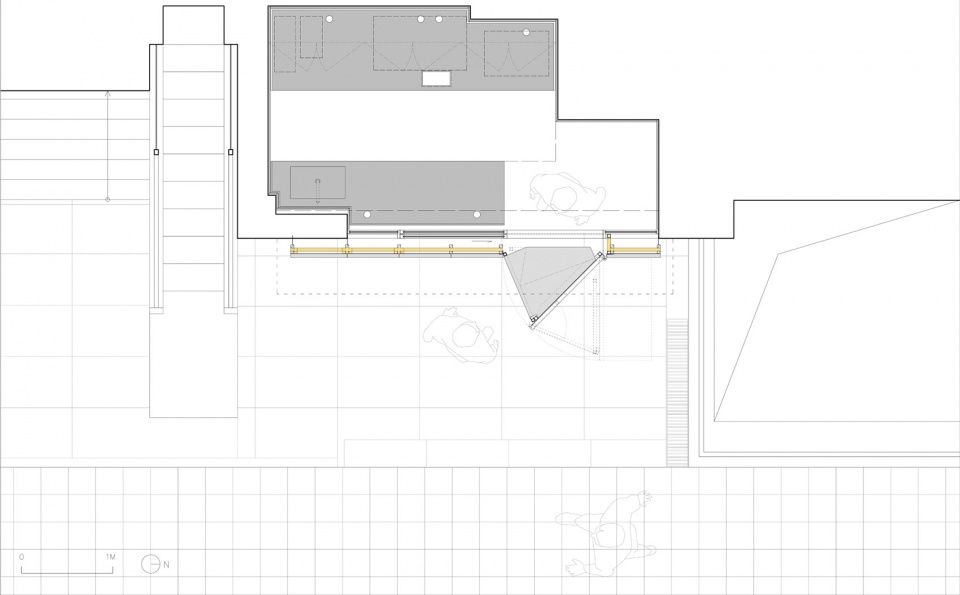

▼改造后平面图， Plan after renovation ©氹边建筑工作室

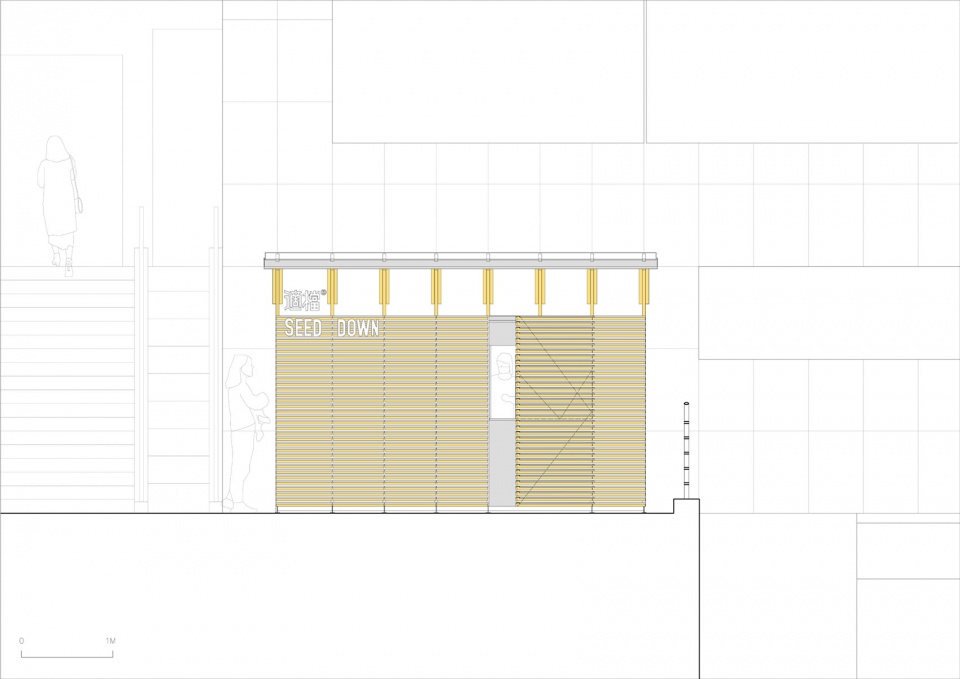

▼立面图，facade ©氹边建筑工作室

项目名称：适档咖啡淘金店改造
项目所在地：广州市越秀区建设六马路宜安广场首层
项目类型：改造、店铺设计
建筑设计：氹边建筑工作室
建筑师：刘洋、邓豪威(实习）
委托方：广州融和咖啡餐饮管理有限公司
施工方：广州赤诚建筑装饰有限公司
材料: 松木方、铝板、木夹板、玻璃
建筑面积：9平米
项目时间：2021年
摄影师：张超

Project name: Renovation of SEED DOWN coffee(Taojin store)
Address: 1st Floor, Yi’an Plaza, Jianshe Sixth Road, Yuexiu District, Guangzhou City
Project: renovation, shop design
Design team: Atelier Waterside
Architects: LIU Yang, DENG Haowei(internship)
Client: Guangzhou Ronghe Coffee Catering Management Co.
Constructor: Guangzhou Chicheng Construction and Decoration Co.
Material: pine timber, aluminum panel, wood plywood, glass
Area: 9 m2
Year: 2021
Photographs: ZHANG Chao
Translator: WAN Sichen
