项目位于顺德北滘镇碧江古村承德公园与碧江小学旁，公园是明朝祠堂遗址，而项目基地是清末当铺储物楼，已荒废接近20年。
The project is located next to Chengde Park and Bijiang Elementary School in the ancient village of Bijiang, Beijiao Town, Shunde. The project site is an abandoned pawnshop storage building from the late Qing Dynasty, which has been unused for nearly 20 years.
▼视频，video ©泥木建筑工作室
我们与不同行业的朋友发起了⌈附近营造⌋，在申请的项目得到顺德社创中心的基金支持后，承租下当铺储物楼并改造，希望它未来能成为一个开放的、能承载不同的活动的同时与周边社区产生更多联系、留下时间印记的空间。
We initiated the Common Space with young friends from different industries, and after receiving support from the fund, we rented the pawnshop in the hope that it would become a space that is open and able to host different community activities in the future.

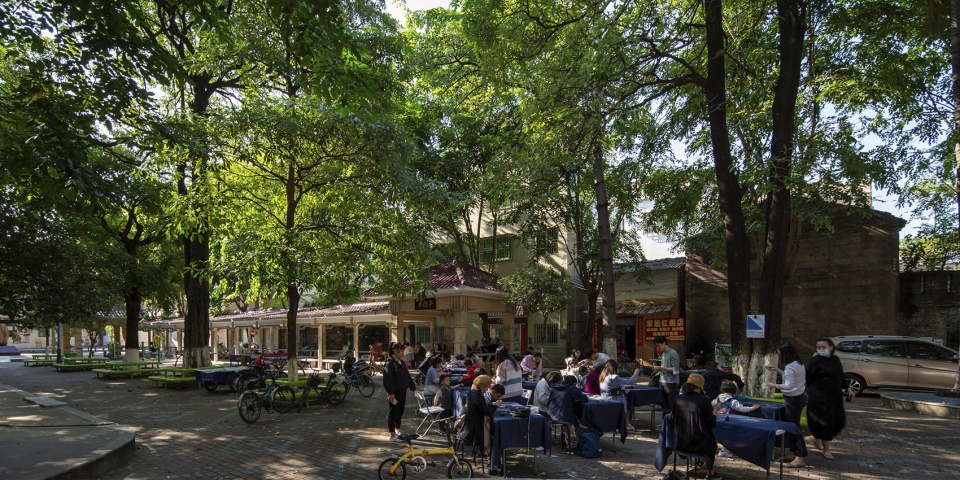

▼当铺及承德公园周边，The surroundings of Chengde Park and Pawnshop © 邓敏聪
▼承德公园内，附近营造香云纱香囊活动，Inside the Chengde Park, the Xiang Yunshe Incense Sachet Activity © 邓敏聪
▼室外及天井&室内-改造前，Outdoor & Patio – Before renovation & Indoor – Before renovation © 邓敏聪
开放团队的属性与本来具有防御属性的当铺储物楼在建筑形制上，会容易产生冲突，如5米高、半米厚的红砂岩石墙、窄高的深达半米有余的门洞、室内与公园一米多的内外高差，整个体验像是进入堡垒或密室，使人容易产生抵触心理难以接近。
The open nature of the team clashes with the defensive attributes of the pawnshop storage building in terms of its architectural design. Features such as a 5-meter high, half-meter thick red sandstone wall, narrow and tall doorways, and more than a meter of elevation difference between the interior and the park create an experience that feels like entering a fortress or a hidden chamber, making it difficult for people to approach due to a sense of resistance.

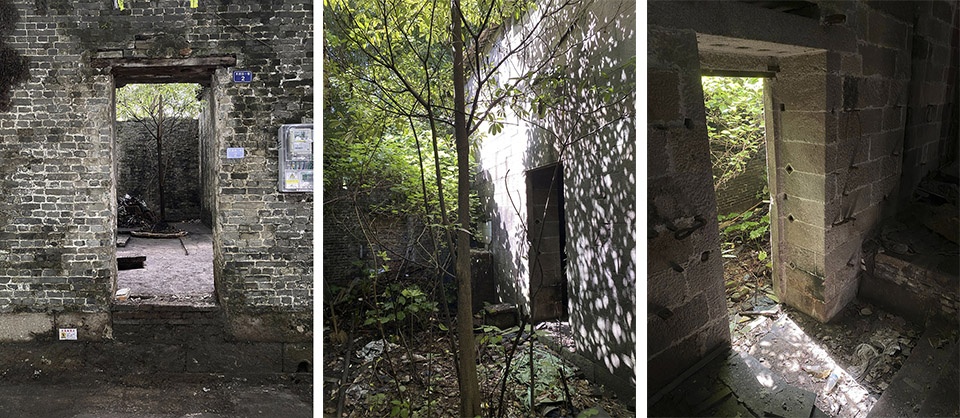

▼改造前-2个半米深的门洞，Half-meter deep doorways – Before renovation © 邓敏聪
▼内外高差，Difference in height between inside and outside – before renovation ©泥木建筑工作室
在门前的承德公园，周边是个富有生活气息的老居民区，周边有本地几十年的村民，也有外来务工的新居民。早上7、8点，有老人家出去买菜、孙子散步，有开摩托车带孩子上小学的；9点，伴随早上的阳光，公园开始变得热闹，几个阿伯陆续地来到公园，在亭子下聊最近地国家民生，还会放着上几个年代的港台流行歌；
In front of Chengde Park, there is a vibrant old residential area, home to local residents of several decades and newcomers who have come for work. In the morning, around 7 or 8 o’clock, elderly residents go out to buy groceries, grandchildren take strolls, and there are even people riding motorcycles to take their children to school. Around 9 o’clock, with the morning sun, the park starts to get lively. Several elderly individuals gather in the pavilion, chatting about current national affairs and playing old Cantonese songs.
▼点到面的村落日常与偶发活动事件，Activity-diagram ©泥木建筑工作室
▼公园树底下人的尺度，Scale of a person under a tree in a park ©泥木建筑工作室
中午，大家回到附近的家里午饭，而来公园里的FULL沙律的人慢慢变多；下午2点多，阿姨们也又按时上班，在公园的亭子玩牌消遣；到了3、4点，不少人在树荫底下乘凉，有路过公园歇息喝水的、也有照看在公园玩耍的小孩；4点半，承德路上车子变得很多，有摩托车、单车、三轮车、小车，家长在公园或路边等候，小学生在侧门放学大多会冲向承德公园，在树下在亭子下与同伴跑几圈才消停，这是公园一天最闹腾的时刻了；慢慢地，路上又变的通畅，公园变得安静；
At noon, everyone returns to their nearby homes for lunch, while more people begin to come to the park for a full salad. In the afternoon, around 2 o’clock, the ladies start their work, playing cards and passing the time in the park’s pavilion. By 3 or 4 o’clock, many people seek shade under the trees, some passing by the park for a rest and a drink of water, while others watch over their children playing in the park. At 4:30, Chengde Road becomes busy with motorcycles, bicycles, tricycles, and cars. Parents wait by the park or on the roadside, and most of the elementary school students, after school, rush to Chengde Park. They run around with their friends under the trees and pavilions before calming down. This is the busiest time of the day in the park. Gradually, the road clears up, and the park becomes quiet.
▼利用公园展开活动，Use of parks for activities © 附近营造
夜幕渐降，7点多，饭后的周边居民会在公园周边散步，在灯下聊家常，也有几个邻居小孩子自己出来玩的，直到晚一点父母出来叫回家休息；这里没有广场舞，却有了更多细碎的家常话语。不同的人群都很愿意在这公园驻足停留，而公园里低矮的亭、高低错落的树丫这些聚人的角落，共同构筑着底层宜人的尺度，启发了我们。
As night falls, around 7 o’clock, nearby residents take evening strolls around the park, chatting under the streetlights. A few neighbor kids come out to play on their own until their parents call them back home a bit later. There is no square dancing here, but there are many more intimate conversations. Different groups of people are happy to spend time in this park, and the low pavilions and scattered trees create a pleasant environment, making it the most popular gathering place. This has inspired us.
▼夜景 ，night view © 邓敏聪
户外部分，我们用简单的方式重塑了当铺的天井与门前巷道。如使用清理出来的剩余材料，通过分段台阶把公园与当铺室内外连接起；利用新做的镜面门洞，反射周围环境，削弱身体对深门洞的感知；同时保留了门头野生植被与天井的树木，作为公园植被的延伸，视线得以延续。通过步行节奏、视线、风景的延续等，适度消解固有的高差与阻碍感。
▼剖透视图，perspective section ©泥木建筑工作室
For the outdoor area, we employed a simple approach to reshape the pawnshop’s courtyard and the alley in front. We used leftover materials from the clearance process to create segmented steps connecting the park with the interior and exterior of the pawnshop. We also incorporated a newly made mirrored doorway, which reflected the surroundings, diminishing the perception of a deep doorway. Simultaneously, we preserved the wild vegetation at the entrance and the trees in the courtyard, extending the park’s greenery and ensuring a continuous line of sight. Through the rhythm of walking, the continuity of sightlines, and the unfolding scenery, we mitigated the inherent differences in elevation and the sense of obstruction.

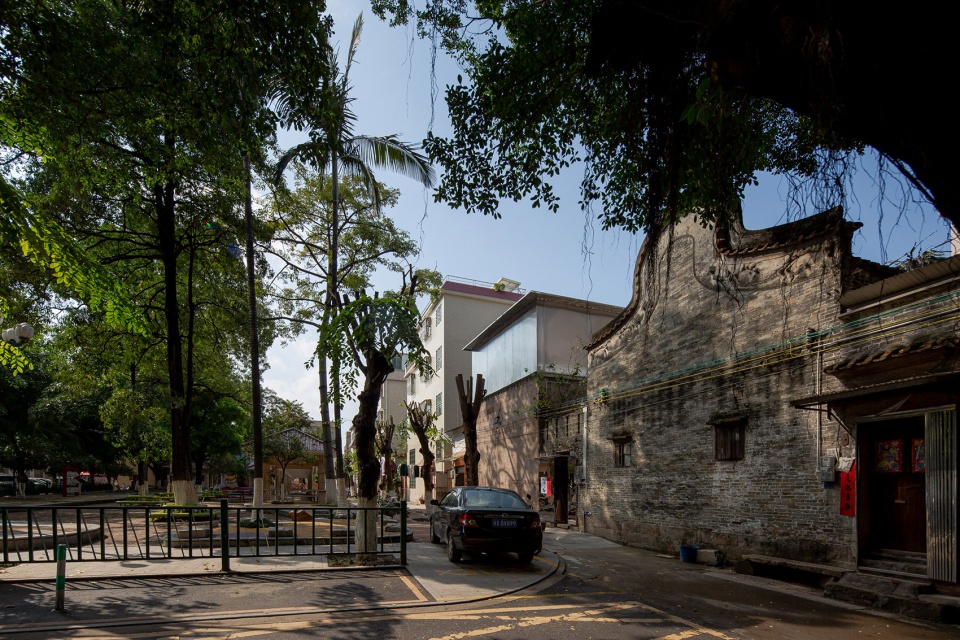

▼周边环境， Site surroundings © 黄城强
▼沿街立面，Street view © 黄城强
▼立面近景，Closer view of the facade © 黄城强

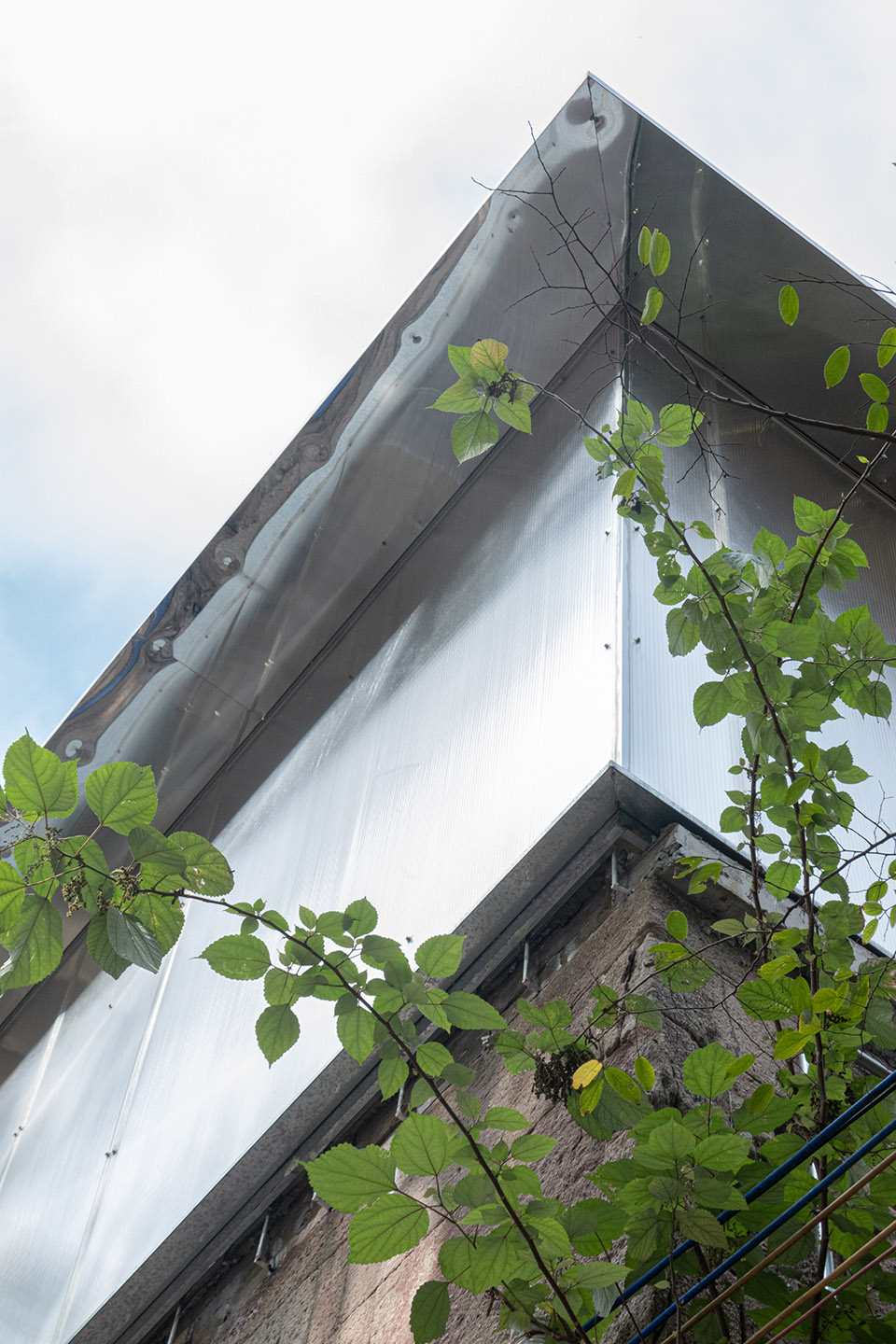

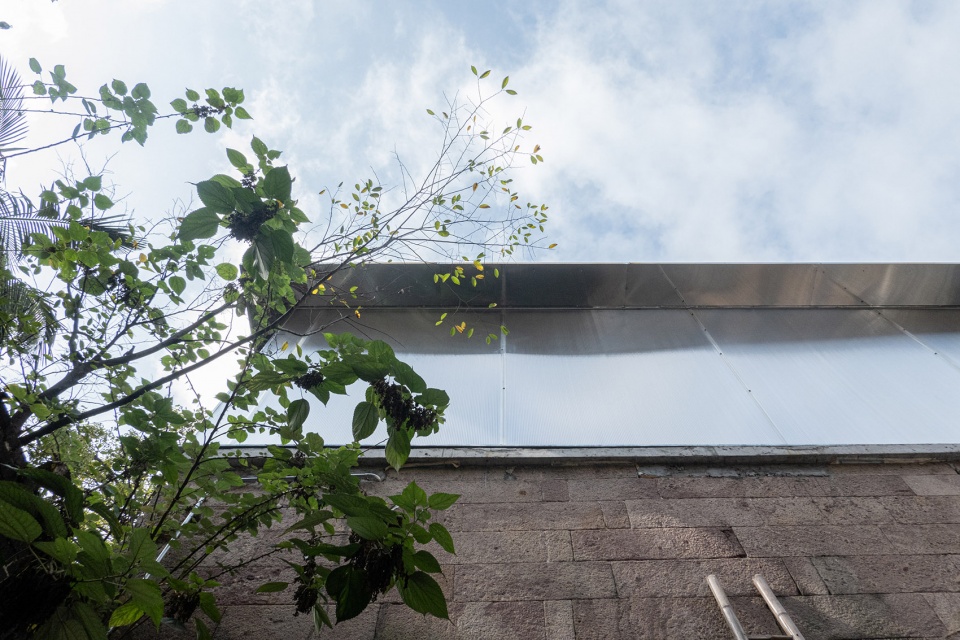

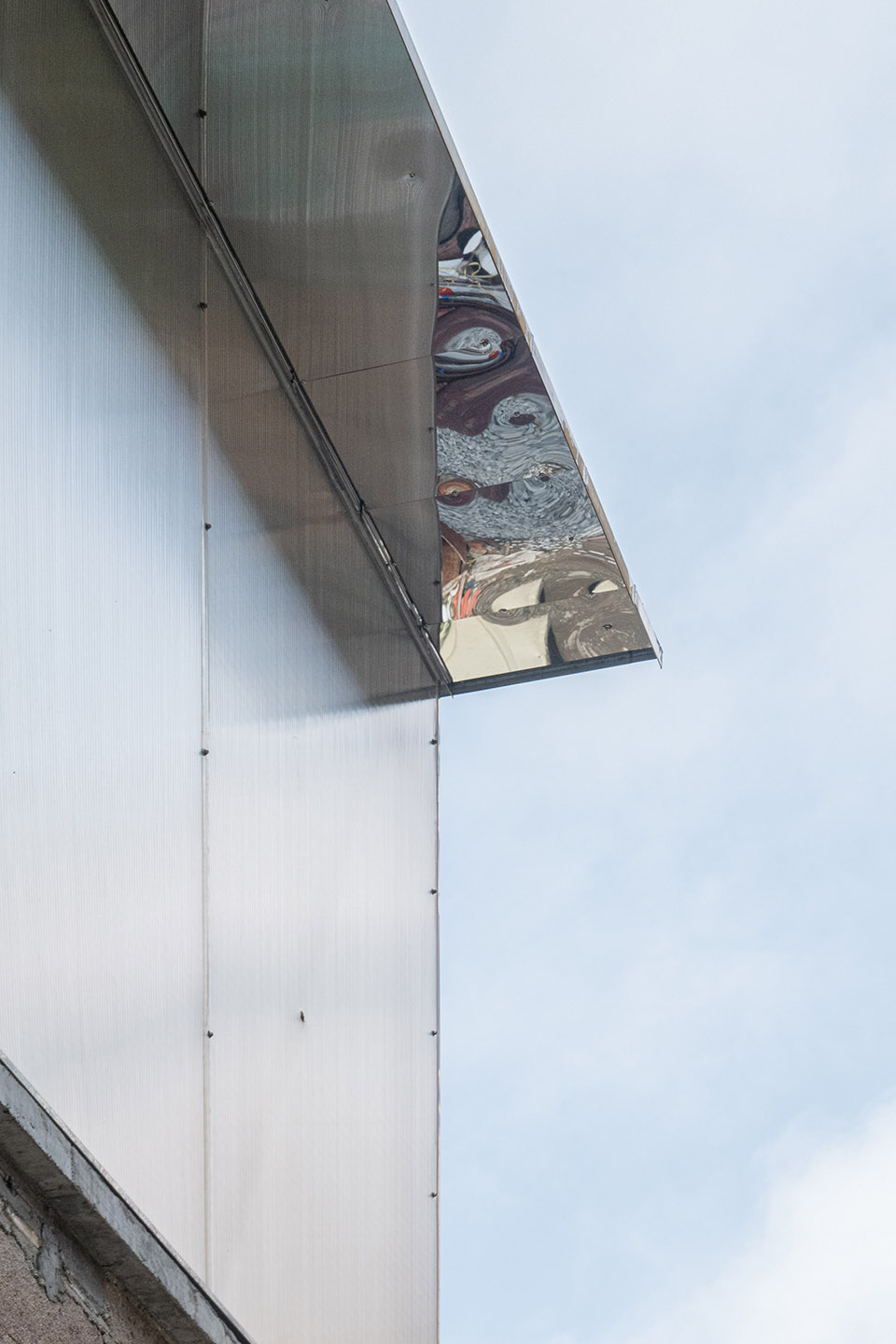

▼屋檐细部，details of the eave © 黄城强
室内空间，我们通过置入有排气功能的倒立三角结构屋面，为原本围合感强烈、局促的空间带来了视觉的流动；四面阳光板幕墙也为原本阴暗的内部带来充足的光线，有机会让人们在室内感知一天的天空变化。当人们在公园拾级而上，经过天井走入室内，视线不经意地沿墙顺着天花望外，与日出日落的阳光相遇，思绪再次引向远方。到了晚上，从半透幕墙渗出的灯光为公园与路人带来了温暖的指引。
▼分析图，analysis diagram ©泥木建筑工作室
In the indoor space, we have introduced an inverted triangular roof structure with exhaust capabilities to bring visual flow to the originally enclosed and cramped space. The four-sided sunroof curtain wall also provides ample light to the otherwise dark interior, giving people the opportunity to perceive the changing sky throughout the day. As people ascend the park’s stairs, enter the interior through the courtyard, and casually look along the wall towards the ceiling, they meet the sunlight of sunrise and sunset, once again leading their thoughts to distant places. At night, the gentle glow seeping through the semi-transparent curtain wall provides a warm guide for the park and passersby.

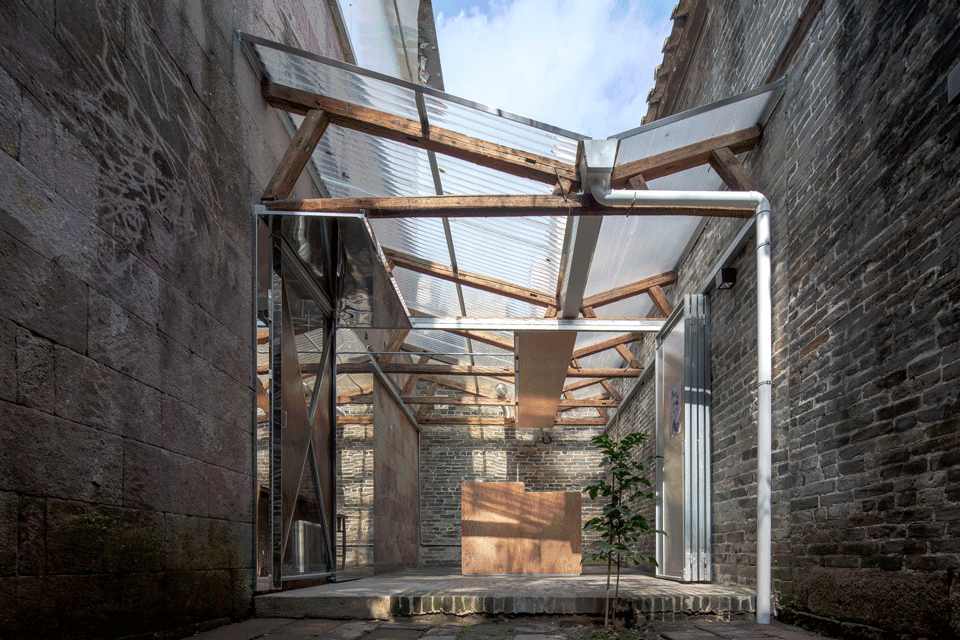

▼门扇开启与关闭，Door-opening-and-closing © 黄城强

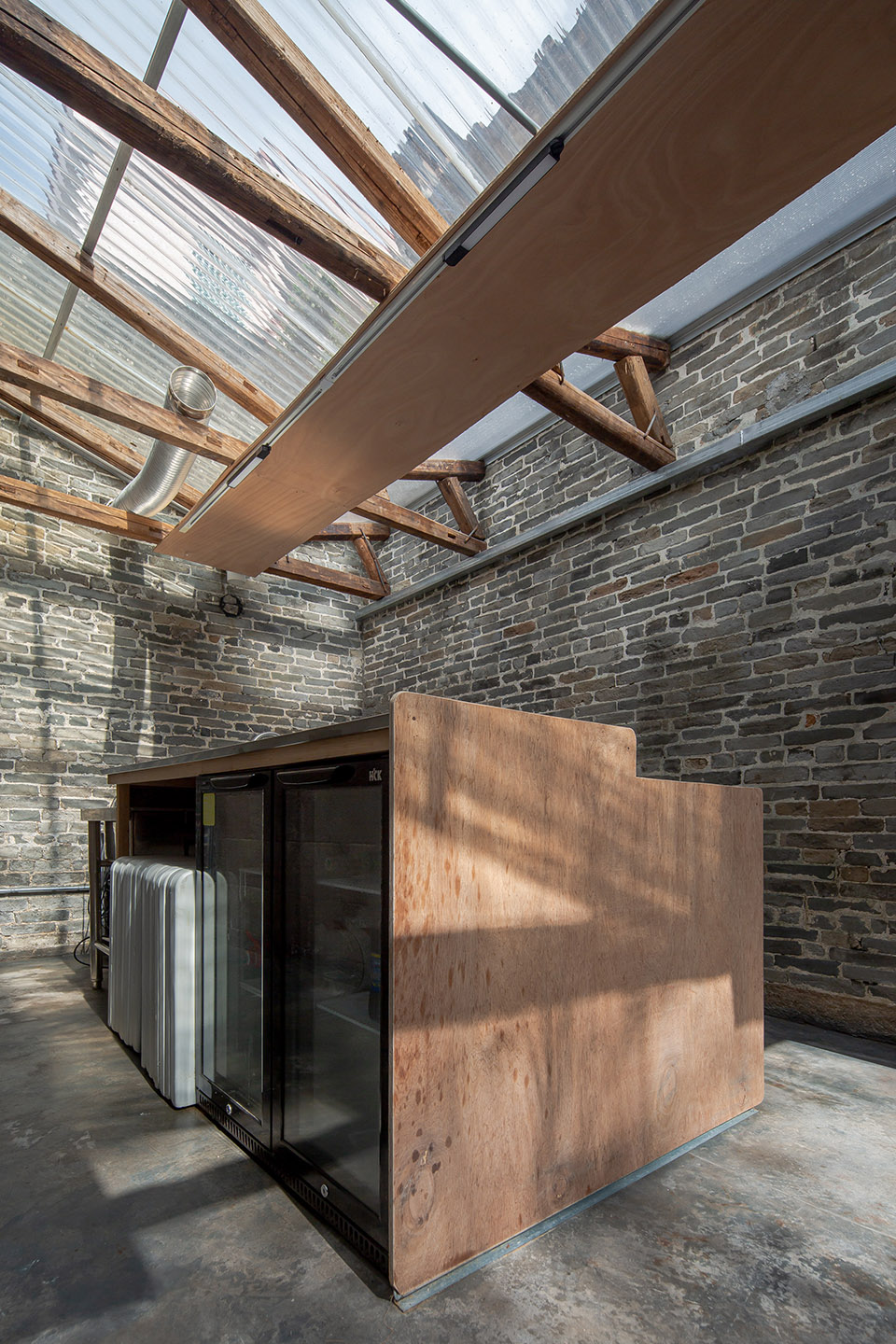

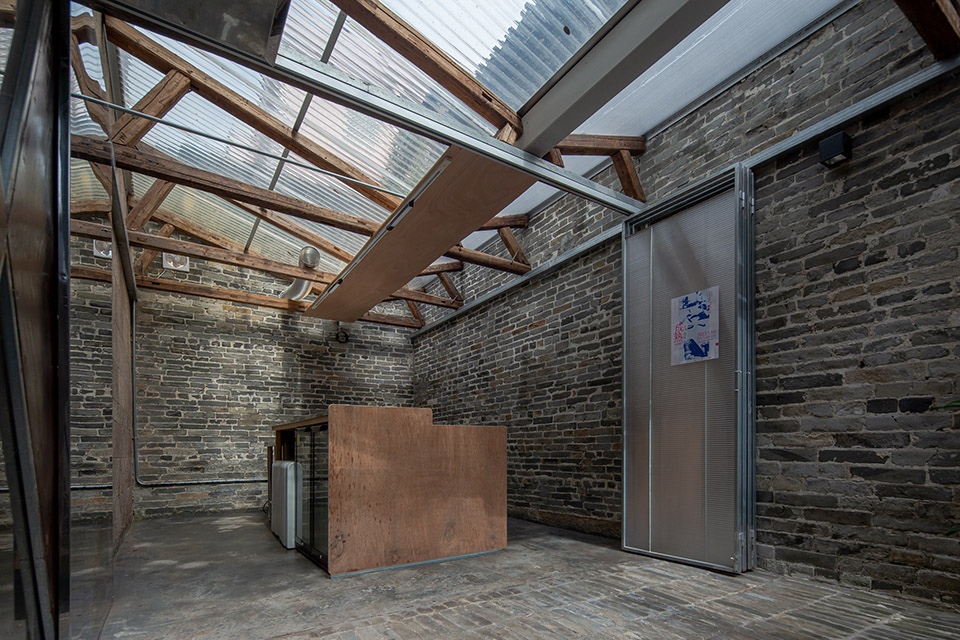

▼共享厨房，Community Kitchen © 黄城强

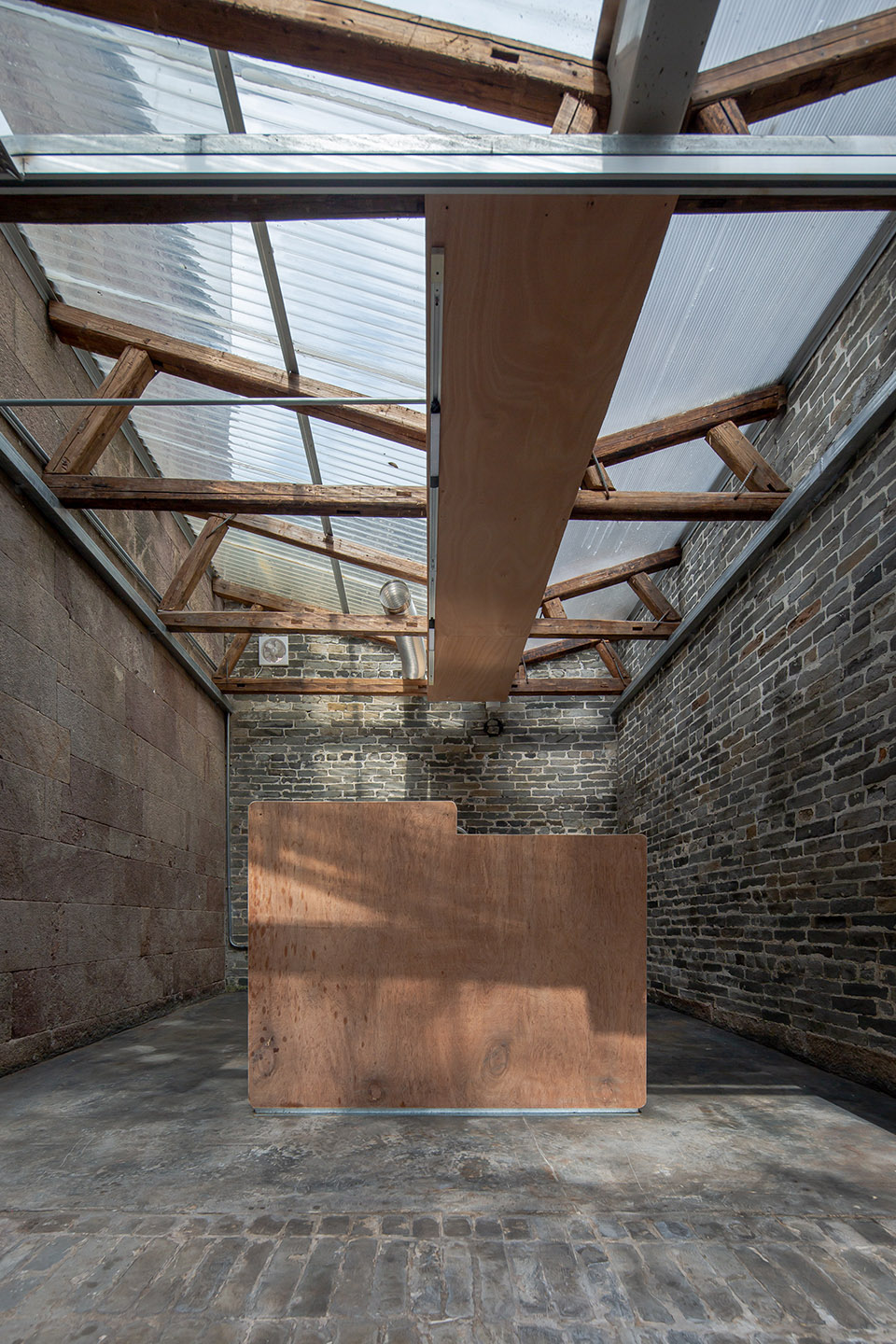

▼共享厨房近景，Community Kitchen © 黄城强
▼木梁与门细节，details of the wooden structure and the door © 黄城强
▼原建筑木梁改造为厨房顶部新结构，Original wooden beams transformed into new structure for the top of the kitchen © 黄城强
由于清拆出数量可观的建筑材料（砖、瓦、石、木），在设计之初，我们为此制定了材料循环利用的策略，结合本村师傅的工艺水平，最后大量利用建筑本体材料及附近资源完成了大部分的施工，与此同时也减少了很多搬运成本：
1、清拆材料的回收利用：
·室内混凝土地面（用屋面碎瓦片做骨料）
·室外铺地（清理的旧砖石板）
·社区厨房，根据最后余下的旧木梁、钢材、阳光板，进行设计与施工。
2、除了钢结构，其他师傅都是本村村民，住得很近
3、80%材料五金在一公里内采购完成
Due to the demolition of a considerable amount of building materials (bricks, tiles, stones and wood), at the beginning of the design, we developed a material recycling strategy for this purpose, and combined with the craftsmanship level of the masters in the village, we ended up using a large amount of materials from the building itself and the nearby resources to complete most of the construction, while at the same time reducing a lot of the handling costs:
1.Ways to recycle demolition materials:
·Indoor concrete flooring (using roof tiles as aggregates)
·Outdoor paving (reusing old bricks and stone slabs)
·The community kitchen was designed and constructed using the remaining old wooden beams, steel, and sunroof materials.
2.Except for the steel structure, all other craftsmen were local villagers living nearby.
3.80% of the hardware materials were purchased within a one-kilometer radius.
▼室内空间， interior space © 黄城强
▼室内空间立面， interior space © 黄城强
▼室内空间光影，light ambiance of the interior space © 黄城强

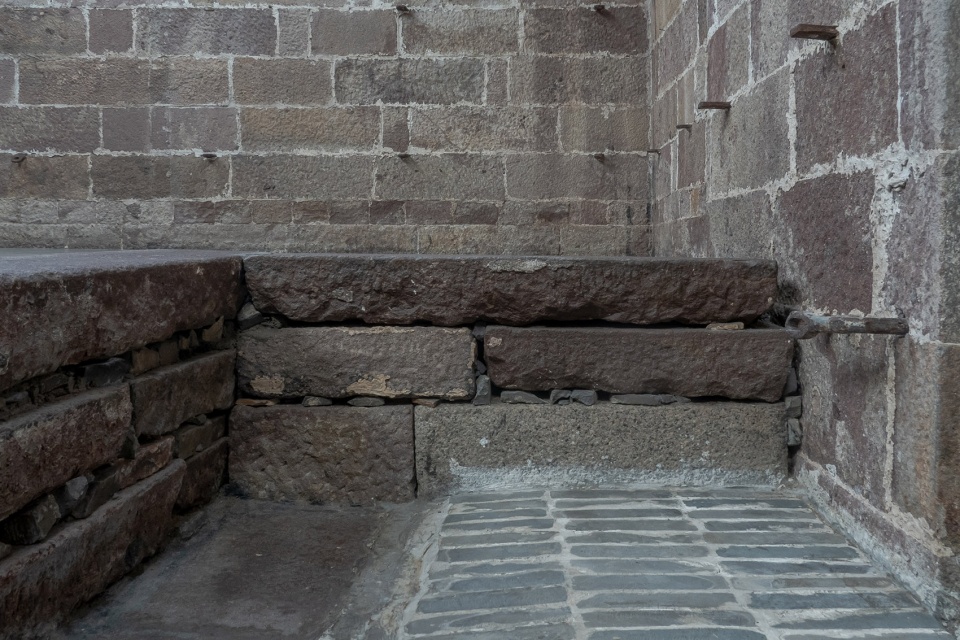

▼入口高差细节，Detail of height difference at entrance © 黄城强

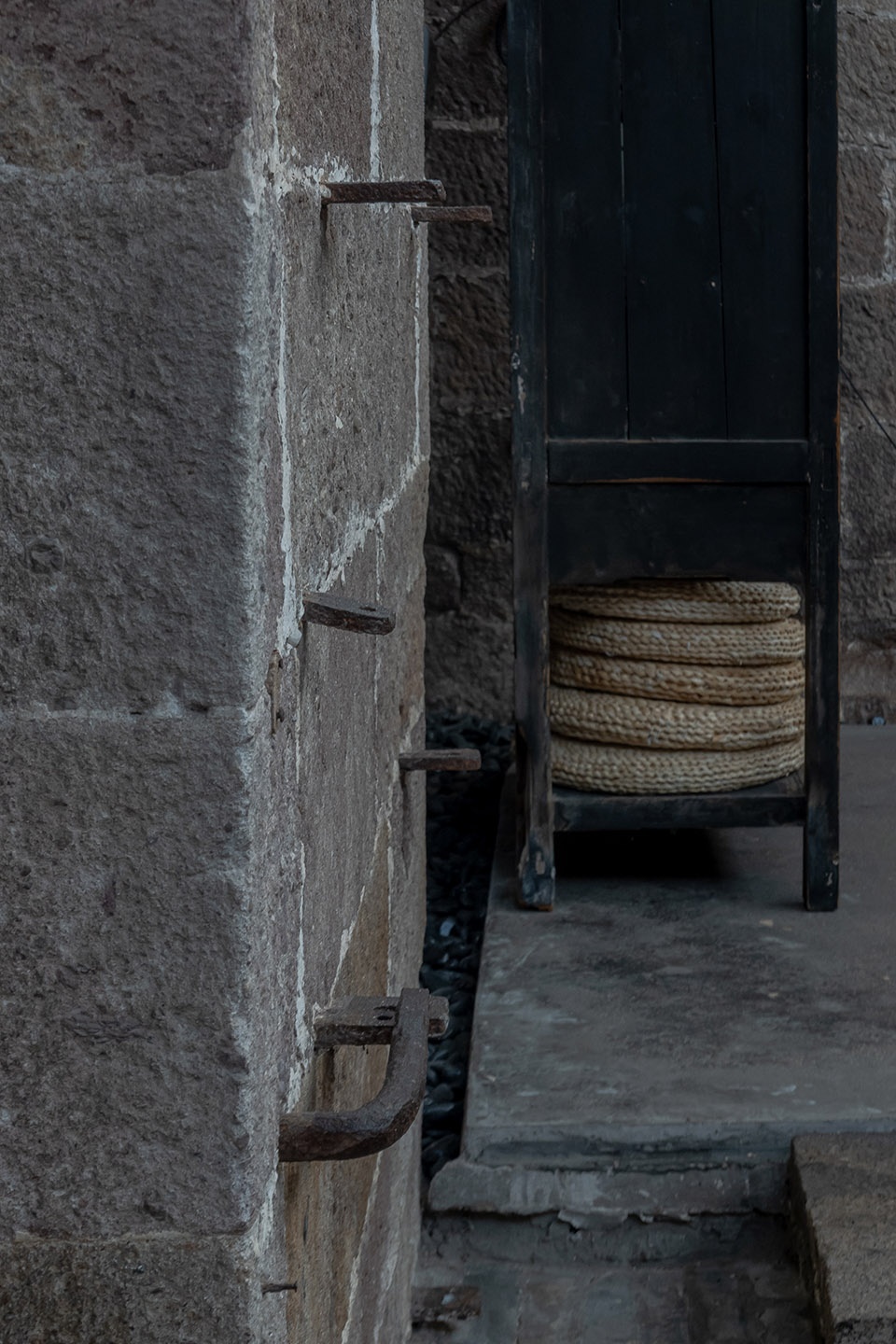

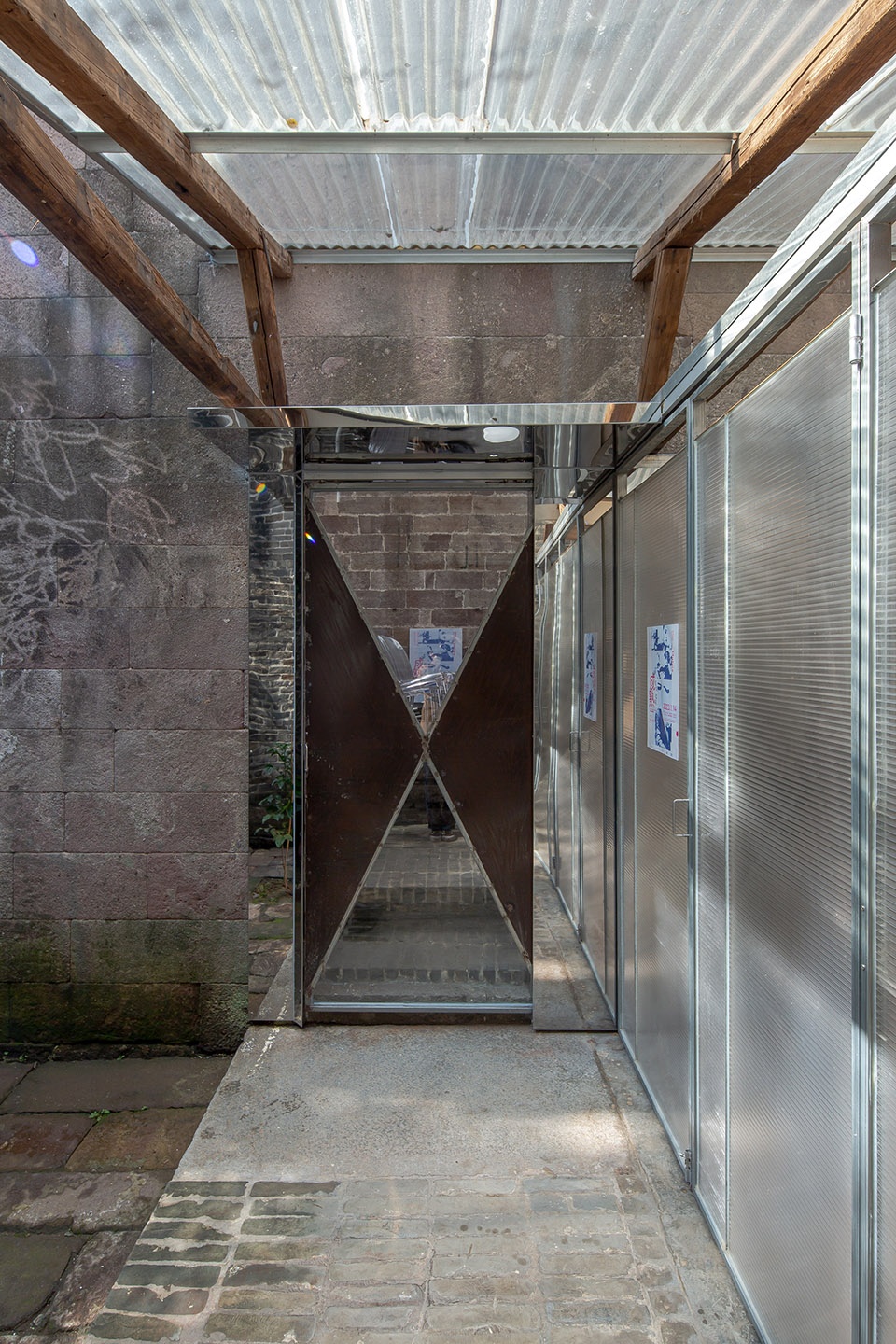

▼庭院入口门与被保留的原木门金属构件，Courtyard entrance door & Retained metal components of original wooden doors © 黄城强
关于附近营造
About Common Space
成立于2021，来自佛山顺德，由不同专业/行业的青年人组成，成立缘起每个个体对⌈自身⌋或⌈社区⌋问题的回应，大家借由附近营造这个主体，为有想法的个人搭起表达的“草台”。在顺德北滘碧江古村围绕承德公园，改造了附近檔口、附近工房，以此组成社区实践孵化场域。
The Common Space was founded in 2021 in Shunde, Foshan by a group of young professionals from various industries. The organisation was established to facilitate individual and communal problem-solving. Common Space provides a platform for individuals to express their ideas and collaborate on the development of a shared vision for their community. In Shunde Beijiao Bijiang Ancient Village, near Chengde Park, we converted Common Space and workshops into an incubator for community practice.

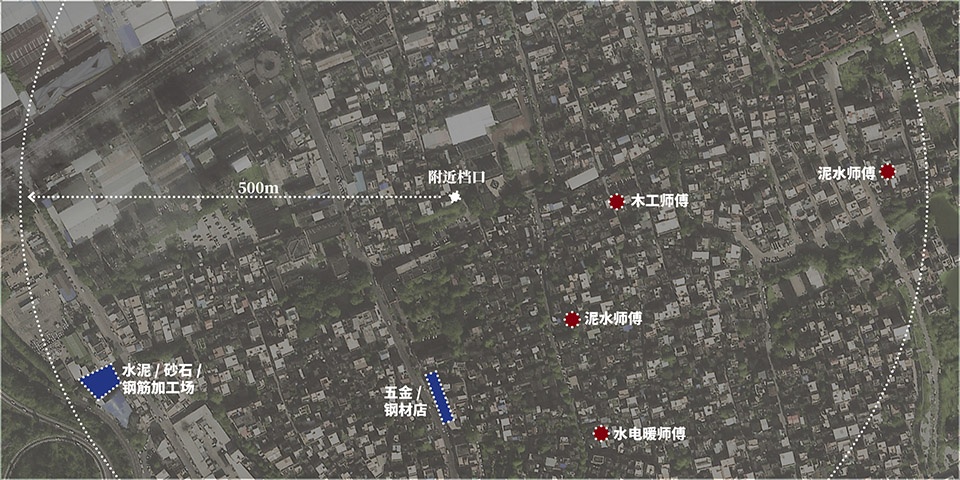

▼施工师傅居住地与主要材料五金分布，Constructor’s residence with major materials and hardware ©泥木建筑工作室
▼原屋面瓦片回收利用，Re-use of tiles ©泥木建筑工作室
▼原室内地面石块回收，铺砌天井及室外路面，Re-use of stones ©泥木建筑工作室
▼原山墙青砖回收，铺砌室内及天井踏步，Re-use of bricks ©泥木建筑工作室
▼原屋面结构-杉木金字架，保留完好，重新清理与除白蚁，建造社区厨房屋顶结构，Re-use of structure wood ©泥木建筑工作室
▼用施工围挡铁板与材料改造成院门及室内门，Re-use of the temporary shelter ©泥木建筑工作室
我们相信，一个让人向往的社区应该是，人人有自己独立的态度和追求美好的方式，同时也会相互支持。下一个新来的人，也能从这里感受到满满的能量，轻松地融入，笃定地停留。所以，每一个个体就是社区营造最小的单元，附近营造团队希望走在前面，直到我们转身告别，这里依然能越来越好。
Our belief is that a desirable community should foster independent attitudes and ways of pursuing the good, while also supporting each other. The community aims to create a welcoming environment for newcomers, facilitating easy integration and a sense of belonging. By striving to continually improve the area, we hope that every resident will leave with a sense of fulfillment and contentment. To achieve this, the neighbourhood building team prioritises the importance of each individual as the building block of community cohesion.
▼入口春联，Spring Festival couplets in front of the entrance © 附近营造
▼活动照片，Event © 附近营造
▼演奏活动， performance activity
▼当铺及承德公园周边轴测图，Axonometric view of space and Chengde Park surroundings ©泥木建筑工作室

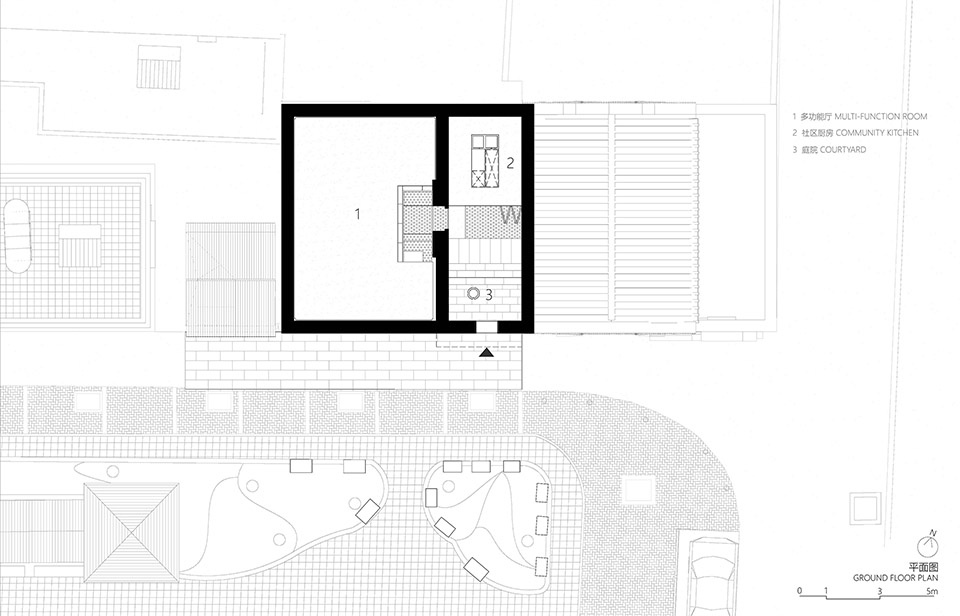

▼平面图，Plan ©泥木建筑工作室
▼立面图，Elevation ©泥木建筑工作室

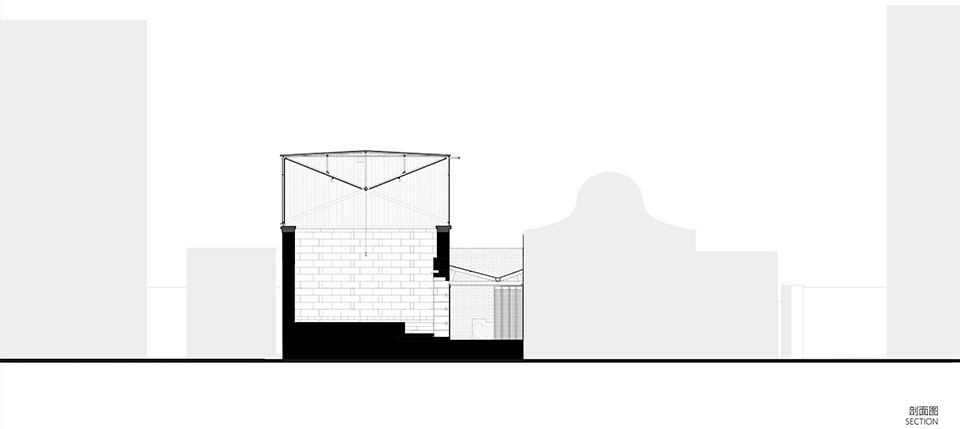

▼剖面图，Section ©泥木建筑工作室
项目名称：附近档口（顺德碧江古村清朝当铺改造）
项目类型：建筑/室内/改造/
设计方：泥木建筑工作室
联系邮箱：chengqiang.huang@nemearchitect.com
项目设计：邓敏聪
完成年份：2022/07
设计团队：黄城强，林晓锋，罗键锋
项目地址：中国广东省佛山市顺德区北滘镇碧江承德公园
建筑面积：100㎡
摄影版权：黄城强
材料：清拆材料重复利用( 红砂岩，花岗岩，瓦，青砖，杉木) / 不锈钢 / 聚碳酸酯板
Project name: Common Space (Renovation of Qing Dynasty Pawnshop in Shunde District Bijiang Ancient Village)
Project type: Architecture/ Interior /RENOVATION
Design: NEME Architects
Contact e-mail: chengqiang.huang@nemearchitect.com
Design year:2021/10
Completion Year:2022/07
Leader designer & Team: Leader：Deng Mincong ，Group：Huang Chengqiang，Lin Xiaofeng，Luo Jianfeng
Project location: Bijiang Chengde Park, Beijiao Town, Shunde District, Foshan City, Guangdong Province, China
Gross built area: 100㎡
Photo credit: Huang Chengqiang
Materials: Reuse of demolished materials (red sandstone, granite, tiles, blue bricks, fir wood) / Stainless steel / polycarbonate board
