The project is situated in the economically  strained Virginia rail town of Clifton Forge. It is the 2nd phase of the redevelopment  of a post-industrial brownfield  into a public  park and performance  space  which aspires to inject a distinct sense of identity and place at the heart of the community.

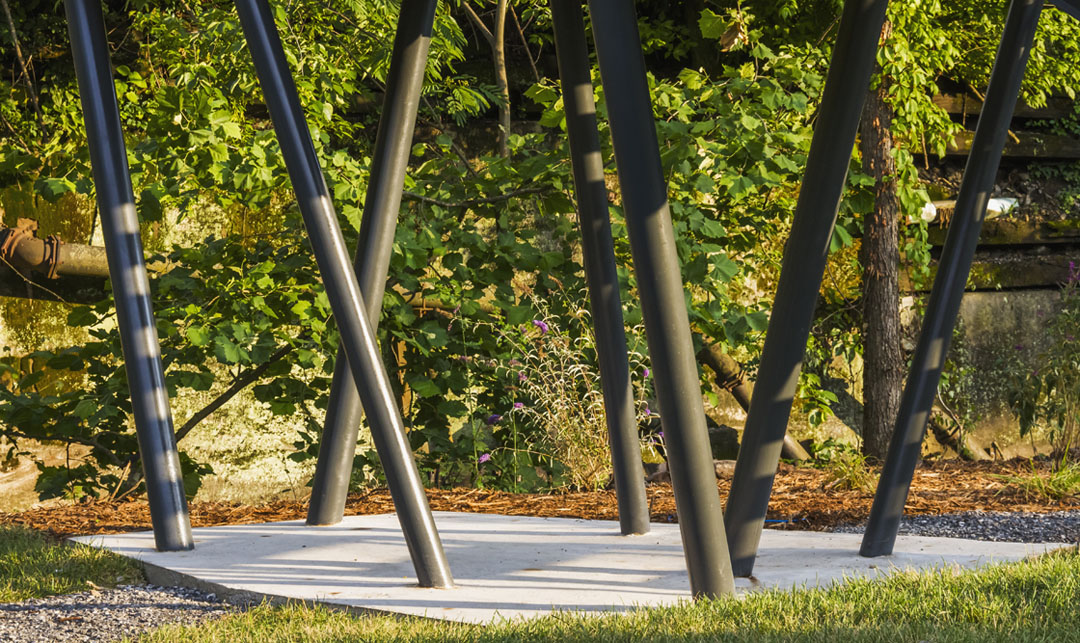

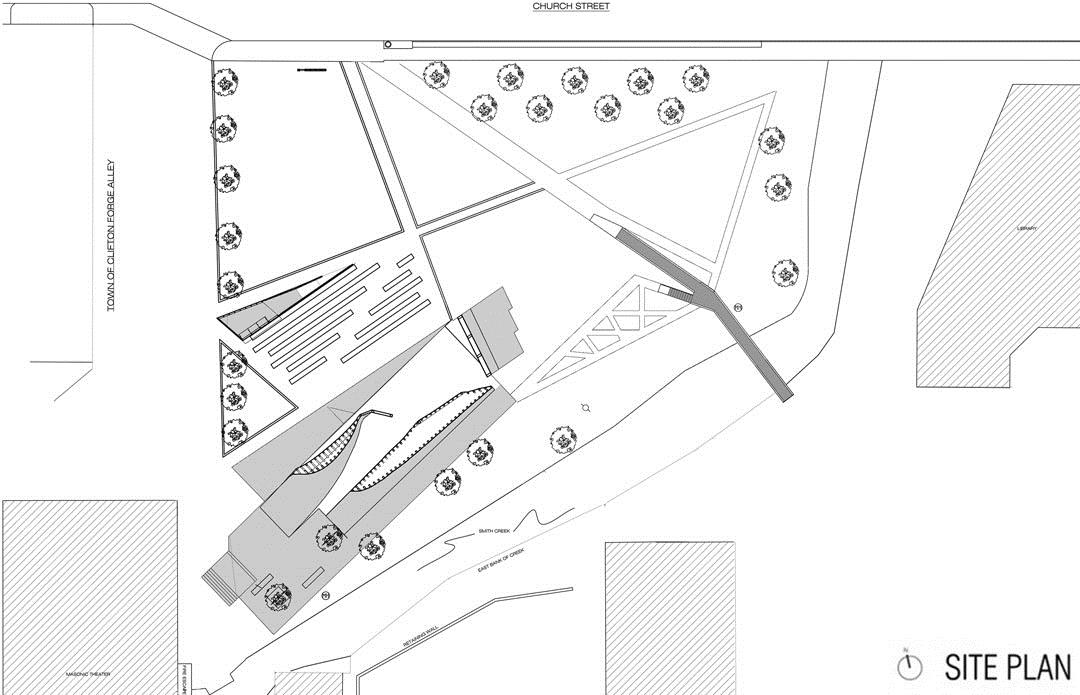

This second phase of the project includes a pedestrian bridge, park space and a creek access. The idea driving the design is that the built elements emerge out of the landscape of the park. The bridge is a bent path, which ramps and steps, inviting people to wander as well as providing a direct link, over the creek, between  the new ampitheatre  and the historic  downtown.  It is supported  at mid-span  by a forest  of  leaning columns, which create a sheltered repose along the creek. Transparency was an integral part of the overall concept;  the bridge deck and rail assembly maintain a thin profile, giving the bridge a subtle presence on the site. The entire length of the bridge is ramped to accommodate the site’s significant elevation  changes.  The park is divided into multiple  landscaped  areas, including  a line of tall grasses along the creek, a labyrinthine  butterfly  garden adjacent  to the amphitheatre,  a beach along the creek, and a series of grass lawns at the center.

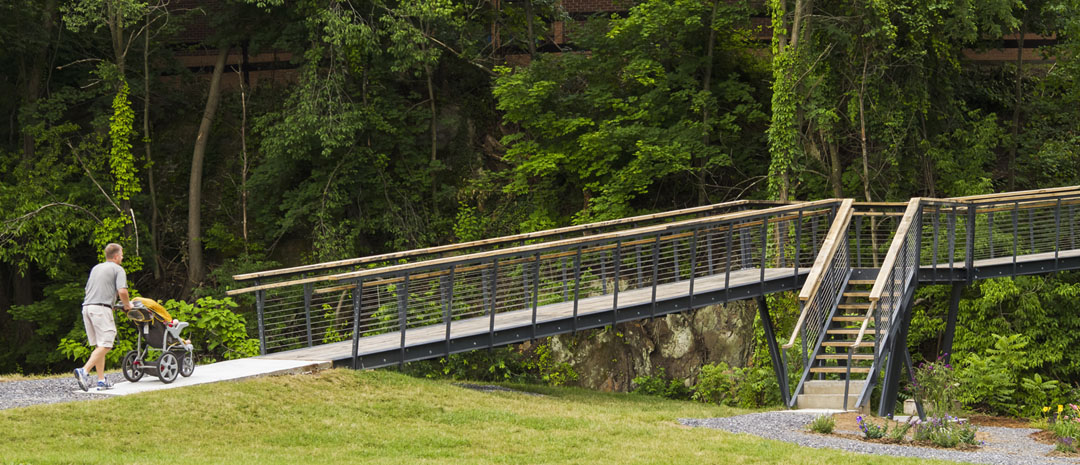

桥体结构优雅，造型轻盈

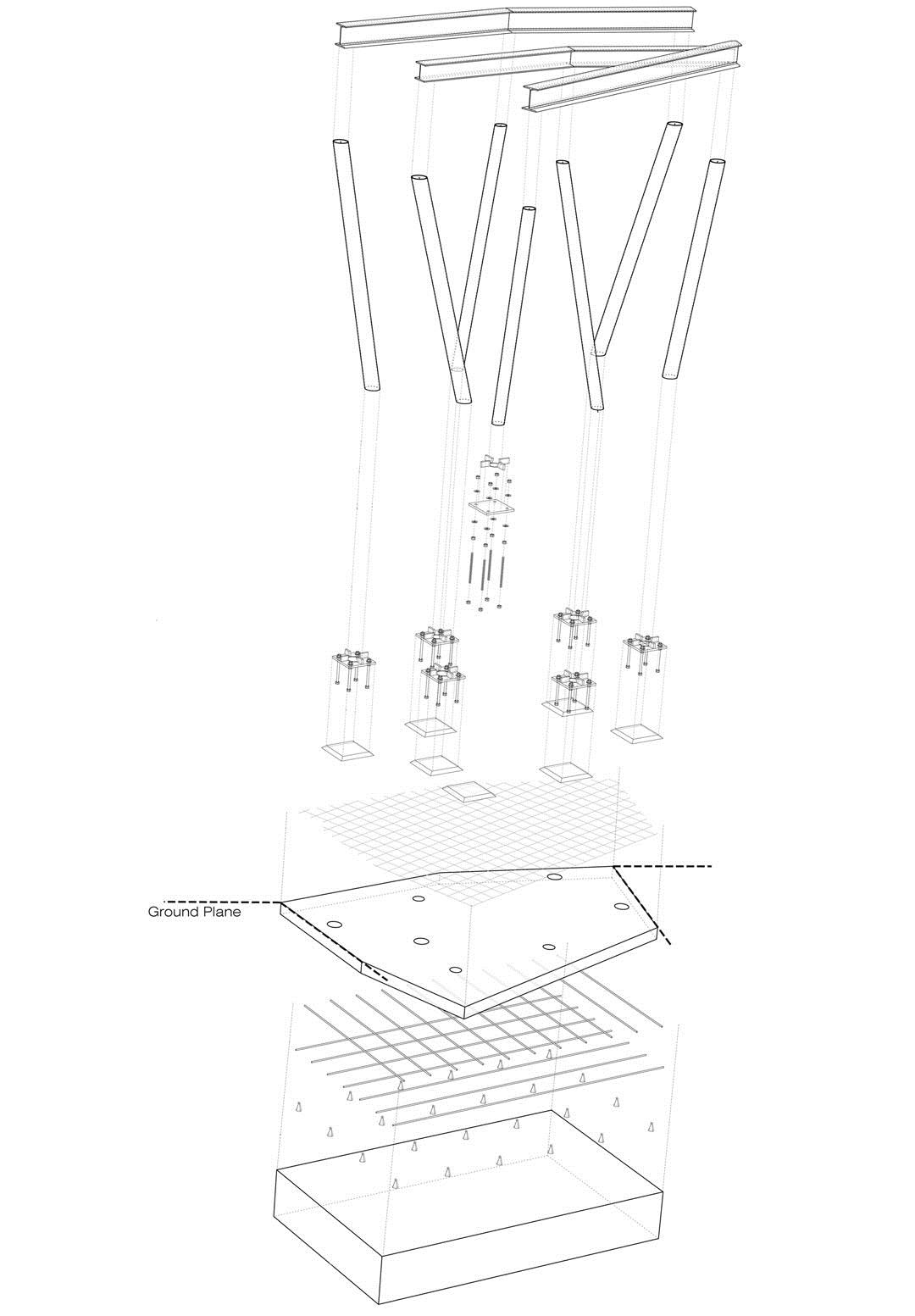

混凝土基础，钢结构支撑

作为小镇重整计划的一部分，人行桥为人们提供了一个休闲舒适可停留的场所

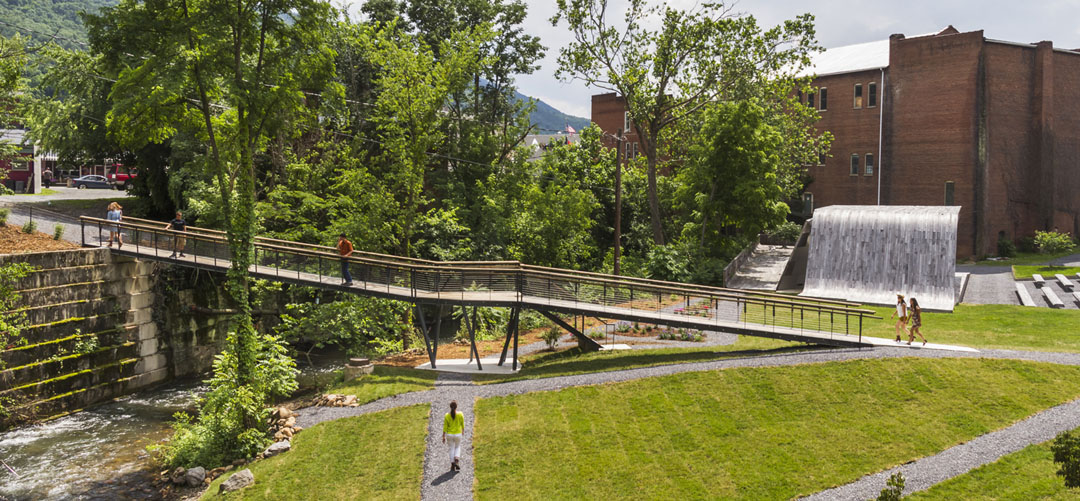

树林掩映中，不喧宾夺主的恰当存在

四个主材分别是：混凝土，钢结构，白橡木，金属外皮复合板。回收的各种金属复合板使用在露天剧场的外表上，这些金属形成斑驳的独特外观

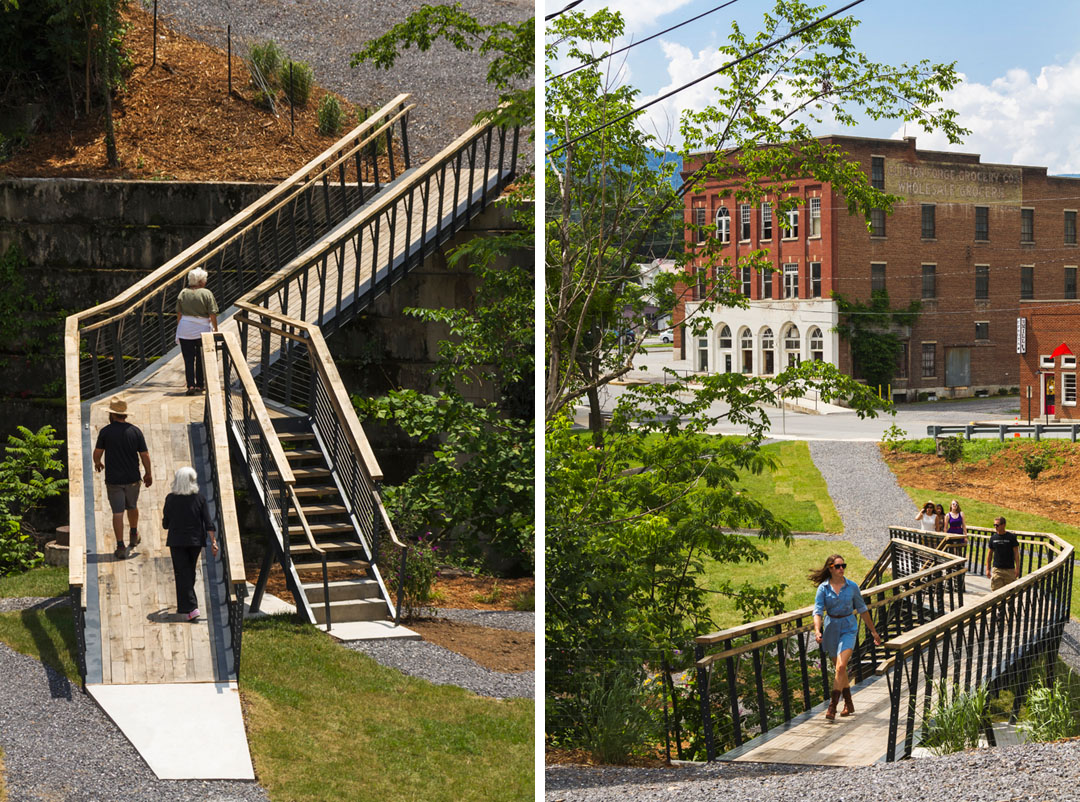

克服地形，上上下下的享受

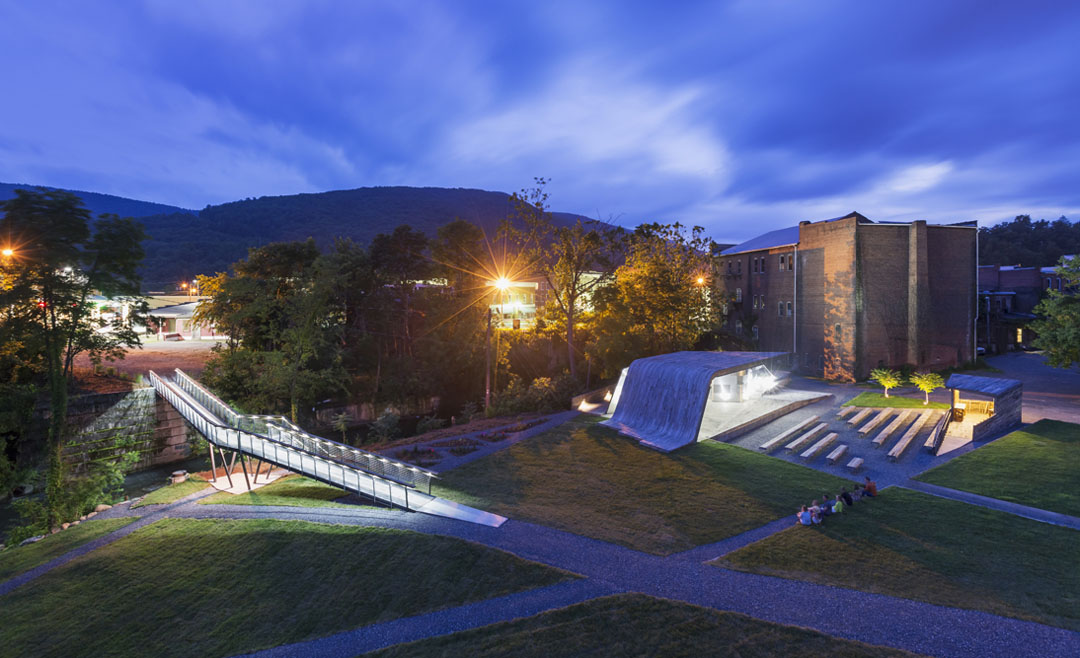

夜景。除人行桥外公园还有几个大草坪，一些小花坛，树阵，露天剧场等主要元素

（上图）桥上的照明设施安装在栏杆下



项目是可持续的。四个主材分别是：混凝土，钢结构，白橡木，金属外皮复合板。混凝土作为地基，钢结构支撑着桥梁，其中结构采用螺栓固定而非焊接，这使得桥梁可以容易的组装，并在以后还能回收利用。桥面采用了10公里以内产出的白橡木，同时也使用到一部分回收木材。回收的各种金属复合板使用在露天剧场的外表上，这些金属形成斑驳的独特外观。



Sustainability

The entire project  is constructed with 4 primary materials: concrete,  carbon steel, white oak and metal- skinned composite  panels.

Major  concrete  foundations   were  limited  by  supporting   half  of  the  bridge  on  an  existing  concrete retaining wall. This wall underwent rigorous testing to verify its strength and stability. Its ability to support the bridge loads minimized site-work  and the manufacturing  of new concrete.

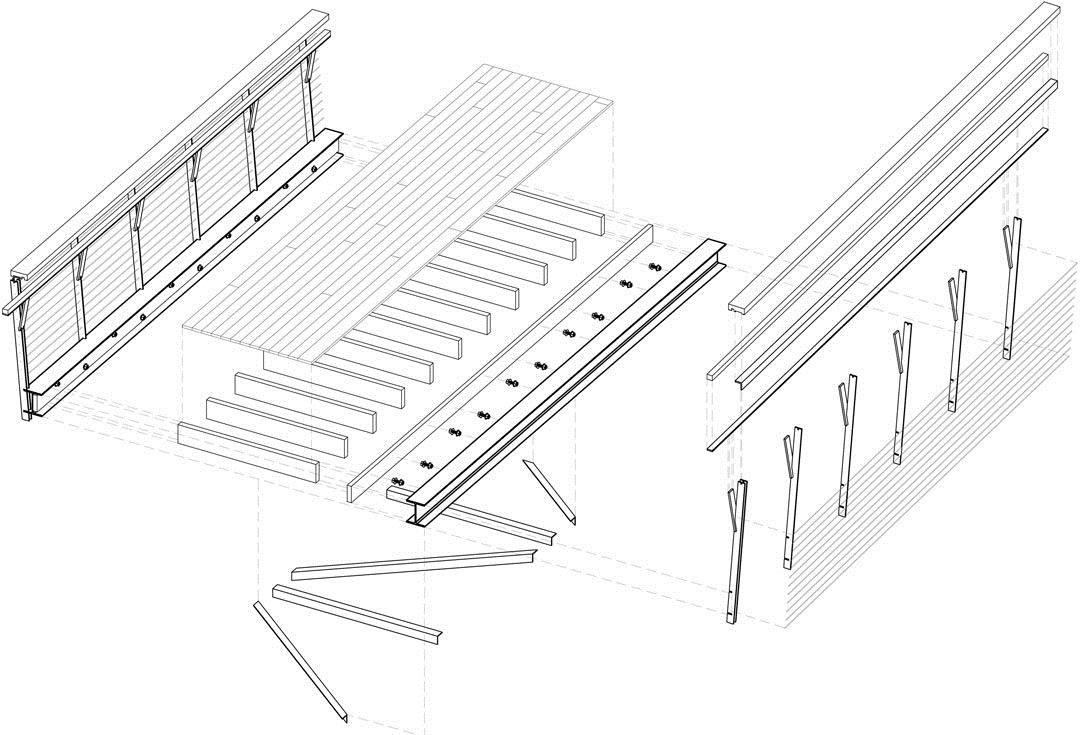

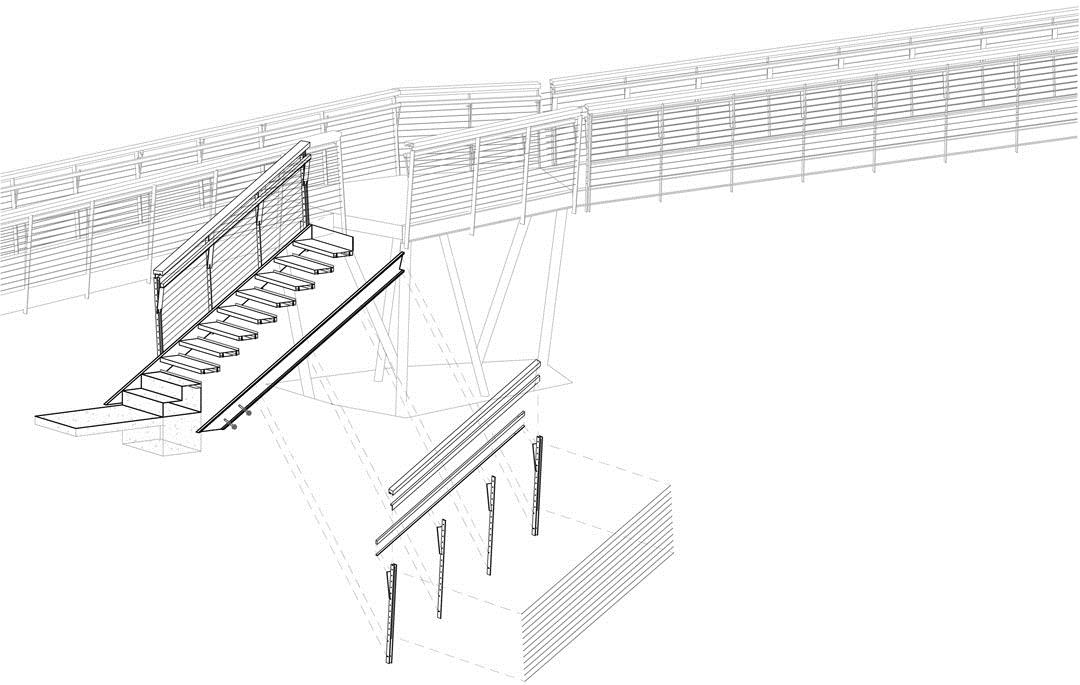

The structural  steel  frames  were  pre-fabricated in modules  and  bolted  (rather  than  welded)  on-site, allowing  the  bridge  to  be  easily  and  efficiently  assembled,  but  more  importantly  limiting  waste  and allowing it to be dismantled and recycled at the end of its service life.

The bridge deck is clad entirely in locally and sustainably harvested and milled white oak (within 10 miles of the site). Frames and handrails are constructed from antique white oak timbers,  reclaimed  from the site’s previous warehouse (materials, reclaimed from the warehouse were also used to frame and clad a farmer’s market pavilion in the neighboring town).

The metal-skinned  (zinc,  stainless  steel, titanium,  and aluminum)  composite  panels  are end-runs  that were diverted  from the manufacturer’s waste stream. They give the amphitheatre  its distinctive  mottled appearance, publicly  express the projects  underlying environmental  consciousness,  and tie the material palette of the bridge to that of the amphitheatre.
