Ark-shelter “Into the wild” by Ark shelter studio

非常感谢 Ark shelter studio予gooood分享以下内容 。更多关于: Ark shelter studio on gooood。
Appreciation towards Ark shelter studio for providing the following description:

如今我们居住在一个繁忙的世界中，有时总希望从压力，责任和文化中逃离，去寻找我们的根，我们故事开始的地方。

Nowadays we live in a world where we are extremely busy and from time to time we need to escape from it. Escape from the stress, duties and civilizations back to our roots where it all started.

▼能让人在大自然中享受舒适生活的小屋 ，cabins which gives people comfort in the heart of the nature

▼拥有5面开口的小屋，the Shelter with 5 openings all around

在过去的3年里，我们一直致力于改造设计，建造和探索设计不同类型的Ark小屋。 我们希望创造一个能让人在大自然中享受舒适生活的地方，一个能让人体验排解心中苦闷的地方。根据这个构想，我们创造了一种新的Shelter模式即“进入野外的小屋”。在这个小屋中，我们设计了5个开口，希望与四周环境结合，创造出自然的视觉焦点，并且每个开口展现的风景都体现着不同的自然氛围

The past 3 years we have been working on re-designing, building and testing different types of Ark-Shelters. We want to create a place that gives you comfort in the heart of the nature and gives you the perfect setting for a detox of your mind.From this perspective we created a new Shelter type: “into the wild cabin”. With his 5 openings all around we wanted to create a visual focus of the nature all around. Each opening brings in another atmosphere of the nature.

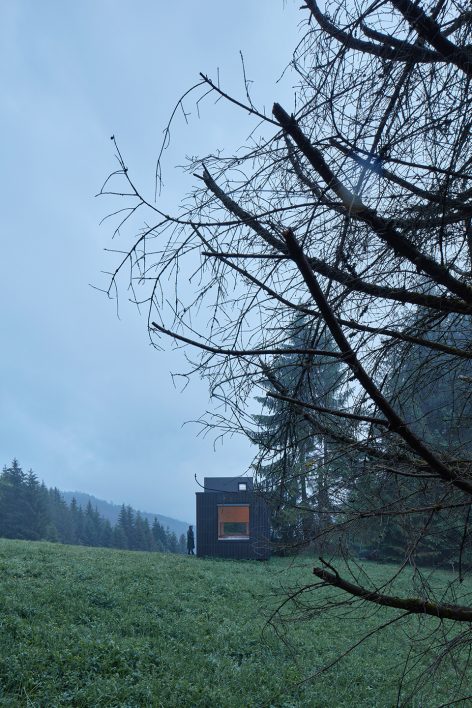

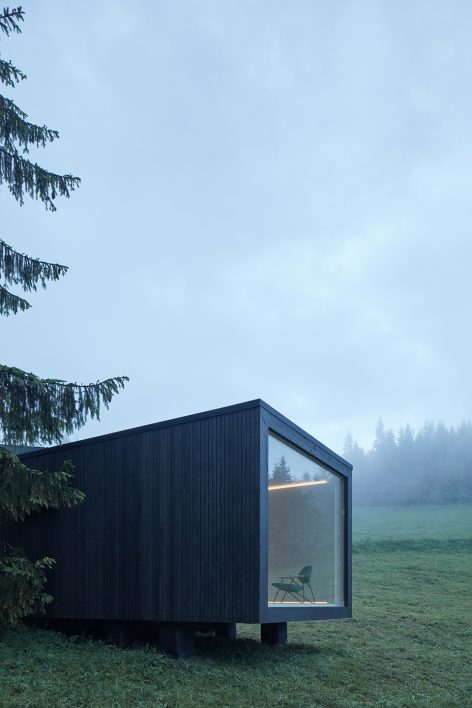

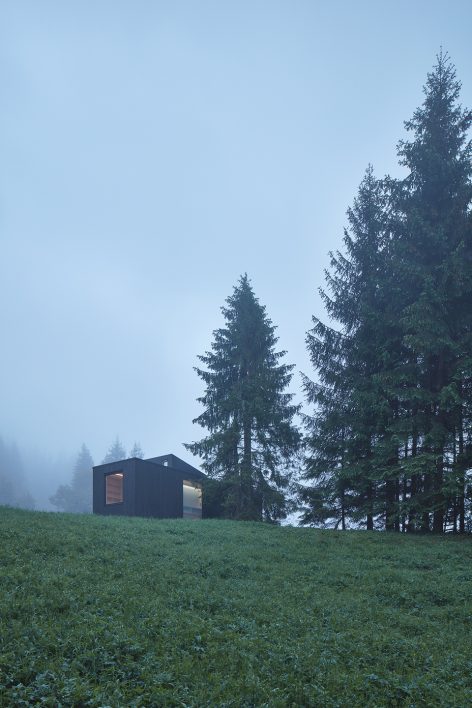

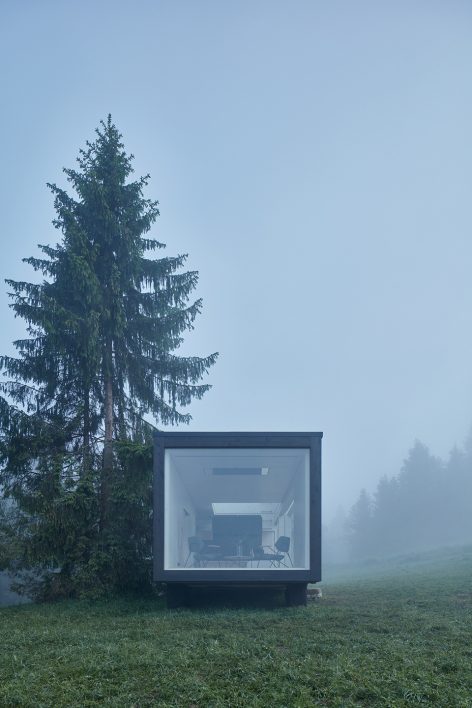

▼建筑外览 ，exterior view

每个小屋都拥有一面可打开的墙面和一面巨大的玻璃窗，这样的设计让人感觉如同坐在室外一般。浴室的磨砂玻璃窗提供空间完全的自然的采光。我们还建造了一个额外的模块在屋顶上，这个模块有一大面的玻璃窗，可以让居住者体验到睡在一片星空下的感觉。Shelter以其低科技的简单外立面，旨在让小屋与自然融为一体，同时小屋中的复杂而巧妙的整体系统又可以让内部空间和自然光线产生协同作用。

There is a big openable wall side and the big front glazing makes you feel like you’re sitting outside. The milk glass window in the bathroom gives you the all-natural incoming light you need. We’ve made an extra module which is set on the roof and has a big window so you can sleep under a sky full of stars. The Shelter¨, with its low-tech outlook facade, is created so that it attempts to blend with nature, while refining its complex and sophisticated system that automatically works with space and light.

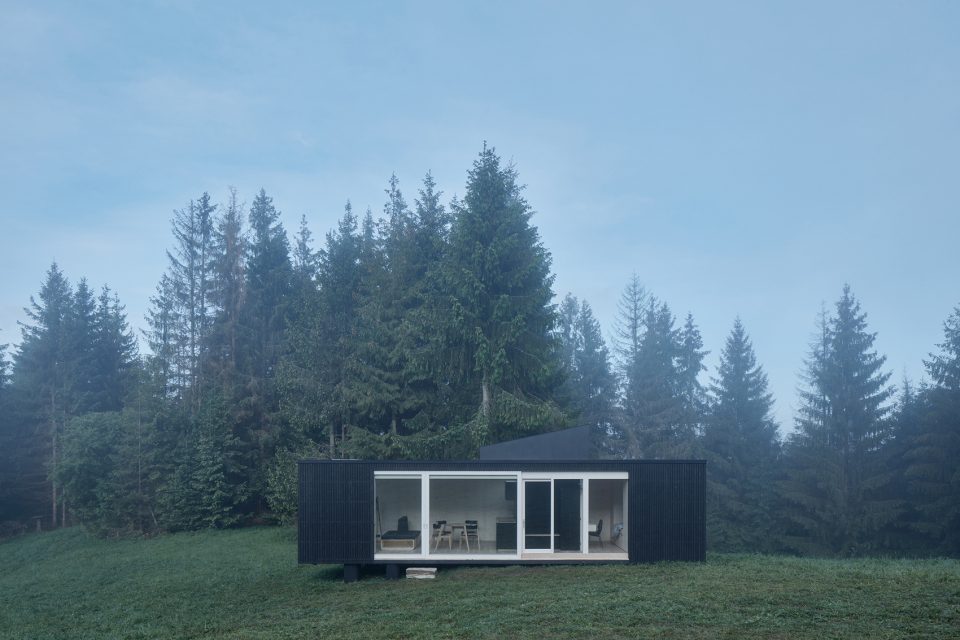

▼每个小屋都拥有一面可打开的墙面和一面巨大的玻璃窗 ，the shelter include a big openable wall side and the big front glazing

这个建筑采用全自动系统，可以预先设置对房间进行加热，制冷和遮阴。双人床可以自动上升接近天花板，而床的下方设有隐藏式按摩浴缸，创造出一个全新的放松区域。整个小屋的能量运作可以完全通过太阳能电池板，电池和雨水收集器来补给。一个黑色盒子恰好在40平方米的小屋中间，创造出5个不同的区域，每个侧面都成为房间中一部分特定区域。角落中选用滑动门可以释放更多空间，并且将不同区域完全分开。

Thanks to a automatical system the heating, cooling and shadings can be pre-programmed. The double-bed goes up automatically in the ceiling and beneath the bed there is a hidden jacuzzi, this creates a new relaxing area. The Shelter can work completely off-grid through solar panels, batteries and rain water collector. The 40m2 has a central black box in the middle that creates 5 different areas, every single side is part of a particular area in the Shelter. The sliding doors in the corners create more space and the different areas can be completely divided.

▼屋顶上的额外模块，有一大块玻璃 ，an extra module which is set on the roof and has a big window

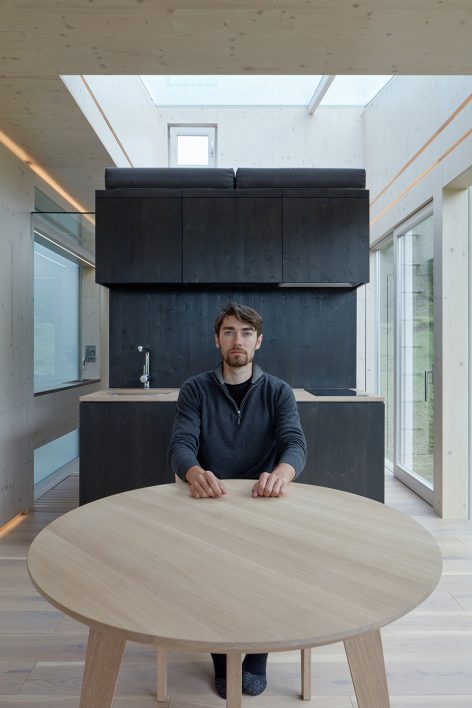

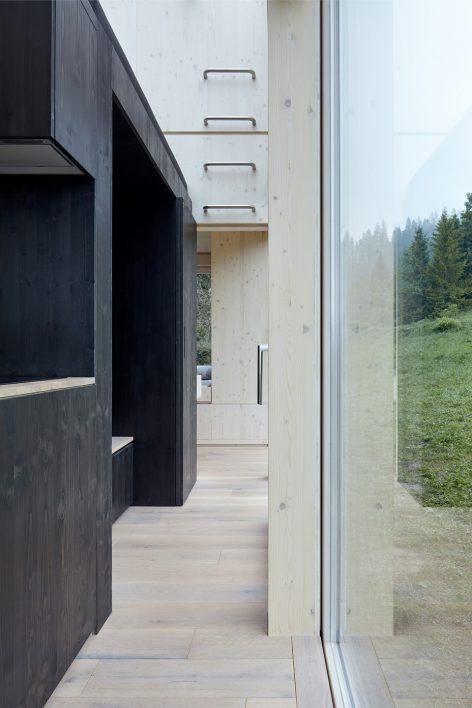

▼小屋中央的黑色盒子创造出5个区块 ，a central black box in the middle that creates 5 different areas

由于顶部的额外模块，更多的自然光可以从小屋上方照进室内。盒子的左侧部分作为厨房和休闲区，后部安装一个淋浴和靠窗的水槽。在浴室旁边我们设计安放一张大床和按摩浴缸。而顶部的额外模块形成了另一间卧室，为居住者创造出一个放松的冥想区。这个全新的Shelter设计对我们来说也是一个全新的挑战，我们希望最终能运用尽可能少的空间，建造出一个尽可能奢华的小屋。

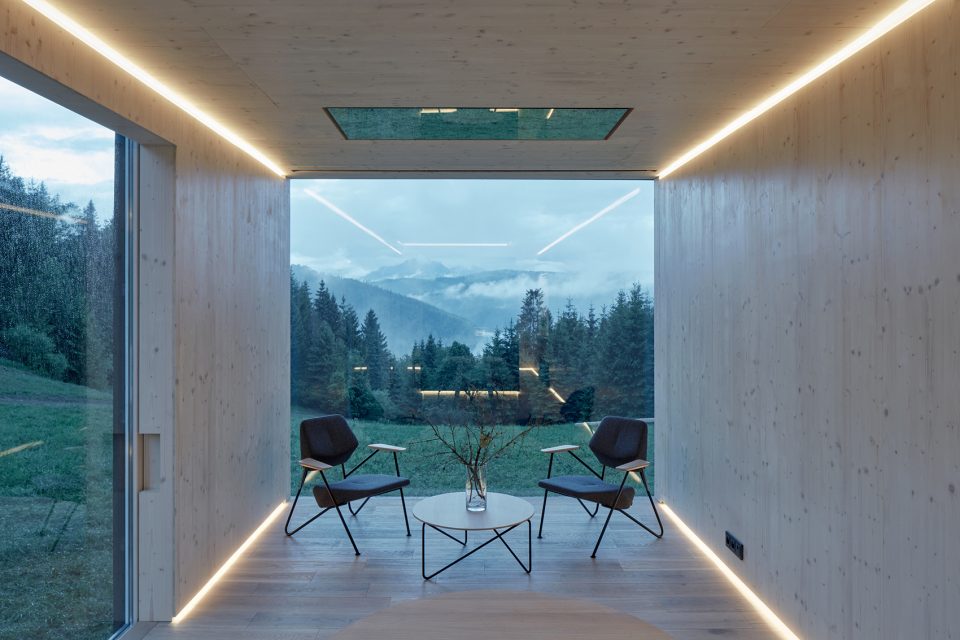

▼让人感觉坐在室外一般的起居室 ，the living room makes you feel like you’re sitting outside

▼与自然相融的卧室，the bedroom  blending with nature

Thanks to the extra module on top we have more incoming light from above. The left part of the box works as a kitchen and a relaxing zone, the back of the box has a shower and a sink next to the window. Next to the bathroom we have the big bed and the jacuzzi. The extra module on top is another bedroom that you can also easily turn into a relaxing mediation zone. This new Shelter has been a totally new challenge for us an it’s all about the details, we wanted to create a place that has it all in least possible space but with all the possible luxury.

▼浴室的磨砂玻璃窗提供空间完全的自然的采光 ，the milk glass window in the bathroom gives you the all-natural incoming light

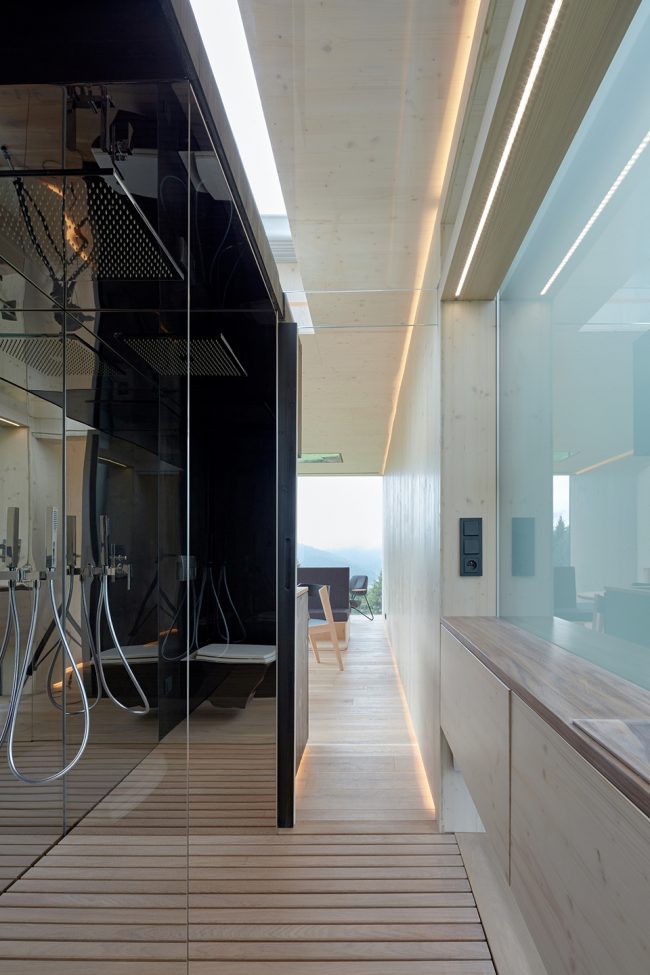

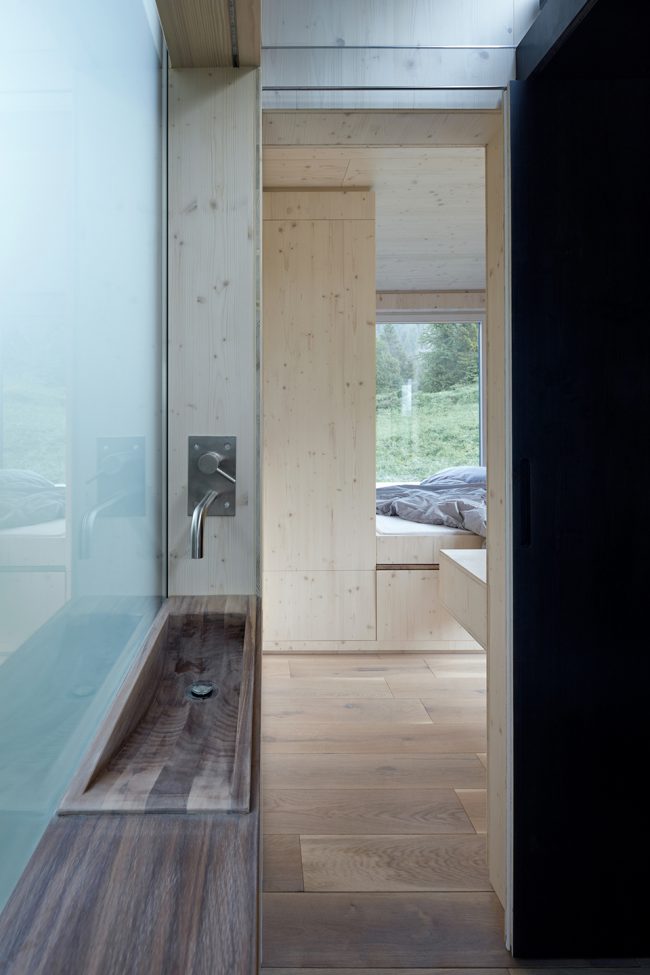

▼在小屋背面的浴室和靠窗的水槽 ， the back of the box has a shower and a sink next to the window

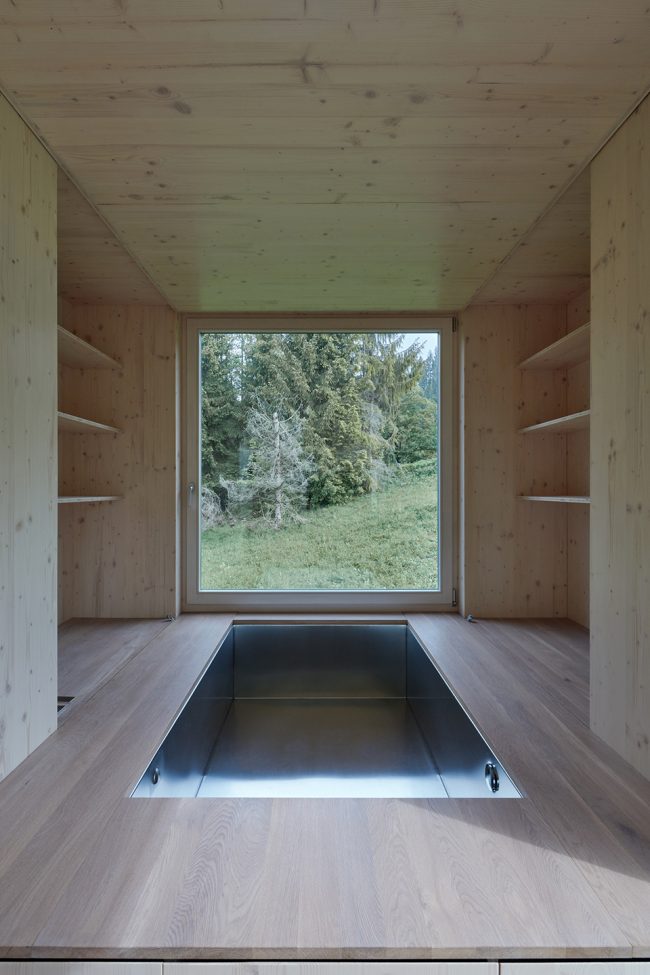

▼床的下方设有隐藏式按摩浴缸 ，beneath the bed there is a hidden jacuzzi

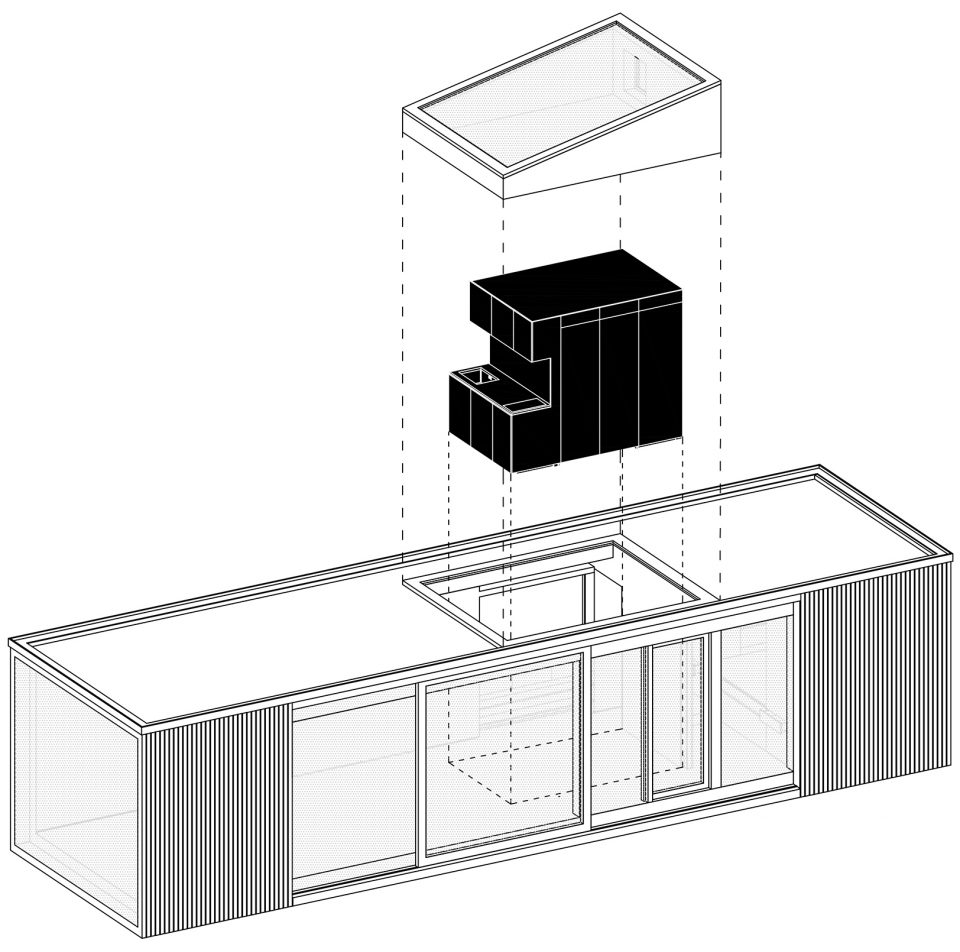

▼轴测解构图，exploded axon

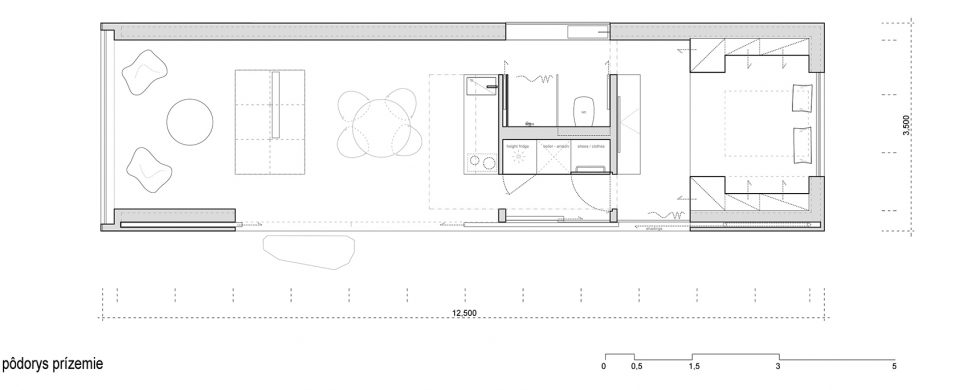

▼建筑平面图 ，the plan

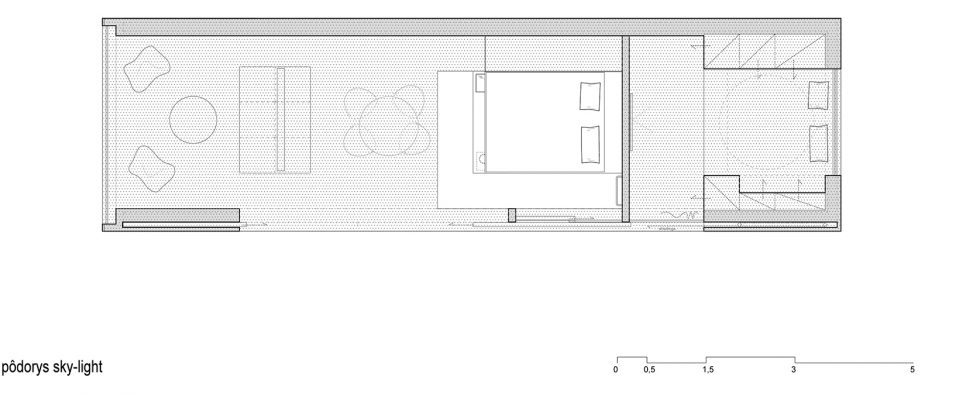

▼建筑上层平面图 ，the upper plan

▼ 建筑立面图，the elevation of the building

▼ 建筑剖面图，the section of the building

location: North Slovakia – Kysuce
authors: Michiel De Backer, Martin Mikovčák – Ark shelter studio
construction: 5/2018
photography: BoysPlayNice
Furniture:
Table, dining table, couch and lamp – Ark-shelter
Drawing and conference table: Prostoria
Technical Components:
boiler – Ariston, sanitary – geberit, sink battery – Sapho
Kitchen Appliances: Mora
Projection Screen – Electric Master
glazing – Saint Gobain
el. batteries – Mercedes, Solar Panels – from Energy Vision bvba. / not installed in the presented space
intelligent – automated control of all el. components from: ELISPLUS – system Loxone
Materials:
internal lining – Iwtrend spruce bio panel + bleaching technology
ext. façade cladding – spruce profiles painted with oil black color
horizontal surfaces + furniture – lacquered oak + beige finish
roof – Fatrafol
shower tray – mirror stainless steel
washbasin in cup – walnut
