#revolucionenelpatio - 1ª FASE DE OBRA DE MEJORA EN LOS PATIOS DE LA FACULTAD DE BELLAS ARTES DE LA UNIVERSIDAD DE MÁLAGA by DJarquitectura

感谢 DJarquitectura 对gooood的分享。更多请至：DJarquitectura on gooood
Appreciation towards DJarquitectura for providing the following description:

在学术类建筑中有一种恒定的现象：它们会以牺牲最初的空间质量为代价不断地扩张，这导致了建筑的性质在混乱的空间序列中扭曲而变得难以清晰表达。

There is a constant in academic buildings: their continuous expansion, at the expense of their initial qualities, which leads to deform their nature in a confusion of architectures difficult to articulate.

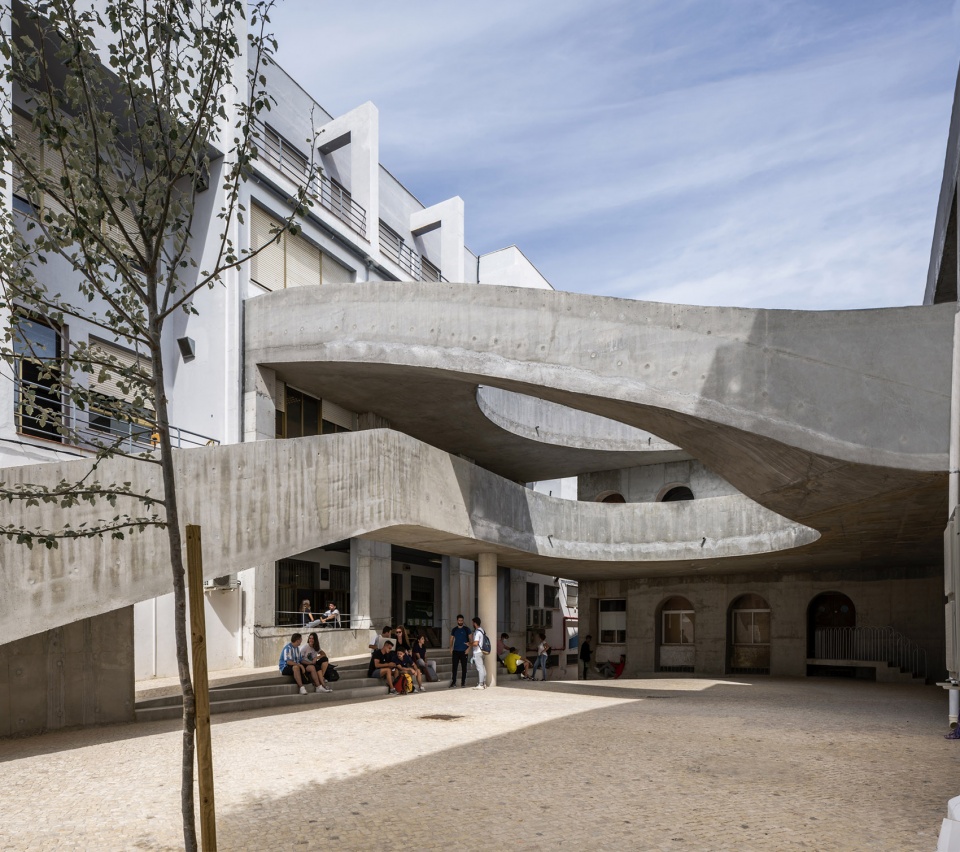

▼项目概览，overall of the project ©Jesus Granada

在马拉加大学，美术学院决定改造并重新利用工程学院的旧楼。旧楼由三个不同时期的不同建筑组成，每栋建筑都有着各自的设计风格，而统一的屋顶结构与设备则占据了建筑之间的缝隙空间，这种建筑形式带给人们一种理性，甚至略显荒凉的外观印象。相比之下，学生们对它的使用是激烈的，建筑颓废的外表激发了学生们无尽的灵感和创造力。

▼插画表达，illustration ©DJarquitectura

The Faculty of Fine Arts decides to occupy the old buildings of the University’s engineering school, made up of three disparate buildings from different periods, each of them with a free and autonomous design, which have generated an organization of voids occupied by roofs and facilities, offering a desolate appearance. In contrast, there is the intense use by students, which due to its decadent semblance is a sign of inspiration and creativity.

▼漂浮在庭院中的混凝土结构，Concrete structure floating in the patio ©Jesus Granada

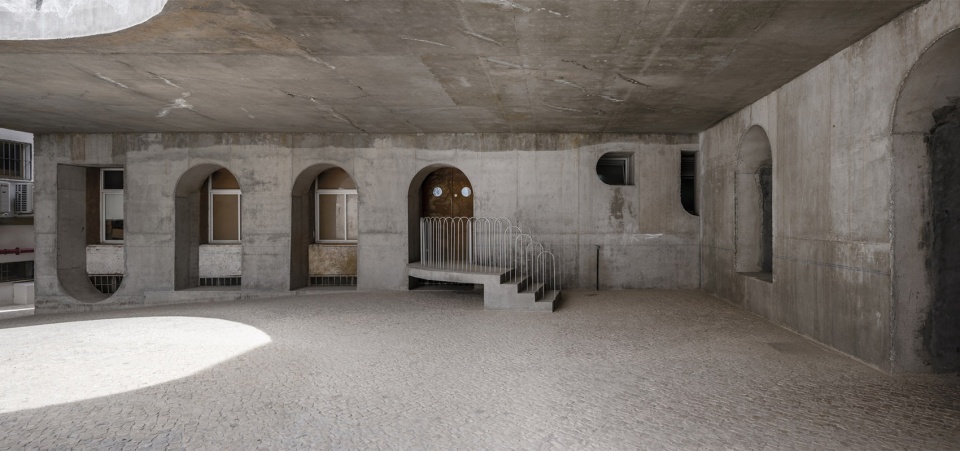

▼结构下部空间，
space under the structure ©Jesus Granada

设计任务包括拆除现有的结构并翻新原有设施，以使空间得到充分的利用，同时在建筑群内部创造出一处用于艺术表演与展示的参考性场所。除了这些基本的要求外，DJarquitectura事务所为设计限定了一个格外条件，即，改造后的庭院必须连接到不同的建筑，促进建筑间的关系、改善它们的可达性与疏散性。

▼楼梯入口分析图，analysis diagram ©DJarquitectura

The commission consists of eliminating the existing structures and renovating the facilities, preparing them for adequate use and building a reference place for acts and artistic presentations. To these requirements we add the condition that it must connect the different buildings, facilitating their relationship, accessibility and evacuation.

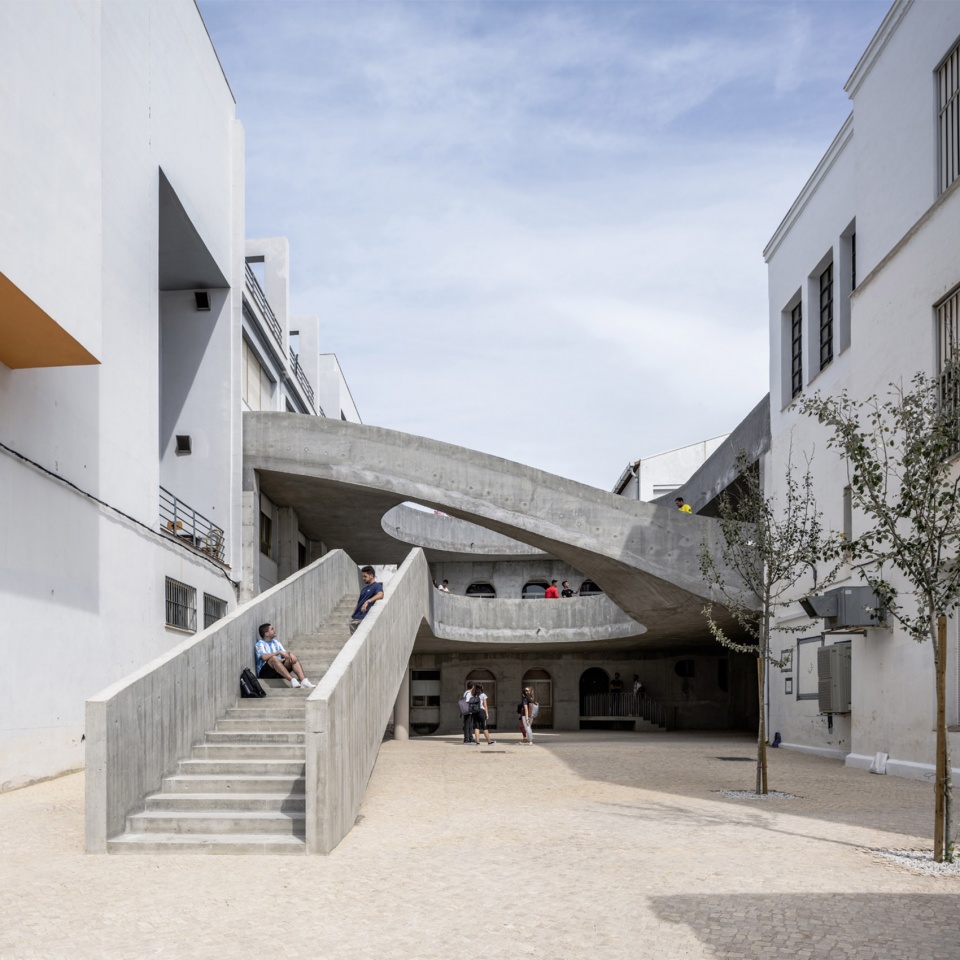

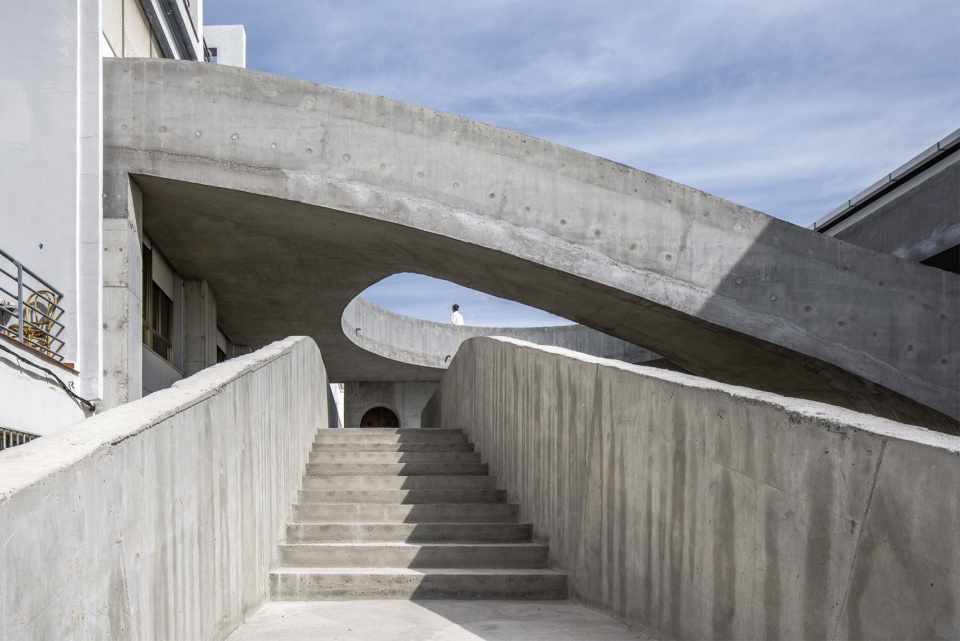

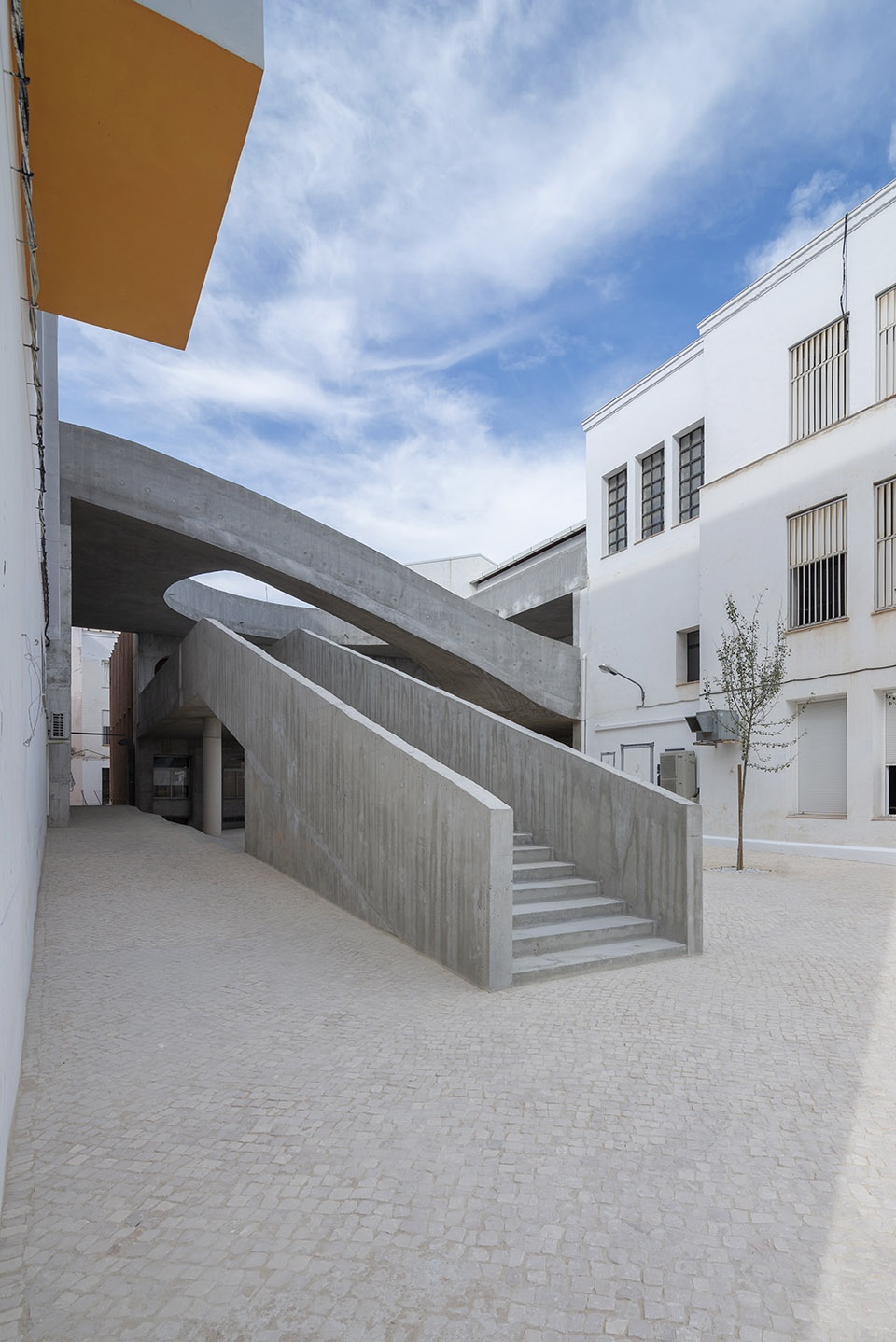

▼入口楼梯，entrance steps ©Nicolás Díaz

▼丰富的层次与视口，Rich layers with viewports ©Jesus Granada

原有的楼层被拆除重建，除了还原各入口楼层的位置外，还完美解决了可达性的问题。一座巨大的混凝土结构被嵌入到其中一个庭院内部，简洁的建筑语言与复杂的施工技术使其成庭院中引人注目的焦点。这座混凝土结构呈现出坡道的形式，向上弯曲的地板将建筑的不同楼层联系在一起，而一系列宽度不同的平台与楼梯则将教室的使用范围延伸到室外。

The existing floor is replaced by a new one that resolves accessibility and recovers the original levels of the accesses. A concrete structure embedded in one of the courtyards, with simple rhetoric and complex technology, a floor that curls upwards looking for the different levels of the buildings; some platforms and stairs with variable widths that allow to extend the use of the classrooms to the outside.

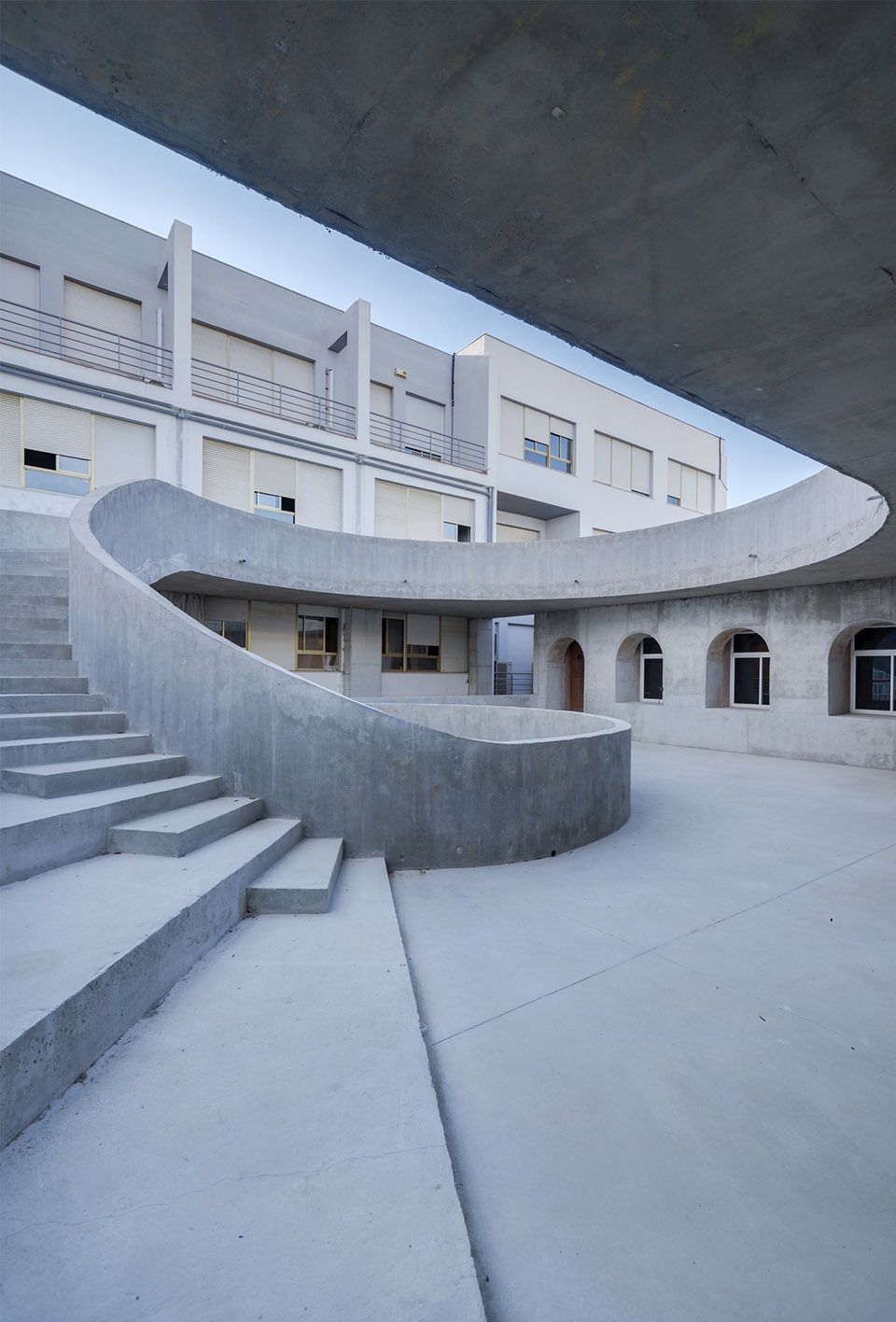

▼盘旋的楼梯成为学生们聚会休憩的平台，The spiral staircase serves as a platform for students to gather and rest ©Jesus Granada

▼曲线带来的结构美感，
Curves that bring structural beauty ©Nicolás Díaz

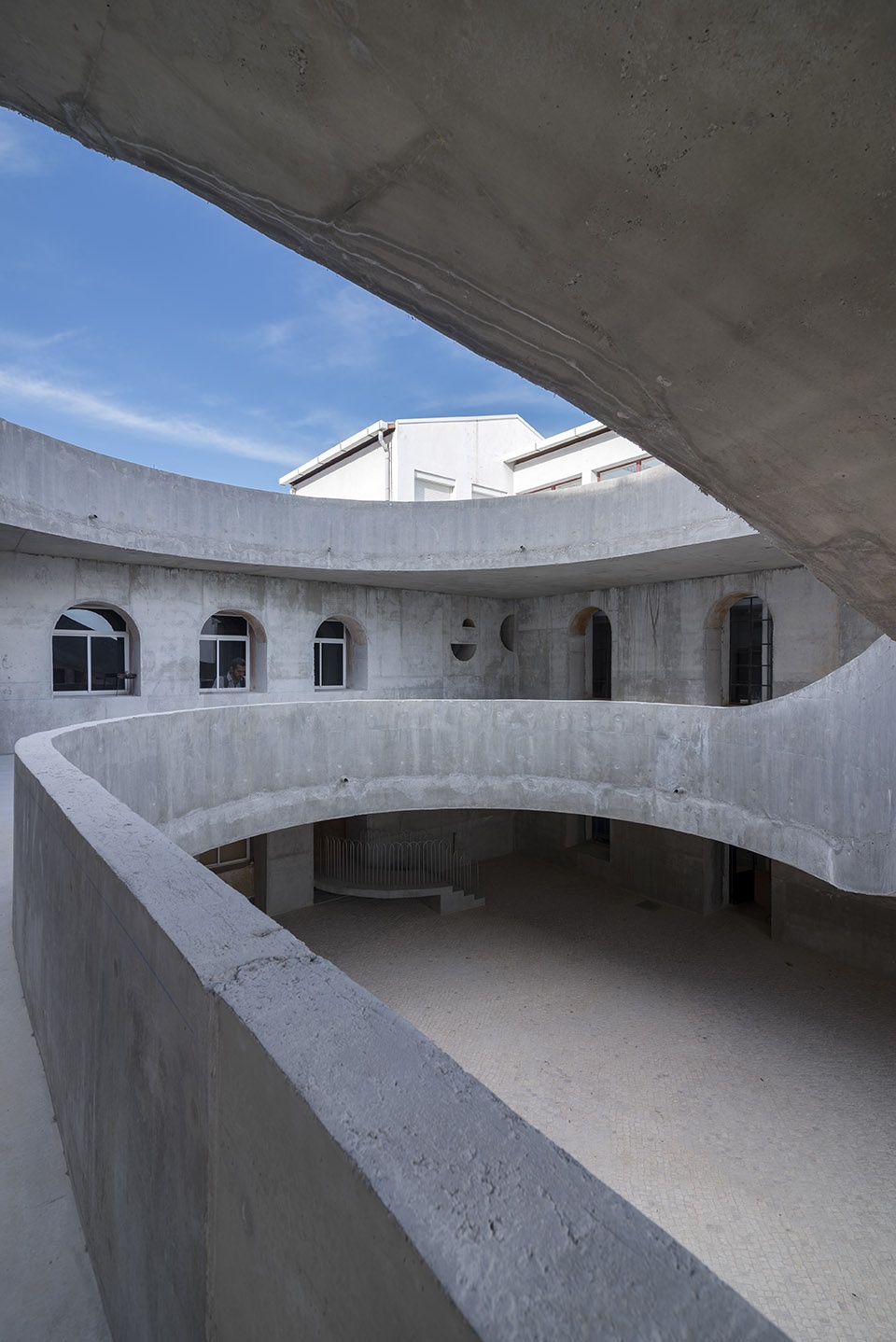

▼俯视庭院，
overlooking the patio ©Nicolás Díaz

▼光影与裸露的混凝土，
Light and shadow and exposed concrete ©Jesus Granada

原始而朴素的混凝土结构就如同一座没有肌肉和皮肤包裹的骨架，支撑结构的两堵墙连接到原建筑上，使坡道主体漂浮在周围的环境中，进而将地面空间释放了出来。本次改造设计为庭院赋予了一个全新的形象，同时以独特的建筑语言将突兀的缝隙空间融入到原有的建筑群之中。

▼承重墙体与原建筑的结合，The integration of load-bearing walls with the original building ©Jesus Granada

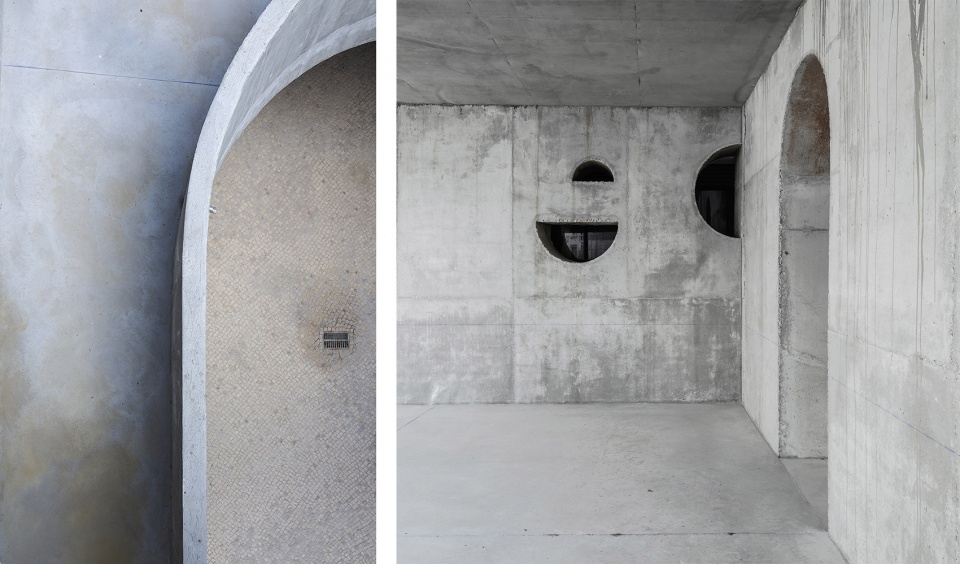

▼细部，details ©Nicolás Díaz / Jesus Granada

An architecture built only of bone, without muscles or skin. That floats from its perimeter releasing the ground, with two walls that are attached to the buildings, creating a whole a new identity for this courtyard, transmuting the existing gaps with another language.

▼航拍顶视图，top view ©Nicolás Díaz

▼底层平面图，ground floor plan ©DJarquitectura

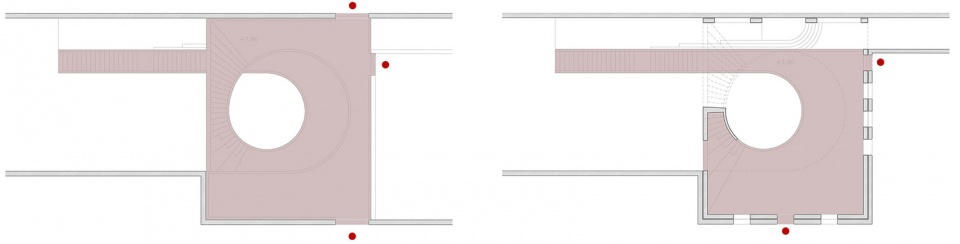

▼二&三层平面图，upper floor plans ©DJarquitectura

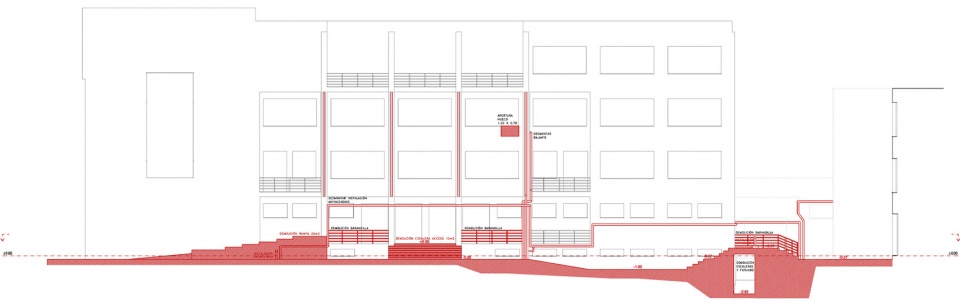

▼剖面图，section ©DJarquitectura

Title of the work: #revolucionenelpatio
1ª FASE DE OBRA DE MEJORA EN LOS PATIOS DE LA FACULTAD DE BELLAS ARTES DE LA UNIVERSIDAD DE MÁLAGA.
Authors and construction managers: DJarquitectura / Diego Jiménez López – Juana Sánchez Gómez/
Collaborate: Jorge Barrios Corpa /ingeniero de caminos/ Jorge Salguero Ropero /arquitecto/ Graziano Camelia /arquitecto/
Location: Patio de la Facultad de Bellas Artes, Campus El Ejido, Málaga
Promoter: Universidad de Málaga
Builder: C. Lasor, s.l.
Start date of the work: Julio de 2019
End date of work: 03 de diciembre de 2020
Builded surface: 570,85m2 de patio y 371,80m2 de tribuna plegada
Budget: 420.547,25€
Photographies: Jesus Granada, Nicolás Díaz y DJarquitectura
