Freundorf Villa / Project A01

非常感谢Project A01将以下内容授权gooood发行。更多请至：Project A01 on gooood
Appreciation towards Project A01 for providing the following description:

这栋住宅造型现代简练，折面与斜线的语言传递出一种欣欣向荣的动感，与此同时，住宅内也洋溢着平和安宁的格调。克制谨慎的用色突出了高品质的建设材料，精心种植的植物同田园景观融为一体，并渗透进内外丰富但却单纯的住宅中。

这栋住宅位于奥地利维也纳附近的一个村庄。建筑主体结构为混凝土，其白色折面造型现代时尚，宽敞的庭院内有阔气的泳池。巨大的花园延伸至远方，消失在田野中。

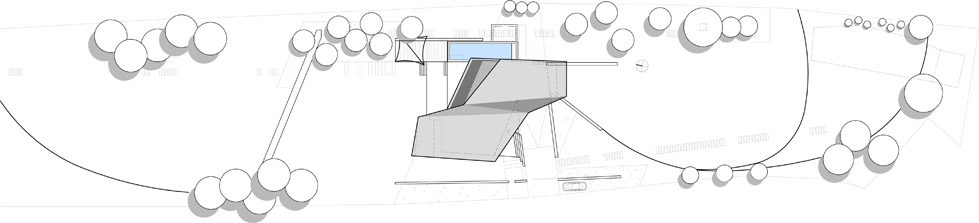

A monolithic residence has been built for a young family in a village close to Vienna.On an exposed hillside plot the residential building is positioned as a solitaire. The sculptural object is surrounded by a generous garden designed by the owners gardening company.

The spacious garden merges into the surrounding fields and the natural site.

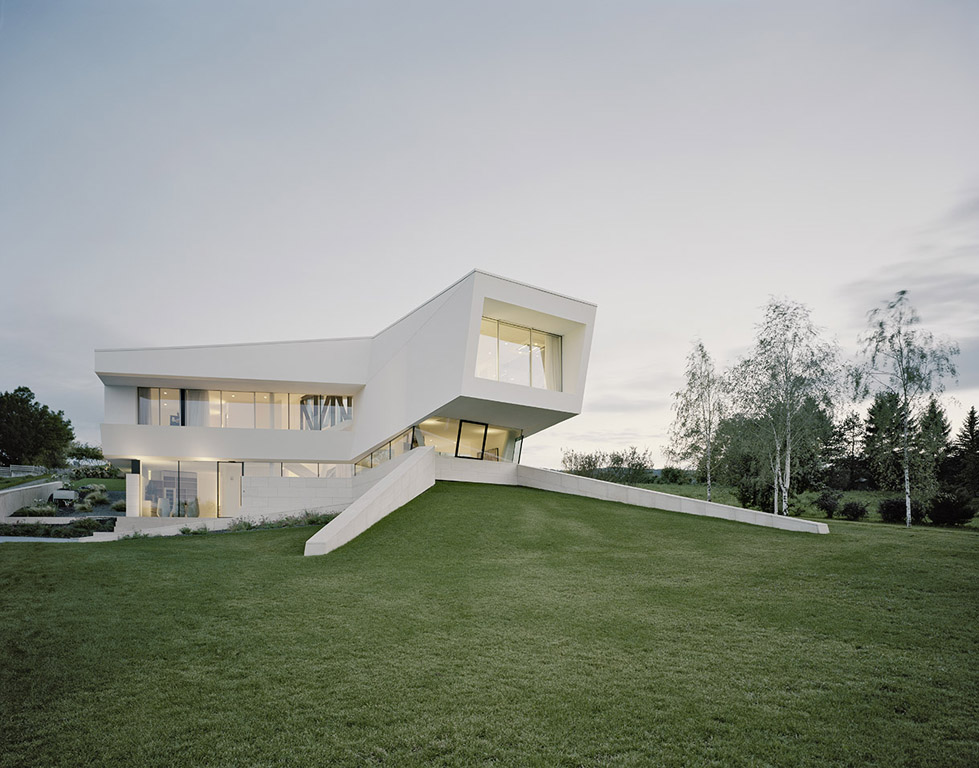

▼ 外观，白色建筑仿佛趴在一个坡上，坡下是地下层。

建筑主体可以看成南北两个体量组成，每个体量有两层，体量间标高稍微错开，通过楼梯相连，形成四个错层。地下室是车库和储藏室。南侧入口进入，首先是客人接待区，通过楼梯上到北侧地面层，这里是主要的起居空间和餐厅厨房区域，室外是带游泳池的院子，然后在上楼梯到南侧的二层，这里主要有儿童房和客房。最终，楼梯终止在第四个错层，北侧二层—主卧和SPA区域。

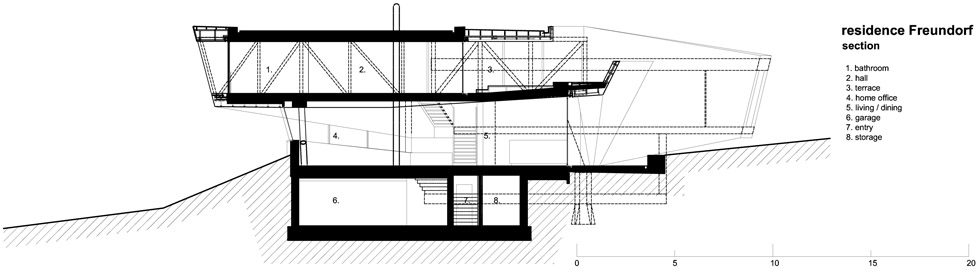

The main body of the building consists of two mutually shifted elements which follow the slope from north and south. By the horizontal displacement a high air space, forming the entrance and the central opening, is produced between the elements.

The building consists of a basement and a ground level, integrated in the landscape and the above-seated upstairs building.

The basement includes the garage and storage rooms, half floor up is the entrance area with open wine lounge. The open air space opens up the higher-lying residential area of the ground floor . The spacious room includes an open kitchen and a separate work area.

The front terrace offers direct access to the garden and pool area.

In the south-facing building part is the children´s and guest area located, in the north the cantilevering structure contains the master bedroom area with a terrace in front .

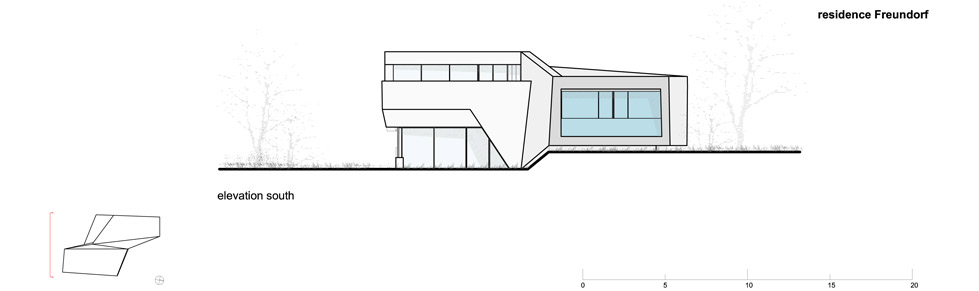

▼ 南立面

▼南立面

▼ 入口和地下停车场入口

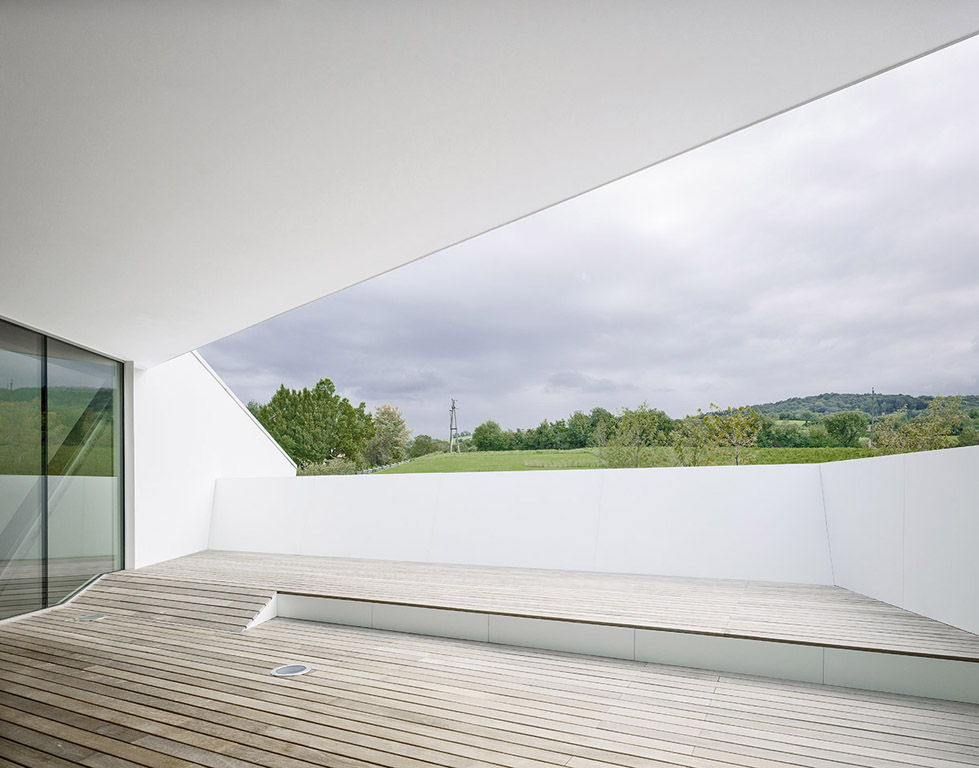

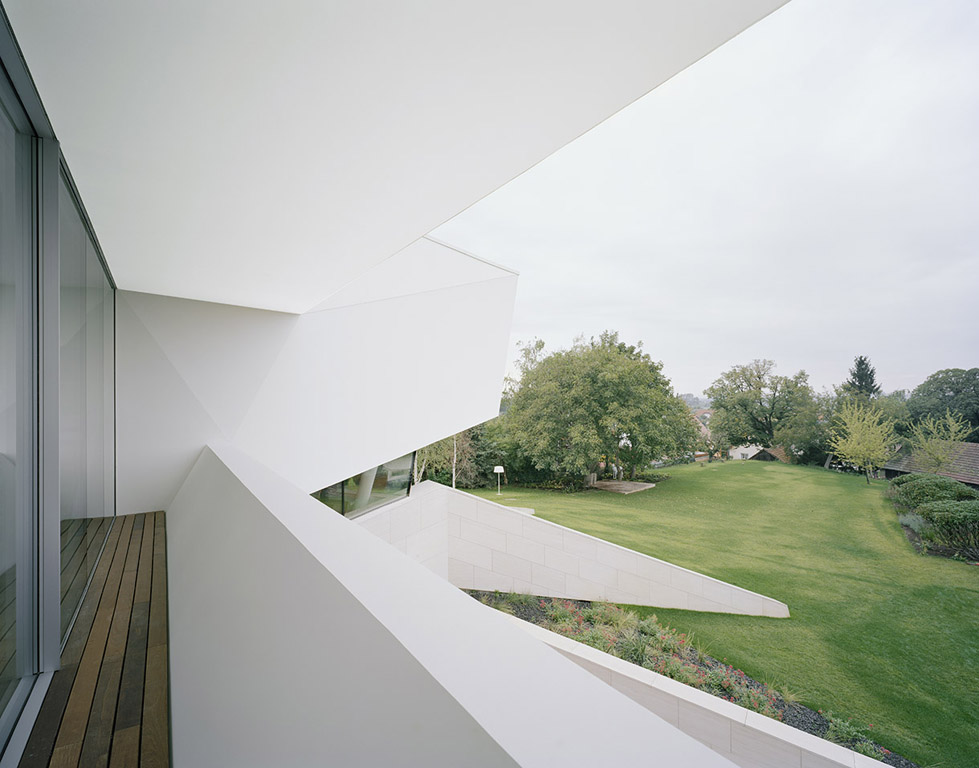

▼ 从南二层的客房阳台往外望

The main construction is designed as a reinforced concrete construction. The floor structure rests on composite columns and is reinforced with a truss structure of steel.

The facades of the main building structure are designed as a cladding system, with floor to ceiling glazing. The visible external walls of the base are partially covered with a Portuguese limestone.

The roof is designed as a membrane roof, the projecting area in the north covered the entrance area.

▼ 从北二层的主卧外的露台朝北看去

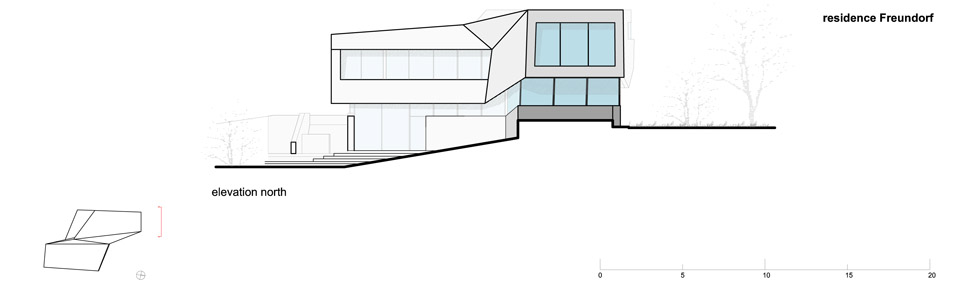

▼  北立面

The garden with a pool is zoned and offering with a big terrace area, directly connecting the pool to the house. Different zones are
generated and offer a sandy beach area, a party lounge and a play ground for the kids. The high-quality planting is positioned very
well and thus the vastness of the land is maintained.

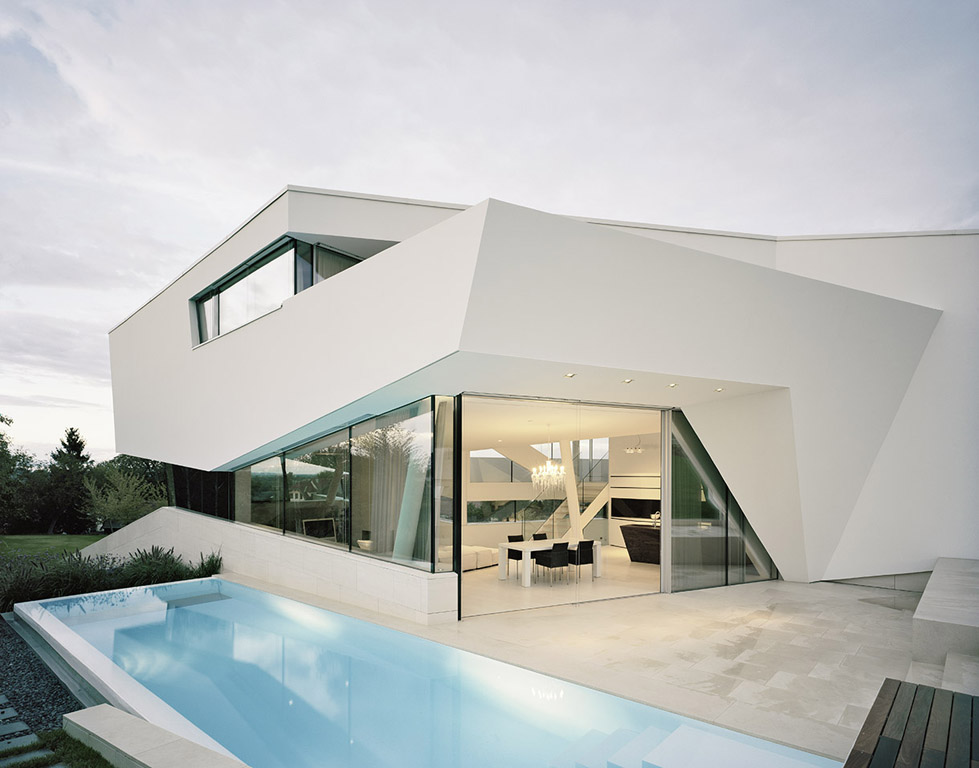

▼  与起居室联系的北侧庭院

▼落地窗被打开后，室内外连成整体

▼ 大露台联系泳池，高品质的植物种植生长良好，精心搭配的庭院灯就像是客厅的落地灯，营造出室外客厅的氛围。

▼ 室内外无缝相连。灯光设计也相当用心。草坪灯的选择把花园变成了室外客厅。

Inside dominate reduced colors and high quality materials.
The open fireplace with a concrete block accentuate the open living room.
The open staircase works as a split-level solution and thus connects all areas of the house.

▼ 建筑的结构是混凝土结构加上钢桁架结构，结构都被包裹起来。其中浅色的葡萄牙石灰石被大量的运用在项目中。

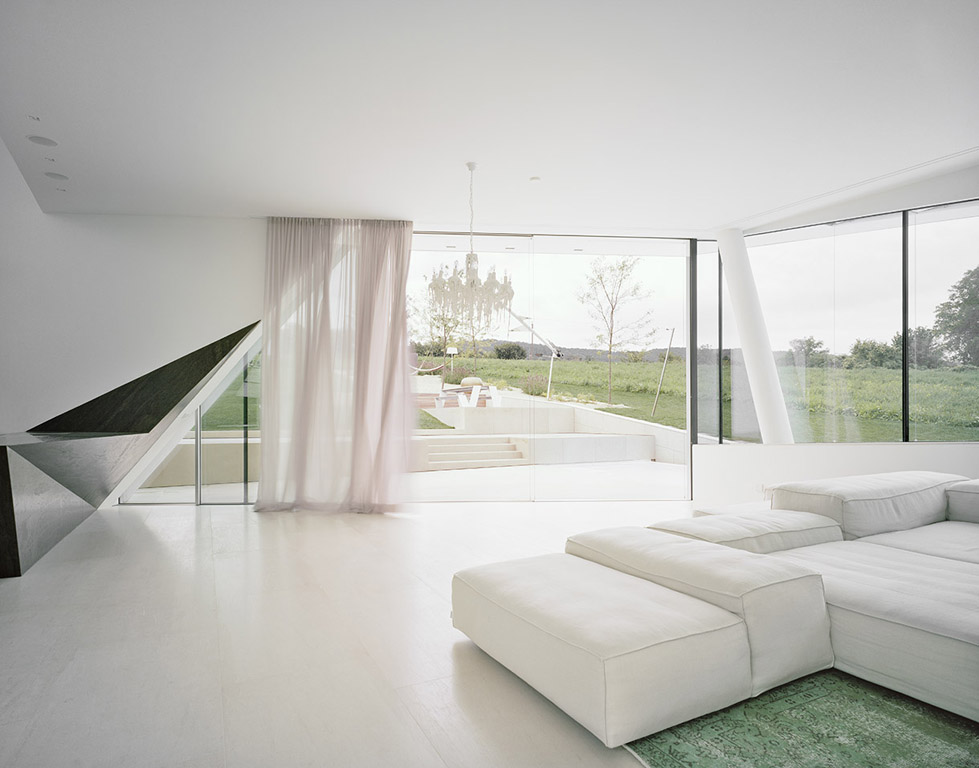

▼ 起居室。谨慎用色，突出高品质材料

▼ 起居室中开放的壁炉，材料是暴露的混凝土

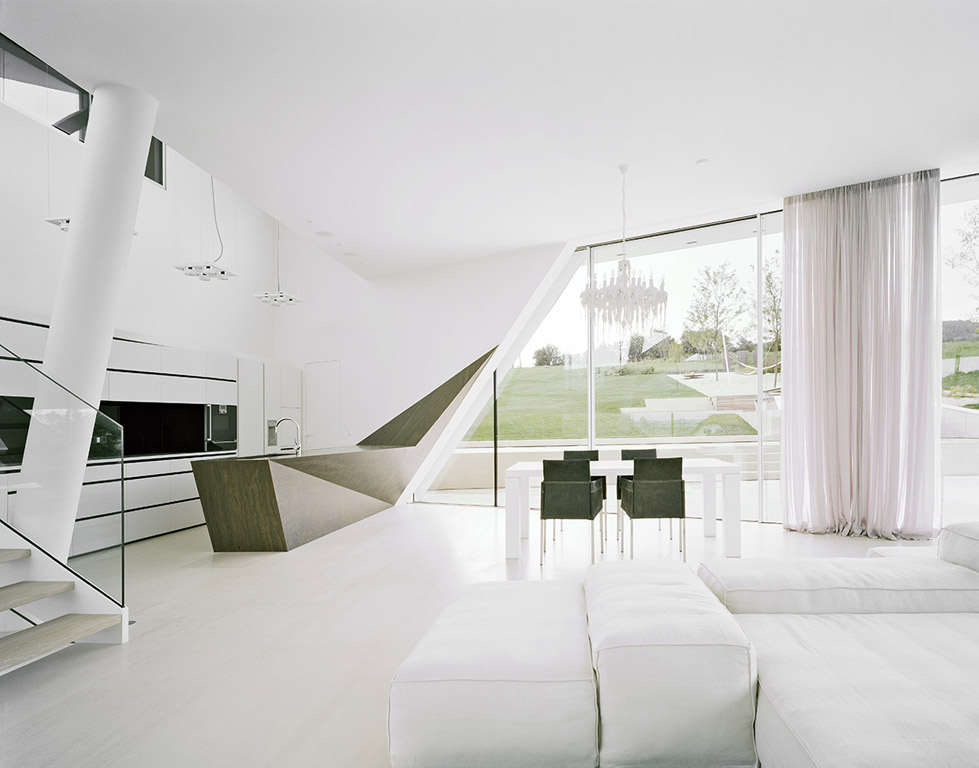

▼开放的厨房，餐厅与起居室。谨慎用色，突出高品质材料。

▼ 开放的楼梯联系各个错层

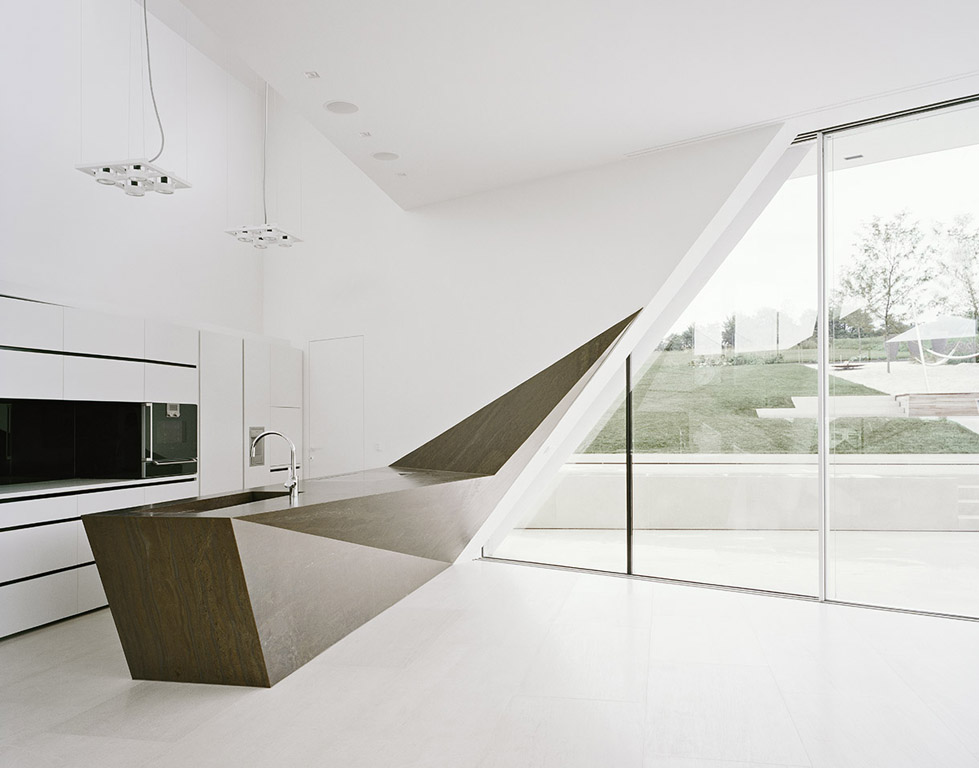

▼ 定制的厨房操作台与建筑语言协调

▼开放式壁炉位于客厅中部，钢结构穿插在建筑中，成为建筑语言的一部分。

Particularly striking is the upper floor of 40m ² with a large spa and dressing area that combines these two functions and offers a fantastic view .

▼顶层面积有40平房米，带有大更衣室，非常梦幻的SPA空间

Design + Interior design: project A01 architects, ZT GmbH Arch. Andreas Schmitzer Mariahilfer Str. 101/2/27
Designteam project A01 : Arch. D.I. Andreas Schmitzer Mag. Arch. Judith Schafelner Arch. Eleonora Gallenzi
garden design:
Kramer und Kramer, Garden design

floor space:
KG: 126,1 m²
EG: 147,5 m²
OG: 49,8 m²
overall: 356,4 m²

constructed area:
229,8 m²

property size:
2839,3 m²

design start: 2010
completion: 01. 2013
