Roc Von Restaurant / VTN Architects (Vo Trong Nghia Architects)

来自Vo Trong Nghia Architects 对gooood的分享。更多请至: Vo Trong Nghia Architects on gooood
Appreciation towards Vo Trong Nghia Architects for providing the following description:

建筑位于连接河内和华平的主要道路旁, 距河内约30千米。这里是河内居民一日休闲游的好去处，而长途旅行的大巴和小车也常常会选择在此停留休息。

The building is located 30 km from Hanoi, besides the main road connecting Hanoi and Hoa Binh. This area is popular for stopover of buses and cars in order to enjoy and have a rest long journey and also it is a destination for Hanoians to enjoy one day trip.

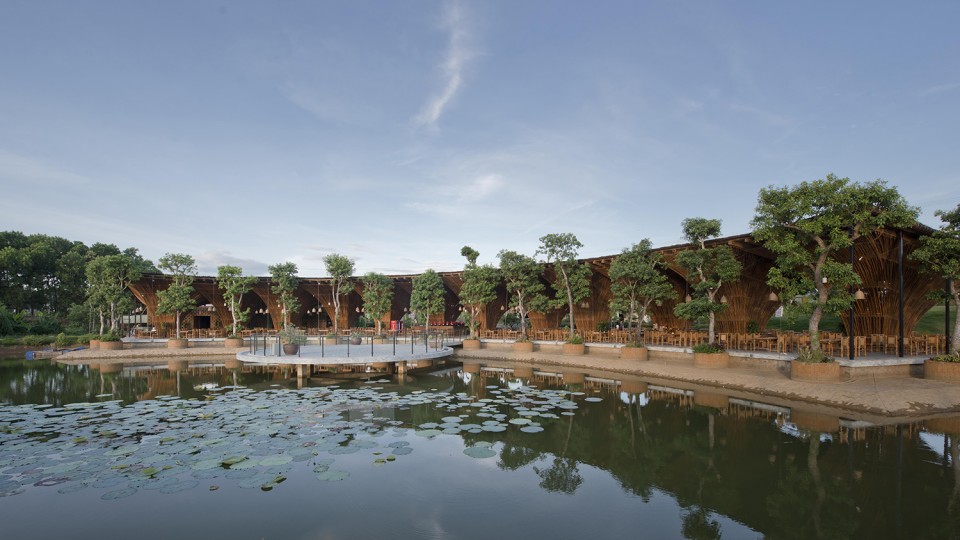

▽ 曲线的平面环绕着湖面中心举办活动的舞台, the curved plan with center stage is prepared for events usage

餐厅毗邻着道路，为了创造出一个私密空间并且让顾客免于被主路上繁忙的交通打扰，餐厅的地面微微下沉，略低于道路。从繁忙的主路步入竹子拱顶之下的就餐区，一片天然湖泊便出现在了眼前。十二丛向上“生长”的竹子支撑着屋顶，形成了半室外的就餐区。曲线的平面环绕着湖面中心举办活动的舞台，同时也营造出一种亲密的氛围。

The restaurant is located right next the road. To create an intimate space and protect guests from the busy road the floor of the restaurant is designed lower than the road. After stepping down from the busy road to the dining space, the guests are facing to a natural lake with a bamboo arches above their heads. The 12 bamboo columns with the shape spreading upwards are supporting the roof structure of semi-outdoor dining area. The curved plan with center stage is prepared for events usage at the same time giving embracing intimate atmosphere.

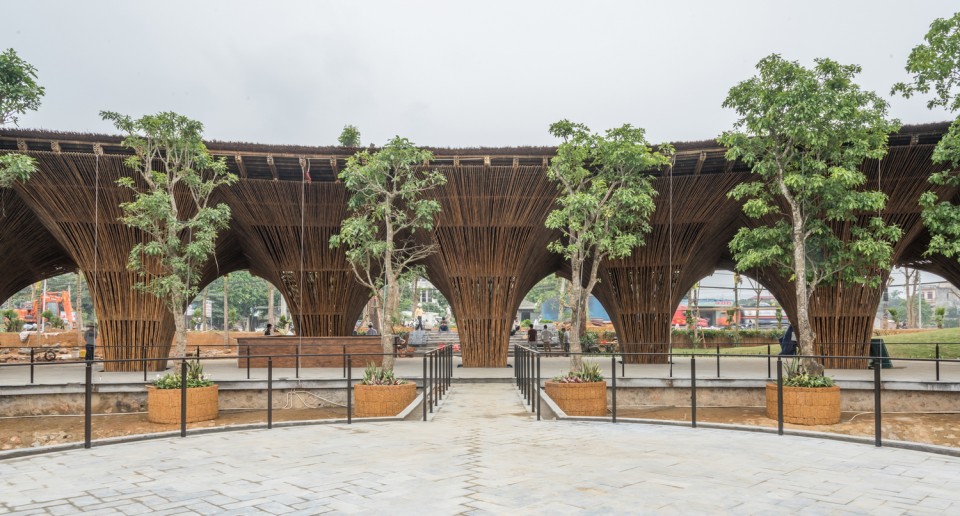

▽ 微微下沉的建筑空间，a place lower than the road

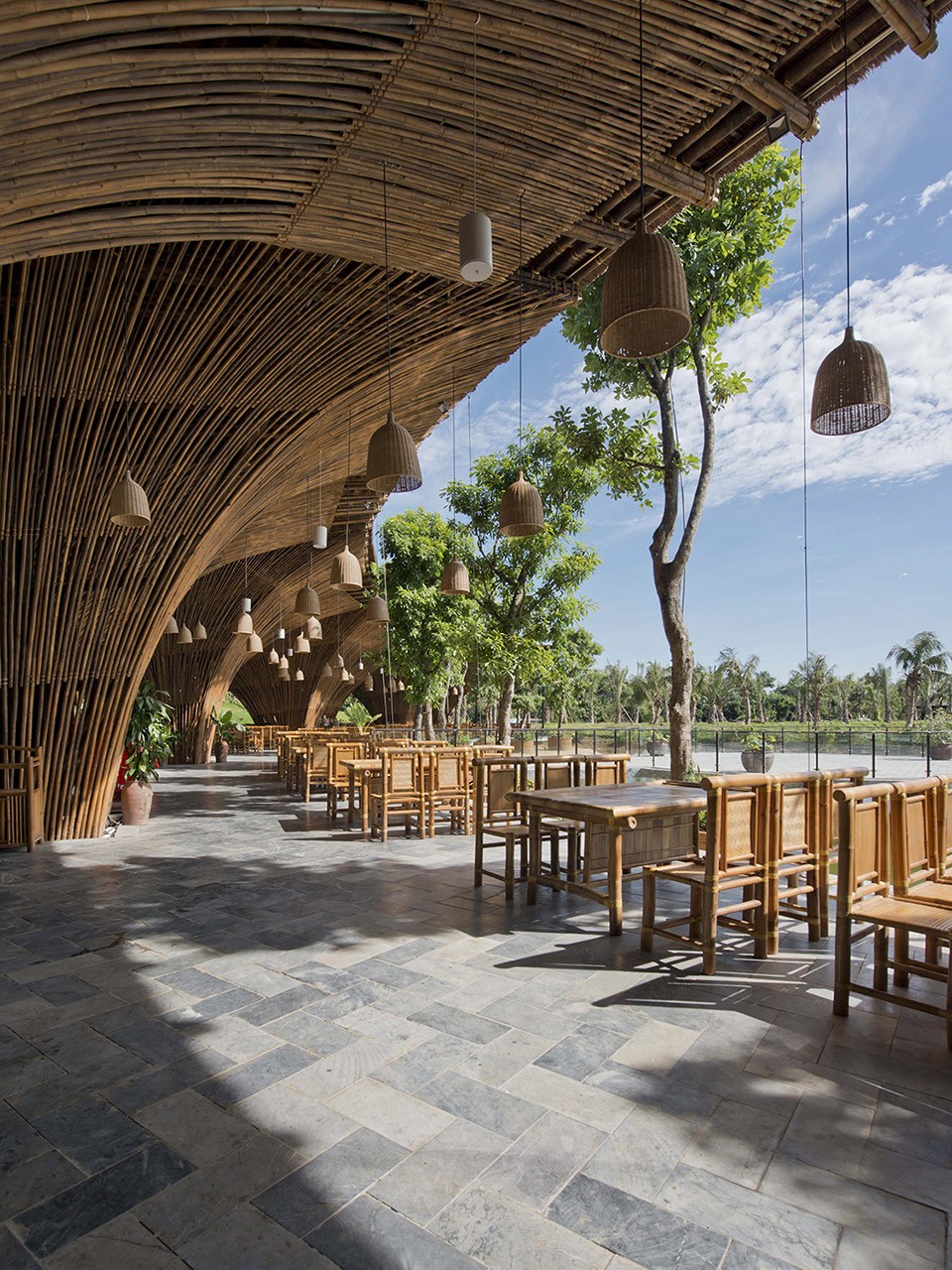

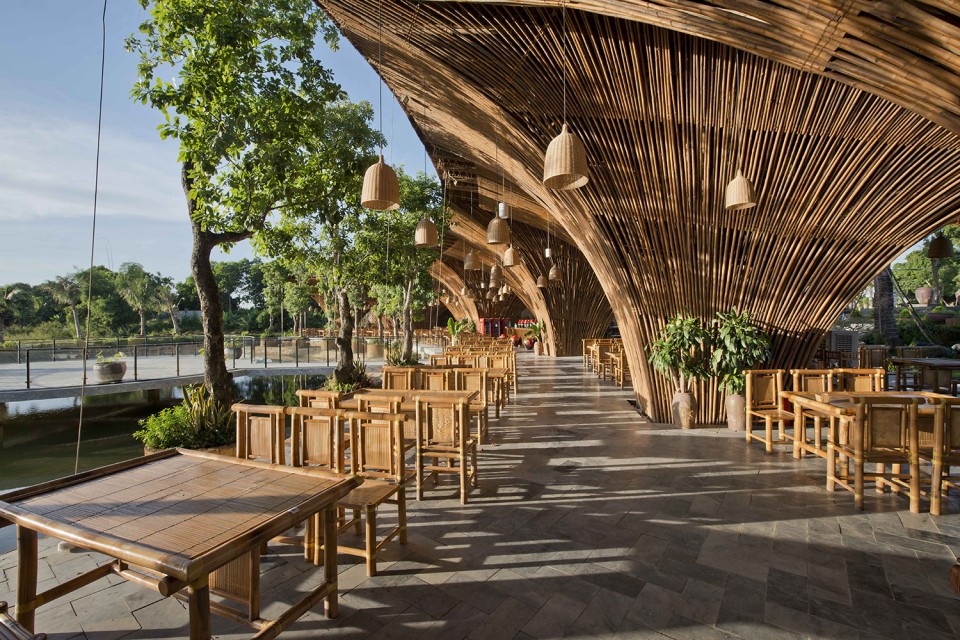

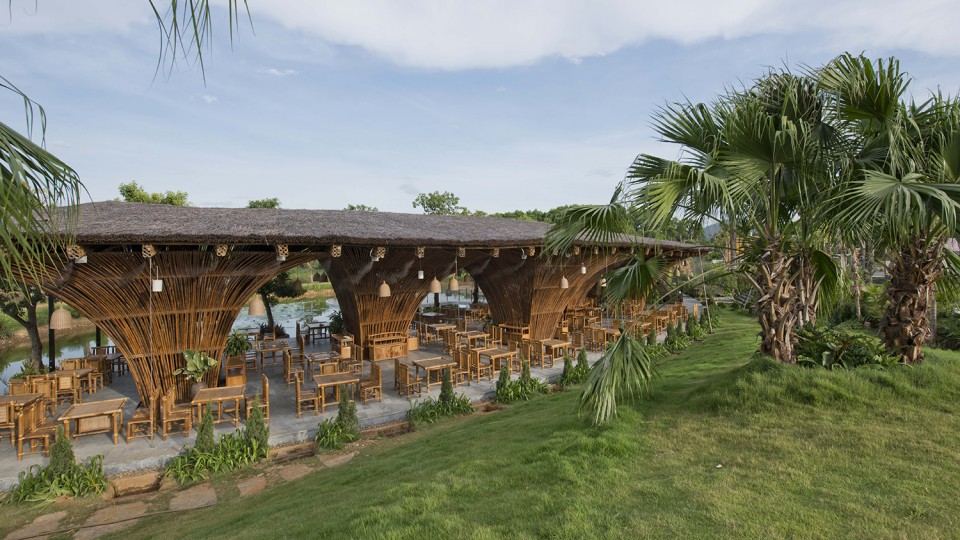

▽ 半室外的就餐区, semi-outdoor dining area

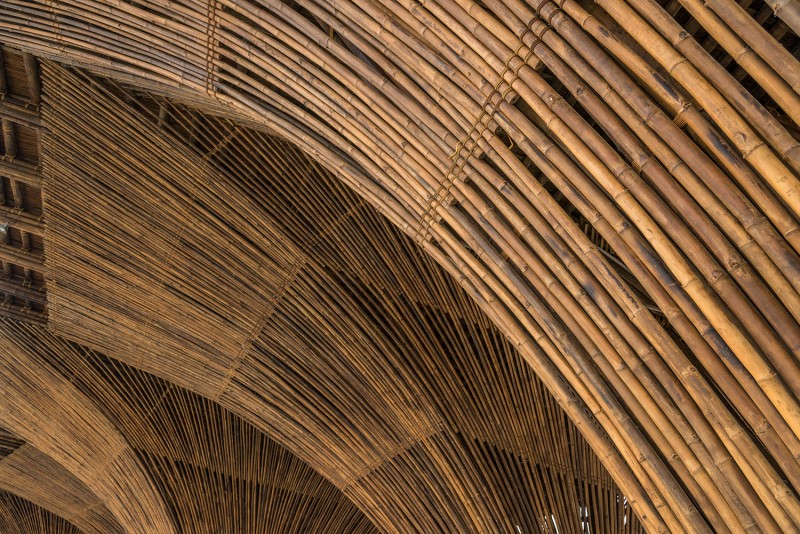

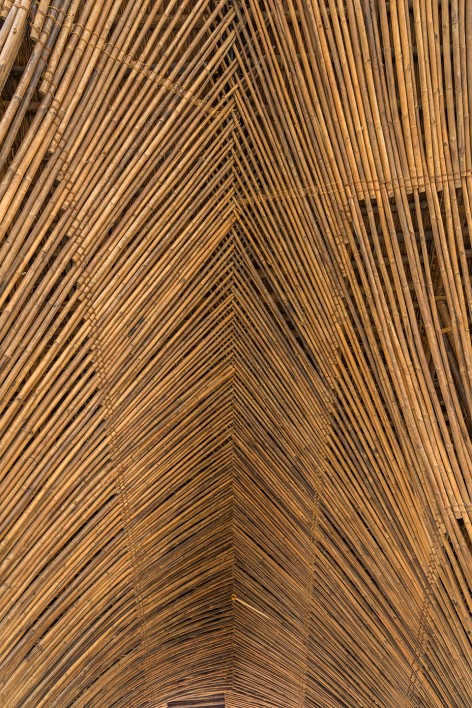

建筑师采用了Tam Vong和 Luong两种竹子建造竹桩，它们不同的材质特性对建筑结构至关重要。越南人用自然传统的方法让竹子达到高质量高耐久性的建筑材料要求。这种自然的处理方法也有助于建筑的可持续发展。

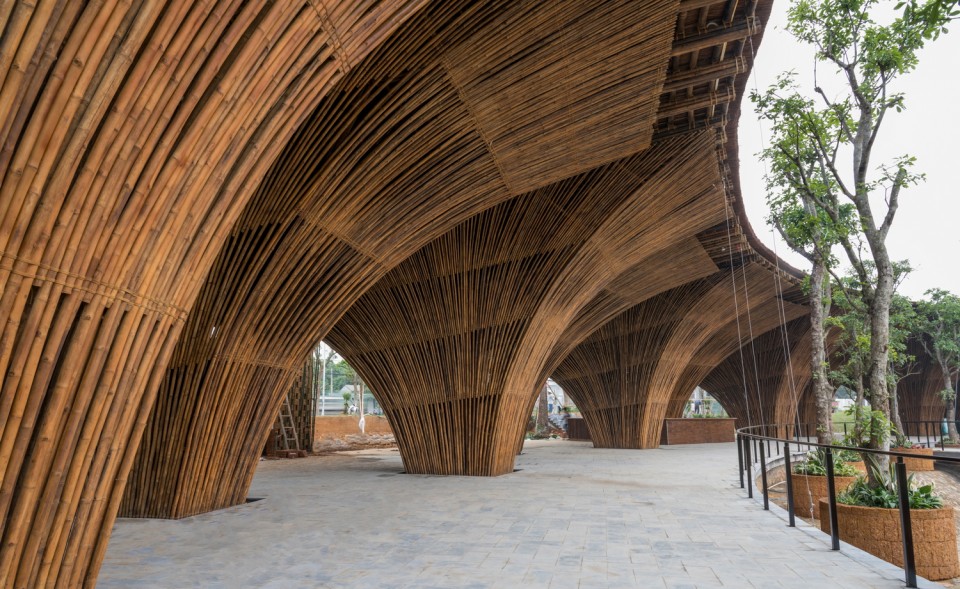

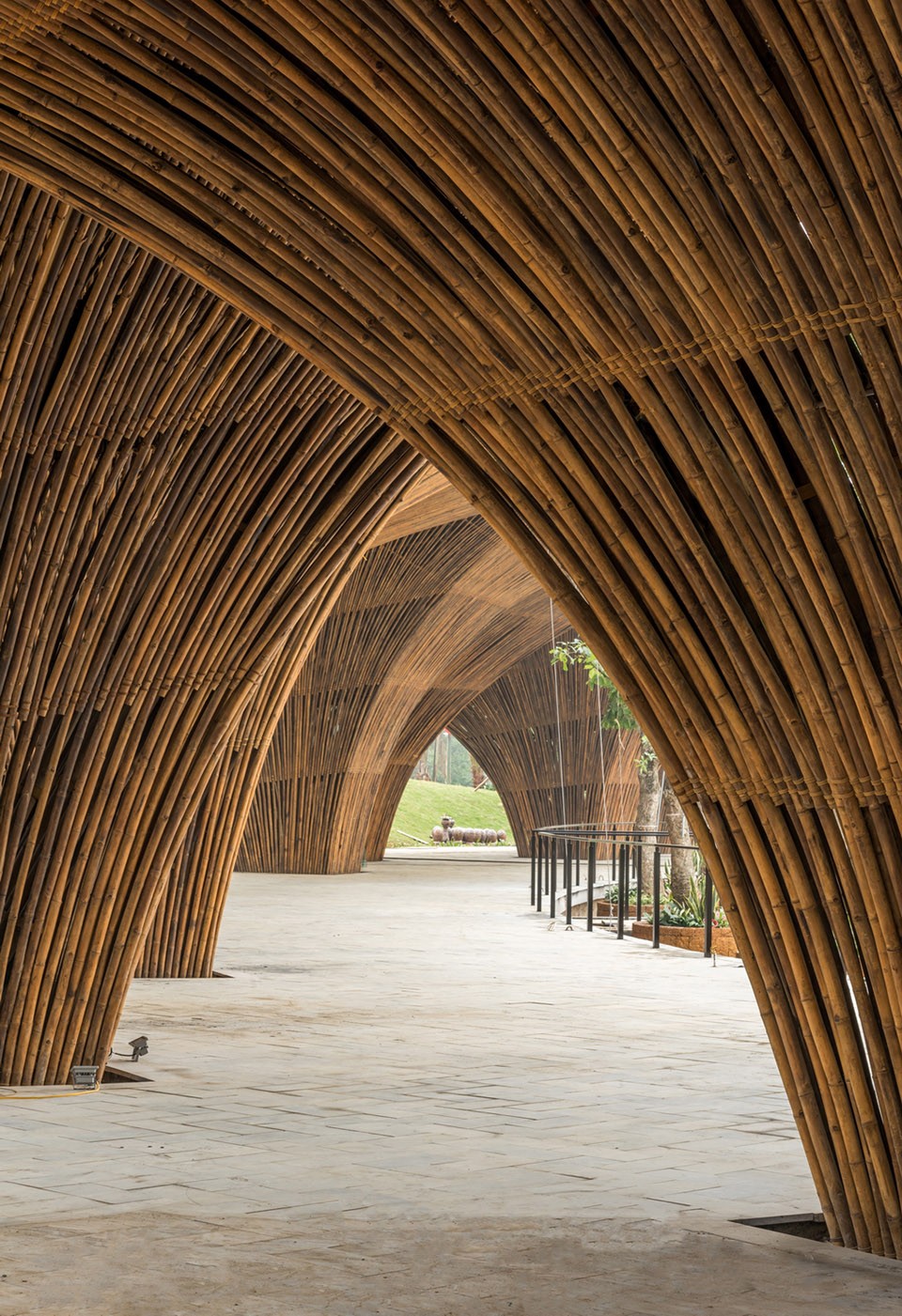

For the bamboo columns we have used two different bamboo species – Tam Vong and Luong. Each of them provides different material qualities which are crucial for the building structure. The bamboo has been treated by Vietnamese natural traditional method in order to reach the high quality and long term durability of the material. The natural treatment contributes to a sustainable building approach as well.

竹桩下的空间满足了自然通风的要求，并且邻近的湖泊湖水蒸发也让这里更加清凉。后勤服务区域位于一栋单独的建筑之中，墙体以一种地域特殊材料-红土砖搭建而成。这些橘色的土质砖同竹子结构一起表达了传统的地域性建筑语言。建筑提供的空间让人们可以感受到与越南北部地域文化的强烈关联。开敞空间的运用和自然材料的使用让互联互通成为可能。

The space under the columns is naturally cross ventilated and a cooled by evaporation of water from the adjacent lake. The support area is separated building volume with the walls cladded by a local material – laterite blocks. These orange colored soil blocks express traditional in the area together with the bamboo structure. The building provides the space where guests can feel the strong connection to the local culture of the North Vietnam. The application of an open space and usage of natural materials meet the required connection.

▽ 施工过程，construction phase

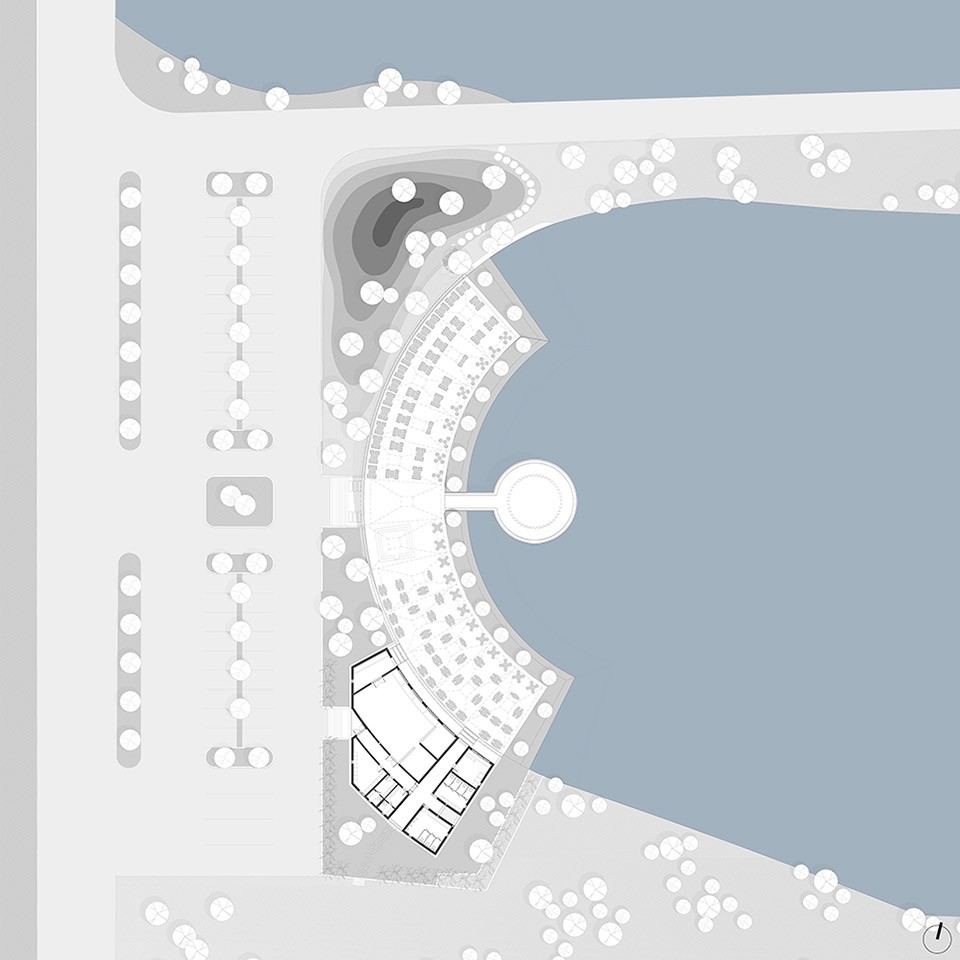

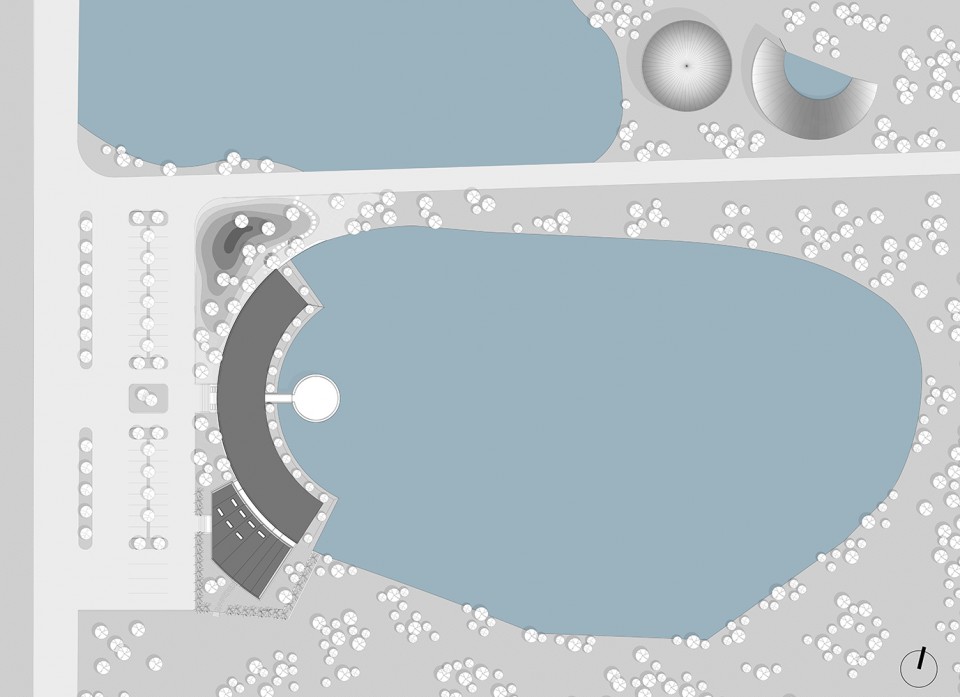

▽ 总平面图，site plan

▽ 平面，plan

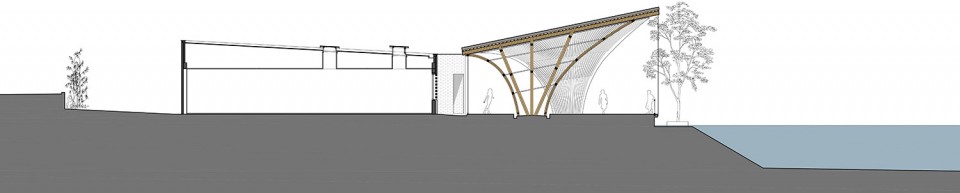

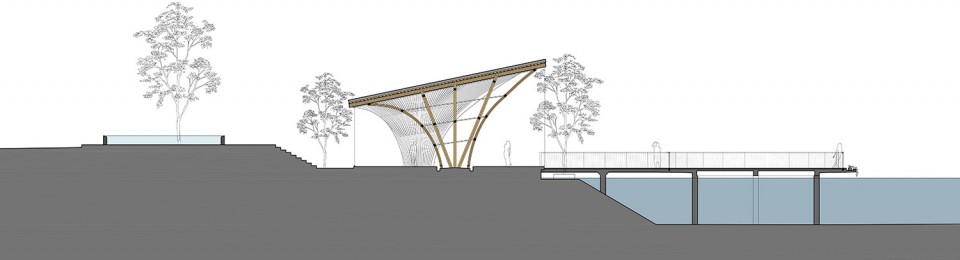

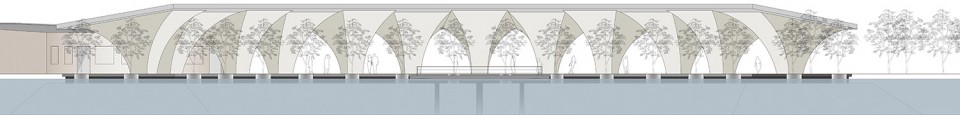

▽ 剖面，section

Architect Firm: Vo Trong Nghia Architects
Principal Architect: Vo Trong Nghia, Takashi Niwa
Design Team: Mai Lan Chi
Bamboo manager: Nguyen Ba Tuong
Contractor: La Vong group JSC.
Bamboo Construction: Vo Trong Nghia Architects
Status: Built in 04. 2015
Program: Restaurant
Location: Xa Phu Cat, Huyen Quoc Oai, Hanoi, Vietnam
Site Area: 6,560 m2
GFA: 1,100 m2
Photographs: Le Anh Duc (AIF Studio), Hoang Le Photography
Client: La Vong group JSC.
