项目背景 | Project Background
The project is located on the second floor of happy harbor, Bao’an District, Shenzhen city. The whole building is a commercial complex building. The building is streamlined in shape. There are several types of oval large public spaces in series, with rich and interesting spatial changes. The green space landscape in the middle of the building is lined with merchants on both sides. People walking in the building is like entering a “modern architectural Canyon”,. This project is met petal met patal’s second store after Beijing store. The site has a large area of lighting facing southwest. There is a large outdoor terrace of nearly 150 square meters. Standing on the terrace, you can see the shallow bay of Shenzhen.
▼项目一瞥，preview © 金伟琦
场力 | Forces

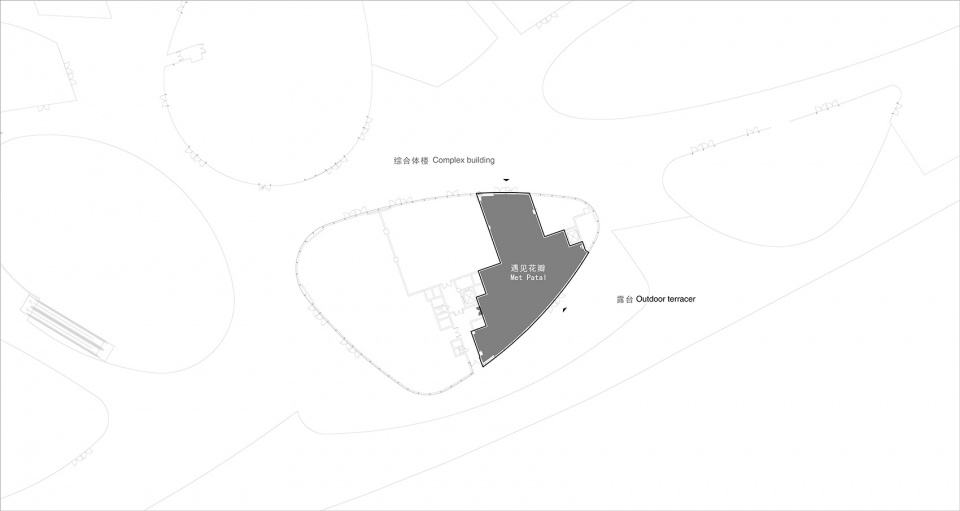

▼总平面图，site plan ©Linkchance Architects
1.Vitality of the city: Shenzhen is becoming a magical super metropolis. Public buildings and ecological landscapes of different sizes and contents are constantly completed. It is the main battlefield for domestic or international architects to compete with architectural firms. It is inclusive, diverse and full of vitality;
2.The external space tension of the site: outdoor terrace, seaside undulating landscape and Shenzhen shallow bay. On the whole, the order of the three spaces is from high to low, extending from the city to the bay. Standing on the terrace, people can’t help looking to the seaside as if they are in the “Canyon” highland.
3.Internal Canyon space construction: since the main entrance of the site is located on the inner side of the whole building, and the secondary entrance (connecting with the grand terrace) is on the outer side of the building, people’s action line will inevitably “flow” from the inside to the outside, so we create an attractive Canyon sequence space.

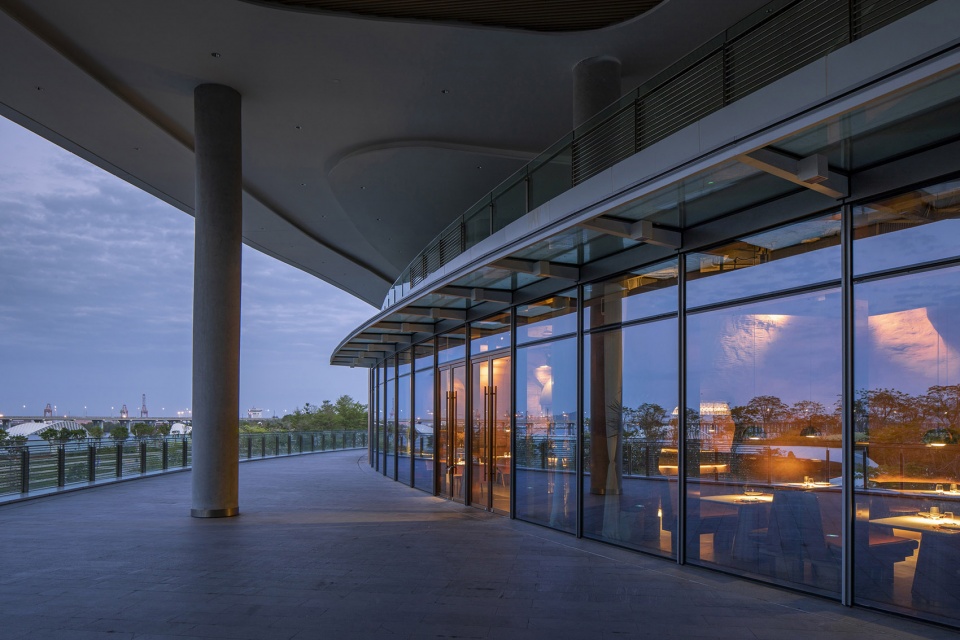

▼户外露台立面，outdoor terrace © 金伟琦

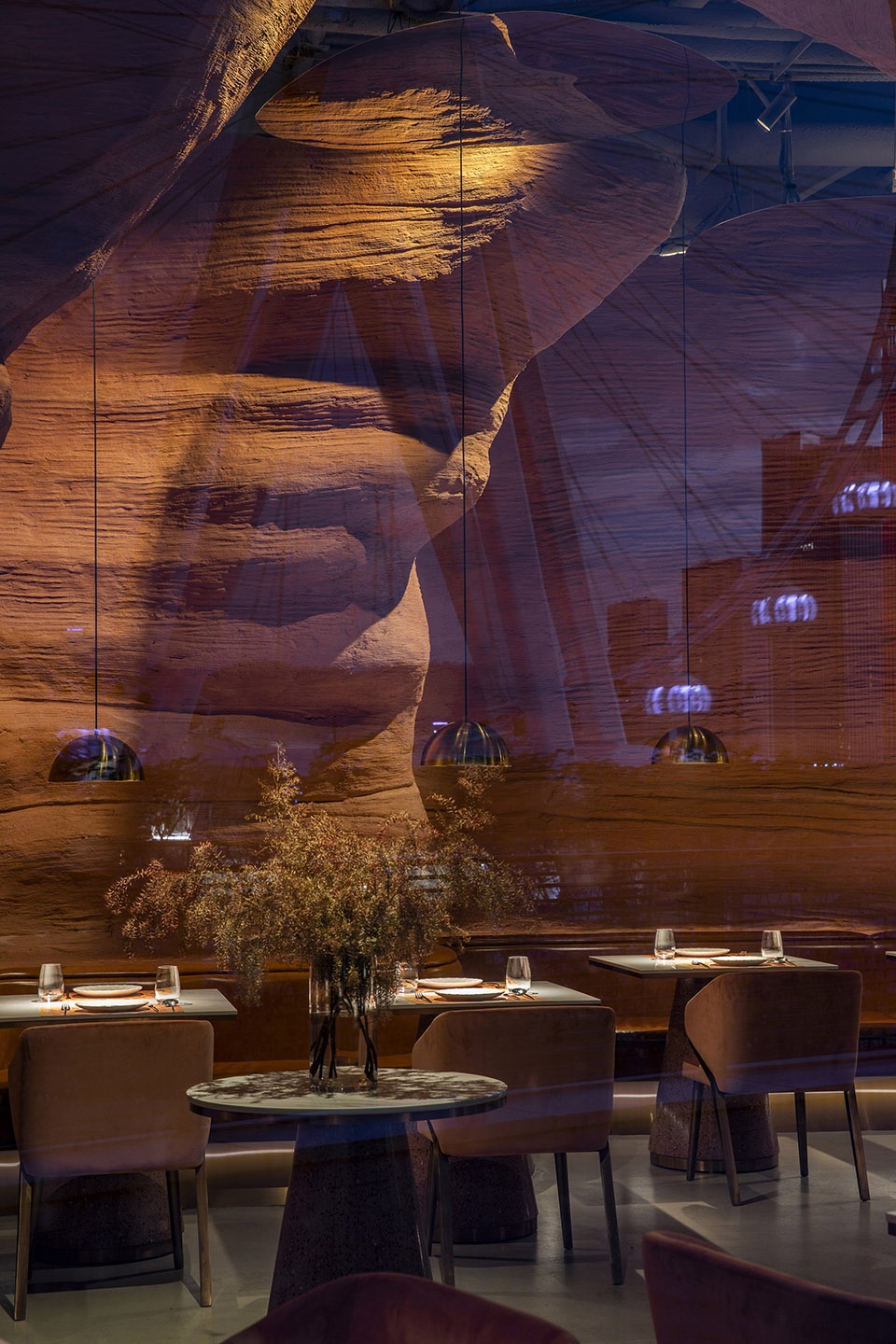

▼透过玻璃向内看，view through the transparent facade © 金伟琦
挑战 | Challenge
How to balance the representativeness and abstraction of Canyon space modeling? Too abstract, too smooth, too modern and lack of primitive power, too concrete, easy to make the so-called “amusement park” effect; How to effectively control and realize the original space conception technically; How to realize the balance between the original sense of power and the modern sense; How to carry out experiments with craftsmen on coloring decorative concrete.

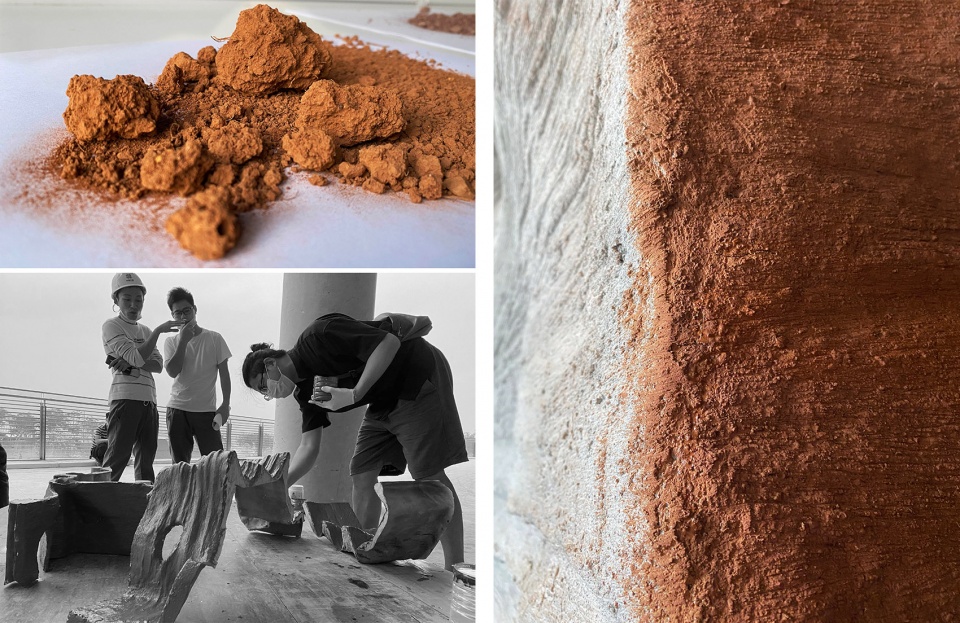

▼红土颜色研究 & 混凝土着色实验，experiments with craftsmen on coloring decorative concrete ©Linkchance Architects
力场 | Vibes
“Canyon” force field construction: when people enter the entrance of the field, first of all, a buffer space is used as the reception area, and the right side of the entrance is the guide platform for daily guidance and reception; The left side is the opening of the “Canyon”. Standing at this end, you can see the natural light coming in from the terrace at the other end of the canyon. At the same time, an oval bar will appear at the end of the line of sight. The upper part of the bar is a metal cover, which is illuminated by light. Looking from afar, it is very smooth and modern, which will arouse people’s interest in further exploration;

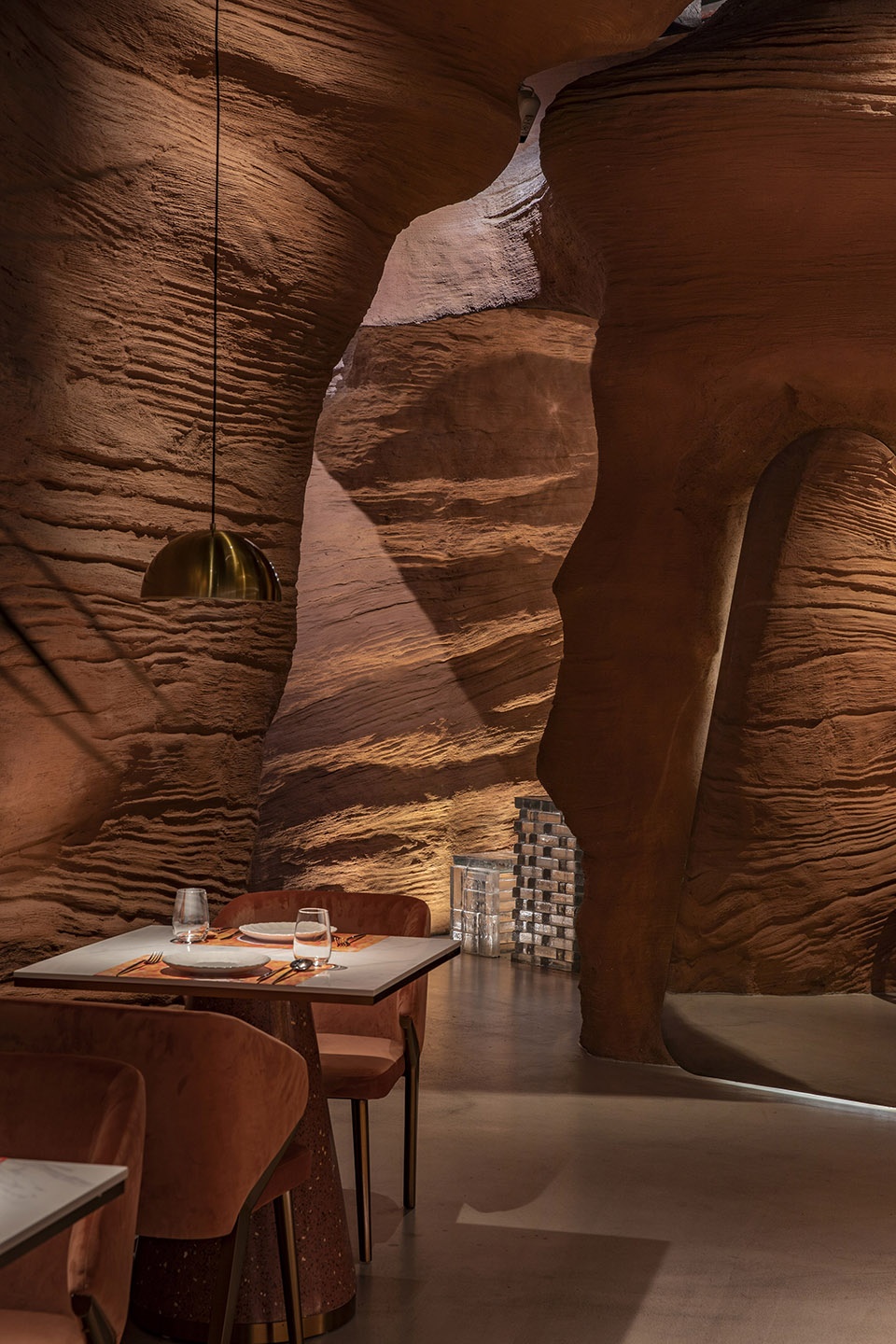

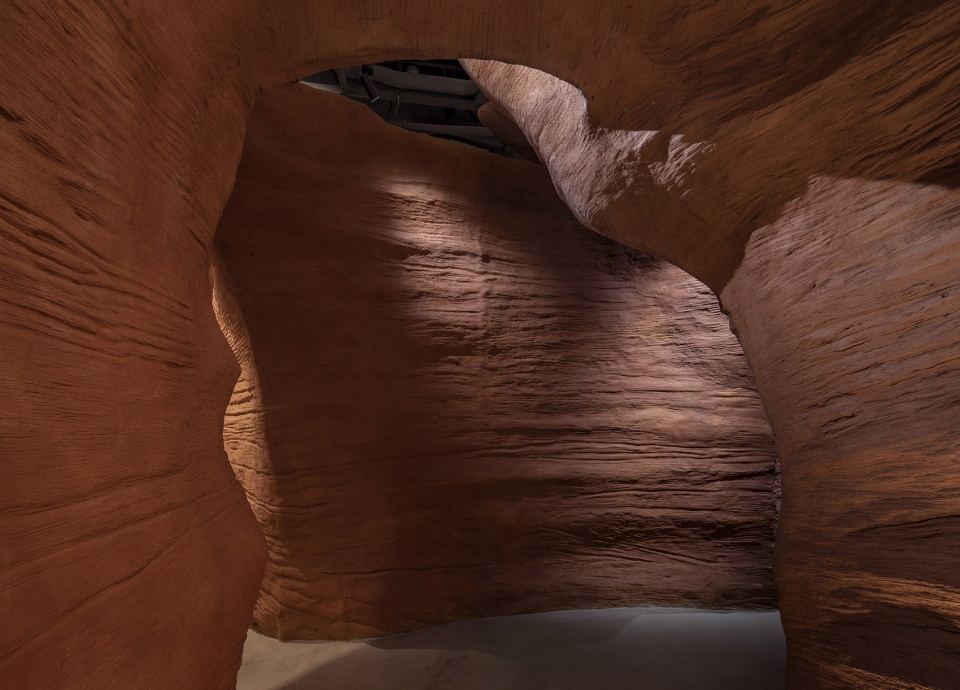

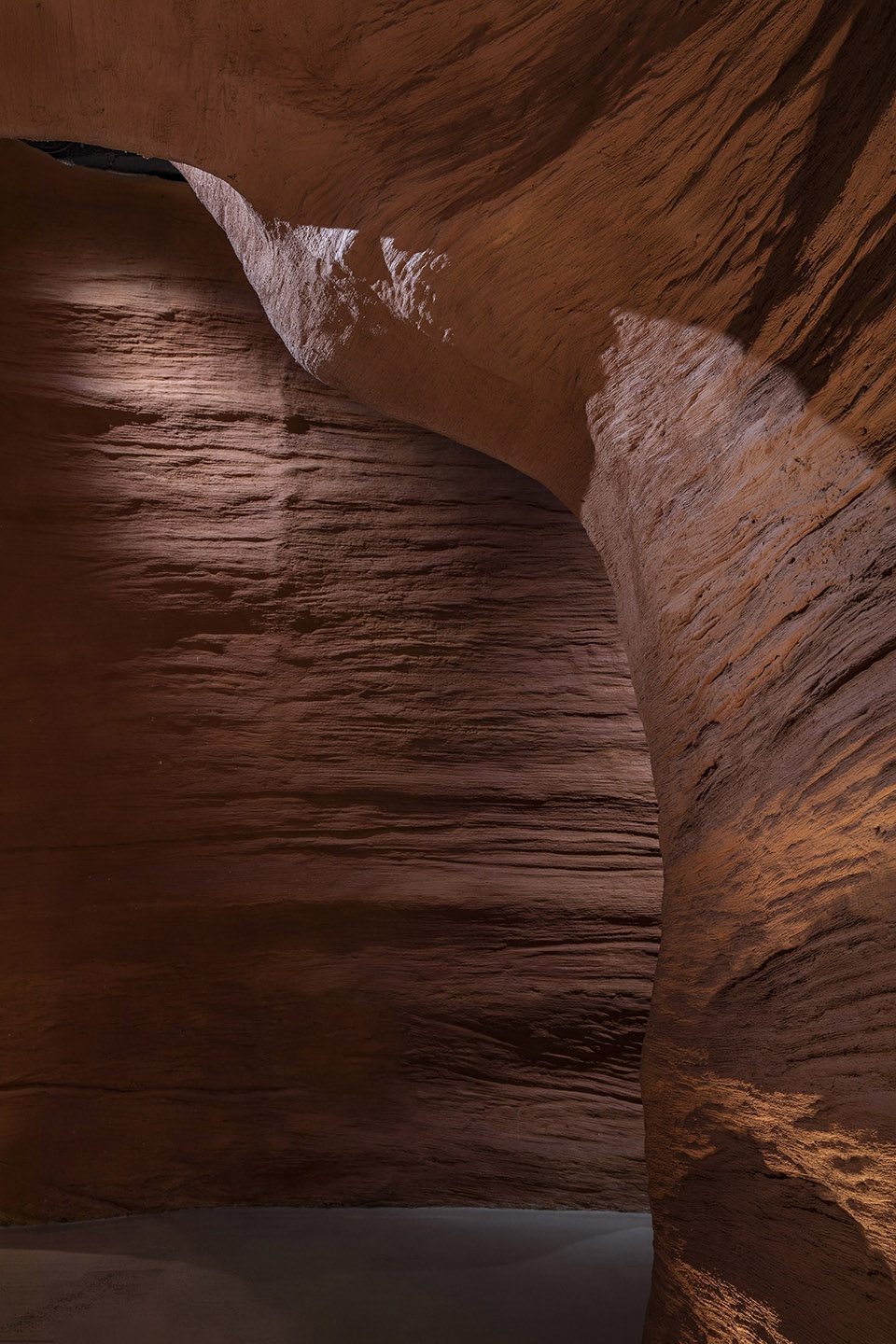

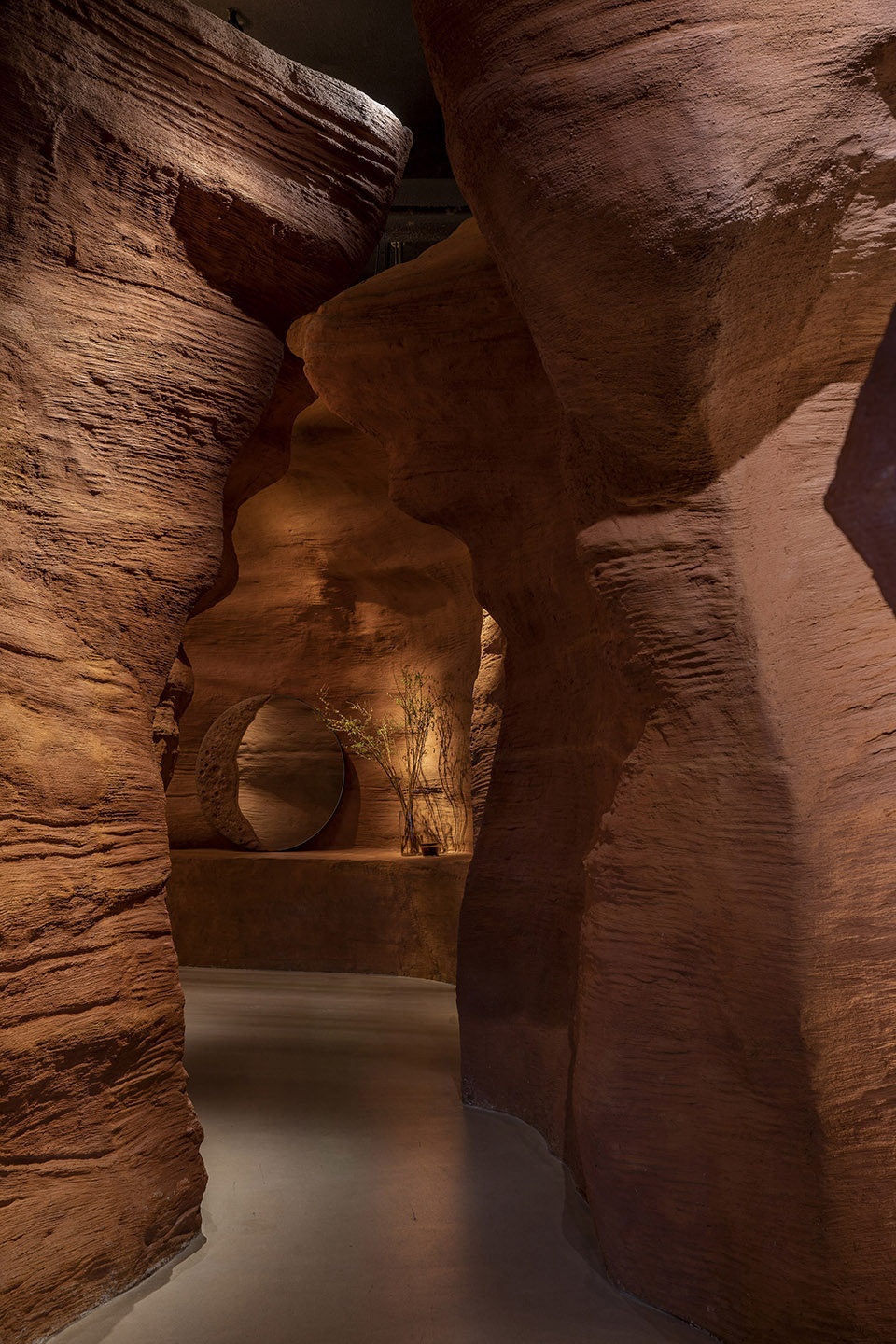

▼峡谷空间，the “canyon” space © 金伟琦

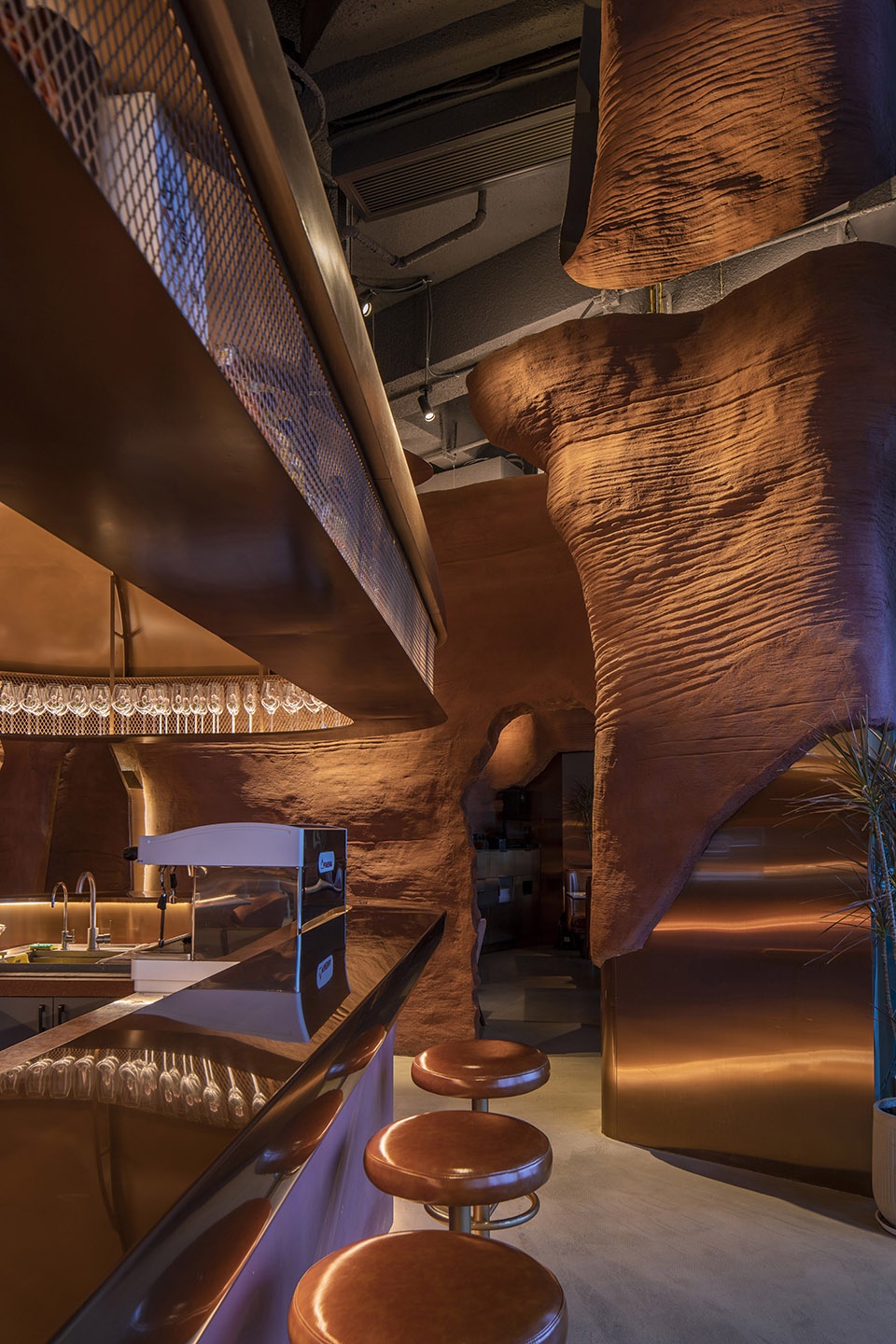

▼吧台区，bar area © 金伟琦
▼金属吧台与粗糙墙面对比，the metal bar contrasts with the rough wall © 金伟琦
The narrowest part of the passage is only 1.2 meters, so pedestrians will be very close to each other when passing by, and even deliberately avoid walking into this narrow space to roam in the canyon with the water. The facade is tortuous and powerful, which is a “pure Canyon” section. Horizontally, it creates a sense of “turbulent water” space erosion, and vertically, you can see a clear outline of the canyon. The texture processing on the facade wall is like the trace of water erosion.

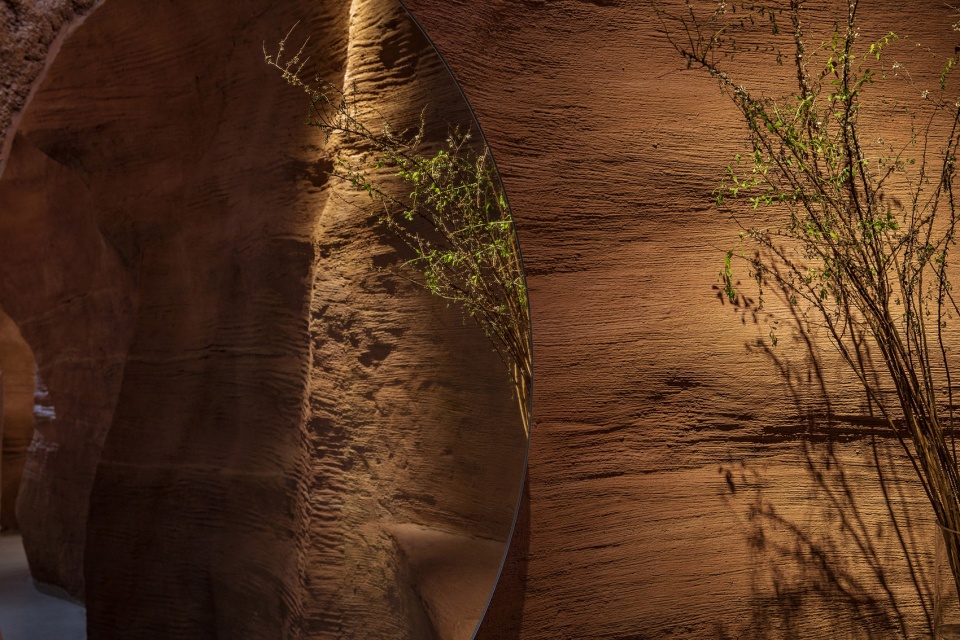

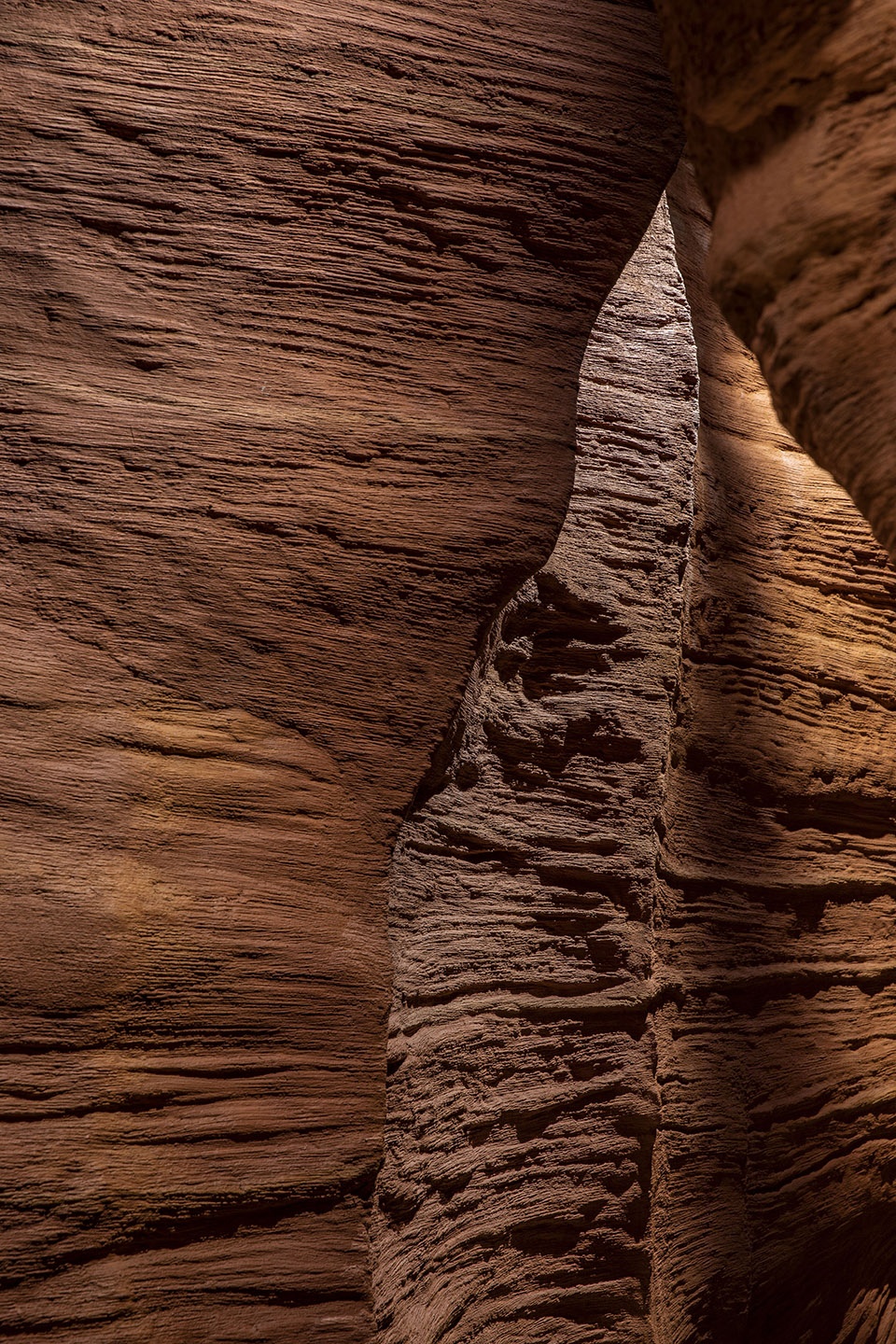

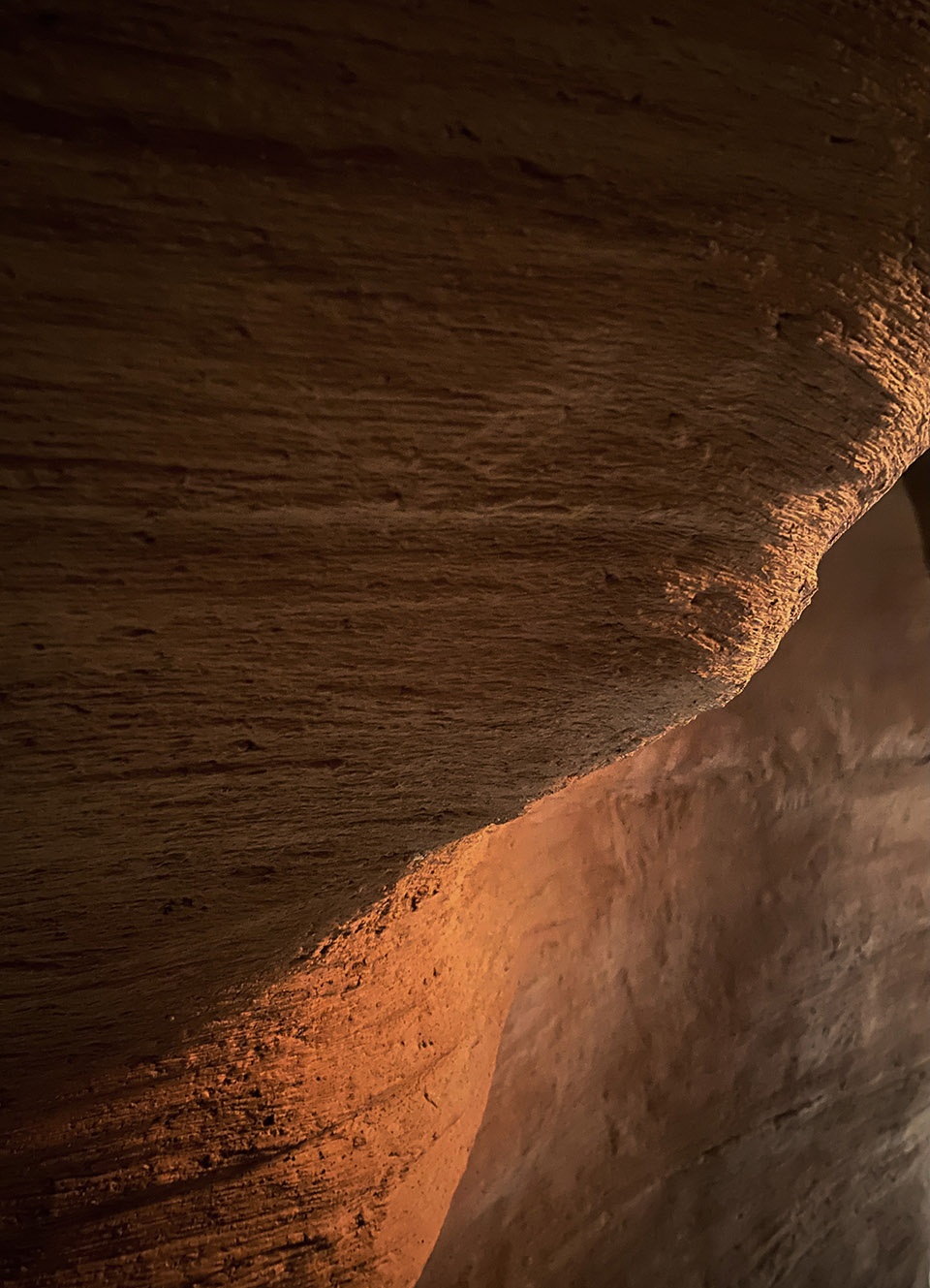

▼峡谷墙面纹理，the wall details of the canyon © 金伟琦
▼“水流湍急”的空间冲刷感，a sense of “turbulent water” space erosion © 金伟琦

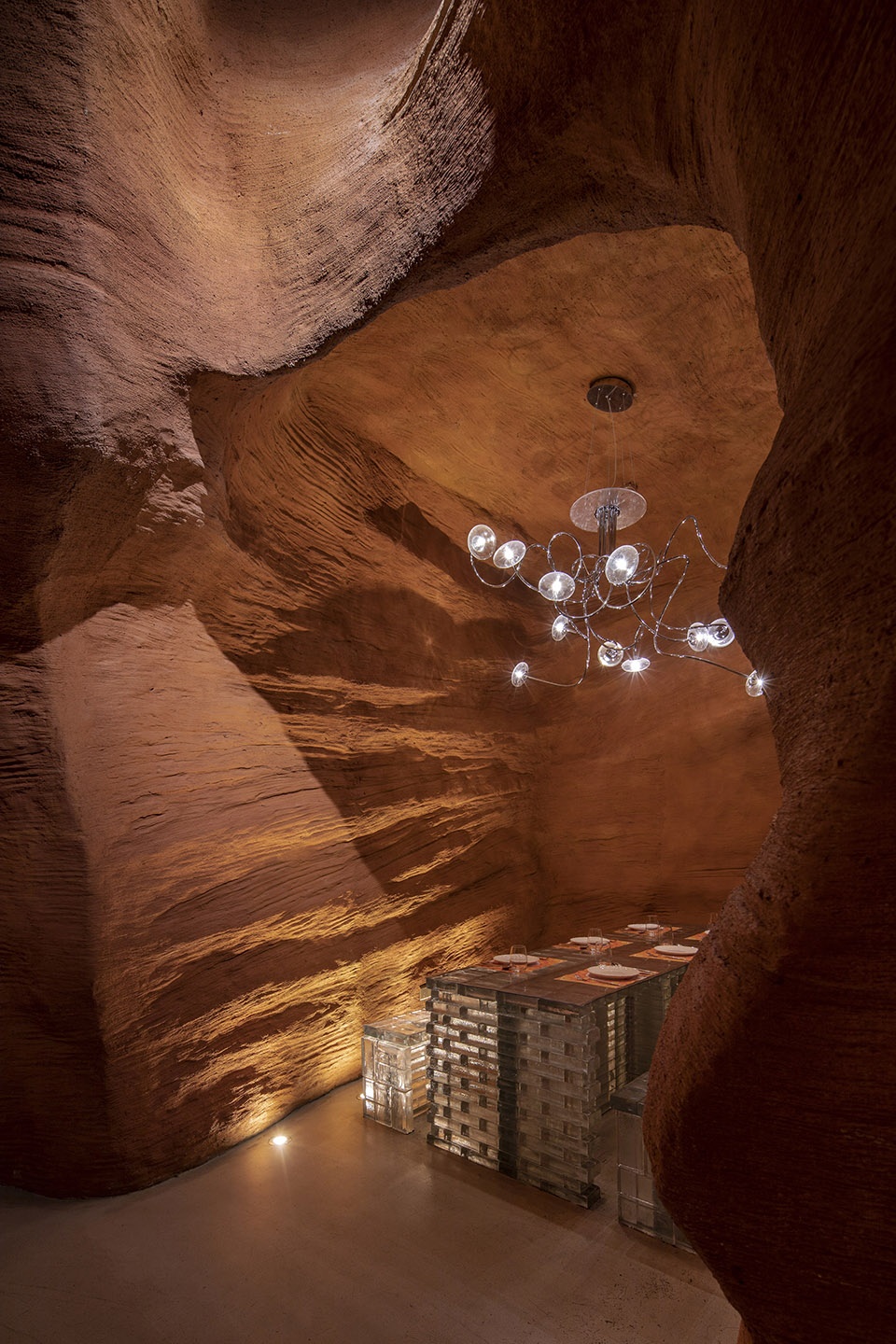

If you walk inside again, you will meet a “cave” space on the left, which functions as a private room, creating a dining experience in the original cave space. The dining table is made of customized orange glass bricks, the top Chandelier Lampshade is also made of glass, and the light and shadow formed by the embedded spotlight on the wall fully highlights the direct collision between the original space and modern industrial products.

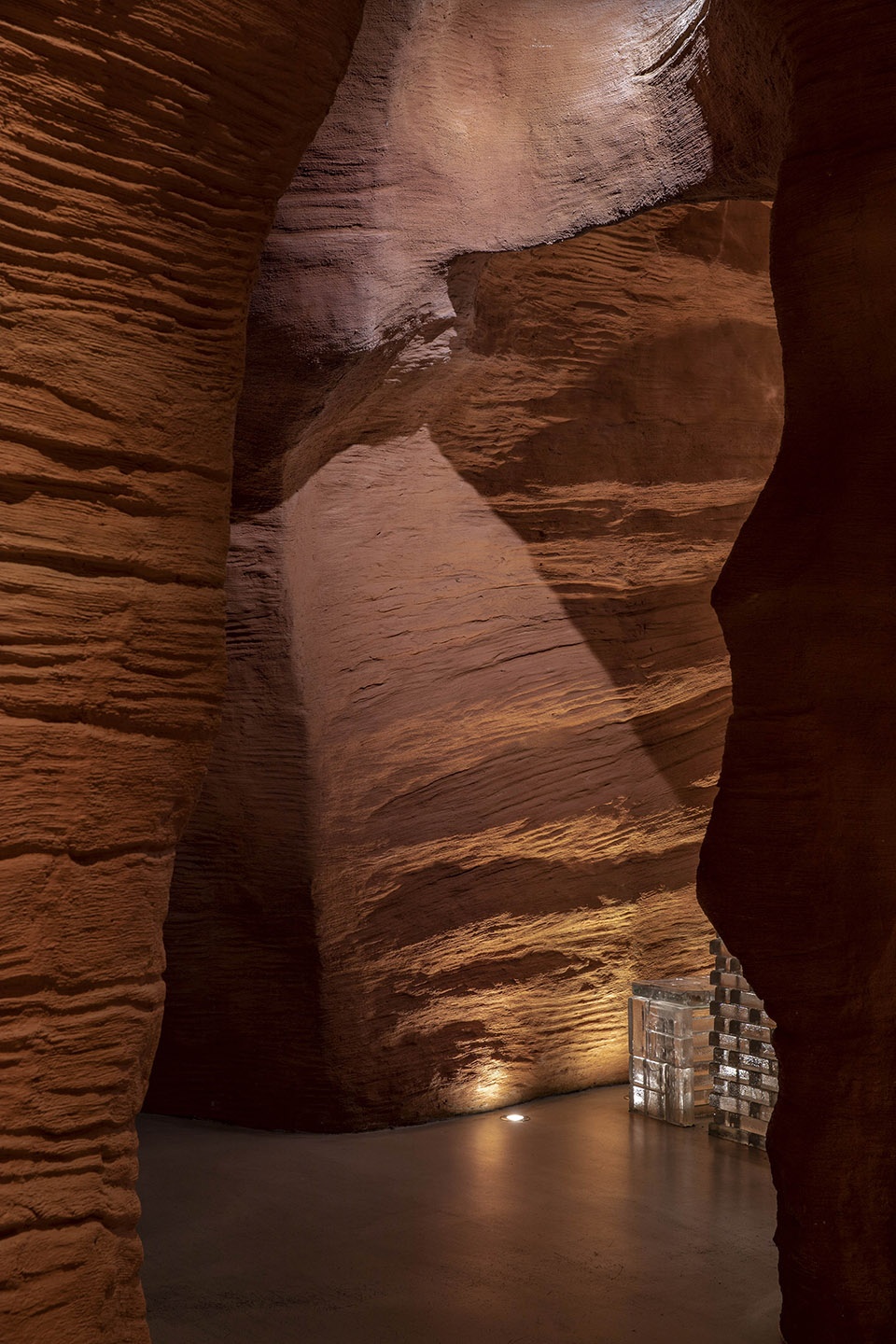

▼“峡谷”包间，the “cave” space © 金伟琦

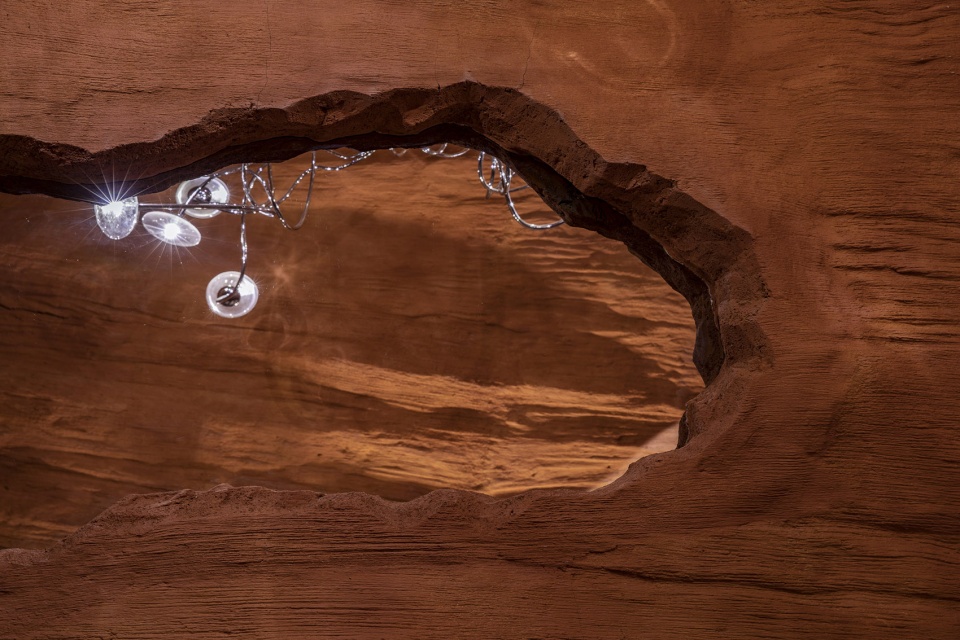

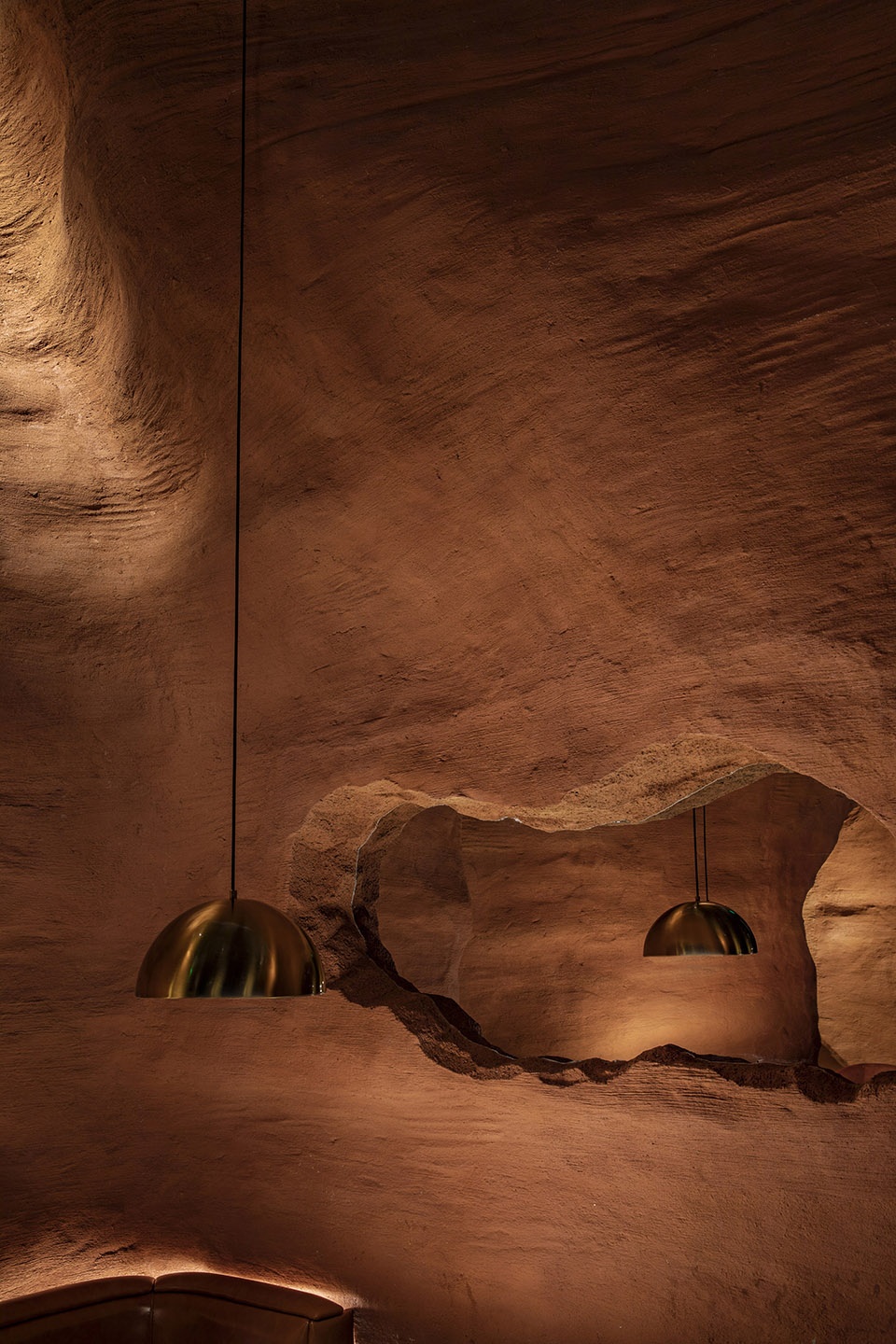

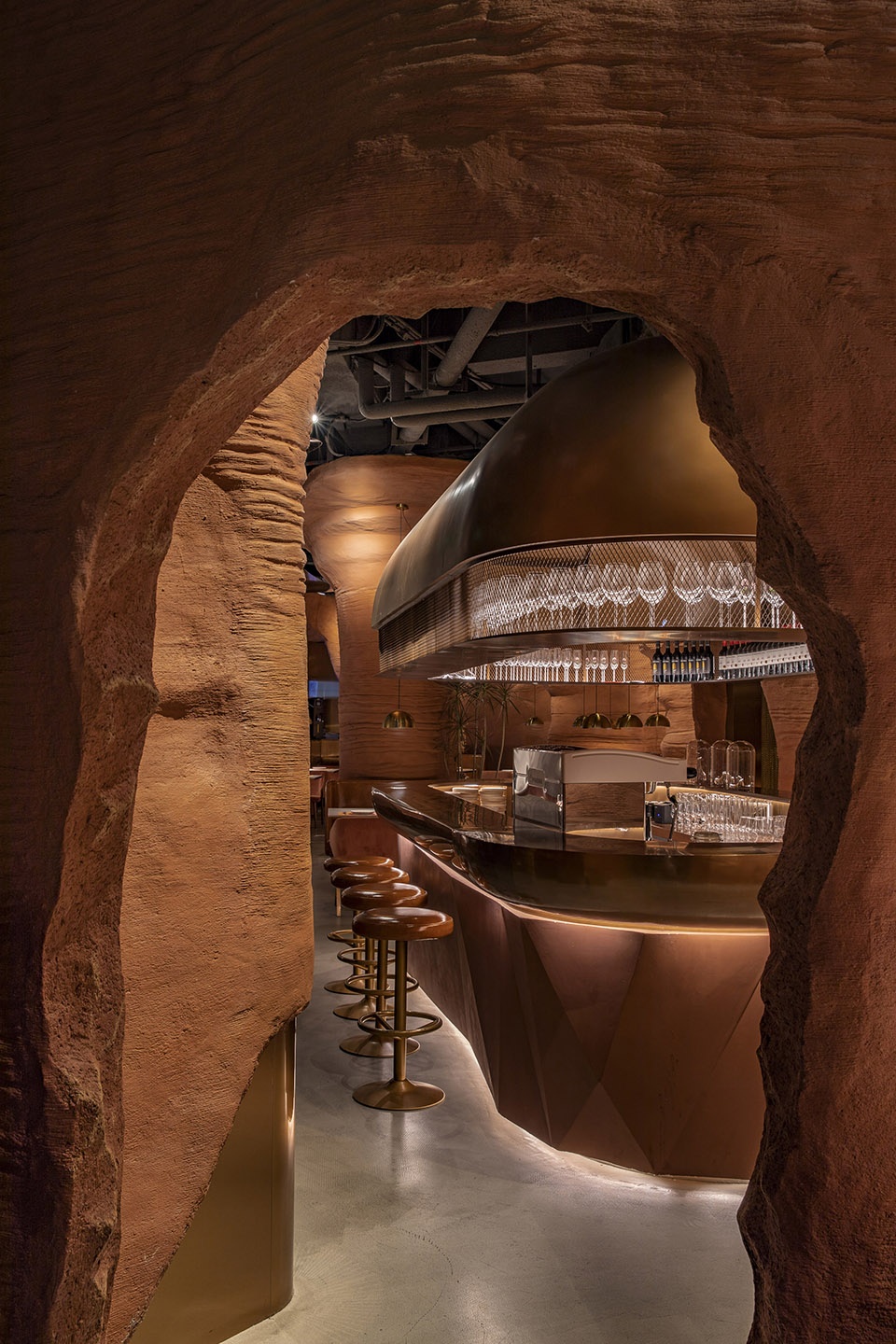

▼现代灯具与原始粗糙感的对比，the modern lighting fixtures contrasts with the rough walls © 金伟琦
▼包间入口，entrance to the “cave” © 金伟琦

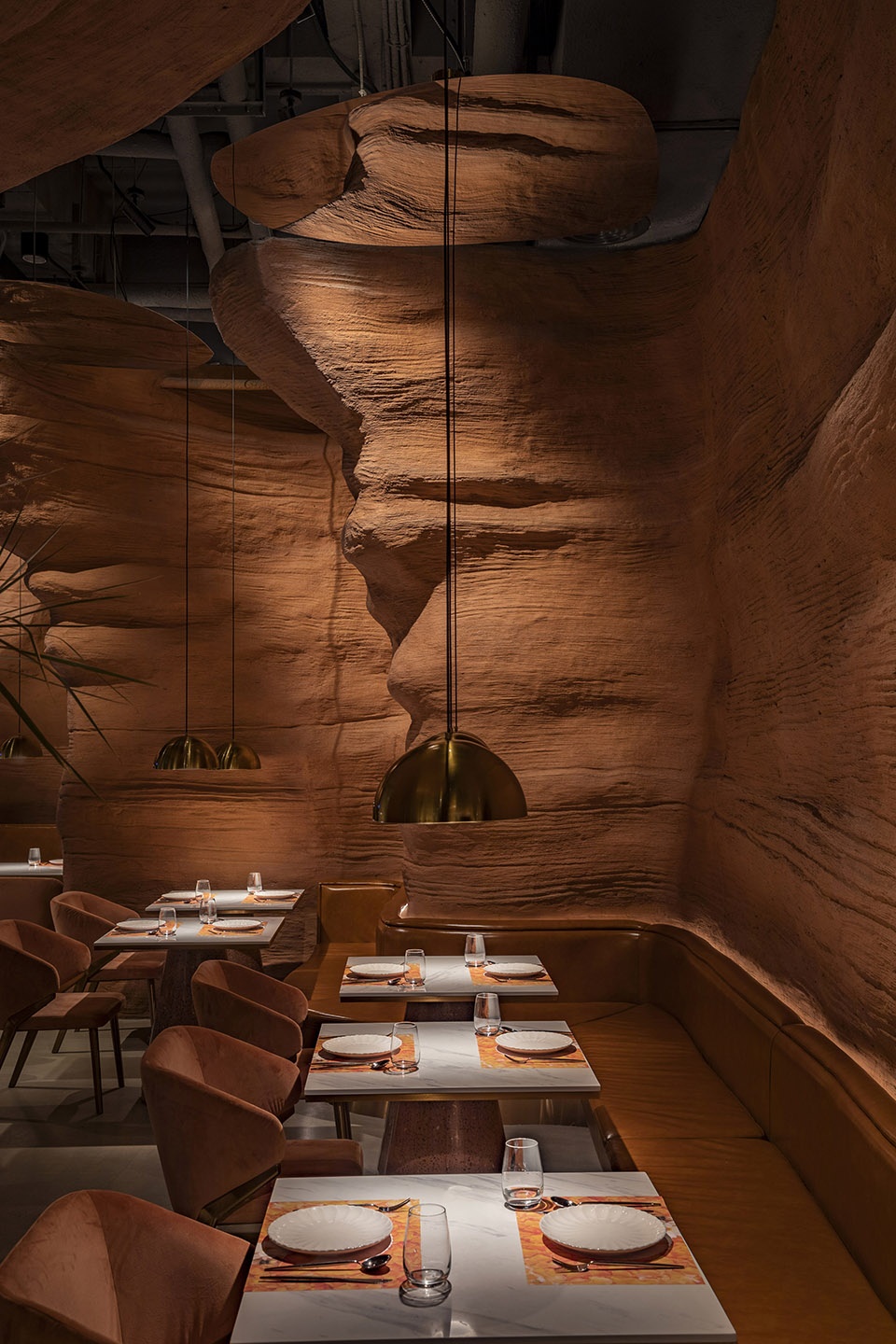

Through this section of Canyon, you suddenly come to the main dining area. The dining table is arranged horizontally around the Zhongdao bar, which can be switched to the bar mode at night; The north side is close to the “Canyon side” and a long card seat is set on the side. When dining, the guests can enjoy the delicious food on the canyon side and enjoy the outdoor scenery on the south side.

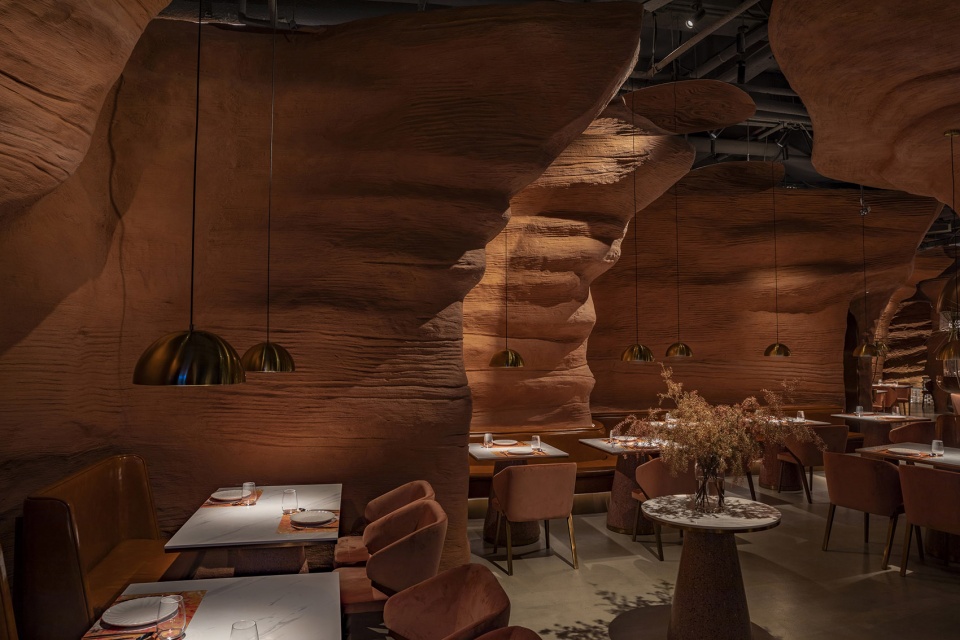

▼主用餐区，main dining area © 金伟琦

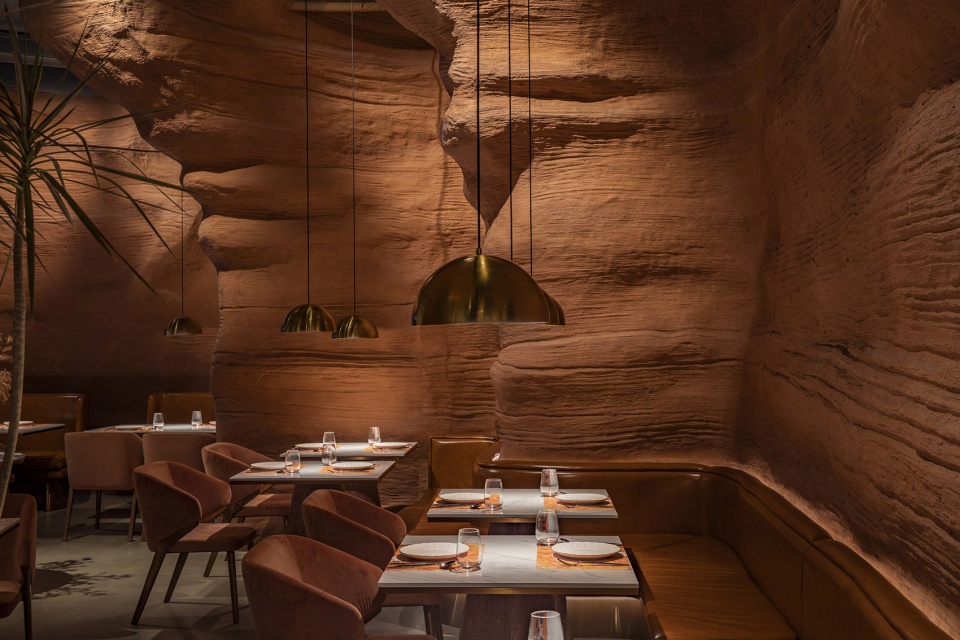

▼卡座用餐区，booth area © 金伟琦
▼用餐区，dining area © 金伟琦

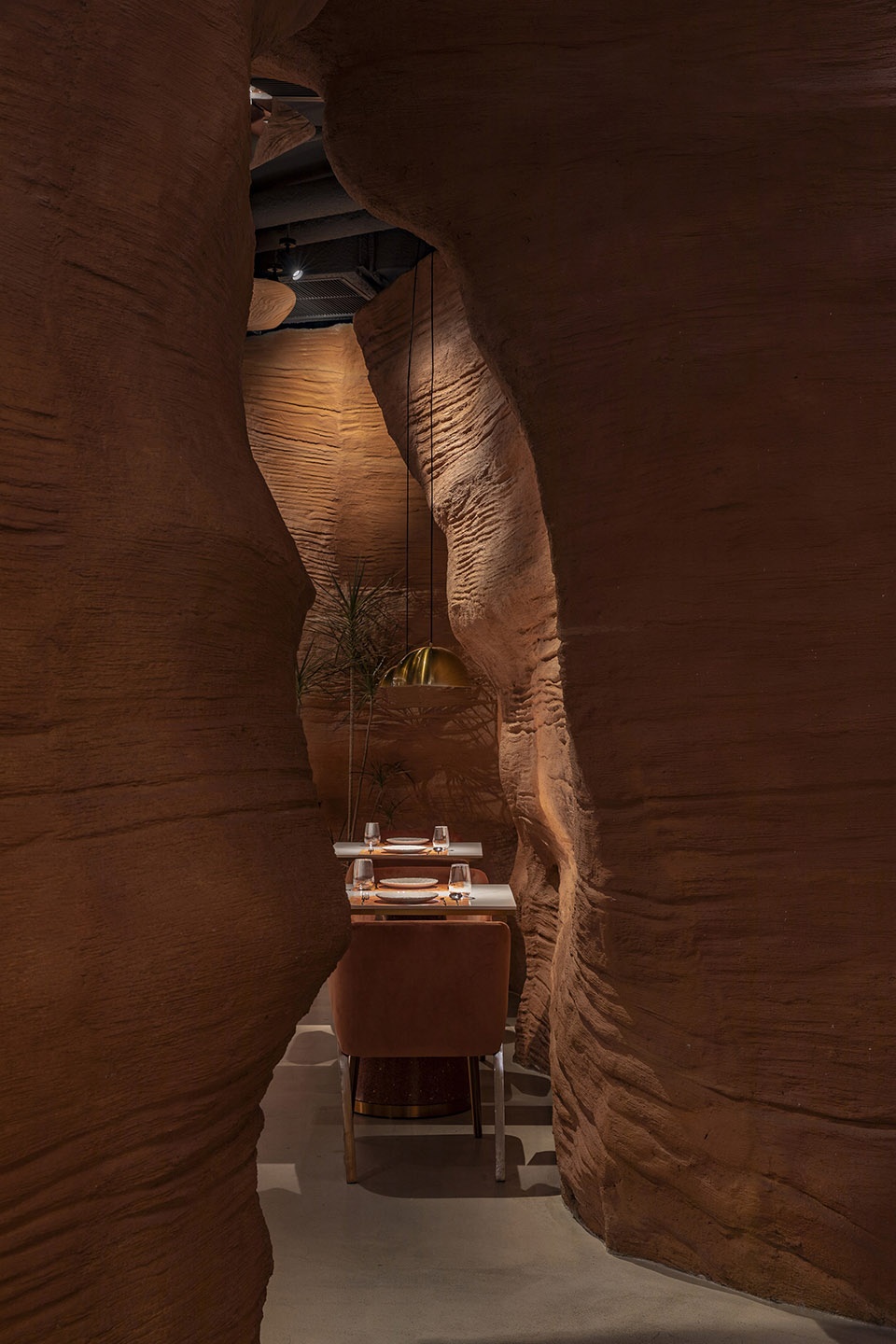

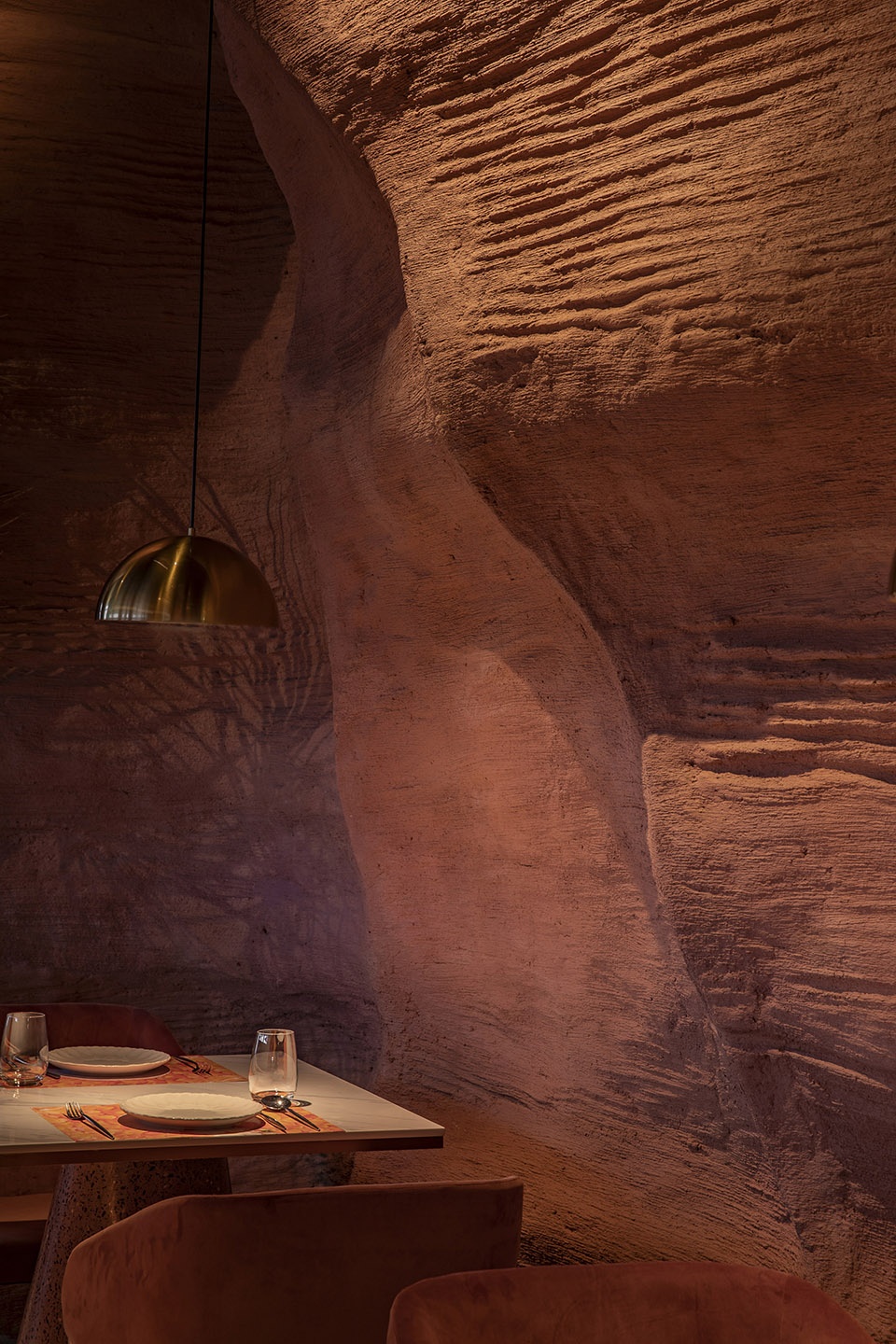

▼墙面起伏空间与餐桌，dining tables are surrounded by undulating walls © 金伟琦
▼墙面局部，wall details © 金伟琦
结语 | Conclusion
Just as Rene Deleuze said, life is a meeting. In a very modern city and modern complex building, people encounter a primitive space full of rough materials, which will be temporarily separated from the surrounding environment; Shuttle, meet, interact and eat in the canyon space, and enjoy the original and modern atmosphere space.

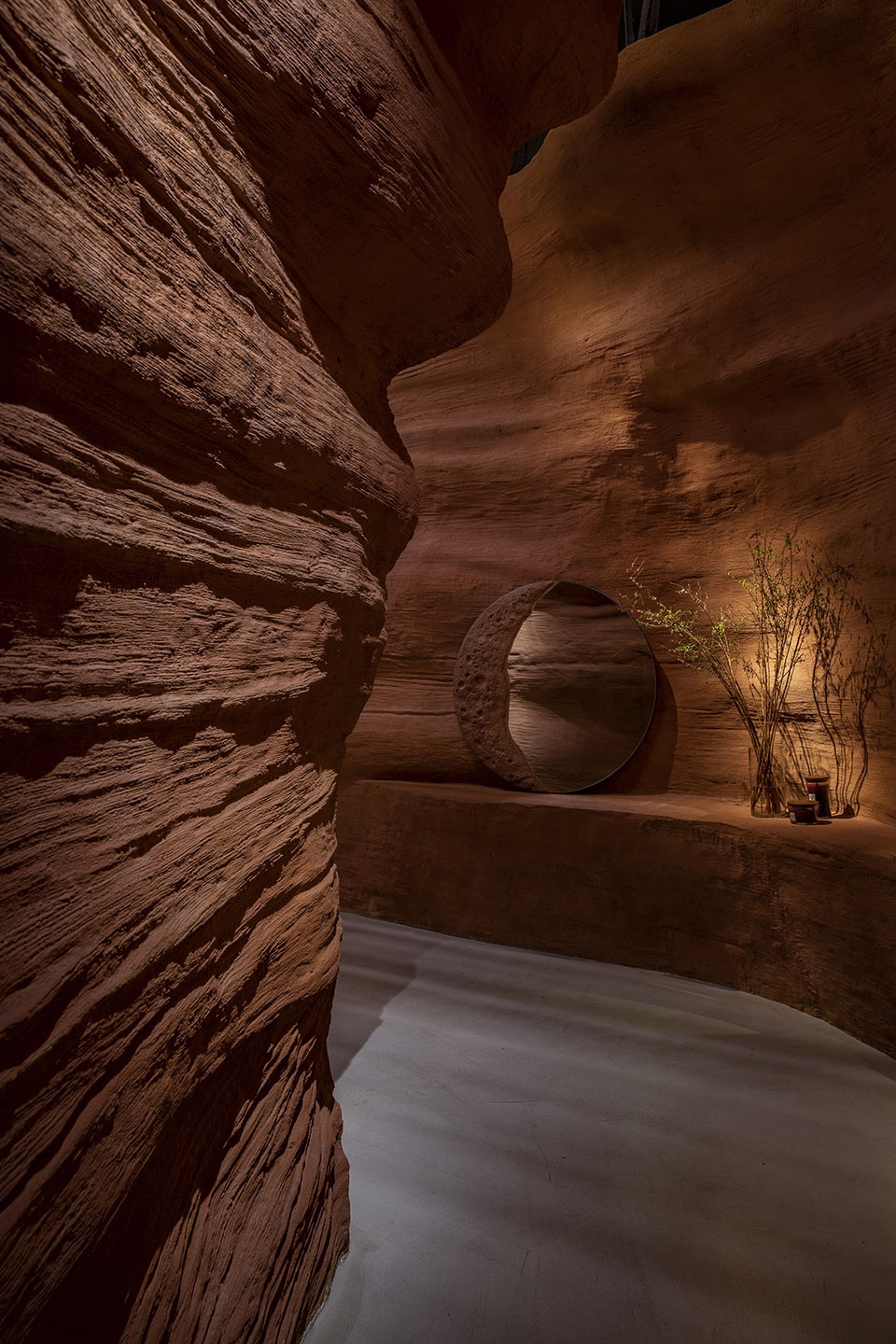

▼花台局部，flower terrace © 金伟琦
▼墙面纹理，wall texture ©Linkchance Architects

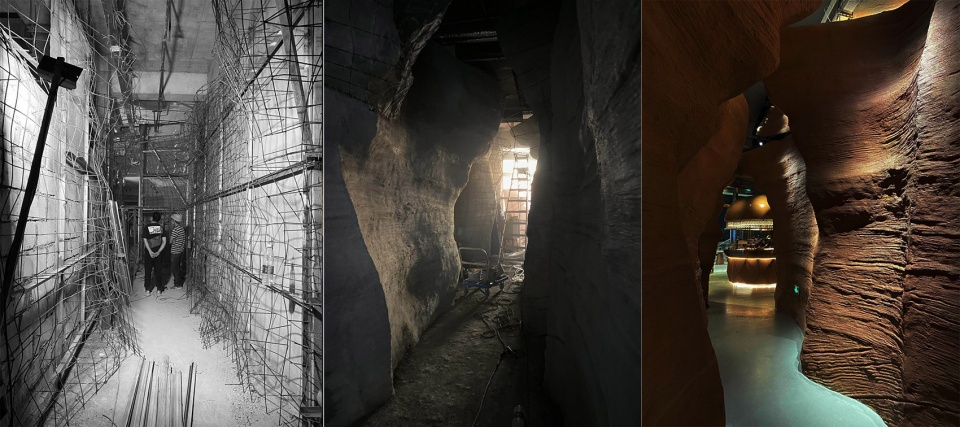

▼空间营造变化过程，process © Linkchance Architects

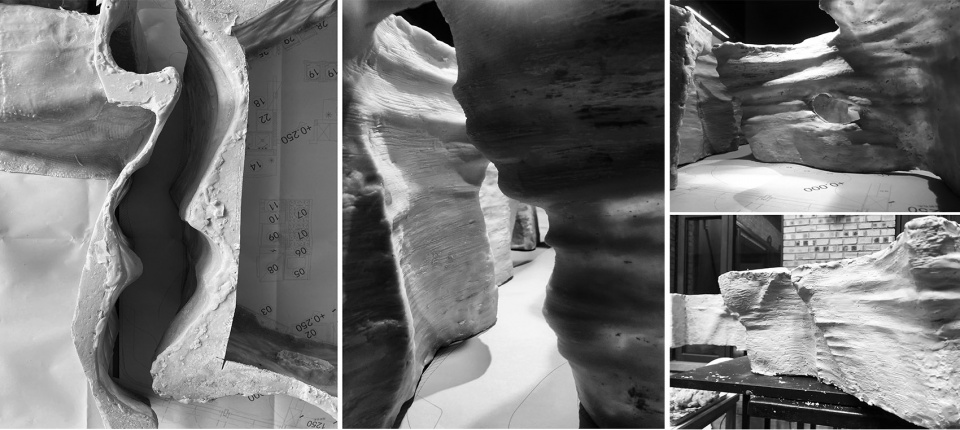

▼模型研究，study model © Linkchance Architects

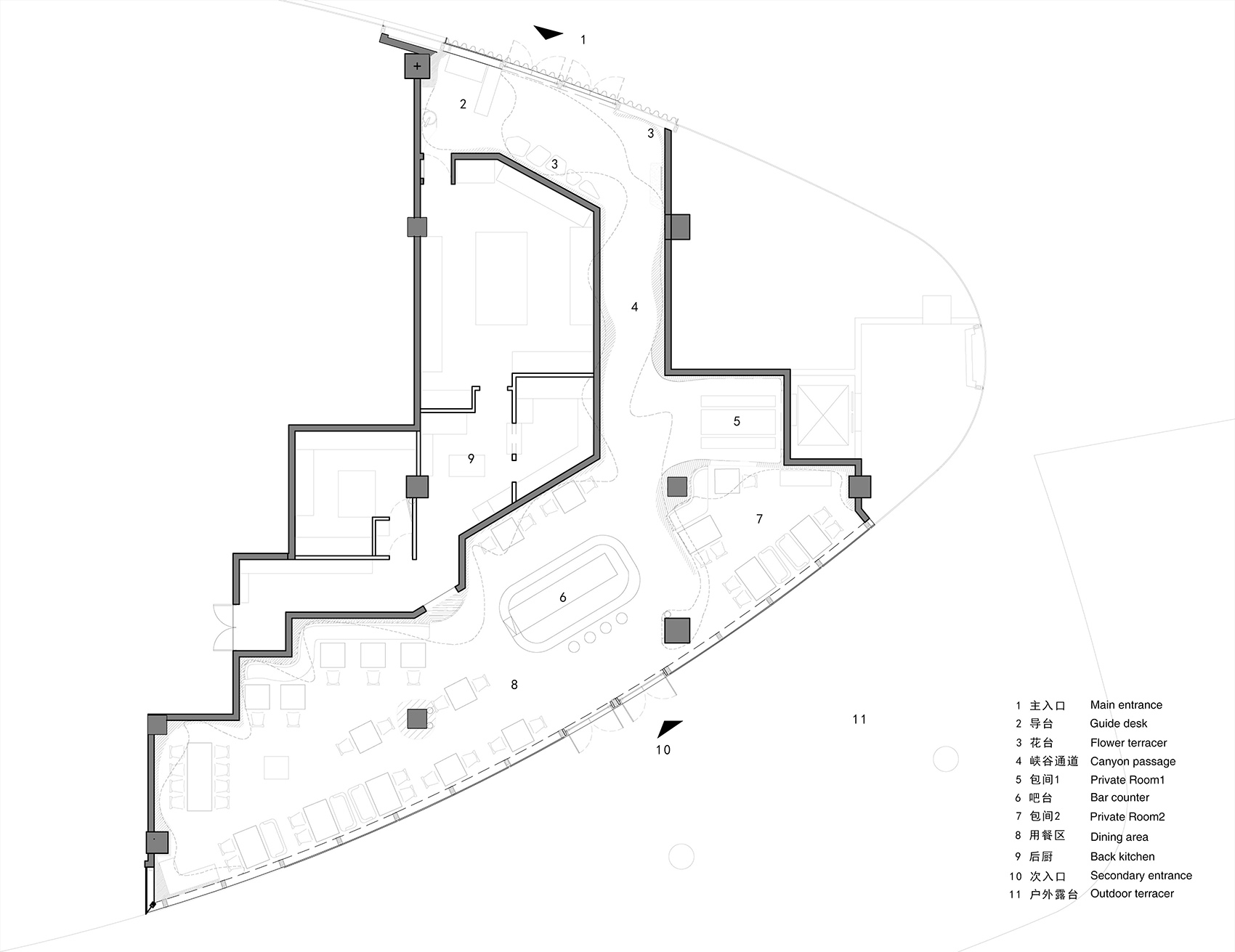

▼平面图，plan © Linkchance Architects
设计单位：力场（北京）建筑设计 Linkchance Architects
Project name: Meet in the canyon
Project location: Bao an District, Shenzhen
Project owner: Met patal
Project period: Nov 2020-Fabruary 2021
Project area: 300 m2
Design firm: Linkchance Architects
Chief designer: An Zhaoxue
Designer team: Lu Jimin ,Hou Xue, Zhang Wei,Yang Shujun, Li Bin, Wang Lin
Art consulting: Gu Daoxu
Materials: Decorative concrete, Corrugated perforated aluminum plate, stainless steel panel, Striped glass, Glass bricks, Mirror stainless steel, Metal mesh ，concrete paint
Photography: Jin Weiqi, Linkchance Architects
Construction team: Shenzhen CSCEC Watson Engineering Co., Ltd. (general contractor)
Beijing Huayun garden Engineering Co., Ltd. (interior decoration construction)
Design copywriting: Linkchance Architects
