Jiangnan Zan, China by LYCS Architecture

New Retail as a Rising “Wave” of a Historic City

Project Specs


非常感谢 零壹城市 对gooood的分享。更多关于:LYCS Architecture on gooood
Appreciation towards  LYCS Architecture  for providing the following description:


At dusk, Wengcheng, as the old barbican of Linhai, Taizhou, Zhejiang Province, suddenly turns into a wonderful children’s football field, where kids shout joyfully, chase each other enthusiastically, kick the ball to the ancient city wall and wait for a perfect bounce-back without any concern, whereas the wall bricks the ball just hit might even be dated back to the Song Dynasty, i. e.about a millennium old!

▼视频,video ©零壹城市建筑事务所


In terms of history, Linhai with a long history of more than 1600 years will inevitably stun all of us. It has lots of famed historic spots, such as the ancient city wall of Taizhou Prefecture built in the Jin Dynasty, Longxing Temple where Japanese monk Saichō, the founder of Tendai school of Buddhism, received his ordination, the four pagodas built in Song, Yuan, Ming and Qing Dynasty respectively, Ziyang Street, Jiguang Street, and Ancestral Temple of Luo Family the great poet Luo Binwang was born to. Recently, a new store called Jiangnan Zan has stated up in Ziyang Street.

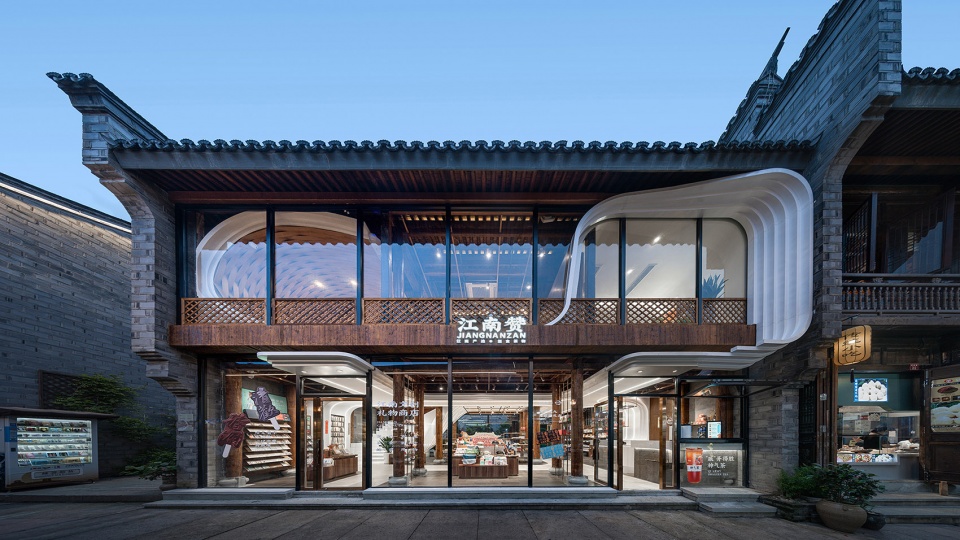

▼店铺正立面,front facade of the project ©吴清山


With the integration of architecture, interior and FF&E design by LYCS Architecture, Jiangnan Zan, a retail store transformed from an old modest house of about 200㎡, become the first fruit of a new cultural tourism IP program called “Picturesque and Poetic Jiangnan”. It is a joint venture of Ancient Village Protection and Utilization Fund of Zhejiang Province and HXS Cultures known as one of the significant driving forces of Beijing Palace Museum Culture & Innovation.

▼大面积的玻璃幕墙与传统的砖砌山墙,Large glazed curtain wall with traditional brick gable ©吴清山

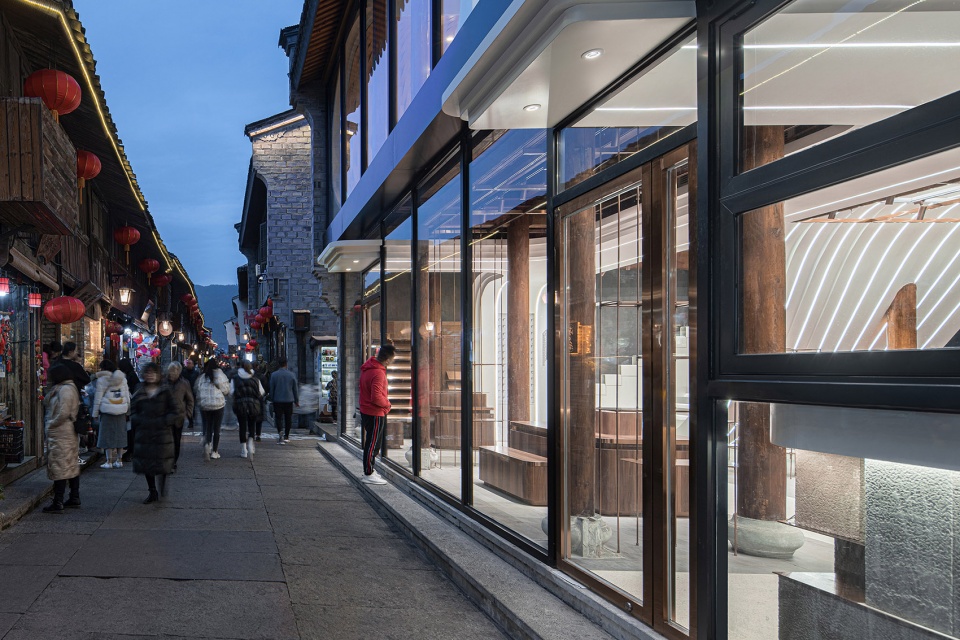

▼通透的沿街立面,Transparent street facade ©吴清山


Ziyang Street used to be the main commercial zone of Linhai. Still retaining the ancient urban pattern of Tang and Song Dynasties, it has many notable century-old shops until now. However, in terms of its severe narrowness for traffic and the pre-modern and seemingly boring style of the ancient buildings, this old street, surrounded by and in contrast to the flashy and bright modern city, has been increasingly unattractive, declining and even weird in the eyes of the public.

▼在店门口休息的老人,the senior resting in front of the building ©吴清山


In 2014, an article named Yongzheng : I Feel Myself Lovely went viral on the Internet in China. By virtue of depicting the ancient history in a modern and fashionable way, this new pattern of “Cultural IP + Popular elements” remarkably revitalized the old Forbidden City with a long history of more than 600 years, and thus became popular among the young, giving a rise to an incredible huge wave of new cultural and creative industries across the country. The phenomenon deeply inspired and encouraged the design team.

▼俯瞰建筑,aerial view of the project ©吴清山


Rising “Wave” of a Historic City


Proposing the special concept of new rising “Wave” symbolizing the young generation, the design team has subtly placed the element of abstract wave in the old house. By contrasting the new and the old sharply, it has created a wonderful surreal art scene, expressed a marvelously intrepid and free attitude of the contemporary young riding the wave, and thus effectively set up a diverse and vast space full of fun. At the same time, the distinct design concept of “Wave” finely echoes the real surging tide in the Lingjiang River outside Linhai city, on account of which the ancient city wall with the additional and reliable flood-control function can astonishingly survive and even be well preserved in the densely populated area after a thousand years.

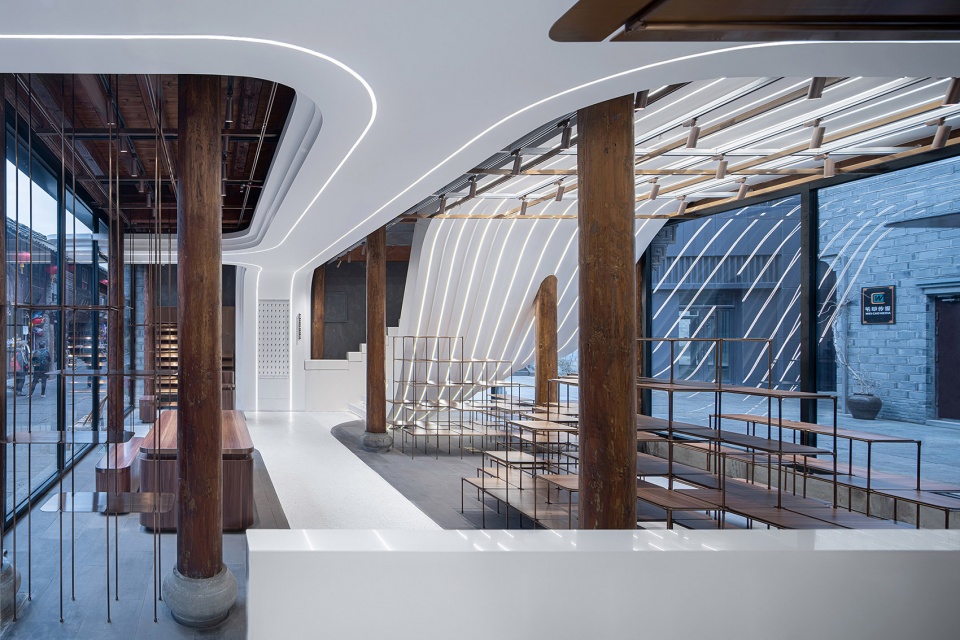

▼室内概览,overall of interior ©吴清山


Immersive Retail


The design concept of “Wave” also contains the design team’s creative exploration into modern retail building. In order to solve the problem of maximizing the use of space under the heavy pressure of expensive rent which has always haunted the entire retail industry, the team has used the element of wave to blur the frozen boundaries of walls, floors, floors and roofs, break down the conventional concept of layers, and reconstruct the given spatial system. By ably transforming the original two-level space into a new continuous whole, this design has brought in a unique and exciting experience like surfing in midst of the huge waves, contributing to forming a kind of immersive shopping experience.

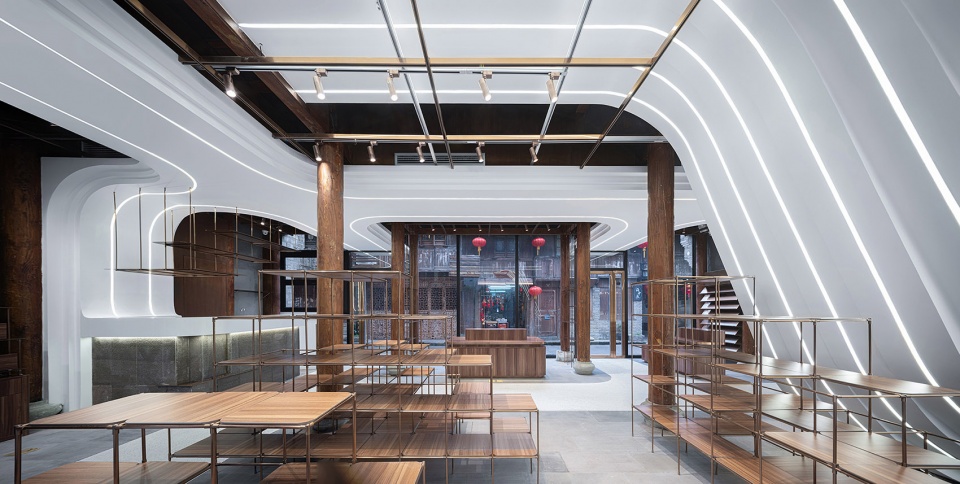

▼抽象形态的波浪元素形成超现实的艺术场景,Abstract forms of wave elements form a surreal art scene ©吴清山


By means of thoroughly dismantling the jumbled and redundant walls and simply exposing the original wood structure and wall materials, the design team has placed a continuous white curved surface, which like a leaping wave, between the beams and the columns, and thus hidden inside the surface the equipment pipelines, the electrical lines, etc., so that the sight can be much clearer, purer and simpler without any confusion.

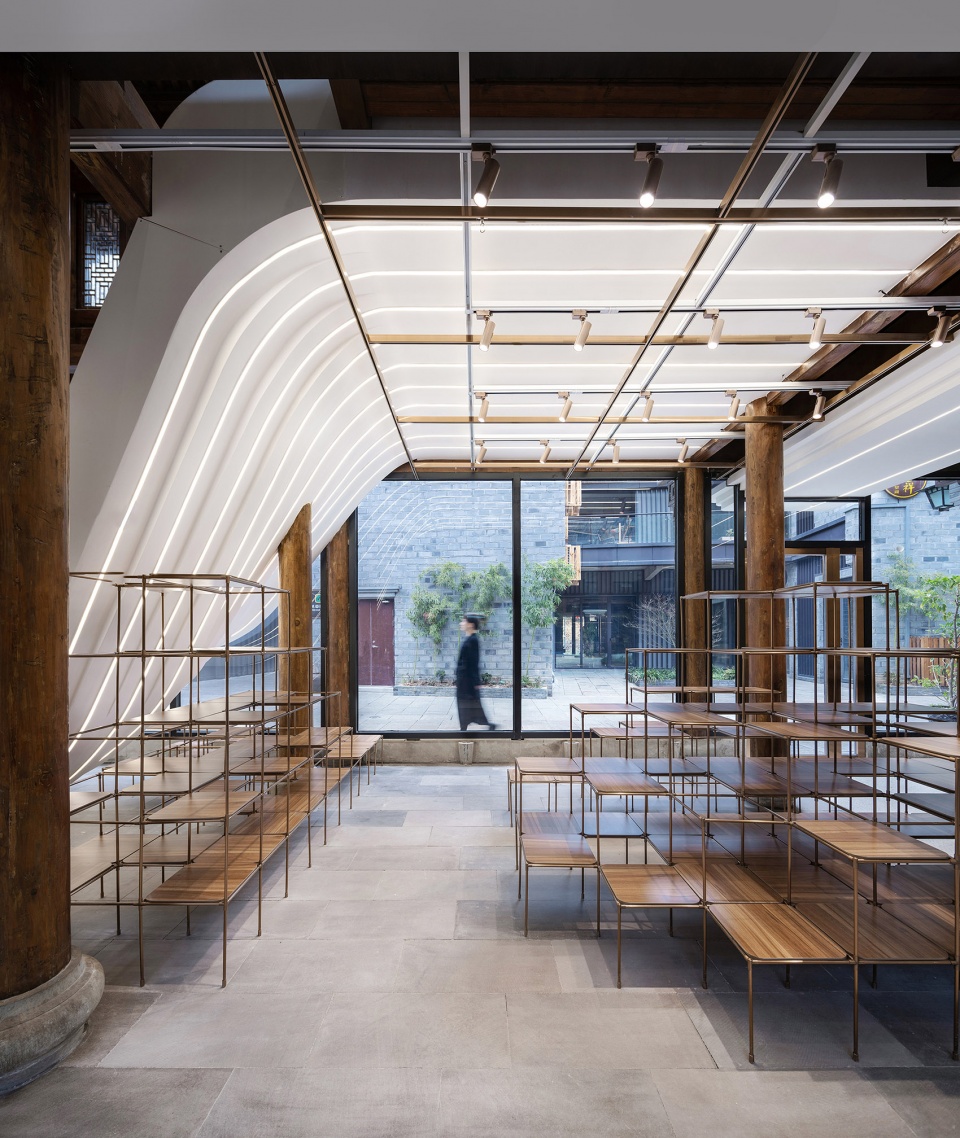

▼原有的木结构和墙体等材料简单的暴露出来,simply exposing the original wood structure and wall materials ©吴清山


With the help of cascade design, the edge of the curved surface has significantly weakened the sense of volume and enhanced the sense of speed. Set up subtly along the whole edge, the linear lights illuminate the huge wave and the wood pillars, perfectly forming a strong visual collision. As the new seems more dazzling and the old more meaningful, this visual effect turns to be more refreshing as if a dreamy spatio-temporal collision has happened.

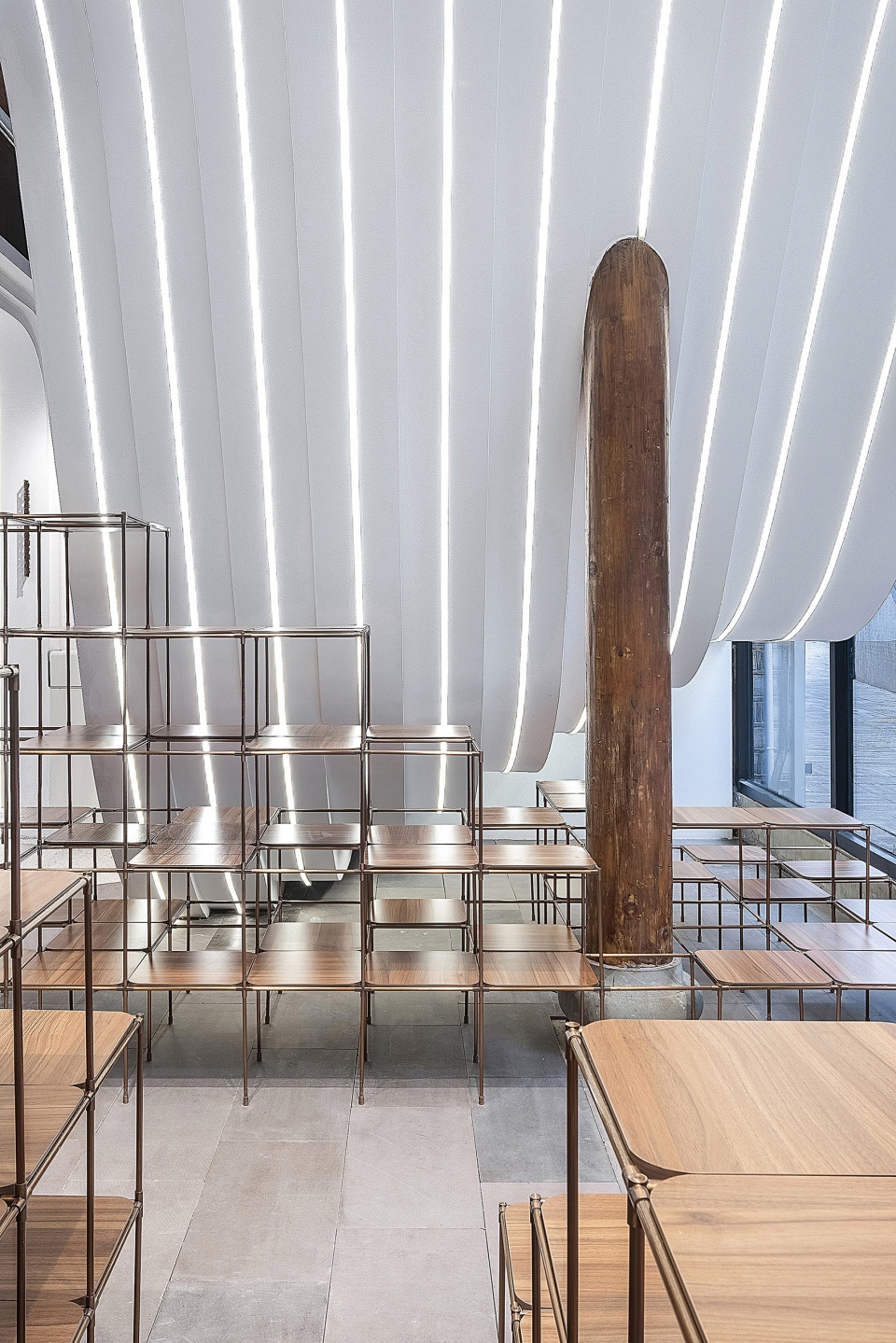

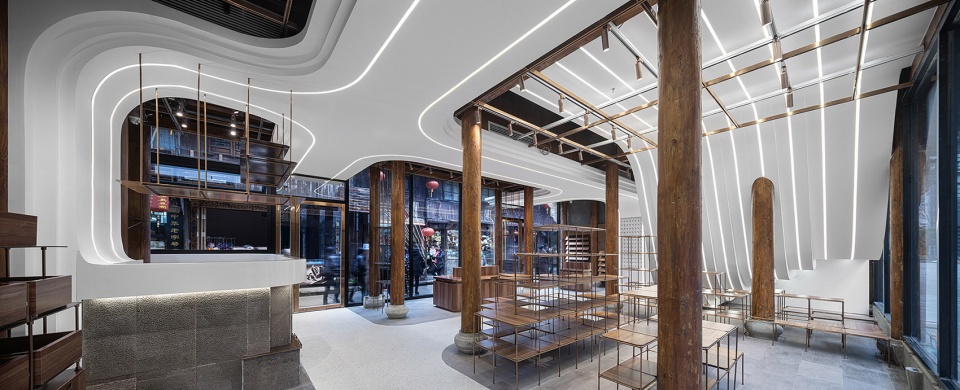

▼连续白色曲面犹如跃动的浪头翻涌,continuous white curved surface, which like a leaping wave ©吴清山

the edge of the curved surface with cascade design ©吴清山

设计团队希望浪潮延续到地面,在尝试了金属,涂料后,选择了耐久的水磨石形成空间闭环,白色要素自然而然的将店铺区分为八大展区,每个展区都凸显出独特的个性 。

Hoping for the “wave” to continually surge down into the ground, the design team has finally chosen the durable terrazzo to constitute a closed loop after numerous experiments with the various kinds of metals and paints. The white element naturally divides the retail store into eight different exhibition areas, each of which highlights its unique feature perfectly.

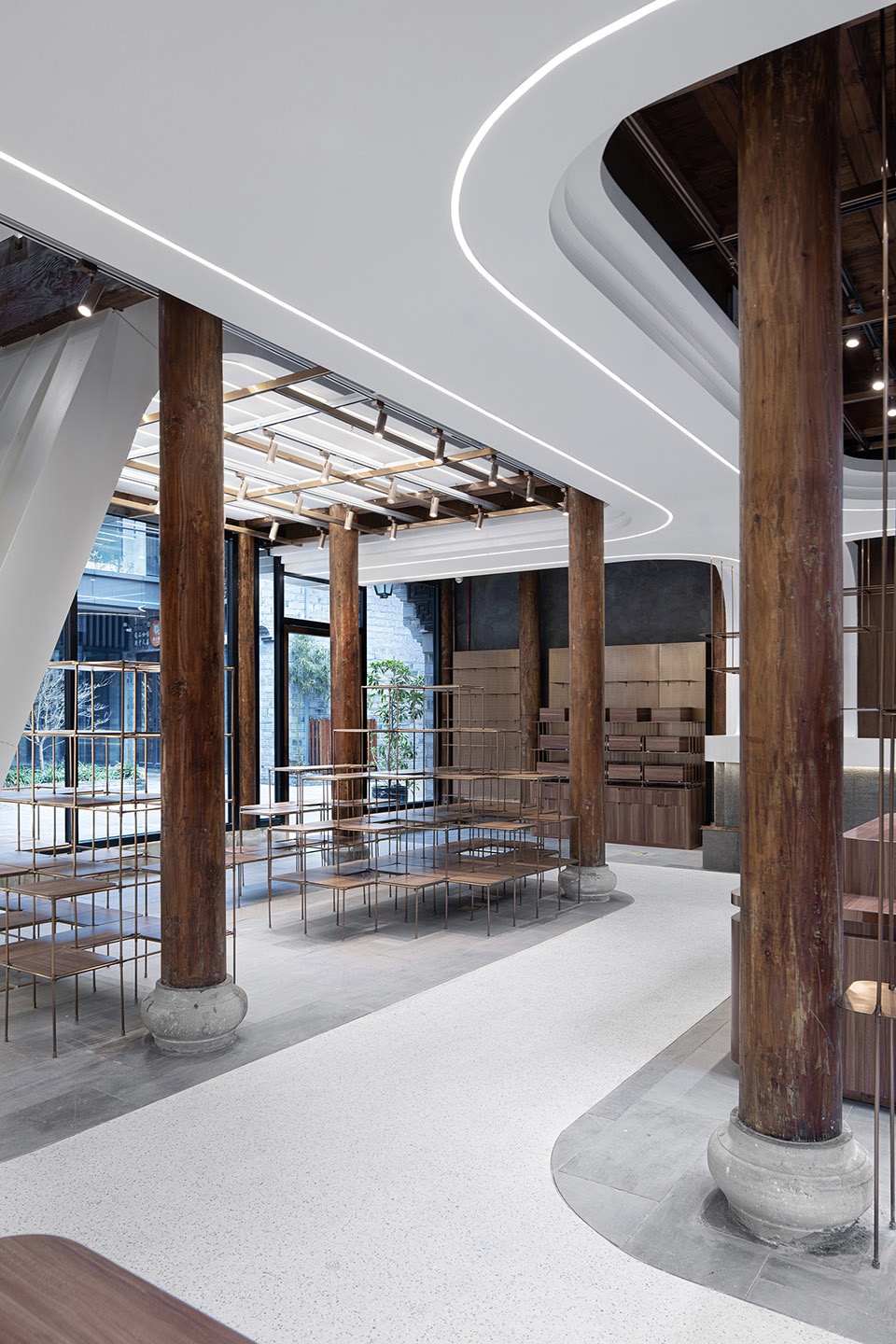

The terrazzo ground forms a closed loop with the white curved surface in the space ©吴清山

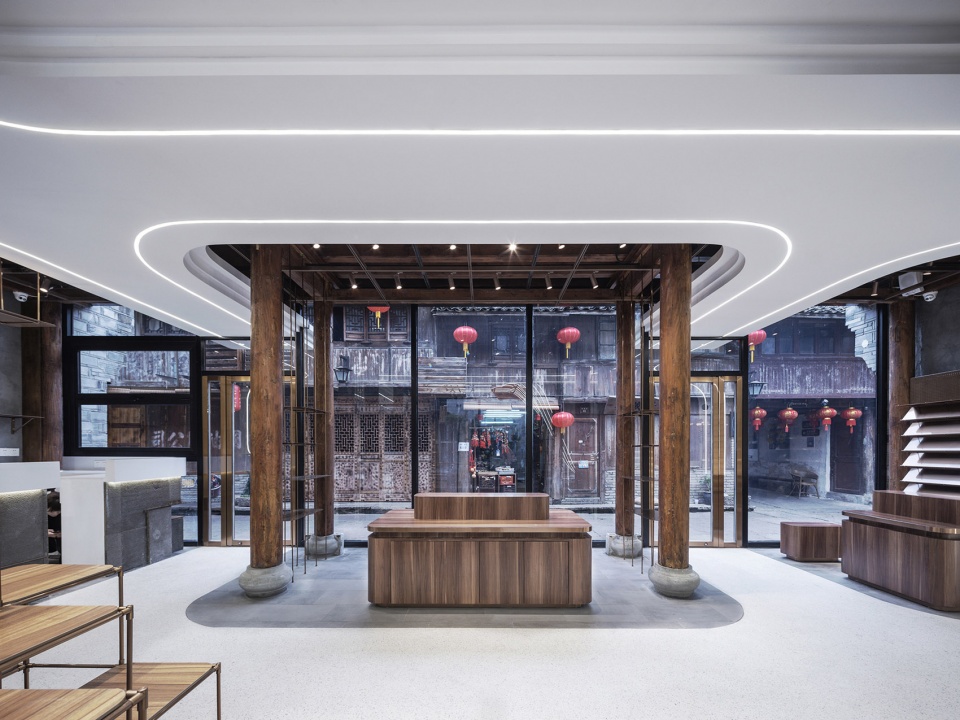

▼由展陈区看向街道,viewing the street from the exhibition area ©吴清山


In terms of the exhibition design of these eight areas, the team has carried out an integrated design based on the concept of Wave. By adopting the metal and the wood veneering materials, LYCS team, in order to meet the unique needs of the retail store for holding a wide variety of goods and achieving seasonal renewal, has created lots of significant variable components such as the diaphragms that can be adjusted up and down, the brackets that can be freely arranged and the flexible and mobile cavern boards.

▼一体化设计的展陈区,Exhibition area of integrated design ©吴清山

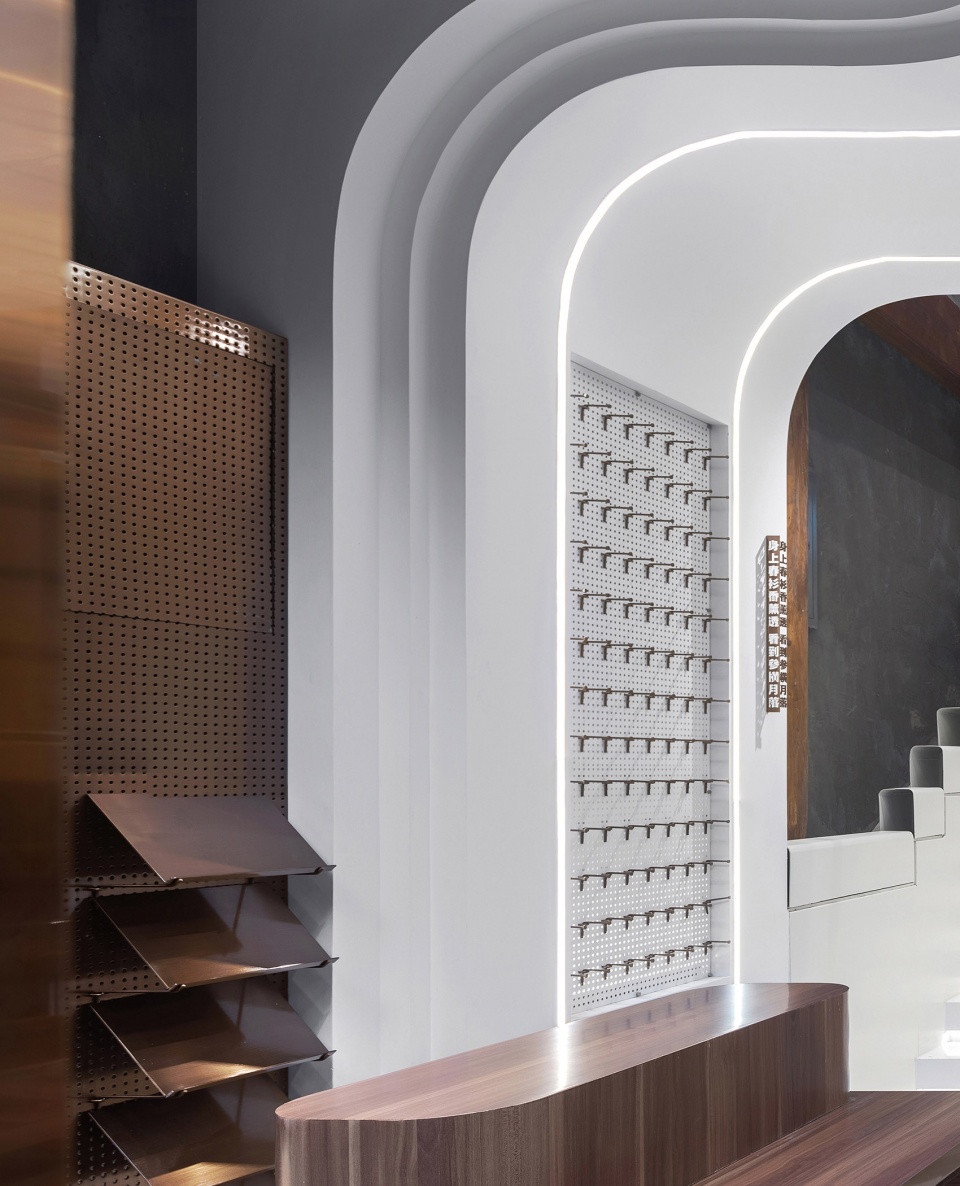

▼空间细部,details of the store ©吴清山


Stepping from the first floor to the second floor, the spatial experience will be changed accordingly from walking under the wave to riding the wave. The design team has already ably set up a perfect place for visitors to take photos at the transition point of space, which leads the streamline naturally up to the cozy teahouse on the second floor.

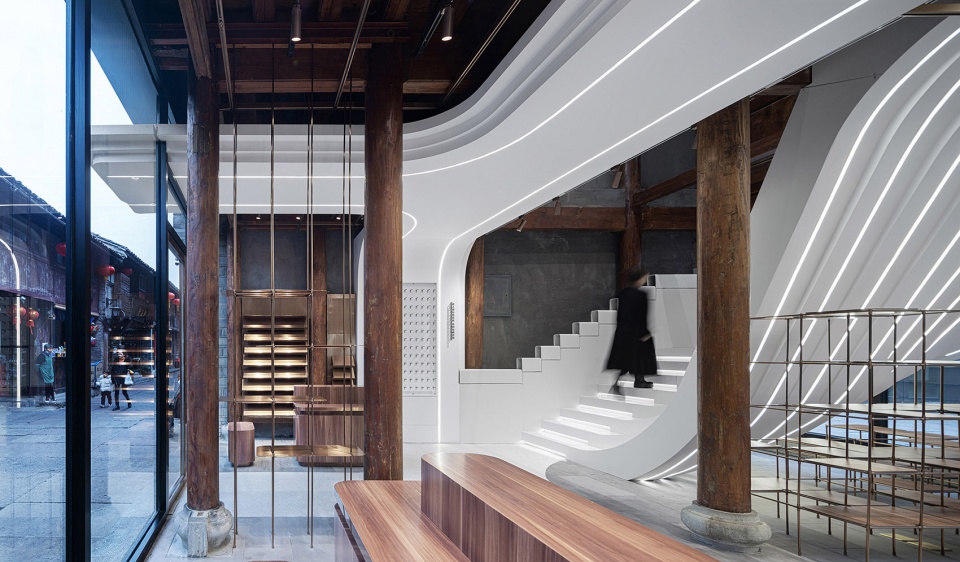

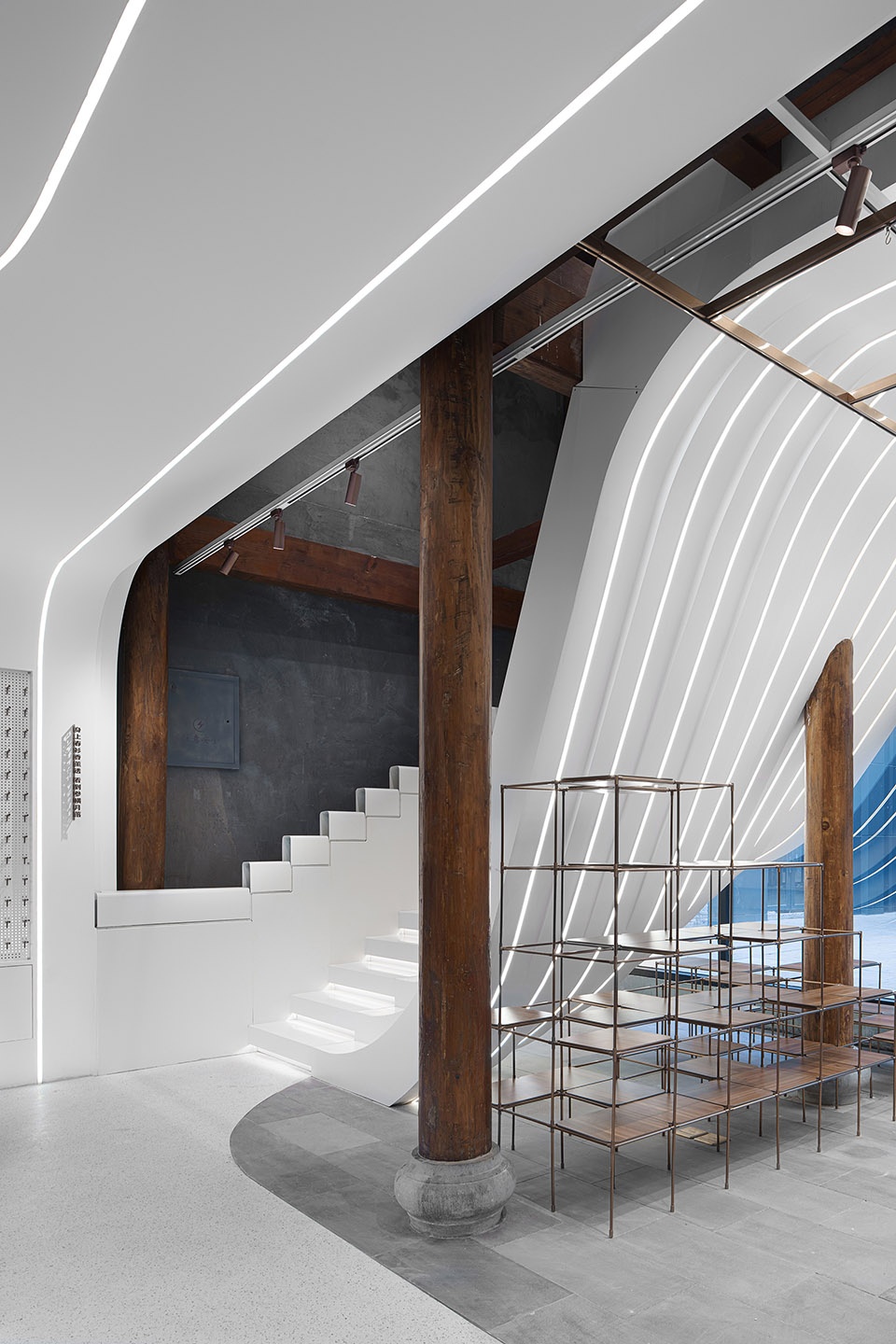

▼由一层通向二层的楼梯犹如乘浪而起,The staircase from the first floor to the second was like riding a wave ©吴清山

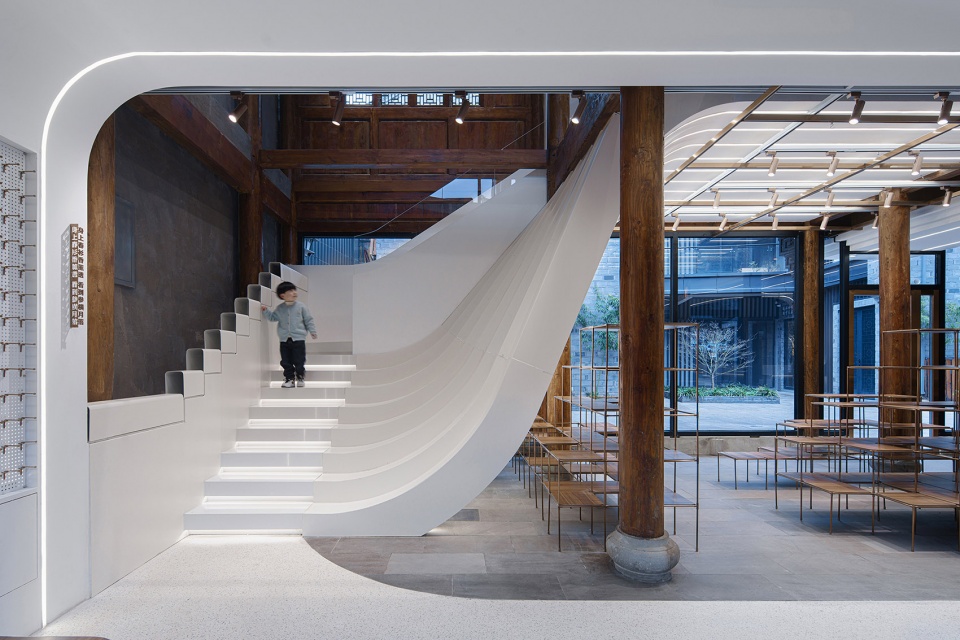

▼楼梯变身拍照打卡点,The stairs turn into a perfect place for visitors to take photos ©吴清山


Decidedly replacing all the doors and windows along the street with the large floor-to-ceiling ones and the black stainless steel frames, the design team has remarkably made the originally dark and narrow space become bright and transparent, and contributed to the huge “wave” pouring out from the second floor, as if infusing a modern vital pneuma into the old street. The whole design has already resulted in its significant distinction from other stores.

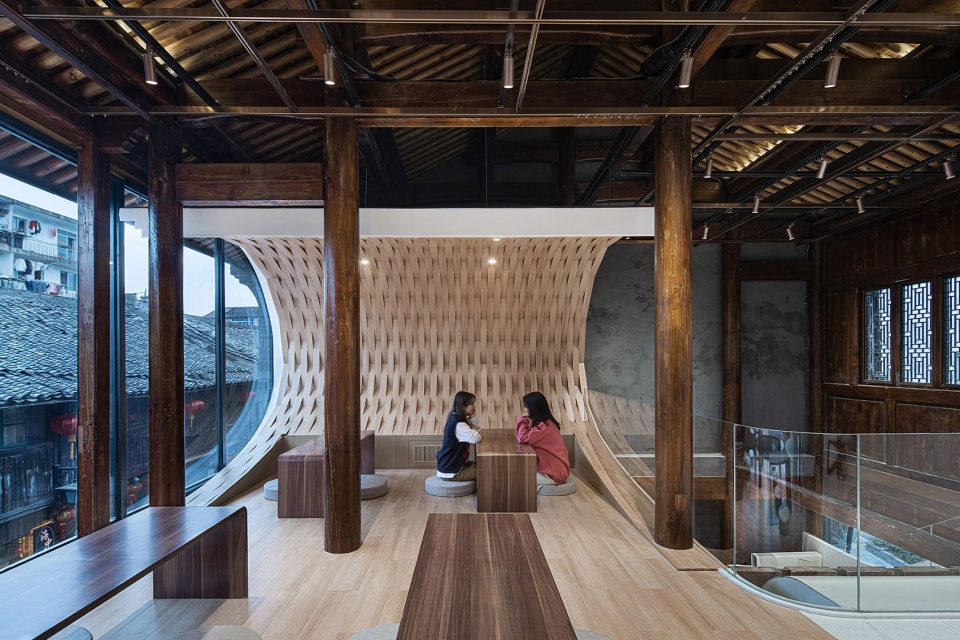

▼二层空间概览,overall of the upper floor ©吴清山

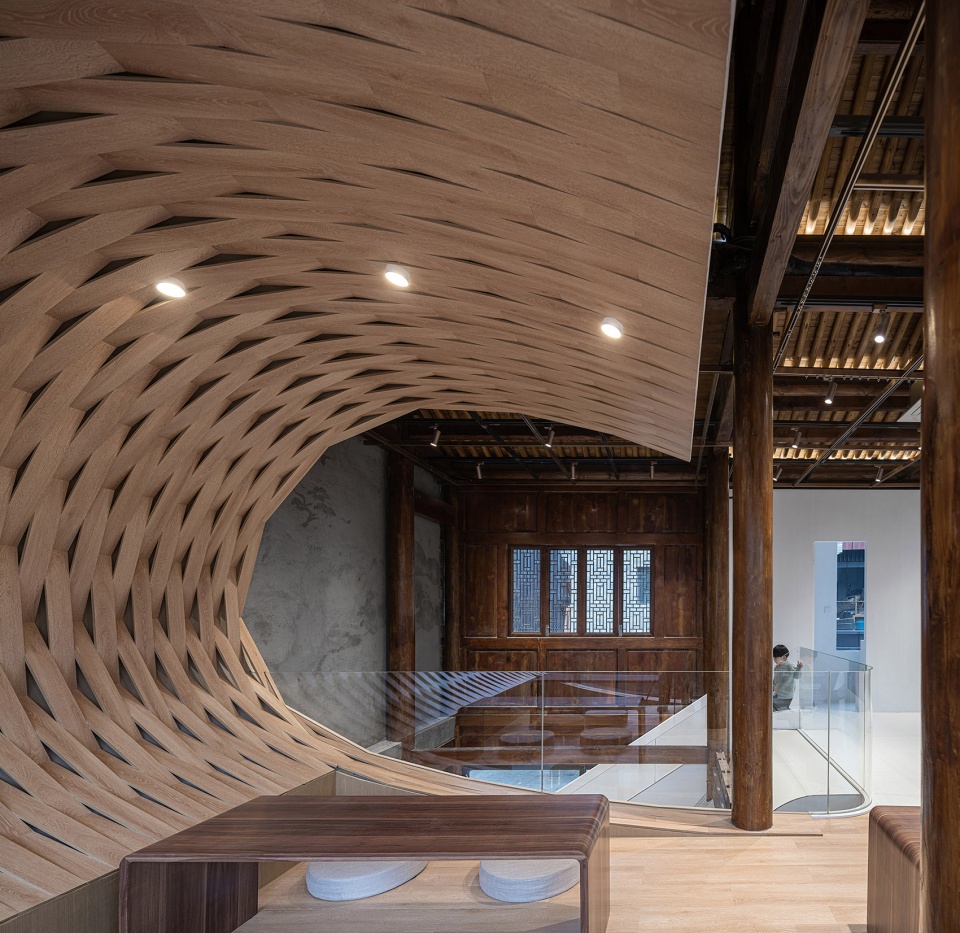

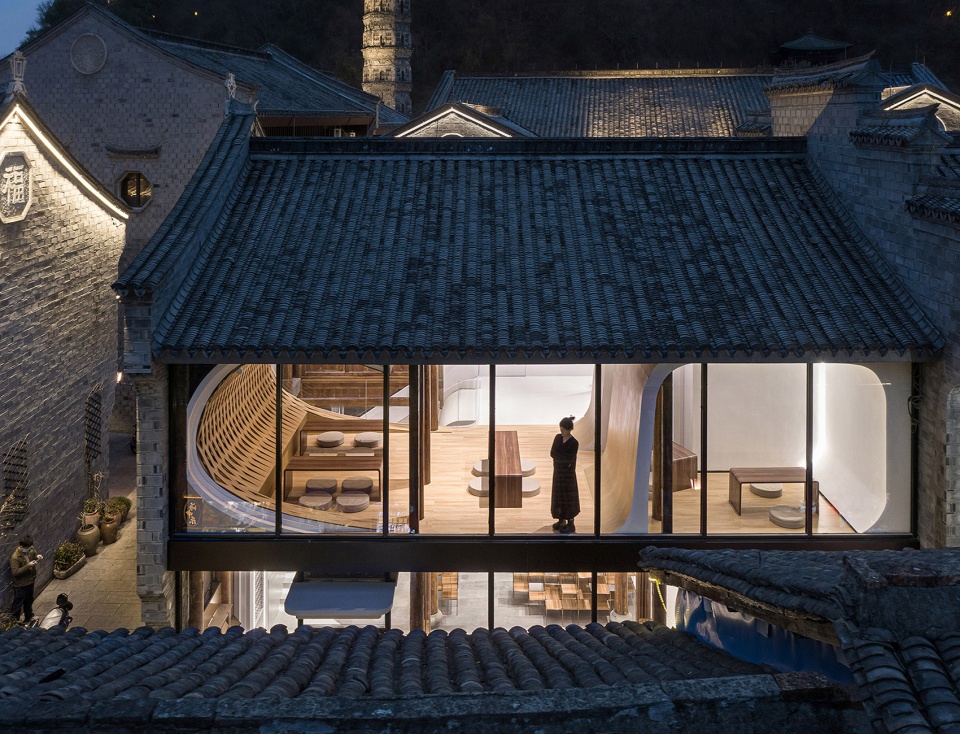

▼巨浪从二层喷涌而出,向古街注入现代气息,the huge “wave” pouring out from the second floor ©吴清山




Jiangnan Zan is now open for business. By virtue of exploring the historical stories of Ziyang Street, its operation team has designed and developed two product series “Qi Kai De Sheng” and “Zi Yang Zhen Ren”, contributing to the retrieval and re-spread of the reputation of the national hero Qi Jiguang of Ming Dynasty and the great Daoist Zi Yang Zhen Ren of Song Dynasty in this historic city. In addition, as the new rising “wave” of the old city, Jiangnan Zan designed by LYCS Architecture plays the key role of the new booster and “microphone” of the new cultural and creative industries, taking the young back and bringing a new vigor to Ziyang old street.

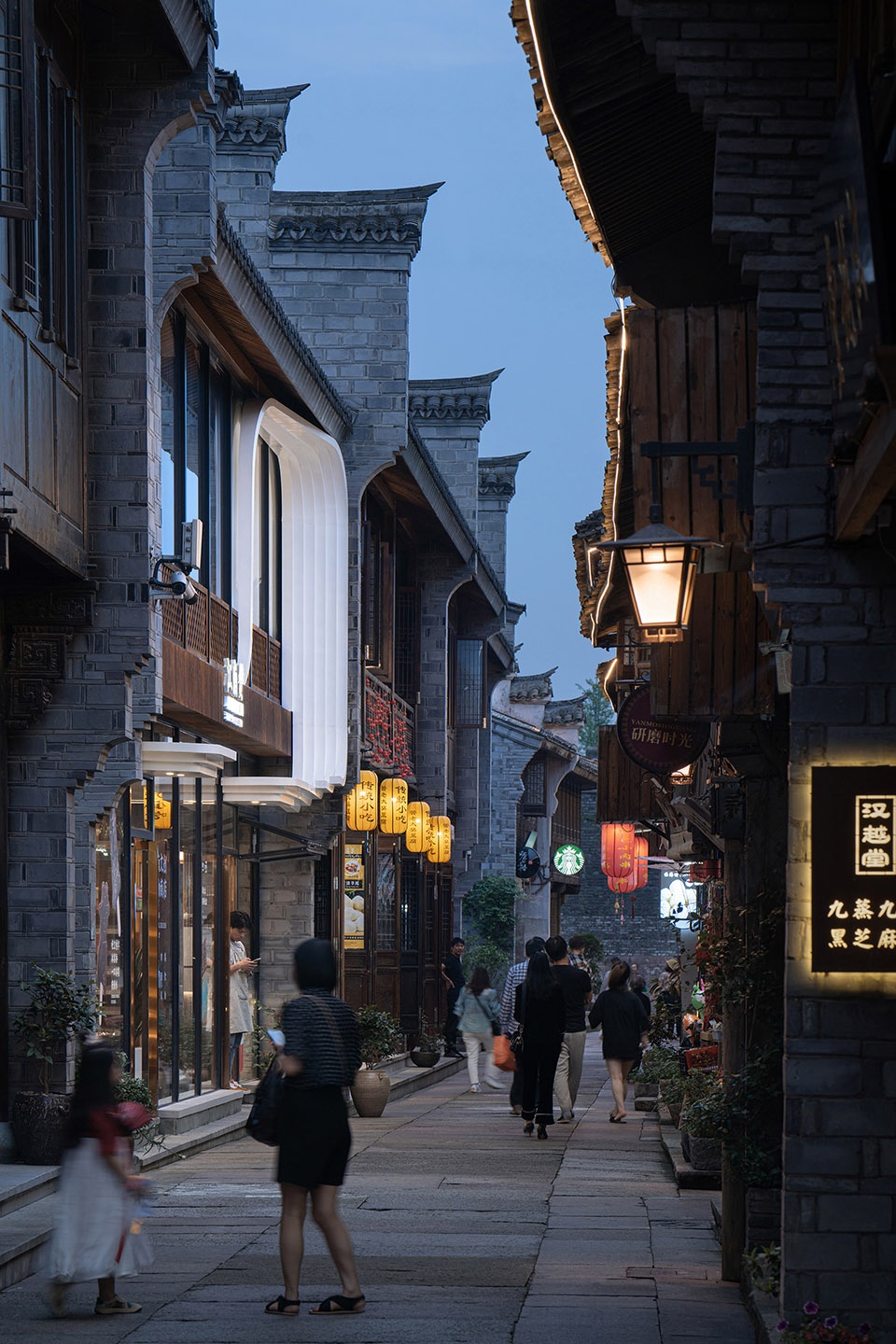

▼由街道看向店铺,viewing the project from the street ©吴清山

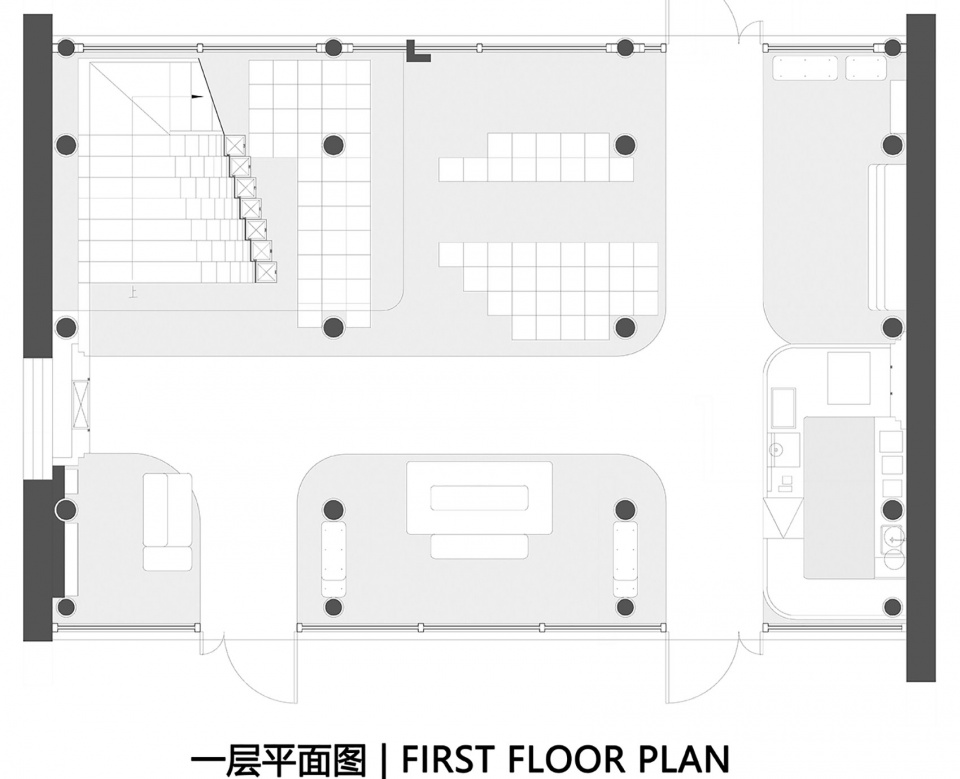

▼一层平面图,first floor plan ©零壹城市建筑事务所

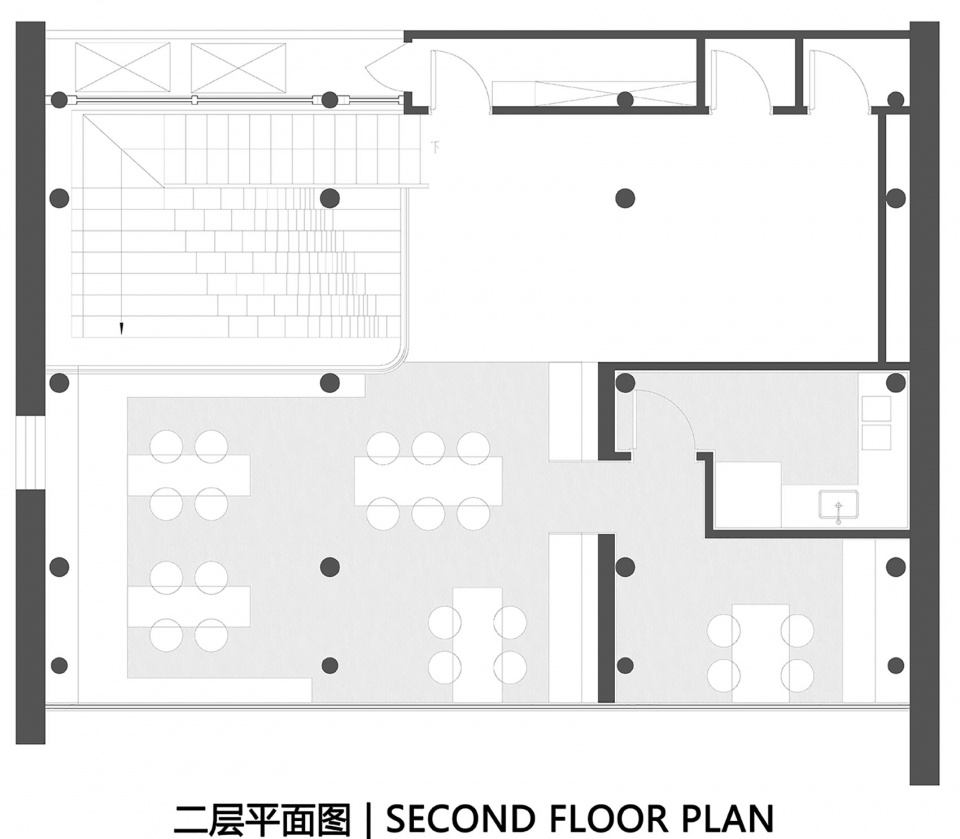

▼二层平面图,second floor plan ©零壹城市建筑事务所

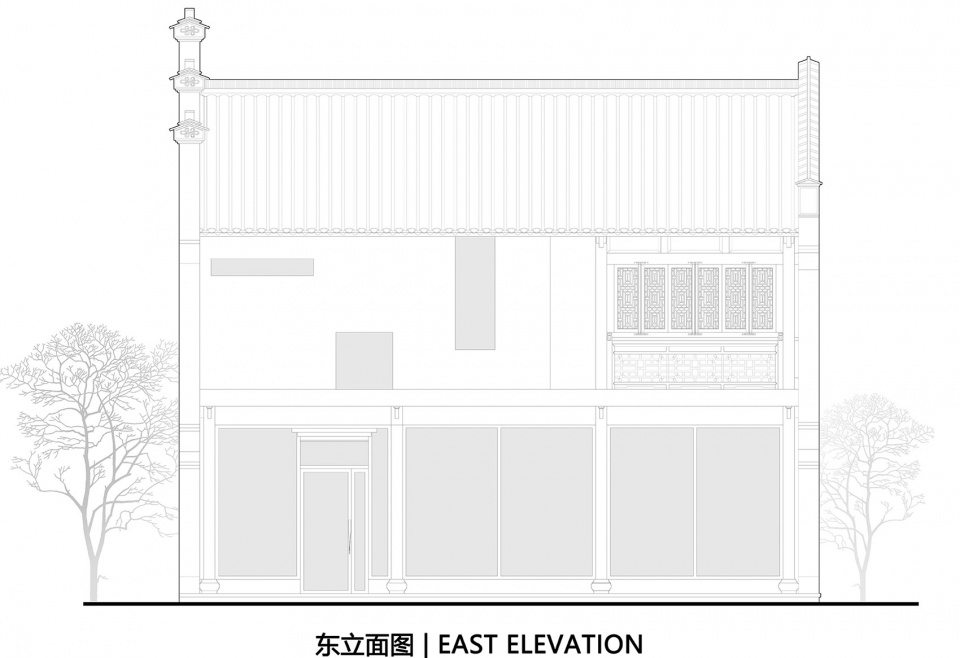

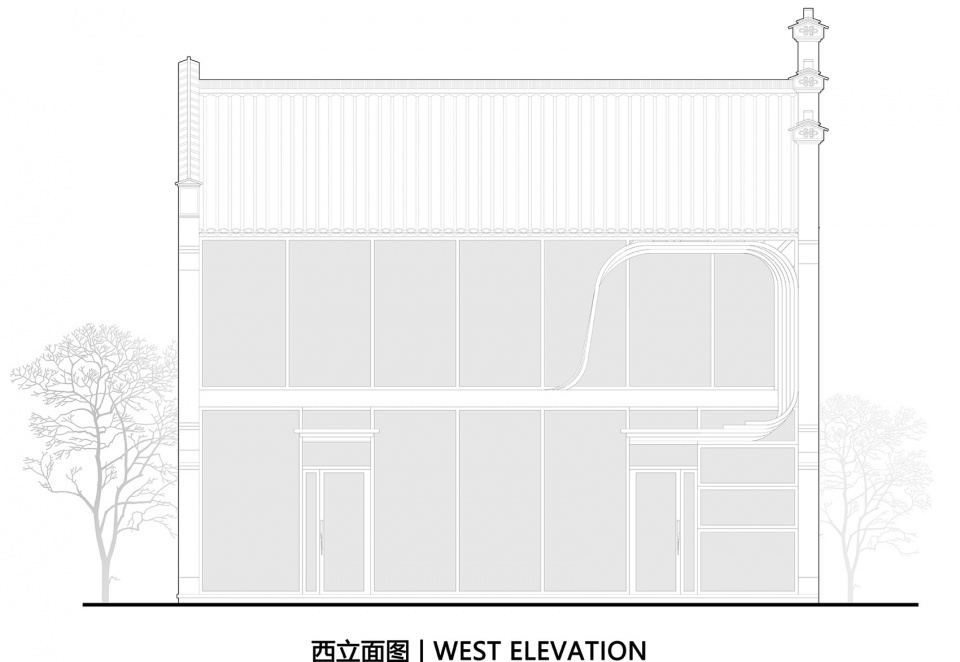

▼立面图,elevations ©零壹城市建筑事务所

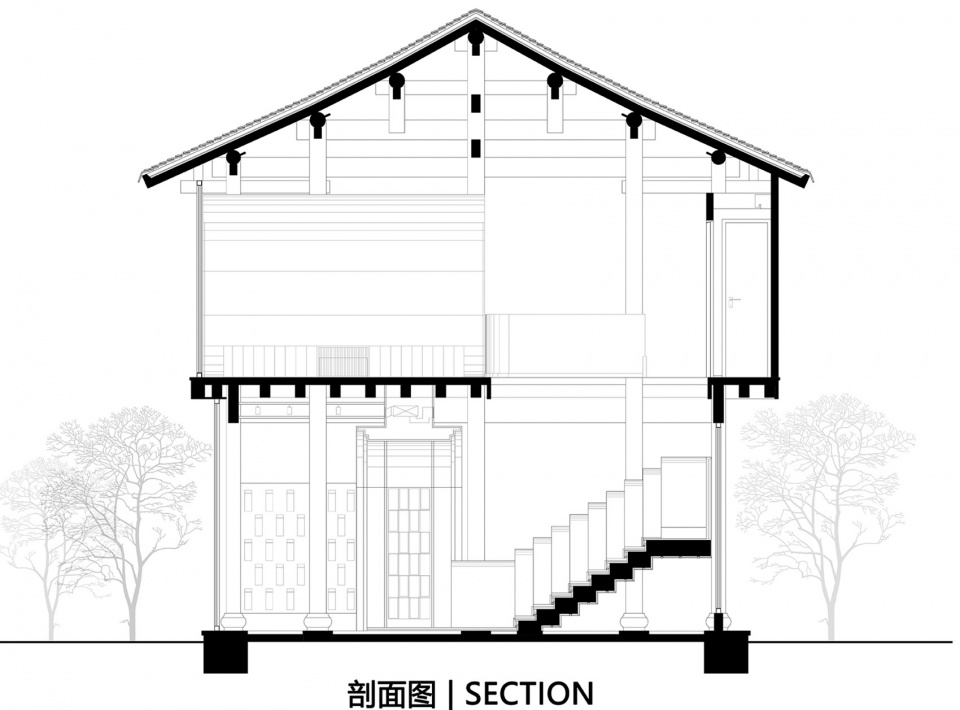

▼剖面图,section ©零壹城市建筑事务所

项目地点:中国 / 台州 / 临海

PROJECT NAME: Jiangnan Zan
PROJECT OWNER: Beijing Huaxushi Culture Investment Management Co., Ltd
PROJECT LOCATION: Linhai, Taizhou, China
DESGINER: LYCS Architecture (Architecture, Interior and Interior Decoration)

MORE:  零壹城市   LYCS Architecture,更多请至:LYCS Architecture on gooood
