“The Corner of Hangzhou”by LYCS Architecture

“杭州之角”

Project Specs

Location:

来自零壹城市建筑事务所LYCS Architecture对gooood的分享。
零壹城市建筑事务所正在招聘英才,点击橙色链接看更多。

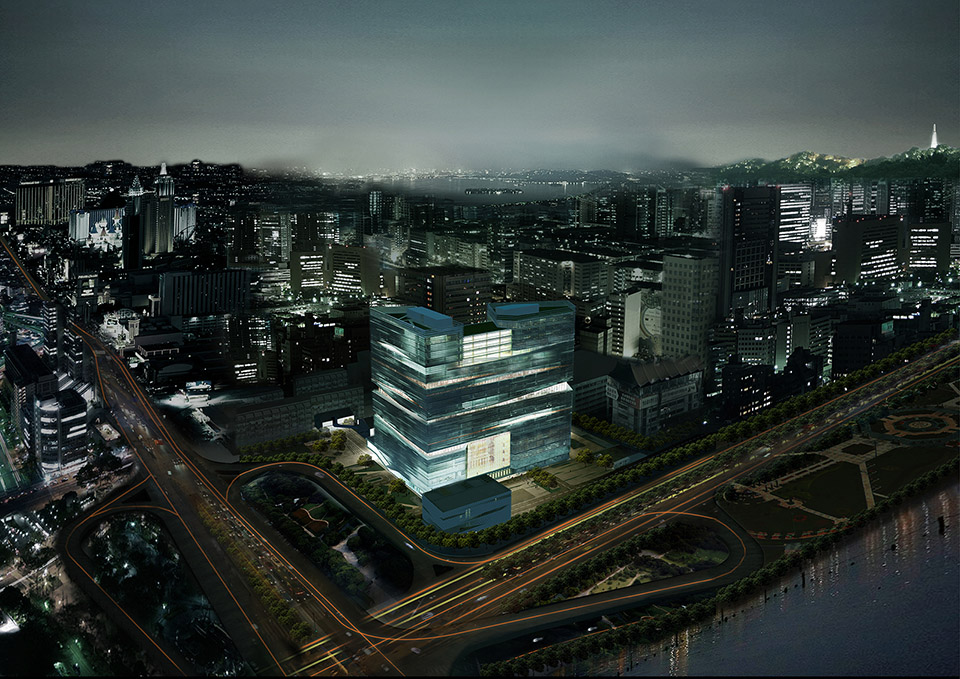

 “杭州之角”–浙江印刷集团总部项目是零壹城市应对复杂城市环境挑战的又一充满智慧的力作。项目场地位于杭州市核心城区,场地北面和东面紧邻车速较快的城市主干道及高架桥,西面和南面是市中心的一片旧住宅区,西北面是京杭大运河及市中心地标西湖文化广场。场地离西湖仅1.8公里,70m以上部分能望到湖面。

The Headquarter of Zhejiang Printing Group project, which called ”The Corner of Hangzhou”, is a smart answer by LYCS Architecture to the challenges from complex urban situation. The site locates in the central urban area of Hangzhou. The north and east sides of the site are closed to a main street and an elevated high-way with heavy traffic. An old residential community sits next to the west and south of this site. On the northwest side of the site are the Beijing-Hangzhou Grand Canal and the West Lake Cultural Square, which is the landmark of the city. The distance between the site and the West Lake is only 1.8 km. People could enjoy the nice view of the lake on the site from the height above 70m.



/wp-content/uploads/2015/05/_c_xa6nKIEjObn4k9TUOPVUlRSkK0Mf-h6RepDb9V__pYrLQxVDCsUE0aLcxNfMLJcGryAMw4b2R3xyMwCIB364866ojoRkRK-k.jpg

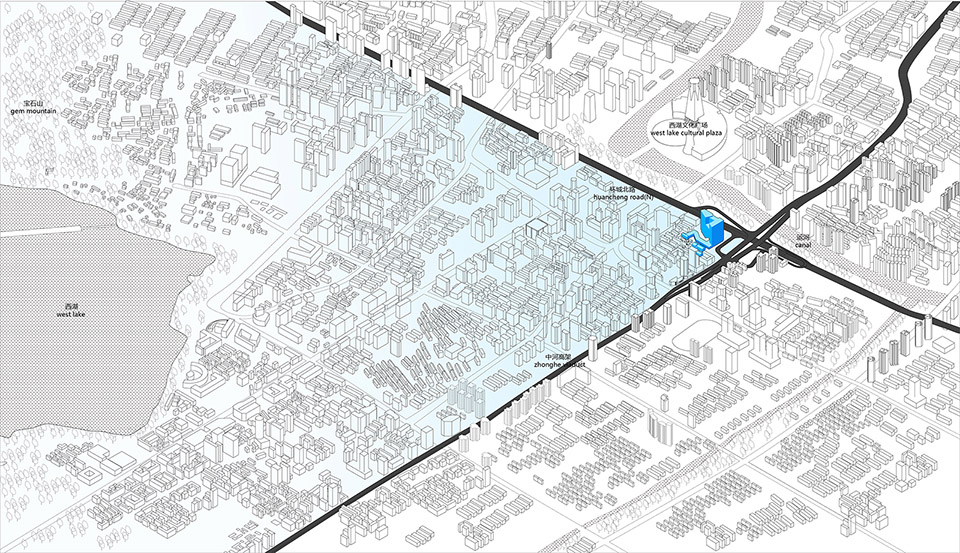

项目之所以称为“杭州之角”,是因为场地位于西湖景观分析区域中划定的城市核心区的最东北角。人们由周边区域进出市中心都会经过场地,极具昭示性。设计首先面临的问题是如何定义一个城市中心区域的边界;同时还面临如何在紧张的用地下设计大体量要求的100米高层,又要对周边住宅的影响降至最小,还需遵守西湖景观分析的要求?

The name “Corner of Hangzhou” comes from the site location, which is just at the northeast corner of the city center defined in the West Lake Landscape Planning. People exit or entry downtown Hangzhou will always pass through the site. The first challenge comes as how to deal with the large building mass, with height of 100m, in a limited site area. At the same time, the site as in city center asks for a landmark, where the building is required to minimize the effect to the surrounding residential communities.



/wp-content/uploads/2015/05/_c_9yx6HiSZv9kXZsIixUjeOb_x1ag5ih4nIvx8wDQJEknQJB1XP38sR6a5-WyUyqJ6ViIf0kqMbcBTvcrNAaxOK674fFofSgNL.jpg

/wp-content/uploads/2015/05/_c_UliACkWrVRJacZJY1BdpvRak4xXG8nz3CNsALjAVVZUTRCm7RiTuOGvJ8pTYP6jWNRgtb8PHKVWomBQfdl0Jr4pd-FhbsGnE.jpg

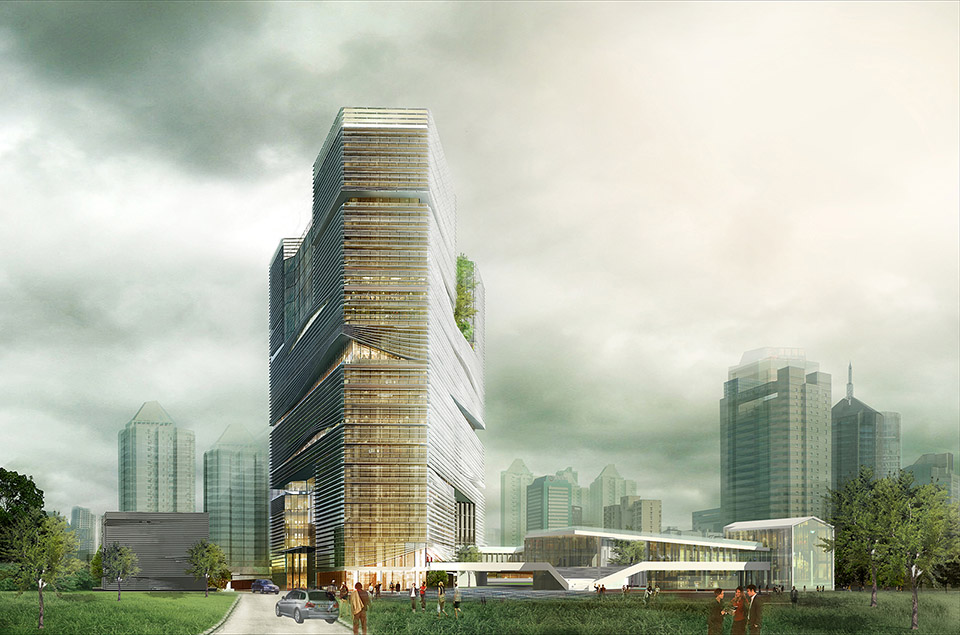

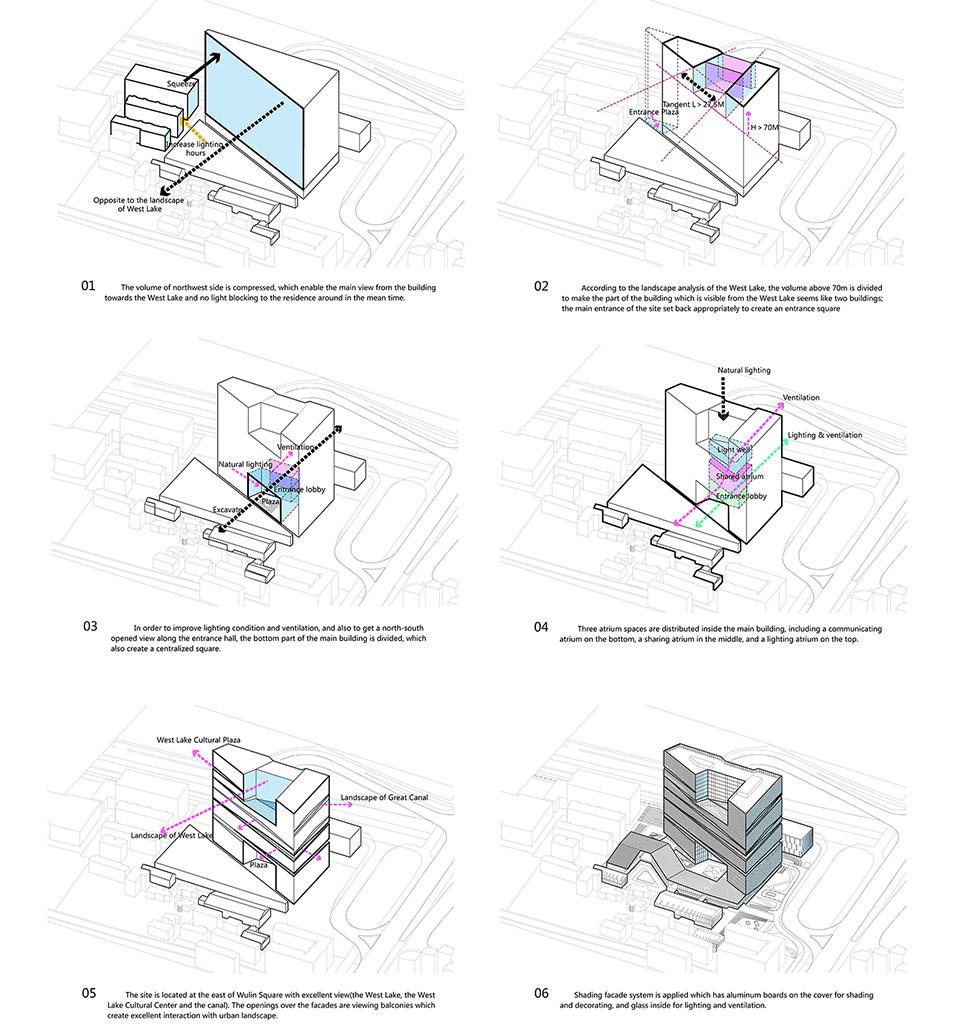

应对这些挑战,设计首先在场地引入对角线切分,将建筑主体设置于场地东北侧,定义了城市中心的转角的四个空间界面指向性:沿着对角线获得了朝向西湖方向的最长的景观面,能够一览无余地望到西湖;面向北侧的城市干道和东侧的高架桥是两个完整的建筑昭示面,面对快速的车流,建筑以大体量、连续横向线条的方式应对车流的尺度;指向西湖文化广场的是局部出挑的城市露台,为高层内部空间延伸出面向城市公共空间与运河的半户外空间。沿着对角线挤压的建筑体量,也使建筑对周边住宅的影响降到最小。对角线的方式同样贯穿在流线组织上,从西北到东南的流线串联创意文化入口广场、中心广场与南侧下沉广场,在底层塑造了园林式游走路径的创意文化街区。建筑外立面使用水平向的连续遮阳百叶,作为造型的同时满足遮阳需求。遮阳百叶在立面根据室内的休闲、绿植等公共空间局部“掀开”翻起,朝向城市打开远眺的视线。

To cope with these challenges, the design introduces a diagonal axis into the site and locates the building to the northeastern corner. The four sides of the building define the corner of urban center with four spatial directions. The south side along with the diagonal axis gets the longest face towards the beautiful lake view. The northern and eastern sides are two complete volumes facing heavy traffic with big scale surfaces subdivided by horizontal shade louvers. The side pointing to the West Lake Cultural Square is partial overhangs balcony and terrace. The semi-outdoor space extends interior views and actives towards the city public space of canal and square. The building volume is compressed along the diagonal axis to minimize its impact on the surrounding residential area. The same diagonal strategy is used for organizing the circulation. From the northwest to the southeast,the creative & cultural production plaza, the central plaza and the south landscape plaza are connected diagonally, which is to make a garden-style creative and cultural district on the ground level. The building facades are covered by horizontal continuous louvers. They texturelize the form with a smaller scale and shade the summer sunlight. Part of the louvers, where close to interior public space, are lifted to ensure a better sight toward the city.



/wp-content/uploads/2015/05/_c_lhOAEb9rcrfpC_9zXX4Wj4sx1e8GSht78M_Q6D6z2oct0_D1e3TdhFmKnb4dfpxByC-IvLtElcsxAvFlJj75MIgV_BxF7x_c.jpg

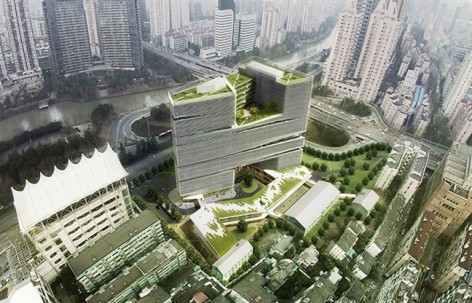

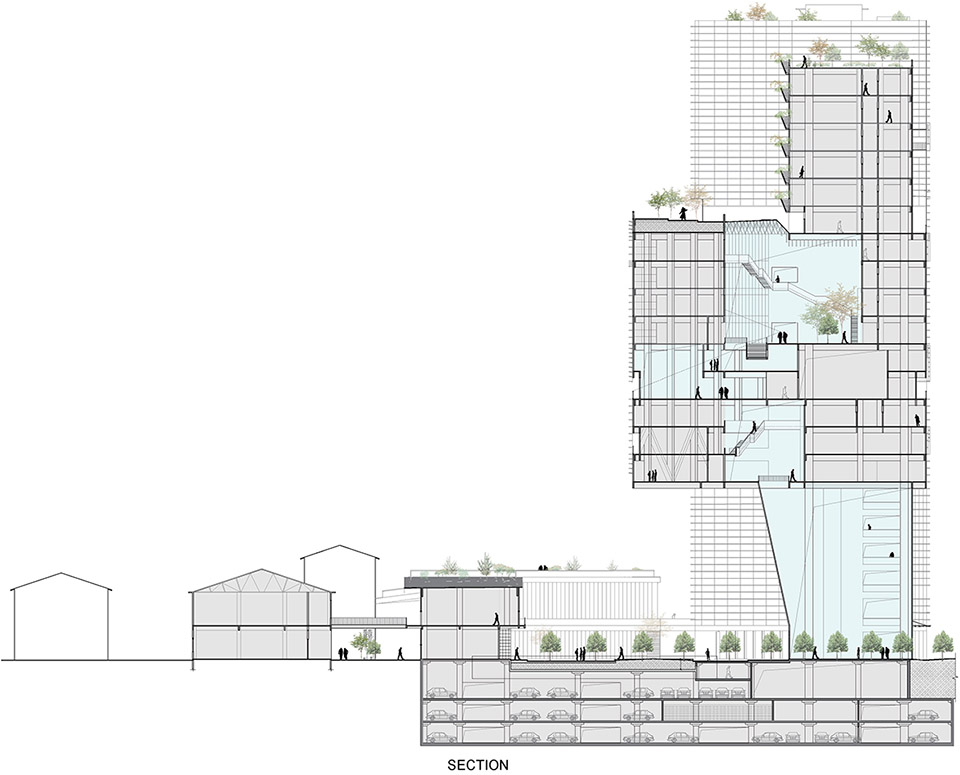

建筑内部在垂直方向分别设置了入口大堂、共享大厅及空中大厅,在大体量的建筑内部引入自然光线、通风和绿色植物。这三个连通的共享空间在建筑形态上形成了上下两端的透空,避免了南向压迫感的体量,并与遮阳百叶形成虚实对比的界面效果。首层的入口大堂八层通高,南北通透,面向南面的入口广场与庭院引入室外景观。位于中部的共享大堂,剖面之字形的错层公共空间增强自然通风,通过旋转环廊连接上下层。位于上部的空中大厅顶部自然采光,使得高层当中仍然有新鲜空气与绿色景观植物。在建筑70米的高度设置室外半围合的空中花园,为高层办公提供了更接近地面的体验。

Inside the building vertically locates the ground lobby, the sharing hall and the sky lobby, where natural light,ventilation and greenery are introduced into the inside of the massive building. In architectural forms, these three connected public spaces lighten volumes in the upper and lower parts. On one hand, they alleviate the sense of pressure to the south building. On the other hand, along with the shading louvers,they form the contrast between transparency and solid.The lobby on the ground floor, which is eight-floor high, brings light and landscape into building from south entrance plaza. In the sharing hall, located in the middle of this building, the natural ventilation is enhanced by a zigzag section, and a spiral gallery connects the upper and the lower floors.The sky lobby, which is located in the upper level of this building, is open up to the nature for creating a sky garden with fresh air and green plants at the height of 70 meters. This semi-enclosed garden offers the experience of being close to the ground for people who work at a high rise building.



/wp-content/uploads/2015/05/_c_JbFfsc15K6Uhns07EtW1nwVwuDicz30rKSelxRov1WW0i8VCtiOF6Pvu7qhzalwg8QUBTXcf0kU-ZuhaRkYioW99SzDL77Qb.jpg

/wp-content/uploads/2015/05/_c_RLIEMDI-Kk_zElKp8-vjpOK1c-LKBGEYjyEj2bOr36MpDt9zUmOJ_5rgNx0OJzDFXKXooyTWHQEIDMkmYs7NNycR5k-vOHRt.jpg

/wp-content/uploads/2015/05/_c_SPZw5Co_G22nI2_8J4HEa_OiJ4XjFowY8aK_vta1MPRTG-0Ocesh3hZdPcHAHd2eqTyGSkiWU4RluEu4A94JYnPommXzZgn5.jpg



正是设计巧妙而大胆的策略,在投标阶段,在与其他都是两座塔楼的设计中脱颖而出。目前项目已经通过报建,预计2015年底开始施工。

 It is modest and audacious, all at once. Our proposal stands out in the competition because we think outside the box rather than double-tower in the design. Now this project has passed the approval and is expected to start construction at the end of 2015.

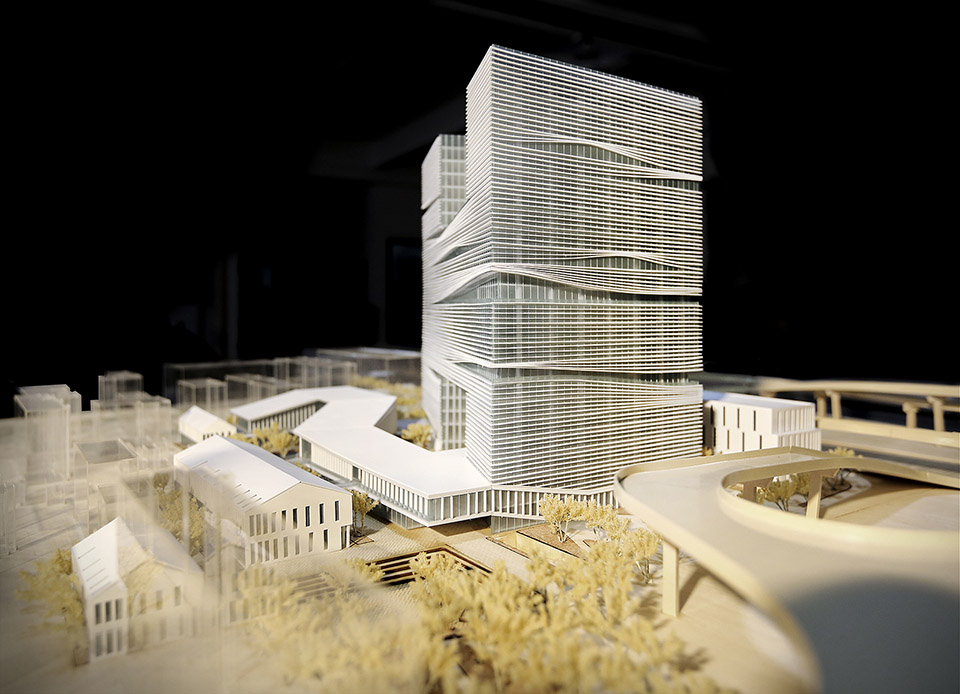

/wp-content/uploads/2015/05/_c_jcO8Xm5tVL5ER_Tgr4juEPfVsu0Sd9Fm2MqSWgQPwMjhWrbEtmMkdSrotWoBIEwWAbz_6wyjTy7oS20exVZ25G165uW00N6V.jpg

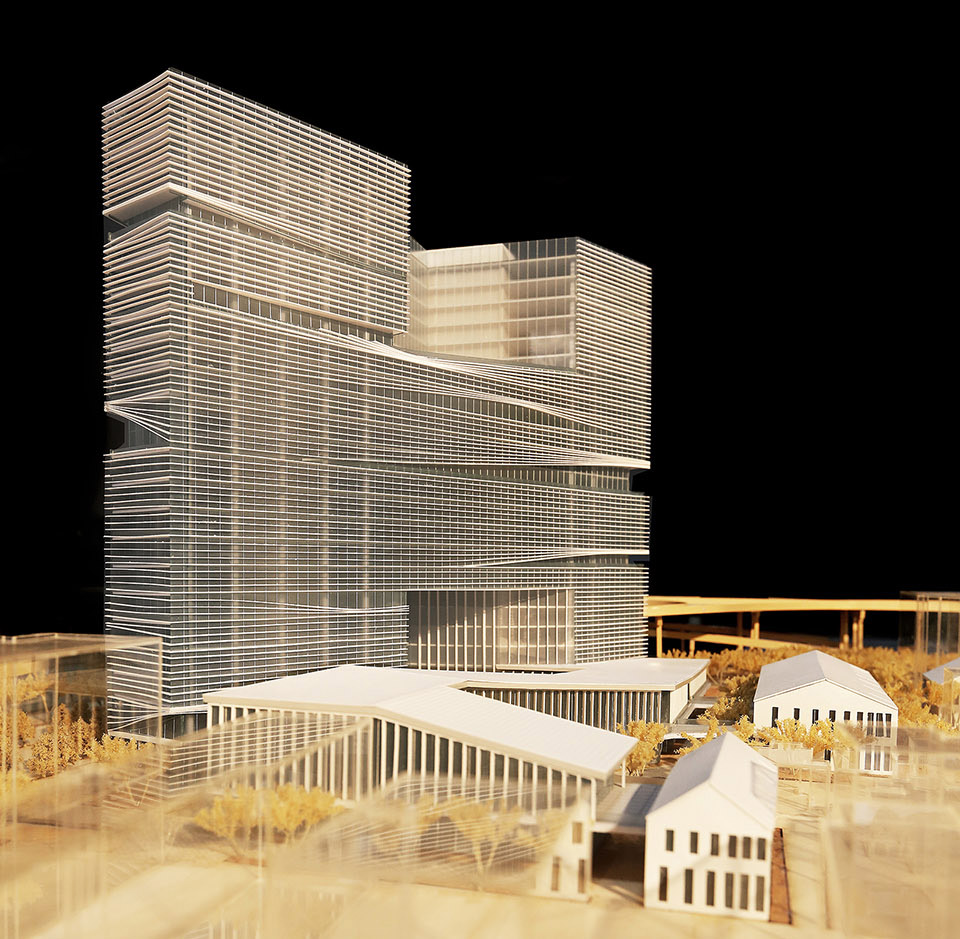

/wp-content/uploads/2015/05/_c_HXQ_Iuqov2NJTsDjU2BqirO4vie73V8sTe78mvTSqHMnDtl8WFutHioHiTp3JBW9PkQ4kVS-Ayene_zFb1xiSnXho253byFP.jpg





/wp-content/uploads/2015/05/_c_sN_Ifnz4Qvk3Cc2mOoHciLQmMNibU7aADLP4JXMO6aYSAsZhqz9UaFuatq9u52nP_FSNj4N2UNcLdHAMaJpYped_Iwriyo6_.jpg





项目名称: “杭州之角”–浙江印刷集团总部
建筑设计: 零壹城市建筑事务所
项目地点: 中国浙江杭州
设计团队: 阮昊,詹远,陈文彬,林经锐,吴时阳,金善亮,来震宇,陈丽娜
项目时间: 2014-2015 年(设计) 2015 年(施工)
项目面积: 115,389平方米
图片版权: 零壹城市建筑事务所
合作单位: 浙江省建筑设计研究院

Project name: ‘’The Corner of Hangzhou” –Zhejiang Printing Group Headquarter
Architecture design: LYCS Architecture
Location: Hangzhou, Zhejiang, China
Project Team: Ruan Hao, Zhan Yuan, Wenbin Chen, Jingrui Lin, Shiyang Wu, Shanliang Jin, Zhenyu Lai, Lina Chen
Project Period: Design 2014-2015, Construction Begins 2015
Total Area: 115,389sqm
Images: Courtesy of LYCS Architecture
Architect of Record: Zhejiang Province Institute of Architecture Design and Research
