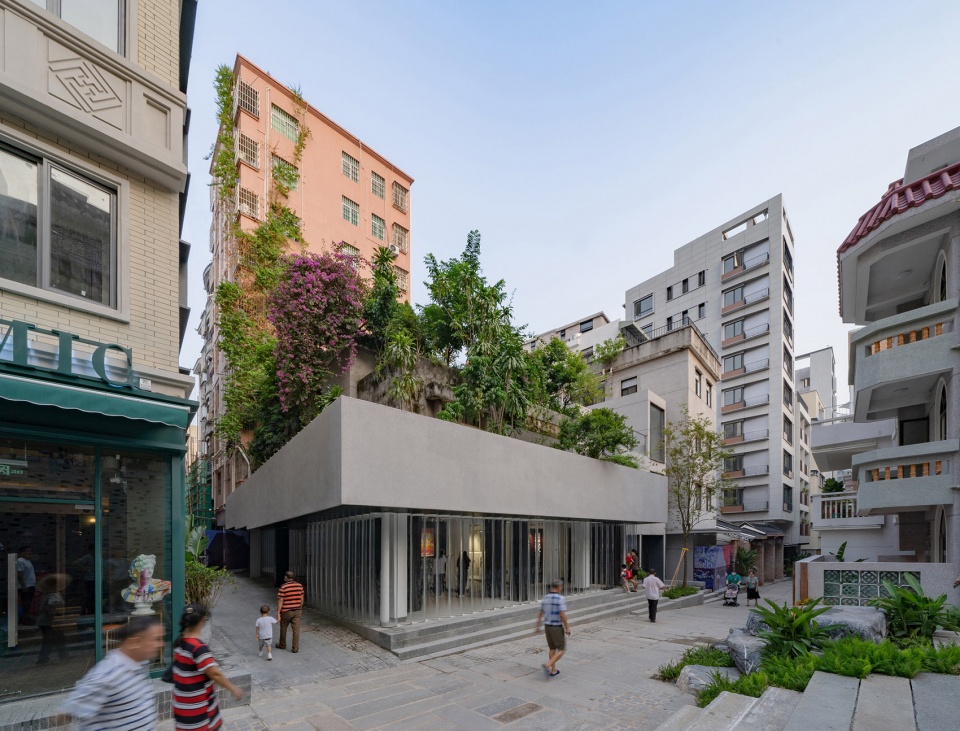

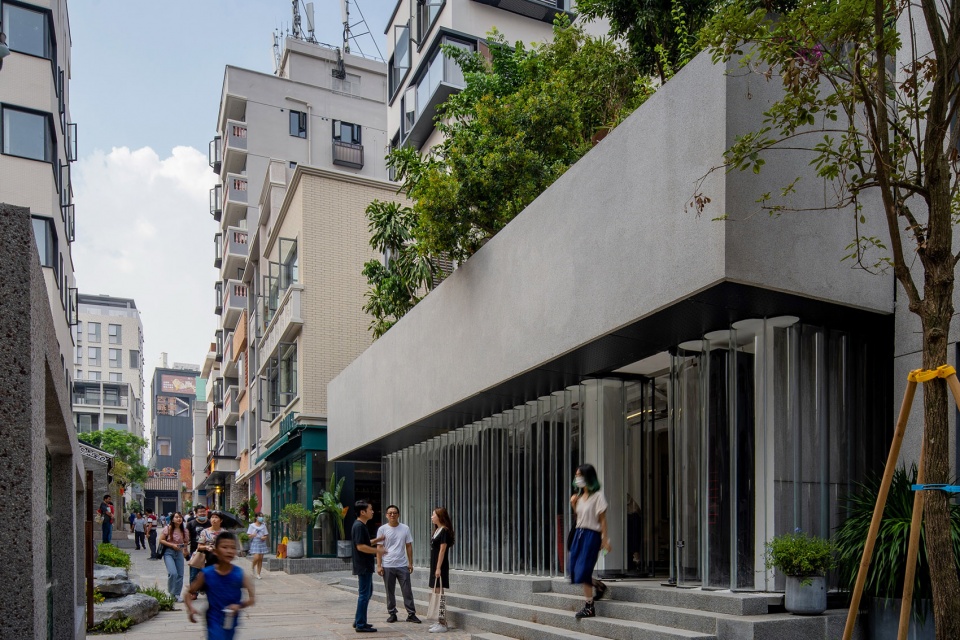

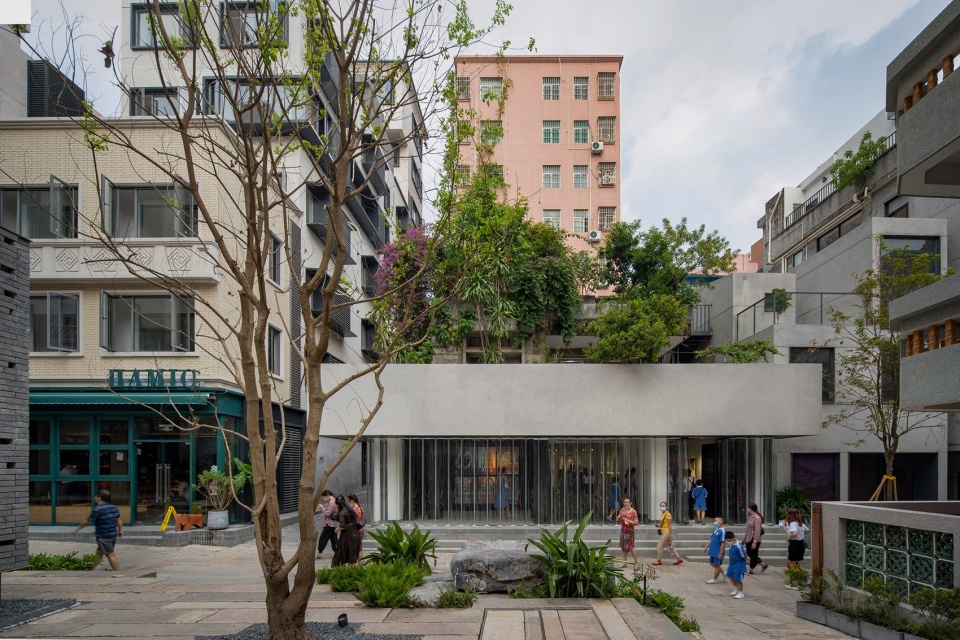

▼项目外观，external view of the project ©张超
The Plant Building of Nantou Old Town was built in 1980s, locates in the middle of Zhongshan South Street, eastside of the pocket garden. The first floor of the building served as stores, and the second floor and above were used as residential space. The building was known as one of the most typical residential buildings in the old town. It has the masonry-concrete structure and water-washed sandstone façade, which is very common in the urban village buildings. However, with the rich plants on the terrace raised by its owner, the building also shows a unique character of “a green box inside ten thousands of buildings”. Following the 2017 UABB, a new mega renovation has been carried out in Nantou Old Town, leading by Bureau of Public Works of Shenzhen Municipality Nanshan District and Shenzhen Vanke Development Ltd. In this renovation, one of the commissions accepted by CM from Urban Research Institute of China Vanke, was to establish a new image for the plant building.

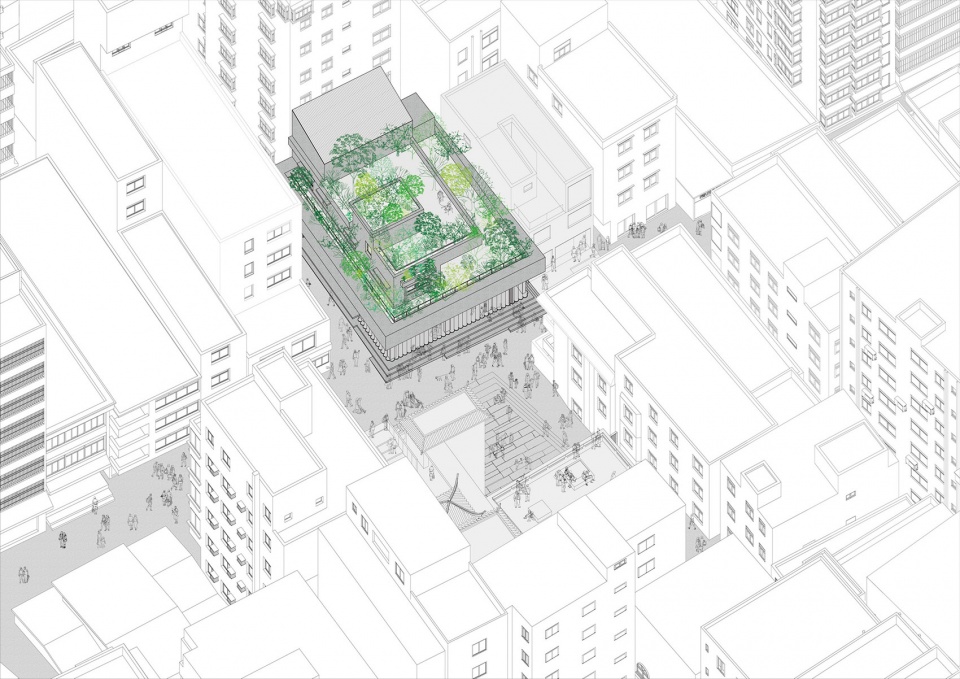

▼轴测图，古城中的改造，axonometric, renovation project in an old town ©厘米制造
As the renovation progressed, the street overlapped a series of completely different building facades and spaces. In this context, CM seeks to give a new open and clear feature to the plant building, reconstructing the mutual infiltration of indoor and outdoor spaces and the interaction with the street. Instead of displaying traditional flat image of street stores, 350mm diameter curved glass continuously wrapped the first floor to form an interface of transparency and interactivity, creating a dramatic difference from the surroundings, and reconnecting the interior space with the old town.

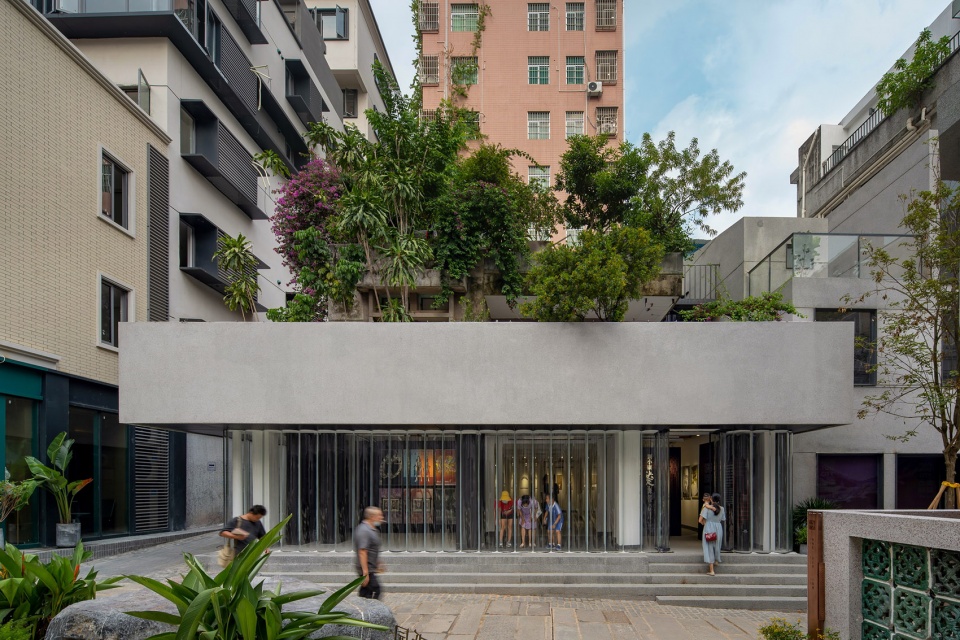

▼建筑立面由弧形玻璃围合，the building is enclosed by curved glass ©张超

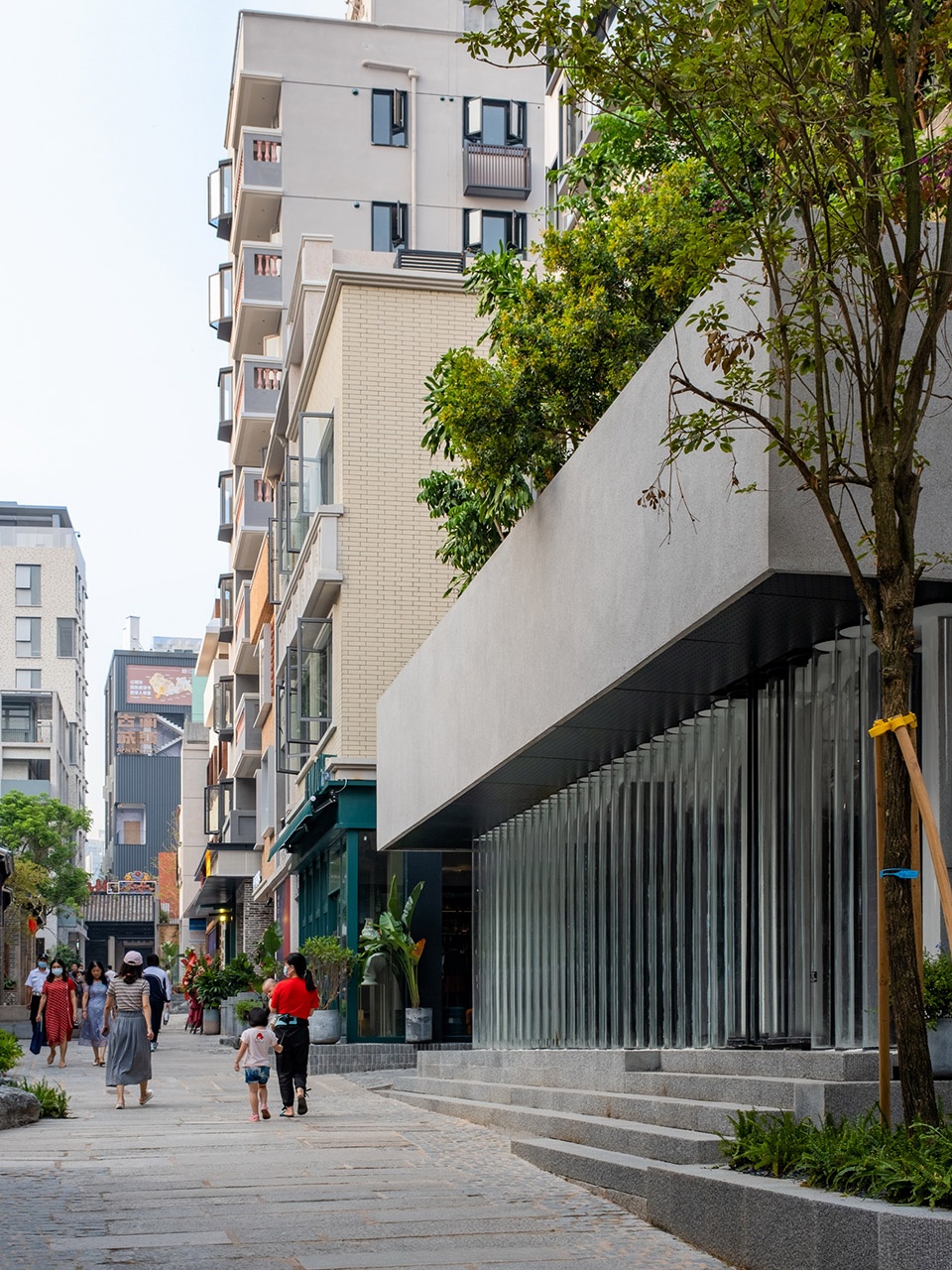

▼建筑前的城市公共空间，public space in front of the building ©张超
For buildings on the second floor and above, what we think the most meaningful in the renovation is not just about retaining——living space and owner’s lifestyle have not been changed, their love for plants could also be sustained——but a design that similar to “not design” can strengthen the character of a green box on the roof, contributing the only rising forest to the high-density urban village, and making it exceedingly precious.

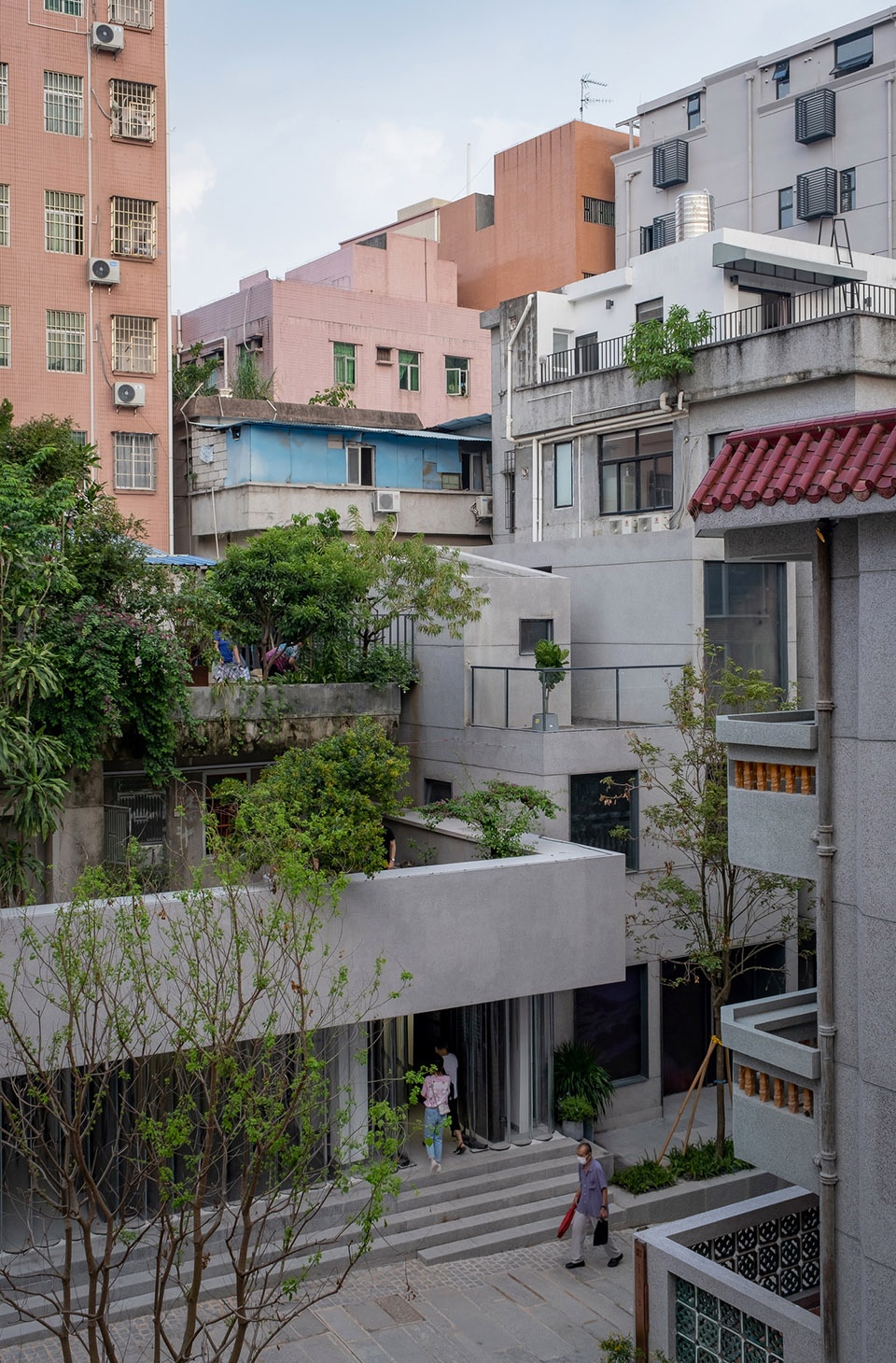

▼二层以上建筑和屋顶花园被保留，buildings on the second floor and the roof garden are remained ©张超

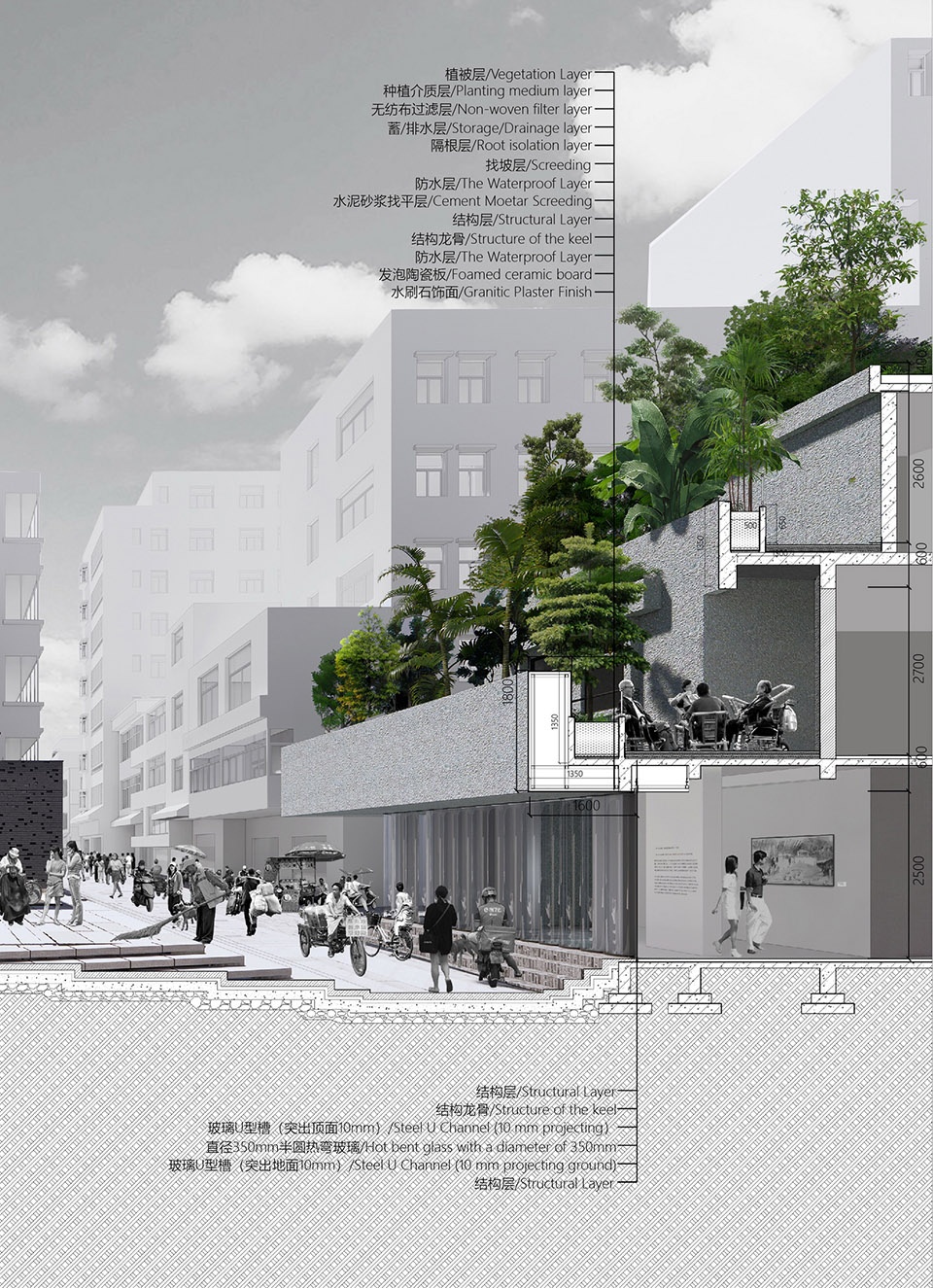

The green plants on the second and third floor contrast the transparent pure curved glass on the first floor. Thick cornice with water-washed sandstone overhanging the street separates the two layers of open public space along the street and private living space above, strengthening the entrance and the architectural interface as well as providing sun and rain protection.
▼植物与通透的玻璃通过一条横向水刷石檐板分开，the plants and glass walls are separated by a cornice of water-washed sandstone ©张超

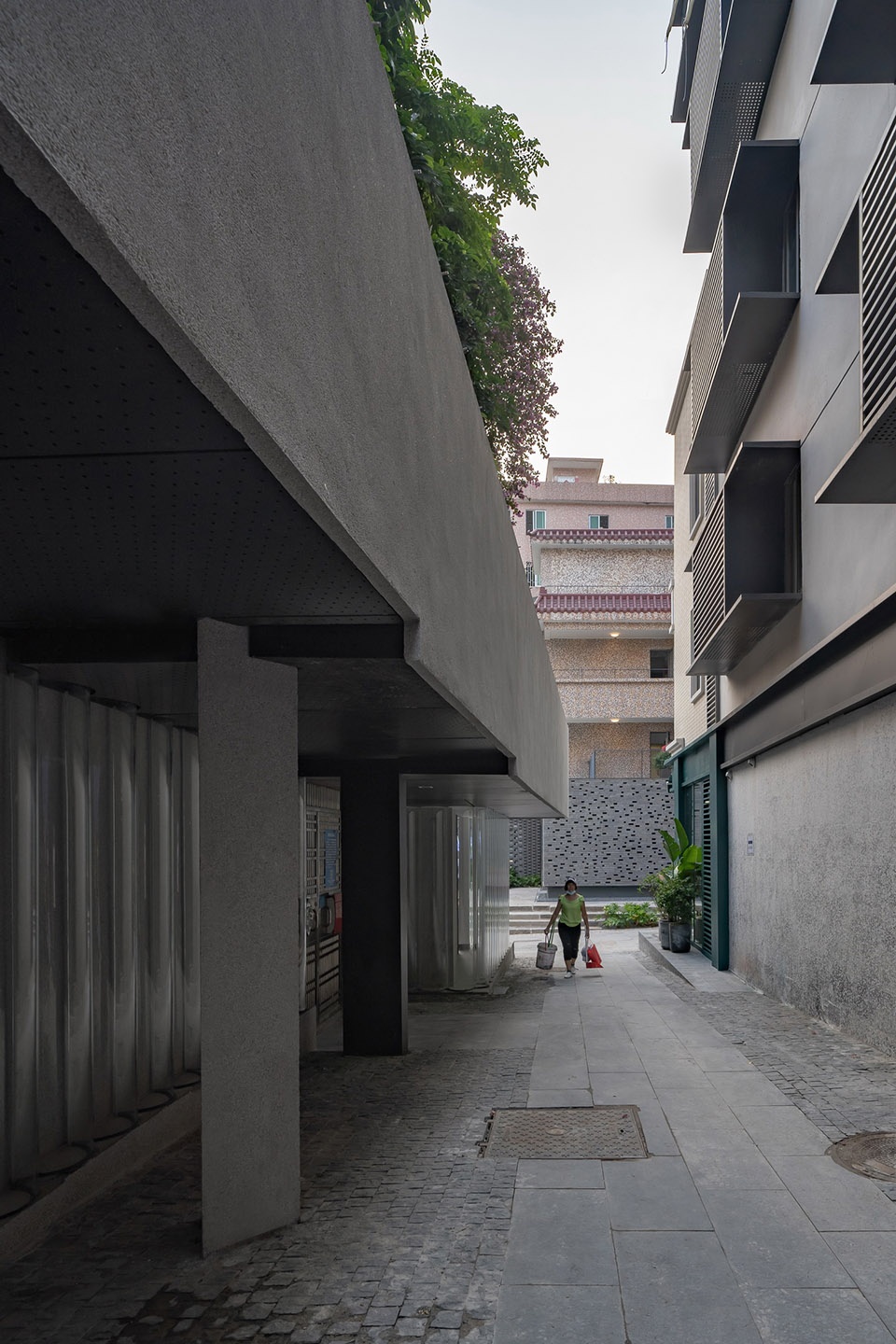

▼改造建筑立面与街道，street and the renovated facade ©张超

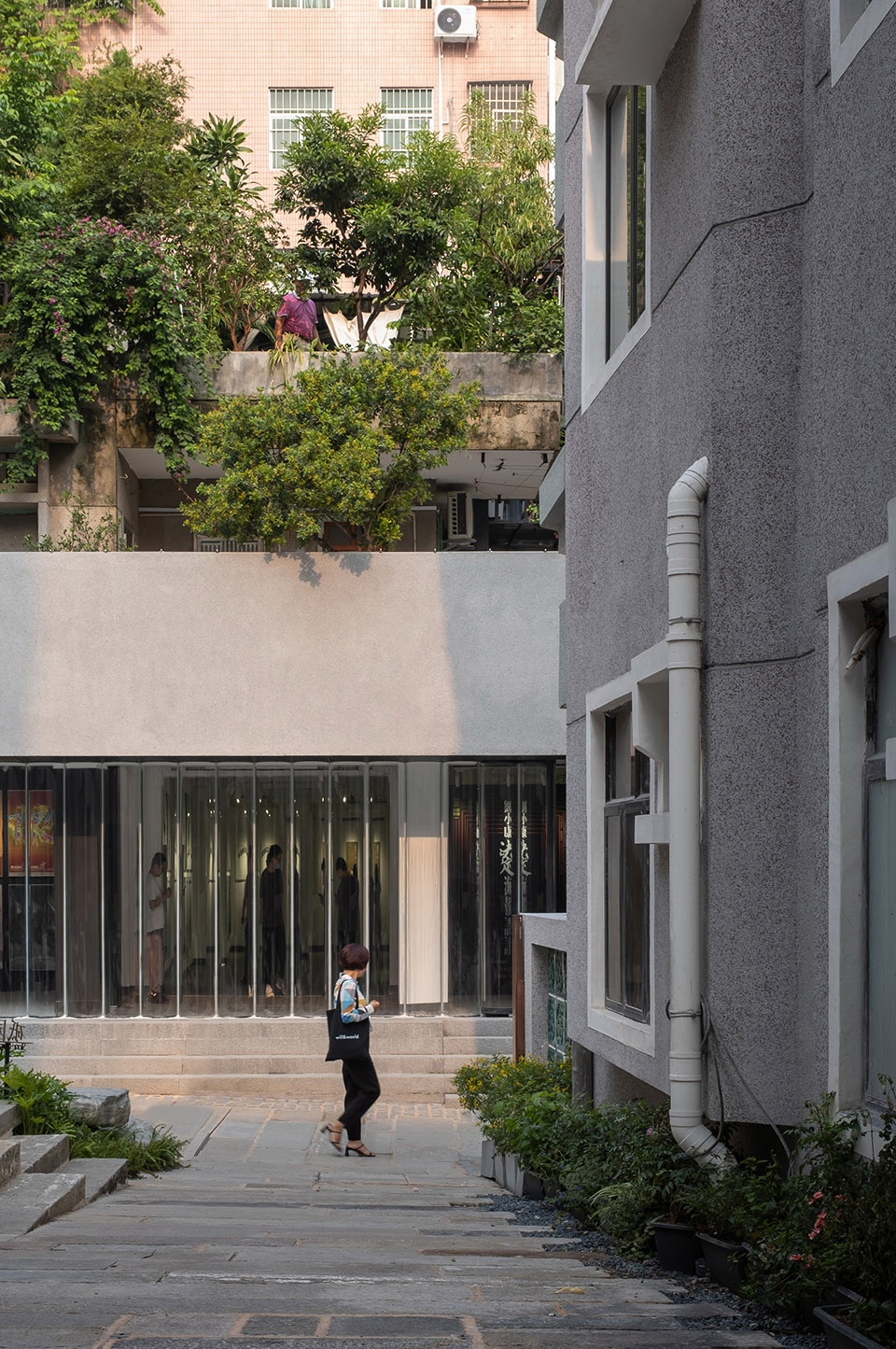

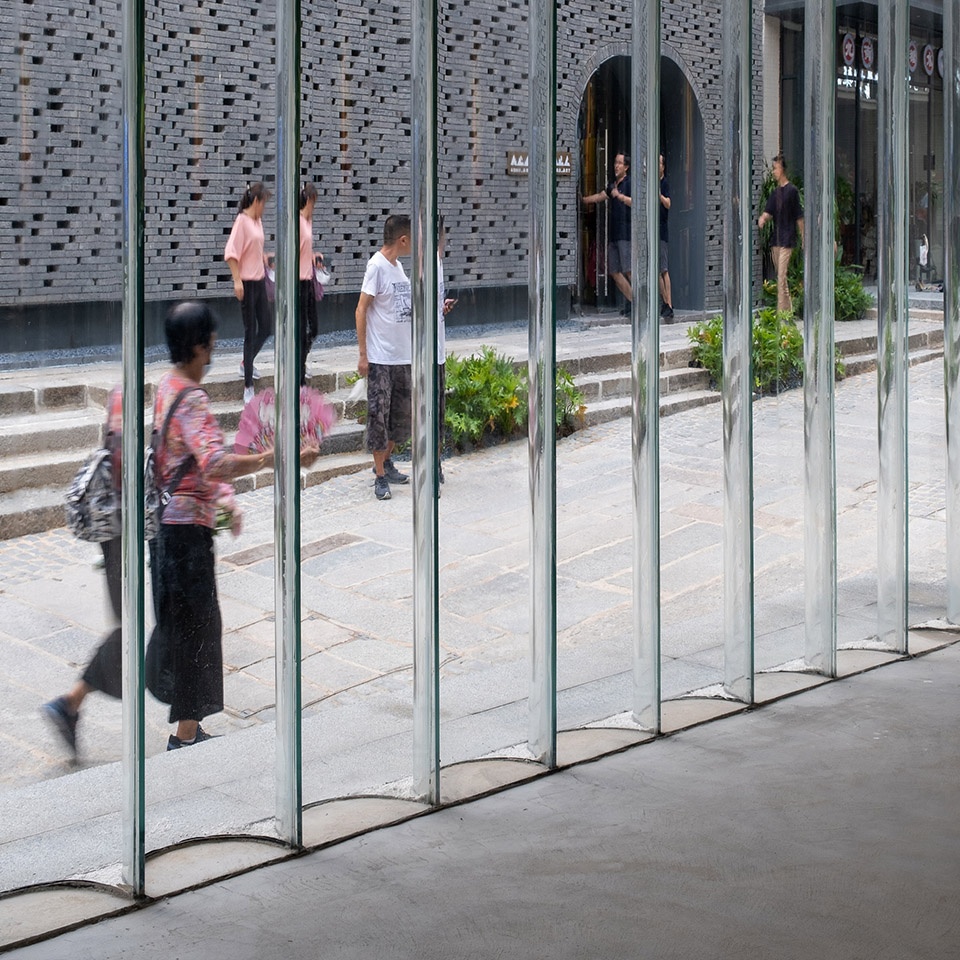

▼透过弧形玻璃立面看向街道，view to the street through the curved glass ©张超
The renovation of Nantou Old Town depicts the rich and diversified urban life and cultural connotation in various stages of Shenzhen’s history, showing the development context of the historical old town and contemporary city. The Plant Building has found its own identity and memory in the homogeneous architecture and city types. It is a juxtaposition of the building and garden, a collage of architectural spaces of different ages, and a dialogue about new and old materials as well as construction methods. In future, the first floor will be placed in the street as a cultural and art exhibition space, while the second floor shows a symbiotic picture of urban life hidden in the city and the garden. The scenery of diversification just reflects the inclusiveness and shareness of the renovation of the old town.

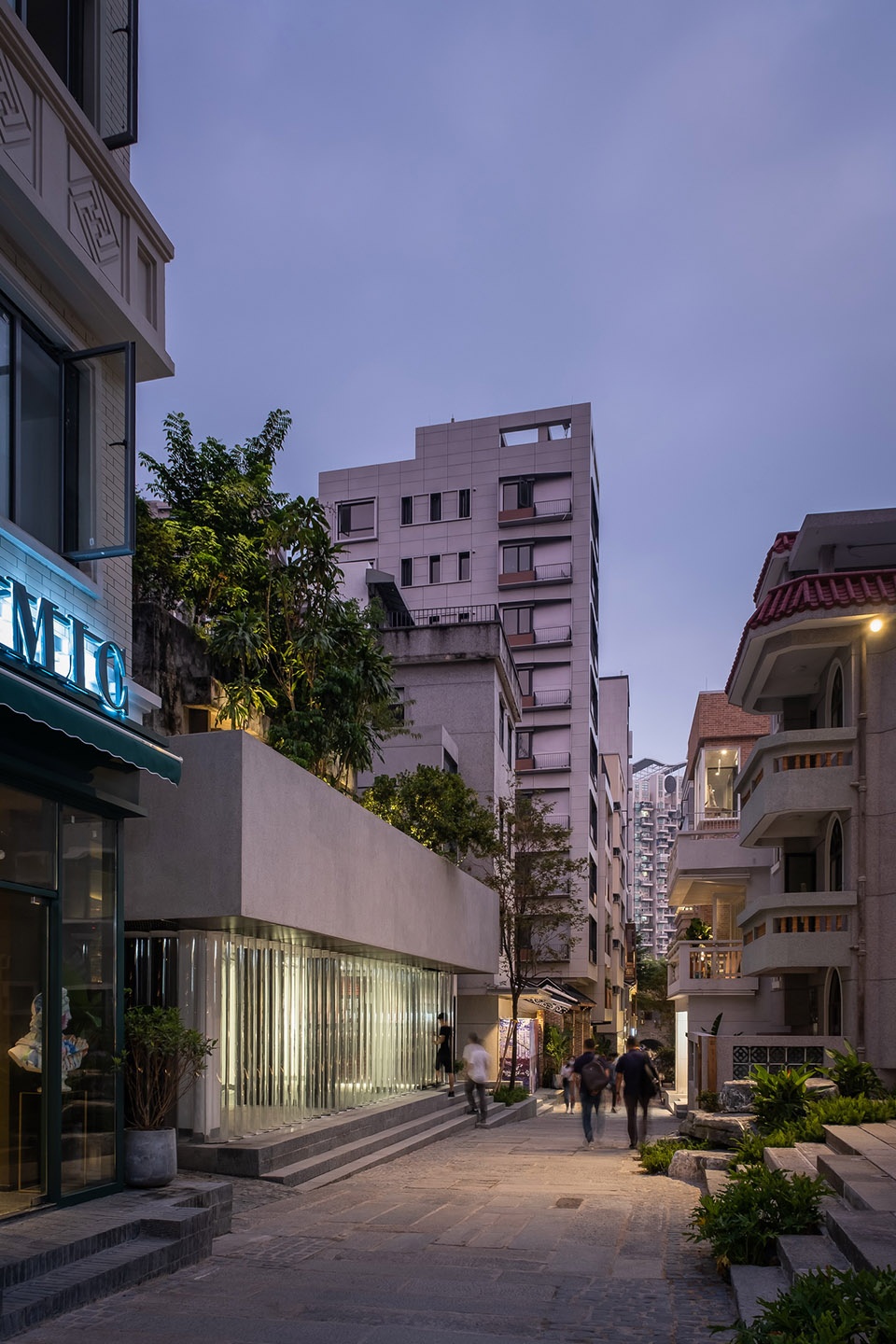

▼夜景，night view ©张超

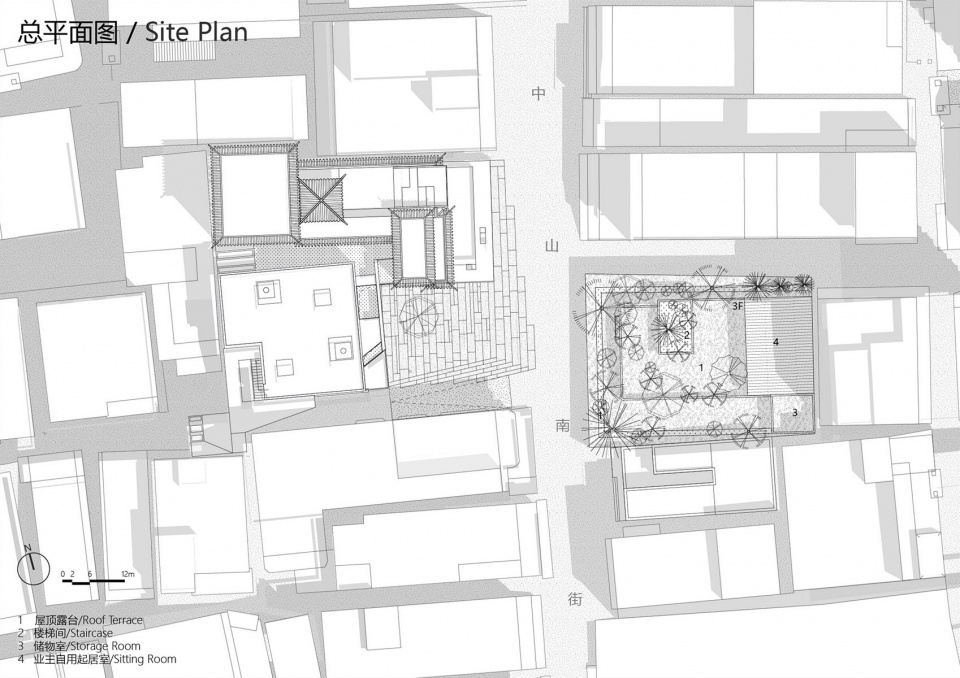

▼总平面图，site plan ©厘米制造

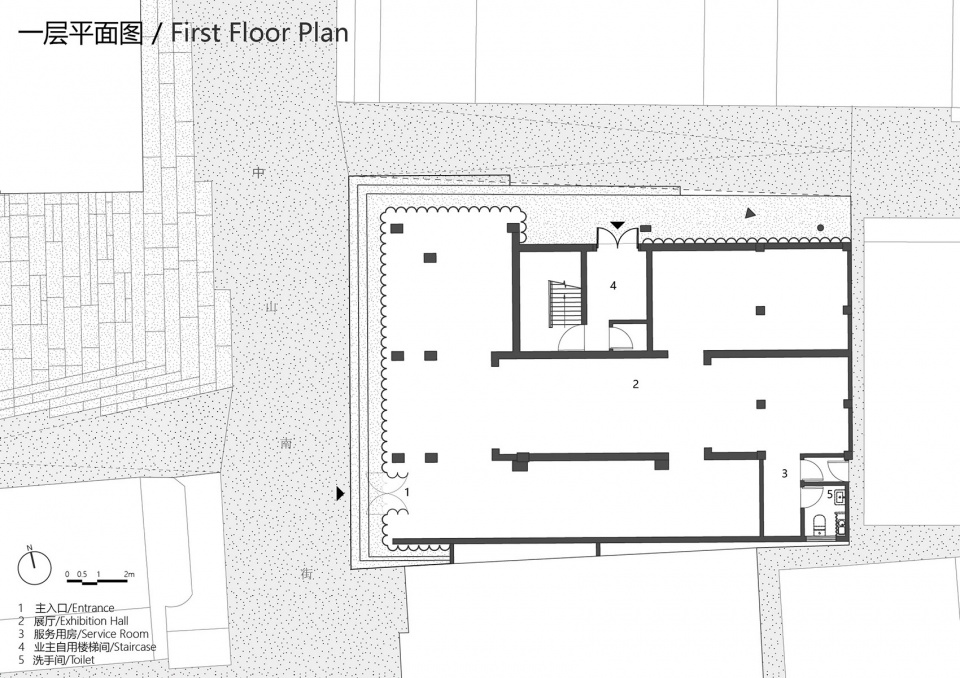

▼一层平面图，first floor plan ©厘米制造

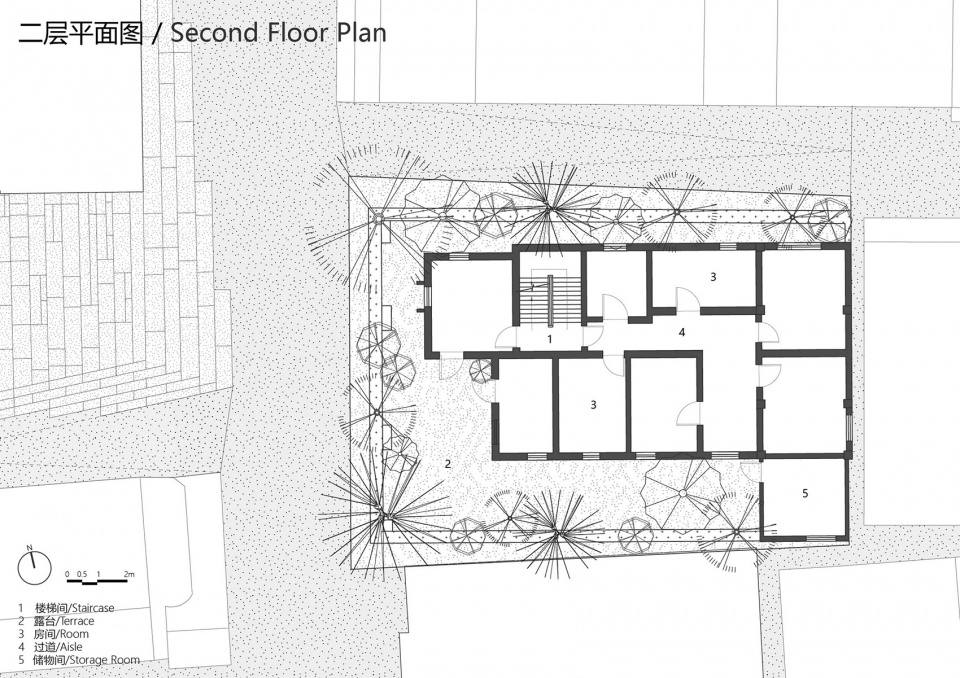

▼二层平面图，second floor plan ©厘米制造

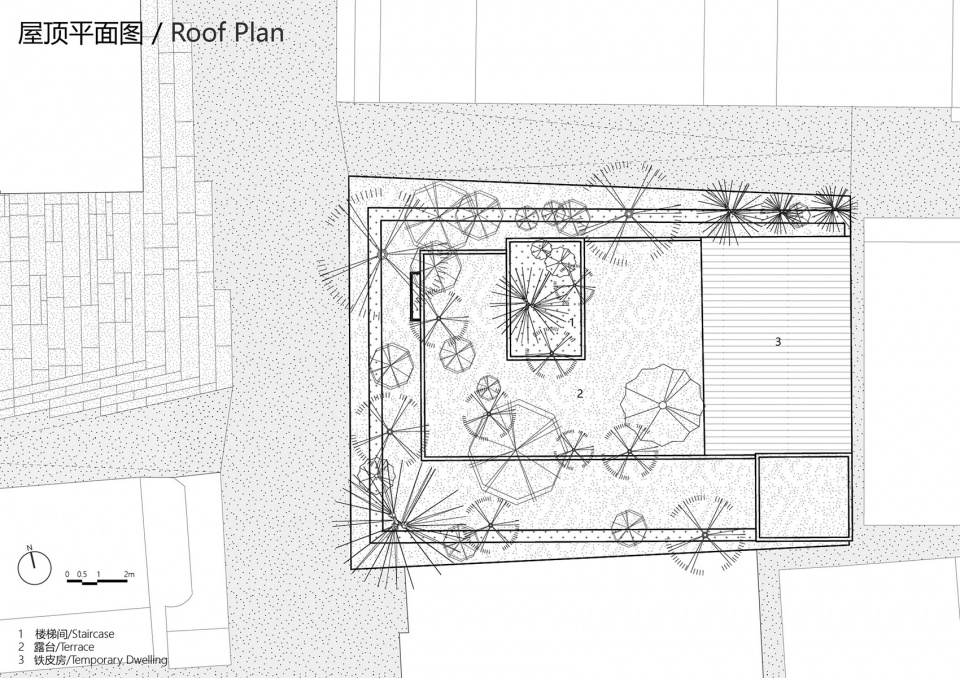

▼屋顶平面图，roof plan ©厘米制造

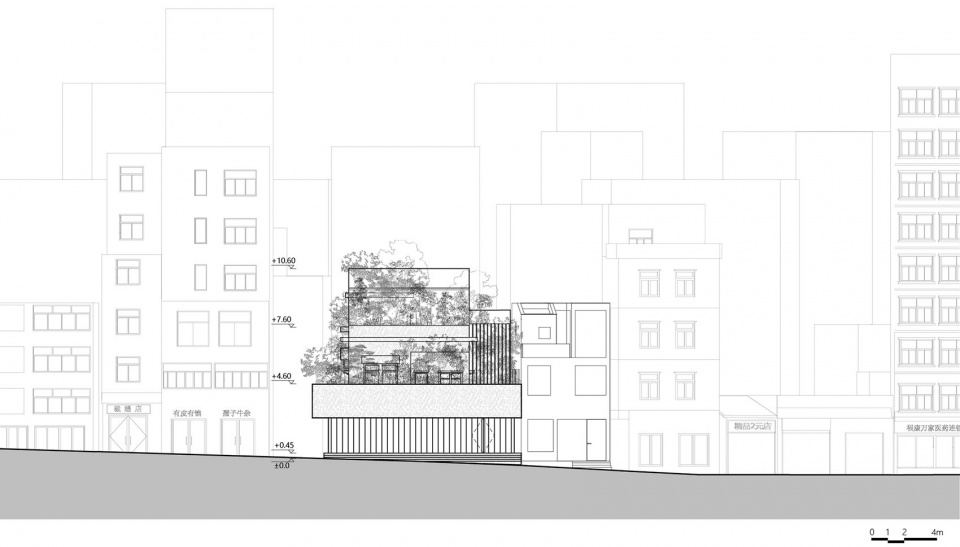

▼北立面图，north facade ©厘米制造

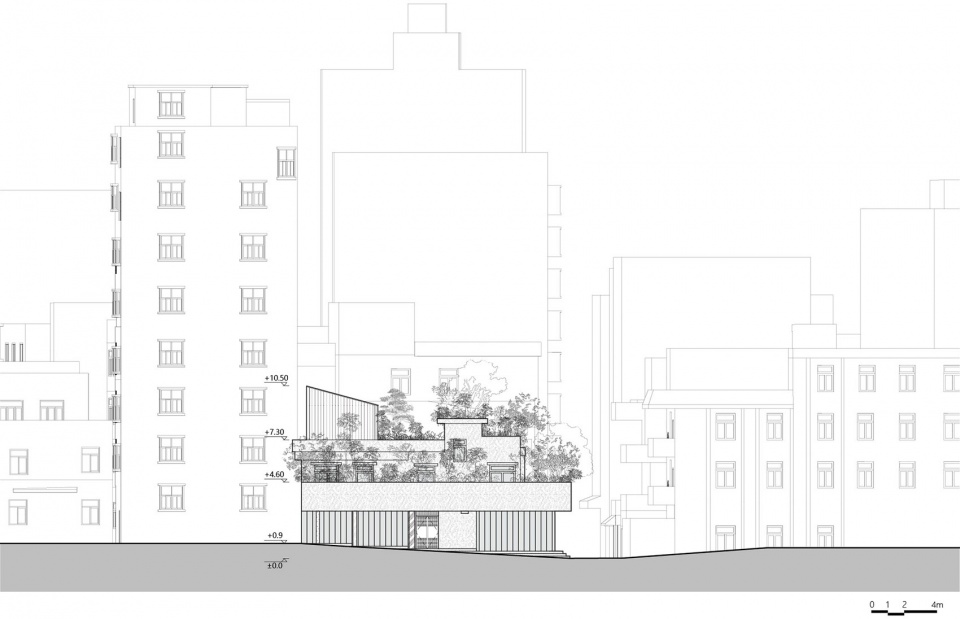

▼西立面图，west facade ©厘米制造
Materials: Curved glass, Water-washed sandstone, Aluminum panel
Architects: CM Design
Site Location: Nanshan District,Shenzhen
Design Team: Danping Chen , Jun Liao, Heng Yang, Zhen Wang ,Musen Li, Shihua Long, Yingchuan Zhong, Mingming Yao
Model: Shihua Long,Huichun Qiu
Floor Area: 158sqm
Project Year: 2020/3-8
Developer: Bureau of Public Works of Shenzhen Municipality Nanshan District，Shenzhen Vanke Development Ltd.
Project planning and design management: Urban Research Institute of China Vanke; vaLue Design
Project planning and design management team: Jinghui Deng，Yufei Pei，Zhen Wang，Ruiqing Shen
Construction management team: Xi Wang,JinQiang Li,Yufan Yu,Zuliang Huang,Gaoyang Lin
Technical Coordination and Construction Drawing Design: Shenzhen Bowan Architecture Design Institute
Construction Drawing Design team: Yanhua Li,Xuewen Xu,Chongyang Wan,Jiahui Du,Hua Lin,Guangyao Luo,Lei Xiao
Lighting Design: GD-Lighting Design
Landscape Design: Shenzhen L&A Design Holding Limited; Lab D+H
Construction team: West construction
Photographs: Chao Zhang
More：CM design on gooood
