Consolidation of “La Remunta” barrack buildings by Ravetllat arquitectura

Bring vitality into old barracks

Project Specs

Location:

非常感谢 Ravetllat arquitectura 予 gooood 分享以下内容。更多关于他们,请至:Ravetllat arquitectura on gooood.
Appreciation towards Ravetllat arquitectura for providing the following description:

此项目对位于巴塞罗那Hospitalet de Llobregat区域的La Remunta旧军营部分区域进行了翻修改造,该区域曾经专门用于饲养马匹。通过市议会的批准,一部分营区已经被改造为公园绿地和作为住宅开发用地。场地现存建筑都是历史保护建筑。

The project saw the restoration of part of the former army barracks, dedicated to breeding horses, at La Remunta in Hospitalet de Llobregat, Barcelona. In agreement with the City Council, part of the enclosure has been converted to a public park and sites earmarked for the development of housing blocks. All remaining buildings on the site are protected.

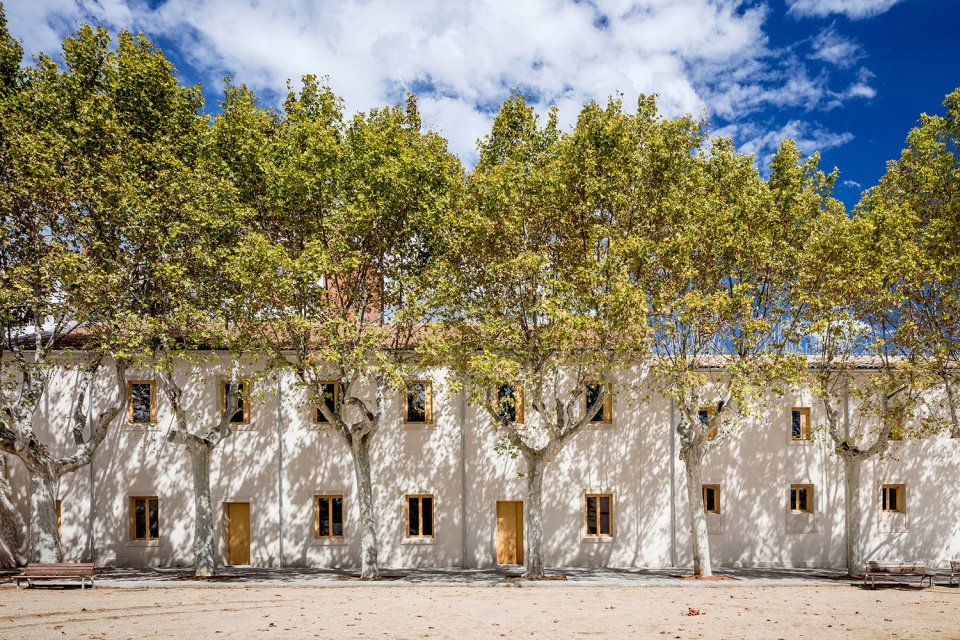

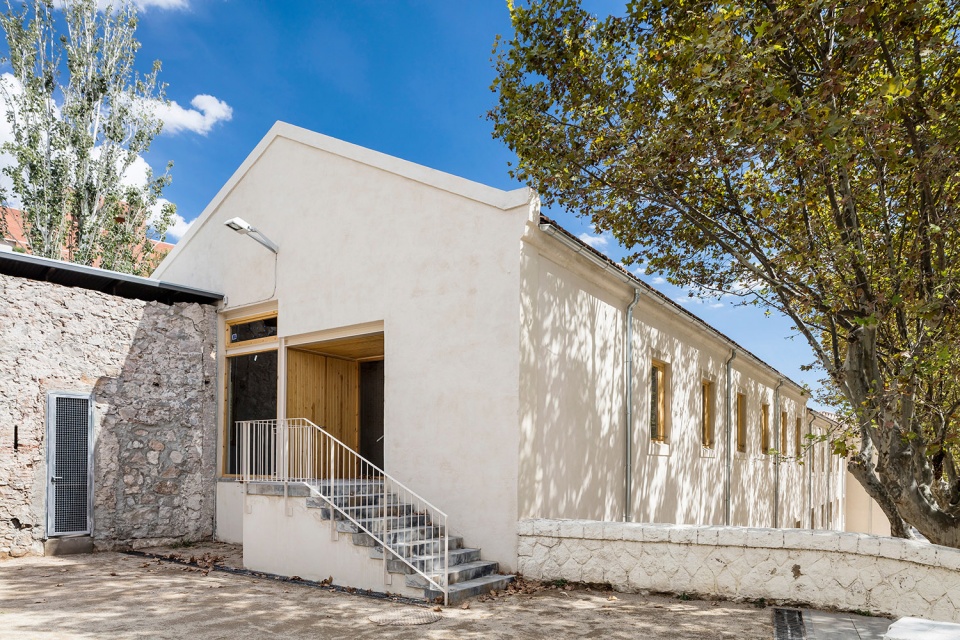

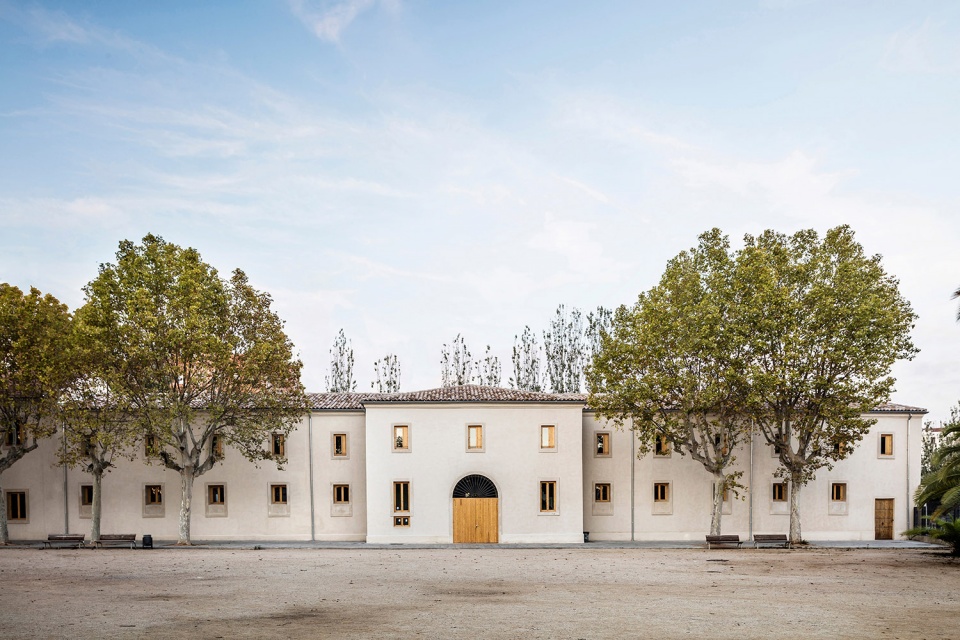

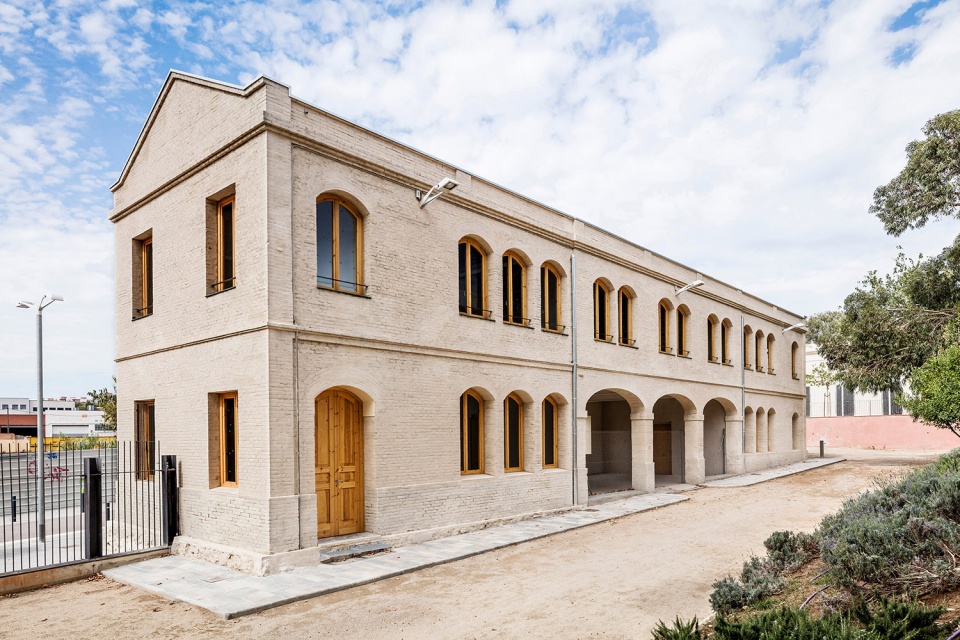

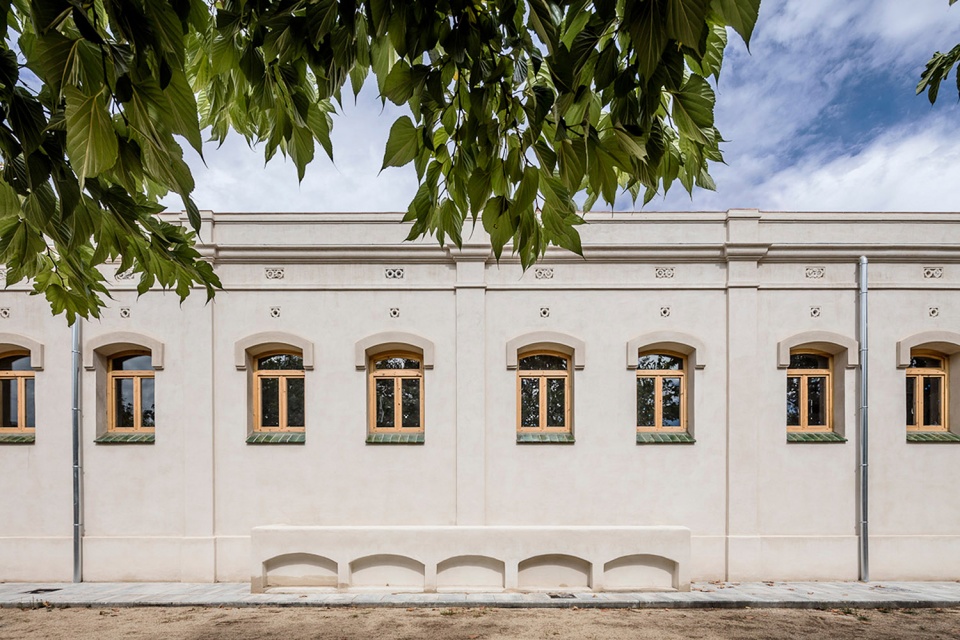

▼改造后建筑外观,exterior view of the building after renovation

旧军营包含六栋楼,其中四个在此次改造范围内。它们分别是一,三,四和五号楼。一号楼的一层曾是马概和兵营,二层用于士兵和军官的宿舍。三号和四号楼是用于养马的单层建筑。五号楼是军营的医务室和实验室。其余的二号楼和一个旧农舍不在此次改造范围内,在未来将会分别被改造成育儿中心。

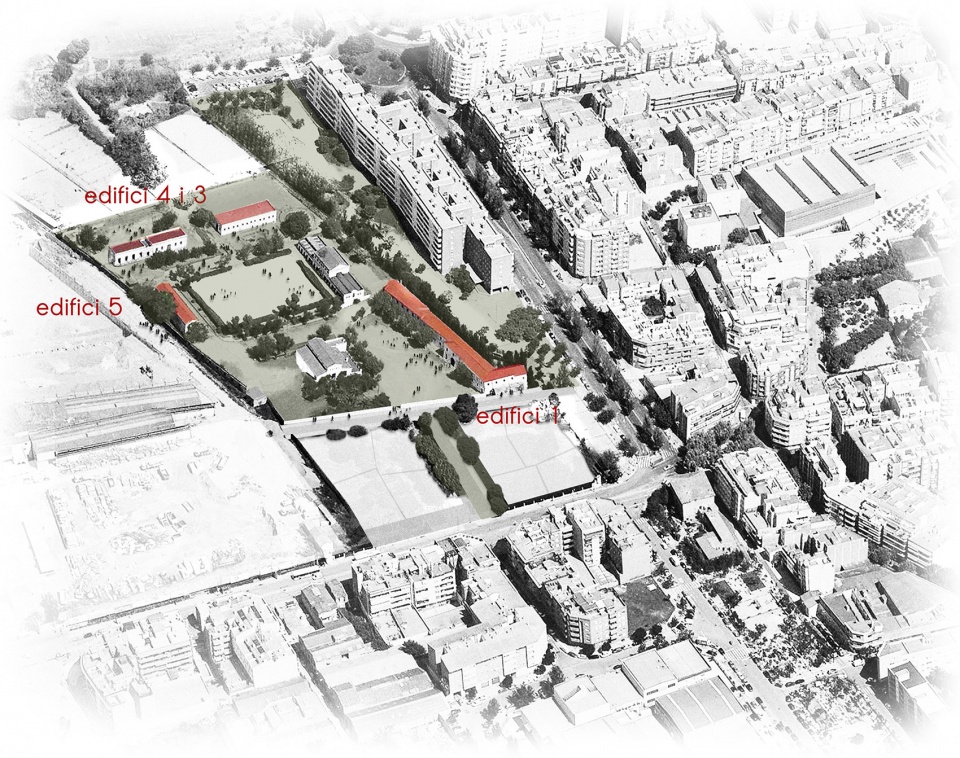

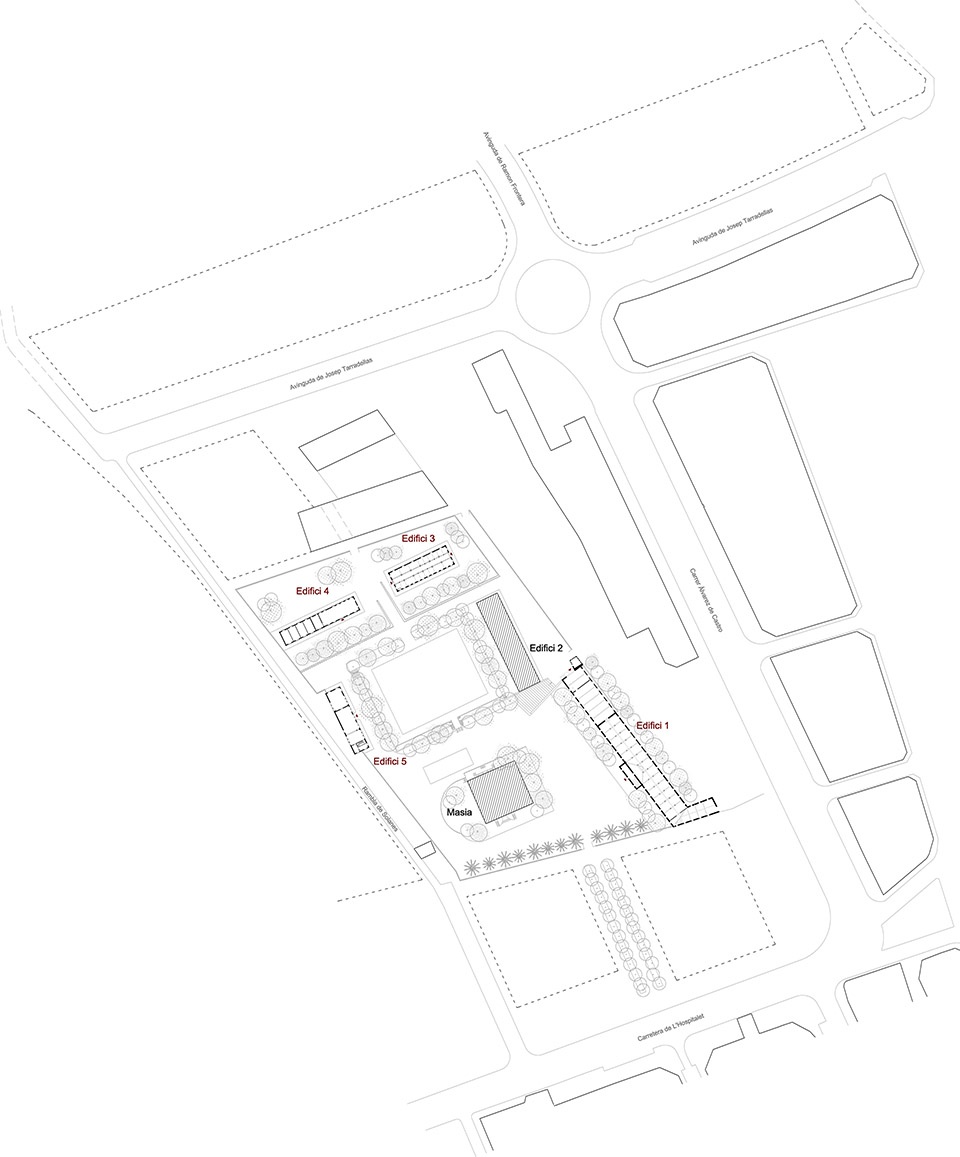

▼总平面—参与改造的建筑,master plan- four restoration buildings

▼1号楼轴测图,axonometric of building 1

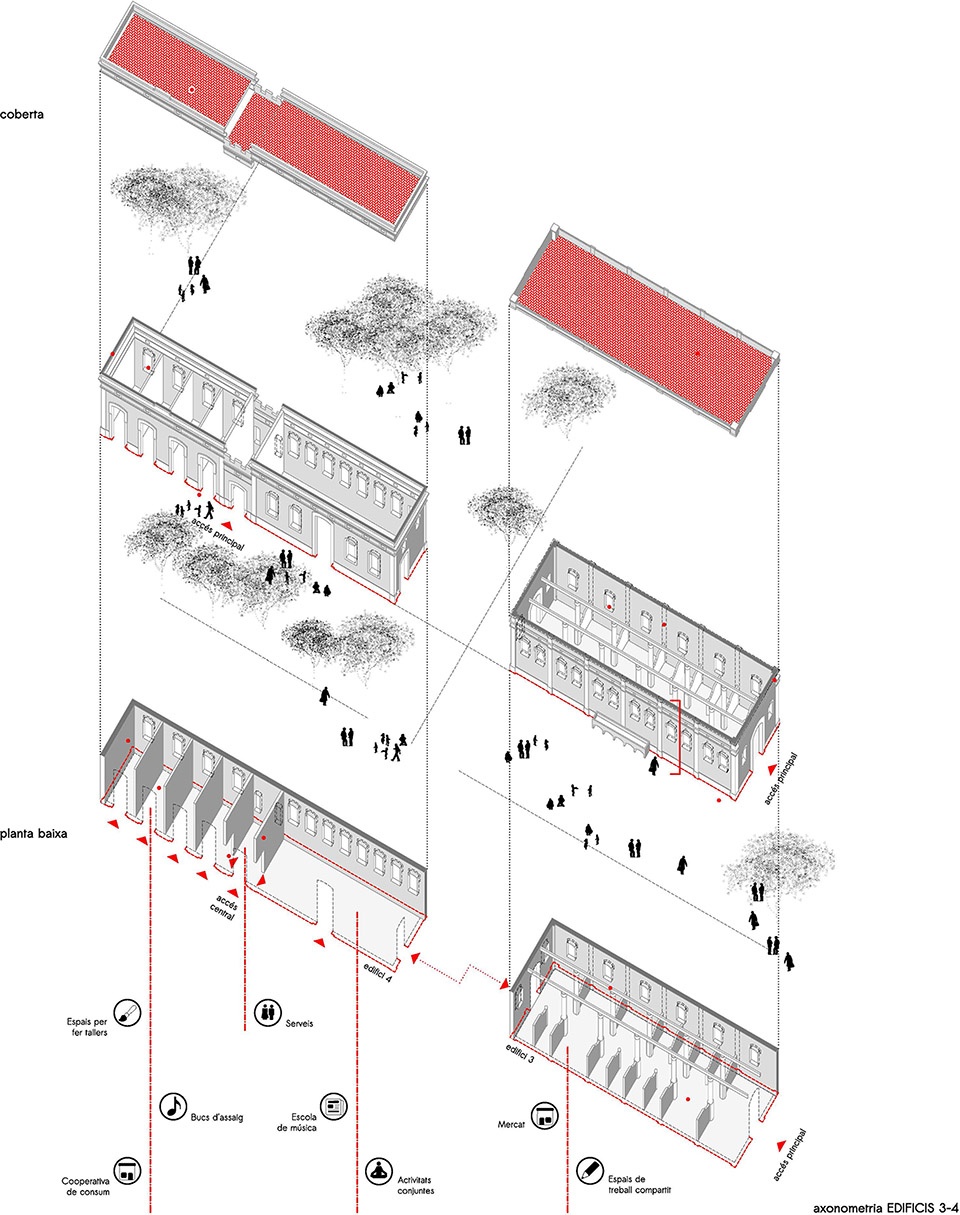

▼3-4号楼轴测图,axonometric of building 3-4

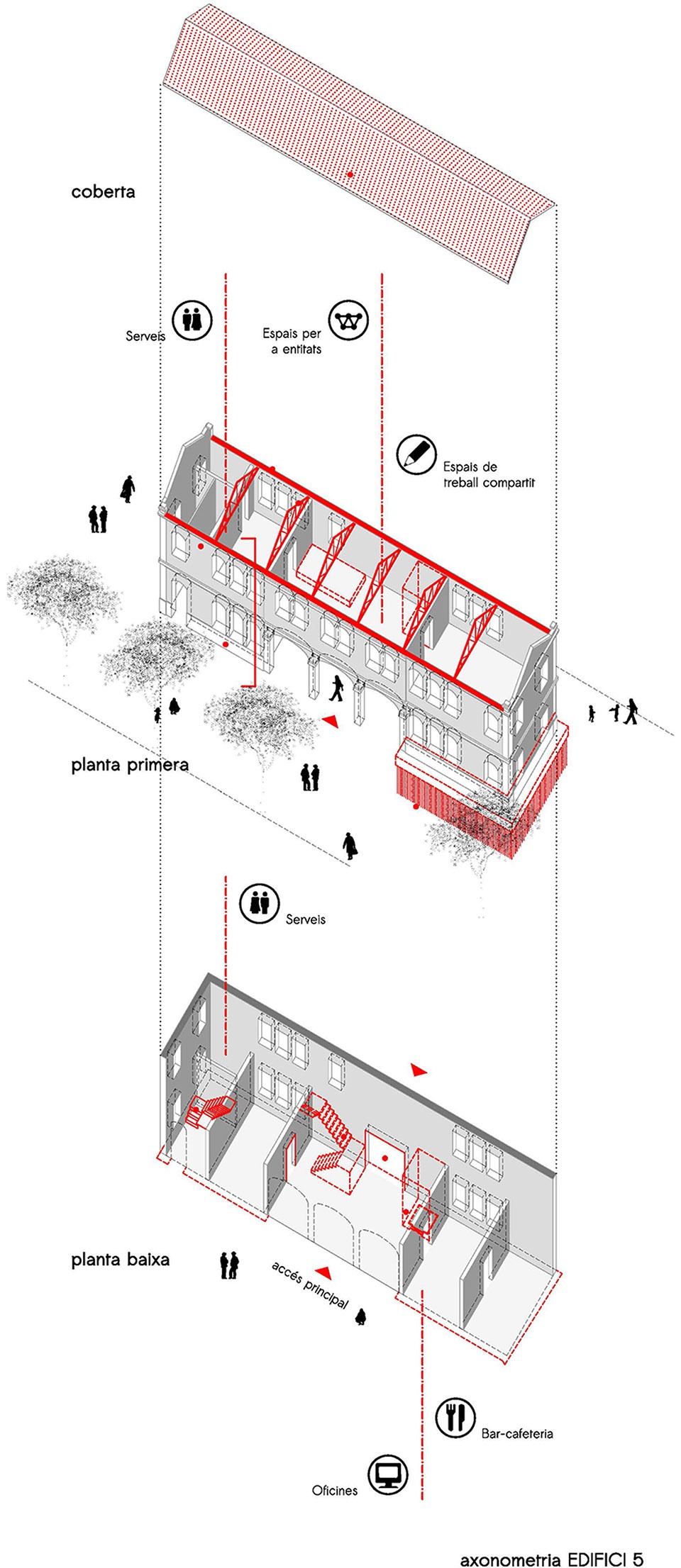

▼5号楼轴测图,axonometric of building 5

The old barracks consist of six building, four of which were the subject of this project. Building 1 included stables and a soldier’s mess on the ground floor and a dormitory for soldiers and officers on the first floor. Buildings 3 and 4 are single storey, used only for horses. Building 5 was an infirmary and laboratory. The two other buildings that were not part of this project, an old farmhouse and Building 2, will be separately developed as a nursery.

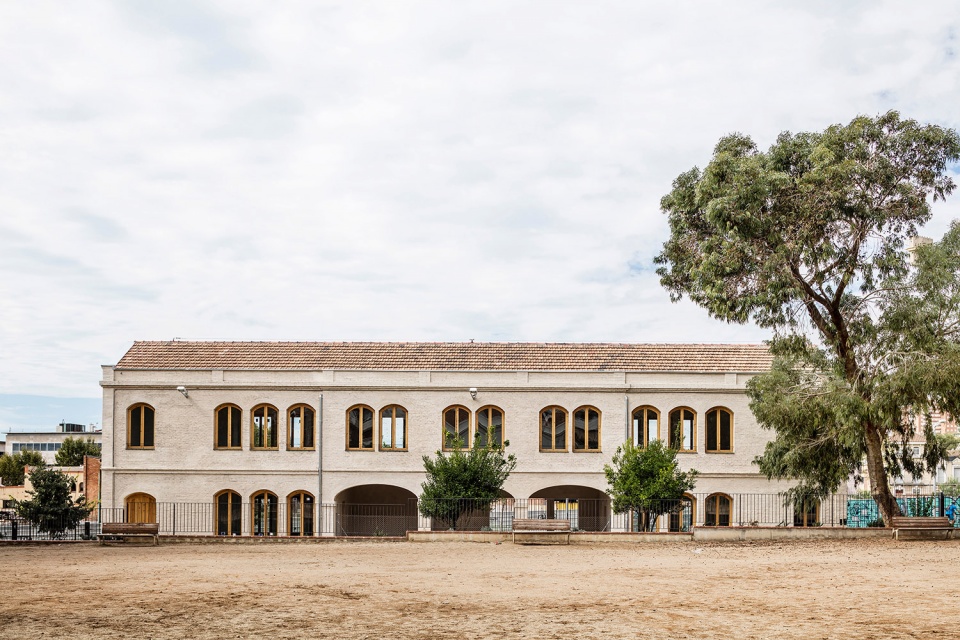

▼参与改造的建筑,buildings being restored



未来建筑的用途现在尚未得知。项目旨在修复建筑以防止更多的破损,同时与公园绿地配合使用。目前场地中不受保护的建筑已经全部拆除,新的道路施工已经完成,公园绿地也开始对公众开放。

The future use of the buildings is as yet unknown. The aim of project was to ensure the buildings were restored and protected from further dilapidation while a use compatible with the public park is found. Non-protected buildings have been demolished and removed from the site, new roadworks have been completed and the park is already open to the public.

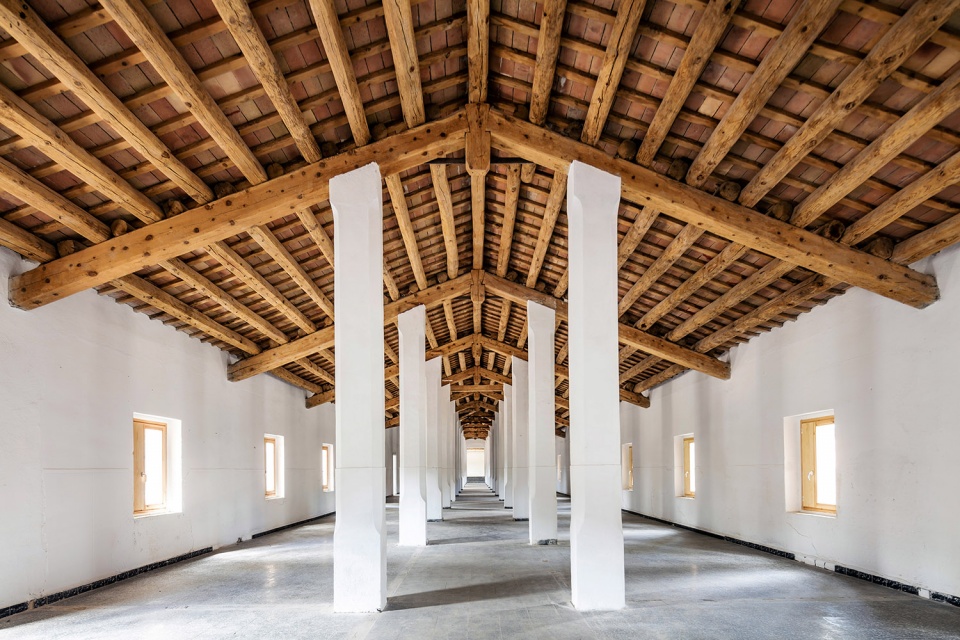

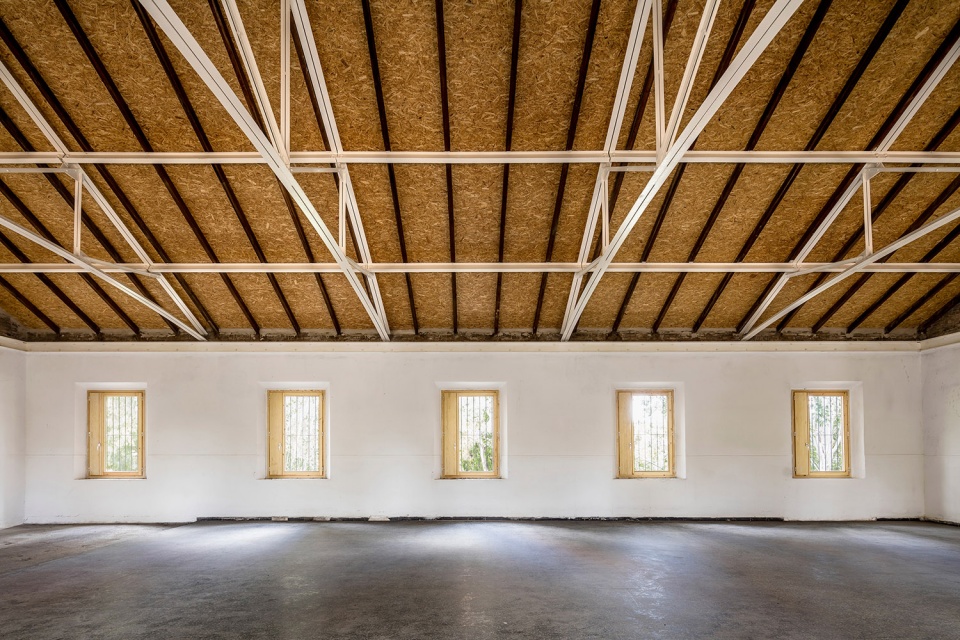

▼建筑内部—木结构屋顶,interior view – wood structure roof

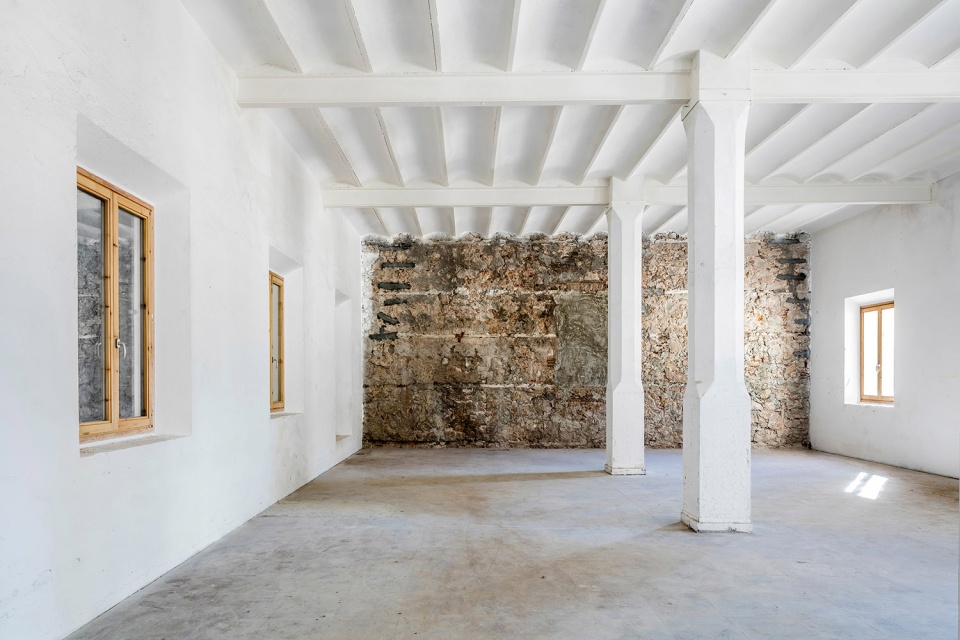

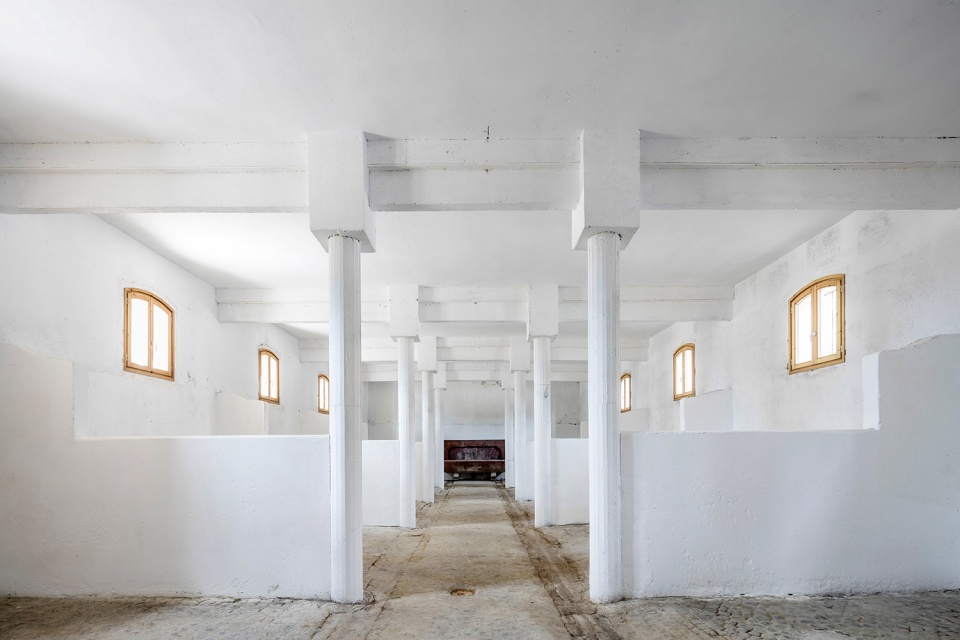

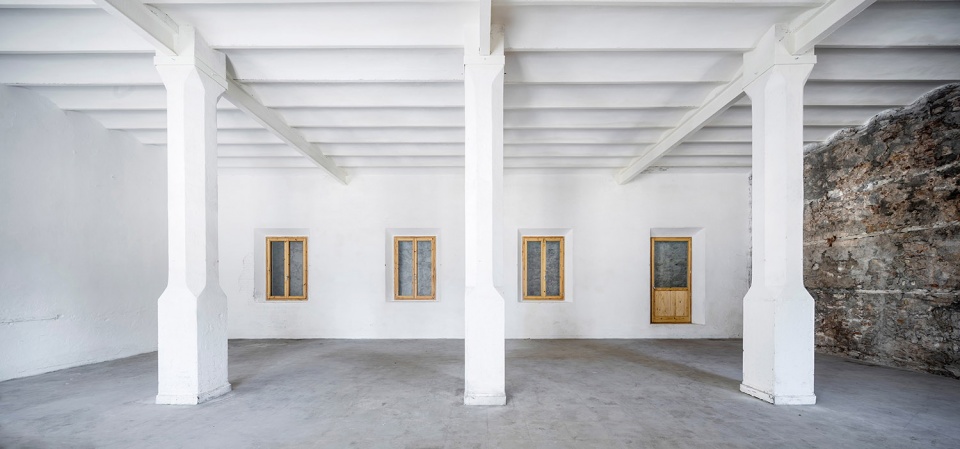

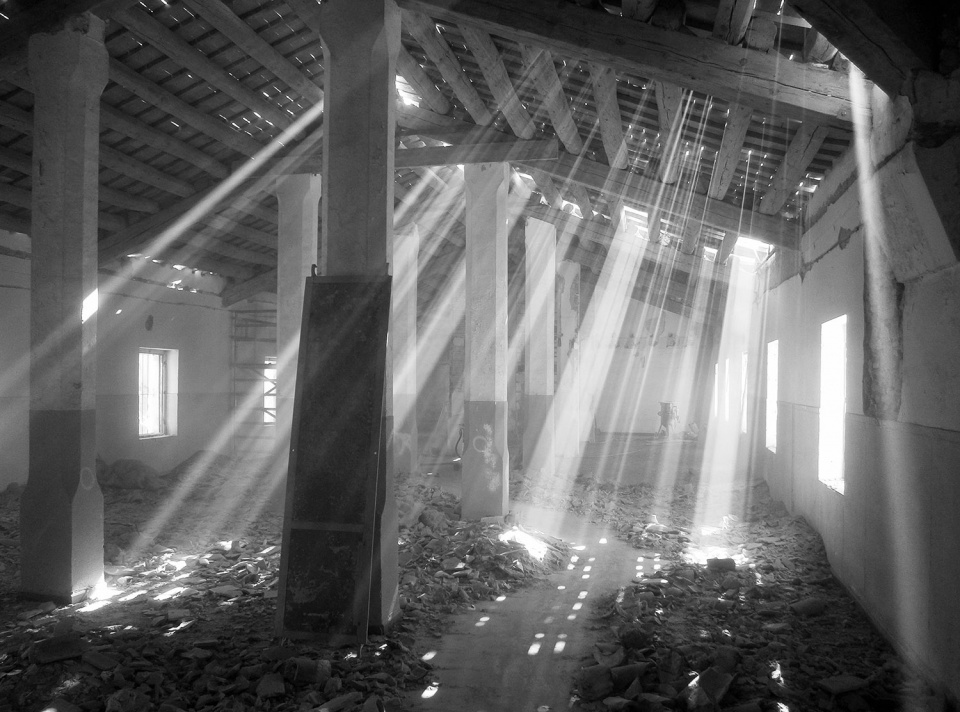

▼马厩改造而来的空间,stable being renovated

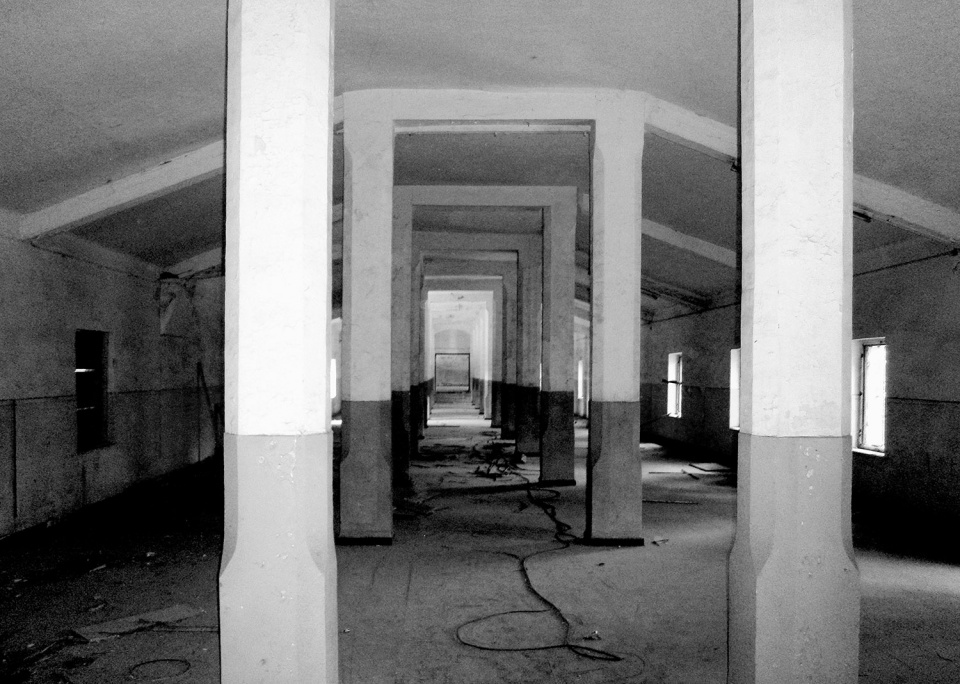

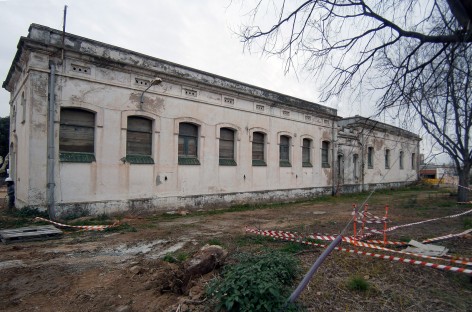

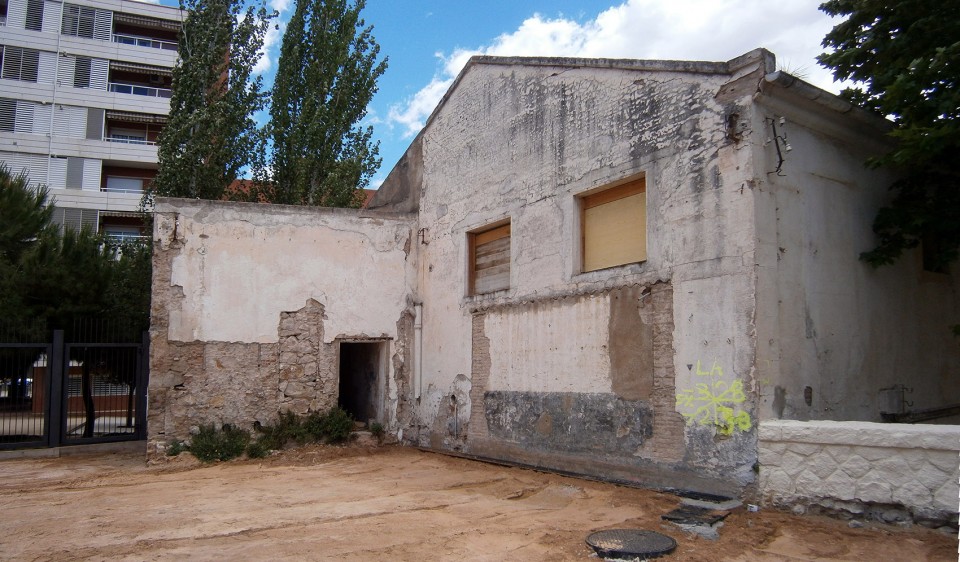

▼改造前,before restoration

OLYMPUS DIGITAL CAMERA



▼总平面图,site plan

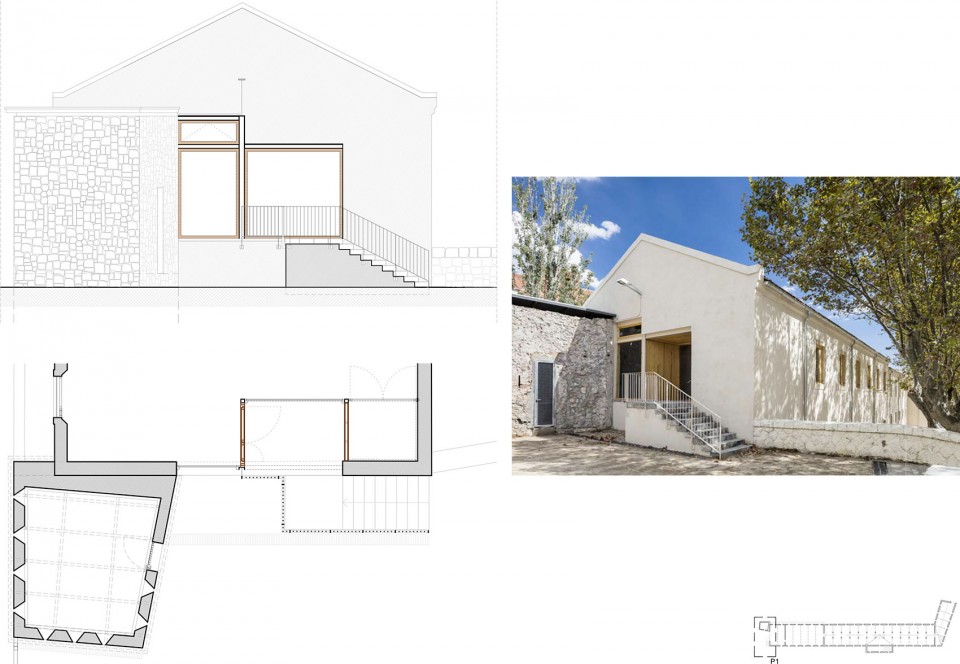

▼入口三视图,entrance orthographic views

Z:5_CV I DOC GRAFICA1_DOC PROJECTES2_Rehabilitació2012-R

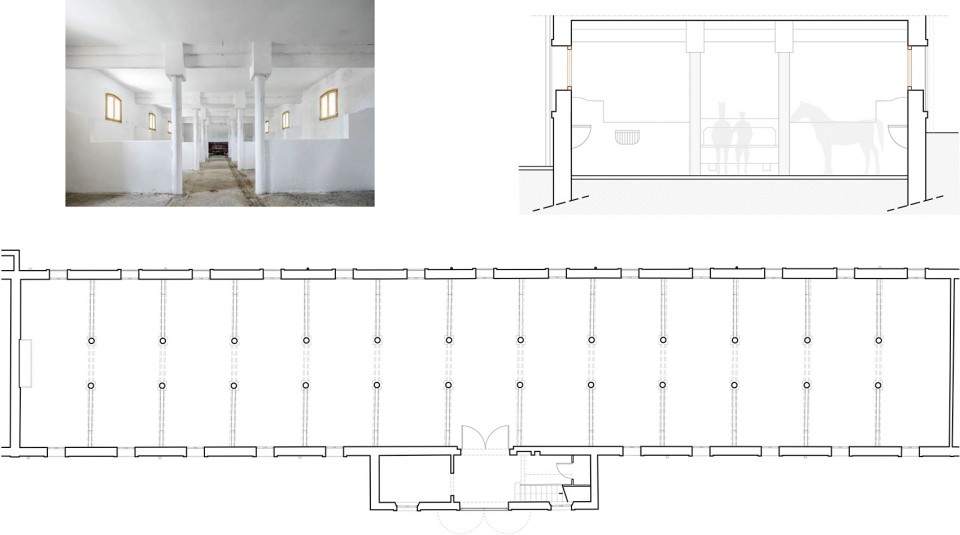

▼地面层三视图,ground floor orthographic views

Z:5_CV I DOC GRAFICA1_DOC PROJECTES2_Rehabilitació2012-R

▼地面层三视图,ground floor orthographic views

Z:5_CV I DOC GRAFICA1_DOC PROJECTES2_Rehabilitació2012-R

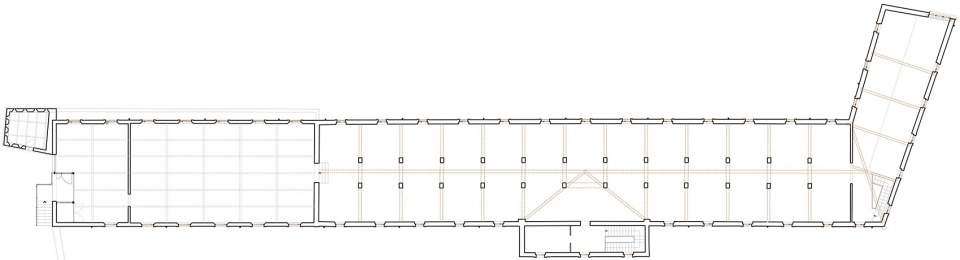

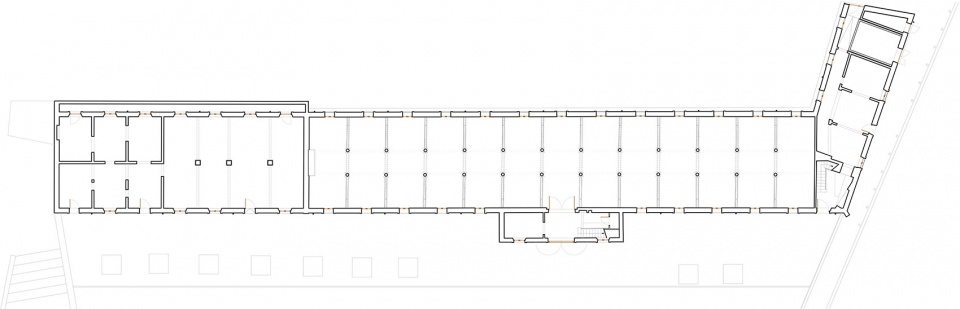

▼1号楼首层平面图,ground floor plan of building 1

▼1号楼二层平面图,first floor plan of building 1

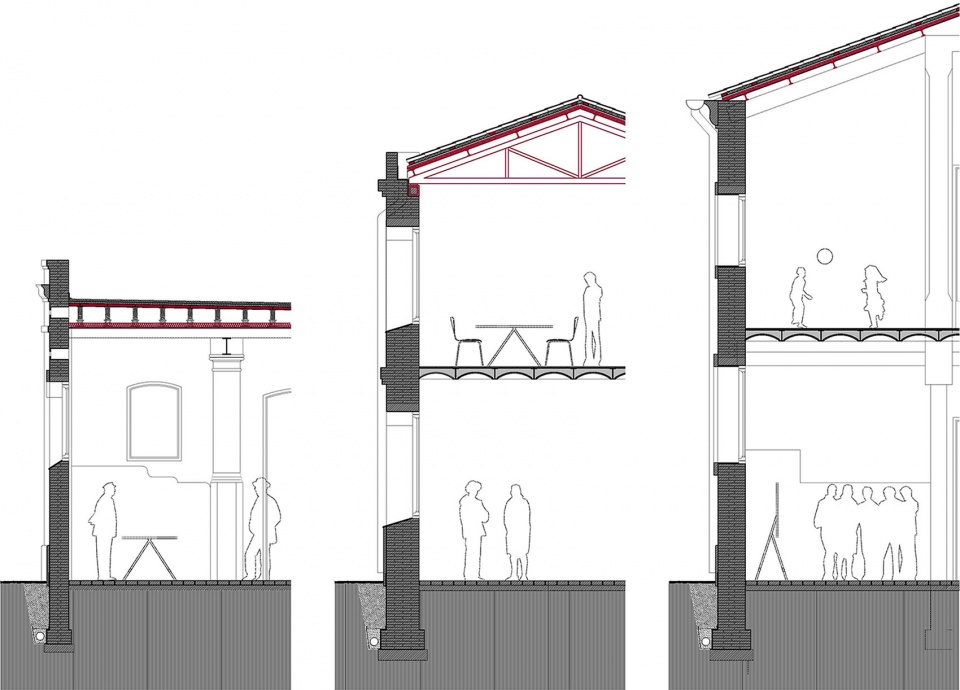

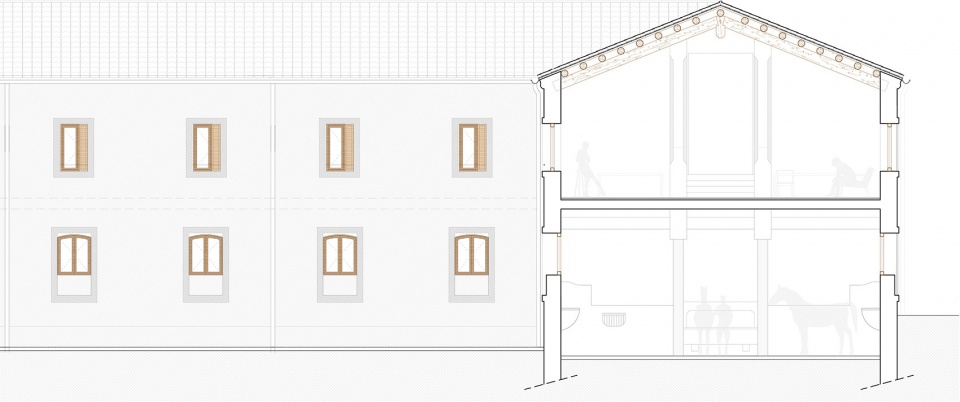

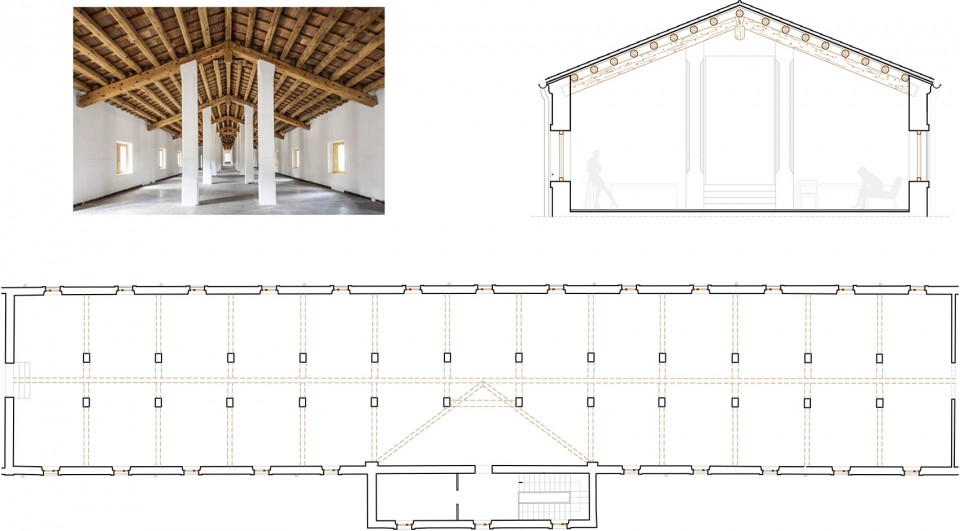

▼剖面图,sections

▼细节,detail

Consolidation of “La Remunta” barrack buildings. L’Hospitalet de Llobregat
Architects: Ravetllat-Ribas (Pere Joan Ravetllat, Carme Ribas)
Location: Parc de la Remunta, L’Hospitalet de Llobregat
Promoter: Consorci per a la Reforma de la gran Vía de l’Hospitalet
Construction company: CRC obras y servicios
Collaborators: Toledo-Villareal AT, STATIC Ingeniería, César Díaz
Photography: Adrià Goula
Start of the work: November 2015
End of the work: July 2016
Surface: 3.042 m2
