The Apartment of Carole and Robin by Les Ateliers Tristan & Sagitta

Suspended stairs and warm materials creating comfortable home for a family.

Project Specs


十分感谢 Les Ateliers Tristan & Sagitta 予gooood分享以下内容。更多关于他们,请至:Les Ateliers Tristan & Sagitta on gooood。Appreciation towards Les Ateliers Tristan & Sagitta for providing the following description:


The apartment of Carole and Robin is located on the ground floor of a mansion of the XVIIth arrondissement in Paris. Taking advantage of a private garden with terrace, when the family grew, Carole and Robin preferred to buy the apartment on the 1st floor to accommodate the children’s room rather than move.

▼公寓一览,overall view of the apartment

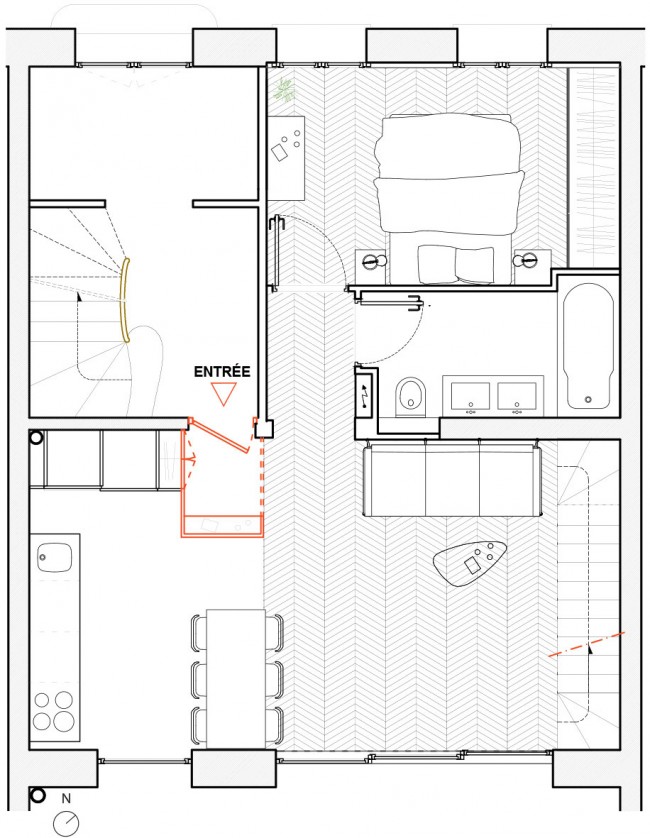

▼一层平面图,ground floor plan

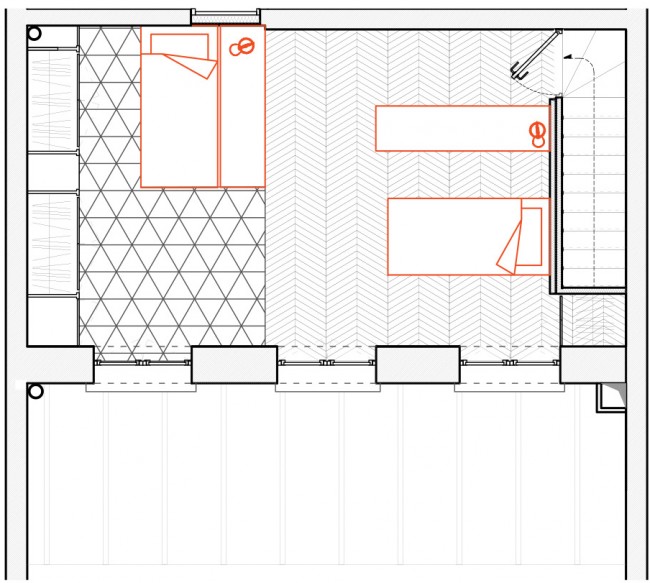

7a-GM_ground floor_AtelierTristan ▼二层平面图,first floor plan
    7-GM_first floor_AtelierTristan


The main challenge of this renovation was
 to find the place of a staircase as discreet
as possible. The work was delivered as
a screw-in kit. This technique allowed us
to produce in the workshop a
 thermo lacquered paint, much more
 resistant than a painting done on the spot. The use of metal offered a light writing to the work with whose thickness does
not exceed 25mm!
The partnership architect / artisan / engineer allowed to realize a technical feat
by suspending the staircase to the upper floor!

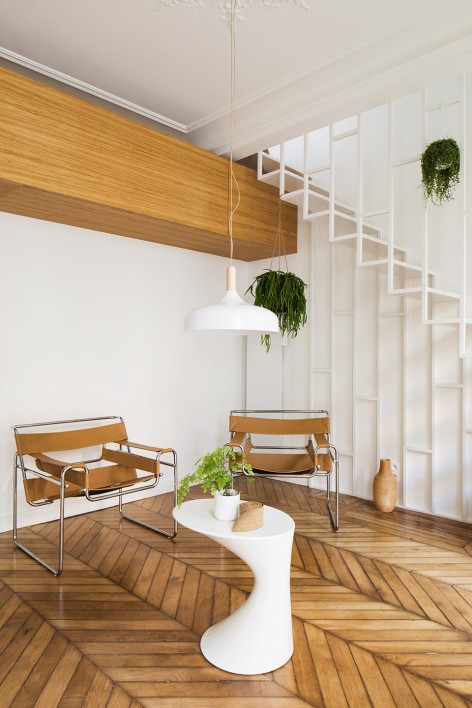

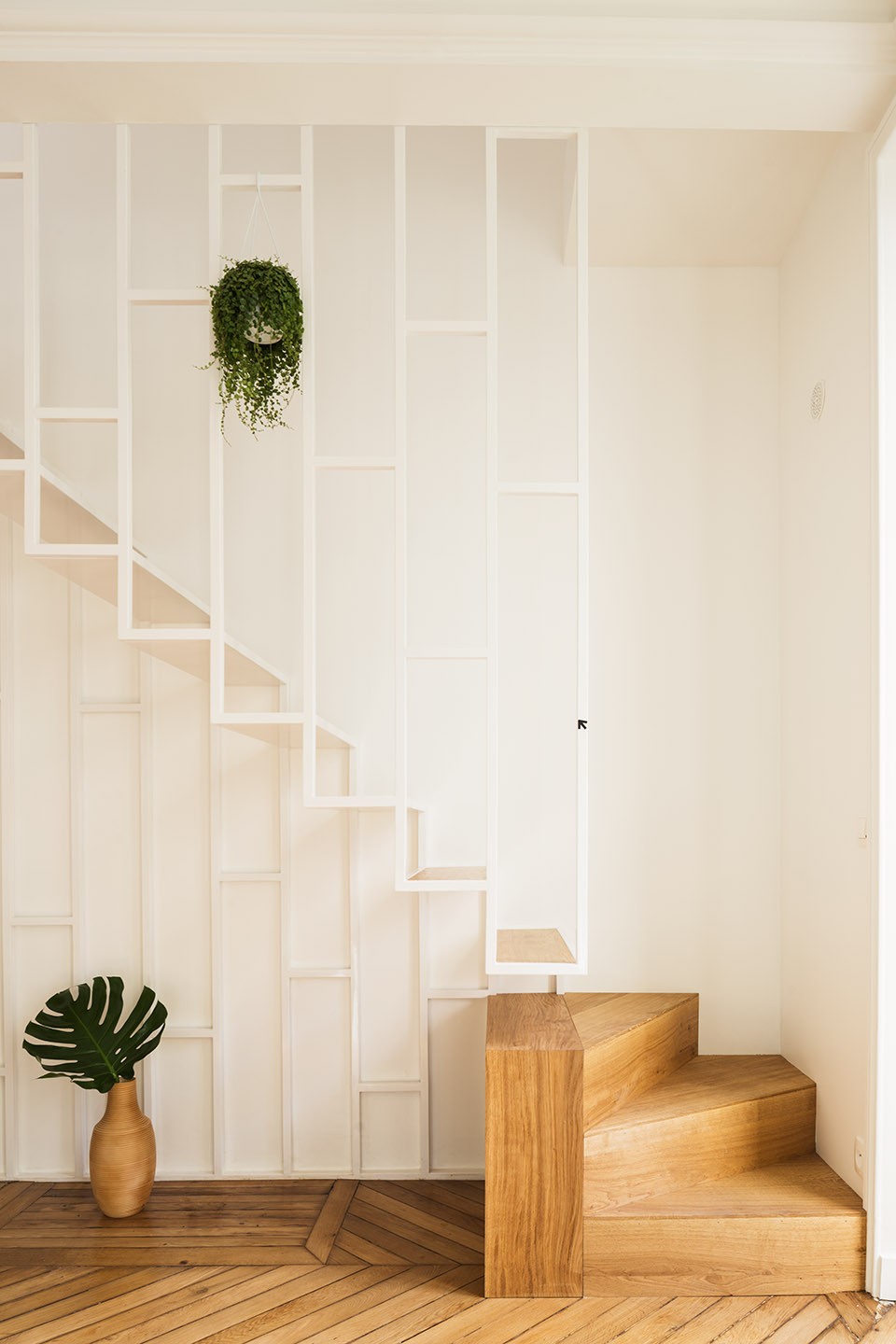

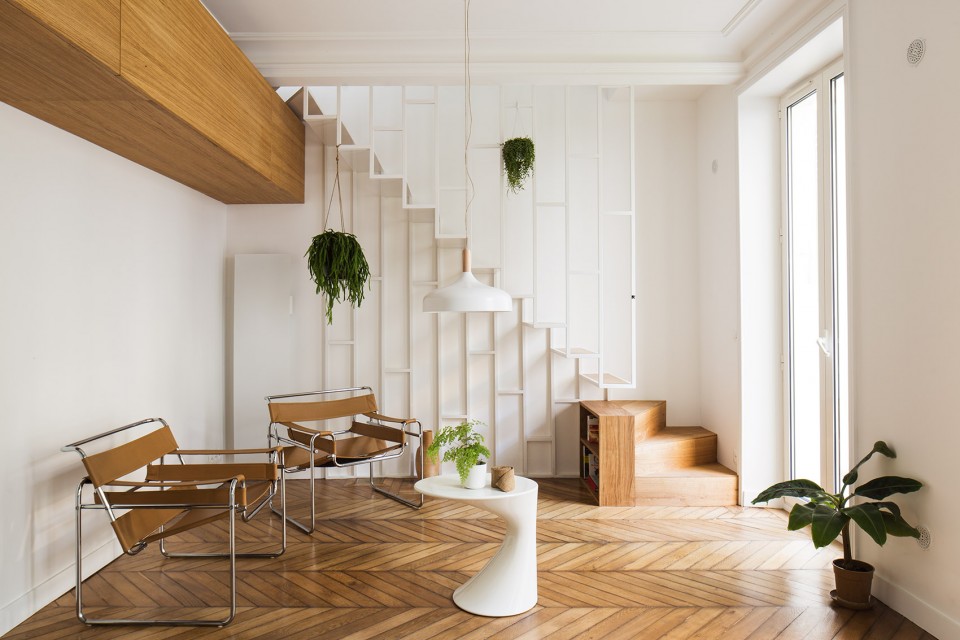

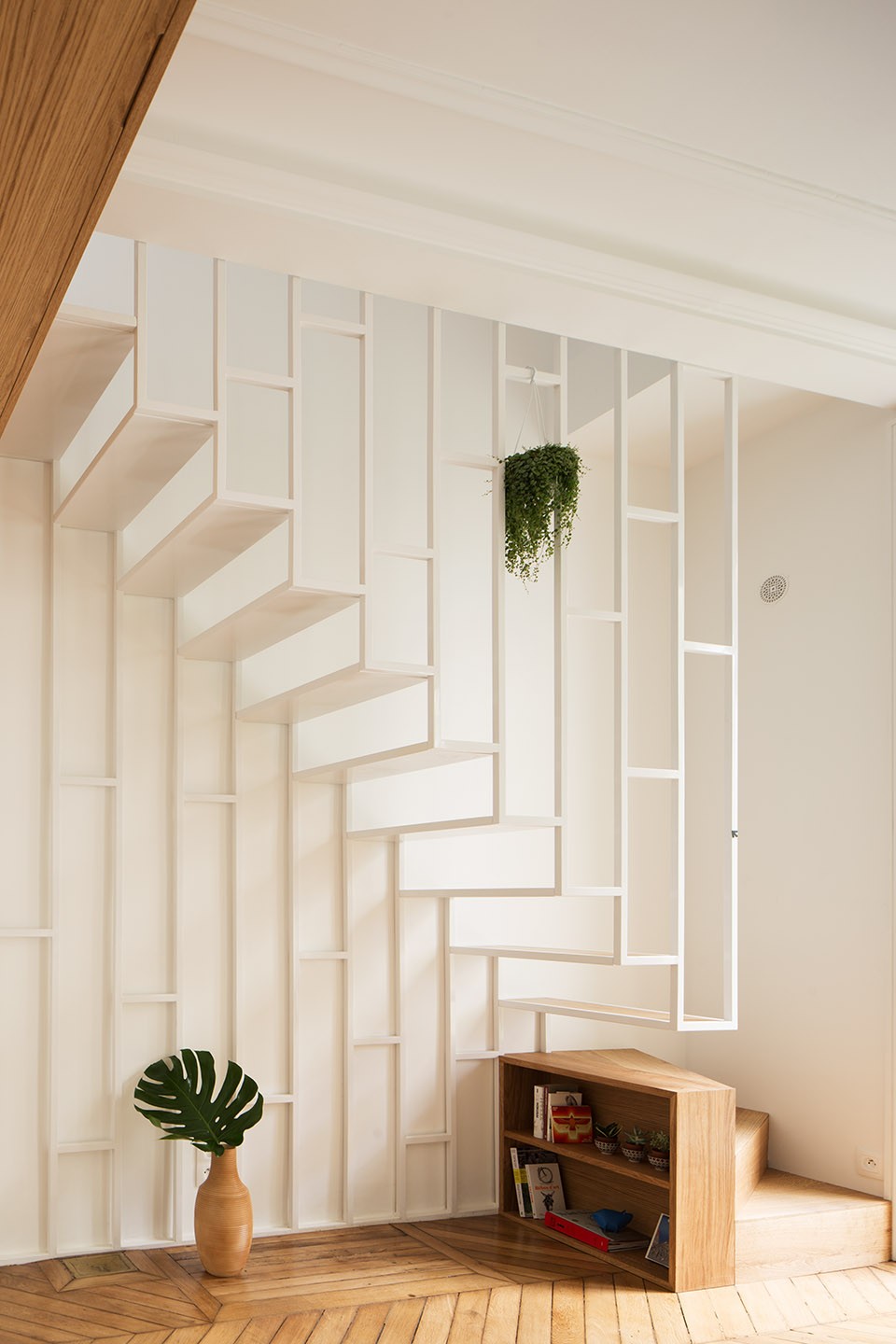

▼轻盈地悬浮在地板上方的楼梯,stairs suspended upon the floor

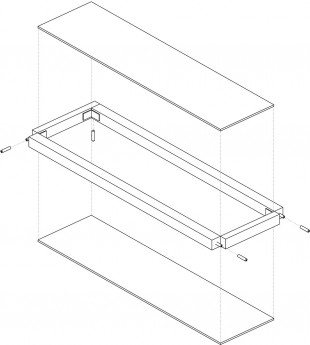

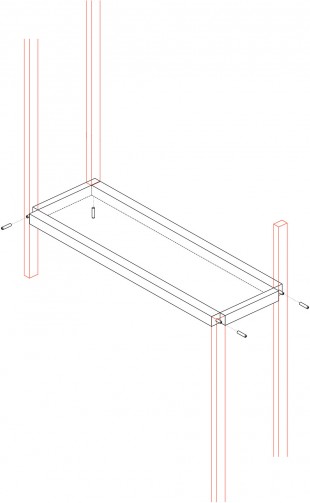

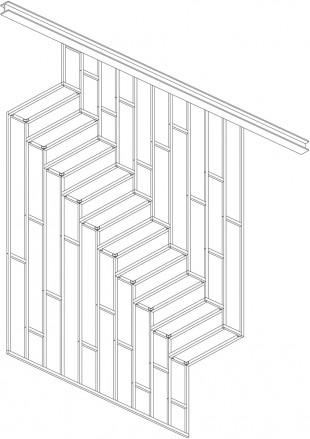

▼楼梯结构,stairs structure


7-01-DETAIL STAIR-Ateliers Tristan     7-02-DETAIL STAIR-Ateliers Tristan     7-00-DETAIL STAIR-Ateliers Tristan


As often in Paris, space is precious. Although they are appreciable, the storage spaces cause loss of habitable surface.
We imagined a large piece of furniture. 7 meters long for 60 cm deep, and suspended at 2.10 meters from the ground.
 It thus occupies no square meter!

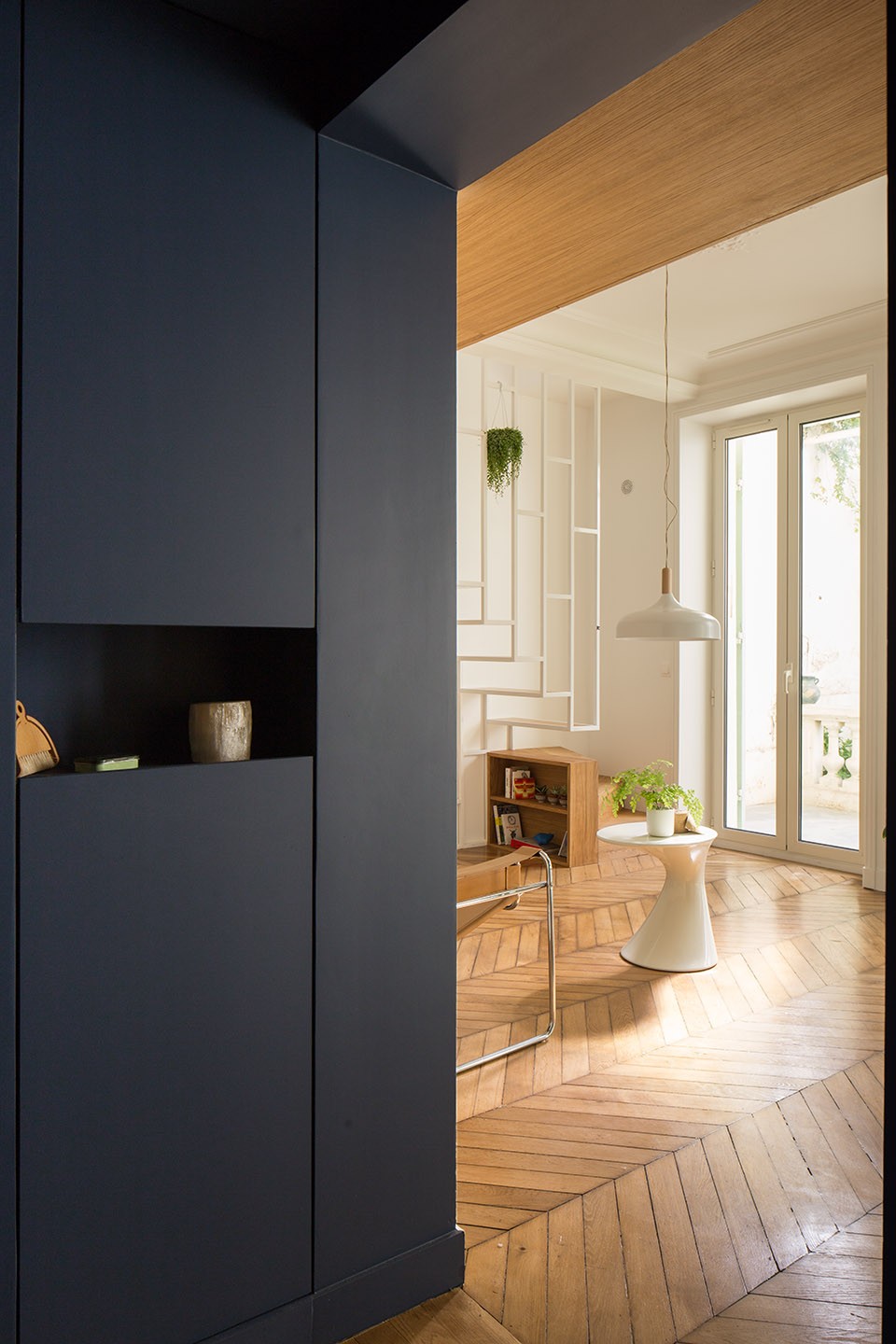

▼从入口走廊看客厅,view of the living space from the entrance gallery

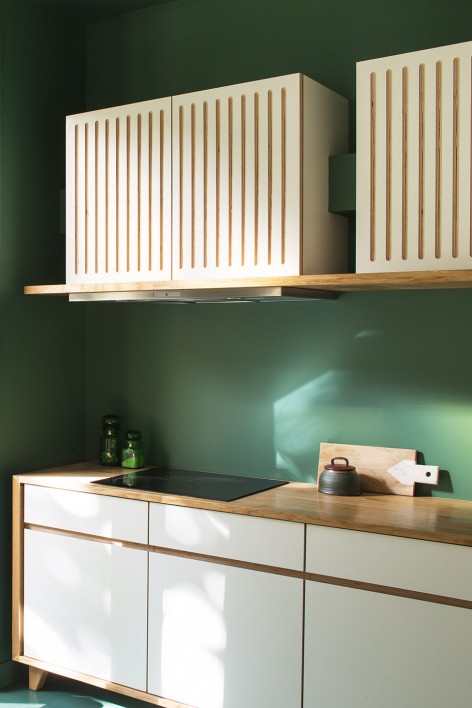

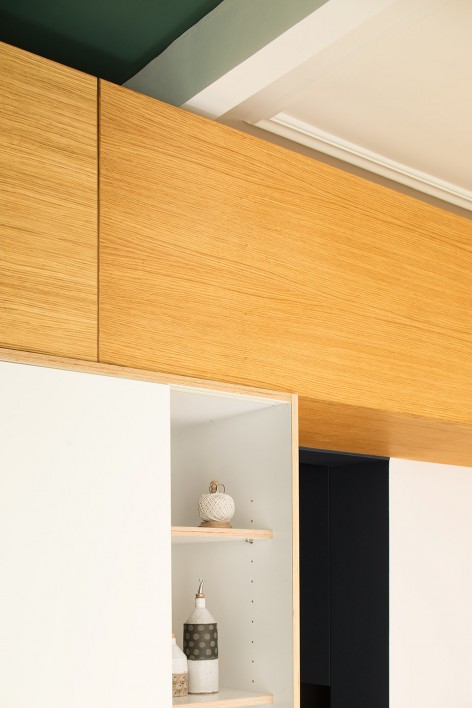

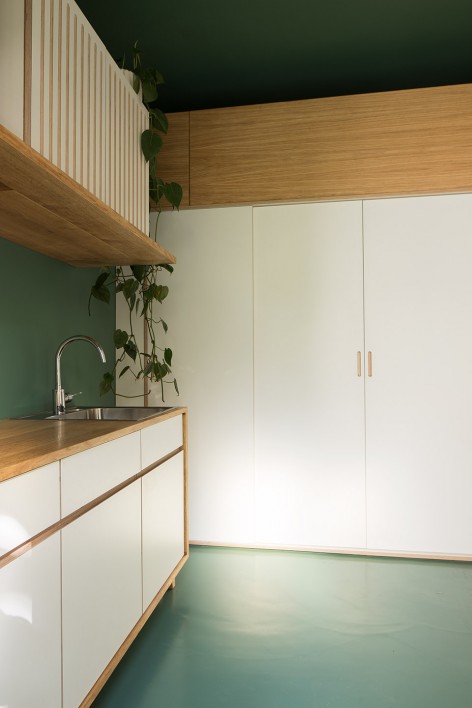

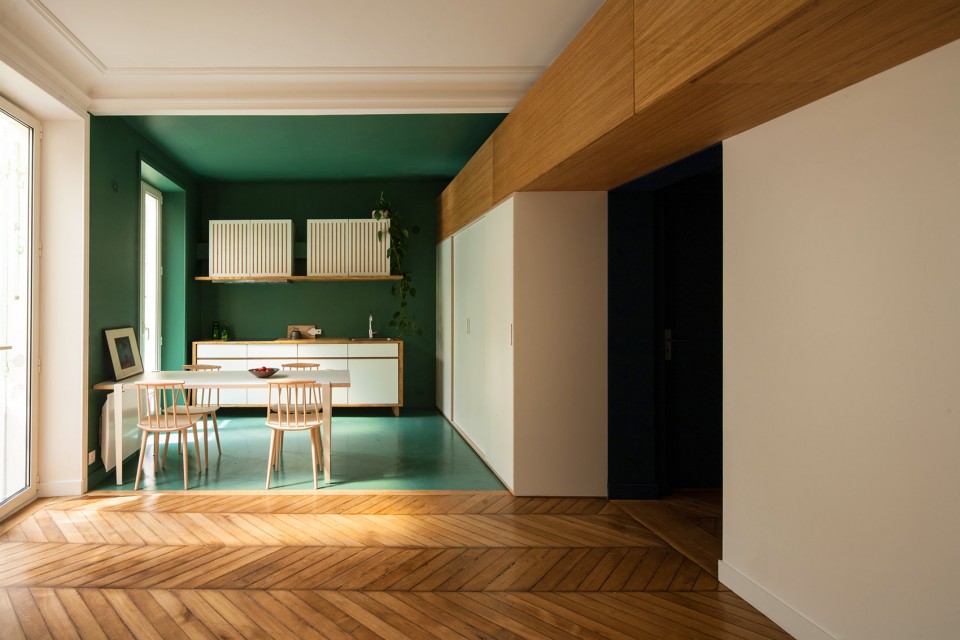

▼7米长木制储物柜横跨厨房和客厅,the 7-meter wooden storage goes through the kitchen and living space

1-GM_2016_07_AtelierTristan-0296 copie

3-GM_2016_07_AtelierTristan-8412     4-GM_2016_07_AtelierTristan-8510

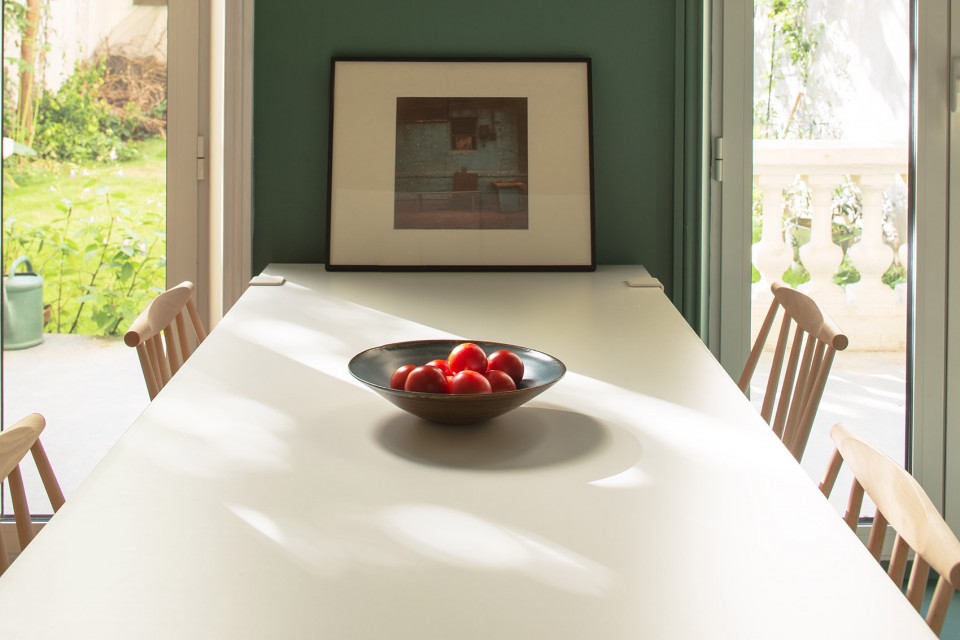

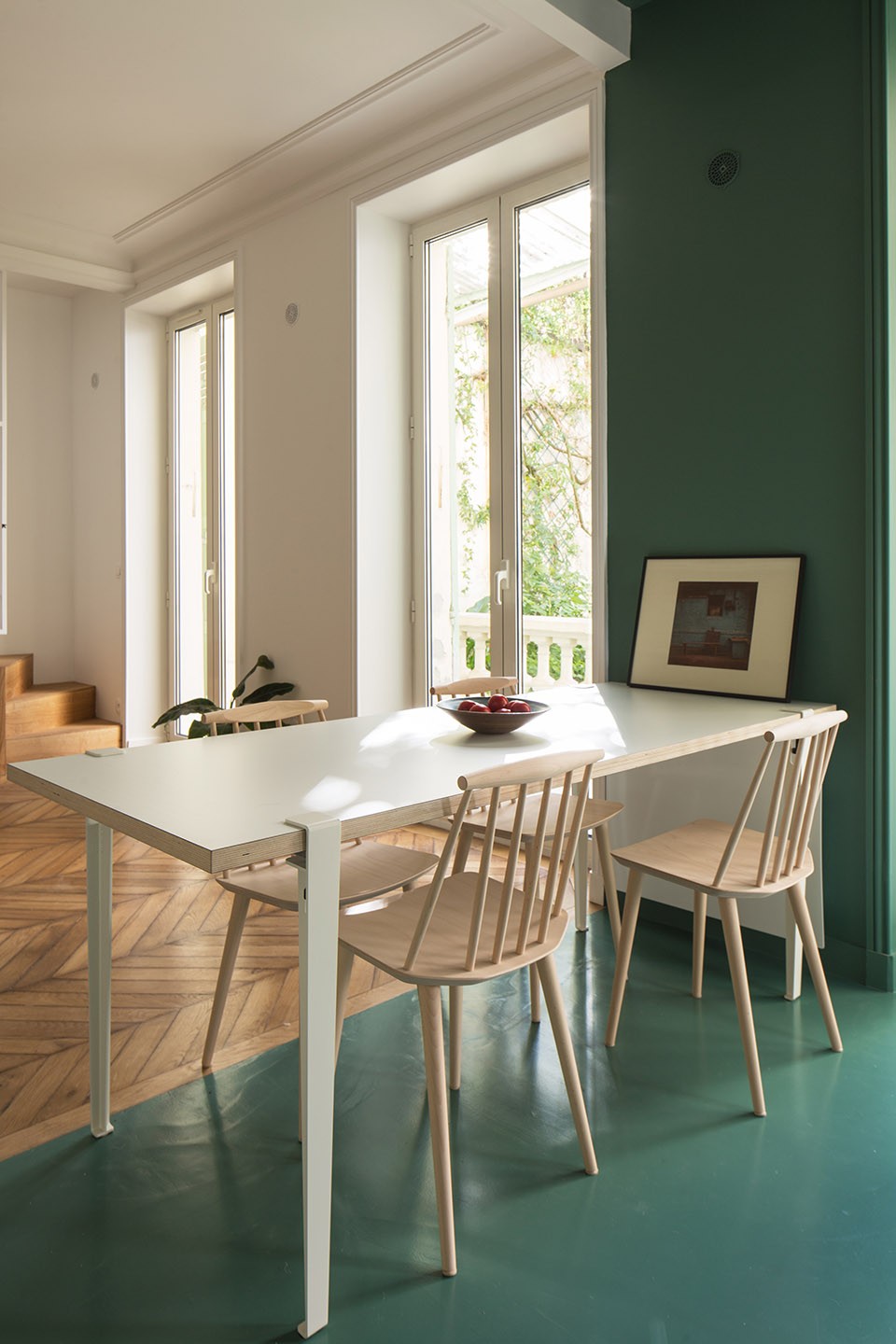

▼餐厅与庭院相连,dining space is connected with the garden

2-GM_2016_07_AtelierTristan-8430     2-GM_2016_07_AtelierTristan-8443


2-GM_2016_07_AtelierTristan-8444     2-GM_2016_07_AtelierTristan-8452

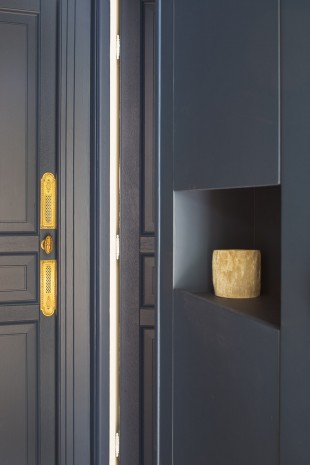

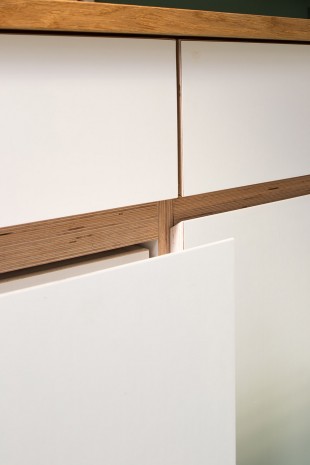

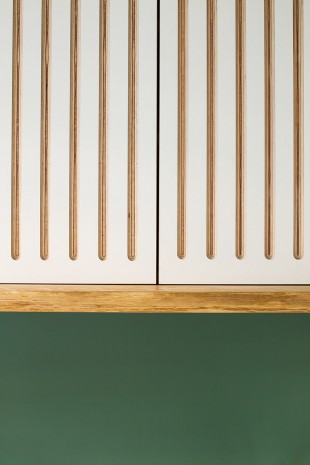

▼建筑细部,一些老的装饰被保留,details, some of the original architectural elements are preserved

6-GM_2016_07_AtelierTristan-8417     6-GM_2016_07_AtelierTristan-8505     6-GM_2016_07_AtelierTristan-8535


In the child’s room, the distinction
 of two spaces allows the two brothers
to define their respective territories.
 This old bourgeois building is composed of architectural elements: solid wood
doors, enamelled handles, moldings,
rails, rosettes. We have tried through our
project to conserve and magnify
 these elements. For example, the blue
partition in the children’s room is not
continuous up to the ceiling. It ensures
the separation between the rooms and
the staircase. It houses a glass floor that
allows daylight on the steps. It allows
to preserve and to stage the old molding
making the turn of the piece!

▼儿童房,隔墙与天花间留有空隙,阳光可以照到楼梯,partition of the children’s room is not continuous which allows light to the stairs

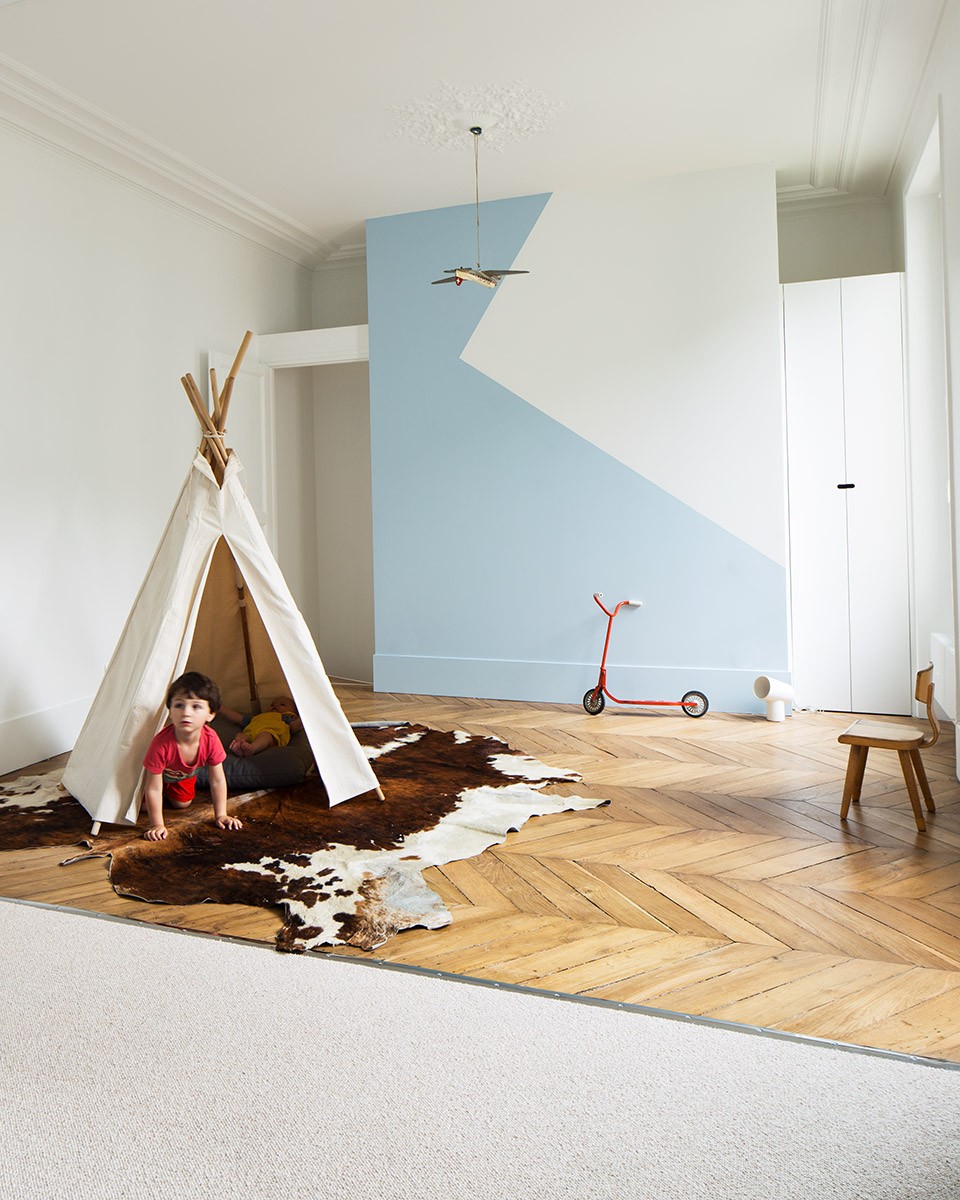

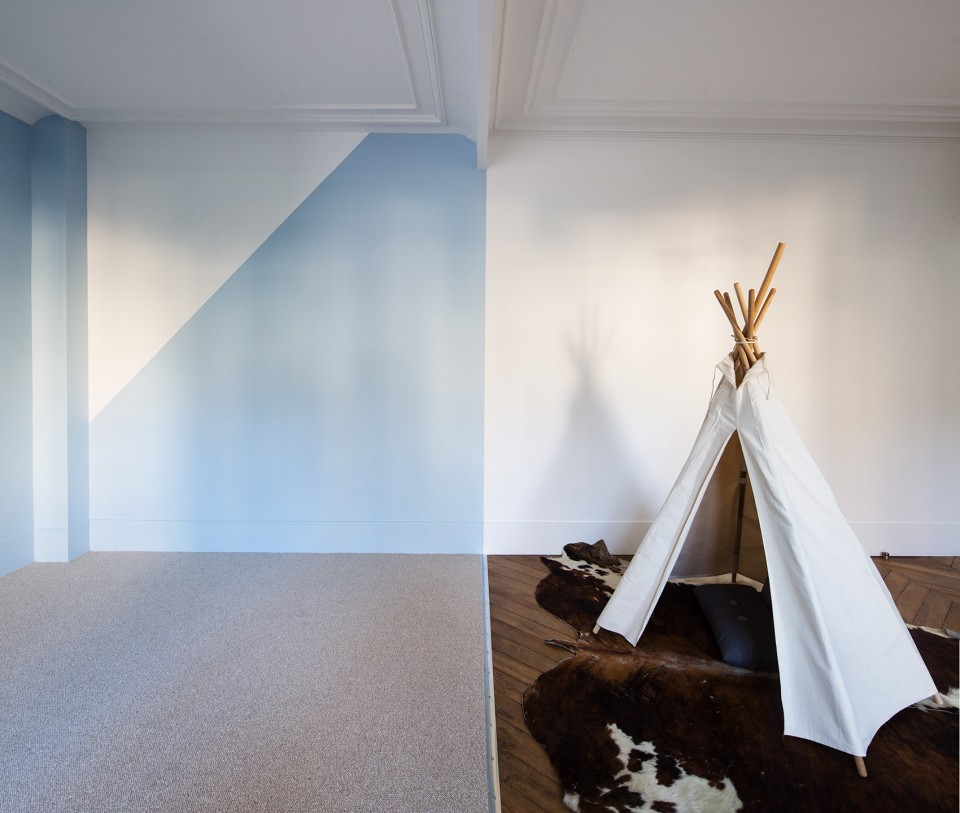

▼通过墙面颜色和铺地材质将儿童房分成两个空间,children’s room is defined into two spaces by different wall colors and floorings


: Heavy renovation and reunification of two apartments
Surface: 70 m2
: Les Ateliers Tristan & Sagitta
: Phoenix Structures
Photograph: Giaime Meloni
Cost of construction: 125 600 € ht
: Hungarian parquet flooring, Painted concrete – emerald green
Solid oak & slat
, CP birch white matt
Metal 25mm – white epoxy
Location: Paris 17ème, France
Year: 2016

Drawings: Les Ateliers Tristan & Sagitta
English text: Les Ateliers Tristan & Sagitta
Chinese text: gooood
