非常感谢 墨尔本大学设计学院 和 Tinytecture 予gooood分享以下内容。
Appreciation towards Melbourne School of Design and Tinytecture for providing the following description:

“烟雾与镜面（Smoke and Mirrors）”项目是墨尔本大学设计学院的暑期选修课程的主题，该项目旨在探索舞台布景、微缩模型、建筑和以叙事为推动因素的设计等四者之间的相交点。通过对电影布景和文学作品中的空间的分析，学生们设计出一系列生动的作品，通过快速的模型原材料加工（激光切割模型板）、数字化的组装技术和模型制作方法等，最终得到了实体模型，可以说，它们都是数字模型与实体模型相结合的杰作。

学生团队的任务是设计和制作一个基于原材料的生动的场景模型。利用在为期12天的课程中所学到的技术和讨论得出的经验和结果，学生们通过相机镜头对模型制作和设计的作用进行了探讨。通过使用复杂的激光切割构件、手工建模、灯具和电机等一系列物品和方法，以及相机固有的成像模式如强迫透视等，学生们搭建出了一系列精细的模型。

这个设计课程项目由建筑师Jannette Le、导师Michael Mack、Mond Qu和Denis Vlieghe共同领导，展示了以魔法世界为中心的独立场景。

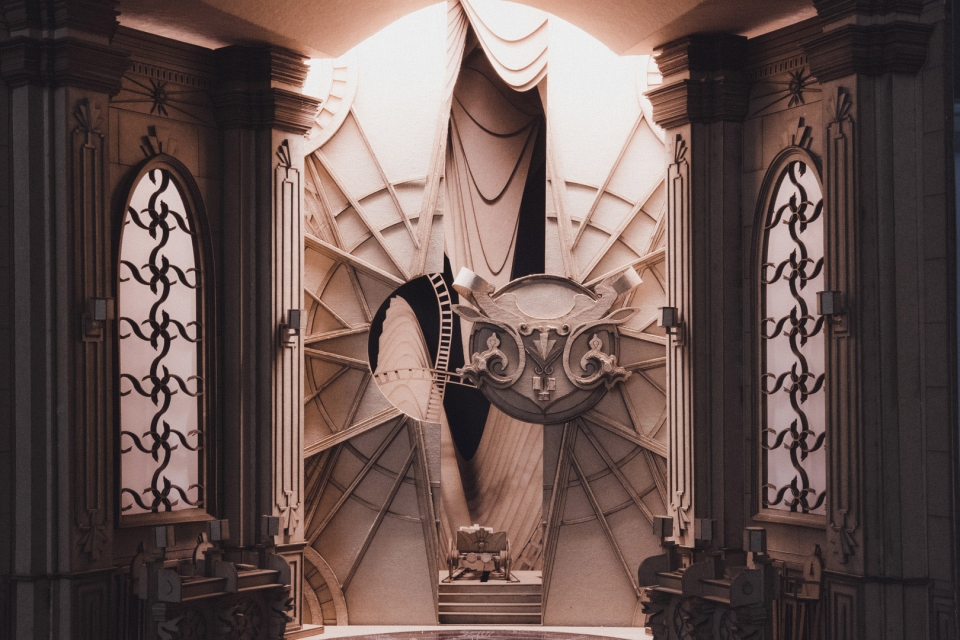

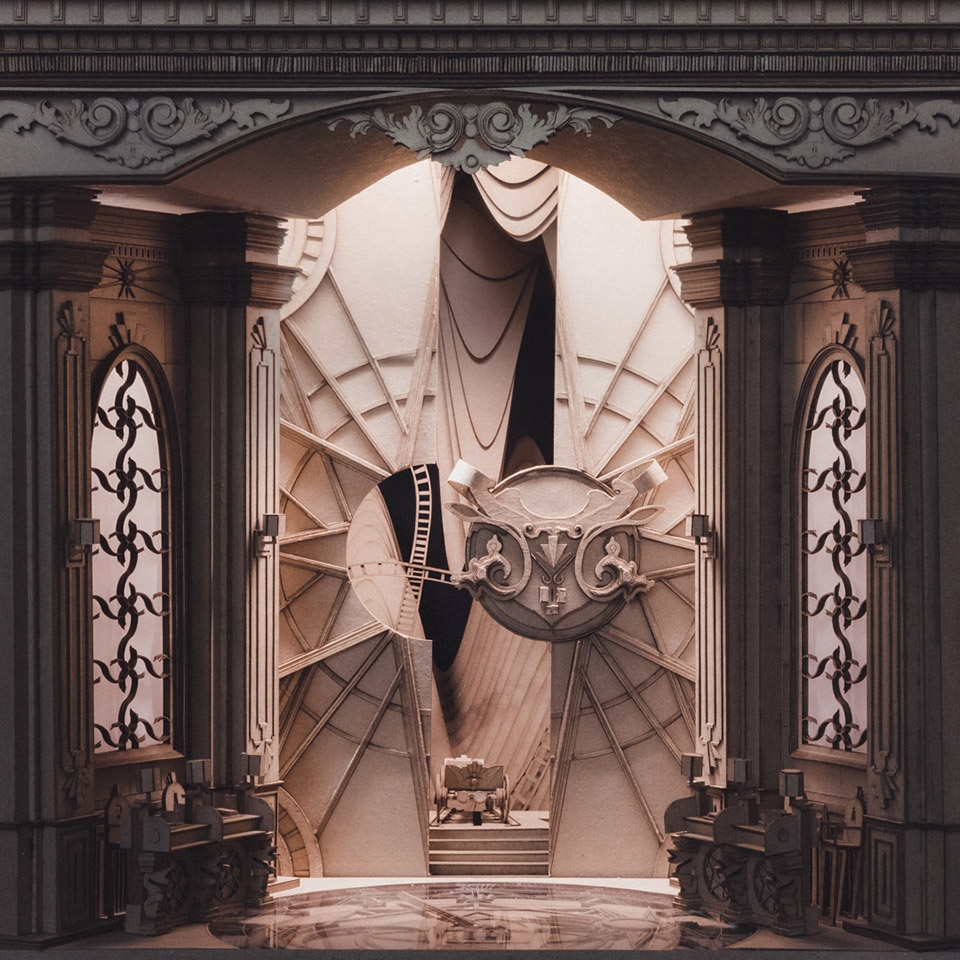

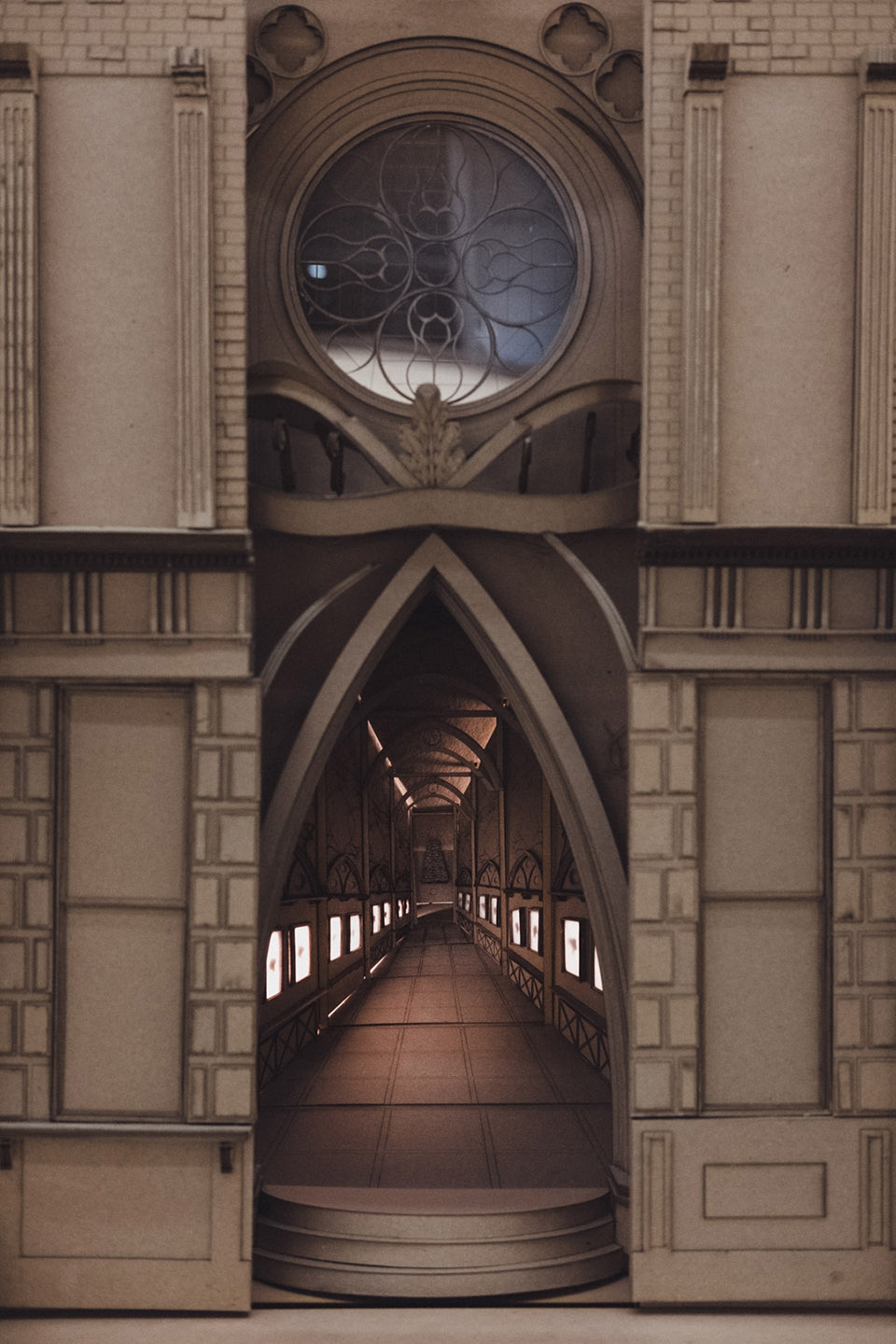

古灵阁
Gringotts
设计制作团队：Paul Yap En Hao, Hylin Lam, Ka Wing Karen Tsui, Hoi Yin Ho, Kye Yuan Choong
Teams: Paul Yap En Hao, Hylin Lam, Ka Wing Karen Tsui, Hoi Yin Ho, Kye Yuan Choong

Smoke and Mirrors is a summer intensive at the Melbourne School of Design and explores the intersection of stage sets, miniatures, architecture and narrative driven design. Utilising spatial analysis of film sets and literature, the animated artefacts are a product of the digital and physical born from rapid prototyping (laser-cutting), digital fabrication techniques and model-making.

Teams were tasked with designing and fabricating an animated set model based on sourced material. Using techniques and discussions learnt over the course of 12 days, they explored the use of model making and designing through the lens of a camera. Highly detailed models were creating using a mixture of intricately laser-cut pieces, hand modelling, and lights and motors and used in-camera effects such as forced perspective.

This studio was led by architect Jannette Le, and tutors Michael Mack, Mond Qu and Denis Vlieghe and shows independent scenes that centralise around the wizarding world of magic.

模型主要材料 | Key Products Used

项目要求是使用1.0毫米和0.6毫米厚的纸板来制作实体模型。此外，学生们还使用了拷贝纸作为窗户的材料以达到透光的效果以及连接到Arduinos的LED灯和电机。

Students were given 1.0mm and 0.6mm boxboard to create their models from. They made use of trace paper (for windows and diffused lights) and LED lights and motors connected to Arduinos.

概念主题 | Brief

学生们汇集了哈利波特中8个场景的概念资料、角色信息、书中场景描述的话语以及一些参考图像等。本项目的客户向学生们提出了一系列设计概念和想法，因此，学生们便尝试以一种更加有趣的方式进行场景再现，将客户的想法精炼成为一个建筑设计。学生们可以将客户的概念和想法作为设计的参考，但不能直接使用它们。此外，学生们还可以使用这些信息来设计一些他们自己的微缩模型和微缩场景，但模型材料却十分有限——只能使用棕色的纸板，因为这不仅充满了挑战，也是一个十分有趣的创作和制作过程。

We put together briefing documents for 8 scenes from Harry Potter, with client information, quotes from the books, and some reference imagery. We tried to replicate, but in a more fun way, when a client approaches your architecture practice with a pinterest board of ideas and you have to distill them into a design. You can use the ideas pack as a reference, but you can’t copy from it. The students used this information to design their versions of the scenes described as miniature objects or sets, but we only let them use brown card (because challenges are fun!).

客户及其特点 | Clients And The Interesting Things About Them

本课程选择了J.K罗琳的“哈利波特”系列中的角色，通过小说、电影和名为Pottermore的互动网站，建立一个客户档案。随后，学生们就可以对这些角色的档案进行研究，并为其设计一系列空间，并向人们展示这些角色是如何使用这些空间的。

We selected characters from JK Rowling’s Harry Potter series and scoured through the books, movies and Pottermore to build a client profile. Students then studied these characters and designed the spaces to reflect how the characters would have used the space.

主要挑战 | Key Challenges

学生们只有11天的时间去设计、制作和组装他们的模型。为了模型了制作，他们总共花费了400多个小时的时间进行模型板的激光切割，此外，为了制作奥利凡德魔杖店（Ollivanders Wand Shop），学生们还手工切割了700个纸盒。

Students had only 11 day to design, build and fabricate their models. Over 400 hours of laser cutting was completed to fabricate the models, and for one, 700 boxes were hand-cut to fill Ollivanders Wand Shop!

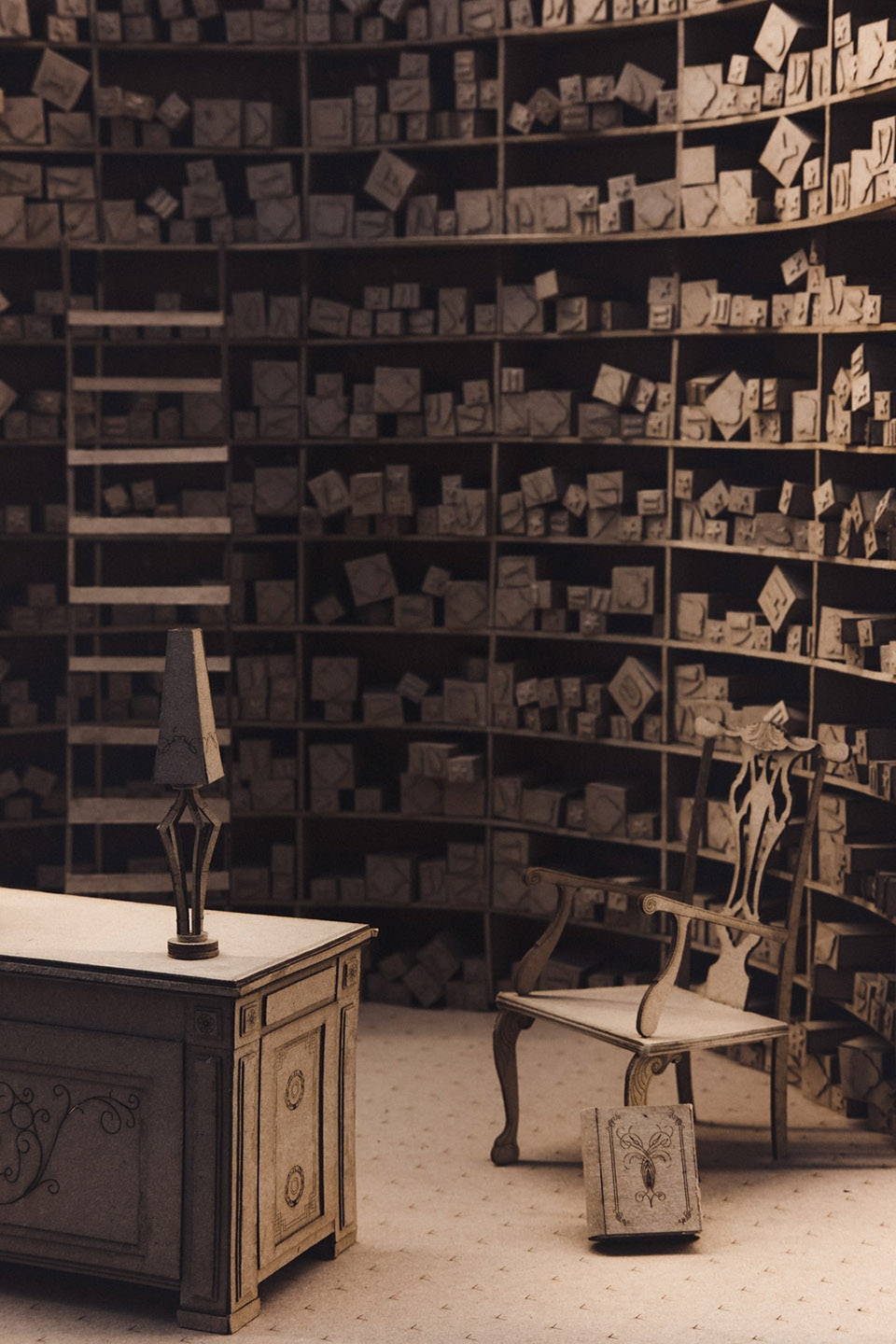

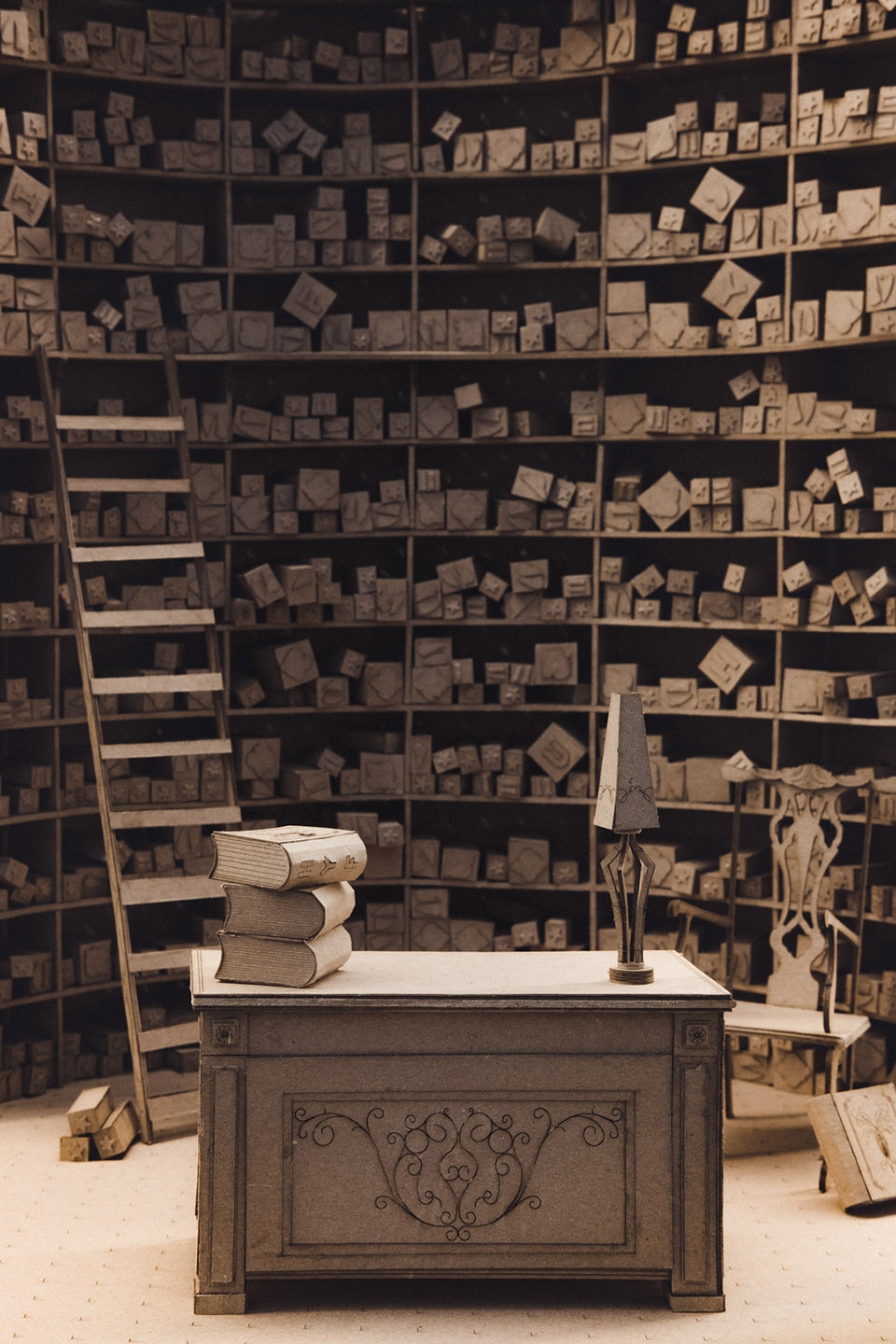

奥利凡德魔杖店
Ollivanders Wand Shop
设计制作团队：Team: Ping Meng, Sheng Zou
Team: Ping Meng, Sheng Zou

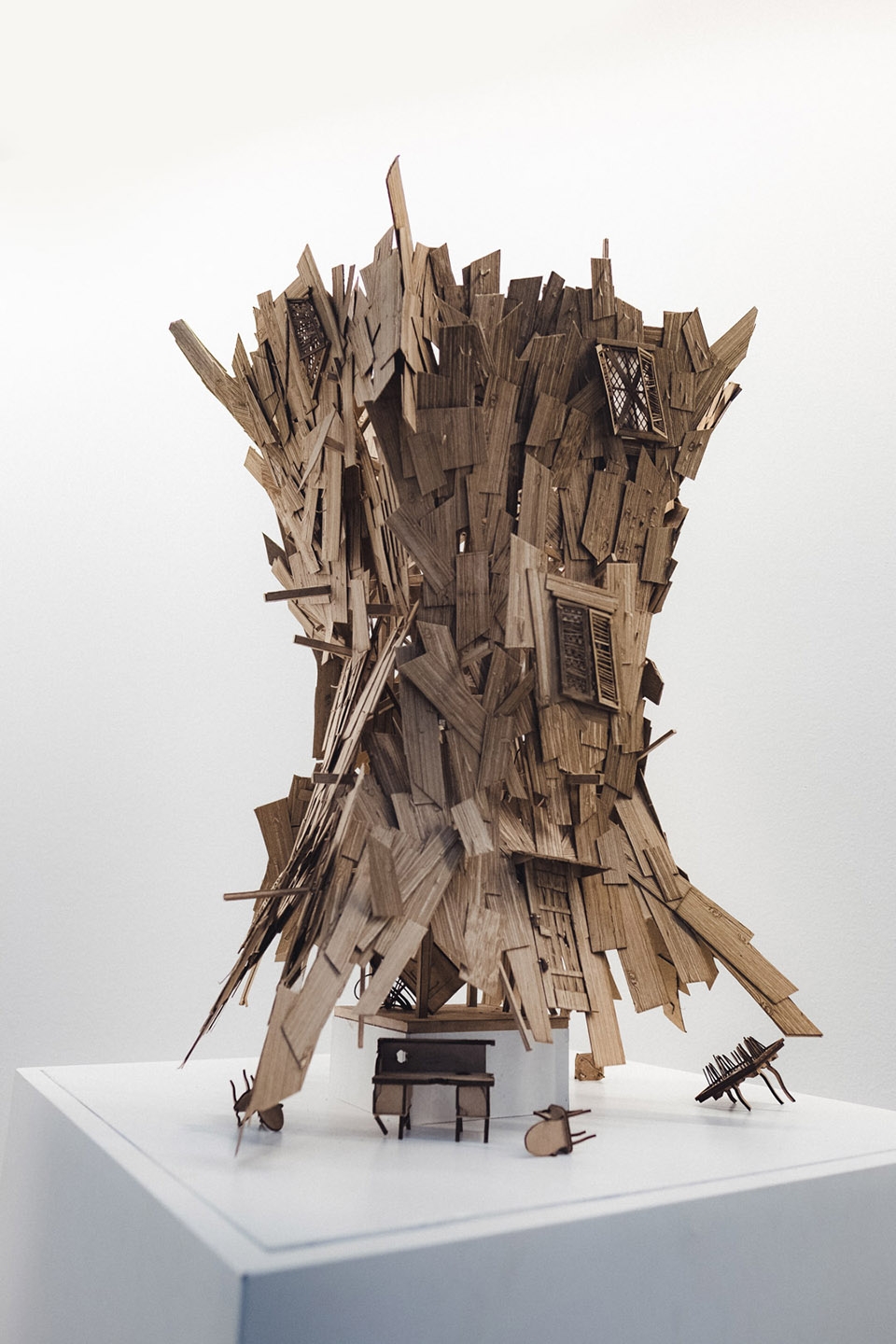

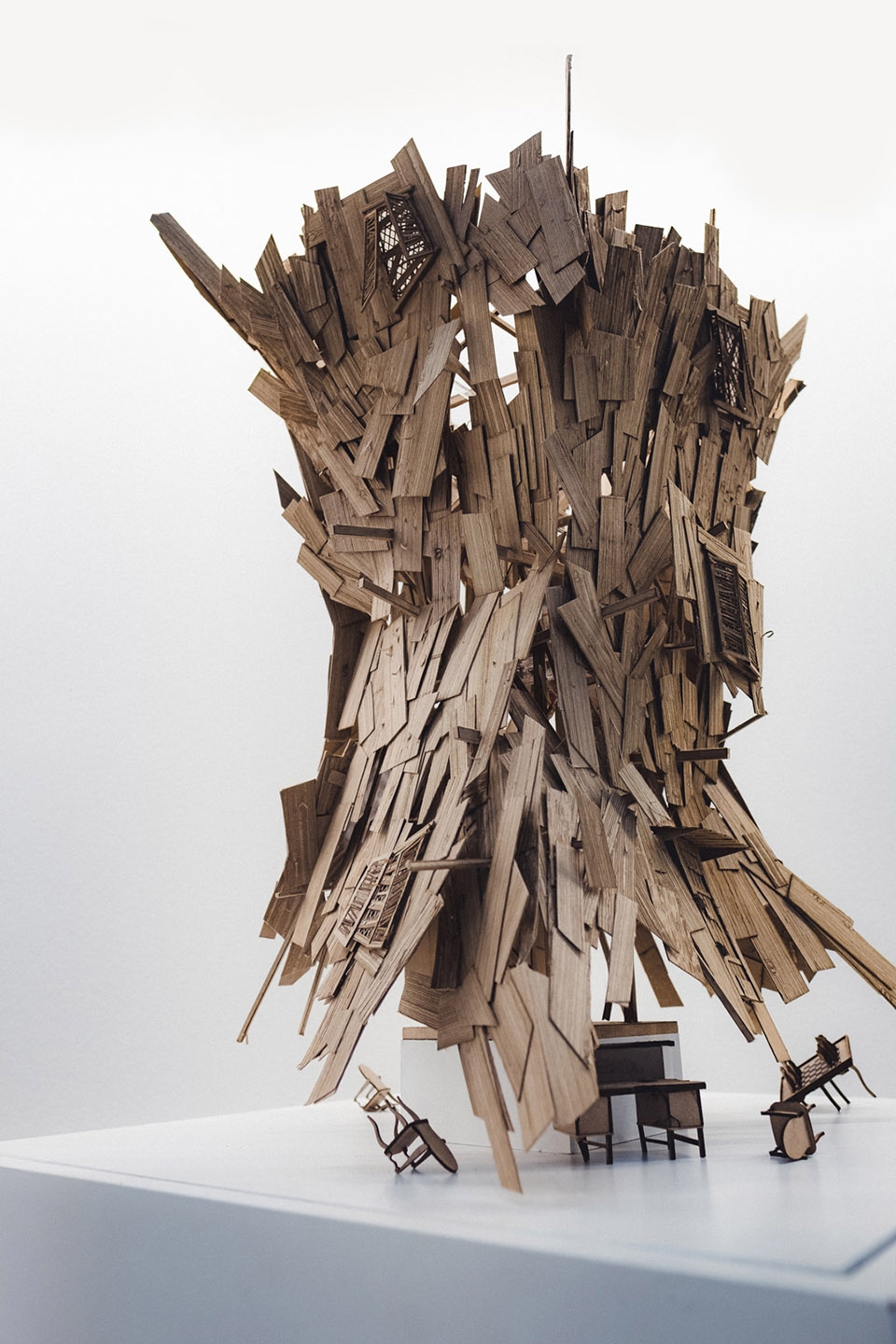

尖叫棚屋
The Shrieking Shack
设计制作团队：Chenggao Li, Zichao Zhu, Haotian Wu, Siyang Wan, Xinhui Xu
Team: Chenggao Li, Zichao Zhu, Haotian Wu, Siyang Wan, Xinhui Xu

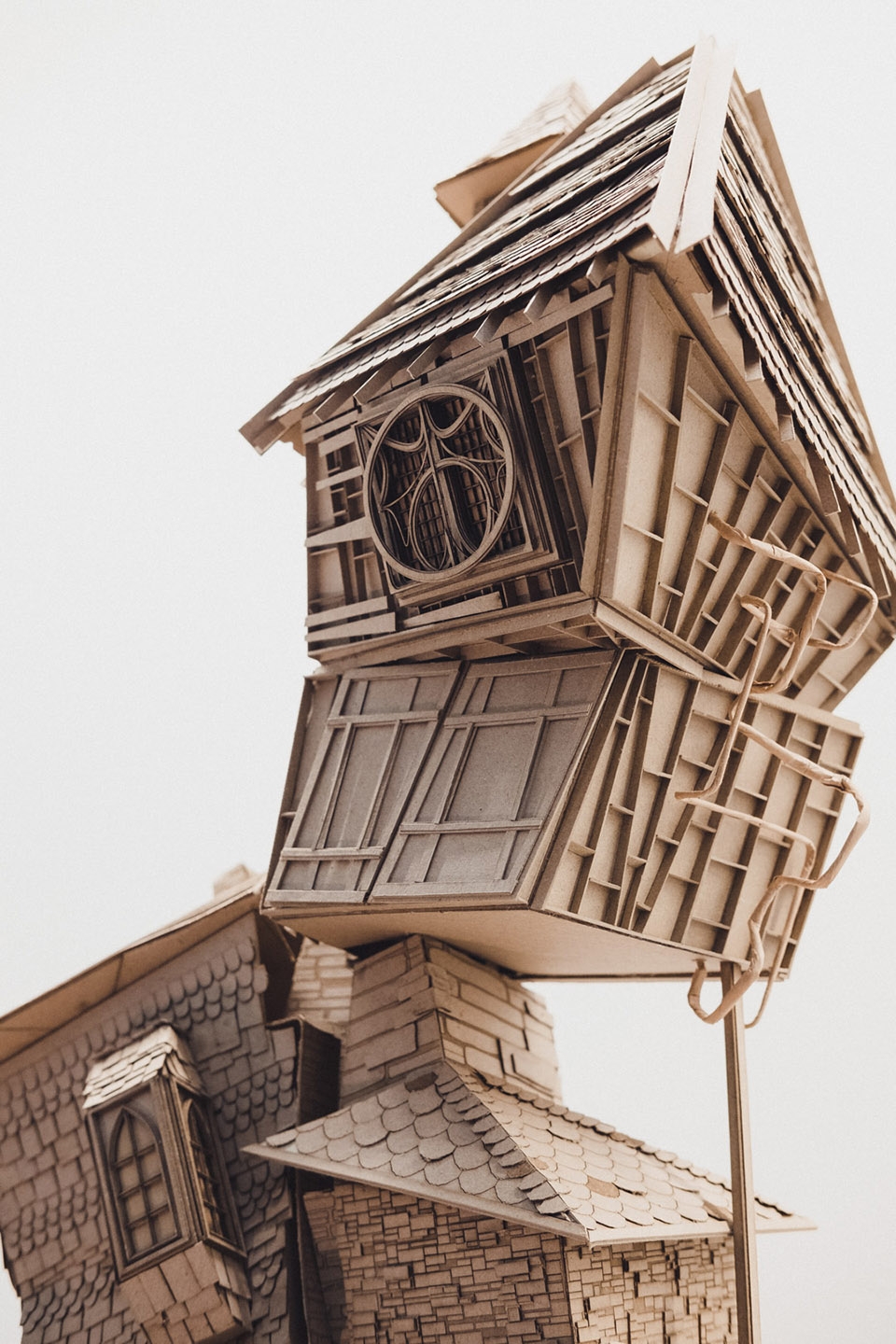

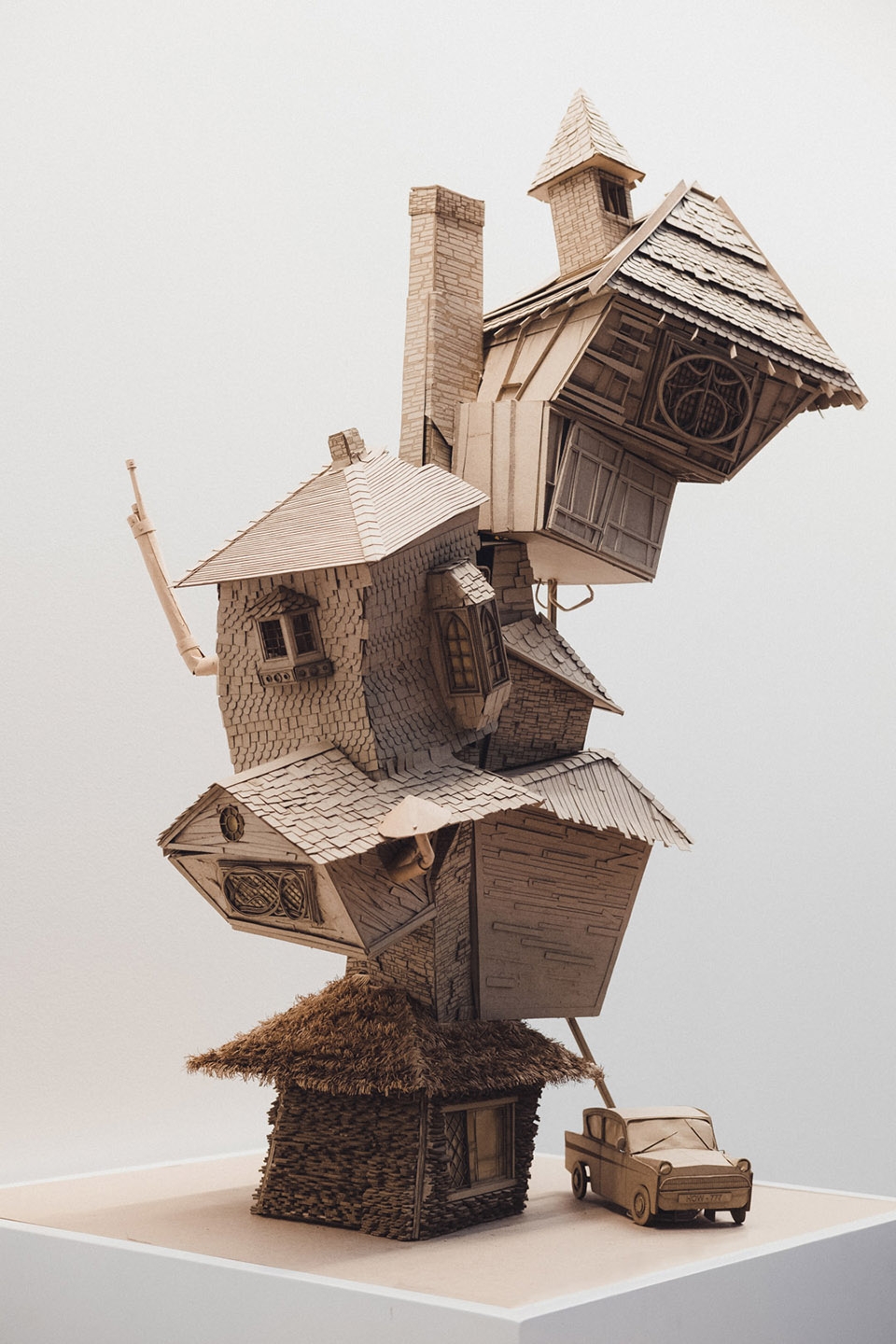

韦斯莱家
The Burrow
设计制作团队：Andrew Rahman, Zoe Jo Bratcher, Alison Hammer, Wei Lyn Song, Edwin Jupp
Team: Andrew Rahman, Zoe Jo Bratcher, Alison Hammer, Wei Lyn Song, Edwin Jupp

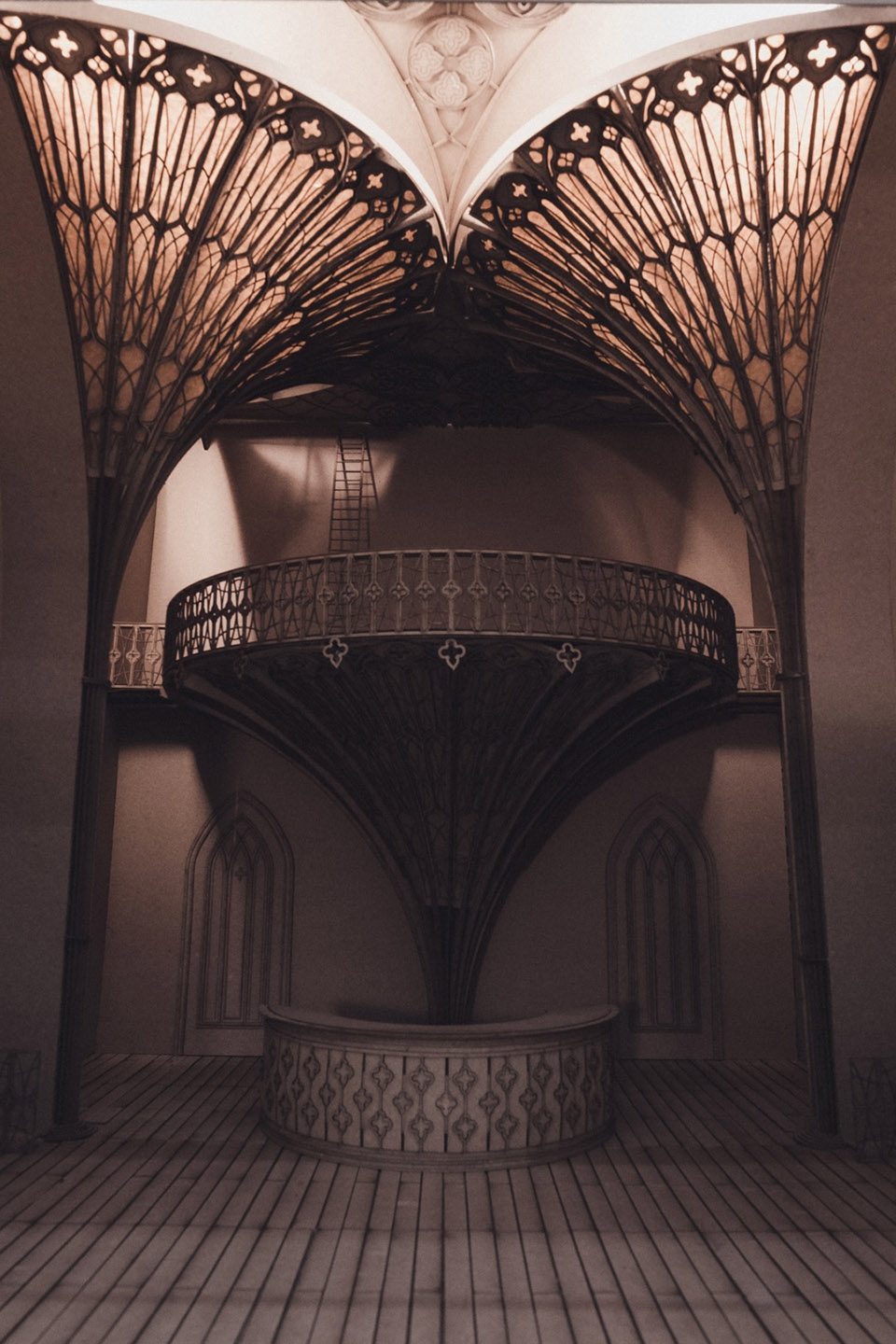

丽痕书店
Flourish and Blotts
设计制作团队：Archana Karunan, Shreyaa Shah
Team: Archana Karunan, Shreyaa Shah

格里莫广场
Grimmauld Place
设计制作团队：Edward Yee, Duncan Crowe, Mary Hou, Daniel Zou, Luke Kim
Team: Edward Yee, Duncan Crowe, Mary Hou, Daniel Zou, Luke Kim

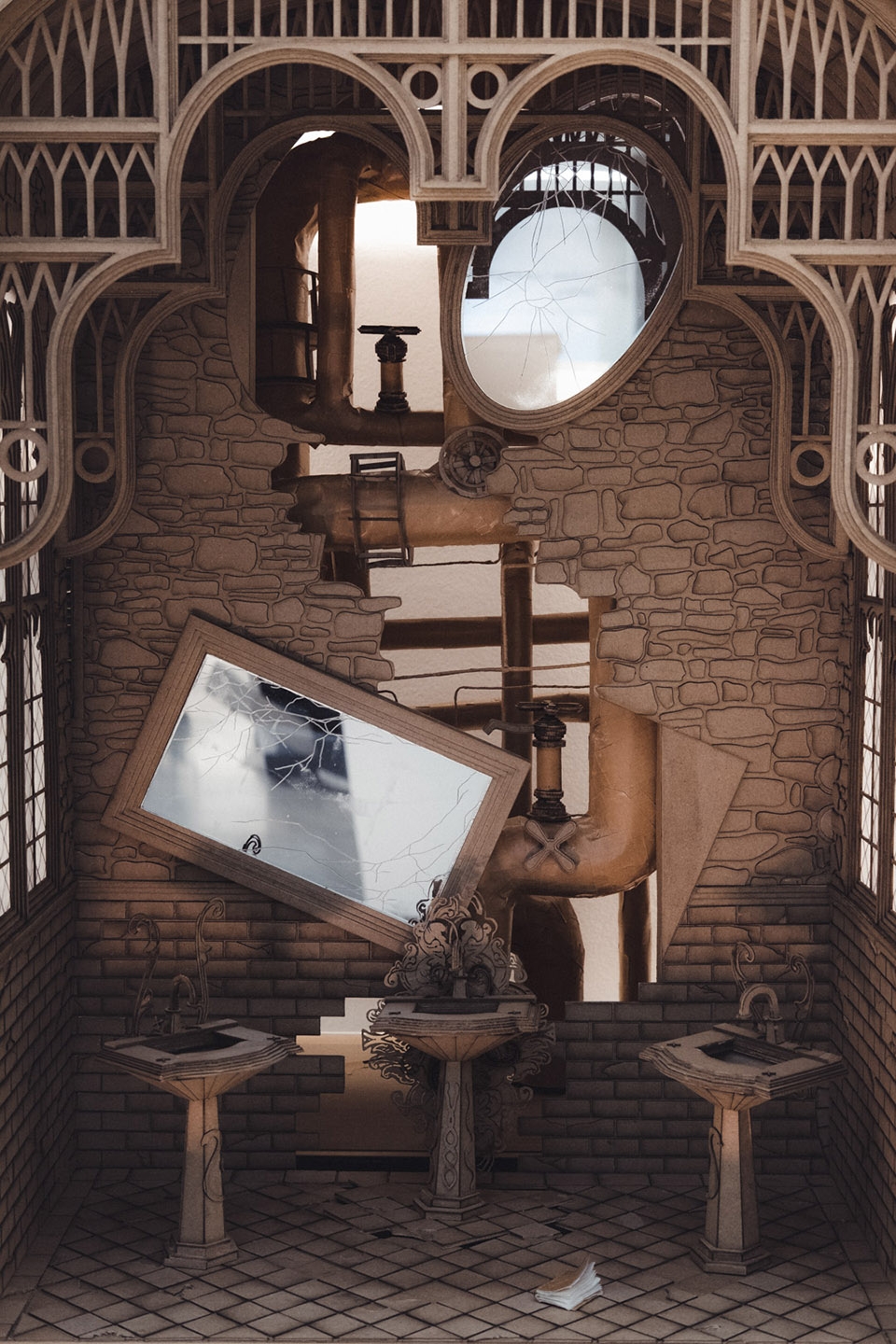

密室
The Chamber of Secrets
设计制作团队：Sara Tan, Ying Ruey Lee, Yohanes Richo Wirawan, Juan Carlos Planells, Mengli Pi
Team: Sara Tan, Ying Ruey Lee, Yohanes Richo Wirawan, Juan Carlos Planells, Mengli Pi

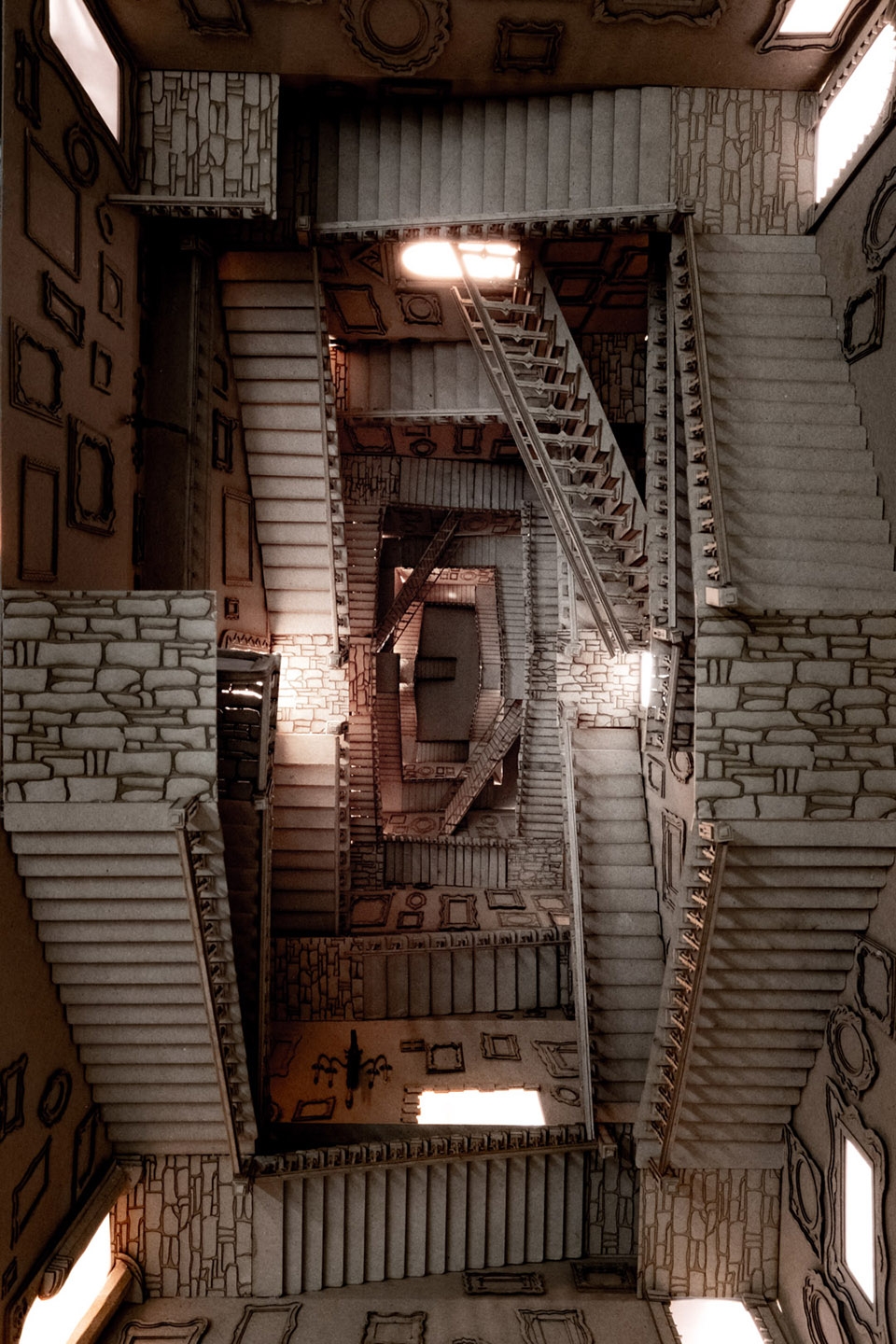

活动楼梯
The Great Staircase
Team: Bin Wang, Hao Lin, Zhenyi Jiang, Zarrin Salami, Xiaohan Liu
设计制作团队：Bin Wang, Hao Lin, Zhenyi Jiang, Zarrin Salami, Xiaohan Liu
