Hyatt Regency Andares by Sordo Madaleno Arquitectos

A vertical volume express new wave of high standard architecture

Project Specs

Location:

非常感谢 Sordo Madaleno Arquitectos 予gooood分享以下内容。更多关于他们:Sordo Madaleno Arquitectos on gooood Appreciation towards Sordo Madaleno Arquitectos for providing the following description:

Sordo Madaleno Arquitectos 设计的这个多用途Andares 综合体是一个富有远见的城市综合体,项目使Puerta de Hierro区域成为Zapopan城市新中心。Andares项目总体规划于2009年正式启动,包括购物中心和高层住宅建筑,但是一直在计划扩张。Andares凯悦酒店及公寓塔楼是总体规划的一部分,这是一个包括酒店和豪华公寓的7000平方米的项目。

The mixed-use Andares complex designed by Sordo Madaleno Arquitectos is the visionary urban complex that has positioned the Puerta de Hierro zone as a new center for the city of Zapopan. The Andares Master Plan formally commenced in 2009 with the building of the shopping mall and the high-rise residential building, but an expansion was always planned. Hyatt Regency Andares forms part of this master plan, as a significant 70,000-square-meter project containing a hotel and luxury apartments.

▼项目外观及城市肌理,view of the project and its urban context  © Sordo Madaleno Arquitectos photo by Rafael Gamo

Andares凯悦酒店公寓塔楼为Paseo Andares综合体内部车道提供了视觉和空间背景,车道为综合体内部不同功能区域服务也是城市布局的补充。塔楼从地面起有41层楼。地面层包括一个与综合体内部街道连接的绿荫公共广场,也作为汽车疏散区域。

Hyatt Regency Andares forms a visual and spatial backdrop to the interior street of Paseo Andares, a roadway created to serve each of the different uses of the complex internally, which complements the urban layout of the city. The building rises to 41 stories above street level. The ground floor comprises a tree-lined public plaza that connects to this interior street and functions as a distributor for the motor lobby.

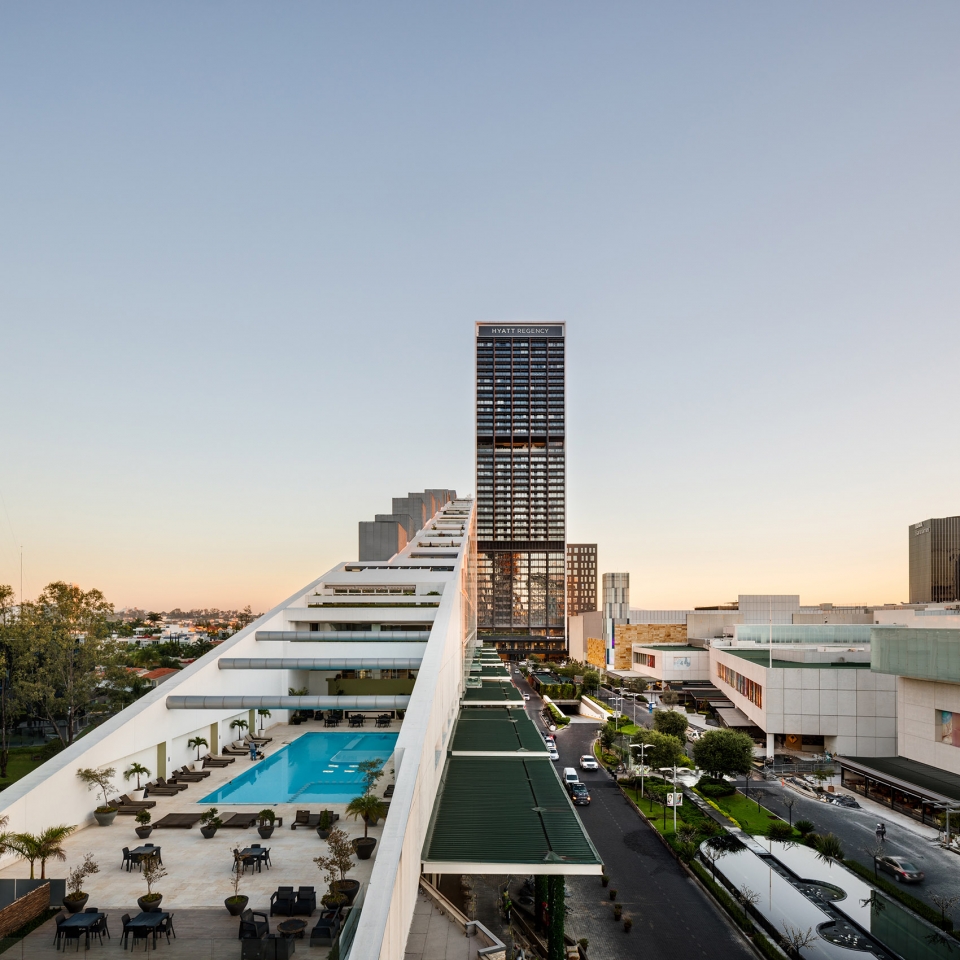

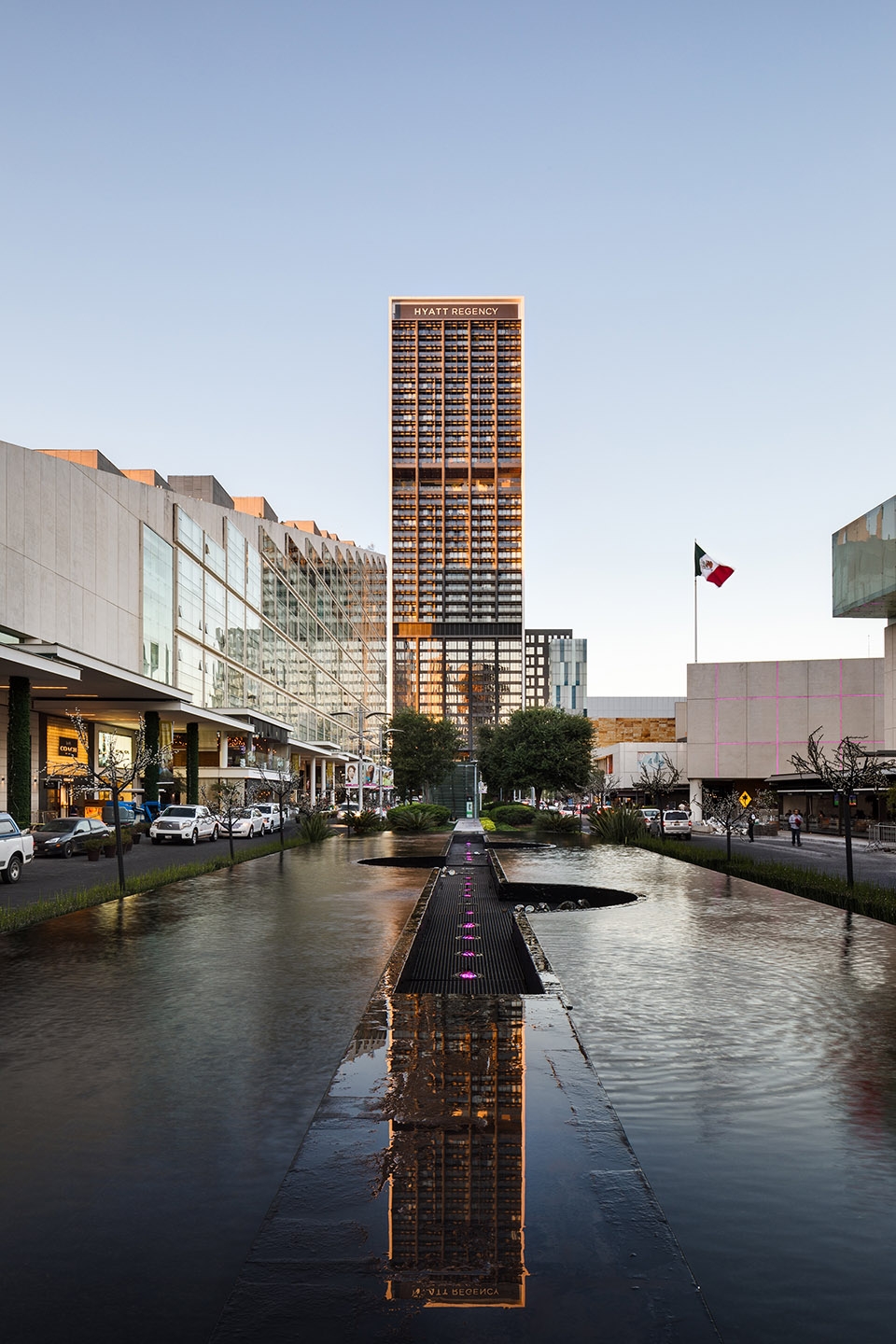

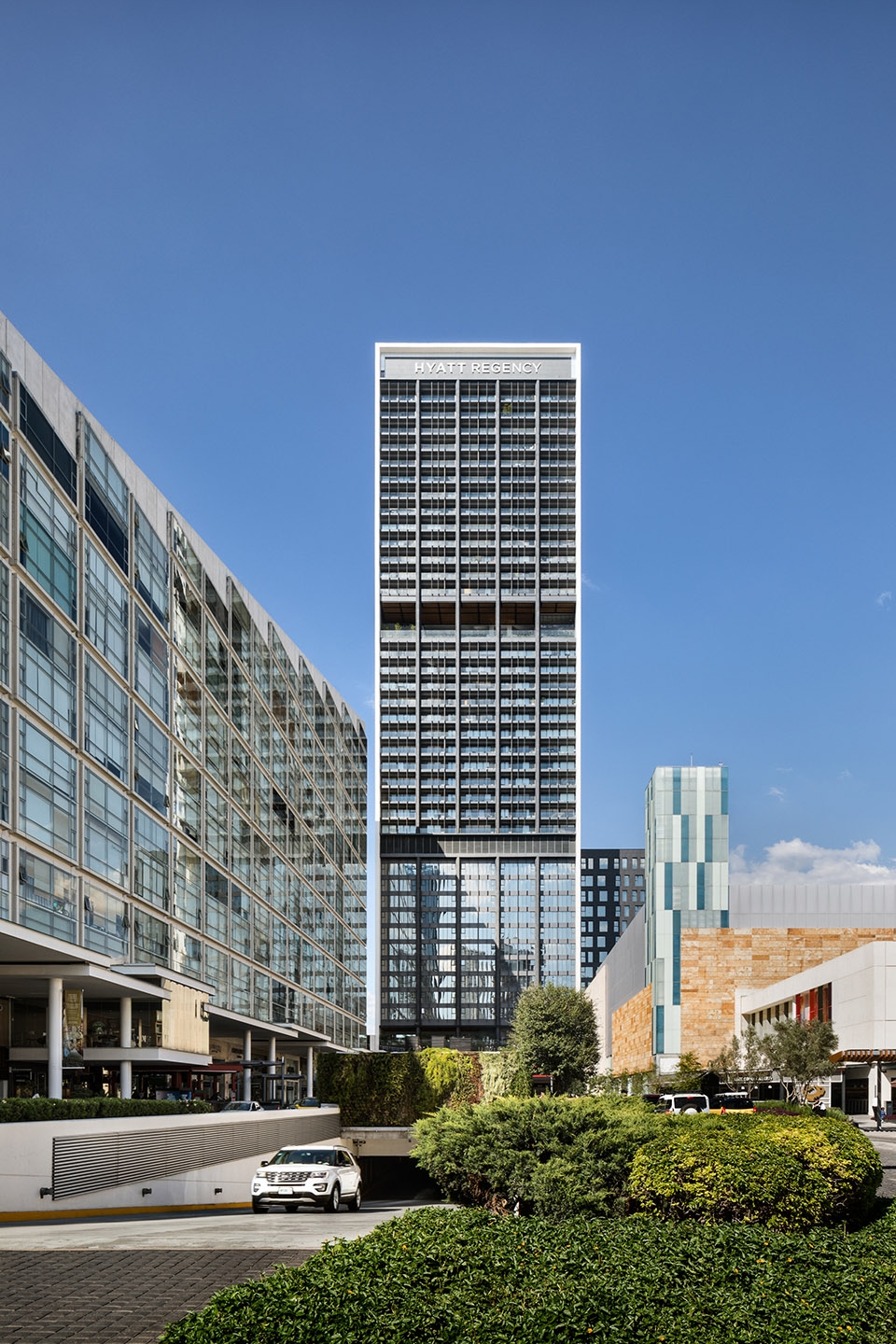

▼建筑及为综合体内部服务的街道,the tower and a roadway created to serve each of the different uses of the complex internally  © Sordo Madaleno Arquitectos photo by Rafael Gamo

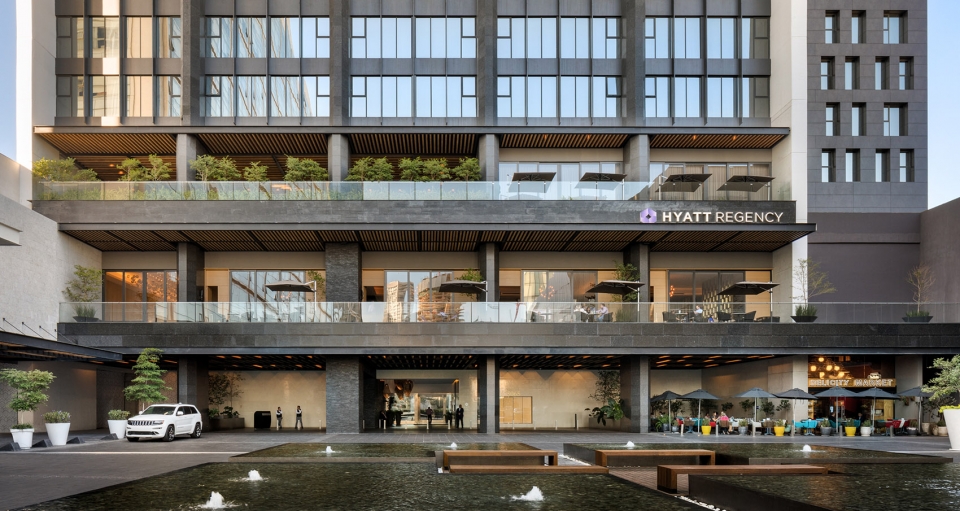

▼公共广场及汽车出入口,the ground floor plaza and the motor entrance  © Sordo Madaleno Arquitectos photo by Rafael Gamo

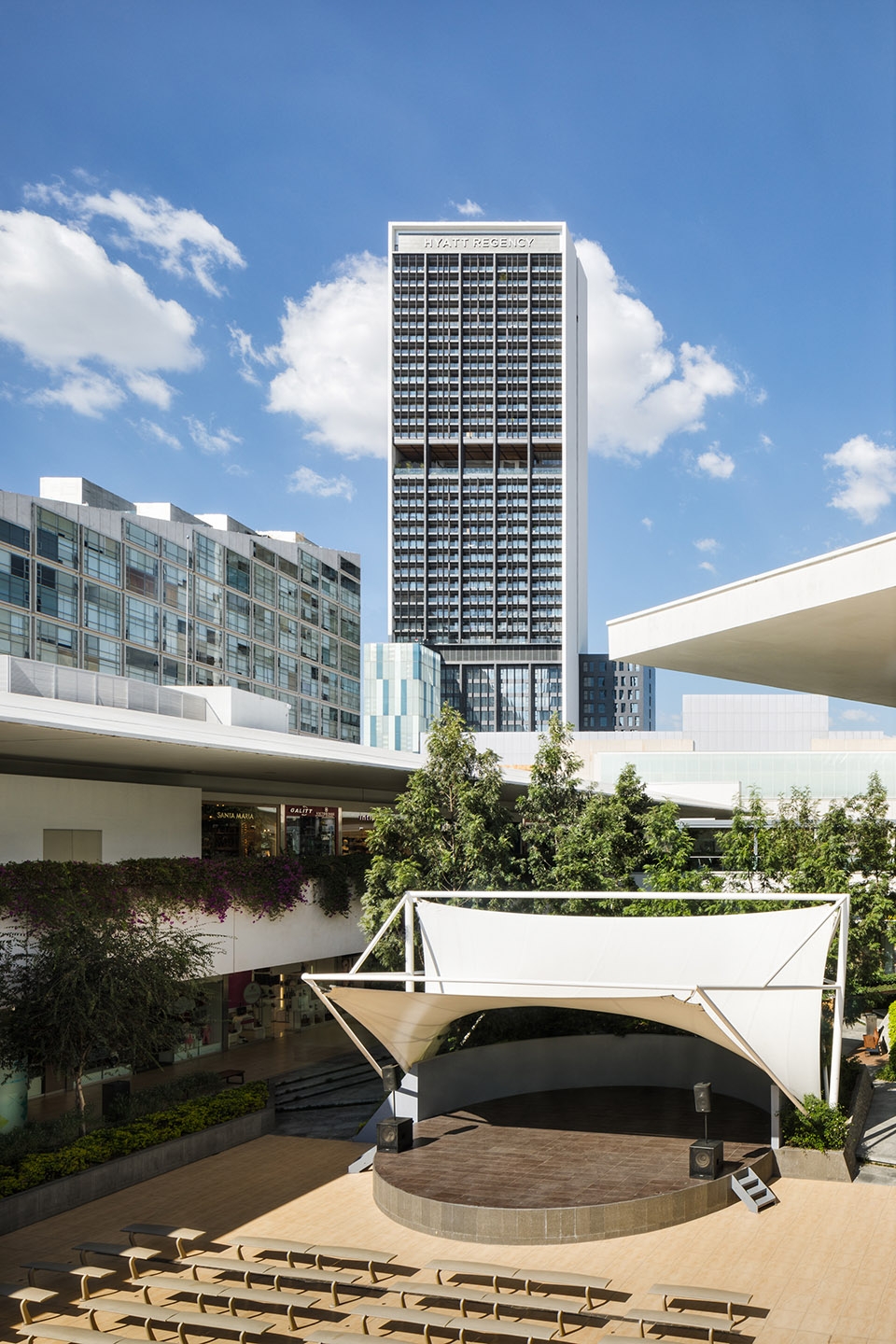

▼从购物中心看向塔楼,view from Andares Mall  © Sordo Madaleno Arquitectos photo by Rafael Gamo

体量如同一个升起的细长棱镜,主要立面朝向北部和南部,通过窗户开洞在垂直向呈现出一个五部分的结构,水平向通过露台进行划分。东西立面是封闭结构,只有垂直通风口。立面使用了朴素色调的材料,纯净的白色混凝土优雅地构成黑色铝材和玻璃的框架。

The volume rises like a slender prism with its principal façades facing north and south, and presenting an enclosure that is modulated vertically into five sections by the window openings, and horizontally by the terraces of the amenities that divide the tower. Meanwhile, the east-west façades are blind, leaving only vertical openings for ventilation. The façades employed a sober palette of materials, with the purity of white concrete elegantly framing the painted black aluminum and the glass.

▼立面竖向通过窗户开洞分为五部分,水平向通过露台进行划分,the facade that is modulated vertically into five sections by the window openings, and horizontally by the terraces of the amenities that divide the tower  © Sordo Madaleno Arquitectos photo by Rafael Gamo

就项目本身而言,塔楼划分为以下结构:酒店占据了下方12层空间,上面28层作为住宅公寓,每一层都有各自的服务设施。13层作为两种功能类型的服务和设施转换层。大厅层向住户展现出欢迎姿态并给酒店客人一种已经抵达酒店的感觉。257间豪华酒店客房占据了酒店2层至12层,其中包括25间独特的套房。

▼首层呈现欢迎姿态并让客人产生到达酒店的感觉,ground floor comprises the lobby that both welcomes people to the residences and establishes the hotel’s sense of arrival  © Sordo Madaleno Arquitectos photo by Rafael Gamo

In terms of the program, the tower is divided as follows: the hotel occupies the lowest 12 floors and the residential apartments the top 28 floors, each with its respective amenities. Floor 13 is allocated to the transfer of services and installations used by both program types. The ground floor further comprises the lobby that both welcomes people to the residences and establishes the hotel’s sense of arrival. The 257 luxury hotel rooms occupy floors 2 to 12, including 25 unique suites.

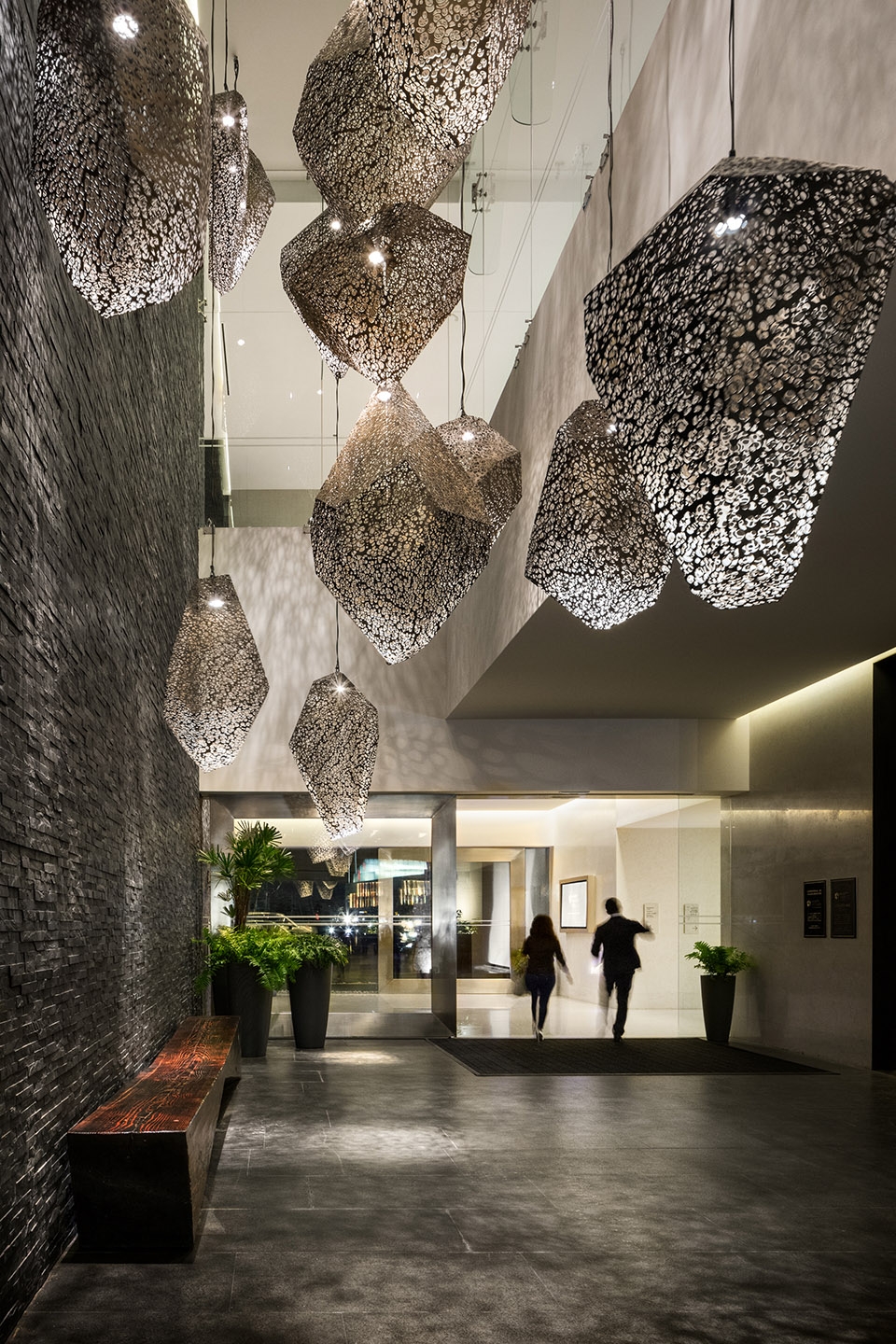

▼入口大厅,the entrance lobby  © Sordo Madaleno Arquitectos photo by Rafael Gamo

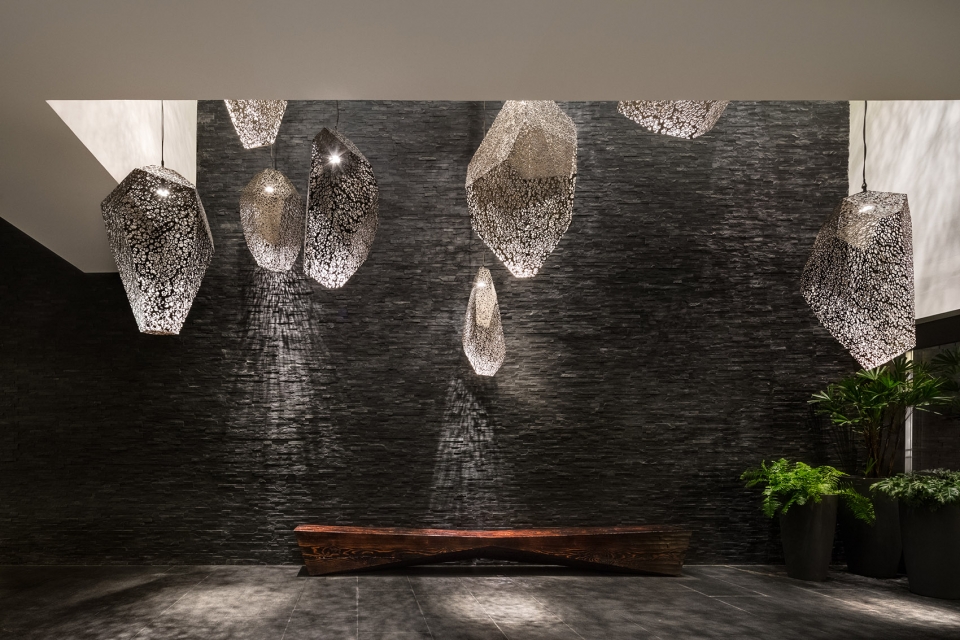

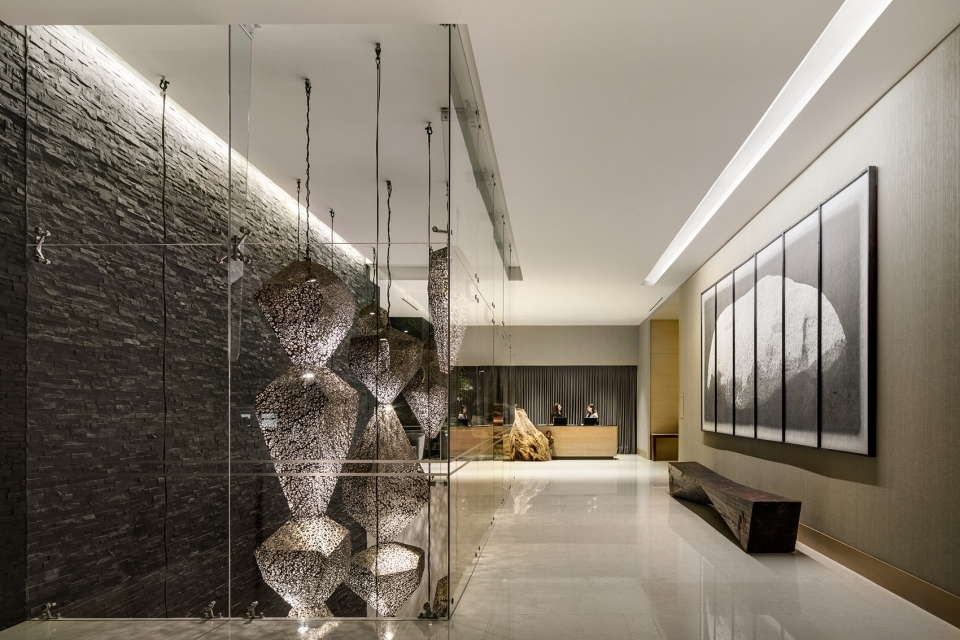

▼充满设计感的入口大厅一角,design detail of entrance lobby  © Sordo Madaleno Arquitectos photo by Rafael Gamo

垂直交通核心位于塔楼的东北角,按照用途和容量进行划分,三部电梯用于住宅公寓,三部供酒店客人使用。

The vertical circulation nucleus located at the north-east corner of the tower is strategically divided by use and capacity, with three elevators for the residential floors and three for hotel guests.

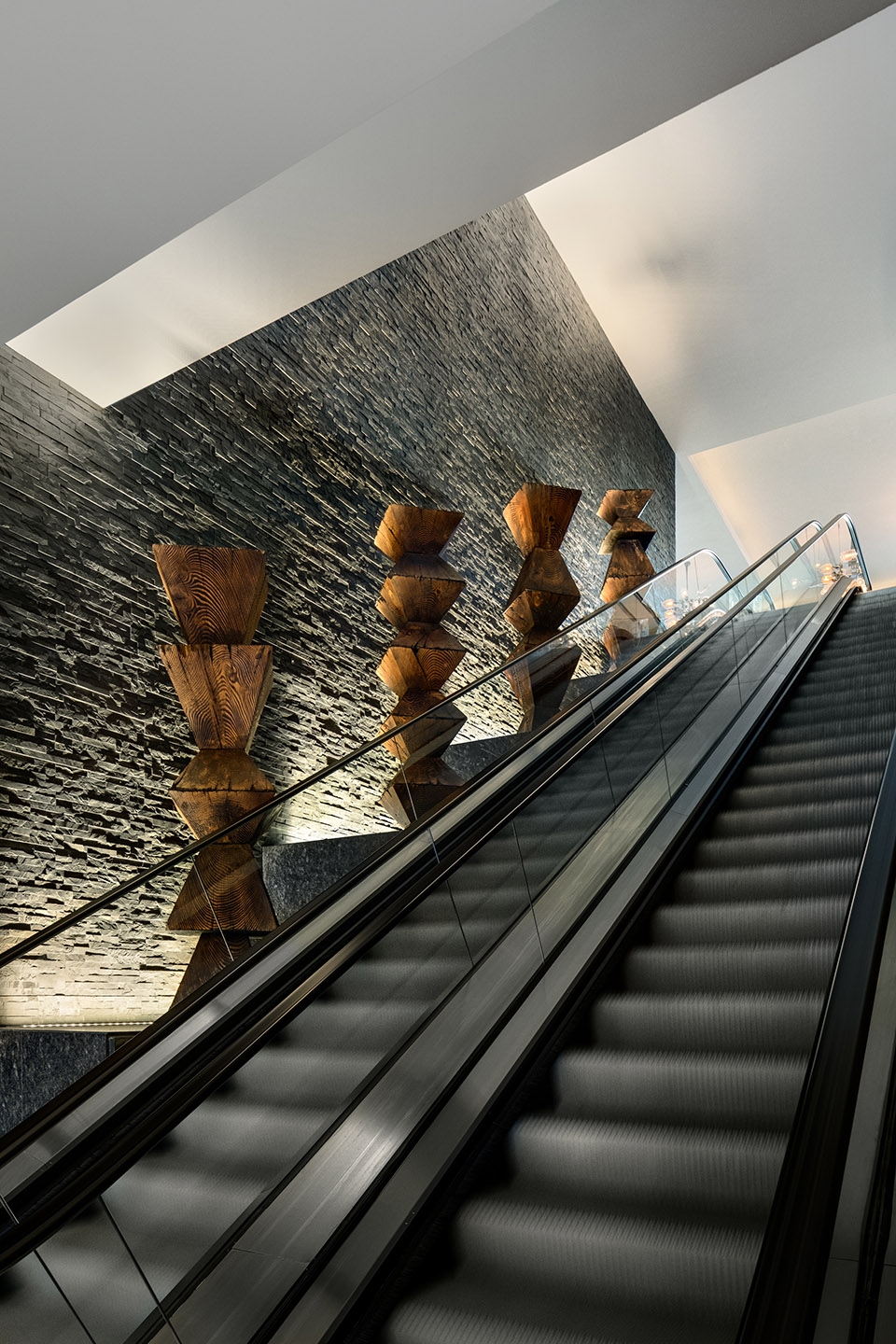

▼从大厅层通向楼上的扶梯,escalators to first level  © Sordo Madaleno Arquitectos photo by Rafael Gamo

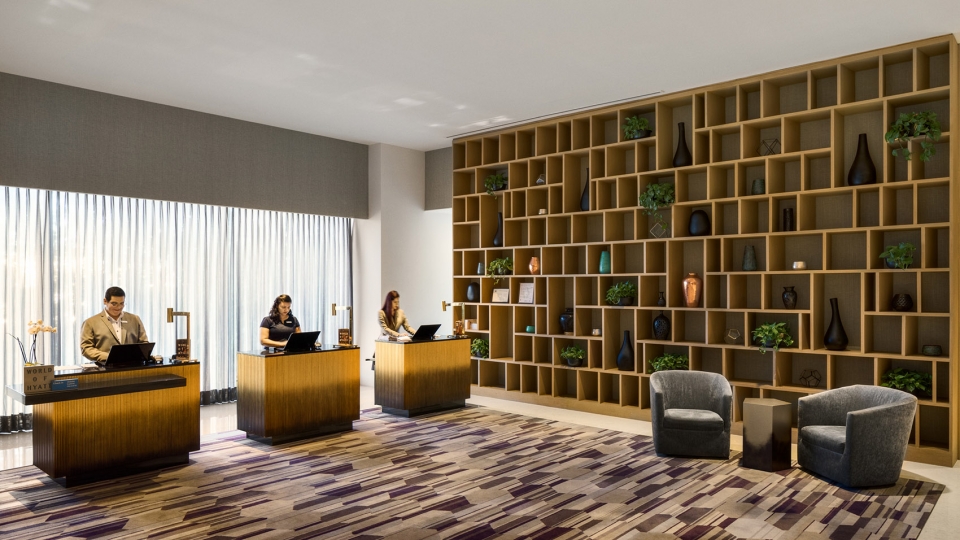

▼上层的酒店礼宾大厅,hotel concierge lobby on the first floor  © Sordo Madaleno Arquitectos photo by Rafael Gamo

▼酒店主大厅,hotel main lobby  © Sordo Madaleno Arquitectos photo by Rafael Gamo

酒店空间从大厅层开始,包括几个零售区、会议室和迷你宴会厅,满足该区域的商业需求。在后续的几层,酒店设施如大堂休息室、酒吧、餐厅和主宴会厅位于大厅上一层,泳池、健身房和专属会员俱乐部位于二层。

The hotel experience begins from the ground floor motor lobby, which includes several retail spaces, together with meeting rooms and a mini ballroom in response to the commercial requirements of the area. On the following levels, the hotel amenities such as the Lobby Lounge, Bar, Restaurant and the main Ballroom are on the first floor, while the pool, gym and an exclusive members club are located on the next floor up.

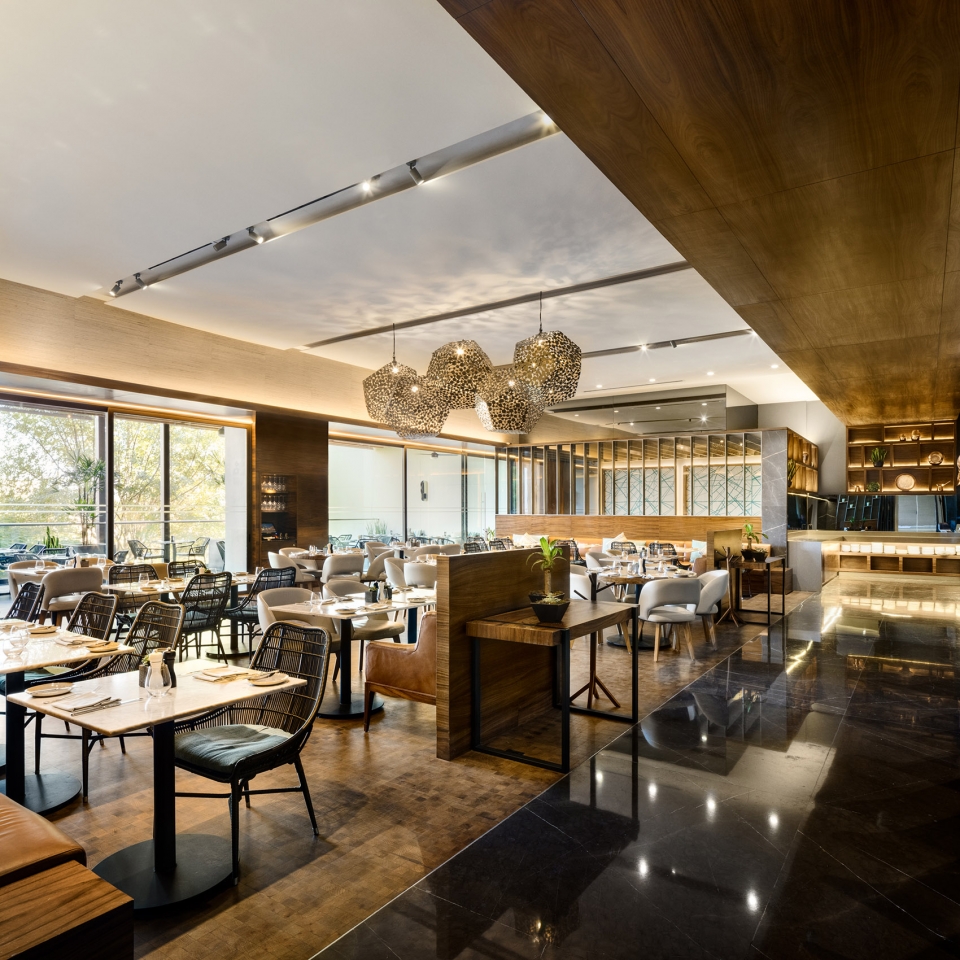

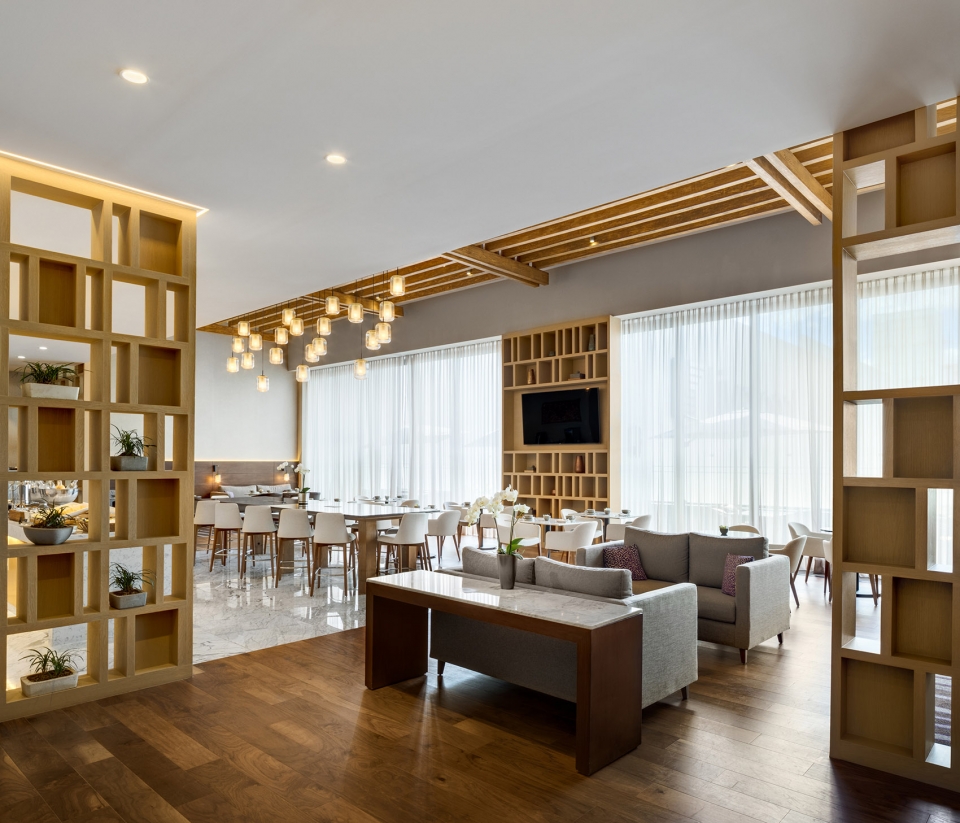

▼酒店内用餐区,dinning room in the hotel  © Sordo Madaleno Arquitectos photo by Rafael Gamo

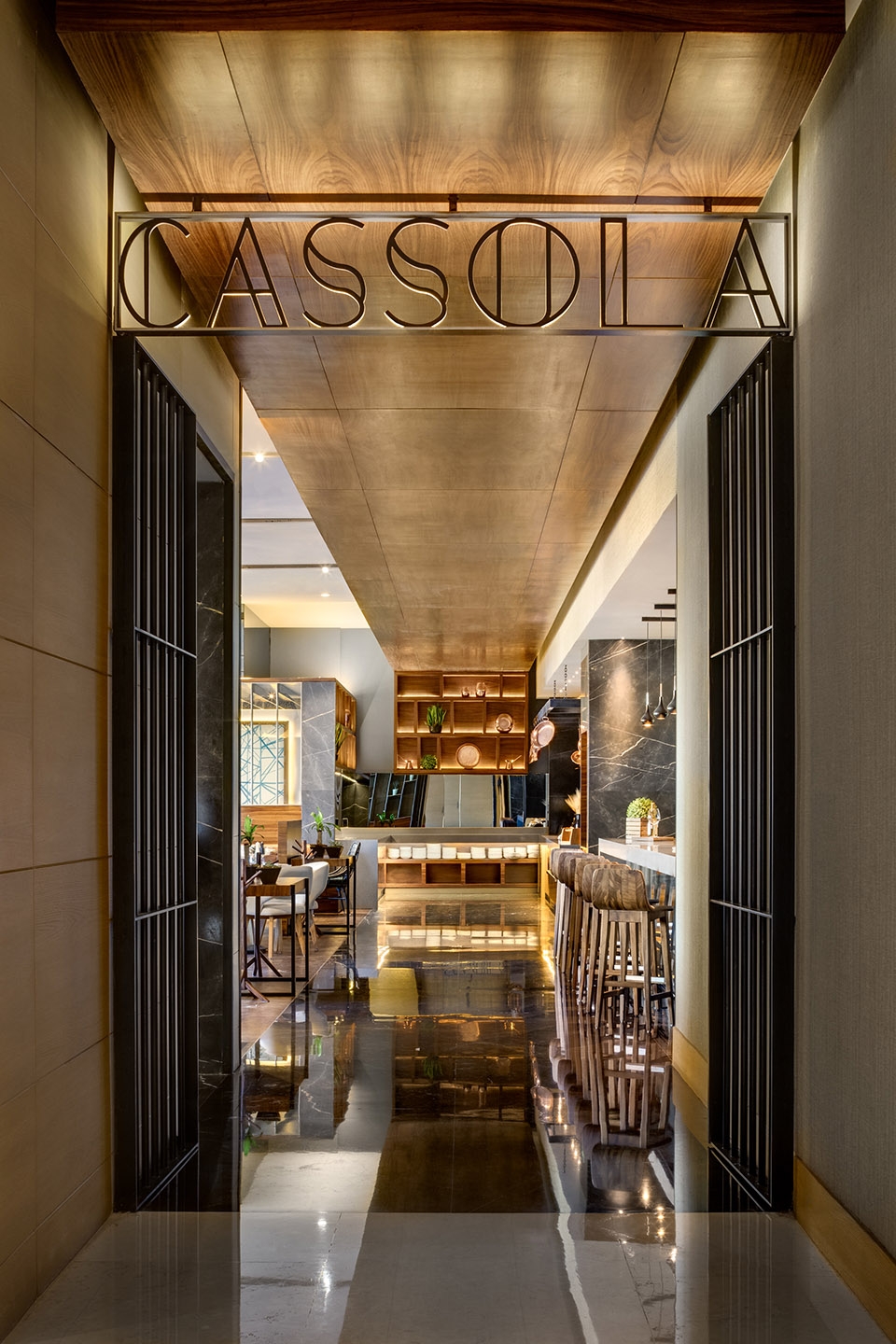

▼酒店Cassola餐厅入口,entrance of Cassola Restaurant  © Sordo Madaleno Arquitectos photo by Rafael Gamo

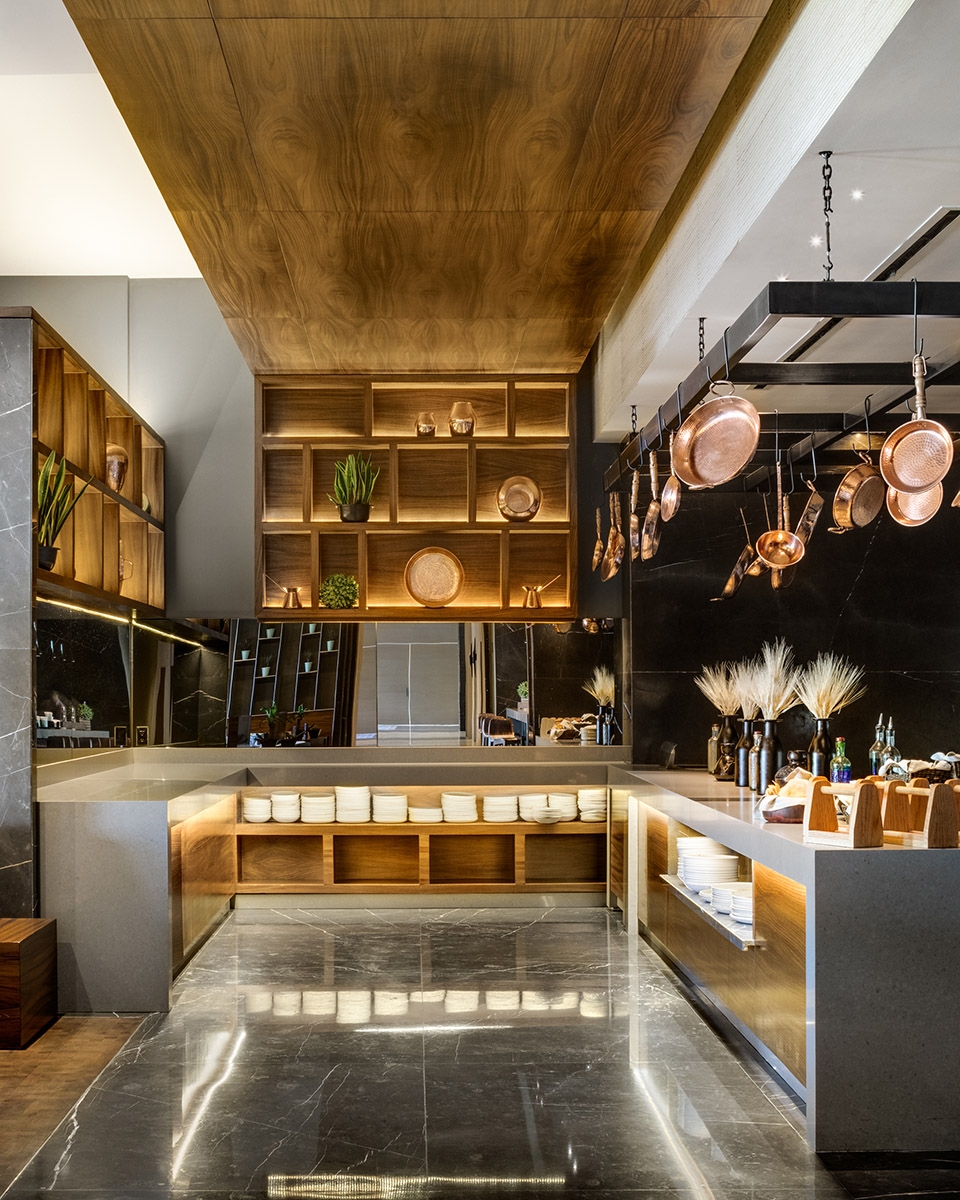

▼入口处自助吧台,buffet bar  © Sordo Madaleno Arquitectos photo by Rafael Gamo

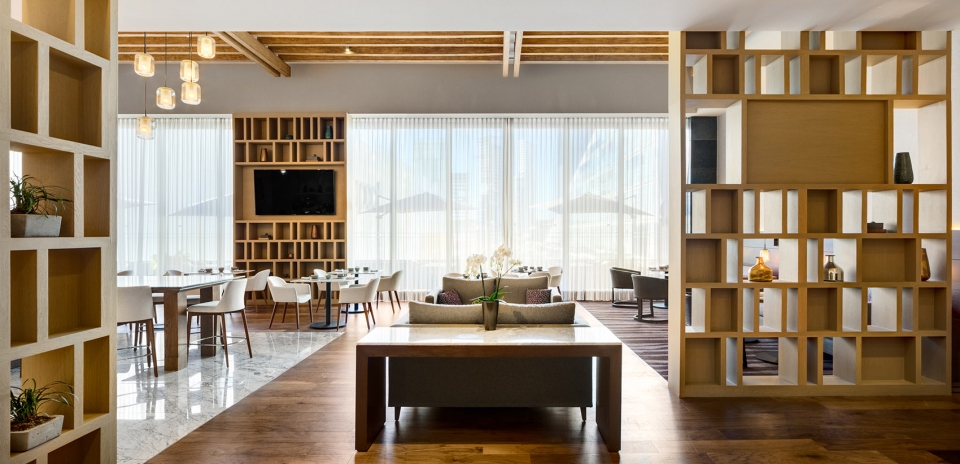

▼餐厅用餐区,dinning area in the restaurant  © Sordo Madaleno Arquitectos photo by Rafael Gamo

▼酒店泳池,hotel pool  © Sordo Madaleno Arquitectos photo by Rafael Gamo

住宅部分从塔楼14层开始,每层面积为1080平方米并且每层有105间从125平方米到250平方米布局不同的公寓,塔楼顶层是两套顶层公寓。

Starting on floor 14, the residences occupy 1,080 sqm per level, with a total of 105 apartments taking various layouts that range from 125 sqm to 250 sqm, culminating in two penthouses on the tower’s top floors.

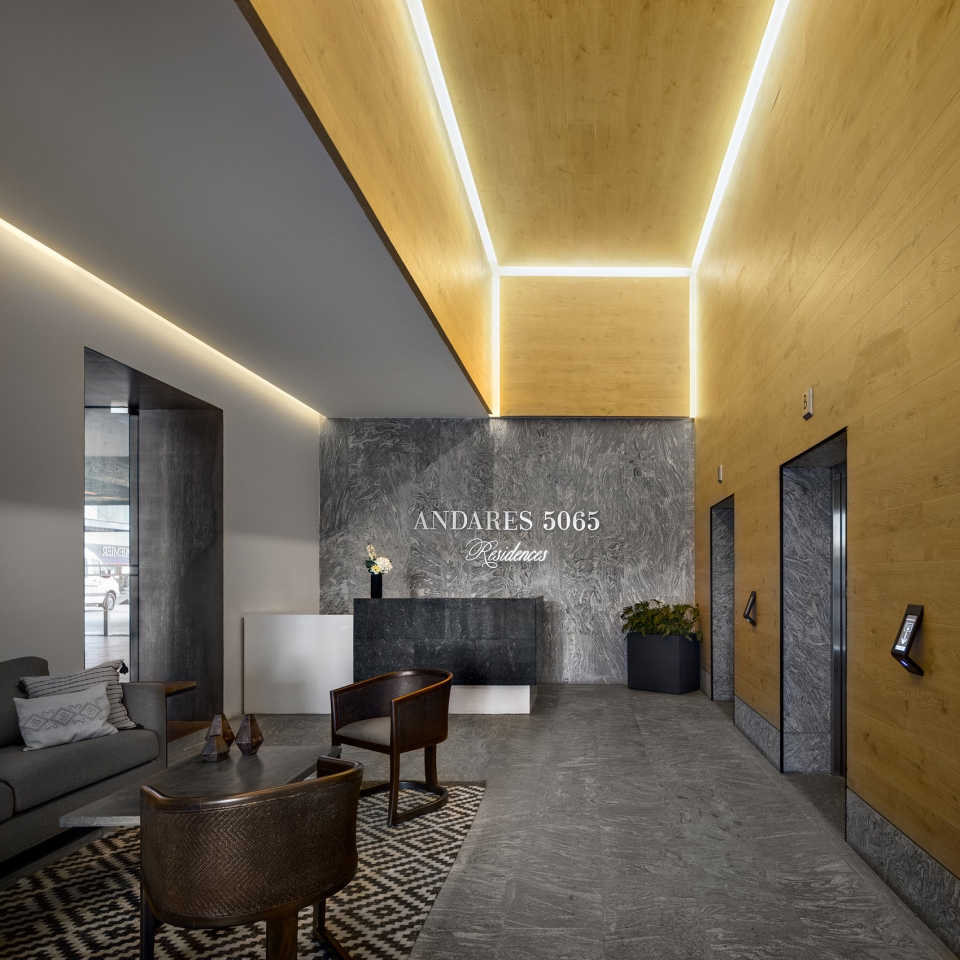

▼住宅公寓大厅-从15层开始是公寓部分,residences lobby-the residences start on the floor 14   © Sordo Madaleno Arquitectos photo by Rafael Gamo

泳池作为住宅设施的中心元素,占据了一个两层楼高的空间,并且有一个朝南开放的露台。多功能室位于建筑的东部,靠近电梯并且从视觉上将露台与Paseo Andares连接起来。

The pool provides the central element of the residential amenities, occupying a double-height floor with an open, south-facing terrace, while a multipurpose room is located on the east side of the building close to the elevators, and visually connects a terrace to Paseo Andares.

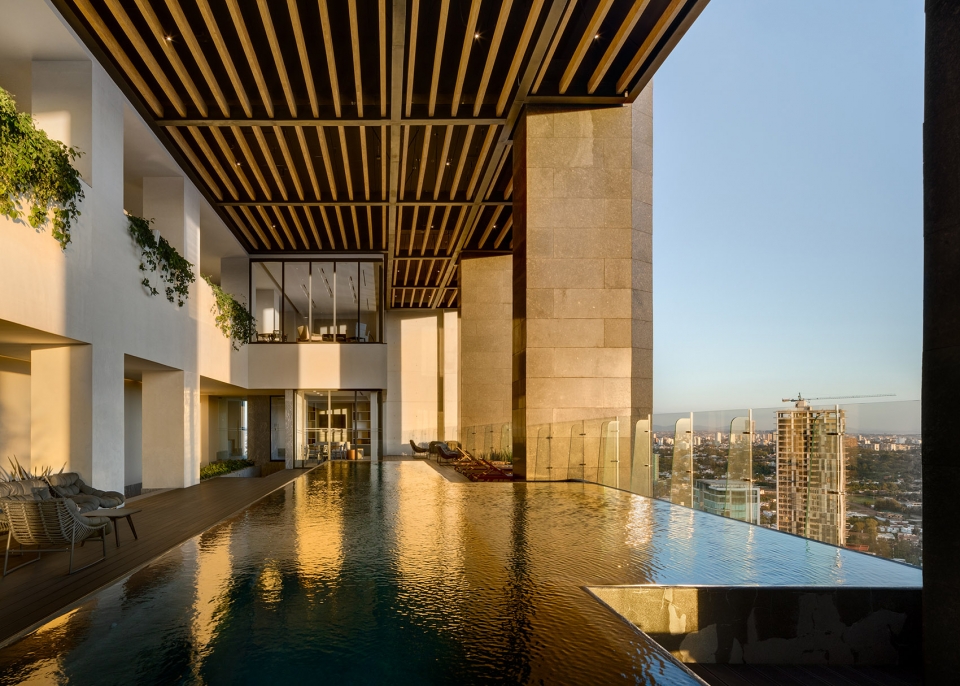

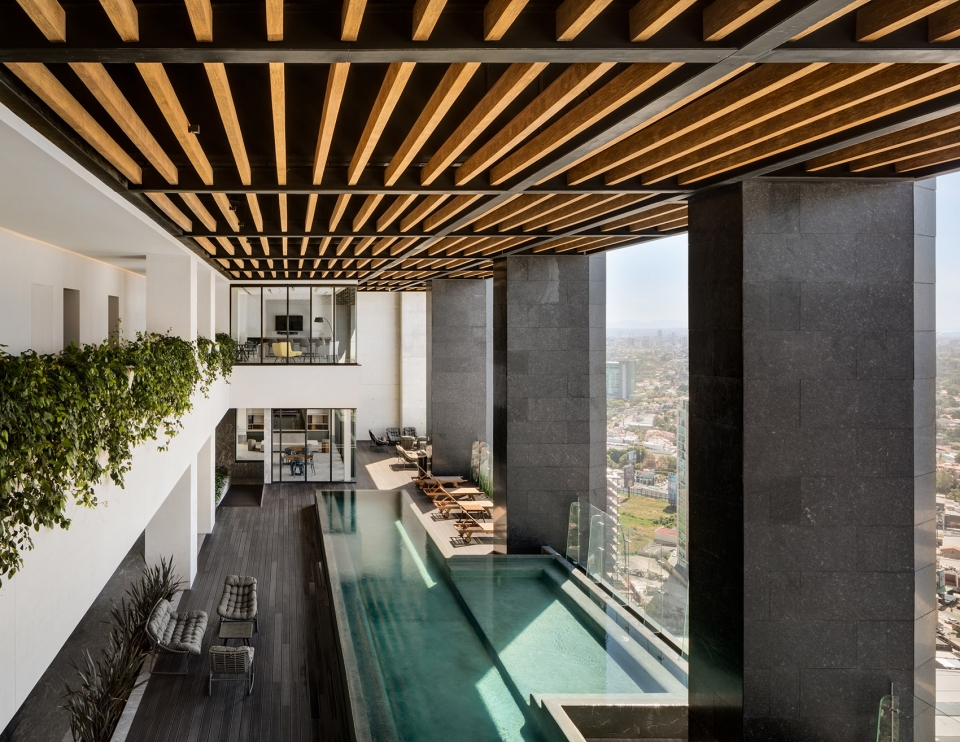

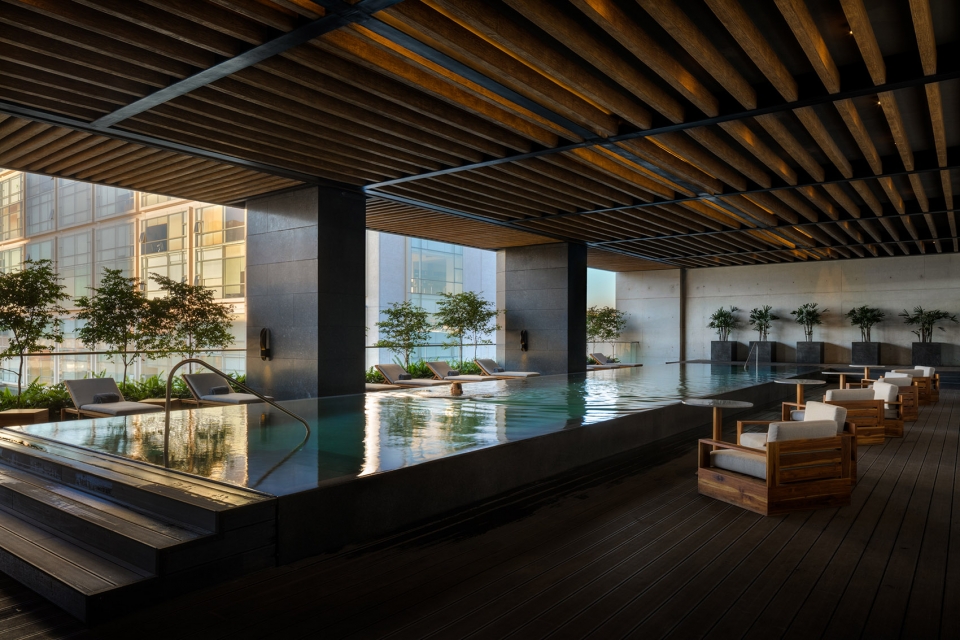

▼泳池占据了一个两层高的空间,the pool pool occupies a double-height floor   © Sordo Madaleno Arquitectos photo by Rafael Gamo

▼从泳池看向城市景观,the city view from the pool   © Sordo Madaleno Arquitectos photo by Rafael Gamo

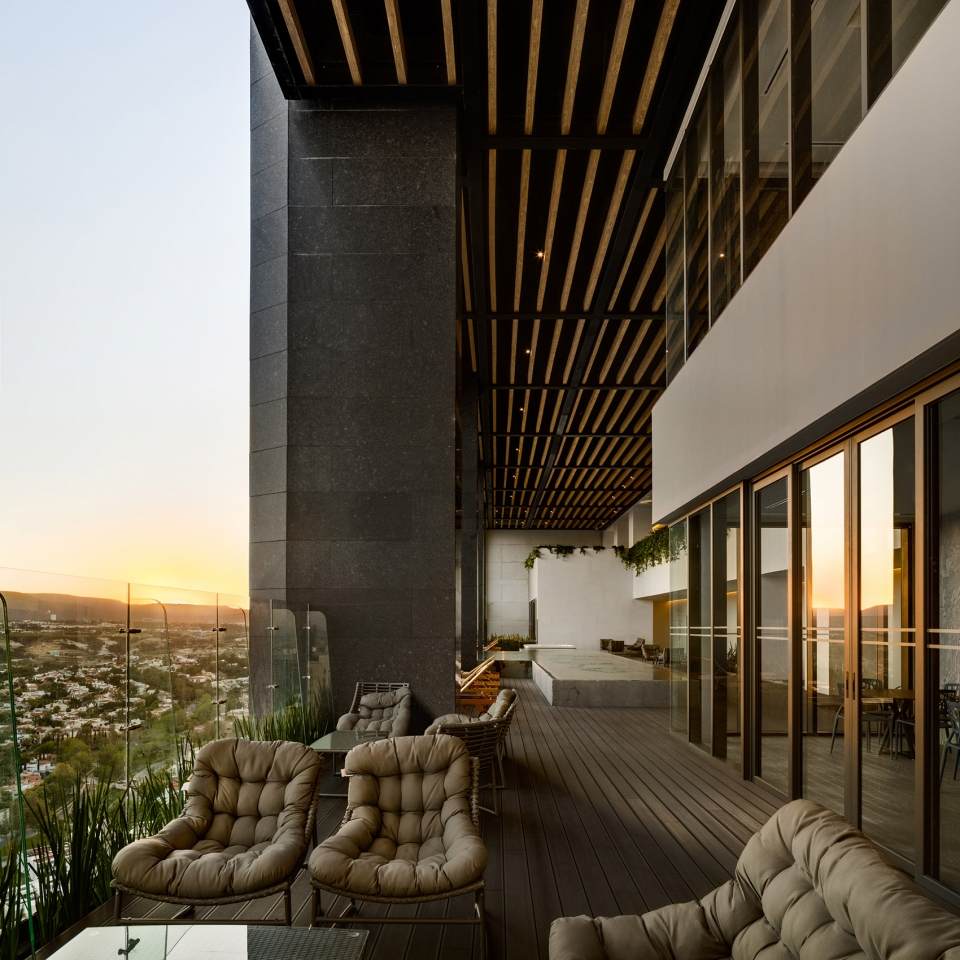

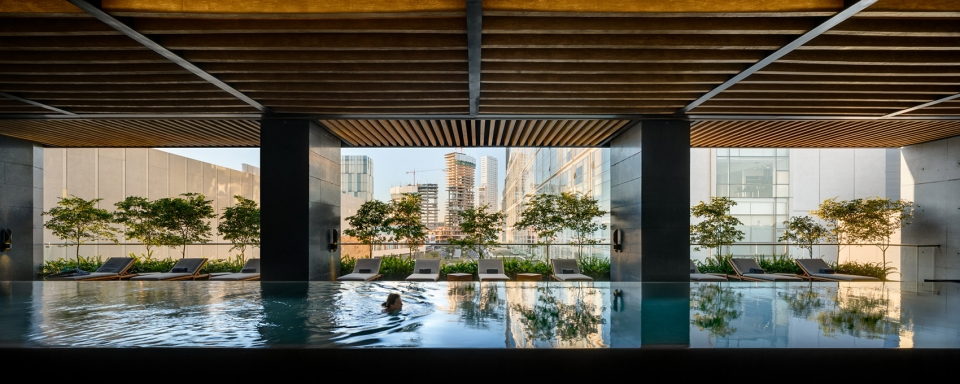

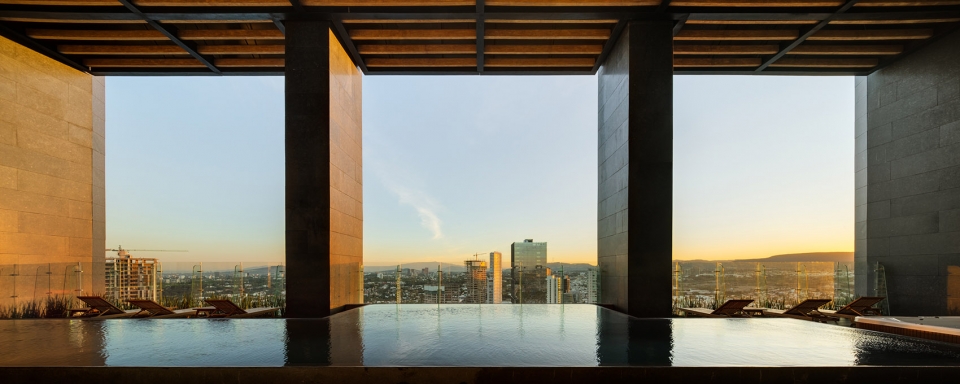

▼泳池带有朝南开放的露台,the pool with an open, south-facing terrace  © Sordo Madaleno Arquitectos photo by Rafael Gamo

为了更好的完成每一个室内空间并提供一种温暖的气氛,建筑师与艺术家César López Negrete建立合作,艺术家César López Negrete负责为酒店公共空间创作独特的艺术作品。同样,Sordo Madaleno Arquitectos也与Rodrigo Vargas Design和LR Arquitectura一同合作进行概念设计和酒店室内设计。Andares凯悦酒店公寓塔楼不仅是将Jalisco定位成墨西哥高水准建筑的范例的新建筑潮流,同时也是墨西哥国内第二高的酒店,高度达到了约173米。

To complement each interior and provide an air of warmth, an artistic collaboration was made with César López- Negrete, the artist responsible for creating unique pieces of art to inhabit the common spaces of the Hotel. Likewise, Sordo Madaleno Arquitectos worked together with Rodrigo Vargas Design and LR Arquitectura for the conceptual design and development of the interior design of the Hotel. Hyatt Regency Andares not only expresses the new wave of buildings that position Jalisco as an example of the high standard of architecture in Mexico, but also represents the second tallest hotel in the country, reaching a height of 173 meters.

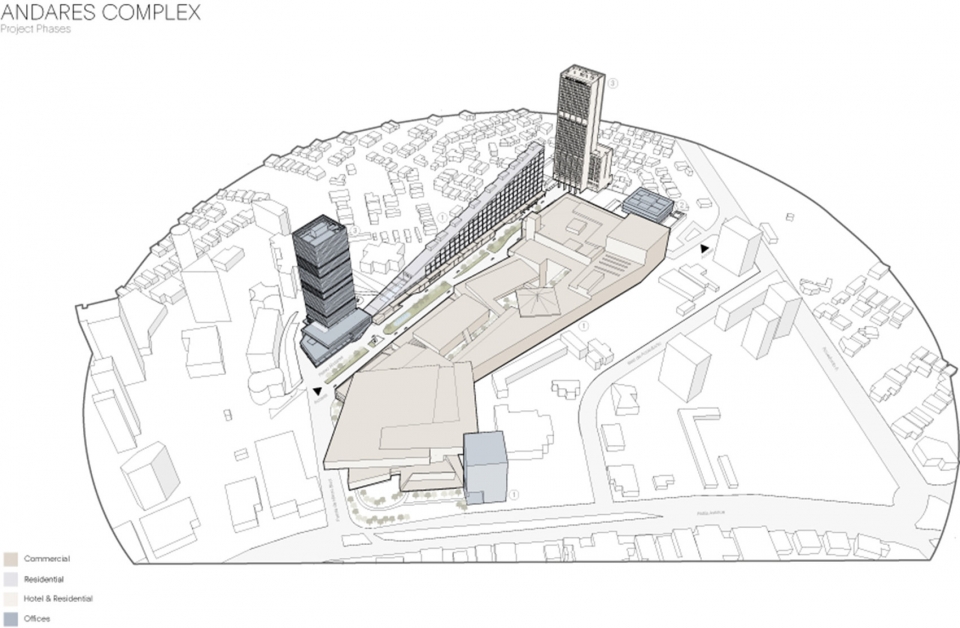

▼项目图解,project phrase diagram  © Sordo Madaleno Arquitectos

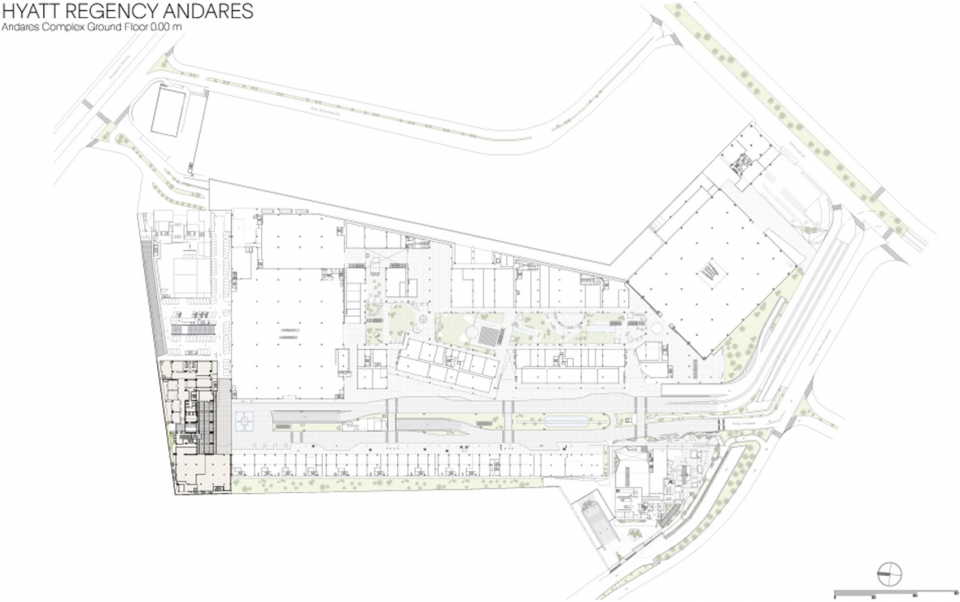

▼综合体整体地面层平面,Andares Complex ground floor  © Sordo Madaleno Arquitectos

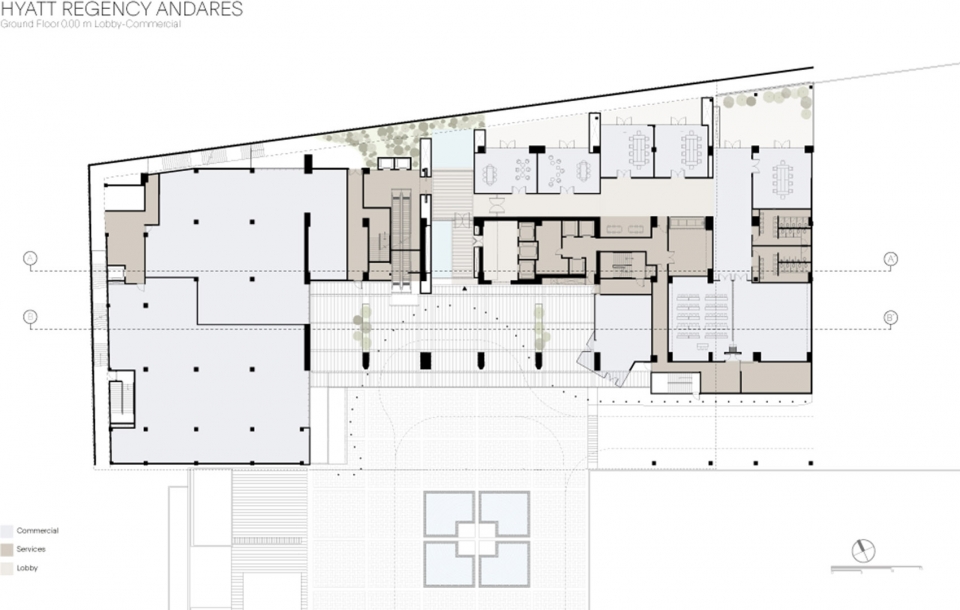

▼塔楼大厅层平面,tower ground floor  © Sordo Madaleno Arquitectos

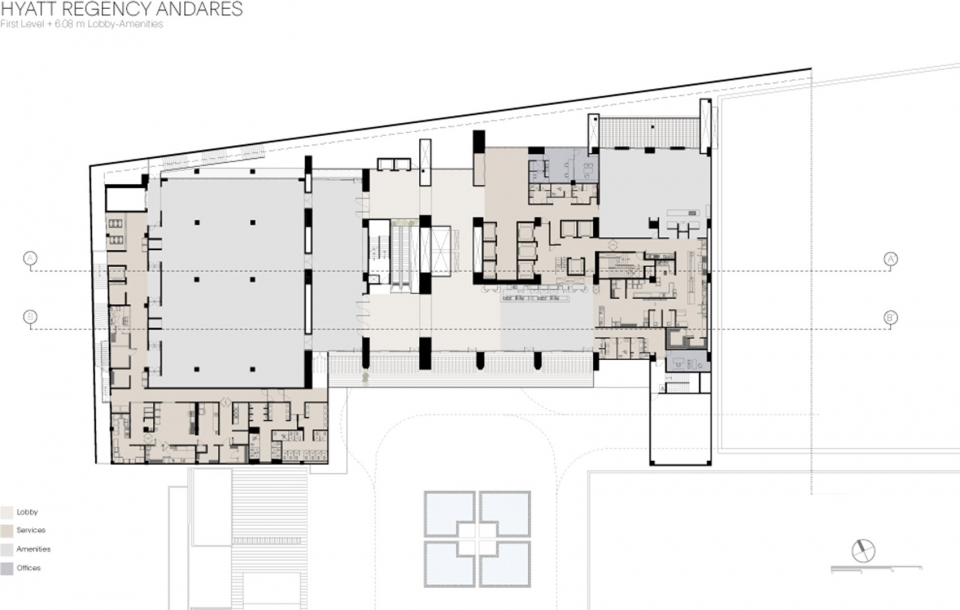

▼一层平面,first floor  © Sordo Madaleno Arquitectos

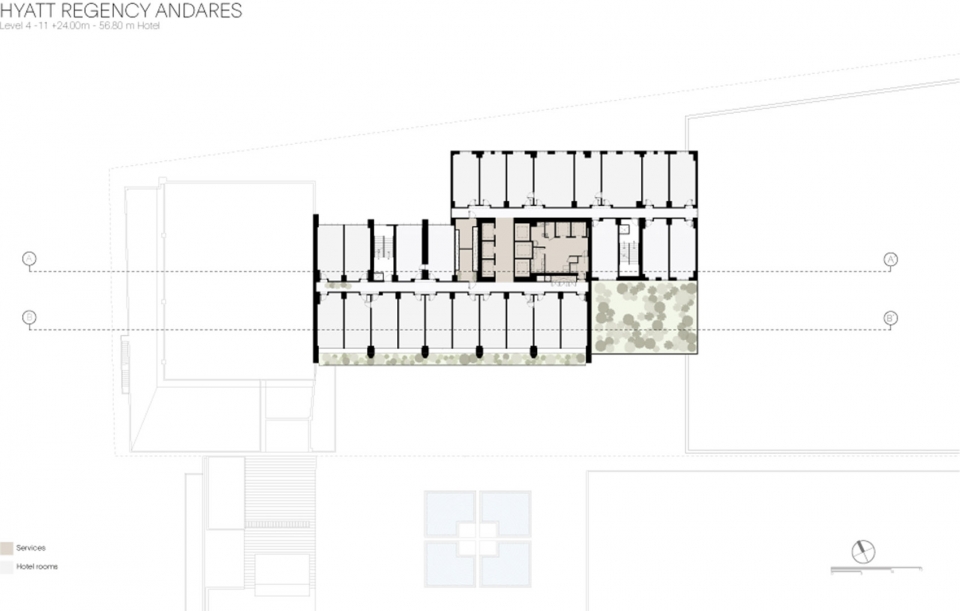

▼酒店标准平面,hotel typical floor plan  © Sordo Madaleno Arquitectos

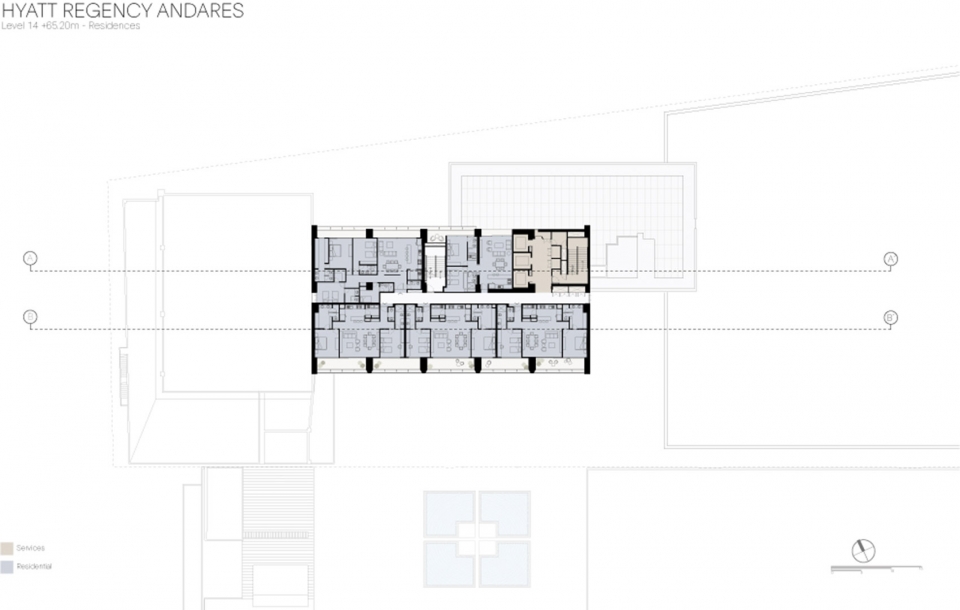

▼公寓部分平面,residences floor plan  © Sordo Madaleno Arquitectos

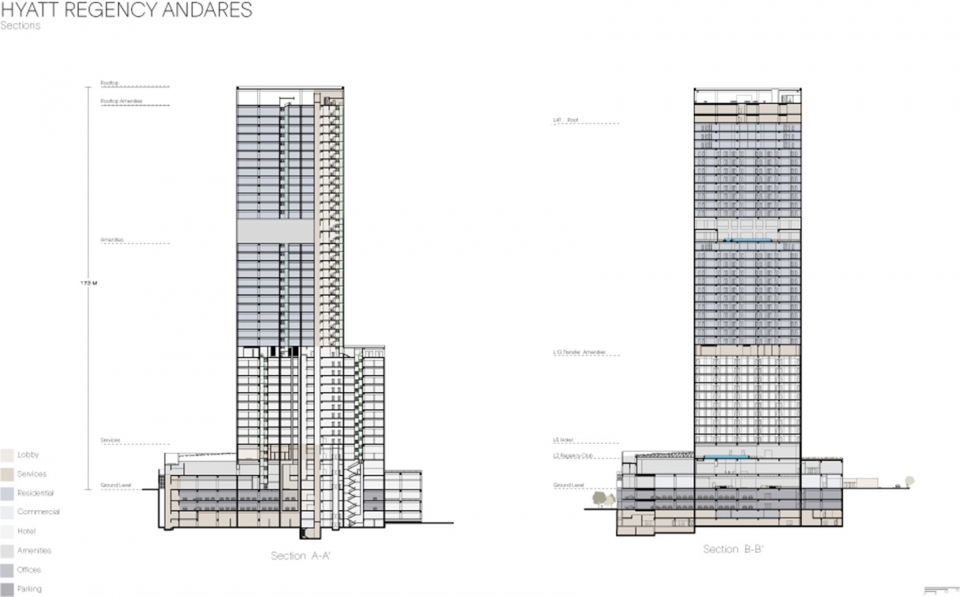

▼剖面,section  © Sordo Madaleno Arquitectos

Architectural Project Sordo Madaleno Arquitectos
President: Javier Sordo Madaleno Bringas
Architecture Leader Javier Sordo Madaleno de Haro
Project Leader Andres Cajiga
Program: Hotel / Residential
Construction Area: 71,048 sqm
Terrain Area: 5,315 sqm
Design Date: 2012
Termination Date: 2017
Status: Built
Location: Zapopan, Mexico
Architectural Team
Project Manager: Raúl Gómez Ángeles
Design Team: Pamela Flores, Alejandra Azcárraga, Maricarmen Lazo, Perla Vázquez, Liliana Reyes, Thelma Ruelas
Engineering Coordination: Marcos Hernández
Engineering Team: Enrique Contreras
Media & Marketing: Rosalba Rojas, Daniela Cruz, Daniela Rosas
Construction Coordination: CPMA
Interior Design – Hotel
Design and supervision: Sordo Madaleno Arquitectos
Conceptual Design: Rodrigo Vargas Design
Development: LR Arquitectura
Interior Design – Residences
Sordo Madaleno Arquitectos
Interior Director: Nadia Borrás
Interior Team: Maite Sánchez, Marcos Menéndez
Art: César López-Negrete
Structural Engineering: Raúl Izquierdo, Alba Ingenieros
Façade Engineering: Circuito S.A.
Electrical Engineering: Circuito S.A.
Air Conditioning Engineering: Circuito S.A.
System & Special Engineering: Circuito S.A.
Hydrosanitary Engineering: Circuito S.A.
Lighting Consultant: Artec 3
Landscape Consultant: Jerónimo Gabayet
Construction: Anteus Constructora
Photography: Rafael Gamo
