EKATO-METER CAFETERIA, China by STUDIO QI

A 133-meter canteen built for a soccer town in Qinling mountain

Project Specs

Design:
Location:

感谢 STUDIO QI 建筑事务所 予gooood分享以下内容。更多关于:STUDIO QI on gooood
Appreciation towards STUDIO QI for providing the following description:

“「百米食堂」试图改变人们的认知:食堂也可以像家一样,从容、自然、亲密和愉悦。我们借助简朴的建筑语言,要在食堂里融合「街」和「家」带来的美好体验。”

* The EKATO-METER CAFETERIA is named in honor of the Greek’s First Olympics, εκατό = 100.

▼百米食堂外观概览,project overview



大山里的运动小镇
A SOCCER VILLAGE

营盘村在秦岭深处,传说是诸葛亮六出祁山屯兵之处,至今尚存遗迹。这个海拔1500米的小山村,炊烟袅袅,恍若世外桃源。陕西留坝县,人口不足五万,却连续出了几个现役青少年国脚。营盘村就是这些少年驰骋之地:村口一溜排列着四个标准足球场。而几百米之外,则是一个滑雪场。营盘村也因此成为大山里的运动小镇,开始营建足球和滑雪学校。 STUDIO QI需要完成的第一个任务,就是为小镇设计一个可以同时容纳四五百人就餐的「学生食堂」。

The EKATO-METER CAFETERIA is located in LIUBA, a beautiful valley in the QINLING mountain region. With a history of over 2,000 years, Liuba was once home of the most well-known General Liang Zhang from Han Dynasty and later become one of the battlefields during the Three Kingdoms. It has surprisingly also grown to become a popular place of soccer programs for kids and young adults, with which STUDIO QI has been associated with the planning and architectural design for the new soccer village, consisting programs such as a local school from K-9, athletes’ dormitory, and various public spaces to support the undertakings of sports scene in the historical heritage site.

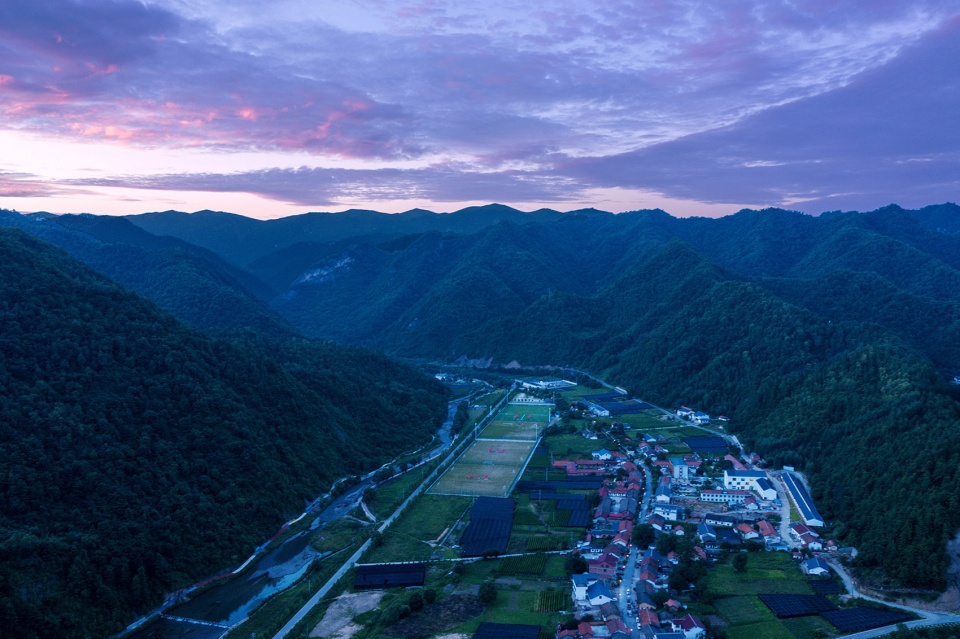

▼秦岭中的留坝营盘村,aerial view to the Liuba valley in the Qinling mountain



长达133米的食堂
A 133-METER CAFETERIA

走遍营盘村之后,我们选择了一片废弃的马厩,就在村后,背倚峻峭的山峰,在农耕时代,这是一片无法耕种的荒地。这一溜狭长的马厩,前方是路,后面是山,十来米的进深,几乎没有腾挪的空间。

The Cafeteria was one of the first public structures designed and built for the soccer town. The location was picked from where once was horse stables, an extremely narrow and linear site sitting against the hill front.

▼百米食堂 – 百米分析图,elevation and sections

和前人一样,我们也因地制宜,利用马厩既有的长度,设计了长达133米的「百米食堂」,在薄暮时分,远看这栋透着暖光的建筑,就像诸葛亮布下的一字长蛇阵,和星汉遥相呼应。

The cafeteria unfolds its frontal elevation to a length of 133 meters; in contrast, the short facade displays an image of a local house with pitched roof. The cafeteria is designed to accommodate up to 400 people to dine together, soccer trainees, athletes, coaches and families.

▼长达133米的食堂利用了马厩既有的长度,the length of 133 meter takes advantage of the scale of the original stable

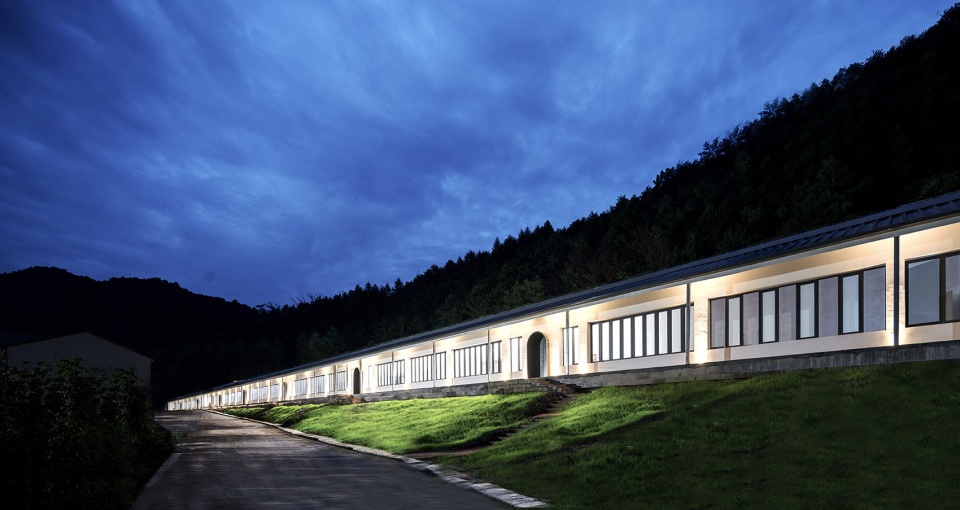

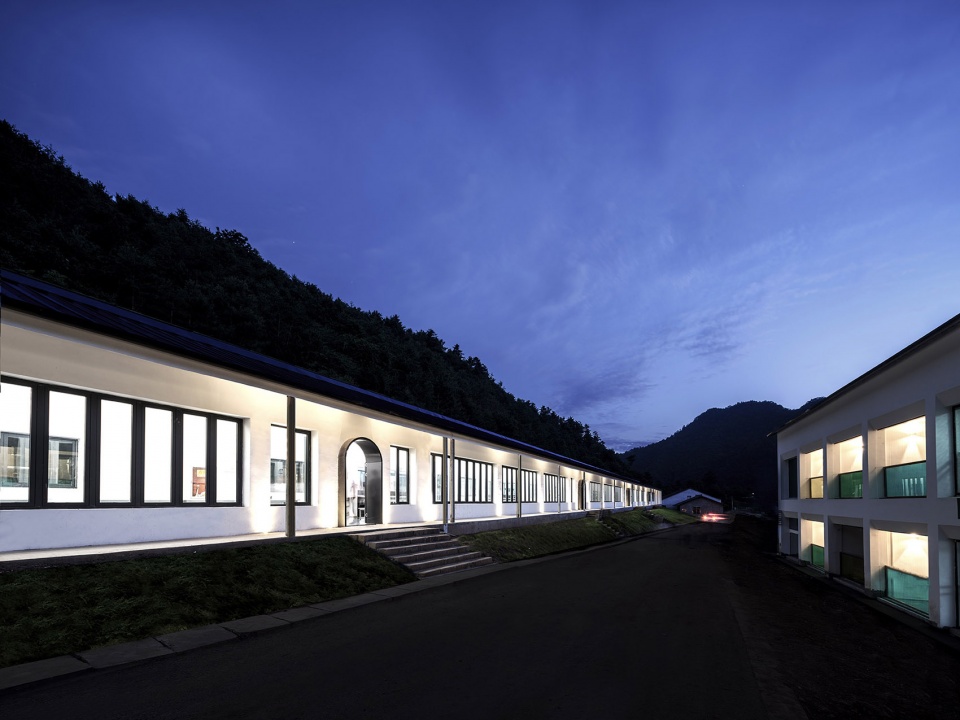

▼百米食堂夜景,main facade by night

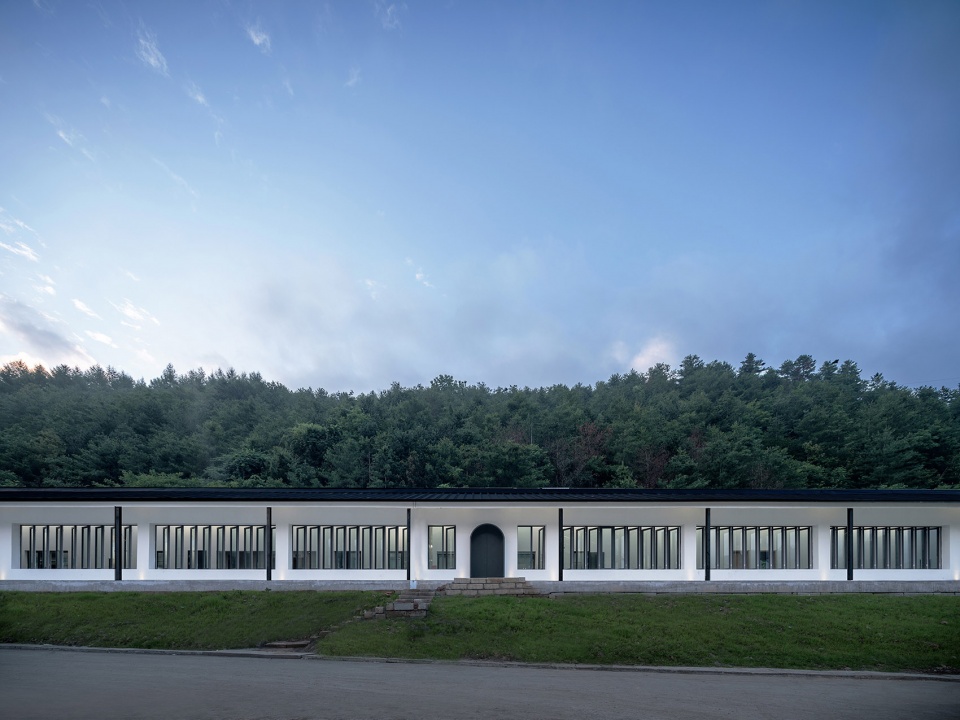

▼百米食堂日景,facade view in the morning

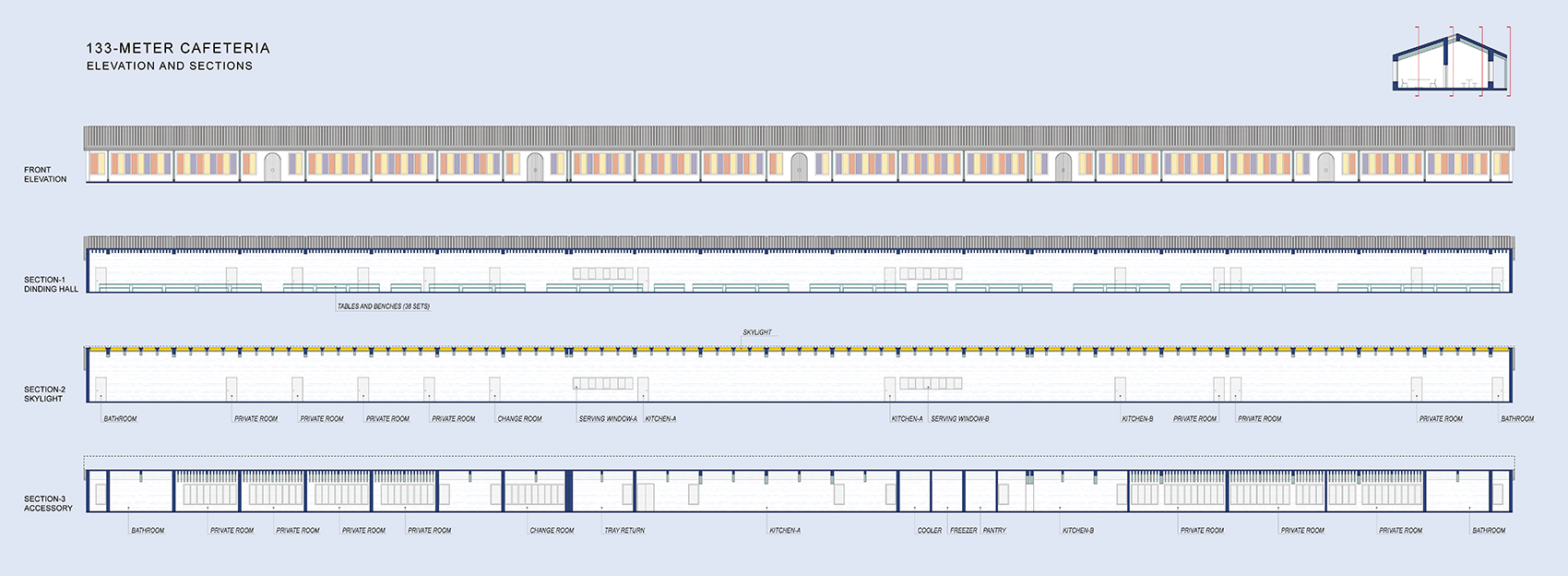

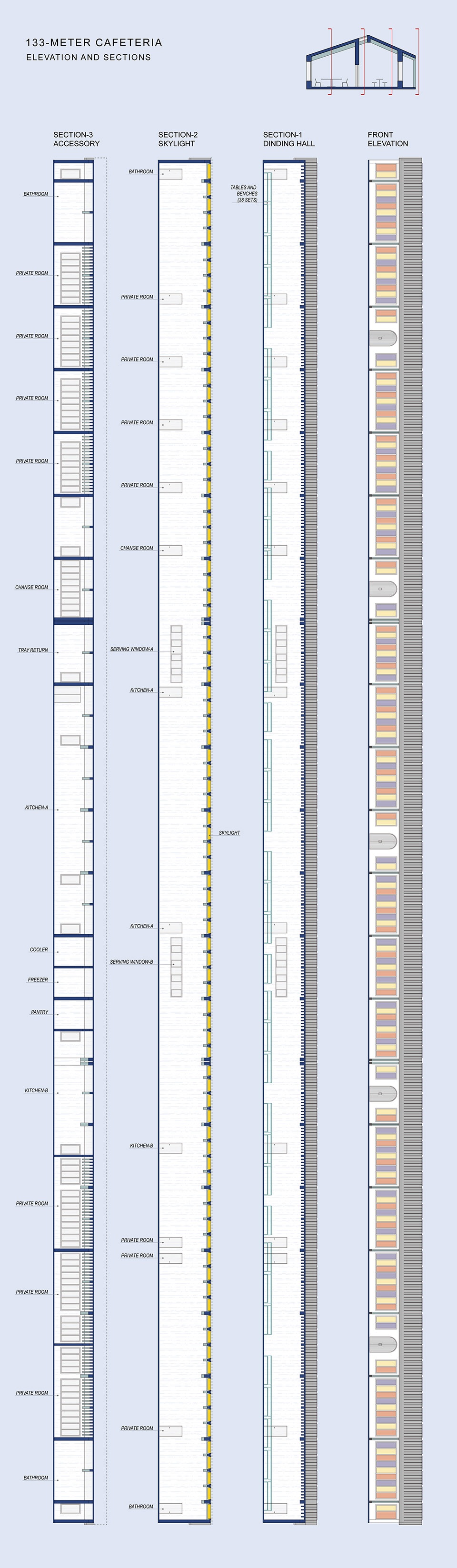

▼百米食堂分析图,analysis: elevation and sections



百米房间 & 百米空间
ARCHITECTURAL SPACE & ARCHITECTURAL ROOMS

聚还是散?这是最先面临的问题。下课铃响起,或一场比赛结束,几百个学生涌向食堂。这像海浪一样的人流,短短的几分钟内,会在「百米食堂」五个门里消失。这是聚,也是散。一个食堂怎样在学生汇聚时有条不紊?我们把长长的食堂均分,开了五扇大门,用以疏导人流。而房子的10米进深,则被分割成前后两部分。前面是就餐区,可拼成百米长桌,也可以分区使用,我们把它定义为「百米空间」。

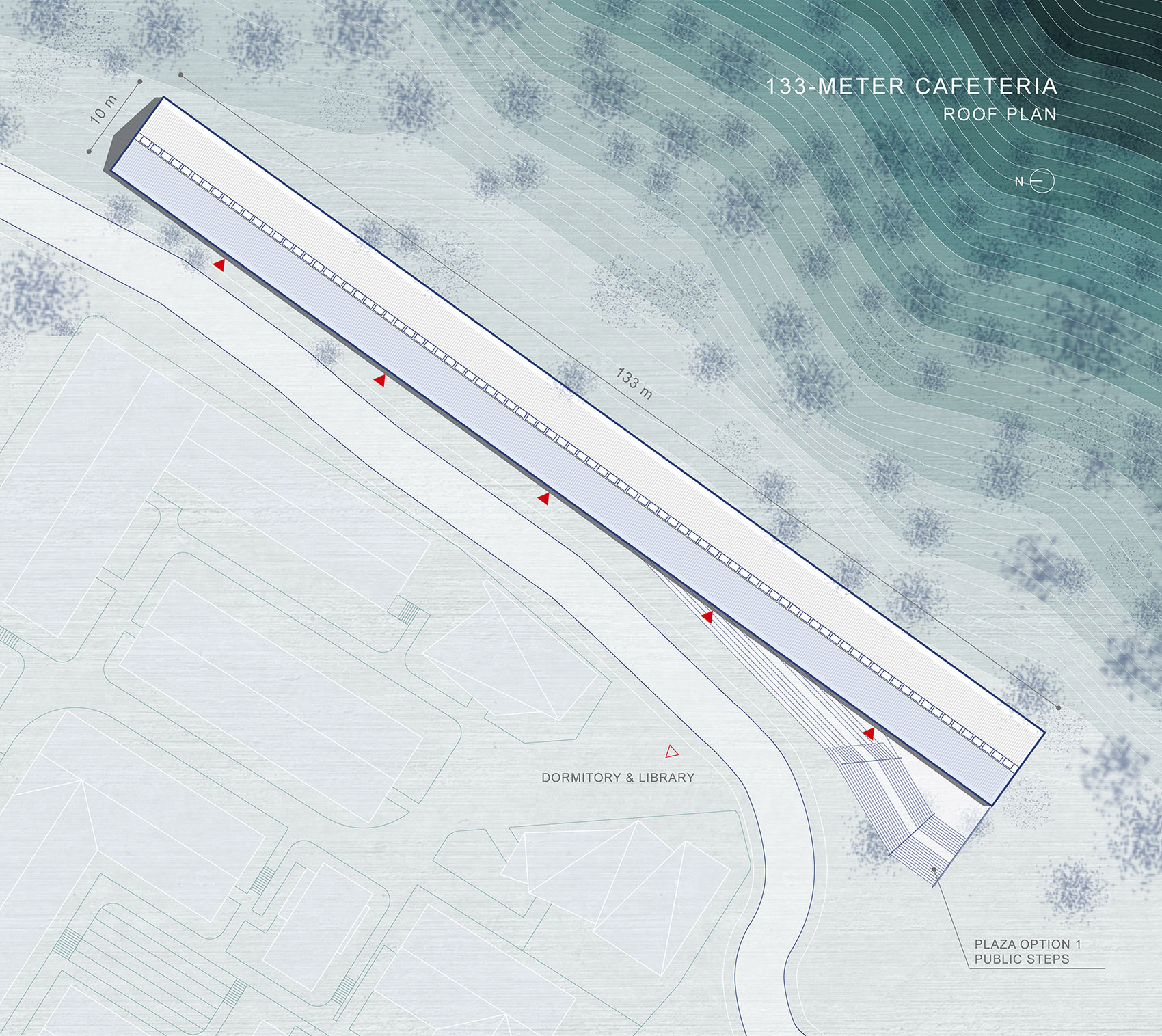

▼百米食堂屋顶平面图,roof plan

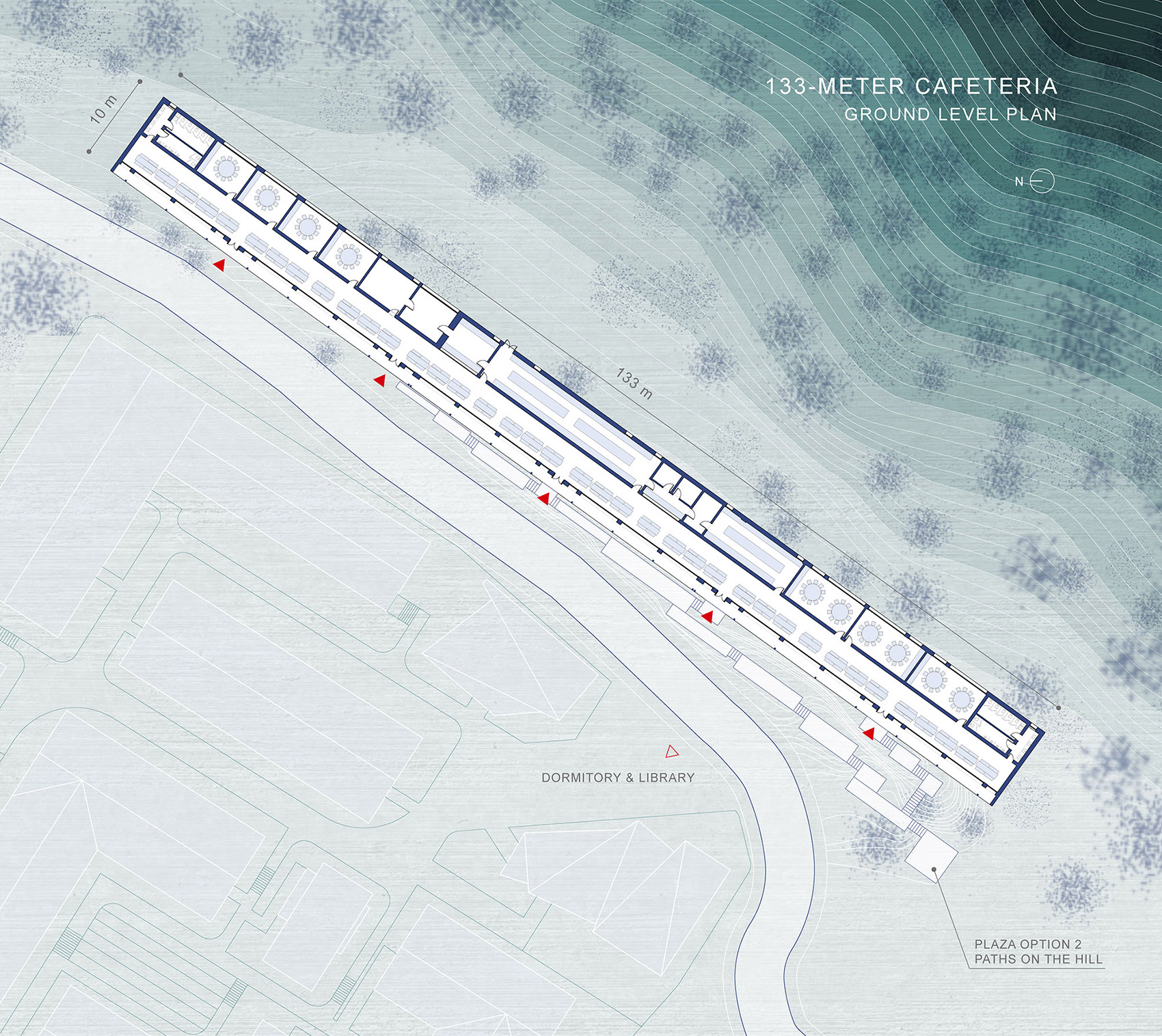

▼百米食堂一层平面图,ground level plan

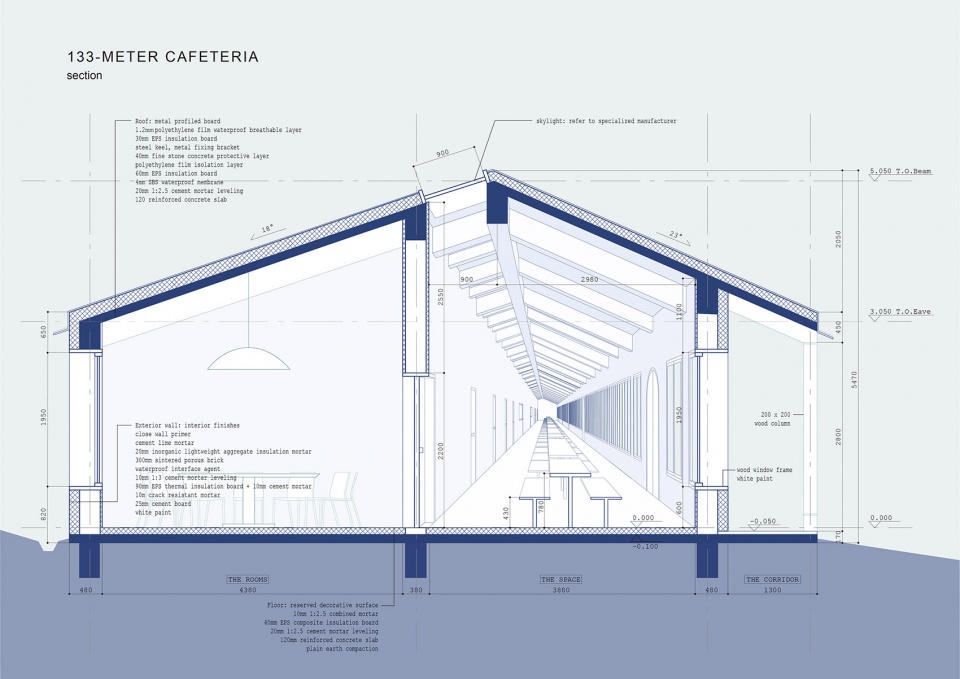

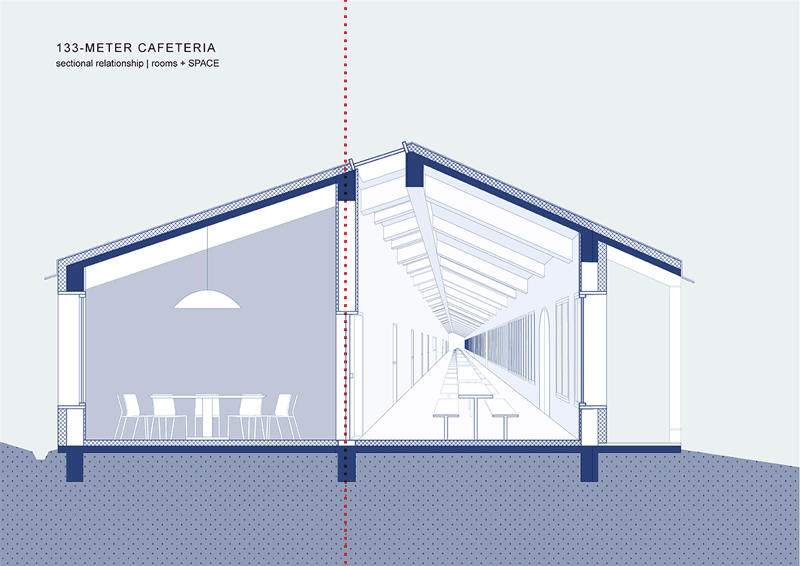

▼百米食堂剖面图 – 百米房间 vs.百米空间,section: the ROOMS and The SPACE

To combine or to sparse, it’s a challenge when dealing with the extremity of the building form. By stretching the rectangular form to the boundaries of the site, the design strategy is to emphasis the characteristic of linearity to all extends. The cafeteria is divided in the long side into two halves, the SPACE and the ROOMS. The SPACE refers to the single continuous and main dining area that vanishes end to end of the gable walls; while, the rest of the programs such as kitchen, serving and private dining rooms are tucked within the back linear zone of the ROOMS. Together, the SPACE and the ROOMS with their distinct spatial features, assist the smooth procession of the daily dining routine, especially when young athletes rush into the cafeteria after hours of training.

Outside the Ekato-meter Cafeteria, young athletes have the opportunity to hang out at the triangular-shaped steps. The steps are the extension of the topography of the hill, and connects with the parallel corridor underneath the eave.

Five entrances are equally distributed along the front façade. The arch-shaped doors and color coated glass windows bring vivacity to the space. The gable roof is covered with black lightweight steel sheet, translating vernacular tiles into the subtle modern architectural language.

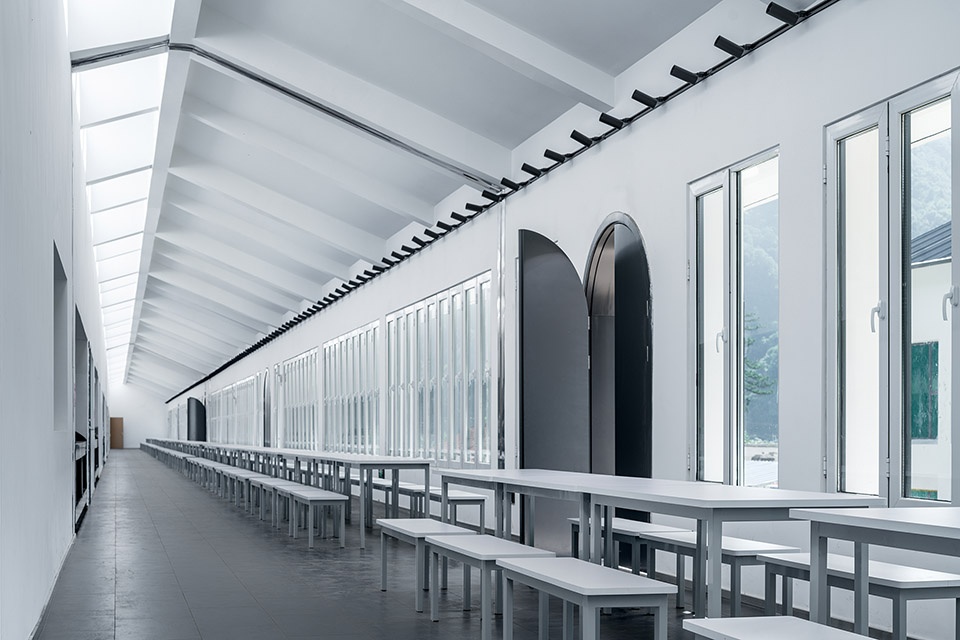

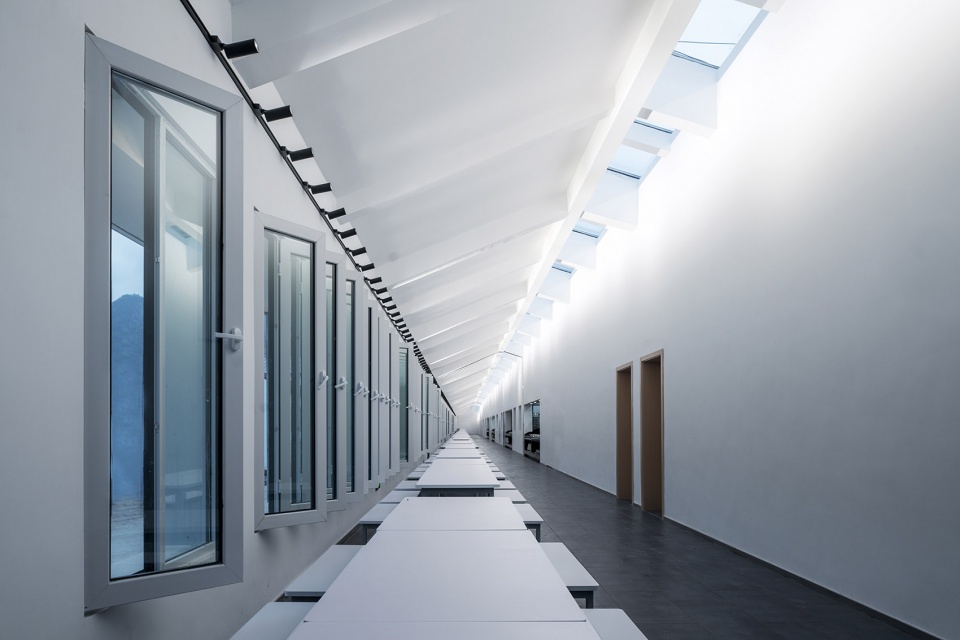

▼“百米空间”就餐区,dining area in “The Space”



百家宴:街道与家
HUNDRED-FAMILY BANQUET: STREET AND HOME

在一片人声鼎沸中,会使人想到旧时乡村街巷里的「百家宴」。那是乡间最美好的记忆。虽然「百米空间」只占据建筑一半的进深,但我们通过坡屋顶的不对称造型,使孩子们身在其中便能够望见屋脊,在心中勾勒出尖顶小屋的“家”的模样。

▼“大房子里的小房子”,small house in big house

▼百米食堂 – 延伸的餐席,the extended banquet

The “Hundred-Family Banquet” festival of China is listed as a UNESCO Intangible Cultural Heritage, a phenomena where everyone in the village lines up tables in the alleyways and dines together to celebrate Chinese holidays. Such cultural phenomena is also referred and pictured within the Ekatometer Cafeteria. The dining tables are set end to end in the continuous space, spanning the entire length of the building. Memories of Chinese “Hundred-Family Banquet” are portrayed as everyone sits alined and enjoys the meals with laughters.

▼屋脊勾勒出尖顶小屋的“家”的模样,the gable roof is designed asymmetrically in section recalling the shape of a house and engage the feelings like home

屋脊靠近建筑中部的一侧,开设百米天窗,引来明亮的自然光线,有阳光,也有月光。孩子们置身其中,就像趴在家中的阁楼一样,可以仰望星空。每当夜幕降临,食堂灯火通明,温暖的光线透过天窗向山峦和天空弥漫,让整个小镇充满家的温馨。食堂后一半,则被设为功能区,简称为「百米房间」。从两侧往里分别是洗手间、包厢、取餐区和后厨,一字排列。包厢供工作人员、教练、裁判使用,也可用作宴会空间。

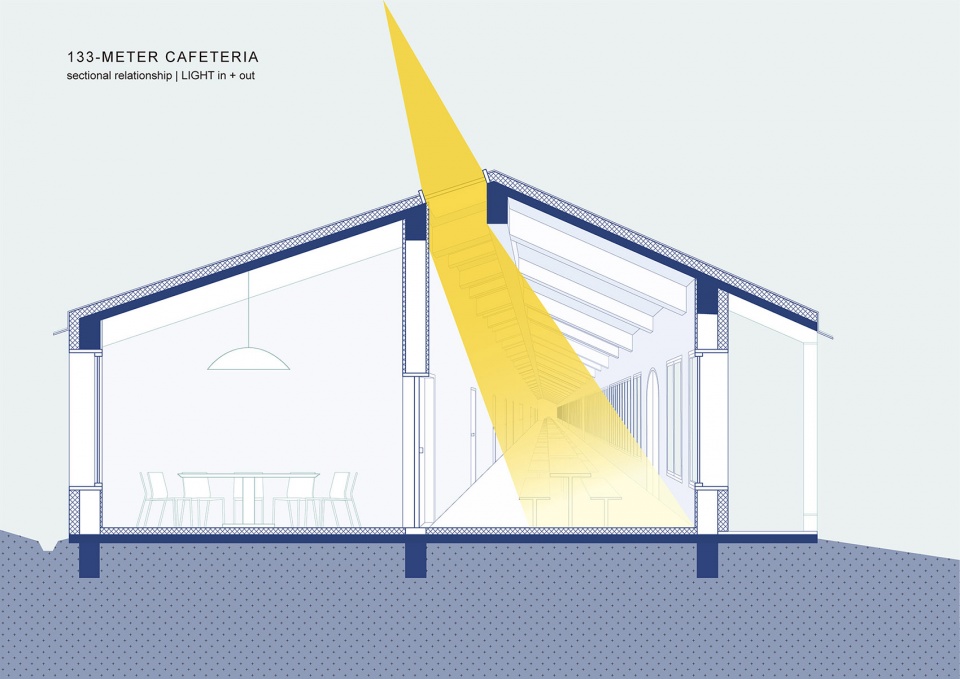

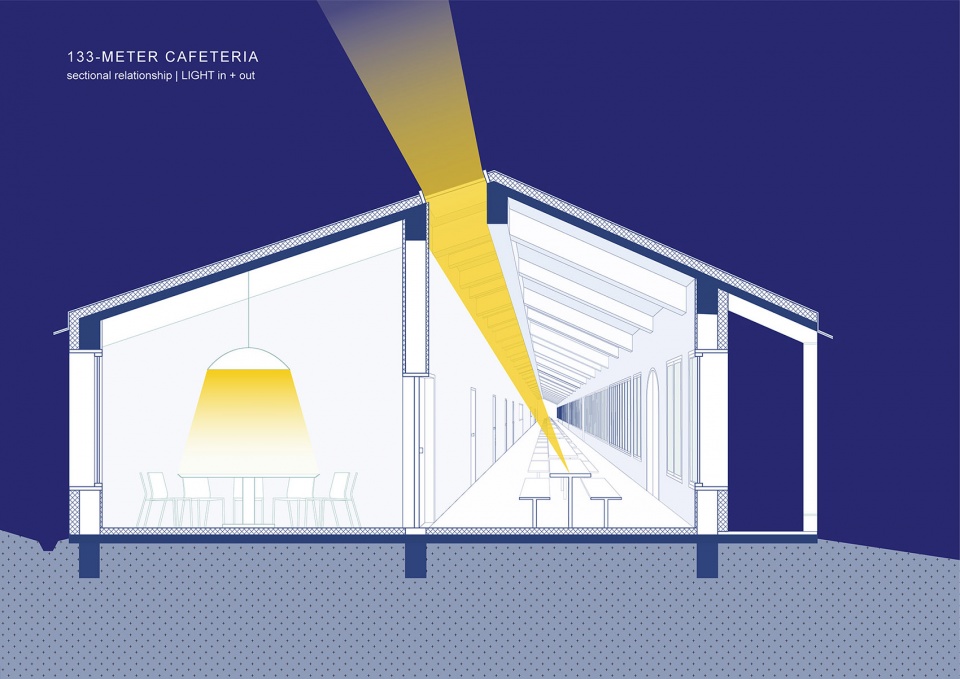

▼百米食堂昼夜光照分析,lighting analysis

A row of skylight windows is introduced to the SPACE, referencing the line of daylight shining through the street. The windows let in the natural light during the day and cast warm light from inside out back to the village in the evening. The street becomes a house after the roof is added. The gable roof is designed asymmetrically in section, as the ridge and skylight windows become visible in the main dining area. Young athletes, thus, can easily recall the shape of a house and engage the feelings like home.

▼百米天窗引来明亮的自然光线,the skylights bring warm light in

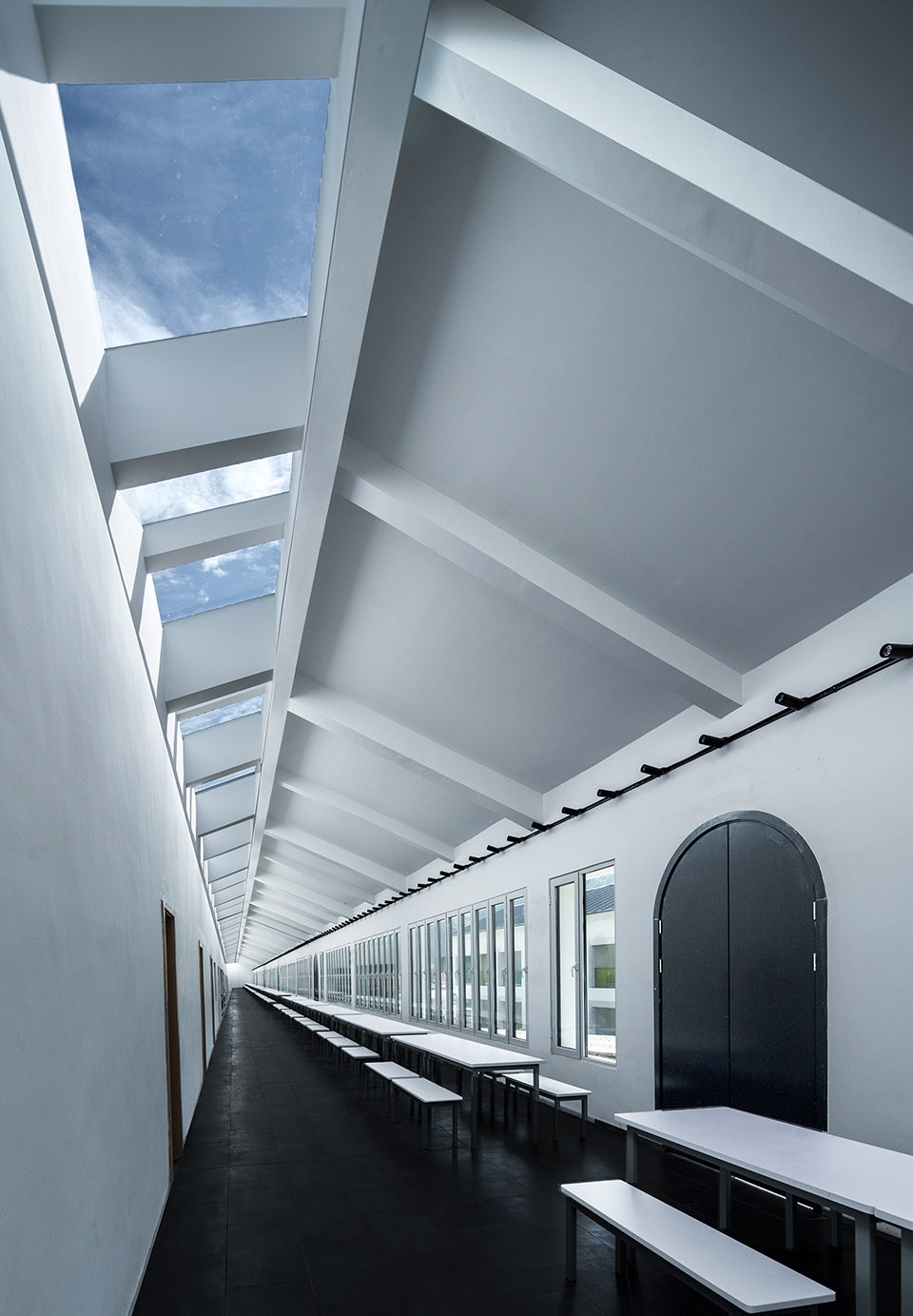

▼百米天窗,the long row of skylight

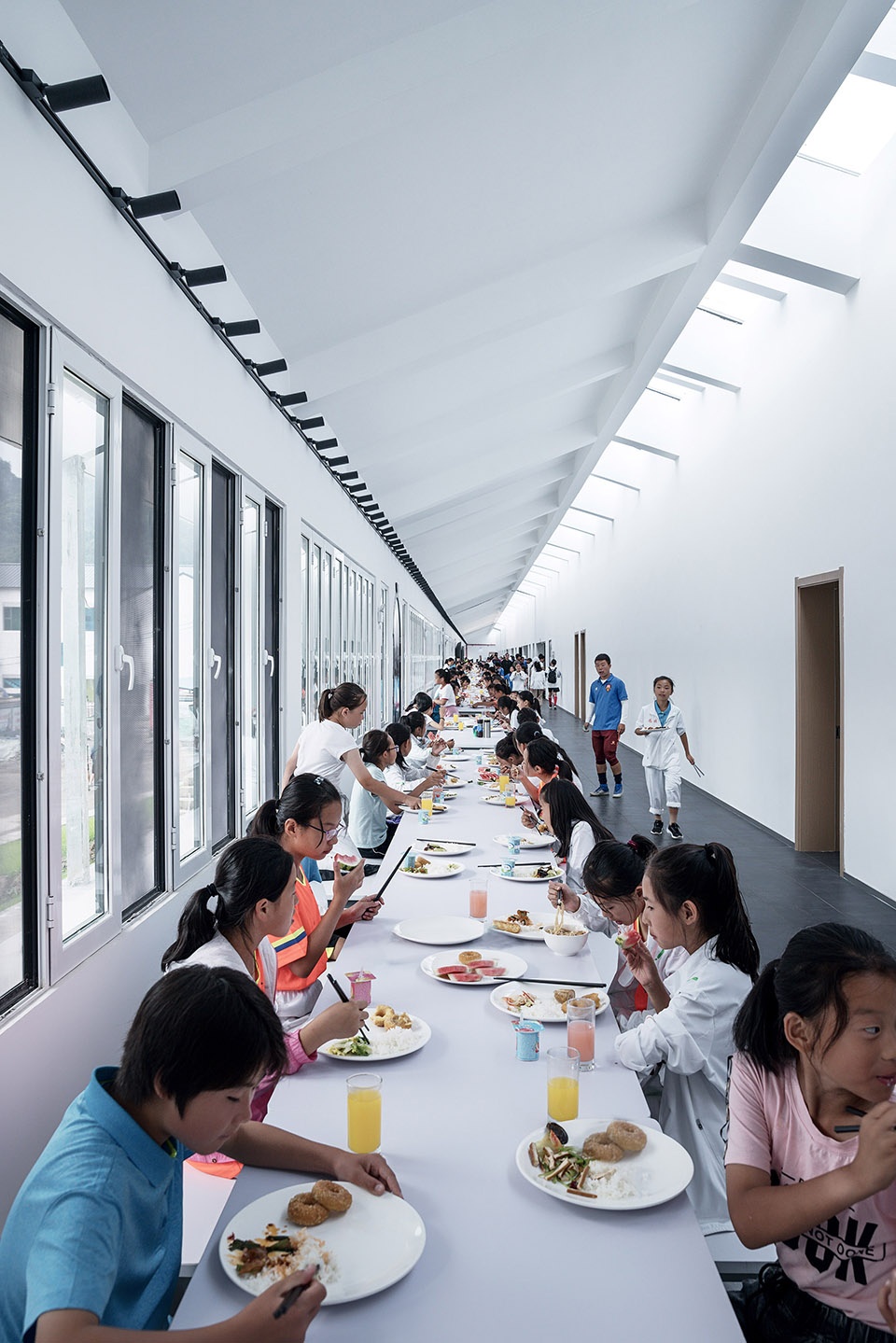

▼小运动员们在百米食堂就餐时,young athletes dining in the cafeteria

「百米食堂」前侧有个小广场,进入或离开时,孩子们还可以坐立片刻,交流或玩耍。广场地形依山势而动,蜿蜒的步道将人从小镇引向屋檐下的长廊,又从长廊散向小镇的角落。从远处小道回望食堂,细长的白墙上,那五个圆拱形大门和彩色窗户,也给小镇带来一脉灵动的气韵。它和小镇融为一体。

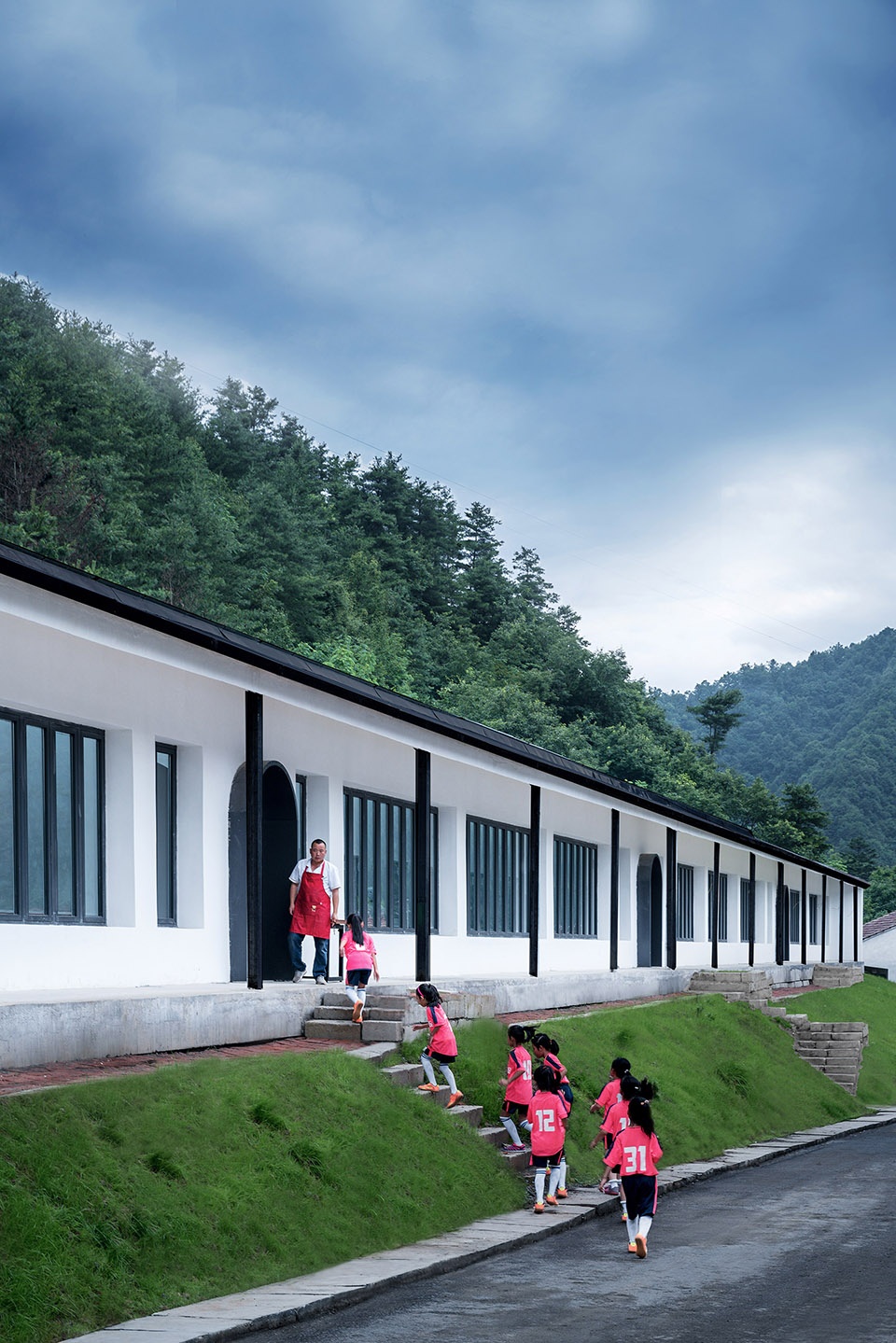

▼小足球队员们和百米食堂,the young soccer players at the square of in front of the cafeteria

▼小足球队员们进入百米食堂,the young soccer players entering the cafeteria

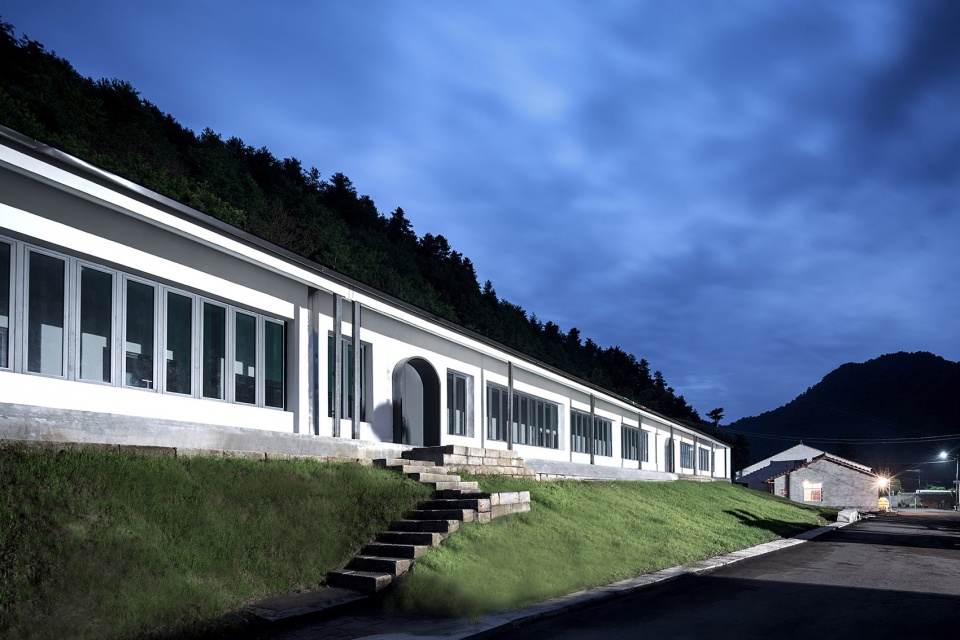

▼傍晚时的百米食堂,view in the evening

▼灯火通明的百米食堂,the cafeteria glowing at night

▼夜空下的百米食堂,the cafeteria by night

食堂总给人一种过客的印象。「百米食堂」试图改变人们的认知:食堂也可以像家一样,从容、自然、亲密和愉悦。我们借助简朴的建筑语言,要在食堂里融合「街」和「家」带来的美好体验。犹如村民食堂,「百米食堂」也不是一个封闭的学生食堂,既接待来自四面八方的小运动员们,也同样开放给营盘村村民和游客。「百米食堂」属于营盘村每一个村民和到访者。

The Ekatometer Cafeteria challenges the stereotype of a typical Chinese institutional cafeteria to be massive and alienated. The architecture captures the disproportional characters of site dimensions and turning such difficulties into a reading of vernacular buildings; representations of acquaintance, intimacy, and pleasure of the village and home are thus revealed again. The Ekatometer Cafeteria opens both to the residents of the village and all visitors. Just as the “Hundred-Family Banquet”, this cafeteria shall be a place for each and every one.

▼秦岭里的百米食堂,the cafeteria in the mountainscape
