Zhengdong New District Dragon Lake Public Art Center, China by STUDIO A+

City Crown

Project Specs

Design:
Location:

非常感谢 北京优加建筑设计咨询有限公司(联系邮箱:aplusstudioarch@sina.com)予gooood分享以下内容。更多关于他们,请至:Studio A+ on gooood
Appreciations towards STUDIO A+ (contact: aplusstudioarch@sina.com) for providing the following description:

龙湖公共艺术中心作为龙湖公共配套服务的重要组成,初期它将用于郑东新区城市规划展示,远期作为公共艺术中心,不仅将向大众展示优秀艺术作品和提供高品质公共活动内容,还将与周边的公共空间一起为城市提供一处富有生机与情趣的水岸生活场所,供市民登高欣赏新区的建设成果,增强他们的亲水休闲体验。

Dragon Lake plays an important role in the planning of the Zheng Zhou East new district. The Art Center is located in the waterfront public park along the Lake shore. It is expected not only to showcases the best contemporary art and public programs, but also together with its surrounding public space, to become a desirable and vibrant place where people can engage with each other, enjoy the view of the new development of the region and to celebrate and enhance their waterfront experience.

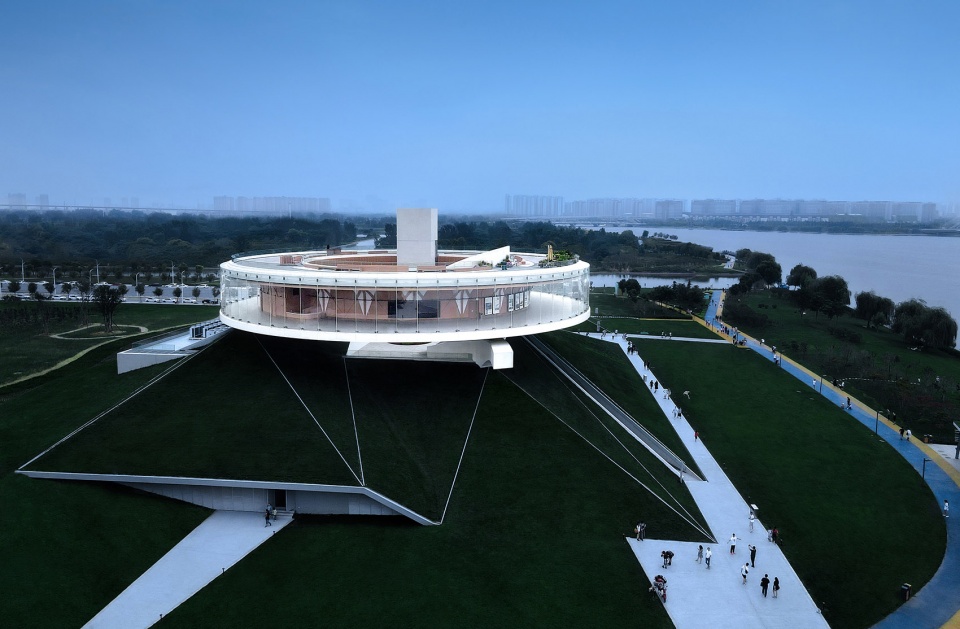

▼郑东新区龙湖公共艺术中心,Zhengdong New District Dragon Lake Public Art Center © 陈溯、方淳



思考 | Concept

初踏地段时,沿湖公园给我们留下了深刻印象。周边没有高耸的建筑物,即使是远处隔水相望的金融岛建筑群,其体量也算不上庞大。市民能在水岸拥有如此开阔的公共绿色空间,实属幸运。我们在这里建造的房子,必须对环境敏感且友好,不能在体量与形式上对周边造成压迫感。

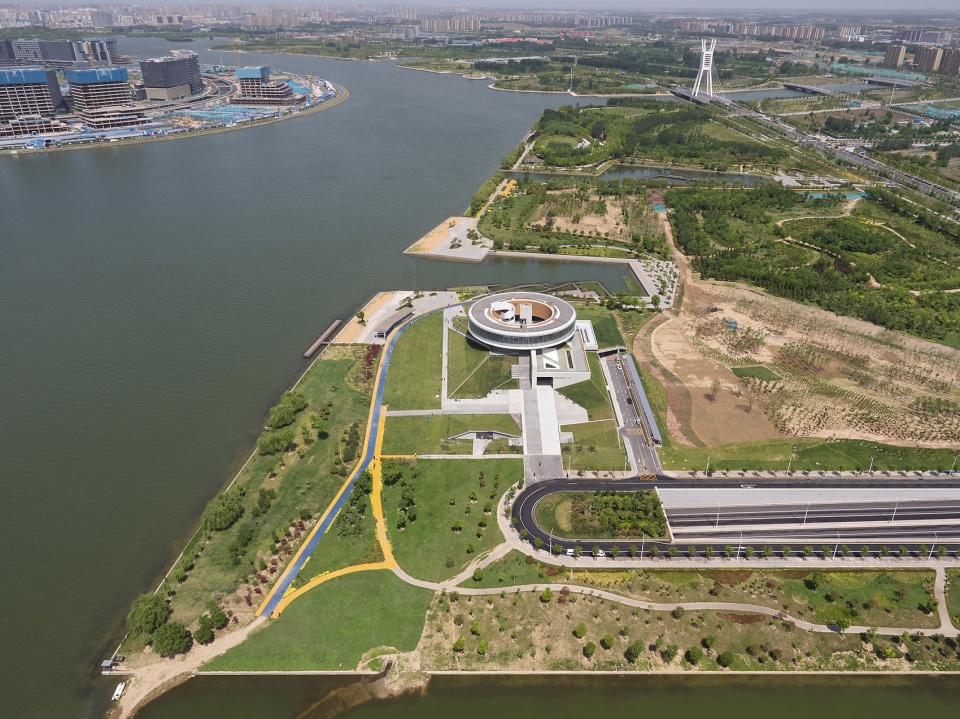

▼从龙湖上空鸟瞰,Top view of the site © 陈溯、方淳

然而,甲方对于这个建筑的想象是一座“地标”建筑。建筑面临的挑战是,既要兼顾湖岸风景,和谐融入公园的大景观,又要成为名副其实的地标。直觉及初步分析引导我们判断,这个建筑既不是纯建筑,也不是纯地景(建筑),而是由建筑与景观这两种“力”共同作用下的产物。也就是说,鱼和熊掌要兼得。

Along the Lake shore there are no big buildings around. We wanted to limit the impact of the Art Center on the surroundings to a level that it seems grown directly from there and just a part of the landscape.

▼建筑与景观“二力”作用下的产物 © STUDIO A+
The Art Center presents its form of half architecture and half landscape under the interaction of the two ‘forces’.



策略 | Stratgy

这个项目的功能需求包括一个无需自然光的大型多媒体展示厅,一个有自然光的展览厅,和一个给沿湖公园配套的大型停车场。然而,正是被甲方反复提及的“观景”需求,为设计提供了最初的抓手。

从项目所在位置向四周眺望,在晴朗的日子里,周边多个角度均能欣赏到新区内的重要地标或风景。因此这个展厅最终取型为无方向性的圆(环),以获得在各个方向上的视觉均好性。

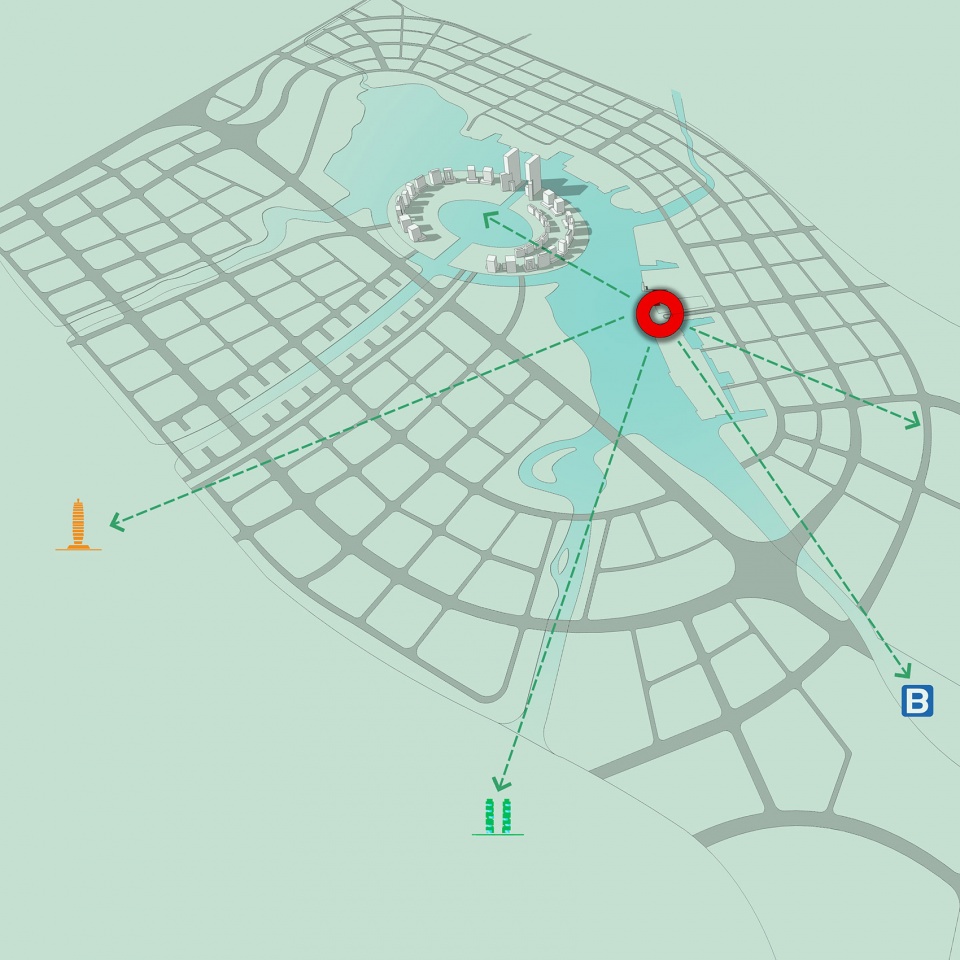

▼用地周边城市地标及重要景观
Major landmarks around the site in all directions © STUDIO A+

We buried the major part of the building volume into a green mound. The only volume visible from the city is a big ‘ring’ hovering above it. Inside the ring there is the major art exhibition space where people can also enjoy the 360-degree panoramic view of the newly developed region.

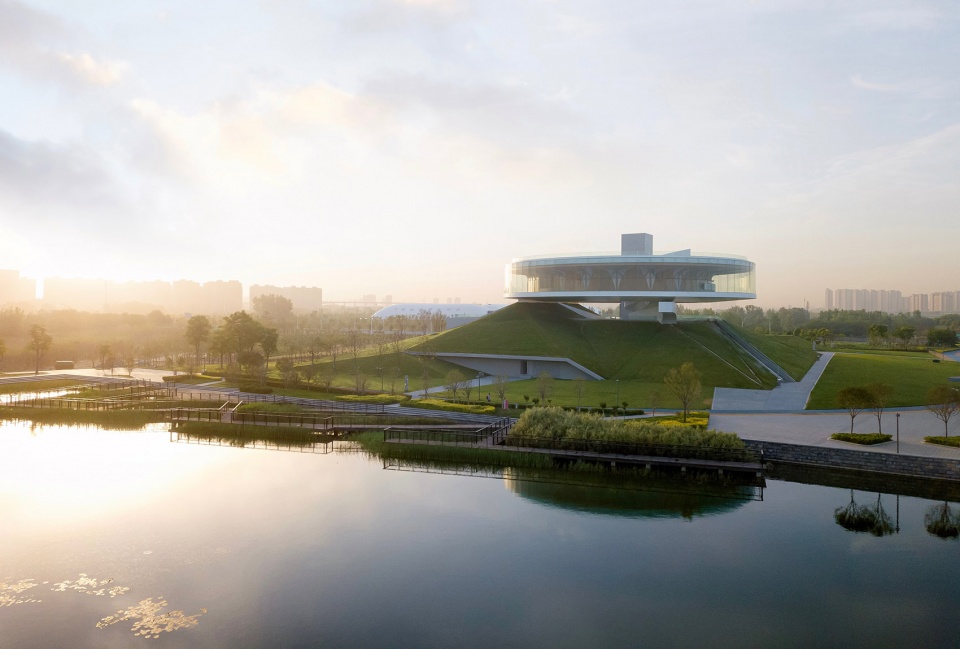

▼夕阳中的湖景,view from the lake © 存在建筑

同时我们尽最大可能缩小建筑的体量以不对湖岸公园的景观造成过多冲击。我们将97%以上的停车位放入地下,进而将无需自然采光的多媒体大厅等功能空间做埋地处理,使其较大的体量(多媒体展厅为占据9个标准柱垮的空间)与地景融为一体。

The parking goes underground. The multimedia hall is positioned on the ground floor in cubical form and buried into the undulated green land. The visible volume of the program is diminished to the extent that it does not overpower the waterfront settings.

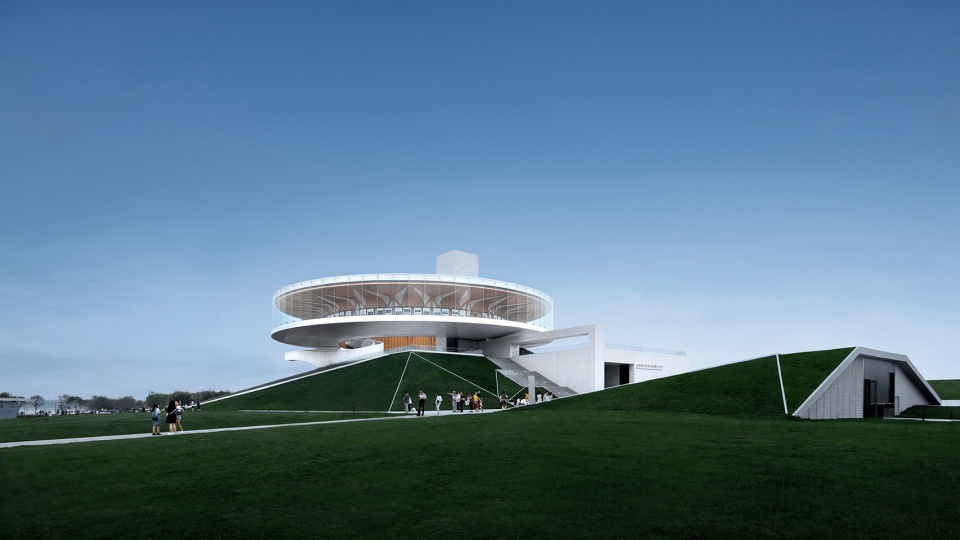

▼塑形地貌及被掀起的“地表” © 蒋镇东
By burying and lifting the key volumes, we give the most part of the outdoor space back to the city

▼笔直而硬朗的坡体脊线彰显了景观的人工痕迹,The ridge lines highlight the artificiality of the landscape © 蒋镇东



圆环 | The ring

所有的其他功能空间都扎根于大地景观之中后,从城市层面看,最为可见的建筑体量就剩下了巨型的圆环(展厅)。它被整个地段的绿丘所烘托,“漂浮”于空中,成为视觉的焦点。白天它姿态轻盈、玲珑通透;夜晚,自内而亮,像一顶发光的桂冠,单纯而又圆满,成为龙湖夜空中一个明亮的符号,向周围传递着自己的能量和意志。

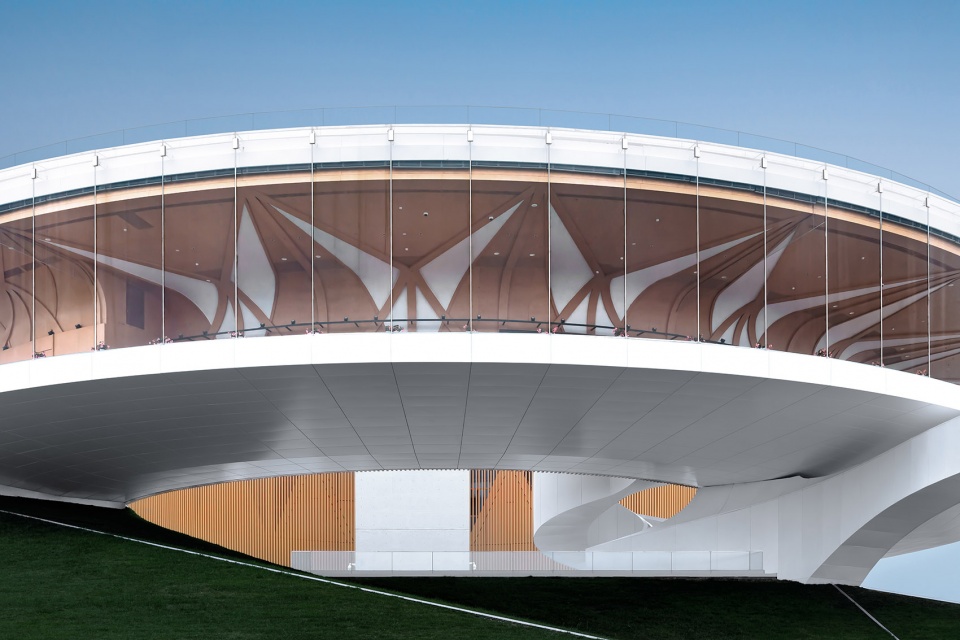

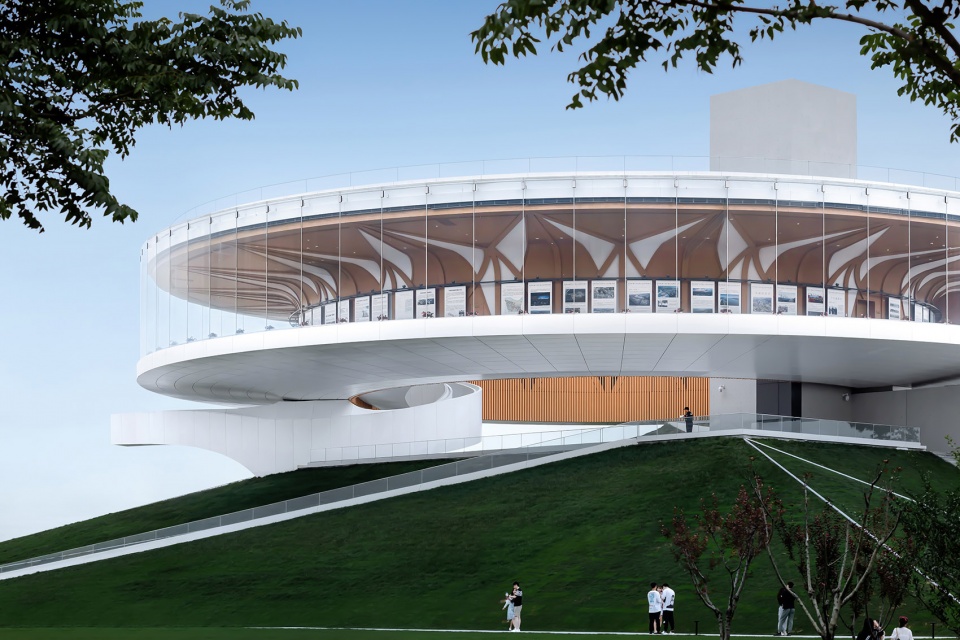

▼玲珑通透的圆环,The exquisite and transparent ring © 蒋镇东

圆环内部空间有内外两个环面:外环为通透落地玻璃,为访客提供360度大全景城市景观;内环墙体作为展示面。

In contrast with the inward-looking multimedia hall, another art exhibition hall is a wide-open platform where people can look out while they enjoy the art. Since there are major landmarks around the site in all directions, the hall is defined as a circular form, a ring, so that people can walk along the space and gain 360-degree bird eye view out to the Dragon Lake region. The floating ‘ring’ expresses its truss work as a crown, celebrating the city’s achievement.

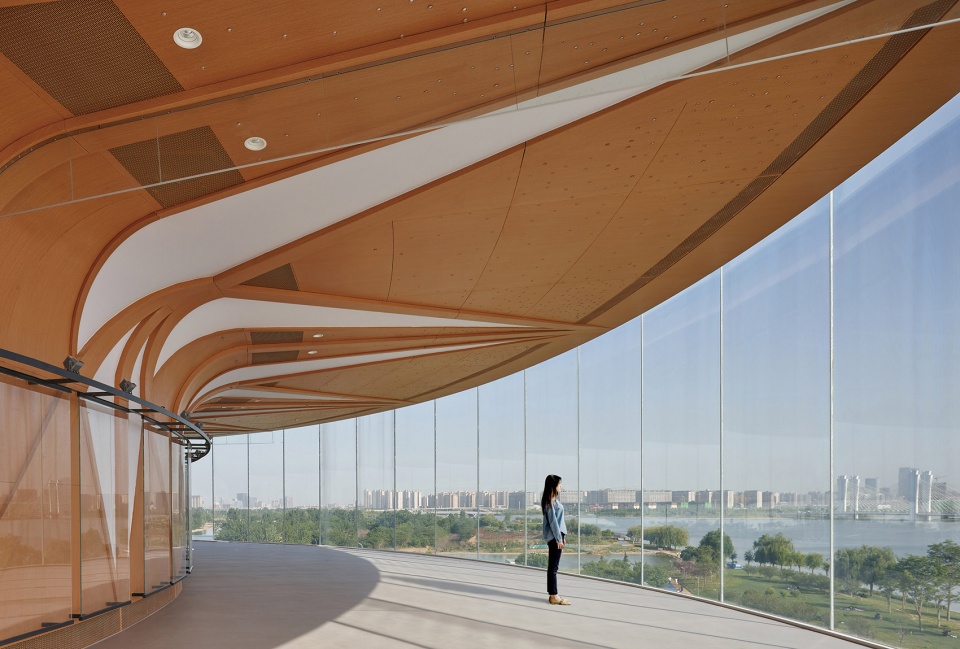

▼圆环内大全景观景窗
Panoramic view to the Lake regon from inside of the Ring © 陈溯、方淳



立体观景平台体系 | Viewing platform system

“漂浮”的姿态改写了建筑内、外空间之间的关系,将二者套叠在一起,并行而不相交,并形成了一系列既相互关联又相互独立的室外、半室外空间。虽然主要内部功能空间都是由纯粹几何体(一方一圆)构成的封闭空间,但整体而言,艺术中心是一个开放的、可供人们漫步其中的场所。

漫步的路径主要有一明一暗两条动线。“明线”依托于景观之上,“暗线”则植根于建筑内部。“暗线”服务于公共艺术中心室内空间的造访者,而“可引导任何一个来访者直接到达“绿丘”顶部平台。这里由漂浮于空中的圆环体量围合出一个圆形内庭院。庭院中心是圆形薄水池,有很强的向心性。然而这个庭院并不是内向的,其 “虚拟”的边界是位于圆环下方被有意制造出压抑感的一圈灰空间。圆形内庭院通过这里向外部广阔的湖岸公园延展。

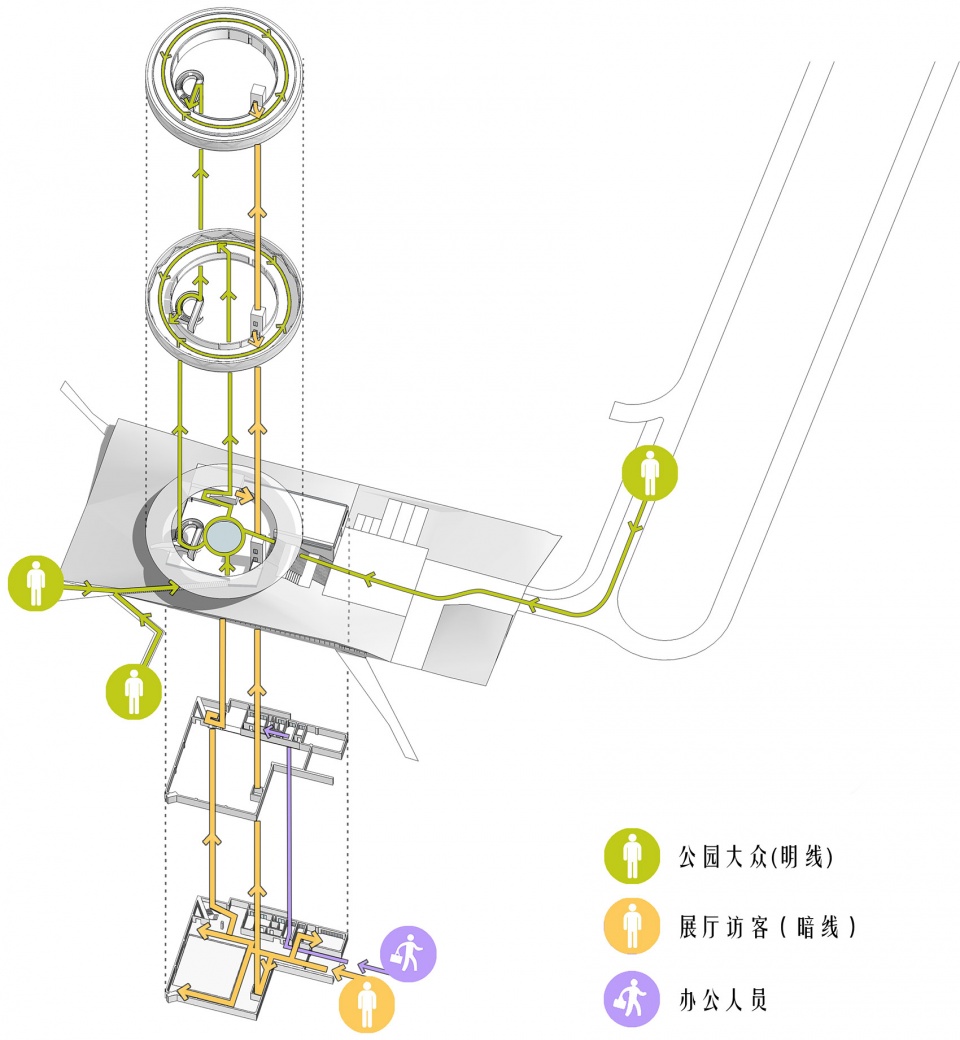

▼“明线”与“暗线”,the “bright lines” and the “dark lines” © STUDIO A+

When arranging the two major art exhibition halls, we embedded a square one into the earth, and lifted a round one into the air to give the most part of the outdoor space back to the city – between the two completely different spaces of the purest geometries, between earth and sky, there are platforms at multiple levels to accommodate different public activities.

Although the art exhibition halls and related functional rooms are enclosed indoor spaces, the building in general is an open architecture where people can promenade.

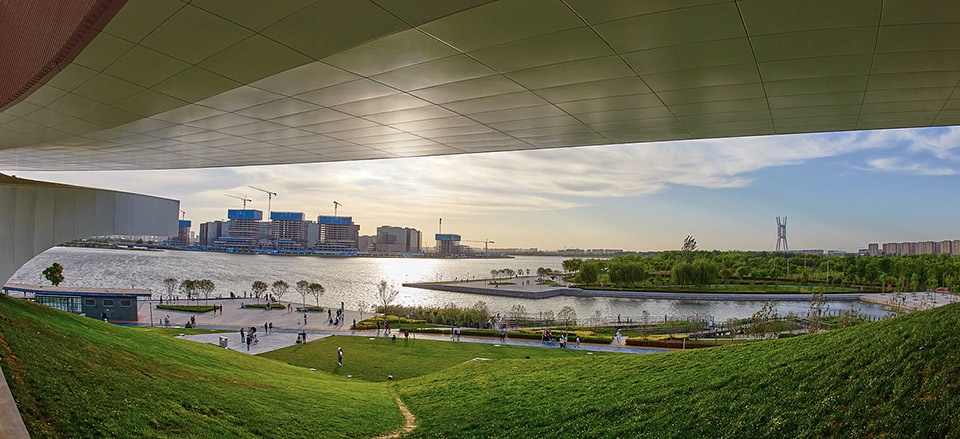

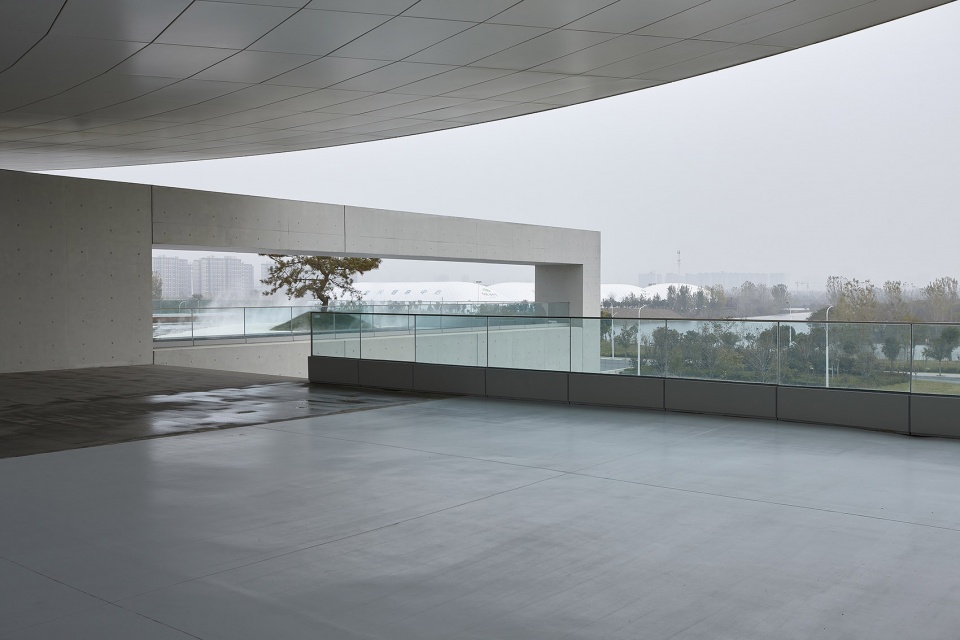

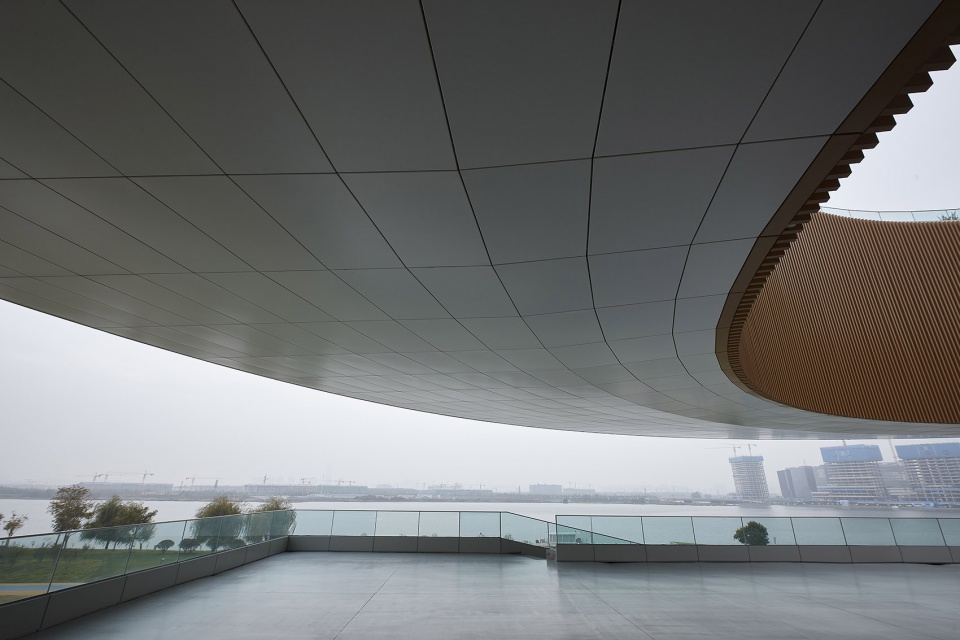

▼圆环与 “绿丘”(多媒体大厅)顶部平台之间的虚空间为观景提供了有庇护的良好视野,View on the terrace above the multimedia hall © 陈溯、方淳

▼圆环下方被有意制造出压抑感的一圈灰空间,限定了“大全景”观景视窗,View on the terrace above the multimedia hall © 陈溯、方淳

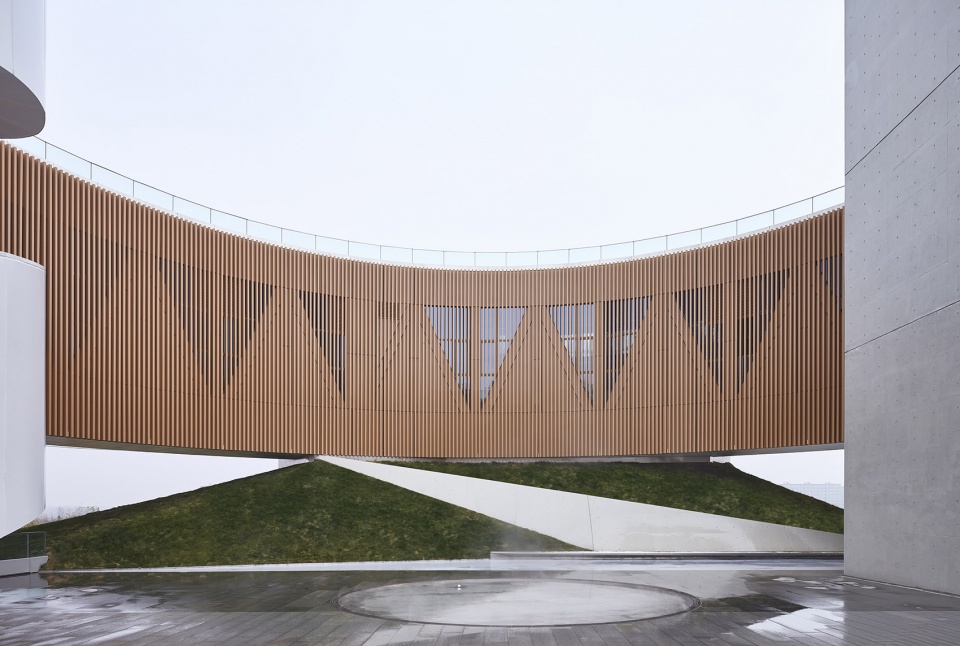

▼圆形庭院,Courtyard on top of the green mound © 存在建筑

在建筑与景观的相互作用下,形成高度不同、朝向不同的多个观景平台,并以大型台阶、旋转楼梯、坡道、电梯等竖向交通元素相连,形成一个大型漫步体系,成为水岸公园漫步的延伸。漂浮的姿态将场地尽最大可能地回馈给城市,在这个开放建筑之上,那些在水岸步道层面看不到的远处风景及建筑群将被尽收眼底。

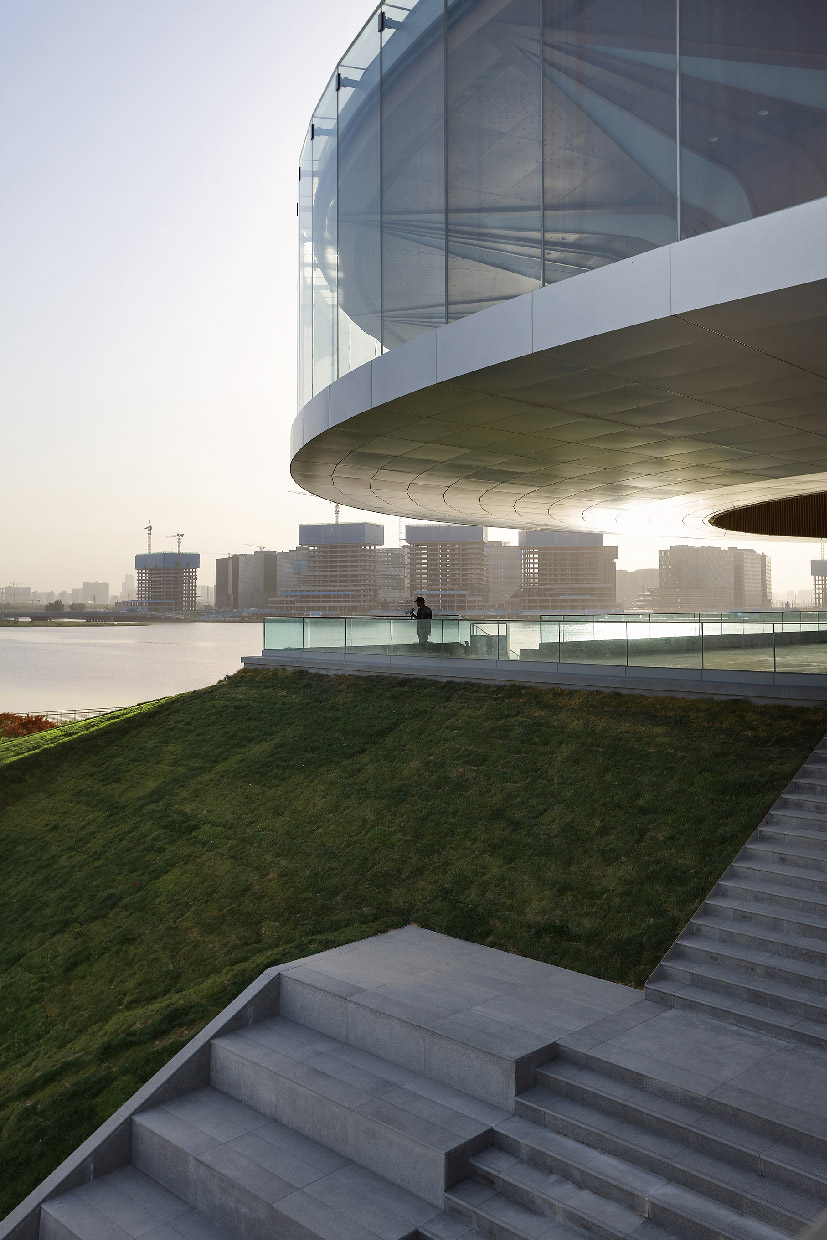

▼正对主入口广场的大台阶通往“绿丘”(内有多媒体大厅)顶部的观景平台
View from the plaza entrance the stairs leading up to the rooftop terrace  © 陈溯、方淳

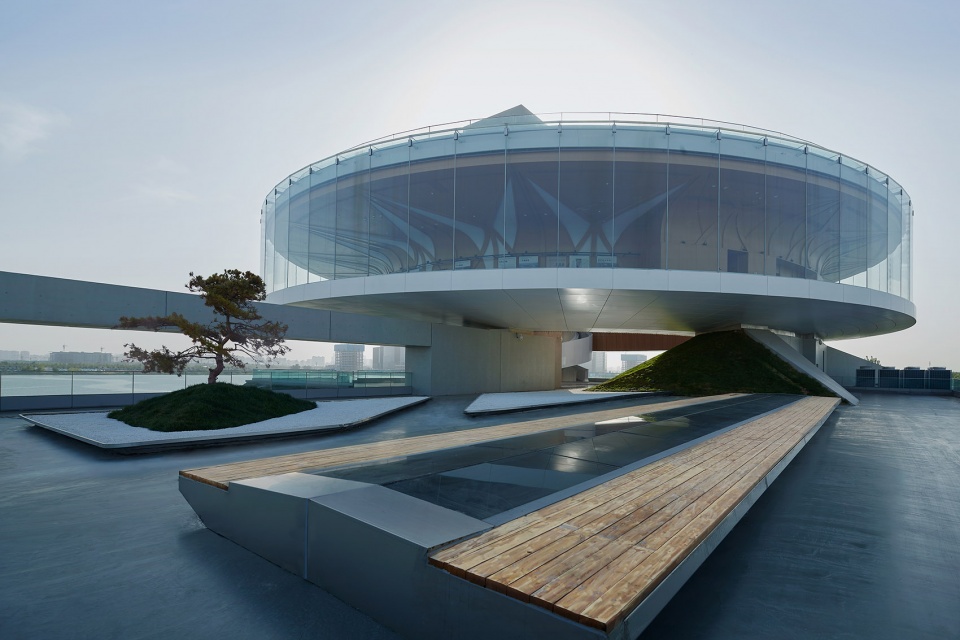

▼从圆形内院看向枯山水观景平台区
Sight seeing terrace with Zen garden © 陈溯、方淳

The art center is adjacent to the lakeshore walkway. It becomes the highest point of the area and an iconic focal point. The building and the landscape interact and form a series of platforms at different levels and to different directions. Theses platforms are connected by grand steps, spiral stairs, slopes, elevators and other vertical elements, and form a large scaled multi-dimensional promenade system as the expansion of the lakeshore walkway.

We choreographed the journey for different group of visitors’ moving through the place. No mater you are Art Center visitors or just public park visitors, there are routes to lead you up gradually all the way to the top of the ‘ring’ to enjoy what the place can offer. By leaving the ground the visitors can enjoy the art and scenery beyond, which would not be able to be appreciated on the lakeshore otherwise.

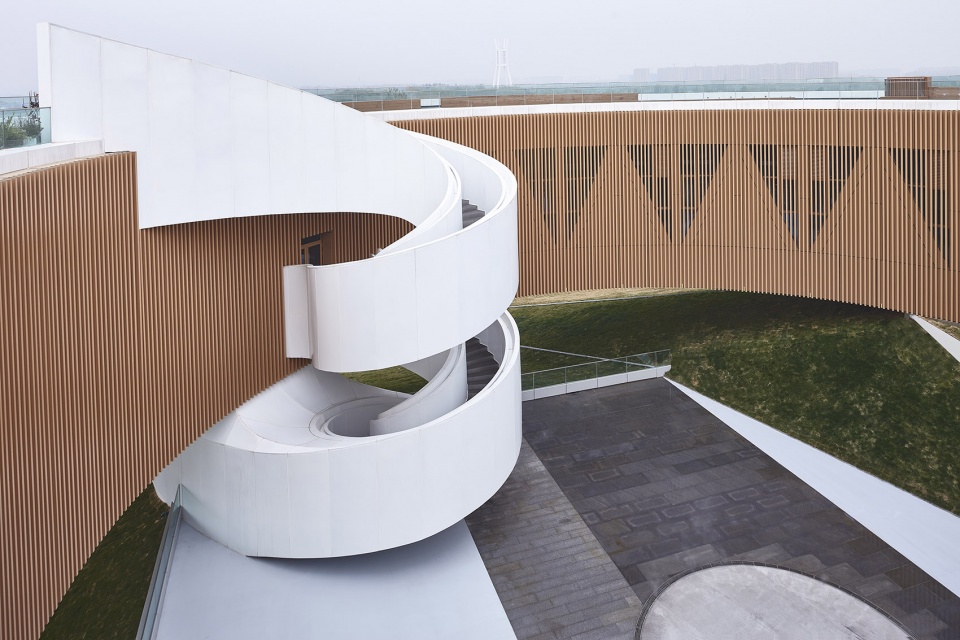

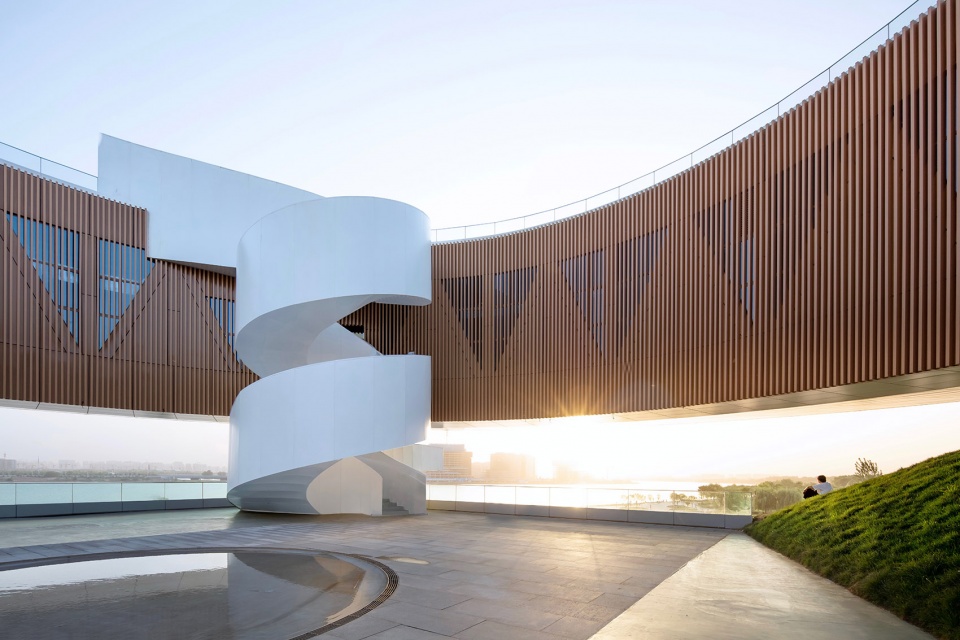

▼旋转楼梯,The ‘Elephant’ spiral stairs © 陈溯、方淳

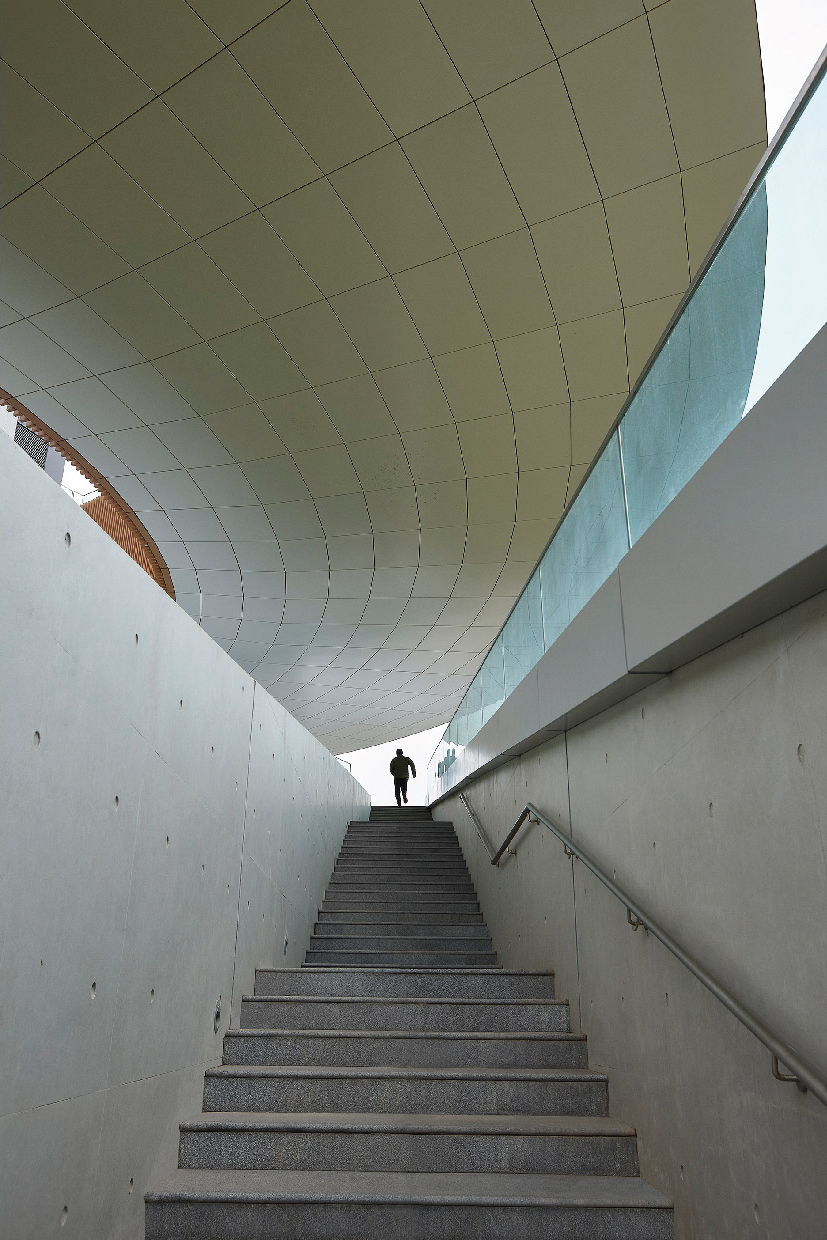

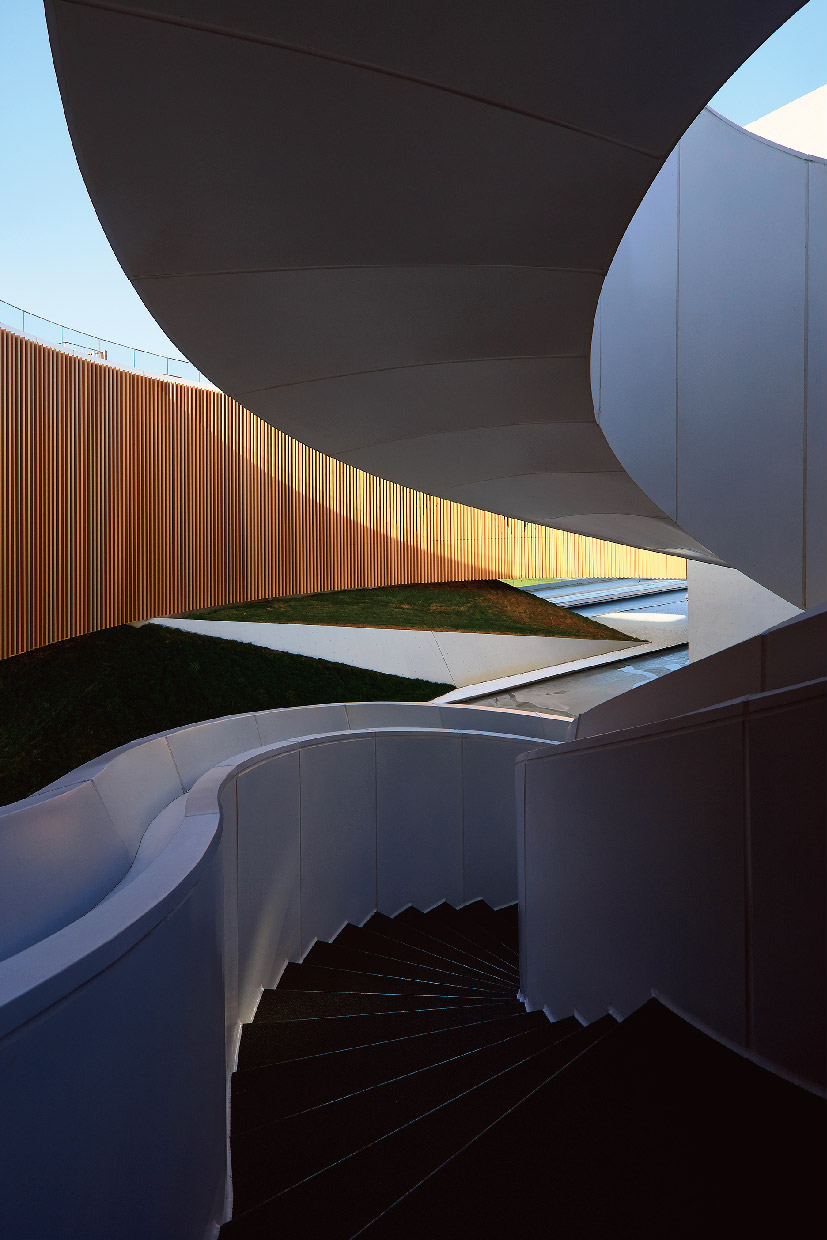

▼“大象”旋转楼梯内景与直通屋顶观景平台的“上山小径” © 陈溯、方淳
Giant Ring hovering above the pathway leading up to the rooftop terrace

▼大会议室天窗旁的休息座椅,Outdoor seating by the skylight © 陈溯、方淳



结构 | Structure

建筑的结构分两个组成部分:下部钢筋混凝土框架剪力墙结构(用于多媒体展厅“绿丘”及地下停车库)与上部环廊整体桁架钢结构(用于圆环展厅)。

The structure of the building consists of two parts: the lower part is a reinforced concrete frame shear wall structure,  while the upper part an integral steel truss work.

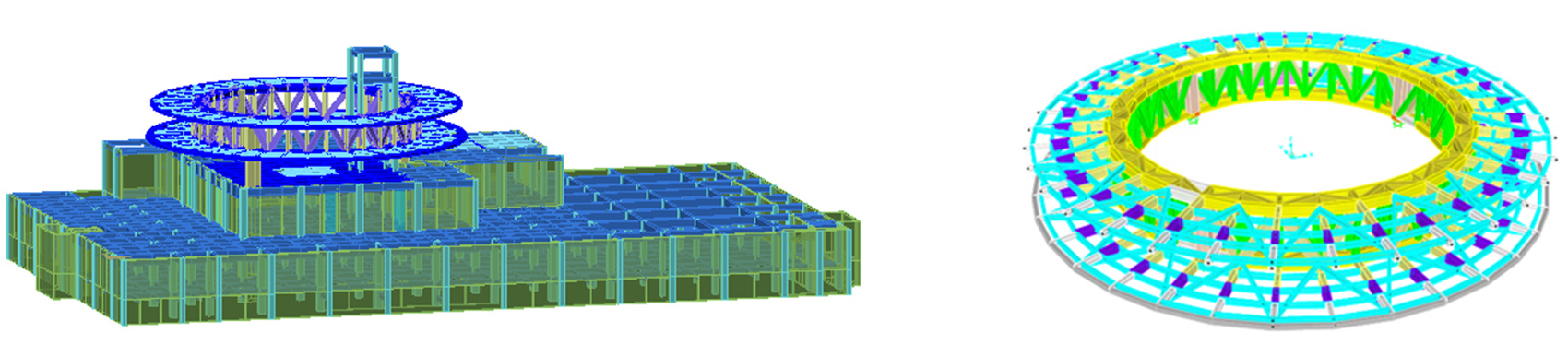

▼结构整体计算模型 & 圆环钢桁架,structure model & the upper part an integral steel truss work © STUDIO A+

直径51.3米的圆环钢结构只通过三个支点与下方钢筋混凝土主体结构相连。这三个支点分别与“景框”景墙、小型绿坡和“大象”旋转楼梯巧妙结合。旋转楼梯作为通往圆环展厅内部及其顶部平台的交通与疏散工具,与其邻近的结构支点相结合,经在其前端和尾部做少量夸张处理,形成了“大象”形态。为严谨而理性的整体增添一丝浪漫与诙谐。

The ‘ring’ with a diameter of 51.2 m is supported by only 3 columns with big spans in between. All columns are combined with a wall, a stair or a green mound.

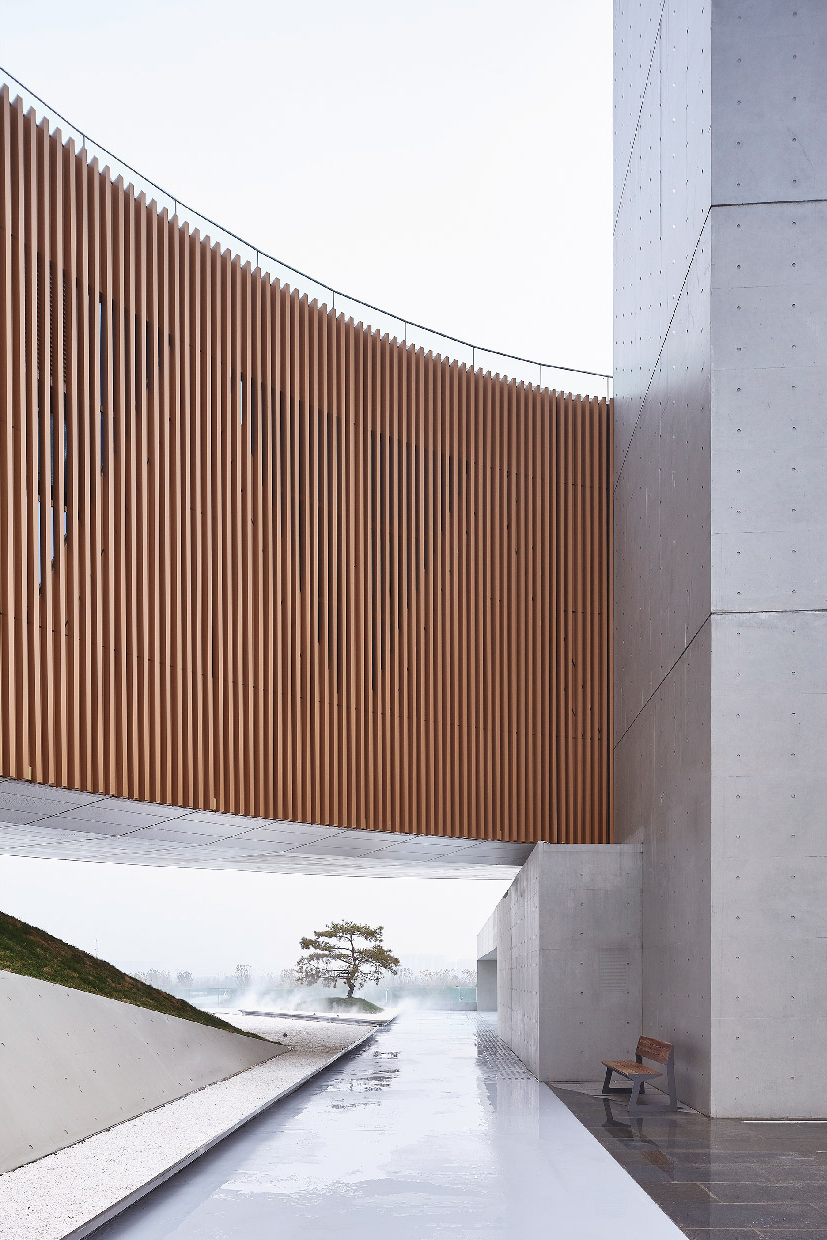

▼支点一——景框,One column with a wall © 陈溯、方淳

▼支点二——绿丘,One column with a green mound © 陈溯、方淳

▼支点三——“大象”旋转楼梯,One column with a stair © 蒋镇东

在圆环内部,我们为保证外环通高玻璃幕墙的视野,在这一侧做了无柱处理,由内环的双环整体桁架向外出挑。整个圆环因大跨和悬挑结构获得了其“漂浮”的姿态,也因此为二层屋顶平台提供了最优视野。

To ensure the unobstructed panoramic view, all the columns at the perimeter (outer circle) are eliminated by a cantilever structure from the inner circle of the ‘ring’. The glass curtain wall is also designed transparent and seamless. All columns are combined with a wall, a stair or a green mound, so that the ‘ring’ seems a visually unsupported object.

▼“漂浮”于绿丘之上的圆环,Ring and green mound © 蒋镇东



材料 | Material

圆环外墙为无肋全玻璃幕墙,采用超白玻璃以取得最佳视觉观景效果。幕墙顶部以L型玻璃转角与屋面结构相接,凸显轻盈与通透。这样的处理保证由内观外一览无余,身临其境;由外观内,层次丰富,彰显内部空间特点。

圆环下部体量为光洁的清水混凝土材质,凸显其厚重与朴素。白色及仿木色铝板/铝条栅分别作为圆环及大象等处的外装材料,与混凝土体量形成鲜明对比。

The pattern of the interior wall and ceiling of the ‘ring’ is derived from the form of structural trusses behind. To ensure the unobstructed panoramic view inside the ‘ring’, all columns at the perimeter (outer circle) are eliminated by a cantilevered structure from the center (inner circle). The glass curtain wall is also designed to be transparent and frameless.

The material of the lower portion of the building is bare concrete, visually heavy and earthy. In contrast, the material of the ring is lightweight cladded aluminum panels or louvers.

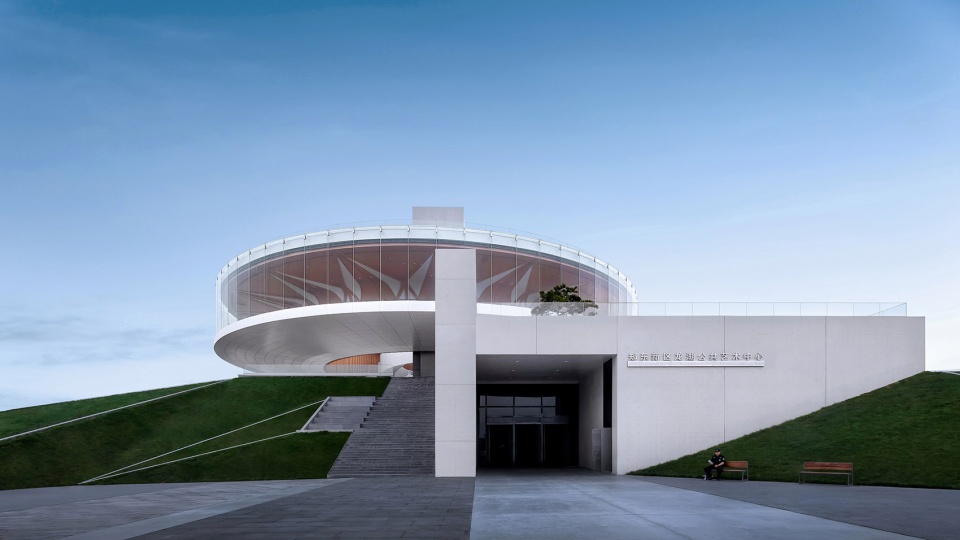

▼主入口广场,Entry plaza © 蒋镇东



照明 | Lighting at night

这个建筑同时还是一个聪明的建筑,它的“表情”会与社会生活的方方面面息息相关。圆环的内景及光会通过高度透明的玻璃墙体透射出来,成为夜晚的一个符号。圆环内部连体墙与顶的形式反映了其钢结构的形态,也获得了“城市之冠”的视觉效果。其照明系统有能力与城市的大数据结合(如天气、交通等信息),将其艺术化处理后进行动态可视化输出。进而,作为艺术中心核心的圆环自身可以成为一个艺术媒介,自由展示任何与光相关的艺术。

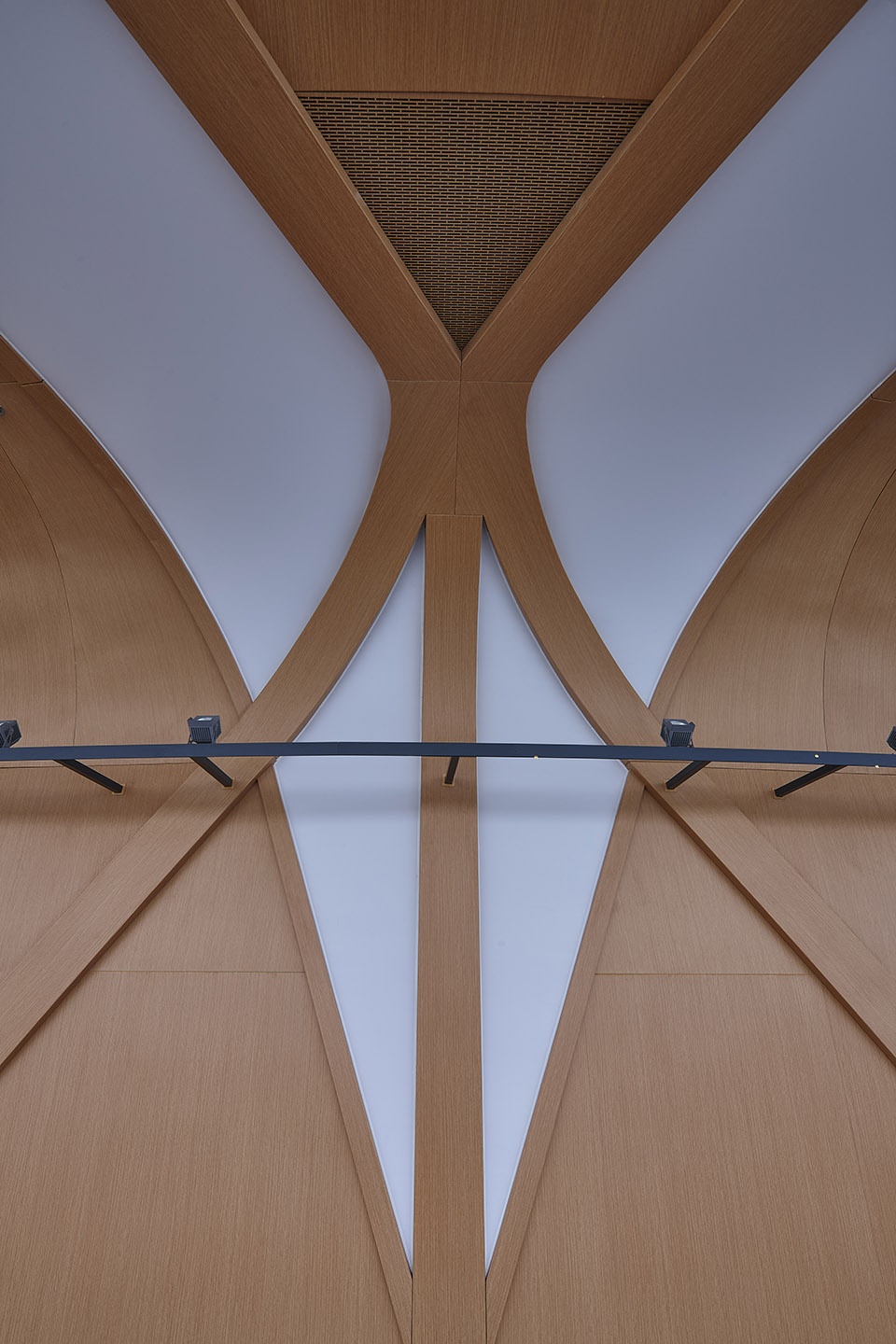

▼圆环内部连体墙与顶的形式反映了其钢桁架的形态 © 陈溯、方淳
The pattern of the interior wall and ceiling of the Ring is derived from the form of structural trusses behind

The art work displayed along the inner wall of the ‘ring’ will be lit up at night and can be seen from outside. Inside the ‘ring’, the crown shaped pattern derived from the structure of the ‘ring’ is articulated by lighting. The ‘ring’ becomes a symbol at the city’s nightscape. The Art Center is a smart building, since its lighting system will be connected with the region’s big data and output dynamic real time artistic expressions after specially designed data processing procedure. In another word, the ‘ring’ will express different moods defined by the region’s weather or traffic conditions and so on. Furthermore, the ‘ring’ can become a media art platform to allow artists to express ideas freely.

▼城市生活舞台,A stage for urban life © 存在建筑

在节日里,它可以成为中国年的红色灯笼,也可以在中秋节呈现清冷的月白色,以增添城市的节日气氛。平日里,可以低调为黑夜里一团幽暗闪烁的星云。

The lighting reinforces the publicity and sociality of the Art Center. Lighting is also closely reflecting public social life. During the Chinese New Year, the ‘ring’ may turn into a red lantern to celebrate the traditional holiday. At the regular nights, the lighting can be very low-key, becoming a cloud of stars shimmering in the dark sky. It become a desirable and vibrant place where people can engage with each other, enjoy the view of the new development of the region and to celebrate their waterfront experience.

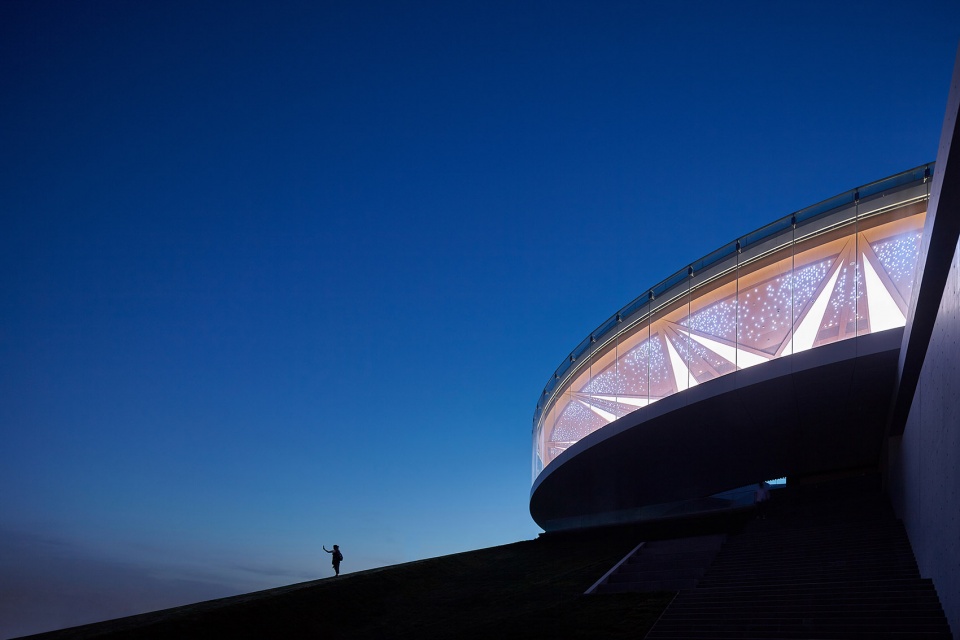

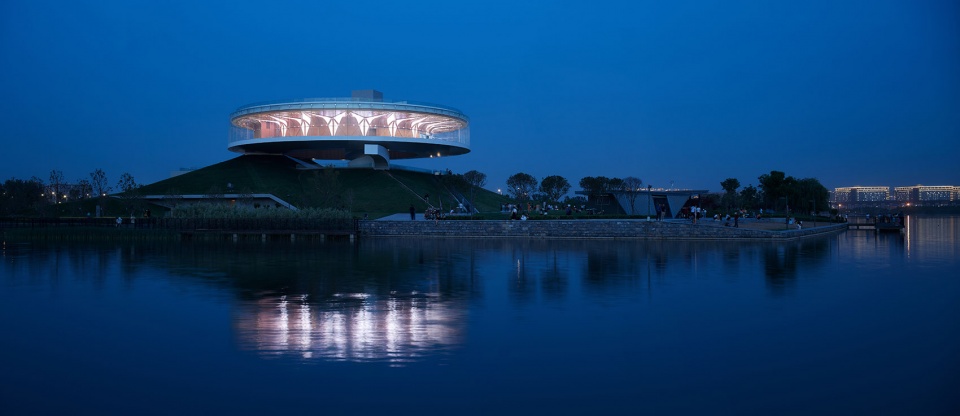

▼夜景,The Ring glows at night as a crown of the city © 陈溯、方淳

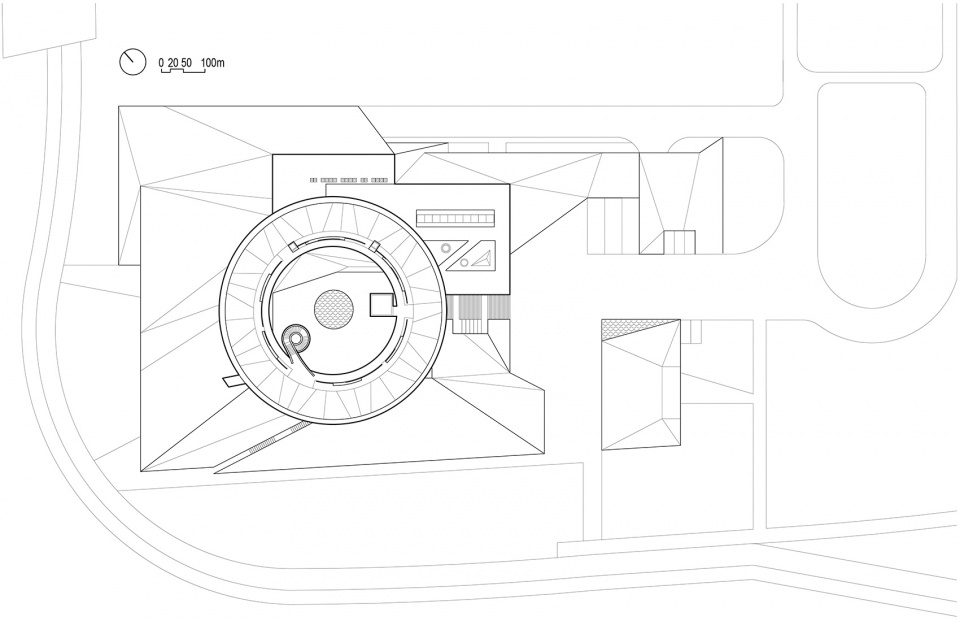

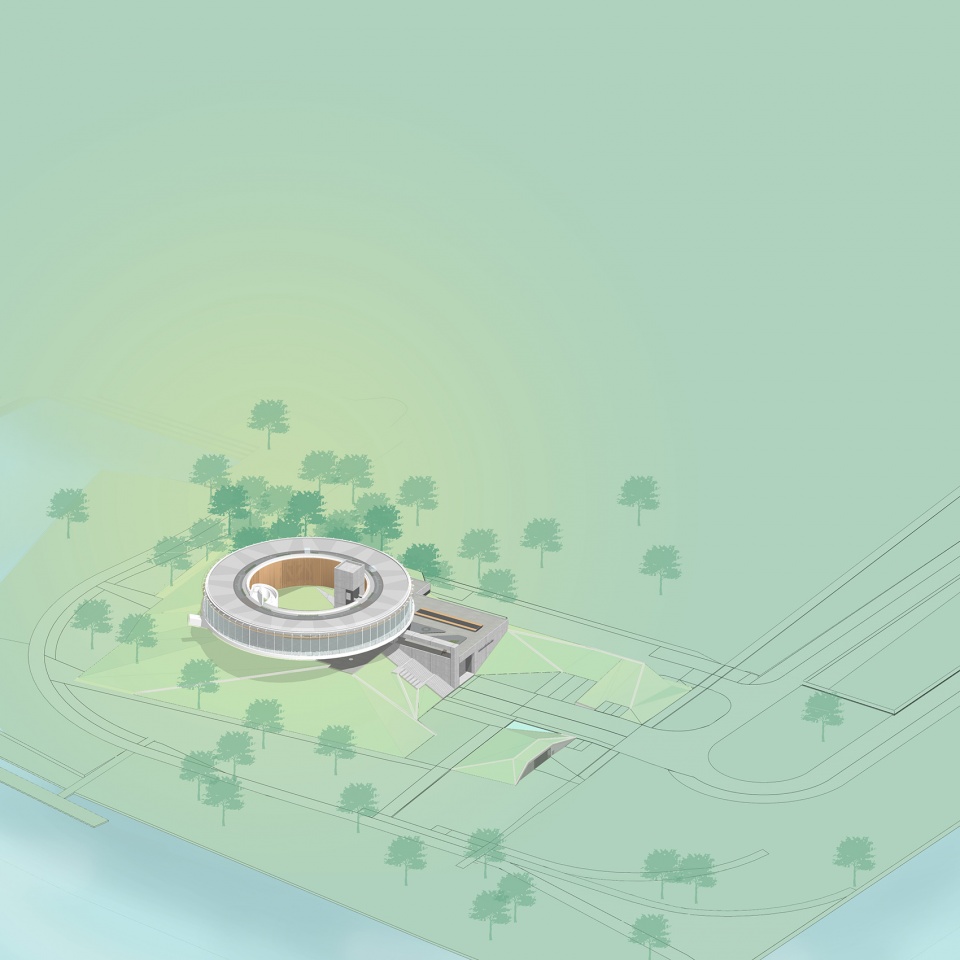

▼总平面图,Site Plan © STUDIO A+

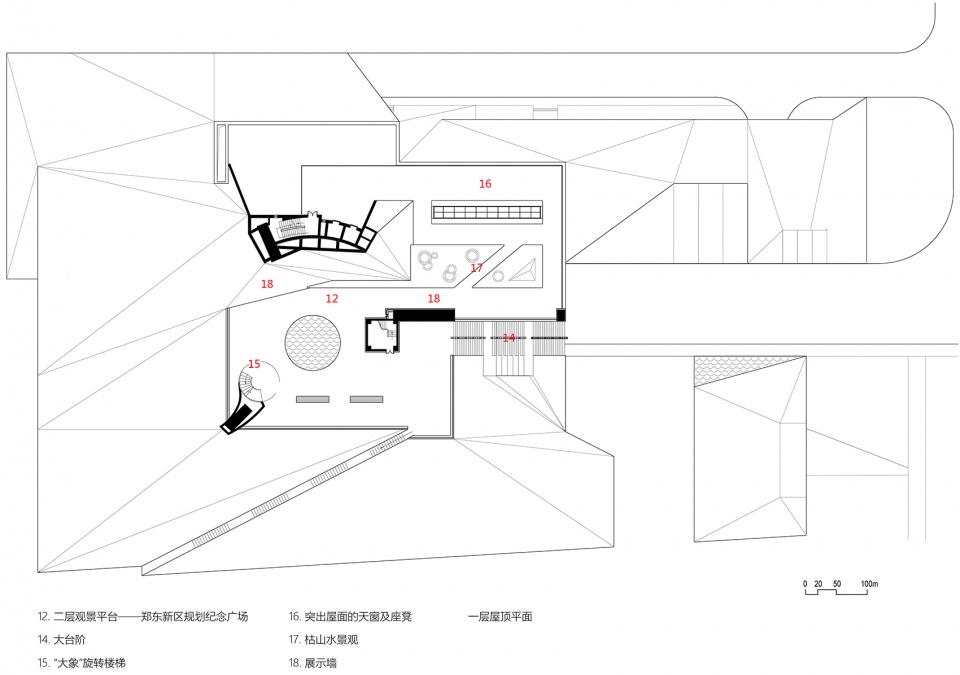

▼一层屋顶平面图,Rooftop garden (second floor) plan © STUDIO A+

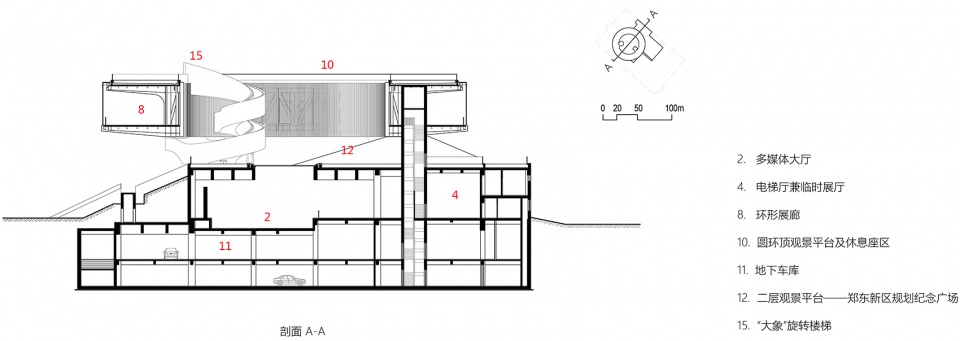

▼剖面A-A,Section A-A © STUDIO A+

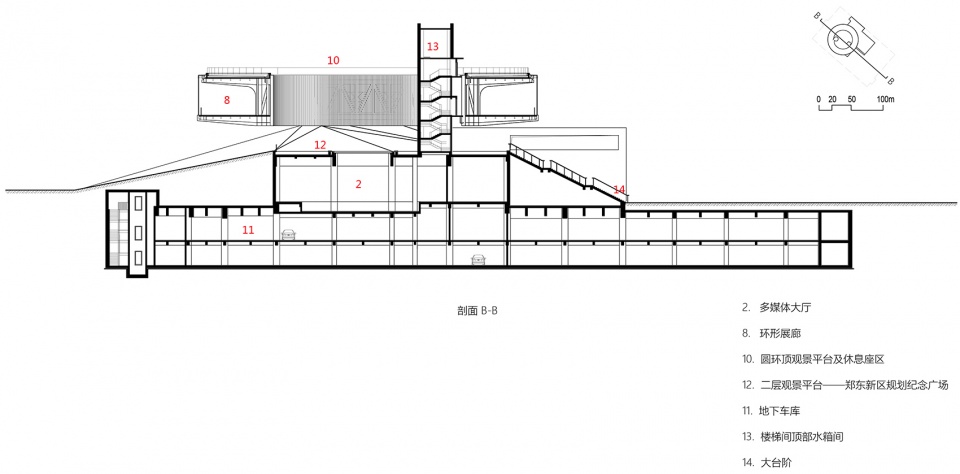

▼剖面B-B,Section B-B © STUDIO A+

项目名称:龙湖公共艺术中心
Project: Zheng dong New District Dragon Lake Public Art Center
项目地点:郑州
Position: Zhengzhou, Henan Province
建筑面积:21205.88 平方米
Floor area: 21205.88 ㎡
总用地面积:16404.24平方米
Site area: 16404.24 ㎡
主创设计师:王敏(STUDIO A+ )
Leader Designer: Min Wang (STUDIO A+ )
设计团队:
Team:
建筑:王敏,丁梅,李辉,王玉良,苗业、朱士壮、刘大华、王崇硕、刘科峰、赵玉峰、李瑞、葛家乐、宋依阳、张明岩
Architectural design: Min Wang, Mei Ding, Hui Li, Yuliang Wang, Ye Miao, Shizhuang Miao, Dahua Liu, Chongshuo Wang, Kefeng Liu, Yufeng Zhao, Rui Li, Jiale Ge, Yiyang Song, Mingyan Zhang
结构:王洪兴、陈亚超、储德文、毛彦喆、陈龙
Structure design: Hongxing Wang, Yachao Chen, Dewen Chu, Yanzhe Mao, Long Chen
结构技术指导:肖从真
Structure consultant: Congzhen Xiao
机电:米长虹、陈港,赵培江、刘守勇、李弘、张鹏、张立影、孙振宇、孙斌、沈宝龙、王树伟
Electromechanical design: Chaohong Mi, Gang Chen, Peijiang Zhao, Shouyong Liu, Hong Li, Peng Zhang, Liying Zhang, Zhenyu Sun, Bin Sun, Baolong Shen, Shuwei Wang
BIM:姜昊、高懿婷、周晓强、刘岩、靳恒
BIM: Hao Jiang, Yiting Gao, Xiaoqiang Zhou, Yan Liu, Heng Jin
幕墙:曲冰、高驰
Curtain wall design: Bing Qu, Chi Gao
灯光:王东宁、周丽华、梁金龙、陈强
Lighting design: Dongning Wang, Lihua Zhou, Jinlong Liang, Qiang Chen
室内:张戈、李午亭、王鸿玉
Interior design: Ge Zhang, Wuting Li, Hongyu Liu
景观:张雯雯、刘溥琦、申恺
Landscape design: Wenwen Zhang, Puqi Liu, Kai Shen
甲方:郑州市郑东新区建设开发投资总公司
Client: Zhengdong New District Construction Development Investment Co.,Ltd.
竣工时间:2020年9月
Completed in Sept 2020
设计单位:STUDIO A+ (优加设计)
Design: STUDIO A+
合作单位:哈尔滨工业大学建筑设计研究院,中国建筑科学研究院有限公司
Partner: The Architectural Design and Research Institute of HIT, China Academy of Building Research
施工单位:中建八局第二建设有限公司
Construction: The Second Construction Limited Company of China Construction Eighth Engineering Division
摄影:陈溯,方淳,存在建筑(Arch-exist photography),蒋镇东
Photo credit: Su Chen, Chun Fang, Arch-exist photography, Zhendong Jiang
