Chicland Hotel Danang by VTN Architects

A seaside hotel with facades covered by a greenery system

Project Specs

Location:

感谢 VTN Architects 予 gooood 分享以下内容。更多关于他们,请至:VTN Architects on gooood.
Appreciation towards VTN Architects for providing the following description:

岘港是越南最著名的旅游城市之一,其主要的城市道路Vo Nguyen Giap沿着30公里长的海岸线延伸,拥有美丽的海景、灿烂的阳光和凉爽的清风。Chicland酒店就坐落在这条街道上,它占地699平方米,正对着My Khe海滩,与大海仅有100米的距离。

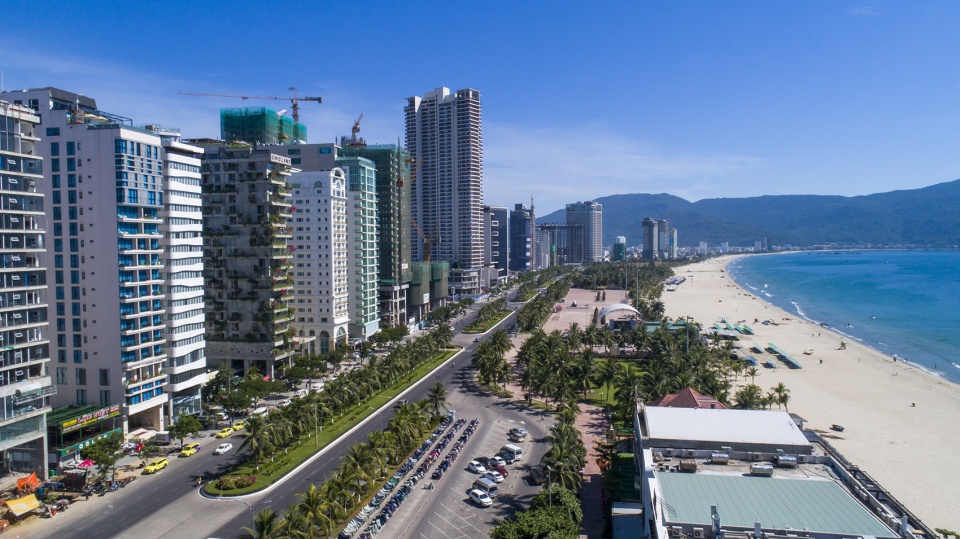

▼海岸线视角,view to the  coastline ©VTN Architects

Da Nang is one of the most famous tourist cities in Vietnam. The main city road Vo Nguyen Giap lays along 30km coastline, which has a beautiful sea view, bright sunlight, cool wind and fresh air. Our project is located on Vo Nguyen Giap road and faces directly to My Khe Beach, about 100 m to the sea. With site area at 699 sqm, it is an ideal position for hospitality business.

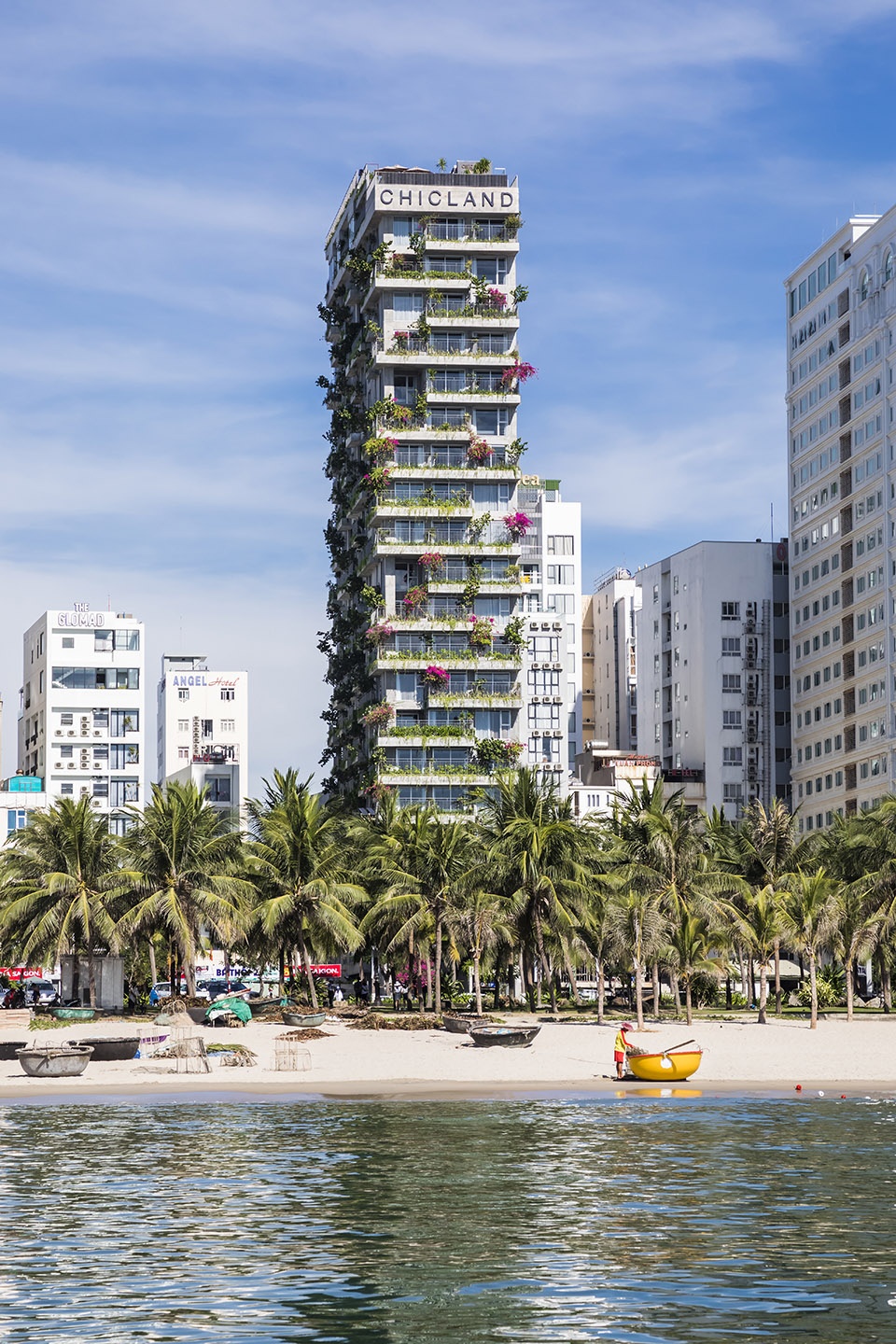

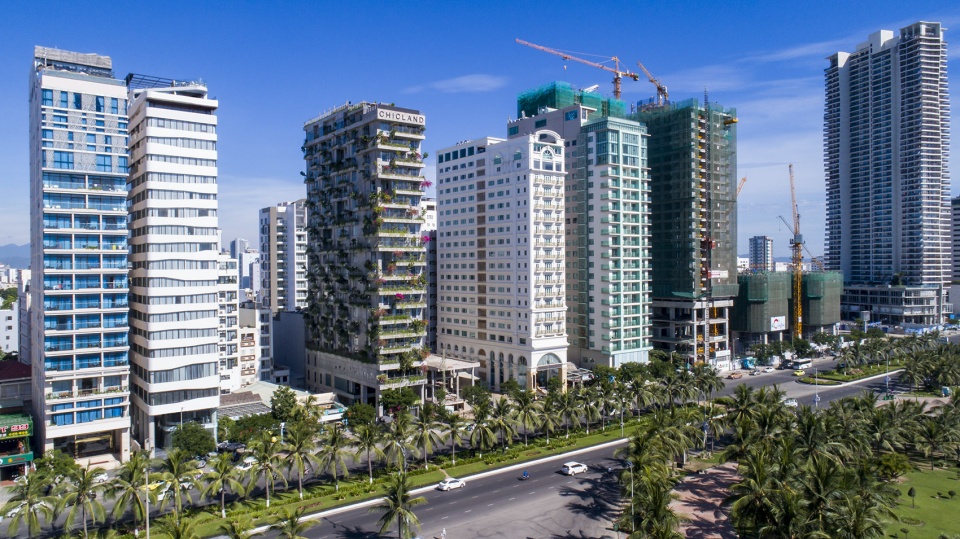

▼酒店外观,Chicland Hotel exterior view ©VTN Architects

▼海滨视野,view to the beach ©VTN Architects

Chicland酒店的设计旨在满足业主的业务需求,但并未被普通的商业风格所局限。垂直核心筒整体被移至建筑北侧,以保证开阔且清晰的视野(酒店的北侧将建造一座高层建筑)。其他几个立面被独特的绿植系统覆盖,可调节的花盆被整合至客房的阳台和滑动门中,其设计十分简单,并且易于操作和维护。该系统主要选用了适合海边气候的热带植物,如大花蕙兰、白水木、雀榕、九重葛和阔苞菊等。

Chicland Hotel is designed to meet business requirement of the client but doesn’t confine architecture itself to the normal commercial style. All vertical technical parts are moved to the North area to assure the clear sight of view (in the near future, there’s an upcoming a high rise building next to our project on the north). Other vertical facades are covered by a sudden inspirational system of alternate tree pots which is integrated into balconies or sliding part of hotel rooms. That greenery system has a simple design and is easy to operate and maintain.The plants used in the project are tropical plants and are suitable to marine climate such as: cymbidium hybrid, tournefortia argentea, ficus superba, bougainvillea, pluchea indica…etc.

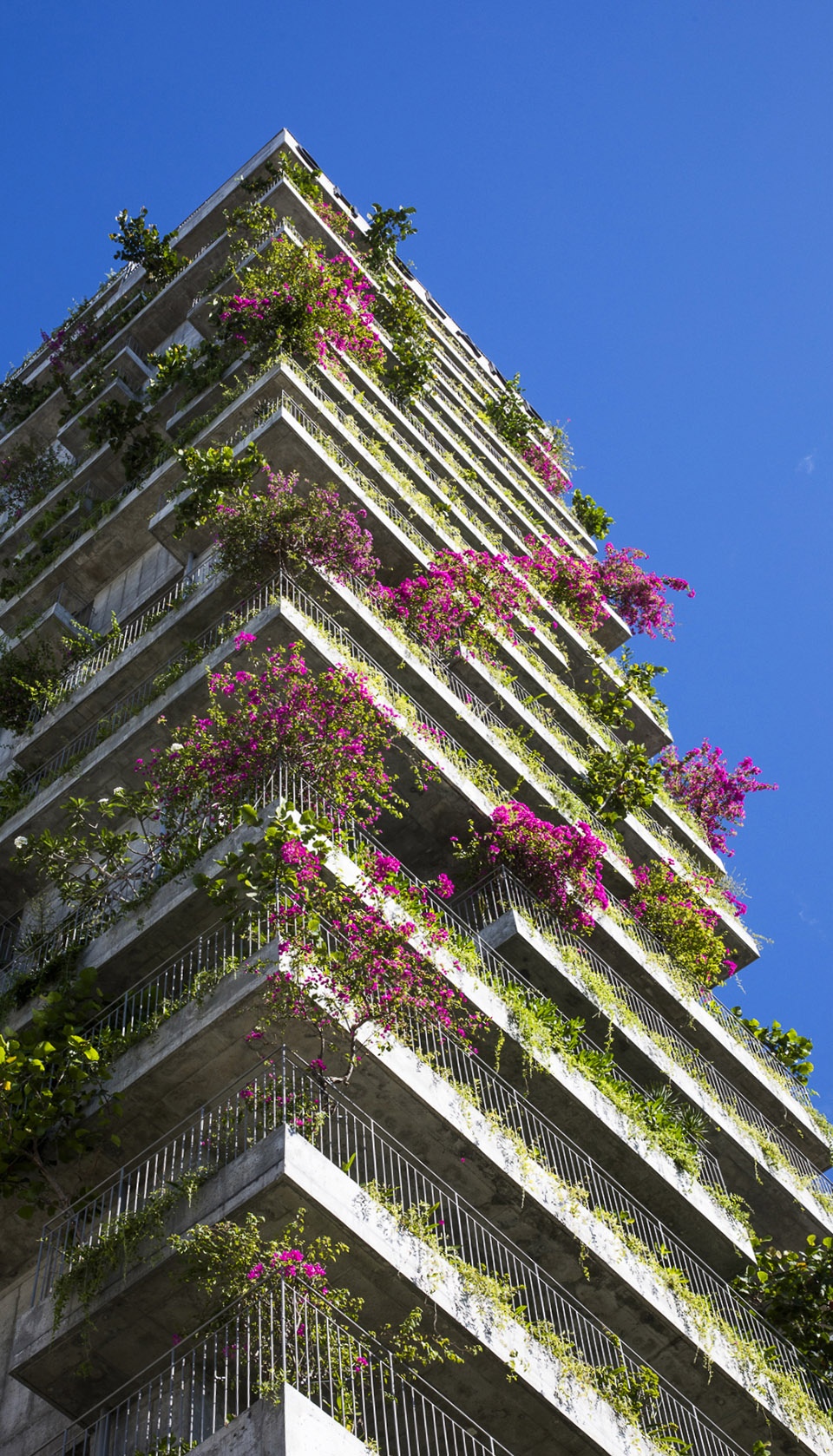

▼酒店立面被独特的绿植系统覆盖,the facades are covered by a greenery system ©VTN Architects

▼可调节的花盆被整合至客房的阳台和滑动门中,alternate tree pots are integrated into balconies or sliding part of hotel rooms ©VTN Architects

酒店总建筑面积为11895平方米,21个楼层共包含129间客房,分为标准间和公寓等不同类型。酒店的标准设施包括地下车库、地下技术和服务空间、大堂区、咖啡厅、水疗中心和空中酒吧等。

Total floor area of the hotel is 11,895 sqm, it has 129 rooms from standard to apartment type on 21 stories with standard facilities such as: garage basement, technical & service basement, lobby area, coffee house, spa and sky bar. Thanks to the greenery facade, all rooms have a nice view whether facing the sea or the adjacent land.

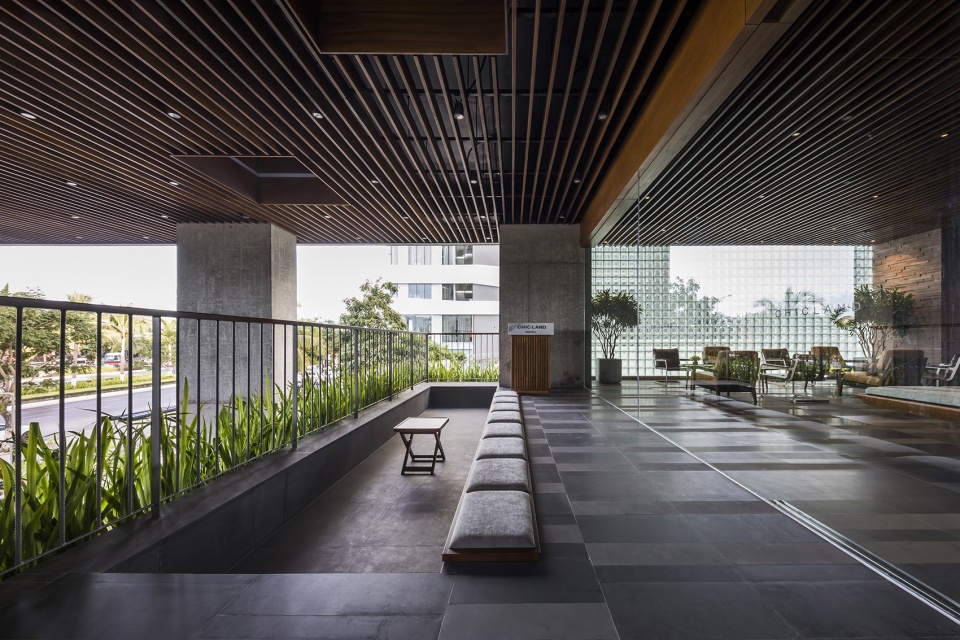

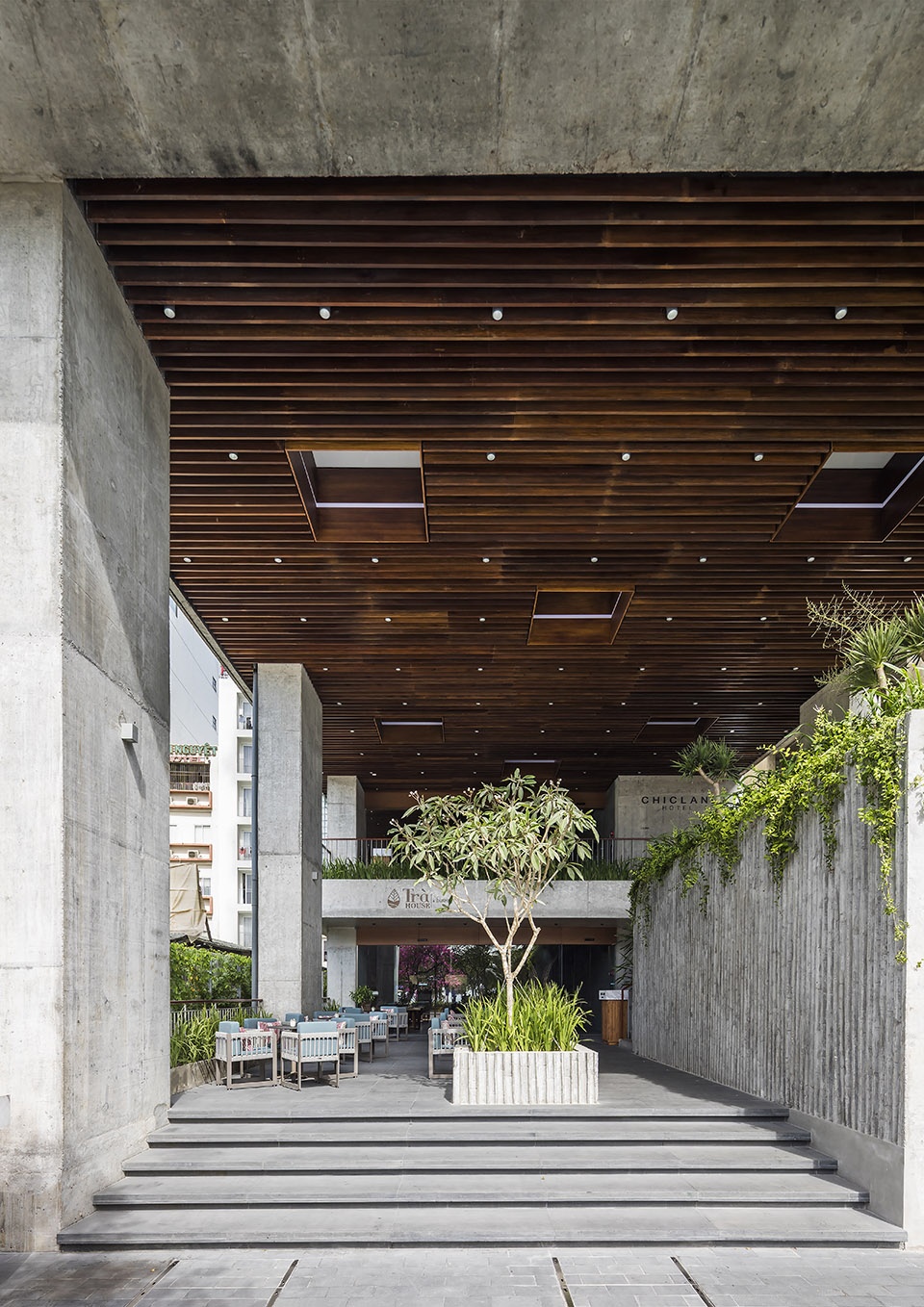

▼入口空间,entrance area ©VTN Architects

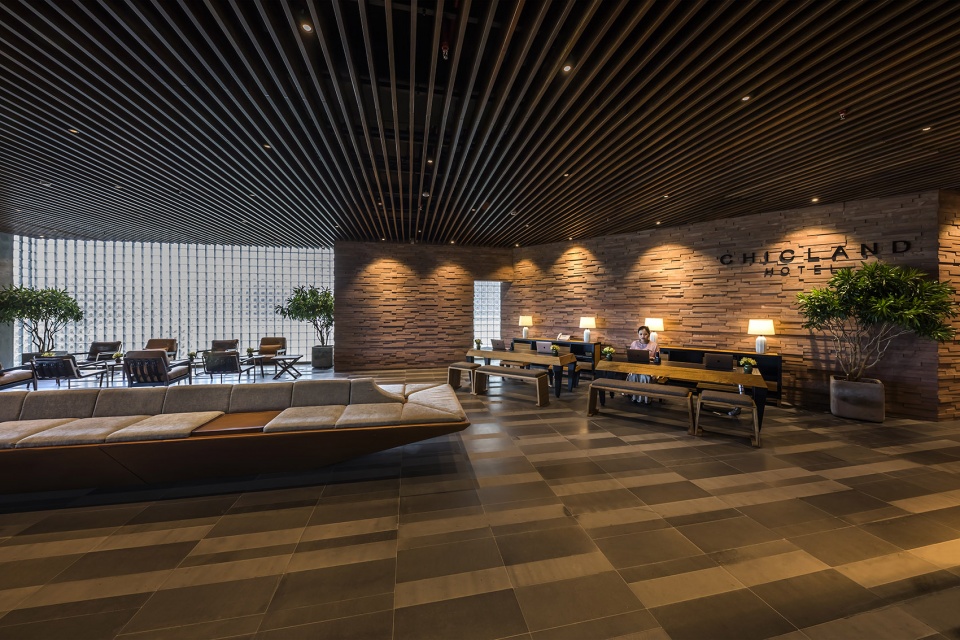

▼大堂空间,lobby area ©VTN Architects

▼从大堂望向接待台,view to the reception from the lobby ©VTN Architects

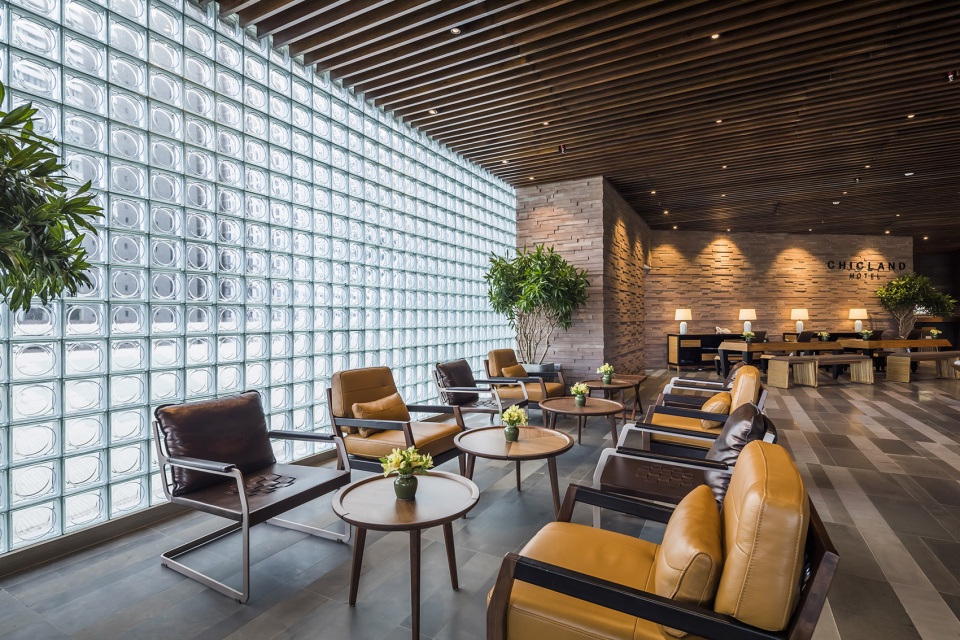

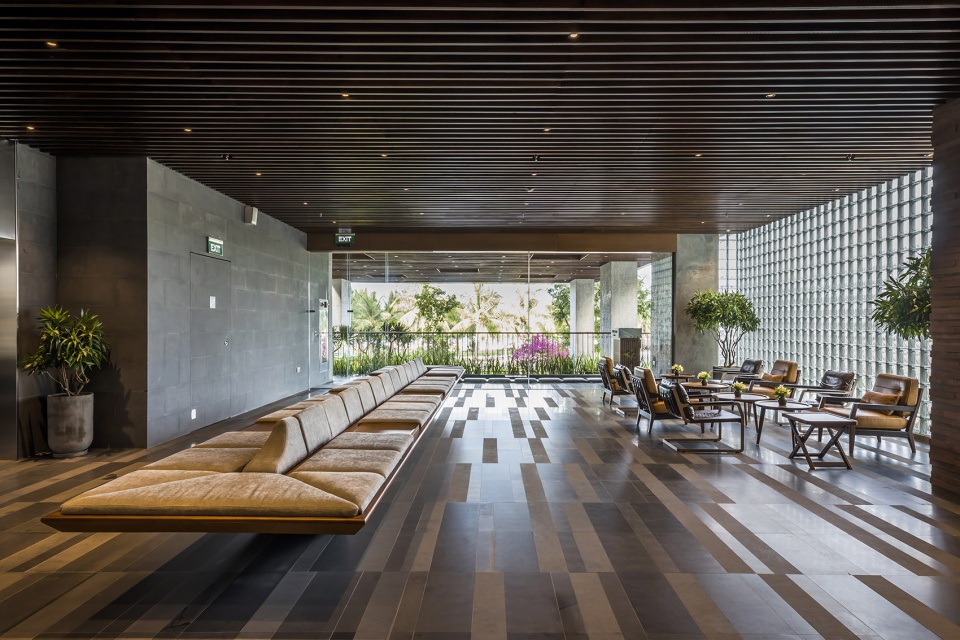

▼大堂休息区,lobby seating area ©VTN Architects

▼咖啡厅,coffee house ©VTN Architects

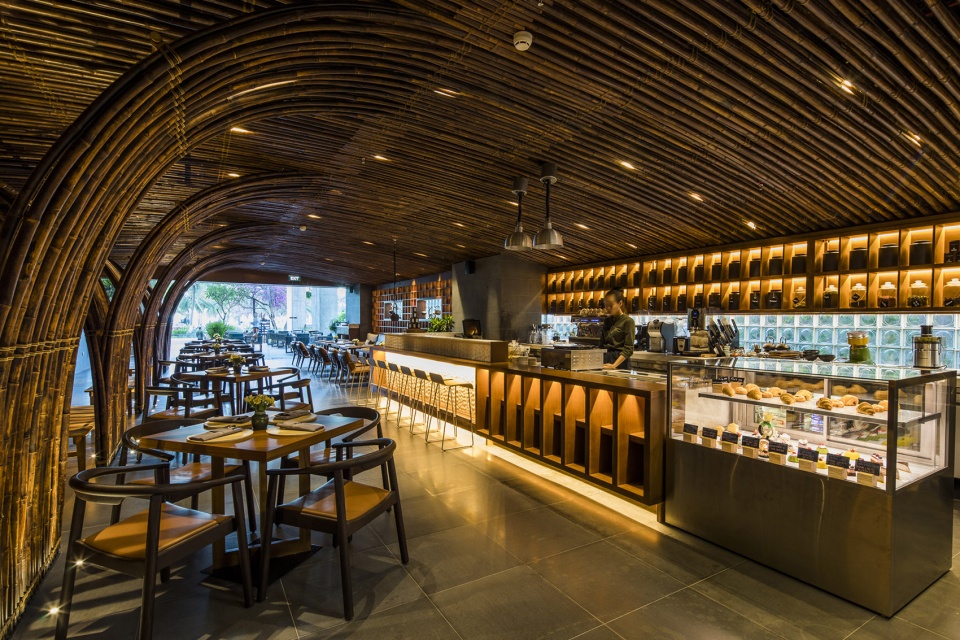

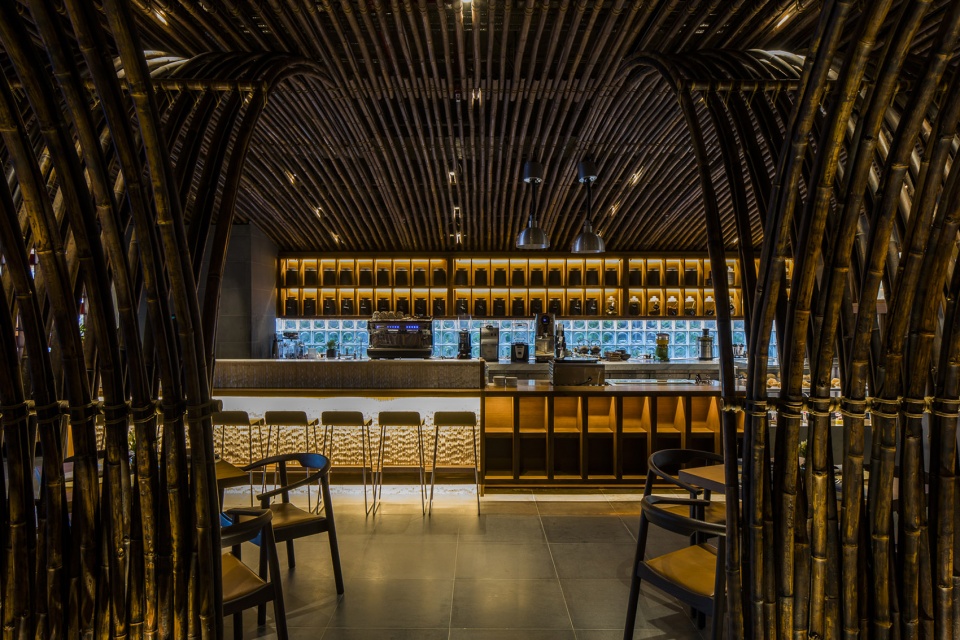

▼吧台区,bar area ©VTN Architects

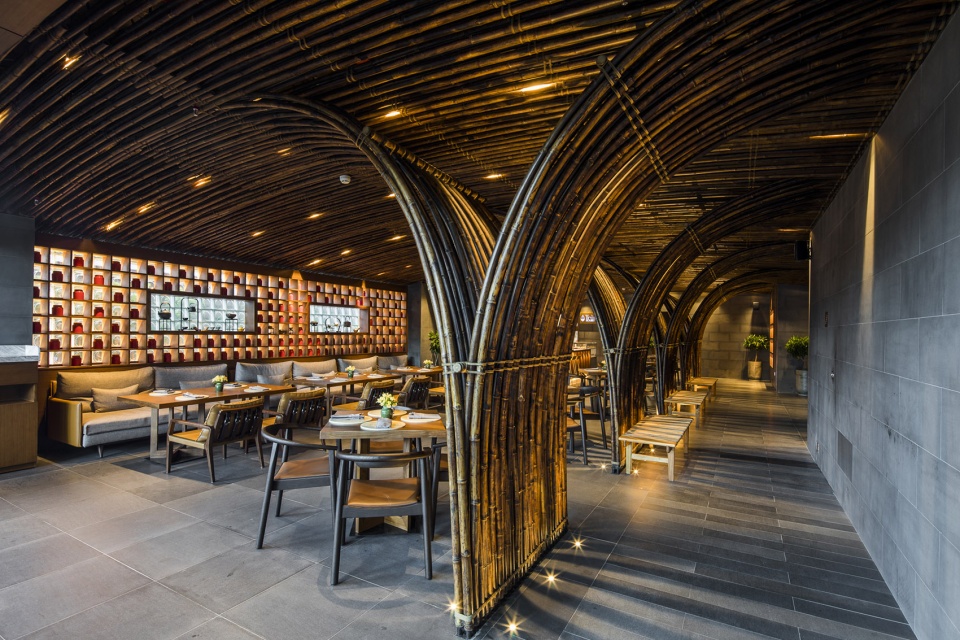

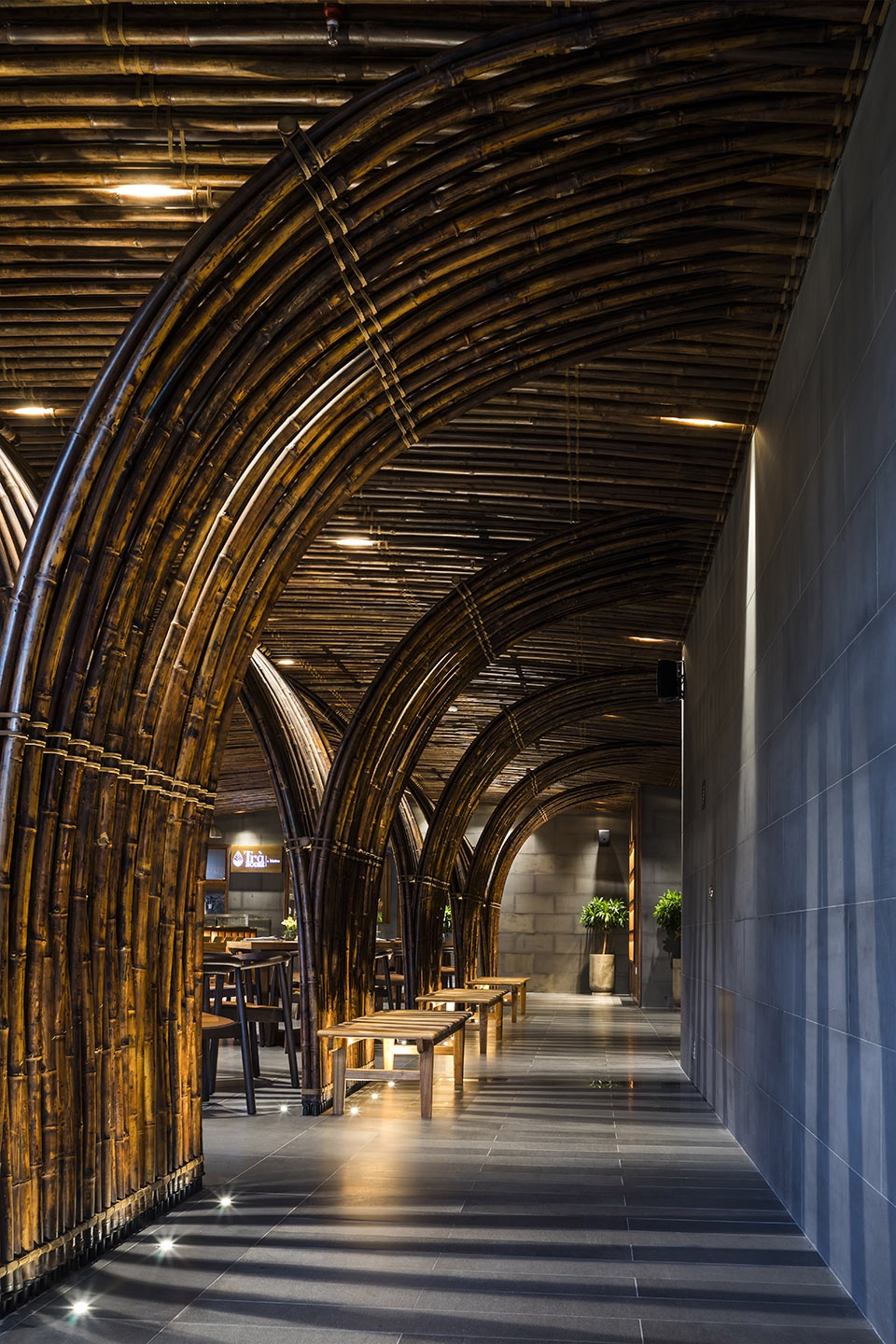

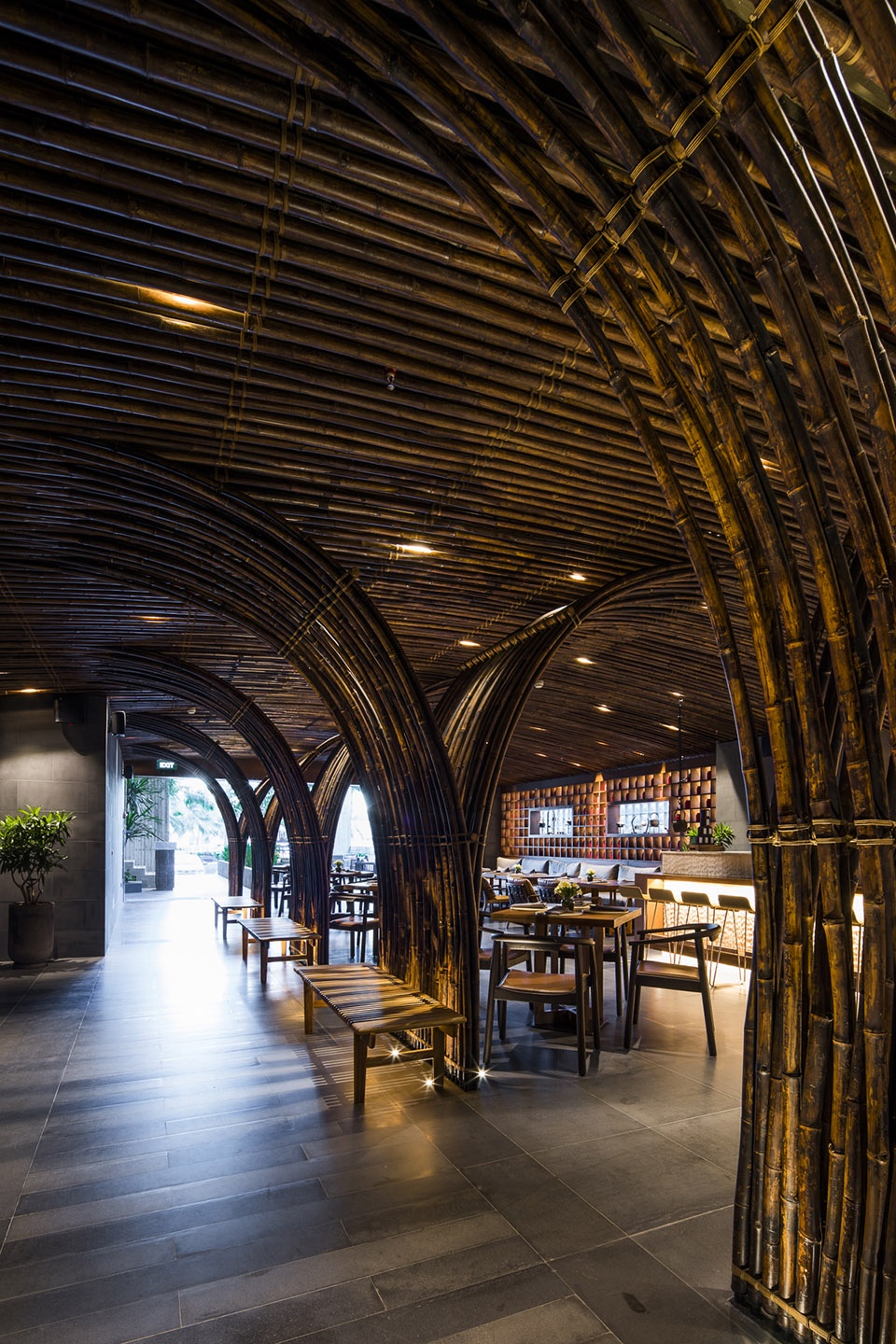

▼竹制拱廊细部,bamboo arcade detailed view ©VTN Architects

▼餐厅,restaurant ©VTN Architects

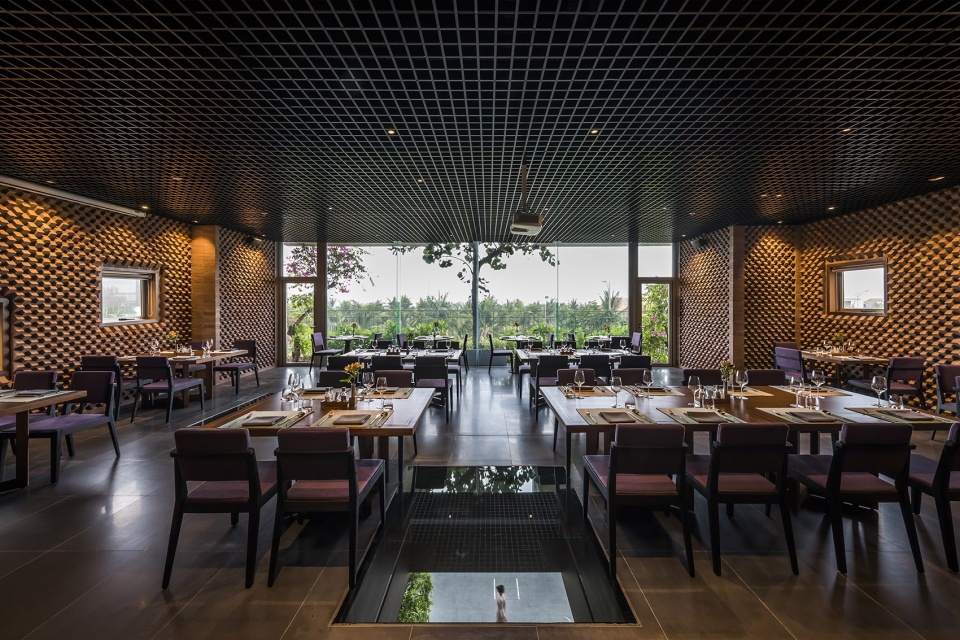

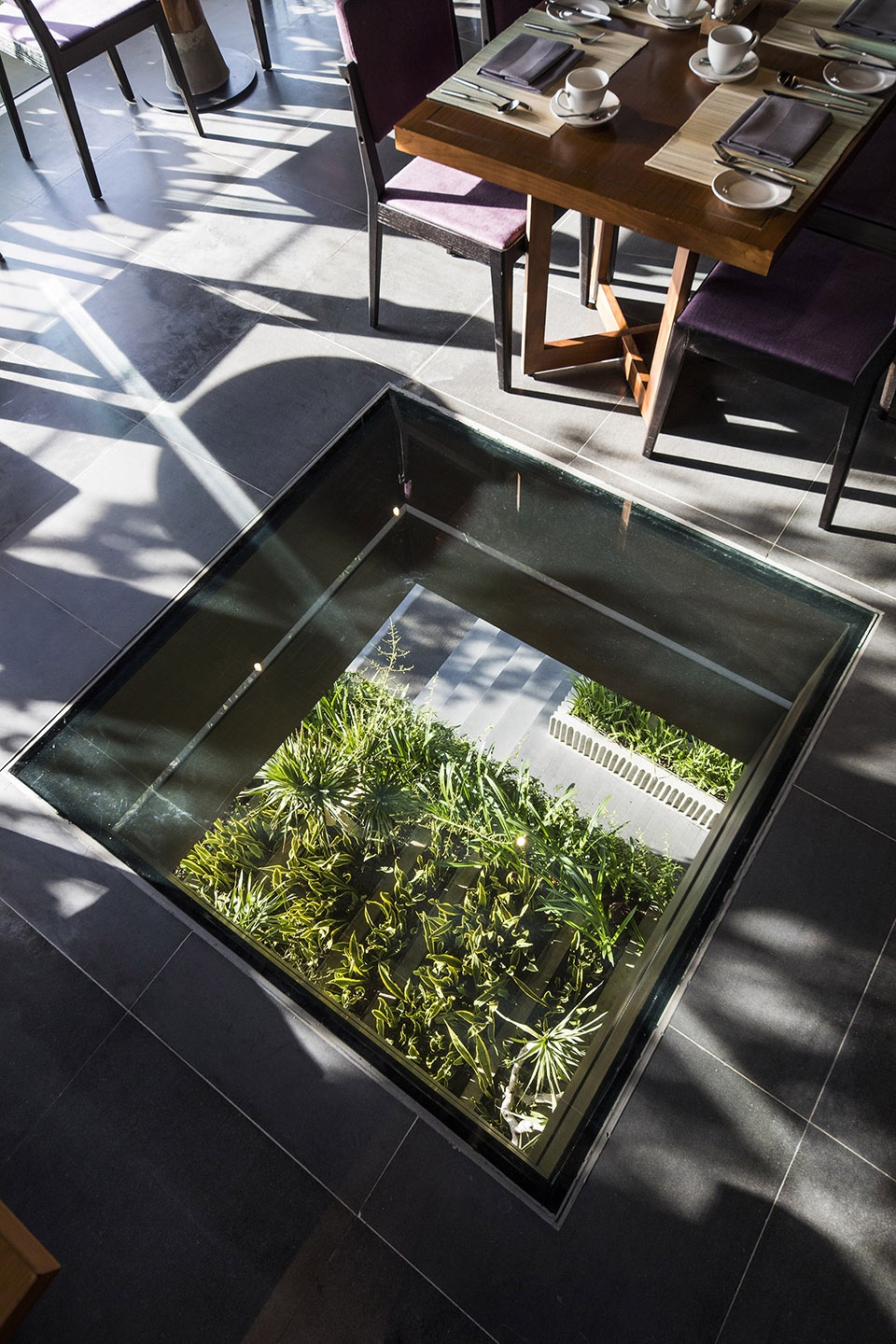

▼餐厅地面的内嵌窗,the skylight embedded in the floor of the restaurant ©VTN Architects

得益于铺满绿植的立面,酒店客房不论朝向海滩或是陆地都能够享受到优美的视野。除了显著提升美感之外,立面绿化系统还能够为建筑创造适宜的微气候,使房间变得更加凉爽。室内设计也受到了绿色立面的启发,家具和内饰均采用木头、石材、竹木和藤条等当地或天然材料制成。客房的卧室区域均配有开放浴室,并使用了面积最大的玻璃门系统,以便在引入自然光线和视野的同时享使客人享受到绿色立面带来的惬意感觉。

Thanks to the greenery facade, all rooms have a nice view whether facing the sea or the adjacent land. Besides of high aesthetic, the greenery system also creates microclimate for the building and makes interior space cooler. The wall are made of concrete as a main material and covered by tropical greenery system. That green facade inspirits for interior design. Furniture and interior materials are made from local or natural material: wood, stone, bamboo, rattan… Guest room is designed with an open restroom connected to bedroom. All guest rooms use maximum glass door system to provide natural light, view and benefit from greenery facade.

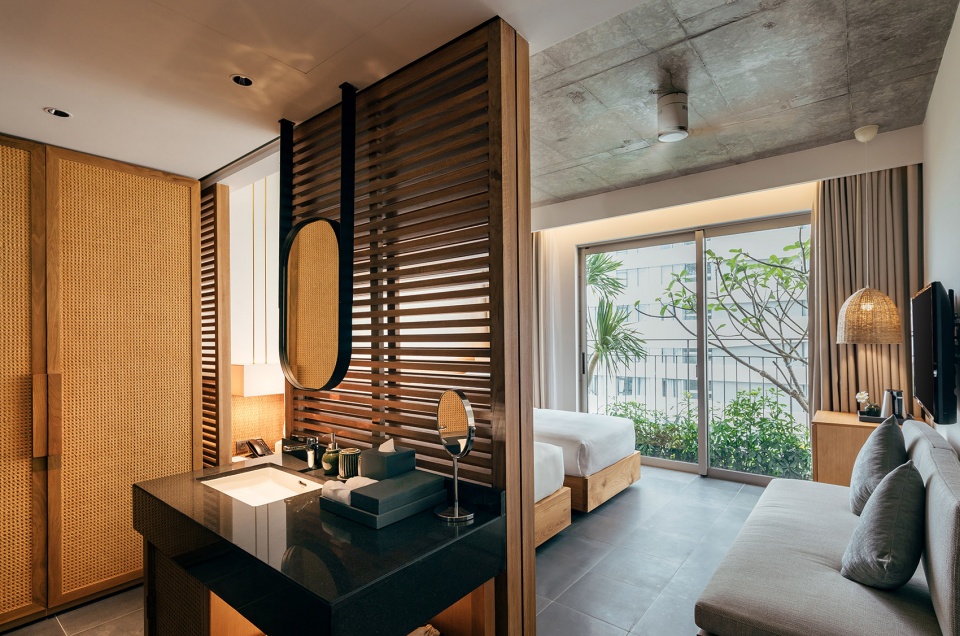

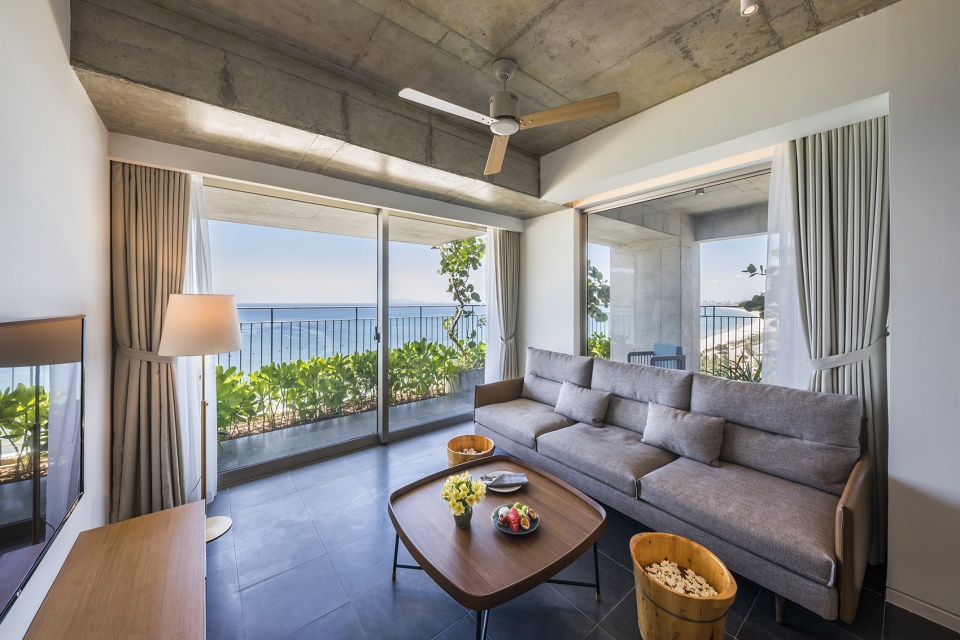

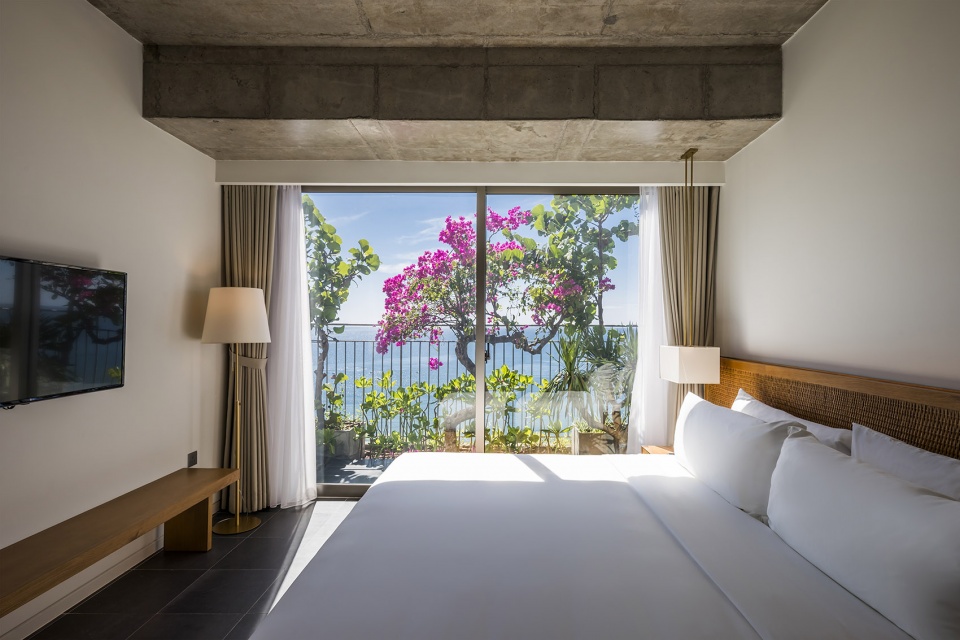

▼客房内部,guest room ©VTN Architects

▼酒店客房不论朝向海滩或是陆地都能够享受到优美的视野,all rooms have a nice view whether facing the sea or the adjacent land ©VTN Architects

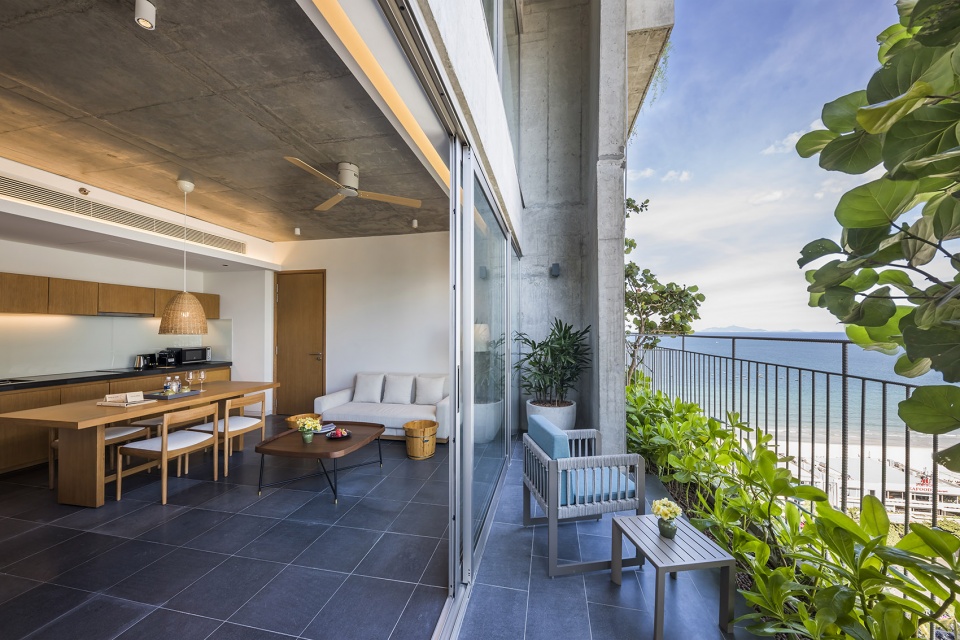

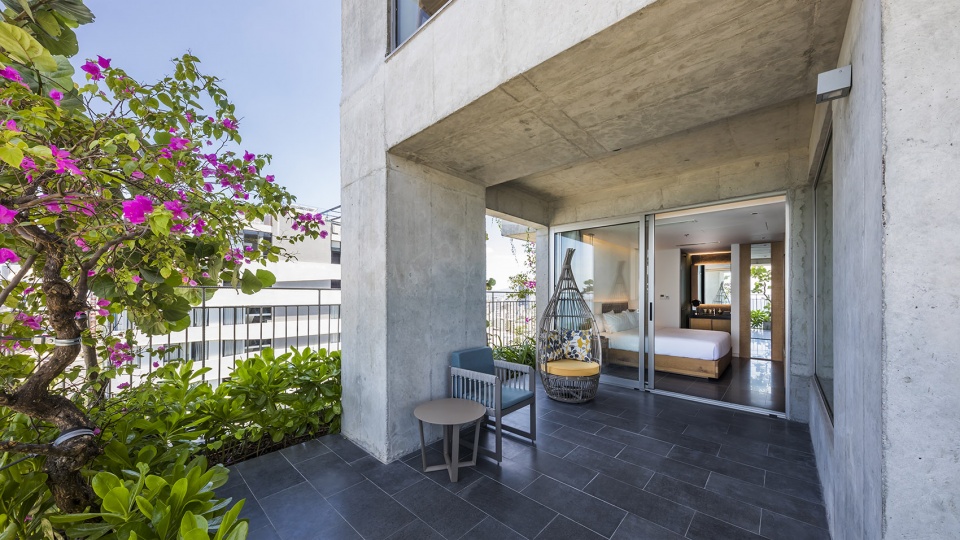

▼客房露台,outdoor terrace ©VTN Architects

▼从阳台望向室内,view from the balcony ©VTN Architects

▼从浴室望向卧室,view from the bathroom ©VTN Architects

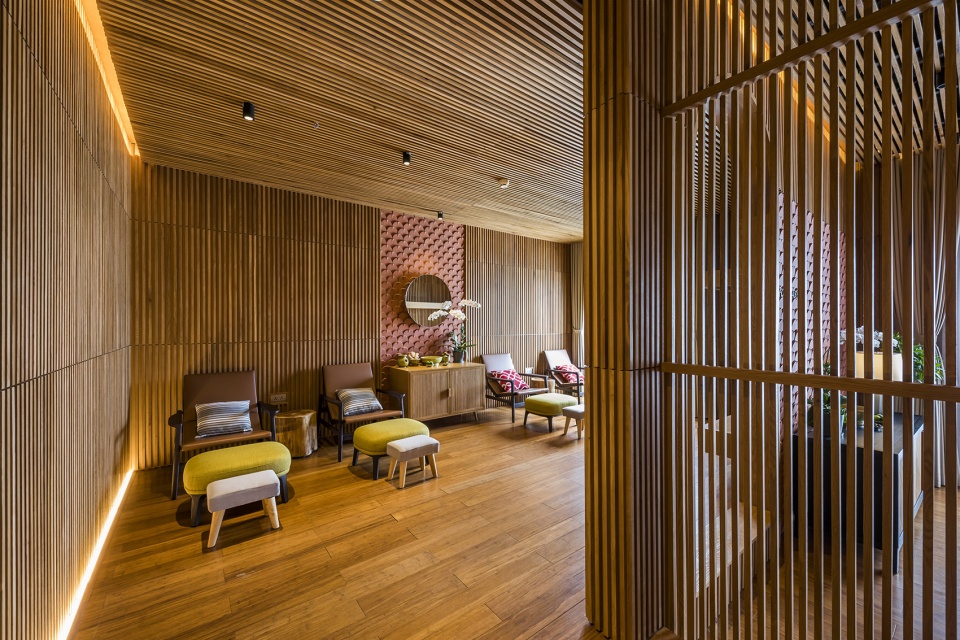

▼水疗中心,spa centre ©VTN Architects

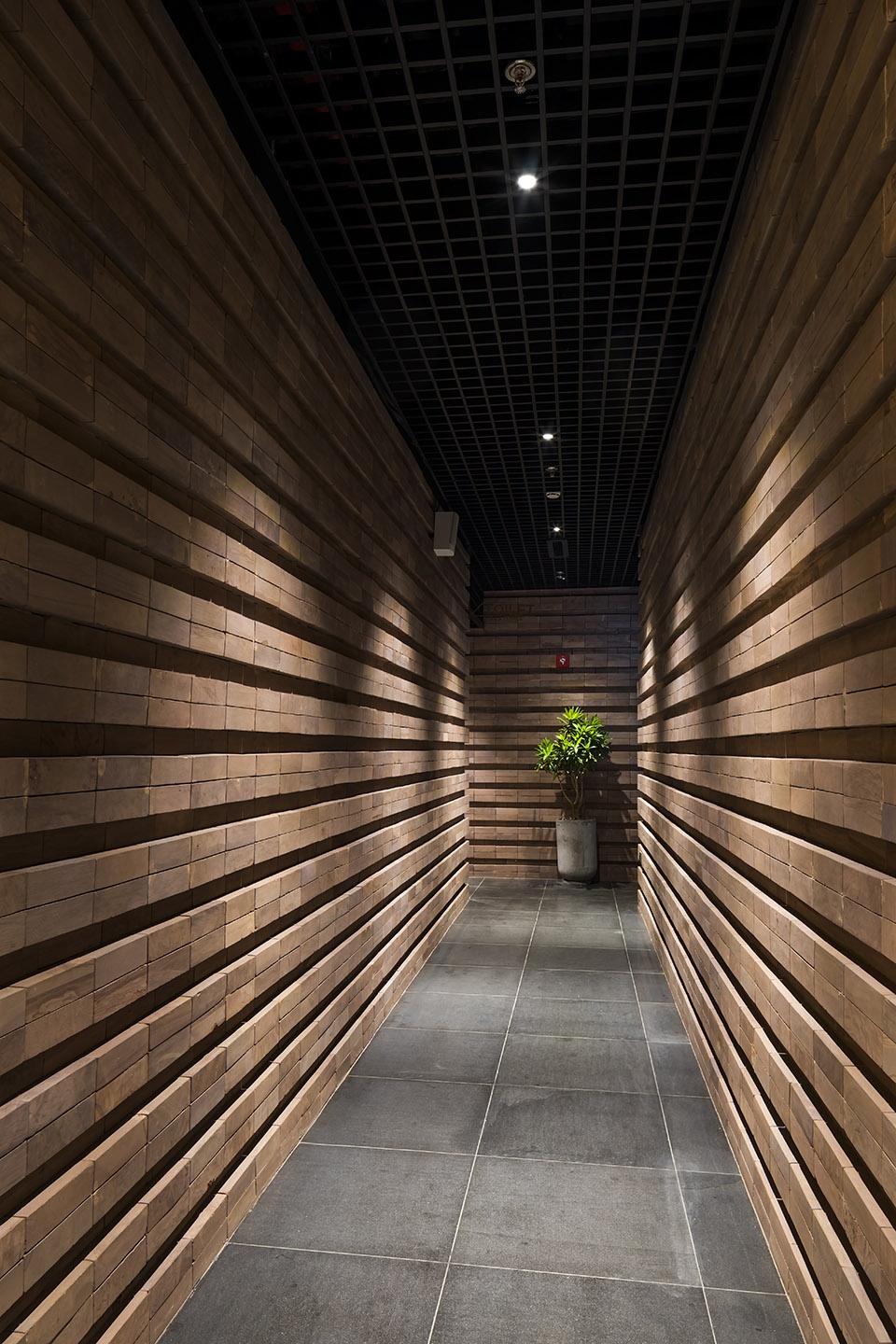

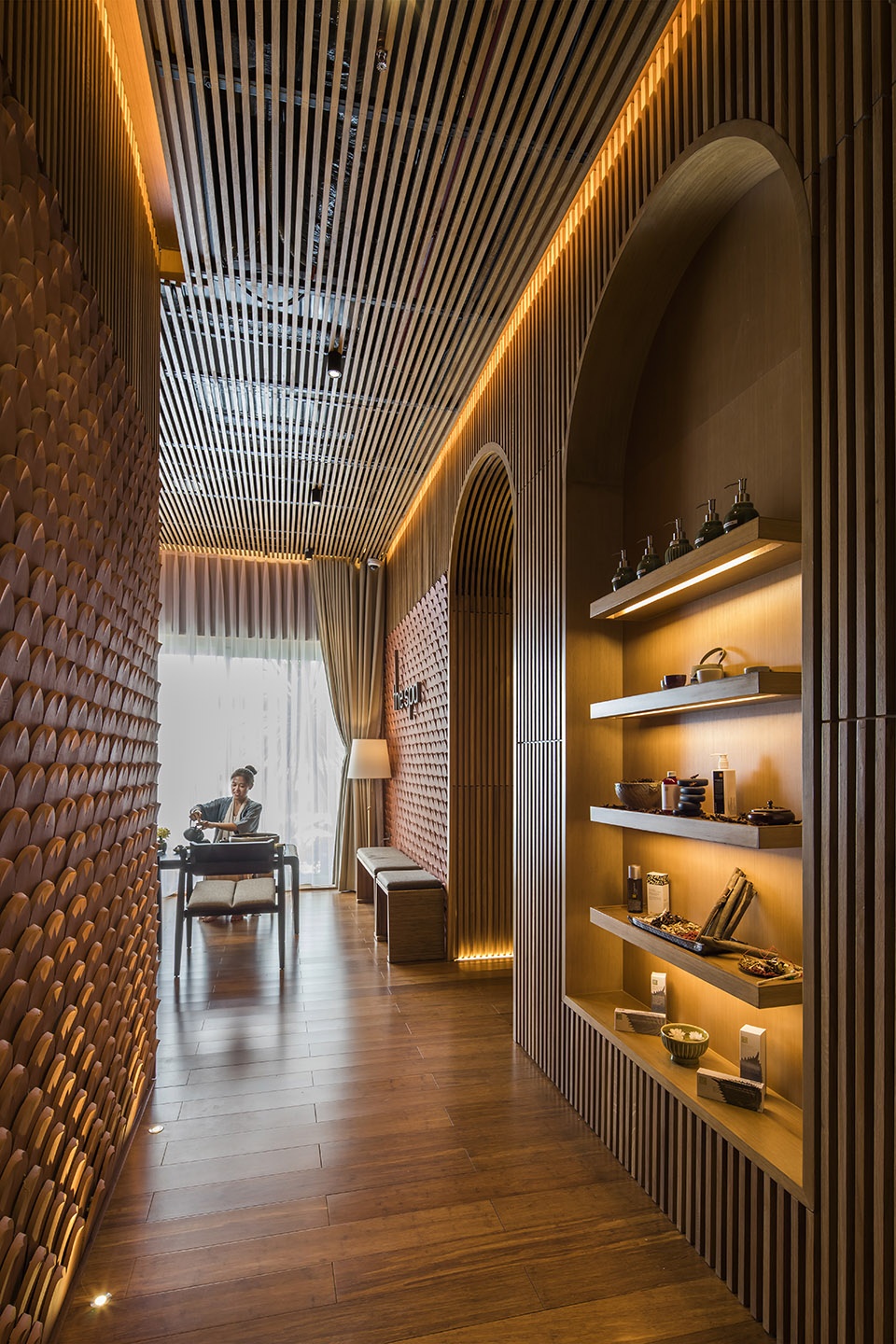

▼水疗中心走廊,corridor of the spa area ©VTN Architects

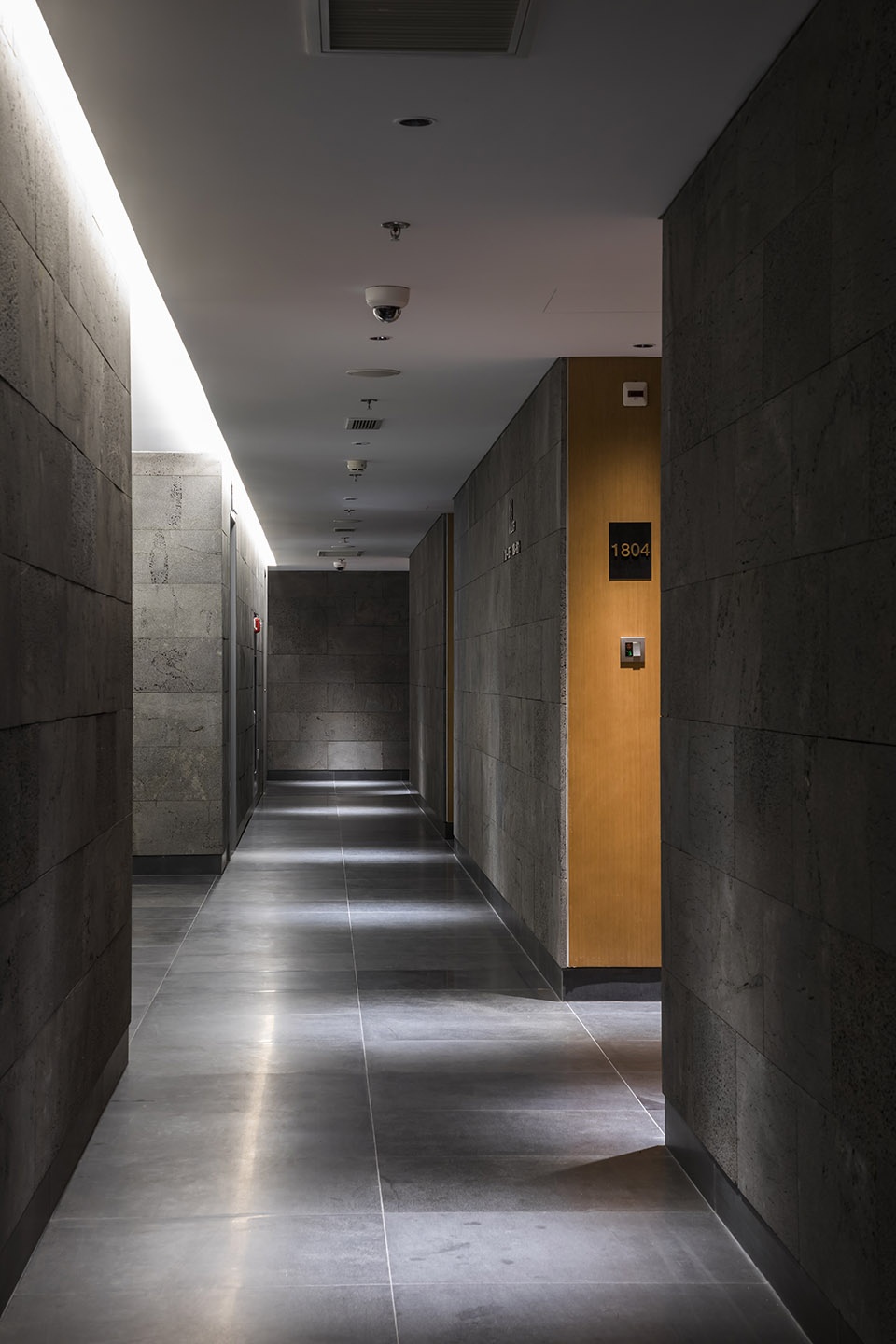

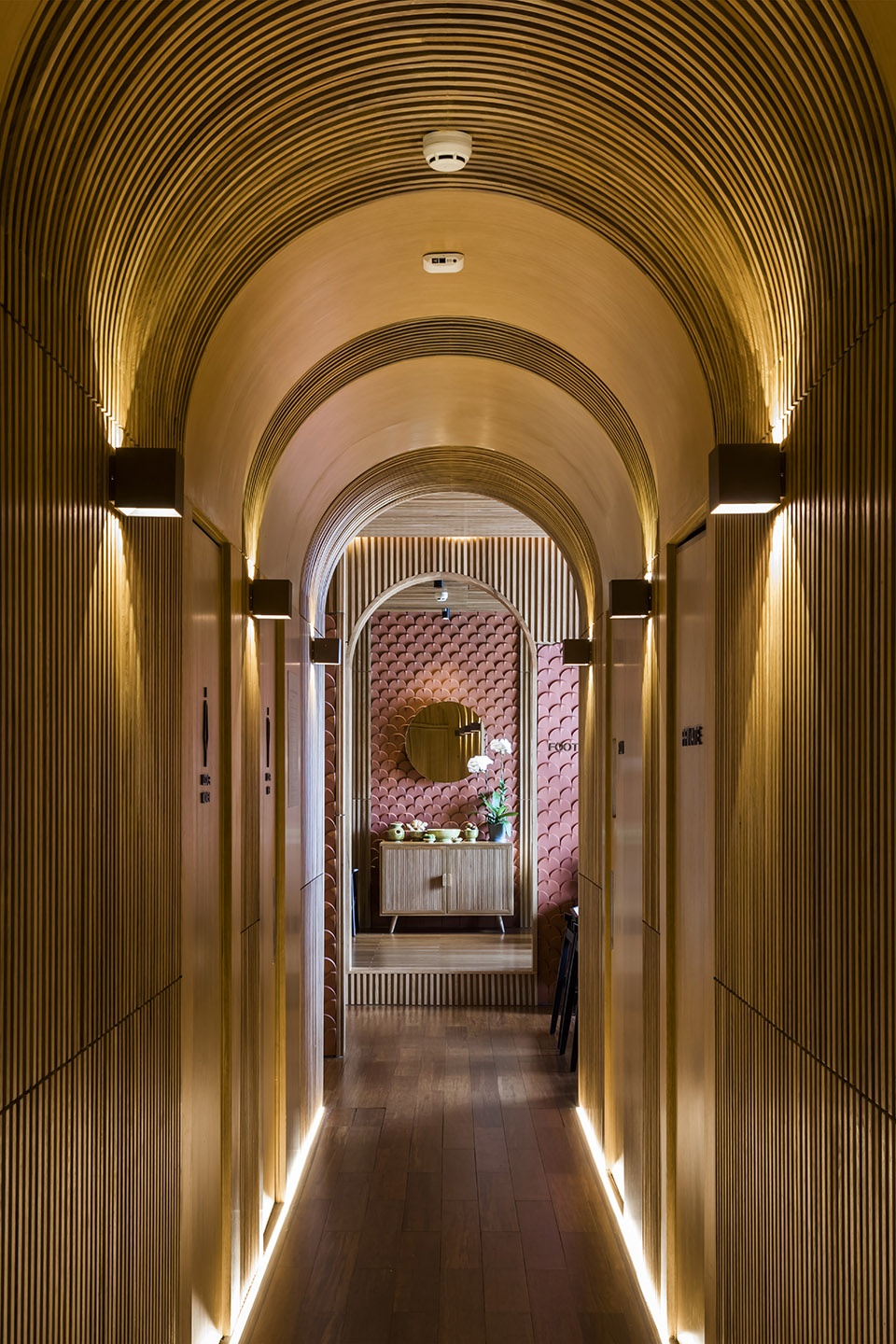

▼餐厅和客房走廊,corridors of the restaurant and the guest room area

Chicland酒店将成为城市中标志性的绿色建筑,同时为建筑设计带来新的思考角度。

Chicland Hotel will be an icon of green building for the city and bring a new angle of architecture design.

▼屋顶平台,roof terrace ©VTN Architects

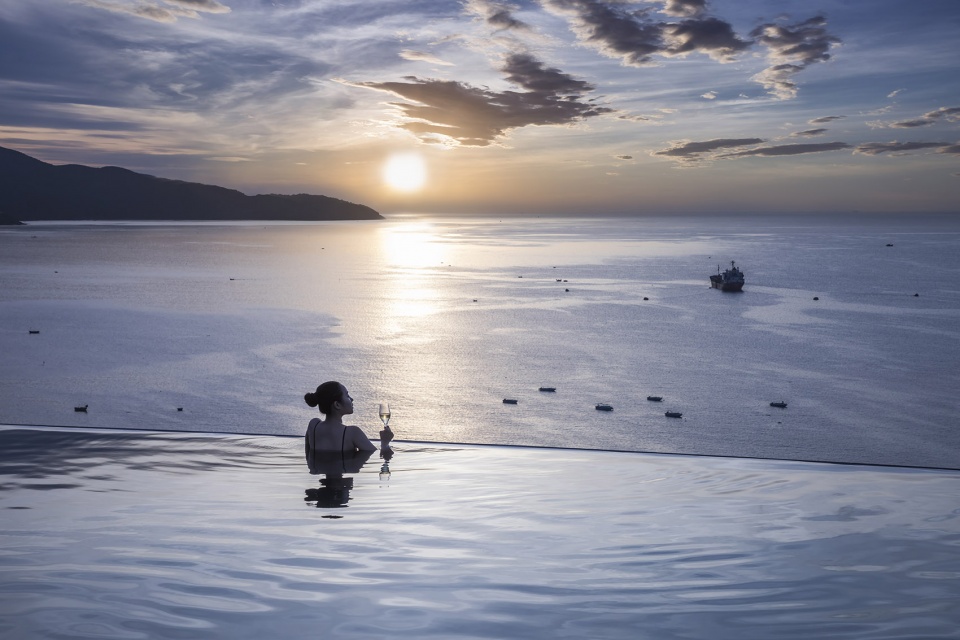

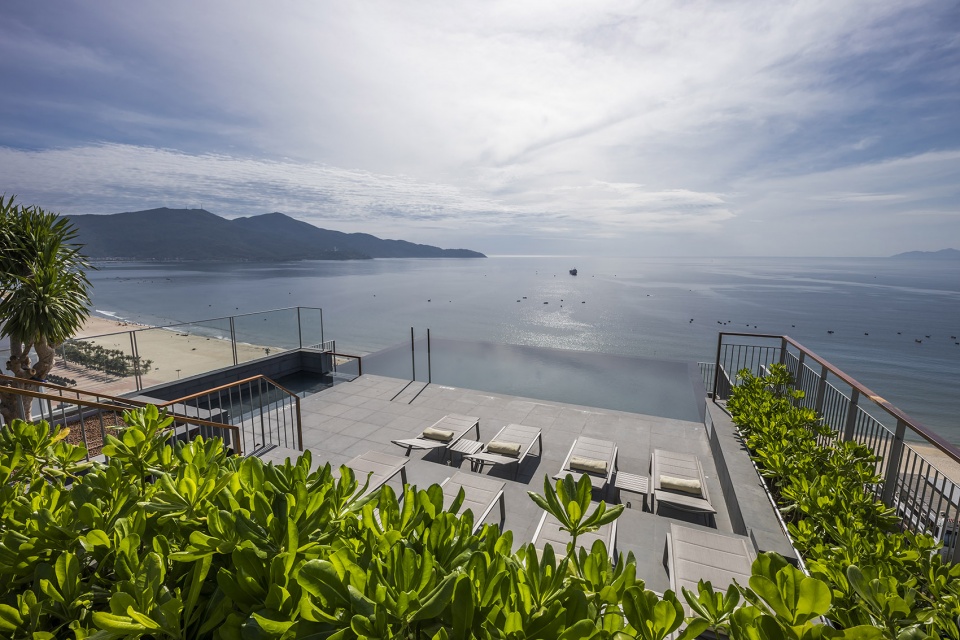

▼无边界泳池,the infinite pool ©VTN Architects

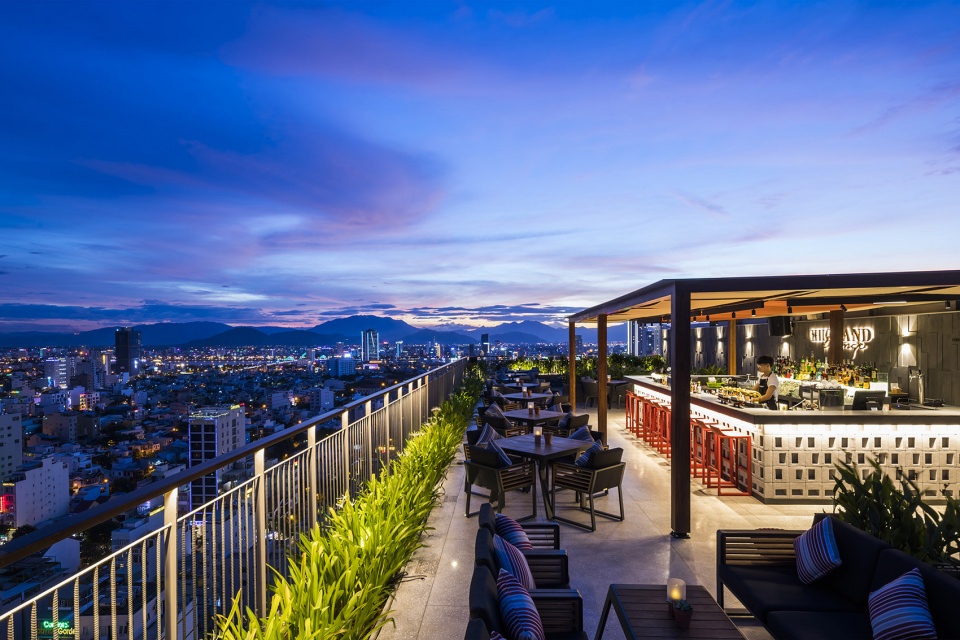

▼空中酒吧,the sky bar ©VTN Architects

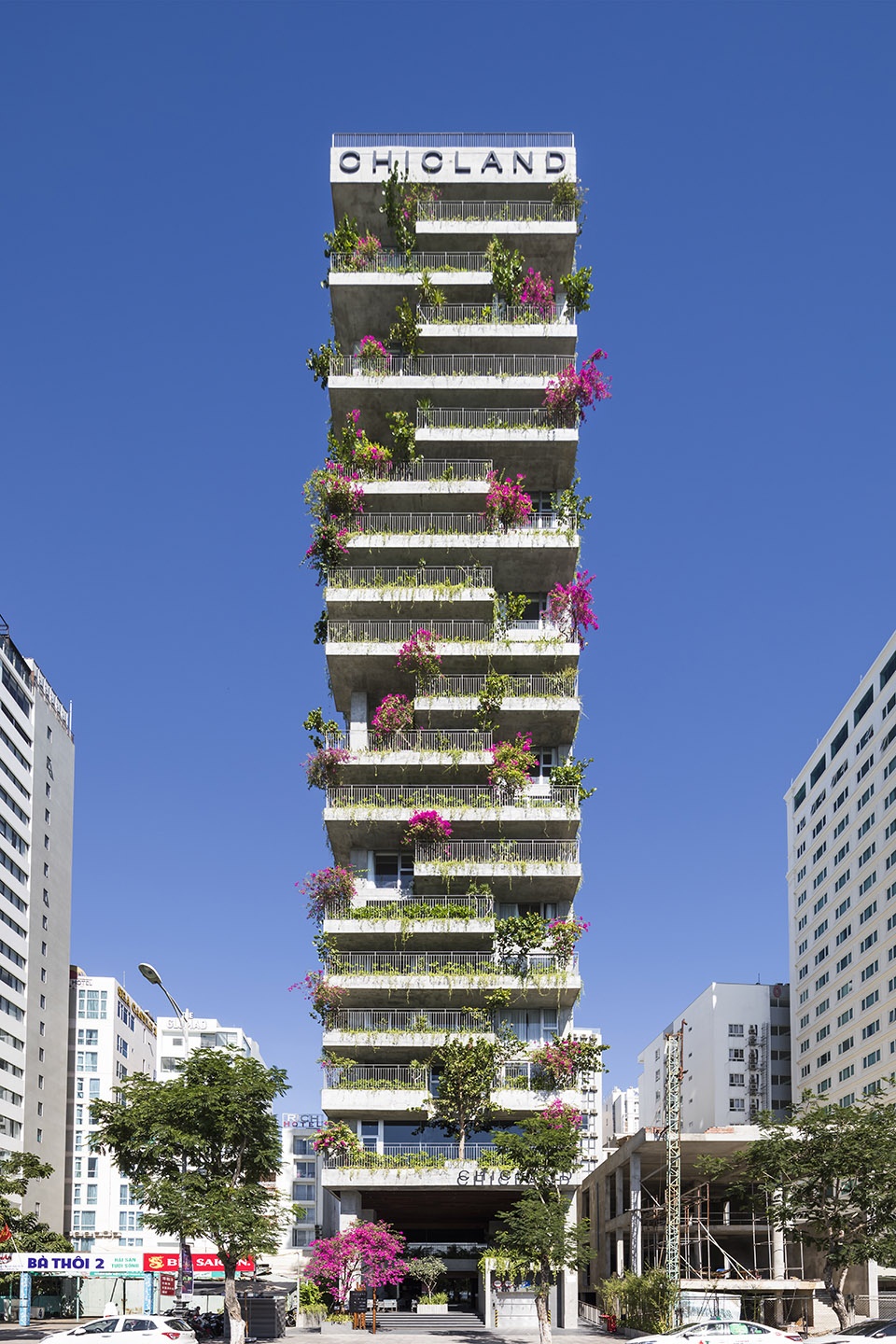

▼酒店立面,hotel facade ©VTN Architects

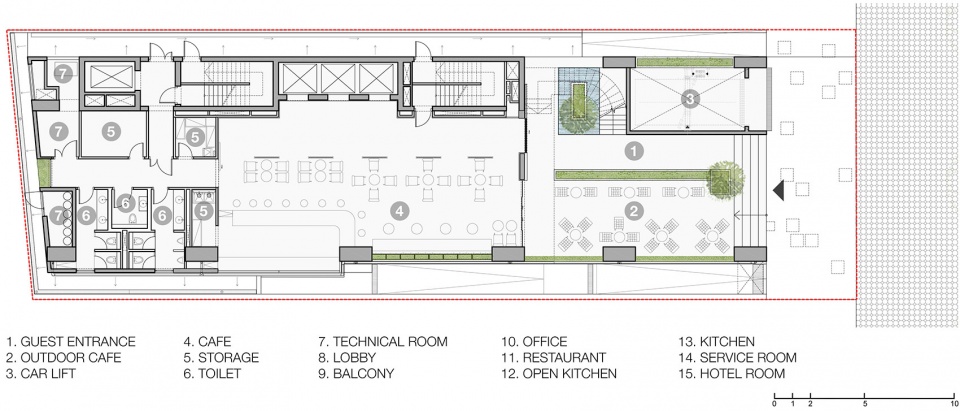

▼一层平面图,plan level 1 ©VTN Architects

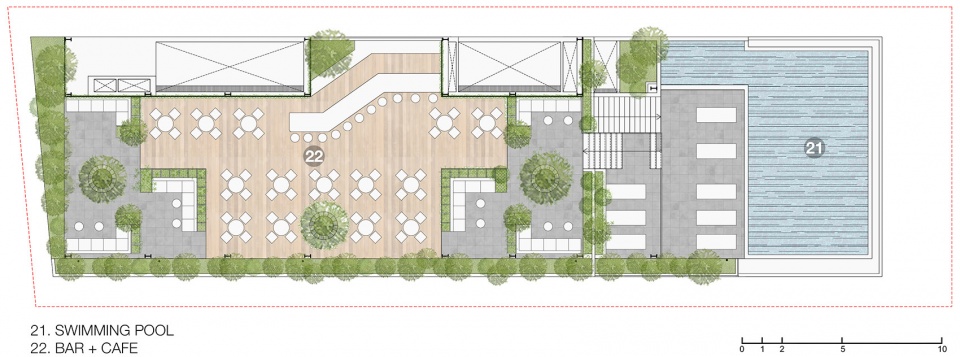

▼顶层平面图,roof plan ©VTN Architects

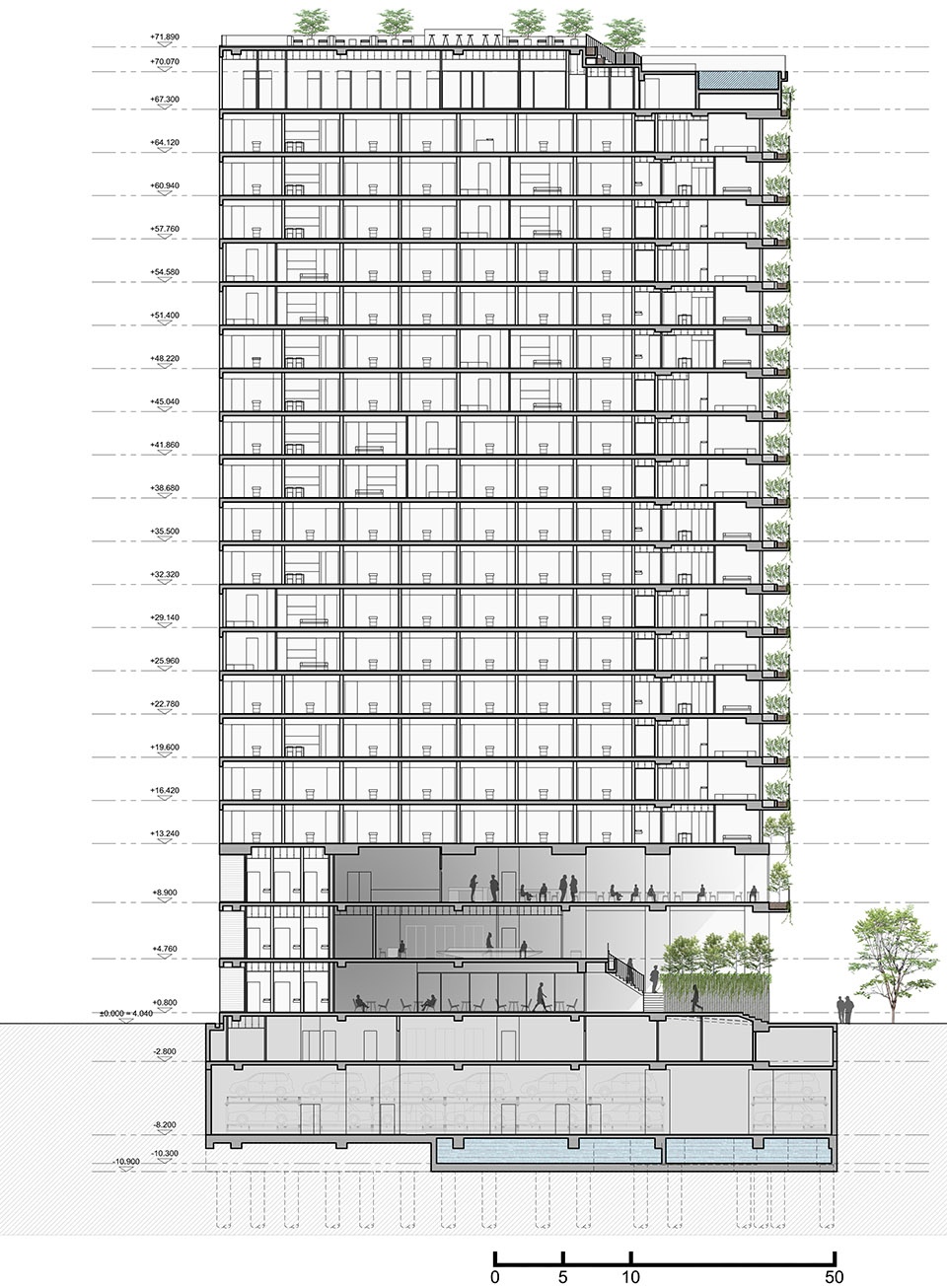

▼剖面图,section ©VTN Architects

Project Name: Chicland Hotel in Danang
Location: B4.1-06 Võ Nguyên Giáp, Phước Mỹ, Sơn Trà, Đà Nẵng, Việt Nam
Status: Finished (6/2019)
Site Area: 699 m2
Gross Floor Area: 10495.45 m2
Number of Rooms: 153 rooms
Building Height: 72 m
Client/Owner CHIC-LAND JSCo.
Architecture Firm: VTN Architects (Vo Trong Nghia Architects)
Principal Architect: Vo Trong Nghia,
Principal Interior: Vo Trong Nghia,
Design Teams: Concept Design: Mai Lan Chi, Takashi Niwa, Nguyen Van An
Basic Design : Ngo Thuy Duong, Nguyen Van An
Interior Design: Ngo Thuy Duong, Nguyen Van An, Takashi Niwa, Koji Yamamoto
Details and Supervision : Ngo Thuy Duong, Nguyen Van An
Main Contractor: Hicon
Mechanical & Electrical Engineer: NDC Consulting JSCo.
Civil & Structural Engineer: SMT Viet Nam JSCo.
