拾捨·竹里馆,四川 / 云南杨永铨建筑设计事务所

一个关于竹的世界

项目标签

位置:
类型:

非常感谢 云南杨永铨建筑设计事务所 (联系邮箱:318644750@qq.com) 予gooood分享以下内容。更多请至:QAD on gooood
Appreciation towards QAD (contact: 318644750@qq.com) for providing the following description




Preface

我爱自然、质朴的材料,醉心于建筑设计。

“敬天惜物、师法自然”是我的设计理念,我相信:“一所房子就是一个世界”。

I love natural and rustic materials and am fond of architectural design, so To cherish things, learn from nature is my design concept. In my opinion, a house is a world.

▼视频,video ©王策




Address

宜宾是长江上游开发最早、历史最悠久的城市之一,古称“僰道”、“戎州”、“叙州”,素有“西南半壁古戎州”的美誉。

Yibin is one of the earliest and oldest cities on the upper reaches of the Yangtze River and was called “Bo , “Rongzhou” and “Xuzhou” , which is well-known as Southwest Half Wall Ancient Rong State.

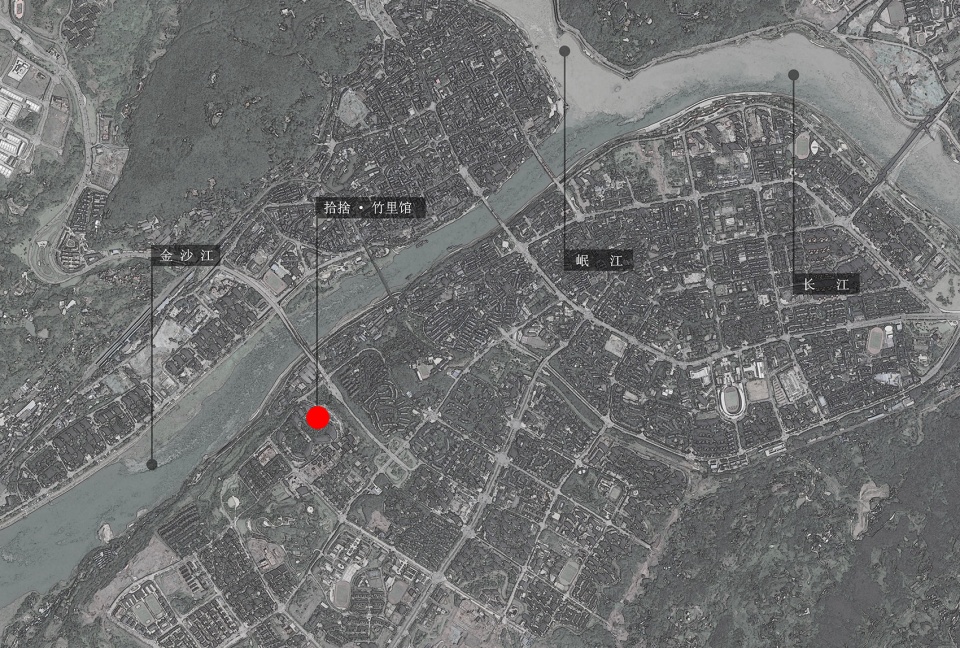

▼区位分析,location map

初到宜宾,看到漫山竹海、极目青翠,就只惦记着在这“古戎州”里,造一个“竹”的世界。可隐于竹海里,融竹之十德、煮一壶清茶,追“耳濡清风徐来意,目及竹浪起伏时”之意。

The first time I arrived at Yibin, I saw bamboo all over the hills and even more impressed by the magnificent verdant momentum of the bamboo forest in southern Sichuan, from which time, I always held the idea of building a world of bamboo in Southwest Half Wall Ancient Rong State, where I can make a pot of tea melting bamboo with ten virtues to hear the wind coming and see the bamboo waves rising and falling, which I believe must be so nice!

▼蜀南竹海 & 竹叶光影,the bamboo forest in southern Sichuan

▼竹叶光影,bamboo leaves filtering the sunlight




Seeking

有了以“竹”建筑的想法后,我寻遍宜宾,没能寻得把竹材作为材料应用主体的空间。再放眼国内竹类建筑、室内空间,以及竹材加工生产企业。这个过程中,我收集了很多国内外关于竹材设计、加工、应用的资料,学习到不少关于竹的知识。但我也发现,大部分与竹相关的设计,多是浅显于“竹”的传统用法,少见大面积运用到室内的做法,也不见以“竹”为主题的设计诠释。

with the idea of building with bamboo, I look all over Yibin, but I didn’t find the space in which bamboo is used as a material, which made me very happy . After that, I spent much time looking for bamboo buildings , interior space and bamboo processing and production enterprises. During that period, I collected a lot of information about the design, processing and application of bamboo at home and abroad and also learned much knowledge about bamboo.

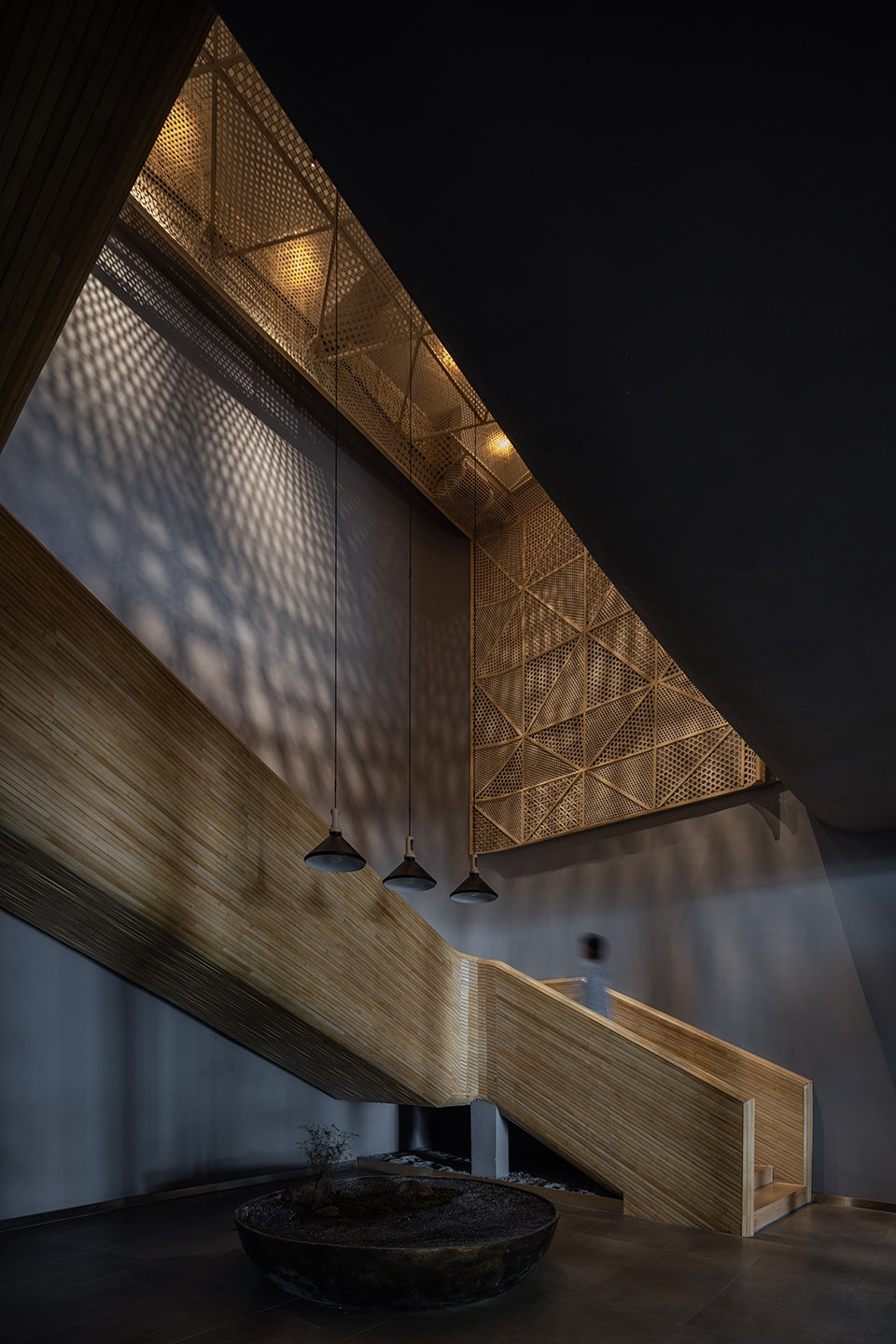

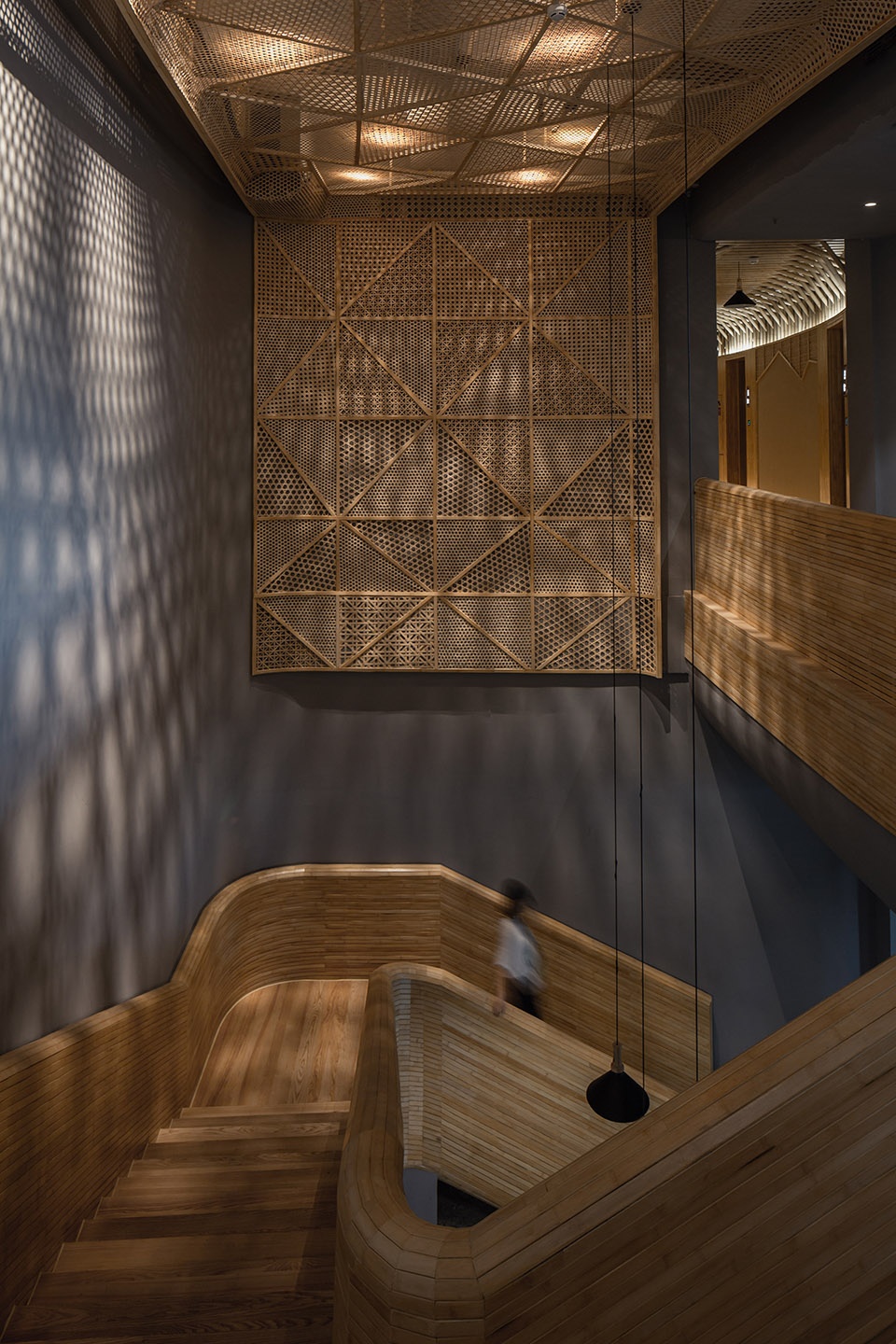

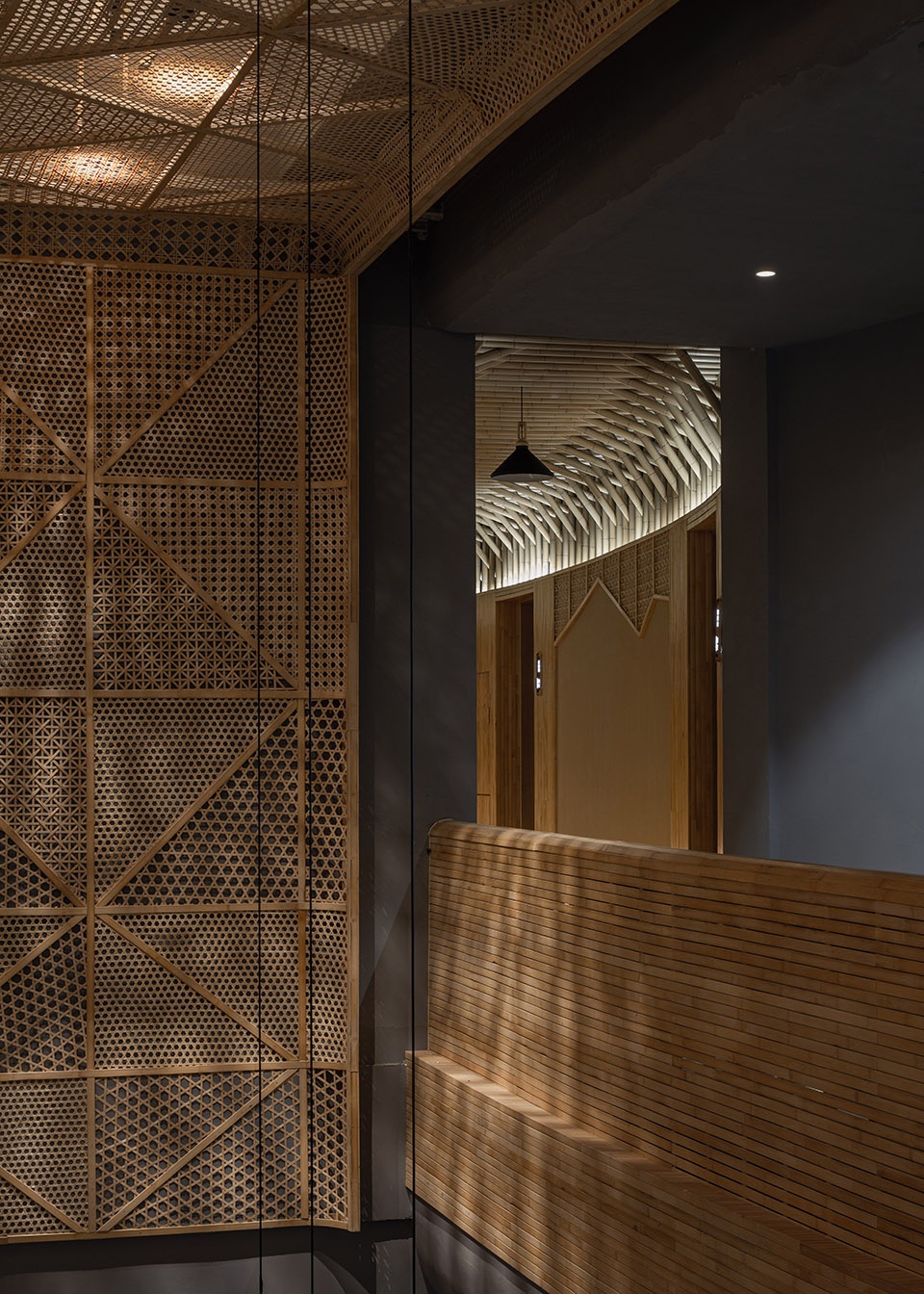

▼入户楼梯,entry staircase

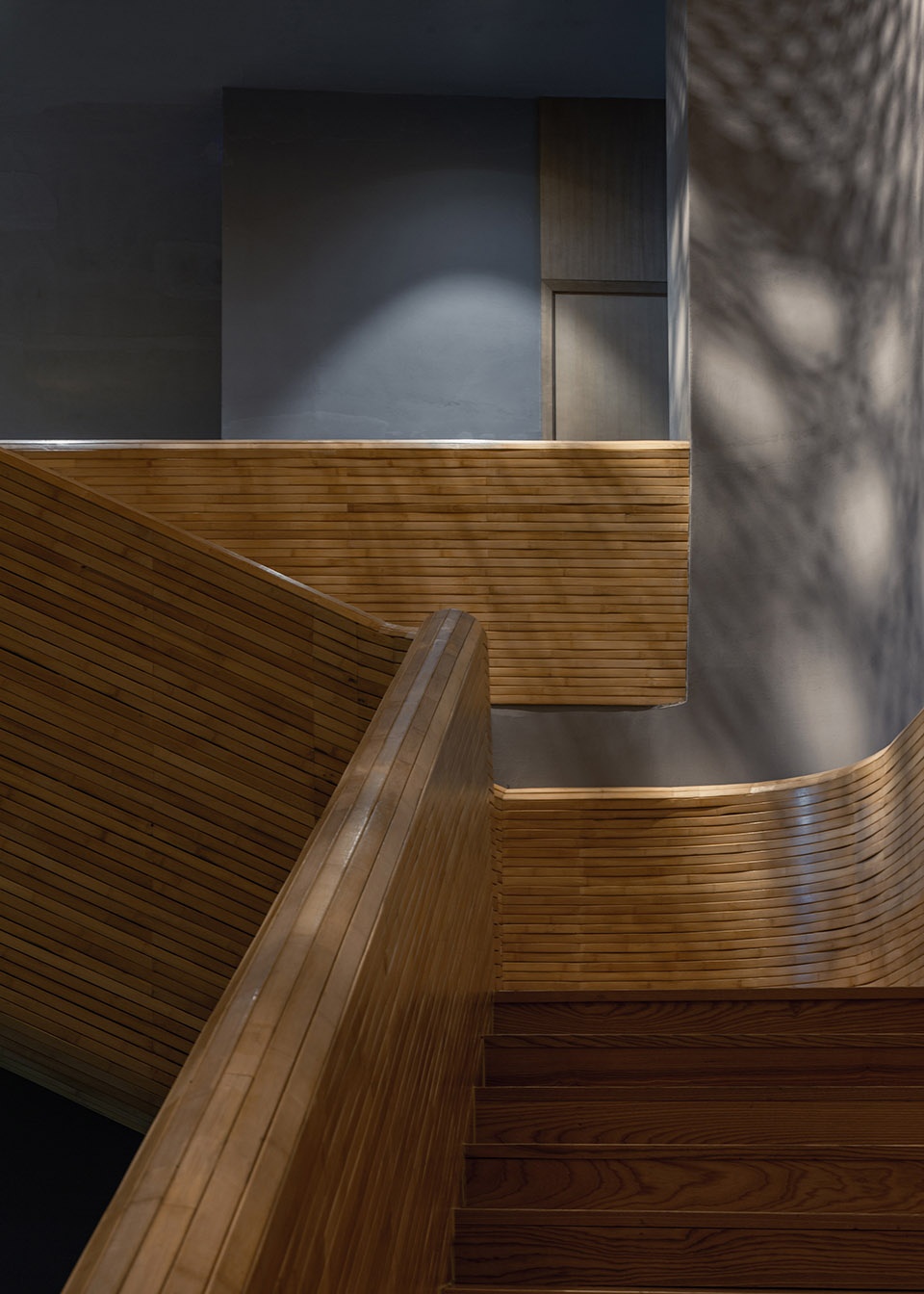

▼楼梯细节,detailed view




Source

拾捨·竹里馆的“源”就是竹。自然、质朴、环保,尽量不去破坏自然,尊崇自然——这是我的一贯坚持。我喜欢自然的材料,也想穷竹之本源,一念一舍一世界。

“Source” is the root of all things. Similarly, the root of No.10 Bamboo Lodge is bamboo,which is the beginning. My design philosophy is natural, rustic, environmentally friendly, so I will try not to destroy nature but to respect nature, which ‘s why I like natural materials. I still hold the belief of One thought, one space, one world.

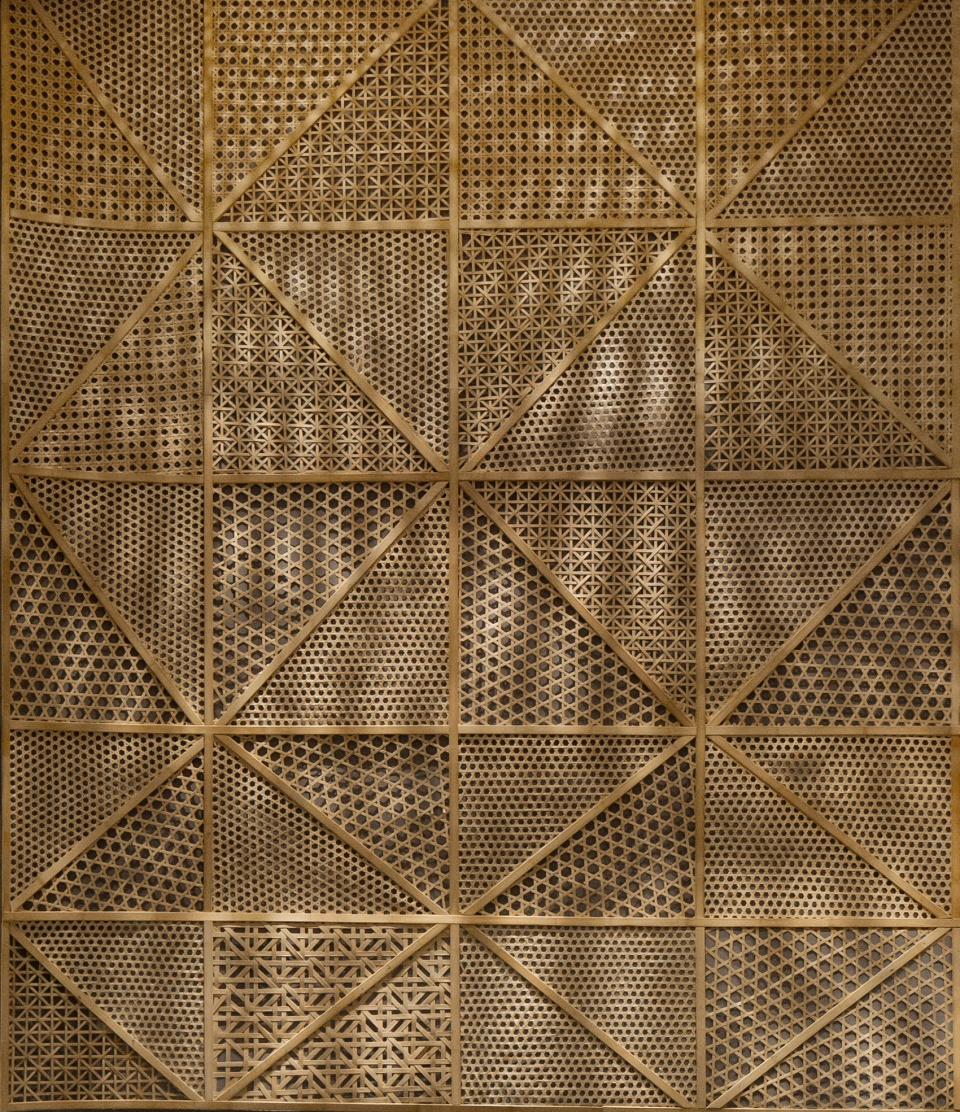

▼竹编,bamboo weaving

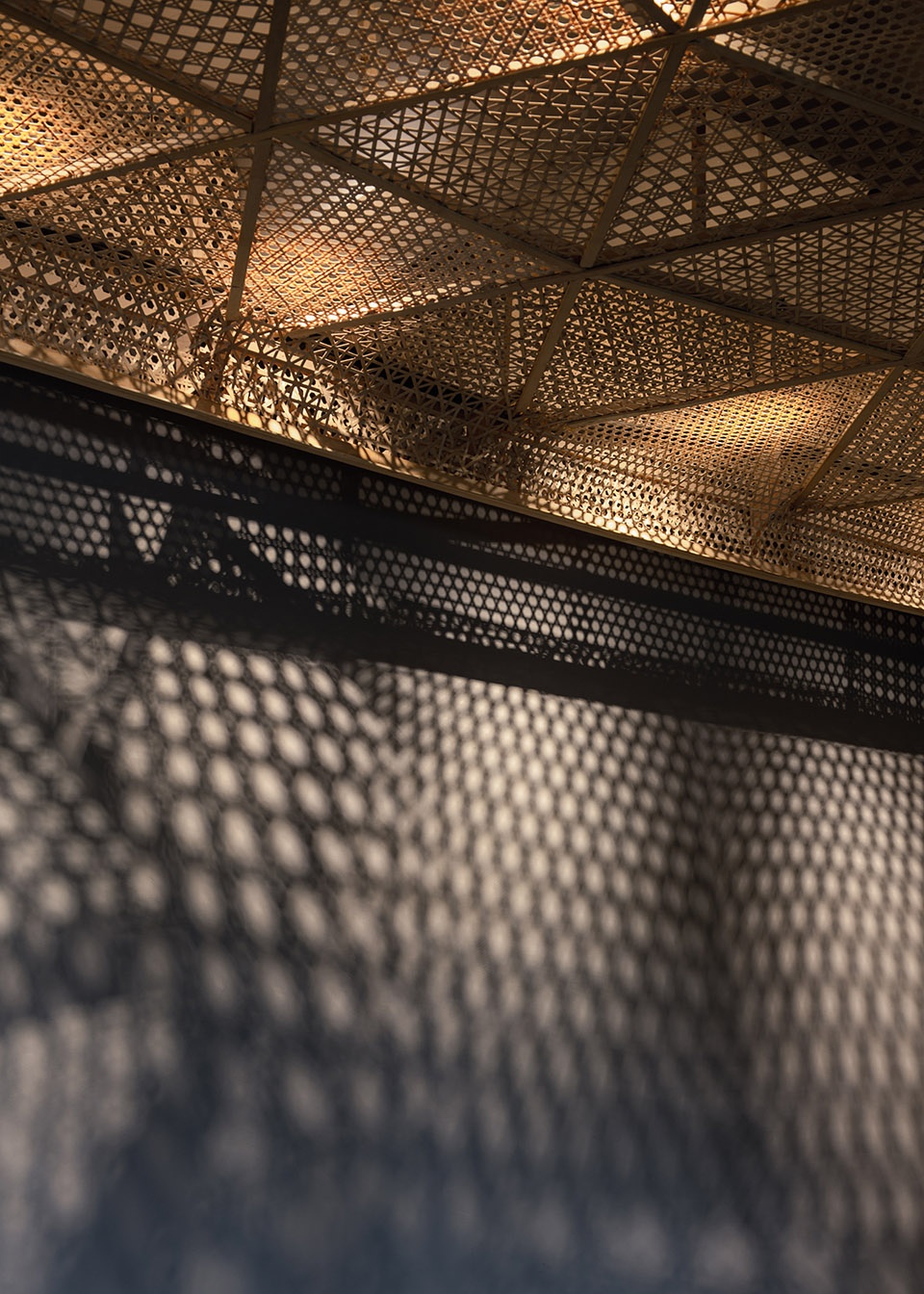

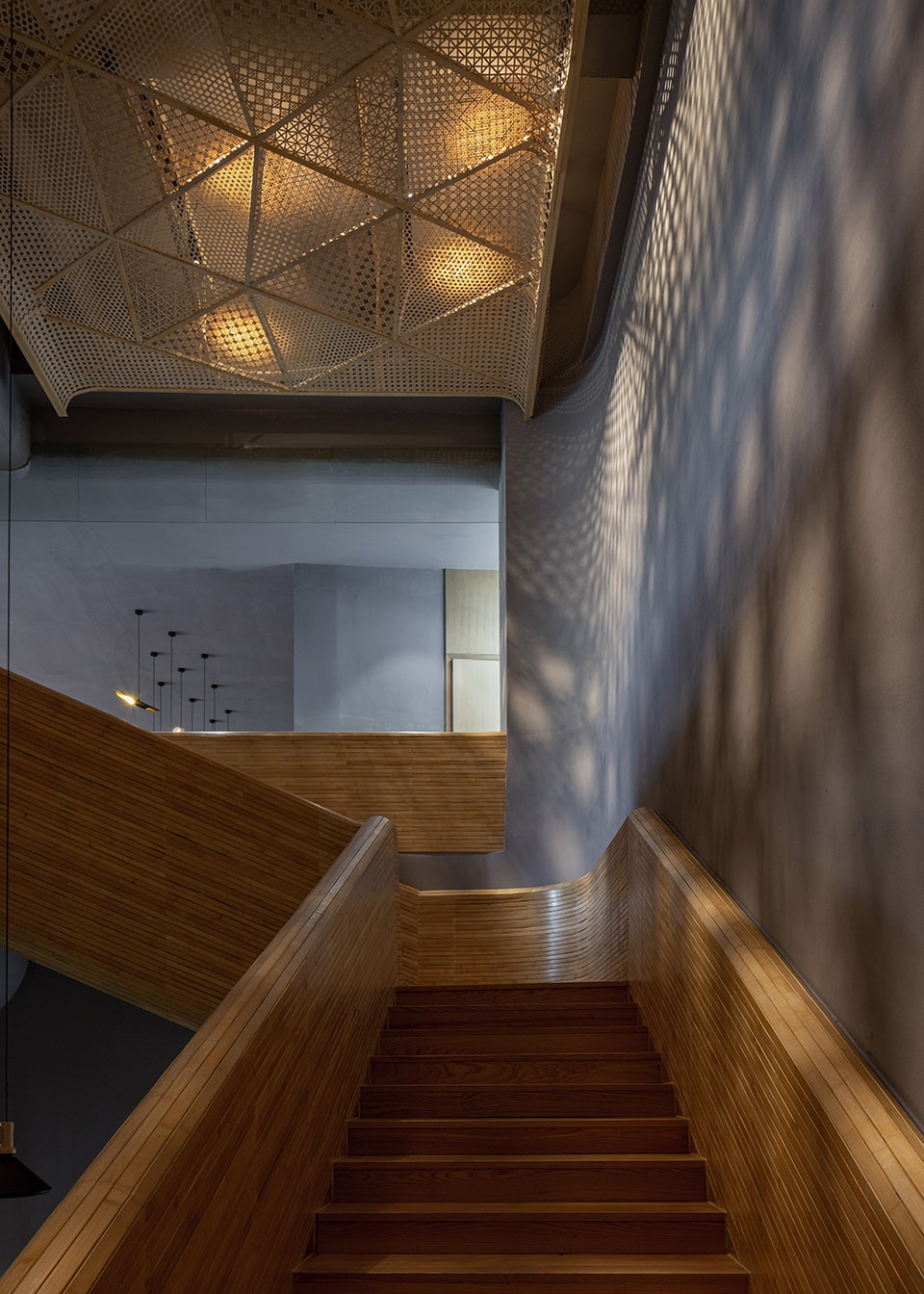

▼楼梯光影,light and shadows at the staircase




Thought

我想造一个关于竹的世界。

应该怎么样去表达和建造这个世界?这样的世界能够给客人带来什么样的体验?这个世界是否有足够的人文温度?这个竹之世界有什么能够吸引客人的特点?客人能体验和感受什么、走的时候能带走什么?

把美好的想法实实在在地落地,所需要的是一系列专业思考,以及设计者与被设计对象的身份交换。

I want to to create a world about bamboo, but how should I express and build the world? What kind of experience can such a world bring to the guests? Does every guest feel as warm as they do when they come home? Why the guests choose to come to this bamboo world? What can they experience and feel when being here? and what do they take with them when they leave? With all the above questions, I began to think of the solutions.

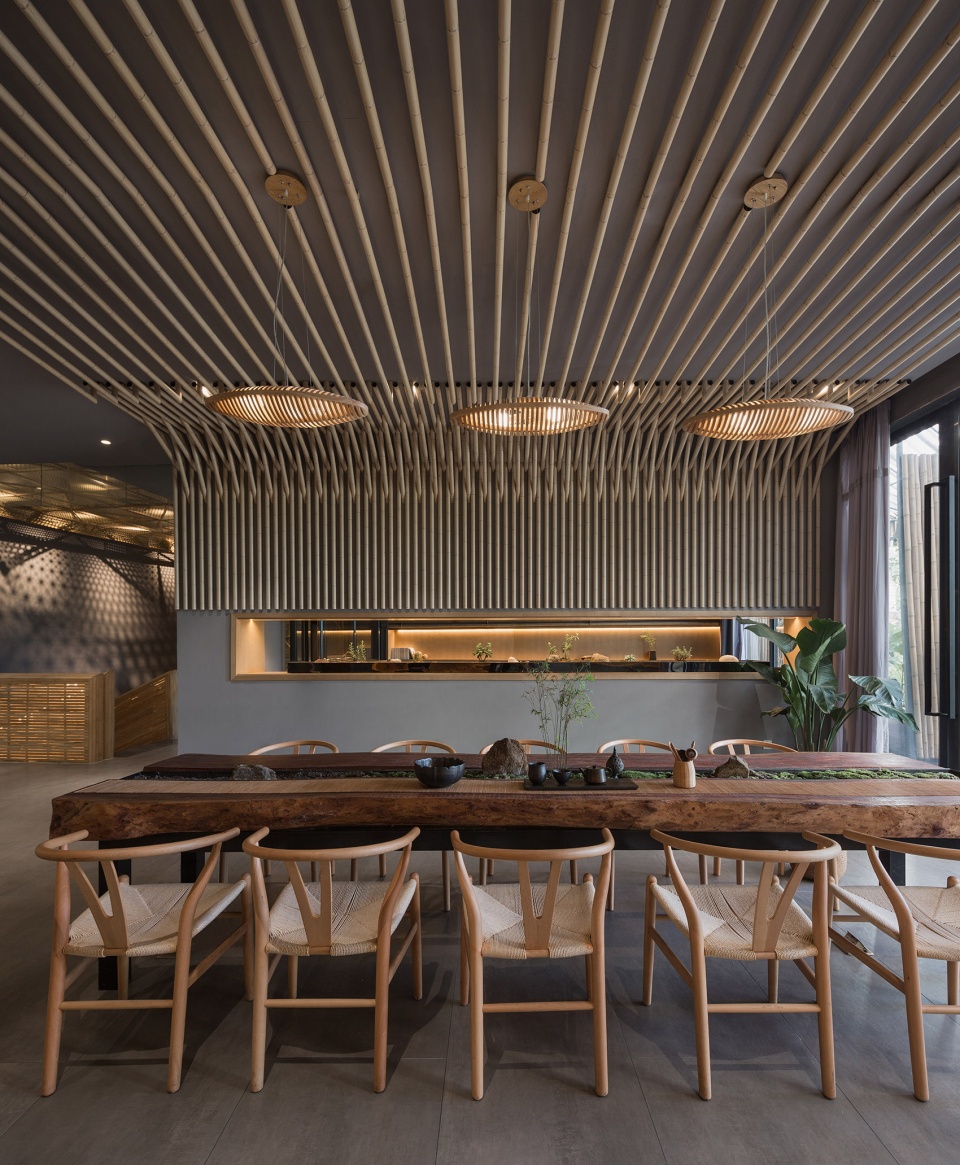

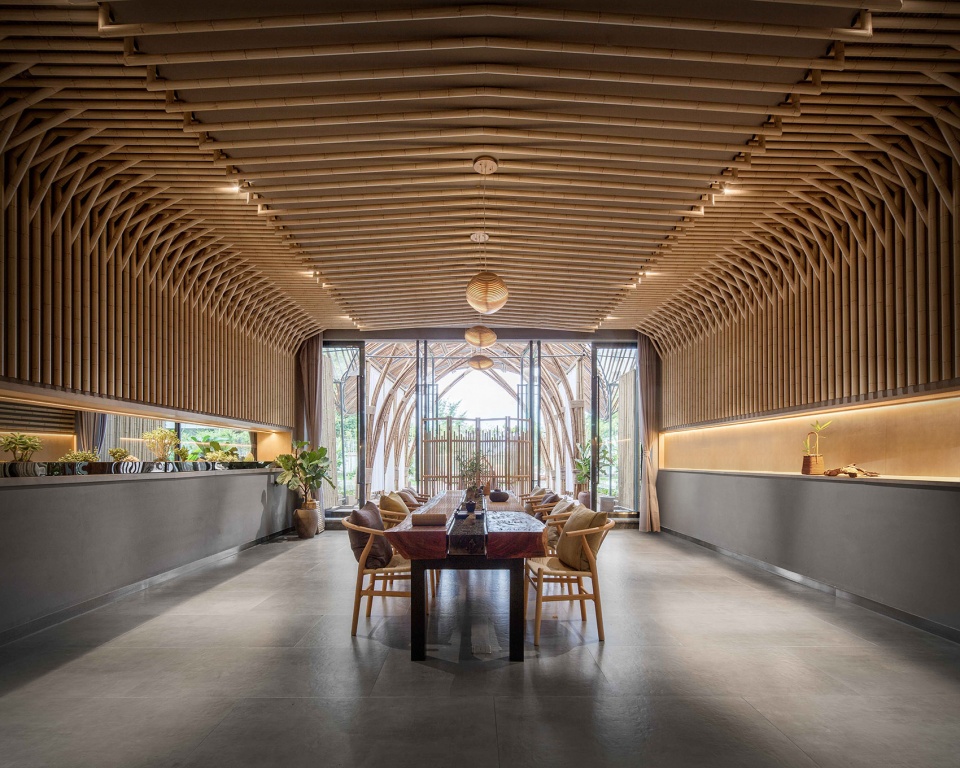

▼接待大厅,reception

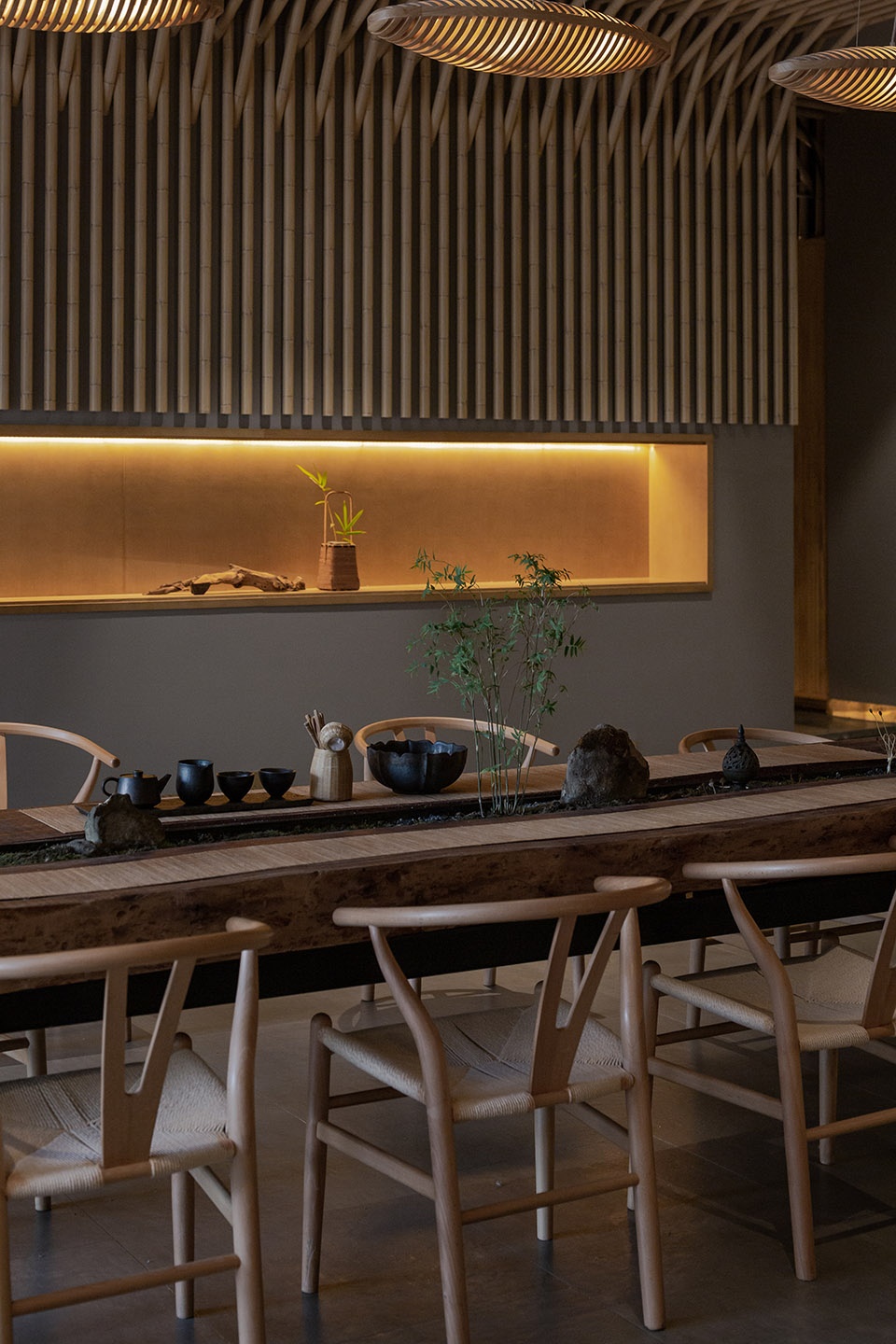

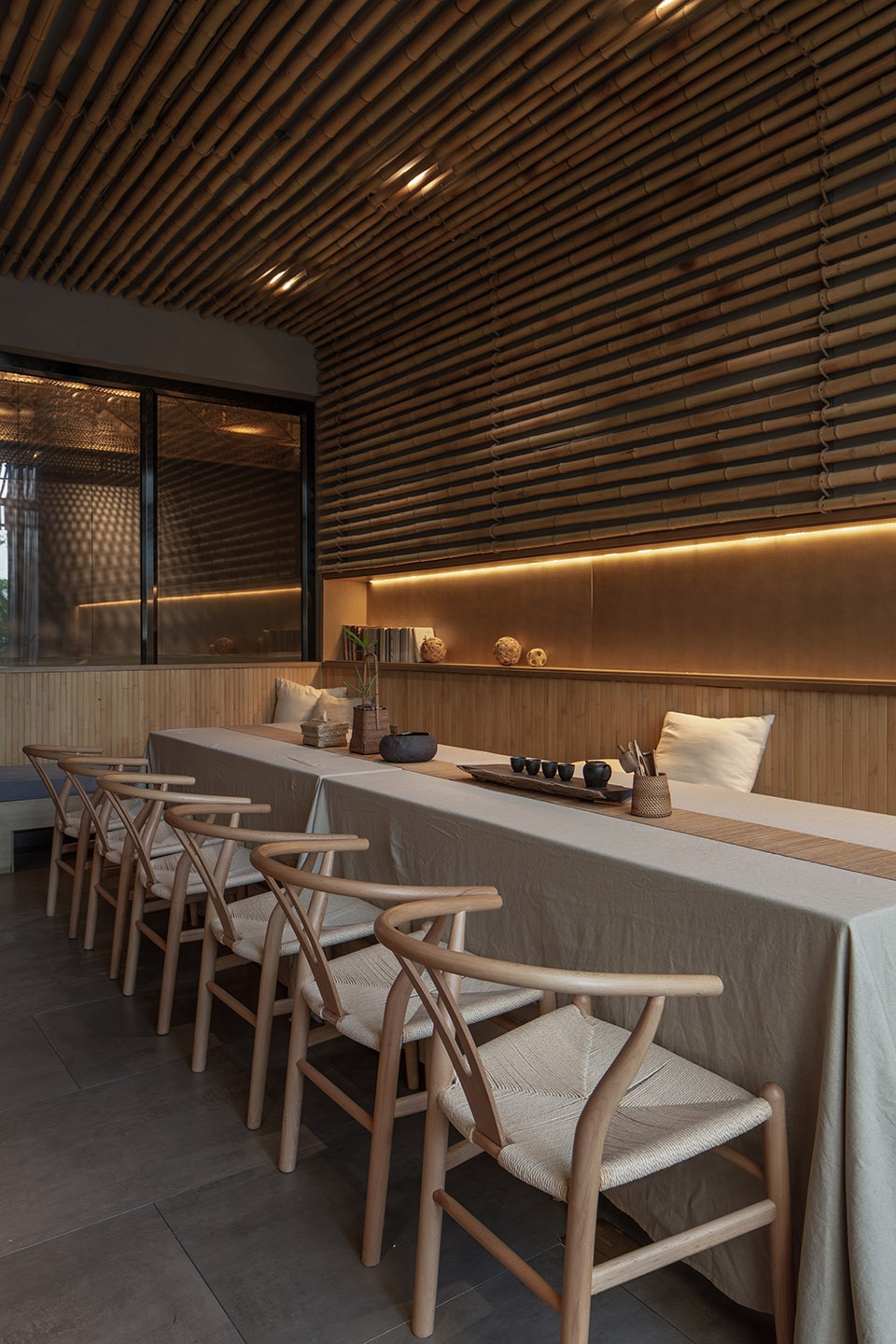

▼接待大厅座位,reception seating area

▼大厅休息区,lounge

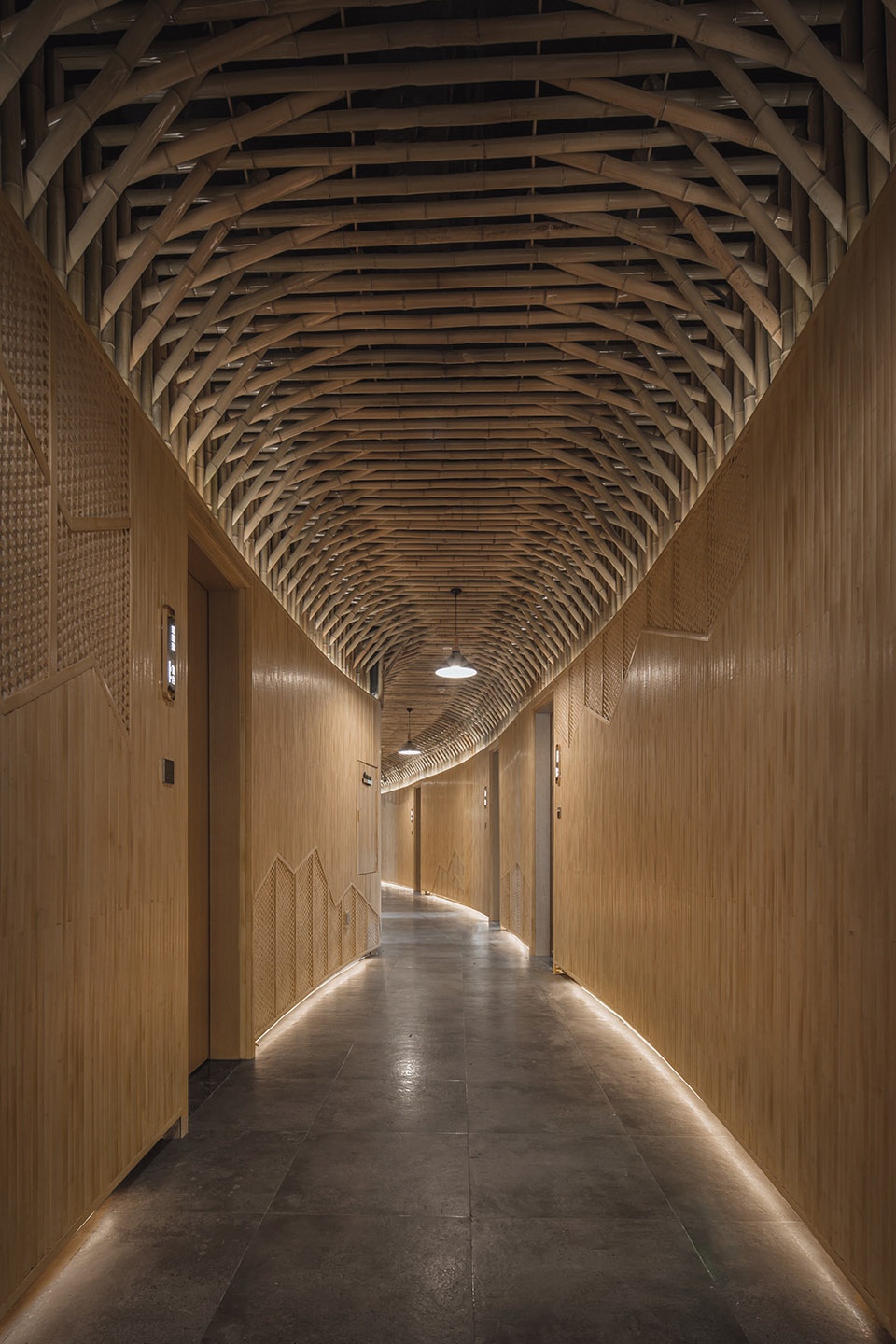

▼过道,corridor




Realization

从专业角度来说,很多酒店、民宿都大同小异,只在解决墙、地、顶六个面的装饰,这些店只能“泯然众人”,是没有个性的流水线产品。我要从这样的思考模式中解放出来,着眼解决空间问题,而不是钻装饰问题的牛角尖。

“我想建造一种‘表皮’,来表达空间的概念。而大脑意识下的‘装饰’,为了将每个空间的具体部位,比如地面、墙面、吊顶区分开,往往都会惯性地选择相应的材料,总是想把每个部位处理得干净利落,来彰显这是思考下出来的结果,然而这样的装饰是为了掩盖那个已经“死去”的内核,反而显得很僵硬,不自然。我想把自己从这样的产物中解放出来,重新构筑一种表皮,就像人或动物、植物一样,都拥有自己的表皮,反而自然、开放和柔软一些。”(隈延吾《我所在的地方》)

我将竹材加工成片状、条状和板状,加工后的竹材都经过高温蒸煮、石灰水浸泡,以达到防虫、防腐和防霉的效果,之后,再结合阻燃处理。加工过程中,为追求环保,尽量避免油漆。

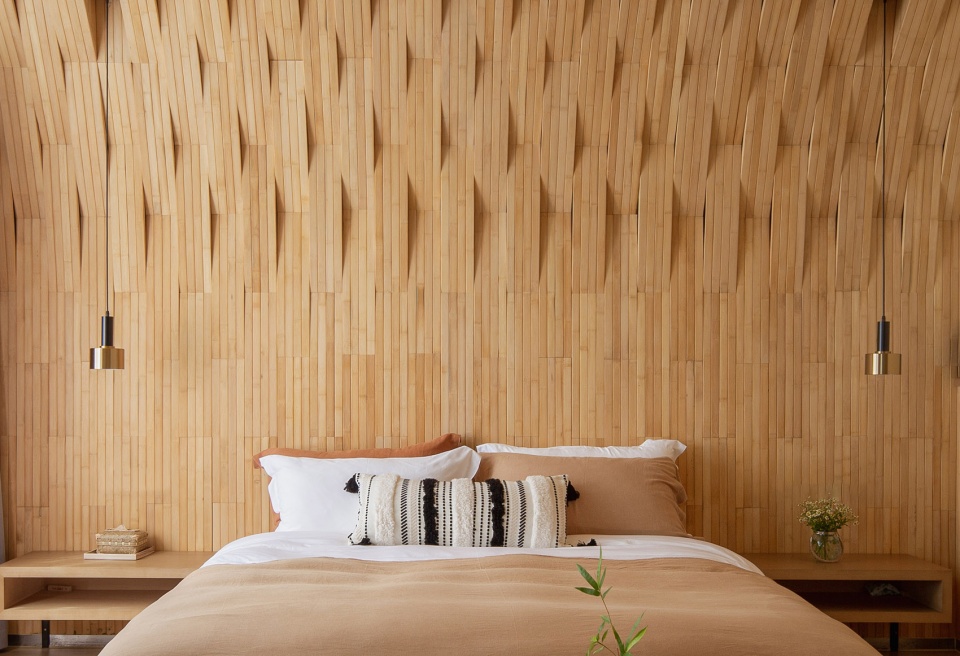

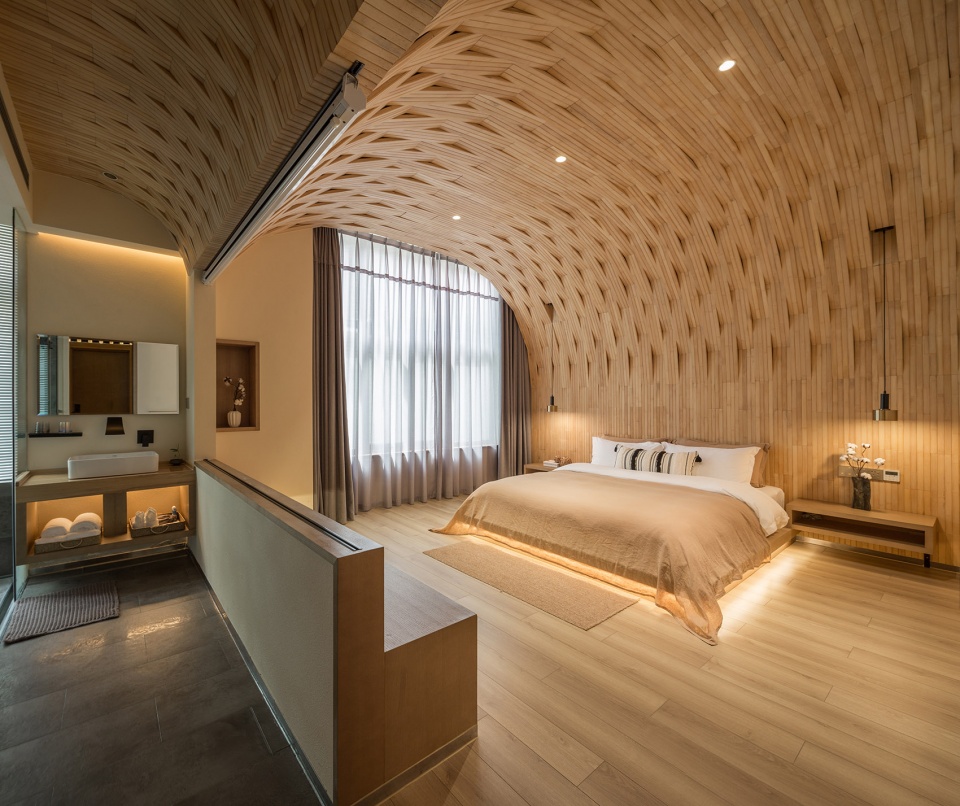

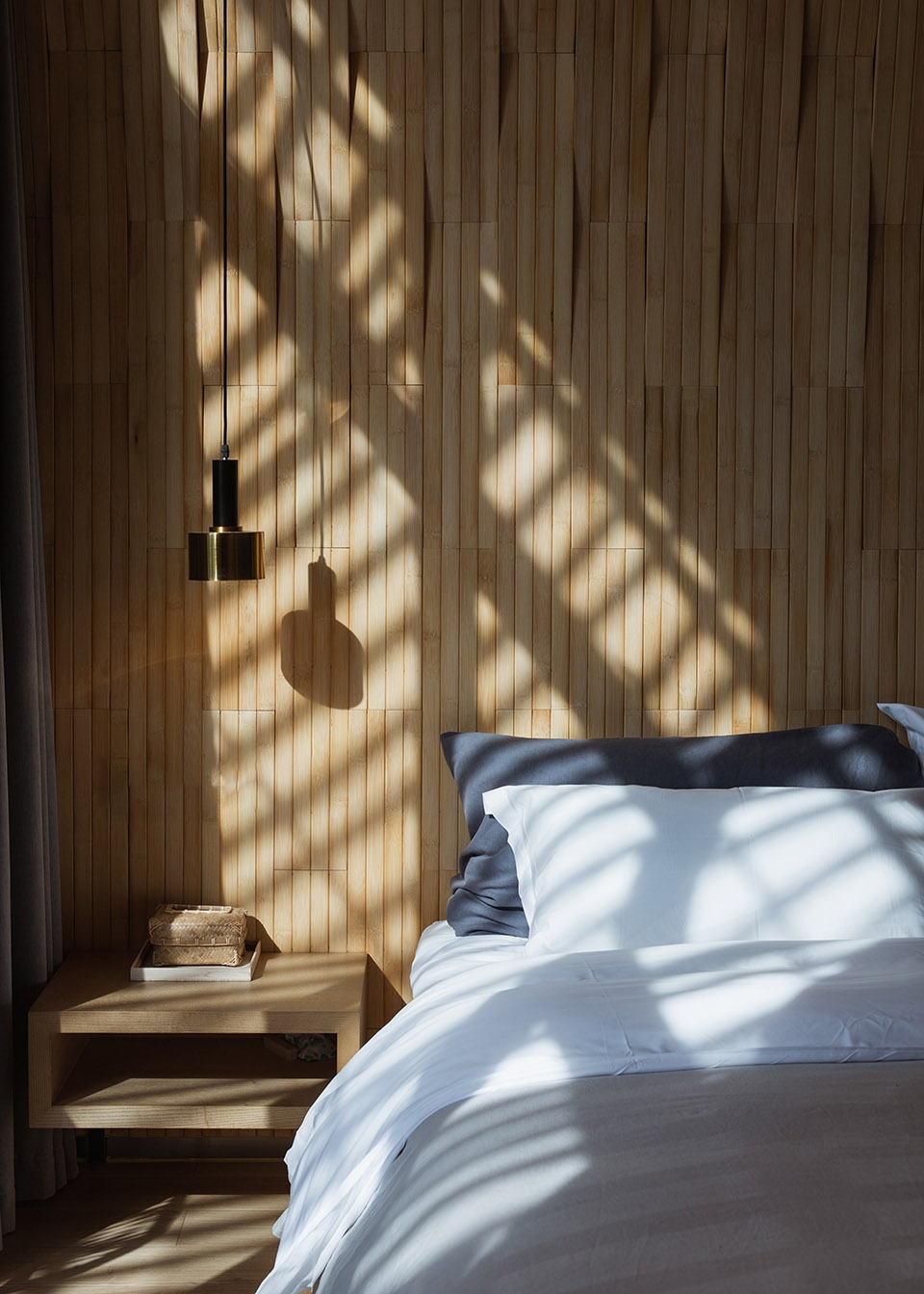

▼客房概览,guest room interior view

Many hotels and B&B are similar in design, which are all dealing with the decoration of walls, floors and roofs, so they are the same everywhere and of course, there are not very obvious characteristics to distinguish . I need to be free from this kind of decoration to solve the problem of space, not decoration.

“I want to build a” skin “to express the concept of space, but the decoration connected with the brain consciousness is to differ the specific parts of each space, such as floors, walls and  ceilings and often the corresponding material inertia will be chosen with the purpose of making every part clean and tidy to show that this is the result of thinking. However, this type of decoration is to cover up the “dead” core, which, on the contrary,  makes it rigid and unnatural. Therefore, I want to free myself from this and rebuild a skin, just as the one people or animals or plants, which I think is natural, open and soft.

I process bamboo into sheets, strips and plates, after that , the bamboo is cooked at high temperature and soaked in lime water, then, it should be dried in the shade naturally to achieve the effect of insect prevention, antiseptic and mildew proof. Besides, considering the flame retardant treatment, I will try not to use paint to achieve the effect of environmental protection.

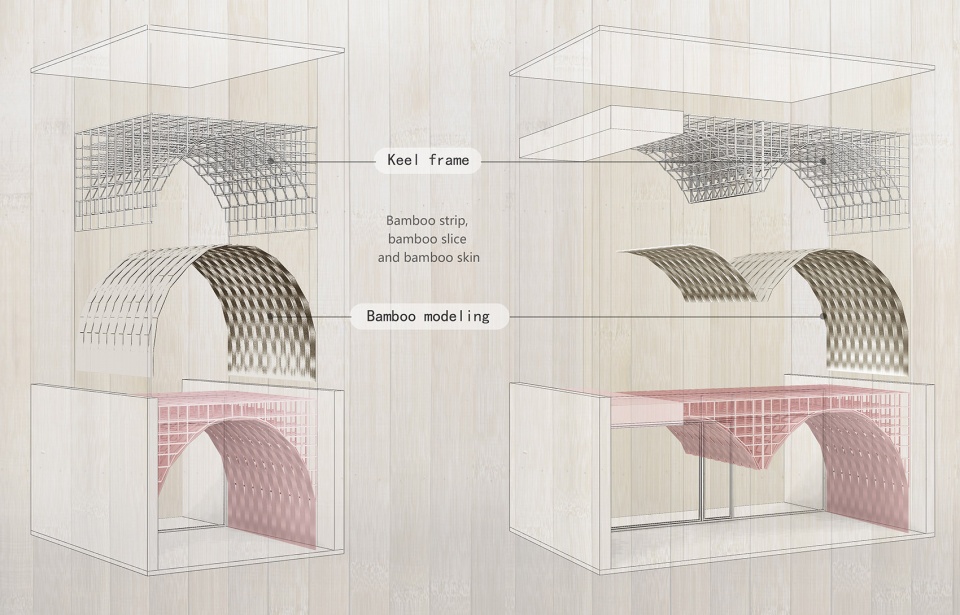

▼房间分析图,guest room diagrams ©QAD

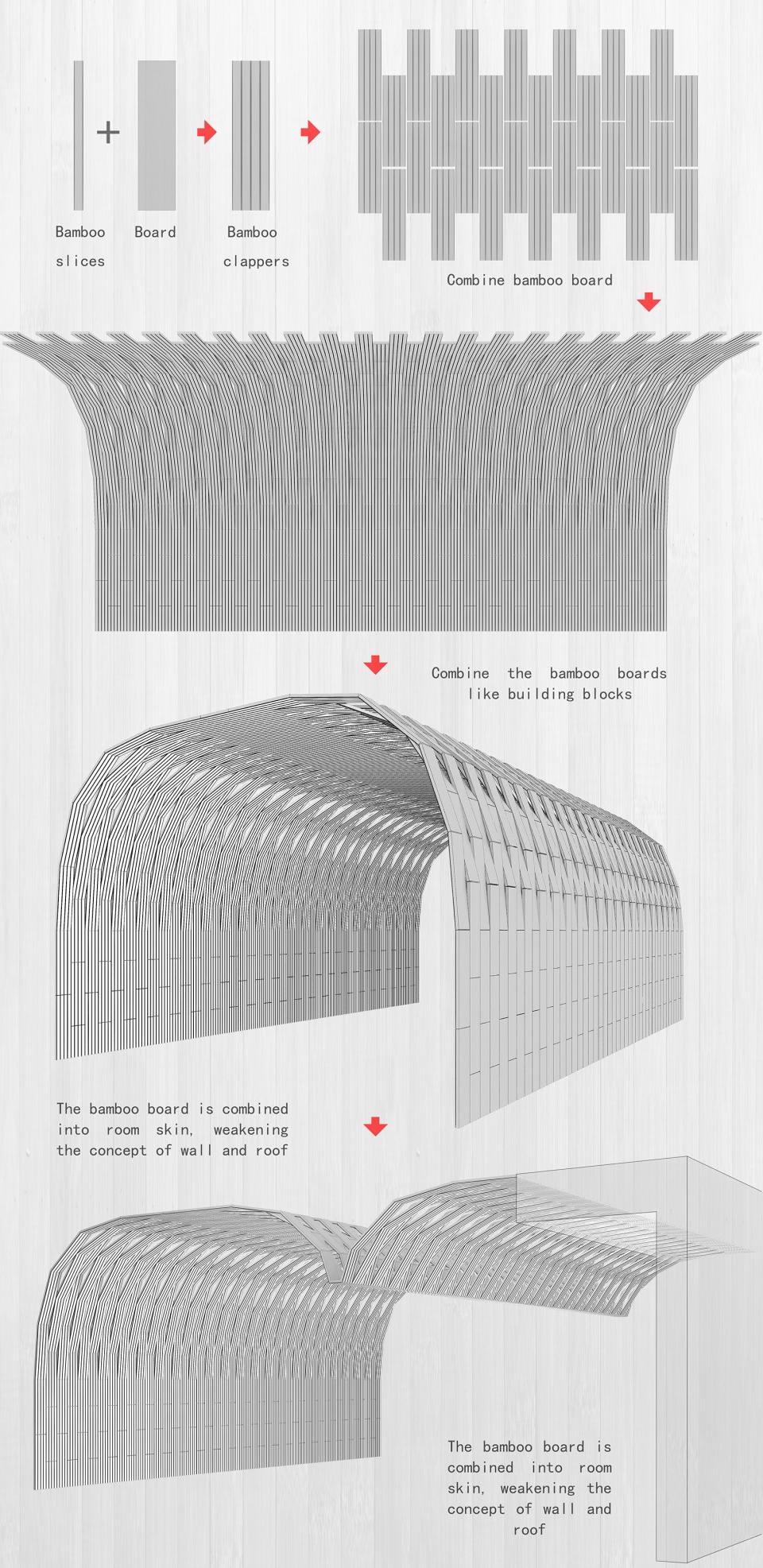

▼竹皮肤构成,bamboo skins ©QAD

我尝试仅通过竹材不同的肌理质感来表达空间。客房内部以竹条、竹片、竹皮三种不同的材料肌理,搭建成拱形的竹编,形成每个空间独一无二的表皮。过道顶面以原竹构筑,追求一种时空的“错乱”——是漫步在竹海、还是停留在“拾捨”?大厅楼梯间以竹编造型,灯光将光影投射在墙上,像是竹海里被打碎的阳光。

整个设计更像是一个竹材的产品设计。建筑设计过程中找到了一种新的竹材运用方式。希望能够通过这样的思考与呼唤,为竹子这一自然、环保、再生能力强的材料,找到一个焕发新生的机会。

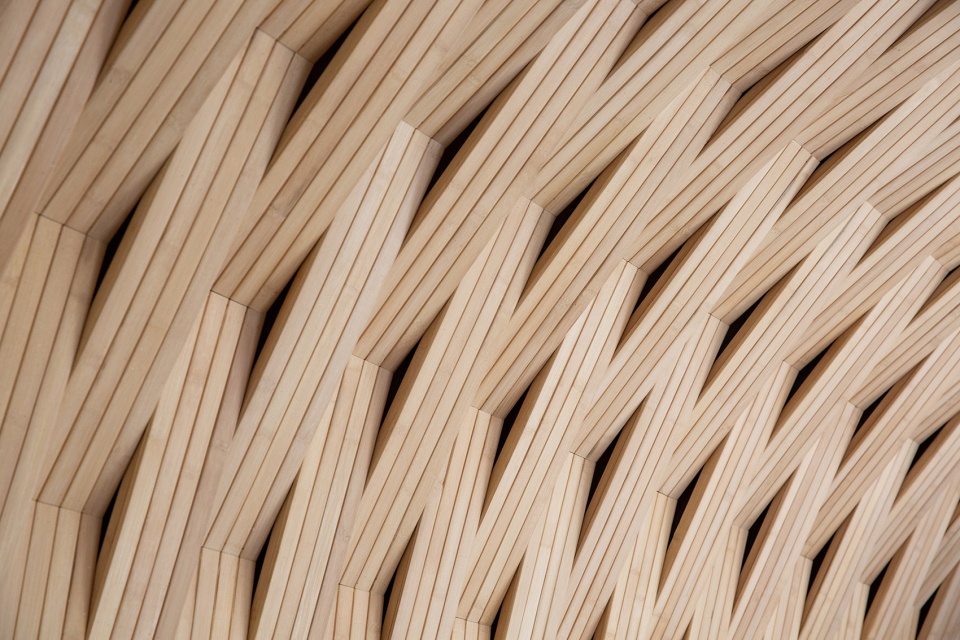

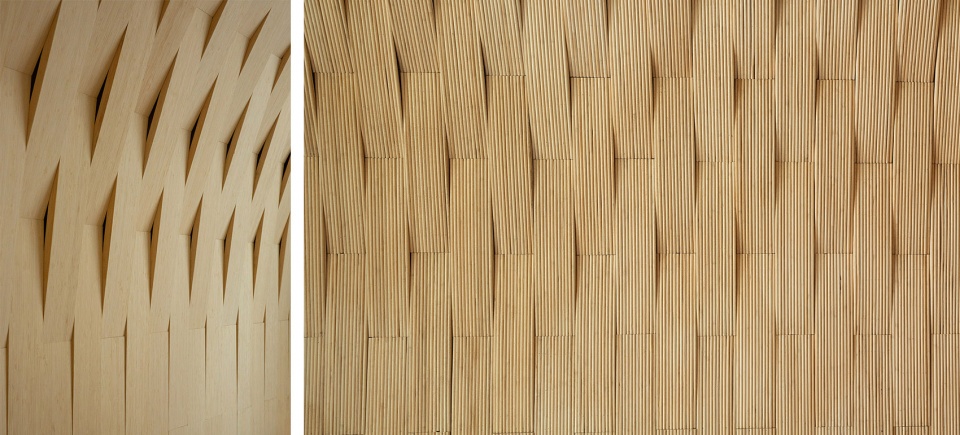

▼竹皮肤细部,texture of bamboo skins ©QAD

I plan to express space only through the different texture of bamboo. The interior of the room is made of bamboo strips, and bamboo skins, like building blocks, bamboo weaving is arched ,forming the unique skin of each space. The top of the corridor is constructed with original bamboo, which is like shuttling through the time tunnel of bamboo forest. Bamboo weaving modeling of hall stairs and the the shadow of bamboo  cast on the wall with the help of light forming a picture like the sunlight through the bamboo leaves in the bamboo forest.

The whole design seems to be a bamboo product design, which is certainly a new way of using bamboo. I hope to find a new exit for bamboo, a kind of natural, environmentally-friendly and renewable material, by this means.

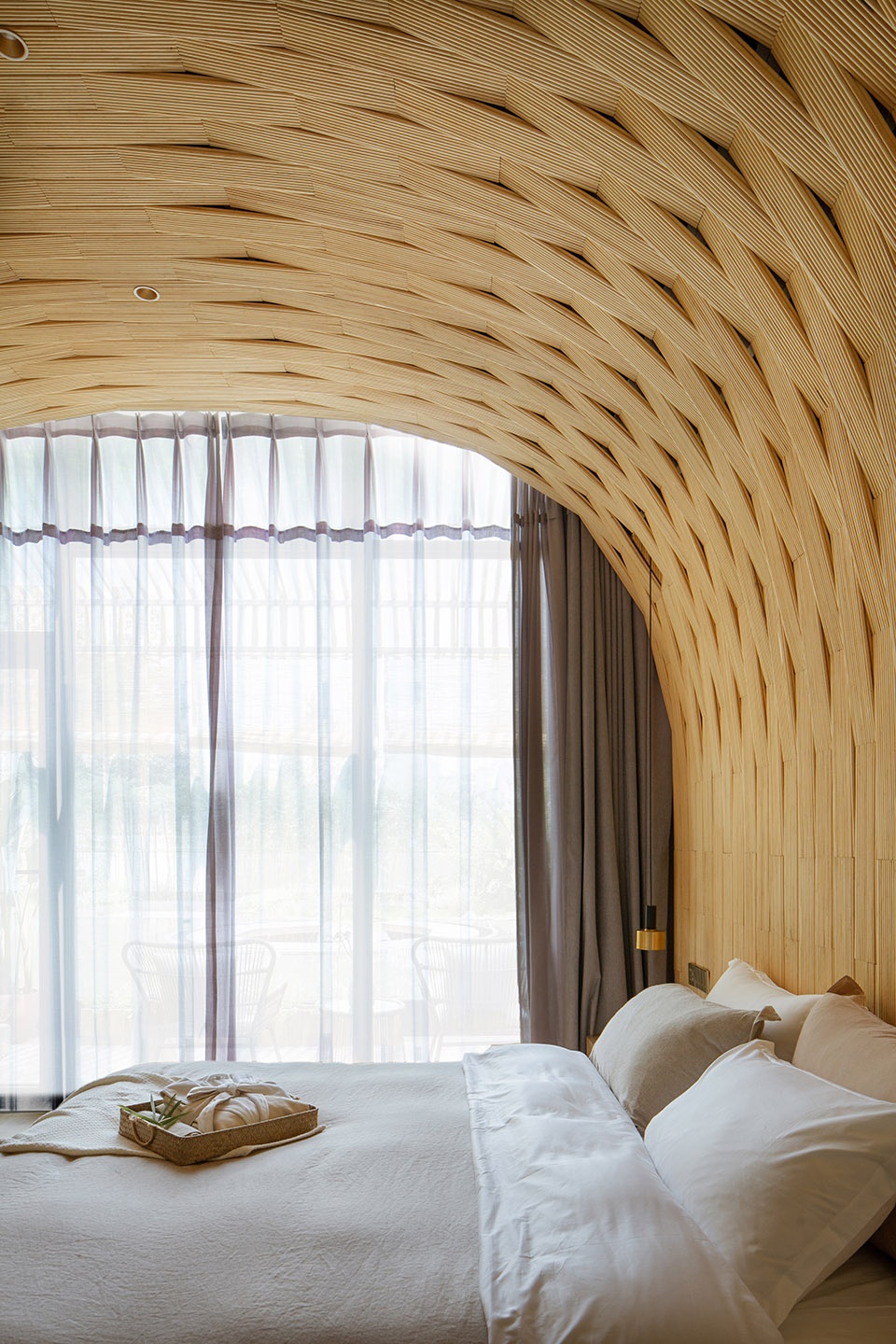

▼客房内部以不同肌理搭建成拱形的竹编,形成每个空间独一无二的表皮
The interior of the room is made of arched bamboo boards, forming the unique skin of each space

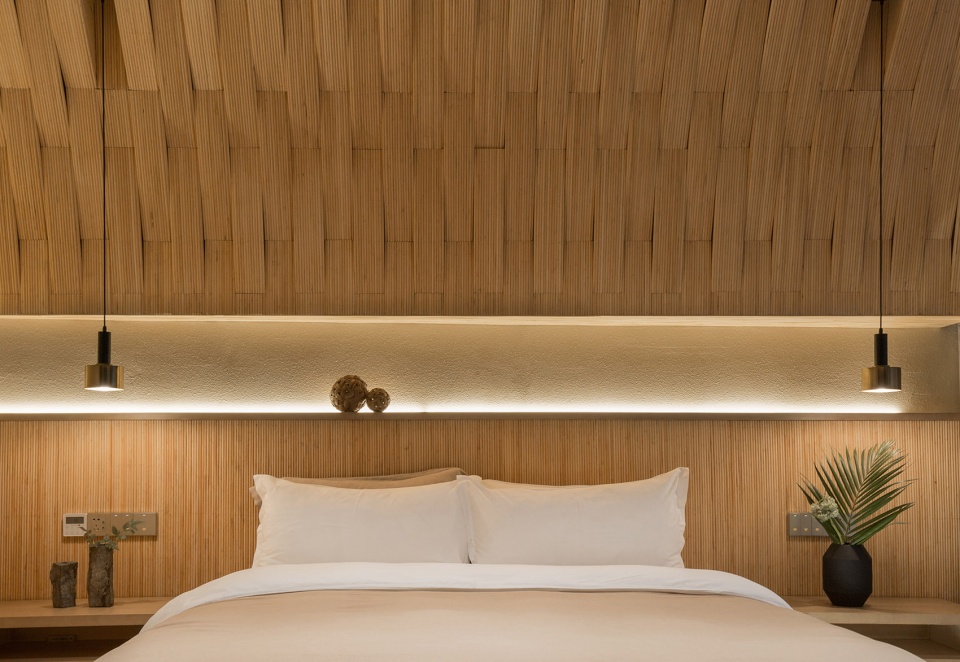

▼竹片房,bamboo slice room

▼竹皮房,bamboo skin room

▼竹条房,bamboo strip room

▼竹片房,bamboo slice room

▼竹片房,bamboo slice room

拾捨·竹里馆的设计框架十分现代,但在框架的背后,饱含我对于中国传统文化的理解和坚守。尊重历史,回归自然。

The design of this Bamboo Lodge is very modern ,but behind it , what I want to convey is my understanding and adherence to Chinese traditional culture. In a word, we should respect history and return to nature.

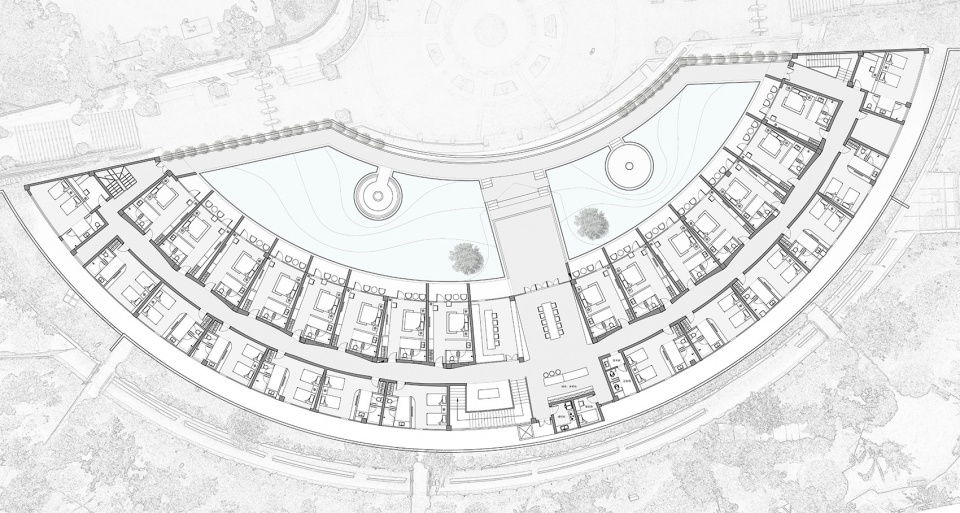

▼平面图,plan ©QAD

项目名称:拾捨·竹里馆
项目地址:四川宜宾
项目类型:室内设计
室内面积:1150㎡
景观面积:900㎡
设计时间:2018.06—2018.10
主创团队:云南杨永铨建筑设计事务所(QAD)
总设计师:杨永铨
软装设计:李胤闲
主要材料:竹\竹纹铝合金
摄影:王策、龙军伍
视频:王策

Name:A Meticulously- designed Bamboo Lodge
Address:Yibin City, Sichuan Province, China
Type:Interior Design
Indoor area:1150㎡
Landscape area:900㎡
Design time:from June to October in 2018
Creators:Yang Yongquan Architectural Design Office in Yunnan
Chief architect:Yang Yongquan
Interior Decoration:Li Yinxian
Main material:Bamboo\Bamboo grain aluminium alloy
Photographers:Wang Ce\long jun wu
Video:Wang Ce
