Mortuary in the Field of Cartagena / Martín Lejarraga

停尸间 & 教堂

项目标签

设计公司 :
位置 :
材料 :
文章分类 :

这个项目主要功能是(丧葬前的)停尸室兼教堂。建筑师在做这个项目遇到了一些体
会,他把它们总结为“5个教训”。

曾经Martín Lejarraga还给gooood分享过:
Development of Cruise Terminal  复调魅力
Conjunto Escénico 一隅的风景塔——混凝土折纸鸟
House for a Nomad Collector 收藏家的移动屋

非常感谢Martín Lejarraga将以下内容授权gooood发行。
Appreciation towards Martín Lejarraga for providing the following description:

MORTUARY IN THE FIELD OF CARTAGENA.
‘LA PALMA’ INDUSTRIAL PARK. CARTAGENA
A Mortuary in five lessons, with Ed Ruscha

The commission of the Mortuary project starts with the location and management of a
plot to raise the building. The property, an insurances company of local and regional
scope, wanted to strengthen its customer base with this kind of facility in the area in
which it concentrates his operations: the North of Cartagena, between the towns of ‘La
Palma’ and ‘Pozo Estrecho’, in the surroundings of the Field of Cartagena and the ‘Mar
Menor’ sea.



/wp-content/uploads/2013/09/_c_EopYjnXzpVUZ29MbQ8qrWayXbKhDmQ519sHPyEVbjST2aDuviQ2PTG7DLp-MeolsHO9x2p5hjiZu7_ohb6R2B-SXVG-aKvMI.jpg

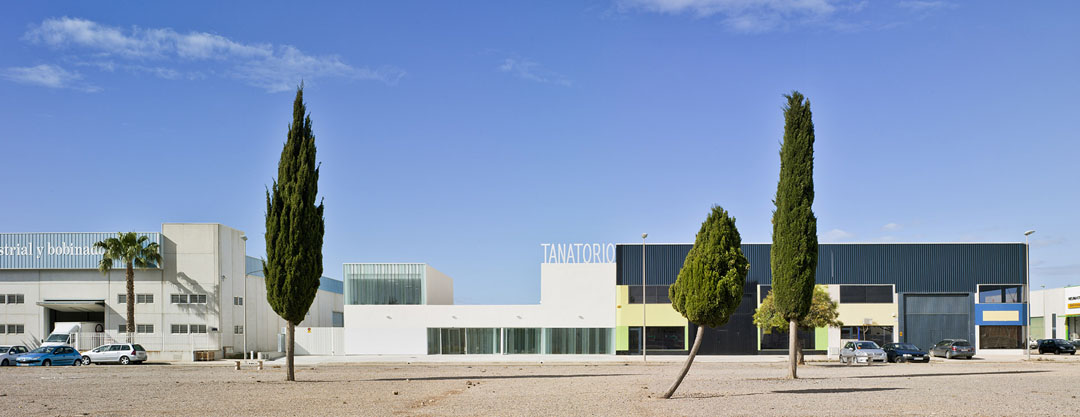

(上图)远观,位于工业区的建筑与周边保持了连续性的同时具有自身的个性



首先,没有人们愿意这个建筑位于自己的邻里附近,所以该建筑最后位于城郊工业
区,这里停车方便,周围也有绿化。建筑师在场地周边布置了银桦,提升场所价值。
第二,工业区的建筑都大同小异,这个项目需要体现出自身的个性,建筑师造就了一
个与基地具有连续性但又独特的建筑。第三,项目预算有限,建筑师最大程度的保持
功能的单纯。确保一个抽象但是到位的建筑。利用不同反光度的白色与光线形成韵律
空间。第四,教堂空间中的家具设计有建筑师完成,期间客户了众多挑战。这些家具
均采用松木板,能够根据功能组合使用。最后,为避免受到工业区建筑同质化的影
响,建筑师把指示牌高高的立在建筑顶上,这样大老远就能看见。



/wp-content/uploads/2013/09/_c_ri3BnMAinPtVhGOgyziMZKm7j_L1n5TzEMeCvXfoQF66PddZgmZz7dwFm8b6r_GaeZjUez0Px-9iiKsBYjogo19WVmp3kBx5.jpg

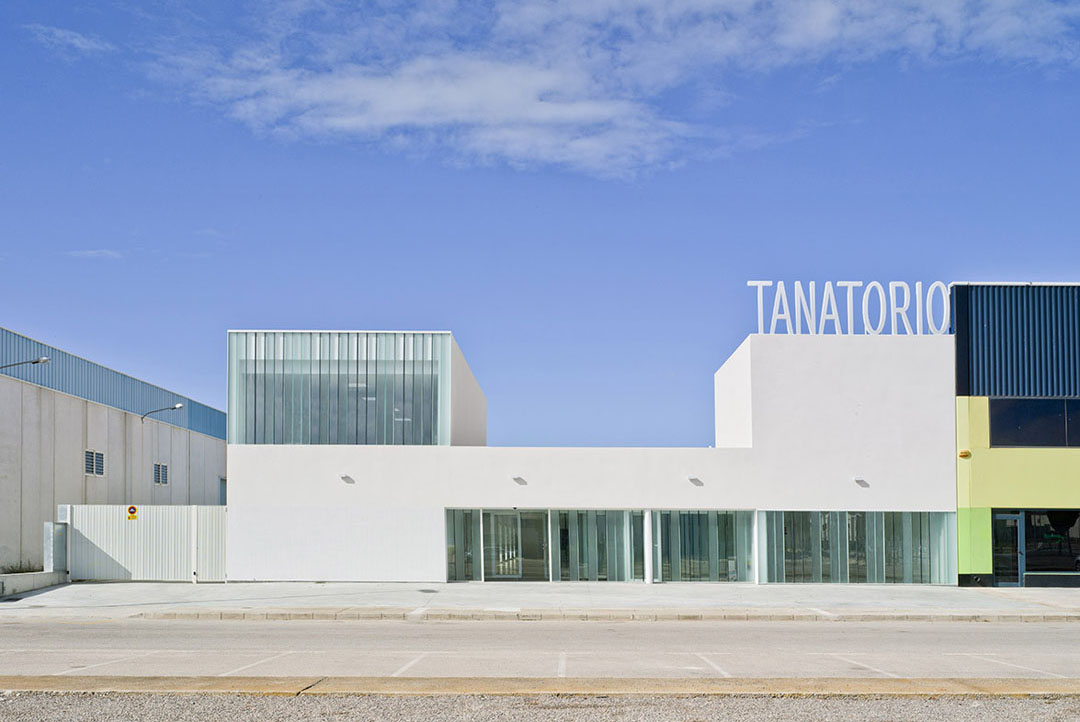

 (上图)抽象而单纯的建筑。指示牌高高的立在顶上,方便人们找到



That was how everything started and how I learned the first lesson of work: nobody
wants a mortuary in their neighbourhood.

After many attempts to purchase available plots at different locations, in a drift that
progressively and inexorably leads us away from the nearest and accessible places, we
just finished in the industrial park.



/wp-content/uploads/2013/09/_c_eePjXCVN2400dvisS_e1O5BiGdxFHS9G3_G1me6N49wEd8XYIDS-_eqqV0ceOu1cYd-bIZ0qLHNQGAh4O0YgHAEbpyJkvcvW.jpg

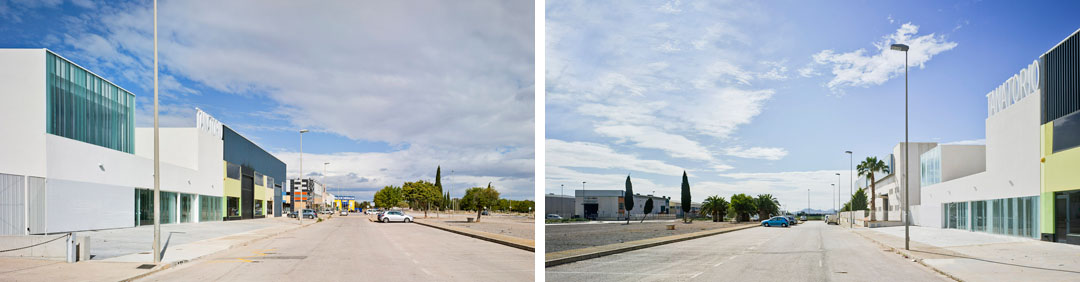

(上图)位于工业区的建筑的周边环境



There, we selected an interesting plot: well proportioned and oriented, and strategically
located, open to the general parking area and green zone of the industrial park, in which
we could hardly distinguish small artificial stone benches and some scattered
cypresses, that no one had noticed, but they add land value to us.



/wp-content/uploads/2013/09/_c_sHZc4DkpRK4abWN438PNMST7cQEFxrk5qk_TGcgPDqcqYjTyma6nenJ3yjB8-lAGlY8Ma5fSiVUX_NBdrL5vdsHCVJqdMEmU.jpg

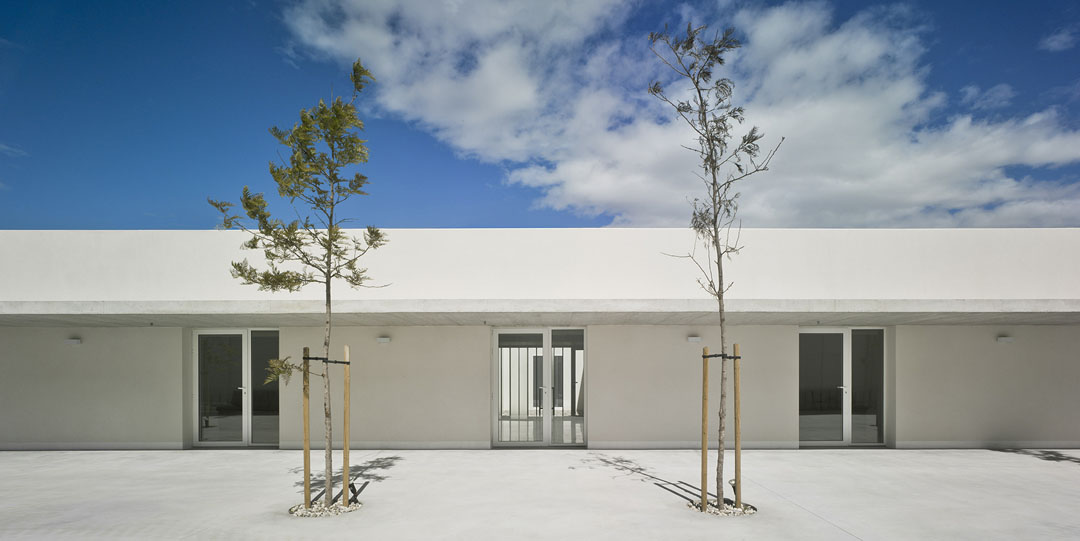

(上图)在建筑外部栽种银桦,提升场地品质



The second lesson was to identify and interpret the location codes, an industrial site
made of constructions,  that  despite  their  different  condition  and  activity  scale  –
production,  exhibition, storage, commercial, etc.-, had some common patterns that
gave the whole a strange and complex discrete continuity.



/wp-content/uploads/2013/09/_c_7Qwl5qTTtOVXqfbJDz4s8cHACtvKYmEoQQfONaI6btOfjat69Bg654NT09ZIDBDfm9z8uhWWYlVI1alNZDrLV1bKC1qThK8F.jpg

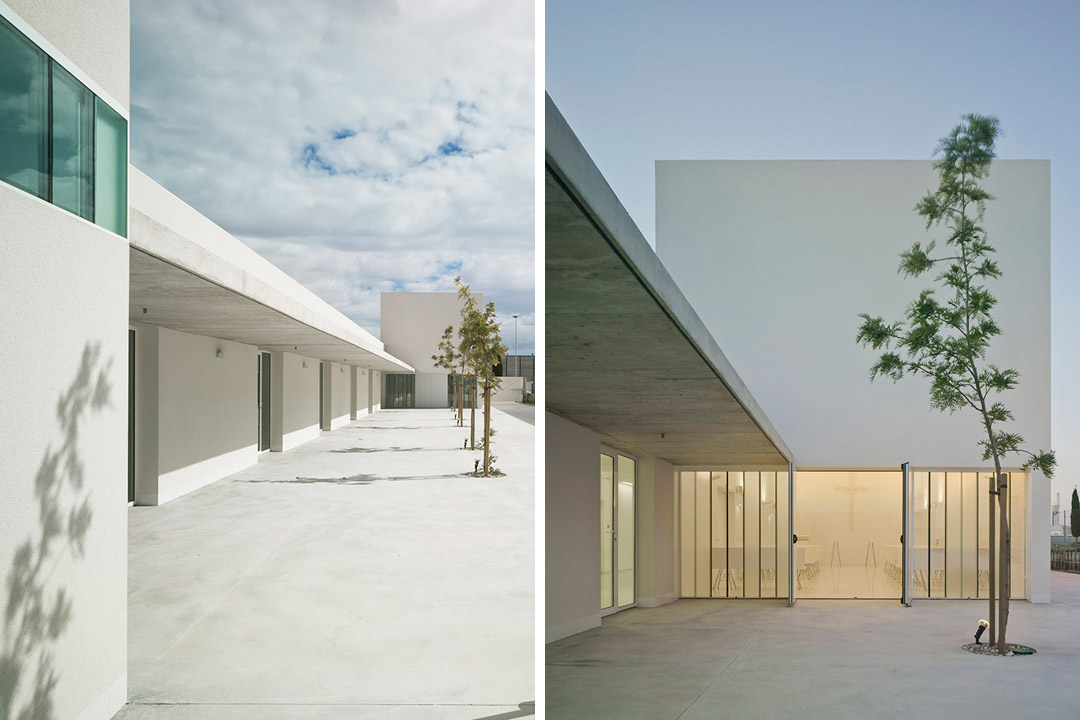

(上图)教堂位于建筑一端尽头。灰色的外观,讲究的运用着白色



We had the third lesson learned in advance, fit the budget to the limit of viability. With
this objective, we adjusted the building functional scheme to minimize it, with the
consequent surfaces reduction and the achievement of an accurate and abstract
construction.



/wp-content/uploads/2013/09/_c_aomF1_eDqlNhL7kzzyvYoQv2DM-nl9HLzgvpQ4BBOftDzy9QKYjOlRrhG306stfiwjMO4nNu3WPvMaaAyhSf8ppiVM_-6bmq.jpg

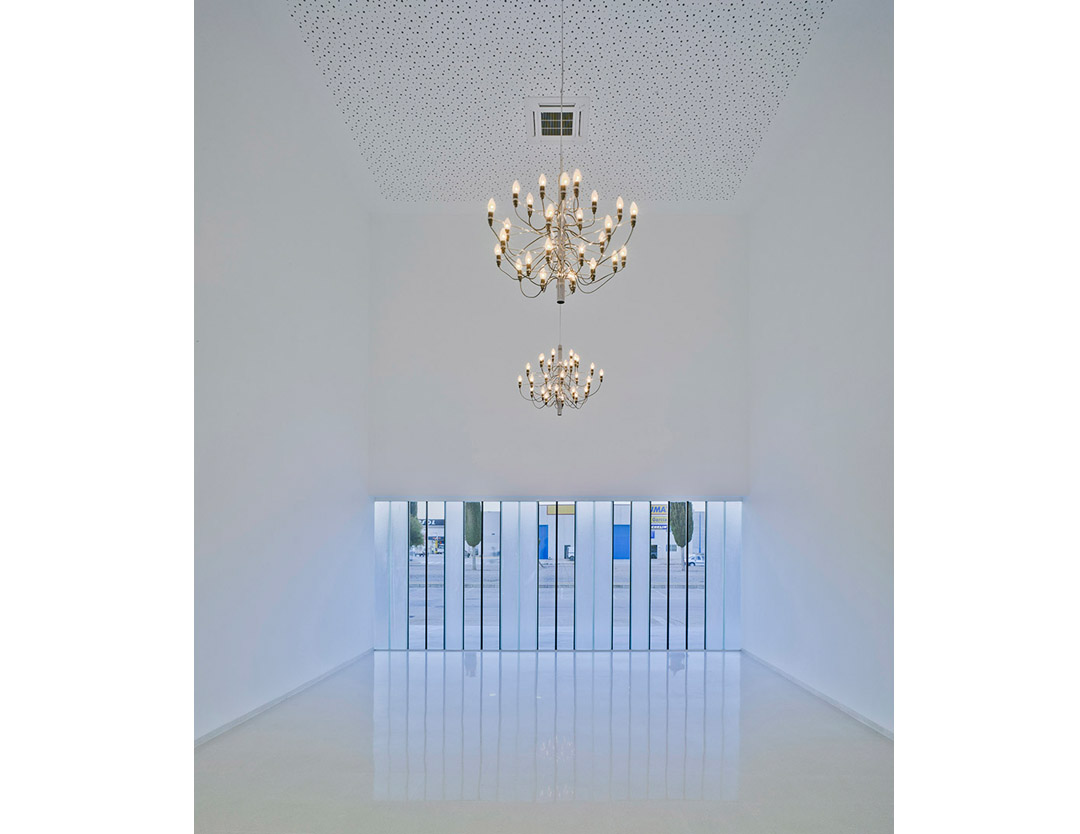

                                               (上图)从白色,简洁的内部向外看。玻璃是透明与磨砂的条状玻璃交叉排列而成。



Inside the building, the continuity provided by the white colour and natural light in its
different orientations is qualified by the different size and proportion of successive
spaces and textures of the materials that define them.

Designing and constructing all the furniture in the chapel, was more than a lesson a
double challenge: to design, in addition to a bench, the set of pieces that form the
symbolic and functional,elements of the liturgy (the cross, the communion table, the
lectern, etc.), and do it with a single system and material: pine wood plank, that in
different combinations, allows us to solve an connect all parts of the room.

How to recognize the building in the distance against a backdrop of exotic signs was
the last lesson: we support the sign on the top of the facade and cut it out against the
sky, no doubt this was the best way to distinguish it from a distant point.

I bet Ed Ruscha himself would have liked it…



/wp-content/uploads/2013/09/_c_wF3lLPyvKVIbJ5K0HqeIN22EvQ9tSmlPtEhO5ND_64DT5yDSKYQAFXE3geA91UAdkRxE8bAUU7Ffwkm7y73KuVu7Rm4lSgXj.jpg

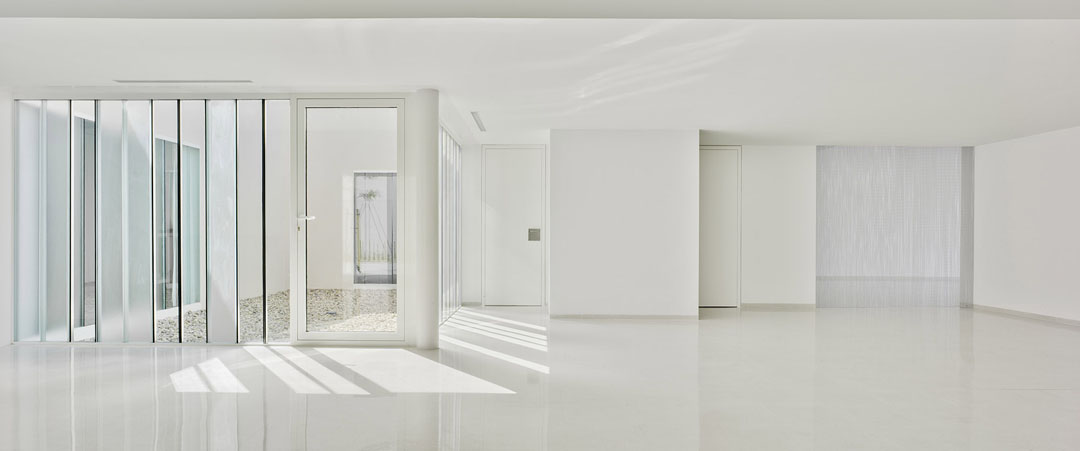

走廊。最大程度的保持功能单纯。确保一个抽象但是到位



/wp-content/uploads/2013/09/_c__5LTs4D9bKLkwNbbwxN1brZNqYQtURqzxhQGzX1lxdKy5Kjls0KOViwjwXSnuqA9CmcCC05B37bklwjGxc1LjHtZZ0unkxuH.jpg

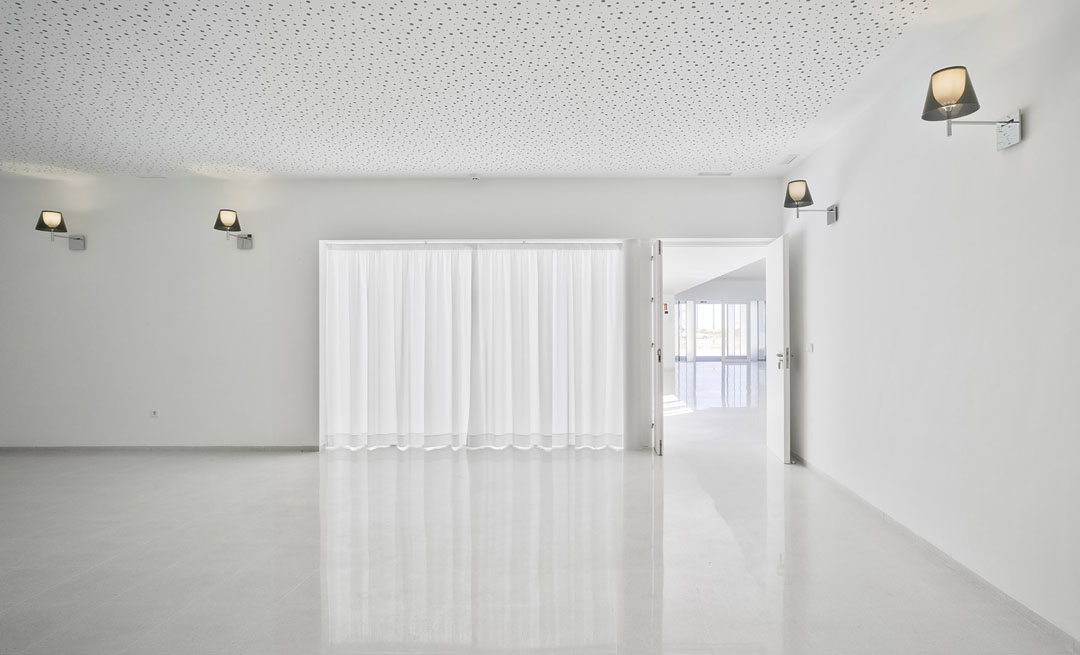

不同反光度的白色与光线共同组成韵律空间



/wp-content/uploads/2013/09/_c_B299yZAwWEUlcSn5fCM493_I4skSgQQz1ZaogCtEUEi6s6wZXyaNahxV1gyYpwylCXxkqd3Pol7TTMZ_cqIGx0MIfPMyL0Hm.jpg

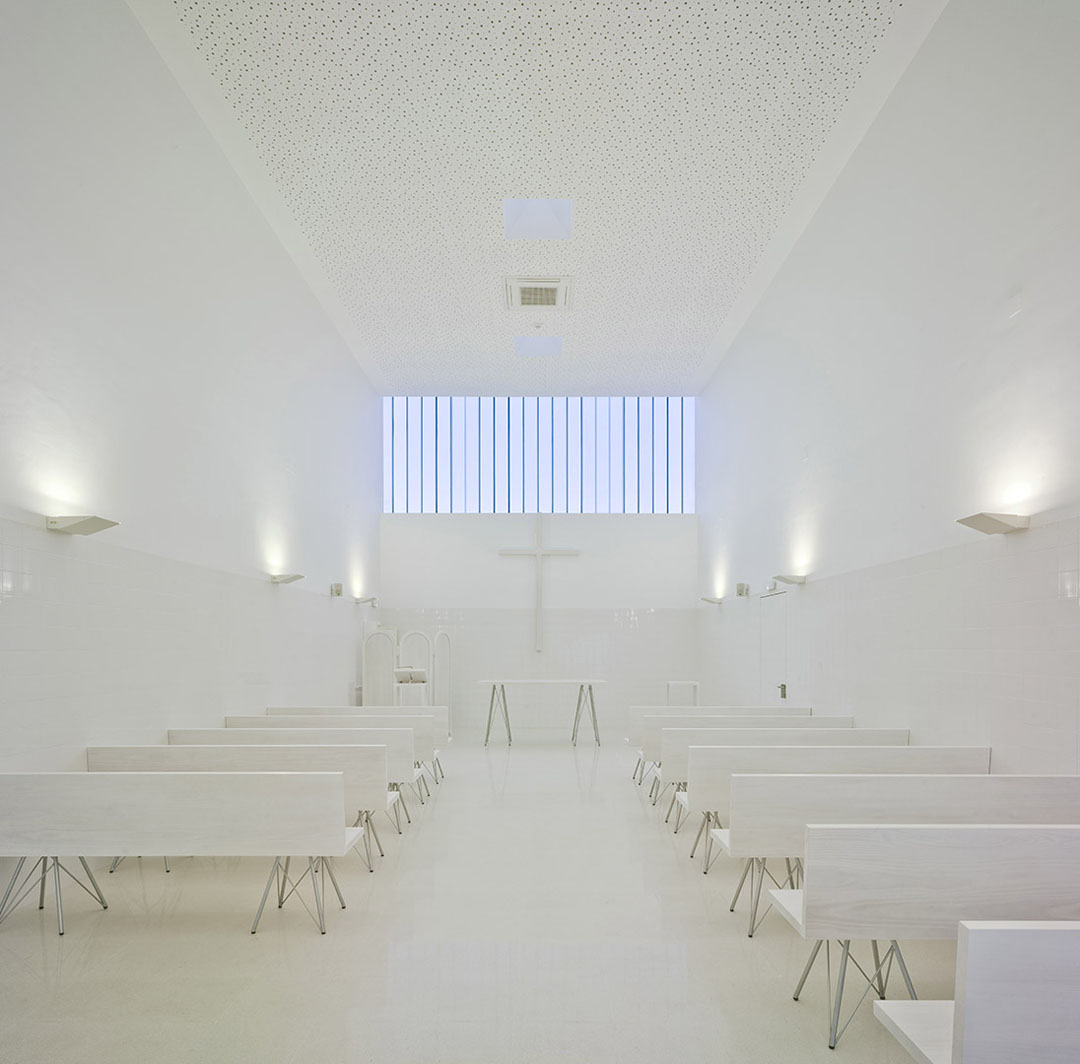

教堂



/wp-content/uploads/2013/09/_c_GbMA5Ms1WuwtIGxxJizDuiuSXwuQiQC6MZY3uVA5Gty42oNBJeQDkId-VmJ1zi5V92_ZHqCVjYaFPNmO3J9B7cNOFCCTxk4Y.jpg

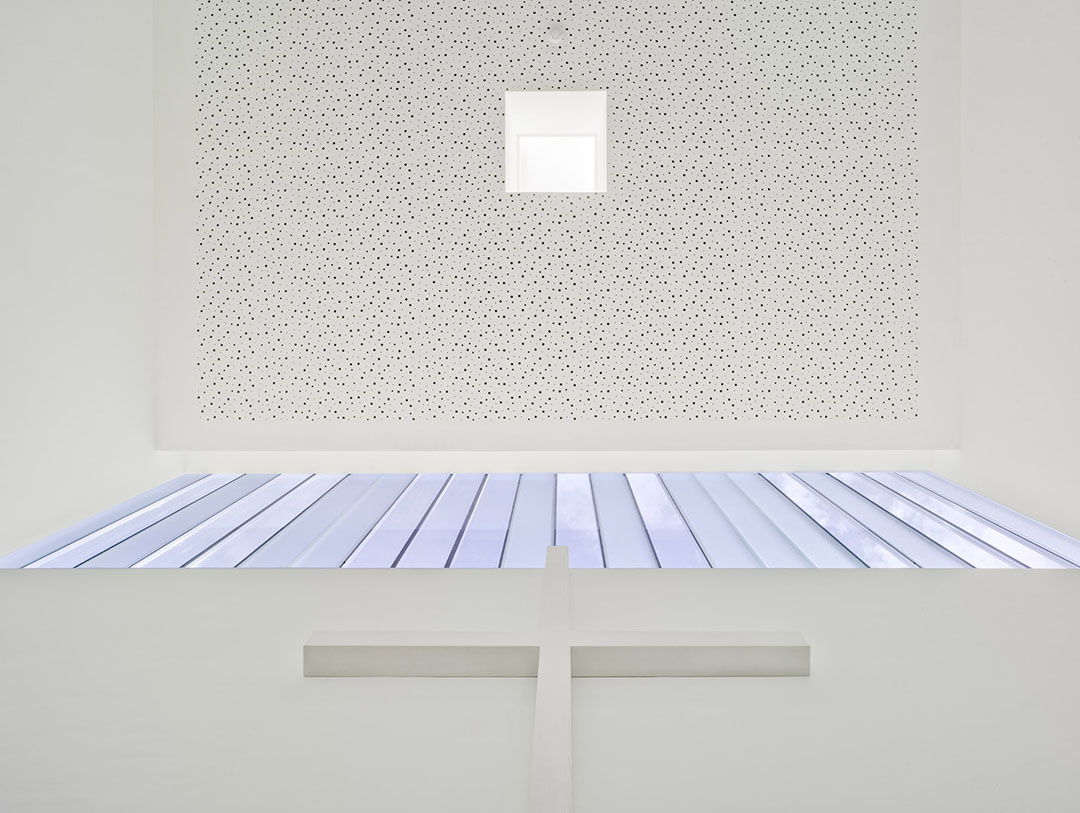

十字架,高窗,光滑的墙面,白色穿孔天花板



/wp-content/uploads/2013/09/_c_Ru69PjL5yra1gG3PcOl-_P8iWkmQl0hoKHsBbZDwNXk8ccUbFsMWMPzCoA3eFk1GVqMc5PgAn3kuG131uupdkRO-SYX7LC9c.jpg

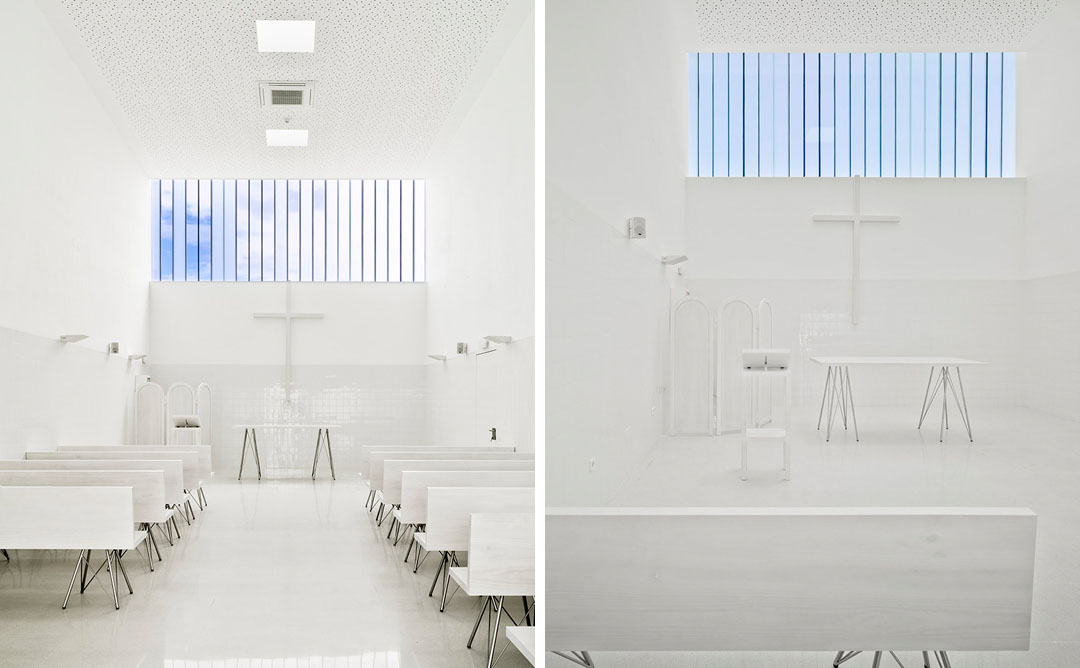

天空是圣洁白色的一部分



/wp-content/uploads/2013/09/_c_d0DQ_iB0SDZTxkYUG9Q4HxvBRYYYIQjexx0FhhBgW_TydBMv-70ZIhO4Cyal_sQR_DTEZZjHiRnBW-E_62V_Yqa2vS0aEzXo.jpg

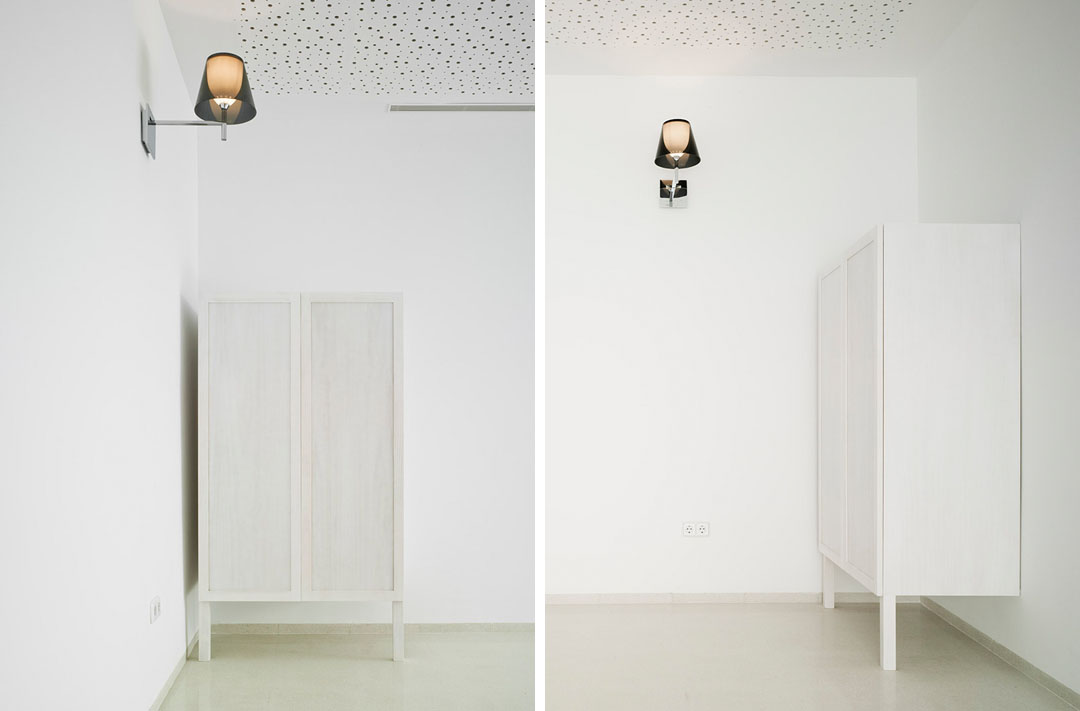

建筑师设计的家具:松木板柜子



/wp-content/uploads/2013/09/_c_FZ-HVtABMFGqZsK34gP-lAKCNBfmdvfvOgcZOyJJQfGT4PJcPUn6JnmeJ3m4lotlTCln0xY0zBA9MadCz25Xb-KC4pps9e10.jpg

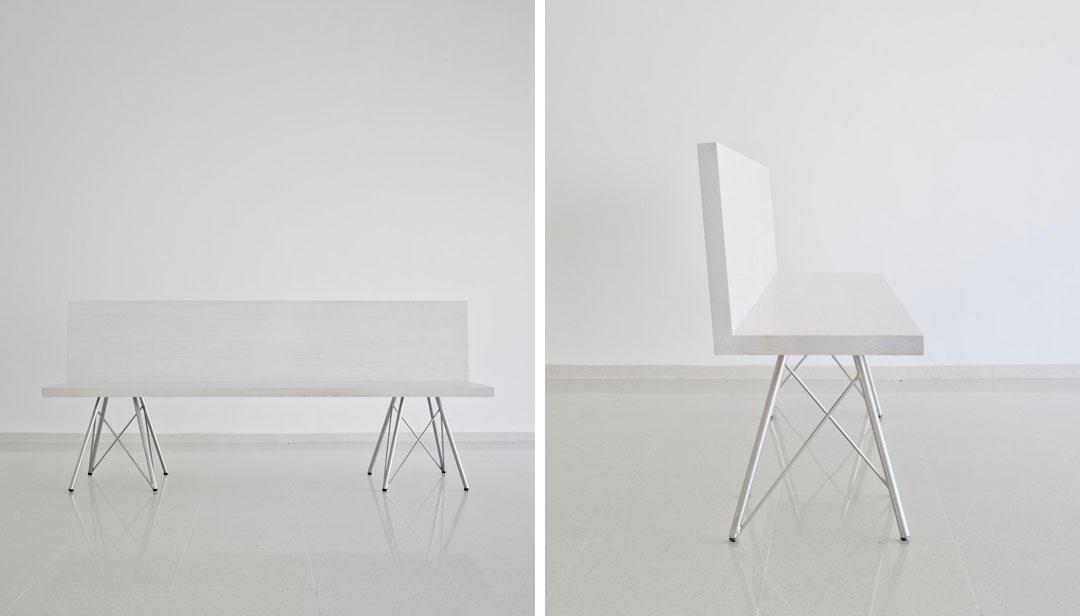

建筑师设计的家具:松木板椅子



/wp-content/uploads/2013/09/_c_WZmIvarA_pZZGFaC-bclt6vXDlmmO2qno6jJEmpnukqQ-uKjHSiWsFTXrhHGLWqeCBK4B--nxhzNYeh2AnttQRuXXYtqbVL4.jpg

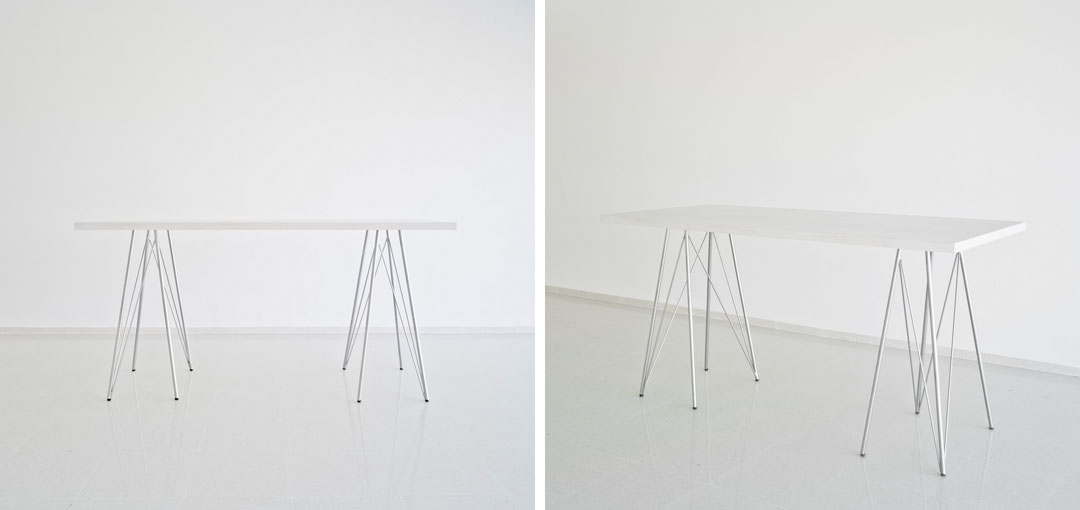

建筑师设计的家具:松木板桌子



/wp-content/uploads/2013/09/_c_DqRD9XDXlvXzH45lOmNyG4zkYRSPppYMX6iHCbV1M8oEbO0doAB8VLqhYRR6zCgpRwe2Ex3r6kT7guMvMizBu4l3nxaefYE_.jpg

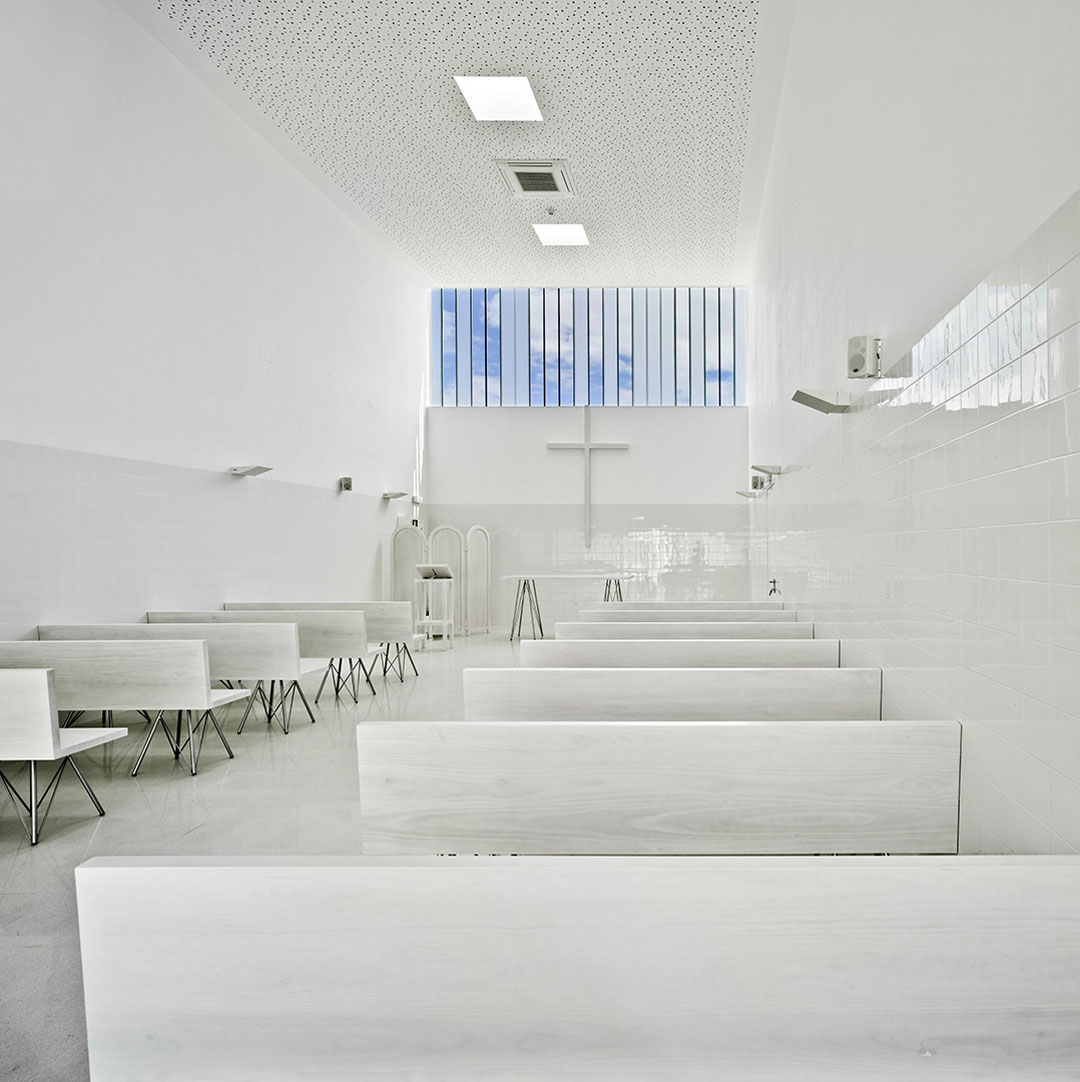

家具是教堂中重要的组成部分



/wp-content/uploads/2013/09/_c_hPEcAAr9b887seucHKr9PUP569YEurMeOFCFmWlMpvgJdISsTk0GbV5BiSEwU7xUAVqt65DygXi_3Vf1leSbEXPhF6InCudC.jpg

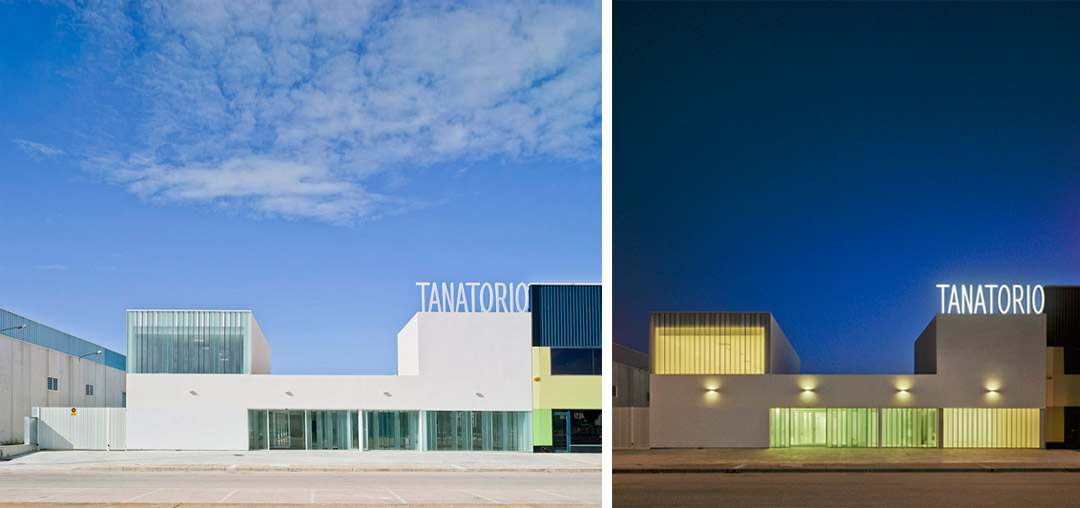

(上图)白天与黑夜



Situation ‘La Palma’ Industrial Park. 30593 Cartagena

Client Servicios Funerarios del Campo de Cartagena, S.L. Project 2007 – 2012
Built 2013

Builder Sanimar S.L. Architect Martín Lejarraga Technical Architect Manuel Moreno
Structure Idee. Eduardo Díez Consultant José Aº Martínez Const. Manager Marco
Carselle Photographer David Frutos

Plot Area 1.844,00 m2
Built Area 1.047,40 m2
Budget 550.000 € (VAT excluded)
525 €/m2

Structure Foundation: isolated slabs
Reinforced Concrete pillars 25 x 25 cm
Waffle slab 30 + 5 cm, recoverable coffers 80 x 80 cm
Cantilever, concrete slab 16-20 cm Walls Ceramic brick. Thickness 1 foot Façade
Mixed mortar, scraped finished
Interior Painted plasterboard, ceramic tiles 15 x 15 cm, lacquered wood, tinted wood
Floor Terrazzo micro grain 40 x 40 cm
Suspended Ceiling Plasterboard, thickness 13 mm
Ext. Framework Thermo-lacquered aluminium 20 microns
Glazing Double glazing 3+3/cavity 12/3+3 mm
Inner Woodwork Medium Density board. Stainless steel ironwork Curtains Textile:
cotton; metallic: aluminium links Furniture Pine wood plank 40 mm, tinted
Trees Grevillea robusta



/wp-content/uploads/2013/09/_c_CPKOHUdVVOKF-pcfetcTIme-MNh_I6BlwYC4uJsWXggBOjwk8JtFDSDcyaWJgj2sS26JjHo3Fyx6WwDLpMv7ZT_p6r0jupS-.jpg

/wp-content/uploads/2013/09/_c_CjX-Kc5SXk-9LTHdoLUdgFXmZpv6pJfOYpHB6G96ur-sJeGN10wsUwnb_pyvn_NSPj5P0brvqHS-Qwwu-te7C-MizcOFb_Bg.jpg

/wp-content/uploads/2013/09/_c_Kb3YJ7GVYCg4WAsk2dVhmRXuzX9IF5rU6ru5j5AgfS0-Cs6yMlpK-kpFU9j9I1YTjDxpvZyJxMw4s4MncBCFzUoyl0KeKT69.jpg
