Zhuhai Jinwan Civic Art Centre, China by Zaha Hadid Architects

Using and enjoying the interconnected facilities and plaza under an extensive roof structure

Project Specs

Location:

感谢 Zaha Hadid Architects 予gooood分享以下内容。更多关于:Zaha Hadid Architects on gooood
Appreciation towards Zaha Hadid Architects for providing the following description:

珠海金湾市民艺术中心项目位于珠海市金湾区,地处西部生态新区的核心地带。这里亦是该地区的文化、市民和商业中心,毗邻正在建设的“珠机城轨”。通车后,艺术中心将与珠海市其他区域形成联动,连接机场、横琴和高铁站,通过换乘可以连通广州、澳门、香港、深圳等地。该项目设计旨在为这一世界上最具活力区域打造一处当代创意中心。

Designed as a hub of contemporary creativity within one of the world’s most dynamic regions, the Zhuhai Jinwan Civic Art Centre is located at the heart of Jinwan district’s Western Ecological New Town where the new Zhuhai Airport Intercity railway provides direct connections with Zhuhai’s city centre, its airport and Hengqin district, as well as Guangzhou, Shenzhen, Macau and Hong Kong via interchanges.

▼项目概览,overall view © Render by Minmud

该项目整合有四种不同的文化设施:1200座的大剧院、500座的多功能厅、科普馆,以及艺术馆。场馆的打造各具特色,以营造引人入胜的到访体验,同时又兼具连贯统一的形式和结构逻辑。

Integrating four distinct cultural institutions for the city: a 1200-seat Grand Theatre; a 500-seat Multifunctional Hall, a Science Centre; and an Art Museum, each venue within the centre incorporates unique characteristics to create the most engaging visitor experiences, yet all are united by a coherent formal and structural logic that spans 170 meters wide from east to west and 270 meters long from north to south.

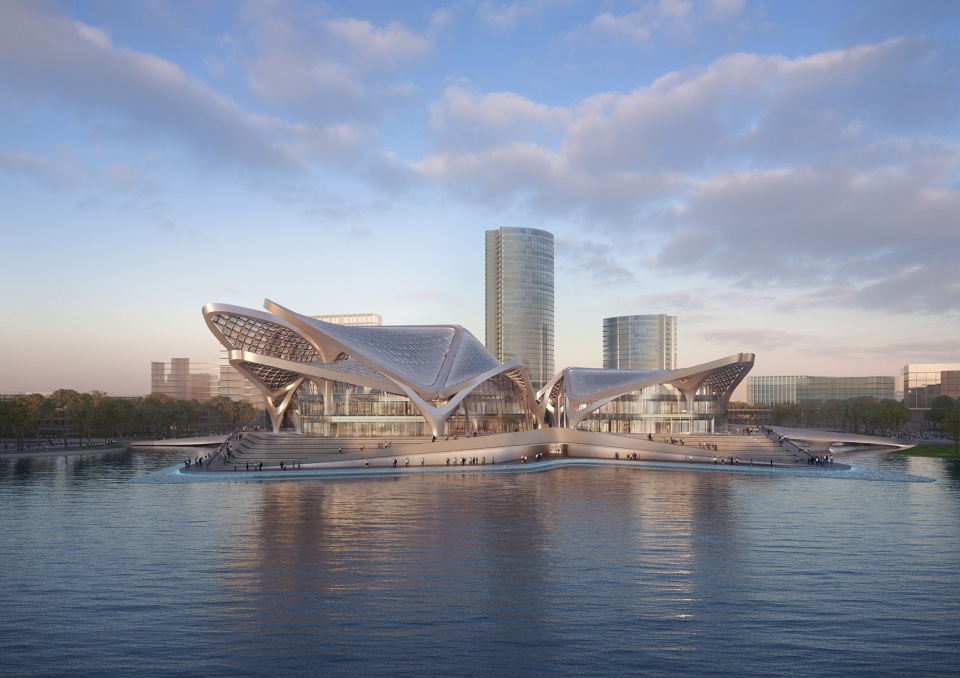

▼建筑外观,exterior view © Render by Minmud

场馆两大两小对称排列,并通过一个中央广场彼此串联。该广场东西向宽170米,南北向长270米,宛若这四个文化场馆所共享的一个室外中庭空间。中庭四周为玻璃墙体,访客可以直观感知每间场馆的个性与特色。大剧院和美术馆采用了浅色调的内装材料,而多功能厅和科普馆则选用深色调的内装材质。

通过重复、对称以及尺度的变化来组配柔性钢结构屋顶外壳,该设计灵感来源于候鸟结队飞往中国的南方过冬的人字形编队。不同的构件组合形式可以应对每栋建筑功能需求的变化。每栋筑单体的屋顶模块都是可以自我支撑且具有自我稳定性。针对不同建筑而重复使用的模块优化了预制、预装以及模块构件的使用。

Arranged symmetrically, the two larger and two smaller venues are connected by a central plaza that serves as a shared external foyer to each of the four cultural institutions. Glazed walls facing this courtyard enable visitors to determine the individuality and character of each venue. The Grand Theatre and Art Museum are very light in their materiality, while the Multifunctional Hall and Science Center have a much darker palette of materials.

Echoing the chevron patterns of migratory birds flying in formation over southern China, the latticed steel canopies over each venue are configured through repetition, symmetry and scale variation; resulting in a composition of related elements that respond to the different functional requirements of each building. Every building-module of the roof is self-supporting and self-stabilising. The repetition of the modules optimises pre-fabrication, pre-assembly and the use of modular construction.

▼场馆两大两小对称排列,柔性钢结构屋顶外壳的设计灵感来源于候鸟结队飞往中国的南方过冬的人字形编队 © Render by Minmud
Two larger and two smaller venues are arranged symmetrically.  The latticed steel canopies over each venue echo the chevron patterns of migratory birds flying in formation over southern China

艺术中心独特的屋顶结构将各场馆组织、笼罩在一个网状的外壳系统之下。相连的廊桥与间隙空间界定出一处充满活力的公共广场,在此可直接看到该中心内部空间,也可以望见滨水步道两旁的咖啡馆、餐馆、教育设施等。设计优化了所有公共区域的自然采光,兼顾了看向不同景观的视野,并加强了项目各功能区之间的关联性。环湖的景观,洒满阳光的公共空间,此连通的功能分区,该设计为珠海市民打造了一处不论白天还是晚上都极具吸引力的市民艺术文化空间。

The centre’s distinctive roof structure unites the different venues under a network of reticulated shells soaring above the four buildings. Interconnecting bridges and voids define a vibrant public plaza with views to the centre’s interiors as well as to the surrounding promenades with their cafés, restaurants and educational facilities. The design optimizes natural light in all public areas and enhances connectivity; creating engaging civic spaces for Zhuhai’s residents to enjoy throughout the day and evening.

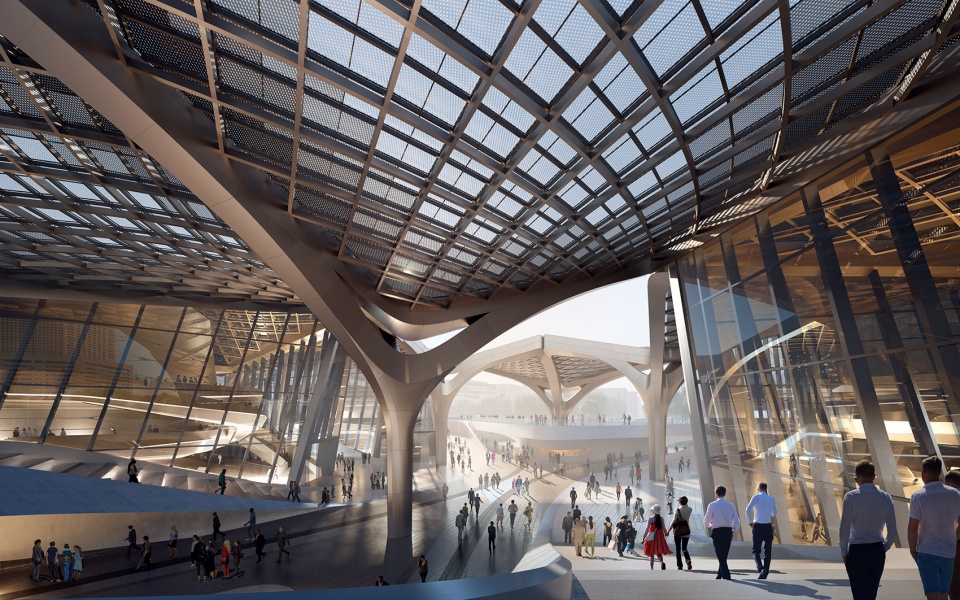

▼相连的廊桥与间隙空间界定出一处充满活力的公共广场,Interconnecting bridges and voids define a vibrant public plaza © Render by Minmud

坡道将访客引导向顶盖以下的公共广场,并通过两侧人行天桥和景观阶梯与中央各场馆的入口相连。采光井的设置使得自然光可以到达低层空间,构建各楼层之间的联结感。艺术中心西侧的露天剧场可以用于进行室外表演或举办活动。玻璃幕墙为各文化场馆提供了最大程度的通透性,以欢迎的姿态邀请社区居民,在这一广阔屋顶结构下享受、使用互连的场馆设施和广场。

Ramps invite visitors to the rooftop piazza where footbridges and stairs connect through a central void to each venue; glazed façades provide transparency and welcome the community onto its public plazas beneath the sweeping roof structure. An external amphitheatre on the west side of the centre allows for outdoor performances and activities.

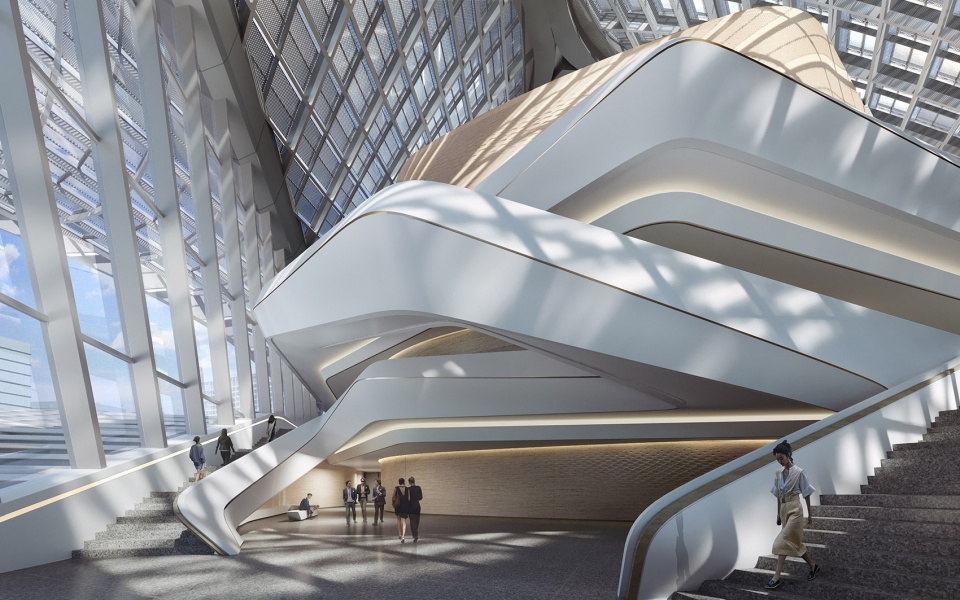

▼玻璃幕墙为各文化场馆提供了最大程度的通透性 © Render by Minmud
Glazed façades provide transparency and welcome the community onto its public plazas

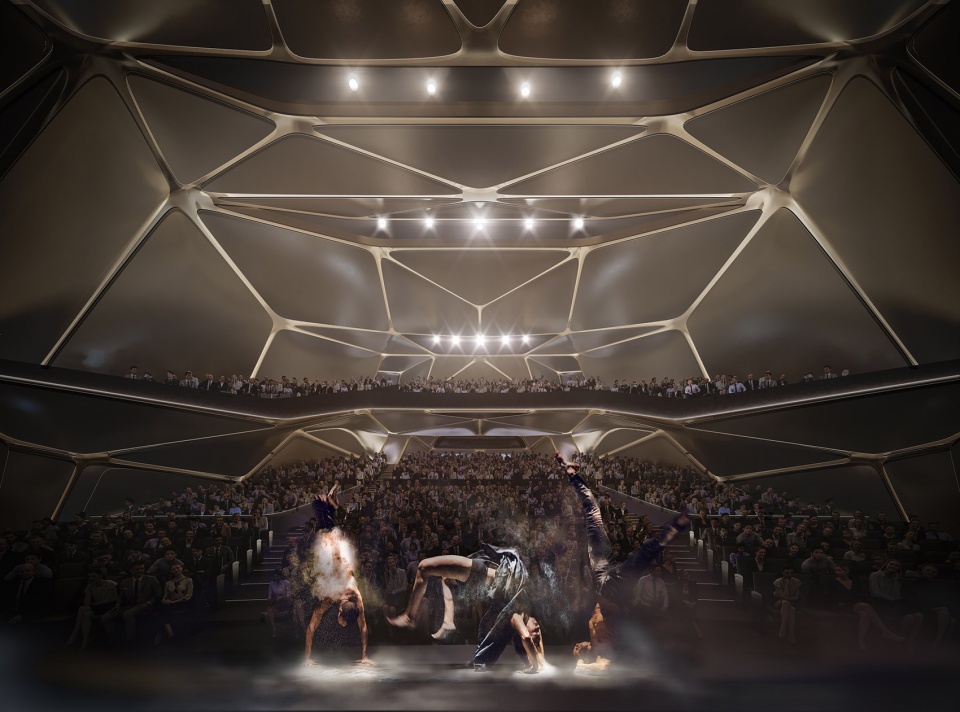

▼大剧院内部,Grand Theatre © Render by Minmud

艺术中心的景观和环绕的湖泊是珠海推动“海绵城市”建设的组成部分。通过设计,70%以上的雨水在通过水生植物、以天然的方式过滤掉污染物后,得以被自然渗透、存储与再利用。景观系统中也设置了湿度与土壤水分监测传感器,从而控制并减少灌溉用水量。

为了优化热性能,设计采用了格构屋顶,为建筑围护结构内的双层玻璃提供保护,同时辅以穿孔铝板,以进一步提供外部遮阳。根据项目各室内空间不同的功能需求、太阳光辐射强度以及朝向,板面的穿孔大小不一,从而调节不同程度的进光量。

带有智能化控制的能源消耗与室内空气质量监测系统可以自动调节项目内部的空间环境,以确保最佳的舒适度并降低能耗。废热回收将满足该中心热水供应的需求,同时节水设备也与该中心的水循环系统相连。

The centre’s landscaping and surrounding lake are designed as integral elemets within Zhuhai’s ‘sponge city’ initiative that targets the natural permeation, storage and re-use of at least 70% of the city’s rainwater; using aquatic flora and fauna to naturally filter contaminants. Humidity and soil-moisture sensors within the landscaping’s irrigation system will control and reduce water consumption.

Optimized for thermal performance, the double-insulated glazing of the building’s envelope is protected by the latticed roof canopy which incorporates perforated aluminium panels to provide external solar shading. The perforations within the panels vary in size to allow differing degrees of sunlight within the centre’s interior spaces in accordance to their programming requirements, solar gain and orientation.

Energy consumption and indoor air quality monitoring systems with intelligent control will automatically adjust the centre’s interior environments for optimal comfort and energy reduction. Waste heat recovery will be used to meet the centre’s hot water demand with water-saving appliances connected to the centre’s water recycling system.

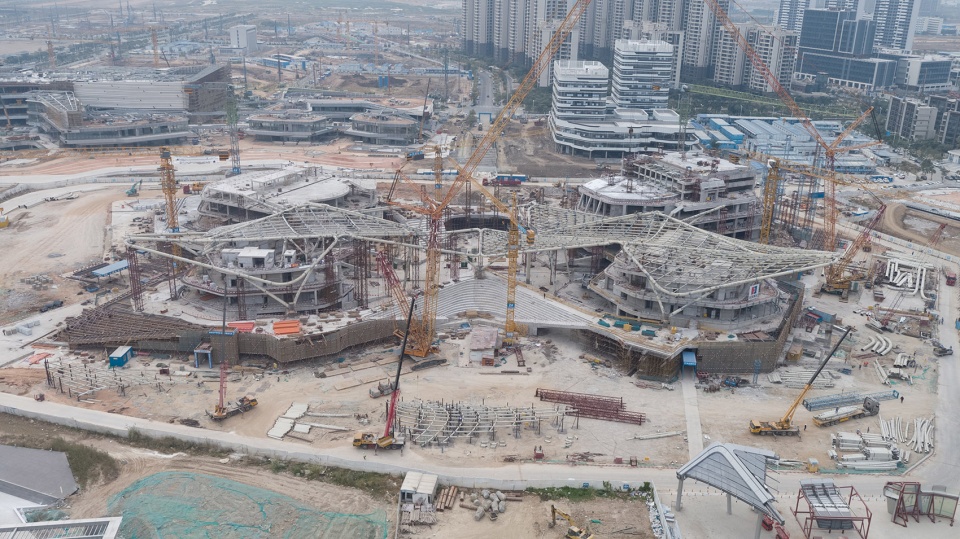

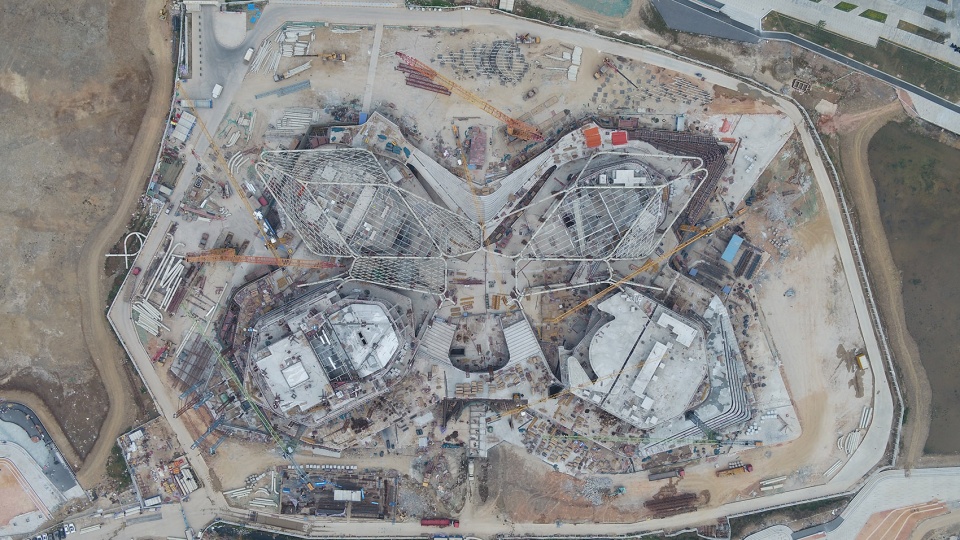

▼施工中的珠海金湾市民艺术中心。四个文化场馆中的两个现已安装了钢结构格构屋顶 © Zaha Hadid Architects
Construction works are progressing on the site of the Zhuhai Jinwan Civic Art Centre. The steel structure of its lattice roof canopy has now been installed over two of the centre’s four cultural venues

项目设计达到了中国绿色建筑二星级标准。相关结构部件和材料的选用与采购都优先考虑可循环材料,并将损耗降至最低。

Designed to achieve two stars within China’s Green Building Evaluation Standard, the selection and procurement of the centre’s structural components has prioritized recycled materials.
